INTRODUCTION

1. Introduction

Thank you for purchasing the MOSS-TRI DSP Synthesizer Option. To ensure long and trouble-free enjoyment, please read this user’s guide carefully and use the product correctly.

Before you use this product, be sure to read the “Safety precautions” found at the beginning of the Parameter Guide.

This guide explains the bank M parameters which are added when the MOSS-TRI DSP Synthesizer Option is installed (pre-installed in the Trinity V3 series). For details on parameters other than bank M, refer to your Parameter Guide, Basic Guide, and Effect Guide.

When this option is installed (pre-installed in the Trinity V3 series), the bank S programs created by the Solo-TRI option will become invalid. However, explanations of bank S in the Parameter Guide, Basic Guide, and Effect Guide will still apply to “bank M”. Also, please refer to the Voice Name List for V3 together with the Voice Name List which you already have.

In combination mode, bank M programs can be selected only for one timbre (☞page 4 in Parameter Guide). In Sequencer mode, bank M programs can be selected only for one track (☞ page 72 in Parameter Guide).

If a bank M program is selected for any timbre in a combination, the D-mod Src “Tempo” for the AMS or effect of the timbre program will use the Prog. Tempo setting (☞page 61 of this manual) (when the MIDI Clock Source is Internal).

In all modes, you must use an insertion effect when using bank M programs. If you do not use an insertion effect, the output will be low.

Introduction

Features of MOSS-TRI

This is a MOSS (Multi-Oscillator Synthesis System) tone generator with six voices of polyphony. Bank M contains 64 sounds which use the MOSS tone generator. When the PBS-TRI Flash ROM

Option is installed, an additional 64 sounds are added to bank M, bringing the total to 128 sounds.

The MOSS tone generator parameters are divided into voice, EG, LFO, effect and control sections. The voice section contains an oscillator section and a filter section, etc.

• The oscillator section contains two oscillators (1, 2) which allow you to use 13 oscillator algorithms (standard, ring modulation, VPM, resonance, organ model, electric piano model etc.), in addition to a sub oscillator and a noise generator.

• The filter section provides two filters, each of which allows you to use one of five types of filtering, including a dual-band pass filter with two independent center frequencies that let you simulate human voice sounds or the body resonances of a violin or guitar.

This voice section can be modulated by five EG units and four LFO units to apply diverse changes in pitch, timbre and volume to the sound.

Bank M Program Structure

2. Bank M program structure

Program structure

Each program of bank M has the following structure.

OSC Section

Oscillator 1

Oscillator 2

Sub Oscillator

Noise Generator

Mixer Section

Mixer

EG1 EG2 EG3 EG4 Amp.EG

LFO1 LFO2 LFO3 LFO4

Filter Section

Filter 1

LPF/HPF/BPF/BRF/2BPF

Filter 2

LPF/HPF/BPF/BRF/2BPF

AMP Section

Amp1

Amp2

Feedback

FX Section

Pan

Insert Effect

Joy Stick, Ribbon Controller

& other controllers

Master Effect

3 4

1/L/Mono 2/R

Oscillator section

This is the section which creates the waveform that is the basis of the sound. These settings are made by the “Program Edit P1” and “Program Edit P2” parameters.

• OSC 1, 2

Thirteen methods of sound production (i.e., thirteen oscillator types) are provided. Two of these oscillator types can be used together, and settings made to specify the basic pitch, etc. However depending on the oscillator type, only one oscillator may be available.

These settings are made by the “1-2: OSC Basic,” “1-3: OSC 1 Pitch,” “1-4: OSC 2 Pitch,” and “2-1: OSC” parameters.

• Sub oscillator

This lets you use one of four types of basic waveform. Pitch-related settings can be made in the same way as OSC 1 and 2.

These settings are made by the “1-5: Sub Pitch” and “2-2: Sub/Noise” parameters.

• Noise generator

This generates white noise. The noise can be sent through a multi-mode filter (low pass filter, high pass filter, band pass filter).

These settings are made by the “2-2: Sub/Noise” parameters.

Mixer section

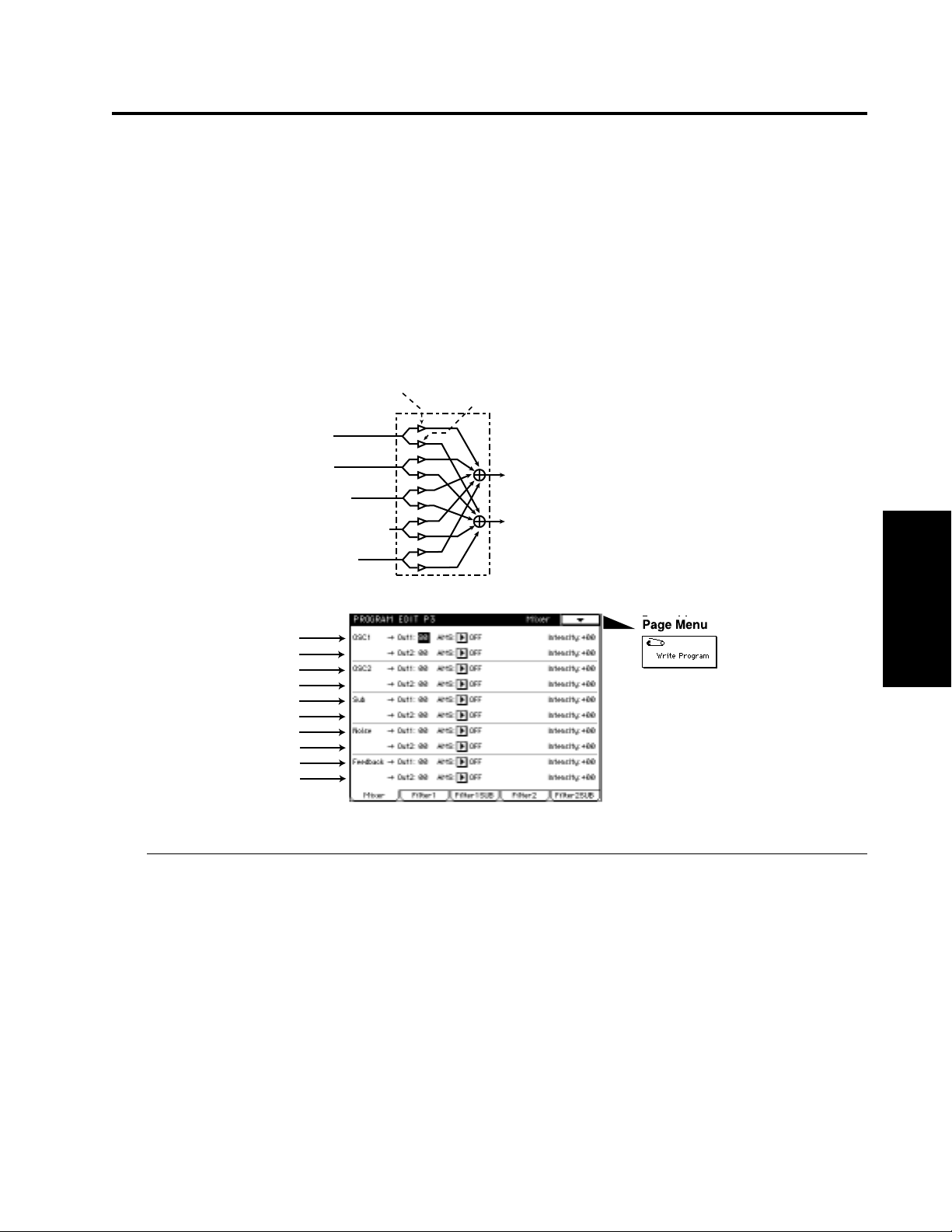

The output of oscillators 1 and 2, the sub oscillator, and the noise generator are mixed with the feedback from the amp section, and output to multi-mode filters 1 and 2 (the filter section).

These settings are made by the “3-1: Mixer” parameters.

Bank M Program Structure

Filter section

This section modifies the waveform by attenuating or emphasizing specific portions of the frequency spectrum. It contains two multi-mode filters. Each filter can be set to one of the following types: low pass filter, high pass filter, band pass filter, band reject filter, or dual band pass filter. This lets you modify the brightness of the sound. You can also select the way in which the two filters will be connected with the mixer section and amp section. These settings are made by the “3-2: Filter 1,” “3-3: Filter 1 SUB,” “3-4: Filter 2,” and “3-5: Filter 2 SUB” parameters.

Amp section

This section modifies the volume of the output from the filter section. It contains two independent amplifiers. The signal which is input to each amplifier will depend on how the two filters are connected. The amp section also contains an amplitude envelope generator (Amp EG) which controls the amp. These settings are made by the “4-1: Amp” and “4-2: Amp EG” parameters.

Effect section

This section applies effects to the signal which is output from the amp section. It has the same parameter structure as the programs of other banks. These settings are made by the “Program Edit P7” and “Program Edit P8” parameters.

Program Structure

EG section

This section provides four general-purpose envelope generator (EG) units. The four EG’s for which settings are made in the EG section can be used as modulation sources for the parameters of each section, in order to apply time-variant change to the sound. These settings are made by the “Program Edit P5” parameters.

LFO section

This section provides four general-purpose LFO units. The four LFO’s for which settings are made in the LFO section can be used as modulation sources for the parameters of each section, in order to apply cyclic change to the sound. These settings are made by the “Program Edit P6” parameters.

Program basic section

Settings are made here for the program name, category, scale, key assign, keyboard, and the control nctions (joystick, ribbon controller, etc.). These settings are made by the “1-1: Prog Basic” parameters.

Editing

Bank M programs are similar to bank A and bank B programs, in the respect that they can be edited in Program Play mode or by using the Performance Editor. One method to try is to use an existing program which resembles the desired sound, and use Program Edit mode to edit the parametes.

The filter, amp, effect, EG and LFO sections will function in the same way as for banks they do inand B, but the display page structure and the parameters are different (☞ “3. Parameters” in this manual).

The operation and parameters of the oscillator and mixer sections are unique to bank M programs.

Bank M Program Structure

Characteristics of each oscillator

For bank M sounds, OSC 1 provides thirteen oscillator types (methods of sound generation) and OSC 2 provides nine types. In Program Edit P1 “1-2: OSC Basic” you can select one of these types for each oscillator, to specify the combination.

If OSC 1 is set to an oscillator type of 01:Standard to 09:Electric Piano Model, you will also be able to select an oscillator type of 01:Standard to 09:Electric Piano Model for OSC 2. If OSC 1 is set to an oscillator type of 10:Brass Model to 13: Bowed String Model, OSC 2 will not be available for use.

01: Standard OSC

This simulates the oscillator of an analog synthesizer. It can produce the same effects as an analog synthesizer, such as pulse width modulation (☞ page 14 of this manual).

02: Comb Filter OSC

This oscillator creates pitched sound from noise or an impulse. It can create a wide variety of sounds — not only noisy sounds, but also sounds ranging from synth-bass to strings (☞page 7 of this manual).

03: VPM OSC (Variable Phase Modulation OSC)

This oscillator uses phase modulation to create overtones. By modulating the phase of two oscillators and using a wave shaping table to process the sound, rich overtones can be produced (☞page 19 of this manual)

04: Resonance OSC

This oscillator uses four tunable filters which are set up in series. Noise is input through the filter bank for very ethereal sounds (☞page 21 of this manual).

05: Ring Modulation OSC - This oscillator multiplies the modulator and carrier and outputs the

resultant signal. 06: Cross Modulation OSC - This oscillator uses a modulator to frequency-modulate a carrier. 07: Sync Modulation OSC (oscillator sync)

These are special oscillators which simulate the effect of two oscillators which are used to modulate each other,

which was a technique that was possible on analog synthesizers. These are especially suitable for producing

sounds that are rich in overtones, such as bells, metallic sounds or gongs (☞page 23, 24, 25 of this manual).

08: Organ Model

This simulates a drawbar organ with three drawbars (when one oscillator is used) or six drawbars (when two

oscillators are used) (☞page 26 of this manual). Since each drawbar can use one of four types of waveform, a

wide range of tones can be produced.

09: Electric Piano Model

This is a physical model which simulates a warm, vintage electric piano sound (☞page 8 of this manual).

10: Brass Model

This is a physical model which simulates a brass instrument such as a trumpet or trombone (☞page 30 of this

manual).

11: Reed Model

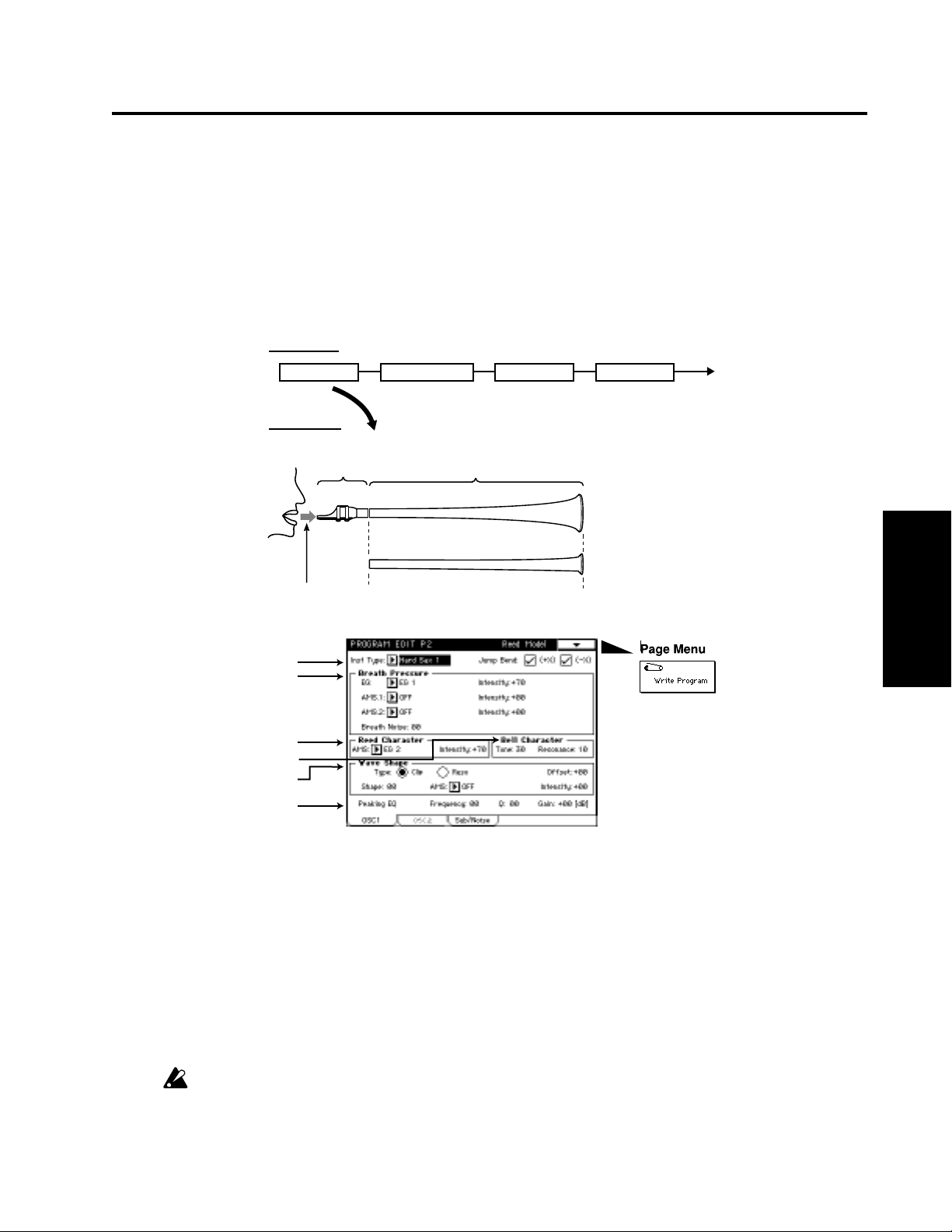

This is a physical model which simulates a wind instrument such as a saxophone or flute (☞page 33 of this

manual)

12: Plucked String Model

This is a physical model which simulates a plucked string instrument such as a guitar or bass guitar (☞page 36

of this manual).

13: Bowed String Model

This is a physical model which simulates a bowed string instrument (☞page 40 of this manual).

3. Parameters

This section explains the bank M parameters which are added when the MOSS-TRI DSP Synthesizer Option is installed (pre-installed in the Trinity V3 series). For details on parameters other than bank M,

refer to your Parameter Guide, Basic Guide, and Effect Guide.

Program Play Mode Program Play P1

1–1: Program Play

Here, you can select programs and perform simple editing. For details on the parameters, refer to page 1 of your Parameter Guide: “1. Program Play mode.”

1-1: Prog Play

Parameters

Depending on the oscillator type(s) used by the program or the combination of effect types, a brief interval of time may be required before a newly-selected program actually begins operating after it is selected.

Prog. Play P1

1-1: Prog Basic

Program Edit Mode

The Write Program item in the page menu commands of each page lets you write an edited program to the program number you specify. Be sure to write an edited program that you wish to keep. If you turn off the power or select another program before you write, the edited program cannot be recovered. For details refer to Basic Guide page 23, “9. Writing a program or combination”.

Program Edit P1

Here you can make basic settings for the program, and basic settings for the oscillator(s) that will be

used.

1–1: Prog Basic

1–1a 1–1b

1–1c

1–1d 1–1e 1–1f

1–1a: Program Name

This indicates the program that was selected in Program Play mode.

You can press the text edit button to access a window that allows you to rename the program (☞page

6 in Basic Guide).

When you wish to write a renamed program, be sure to use the Write Program operation (☞page 23 in Basic Guide). If you select another program or turn off the power, the newly specified program name will be lost.

1–1b: Category

Two categories can be specified for each program.

When selecting programs in Program Play mode, Combination Play mode, or Sequencer mode, you

can use these categories to search for the desired program.

A (Category A) [Keyboard…Drums/Perc.]

With the factory settings, these are listings of different types of instruments, but they can be changed in Global

mode “4-1: Category Program A” (☞page 128 in Parameter Guide).

B (Category B) [User Category P01…P16]

The factory set category names can be changed in Global mode “4-2: Category Program B” (☞page 128 in

Parameter Guide).

1-1: Prog Basic

1–1c: Assign/Hold

Here, you can specify how notes will sound when keys are pressed.

Voice Assign [Mono (Multi), Mono (Single), Poly]

Selects whether the sound will be played monophonically or polyphonically.

Mono (Multi): Multi-triggered monophonic playing. Mono (Single): Single-triggered monophonic playing Poly: Polyphonic playing

When Poly is selected, the Retrigger Control and Threshold parameters will be unavailable.

Priority [Last, Low, High]

Specifies the priority order that will be used when the number of keys pressed exceeds the maximum polyphony.

Last: The last-pressed note will take priority Low: The lowest note will take priority High: The highest note will take priority

Hold

When this is checked, the note will continue to sound after the key is released. However, if the EG selected by “4-1: Amp” (normally the Amp EG is used) has a sustain level of zero, the note will decay naturally.

Retrigger Control [OFF…MIDI (CC#83)]

“Retrigger” refers to the action of resetting the EG and LFO at the time of note-on (the EG will return to its start level, and the LFO will return to the beginning of the cycle of its waveform). Here you can select the controller (Retrigger Controller ☞page 64 of this manual) which will specify whether or not the sound will be retriggered when a note-on occurs.

Threshold (Retrigger Control Threshold) [1…127]

Specifies the value at which EG and LFO will be retriggered by a note-on. The state of the controller selected by Retrigger Control (i.e., whether the controller value is above or below the

specified Threshold value) will determine whether or not the sound will be retriggered when a note-on occurs. The operation of this function will differ depending on the Voice Assign setting. With a setting of Mono (Multi), retriggering will occur if the controller is below the threshold value. If Retrigger

Control is OFF, retriggering will always occur. With a setting of Mono (Single), retriggering will occur if the controller is above the threshold value. If Retrigger

Control is OFF, retriggering will not occur.

If a note-on occurs when all notes are off, retriggering will always occur. LFO’s whose Key Sync is turned OFF will not be reset even if retriggering occurs.

Parameters

Prog. Edit P1

1–1d: Unison

Here, you can make settings for unison mode.

Unison [OFF, 2voices, 3voices, 6voices]

Specifies the number of notes which will be sounded in unison. With a setting of OFF, unison will not be used. The maximum polyphony will be three notes with a setting of 2voices, two notes for a setting of 3voices, and

one note for a setting of 6voices.

Mode [Fixed, Dynamic]

Specifies how the number of voices specified by the Unison setting will be allocated. With a setting of Fixed, the number of voices specified by the Unison setting will always sound. With a setting of Dynamic, the number of voices will be determined by the current note-playing situation.

Detune [0…99]

Detunes the notes that are sounded simultaneously by the Unison function.

1-1: Prog Basic

1–1e: Scale

Specifies the scale type

Type (Scale Type) [Equal Temperament…All Range User Scale]

Selects the basic scale for the internal tone generator. The user scales can be specified in Global mode “3-1: User

Scale” (☞page 127 in Parameter Guide).

Equal Temperament

The most widely used scale, consisting of equally-spaced semitone steps.

Pure Major

The major chords of the selected key will be perfectly in tune.

Pure Minor

The minor chords of the selected key will be perfectly in tune.

Arabic

This reproduces a quarter-tone scale of Arabic music.

Pythagorean

A scale based on ancient Greek musical theory, suitable for playing melodies.

Werckmeister (Werkmeister III)

An equal-tempered scale used in the later Baroque period.

Kirnberger (Kirnberger III)

A scale created in the 18th century, and used mainly for tuning harpsichords.

Slendro

An Indonesian gamelan scale in which the octave consists of 5 notes. If the Key parameter is set to C, use the C, D, F, G, and A keys. (Other keys will produce the same pitches as

equal temperament.)

Pelog

An Indonesian gamelan scale in which the octave consists of 7 notes. If the Key parameter is set to C, use only the white keys. (The black keys will produce the same pitches as

equal temperament.)

Octave User Scale

This is the one-octave scale that you create in Global mode “3-1b: Octave Notes” (☞page 127 in Parameter Guide).

Stretch

This is a tuning used on acoustic pianos.

All Range User Scale

This is the full-range scale (C-1=G9) that you create in Global mode “3-1a: All Notes” (☞page 127 in Parameter Guide).

Key (Scale Key) [C…B]

Specifies the tonic note of the selected scale.

Random [0…99]

As this value is increased, the pitch of the note will become increasingly unpredictable. Normally you will leave

this set at zero.

Adjust this parameter when you wish to simulate instruments whose pitch is naturally unstable, such as tape-

mechanism organs or acoustic instruments.

1-1: Prog Basic

1–1f: Panel Switch Assign

These parameters assign the function of the front panel SW1 and SW2 switches (assignable panel switches 1 and 2).

AMSource

SW1 [JS(X) Lock…Modulation (CC#80)]

AMSource

SW2 [JS(X) Lock…Modulation (CC#81)]

The functions which can be assigned to SW1 and SW2 are the same (except for Modulation), and are as follows: JS(X) Lock, JS(+Y) Lock, JS(–Y) Lock, Ribbon(X) Lock, Ribbon(Z) Lock, After Touch Lock, JS & Ribbon Lock

Each time you press SW1 (or SW2), the selected controller will alternate between Lock/Unlock (a lit LED indicates Lock). When you press SW1 (or SW2) while operating a controller, subsequent movement of that controller will produce no change.

For example if you select JS(+Y) Lock, and then move the joystick away from yourself and press SW1 (or SW2), the joystick (+Y) movement will be locked (held) at that position, and modulation will continue to be applied even after the joystick is allowed to return. By then moving the joystick in the (–Y) direction, you can apply both types of modulation simultaneously.

MIDI

If this is locked, the corresponding controller will also stop transmitting MIDI, but reception will still occur.

Octave Down

Each time you press SW1 (or SW2), the original octave setting will alternate with a setting of one octave lower.

Octave Up

Each time you press SW1 (or SW2), the original octave setting will alternate with a setting of one octave higher.

Portamento Off

Each time you press SW1 (or SW2), the portamento effect will alternate between On and Off (lit LED indicates Off). This is valid only for bank M programs.

Parameters

MIDI

CC#65 will be transmitted each time On/Off occurs (a value of 0 for Off, 127 for On).

Modulation

Select this when you wish to use the switch as a AMS or Effect Dynamic Modulation source. In this case, you must first specify the control destination.

SW1 and SW2 differ for this function alone. For each On/Off, SW1 will transmit CC#80, and SW2 will

MIDI

transmit CC#81 (a value of 0 for Off, 127 for On).

Prog. Edit P1

1-2: OSC Basic

1–2: OSC Basic

1–2a

1–2b 1–2c 1–2d

1–2a: Multi Oscillator Synthesis Setup

Here, you can make settings for the oscillator.

The parameters that are set in “2-1: OSC 1” and “2-2: OSC 2” will differ depending on the oscillator

type that is selected here.

OSC 1 (Oscillator 1 Type) [01: Standard…13: Bowed String Model]

Selects the oscillator type for oscillator 1.

01: Standard

02: Comb Filter

03: VPM (Variable Phase Modulation OSC)

04: Resonance

05: Ring Modulation

06: Cross Modulation

07: Sync Modulation

08: Organ Model

09: Electric Piano Model

10: Brass Model

11: Reed Model

12: Plucked String Model

13: Bowed String Model

When 10: Brass Model, 11: Reed Model, 12: Plucked String Model, or 13: Bowed String Model are selected, OSC 2 cannot be used.

OSC 2 (Oscillator 2 Type) [01: Standard…09: Electric Piano Model]

Selects the oscillator type for oscillator 2. Refer to OSC 1.

1–2b: Common Pitch Modulation

Creates time-varying changes in the pitch of all oscillators (oscillators 1 and 2, and the sub oscillator).

AMS (Alternate Modulation Source) [OFF…MIDI (CC#83)]

Selects the modulation source (☞page 64 of this manual) that will control the pitch of all oscillators (oscillators

1 and 2, and the sub oscillator).

Intensity (Common Pitch AMS Intensity) [–99…+99]

Specifies the depth and direction of the effect produced by AMS.

1-2: OSC Basic

1–2c: Bending

Specifies the width of pitch change that will occur when the joystick is moved to left and right.

JS(+X) (Joystick Intensity +X) [–60…+24]

Specifies the amount and direction of pitch change (in semitone units) that will occur when the joystick is moved to the right.

With positive (+) settings the pitch will rise, and with negative (-) settings the pitch will fall. A setting of 12 will produce one octave of change.

Step (Joystick Step +X) [Continuous, 1/8, 1/4, 1/2, 1…12]

Specifies how the pitch will change when the joystick is moved to the right. Continuous: Smooth change.

1/8: Change in 1/8 semitone steps. 1/4: Change in 1/4 semitone steps. 1/2: Change in 1/2 semitone steps.

1...12: Change in steps of the specified number of semitones (up to 1 octave).

JS(–X) (Joystick Intensity –X) [–60…+24]

Specifies the amount and direction of pitch change (in semitone units) that will occur when the joystick is moved to the left.

Step (Joystick Step –X) [Continuous, 1/8, 1/4, 1/2, 1…12]

Specifies how the pitch will change when the joystick is moved to the left. Refer to Step (Joystick Step +X).

Parameters

If the Step (Joystick Step +X) or Step (Joystick Step –X) settings are greater than the settings for JS (+X) and JS (–X), the pitch will not change.

1–2d: Portamento

These settings specify how portamento will be applied. (Portamento creates a smooth change in pitch from one note to the next.) The setting you make here is valid only if Enable is checked.

Enable

Check this when you wish to use portamento.

Fingered

Check this when you want to apply portamento only when a note is pressed while continuing to hold the previous note.

Time [0…99]

Specifies the portamento time. Higher values will cause the pitch to change more slowly.

AMS (Alternate Modulation Source) [OFF…MIDI (CC#83)]

Selects a modulation source (☞page 64 of this manual) that will control “Time.”

Intensity (Portamento Time AMS Intensity) [–99…+99]

Specifies the way in which the portamento time will be controlled by the “AMS .”

Prog. Edit P1

1-3: OSC 1 Pitch

1–3: OSC 1 Pitch

Here, you can make settings for the basic pitch of oscillator 1, pitch modulation, and pitch slope.

1–3a: Basic Pitch

Specifies the basic pitch of oscillator 1

Octave [32'…4']

Specifies the basic pitch of oscillator 1 in steps of an octave. 32' is two octaves below, 16' is one octave below, 8'

is standard pitch, and 4' is one octave above.

1–3a 1–3b

1–3c

Transpose [–12…+12]

Adjusts the basic pitch specified by “Octave” in semitone steps.

Tune [–50…+50]

Makes fine adjustments to the pitch in one-cent steps.

Frequency Ofs [–10.0…+10.0]

Makes fine adjustments to the pitch in 0.1 Hz steps.

1–3b: Pitch Modulation

Specifies the pitch Modulation.

AMS.1 (Alternate Modulation Source 1) [OFF…MIDI (CC#83)]

Selects a modulation source 1 (☞page 64 of this manual) which will modify the pitch (e.g., apply vibrato).

Intensity (Pitch AMS.1 Intensity) [–99…+99]

Specifies the depth and direction of the pitch change that will be controlled by “AMS.1.”

AMS.1 Int (AMS.1 Intensity Alternate Modulation Source) [OFF…MIDI (CC#83)]

Specifies the controller (☞page 64 of this manual) that will control the “Intensity (Pitch AMS.1 Intensity).”

Intensity (AMS.1 Int AMS Intensity) [–99…+99]

Specifies the depth of the pitch modulation effect controlled by “AMS.1 Int .”

1-3: Osc1 Pitch, 1-4: OSC2 Pitch, 1-5: Sub Pitch

AMS.2 (Alternate Modulation Source 2) [OFF…MIDI (CC#83)]

Selects a modulation source 2 (☞page 64 of this manual) which will modify the pitch (e.g., apply vibrato).

Intensity (Pitch AMS.2 Intensity) [–99…+99]

Specifies the depth and direction of the pitch change that will be controlled by “AMS.2.”

1–3c: Pitch Slope

Specifies how pitch will change in relation to the keyboard (key)

Center Key [C–1…G9]

Specifies the key at which Lower/Higher keyboard tracking will begin to apply.

Low Slope [–1.00…+2.00]

Specify the depth and direction of the pitch change that will occur for notes below the “Center Key.”

High Slope [–1.00…+2.00]

Specifies the depth and direction of the pitch change that will occur for notes above the Center Key. When Low Slope and High Slope are set to +2.0, playing one octave upward from the Center Key will cause the

pitch to rise two octaves. With a setting of –1.0, playing one octave upward will cause the pitch to fall one octave. With a setting of 0.0, the

notes in the respective areas will produce the same pitch as the Center Key. To play pitches normally, set this parameter to +1.0.

Parameters

Pitch

C-1

C-1 C4 C9

Int=+2.0

Int=-1.0

Center Key

Int=+1.0

Int=0.0

Key

1–4: OSC 2 Pitch

Here, you can make settings for the oscillator type, basic pitch, pitch keyboard tracking, and pitch modulation of oscillator 2. The parameters of oscillator 2 are the same as for oscillator 1. (Refer to the explanation of the “1–3: OSC 1 Pitch” page).

1–5: Sub Pitch

Here, you can make settings for the oscillator type, basic pitch, pitch keyboard tracking, and pitch modulation of sub oscillator . The parameters of sub oscillator are the same as for oscillator 1. (Refer to the explanation of the “1–3: OSC 1 Pitch” page).

Prog. Edit P1

2:1 OSC 1 (01: Standard)

Program Edit P2

Here, you can make settings for each oscillator type. The oscillator type is specified in “1-2a: Multi

Oscillator Synthesis Setup” of “1-2: OSC Basic.”

The display pages that appear will depend on the selected oscillator type.

2–1: OSC 01: Standard

This oscillator produces the waveforms used by an analog synthesizer (sawtooth wave, pulse wave,

triangle wave) and sine wave. Sawtooth wave, pulse wave and triangle wave waveforms can be

modified using waveform modulation. You can specify either sawtooth wave or pulse wave as the

main waveform, and mix triangle wave or sine wave with this for output. The level of these three

waveforms can be adjusted independently. In addition, wave shaping can be applied to the output of

this oscillator.

Waveform modulation

Pulse width modulation (PWM) on an analog synthesizer produces time-varying change in the pulse width of a pulse

wave. The waveform modulation provided by the MOSS-TRI option is an extension of this, which varies not only the

pulse width but also the waveform of a sawtooth wave or triangle wave. Waveform modulation will affect the various

waveforms as follows.

Sawtooth wave

Waveform modulation will modify a sawtooth waveform as

shown below, creating time-variant change in the sound.When

modulation is 0, the basic sawtooth waveform will be produced,

and when it is 99, a sawtooth wave of double the frequency will

be produced. If the modulation value is a negative number, a

different effect will result than with positive settings.

Pulse wave

Waveform (pulse width) modulation will modify a pulse

waveform as shown below, creating time-variant change in the

sound. When modulation is 0, a square wave will be produced,

and when it is 99, the pulse width will be 0, meaning that there

will be no sound. If the modulation value is a negative number,

the results will be inverted.

Triangle wave

Waveform modulation will modify a ramp wave as shown below, creating time-variant change in the sound.

When modulation is 0, a triangle wave will result, and as the modulation value increases, the waveform will

become a ramp wave (a waveform in which the slope is broken in two). At a modulation value of 50, a trapezoidal

wave will result, and at a value of 99 the waveform will once again

be a triangle wave. If the modulation value is a negative number,

the results will be inverted.Compared to sawtooth or pulse waves,

this waveform produces a strong fundamental with fewer

overtones, making it particularly suitable for bass sounds etc.

-99 -33 0 33 66 99

-98 -33 0 33 66 98

-99 -25 0 25 50 75 99

2–1a

2–1b

2–1c

2:1 OSC 1 (01: Standard)

2–1a: Wave

Main Wave [Saw, Pulse]

Selects the main waveform. Select either Saw (sawtooth wave) or Pulse (pulse wave).

Level [0…99]

Specifies the output level of the main waveform.

Wave Edge [0…99]

Adjusts the amount of high-range overtones for the main waveform. As the pitch rises, this effect will become stronger, and in the low range there will be little effect. Lower settings of this parameter will produce a more mellow sound, and in the vicinity of 0 the volume will also decrease.

Triangle Level [0…99]

Specifies the output level of the triangle waveform. It will be output mixed with the main waveform.

Sine Level [0…99]

Specifies the output level of the sine waveform. It will be output mixed with the main waveform.

Phase Shift (Triangle & Sine Phase Shift) [–99…+99]

Specifies the phase difference between the main waveform and the triangle and sine waveforms. (The triangle and sine waveforms will always be in phase with each other.)

2–1b: Waveform(Waveform Modulation)

Waveform [–99…+99]

Specifies the waveform. For the way in which this value will affect the waveform, refer to the diagrams shown on the previous page for sawtooth wave, pulse wave, and triangle wave.

LFO [LFO1…LFO4]

Selects the source LFO for waveform modulation. LFO settings are made in the “Program Edit P6.”

Intensity (Waveform Modulation LFO Intensity) [–99…+99]

Specifies the depth and direction of the waveform modulation that will be controlled by the LFO specified in “LFO.”

AMS (Alternate Modulation Source) [OFF…MIDI (CC#83)]

Selects a modulation source (☞page 64 of this manual) that will control “Waveform.”

Intensity (Waveform AMS Intensity) [–99…+99]

Specifies the depth and direction of the waveform modulation controlled by the “AMS.” For negative settings, the polarity of the modulation source will be inverted.

2–1c: Wave Shape

Input (Input Level) [0…99]

Specifies the level of the signal that is input from the standard oscillator to the wave shaping table.

Example of when Input Level is modified (Table Type : Reso)

Output level

Output waveform

Parameters

Prog. Edit P2

Input level

Input Level

Input waveform

=99

Input Level

=75

Input Level

=50

Input Level

=25

AMS (Alternate Modulation Source) [OFF…MIDI (CC#83)]

Selects a modulation source (☞page 64 of this manual) that will control “Input.”

Intensity (Input Level AMS Intensity) [–99…+99]

Specifies the depth and direction of the waveform modulation controlled by the “AMS.”

2:1 OSC 1 (01: Standard)

Type (Wave Shape Table Type) [Clip/Reso]

Use the radio buttons to select the wave shaping table which will modify the input waveform.

Clip (clip type) and Reso (resonant type) tables will modify the waveform as shown by the diagrams in Shape,

below.

Offset (Wave Shape Offset) [–99…+99]

Specifies an offset amount that will be added to the signal specified by “Input.”

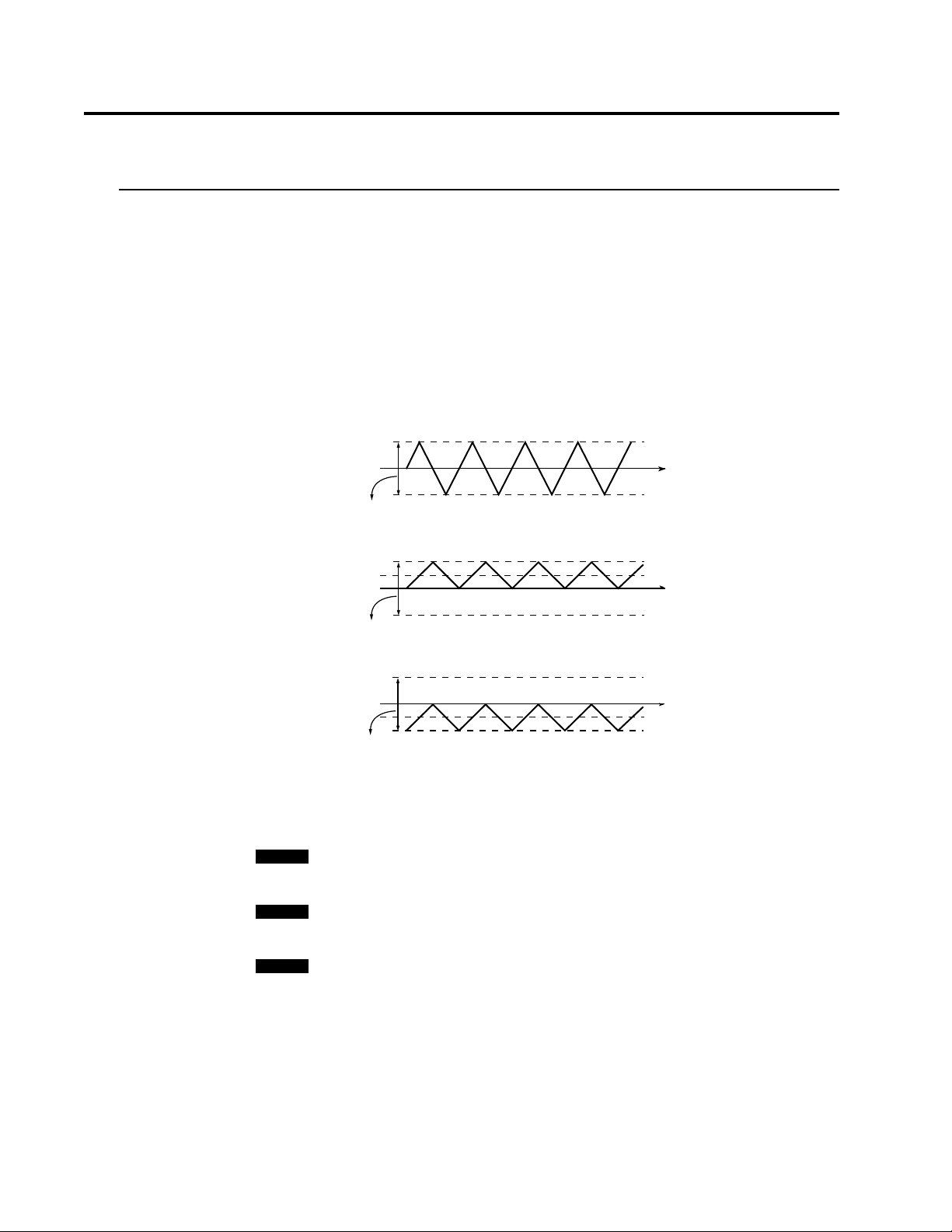

Example of when Offset is modified (Table Type: Clip)

Output level

Output waveform

Input level

Offset=50 Offset=0 Offset=-50

Input waveform (Input Level fixed)

Shape [0…99]

Specifies the characteristics of the table which will modify the input waveform. The characteristics of the table

will change as follows.

Shape of the wave shaping table and the Shape parameter

Waveform before being input to the table

CLIP type

Output level

Shape:0

Waveform level

Resonant type

Output level

Shape:0

Waveform level

Shape:99

Input level

Output of the clip type table when a sawtooth waveform is input

Input level

Output of the resonance type table when a sawtooth wave is input

Waveform before being input to the table

AMS (Alternate Modulation Source) [OFF…MIDI (CC#83)]

Selects a modulation source (☞page 64 of this manual) that will control “Shape.”

Intensity (Shape AMS Intensity) [–99…+99]

Specifies the depth and direction of the waveform modulation controlled by the “AMS.”

Balance [0…99]

Specifies the balance between the signal that has passed through the wave shaping table and the output signal

from the standard oscillator. With a setting of 99, it will be only the output of the wave shaping table.

AMS (Alternate Modulation Source) [OFF…MIDI (CC#83)]

Selects a modulation source (☞page 64 of this manual) that will control “Balance.”

Intensity (Balance AMS Intensity) [–99…+99]

Specifies the depth and direction of the waveform modulation controlled by the “AMS.”

2:1 OSC 1 (02: Comb Filter)

02: Comb Filter

In this oscillator, the signal from the other oscillator waveform or the noise generator is sent through a comb filter, and the feedback level of the comb filter is varied in order to produce tonal change. When noise is input, raising the feedback of the comb filter will gradually change the sound into a pitched tone.

Comb Oscillator

Noise Level

Noise

OSC1/2 or Sub OSC Filter1 out Filter2 out

Pulse Noise or Impulse

Input Wave Level

Input Level Mod.Source/Intensity

Comb Filter

Delay

High Damp

Comb Filter Feedback

Example of when noise is input

Feedback>0

Level

Comb Filter

Frequency

Feedback=0

2–1a

2–1b 2–1c

2–1d

2–1a: Input

Input

Selects the signal that will be input to the comb filter.

[OSC2(1)+Noise, SubOSC+Noise, Filter1+Noise, Filter2+Noise, Pulse Noise, Impulse]

Level

Frequency

As the Feedback value increases, the sound will become more pitched.

Frequency

Parameters

Prog. Edit P2

Example of when an Impulse is input

Feedback>0

Comb Filter

Time

Feedback=0

Time

Pluse Width=0

Pluse Width=99

Time

As the Feedback is increased, the decay time will become longer.

Time

2:1 OSC 1 (02: Comb Filter)

Level (Input Wave Level) [0…99]

Specifies the volume level of the signal that will be input to the comb filter.

Noise Level [0…99]

This parameter will be available only if “Input” has been set to OSC2(1)+Noise, SubOSC+Noise, Filter1+Noise

or Filter2+Noise. It specifies the volume level of the noise generator output which will be input to the comb

filter.

Pulse Width [0…99]

This parameter will be available only if “Input” has been set to Pulse Noise or Impluse. It specifies the length

of time that the Pulse Noise or Impluse will last after being triggered.

2–1b: Level Modulation

AMS (Alternate Modulation Source) [OFF…MIDI (CC#83)]

Selects a modulation source (☞page 64 of this manual) that will control the volume level of the signal being

input to the comb filter. The volume level is set by the “Level” or the “Noise Level.”

Intensity (Input Wave Level AMS Intensity) [–99…+99]

Specifies the depth and direction of the effect of “AMS.”

2–1c: Feedback

Feedback [0…99]

Specifies the amount of feedback for the comb filter. If this value is high, the resonance of the comb filter will be

high, and the tone will have a clear sense of pitch. Conversely, if this value is low, the input signal will be

output without change, and if the input signal is only noise, the output signal will have no sense of pitch.

AMS.1 (Alternate Modulation Source 1) [OFF…MIDI (CC#83)]

Selects a modulation source 1 (☞page 64 of this manual) that will control “Feedback.”

Intensity (Feedback AMS.1 Intensity) [–99…+99]

Specifies the depth and direction of the effect of “AMS.1 .”

AMS.2 (Alternate Modulation Source 2) [OFF…MIDI (CC#83)]

Selects a modulation source 2 (☞page 64 of this manual) that will control “Feedback.”

Intensity (Feedback AMS.2 Intensity) [–99…+99]

Specifies the depth and direction of the effect of “AMS.2 .”

2–1d: High Damp

High Damp [0…99]

Specifies the amount of attenuation that will be applied to the high-frequency component of the feedback signal

within the comb filter.

As this value is increased, the tone will become more mellow. Conversely, decreasing this value will produce

a brighter tone.

AMS (Alternate Modulation Source) [OFF…MIDI (CC#83)]

Selects a modulation source (☞page 64 of this manual) that will control “High Damp.”

Intensity (High Damp AMS Intensity) [–99…+99]

Specifies the depth and direction of the effect of “AMS.”

2:1 OSC 1 (03: VPM)

03: VPM

The output of a carrier is phase-modulated by a modulator, and output through wave shape processing. By controlling the wave shaping parameters and the feedback gain, tonal changes that are different

than simple phase modulation can be produced.

Carrier Pitch

Modulator Pitch

Modulator Level

Modulator

2-1a

2–1b

2–1c 2–1d

(Basic Pitch)

Carrier

Wave Shape Parameter

Wave Shape

Feedback Gain

Carrier Level

Output

Parameters

2–1e

2–1a: Carrier

Wave [Saw, Square, Triangle, Sine]

Selects the carrier waveform.

Level [0…99]

Specifies the output level of the carrier. This will determine the output level of the VPM oscillator.

AMS.1 (Alternate Modulation 1 Source) [OFF…MIDI (CC#83)]

Selects a modulation source 1 (☞page 64 of this manual) that will control “Level.”

Intensity (Level AMS.1Intensity) [–99…+99]

Specifies the depth and direction of the effect of “AMS.1.”

AMS.2 (Alternate Modulation 2 Source) [OFF…MIDI (CC#83)]

Selects a modulation source 2 (☞page 64 of this manual) that will control “Level.”

Intensity (Level AMS.2 Intensity) [–99…+99]

Specifies the depth and direction of the effect of “AMS.2.”

2–1b: Wave Shape

Shape [0…99]

Specifies the number of cycle of wave shaping. As this value is increased, the number of cycles will increase, causing more overtones to be added to the high-frequency range of the sound.

Prog. Edit P2

Table valiation

Table Variation

Shape:0 Shape:99

+ 46 hidden pages
