1 User Information
1.1 About This Document
This document provides information about products from Kontron and/or its subsidiaries. No warranty of suitability,
purpose, or fitness is implied. While every attempt has been made to ensure that the information in this document is
accurate, the information contained within is supplied “as-is” and is subject to change without notice.
For the circuits, descriptions and tables indicated, Kontron assumes no responsibility as far as patents or other rights
of third parties are concerned.
1.2 Copyright Notice
Copyright © 2013 Kontron America Inc.
All rights reserved. No part of this document may be reproduced, transmitted, transcribed, stored in a retrieval
system, or translated into any language or computer language, in any form or by any means (electronic, mechanical,
photocopying, recording, or otherwise), without the express written permission of Kontron.
ETX®, ETXexpress® and microETXexpress® are trademarks or registered trademarks of Kontron Europe GmbH. Kontron
is a trademark or registered trademark of Kontron AG.
1.3 Trademarks
The following components used on this board are trademarked as follows:
» IBM, XT, AT, PS/2 and Personal System/2 are trademarks of International Business Machines Corporation. » Microsoft is a registered trademark of Microsoft Corporation. » Intel is a registered trademark of Intel Corporation. » COM Express is a trademark of PICMG. » All other products and trademarks mentioned in this manual are trademarks of their respective owners and
indicated with an “*”.
1.4 Standards
Kontron America Inc. is certified to ISO 9001-2008 and ISO 13485-2003 standards.
1
DRAFT COPY FOR REVIEW ONLY
Page 8
COMe-cTH6 User’s Guide
www.kontron.com
DRAFT COPY FOR REVIEW ONLY
1.5 Warranty
This Kontron product is warranted against defects in material and workmanship for the warranty period from the date
of shipment. During the warranty period, Kontron will, at its discretion, decide to repair or replace defective
products.
Within the warranty period, the repair of products is free of charge as long as warranty conditions are observed.
The warranty does not apply to defects resulting from improper or inadequate maintenance or handling by the buyer,
unauthorized modification or misuse, operation outside of the product’s environmental specifications or improper
installation or maintenance.
Kontron is not responsible for any defects or damages to other products not supplied by Kontron that are caused by a
faulty Kontron product.
1.6 Technical Support
Technicians and engineers from Kontron and/or its subsidiaries are available for technical support. We are committed
to making our product easy to use and will help you use our products in your systems.
Please consult our website at http://www.kontron.com/support for the latest product documentation, utilities,
drivers and support contacts. Consult our customer section for the latest BIOS downloads, Product Change
Notifications and additional tools and software. You can also always contact your board supplier for technical
support.
2
DRAFT COPY FOR REVIEW ONLY
Page 9
COMe-cTH6 User’s Guide
www.kontron.com
DRAFT COPY FOR REVIEW ONLY
2 Introduction
2.1 The COMe-cTH6 Module
The Kontron COMe-cTH6 COM module complies with the Rev. 2.0 COM Express® specification that provides for a compact form factor (95 x 95 mm) and new COM Express® Type 6 connector definitions. The COMe-cTH6 module design enables the development of graphics-intensive applications based on the Advanced Micro Devices (AMD) R­Series Advanced Processing Unit (APU) and the AMD M3 Fusion Controller Hub (FCH) using the secure development path of an established, future-proof industry standard, the COM Express® compact form factor and pin-out Type 6.
The AMD processor on the Kontron COMe-cTH6 module has two integrated memory controllers for up to 8 GBytes (2x4GB) per channel of DDR3 memory. Support for the latest 3D graphics is provided by the integrated Radeon graphics controller which also provides four independent display interfaces supported with daisy chaining and a maximum resolution of 2560 x 1600 x 60 Hz (Display Port) or 1920 x 1200 x 60 Hz (HDMI/DVI). With seven PCI Express x1 lanes and 8 PEG lanes for flexible configurations, the COMe-cTH6 module is ideal for multi-interface designs and brings the added benefit of low power consumption. These special features make this 95 x 95 mm compact Computer-on-Module a key solution for applications such as multimedia content delivery, outdoor digital signage, infotainment kiosks, POS/POI devices, panel PCs, and professional gaming systems that require high-level graphics performance and support for the latest APIs like DirectX 11, and where low thermal power design is also an advantage.
All modules in the Kontron COM Express® family are compliant with the COM Express® standard. These modules also take advantage of the Kontron Embedded Application Programming Interface (Kontron EAPI), which is cross-platform middleware that is both form factor and operating system independent. This ensures easy interchangeability as well as design scalability and future migration paths.
The COMe-cTH6 module is a complete PC with standard interfaces such as USB 2.0 and USB 3.0, Gigabit Ethernet, SATA 3.0, as well as additional features like high-definition audio (HDA) and ACPI 3.0, Fast I2C, SPI, LPC, RTC, 2x serial ports (RX, TX) and S5 Eco.
2.2 Naming Clarifications
The COM Express® standard defines a Computer-On-Module, or COM, with all the components necessary for a bootable host computer, packaged as a super-component. The interfaces provide a smooth transition path from legacy parallel interfaces such as IDE or parallel ATA (PATA) to Low Voltage Differential Signaling (LVDS) interfaces including PCI Express* and Serial ATA (SATA).
» Basic COM Express® modules have a 125mm x 95mm form factor and follow pin-out types 2 or 6. » Compact COM Express® modules have a 95mm x 95mm form factor and follow pin-out types 2 or 6. » Mini COM Express® modules have a 55mm x 84mm form factor and follow pin-out types 1 or 10.
NOTE: The Kontron COMe-cTH6 compact module takes advantage of new features introduced in the PICMG R2.0 COM Express® Specification.
TM
3
DRAFT COPY FOR REVIEW ONLY
Page 10
COMe-cTH6 User’s Guide
www.kontron.com
DRAFT COPY FOR REVIEW ONLY
2.3 Understanding the COM Functionality
All Kontron COM Express® modules contain two COM Express connectors (X1A and X1B), each with two rows. The primary connector rows are Row A and Row B (connector X1A). The secondary connector rows are Row C and Row D (connector X1B). The COMe-cTH6 module uses the PICMG COM Express® pin-out Type 6 definition, which is a recent addition to the PICMG COM Express standard and documented in Revision 2.0 of the PICMG specification. The Type 6 pin-out is based on Type 2 and also supports new features on the secondary connector. The key changes are:
» The PCI interface is no longer supported and the pins are used instead for digital display interfaces (DDI) and two
additional PCI Express lanes
» The IDE (PATA) parallel interface is no longer supported and the pins are used instead for additional transmit and
receive pairs for four USB 3.0 ports.
» Three dedicated DDI ports have been added. Ports 1, 2, and 3 can be configured individually for Display Port (DP),
HDMI, or DVI and port 1 can also be used for SDV0.
» Two optional two-wire RS232 serial ports have been added using pins formerly assigned to 12V signals.
The primary connector (Row A and Row B) on the COMe-cTH6 module features the following functionality:
» Analog VGA graphics » Gigabit Ethernet LAN » Serial ATA (SATA) » PCI Express* » USB 2.0 and USB 3.0 » Express card » Wake » Speaker » Intel® High Definition Audio (HDA) » LPC (Low Pin Count) bus » TTL serial » Watchdog timer (WDT) » GPIO
2
» I
C
» Power button » SPI (Serial Peripheral Interface) Bus
The secondary connector (Row C and Row D) supports the following buses and I/O:
» PEG x16 (the COMe-cTH6 is limited to 8 lanes, either the upper 8 or lower 8) » PCI Express » DDI » DP/DVI/HDMI » LVDS 18/24-bit single/dual channel
NOTE: For full descriptions of the COM Express Type 6 pin-outs, refer to the PICMG documentation.
4
DRAFT COPY FOR REVIEW ONLY
Page 11
COMe-cTH6 User’s Guide
www.kontron.com
DRAFT COPY FOR REVIEW ONLY
2.4 COM Express® Documentation
This product manual serves as one of three principal references for this COM Express® module design. It documents the specifications and features of the COMe-cTH6 module. The other two references, which are available from your Kontron support representative or from PICMG, include:
» The
PICMG COM.0 COM Express® Module Base Specification
form factors, pin-outs, and signals. This document can be obtained by filling out the order form on the PIGMG website at http://www.picmg.com .
» The
PICMG COM Express® Design Guide
maximum flexibility to accommodate a wide range of COM Express® modules. This guide is on the PICMG website at http://www.picmg.com.
, which serves as a general guide for baseboard design, with a focus on
2.5 COM Express® Module Benefits
Compact form factor (95 x 95 mm) Computer-on-Module Express (COM Express) modules are very compact, highly integrated computers that use either the Type 2 or Type 6 COM Express® connector pin-outs. All compact COM Express modules feature a standardized form factor and a standardized connector layout for a specified set of signals, as defined in the PICMG COM Express® specification (PICMG COM.0.R2). This standardization lets designers create a single-system baseboard that can accept present and future COM Express modules.
Kontron COM Express® modules include common personal computer (PC) peripheral functions such as:
» Graphics » USB ports » Ethernet » Audio » SATA hard disk drive format
Baseboard designers can optimize exactly how each of these functions is implemented physically for the intended application by placing connectors precisely where they are needed on a baseboard that is designed for an optimal fit in the system packaging.
A peripheral PCI Express bus can be implemented directly on the application-specific baseboard rather than on mechanically unwieldy expansion cards. The ability to build a system on a single baseboard using the computer as one plug-in super-component simplifies packaging, eliminates cabling, and significantly reduces system-level total cost of ownership.
A single baseboard design can use a range of COM Express modules. This flexibility enables product differentiation at various price/performance points, and the design of future-proof systems with a built-in upgrade path. The modularity of a COM Express solution also ensures against obsolescence as computer technology evolves. A properly designed COM Express baseboard can work with several successive generations of COM Express modules.
A COM Express baseboard design has many of the advantages of a custom, computer-board design, but delivers better obsolescence protection, greatly reduced engineering effort, and faster time to market.
, Revision 2.0, which defines the COM Express® module
5
DRAFT COPY FOR REVIEW ONLY
Page 12
COMe-cTH6 User’s Guide
www.kontron.com
DRAFT COPY FOR REVIEW ONLY
3 Specifications
3.1 Functional Specification
3.1.4 Processor: AMD R-Series Fusion Accelerated Processing Unit (APU)
» CPU: AMD R-460L quad core 2.0 (2.8) GHz (25W)
AMD R-452L quad core 1.6 (2.4) GHz (19W) AMD R-260H dual core 2.1 (2.6) GHz (17W)
» Cores: Up to four cores » Processor Speed: Up to 4x 2.8 GHz » Memory Controller: Up to 16 GBytes (2x8GB) DDR3 (1066/1333 MT/s) » Graphics Interfaces: Integrated AMD Radeon™ HD 7000 series graphics controller
» Display Support: Four displays with AMD Eyefinity technology (two non-DP plus DP or VGA)
» I/O Interfaces PCI Express 2.0: four PCIe general purpose lanes (Gen 1 and Gen 2) configurable as x1, x2,
» Instruction Set: Kontron Embedded Application Programming Interface (Kontron EAPI) » Package: 27mm x 31mm » Thermal Spec: Operation: 0° to +60°C
Enhanced DirectX®11 graphics multimedia support HD decode for H.264, VC-1, MPEG-2, DivX HW encode for H.264 at 1080p@60fps PEG x8, software-configurable as x1, x2, x4, and x8 Dual channel (18/24-bit) LVDS via Analogix ANX3110 DP-to-LVDS translator
3x DDI interfaces(HDMI/DVI/Display Port) including 1x eDP Additional 3x DP interfaces (multiplexed with PEG) Display Port resolution up to 2560 x 1600 x 60 Hx HDMI/DVI resolution up to 1920 x 1200 x 60 Hz Single analog VGA resolution up to 1960 x 1600 x 60Hz 1x CRT
and x4
Storage: -40° to +85°
3.1.5 Chipset: AMD Fusion Controller Hub (FCH)
» FCH AMD A70M M3 Fusion Controller Hub » Storage 4x SATA 3.0 with 6 Gbits/sec maximum transfer rate » PCI Express: three PCIe general purpose x1 Gen 2 lanes () software-configurable as x3, or as 1 x2 and 1
» LPC LPC bus brought to COM Express connector
x1Express Card: Control signals for two Express Cards Audio: three HDA audio channels mapped to COM Express AC/HDA, Speaker Out USB 2.0: eight ports mapped to two EHCI controllers (5 to one EHCI and 3 to another) USB 3.0: four Super Speed ports
» TPM Atmel AT97SC3204 TPM
6
DRAFT COPY FOR REVIEW ONLY
Page 13
COMe-cTH6 User’s Guide
www.kontron.com
DRAFT COPY FOR REVIEW ONLY
» Watchdog Timer WDT via CPLD » GPIO Four GPIs and four GPOs available on the COM Express connector » SMBus SMBus brought to the COM Express connector via FCH
2
» I
C I2C master with 7-bit I2C addressing with 100 KHz or 400 KHz operation and controller on
CPLD, for off- and on- module use
» External BIOS ROM Support for carrier board SPI devices (new with COM Express Rev 2) » Suspend Modes Core Sleep States: S0, S3, S4, S5, S5 Eco » Wake WAKE0#, WAKE1# support » TDP: 2.3W » Package: 24.5mmx24.5mm
3.1.6 Onboard Devices:
» Ethernet: Intel® I210-AT GbE Controller 10/100/1000 Mbit » LVDS Analogix ANX3110 18/24-bit single/dual channel DP/LVDS Translator » CPLD Altera EPM1270 CPLD » Watchdog Timer: BIOS enables and configures watchdog in the CPLD » Hardware Monitor Nuvoton NCT7904D chip
2
» I
C EEPROM AT24HC04B serial EEPROM for module parameter storage
» TPM Trusted Platform Module uses Atmel AT97SC3204 chip » Fan Header Molex 53261-0371 3-pin header for consistency with Kontron Universal Cooling Solution » Power Management: BIOS-enabled ACPI 4.0 power management for supported OSs
3.1.7 Additional Interfaces:
» Passive Cooling: Passive and Critical Trip Point » ACPI: ACPI 4.0 » Input Voltage: Single supply support with wide range power supply input, 4.75V – 20V
5.0V supply is the optional standby power rail.
7
DRAFT COPY FOR REVIEW ONLY
Page 14
COMe-cTH6 User’s Guide
www.kontron.com
DRAFT COPY FOR REVIEW ONLY
3.2 Functional Block Diagram
Figure 1 is the COMe-cTH6 COM Express™ Type 6 module block diagram.
Figure 1: COMe-cTH6 COM (Type 6) Block Diagram
8
DRAFT COPY FOR REVIEW ONLY
Page 15
COMe-cTH6 User’s Guide
www.kontron.com
DRAFT COPY FOR REVIEW ONLY
3.3 Mechanical Specifications
3.3.1 Module Dimensions
» 95 mm x 95 mm ±0.2 mm (3.47 in. x 3.47 in)
3.3.2 Height on Top
» Approximately 8.0 mm maximum (without the PCB) » Height varies depending on whether an optional cooling solution (either a passive heat sink or a heat spreader
plate) is installed
3.3.3 Height on Bottom
» Approximately 4.06 mm maximum (without the PCB)
Figure 2: COMe-cTH6 Module Mechanical Drawing
All dimensions are shown in millimeters. The COM Express® specification says that these holes should be ± 0.25mm [±0.010"], unless otherwise noted. The tolerances for placement of the COM Express connector with respect to the peg holes (dimensions [16.50, 6.00]) should be ± 0.10mm [±0.004"]. The mounting holes shown in the drawing use 6mm diameter pads and 2.7mm plated holes for use with 2.5mm hardware. The pads are tied to the PCB ground plane. Black circles represent the mounting holes required by the PICMG COM Express® standard.
9
DRAFT COPY FOR REVIEW ONLY
Page 16
COMe-cTH6 User’s Guide
www.kontron.com
Module Power Consumption by Main
Input Supply Voltage
4.75V
12V
20V
Windows Desktop (idle)
5.0W
5.6W
6.0W
TAT at maximum power configuration
33.8W
34.4W
35.0W
S3 with Wake-on-LAN disabled
0.7W
0.8W
0.9W
S5 with Wake-on-LAN disabled
0.4W
0.5W
0.6W
S5 Eco
~0.005W
0.02W
0.05W
DRAFT COPY FOR REVIEW ONLY
3.4 Electrical Specifications
3.5 ATX Power
Main power is on the COM Express VCC_12V pins and standby power is on the VCC_5V_SBY pins. RTC power is provided on the VCC_RTC pins. VCC_12V may or may not collapse in suspend states S3, S4, and S5.
3.5.1 Single Power Supply
4.75V to +20V main power is on the COM Express VCC_12V pins and standby power, if needed, is also provided on the VCC_12V pins. The VCC_5V_SBY pins may be floating or may be tied to a 5V source on the carrier board. RTC power is provided on the VCC_RTC pins.
3.5.2 Supply Current (Windows)
The testing performed to capture the supply current data used tested modules mounted on a Kontron evaluation board with a mouse and keyboard connected. The power consumption tests were executed in Windows XP (with SP3) using a tool to stress the CPU at 100 % load. The power measurement values were captured after 15 minutes of full load or a stable CPU core temperature of 90°C. To ensure a stable die temperature, a corresponding heat sink was used to hold the temperature under the critical trip point. The modules were tested using the maximum CPU frequency. For more detailed information, refer to the Power Consumption diagrams on the EMD Customer section of the Kontron website.
NOTE: It is impossible to test for all possible applications on the market. There may be an application that draws more power from the CPU than the values measured in the table above. Take this into consideration if you are at the limit of the thermal specification, in which case you should consider improving your thermal solution.
10
DRAFT COPY FOR REVIEW ONLY
Page 17
COMe-cTH6 User’s Guide
www.kontron.com
DRAFT COPY FOR REVIEW ONLY
3.6 Environmental Specifications
3.6.1 Temperature
3.6.2 Operating: (with Kontron heat spreader plate assembly):
» Ambient temperature: 0 to 60°C with an active fan heat sink. » Non-operating: -30 to +85°C
NOTE: The maximum operating temperature with the heat spreader plate installed is the maximum measurable temperature on any spot on the heat spreader surface. You must maintain the temperature according to the specification above.
3.6.3 Operating:
» Maximum operating temperature: 0-60°C » Non operating: -30°C to +85°C
NOTE: The maximum operating temperature is the maximum measurable temperature on any spot on the module
3.6.4 Humidity
» Operating: 10% to 90%, non-condensing » Non operating: 5% to 95%, non-condensing
3.7 MTBF
TBD
surface. You must maintain the temperature according to the specification above.
11
DRAFT COPY FOR REVIEW ONLY
Page 18
COMe-cTH6 User’s Guide
www.kontron.com
Type
Description
Type
Description
I/O-3.3
Bi-directional 3.3 V IO-Signal
O-3,3
3.3V Output
I/O-5T
Bi-dir. 3.3V I/O (5V Tolerance)
O-5
5V Output
I/O-5
Bi-directional 5V I/O-Signal
DP-I/O
Differential Pair Input/Output
I-3,3
3.3V Input
DP-I
Differential Pair Input
I/OD
Bi-directional Input/Output Open Drain
DP-O
Differential Pair Output
I-5T
3.3V Input (5V Tolerance)
PU
Pull-Up Resistor
OA
Output Analog
PD
Pull-Down Resistor
OD
Output Open Drain
PWR
Power Connection
O-1,8
1.8V Output
nc
Not connected, Signal not available
DRAFT COPY FOR REVIEW ONLY
4 COMe-cTH6 Connectors
The pin-outs for COM Express® interface connectors X1A (primary connector, rows A and B) and X1B (secondary connector, rows C and D) are documented for convenient reference. See the PICMG COM Express® Specification on the PICMG website and COM Express® Design Guide on the Kontron website for detailed, design-level information.
Figure 3: COM Interface Connector Locations
Table 1: Electrical Signal Abbreviation
NOTE: To protect external power lines of peripheral devices, make sure that the wires have the right diameter to withstand the maximum available current and the enclosure of the peripheral device fulfills the fire-protection requirements in IEC/EN60950.
12
DRAFT COPY FOR REVIEW ONLY
Page 19
COMe-cTH6 User’s Guide
www.kontron.com
Pin
Signal
Description
Type
Termination
Comment
A1
GND1
Power Ground
PWR - -
A2
GBE0_MDI3-
Ethernet Receive Data-
DP-I
Intel® I210-AT
-
A3
GBE0_MDI3+
Ethernet Receive Data+
DP-I
Intel® I210-AT
-
A4
GBE0_LINK100
Ethernet Speed LED 100Mbps
OD -
A5
GBE0_LINK1000
Ethernet Speed LED 1000Mbps
OD -
A6
GBE0_MDI2-
Ethernet Receive Data-
DP-I
Intel® I210-AT
-
A7
GBE0_MDI2+
Ethernet Receive Data+
DP-I
Intel® I210-AT
-
A8
GBE0_LINK
LAN Link LED
OD -
A9
GBE0_MDI1-
Ethernet Receive Data-
DP-I
Intel® I210-AT
-
A10
GBE0_MDI1+
Ethernet Receive Data+
DP-I
Intel® I210-AT
-
A11
GND2 (Fixed)
Power Ground
PWR - -
A12
GBE0_MDI0-
Ethernet Transmit Data-
DP-O
Intel® I210-AT
-
A13
GBE0_MDI0+
Ethernet Transmit Data+
DP-O
Intel® I210-AT
-
A14
GBE0_CTREF
LAN Reference Voltage
O-3.3
-
A15
SUS_S3
Indicates Suspend to RAM state
O-3.3
A16
SATA0_TX+
SATA 0 Transmit Data+
DP-O -
A17
SATA0_TX-
SATA 0 Transmit Data-
DP-O -
A18
SUS_S4
Indicates Suspend to Disk state
O-3.3
A19
SATA0_RX+
SATA 0 Receive Data+
DP-I
A20
SATA0_RX-
SATA 0 Receive Data-
DP-I -
A21
GND3
Power Ground
PWR -
A22
SATA2_TX+
SATA 2 Transmit Data-
DP-O
A23
SATA2_TX-
SATA 2 Transmit Data+
DP-O
A24
SUS_S5
Indicates Soft Off state
O-3.3
A25
SATA2_RX+
SATA 2 Receive Data+
Not connected
nc
nc
A26
SATA2_RX-
SATA 2 Receive Data-
Not connected
nc
nc
A27
BATLOW
Indicates low external battery
I-3.3
A28
(S)ATA_ACT
SATA, IDE, SD Activity Indicator
OD-3.3
A29
AC/HDA_SYNC
HD Audio Sync
O-3.3
A30
AC/HDA_RST
HD Audio Reset
O-3.3
A31
GND4
Power Ground
PWR - -
A32
AC/HDA_BITCLK
HD Audio Clock
O-3.3
A33
AC/HDA_SDOUT
HD Audio Data
O-3.3
A34
BIOS_DIS0
Disable Module BIOS Enables boot from a BIOS on
Baseboard
I-3.3
A35
THRMTRIP#
CPU thermal shutdown indicator
O-3.3
DRAFT COPY FOR REVIEW ONLY
4.1 Pin-Outs
4.1.1 Connectors X1A and X1B: COM Express® Interface (Type 6)
NOTE: The termination resistors in these tables are already mounted on the COMe-cTH6 module. Refer to the PICMG
COM Express® Design Guide for information about additional termination resistors
13
DRAFT COPY FOR REVIEW ONLY
Page 20
COMe-cTH6 User’s Guide
www.kontron.com
Pin
Signal
Description
Type
Termination
Comment
A36
USB6-
USB Data- Port #6
DP-I/O
-
A37
USB6+
USB Data+ Port #6
DP-I/O
-
A38
USB_6_7_OC
USB Overcurrent Pair 6/7
I-3.3
A39
USB4-
USB Data- Port #4
DP-I/O
A40
USB4+
USB Data+ Port #4
DP-I/O
- A41
GND5
Power Ground
PWR - -
A42
USB2-
USB Data- Port #2
A43
USB2+
USB Data+ Port #2
DP-I/O
A44
USB_2_3_OC
USB Overcurrent Pair 2/3
I-3.3
A45
USB0-
USB Data- Port #0
DP-I/O
A46
USB0+
USB Data+ Port #0
DP-I/O
A47
VCC_RTC
RTC Power Supply +3V
PWR - -
A48
EXCD0_PERST
PCIe Express Card 0 Reset
O-3.3
A49
EXCD0_CPPE#
PCIe Express Card 0 Request
I-3.3
A50
LPC_SERIRQ
LPC Serial Interrupt Request
IO-3.3
A51
GND6
Power Ground
PWR - -
A52
PCIE_TX5+
PCIe 5 Transmit Data+
DP-O
A53
PCIE_TX5-
PCIe 5 Transmit Data-
DP-O
A54
GPI0
General Purpose Input 0
I-3.3
A55
PCIE_TX4+
PCIe 4 Transmit Data+
DP-O
A56
PCIE_TX4-
PCIe 4 Transmit Data-
DP-O
A57
GND7
Power Ground
PWR - -
A58
PCIE_TX3+
PCIe 3 Transmit Data+
DP-O
A59
PCIE_TX3-
PCIe 3 Transmit Data-
DP-O
A60
GND8
Power Ground
PWR - -
A61
PCIE_TX2+
PCIe 2 Transmit Data+
DP-O
A62
PCIE_TX2-
PCIe 2 Transmit Data-
DP-O
A63
GPI1
General Purpose Input 1
I-3.3
A64
PCIE_TX1+
PCIe 1 Transmit Data+
DP-O
A65
PCIE_TX1-
PCIe 1 Transmit Data-
DP-O
A66
GND9
Power Ground
PWR - -
A67
GPI2
General Purpose Input 2
I-3.3
A68
PCIE_TX0+
PCIe lane #0 Transmit+
DP-O
A69
PCIE_TX0-
PCIe lane #0 Transmit-
DP-O
A70
GND10
Power Ground
PWR - -
A71
LVDS_A0+
LVDS Channel A (positive)
DP-O
A72
LVDS_A0-
LVDS Channel A (negative)
DP-O -
A73
LVDS_A1+
LVDS Channel A (positive)
DP-O -
A74
LVDS_A1-
LVDS Channel A (negative)
DP-O
A75
LVDS_A2+
LVDS Channel A (positive)
DP-O
A76
LVDS_A2-
LVDS Channel A (negative)
DP-O
A77
LVDS_VDD_EN
LVDS Panel Power Controller
O-3.3
A78
LVDS_A3+
LVDS Channel A (positive)
DP-O
A79
LVDS_A3-
LVDS Channel A (negative)
DP-O
A80
GND11
Power Ground
PWR - -
A81
LVDS_A_CLK+
LVDS Channel A Clock+
DP-O
A82
LVDS_A_CLK-
LVDS Channel A Clock-
DP-O
DRAFT COPY FOR REVIEW ONLY
14
DRAFT COPY FOR REVIEW ONLY
Page 21
COMe-cTH6 User’s Guide
www.kontron.com
Pin
Signal
Description
Type
Termination
Comment
A83
LVDS_I2C_CLK
LVDS I2C Clock
IO-3.3
A84
LVDS_I2C_DAT
LVDS I2C Data
IO-3.3
A85
GPI3
General Purpose Input 3
I-3.3
A86
RSVD1
Reserved
Not connected
nc
nc
A87
RSVD2
Reserved
Not connected
nc
nc
A88
PCIE0_CK_REF+
PCIe Clock (positive)
DP-O
A89
PCIE0_CK_REF-
PCIe Clock (negative)
DP-O
A90
GND12
Power Ground
PWR - -
A91
SPI_Power
Power for off-board SPI flash
O-3.3
A92
SPI_MISO
SPI Master In Slave Out data line
I-3.3
A93
GPO0
General Purpose Output 0
O-3.3
A94
SPI_CLK
SPI clock line for off-board SPI
O-3.3
A95
SPI_MOSI
SPI Master Out Slave In data line
O-3.3
- A96
TPM_PP
Trusted Platform Module Physical Presence pin
I-3.3
A97
TYPE10
Not connected for Type 6 module
Not connected
nc
nc
A98
SER0_TX
Gen. Purpose Serial Port 0 Transmit
Not connected
nc
nc
A99
SER0_RX
Gen. Purpose Serial Port 0 Receive
Not connected
nc
nc
A100
GND13
Power Ground
PWR - -
A101
SER1_TX
General Purpose Serial Port 1 Transmit
Not connected
nc
nc
A102
SER1_RX
General Purpose Serial Port 1 Receive
Not connected
nc
nc
A103
LID
LID Button
I/OP-3.3
A104
VCC_12V1
12V VCC
PWR - -
A105
VCC_12V2
12V VCC
PWR - -
A106
VCC_12V3
12V VCC
PWR - -
A107
VCC_12V4
12V VCC
PWR - -
A108
VCC_12V5
12V VCC
PWR - -
A109
VCC_12V6
12V VCC
PWR - -
A110
GND14
Power Ground
PWR - -
Pin
Signal
Description
Type
Termination
Comment
B1
GND15
Power Ground
PWR - -
B2
GBE0_ACT
Ethernet Activity LED
OD
FET PD
nc
B3
LPC_FRAME
LPC Frame Indicator
O-3.3
B4
LPC_AD0
LPC Address/Data Bus
IO-3.3
B5
LPC_AD1
LPC Address/Data Bus
IO-3.3
B6
LPC_AD2
LPC Address/Data Bus
IO-3.3
B7
LPC_AD3
LPC Address/Data Bus
IO-3.3
B8
LPC_DRQ0
LPC Serial DMA Request
I-3.3
B9
LPC_DRQ1
LPC Serial DMA Request
I-3.3
B10
LPC_CLK
LPC Clock
O-3.3
B11
GND16
Power Ground
PWR - -
B12
PWRBTN#
Power Button Input
I-3.3
B13
SMB_CLK
SMBus Clock
O-3.3
B14
SMB_DAT
SMBus Data
IO-3.3
B15
SMB_ALERT
SMBus Interrupt
IO-3.3
DRAFT COPY FOR REVIEW ONLY
Table 2: Connector X1A - Row A
15
DRAFT COPY FOR REVIEW ONLY
Page 22
COMe-cTH6 User’s Guide
www.kontron.com
Pin
Signal
Description
Type
Termination
Comment
B16
SATA1_TX+
SATA 1 Transmit Data+
DP-O
B17
SATA1_TX-
SATA 1 Transmit Data-
DP-O
B18
SUS_STAT
Imminent suspend operation; used to notify LPC
devices.
O-3.3
B19
SATA1_RX+
SATA 1 Receive Data+
DP-I
B20
SATA1_RX-
SATA 1 Receive Data-
DP-I
B21
GND17
Power Ground
PWR - -
B22
SATA3_TX+
SATA 3 Transmit Data+
DP-O
B23
SATA3_TX-
SATA 3 Transmit Data-
DP-O
B24
PWR_OK
Power OK from power supply
I-3.3
B25
SATA3_RX+
SATA 3 Receive Data+
DP-I
B26
SATA3_RX-
SATA 3 Receive Data-
DP-I
B27
WDT
Watchdog Timeout
O-3.3
B28
AC/HDA_SDIN2
Audio CODEC Serial Data In 2
I-3.3
B29
AC/HDA_SDIN1
Audio CODEC Serial Data In 1
I-3.3
B30
AC/HDA_SDIN0
Audio CODEC Serial Data In 0
I-3.3
B31
GND18
Power Ground
PWR - -
B32
SPKR
Speaker Interface
O-3.3
B33
I2C_CLK
I2C Clock
IO-3.3
B34
I2C_DAT
I2C Data
IO-3.3
B35
THRM
Over Temperature Indicator
I-3.3
B36
USB7-
USB Data- Port #7
DP-I/O
B37
USB7+
USB Data+ Port #7
DP-I/O
B38
USB_4_5_OC
USB Overcurrent Pair 4/5
I-3.3
B39
USB5-
USB Data- Port #5
DP-I/O
B40
USB5+
USB Data+ Port #5
DP-I/O
B41
GND19
Power Ground
PWR - -
B42
USB3-
USB Data- Port #3
DP-I/O
B43
USB3+
USB Data+ Port #3
DP-I/O
B44
USB_0_1_OC
USB Overcurrent Pair 0/1
I-3.3
B45
USB1-
USB Data- Port #1
DP-I/O
B46
USB1+
USB Data+ Port #1
DP-I/O
B47
EXCD1_PERST
PCIe Express Card 1 Reset
O-3.3
B48
EXCD1_CPPE
PCIe Express Card 1 Request
I-3.3
B49
SYS_RESET
Reset button input
I-3.3
B50
CB_RESET
Carrier Board Reset
O-3.3
B51
GND20
Power Ground
PWR - -
B52
PCIE_RX5+
PCIe 5 Receive Data+
DP-I
B53
PCIE_RX5-
PCIe 5 Receive Data-
DP-I
B54
GPO1
General Purpose Output 1
O-3.3
B55
PCIE_RX4+
PCIe 4 Receive Data+
DP-I
B56
PCIE_RX4-
PCIe 4 Receive Data-
DP-I
B57
GPO2
General Purpose Output 2
O-3.3
B58
PCIE_RX3+
PCIe 3 Receive Data+
DP-I
B59
PCIE_RX3-
PCIe 5 Receive Data-
DP-I
B60
GND21
Power Ground
PWR - -
B61
PCIE_RX2+
PCIe 2 Receive Data+
DP-I
DRAFT COPY FOR REVIEW ONLY
16
DRAFT COPY FOR REVIEW ONLY
Page 23
COMe-cTH6 User’s Guide
www.kontron.com
Pin
Signal
Description
Type
Termination
Comment
B62
PCIE_RX2-
PCIe 2 Receive Data-
DP-I
B63
GPO3
General Purpose Output 3
O-3.3
B64
PCIE_RX1+
PCIe 1 Receive Data+
DP-I
B65
PCIE_RX1-
PCIe 1 Receive Data-
DP-I
B66
WAKE0
PCI Express Wake Event
I-3.3
B67
WAKE1
General Purpose Wake Event
I-3.3
B68
PCIE_RX0+
PCIe lane #0 Receive+
DP-I
B69
PCIE_RX0-
PCIe lane #0 Receive-
DP-I
B70
GND22
Power Ground
PWR - -
B71
LVDS_B0+
LVDS Channel B0 (Positive)
DP-O
B72
LVDS_B0-
LVDS Channel B0 (Negative)
DP-O
B73
LVDS_B1+
LVDS Channel B1 (Positive)
DP-O
B74
LVDS_B1-
LVDS Channel B1 (Negative)
DP-O
B75
LVDS_B2+
LVDS Channel B2 (Positive)
DP-O
B76
LVDS_B2-
LVDS Channel B2 (Negative)
DP-O
B77
LVDS_B3+
LVDS Channel B3 (Positive)
DP-O
B78
LVDS_B3-
LVDS Channel B3 (Negative)
DP-O
B79
LVDS_BKLT_EN
Backlight Enable
O-3.3
B80
GND23
Power Ground
PWR - -
B81
LVDS_B_CK+
LVDS Channel B Clock+
DP-O
B82
LVDS_B_CK-
LVDS Channel B Clock-
DP-O
B83
LVDS_BKLT_CTRL
Backlight Brightness Control
O-3.3
B84
VCC_5V_SBY1
+5V Standby
PWR - -
B85
VCC_5V_SBY2
+5V Standby
PWR - -
B86
VCC_5V_SBY3
+5V Standby
PWR - -
B87
VCC_5V_SBY4
+5V Standby
PWR - -
B88
BIOS_DIS1
BIOS Disable 1 (off-board SPI select)
I-3.3
B89
VGA_RED
Analog Video Red
O
B90
GND24
Power Ground
PWR - -
B91
VGA_GRN
Analog Video Green
O
B92
VGA_BLU
Analog Video Blue
O
B93
VGA_HSYNC
Analog Video Horizontal Sync
O-3.3
B94
VGA_VSYNC
Analog Video Vertical Sync
O-3.3
B95
VGA_I2C_CK
Analog Video I2C Clock
IO/OD-3.3
B96
VGA_I2C_DAT
Analog Video I2C Data
IO/OD-3.3
B97
SPI_CS
SPI Chip Select
O-3.3
B98
RSVD3
Reserved
Not connected
nc
nc
B99
RSVD4
Reserved
Not connected
nc
nc
B100
GND25
Power Ground
PWR - -
B101
FAN_PWMOUT
Fan Speed Control
O/OP-3.3
B102
FAN_TACHIN
Fan Tachometer Input
I/OP-3.3
B103
SLEEP
Sleep Button
I/OP-3.3
B104
VCC_12V7
12V VCC
PWR - -
B105
VCC_12V8
12V VCC
PWR - -
B106
VCC_12V9
12V VCC
PWR - -
B107
VCC_12V10
12V VCC
PWR - -
B108
VCC_12V11
12V VCC
PWR - -
DRAFT COPY FOR REVIEW ONLY
17
DRAFT COPY FOR REVIEW ONLY
Page 24
COMe-cTH6 User’s Guide
www.kontron.com
Pin
Signal
Description
Type
Termination
Comment
B109
VCC_12V12
12V VCC
PWR - -
B110
GND26
Power Ground
PWR
Pin
Signal
Description
Type
Termination
Comment
C1
GND27
Power Ground
PWR - -
C2
GND28
Power Ground
PWR - -
C3
USB_SSRXO-
SuperSpeed USB Data Receive Path 0-
Not connected
nc
nc
C4
USB_SSRXO+
SuperSpeed USB Data Receive Path 0+
Not connected
nc
nc
C5
GND29
Power Ground
PWR - -
C6
USB_SSRX1-
SuperSpeed USB Data Receive Path 1-
Not connected
nc
nc
C7
USB_SSRX1+
SuperSpeed USB Data Receive Path 1+
Not connected
nc
nc
C8
GND30
Power Ground
PWR - -
C9
USB_SSRX2-
SuperSpeed USB Data Receive Path 2-
Not connected
nc
nc
C10
SUB_SSRX2+
SuperSpeed USB Data Receive Path 2+
Not connected
nc
nc
C11
GND31
Power Ground
PWR
C12
USB_SSRX3-
SuperSpeed USB Data Receive Path 3-
Not connected
nc
nc
C13
USB_SSRX3+
SuperSpeed USB Data Receive Path 3+
Not connected
nc
nc
C14
GND32
Power Ground
PWR - -
C15
DDI1_PAIR6+
Digital Display Interface
Not connected
nc
nc
C16
DDI1_PAIR6-
Digital Display Interface
Not connected
nc
nc
C17
RSVD5
Reserved
Not connected
nc
nc
C18
RSVD6
Reserved
Not connected
nc
nc
C19
PCIE_RX6+
PCI Express Differential Receive Pair 6+
DP-I
C20
PCIE_RX6-
PCI Express Differential Receive Pair 6-
DP-I
C21
GND33
Power Ground
PWR
C22
PCIE_RX7+
PCI Express Differential Receive Pair 7+
Not connected
nc
nc
C23
PCIE_RX7-
PCI Express Differential Receive Pair 7-
Not connected
nc
nc
C24
DDI1_HPD
Digital Display Interface Hot-plug detect
I-3.3
C25
DDI1_PAIR4+
Digital Display Interface
Not connected
nc
nc
C26
DDI1_PAIR4-
Digital Display Interface
Not connected
nc
nc
C27
RSVD7
Reserved
Not connected
nc
nc
C28
RSVD8
Reserved
Not connected
nc
nc
C29
DDI1_PAIR5+
Digital Display Interface
Not connected
nc
nc
C30
DDI1_PAIR5-
Digital Display Interface
Not connected
nc
nc
C31
GND34
Power Ground
PWR - -
C32
DDI2_CRTLCLK_AUX+
HDMI/DVI I2C CRTLCLK
I/O-3.3
C33
DDI2_CRTLDATA_AUX-
HDMI/DVI I2C CRTLDATA
I/O-3.3
C34
DDI2_DDC_AUX_SEL
Selects function of DDI CRTL & DATA Aux
I-3.3
C35
RSVD9
Reserved
Not connected
nc
nc
C36
DDI3_CRTLCLK_AUX+
HDMI/DVI I2C CRTLCLK
I/O-3.3
C37
DDI3_CRTLDATA_AUX-
HDMI/DVI I2C CRTLDATA
I/O-3.3
C38
DDI3_DDC_AUX_SEL
Selects function of DDI CRTL & DATA Aux
I-3.3
C39
DDI3_PAIR0+
Digital Display Interface
DP-O
C40
DDI3_PAIR0-
Digital Display Interface
DP-O
C41
GND35
Power Ground
PWR - -
DRAFT COPY FOR REVIEW ONLY
Table 3: Connector X1A - Row B
18
DRAFT COPY FOR REVIEW ONLY
Page 25
COMe-cTH6 User’s Guide
www.kontron.com
Pin
Signal
Description
Type
Termination
Comment
C42
DDI3_PAIR1+
Digital Display Interface
DP-O
C43
DDI3_PAIR1-
Digital Display Interface
DP-O
C44
DDI3_HPD
Digital Display Interface Hot-plug detect
I-3.3
C45
RSVD10
Reserved
Not connected
nc
nc
C46
DDI3_PAIR2+
Digital Display Interface
DP-O
C47
DDI3_PAIR2-
Digital Display Interface
DP-O
C48
RSVD11
Reserved
Not connected
nc
nc
C49
DDI3_PAIR3+
Digital Display Interface
DP-O
C50
DDI3_PAIR3-
Digital Display Interface
DP-O
C51
GND36
Power Ground
PWR - -
C52
PEG_RX0+
PCI Express Graphics Receive Lane 0 Positive
DP-I
C53
PEG_RX0-
PCI Express Graphics Receive Lane 0 Negative
DP-I
C54
TYPE0
Not connected for Type 6 module
Not connected
nc
nc
C55
PEG_RX1+
PCI Express Graphics Receive Lane 1 Positive
DP-I
C56
PEG_RX1-
PCI Express Graphics Receive Lane 1 Negative
DP-I
C57
TYPE1
Not connected for Type 6 module
Not connected
nc
nc
C58
PEG_RX2+
PCI Express Graphics Receive Lane 2 Positive
DP-I
C59
PEG_RX2-
PCI Express Graphics Receive Lane 2 Negative
DP-I
C60
GND37
Power Ground
PWR - -
C61
PEG_RX3+
PCI Express Graphics Receive Lane 3 Positive
DP-I
C62
PEG_RX3-
PCI Express Graphics Receive Lane 3 Negative
DP-I
C63
RSVD12
Reserved
Not connected
nc
nc
C64
RSVD13
Reserved
Not connected
nc
nc-
C65
PEG_RX4+
PCI Express Graphics Receive Lane 4 Positive
DP-I C66
PEG_RX4-
PCI Express Graphics Receive Lane 4 Negative
DP-I
C67
RSVD14
Reserved
Not connected
nc
nc
C68
PEG_RX5+
PCI Express Graphics Receive Lane 5 Positive
DP-I
C69
PEG_RX5-
PCI Express Graphics Receive Lane 5 Negative
DP-I
C70
GND38
Power Ground
PWR - -
C71
PEG_RX6+
PCI Express Graphics Receive Lane 6 Positive
DP-I
C72
PEG_RX6-
PCI Express Graphics Receive Lane 6 Negative
DP-I
C73
GND39
Power Ground
PWR - -
C74
PEG_RX7+
PCI Express Graphics Receive Lane 7 Positive
DP-I
C75
PEG_RX7-
PCI Express Graphics Receive Lane 7 Negative
DP-I
C76
GND40
Power Ground
PWR - -
C77
RSVD15
Reserved
Not connected
nc
nc
C78
PEG_RX8+
PCI Express Graphics Receive Lane 8 Positive
DP-I
C79
PEG_RX8-
PCI Express Graphics Receive Lane 8 Negative
DP-I
C80
GND41
Power Ground
PWR - -
C81
PEG_RX9+
PCI Express Graphics Receive Lane 9 Positive
DP-I
C82
PEG_RX9-
PCI Express Graphics Receive Lane 9 Negative
DP-I
C83
RSVD16
Reserved
Not connected
nc
nc
C84
GND42
Power Ground
PWR - -
C85
PEG_RX10+
PCI Express Graphics Receive Lane 10 Positive
DP-I
C86
PEG_RX10-
PCI Express Graphics Receive Lane 10 Negative
DP-I
C87
GND43
Power Ground
PWR - -
C88
PEG_RX11+
PCI Express Graphics Receive Lane 11 Positive
DP-I
DRAFT COPY FOR REVIEW ONLY
19
DRAFT COPY FOR REVIEW ONLY
Page 26
COMe-cTH6 User’s Guide
www.kontron.com
Pin
Signal
Description
Type
Termination
Comment
C89
PEG_RX11-
PCI Express Graphics Receive Lane 11 Negative
DP-I
C90
GND44
Power Ground
PWR - -
C91
PEG_RX12+
PCI Express Graphics Receive Lane 12 Positive
DP-I
C92
PEG_RX12-
PCI Express Graphics Receive Lane 12 Negative
DP-I
C93
GND45
Power Ground
PWR - -
C94
PEG_RX13+
PCI Express Graphics Receive Lane 13 Positive
DP-I
C95
PEG_RX13-
PCI Express Graphics Receive Lane 13 Negative
DP-I
C96
GND46
Power Ground
PWR - -
C97
RSVD17
Reserved
Not connected
nc
nc
C98
PEG_RX14+
PCI Express Graphics Receive Lane 14 Positive
DP-I
C99
PEG_RX14-
PCI Express Graphics Receive Lane 14 Negative
DP-I
C100
GND47
Power Ground
PWR - -
C101
PEG_RX15+
PCI Express Graphics Receive Lane 15 Positive
DP-I
C102
PEG_RX15-
PCI Express Graphics Receive Lane 15 Negative
DP-I
C103
GND48
Power Ground
PWR - -
C104
VCC_12V13
12V VCC
PWR - -
C105
VCC_12V14
12V VCC
PWR - -
C106
VCC_12V15
12V VCC
PWR - -
C107
VCC_12V16
12V VCC
PWR - -
C108
VCC_12V17
12V VCC
PWR 8
-
-
C109
VCC_12V18
12V VCC
PWR - -
C110
GND49
Power Ground
PWR - -
Pin
Signal
Description
Type
Termination
Comment
D1
GND50
Power Ground
PWR - -
D2
GND51
Power Ground
PWR - -
D3
USB_SSTX0-
SuperSpeed USB Data Transmit Path 0-
Not connected
nc
nc
D4
USB_SSTX0+
SuperSpeed USB Data Transmit Path 0+
Not connected
nc
nc
D5
GND52
Power Ground
PWR - -
D6
USB_SSTX1-
SuperSpeed USB Data Transmit Path 1-
Not connected
nc
nc
D7
USB_SSTX1+
SuperSpeed USB Data Transmit Path 1+
Not connected
nc
nc
D8
GND53
Power Ground
PWR - -
D9
USB_SSTX2-
SuperSpeed USB Data Transmit Path 2-
Not connected
nc
nc
D10
USB_SSTX2+
SuperSpeed USB Data Transmit Path 2+
Not connected
nc
nc
D11
GND54
Power Ground
PWR - -
D12
USB_SSTX3-
SuperSpeed USB Data Transmit Path 3-
Not connected
nc
nc
D13
USB_SSTX3+
SuperSpeed USB Data Transmit Path 3+
Not connected
nc
nc
D14
GND55
Power Ground
PWR - -
D15
DDI1_CTRLCLK_AUX+
HDMI/DVI I2C CRTLCLK
I/O-3.3
-
-
D16
DDI1_CTRLDATA_AUX-
HDMI/DVI I2C CRTLDATA
I/O-3.3
-
-
D17
RSVD18
Reserved
Not connected
nc
nc
D18
RSVD19
Reserved
Not connected
nc
nc
D19
PCIE_TX6+
PCI Express Differential Transmit Pair 6+
DP-O
D20
PCIE_TX6-
PCI Express Differential Transmit Pair 6-
DP-O
DRAFT COPY FOR REVIEW ONLY
Table 4: Connector X1B - Row C
20
DRAFT COPY FOR REVIEW ONLY
Page 27
COMe-cTH6 User’s Guide
www.kontron.com
Pin
Signal
Description
Type
Termination
Comment
D21
GND56
Power Ground
PWR - -
D22
PCIE_TX7+
PCI Express Differential Transmit Pair 7+
Not connected
nc
nc
D23
PCIE_TX7-
PCI Express Differential Transmit Pair 7-
Not connected
nc
nc
D24
RSVD20
Reserved
Not connected
nc
nc
D25
RSVD21
Reserved
Not connected
nc
nc
D26
DDI1_PAIR0+
Digital Display Interface
DP-O
D27
DDI1_PAIR0-
Digital Display Interface
DP-O
D28
RSVD22
Reserved
Not connected
nc
nc
D29
DDI1_PAIR1+
Digital Display Interface1+
DP-O
D30
DDI1_PAIR1-
Digital Display Interface1-
DP-O
D31
GND57
Power Ground
PWR - -
D32
DDI1_PAIR2+
Digital Display Interface2+
DP-O
D33
DDI1_PAIR2-
Digital Display Interface2-
DP-O
D34
DDI1_DDC_AUX_SEL
Selects function of DDI CRTL & DATA Aux
I-3.3
D35
RSVD23
Reserved
D36
DDI1_PAIR3+
Digital Display Interface3+
DP-O
D37
DDI1_PAIR3-
Digital Display Interface3-
DP-O
D38
RSVD24
Reserved
- - -
D39
DDI2_PAIR0+
Digital Display Interface0+
DP-O
D40
DDI2_PAIR0-
Digital Display Interface0-
DP-O
D41
GND58
Power Ground
PWR - -
D42
DDI2_PAIR1+
Digital Display Interface1+
DP-O
D43
DDI2_PAIR1-
Digital Display Interface1-
DP-O
D44
DDI2_HPD
Digital Display Interface Hot-Plug Detect
I-3.3
D45
RSVD25
Reserved
Not connected
nc
nc
D46
DDI2_PAIR2+
Digital Display Interface2+
DP-O
D47
DDI2_PAIR2-
Digital Display Interface2-
DP-O
D48
RSVD26
Reserved
Not connected
nc
nc
D49
DDI2_PAIR3+
Digital Display Interface3+
DP-O
D50
DDI2_PAIR3-
Digital Display Interface3-
DP-O
D51
GND59
Power Ground
PWR - -
D52
PEG_TX0+
PCI Express Graphics Transmit Data Lane 0 Positive
DP-O
D53
PEG_TX0-
PCI Express Graphics Transmit Data Lane 0 Negative
DP-O
D54
PEG_LANE_RV
PCI Express Graphics Lane Reversal Input strap
I-3.3
D55
PEG_TX1+
PCI Express Graphics Transmit Data Lane 1 Positive
DP-O
D56
PEG_TX1-
PCI Express Graphics Transmit Data Lane 1 Negative
DP-O
D57
TYPE2
Not connected for Type 6 module
Not Connected
nc
nc
D58
PEG_TX2+
PCI Express Graphics Transmit Data Lane 2 Positive
DP-O
D59
PEG_TX2-
PCI Express Graphics Transmit Data Lane 2 Negative
DP-O
D60
GND60
Power Ground
PWR - -
D61
PEG_TX3+
PCI Express Graphics Transmit Data Lane 3 Positive
DP-O
D62
PEG_TX3-
PCI Express Graphics Transmit Data Lane 3 Negative
DP-O
D63
RSVD27
Reserved
Not connected
nc
nc
D64
RSVD28
Reserved
Not connected
nc
nc
D65
PEG_TX4+
PCI Express Graphics Transmit Data Lane 4 Positive
DP-O D66
PEG_TX4-
PCI Express Graphics Transmit Data Lane 4 Negative
DP-O
D67
GND61
Power Ground
PWR - -
DRAFT COPY FOR REVIEW ONLY
21
DRAFT COPY FOR REVIEW ONLY
Page 28
COMe-cTH6 User’s Guide
www.kontron.com
Pin
Signal
Description
Type
Termination
Comment
D68
PEG_TX5+
PCI Express Graphics Transmit Data Lane 5 Positive
DP-O
D69
PEG_TX5-
PCI Express Graphics Transmit Data Lane 5 Negative
DP-O
D70
GND62
Power Ground
PWR - -
D71
PEG_TX6+
PCI Express Graphics Transmit Data Lane 6 Positive
DP-O
D72
PEG_TX6-
PCI Express Graphics Transmit Data Lane 6 Negative
DP-O
D73
GND63
Power Ground
PWR
D74
PEG_TX7+
PCI Express Graphics Transmit Data Lane 7 Positive
DP-O - -
D75
PEG_TX7-
PCI Express Graphics Transmit Data Lane 7 Negative
DP-O - -
D76
GND64
Power Ground
PWR - -
D77
RSVD29
Reserved
Not connected
nc
nc
D78
PEG_TX8+
PCI Express Graphics Transmit Data Lane 8 Positive
DP-O
D79
PEG_TX8-
PCI Express Graphics Transmit Data Lane 8 Negative
DP-O
D80
GND65
Power Ground
PWR - -
D81
PEG_TX9+
PCI Express Graphics Transmit Data Lane 9 Positive
DP-O
D82
PEG_TX9-
PCI Express Graphics Transmit Data Lane 9 Negative
DP-O
D83
RSVD30
Reserved
Not connected
nc
nc
D84
GND66
Power Ground
PWR - -
D85
PEG_TX10+
PCI Express Graphics Transmit Data Lane 10 Positive
DP-O
D86
PEG_TX10-
PCI Express Graphics Transmit Data Lane 10 Negative
DP-O
D87
GND67
Power Ground
PWR - -
D88
PEG_TX11+
PCI Express Graphics Transmit Data Lane 11 Positive
DP-O
D89
PEG_TX11-
PCI Express Graphics Transmit Data Lane 11 Negative
DP-O
D90
GND68
Power Ground
PWR - -
D91
PEG_TX12+
PCI Express Graphics Transmit Data Lane 12 Positive
DP-O
D92
PEG_TX12-
PCI Express Graphics Transmit Data Lane 12 Negative
DP-O
D93
GND69
Power Ground
PWR - -
D94
PEG_TX13+
PCI Express Graphics Transmit Data Lane 13 Positive
DP-O
D95
PEG_TX13-
PCI Express Graphics Transmit Data Lane 13 Negative
DP-O
D96
GND70
Power Ground
PWR - -
D97
RSV31D
Reserved
--
--
--
D98
PEG_TX14+
PCI Express Graphics Transmit Data Lane 14 Positive
DP-O
D99
PEG_TX14-
PCI Express Graphics Transmit Data Lane 14 Negative
DP-O
D100
GND71
Power Ground
PWR - -
D101
PEG_TX15+
PCI Express Graphics Transmit Data Lane 15 Positive
DP-O
D102
PEG_TX15-
PCI Express Graphics Transmit Data Lane 15 Negative
DP-O
D103
GND72
Power Ground
PWR - -
D104
VCC_12V19
12V VCC
PWR - -
D105
VCC_12V20
12V VCC
PWR - -
D106
VCC_12V21
12V VCC
PWR - -
D107
VCC_12V22
12V VCC
PWR - -
D108
VCC_12V23
12V VCC
PWR - -
D109
VCC_12V24
12V VCC
PWR - -
D110
GND73
Power Ground
PWR - -
DRAFT COPY FOR REVIEW ONLY
Table 5: Connector X1B - Row D
22
DRAFT COPY FOR REVIEW ONLY
Page 29
COMe-cTH6 User’s Guide
www.kontron.com
Pin
Name
1
CPU_FAN_TACH_C
2
CPU_FAN_VCC
3
CPU_FAN_GND
J1 – Fan Connector
J4 – JTAG Connector (AMD Embedded Probe)
J2, J3 – SO-DIMM DDR3 Memory Sockets
DRAFT COPY FOR REVIEW ONLY
- CP
Figure 4: Onboard Connectors
4.1.2 Connector J1 – Fan
J1 is a connector for 3-wire fan control. See Section 7.3, “Onboard Fan Connector” for more detailed information.
Table 6: J1 Fan Connector Pin-Out
4.1.3 Connectors J2 and J3 – SO-DIMM DDR3 Memory Sockets
This design supports up to 16 GBytes (two single channels, 8 GBytes each) of non-ECC, unbuffered SO-DIMM DDR3 memory. The R-series CPU has two 204-pin, keyed, SO-DIMM sockets, J2 and J3.
23
DRAFT COPY FOR REVIEW ONLY
Page 30
COMe-cTH6 User’s Guide
www.kontron.com
Pin
Name
1
GND1
2
DBRDY
3
GND2
4
TDO
5
GND3
6
TDI
7
GND4
8
TMS
9
GND5
10
TCK
11
GND6
12
DBREQ
13
PWRBTN
14
VDDIO
15
SYSRST#
16
GND7
17
RST#
18
GND8
19
SCLK
20
GND9
21
SDAT
22
GND10
DRAFT COPY FOR REVIEW ONLY
4.1.4 Connector J4 – JTAG (AMD Embedded Probe)
J2 is a 22-pin flat foil connector (FFC) used to support the AMD Embedded Probe Header interface definition.
NOTE: A cable adapter must be used to connect a Sage debugger tool to the debug connector.
WARNING: The debug port is for internal use only. Do not connect any devices.
Table 7: J4 AMD Embedded Probe Connector Pin-Out
24
DRAFT COPY FOR REVIEW ONLY
Page 31
COMe-cTH6 User’s Guide
www.kontron.com
DRAFT COPY FOR REVIEW ONLY
5 COMe-cTH6 Interfaces
5.1 PCI Express Interface
The PCI Express* GEN 2.0 general purpose lanes provide a fast connection interface for many different system devices, such as network controllers, I/O controllers, or express card devices. The implementation of this subsystem complies with the COM Express Specification. Refer to the PICMG COM Express® Design Guide for additional implementation information.
The COMe-cTH6 COM supports up to seven general purpose PCI Express lanes; four lanes from the CPU, software­configurable as x4, x2, or x1, and three additional PCIe lanes from the FCH, software-configurable as 3 x1 or 1 x1 and 1 x2.
5.2 USB Interface
The USB interface supports both USB 2.0 and USB 3.0 (new with COM Express Type 6).
5.2.1 USB 2.0 Interface
Eight high-speed USB 2.0 ports are brought from the Fusion Control Hub to the COM Express A-B connector. The FCH uses two EHCI controllers with one serving five COM Express ports (0 – 4) and one serving three COM Express ports (5 – 7).
Figure 5 shows how the eight USB 2.0 ports are mapped in the COMe-cTH6 module.
5.2.2 USB 3.0 Interface
Four super speed USB 3.0 ports are brought from the Fusion Control Hub to COM Express connector C-D, USB connector USB_SS (3:0).
Note: AMD advises adding a provision for a 300-Ω resistor and 15-pF capacitor to ground on each USB negative data
signal that goes to an external USB connector or to any internal USB 2.0 isochronous device. The resistor and capacitor should be located as close as possible to the USB device or connector. See AMD documentation for more details.
Error! Reference source not found. shows the internal USB 3.0 mapping from the AMD FCH.
25
DRAFT COPY FOR REVIEW ONLY
Page 32
COMe-cTH6 User’s Guide
www.kontron.com
DRAFT COPY FOR REVIEW ONLY
Notes: 1) When mapping HS/SS USB lanes to a USB 3.0 connector, they must be mapped as follows
2) Additional USB connections can be added using external USB hubs
HS Port 0 to SS Port 0
HS Port 1 to SS Port 1
HS Port 2 to SS Port 2
HS Port 3 to SS Port 3
Figure 5: USB Mapping
5.2.3 Configuration
The USB controllers are PCIe bus devices
The BIOS allocates the required system resources during configuration of the PCIe bus.
26
DRAFT COPY FOR REVIEW ONLY
Page 33
COMe-cTH6 User’s Guide
www.kontron.com
DRAFT COPY FOR REVIEW ONLY
5.3 SATA Interface
Four of the AMD Fusion Control Hub SATA 3.0 channels are routed to the four COM Express SATA channels. The FCH SATA 0-3 ports map to the COM Express SATA 0-3 pins.
Note: SATA trace lengths on module, which exceed recommended limit for SATA 3.0 traces, and the inclusion of the COM Express connector reduces signal amplitude and increases jitter. No failures have been seen during functional testing.
5.3.1 Configuration
The SATA controller is a PCIe bus device. The BIOS allocates the required system resources during the PCIe device
configuration.
5.4 Audio Interface
The AMD Fusion Control Hub supports High Definition Audio (HDA). This HD audio configuration supports three audio channels. HDA channels 0 – 2 are mapped to COM Express AC/HDA channels 0 – 2.
5.4.1 Configuration
The audio controller is in the AMD FCH. The BIOS allocates the required system resources during configuration.
5.5 LPC Serial IRQ
The LPC serial interrupt request pin (A50) offers a standardized interface to link interrupt request lines to a single I/O wire.
5.5.1 Configuration
The serial IRQ machine is in “Continuous Mode”.
27
DRAFT COPY FOR REVIEW ONLY
Page 34
COMe-cTH6 User’s Guide
www.kontron.com
DRAFT COPY FOR REVIEW ONLY
5.6 Graphics Interface
The COMe-cTH6 uses a graphics controller that is integrated in the AMD APU. The graphics engine supports multiple display types (three digital display interfaces -- DDI-0, DDI-1, and DDI-2 for DP, HDMI, and DVI,), with resolutions up to 2560x1200x60 Hz.
5.6.1 Analog VGA
The analog VGA graphics core, with a maximum resolution of 1920x1600x60Hz, is integrated in the Fusion Controller Hub (FCH) and is connected to the Com Express LVDS connector A-B. The APU DP port 1 is multiplexed to form two BIOS-selectable output options: the analog VGA interface to the COM Express VGA port or the Digital Display Interface (DDI) to COM Express DDI3.
5.6.2 LVDS Flat Panel Interface
The APU Display Port 0 is multiplexed to support either COM Express Digital Display Interface 2 (DDI 2) or COM Express LVDS A and B via an 18/24-bit, single/dual channel Display Port to the LVDS converter (Analogix ANX3110).
5.7 Ethernet Interface
The Ethernet interface on the COMe-cTH6 COM is the Intel® I210-AT GbE controller. As stated in the COM Express specification, the LAN magnetics are not on the module. The GbE controller is located close to the COM Express MDI LAN interconnect pins to keep the MDI path short. The controller supports auto-negotiation of 10/100/1000 Mbit connections.
The hardware supports S0, S3, or S5 power selection under BIOS control for a WOL (WakeOnLAN) option.
For cable lengths and termination on your baseboard, refer to the PICMG website.
COM Express® Design G
uide on the PICMG
5.7.1 Configuration
The Ethernet controller is a PCI Express bus device. The BIOS allocates the required system resources during the configuration of the PCIe device.
28
DRAFT COPY FOR REVIEW ONLY
Page 35
COMe-cTH6 User’s Guide
www.kontron.com
Address (HEX)
Device
0000 - 00FF
IBM PC compatible devices (IRQ-Controller, Keyboard, RTC, etc.)
002E-002F
Optional: Super I/O W83627
004e - 004f
TPM
01F0 - 01F7
Fixed Disk
03C0 - 03CF
VGA/EGA compatible registers
03F6
Fixed Disk
0400 - 043F
SMBus
0480 - 04BF
GPIO ICH
04D0 - 04D1
IRQ Configuration
08F0 - 08FF
Optional
0900 - 091F
Power Management
0A80 - 0A83
Reserved
0CF8 - 0CFF
PCI Configuration
DRAFT COPY FOR REVIEW ONLY
5.8 SPI Bus Interface
The Serial Peripheral Interface (SPI) signals are connected to the COM Express connector A-B from the AMD Fusion Controller Hub. SPI BIOS is supported at the maximum level the FCH supports, 16 MBytes. Two BIOS disable straps, as defined in the COM Express Rev 2.0 specification, allow the selection of either on-module SPI BIOS or carrier board SPI or LPC BIOS.
The SPI interface can be used to connect two devices, one on the module and one on the carrier board, including external BIOS flash memory. The implementation of this subsystem complies with the COM Express Rev 2.0 specification. Carrier Board SPI boot support is new with COM Express Rev 2.0. For additional implementation information, refer to the
PICMG COM Express® Design Guide
on the PICMG website.
5.9 LPC Bus Interface
The Low Pin Count (LPC) interface signals are connected to the LPC controller in the AMD Fusion Controller Hub. The LPC low-speed interface can be used for peripheral circuits. For example, it can be used to interface to an external super I/O controller to provide a legacy device. The implementation of this subsystem complies with the COM ExpressTM specification. For additional implementation information, refer to the the PICMG website.
PICMG COM Express® Design Guide
Table 8: LPC and Fixed I/O Addresses
on
29
DRAFT COPY FOR REVIEW ONLY
Page 36
COMe-cTH6 User’s Guide
www.kontron.com
DRAFT COPY FOR REVIEW ONLY
5.10 Power Control Interface
VCC_12V is allowed to range from 4.75V to 20V. This range is above and beyond the requirements of the COM Express specification.
5.10.1 Power Good (PWR_OK)
The COMe-cTH6 COM provides an external input for a Power Good signal (pin B24). The implementation of this subsystem complies with the COM Express® Specification. PWR_OK is internally pulled up to 3.3V and must be sampled as logic high to power on the module. The module includes a pull-up on Power Good enabling the module to boot if COM Express PWR_OK is not used on the carrier board.
5.10.2 Power Button (PWRBTN#)
The power button (pin B12) is available through the COM Express connector as defined in the pin-out list. The FCH handles the timing.
To power-off the module, press and hold the power button for at least four seconds.
5.10.3 5.10.3 Reset Button (SYS_RESET#)
The reset button (pin B49) is available through the COM Express connector as defined in the pin-out list. The module stays in reset as long as SYS_RESET# is grounded.
30
DRAFT COPY FOR REVIEW ONLY
Page 37
COMe-cTH6 User’s Guide
www.kontron.com
State
PWRBTN#
PWR_OK
V5_StdBy
PS_ON#
VCC
S3
high
low
5V
high
0V
S5
high
low
5V
high
0V
S5 -> S0
PWRBTN Event
low -> high
5V
high -> low
0V -> VCC
S0
high
high
5V
low
VCC State
PWRBTN#
PWR_OK
V5_StdBy
VCC12V
S3
high
N/A
N/A
4.75V – 20V
S3 -> S0
high
open / high
N/A
4.75V – 20V
S5
high
N/A
N\A
4.75V – 20V
S5 -> S0
PWRBTN Event
open / high
N\A
4.75V – 20V
DRAFT COPY FOR REVIEW ONLY
5.11 Power Supply
The COMe-cTH6 COM has a wide range of power inputs, from 4.75V to 20V DC. The supply voltage is applied through the VCC_12V pins on the COM Express connector. In ATX mode the 5V standby voltage range is from 4.75V to 5.25V. RTC power is provided on the VCC RTC pins. VCC_12V may or may not collapse in suspend states S3, S4, S5
5.11.1 ATX Mode / Single Supply Mode
ATX Mode
When an ATX power supply is connected, PWR_OK is set to low-level and VCC is off. Pressing the power button enables the ATX PSU to turn on VCC and set PWR_OK to high-level. The ATX PSU is controlled by the PS_ON# signal, which is generated by SUS_S3#.
Table 9: Power Supply States in ATX Mode
Single Supply Mode:
Main power (4.75V – 20V) is provided on the COM Express VCC_12V pins. Standby power, if needed, is also provided on the VCC_12V pins. The VCC_5V_SBY pins may be floating or may be tied to a 5V source on the Carrier. RTC power is provided on the VCC_RTC pins.
To power on the module from the S5 state, press the power button.
Table 10: Power Supply States in Single Supply Mode
NOTES: 1) Columns marked “N/A” are not applicable for the specified power mode.
2) All ground pins have to be tied to the ground plane of the carrier board.
31
DRAFT COPY FOR REVIEW ONLY
Page 38
COMe-cTH6 User’s Guide
www.kontron.com
DRAFT COPY FOR REVIEW ONLY
5.12 Miscellaneous Circuits
5.12.1 Speaker
The implementation of this subsystem complies with the COM Express® Specification. For additional implementation information, refer to the PICMG COM Express® Design Guide.
5.12.2 Battery
The implementation of this subsystem complies with the COM Express® specification. For additional implementation information, refer to the
The COM Express® Rev 2.0 specification requires the carrier board and the module to have two current-limiting devices (resistor and diode) between the battery and the consuming component.
5.12.3 I
2
C Bus
The I2C bus implementation supports on- and off-module use. The I2C controller is implemented within the CPLD. The I2C implementation is an I2C master with 7- bit I2C addressing, capable of 100 KHz or 400 KHz operation.
COM Express Rev 2 specifies I2C on the standby rail now, so in the S5 state a carrier board I2C master can query the module. The COMe cTH6 I2C bus is multi-master capable.
For additional information, refer to the notes, which are available on the Kontron website at http://emdcustomersection.kontron.com/.
See Chapter 9, “BIOS Operation” for supported I2C features.
5.12.4 SMBus
System Management Bus (SMBus) signals are connected to the SMBus controller, which is located on the AMD Fusion Controller Hub. The SMBus is a 2-wire, bi-directional bus (clock and serial data) used for system management tasks such as reading parameters from a memory card or reading temperatures and voltages of system components.
The implementation complies with the COM Express® specification. For additional implementation information, refer to the
PICMG COM Express® Design Guide
PICMG COM Express® Design Guide
PICMG COM Express® Design Guide
on the PICMG website
on the PICMG website.
on the PICMG website and I2C application
32
DRAFT COPY FOR REVIEW ONLY
Page 39
COMe-cTH6 User’s Guide
www.kontron.com
Bit of GPIO Port0
Function
COM Express Pin
0
GPI0
A54
1
GPI1
A63
2
GPI2
A67 3 GPI3
A85
4
GPO0
A93
5
GPO1
B54
6
GPO2
B57
7
GPO3
B63
DRAFT COPY FOR REVIEW ONLY
6 Special Features
6.1 Watchdog Timer (WDT)
The watchdog timer is managed via the CPLD component, the Altera EPM1270 CPLD. The implementation complies with the COM Express® specification. Timer modes 1, 2, and 3 are supported. For additional implementation information, refer to the
PICMG COM Express® Module Base Specification.
6.2 General Purpose Input and Output (GPIO)
The COMe-cTH6 COM provides four interrupt-capable general purpose inputs and four general purpose outputs that can be accessed through the COM Express connector as defined in the pin-out lists, in Section 4.1. The GPIO controller is in the CPLD and the interface can be enabled in the BIOS setup.
Table 11: COM Express GPIO Pin-Outs
33
DRAFT COPY FOR REVIEW ONLY
Page 40
COMe-cTH6 User’s Guide
www.kontron.com
DRAFT COPY FOR REVIEW ONLY
6.3 ACPI Suspend Modes and Resume Events
The COMe-cTH6 COM supports the following suspend modes:
» S0 (Normal on) » S3 (Suspend to RAM) » S4 (Suspend to HDD/SSD) » S5 /WOL(soft-off, WOL enabled) » S5 (soft-off, WOL disabled) » S5 ECO deep soft-off
NOTES: 1) The S5 ECO state is an ultra-low power state in which the typical power consumption is 50mW @ 20V,
2) Wake from S5 Eco is only activated by pressing the power button.
20mW @ 12V, 5mW @ 5V.
3) All AMD “C” states for power saving are supported in this design.
6.3.1 Events that Resume the System from S3/S4
» USB keyboard (1) » USB mouse (1) » Power button » WakeOnLan (2)
6.3.2 Events that Resume the System from S5
» Power button » WakeOnLan
6.3.3 Events that Resume the System from S5 Eco
» Power button
NOTES: 1) The OS must support wake-up via USB devices and the baseboard must power the USB port with
StandBy-Voltage
2) WakeOnLan must be enabled in the driver options.
34
DRAFT COPY FOR REVIEW ONLY
Page 41
COMe-cTH6 User’s Guide
www.kontron.com
DRAFT COPY FOR REVIEW ONLY
7 Design Considerations
7.1 Thermal Management
An optional heat spreader plate assembly is available from Kontron for the COMe-cTH6 module. The heat spreader plate that fits on top of this assembly is NOT a heat sink. It works as a COM Express®-standard thermal interface to be used with a heat sink or other cooling device.
External cooling must be provided to maintain the heat spreader plate at proper operating temperatures. Under worst-case conditions, the cooling mechanism must maintain an ambient air and heat spreader plate temperature of 60 C or less.
The aluminum slugs and thermal pads on the underside of the heat spreader assembly implement thermal interfaces between the heat spreader plate and the major heat-generating components on the COMe-cTH6 module. About 80 percent of the power dissipated within the module is conducted to the heat spreader plate and can be removed by the cooling solution.
Kontron also has defined a passive heat sink that can be used in place of the heat spreader plate to provide additional cooling. You can use many thermal-management solutions with the heat spreader plates, including active and passive approaches. The optimum cooling solution varies, depending on the COM Express® application and environmental conditions. Drawings for both the heat spreader plate and the passive heat sink are available on request. Also, see the management.
NOTE: The COMe-cTH6 module comes with mounting holes for securing the heat spreader or the heat sink to the
module.
PICMG COM Express® Design Guide
on the PICMG website for further information about thermal
7.2 Heat Spreader Dimensions
Documentation for the COMe-cTH6 COM heat spreader and cooling solutions is provided at
http://emdcustomersection.kontron.com.
35
DRAFT COPY FOR REVIEW ONLY
Page 42
COMe-cTH6 User’s Guide
www.kontron.com
Pin
Description
1
CPU_FAN_TACH
2
FAN_12V_VCC
3
FAN_GND
DRAFT COPY FOR REVIEW ONLY
7.3 Onboard Fan Connector
This section describes how to connect an optional fan for active cooling to a header located directly on the COMe­cTH6 COM.
The onboard fan connector (J1) is on the left top side of the PCB. The bubble in the above fixture shows the pin enumeration as viewed from the PCB edge.
Figure 6: Fan Connector (J1) Location and Pin Numbering
Connector J1 specifications and Kontron part numbers for the components are:
» Part number: (Molex) 53261-0371
Table 5: Fan Connector (J1) Pinout
» Mates with: (Molex) 51021-0300 » Crimp terminals: (Molex) 50079-80000 (26-28 AWG)
36
DRAFT COPY FOR REVIEW ONLY
Page 43
COMe-cTH6 User’s Guide
www.kontron.com
DRAFT COPY FOR REVIEW ONLY
7.3.1 Fan Connector Electrical Characteristics
The fan connector supply pin is supported by a buck switching regulator that is set to limit the fan supply voltage at
approximately 12V. The maximum duty cycle of the regulator is 90%, so the maximum output of the regulator will be
approximately 90% of the supply voltage input to the regulator.
CAUTION: Be aware of the wide range of input voltages and acceptable fan voltages and ensure that the fan you
select supports the applied voltage.
The maximum current supported on that output is 125mA @ 60°C ambient because it is current limited by a
resettable fuse.
37
DRAFT COPY FOR REVIEW ONLY
Page 44
COMe-cTH6 User’s Guide
www.kontron.com
Upper Memory
Used for
Available
Comment
A0000h – BFFFFh
VGA Memory
No
C0000h – CFFFFh
VGA BIOS
No
Used by onboard VGA ROM
D0000h – DFFFFh
Yes
Free for shadow RAM in standard configurations.
E0000h – FFFFFh
System BIOS
No
Fixed
I/O Address
Used for
Available
Comment
0000 - 001F
System Resources
No
Fixed
0020 - 003F
Interrupt Controller 1
No
Fixed
002E - 002F
Winbond driver
No
Fixed if W83627HG is in system
0040 - 005F
Timer, Counter
No
Fixed
004E - 004F
TPM
No
Fixed if TPM is in system
0060 - 006F
Keyboard Controller
No
Fixed
0070 - 007F
RTC and CMOS Registers
No
Fixed
0080
BIOS Postcode
No
Fixed
DRAFT COPY FOR REVIEW ONLY
8 System Resources
8.1 Interrupt Request (IRQ) Lines
Tables showing IRQ number assignments will be supplied in a future version of this manual.
8.2 Memory Area
The first 640 KBytes of DRAM are used as main memory. With DOS, you can address 1 MByte of memory directly. The memory area above 1 MByte (high memory, extended memory) is accessed under DOS with special drivers such as HIMEM.SYS and EMM386.EXE, which are part of the operating system. See the operating system documentation or special textbooks for information about HIMEM.SYS and EMM386.EXE
Other operating systems (Linux or Windows versions) allow you to address the full memory area directly.
8.3 I/O Address Map
The I/O-port addresses of the COMe-cTH6 COM are functionally identical to those of a standard PC/AT system. All addresses not mentioned in the table below should be available. For compatibility reasons, we recommend that you do not use I/O addresses below 0100h for additional hardware, even if they are available.
38
DRAFT COPY FOR REVIEW ONLY
Page 45
COMe-cTH6 User’s Guide
www.kontron.com
I/O Address
Used for
Available
Comment
0081 - 008F
DMA Page Register
No
Fixed
00A0 - 00BF
Interrupt Controller 2
No
Fixed
00C0 - 00DF
DMA Controller 2
No
Fixed
00E0 - 00EF
System Control
No
Fixed
00F0 - 00FF
Math Coprocessor
No
Fixed
0170 – 0177 0376
Fixed Disk
No
Available if IDE port 1 is disabled
01F0 - 01F7 03F6
Fixed Disk
No
Available if IDE port 1 is disabled
0290-0295
SIO HWM
No
Fixed if NCT5577D SIO is in system
03B0 - 03DF
VGA
No
Fixed
0400 - 043F
SMBus
No
Fixed
0480 - 04BF
GPIO
No
Fixed
04D0 - 04D1
PIC Extension
No
Fixed
0900 - 091F
Power Management
No
Fixed
09C0 - 09FF
GPE
No
Fixed
0A05 – 0A06
Hardware Monitor
No
Fixed if HWM is in system
0A80 – 0A81
CPLD
No
in Future versions
C000 - CFFF
PCIe-to-PCI Bridge
No
Dynamic (BIOS default address)
0CF8 - 0CFF
PCI Configuration
No
Fixed
D000 - DFFF
PCIe-to-PCI bridge
No
Dynamic (BIOS default address)
D880 - D88F
SATA Controller
No
Dynamic (BIOS default address)
E080 - E09F
PCI USB Controller
No
Dynamic (BIOS default address)
E480 - E49F
PCI USB Controller
No
Dynamic (BIOS default address)
E880 - E887
VGA
No
Dynamic (BIOS default address)
EF00 - EF1F
PCI USB Controller
No
Dynamic (BIOS default address)
FFA0 - FFAF
PCI IDE Controller
No
Dynamic (BIOS default address)
PCI Device
PCI IRQ
Interface
Comment
Host Bridge / Memory Controller
None
Integrated in processor
Graphics / Video Controller
INTA
Integrated in processor
USB Client Controller
INTA
Integrated in chipset
HD Audio Controller
INTA
Integrated in chipset
PCI Express Port (Bridge)
INTA
Integrated in chipset
PCI Express Port (Bridge)
INTB
Integrated in chipset
DRAFT COPY FOR REVIEW ONLY
8.4 Peripheral Component Interconnect (PCI) Devices
All devices follow the PCI Express Base 1.0a specifications. The BIOS and OS control memory and I/O resources.
39
DRAFT COPY FOR REVIEW ONLY
Page 46
COMe-cTH6 User’s Guide
www.kontron.com
PCI Device
PCI IRQ
Interface
Comment
UHCI USB Controller 1
INTE
Integrated in chipset
UHCI USB Controller 2
INTF
Integrated in chipset
UHCI USB Controller 3
INTG
Integrated in chipset
EHCI USB Controller
INTH
Integrated in chipset
ISA Bridge / LPC Controller
None
Integrated in chipset
IDE Controller
None
Integrated in chipset
Network Controller
INTC
PCI Express
External TBD
SATA
INTA
PCI Express
External TBD
DRAFT COPY FOR REVIEW ONLY
Table of addresses to be supplied in a future version of this manual
8.5 System Management Bus (SMBus)
Table of addresses to be supplied in a future version of this manual
Table 6: External I2C Bus
40
DRAFT COPY FOR REVIEW ONLY
Page 47
COMe-cTH6 User’s Guide
www.kontron.com
Setup Screen
Location
Function
Menu Bar
Top
Lists and selects all top level menus.
Legend Bar
Right side bottom
Lists setup navigation keys.
Item Specific Help Window
Right side top
Help for selected item.
Menu Window
Left center
Selection fields for current menu.
DRAFT COPY FOR REVIEW ONLY
9 BIOS Operation
The COMe-cTH6 COM supports carrier board SPI devices. Carrier board SPI boot support is new with COM Express Rev
2.
9.1 Determining the BIOS Version
The COMe-cTH6 COM has an AMI Aptio© UEFI BIOS firmware installed on the onboard 4MB SPI flash device. To determine the BIOS firmware version, press the Delete key on your keyboard while booting to enter the BIOS Setup Utility. On the utility Main BIOS Information page, the BIOS Project Version is displayed.
9.2 BIOS Setup Guide
The AMI Aptio© Setup Utility changes system behavior by modifying the BIOS configuration. The setup program uses a number of menus to make changes and turn features on or off.
NOTE: Selecting incorrect values may cause system boot failure. Load setup default values to recover by pressing <F3>.
Start AMI Aptio© Setup Utility
To start the AMI Aptio© setup utility, press <Delete> when the keyboard first become active during boot-up. It is sometimes helpful to press the <Delete> key multiple times until the BIOS setup utility is activated.
The Info menu then appears.
The Setup screen has several sections:
Menu Bar
The menu bar at the top of the window lists different menus. Use the arrow key or the arrow key to make a selection.
41
DRAFT COPY FOR REVIEW ONLY
Page 48
COMe-cTH6 User’s Guide
www.kontron.com
Key
Function
<F1>
General Help window.
<Esc>
Exit menu.
or Arrow key
Select a menu.
or Arrow key
Select fields in current menu.
<Home> or <End>
Move cursor to top or bottom of current window.
<PgUp> or <PgDn>
Move cursor to next or previous page.
<F3>
Load the optimized default configuration values.
<F4>
Save and exit.
<Enter>
Execute command or select submenu.
DRAFT COPY FOR REVIEW ONLY
Legend Bar
Use the keys listed on the bottom of the legend bar to make your selections or exit the current menu. The table below describes the legend keys and their alternates.
Selecting an Item
Use the or key to move the cursor to the field you want. Then use the + and – keys to select a value for that field. The Save Value commands in the Exit menu save the values displayed in all the menus.
Displaying Submenus
Use the arrow key or the arrow key to move the cursor to the submenu you want and then press <Enter>. A
pointer () marks all submenus.
Item Specific Help Window
The Help window on the right side of each menu displays the Help text for the selected item. It updates as you move the cursor through each field.
General Help Window
Pressing <F1> on a menu brings up the General Help window that describes the legend keys and their alternates. Press <Esc> to exit the General Help window.
42
DRAFT COPY FOR REVIEW ONLY
Page 49
COMe-cTH6 User’s Guide
www.kontron.com
Feature
Options
Description
System Language
English
Choose the system default language. English supported only
System Date
[mm/dd/yyyyy]
Set the Date. Use 'Tab' to switch between Date elements
System Time
[hh:mm:ss]
Set the Time. Use 'Tab' to switch between Time elements
DRAFT COPY FOR REVIEW ONLY
9.3 BIOS Setup Options
NOTE: Default settings are in bold
9.3.1 Main Menu
43
DRAFT COPY FOR REVIEW ONLY
Page 50
COMe-cTH6 User’s Guide
www.kontron.com
DRAFT COPY FOR REVIEW ONLY
Module Information
44
DRAFT COPY FOR REVIEW ONLY
Page 51
COMe-cTH6 User’s Guide
www.kontron.com
Feature
Options
Description
PCI Latency Timer
32 … 248
PCI Bus Clocks
VGA Palette Snoop
Disabled Enabled
Enables or disables VGA palette snooping
PERR# Generation
Disabled Enabled
Enables or disables generation of PERR# by PCI device
SERR# Generation
Disabled Enabled
Enables or disables generation of SERR# by PCI device
DRAFT COPY FOR REVIEW ONLY
9.3.2 Advanced Menu
PCI Subsystem Settings
45
DRAFT COPY FOR REVIEW ONLY
Page 52
COMe-cTH6 User’s Guide
www.kontron.com
Feature
Options
Description
Enable ACPI Auto Configuration
Disabled Enabled
Enables or disables BIOS ACPI auto configuration
Enable Hibernation
Disabled Enabled
Enables or disables the system ability to hibernate (OS S4 sleep state - Suspend to disk)
ACPI Sleep State
Suspend Disabled
S3 only (Suspend to RAM)
Select the highest ACPI sleep state the system will enter when the Sleep button is pressed
Lock Legacy Resources
Disabled Enabled
Enables or disables lock of legacy resources
Critical Trip Point
Disabled 60 .. 110
Sets the value of the CPU temperature at which an ACPI OS will shutdown automatically
DRAFT COPY FOR REVIEW ONLY
ACPI Settings
46
DRAFT COPY FOR REVIEW ONLY
Page 53
COMe-cTH6 User’s Guide
www.kontron.com
Feature
Options
Description
Security Device Sup
Disabled Enabled
Enables or disables the TPM device.
DRAFT COPY FOR REVIEW ONLY
Trusted Computing
47
DRAFT COPY FOR REVIEW ONLY
Page 54
COMe-cTH6 User’s Guide
www.kontron.com
Feature
Options
Description
S5 Eco
Disabled Enabled
When enabled the module will draw very low current in S5 Soft-Off State.
LAN Power
Disabled (off) Enabled S0 Enabled S0-S3 Enabled S0-S5
Allows control of the system states where the LAN controller shall be powered.
PEG Configuration
Lower lanes Upper lanes
Allows control of the PEG lanes onto which the PEG signals are transmitted.
Lower = PEG0 - PEG7. Upper = PEG8 - PEG15
DRAFT COPY FOR REVIEW ONLY
Kontron Board Configuration
48
DRAFT COPY FOR REVIEW ONLY
Page 55
COMe-cTH6 User’s Guide
www.kontron.com
Feature
Options
Description
Auto-reload
Disabled Enabled
Enable or disable automatic reload of the watchdog timers on timeout
Global Lock
Disabled Enabled
If enabled, all watchdog registers except WD_KICK are read-only until the board is reset
Stage # Mode
Disabled Reset SCI Delay WDT Signal Only
Select the action for the second watchdog stage timeout
Assert WDT Signal
Disabled Enabled
Enable or disable assertion of WDT signal to baseboard on stage timeout
Stage # Timeout
1s 5s 10s 30s 1m 3m 10m 30m
Select the timeout value for the second watchdog stage
DRAFT COPY FOR REVIEW ONLY
Watchdog Configuration
49
DRAFT COPY FOR REVIEW ONLY
Page 56
COMe-cTH6 User’s Guide
www.kontron.com
Feature
Options
Description
Output 0-3
High Low
Set the desired initial states of the COM Express GPO0 - GPO3
DRAFT COPY FOR REVIEW ONLY
GPIO Configuration
50
DRAFT COPY FOR REVIEW ONLY
Page 57
COMe-cTH6 User’s Guide
www.kontron.com
Feature
Options
Description
PSS Support
Disabled Enabled
Enable or disable the generation of ACPI _PPC, _PSS and _PCT objects
PSTATE Adjustment
Pstate 0 Pstate 7
Select the desired startup ACPI performance state
PPC Adjustment
Pstate 0 Pstate 7
Select to adjust the ACPI _PPC object
NX Mode
Disabled Enabled
Enable or disable the no-execute page protection feature
SVM Mode
Disabled Enabled
Enable or disable CPU virtualization feature
CPB Mode
Auto Disabled
Allow or disable the core performance boost feature
C6 Mode
Disabled Enabled
Enable or disable CPU C6-state
DRAFT COPY FOR REVIEW ONLY
CPU Configuration
51
DRAFT COPY FOR REVIEW ONLY
Page 58
COMe-cTH6 User’s Guide
www.kontron.com
Feature
Options
Description
SATA Port#
DRAFT COPY FOR REVIEW ONLY
IDE Configuration
52
DRAFT COPY FOR REVIEW ONLY
Page 59
COMe-cTH6 User’s Guide
www.kontron.com
Feature
Options
Description
Legacy USB Support
Disabled Enabled
Enable or disable legacy USB device support
USB3.0 Support
Disabled Enabled
Enable or disable USB3.0 (XHCI) controller support.
XHCI Hand-off
Disabled Enabled
Enable or disable the workaround for operating systems without XHCI controller handoff support
EHCI Hand-off
Disabled Enabled
Enable or disable the workaround for operating systems without EHCI controller handoff support
USB transfer time­out
1 sec 5 sec 10 sec 20 sec
Select the timeout value for control, bulk and interrupt transfers
Device reset time­out
10 sec 20 sec 30 sec 40 sec
Select the timeout value for USB mass storage device Start Unit commands
Device power-up delay
Auto Manual
Configures the maximum time a device can take before it reports itself to the host controller. Auto setting uses a default value: for a root port it is 100ms. For a hub the delay is read from the hub descriptor
Device power-up delay in seconds
1 … 40 seconds
Specify the manual device power-up delay
DRAFT COPY FOR REVIEW ONLY
USB Configuration
53
DRAFT COPY FOR REVIEW ONLY
Page 60
COMe-cTH6 User’s Guide
www.kontron.com
Feature
Options
Description
Serial Port 3 Configuration
Disabled Enabled
Enable or disable COM Express serial port 0
Serial Port 4 Configuration
Disabled Enabled
Enable or disable COM Express serial port 1
DRAFT COPY FOR REVIEW ONLY
Module COM Port Configuration
54
DRAFT COPY FOR REVIEW ONLY
Page 61
COMe-cTH6 User’s Guide
www.kontron.com
Feature
Options
Description
CB Fan Pulse
1, 2, 3, 4
Enter the number of fan tach pulses on each revolution of the carrier board fan
CPU Fan Pulse
1, 2, 3, 4
Enter the number of fan tach pulses on each revolution of the CPU fan
Target CPU Temperature
0 … 127
(60)
Enter the desired temperature for the CPU. The CPU fan speed will be adjusted to attempt to maintain this CPU temperature
Startup CPU Fan Speed
1 … 255
(32)
Enter the desired startup duty cycle for the CPU fan
Maximum CPU Fan Speed Temperature
20 … 100
(80)
Enter the CPU temperature at which the CPU fan will be set to maximum speed
CPU Hardware Thermal Control
52 … 100
(100)
Enter the temperature at which the CPU shall be set to a lower performance state to reduce heat
DRAFT COPY FOR REVIEW ONLY
Hardware Monitor
55
DRAFT COPY FOR REVIEW ONLY
Page 62
COMe-cTH6 User’s Guide
www.kontron.com
Feature
Options
Description
COMn Console
Redirection
Disabled
Enabled
Enable or disable console redirection output to the specified COM
port
DRAFT COPY FOR REVIEW ONLY

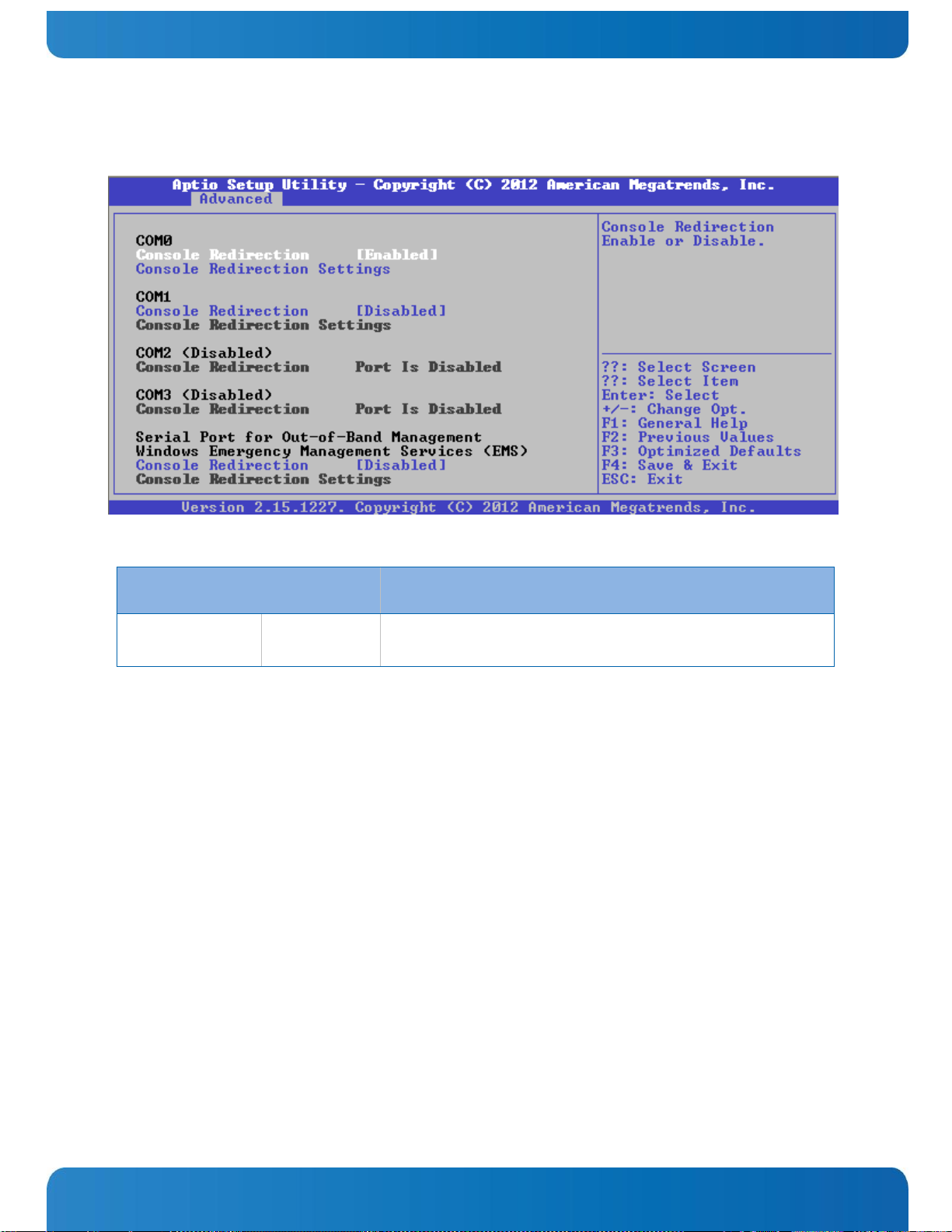

Serial Port Console Redirection
56
DRAFT COPY FOR REVIEW ONLY
Page 63
COMe-cTH6 User’s Guide
www.kontron.com
Feature
Options
Description
Terminal Type
VT100
VT100+
VT_UTF8
ANSI
VT100: ASCII character set
VT100+: Extends VT100 to support color, function keys, etc.
VT_UTF8: Uses UTF encoding to map unicode characters
ANSI: Extended ASCII character set
Bits Per Second
9600
19200
38400
57600
115200
Selects the serial port transmission speed. The speed must be
matched on the other side. Long or noisy lines may require lower
speeds
Data bits
7 8 Data bits per transmission
Parity
None
Even
Odd
Mark
Space
A parity bit can be sent with the data bits to detect some
transmission errors.
Stop Bits
1 2 Stop bits per transmission
Flow Control
None
Hardware
RTS/CTS
Flow control can prevent data loss from buffer overflow. Hardware
flow control requires connection of the RTS and CTS signals
DRAFT COPY FOR REVIEW ONLY
Console Redirection Settings
57
DRAFT COPY FOR REVIEW ONLY
Page 64
COMe-cTH6 User’s Guide
www.kontron.com
Feature
Options
Description
VT-UTF8 Combo Key Support
Disabled Enabled
Enable or disable VT-UTF8 combination key support for ANSI/VT100 terminals
Recorder Mode
Disabled Enabled
When enabled, only text is transmitted.
Resolution 100 x 31
Disabled Enabled
Enables or disables extended terminal resolution
Legacy OS Redirection
80x24 80x25
Selects the number of rows and columns redirected for legacy operating system
Putty KeyPad
VT100 Linux XTERMR6 SCO ESCN VT400
Select the function keypad on putty
Redirection after BIOS
Always Enabled Bootloader
Selecting Always Enabled will keep redirection active on legacy Operating Systems. Bootloader will disable before booting the legacy OS
DRAFT COPY FOR REVIEW ONLY
58
DRAFT COPY FOR REVIEW ONLY
Page 65
COMe-cTH6 User’s Guide
www.kontron.com
Feature
Options
Description
Onboard PCIE LAN PXE
Disabled
Enabled
Enable or disable the Preboot eXecution Environment option ROM
for the module Ethernet controller. The PXE firmware is required for
booting from LAN.
DRAFT COPY FOR REVIEW ONLY
PCIe Settings
59
DRAFT COPY FOR REVIEW ONLY
Page 66
COMe-cTH6 User’s Guide
www.kontron.com
Feature
Options
Description
Port # Control
Disabled
Enabled
Enable or disable the PCI express root port
ASPM Mode Control
Disabled
L0s Entry
L1 Entry
L0s and L1
Entry
Select the PCI express root port ASPM mode
Hotplug Mode Control
Disabled
Hotplug
Basic
Hotplug
Server
Hotplug
Enhanced
Hotplug
InBoard
Select the PCI express root port hotplug mode
DRAFT COPY FOR REVIEW ONLY
PCI-E Port
60
DRAFT COPY FOR REVIEW ONLY
Page 67
COMe-cTH6 User’s Guide
www.kontron.com
Feature
Options
Description
Network Stack
Disabled Enabled
Enable or disable the UEFI network stack
Ipv4 PXE Support
Disabled Enabled
Enable or disable IPv4 PXE Boot from LAN support
Ipv6 PXE Support
Disabled Enabled
Enable or disable IPv6 PXE Boot from LAN support
DRAFT COPY FOR REVIEW ONLY
Network Stack
61
DRAFT COPY FOR REVIEW ONLY
Page 68
COMe-cTH6 User’s Guide
www.kontron.com
DRAFT COPY FOR REVIEW ONLY
9.3.3 Chipset
Northbridge Configuration
62
DRAFT COPY FOR REVIEW ONLY
Page 69
COMe-cTH6 User’s Guide
www.kontron.com
Feature
Options
Description
Display Port # Output Mode
DP
Single Link DVI-D
Dual Link DVI-D
HDMI
Single Link DVI-I
CRT (VGA)
LVDS
Auto Detect
Disabled
Default Settings
Select the output mode required for the specified display port
Brightness Control Mode
Control VBIOS
Control by Driver
Select brightness control from video BIOS or display driver
Integrated Graphics
Auto
Disabled
Force
Configure the upper memory frame buffer
PSPP Policy
Disabled
Performance
Balanced-High
Balanced-Low
Power Saving
Select PCIe speed power policy
DRAFT COPY FOR REVIEW ONLY
Display Output Configuration
63
DRAFT COPY FOR REVIEW ONLY
Page 70
COMe-cTH6 User’s Guide
www.kontron.com
Feature
Options
Description
Memory Clock
Auto
800MHz
1066MHz
1333MHz
1600MHz
1866MHz
Select the desired memory bus speed
Memory Hole
Remapping
Disabled
Enabled
Enable or disable remapping of the northbridge memory hole
Bank Interleaving
Disabled
Enabled
Enable or disable memory bank interleaving
Channel
Interleaving
Disabled
Enabled
Enable or disable memory channel interleaving
Memory Clear
Disabled
Enabled
Enable or disable execution of a memory clear operation in POST
DRAFT COPY FOR REVIEW ONLY
Memory Configuration
64
DRAFT COPY FOR REVIEW ONLY
Page 71
COMe-cTH6 User’s Guide
www.kontron.com
DRAFT COPY FOR REVIEW ONLY
South Bridge Configuration
65
DRAFT COPY FOR REVIEW ONLY
Page 72
COMe-cTH6 User’s Guide
www.kontron.com
Feature
Options
Description
OnChip SATA Channel
Disabled
Enabled
Enable or disable the SATA controller
OnChip SATA Type
Native IDE
RAID
AHCI
Legacy IDE
IDE -> AHCI
AHCI as ID 7804
ODE -> AHCI as ID 7804
Select the SATA controller type desired
OnChip IDE Mode
Legacy Mode
Native Mode
Select the IDE controller type mode desired
SATA IDE Combined Mode
Disabled
Enabled
Enable or disable combined SATA and IDE
controller modes
DRAFT COPY FOR REVIEW ONLY
Southbridge SATA Configuration
66
DRAFT COPY FOR REVIEW ONLY
Page 73
COMe-cTH6 User’s Guide
www.kontron.com
Feature
Options
Description
USB Device Wakeup
from S3 and S4
Disabled
Enabled
Enable or disable the ability to wake the system from ACPI S3 or S4
sleep states with a USB device (e.g. keyboard)
XHCI Controller #
Disabled
Enabled
Enable or disable the XHCI controllers for USB 3.0 support
OHCI Host Controller
Disabled
Enabled
Enable or disable specific OHCI controllers for USB 1.1 support
EHCI Host Controller
Disabled
Enabled
Enable or disable specific EHCI controllers for USB 2.0 support
USB Port #
Disabled
Enabled
Enable or disable specific USB 2.0 ports
XHCI Port #
Disabled
Enabled
Enable or disable specific USB 3.0 ports
DRAFT COPY FOR REVIEW ONLY
Southbridge USB Configuration
67
DRAFT COPY FOR REVIEW ONLY
Page 74
COMe-cTH6 User’s Guide
www.kontron.com
Feature
Options
Description
SB GPP Function
Disabled
Enabled
Enable or disable the southbridge general purpose PCI express ports
GPP Port Link
Configuration
x4 mode
2:2 mode
2:1:1 mode
1:1:1:1 mode
Select the desired link partitioning of the four southbridge PCI
express lanes
GPP Link ASPM
Disabled
L0s
L1
L0s+L1
Select the PCI express root port ASPM mode
GPP Gen2
Disabled
Enabled
Enable or disable PCI express gen 2 support on the southbridge PCIe
ports
UMI Gen2
Disabled
Enabled
Enable or disable PCI express gen 2 support on the Unified Media
Interface
GPP HW Compliance
Mode
Disabled
Enabled
Enable or disable placing the southbridge PCI express controllers in
compliance mode
SB GPP Lane
Reversal
Disabled
Enabled
Enable or disable reversal of the southbridge PCI express lanes
UMI PHY PLL Power
Down
Disabled
Enabled
Enable of disable powerdown of the Unified Media Interface PHY PLL
controller
SB GPP PHY PLL
Power Down
Disabled
Enabled
Enable of disable powerdown of the southbridge PCI express PHY PLL
controller
DRAFT COPY FOR REVIEW ONLY
Southbridge GPP Port Configuration
68
DRAFT COPY FOR REVIEW ONLY
Page 75
COMe-cTH6 User’s Guide
www.kontron.com
Feature
Options
Description
HD Audio Azalia
Device
Auto
Disabled
Enabled
Enable or disable support for the high definition audio controller.
Auto will enable support is the device is identified
HD Onboard Pin
Configuration
Disabled
Enabled
Enable or disable support for configuring the configurable pin on
the HDA controller
Azalia Front Panel
Auto
Disabled
Enabled
Enable or disable HDA front panel support
SDIN# Pin Config
GPIO
Azalia
Select the configuration for the HDA configurable pins
Azalia Snoop
Disabled
Enabled
Enable or disable the HDA snoop feature
DRAFT COPY FOR REVIEW ONLY
Southbridge HD Audio Configuration
69
DRAFT COPY FOR REVIEW ONLY
Page 76
COMe-cTH6 User’s Guide
www.kontron.com
Feature
Options
Description
Setup Prompt
Timeout
1 … 65535
Number of seconds to wait for accepting the setup activation key.
65535 means wait indefinitly. 0 means do not wait (not
recommended). Note: overridden when Fast Boot enabled.
Bootup NumLock
State
On
Off
Select the default keyboard Numlock state
Quiet Boot
Disabled
Enabled
Enable or disable the quiet boot (boot logo screen) option
Fast Boot
Disabled
Enabled
Enable or disable UEFI fast boot mode
VGA Support
Auto
EFI Driver
Select Auto to only install the legacy video BIOS. The EFI driver will
be loaded if an EFI OS is booted. Note that quiet boot logo screens
will not be displayed in Auto
USB Support
Disabled
Full Initial
Partial Initial
Select Full Initial for all USB ports to be available after booting.
Selecting Partial Initial will result in only active USB ports available
PS2 Devices
Support
Disabled
Enabled
Enable or disable PS2 device support under fast boot mode
DRAFT COPY FOR REVIEW ONLY
9.3.4 Boot Configuration
70
DRAFT COPY FOR REVIEW ONLY
Page 77
COMe-cTH6 User’s Guide
www.kontron.com
Feature
Options
Description
Network Stack
Driver
Disabled
Enabled
Enable or disable the UEFI network stack driver under fast boot
mode
New HDD Priority
Low
High
Select the boot priority for a newly connected hard disk drive
Gate A20 Active
Upon Request
Always
If Upon Request is selected, the A20 gate can be disabled using
BIOS services.
Option ROM
Messages
Force BIOS
Keep Silent
Select Force BIOS to display option ROM messages. Keep silent will
suppress option ROM messages
INT19 Trap
Response
Immediate
Postponed
Select Immediate to execute an INT19 trap by an option ROM
immediately. If Postponed, the trap will be executed during legacy
boot
DRAFT COPY FOR REVIEW ONLY
71
DRAFT COPY FOR REVIEW ONLY
Page 78
COMe-cTH6 User’s Guide
www.kontron.com
Feature
Description
Set Administrator Password
Set the Administrator password for BIOS administrator access
Set User Password
Set the User password for BIOS user access
DRAFT COPY FOR REVIEW ONLY
9.3.5 Security
72
DRAFT COPY FOR REVIEW ONLY
Page 79
COMe-cTH6 User’s Guide
www.kontron.com
Feature
Description
Save Changes and Exit
Set the Administrator password for BIOS administrator access
Discard Changes and Exit
Set the User password for BIOS user access
Save Changes and Reset
Discard Changes and Reset
Save Changes
Exit system setup after saving the changes
Discard Changes
Exit system setup without saving any changes
Restore Defaults
Reset the system after saving setup changes
Save as User Defaults
Reset the system without saving any changes
Restore User Defaults
Save the changes made so far to any of the setup options
Boot Override
Discard the changes made so far to any of the setup options
DRAFT COPY FOR REVIEW ONLY
9.3.6 Save and Exit
73
DRAFT COPY FOR REVIEW ONLY
Page 80
COMe-cTH6 User’s Guide
www.kontron.com
DRAFT COPY FOR REVIEW ONLY
Appendix A: Architecture Information
The following sources of information can help you better understand PC architecture.
ISA, Standard PS/2 – Connectors
» AT Bus Design: Eight and Sixteen-Bit ISA, E-ISA and EISA Design, Edward Solari, Annabooks, 1990, ISBN 0-
929392-08-6
» AT IBM Technical Reference Vol. 1 and 2, 1985 » ISA and EISA Theory and Operation, Edward Solari, Annabooks, 1992, ISBN 0929392159 » ISA Bus Specifications and Application Notes, Jan. 30, 1990, Intel » ISA System Architecture, Third Edition, Tom Shanley and Don Anderson, Addison-Wesley Publishing Company,
1995, ISBN 0-201-40996-8
» Personal Computer Bus Standard P996, Draft D2.00, Jan. 18, 1990, IEEE, Inc. » Technical Reference Guide, Extended Industry Standard Architecture Expansion Bus, Compaq 1989
PCI
» PCI SIG
The PCI-SIG provides a forum for its ~900 member companies, who develop PCI products based on the specifications that are created by the PCI-SIG. You can search for information about the SIG on the Web.
» PCI and PCI-X Hardware and Software Architecture and Design, Fifth Edition, Edward Solari and George Willse,
Annabooks, 2001, ISBN 0-929392-63-9.
» PCI System Architecture, Tom Shanley and Don Anderson, Addison-Wesley, 2000, ISBN 0-201-30974-2.
General PC Architecture
» Embedded PCs, MarktandTechnik GmbH, ISBN 3-8272-5314-4 (German) » Hardware Bible, Winn L. Rosch, SAMS, 1997, 0-672-30954-8 » Interfacing to the IBM Personal Computer, Second Edition, Lewis C. Eggebrecht, SAMS, 1990, ISBN 0-672-22722-3 » The Indispensable PC Hardware Book, Hans-Peter Messmer, Addison-Wesley, 1994, ISBN 0-201-62424-9 » The PC Handbook: For Engineers, Programmers, and Other Serious PC Users, Sixth Edition, John P. Choisser and
John O. Foster, Annabooks, 1997, ISBN 0-929392-36-1
74
DRAFT COPY FOR REVIEW ONLY
Page 81
COMe-cTH6 User’s Guide
www.kontron.com
DRAFT COPY FOR REVIEW ONLY
RS-232 Serial
» EIA-232-E standard
The EIA-232-E standard specifies the interface between (for example) a modem and a computer so that they can exchange data. The computer can then send data to the modem, which then sends the data over a telephone line. The data that the modem receives from the telephone line can then be sent to the computer. You can search for information about the standard on the Web.
» RS-232 Made Easy: Connecting Computers, Printers, Terminals, and Modems, Martin D. Seyer, Prentice Hall, 1991,
ISBN 0-13-749854-3
» National Semiconductor: The Interface Data Book includes application notes. Type “232” as search criteria to
obtain a list of application notes. You can search for information about the data book on National Semiconductor’s Web site.
Serial ATA
» Serial AT Attachment (ATA) Working Group
This X3T10 standard defines an integrated bus interface between disk drives and host processors. It provides a common point of attachment for systems manufacturers and the system. You can search for information about the working group on the Web. We recommend you also search the Web for information on 4.2 I/O cable, if you use hard disks in a DMA3 or PIO4 mode.
USB
» USB Specification
USB Implementers Forum, Inc. is a non-profit corporation founded by the group of companies that developed the Universal Serial Bus specification. The USB-IF was formed to provide a support organization and forum for the advancement and adoption of Universal Serial Bus technology. You can search for information about the standard on the Web.
Programming
» C Programmer’s Guide to Serial Communications, Second Edition, Joe Campbell, SAMS, 1987, ISBN 0-672-22584-0 » Programmer’s Guide to the EGA, VGA, and Super VGA Cards, Third Edition, Richard Ferraro, Addison-Wesley, 1990,
ISBN 0-201-57025-4
» The Programmer’s PC Sourcebook, Second Edition, Thom Hogan, Microsoft Press, 1991, ISBN 1-55615-321-X » Undocumented PC, A Programmer’s Guide to I/O, CPUs, and Fixed Memory Areas, Frank van Gilluwe, Second
Edition, Addison-Wesley, 1997, ISBN 0-201-47950-8
75
DRAFT COPY FOR REVIEW ONLY
Page 82
COMe-cTH6 User’s Guide
www.kontron.com
Revision
Date
Changes
0.5
07-04-12
Initial review draft
0.65
04-01-13
First published draft (preliminary)
0.83
09-17-13
Release candidate
DRAFT COPY FOR REVIEW ONLY
Document Revision History
76
DRAFT COPY FOR REVIEW ONLY
Page 83
COMe-cTH6 User’s Guide
www.kontron.com
Europe, Middle East and Africa
Oskar-von-Miller-Str. 1
85386 Eching/Munich
Germany
Tel.: +49 (0)8165/ 77 777
Fax: +49 (0)8165/ 77 219
info@kontron.com
North America
14118 Stowe Drive
Poway, CA 92064-7147
USA
Tel.: +1 888 294 4558
Fax: +1 858 677 0898
info@us.kontron.com
Asia Pacific
17 Building, Block #1, ABP.
188 Southern West 4th Ring
Beijing 100070, P.R.China
Tel.: + 86 10 63751188
Fax: + 86 10 83682438
info@kontron.cn
DRAFT COPY FOR REVIEW ONLY
Corporate Offices
77
