Features
•
Project Pack: Supplied 12 per case.
•
Includes valve body, pressure balance cartridge, rough-in guide
and mud guard.
•
1/2" PEX Expansion (F1960 style) inlets.
•
1/2" Universal NPT & direct sweat outlets.
•
5.0 gpm (18.9 l/min) maximum flow rate at 45 psi.
•
Single lever design cycles from off through cold to hot.
•
Provides temperature regulation and automatic anti-scald
protection.
•
One piece cartridge design simplifies installation and
maintenance.
•
Adjustable high temperature limit stop to control maximum water
temperature.
•
Requires valve trim to complete installation (sold separately).
Material
•
Forged De-zincification Resistant Brass body provides long
term reliability and resistance to aggressive water conditions.
Technology
•
Pressure-balancing diaphragm technology maintains outlet
temperature within +/- 3 degrees Fahrenheit during water
pressure fluctuations.
Rite-Temp
®
Valve Body & Cartridge Kit Complete
K-P8304-UX
Codes/Standards
ASME A112.18.1/CSA B125.1
ASSE 1016/ASME A112.1016/CSA B125.16
KOHLER® Faucet Lifetime Limited
Warranty
See website for detailed warranty information.
Installation
•
Designed for use in standard, back to back and thin wall
installations.
•
Valve body features integral mounting locations and symmetrical
valve inlets to simplify installation.
•
Cartridge is reversible for installations where hot and cold
supplies are reversed.
•
Rough-in guide designed for both standard and thin wall
installations.
•
Installed valve rough-in can be flushed and pressure tested to
150psi max (air or water) without cartridge, using K-10351 Test
Cap.
Optional Products/Accessories
K-10350 Deep Rough-In Kit For K-8305 Cartridges
K-10351 Test Cap For K-8300 Series Valve Bodies
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
1-31-2019 18:48 - US/CA
Inlet Port
Rite-Temp
®
Valve Body & Cartridge Kit Complete
K-P8304-UX

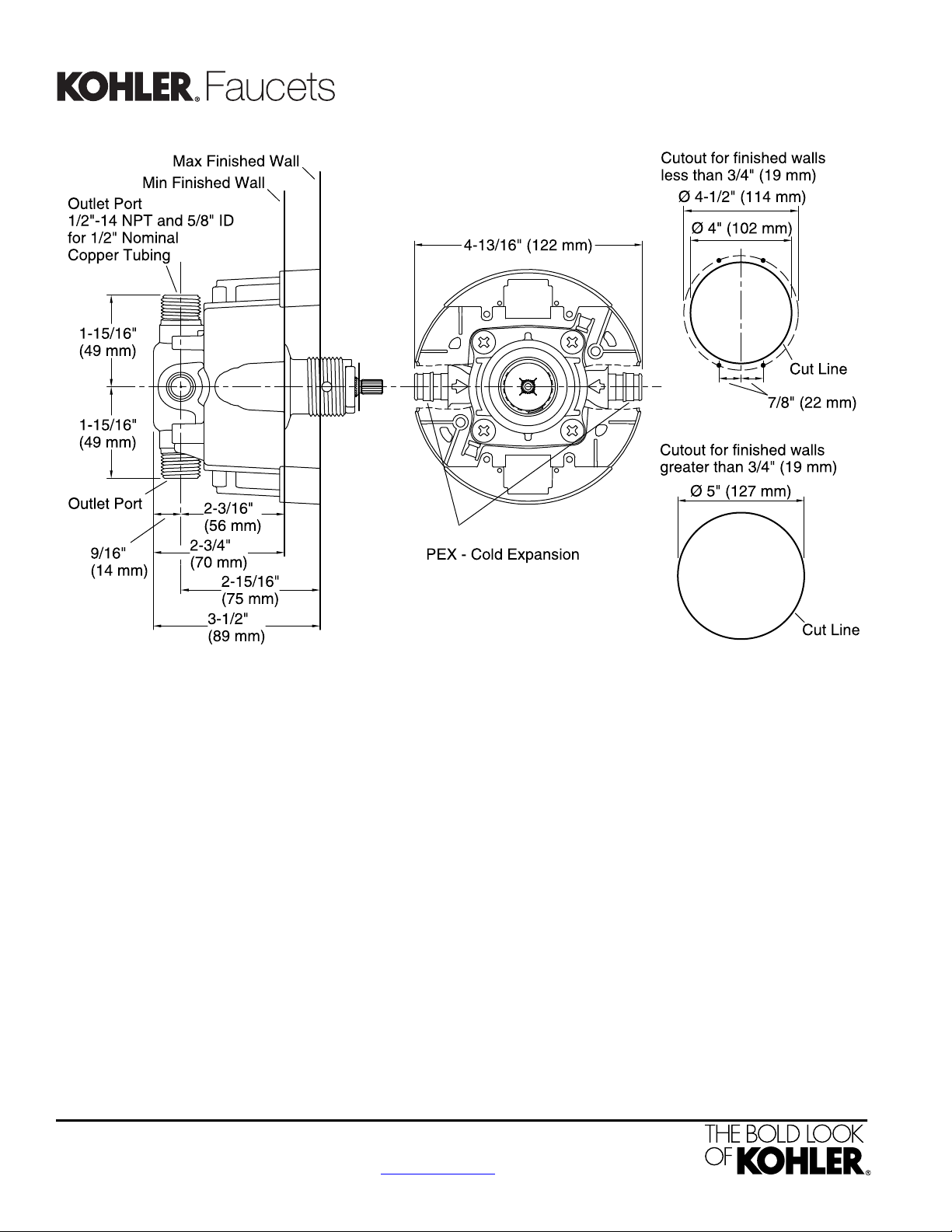

Technical Information
All product dimensions are nominal.
Shower Valve:
20 psi (1.4 bar)Min. pressure IN:
Machined-brassValve body:
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
1-31-2019 18:48 - US/CA
Notes
Install this product according to the installation
guide.
Avoid cross-flow conditions. Do not install a
shut-off device on either valve outlet.
Cap the shower outlet if the deck-mounted spout,
diverter, or handshower is connected to the spout
outlet.
Install straight pipe or tube drop of 7" (178 mm)
to 18" (457 mm) with single elbow between the
valve and the wall-mount spout.
For finished walls greater than 3/4" (19 mm) and
less than 1-1/2" (38 mm), install support(s) 2" (51
mm) from the stud face.
For finished walls greater than 1-1/2" (38 mm),
install support(s) 3" (76 mm) from the face of the
finished wall.
