Features
CSA B651
OBC
•
4-inch center faucet holes.
•
Oval basin.
•
Overflow drain.
Material
•
Vitreous china.
Technology
•
Antimicrobial finish inhibits the growth of mold, mildew, stain
and odor causing bacteria on the fixture surface.
Installation
•
Includes wall hanger.
•
Wall-mount
•
Drilled for concealed arm carrier installation.
Brenham
™
Wall-Mount Bathroom Lavatory
K-1997-SS4
Optional Accessories
K-8998 P-Trap
K-1998 Shroud
Components
Additional included component/s: Hanger (2 required).
Codes/Standards
ASME A112.19.2/CSA B45.1
ADA
ICC/ANSI A117.1
CSA B651
OBC
KOHLER® One-Year Limited Warranty
See website for detailed warranty information.
Available Color/Finishes
Color tiles intended for reference only.
DescriptionCodeColor
White0
USA/Canada: 1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
2-12-2018 03:50
Concealed Arm
Brenham
™
Wall-Mount Bathroom Lavatory
K-1997-SS4

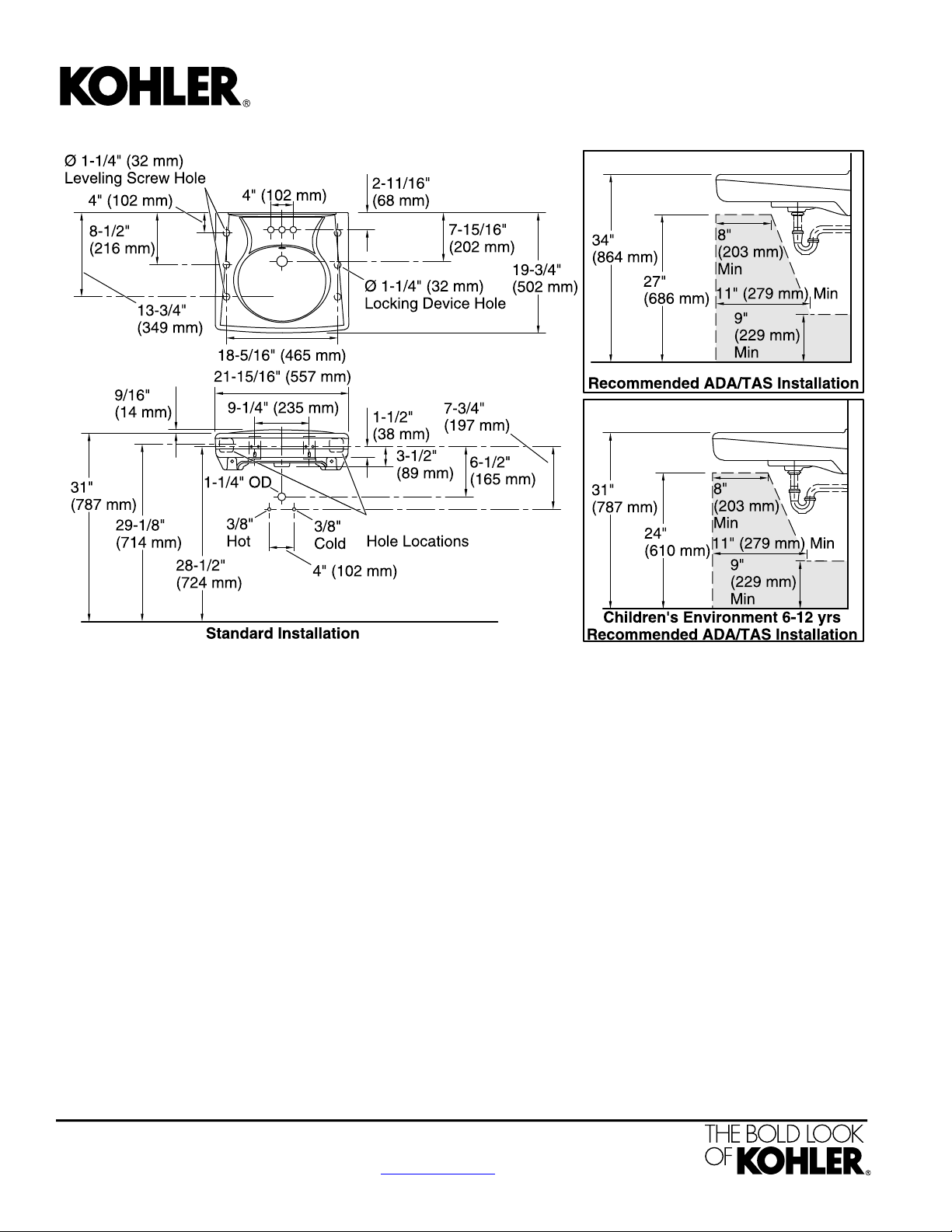

Technical Information
All product dimensions are nominal.
SingleBowl configuration:
Wall-mountInstallation:
Bowl area (Only):
USA/Canada: 1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
2-12-2018 03:50
Length: 14-3/8" (365 mm)
Width: 12-5/16" (313 mm)
With overflow: Yes
Water depth: 3-1/4" (83 mm)
3Number of deck holes:
1-1/4" (32 mm)Faucet hole(s):
1-3/4" (44 mm)Drain hole:
Notes
Install this product according to the installation
instructions.
ADA, OBC, CSA B651 compliant when installed
to the specific requirements of these regulations.
