Mira Response Handset - L19A
These instructions must be left with the user
Installation & User Guide
1
1296664-W2-A
Introduction
Thank you for choosing a Mira shower. Products manufactured by Kohler Mira Ltd
are designed to be safe, provided that they are installed, used and maintained in
good working order, in accordance with our instructions and recommendations.
Guarantee
This product has been designed for domestic use only, Mira Showers guarantee
this product against any defect in materials or workmanship for a period of one year
from the date of purchase. For terms and conditions, refer to the website.
Dimensions
98 mm
232 mm
Specications
Plumbing
Minimum Maintained Pressure 10 kPa (0.1 Bar)
Maximum Maintained Pressure 500 kPa (5 Bar)
Hose Connection 1/2" BSP Male to Flexible Hose
Warning! Exceeding the stated maximum maintained pressure could result in
excessive spray forces and possible damage to the product.
1296664-W2-A
2

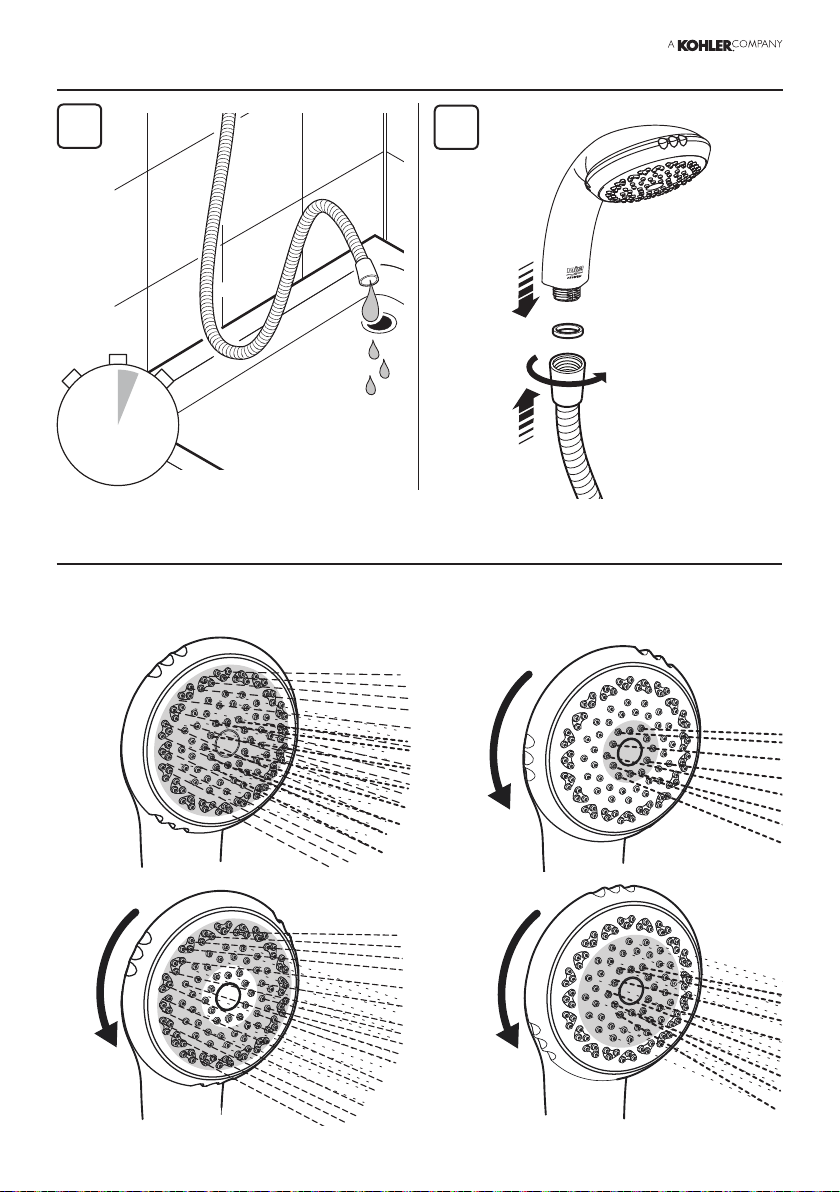

Installation
1
1 min
2
Operation
To change the mode, Turn the adjuster ring one step anti-clockwise till it clicks.
Mode 1
Mode 2
Mode 3
Mode 4
3
1296664-W2-A
Maintenance
Cleaning
Many household cleaners contain abrasives and chemical
substances, and should not be used for cleaning plated or
plastic ttings.
These nishes should be cleaned with a mild washing up
detergent or soap solution, and then wiped dry using a soft
cloth.
To remove limescale, use your thumb or a soft cloth to wipe
any limescale from the soft rubber nozzles and the front face
of the showerhead.
Important! The sprayplate must be regularly cleaned to make sure that the showerhead
does not become blocked.
To Contact Us: UK
0844 571 5000
Calls cost 7p per minute plus your phone company’s access charge
www.mirashowers.co.uk - Full details of the manufacturer’s guarantee
is available on the website.
1296664-W2-A
4
© Kohler Co. October 2016
