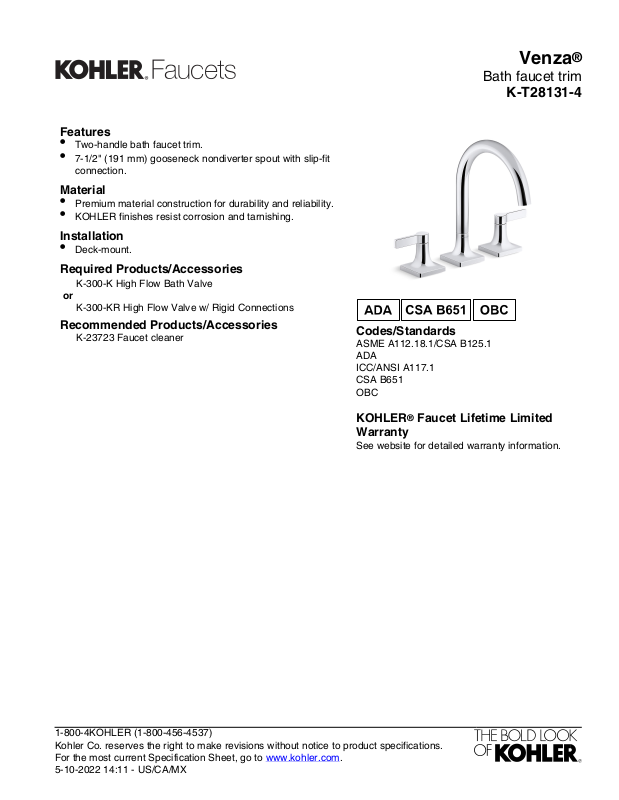

Page 1
Venza
Features
•
Two-handle bath faucet trim.
•
7-1/2" (191 mm) gooseneck nondiverter spout with slip-fit
connection.
Material
•
Premium material construction for durability and reliability.
•
KOHLER finishes resist corrosion and tarnishing.
Installation
•
Deck-mount.
Required Products/Accessories
K-300-K High Flow Bath Valve
or
K-300-KR High Flow Valve w/ Rigid Connections
Recommended Products/Accessories
K-23723 Faucet cleaner
Codes/Standards
ASME A112.18.1/CSA B125.1
ADA
ICC/ANSI A117.1
CSA B651
OBC
KOHLER® Faucet Lifetime Limited
Warranty
See website for detailed warranty information.
®
Bath faucet trim
K-T28131-4
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
5-10-2022 14:11 - US/CA/MX
Page 2
Venza
8" (203 mm) Min
2-11/16"
(68 mm)
2-5/8"
(67 mm)
3-1/16"
(78 mm)
7-1/2" (191 mm)
10-5/8"
(270 mm)
6-3/8"
(162 mm)
2-5/8"
(67 mm)
2-3/8"
(60 mm)
2-5/8"
(67 mm)
Technical Information
All product dimensions are nominal.
Drain included: No
Notes
Install this product according to the installation
instructions.
ADA, OBC, CSA B651 compliant when
installed to the specific requirements of these
regulations.
®
Bath faucet trim
K-T28131-4
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
5-10-2022 14:11 - US/CA/MX
