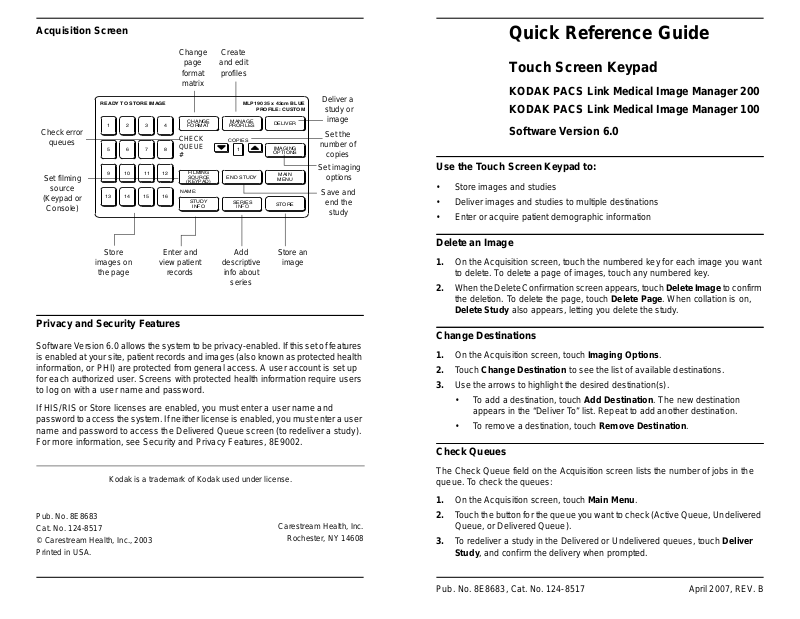

Acquisition Screen
READY TO STORE IMAGE
Check error
queues
Set filming
source
(Keypad or
Console)
1
432
8765
1211109
16151413
Change
page
format
matrix
CHANGE
FORMAT
CHECK
QUEUE
#
FILMING
SOURCE
(KEYPAD)
NAME:
STUDY
INFO
Create
and edit
profiles
MLP190 35 x 43cm BLUE
MANAGE
PROFILES
COPIES
1
END STUDY
SERIES
INFO
PROFILE: CUSTOM
DELIVER
IMAGING
OPTIONS
MAIN
MENU
STORE
Deliver a
study or
Set the
number of
copies
Set imaging
options
Save and
end the
study
Quick Reference Guide
Touch Screen Keypad
KODAK PACS Link Medical Image Manager 200
KODAK PACS Link Medical Image Manager 100
Software Version 6.0
Use the Touch Screen Keypad to:
• Store images and studies
• Deliver images and studies to multiple destinations
• Enter or acquire patient demographic information
H156_0062AC
Store
images on
the page
Enter and
view patient
records
Add
descriptive
info about
Store an
series
Privacy and Security Features
Software Version 6.0 allows the system to be privacy-enabled. If this set of features
is enabled at your site, patient records and images (also known as protected health
information, or PHI) are protected from general access. A user account is set up
for each authorized user. Screens with protected health information require users
to log on with a user name and password.
If HIS/RIS or Store licenses are enabled, you must enter a user name and
password to access the system. If neither license is enabled, you must enter a user
name and password to access the Delivered Queue screen (to redeliver a study).
For more information, see Security and Privacy Features, 8E9002.
Kodak is a trademark of Kodak used under license.
Pub. No. 8E8683
Cat. No. 124-8517
© Carestream Health, Inc., 2003
Printed in USA.
Carestream Health, Inc.
Rochester, NY 14608
Delete an Image
1. On the Acquisition screen, touch the numbered key for each image you want
to delete. To delete a page of images, touch any numbered key.
2. When the Delete Confirmation screen appears, touch Delete Image to confirm
the deletion. To delete the page, touch Delete Page. When collation is on,
Delete Study also appears, letting you delete the study.
Change Destinations
1. On the Acquisition screen, touch Imaging Options.
2. Touch Change Destination to see the list of available destinations.
3. Use the arrows to highlight the desired destination(s).
• To add a destination, touch Add Destination. The new destination
appears in the “Deliver To” list. Repeat to add another destination.
• To remove a destination, touch Remove Destination.
Check Queues
The Check Queue field on the Acquisition screen lists the number of jobs in the
queue. To check the queues:
1. On the Acquisition screen, touch Main Menu.
2. T ouch the button for the queue you want to check (Active Queue, Undelivered
Queue, or Delivered Queue).
3. To redeliver a study in the Delivered or Undelivered queues, touch Deliver
Study, and confirm the delivery when prompted.
Pub. No. 8E8683, Cat. No. 124-8517 April 2007, REV. B
Enter and Acquire Patient Demographics
To enter patient records manually:
1. On the Acquisition screen, touch Study Info.
2. Touch each field or press the Tab key on the keyboard to enter information.
Screens appear, prompting you for the information needed in each field. You
can enter information from the Touch Screen Keypad or from the keyboard.
3. Touch End Study to save the patient record.
To acquire patient records automatically from HIS/RIS:
1. Touch Clear All Fields.
2. Touch Patient List. The Patient List displays the records from the HIS/RIS.
To use the bar code reader to retrieve a patient record from a bar code label:
1. Touch an unprotected field on the Study Info screen.
2. Scan the bar code label. The information that is retrieved populates the
highlighted field.
To search for records using the bar code reader, scan the bar code label with the
primary field information. The record is retrieved.
Deliver a Page or Study
1. Use the arrows on the Acquisition screen to select the number of copies. You
can also set up a default quantity for each profile.
2. When you have added 1 or more images to the page, you can deliver it. The
steps to deliver a page or study differ with Collation enabled or disabled:
IMPORTANT: Enable Collation to keep together a group of pages in a study. With
digital archives, workstations, or web servers, enable Collation so the pages in the
study are delivered together. With laser imagers, enable Collation if you want the
pages of the study to print together.
• With Collation enabled, touch End Page each time you finish a page in
the study. When you have finished the study, touch End Study.
IMPORTANT: With Collation enabled, you must touch End Study to deliver the
patient’s study . Y ou continue to add images to the study until you touch End Study .
• With Collation disabled, touch Deliver each time you finish storing images
on the page.
Screen Hierarchy
Acquisition Screen
Change Format
Manage Profiles
Deliver
Copies
Imaging Options
Filming Source
End Study
Main Menu
Study Info
Series Info
Store
Imaging Options
Media Select
Change Format
Change Destination
Tonescale Options
Priority
Series Configuration
Film Output
More Options
More Options
Collation
Status at Console
Annotation Text
Annotation Setup
Auto Study Create
Study Create
Verify Study Info
CRT Profile
Main Menu
Active Queue
Undelivered Queue
Delivered Queue
Logout
Restart
Shutdown
Service
Keypad Services
Acquisition
Service
View System Info
View Error Logs
Diagnostics
Backup Configuration
Set System Time
Auto Study Delivery
More Options
Keypad Services
Autodeliver
Screen Saver
Store Audio
Keyboard
Multiseries
Tonescaling
Queue Format
Change Password
Service
HIS/RIS Configuration
Series Configuration
Polling Interval
Retention Period
Tonescale Options
Border
Image Dmin
Nor/Rev
Contrast
Border Dmax
Image Dmax
Contrast Series Print / Print Curve Series
Trim
Smoothing Type / Interpol ation
TFT/ULUT / Curve Shape
Pivot Density
Pub. No. 8E8683 April 2007
