Kodak UPB10012 Owner Manual
KODAK SMART BABY MONITOR
C525P
EN_C525P_V5
WELCOME
ASSEMBLY
Thank you for buying the KODAK SMART BABY
Check List:
MONITOR.
With the Baby Monitor’s Parent Unit or your mobile
device, now you can monitor your baby sleeping in
another room anywhere, anytime!
Please keep your original dated sales receipt. You will
need to produce a copy of it to conirm your warranty
84mm
C525P
120mm
status.
For product-related questions, please send an email
to: support@kodaksmarthome.com.
162mm
1 x Parent Unit
60mm
1 x Camera
This User Manual covers all the information you will
need to get the most out of your product.
Prior to using the Baby Monitor, we recommend that
you fully charge the battery in the Parent Unit. This
way, the device will continue to work even if you
2 x Power adapter for
Parent Unit
disconnect it from the power supply to carry it to
another location. Please read the Safety Instructions
on page 18 carefully before installation.
Page | 2 Introduction
PARENT UNIT OVERVIEW
Keys
i
1
2
a
c
e
g
: Press and hold to speak to your baby
a.
: Press to enter/exit the Menu mode
b.
: Press to turn on/o the LCD display
c.
: Press to conirm
d.
: Press to scroll/pan left
e.
: Press to scroll/pan right
f.
: Press to scroll/pan down
g.
: Press to scroll/pan up
h.
Page | 4 Parent Unit Overview
b
d
f
h
6
7
3
4
5
1. Battery Status Indicator
2. Antenna
3. Volume Up
4. Volume Down
5. Power On/O Slider
6. Display
(LCD Screen resolution
800x480)
7. Microphone
LED BEHAVIORS FOR PARENT UNIT
The irst LED lights up
in blue/purple when
the adapter is plugged
in and it’s fully charged;
the second LED lights
up in green when the
Parent Unit is switched
on.
The irst LED lights
up in red when it’s
charging and the
adapter is plugged in;
the second LED lights
up in green when the
Parent Unit is switched
on.
When the third and
fourth LED light up in
yellow, the Camera
is detecting and
transmitting sounds to
the parent unit.
When the ifth and
sixth LED light up
in red, high volume
sounds detected and
transmitted
Beep Behaviors for Parent Unit
2 Quick Beeps The parent Unit may be disconnected from the
1 Beep Low Battery Alert.
5 Continuous Beeps Temperature is out of range.
Page | 6 Behaviors for Parent Unit
Camera due to being out of range or the Camera
may be powered o.
It is time to recharge the battery on Parent Unit.
CAMERA OVERVIEW
KODAK SMART BABY MONITOR C525P
2
5
1. IR Sensor
2. Camera Lens (with
resolution HD(720p))
3. Lens Frame with Tilt
function (up for 90°,
down for 15°)
1
3
4
11
6
4. Pan function (330°)
5. LED Power Indicator
6. Charging Socket
7. Speaker
8. Microphone
9. Antenna
7
8
9
10
12
13
14
11. Power ON/OFF Switch
12. Holes for Wall Mount
13. Micro-SD Card Cover
(Only up to 32GB - Class 10
memory card)
14. Thermometer
10. Pair Button
Page | 8 KODAK Smart HomeCamera Overview
INSTRUCTIONS OF HOW TO WALL MOUNT YOUR C525P CAMERA
1. First, put the screws on the wall. The diameter of the screws should be at least 5mm and
maximum of 9mm. The distance between two
screws should be 20mm.
9mm
20mm
2. Place and match the wider holes on the base
of the camera with the screws.
3. Slide the base of the camera downwards so that the
screws lock towards the narrow side.
Camera OverviewPage | 10
LED Behaviors for Camera(C525P)
Camera is OFF, connected adapter: Solid Red
Camera powering up: Solid Blue for irst few seconds
Camera locating router: Blue blinking every one second
Camera connected to router: Solid Blue
Page | 12 Behaviors for Camera
Camera in pair mode: Blinking Blue & Red
Firmware upgrading. DO NOT SWITCH OFF THE CAMERA:
Blinking Purple, Red & Blue
Camera is OFF, battery is fully charged: No Light
ESSENTIAL GUIDELINES FOR THE INSTALLATION OF YOUR BABY MONITOR
• Before using your Camera and the Parent Unit
together, you must irst establish a radio link
between them. The range may be aected by
monitor uses router mode connection”
• Insert one of the in-box batteries into the Parent Unit.
The battery should be inserted with the label facing
environmental conditions.
• Any large metal object such as refrigerator,
mirror, iling cabinet, metallic door or reinforced
concrete between the Camera and the Parent
Unit may block the radio signal.
• The strength of the signal may also be reduced by
other solid structures such as walls or electrical
appliances (including radios, TVs, computers,
cordless or mobile phones, luorescent lights or
dimmer switches).
• The use of other 2.4 GHz products (e.g. wireless
networks [Wi-Fi routers], Blue-tooth systems, or
microwave ovens) may cause interference with
this product. Therefore, always keep the Baby
Monitor at least 5 feet/1.5 meters from such
products, or turn them o if they appear to be
causing interference.
• If the signal is weak, try moving the Parent Unit
and/or the Camera to another position in the
room or bring them near the router in case of the
Page | 14 Guidelines to Install Your Baby Monitor
Guidelines to Install Your Baby Monitor
TABLE OF CONTENTS
1. Safety Instructions
2. Getting Started
2.1 Camera Power Supply
2.2 Parent Unit Power Supply
2.3 Registration (Pairing)
3. Using the Baby Monitor
3.1 Setting Up
3.2 Power On or O the Camera
3.3 Power On or O the Parent Unit
3.4 Talk Mode
3.5 Video On/O
4. Parent Unit Menu Options
4.1 Snapshot
4.2 Add (Pair) a Camera
4.3 Set Wi-Fi network connection between the
Camera and the Parent unit
4.4 Set 12 or 24 hour Time Format
4.5 Melody
4.6 Temperature
4.7 Brightness
4.8 Camera Loop
4.9 Zoom
4.10 Outdoor / Indoor Mode
4.11 Voice Activation
4.12 Volume
4.13 Split Screen
5. Proper Disposal of the Device
Page | 16 Table of Contents
18
20
24
28
60
6. Cleaning Your Device
7. Troubleshooting
8. “KODAK Smart Home” In-App Setup
9. Monitoring Your Baby Via the App
10. Grant Access
11. Zone Detection
12. Timeline
14. Further Information
• Exclusions from Coverage
• How to Obtain Warranty Service or
Other Information?
• FCC, IC And CE Regulations
• Warning
• EC Declaration of Conformity
15. Technical Speciications
61
62
66
78
82
90
92
94
108
1. SAFETY INSTRUCTIONS
• Never cover the Baby Monitor with a towel or blanket.
WARNING:
Strangulation Hazard: Children have STRANGLED in cords. Keep this cord out
of the reach of children (more than 3ft away). Do not remove this tag. Never
use extension cords with AC Adapters. Only use the AC Adapters provided.
Camera Set Up & Use:
• Determine a location for the Camera that will provide the best view of
your baby in his/her cot.
• Place the Camera on a lat surface, such as a dresser, bureau, or shelf.
You can also mount the Unit to a wall securely using the keyhole slots
that can be found underneath the camera. NEVER place the Camera or
cords within the cot.
This Baby Monitor complies with all relevant standards concerning
electromagnetic ields and is safe to use when handled as described in the
User Manual. Always read the instructions in this User Manual carefully before
using the device.
• This product must be assembled by an adult only. When assembling,
keep small parts away from children.
• This product is not a toy. Never let children play with it.
• This Baby Monitor is not and shall not be deemed to be a substitute for
responsible adult supervision.
• Retain this User Manual for future reference.
• Never place the Camera or cords in the cot or within reach of the baby
(the Unit and cords should be kept more than 3 feet/0.9 meters away).
Page | 18 Safety Instruction
• Familiarize yourself with this monitor and all its functions prior to
actual use.
• Never use the Baby Monitor in damp areas or anywhere close to
water.
• Only use the chargers and power adapters provided. Never use
other chargers or power adapters as it may damage the device
and battery pack.
• Only insert a battery pack of the same type.
• Never tamper the plug contacts with sharp or metal objects.
• Connect the power adapters to easily accessible power sockets.
CAUTION:
• There is a risk of Explosion if the battery is replaced by an incorrect
type.
• Always dispose of used batteries by following the relevant
instructions.
• – disposal of a battery into ire or a hot oven, or mechanically
crushing or cutting of a battery, that can result in an explosion;
• – leaving a battery in an extremely high temperature surrounding
environment that can result in an explosion or the leakage of
lammable liquid or gas; and
• – a battery subjected to extremely low air pressure that may result in
an explosion or the leakage of lammable liquid or gas.
2. GETTING STARTED
2.1 Camera Power Supply
1. Insert the small end (USB C) of the Camera’s power
adapter (Output 5V, 2000mA) into the USB C
socket at the back of the Camera.
2. Insert the other end of the power adapter into
a suitable electrical outlet.
3. Slide the ON/OFF switch to the ON position to
switch on the Camera. The power indicator lights
up in blue.
4. Slide the ON/OFF switch to the OFF position to
switch o the Camera. The power indicator lights
up in red, indicating that the camera is being
charged.
*IMPORTANT: Only use the supplied power
adapter.*
Page | 20 Getting Started
2.2 Parent Unit Power Supply
The Parent Unit comes with a built-in Li-ion battery
and should be charged for 6 hours. Charging
the rechargeable battery pack fully before use is
recommended. This will allow the unit to operate on
battery in the event of a power failure.
1. Insert the small end (USB C) of the Parent
Unit’s power adapter (Output 5V, 2000mA)
into the USB C socket in the back of the Parent
Unit.
2. Insert the other end of the power adapter into
a suitable electrical outlet. The battery status
indicator will light up in red to indicate that
the Parent Unit is connected to the electrical
outlet.
*IMPORTANT: Only use the supplied power
adapter.*
3. Slide the power ON/OFF button that is located
on the side of the Parent Unit to switch on the
device.
4. When the Baby and Parent Units are both
switched ON, the display on the Parent Unit
will show the image captured by the Camera.
If the Camera is not in range or is switched o,
the Parent Unit beeps repeatedly and an error
message will appear on the screen.
2.3 Registration (Pairing)
1. The Camera is pre-registered to your Parent Unit.
You do not need to register it again unless the
Camera loses its link with the Parent Unit. If you
would like to add an additional camera, please refer
to section 4.2.1.
2. To re-register your Camera, or register a new
Camera, follow the procedure below:
a. Press “ ” on the Parent Unit for the menu bar.
b. Press “ ” or “ ” button to select , then
“ ” to proceed to the next step.
c. Press “ ” to add camera, then “ ” to
proceed.
d. Press the “ ” button or “ ” button to select
the available camera number. Press “ ” to
add a camera unit.
e. You will then see a sign “ ” to indicate you to
press and hold the pair button of the Camera
until the irst beep then release the pair button.
Page | 22
The Parent Unit will auto detect and pair to the
Camera. Parent Unit will then display live stream
upon successful pairing.
NOTE: Pairing a Camera that was previously registered
will reset the device and remove it from the previous
account.
Getting Started
3. USING THE BABY MONITOR
Please read these instructions carefully, and be aware that
this Baby Monitor is only intended as an aid.
It is not a substitute for responsible adult supervision.
3.1 Setting Up 3.2 Power On or O the Camera
• Make sure that the Camera and Parent Unit are
both switched on.
• Slide the ON/OFF switch to the ON position to
switch on the Camera. The power indicator lights
up in blue.
• Place the Camera in a convenient location (e.g. on
a table, mount on wall...etc) and point the camera
lens towards the area you want to monitor.
• Slide the ON/OFF switch to the OFF position to
switch o the Camera. The power indicator goes
o if the lights up in red if it is charging.
NOTE:
• Do not place the Camera within reach of a child
or baby! If there is interference with the picture or
sound, try moving the units to dierent locations,
and ensure that they are not close to any other
electrical equipment.
• If you place the Parent Unit and Camera too close
together, you may hear a high pitched noise. This is
certainly not a defect. As the units are designed to
be operated at some distance, so please move the
units further apart to avoid this noise.
• It is only recommended to use a Class 10 micro-SD
up to 32GB (Facing the camera, insert the micro-SD
card with the label towards you) and the ile format
Page | 24 Using the Baby Monitor
3.3 Power On or O the Parent Unit
3.5 Video ON/OFF
• To turn on the parent unit, slide the ON/OFF switch
to the ON position to switch on the Parent Unit. The
power indicator lights up in green. If the battery
is being charged, the red indicator will light up
concurrently.
• To turn on the parent unit, slide the ON/OFF switch
to the OFF position to switch o the Parent Unit.
The green indicator goes o. If the battery is being
charged, the red indicator will continue to light up.
• Press VIDEO ON/OFF
display On or O, Turning o the LCD display does
not turn o the Audio. This feature will increase the
battery life.
key to turn the LCD
3.4 Talk Mode
• Press and hold the TALK button on the parent
unit to talk to your baby through the Camera’s
loudspeaker. The “TALK” icon will be displayed at
the top of the LCD screen. When inished talking
release the “TALK” button to hear your baby again.
Page | 26 Using the Baby Monitor
4. PARENT UNIT MENU OPTIONS
Parent Unit Menu Keys
Take Snapshot/ View Snapshot
Add / Delete / View Camera
Set 12 or 24 hour Time Format
Set network connectivity between Camera and
Parent Unit
Select Melody to playback on Camera
Set Temperature Scale & Adjust Range for Alert

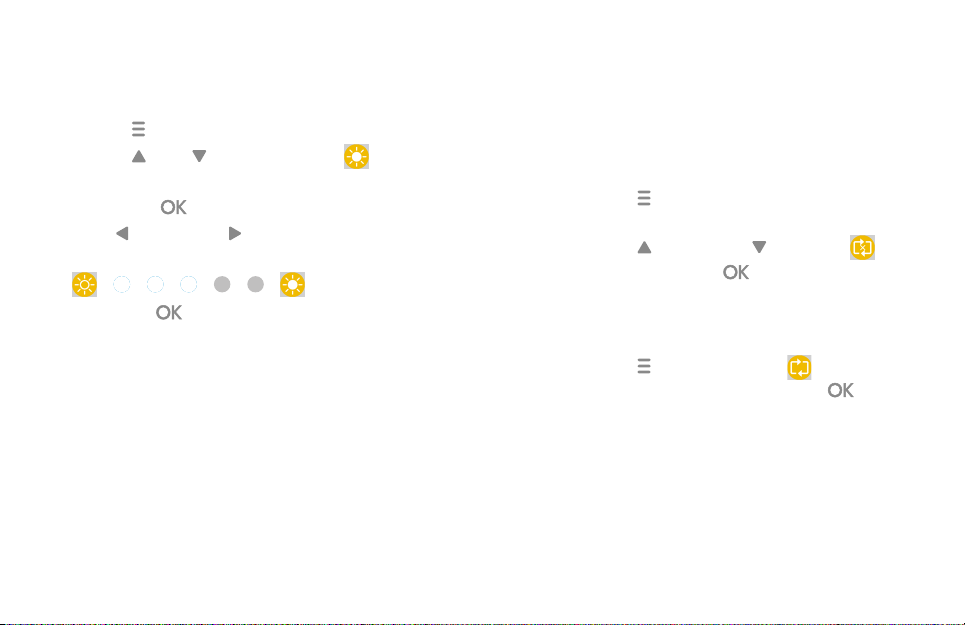

Set Brightness on LCD Panel
Enable Looping for multiple cameras
Digital Zooming
Router Mode
Direct Mode
Home Mode
Change picture mode to Outdoor / Indoor mode
* showing this notiication on the parent unit only with the camera model (C120, C125, C520
and C525) includes battery, for baby monitor model (C525P) without camera battery, this
notiication will not show on the parent unit
Voice Activation Alert (VOX)
Split Screen
The Camera is low on battery*
Both the Baby and Parent Units are low on battery
The Parent Unit is low on battery
Page | 28 Parent Unit Options
Parent Unit Status Bar
4 5 6
7 8
9 10
12
13
11
Page l 38
1 2
18:30
1. Wi-Fi Signal
2. Local Time (available
when the Camera(camera) is
connected to the Internet)
3. Device Number
4. Camera Battery Status
5. Parent Unit
6. Parent Unit Battery
Status
7. Temperature
3
2
18 19
8. Talk Key (appears as you
press on the talk back key on
the parent unit)
23°C 58%
17
9. Outdoor/Indoor mode
10. Voice Activation
Alert(vox)
11. Router Mode
12. Direct Mode
13. Home Mode
14. Extender in Use
VOX
14
15
16
15. Extender in Use with
Home Mode
16. Device Number (Split
Screen Function)
17. Sound Indication (Split
Screen Function)
18. Sound Detection (Split
Screen Function)
Parent Unit Status Bar
4.1 Snapshot
Prerequisite: This feature needs Class 10 Micro-SD card
to be inserted in the Camera. (see page 28) 4.2.1 Camera Registration
1. Press “
2. Press the “ ” or “ ” until SNAPSHOT
CAPTURE is highlighted. Press “ ” to conirm.
3. Press the “ ” button or “ ” until “
”SNAPSHOT CAPTURE) is highlighted in the sub
menu. Press “ ” to take a snapshot.
4. Press the “ ” button or “ ” until “
”(SNAPSHOT PLAYBACK) is highlighted. Press “
latest snapshots (e.g: 1|2) and press “ ” to view.
NOTE:
The snapshot playback feature can only display the two
latest snapshots that were stored in the Micro-SD card
while the rest of the snapshots will still be available in the
Micro-SD card.
Page | 32 Parent Unit Options
” on the Parent Unit for the menu bar.
” to select captured images; select the desired
4.2 Add (Pair) a Camera
1. When the camera pairing icon “ ” appears;
press and hold the pair button on the Camera
until you hear the beep, then release the pair
button.
2. The Parent Unit will then ind the camera and
complete the pairing and stream the live video.
Loading...
