Page 1

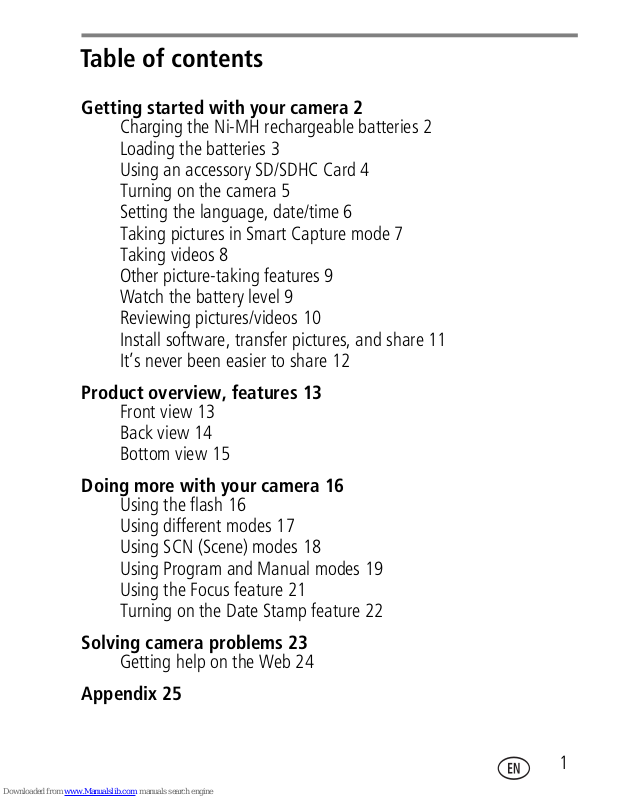

Table of contents
Getting started with your camera 2
Charging the Ni-MH rechargeable batteries 2
Loading the batteries 3
Using an accessory SD/SDHC Card 4
Turning on the camera 5
Setting the language, date/time 6
Taking pictures in Smart Capture mode 7
Taking videos 8
Other picture-taking features 9
Watch the battery level 9
Reviewing pictures/videos 10
Install software, transfer pictures, and share 11
It’s never been easier to share 12
Product overview, features 13
Front view 13
Back view 14
Bottom view 15
Doing more with your camera 16
Using the flash 16
Using different modes 17
Using SCN (Scene) modes 18
Using Program and Manual modes 19
Using the Focus feature 21
Turning on the Date Stamp feature 22
Solving camera problems 23
Getting help on the Web 24
Appendix 25
1
Page 2
ENGLISH
Lights are on while the charger is plugged in.
(See the charger documentation for
instructions and charging times.)
All batteries lose power over time–even if they’re not being used. For
longer life, fully charge KODAK Ni-MH Rechargeable Batteries AA prior to
use.
Your plug may differ.
1Getting started with your camera
IMPORTANT! If your package includes:
■ Ni-MH batteries and a charger, continue to Charging the Ni-MH
rechargeable batteries.
■ Alkaline batteries and no charger, skip to Loading the batteries,
page 3. (You may purchase rechargeable AA batteries and a charger
at www.kodak.com/go/accessories.)
Charging the Ni-MH rechargeable batteries
2 www.kodak.com/go/support
Page 3
Loading the batteries
1
2
Press the door lock while sliding the door open.
NOTE: You may also use a 5V, 1.5 A
AC adapter to power the camera via
its USB port.
ENGLISH
www.kodak.com/go/Z5010support 3
Page 4
ENGLISH
CAUTION:
Insert a card until it clicks.
To remove a card, press
and release it.
Accessory
Using an accessory SD/SDHC Card
Your camera has internal memory. We recommend purchasing an SD or
SDHC Card (Class 4 or higher) to store more pictures/videos. You must
use a Class 4 or higher card to record HD video.
A card can only be inserted one way; forcing it may cause
damage. Inserting or removing a card while the camera is on
may damage the pictures, the card, or the camera.
IMPORTANT:
inserted. If so, new pictures/videos are stored on the card. If no card is
inserted, new pictures/videos are stored in the camera’s internal memory.
4 www.kodak.com/go/support
Purchase cards www.kodak.com/go/accessories
When you turn on the camera, it checks to see if a card is
Page 5
Turning on the camera
ENGLISH
www.kodak.com/go/Z5010support 5
Page 6
ENGLISH
to change.
for previous/next field.
to accept.
At the prompt, press
OK
.
to change.
OK
to accept.
Language:
Date/Time:
Sharing Destinations:
You can tell the camera which sharing sites to
offer when it’s time to share pictures/videos.
to highlight a site.
to check/uncheck the site.
OK
OK
Setting the language, date/time
See the Extended user guide www.kodak.com/go/Z5010manuals
See How-To videos www.kodak.com/go/Z5010demos
6 www.kodak.com/go/support
Page 7
Taking pictures in Smart Capture mode
Framing
marks
Mode
dial
1 Turn the Mode dial to Smart Capture .
2 Use the LCD to compose the picture
.
ENGLISH
3 Press the Shutter button halfway to focus and set exposure.
framing marks indicate successful focus. If the camera is not focusing on
the desired subject, or if red brackets or “AF” appear, release the Shutter
button and recompose the scene.
4 Press the Shutter button completely down.
briefly displayed. If you don’t like it, press the Delete button, then follow
the prompts.
The new picture is
Green
www.kodak.com/go/Z5010support 7
Page 8
ENGLISH
Taking videos
IMPORTANT:
You must use a Class 4 or higher card to record HD video.
1 Turn the Mode dial to Video
.
2 To start recording, press and
release the Shutter button. To
stop recording, press and release
the button again.
The first frame of the new video
and the play button are displayed
for a few seconds.
■ To play/pause the video,
press the OK button.
■ If you don’t like the video,
press the Delete button, then
follow the prompts.
How long can I record video?
Video Size
setting
HD720p < 2 GB file size / 8–10 minutes
VGA < 2 GB file size / 20–25 minutes
To switch from HD720p (higher quality, larger file size) to VGA, press
Approximate file size/video length
(depending on scene content)
the Menu button, highlight Video Size, and press OK.
8 www.kodak.com/go/support
Page 9
Other picture-taking features
Info
OK
Review
■ To view available tools, press the Info button . Press to
choose a tool, then press OK.
■ To review, tag, and edit pictures and videos, press the Review
button (see page 10).
■ To change camera settings, press the Menu button.
■ If it’s hard to see the LCD, you can adjust the brightness. (Press the
Menu button and choose LCD Brightness.)
ENGLISH
Watch the battery level
Full
Three quarters
Half
Critical
AC Power
www.kodak.com/go/Z5010support 9
Page 10
ENGLISH
Review
4X
4X
1X2X 2X
Playback speed
Reviewing pictures/videos
1 Press the Review button.
2 Press for previous/next
picture/video.
■ To exit, press the Review
button or press the Shutter
button halfway down.
■ To view pictures/videos as
thumbnails, press the Wide
Angle (W) button.
Playing a video
Press OK to play a video. Press
OK to pause/resume. During
playback:
■ Press to adjust the
volume.
■ Press to play at 2X speed;
press again for 4X.
■ Press to reverse at 2X speed;
press again for 4X.
10 www.kodak.com/go/support
Page 11
Install software, transfer pictures, and share
IMPORTANT:
To use the sharing and social networking features,
you must install the KODAK Share Button App.
1 Make sure the computer is connected to the Internet.
2 Turn off the camera.
3 Using the KODAK Camera USB
Cable, Micro B / 5-Pin, connect
the camera to the computer. (Use
only the cable included with this
camera.)
4 Turn on the camera.
The camera works with your
computer to download and install
ENGLISH
the Share Button App on your
computer.
IMPORTANT:
version for your computer: www.kodak.com/go/camerasw.
If the installer does not run, choose and install the right
5 After the software is installed, follow the prompts to transfer
pictures and videos to your computer.
Pictures/videos that you tagged for sharing are emailed or uploaded to
the desired social networking sites.
NOTE: You can also use a card reader to transfer pictures/videos to your computer.
Download software later www.kodak.com/go/camerasw
Get Software help www.kodak.com/go/support
See How-To videos
www.kodak.com/go/Z5010support 11
www.kodak.com/go/Z5010demos
Page 12
Getting started with your camera
It’s never been easier to share
IMPORTANT:
must install KODAK Software (see page 11).
To use the sharing and social networking features, you
1 Press the Share button, then to find a picture.
If it’s your first time, a Help screen appears.
2 Press to choose a social networking site, then press OK.
A check mark appears. Repeat this step to choose more sites. (You can
press OK again to remove a check mark.)
3 Press to choose Done, then press OK.
The picture is displayed with the Share icon. When you transfer the
picture to your computer, it is uploaded to the networking site(s) that
you chose.
See the Extended user guide www.kodak.com/go/Z5010manuals
See How-To videos www.kodak.com/go/Z5010demos
12 www.kodak.com/go/support
Page 13
2 Product overview, features
Lens
Microphone
Flash
AF Assist/Self-timer/Video light
Micro USB,
AV Out
Speaker
Front view
See the Extended user guide www.kodak.com/go/Z5010manuals
See How-To videos www.kodak.com/go/Z5010demos
www.kodak.com/go/Z5010support 13
Page 14
Product overview, features
Mode dial
Shutter button
• Flash
• Focus Mode
• Self-timer/
Share
OK,
• Delete
• Menu
• Info
• Review
LCD
Power
Power light
Strap post
Zoom
Burst
Back view
See the Extended user guide www.kodak.com/go/Z5010manuals
See How-To videos www.kodak.com/go/Z5010demos
14 www.kodak.com/go/support
Page 15
Bottom view
Tripod
socket
Battery
compartments
Slot for SD/SDHC
Card (accessory)
Product overview, features
See the Extended user guide www.kodak.com/go/Z5010manuals
See How-To videos www.kodak.com/go/Z5010demos
www.kodak.com/go/Z5010support 15
Page 16
3 Doing more with your camera
Press the Flash button repeatedly to
scroll through flash modes. The
current flash mode appears on the
LCD.
Using the flash
Use the flash when you take pictures at night, indoors, or outdoors in
heavy shadows. Flash settings are limited in some capture modes.
Flash modes The flash fires
Auto When the lighting conditions require it.
Fill Every time you take a picture, regardless of the
lighting conditions. Use when the subject is in
shadow or is “backlit” (when the light is
behind the subject). In low light, hold the
camera steady or use a tripod.
NOTE: Not available in Smart Capture mode.
Red-eye
Reduction
Off Never.
A preflash fires, shrinking the eye pupil, before
the picture is taken.
16 www.kodak.com/go/support
Page 17
Using different modes
Choose the mode that best suits your
subjects and surroundings.
P
M
SCN
Capture mode For
Doing more with your camera
Smart
Excellent image quality and ease of use.
Capture
Video Videos with sound.
Program
Manual
Night
More control over your camera and pictures.
(See page 19.)
Distant scenery at night. Flash does not fire.
Landscape
Landscape Distant scenes.
Panorama
R-L, L-R
“Stitching” 2 or 3 pictures into 1 panoramic
scene.
Scene Taking pictures in unique environments with
Sport Subjects that are in motion.
Portrait Full-frame portraits of people.
www.kodak.com/go/Z5010support 17
point-and-shoot simplicity. (See page 18.)
Page 18
Doing more with your camera
Using SCN (Scene) modes
1 Turn the Mode dial to SCN (Scene).
2 Press and to read Scene mode descriptions.
3 Press OK to choose the Scene mode that you’ve highlighted.
SCN mode For
Flower Close range. Use available light instead of flash, if
possible.
Sunset Subjects at dusk.
Backlight Subjects that are in shadow or “backlit.”
Candle
Light
Children Action pictures of children in bright light.
Bright Bright beach or snow scenes.
Fireworks Fireworks. For best results, place the camera on a
Self-Portrait Close-ups of yourself. Assures proper focus and
Night
Portrait
Subjects illuminated by candle light.
steady surface or tripod.
minimizes red eye.
Reduces red eye of people in night scenes or low-light
conditions.
Stage People on a lit stage. Fast shutter speed, high ISO.
Flash and sounds are off.
High ISO People indoors, in low-light scenes.
18 www.kodak.com/go/support
Page 19
Doing more with your camera
Using Program and Manual modes
Use these modes when you want more control over your camera.
Mode When to use Press to control
Program mode offers
the ease of auto shooting
with full access to all
menu options. The
camera automatically
sets the shutter speed
and aperture (f-stop)
based on the scene
lighting.
Manual mode offers a
high level of control.
(To prevent blur, use a
tripod for slow shutter
Exposure compensation (how
much light enters the camera),
flash compensation, and ISO
speed
Aperture, shutter speed, flash
compensation, and ISO speed
speeds.)
NOTE: Settings you change in P or M modes apply only to pictures taken in those modes.
The settings, including Flash, are maintained for P and M modes—even when you
change modes or turn off the camera. Use Reset Camera (press the Menu button)
to reset P or M modes to their default settings.
Changing P or M mode settings
1 Turn the Mode dial to P or M.
NOTE: P and M give access to different settings.
2 Press the Info button .
www.kodak.com/go/Z5010support 19
Page 20
Doing more with your camera
Flash
Compensation
Exposure
Compensation
Shutter speed
Aperture
ISO
3 Press to choose a setting, then press OK to edit the setting.
Press to change a setting, then press OK to save it.
ISO—adjust the camera’s sensitivity to light. Higher ISO indicates
greater sensitivity.
NOTE: A higher ISO may produce unwanted “noise” in a picture.
Flash Compensation—adjust flash brightness.
Exposure Compensation—adjust the exposure. If the scene is too
light, decrease the setting; if it’s too dark, increase the setting.
Shutter speed—control how long the shutter stays open. (Use a
tripod for slow shutter speeds.)
Aperture—(also known as f-stop) control the size of the lens opening,
which determines the depth of field.
■ Smaller aperture numbers indicate a larger lens opening; good for
low-light.
■ Larger aperture numbers indicate a smaller lens opening; keeps the
main subject sharp; good for landscapes and well-lit conditions.
20 www.kodak.com/go/support
Page 21
Using the Focus feature
Press the Focus button
repeatedly to scroll through focus
modes. The current focus mode
appears on the LCD.
Doing more with your camera
IMPORTANT:
Focus mode availability varies by picture-taking mode.
1 Press the Focus button until the desired focus icon is displayed on
the LCD.
Mode Icon For
Normal AF No icon Normal picture taking.
Infinity AF Distant scenery or for taking pictures through
a window. (Turn off the flash when taking
pictures through glass.)
Macro AF Subjects that are 0.1–1 m (0.3–3.3 ft) from
the lens.
2 Press the Shutter button halfway to focus and set exposure, then
completely down to take the picture.
IMPORTANT:
your subject or the amount of zoom.
www.kodak.com/go/Z5010support 21
If red focus brackets or “AF” appear, adjust the distance to
Page 22
Doing more with your camera
Turning on the Date Stamp feature
You can add a stamp—showing the date taken—to pictures you
take next.
IMPORTANT:
Once a date stamp is applied, it cannot be removed on the camera.
You cannot add a date stamp to pictures already taken.
1 Press the Menu button.
2 Press to choose the Date Stamp, then press OK.
3 Follow the prompts to turn on the Date Stamp feature.
The date is added to pictures you take next. The feature stays on until
you turn it off.
To return to picture-taking mode, press the Shutter button halfway
down.
22 www.kodak.com/go/support
Page 23
4 Solving camera problems
Go to www.kodak.com/go/Z5010support for the Extended user guide,
firmware updates, and answers to your questions.
Status Solution
Camera does not
turn on, off; buttons do
not function
Camera freezes up
when a card is inserted
or removed.
LCD is too dark.
In Review, you do not
see a picture (or the
expected picture) on
■ Remove then reinsert batteries.
■ Replace non-rechargeable alkaline
batteries. Charge rechargeable batteries
(see page 2).
■ Turn the camera off, then back on. Make
sure the camera is turned off before
inserting or removing a card. For
compatible card types, see page 4.
■ Press the Menu button and choose LCD
Brightness.
■ Format the internal memory or the
memory card. (Press the Menu button
and choose Format.)
the LCD
Memory card not
recognized or camera
freezes with card
www.kodak.com/go/Z5010support 23
Caution: Formatting a card deletes
all pictures and videos.
■ Card may be corrupted. Format the card
in the camera. (Press the Menu button
and choose Format.)
Caution: Formatting a card deletes
all pictures and videos.
■ Use another memory card. Only SD or
SDHC Cards are supported.
Page 24
Solving camera problems
Status Solution
Pictures on card (or in
internal memory) are
corrupted
■ Retake pictures.
■ Do not remove card while the camera is
on.
■ Keep rechargeable batteries charged.
■ Transfer pictures to the computer (see
page 11), then format the card or internal
memory. (Press the Menu button and
choose Format.)
Caution: Formatting a card deletes
all pictures and videos.
Getting help on the Web
Get support for your product
www.kodak.com/go/Z5010support
(FAQs, troubleshooting
information, etc.)
Purchase camera accessories www.kodak.com/go/accessories
Download the latest camera
www.kodak.com/go/Z5010downloads
firmware
Register your camera www.kodak.com/go/register
Chat, email, write, or phone
www.kodak.com/go/contact
Kodak. (Chat not available in
all languages.)
24 www.kodak.com/go/support
Page 25
5 Appendix
CAUTION:
Do not disassemble this product; there are no user-serviceable parts
inside. Refer servicing to qualified service personnel. KODAK AC
Adapters and Battery Chargers are intended for indoor use only. The
use of controls, adjustments, or procedures other than those specified
herein may result in exposure to shock and/or electrical or mechanical
hazards. If the LCD breaks, do not touch the glass or liquid. Contact
Kodak customer support.
■ The use of an accessory that is not recommended by Kodak may cause fire,
electric shock, or injury. For approved accessories, go to
www.kodak.com/go/accessories.
■ Use only a USB-certified computer equipped with a current-limiting
motherboard. Contact your computer manufacturer if you have questions.
■ If using this product in an airplane, observe all instructions of the airline.
■ When removing the battery, allow it to cool; it may be hot.
■ Follow all warnings and instructions supplied by the battery manufacturer.
■ Use only batteries approved for this product to avoid risk of explosion.
■ Keep batteries out of the reach of children.
■ Do not allow batteries to touch metal objects, including coins. Otherwise, a
battery may short circuit, discharge energy, become hot, or leak.
■ Do not disassemble, install backward, or expose batteries to liquid, moisture,
fire, or extreme temperature.
■ Remove the battery when the product is stored for an extended period of
time. In the unlikely event that battery fluid leaks inside the product, contact
Kodak customer support.
■ In the unlikely event that battery fluid leaks onto your skin, wash
immediately with water and contact your local health provider. For additional
health-related information, contact your local Kodak customer support.
■ See www.kodak.com/go/reach for information about the presence of
substances included on the candidate list according to article 59(1) of
Regulation (EC) No. 1907/2006 (REACH).
■ Dispose of batteries according to local and national regulations. Go to
www.kodak.com/go/kes.
www.kodak.com/go/Z5010support 25
Page 26
Appendix
■ Do not charge non-rechargeable batteries.
Limited Warranty
Kodak warrants its digital cameras and accessories (excluding batteries) to be
free from malfunctions and defects in both materials and workmanship for the
warranty period specified on your KODAK Product packaging. Retain the original
dated sales receipt. Proof of purchase date is required with any request for
warranty repair.
Limited warranty coverage
Warranty service is only available from within the country where the products
were originally purchased. You may be required to ship products, at your
expense, to the authorized service facility for the country where the products
were purchased. Kodak will repair or replace products if they fail to function
properly during the warranty period, subject to any conditions and/or limitations
stated herein. Warranty service will include all labor as well as any necessary
adjustments and/or replacement parts. If Kodak is unable to repair or replace a
product, Kodak will, at its option, refund the purchase price paid for the product
provided the product has been returned to Kodak along with proof of the
purchase price paid. Repair, replacement, or refund of the purchase price are the
sole remedies under the warranty. If replacement parts are used in making
repairs, those parts may be remanufactured, or may contain remanufactured
materials. If it is necessary to replace the entire product, it may be replaced with
a remanufactured product. Remanufactured products, parts and materials are
warranted for the remaining warranty term of the original product, or 90 days
after the date of repair or replacement, whichever is longer.
Limitations
This warranty does not cover circumstances beyond Kodak’s control. This
warranty does not apply when failure is due to shipping damage, accident,
alteration, modification, unauthorized service, misuse, abuse, use with
incompatible accessories or attachments (such as third party ink or ink tanks),
failure to follow Kodak’s operation, maintenance or repacking instructions,
failure to use items supplied by Kodak (such as adapters and cables), or claims
made after the duration of this warranty. Kodak makes no other express or
implied warranty for this product, and disclaims the implied
warranties of merchantability and fitness for a particular purpose. In
the event that the exclusion of any implied warranty is ineffective under the law,
the duration of the implied warranty will be one year from the purchase date or
such longer period as required by law. The option of repair, replacement, or
26 www.kodak.com/go/support
Page 27
Appendix
refund is Kodak’s only obligation. Kodak will not be responsible for any special,
consequential or incidental damages resulting from the sale, purchase, or use of
this product regardless of the cause. Liability for any special, consequential or
incidental damages (including but not limited to loss of revenue or profit,
downtime costs, loss of the use of the equipment, cost of substitute equipment,
facilities or services, or claims of your customers for such damages resulting from
the purchase, use, or failure of the product), regardless of cause or for breach of
any written or implied warranty is expressly disclaimed. The limitations and
exclusions of liability set forth herein apply to both Kodak and its suppliers.
Your rights
Some states or jurisdictions do not allow exclusion or limitation of incidental or
consequential damages, so the above limitation or exclusion may not apply to
you. Some states or jurisdictions do not allow limitations on how long an implied
warranty lasts, so the above limitation may not apply to you. This warranty gives
you specific rights, and you may have other rights which vary from state to state
or by jurisdiction.
Outside the United States and Canada
In countries other than the United States and Canada, the terms and conditions
of this warranty may be different. Unless a specific Kodak warranty is
communicated to the purchaser in writing by a Kodak company, no warranty or
liability exists beyond any minimum requirements imposed by law, even though
defect, damage, or loss may be by negligence or other act.
FCC compliance and advisory
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential
installation. The KODAK High Performance USB AC Adapter K20-AM complies
with part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device
must accept any interference received, including interference that may cause
undesired operation.
www.kodak.com/go/Z5010support 27
Page 28
Appendix
N137
Canadian DOC statement
DOC Class B Compliance—This Class B digital apparatus complies with
Canadian ICES-003.
Observation des normes-Classe B—Cet appareil numérique de la classe B
est conforme à la norme NMB-003 du Canada.
China RoHS
VCCI Class B ITE
Australian C-Tick
Korean Class B ITE
28 www.kodak.com/go/support
Page 29
Korean Li-Ion Regulatory
Appendix
Eastman Kodak Company
Rochester, New York 14650
© Kodak, 2011
Kodak and EasyShare are trademarks of Eastman Kodak Company.
4H8714_en
www.kodak.com/go/Z5010support 29
Loading...
