Kodak EasyShare Z1085 User Guide

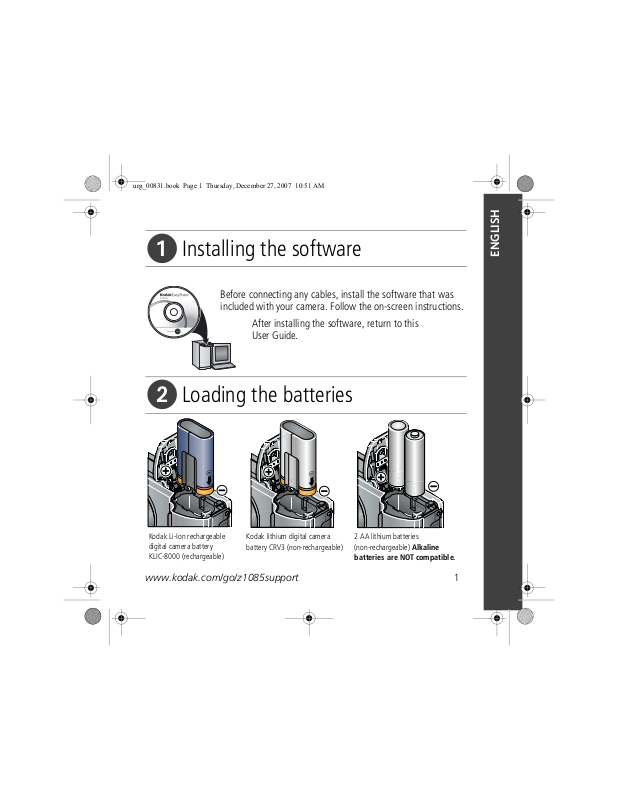

 Installing the software

Before connecting any cables, install the software that was
included with your camera. Follow the on-screen instructions.

After installing the software, return to this
User Guide.

 Loading the batteries

ENGLISH

Kodak Li-Ion rechargeable
digital camera battery
KLIC-8000 (rechargeable)

www.kodak.com/go/z1085support 1

Kodak lithium digital camera
battery CRV3 (non-rechargeable)

2 AA lithium batteries
(non-rechargeable) Alkaline

batteries are NOT compatible.

ENGLISH

 Turning on the camera

 Setting the language, date/time

Language:

to change.

to accept.

OK

Date/Time:

to change.

for previous/next field.

to accept.

OK

2 www.kodak.com/go/easysharecenter

 Taking a picture/video

e

Pictures Videos

ENGLISH

Smart

1

Ready
light

2

Framing
marks

Press the Shutter button halfway to

Capture
mode

focus and set exposure.
When the Ready light turns green, press

the Shutter button completely down.

1

Press the Shutter button

2

completely down and releas
To stop recording, press and

release the Shutter button

Video
mode

again.

NOTE: For more about Smart Capture mode, see page 8.

www.kodak.com/go/z1085support 3

ENGLISH

y

 Reviewing pictures/videos

1

Press Review. (Press again to exit.)

2

for previous/next picture/video.

Videos:

Play

OK

Pause/resume
Adjust the volume

2X, 4X forward

Review

2X, 4X reverse

 Transferring pictures/videos

USB cable Kodak EasyShare printer

dock or camera dock

1

Turn off camera.

2

Connect USB cable.

3

Turn on camera.

Kodak EasyShare software
opens on your computer
and prompts you through

USB

the transfer process.

cable
U-8

4 www.kodak.com/go/easysharecenter

(May be sold separately.)

For dock compatibility, visit
www.kodak.com/go/dockcompatibilit

To purchase accessories, visit
www.kodak.com/go/z1085accessories

To use an EasyShare dock, see its
Getting Started Guide.

 Keep learning about your camera!

Congratulations!

You have:

• set up your camera

• taken pictures

• transferred pictures to your computer

Keep learning!

Finish reading this book, so you can take and share your best pictures!

Visit www.kodak.com/go/z1085support and
www.kodak.com/go/easysharecenter for:

• the Extended User Guide

• interactive troubleshooting and repairs

• interactive tutorials

• FAQs

• downloads

• accessories

• printing information

• product registration

ENGLISH

www.kodak.com/go/z1085support 5

ENGLISH

Front view

1 Mode dial 6 Self-timer/Burst button

2 Shutter button 7 Flash

3 Self-timer/Video light 8 Speaker

4 On/Off button 9 Microphone

5 Flash button 10 Lens

2

1

3

4

5

6

7

8

9

10

6 www.kodak.com/go/easysharecenter

Back view

3

2

1

16

15

1 LCD 9 USB, A/V Out

2 , OK 10 DC-In, for optional 3V AC adapter

3 Ready light 11 Share button

4 Info button 12 Menu button

5 Delete button 13 Review button

6 Wide angle (W) button 14 Battery compartment

7 Telephoto (T) button 15 Tripod socket

8 Slot for optional SD or SDHC card 16 Dock connector

14

5

4

6 7

8

9

1213

11

10

ENGLISH

www.kodak.com/go/z1085support 7

1 Doing more with your camera

Capture modes

Capture mode For

General picture taking—it offers excellent image quality and ease of use.

■ Faces are detected.

■ The scene is analyzed for other content and for lighting.

Smart
Capture

Program

P

Manual

M

High ISO People in low-light scenes.

ISO

Scene Point-and-shoot simplicity when taking pictures under special conditions.

SCN

Panorama

Video Video with sound (page 3).

■ Kodak Perfect Touch technology is applied, for better pictures.

You can choose the best picture size and aspect ratio for your needs—just
press the Menu button and choose Picture Size.

■ 3:2 (the best choice when making 4 x 6 prints)

■ 16:9 (wide screen)

■ 4:3 (the default setting)

More creative control (page 19).

“Stitching” 2 or 3 pictures into 1 panoramic scene.

8 www.kodak.com/go/easysharecenter

Doing more with your camera

Using optical zoom

Use optical zoom to get up to 5X closer to your subject while taking pictures/videos.

1 Use the LCD to frame your subject.

2 Press Telephoto (T) or Wide Angle (W) to zoom

in/out.

3 Take the picture. Remember:

Optical
zoom
range

WTD

Use digital zoom to get up to 5X beyond optical zoom while taking pictures.You may
notice decreased image quality when using digital zoom.

Digital
zoom
range

■ Use the auto focus framing marks, page 3.

■ As you zoom in, you need to move further from

your subject.

www.kodak.com/go/z1085support 9

Doing more with your camera

Using the flash

Use the flash when you take pictures at night, indoors, or outdoors in heavy shadows.
Flash settings are limited in some capture modes.

Press the button repeatedly to scroll

through flash modes. (See flash modes below.)

Flash modes Flash fires

Auto When the lighting conditions require it.

Off Never.

Every time you take a picture. Use when the subject is in shadow or is “backlit.”

Fill

In low light, hold the camera steady or use a tripod. (Not available in Smart
Capture mode.)

If Red-eye Pre-flash is turned off,

Red-

the flash fires once; the camera

eye

automatically corrects red-eye.

Flash-to-subject distance

Wide angle 26.9 ft (8.2 m) @ ISO 800 in Smart Capture mode

19 ft (5.8 m) @ ISO 400 in P mode

Telephoto 14.4 ft (4.4 m) @ ISO 800 in Smart Capture mode

10.2 ft (3.1 m) @ ISO 400 in P mode

If Red-eye Pre-flash is on, the flash fires
once so the eyes become accustomed to the
flash, then again when the picture is taken.

10 www.kodak.com/go/easysharecenter

Doing more with your camera

Using the self-timer

Use the self-timer when you want to be included in a picture, or to ensure a steady
Shutter button press.

Place camera on a tripod or flat surface.

1

In most Still modes, press the Self-Timer/Burst button:

2

• Once for a 10-second delay (so you have time to get into the scene)

• Again for a 2-second delay (for a steady, auto-shutter release on a tripod)

• Again for 2-shot (one picture taken after 10 seconds and another picture
taken 8 seconds later)

Compose the scene.

3

Press the Shutter button halfway, then

4

completely down.

The picture is taken after the delay.

To cancel the Self-timer before the picture is taken, press the Self-timer/Burst button

, or press the Shutter button completely down.

Use the same procedure to use the self-timer in Video mode, but:

■ Turn the Mode dial to Video .

■ Press the Shutter button completely down.

NOTE: The video stops when no storage space remains. Only the 2- and 10-second options are available in

video mode.

www.kodak.com/go/z1085support 11

Doing more with your camera

Understanding the picture-taking icons

Status icons indicate mode, feature, and camera status.

Picture size
Flash

Camera mode
Tag nam e

Framing marks

Histogram

Self-timer/Burst
Date stamp

Pictures/time remaining
Storage location
Zoom indicator

Auto focus control
White balance
Focus zone

Exposure metering

Aperture
Shutter

speed

Low battery
Focus mode
ISO speed
Exposure compensation

12 www.kodak.com/go/easysharecenter

2 Working with pictures/videos

Deleting pictures/videos

1 Press the Review button.

2 Press to find a picture/video.

3 Press the Delete button.

4 Follow the screen prompts.

Using the undo delete feature

If you accidentally delete a picture/video, use Undo Delete to retrieve it. This feature is
available only immediately after you delete a picture/video in Review mode (when the
Undo Delete option appears).

1 Press to highlight Undo Delete.

2 Press OK.

The deleted picture/video appears.

3 Select Exit to exit the Delete menu.

www.kodak.com/go/z1085support 13

Working with pictures/videos

Using the menu button in Review

1 Press the Review button, then the Menu button.

2 Press to choose a tab:

■ Review to view pictures/videos

■ Edit to edit pictures/videos

■ Setup for other camera settings

3 Highlight a setting, then press OK. Choose an option, then press OK.

Options Options

View All

Search Crop

Tag Sound Tag

Favorite

Protect/Unprotect Trim

Copy Action Print

Slide Show Bookmark

Multimedia Slide Show

Multi-up

Select All/Deselect All

Pictures

Videos

Perfect Touch tech.

Make Picture

14 www.kodak.com/go/easysharecenter

Working with pictures/videos

Adding sound tags

You can record a voice or sound (up to 1 minute long) to a picture.
NOTE:

Only one sound tag can be added to each picture (not to videos).

Recording a sound tag

1 Press the Review button, then to find a picture.

2 Press the Menu button, then to highlight the Edit tab.

3 Press to highlight Sound Tag, then press the OK button.

4 Follow the screen prompts.

The sound tag is applied to your picture.

■ Press the Menu button to exit the menu.

Playing a sound tag

1 Press the Review button, then to find a tagged

picture.

2 Press to play the sound tag.

3 Press to adjust the volume.

Review

4 Press the OK button to stop playback.

www.kodak.com/go/z1085support 15

Working with pictures/videos

Searching pictures by date, favorites, or other tag

If you have many pictures on your camera or card, you can sort them so that only some
are visible at a time. You can sort by the date a picture was taken or—if you’ve tagged
pictures with a favorites tag or a tag that you created—you can sort by tag.

1 Press the Review button, then the Menu button.

2 Press to highlight Search, then press OK.

3 Press to highlight the Date, Favorite, or Tag tab, then to select a folder.

4 Press to highlight a folder, then press OK. (If you chose a Month/Year folder,

press OK to see the Day folders.) When you are finished choosing tabs and folders,
highlight Exit and press OK.

5 To see the results of your search, highlight Save, then press OK.

Pictures are displayed in multi-up view. Press to view them. Press the
Telephoto (T) button to view the picture full-screen. Press the Wide Angle (W) button to
return to multi-up view.

■ Press the Review button to exit Review.

■ For more about tags, see the Extended User Guide:

www.kodak.com/go/z1085support.

16 www.kodak.com/go/easysharecenter

Understanding the review icons

Pictures

Favorite tag
Protected

Email tag
Perfect Touch tech.
Review mode

Selected picture

Working with pictures/videos

Print tag/number of prints
Picture number

Image storage location

Tag
Scroll arrows

Low battery

Videos

Favorite tag
Protected
Email tag

Review mode
Selected picture

Tag
Scroll arrows Low battery

Video length

Video number
Image storage location

www.kodak.com/go/z1085support 17

3 Using the advanced features

Using the Menu button to change settings

NOTE: Some settings remain until you change them; others remain until you turn off the camera. Some

capture modes offer limited settings. Press the Info button
settings and options.

1 Press the Menu button.

2 Press to highlight a menu tab:

■ Capture for the most common picture-taking settings.

■ Capture + for other picture-taking settings.

■ Setup for other camera settings.

3 Press to highlight a setting, then press the OK button.

4 Choose an option, then press the OK button.

■ For more about settings, see the Extended User Guide (visit

www.kodak.com/go/z1085support).

for information about camera

18 www.kodak.com/go/easysharecenter

Using the advanced features

P and M modes

Use Program and Manual modes when you want more control over your camera.

Mode For

Ease of auto shooting with full access to most

Program

Manual

menu options. The camera automatically sets the
shutter speed and aperture (f-stop) based on the
scene lighting.

The highest level of creative control. (To prevent
blur, use a tripod for slow shutter speeds.)

Press to control

Exposure compensation (how
much light enters the camera),
ISO speed, and focus mode.

Aperture, shutter speed, ISO
speed, and focus mode.

NOTE: Settings you change in P or M mode apply only to pictures taken in that mode. For example, if you

change the Color Mode to Sepia while in P or M mode, you retain the default setting (Color) for Smart
Capture and Scene modes.
The settings, including Flash, are maintained for P and M modes—even when you change modes or
turn off the camera.

www.kodak.com/go/z1085support 19

Using the advanced features

Changing P or M mode settings

P and M modes control ISO, focus, exposure compensation, shutter speed, and aperture
(f-number, also known as f-stop). Use the Menu button to control all other settings.

P and M Options

White—selectable
Grey—non-selectable
Yellow—changeable value
Red—out of range

Focus mode
ISO speed
Exposure compensation
Shutter speed
Aperture

1 Turn the Mode dial to P or M.

2 Use to move between settings and to change the value.

NOTE: Some settings may be unavailable (see P and M color options). The arrows disappear when you

cannot make further value changes.

3 Take a picture.

Aperture—(also known as f-stop) control the size of the lens opening, which

determines the depth of field.

■ Smaller f-stop numbers indicate a larger lens opening; good for portraits and

low-light conditions.

20 www.kodak.com/go/easysharecenter

Using the advanced features

■ Larger f-stop numbers indicate a smaller lens opening; keeps the main subject

sharp; good for landscapes and well-lit conditions.

Shutter speed—control how long the shutter stays open.

Exposure Compensation—adjust the exposure; good for controlling backlit or

non-standard scenes. If the picture is too light, decrease the setting; if it’s too dark,
increase the setting.

ISO speed—adjust the camera’s sensitivity to light. Higher ISO indicates greater
sensitivity. ISO 8000 is available only in 3.1 MP and lower picture size.

NOTE: A higher ISO may produce unwanted grain or “noise” in a picture.

Focus mode—select a large or concentrated area of focus.

Focus mode Description

Normal AF

Macro

Infinity

Manual

Focus setting for general picture-taking.

Sharpness and detail in pictures at close range. Use available light instead
of flash, if possible. The camera automatically sets the focus distance
depending on the zoom position. The close-up distances are:

Wide angle: 7.9–27.6 in. (0.2–0.7 m)
Telephoto: 19.7–39.4 in. (0.5–1.0 m)

Distant subjects. Auto-focus framing marks are unavailable.

Focus is at center position. When MF icon appears, press OK to display
focus indicator. Press
appears on the screen when adjusting focus position.

to adjust the setting. A magnified image

www.kodak.com/go/z1085support 21

4 Solving camera problems

For step-by-step product support, visit www.kodak.com/go/z1085support and select
Interactive Troubleshooting & Repairs.

Camera problems

If Try one or more of the following

Camera does not
turn on.

Camera does not
turn off.

Shutter button
does not work.

Camera freezes up
when a card is
inserted or
removed.

Memory card full.

■ Install new batteries (page 1).

■ Charge rechargeable batteries.

■ Remove the battery, then reinsert or replace it. If the camera still does

not function, visit www.kodak.com/go/z1085support and select
Interactive Troubleshooting & Repairs.

■ Turn on the camera (page 2).

■ Wait until the Ready light stops blinking red before attempting to take

another picture.

■ Transfer pictures to the computer (page 4), delete pictures from the

camera (page 13), switch image storage locations, or insert a card with
available memory (page 7).

■ Turn the camera off, then back on. Make sure the camera is turned off

before inserting or removing a card.

■ Insert a new card (page 7), transfer pictures to the computer (page 4),

or delete pictures (page 13).

22 www.kodak.com/go/easysharecenter

5 Appendix

CAUTION:

Do not disassemble this product; there are no user-serviceable parts inside. Refer servicing to
qualified service personnel. Kodak AC adapters and battery chargers are intended for indoor use
only. The use of controls, adjustments, or procedures other than those specified herein may
result in exposure to shock and/or electrical or mechanical hazards. If the LCD breaks, do not
touch the glass or liquid. Contact Kodak customer support.

■ The use of an accessory that is not recommended by Kodak may cause fire, electric shock, or injury. For

approved accessories, visit

■ Use only a USB-certified computer equipped with a current-limiting motherboard. Contact your computer

manufacturer if you have questions.

■ If using this product in an airplane, observe all instructions of the airline.

■ When removing the battery, allow it to cool; it may be hot.

■ Follow all warnings and instructions supplied by the battery manufacturer.

■ Use only batteries approved for this product to avoid risk of explosion.

■ Keep batteries out of the reach of children.

■ Do not allow batteries to touch metal objects, including coins. Otherwise, a battery may short circuit,

discharge energy, become hot, or leak.

■ Do not disassemble, install backward, or expose batteries to liquid, moisture, fire, or extreme temperature.

■ Remove the battery when the product is stored for an extended period of time. In the unlikely event that

battery fluid leaks inside the product, contact Kodak customer support.

■ In the unlikely event that battery fluid leaks onto your skin, wash immediately with water and contact your

local health provider. For additional health-related information, contact your local Kodak customer support.

■ Dispose of batteries according to local and national regulations. Visit www.kodak.com/go/kes.

■ Do not charge non-rechargeable batteries.

For more information on batteries, see www.kodak.com/go/batterytypes.

www.kodak.com/go/z1085support 23

www.kodak.com/go/accessories.

Appendix

Limited Warranty

Kodak warrants Kodak consumer electronic products and accessories (“Products”), excluding batteries, to be free
from malfunctions and defects in both materials and workmanship for one year from the date of purchase. Retain
the original dated sales receipt. Proof of the date of purchase will be required with any request for warranty repair.

Limited warranty coverage

Warranty service is only available from within the country where the Products were originally purchased. You may
be required to ship Products, at your expense, to the authorized service facility for the country where the Products
were purchased. Kodak will repair or replace Products if they fail to function properly during the warranty period,
subject to any conditions and/or limitations stated herein. Warranty service will include all labor as well as any
necessary adjustments and/or replacement parts. If Kodak is unable to repair or replace a Product, Kodak will, at
its option, refund the purchase price paid for the Product provided the Product has been returned to Kodak along
with proof of the purchase price paid. Repair, replacement, or refund of the purchase price are the sole remedies
under the warranty. If replacement parts are used in making repairs, those parts may be remanufactured, or may
contain remanufactured materials. If it is necessary to replace the entire Product, it may be replaced with a
remanufactured Product. Remanufactured Products, parts and materials are warranted for the remaining warranty
term of the original Product, or 90 days after the date of repair or replacement, whichever is longer.

Limitations

This warranty does not cover circumstances beyond Kodak’s control. This warranty does not apply when failure is
due to shipping damage, accident, alteration, modification, unauthorized service, misuse, abuse, use with
incompatible accessories or attachments (such as third party ink or ink tanks), failure to follow Kodak’s operation,
maintenance or repacking instructions, failure to use items supplied by Kodak (such as adapters and cables), or
claims made after the duration of this warranty. Kodak makes no other express or implied warranty for

this product, and disclaims the implied warranties of merchantability and fitness for a particular
purpose. In the event that the exclusion of any implied warranty is ineffective under the law, the duration of the

implied warranty will be one year from the purchase date or such longer period as required by law. The option of
repair, replacement, or refund is Kodak’s only obligation. Kodak will not be responsible for any special,
consequential or incidental damages resulting from the sale, purchase, or use of this product regardless of the
cause. Liability for any special, consequential or incidental damages (including but not limited to loss of revenue or
profit, downtime costs, loss of the use of the equipment, cost of substitute equipment, facilities or services, or
claims of your customers for such damages resulting from the purchase, use, or failure of the Product), regardless
of cause or for breach of any written or implied warranty is expressly disclaimed.

Your rights

Some states or jurisdictions do not allow exclusion or limitation of incidental or consequential damages, so the
above limitation or exclusion may not apply to you. Some states or jurisdictions do not allow limitations on how
long an implied warranty lasts, so the above limitation may not apply to you. This warranty gives you specific
rights, and you may have other rights which vary from state to state or by jurisdiction.

24 www.kodak.com/go/easysharecenter

Appendix

Outside the United States and Canada

In countries other than the United States and Canada, the terms and conditions of this warranty may be different.
Unless a specific Kodak warranty is communicated to the purchaser in writing by a Kodak company, no warranty or
liability exists beyond any minimum requirements imposed by law, even though defect, damage, or loss may be by
negligence or other act.

Regulatory compliance

FCC compliance and advisory

Kodak EasyShare Z1085 IS zoom digital camera

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to
Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy
and, if not installed or used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the
following measures: 1) reorient or relocate the receiving antenna; 2) increase the separation between the
equipment and the receiver; 3) connect the equipment to an outlet on a circuit different from that to which the
receiver is connected; 4) consult the dealer or an experienced radio/TV technician for additional suggestions.
Any changes or modifications not expressly approved by the party responsible for compliance could void the
user’s authority to operate the equipment. Where shielded interface cables have been provided with the
product or specified additional components or accessories elsewhere defined to be used with the installation of
the product, they must be used in order to ensure compliance with FCC regulation.

www.kodak.com/go/z1085support 25

Appendix

Australian C-Tick

N137

Waste Electrical and Electronic Equipment labeling

EU: It is the final user's responsibility to discard this equipment into an approved, segregated
collection scheme to enable its suitable treatment/disposal and to improve
human/environmental protection. For more information, see your retailer, local authority, or

www.kodak.com/go/recycle. (Product weight: 164 g.)

Canadian DOC statement

DOC Class B Compliance—This Class B digital apparatus complies with Canadian ICES-003.
Observation des normes-Classe B—Cet appareil numérique de la classe B est conforme à la norme

NMB-003 du Canada.

FCC and Industry Canada

This device complies with Industry Canada RSS-210 and FCC Rules. Operation is subject to the following two
conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.

26 www.kodak.com/go/easysharecenter

Appendix

Korean Class B ITE

VCCI Class B ITE

MPEG-4

Use of this product in any manner that complies with the MPEG-4 visual standard is prohibited, except for use
by a consumer engaging in personal and non-commercial activities.

Russian GOST-R

Eastman Kodak Company
Rochester, NY 14650

AIO-40

www.kodak.com/go/z1085support 27

Appendix

China RoHS

Eastman Kodak Company
Rochester, New York 14650
© Eastman Kodak Company, 2008
Kodak and EasyShare are trademarks of Eastman Kodak Company.

2F6872_en

28 www.kodak.com/go/easysharecenter
