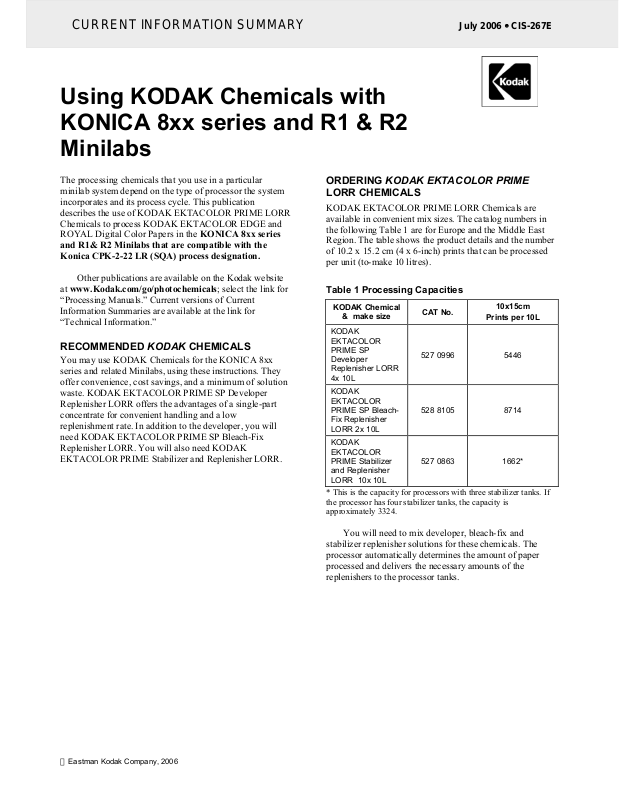

CURRENT INFORMATION SUMMARY
July 2006 • CIS-267E
Using KODAK Chemicals with
KONICA 8xx series and R1 & R2
Minilabs
The processing chemicals that you use in a particular
minilab system depend on the type of processor the system
incorporates and its process cycle. This publication
describes the use of KODAK EKTACOLOR PRIME LORR
Chemicals to process KODAK EKTACOLOR EDGE and
ROYAL Digital Color Papers in the
and R1& R2 Minilabs that are compatible with the
Konica CPK-2-22 LR (SQA) process designation.
Other publications are available on the Kodak website
at www.Kodak.com/go/photochemicals; select the link for
“Processing Manuals.” Current versions of Current
Information Summaries are available at the link for
“Technical Information.”
RECOMMENDED KODAK CHEMICALS
You may use KODAK Chemicals for the KONICA 8xx
series and related Minilabs, using these instructions. They
offer convenience, cost savings, and a minimum of solution
waste. KODAK EKTACOLOR PRIME SP Developer
Replenisher LORR offers the advantages of a single-part
concentrate for convenient handling and a low
replenishment rate. In addition to the developer, you will
need KODAK EKTACOLOR PRIME SP Bleach-Fix
Replenisher LORR. You will also need KODAK
EKTACOLOR PRIME Stabilizer and Replenisher LORR.
ORDERING KODAK EKTACOLOR PRIME
LORR CHEMICALS
KODAK EKTACOLOR PRIME LORR Chemicals are
available in convenient mix sizes. The catalog numbers in
KONICA 8xx series
the following Table 1 are for Europe and the Middle East
Region. The table shows the product details and the number
of 10.2 x 15.2 cm (4 x 6-inch) prints that can be processed
per unit (to-make 10 litres).
Table 1 Processing Capacities
KODAK Chemical
& make size
KODAK
EKTACOLOR
PRIME SP
Developer
Replenisher LORR
4x 10L
KODAK
EKTACOLOR
PRIME SP BleachFix Replenisher
LORR 2x 10L
KODAK
EKTACOLOR
PRIME Stabilizer
and Replenisher
LORR 10x 10L
* This is the capacity for processors with three stabilizer tanks. If
the processor has four stabilizer tanks, the capacity is
approximately 3324.
You will need to mix developer, bleach-fix and
stabilizer replenisher solutions for these chemicals. The
processor automatically determines the amount of paper
processed and delivers the necessary amounts of the
replenishers to the processor tanks.
CAT No.
527 0996 5446
528 8105 8714
527 0863 1662*
10x15cm
Prints per 10L
Eastman Kodak Company, 2006
PROCESS SPECIFICATIONS
The specifications and replenishment rates for using
KODAK EKTACOLOR PRIME SP LORR Chemicals in
the KONICA 8xx series & R1 & R2 Minilabs (process
specification CPK-2-22 LR) are given in Table 2.
Table 2.
Processing Steps and Conditions for KONICA 8-Series &
R1 & R2 Minilabs
KODAK EKTACOLOR PRIME LORR Chemicals
Solution/
Step
Developer 22
Bleach-Fix 22
Stabilizer 44
Dry
(specification CPK-2-22 LR) Using
Time
(sec
As
needed
Temperature
°C (°F)
40.0 ± 0.3
(104.0 ± 0.5)
35 to 40
(95 to 104)
34 to 40
(93 to 104)
Not over 96
(205)
Starting-Point
Replenishment
Rates
(mL/m
120
75
4-tanks: 194
3-tanks: 388
—
2
)
REPLENISHMENT RATES
The replenishment rates in Table 2 are starting-point
recommendations. The actual rates will depend on specific
processing conditions such as the amount of paper processed
and the proportion of high- or low-density prints.
The bleach-fix replenishment rates assume minimum
developer carryover. If carryover is greater than normal,
increase the bleach-fix replenishment rate to maintain the
bleach-fix chemical balance and pH level. Otherwise,
problems such as retained silver may occur. Retained silver
will cause print colors to look desaturated. See the
equipment manual for specifications and adjustments for
squeegees or squeegee rollers.
Agitation
Good agitation is important during the first few seconds of
the developer and bleach-fix steps. If initial agitation is poor
in the developer, development may be uneven. Poor initial
agitation in the bleach-fix may not stop development
uniformly, which can cause magenta streaks and nonuniformity.
Filtration
Processing solutions and wash water may contain insoluble
materials. If you don’t filter out these materials, they may
stick to the paper, tank walls, rollers, and lines, and can
damage the paper. It is also important to replace solution
filters periodically so that a blocked filter does not reduce
solution flow. Use the filters designed for the processor and
recommended in the equipment manual.
DRYING
The maximum drying temperature for KODAK
EKTACOLOR EDGE and ROYAL Digital Color Papers is
96°C (205°F).
Using KODAK Chemicals with KONICA 808 and Related Minilabs ● KODAK Publication No.
LOW UTILIZATION
The number of prints that you produce each week
determines the processor utilization. If your processor
utilization is low, oxidation and evaporation will affect the
activity of your processing solutions and may increase the
D-min of the paper. During periods of low utilization, be
sure to turn off the processor when it’s not in use to avoid
oxidation and evaporation. In extreme cases of low
utilization, you may need to discard the chemicals in the
processor and replace them with fresh tank solutions. You
can often reduce high D-min in prints by replacing the
stabilizer with fresh solution.
SAFE HANDLING OF PHOTOGRAPHIC
CHEMICALS
Handle all chemicals carefully. When you mix solutions,
wear goggles or a face shield, a protective apron, and
protective gloves made from neoprene or nitrile rubber.
Clean protective clothing after use to remove any chemical
residue that can cause contamination. For more information
about potential health hazards and safe handling of specific
KODAK Chemicals, see the chemical labels and the
Material Safety Data Sheets (MSDSs) for the chemicals.
MSDSs also provide regional contact information. MSDSs
are available on the Kodak website at
www.Kodak.com/go/photochemicals.
PREPARING FRESH TANK SOLUTIONS
Follow these instructions to prepare working tank solutions
for the KONICA 8xx series & R1 & R2 Minilabs from
KODAK Chemical mixed replenisher solution. Observe all
safe-handling precautions on the chemical labels and in the
MSDS for each product.
Note: Working tank solutions only need to be prepared if a
new machine is being installed or if, for some reason, a
working tank in an existing machine has had to be dumped.
Remove the racks from the processor tanks and rinse
the racks and tanks with water. Be sure to drain all rinse
water from the tanks and to close the drain valve before
adding the solutions.
CIS-267E
Developer Fresh Tank Solution
To ensure good performance, take special care in mixing the
developer tank solution. You should mix the developer
replenisher in a separate mixing vessel from the one used for
bleach-fix.
Preparing Developer Tank Solution from KODAK
EKTACOLOR PRIME SP Developer Replenisher
LORR, To prepare 1L.
Table 3
Volume
EKTACOLOR PRIME SP
Developer LORR, mixed
Replenisher*
EKTACOLOR RA Developer
Starter (CAT No 5278957),
Water 306mL
Total volume 1.0 L
670ml
24mL
* Mixed as directed on the product label
Bleach-Fix Fresh Tank Solution
Be very careful to avoid contamination of the developer
with bleach-fix.
Preparing Bleach-Fix Tank Solution from KODAK
EKTACOLOR PRIME SP Bleach-Fix Replenisher
LORR
Table 4
Volume
EKTACOLOR PRIME SP BleachFix LORR, mixed Replenisher*
EKTACOLOR PRIME SP
Bleach-Fix Starter (CAT No.
5288139)
Total volume 1.0 L
950ml
50mL
* Mixed as directed on the product label
Stabilizer Fresh Tank Solution
Mix the working tank solution in each of the stabilizer
tanks.
To prepare one litre of stabilizer tank solution, mix
EKTACOLOR PRIME Stabilizer and Replenisher LORR
(as directed on the product label), no further dilution is
required.
Reinstalling the Racks and Bringing the Tank
Solutions to Temperature
You should allow some space when filling the tanks, to
allow for the volume of the racks. When you reinstall the
racks in the tanks, the racks will displace more solution
volume to fill the tanks.
Install the racks by slowly lowering them into the
tanks. When you have reinstalled all the racks and have
verified that all the tanks are filled with solution, turn on
the recirculation and heater system and bring the solutions
up to operating temperature.
USING CONTROL STRIPS TO MONITOR THE
PROCESS
Use KODAK Control Strips, Process RA-4 (box of 50,
CAT No. 8282170), to monitor process performance. For
instructions on processing control strips, see the operator’s
manual for the KONICA Minilab. For information on the
use and diagnostic features of the control strips, see
KODAK Publication No. Z-130, Using KODAK
EKTACOLOR Chemicals, Section 7, “Process Monitoring
and Troubleshooting with KODAK Control Strips, Process
RA-4.” KODAK Publications are described and available on
the Kodak website at
www.Kodak.com/go/photochemicals.
To calculate control-strip aim values for process
monitoring, you will need to apply process adjustment
factors. Use the adjustment factors in addition to the
correction factors that are supplied with the control strips.
After reading the densities of the supplied reference
strip on your densitometer, first apply the “Prime”
correction factors packaged with the reference strip. Then
add the values from the following table. The corrected
density values are the aim values for your batch of control
strips. You will need to apply the adjustment factors each
time you switch to a new batch of control strips.
Table 5. Process Adjustment Factors
Measurement R G B
Black (BP) +0.07 +0.01 -0.05
High (HD) +0.01 +0.07 -0.06
Low (LD) -0.04 +0.05 -0.07
D-min
SILVER RECOVERY
When an effluent tank is full, the processor alerts you to
drain the tank.
Typically, silver concentration in the bleach-fix effluent
tank will be 4 to 8 g/L; silver concentration in the stabilizer
effluent tank will be 0.2 to 0.6 g/L.
You can effectively use common silver-recovery
methods with the combined effluents from both effluent
tanks. If your lab has other processors, you can combine the
effluent from the KONICA Minilab with the other effluent
solutions and use your current silver-recovery methods.
Publications on silver management that include
recommendations and descriptions of silver-recovery
options are available in the Silver Management section of
the KODAK Product Safety, Recycling & Disposal Center,
under “Chemicals” at
+0.01 +0.01 +0.01
www.Kodak.com/go/KES
.
Using KODAK Chemicals with KONICA 808 and Related Minilabs ● KODAK Publication No. CIS-267E
Digital & Film Imaging Systems
EASTMAN KODAK COMPANY • ROCHESTER, NY 14650
Using KODAK Chemicals with
KONICA 8xx series and R1 & R2 Minilabs
KODAK Publication No.
Using KODAK Chemicals with KONICA 808 and Related Minilabs ● KODAK Publication No.
CIS-267E
Kodak, Edge, Ektacolor, Prime, and Royal
are trademarks of Eastman Kodak Company. New 7-06
CIS-267E
