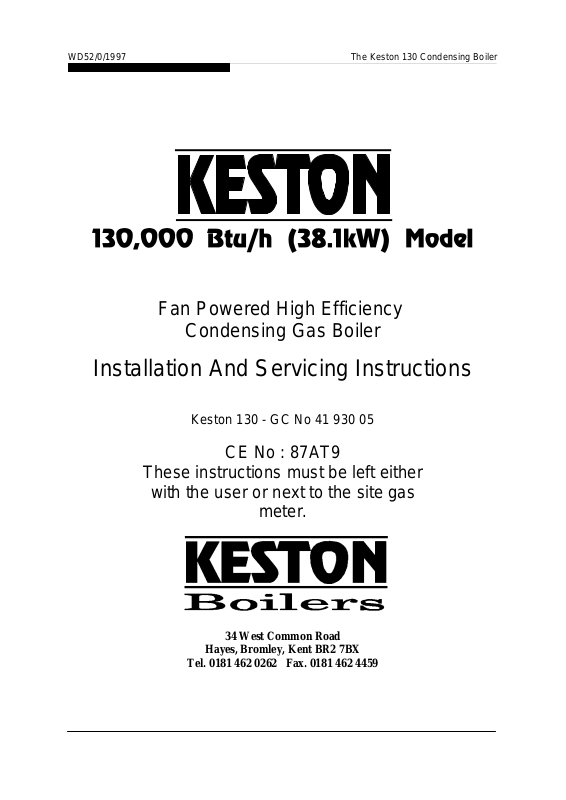

Page 1

WD52/0/1997 The Keston 130 Condensing Boiler

Fan Powered High Efficiency

Condensing Gas Boiler

Installation And Servicing Instructions

Keston 130 - GC No 41 930 05

CE No : 87AT9

These instructions must be left either

with the user or next to the site gas

meter.

34 West Common Road

Hayes, Bromley, Kent BR2 7BX

Tel. 0181 462 0262 Fax. 0181 462 4459

Page 2

WD52/0/1997 The Keston 130 Condensing Boiler

CONTENTS

Section Description 1 GENERAL INSTRUCTION

1.1 Description

1.2 Boiler Schematic

1.3 Related Documents

1.4 Performance Data

1.5 General Data

2 BOILER LOCATION

2.1 Dimensions & Minimum Clearances

2.2 Service Connections

2.3 Position

2.4 Electrical

2.5 Boiler Size Selection

2.6 Gas Supply

2.7 Water Systems

2.8 Flue System

2.9 Air Supply

2.10 Compartment Installation

2.11 Condensate Drainage

2.12 Radiant Floor Heating

2.13 Low Water Volume Boiler vs. Cast Iron Boiler

2.14 Determine Radiation Needed Room-By-Room

3 INSTALLATION OF THE BOILER

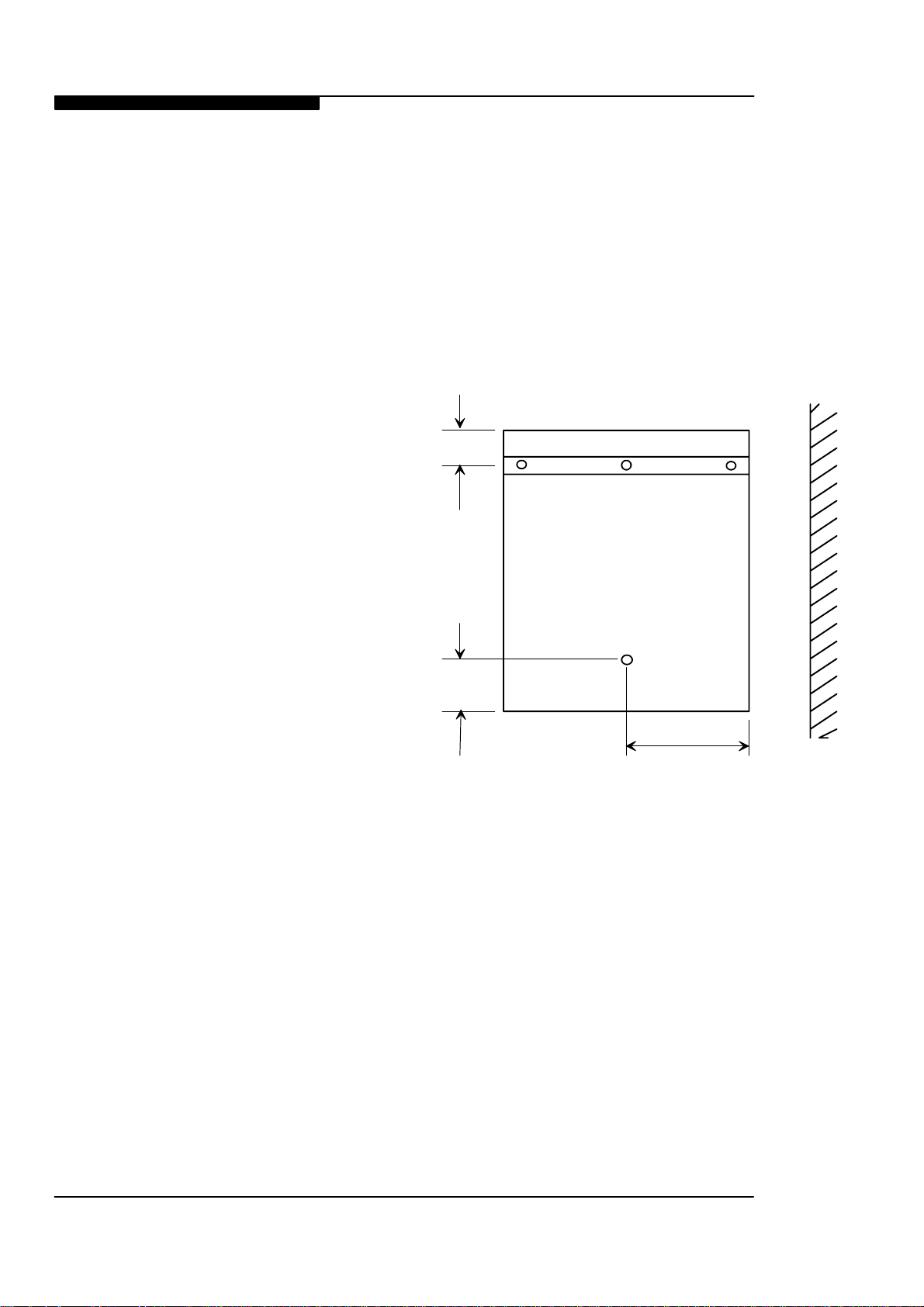

3.1 Wall Mounting Bracket

3.2 Mounting The Boiler

3.3 Assembly Practice

3.4 Installing Flue And Air Pipes

3.5 Condensate Drainage

3.6 Water System

3.7 Gas Supply

3.8 Electrical Supply

3.9 Exchanging A Boiler

4 COMMISSIONING OF THE BOILER

4.1 Initial Flushing

4.2 Gas Supply

4.3 Electrical Installation

4.4 LP Gas Conversion

4.5 Initial Firing

4.6 Hot Flushing

4.7 Checking The Gas Pressure

Page : i

Page 3

WD52/0/1997 The Keston 130 Condensing Boiler

4.8 Timing The Gas Meter

4.9 Handing Over To The User

5 FAULT FINDING

5.1 Electrical Control Sequence

5.2 Fault Finding Flow Chart

5.3 Continuity Checking

5.4 Functional Flow Wiring Diagram

5.5 Electrical Wiring Diagram

5.6 Illustrated Wiring Diagram

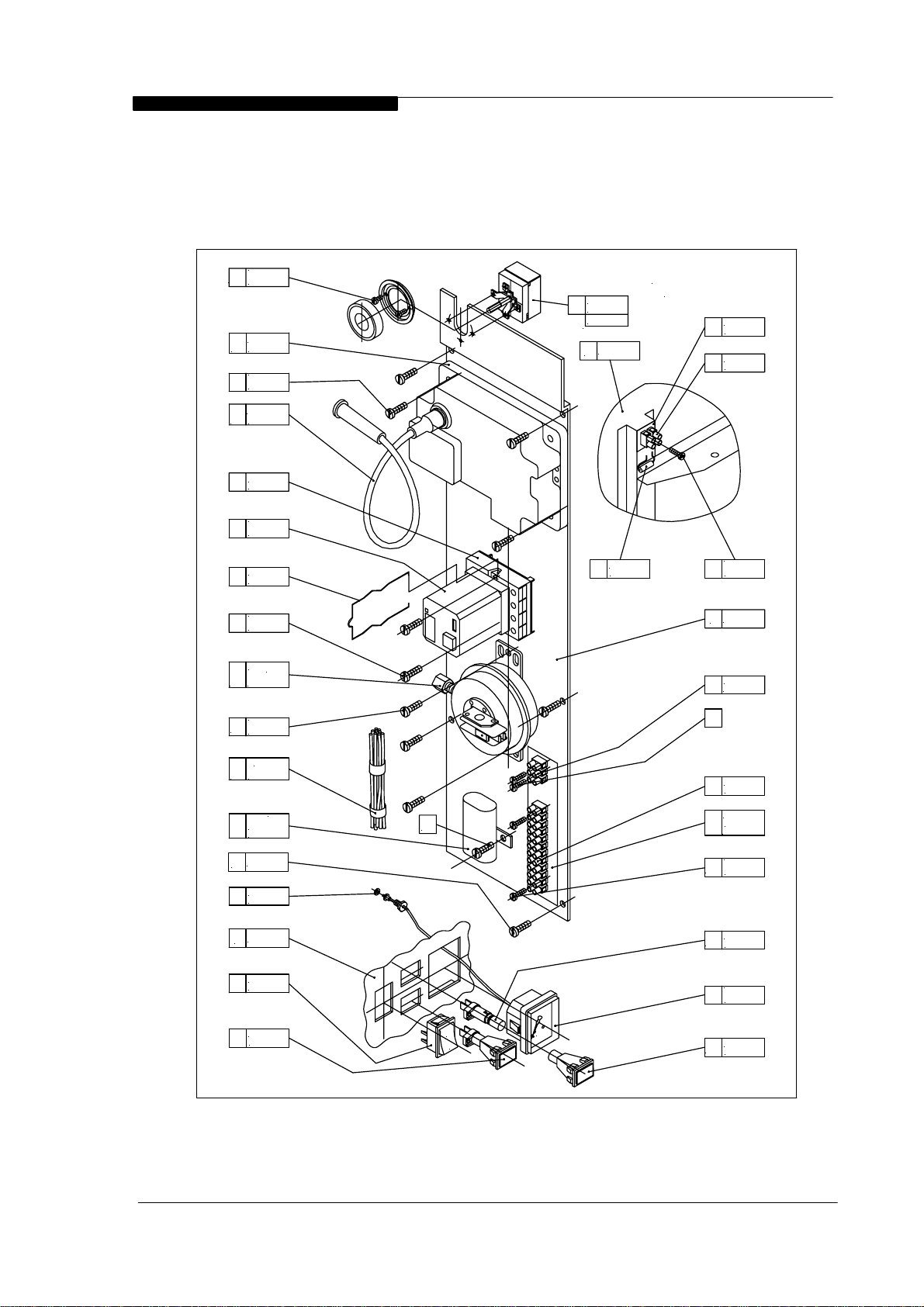

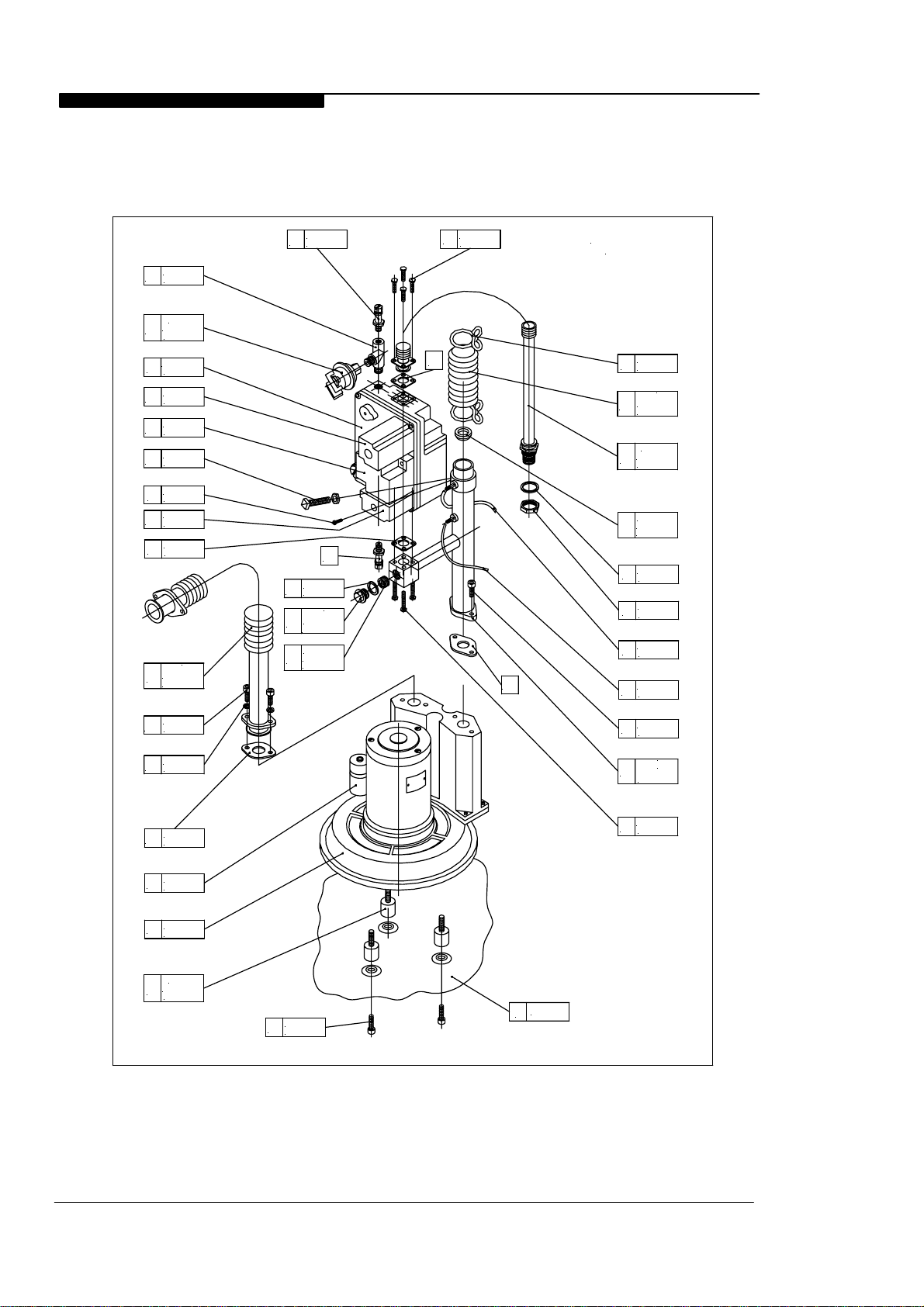

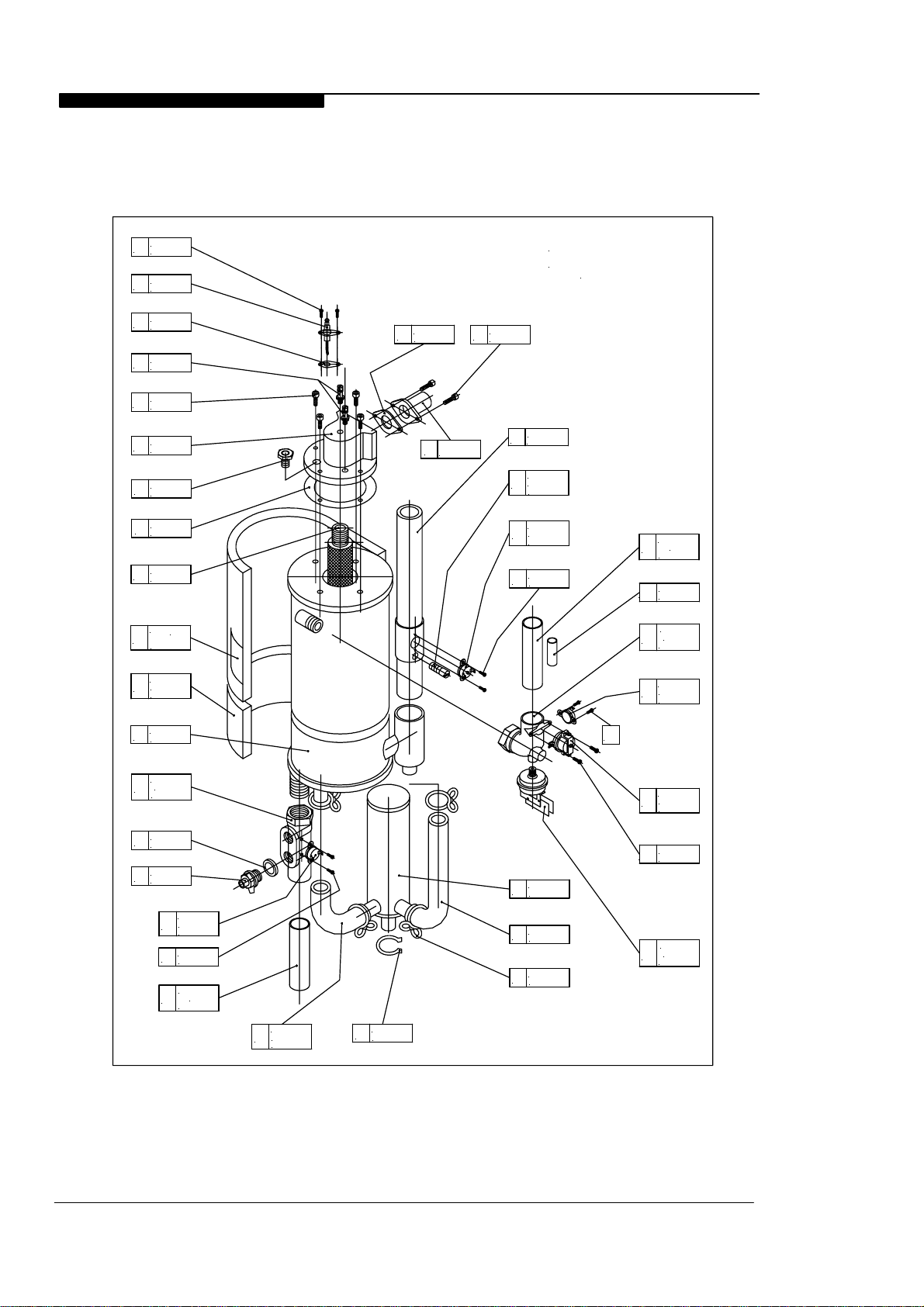

5.7 Exploded Assembly Diagrams

6 SERVICING

6.1 Pre Service Checks

6.2 Recommended Routine Service

7 REPLACEMENT OF PARTS

7.1 General

7.2 Precautions

7.3 Access

7.4 Electrical

7.5 Gas Orifice

7.6 Spark Ignition/Flame Detection Electrode

7.7 Burner Head & Burner

7.8 Heat Exchanger

7.9 Air Filter

7.10 Condensate Trap

7.11 Pressure Gauge

7.12 Sight Glass

7.13 HT Ignition Lead

7.14 Air Vent

7.15 Air Orifice

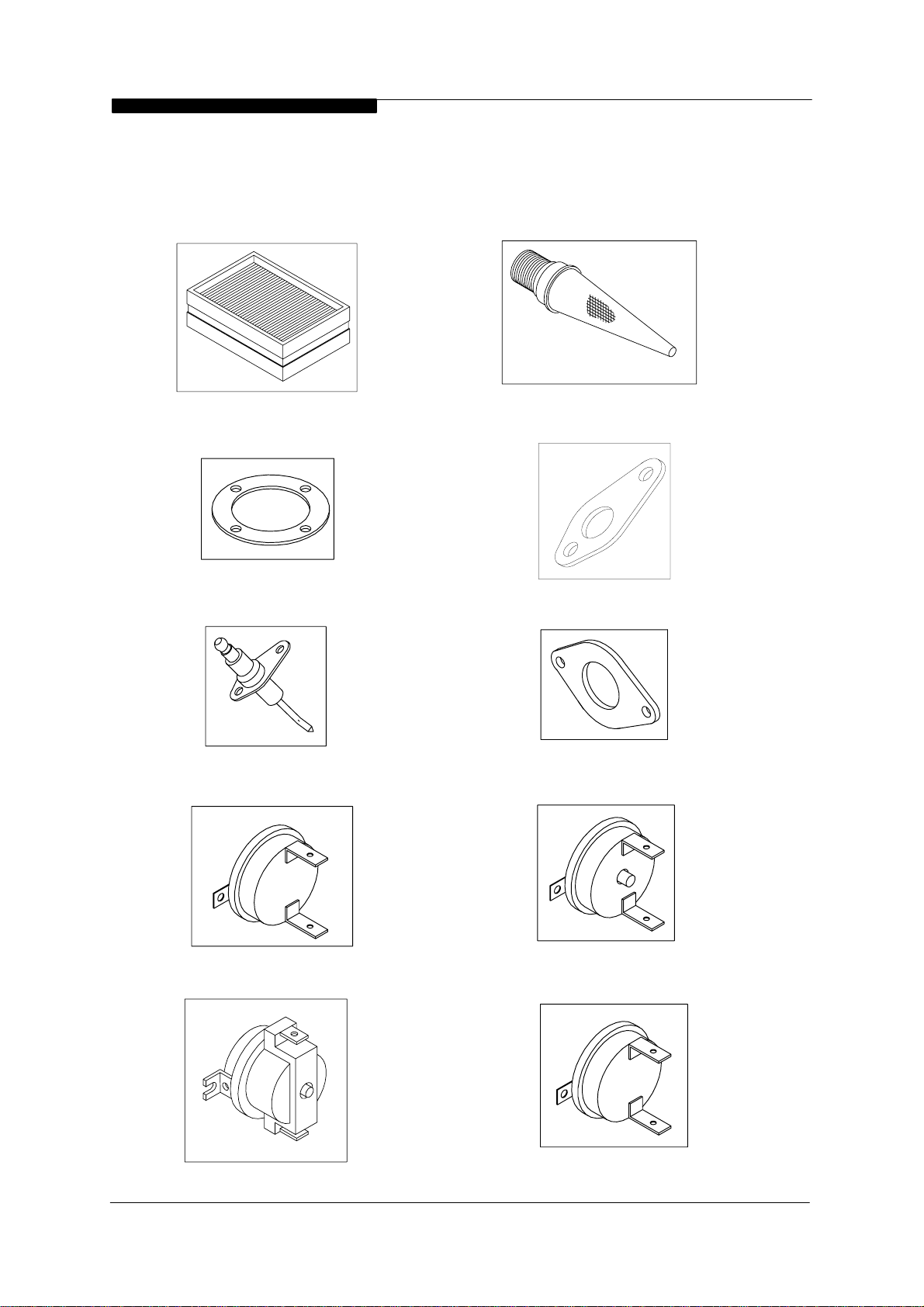

8 SPARE PARTS LISTINGS

BENCHMARK INITIATIVE

As part of the industry wide “Benchmark” Initiative all Kes ton 130 boilers now include a Benchmark Installation, Commiss ioning and Service Rec ord Log Book . Pleas e read this c aref ully and complete all sections relevant to the appliance installation. T he details of the Log Book will be required in the event of and warranty work being required. There is also a section to be completed after each regular service visit. The completed Log Book should be left with the customer.

CORGI CONTACT INFORMATION

The boiler should be installed and serviced only by CORGI registered operatives. All CORGI registered Installers carry a CORGI ID cad, and have a registration number. Both should be recorded in the Benchmark Log Book. You can call CORGI direct on 01256 372300.

Page : ii

Page 4

WD52/0/1997 Chapter 1 : General Instruction The Keston 130 Condensing Boiler

1. GENERAL INSTRUCTION

1.1 DESCRIPTION

The Keston Condensing Boiler is unique in its concept and design. While the application for which the boiler was designed is the same as those which other boilers are us ed the Keston boiler has the added advantage of very high efficiency, and small diameter plastic flue which can be extended to 15 metres horizontally or vertically.

The Keston uses a high power combustion blower to deliver a pre-mix of gas and air to a downward firing burner in a high efficiency, single pass heat exchanger. Normally the combustion temper ature of the air gas mixtur e is around 1800 combustion at an amazing 1000

C thereby reducing the NOx emissions.

The flue system is room sealed and fan powered. The ignition is direct spark and fully automatic. The boiler housing is not waterproof and should be installed in a position where it will always be dry. Consideration should also be given to the noise levels generated by the combustion fan when in operation. A small air intake point is incorporated within the appliance cabinet to ensure that the interior of the cabinet is maintained under a slight negative pressure. This is a safety feature to ensure no products may leak out of the cabinet into the installation space.

C but the Keston achieves

The boiler is suitable for c onnection to open vented or, preferably, sealed systems. The system must be pumped centra l heating or pum ped c entr al heating with combined indirec t sanitary hot water. Gravity circuits must not be used.

Forming part of the boiler is the heat exchanger which is made f rom a highly corrosion resistant stainless steel, form ed into tightly wound coil. The hot combustion gases from the central down firing burner pass thr ough this coil im parting heat into the system water. Head characteristics of the boiler coil must be taken into consideration when calculating the pump size. The Keston boiler is not a high water content boiler and does not contain the metal mass , or water volume, of a cast iron or steel boiler . This boiler is of low mass and low water content and therefore responds f aster when there is a call for heat. This feature requires a higher water pum ping rate through the boiler otherwise localised boiling will occur within the boiler. Allow a pressure drop through the boiler of 9.8 ft head (30 kPa) and a water flow of 11 gallons (50 litres) per minute.

The boiler selected m ust be sized relative to the total c alculated heat loss of the building. The boiler rated output should not be greater than the total required to make up the calculated heat loss plus the heat required to provide sanitar y hot water, if the system is not hot water priority design. If there are special conditions such as excess ive sanitary hot water usage consult the manufacturer.

1.2 BOILER SCHEMATIC

Air is drawn into the boiler through a 50mm muPVC pipe. The air flow is proved by a differential pressur e across the air control orif ice. Gas is mix ed with combustion air at the inlet to the fan. The gas flow is r egulated by an orifice located in the housing downstr eam of the gas valve.

The gas and air are thoroughly mixed in the blower and f ed into the burner located at the top end of the heat exchanger module. The gas and air mixture is ignited by a direct spark ignition control system and burns with a blue flame j ust off the surface of the burner. As the hot products of combustion pass downwards, they are cooled by exchanging heat with the circulating water which enters the heat exchanger coil at the bottom of the heat exchanger

Installation & Servicing Instructions Page : 1

Page 5

WD52/0/1997 Chapter 1 : General Instruction The Keston 130 Condensing Boiler

Fig. 1.2 - Boiler Schematic

When the return water temperature is below 54

condense inside the heat exchanger, thus inc reasing the boiler efficienc y by releasing the latent heat of condensation. This condensate falls to the bottom of the heat exchanger where it is separated from the flue gases and exits f rom the boiler through the condensate drain. Any condensate formed in the flue runs back down the flueway and is drained at the base of the flue connection to the heat exchanger or drain points within the flue.

The condensate is very slightly acidic (about the same acidity as vinegar) and should be piped in a plastic pipe. It is not harmful to the waste disposal system and may be disposed of as normal waste water.

The flue gases are piped in a 50m m m uPVC pipe to the outside. The temper ature of the flue gases are usually around 5 pipe should be terminated outside the building from where they cannot re-enter the building or any other adjacent building.

The heating level may be controlled by room therm ostats, hot water cylinder therm ostats, programmer time clocks and energy management systems.

1.3 RELATED DOCUMENTS

The Keston Condensing Boiler must be ins talled in accordance with the current issue of the Gas Safety (Installation and Use) Regulations 1996, current IEE Wiring Regulations,

Building Regulations, Building Standards (Scotland) Consolidation, and the Bye Laws of the local Water Undertaking.

C, part of the water vapour in the combustion products will

C above the temperature of the return water. The flue

In addition, due account must be taken to the following Codes Of Practice:

BS 6891 : Gas Supplies BS 6798 : Installation Central Heating Boilers BS 5449 : Installation Pumped Central Heating BS 5482.1 : Domestic Propane & Butane Burning Installations

Installation & Servicing Instructions Page : 2

Page 6

WD52/0/1997 Chapter 1 : General Instruction The Keston 130 Condensing Boiler

BS 5546 : Installation Domestic Hot Water BS 5440.1 : Flues BS 5440.2 : Air Supply BS 7074.1 : Expansion Vessels BS 7593 : Treatment of Water in Hot Water Central Heating

Systems For Timber Framed Buildings, British Gas Publications DM2. Also British Gas Publications 'Guidance Notes For The Installation Of Domestic G as Condensing Boilers' and 'Specification For Domestic Wet Central Heating Systems'.

1.4 PERFORMANCE DATA

Boiler Input kW 42.0

Btu/h 143,300

Boiler Output To Water kW 37.7

C Flow 60oC Return) Btu/h 128,600

(80 Boiler Output To Water kW 39.5

C Flow 40oC Return) Btu/h 134,800

(60 Boiler Output To Water kW 40.5

C Flow 30oC Return) Btu/h 138,200

(50 Burner Setting Pressure Factory Preset

)

to 4.0 mbar

/hr 138.78

(Hot) Gas Comsumption After l/s 1.09

10 mins Ft (CV of Gas - 38.7 MJ/m (1038 Btu/Ft

)

1.5 GENERAL DATA

Main Burner Keston Premix

Max. Operating Flow Temp.

C 80.00

Max. Head (Open Systems) m 30.50

Ft 100.0 Max. Press. (Sealed Sys.) Bar 2.70 Min. Head (Open Systems) m 3.0

Ft 9.0 Inlet Gas Pressure mbar 20.0

in wg 8.0 Gas Orifice Size mm 3.8

Recommended Temperature

C 10 to 15

Differential

Flow Connection 35mm Copper

Gas Control White Rogers 36E Series Combustion Fan Keston

Return Connection 35mm Copper Power Supply 230V 50Hz

Type LPB 103 220/240

0.6 kW 2900 RPM

Direct Spark RAM 2EMC22

Pwr Consumption 610 W Ext Fuse Rating 10 Amp

Ignition Full Sequence Control

Weight - Full 68 kg (150 lbs)

Air Press. Switch Tridelta FS6717-1428 Filter Keston Filter

Weight - Empty 61 kg (134 lbs) Data Badge Posn Right Hand Panel Inside

Case

Gas Supply 0.75 inch BSPT Male Connection (22mm to gas cock)

Water Content 7.0 litres

Installation & Servicing Instructions Page : 3

Page 7

WD52/0/1997 Chapter 2 - Boiler Connections The Keston 130 Condensing Boiler

2. BOILER LOCATION

All dimensions in mm.

2.1 DIMENSIONS AND MINIMUM CLEARANCES

The boiler must be installed in m inim um clearances shown to allow subsequent servicing, and safe operation.

2.2 SERVICE CONNECTIONS

254

Gas, water, air and flue pipe, condensation, and electrical connections are as shown. Gas : 0.75 inch BSP male. Flow/Return 35 mm

copper.

2.3 POSITION

The Keston is not suitable for external installation. The boiler may be installed in any room or internal space, although particular attention is drawn to the requirements of the current IEE Wiring Regulations and, in Scotland, the electrical provisions of the Building Regulations applicable in Scotland, with respect to the installation of the boiler in a room or internal space containing a bath or shower.

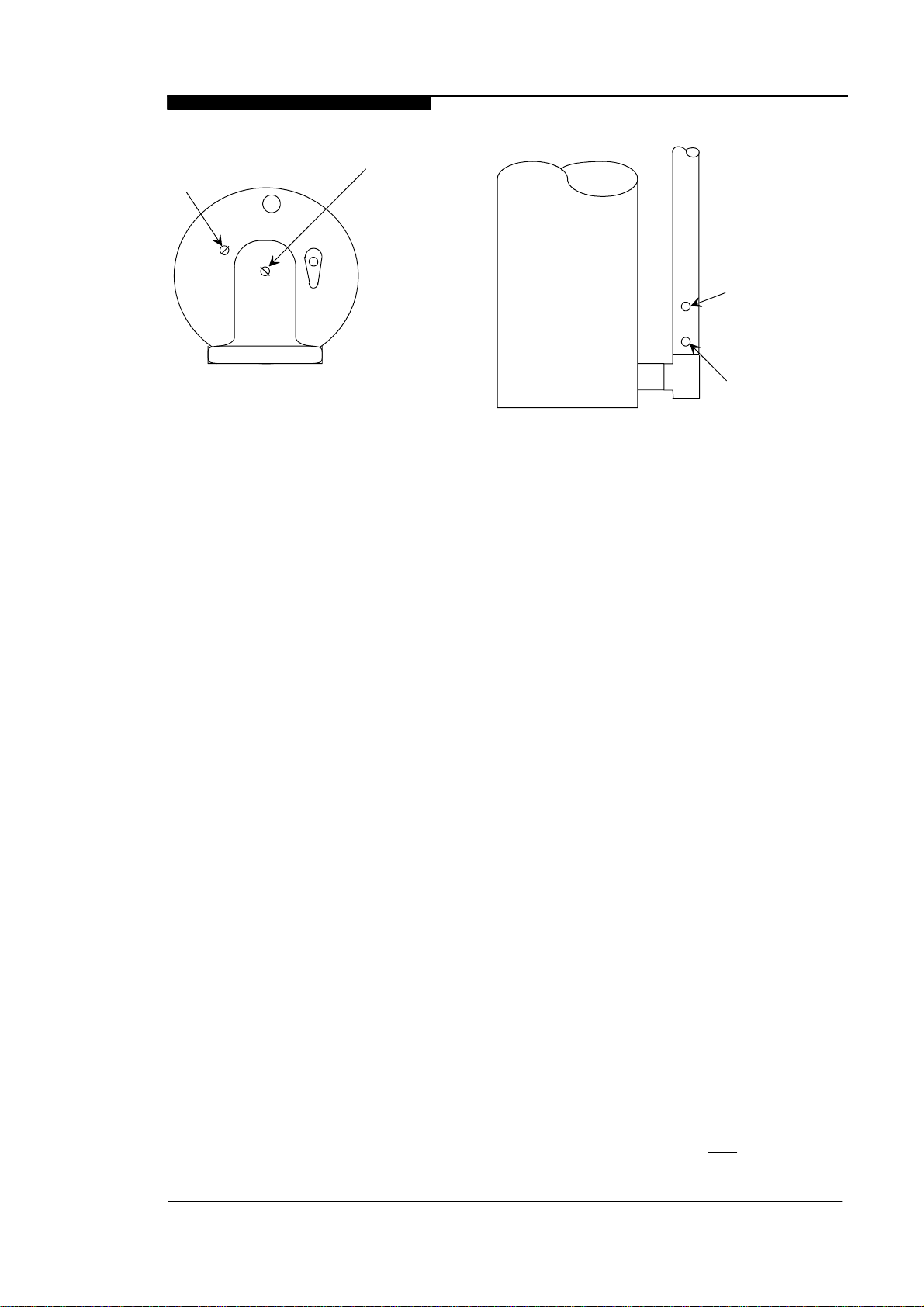

Figure 2.1.2 Dimensions

Air I ntake

Return

Flow

Flue

305

Figur e 2.1.1

127

Minimum Clearances

All dimensions in mm.

890

Condense

Gas

Where a room-sealed appliance is installed in a room containg a bath or

190

263

405

Top View

244

Service Connection Locations

113

500

152

Base View

All dimensions are in mm.

Installation & Servicing Instructions Page : 4

Page 8

WD52/0/1997 Chapter 2 - Boiler Connections The Keston 130 Condensing Boiler

shower, any electrical switch or appliance control, utilising mains alectricity, should be so situated that it cannot be touched by a person using the bath or shower.

Compartment installation is permitted - such compartments must be constructed in accordance with BS 6798.

The wall on which the boiler is mounted must be of suitable load bearing capacity and must be non-combustible.

Important : It is not recommended to install the boiler on a studded wall or similar - it is possible that the vibration from the fan would be amplified and transmitted to other parts of the property.

The Keston can be located virtually anywhere desired provided that all regulations are complied with. Because of the boiler's compact size and venting flexibility, the installation is not limited to a boiler room setting. Before locating the boiler near a living space consider whether the sounds generated by the boiler will be objectionable. The boiler may be located within a cupboard enclosure to reduce noise levels if located within a living

space.

2.4 ELECTRICAL

2.4.1 Electrical Connections

The boiler must be connected to a permanent 230V ~ 50Hz supply, fused at 10A.

An additional switched live supply 230V ~ 50Hz rated at 2A must be provided from the external system controls. All external controls and wiring must be suitable for mains voltage. A pump connection point is

provided within the boiler to enable the optional pump over-run facility to be used. Alternatively, the appliance can be fed by a single switched 10A supply by linking the switched and permanent live connection points (see Section 3.8). If a

[NB: Refer to Section 2.8.3]

Chimneys not used for venting any other

appliance may be used.

Secure air & flue pipes at chimney outlet.

Figure 2.3

Installation & Servicing Instructions Page : 5

Page 9

WD52/0/1997 Chapter 2 - Boiler Connections The Keston 130 Condensing Boiler

single 10A switched supply is used then the pump over-run facility will not be enabled.

Wiring external to the boiler must be in accordance with current I.E.E wiring regulations and local regulations.

The method of connection to the mains electricity supply must facilitate complete electrical isolation of the boiler, preferably by the use of a fused, unswitched three pin plug and a shuttered socket-outlet, both complying with the requirements of BS 1363. There must be only one common method of isolation for the boiler and its control system.

The appliance must be connected to the 10A supply via a fused double-pole switch having at least 3mm (1/8 inch) contact separation in both poles, serving only the boiler and the system controls.

The connection point to the mains supply should be readily accessible and adjacent to the boiler, except for rooms containing a bath or a shower. Refer to section 2.3 Position.

2.4.2 External Wiring & Controls

1. The boiler is designed so that all control wiring is external to the boiler.

2. System designs which allow the boiler to fire when there is no pumped circulation must NOT be used. Provision is made in the boiler for boiler pump connection with pump over-run facility.

3. A programmer may be used with zone valves to give independent control of central heating and hot water.

2.5 BOILER SIZE SELECTION

The size of the boiler to be used is determined by the total calculated heat loss of the building. Match the calculated heat loss with the boilers rated output. If a boiler is installed

with an output rating greatly exceeding the total capacity of the distribution system the efficiency of the boiler will be reduced.

2.6 GAS SUPPLY

A gas meter should be connected to the service pipe by the local gas region or their contractor. An existing meter should be checked preferably by the gas region to ensure that the meter is adequate to deal with the rate of gas supply required. Installation pipes should be fitted in accordance with BS 6891.

Minimum/Maximum Natural Gas Pressure:

Natural gas pressure before the gas valve must be maintained at 20 mbar (8 in WG) while the boiler is running. Gas pressures above or below this level will lead to problems associated with the gas valve's internal pressure regulator.

Supply pipes to the boiler must not be sized less than the boiler inlet connection (22 mm). Due consideration must be given to the supply pressure to other gas appliances in the premises. Reduction in dynamic gas supply pressure will result in intermittent ignition failures. Ensure gas supply pipe work is adequately sized for the length of run from the meter to the boiler.

A gas cock is supplied loose with the boiler. This cock should be fitted in the gas line to the boiler as close to the boiler as possible so that it is easily identified as the cock to isolate the boiler.

Installation & Servicing Instructions Page : 6

Page 10

WD52/0/1997 Chapter 2 - Boiler Connections The Keston 130 Condensing Boiler

2.7 WATER SYSTEMS

All piping must be installed in accordance with all applicable local and Water Supply Bylaws for forced hot water heating systems. Consideration must be given to pipe capabilities and pressure drop through the piping. Water treatment must be carried out to BS 7593 : Treatment of Water in Hot Water Central Heating Systems. Pump isolating valves must be positioned as close to the pump as possible.

a The Keston 130 is suitable for use on open, vented water systems with combined

feed and vent.

b It is preferable for use on sealed water systems, provided the appropriate

components required (see Section 2.7.2 Sealed Systems) are included in the system.

c Any system must be thoroughly flushed clean of grease, dirt and debris, prior to

connection with the boiler. A trap should be installed in the flow line to collect any solder, or other debris, from the installation.

d All water systems must be constructed to comply with requirements of the Local

Water Authority. e Only fully pumped systems can be used - gravity systems are strictly f Always use a system complying with the requirements of BS 5449 and BS 6798. g The system must be so arranged that there shall always be a minimum flow of 11

gpm (50 litres/min) when the boiler is firing. This can be via a specially installed

by-pass arrangement. h Copper tubing to BS 2871 Part 1 is recommended. i Jointing should be either with capillary, threaded or compression fittings. Pipes

should have a gradient to ensure air is passed easily to vent points and water

flows readily to drain points. j Draining taps must be located in accessible positions which permit the draining of

the boiler and hot water storage vessel. Draining taps should be at least 22 mm in

nominal size and be in accordance with BS 2879.

AIR VENT POINTS h These must be fitted at all high points where air will naturally collect and must be

sited to allow complete draining of the system.

not suitable.

2.7.1 Open Vented Systems

A typical system is shown in Figure 2.7.1 which includes a combined feed and

vent. Note there must be no valve between the boiler flow and the open vent.

Note that the minimum static head required is 9 ft at the top of the boiler. If the

cold feed/vent is not brought to the flow pipe as shown, then the pressure loss

across the heat exchanger may have to be taken into account when estimating

the static pressure.

Although suitable for open vented systems with combined feed and vent

arrangements, the Keston is a low water content boiler. As such, any air

entrainment within the system water will produce boiler “kettling”. It is therefore

recommended, if in any doubt, to consider the use of sealed systems where

possible.

Installation & Servicing Instructions Page : 7

Page 11

WD52/0/1997 Chapter 2 - Boiler Connections The Keston 130 Condensing Boiler

Boiler

Expansion Pipe

28mm

Minimum

Keston

Strainer

Rad. 2 Rad. 1

Expansion Tank

Pump

Minimum 9ft Height

By-pass Bal. Valve

Valve

Cylinder

L/S Valve

Valve

2.7.2 Sealed Systems

Sealed systems must be designed in accordance with BS 5449 and BS 7074 Pt1. A typical sealed system is shown in Figure 2.7.2. It must include :

(i) A safety valve fitted on the flow, adjacent to the boiler. It must be non

adjustable and preset to 3 bar. A drain pipe must be attached, at least as big as the valve connection, and routed to drain in any area not hazardous nor where it may be subject to freezing.

(ii) An expansion vessel complying with BS 4814 and sized in accordance

with the requirements of BS 5449 and BS 7074 Pt 1. The vessel must be

positioned on the inlet to the pump. (iii) A filling point, in accordance with local water authority requirements. (iv) A method of system make-up (automatic or manual), in accordance with

local water authority requirements. (v) There must be no permanent connection of mains water to the boiler

system. (vi) The installation must be designed to work with flow temperatures of up to

110

All components of the system including the heat exchanger of the indirect cylinder must be suitable for a working pressure of 3 bar and a temperature of 110 Care should be taken in making all connections that the risk of leakage is minimised.

Figure2.7.1 : Open Vented System Diagram

Installation & Servicing Instructions Page : 8

Page 12

WD52/0/1997 Chapter 2 - Boiler Connections The Keston 130 Condensing Boiler

Make -up vessel. Max. capacity of

Air Vent

3 lt. (5pt)

Boiler

Drain Coc

Keston

Safety Valve

Expansion Vessel

Pressure Guage

Strainer

By-pass Bal. Valve

Pump

Doubl e Check Valve

Figure 2.7.2 : Sealed System Diagram

L/S

Test Cock

RETURN

HEATING CIRCUIT

FLOW

BS 1010:2 Stop Tap

Non-Return Valve

Auto Air Vent

Hose Union bib tap

Hosepipe (disconnected after filling)

Hose Connector

2.7.3 Hot Water System (if applicable)

The hot water storage vessel must be of the indirect type (certain direct cylinders can be used provided

they are suitably adapted by fitting an immersion calorifier).

DIRECT CYLINDERS MUST NOT BE USED. Further guidance is provided in BS

1394. It is advisable to fit a locksheild valve on the cylinder return to enable balancing of the flow rate through the cylinder.

2.7.4 Boiler By-pass Piping

Boiler water flows are critical to the operation of the boiler. If flow cannot be maintained through the system piping to meet the minimums required by the boiler (see paragraph 2.7 (g)). Insufficient water flows through the boiler will cause the boiler to "kettle" or even produce steam which can damage the heat exchanger and will invalidate the heat exchanger warranty.

It is normally advisable to incorporate a boiler by-pass in the system, especially if thermostatic radiator valves are used. The by-pass should be fitted with an automatic by-pass valve to permit balancing of the by-pass flow rate. The flow/return differential should be 10 maintain this condition with all thermostatic radiator valves closed.

C to 15oC. The valve should be adjusted to

Installation & Servicing Instructions Page : 9

Page 13

WD52/0/1997 Chapter 2 - Boiler Connections The Keston 130 Condensing Boiler

2.7.5 Air Elimination

In the initial charge of water to the boiler system and in all subsequent additions of water to the system some air will be dissolved in the water. As the water is heated the air is driven out of the solution and will collect in high spots in the system. These air bubbles can interfere with pumping and heat transfer and

must be eliminated.

Installation of air bleed valves at the high spot(s) in the system will allow for air elimination when filling the system and will allow re-venting in a day or so after all air has been driven out of solution.

2.7.6 Strainers

Debris in the heating system can cause noise if it enters the heat exchanger. Fitting of a Y-strainer ahead of the circulating pump will trap any debris left in the system and will protect the pump from damage. The boiler guarantee does not cover heat exchanger failure due to debris abrasion within the

system.

Y-Strainer will collect an y loose debris in the piping.

Figure 2.7.6 Strainers

2.7.7 Pump Selection

The Keston boilers have low water content heat exchangers with a high resistance to flow, when compared with cast iron heat exchanger boilers. As a result selection of the correct pump is essential localised boiling within the heat exchanger. The selected pump must be capable of maintaining the required flow rate for the boiler against the pressure losses contributed

by the boiler.

The Keston 130 condensing boiler offers a hydraulic resistance of

3.0m (9.8ft) water at the required flow rate of 50 l/m (11 gpm).

in order to avoid

Static Pressure - m WC

4.5

4.0

3.5

3.0

2.5

2.0

1.5

1.0

0.5

20 30 40 50 60

If a single pump is to be used for the entire installation the

Installation & Servicing Instructions Page : 10

Figure 2.7.7 : Pressure Loss Graph

Water Flow - L/min

Page 14

WD52/0/1997 Chapter 2 - Boiler Connections The Keston 130 Condensing Boiler

boiler resistance must be added to the pressure loss caused by the rest of the system and a pump selected that is capable of meeting the flow rate required at the total pressure loss generated by the boiler and the rest of the system. The selected pump must comply with BS 1394. It is important to note that the minimum flow rate must be maintained whenever the boiler is firing. Systems using zone valves must be specifically designed to only fire the boiler when the

pump is running and the minimum flow rate can be achieved.

2.8 FLUE SYSTEM

2.8.1 Design

Individual air supply and flue outlet pipes are used. The material used for flue outlet &/or air inlet must be muPVC to BS 5255 an of an internal diameter of 51 mm. (ie nominal 50mm diameter muPVC solvent weld waste pipe)

O56

Flue Outlet Terminal

Both flue outlet terminal and air inlet terminal are supplied and are illustrated in Figure 2.8.1 above.

2.8.2 Maximum Lengths

The maximum lengths of both air inlet pipe and flue outlet pipe, when no bends are used, are as detailed below.

Maximum Air Inlet Length : 15.0 m Maximum Flue Outlet Length : 15.0 m

However, each bend used has an equivalent length that must be deducted from the maximum straight length stated above. Knuckle bends must not be used.

ure 2.8.1 : Terminals

211

O83

O56

Air Intake Terminal

A 92.5

sweep elbow is equivalent to 1.0m straight length. Example: Air inlet uses two one 92.5o sweep elbows. Hence, maximum length permissible

(ie a+b in figure 2.8.2) = 15.0m - 1.0m - 1.0m = 13.0m

Flue outlet uses one 92.5

sweep elbow. Hence, maximum length permissible (ie

c+d in figure 7 = 15.0m - 1.0 m = 14.0m

Installation & Servicing Instructions Page : 11

Page 15

WD52/0/1997 Chapter 2 - Boiler Connections The Keston 130 Condensing Boiler

2.8.3 Slope

'Horizontal' flue outlet pipework MUST slope at least 5 degrees (80 mm per metre

FLUE

AIR

Keston

Figure 2.8.2 : Flue & Air Maximum Length Example

run) downwards towards the boiler. Pipework can be vertical. Only swept elbows can be used. Air inlet pipework can be truly horizontal or vertical, or sloping in a downward direction towards the boiler but in this case rain, etc, must

be prevented from

entering the pipe. There must be no troughs in any of the pipework, whether

it be air inlet or flue outlet.

Due the low temperature of the flue gases further condensate will form within the flue system. Drain points, with suitable traps, must therefore be incorporated within the flue system at the base of vertical flue sections in excess of 2m. These additional condensate

Figure 2.8.3 :

Flue Condensate Drain Point Example

drains must be run to discharge as detailed in

To Terminal

section 2.11. Such drain points can be formed using standard muPVC fittings. Refer to the example in Figure 2.8.3.

To Boiler

50mm Tee Fitting

2.8.4 Terminations Air inlet terminals must be

facing upwards and positioned

6 in min.

to ensure only fresh air is drawn into the boiler. The air terminal must be located outside of the building.

Drawing of combustion air directly from a ventilated boiler room invalidates the heat exchanger warranty.

Installation & Servicing Instructions Page : 12

Page 16

WD52/0/1997 Chapter 2 - Boiler Connections The Keston 130 Condensing Boiler

Dimensions (mm)

Flue

Terminal

Air

Inlet

50300A Below openable window, air brick, etc. 7575B Below gutters, soil pipes, drain pipes. 50300C Below eaves. 50200D Below balconies or car port roof. 5075E From vertical drain or soil pipes.

50600F From internal or external corner. 100300G Above ground or balcony or roof. 100600H From surface facing a terminal

1,2001,200I From terminal facing a terminal.

1001,200J From opening in a car port.

1,5001,500K Vertically from terminal on same wall.

300300L Horizontally from terminal on same wall.

Table 2.8.4 Minimum Flue Terminations & Air Inlet Dimensions The air inlet terminal must face upwards to prevent entry of rain into the air intake

pipework. The flue outlet terminal is designed to face outwards but can, if desired, be adapted to face in any direction BUT

must not be directed in the region of the air inlet. The two terminals are subject to the requirements of BS 5440 Pt 1 for clearances from features of the building although some can be decreased to the values indicated. If either the air inlet or the flue outlet terminate at a height of less than 2m (6ft) above ground level the termination must be protected by a suitable guard. The K4 terminal guard, manufactured by Tower Flue Components Ltd, is suitable for this purpose and can be obtained from Keston Boilers.

The Keston Condensing Boiler, as with any condensing boiler, will generate a condensate “plume” from the flue terminal in all weather conditions. Consideration must therefore be given to the effect of this “plume” when selecting a location for the flue terminal.

It is advisable for horizontal flue terminals to place a 45

elbow at the end of the

flue to direct the condensate plume up and away from the property.

2.8.5 Clearances From Wall

Flue outlet and air inlet terminations must be at least 60 mm and 95 mm respectively from the wall face.

2.8.6 Distance Between Flue Outlet & Air Inlet

There is no maximum - the terminations can be on opposite sides of the dwelling if desired. A minimum clearance of at least 500 mm must be left between the terminations.

2.8.7 General Installations

All parts of the system must be constructed in accordance with BS 5440 Part 1, except where specifically mentioned in these instructions. All pipe work must be adequately supported.

Installation & Servicing Instructions Page : 13

Page 17

WD52/0/1997 Chapter 2 - Boiler Connections The Keston 130 Condensing Boiler

All joints other than push-on or plastic compression connectors must be made and sealed

with solvent cement suitable for muPVC pipes and conforming to BS 6209: 1982. External wall faces and any internal faces of cavity walls must be made good.

2.9 AIR SUPPLY

The Keston is a room sealed appliance and therefore does not require purpose provided ventilation to the boiler room for combustion air.

2.10 COMPARTMENT INSTALLATION

The casing temperature of the Keston 130 is very low. Due to this fact, no compartment ventilation is required for cooling purposes.

2.11 CONDENSATE DRAINAGE

Being a condensing boiler, the Keston is fitted with a condensate trap at the base of the heat exchanger and flue assembly, with facility to connect to a drain point underneath the appliance.

Use only plastic piping and do not reduce below 15mm internal diameter within the dwelling. Condensate should preferably be drained into the sanitary waste system or, alternatively, the rainwater system of the property.

Termination of the pipe must be either at a branch or stack internal to the house, or externally at an open gully. Alternatively, discharge into a purpose made condensate soakaway can be considered. Existing or purpose built drains must use suitable corrosion resistant material as condensate is mildly acidic.

A minimum slope downwards towards the drain of 1 in 20 is essential. Freezing of the termination and pipework must be prevented. Any drainage pipes outside the property must be at least 32 mm inside diameter.

2.12 RADIANT FLOOR HEATING

The low operating temperatures of this type of system lead to very good operating efficiencies. In fact, under floor heating can produce in excess of 95% operating efficiency from a Keston condensing boiler.

Water temperatures in radiant floor heating systems must be kept relatively low, generally under 48

C, so that surfaces do not become uncomfortably warm to the touch. If radiant heating is only one application for a multi-zone system which also requires higher delivery water temperatures for other zones (i.e. water heating, skirting heaters etc.) then the radiant floor zone temperature will need to be controlled separately from the boiler.

If radiant floor heating is the only application of the boiler, the boilers maximum operating temperature can be lowered accordingly by introducing a supplementary control

thermostat within the control system of the installation. Mixing valves are also available which will mix return water from the system with boiler

output water to dilute the temperature of water transmitted to the distribution system. Mixing valves may create problems with low flow and high temperatures through the boiler, unless care is taken to design a system which will provide proper flows and will fully load the boiler. Keeping the boiler's temperature high will prevent the boiler from operating at peak efficiencies. Systems which maintain boiler temperatures in this way should be avoided.

Installation & Servicing Instructions Page : 14

Page 18

WD52/0/1997 Chapter 2 - Boiler Connections The Keston 130 Condensing Boiler

If only a portion of the boiler's available output is to be used for radiant floor heating a thermal storage tank will improve the boiler's operation and give adequate control of temperature for the distribution system. By heating water to be distributed to the radiant floor zone to the proper temperature in an indirect-fired water heater, full load conditions will be available to the boiler because the heat exchanger in the tank can be sized to match the boiler's output. The tank's thermostat can be set at the optimum operating temperature needed by the distribution system and short-cycling of the boiler will be prevented.

2.13 LOW WATER VOLUME BOILER VS. CAST IRON BOILER

Because of their high water content and mass of metal, cast iron and steel boilers are less responsive but somewhat more forgiving of design errors. Short-cycling of the burner on the temperature limit control is less pronounced, though no less detrimental to operation, because the boiler itself will absorb and radiate a significant amount of heat. Low water volume boilers respond more quickly to a call for heat, can be made more compact and lightweight, but must have adequate heat delivery systems to avoid short-cycling of the burner on the temperature limit control. The heat delivery system's output must be equal to or greater than the boiler's output to fully load the boiler or short-cycling will occur.

Likewise, pumping rates of water through low water volume boilers must be maintained so that water is moved through the boiler fast enough so as not to reach boiling temperatures. The slower the water moves through the boiler the more heat it will absorb and the higher the temperatures will rise. Consequently, the pump selected must be adequate to maintain that critical flow of water.

2.14 DETERMINE RADIATION NEEDED ROOM-BY-ROOM

A radiator or convector's ability to deliver heat is related to the water temperature and the rate of delivery to the unit. Most systems in the past have been rated at about 80 Higher efficiencies can be gained from a condensing boiler if ratings published at lower temperatures are used. However, this is not imperative. With normal 80 condensing boiler will still deliver significantly higher efficiencies than a non-condensing boiler. Lower water temperatures in the system tend to increase the efficiency of the boiler and will help assure that the boiler is subjected to a sufficient load to avoid short-cycling.

The Keston boilers are capable of temperatures of up to 80 temperature of the return water, the lower the efficiency of the system. This is true of all boilers, though all non-condensing boiler must be kept at higher temperatures to avoid condensation in the boiler which destroys such boilers quickly. Materials used in the Keston are made to withstand the condensates corrosive nature.

C ratings used a

C but the higher the

Installation & Servicing Instructions Page : 15

Page 19

WD52/0/1997 Chapter 3 : Installation The Keston 130 Condensing Boiler

3. INSTALLATION OF THE BOILER

Read Chapter 2 - Boiler Location and decide upon the position of the boiler. Installation of the boiler is straightf orward but consideration m ust be given to access to allow f lue

and air pipes to be pushed through walls and ceilings. The order in which the components are installed will depend upon particular site conditions, but in general it will be easiest and most accurate to install the boiler and then build up the flue outlet and air inlet pipes to the terminal - this is the sequence described.

3.1 WALL MOUNTING BRACKET

a Place the bracket on the wall

horizontally with the pre-drilled holes at the bottom.

b Drill through the centre hole of

the bracket, plug the hole and fix in position.

c Using a spirit level make sure

the bracket is completely level and mark the position of the other screw holes.

All dimensions in mm.

d Remove the bracket and drill the

holes in the positions marked. Plug these holes.

e Screw the bracket to the wall

using screws of an appropriate size for the wall type (No. 12 x 2 inch wood screws normally suffice).

f Mark the bottom fixing hole and

drill for a No 8 x 1 inch wood screw. Insert plug.

3.2 MOUNTING THE BOILER

a Lift and locate the upper rear lip on the boiler to the boiler wall bracket. b Move the boiler sideways to centralise the boiler on the bracket. c Screw in the lower fixing screw.

3.3 ASSEMBLY PRACTICE

Remove all plastic debris and burrs when installing air intake piping. Plastic filings caused by cutting muPVC pipe must not be allowed to be drawn into the filter or combustion air blower. Prevent dust entering the air intake when cutting on building sites. Blower failure which is determined to be caused by plastic filings or other debris will not be covered by guarantee.

280

250

Figure 3.1 Wall Mounting Fixing Locations

Combustion air filters are fitted to the Keston condensing boilers as standard. This filter must be examined at least once every year, and more often in particularly dusty and dirty areas.

Installation & Servicing Instructions Page : 16

Page 20

WD52/0/1997 Chapter 3 : Installation The Keston 130 Condensing Boiler

The combustion air filter will prevent plugging of the burner caused by dirt being trapped in the burners outer mesh. The filter element supplied with the boiler is obtainable from Keston Boilers or its distributors.

3.4 INSTALLING FLUE AND AIR PIPES

Remember the flue pipe must achieved using 92.5

bends.

slope downwards back towards the boiler and this is best

a From the two connections on the boiler, mark the positions of the two holes for

the flue and air pipes on the wall(s) or ceiling. To allow access to drill the holes it may be necessary to temporarily remove the boiler. If the boiler stays put then it is imperative that the front panel and top access plate are replaced and the two plastic pipes capped off whilst drilling. Under no circumstances must debris from the wall or cut pipes be allowed to enter the appliance or the plastic pipework.

b Drill the two holes in the wall/ceiling, preferably using a core drill.

3.4.1 Diameter of holes.

i) Allowance must be made for

socketed lengths if these are to be passed through the holes :

du = unsocketted

diameter

= 56 mm

ds = socketed

diameter

= 65 mm

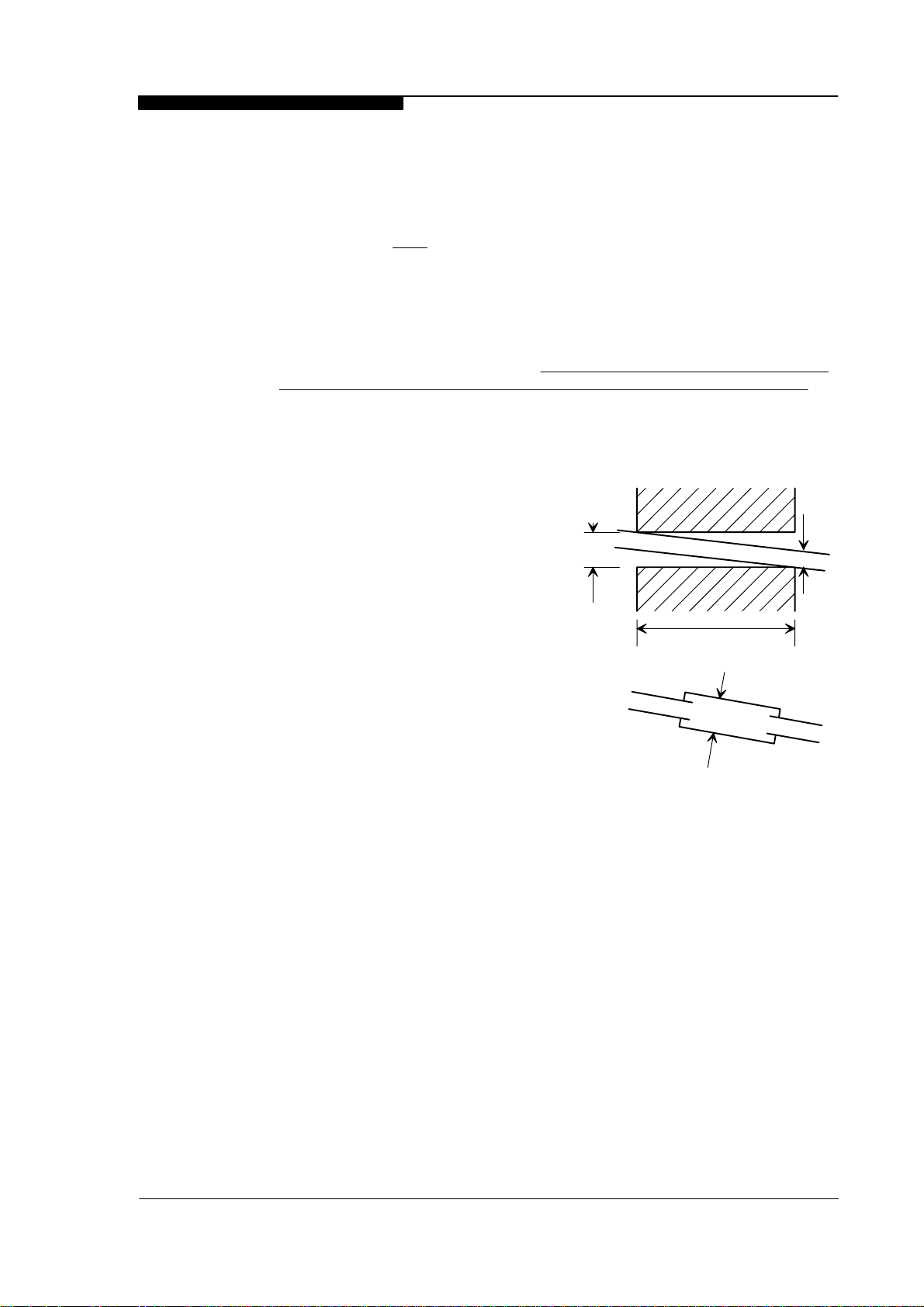

ii) For 'horizontal' runs of flue

pipe the holes must either be oversized or cut at a 5 (the latter may be difficult on long holes).

3.4.2 Oversizing

For every 1m length of run, L, the minimum diameter of the horizontal hole, D, must be du + 10 mm or ds + 10 mm respectively, assuming the pipe touches the wall at points T otherwise D will have to be increased by clearance from T. See Section 3.4.3 - Examples.

3.4.3 Examples

a. Wall Depth L = 750 mm

Unsocketted pipe du = 56 mm Diameter hole D = 56+[(

b. Wall depth L = 2300 mm

Socketed Pipe ds = 65 mm Diameter Hole D = 65

slope

Flue Pipe

750

= 56+7.5 = 63.5 mm

2300

[(

= 65+23 = 88 mm

1000

)x10]

Installation & Servicing Instructions Page : 17

Page 21

WD52/0/1997 Chapter 3 : Installation The Keston 130 Condensing Boiler

c. Measure, cut and check the air and flue pipes to pass to the exit from the

wall(s) or ceiling.

Always thoroughly deburr all pipes and, most important, remove shavings from within the pipe.

d. Assemble, using adhesive, the pipework from the boiler connections to

the exit from the first wall/ceiling (remount the boiler if removed). When pushing pipe through walls, ensure grit and dust is not allowed to enter the pipe. Ensure pipes are fully engaged into sockets. Connect the condensate drainage system and fill the condensate trap by pouring water down the boiler flue spigot ( See Section 3.5 Condensate Drainage).

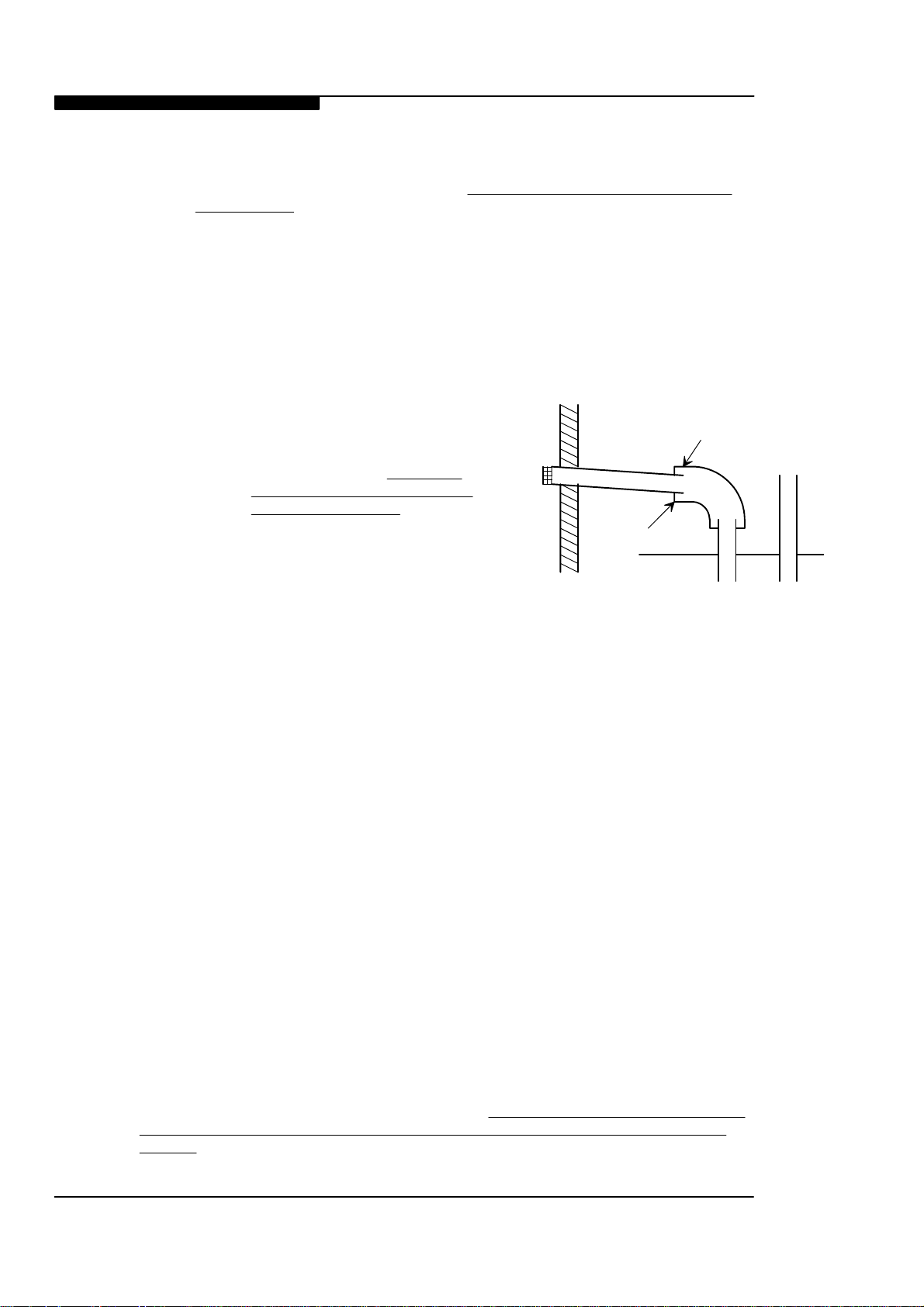

Make the final connection of flue and air pipe to the boiler using push on, or plastic compression couplings. Ensure that the connectors

are set vertically otherwise leakage of condensate may occur which will corrode the casing. Do not use adhesive on the 'push on' end of connecting couplings.

Fully Engaged

e. Using the same methods drill any

further holes (always covering existing pipework), cut and assemble the pipework.

f. From outside, complete the two terminations - See Section 2.8 Flue

System and make good all holes.

g. Support any pipes whose route could be displaced either of its own

accord or by accident. Any horizontal run over 1m or vertical runs of any length must always be supported. Brackets should be placed at intervals of approximately 1m.

h. Check all connections for security and re-seal any joints using sovent

cement where soundness may be in doubt. Note: It is equally important to seal the air inlet with solvent cement as

the flue outlet pipe joints.

3.5 CONDENSATE DRAINAGE

Connect the condensate drainage system to the boiler. It is advisable to use a detachable fitting at connection to the boiler to enable easy removal for servicing.

Fill the condensate trap by pouring water into the boiler flue spigot until water is seen to flow freely from the condensate drainage system. Make the final connection of flue pipe to the boiler.

Adhesive

Details are provided in Chapter 2 - Section 2.11 Condensate Drainage Connection : 22 mm plastic pipe.

3.6 WATER SYSTEM

Connect the flow and return pipework to the boiler. Ensure a detachable coupling is used at connection to the boiler (ie compression fitting) to enable heat exchanger removal if required. Details of system requirements are given in Chapter 2 - Section 2.7 Water Systems.

Installation & Servicing Instructions Page : 18

Page 22

WD52/0/1997 Chapter 3 : Installation The Keston 130 Condensing Boiler

Connections : 35 mm compression X 35 mm compression.

3.7 GAS SUPPLY

Connect the gas supply to the appliance. Details of gas supply requirements are given in Chapter 2 - Section 2.6 Gas Supply. Supply of adequate gas pressure

(with the boiler

running) is critical to ensure reliable operation of the boiler.

Connections : 0.75 inch BSP male.

3.8 ELECTRICAL SUPPLY

NB: This boiler includes an optional timed (2 minute) pump over-run facility. If this

pump over-run facility is not required the pump may be wired externally to the boiler.

The entry point(s) for the electrical supply cable(s) is in the base of the appliance (see Section 2.2 Service Connections fig. 2.1.2) via two cordgrip bushes. Feed the cable(s) through its bush and route inside the cabinet to the connection strip located to the front bottom right of the cabinet.

1. The electrical supply must be as specified in Chapter 2 - Section 2.4 Electrical Supply. WARNING : THIS APPLIANCE MUST BE EARTHED.

2. All external controls and wiring must be suitable for mains voltage.Supply wiring should be in 4 core PVC insulated cable not less than 1.0mm 16 (material code H05VV-F). Pump wiring from the boiler pump connection should be in 3 core PVC insulated cable not less than 0.5mm

to BS 6500 Table

to BS6500 Table

16 (material code H05VV-F).

3. The permanent live supply connection may be via a 10 amp fused double pole switch, serving only the boiler. (Refer to Chapter 2 - Section 2.4 Electrical Supply). The system controls and 2A switched supply for the boiler must also be supplied via this isolator.

4. Securely tighten the terminal screws and route the cable through the re-openable cable clips. Ensure all cables are secured and that the cord grip bush is tightened to securely grip the main cable at entry to the cabinet. The supply cable(s) must be connected to the main terminals as follows:-

N - Blue wire (Neutral) for 10A permanent and 2A switched

supplies PL - Brown wire (Live) 10A permanent supply SL - Brown wire (Live) 2A switched supply.

- Yellow/Green Wire (Earth)

The pump cable must be connected to the pump terminals as follows:-

N - Pump neutral wire (blue) L - Pump live wire (brown)

- Pump earth (yellow/green)

NB: The boiler circulating pump should not have a locked rotor current rating

exceeding 2A.

Ensure connection is made such that if the cable slips in its anchorage the current carrying conductors become taut before the earthing conductor.

Optional Wiring Method:

Alternatively, the appliance may be controlled by a single 230V supply fused at 10A which is switched by external controls. This can be achieved by placing a link

Installation & Servicing Instructions Page : 19

Page 23

WD52/0/1997 Chapter 3 : Installation The Keston 130 Condensing Boiler

wire between terminals marked PL and SL and running the single 10A switched live supply to the PL terminal. In this way the boiler pump should be wired externally to the boiler and will not enable the pump over-run facility.

3.9 EXCHANGING A BOILER

Before removing an existing boiler add Fernox Supafloc , or equivalent cleaning agent, in accordance with the manufacturers instructions. Open all radiator valves and fire the boiler. When the system is fully heated, shut off the gas supply and drain down the central heating system.

Important The Keston condensing boiler contains components which could be damaged or blocked by grease, dirt or solder etc. It is essential that sludge or scale is removed from an existing system. The guarantee provided with the Keston 130 does not cover damage caused by system debris or sludge.

Connect the new boiler as instructed in this manual and fit in accordance with Sections

3.1 to 3.8 For sealed systems, fill to a pressure of about 2.7 bar. Check the complete system for

water soundness. If leaks need to be rectified using flux or solder the system must be flushed cold again before proceeding.

Reduce the pressure to the Initial System Design Pressure for sealed systems, if applicable. Vent the system.

Gas Supply

The complete gas installation up to the boiler service cock must be checked for soundness. BS 6891.

Electrical Installation

Carry out preliminary electrical safety checks, i.e. Earth continuity, Polarity, Resistance to Earth, Short Circuit using a suitable test meter.

Initial Firing The gas pressure setting is factory adjusted to within the required range and should not normally need re-adjustment. If the reading is incorrect then check such

factors as soundness of the air and flue pipe joints, pressure sensible joints and the gas inlet pressure (20 mbar required). If all joints are sound and the gas inlet pressure is satisfactory set the gas pressure. Full details of this procedure are given in Section 4.7 Checking The Gas Pressure.

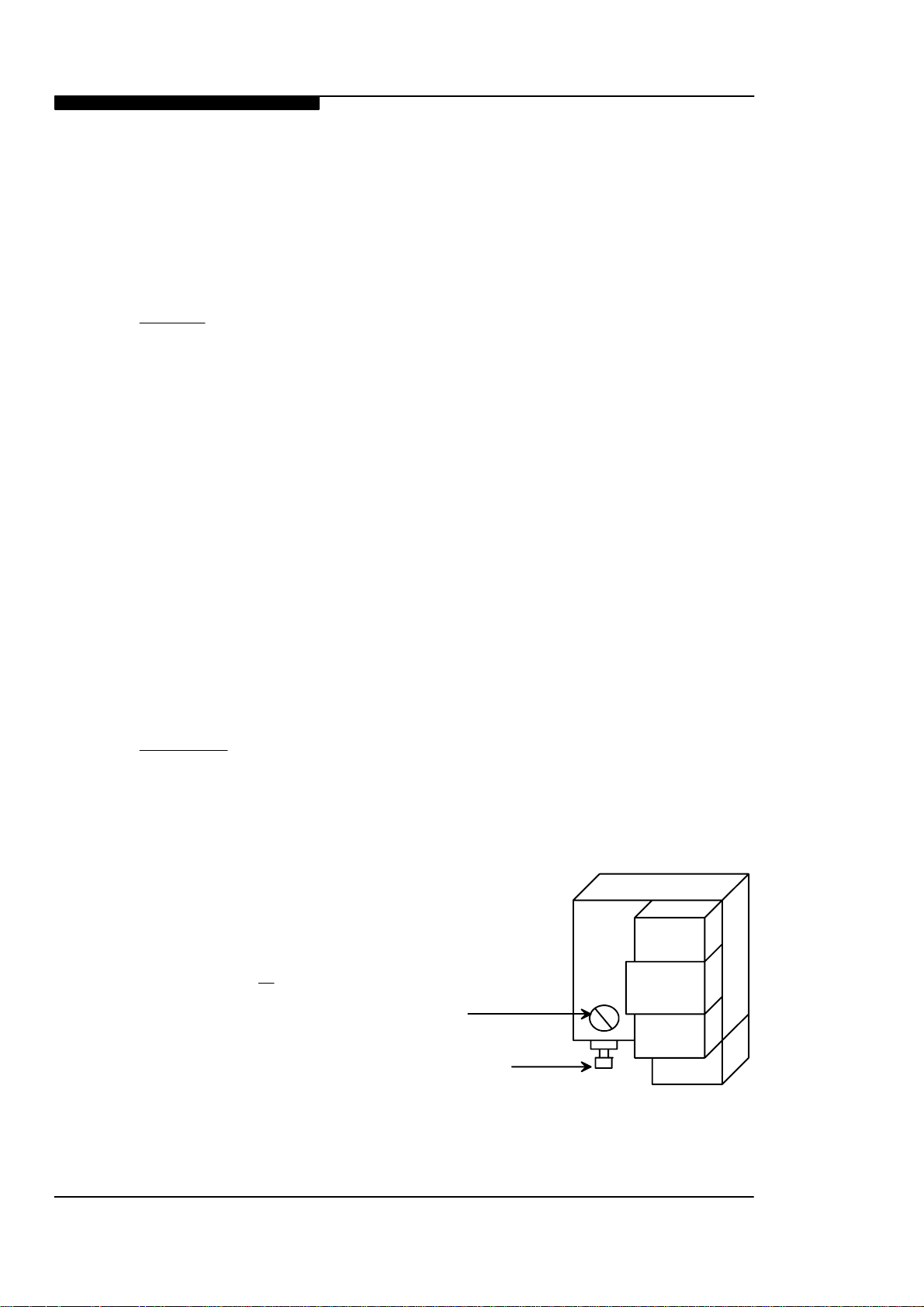

GAS VALVE

This will ensure that combustion is good enough to allow combustion fine tuning to take place.

Combustion Fine Tuning

It is advisable on all combustion quality is checked by measuring the carbon dioxide (CO oxygen (O

), level. This procedure is

detailed in Section 4.9 Combustion Fine Tuning. Badly tuned combustion will lead

installations that the

), or

Burner pressure Adjustment

Burner pressure test nipple.

to reduce the life of the boiler and invalidate the warranty.

Installation & Servicing Instructions Page : 20

Page 24

WD52/0/1997 Chapter 4 : Commissioning The Keston 130 Condensing Boiler

4. COMMISSIONING OF THE BOILER

Important: This condensing boiler c ontains components which could be dam aged or block ed by grease, dirt, solder etc., from the water system. The following commissioning procedures must be followed precisely.

4.1 INITIAL FLUSHING

All waterways within the Keston are either copper or high alloy stainless steel. As a result standard water treatment chemicals for conventional central heating boilers are suitable. In any event reference must be made to BS 7593 : Treatment Of Water In Hot Water Central Heating Systems.

a. Disconnect the boiler from the system at the flow and return connections and

temporarily

b. Flush the entire system until clean water is discharged, free from dirt, flux, solder

etc. The use of a flushing chemical is recommended, e.g. Fernox Supafloc. Sludge and scale must be removed from an existing system. Boiler failure due to

system debris or sludge shall invalidate the guarantee.

link the flow and return pipes on the system.

c. Connect the system to the boiler and fill in accordance with Section 2.7 - Water

Systems. At this stage, for sealed systems, fill to a pressure of about 2.7 bar.

d. Check the complete system for water soundness. If leaks need to be rectified

using flux and solder, the system must be flushed cold again before proceeding.

e. Reduce the pressure to the Initial System Design Pressure for sealed systems, if

applicable. Vent the system

4.2 GAS SUPPLY

The complete gas installation up to the boiler service cock must be checked for soundness. BS 6891.

4.3 ELECTRICAL INSTALLATION

Carry out preliminary electrical safety checks, i.e. Earth continuity, Polarity, Resistance to Earth, Short Circuit using a suitable test meter.

4.4 LP GAS CONVERSION

All Keston condensing boilers are built and shipped as natural gas fired units. Field conversion kits are available to convert Keston condensing boilers to use LPG. Suitable instructions are supplied with the LPG field conversion kits.

4.5 INITIAL FIRING

Important Checking the gas pressure to the pre-mix burner requires a special procedure, outlined below, which must be carried out.

a. Purge the gas supply in accordance with BS 6891.

Installation & Servicing Instructions Page : 21

Page 25

WD52/0/1997 Chapter 4 : Commissioning The Keston 130 Condensing Boiler

b. Vent the water system.

Important:

The

Keston heat exchanger consists of a single coil which can trap an air pocket. Great care must be taken to ensure that water flow has been established through the heat exchanger and thus ensuring no air pockets remain in the heat exchanger and pipe work. Firing the boiler while an air pocket exists in the heat exchanger could damage it.

c. Turn the gas service cock to ON. d. Turn on the electrical supply, setting any external controls to call for heat. e. Set the boiler On/Off switch to “ON”. The amber light will illuminate on the On/Off

switch, the red “lockout” light will illuminate, the blower and pump will start and, after about 15 seconds, a spark will light gas at the main burner, provided all air has been purged from the gas supply to the boiler. When the burner is lit and the boiler is operating normally the green (run) lamp, the upper lamp adjacent to the flame symbol, will also be illuminated indicating successful ignition (If it does not and the green lamp is extinguished after 10 seconds, air is indicated - turn off and repeat the procedure).

If ignition does not occur, the green (run) lamp, the upper lamp adjacent to the flame symbol, will be extinguished and, at approximately 1 minute intervals, the electronic ignition system will make two further attempts to light the burner.

If the ignition is successful and the boiler is operating normally, the green (run) lamp, the upper lamp adjacent to the flame symbol, and the red (lockout) lamp will be illuminated simultaneously.

If after three automatic attempts the boiler still fails to ignite, the green (run) lamp, the upper lamp adjacent to the flame symbol, will be extinguished and the red (lockout) lamp will remain illuminated.

If, after five manual attempts (to allow for purging of any air in the gas line), the boiler still fails to ignite (indicated by the red (lockout) lamp) refer to Section 5.2 Fault Finding Flow Chart.

f. Check for gas soundness between the gas service cock and connection to

the burner manifold.

4.6 HOT FLUSHING

a. Allow the system to heat up, checking for water soundness. b. Follow instructions provided with the cleaning agent, ie Fernox Supafloc. Turn off

the boiler and flush the water system while still hot. Thoroughly flush the system with clear water.

c. Refill the system using a quality water treatment such as Fernox MB1. For sealed

systems, fill to the required Initial Design Pressure.

4.7 CHECKING THE GAS PRESSURE

With the boiler running measure the burner pressure at the burner pressure test nipple. The gas setting is factory adjusted to within the required range and should not normally

need re-adjustment unless the unit has also been converted to LPG as part of the installation. If the reading is incorrect then check such factors as soundness of the air and flue pipe joints and the gas inlet pressure (20 mbar required). If all joints are sound and

Installation & Servicing Instructions Page : 22

Page 26

WD52/0/1997 Chapter 4 : Commissioning The Keston 130 Condensing Boiler

the gas inlet pressure is satisfactory remove the brass dust cap covering the burner pressure adjustment screw on the gas valve (See fig. 4.7). Set the gas pressure to the required value as stated on the databadge by turning the exposed burner pressure adjustment screw (clockwise will increase burner pressure, anti-clockwise will decrease burner pressure). This will ensure that combustion is good enough to allow combustion fine tuning to take place. Replace the brass dust cap to cover the burner pressure adjustment screw.

4.8 TIMING THE GAS METER NATURAL GAS

After the boiler has been started, and with no other appliances using gas, time the gas meter to be certain that the unit is running at the proper gas input. Determine the cubic feet of gas passing through the meter and determine the input in Btu per hour. Input must be within plus or minus 3% of the rated input.

Time, in seconds, the time taken to pass 2 cubic feet of gas through the meter (ie one revolution of a 2 cu ft dial) or 0.1 cubic metres if the meter is of the new metric digital type. The Keston 130, when correctly set, should take 51.8 seconds for 2 cubic feet of natural gas and 91.5 seconds for 0.1 cubic metres of natural gas (assuming 1038 btu/h per cubic foot). Adjust the gas valve screw clockwise to increase the input (speed up the meter) or anticlockwise to decrease the input (slow down the meter) accordingly.

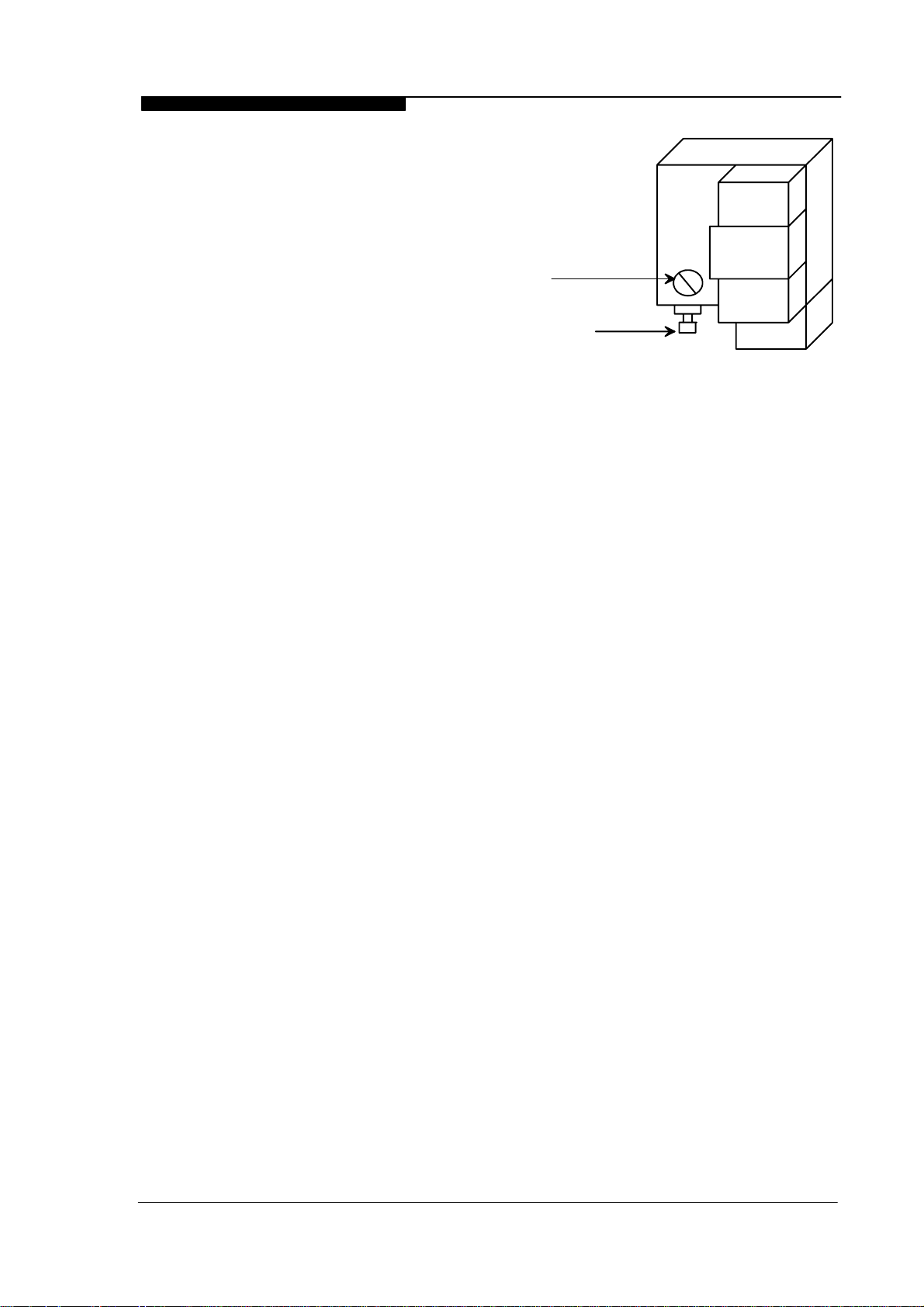

Fig 4.7 GAS VALVE

Burner pressure Adjustment

Burner pressure test nipple.

4.9 COMBUSTION FINE TUNING

Although the gas pressure is preset at the factory differing flue arrangements may require fine tuning of the gas pressures to produce the best combustion and ensure long burner life. It is advisable to check proper combustion by measuring gas input and the level of carbon dioxide, or oxygen, in the flue outlet from the boiler. Overfiring or underfiring the burner will reduce the longevity of the appliance.

Carbon dioxide is a colourless, odourless gas produced by all combustion processes. When the Keston condensing boiler is operating properly carbon dioxide (CO

between 8.2 and 8.9% CO2 for natural gas.

be To measure CO2 levels in the Keston boiler remove the 1/8" plug from the flue outlet pipe

inside the boiler (Figure 5.7.2 item 69). Insert the probe of a combustion analysis meter and sample the gases as instructed in the test equipment's instructions.

If the CO2 levels need raising increase the gas output by turning the brass screw, under the metal cap in the front of the gas valve, clockwise. Reduce CO2 levels by turning this screw anti-clockwise.

If CO2 levels do not respond to adjustments the burner is probably running with too much gas pressure. If, for instance, a clockwise adjustment to the brass screw in the gas valve produces a decrease in CO2 the burner is too fuel-rich and not enough oxygen is present for proper and complete combustion

levels will

Installation & Servicing Instructions Page : 23

Page 27

WD52/0/1997 Chapter 4 : Commissioning The Keston 130 Condensing Boiler

4.10 HANDING OVER TO THE USER

It is important to fully explain the following : a. Procedure to light and turn off the boiler, including isolation of the electrical supply

if necessary.

b. The function of the lockout feature must be explained :

If the red light only is illuminated for more than four minutes, this means that the boiler has failed to light. Turn off the electrical supply and wait 20 seconds. Turn ON again and wait. i) If lockout recurs immediately then the gas supply should be checked as

ON, otherwise consult a Service Engineer.

ii) If it is not possible to relight, the boiler must be isolated and a Service

Engineer called in to rectify the fault.

c. Advise that a reduction in the water pressure reading on the gauge, for sealed

systems, indicates a leak which should be rectified before further use.

d. Advise that the appliance should be serviced by a competent person at least once

a year.

e. Advise on frost precautions. f. Hand over User Instructions.

Installation & Servicing Instructions Page : 24

Page 28

WD52/0/1997 Chapter 5 : Fault Finding The Keston 130 Condensing Boiler

5. FAULT FINDING

5.1 ELECTRICAL CONTROL SEQUENCE

When the external controls are calling for heat, power will be fed to the boiler connection strip at terminals PL (Permanent Live), SL (Switched Live) and N (Neutral). If the ON/OFF switch is also in the ON position the boiler ON lamp (amber) will be illuminated. Provided all temperature thermostats and pressure switches are closed, power will be fed to pins 1 & 2 on the control box, initiating the following sequence.

(1) The boiler lockout lamp (red) will be illuminated (2) The fan will start. (3) When the fan reaches running speed, the Air Pressure switch, normally open, will

close which will start the ignition sequence.

(4) After a pre-purge period of about 15 seconds, the gas valve will open to allow gas

to mix with the air at the suction side of the fan and the ignition spark will occur at the main burner.

(5) When the burner ignites, the flame is detected by the control box through the

combined flame sensor/ignitor and the ignition spark is stopped. Both the lockout lamp (red) and the boiler run lamp (green), the upper lamp adjacent to the flame symbol, will be illuminated. The boiler is now in its normal run condition.

(6) The burner will continue to operate until the gas valve interrupts the gas supply.

The gas valve will be closed by the control box if power is interrupted to the boiler by any external control or the boiler thermostat. If an interruption to the gas supply causes loss of the flame, the control box will pause for approximately 10 seconds and then attempt to re-ignite the unit. If this attempt fails, i.e. due to continued lack of gas supply, the boiler will make two further attempts to ignite at intervals of approximately 1 minute and will then go to a lockout state (red lamp illuminated only). Once the gas supply has been resumed the boiler can be reset by turning the boiler off and then on again on the boiler control panel.

(7) The boiler can also be shut down by any of the flow limit, flow overheat and the

flue overheat thermostats, gas low pressure switch and by the low water pressure switch.

In such an event the green (run) lamp, the upper lamp adjacent to the flame symbol, will be extinguished and only the red (lockout) lamp will be illuminated.

Any failure of the boiler to sequence in the above manner should be investigated using the following trouble shooting flow diagram.

Before attempting any electrical fault finding, always carry out preliminary electrical system checks. On completion of any service/fault finding task which has required the breaking and remaking of electrical connections, the checks, earth continuity, polarity, short circuit, resistance to earth must be repeated.

Installation & Servicing Instructions Page : 25

Page 29

WD52/0/1997 Chapter 5 : Fault Finding The Keston 130 Condensing Boiler

5.2 FAULT FINDING FLOW CHART

yes

START

Is amber switch light on?

Is there 230V between

terminals SL & N?

yes

Is the boiler switched on?

yes

Faulty Switch Neon

-Replace .

Is the fan running?

Is the boiler thermostat closed?

yes

Is there 230V between control

box pins 10 & 2 and between

pins 10 and 1?

yes

Is the air pres sure swi tch st uck

in the NO position?

Is there 230V between control

box pins 6 & neutral?

yes

Apply Power To Boiler.

Check External Controls.

Switch On Boi ler.

Boiler return is too hot. Allow

to cool. OR faulty thermostat -

Check continuity (see section

Faulty pipe connections to Air

Press. Switch. OR Faulty Air

Replce.

5.3)

Press. Switch - Replace.

Control box faulty.

yes

Is the motor relay operating?

Relay not sec ure in so cket or

relay faulty - replace

yes

Is there continuity between live

supply from relay to blower &

Neutral through motor

resistance?

Is motor overload tripped?

yes

Motor/Fan faulty - Replace.

Wait for motor to cool.

Is there wiring continuity

& in-line connector

to motor?

Identify & correct break.

Continued on sheet 2

Installation & Servicing Instructions Page : 26

Page 30

WD52/0/1997 Chapter 5 : Fault Finding The Keston 130 Condensing Boiler

Continued from sheet 1

Does ignition sequence start?

yes

Is lockout light on?

yes

Has the Air Press. Switch

changed over?

Are tubes and connections to the Air Press. Switch sound?

yes

Switch off & if problem persists

replace control box.

Blocked air filter - replace

Faulty control box - r eplace

Correct tube connection

yes

Is the air press. across the Air

Press. Switch more than 4 in

water?

Is the air filter dirty or the air

inlet, exhaust or condensate

pipe blocked?

Is the B ur ner bl ock ed

Fan faulty - change

Is the gas flow rate to the boiler correct

for the gas type in use (ie LPG or Nat.

Gas)?

Is gas supply pressure at gas

valve correct?

yes

Is gas burner pressure per

specification (Secti on 4.7)?

yes

Faulty pressure switch -

replace

Replace air filter

clear blockage

Clear blockage

Check gas supply or turn on

gas cock.

Replace gas orifice.

Is gas valve opening?

Faulty gas valve - replace.

yes

Continued on sheet 3

From sheet 3

Installation & Servicing Instructions Page : 27

Page 31

WD52/0/1997 Chapter 5 : Fault Finding The Keston 130 Condensing Boiler

Continued from Sheet 2

Is there 230V at valve

Is there 230V at Gas Low

Press. Sw itch

Faulty Control Box - Replace.

Is there a spark present?

yes

Is the HT voltage present at

top of ignition electrode?

Is the spark gap 4 mm?

yes

Continued on sheet 2

Faulty Gas Valve - Replace.

Faulty Gas Low Pressure

Switch - Replace

Faulty Conrtrol Box - Replace.

Replace/Adjust Spark Plug.

Electrode Faulty - Replace.

Does the burner ignite?

yes

Recheck gas output pressure.

Check HT lead is securely

fixed. Clean or replace burner.

Does flame stop after 5 - 10

seconds?

Is boiler earthed correctly?

Are live and neutral supply

lines crossed at terminals L &

yes

Earth Boiler.

Correct Wiring.

Faulty Control Box - Replace.

Installation & Servicing Instructions Page : 28

Page 32

WD52/0/1997 Chapter 5 : Fault Finding The Keston 130 Condensing Boiler

5.3 CONTINUITY CHECKING

To check continuity connect one probe to a neutral and use the other probe to check for 230V.

START

Is there 230V at terminals

PL & SL?

yes

Is there 230V at the ON/OFF

switch (both terminals)?

yes

Is there 230V at the boiler

thermostat (both terminals)?

yes

Is there 230V at the flow

overheat thermostat (both

terminals)?

yes

Is there 230V at the thermal

fuse link (both terminals)?

yes

Check external controls and

supply.

Faulty switch - Replace.

Boiler is up to temperature.

Allow to cool OR p ump not

running OR faulty thermostat -

Replace

Thermostat tripped - reset OR

faulty thermostat - Replace.

High cabinet temperature -

check all joints for produ cts

leakage - Replace thermal fuse

Is there 230V at the flow high

limit thermostat (both

terminals)?

High water temperature OR

faulty thermostat - Replace.

yes

Is there 230V at the water

press. switch (both terminals)?

Check water level header

tank/system pressure OR faulty

switch - Replace

yes

Is there 230V at the flue

protection thermostat (both

terminals)?

Thermostat tripped - reset OR

faulty thermostat - Replace.

yes

Is there 230V at the gas low

press. switch (both terminals)?

Check gas supply to boiler OR

faulty switch - Replace.

Installation & Servicing Instructions Page : 29

Page 33

WD52/0/1997 Chapter 5 : Fault Finding The Keston 130 Condensing Boiler

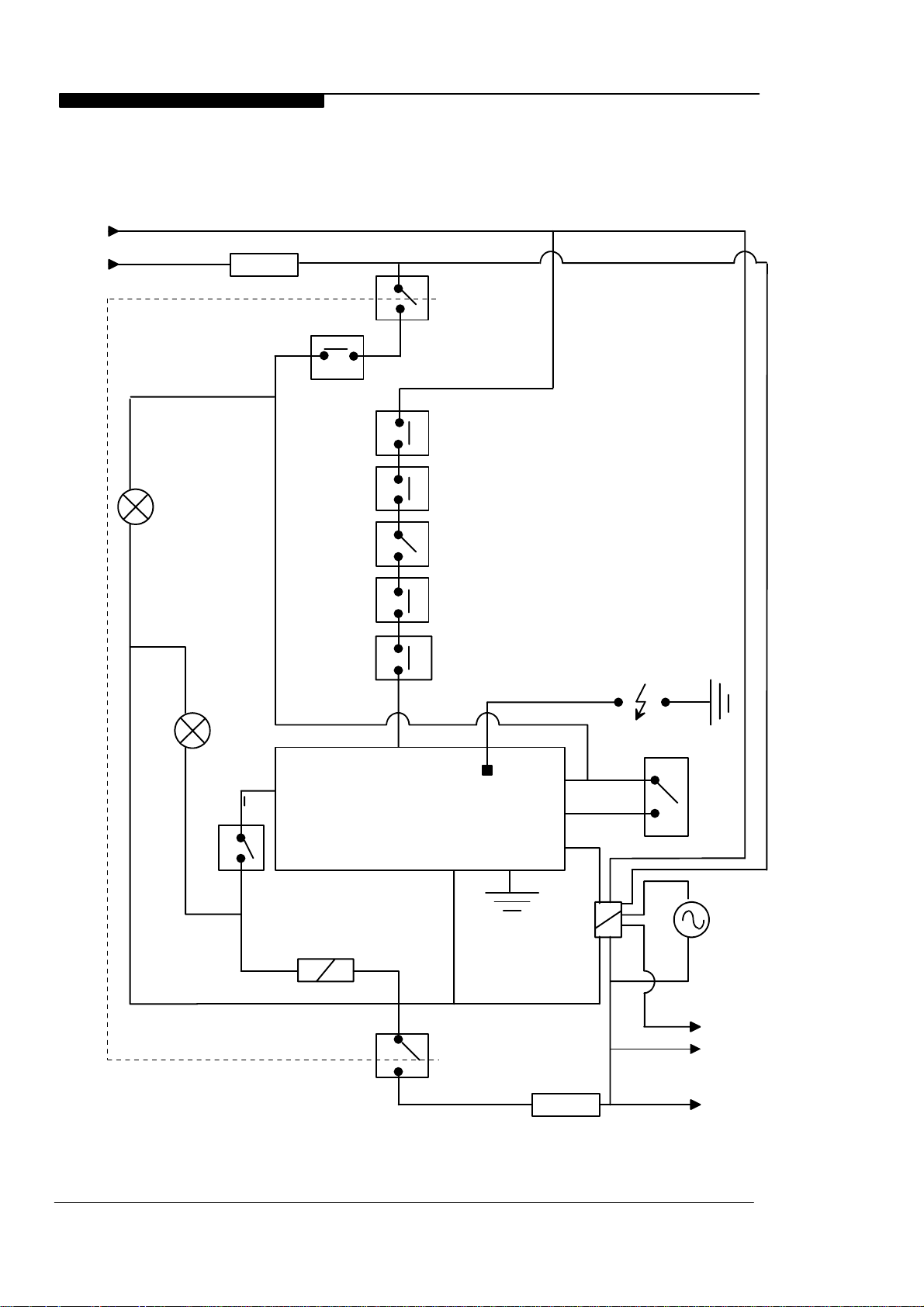

5.4 FUNCTIONAL FLOW WIRING DIAGRAM

230V 50Hz 10A

230V 50Hz 3A

EMC Filter

ON/OFF Switch

Boiler Thermostat

Flow Overheat Thermostat

Lockout (Red) Indicator

Thermal Fuse Link

Run (Green) Indicator

Gas Low Pressure Switch

Gas Valve

RAM CONTROL BOX

Flow High Limit Thermostat

Low Water Pressure Switch

Flue Overheat Thermostat

1 4 6

Relay

Air Press

Switch

Blower

Pump L

ON/OFF Switch

Pump N

EMC Filter

Installation & Servicing Instructions Page : 30

Page 34

WD52/0/1997 Chapter 5 : Fault Finding The Keston 130 Condensing Boiler

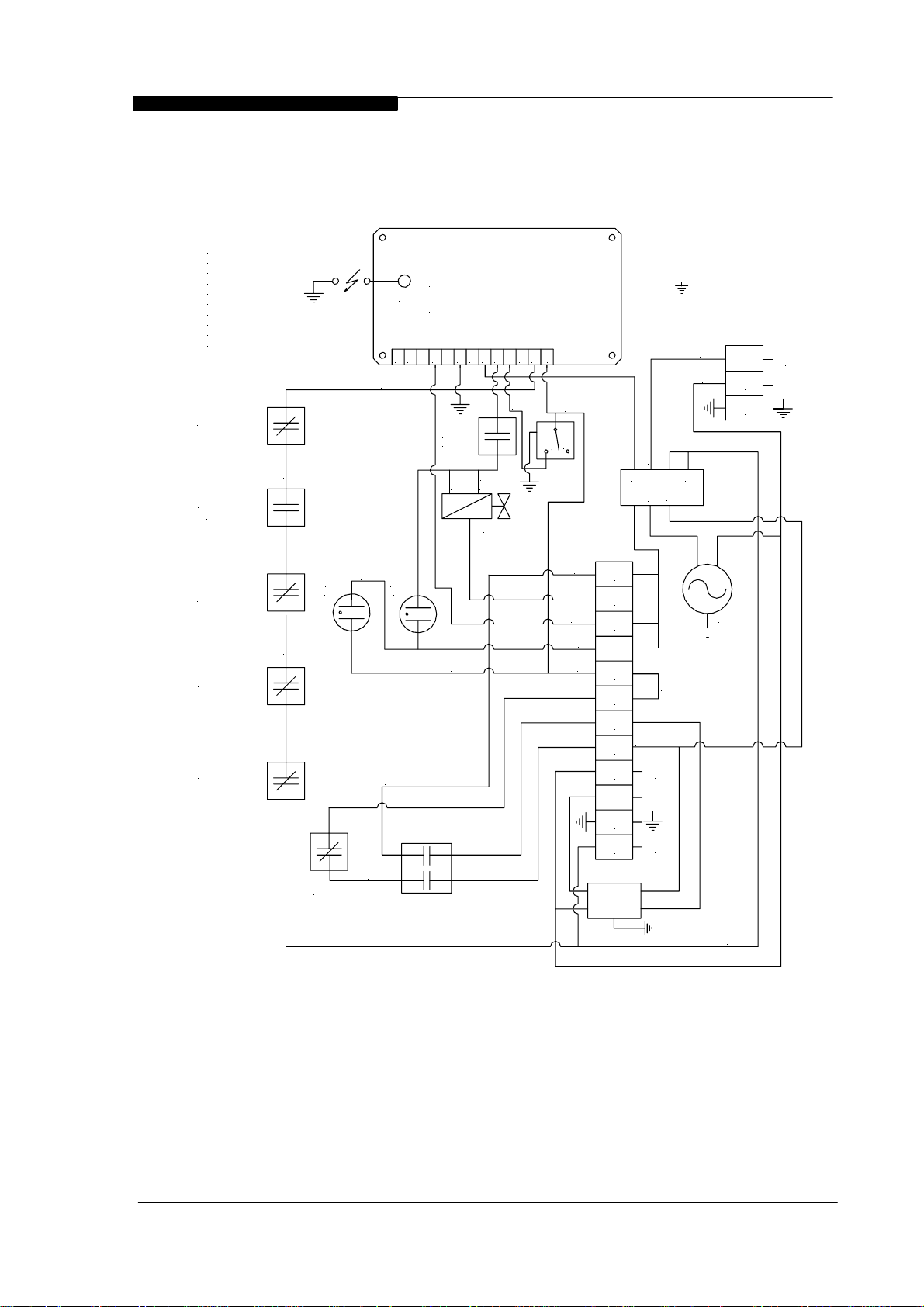

5.5 ELECTRICAL WIRING DIAGRAM

LEGEND

B -BLUE BK -BLACK OR -ORANGE R -RED PK -PINK W -WHIT E G -GREEN BR -BROWN V -VIOLET Y/G-GREEN-YELLOW

FLUE OVERHEAT THERMOSTAT

WATER PRESSURE

SWITCH

FLOW HIGH LIMIT THERMOSTAT

THERMAL FUSE

FLOW OVERHEAT THERMOSTAT

54G53W56R

52BK51PK

BOILER

THERMOSTAT

RED

LAMP

90R

13 121110

55BR

GREEN

LAMP

12V

RAM-2EMC22 IGNITION CONTROL

9 8 7 6 5 4 3 2 1

G/Y

91OR

ON/OFF SWITCH

10BK

GAS LOW PRESSURE SWITCH

59PK

92OR

93OR mp

GAS

VALVE

95G

93R

APS

12V

11W

10BK

8W 7W

5BR

3BR

1BR

EMC FILTER

APS-AIR PRESSURE L -INCOMING N -INCOMING

-INCOMING

15BR

14B

SWITCH LIVE NEUTRAL EARTH

PUMP

15 14

6BR

1BR 12

3 4

12B

RELAY

BLOWER

9 8

5BR

4 3

Installation & Servicing Instructions Page : 31

Page 35

WD52/0/1997 Chapter 5 : Fault Finding The Keston 130 Condensing Boiler

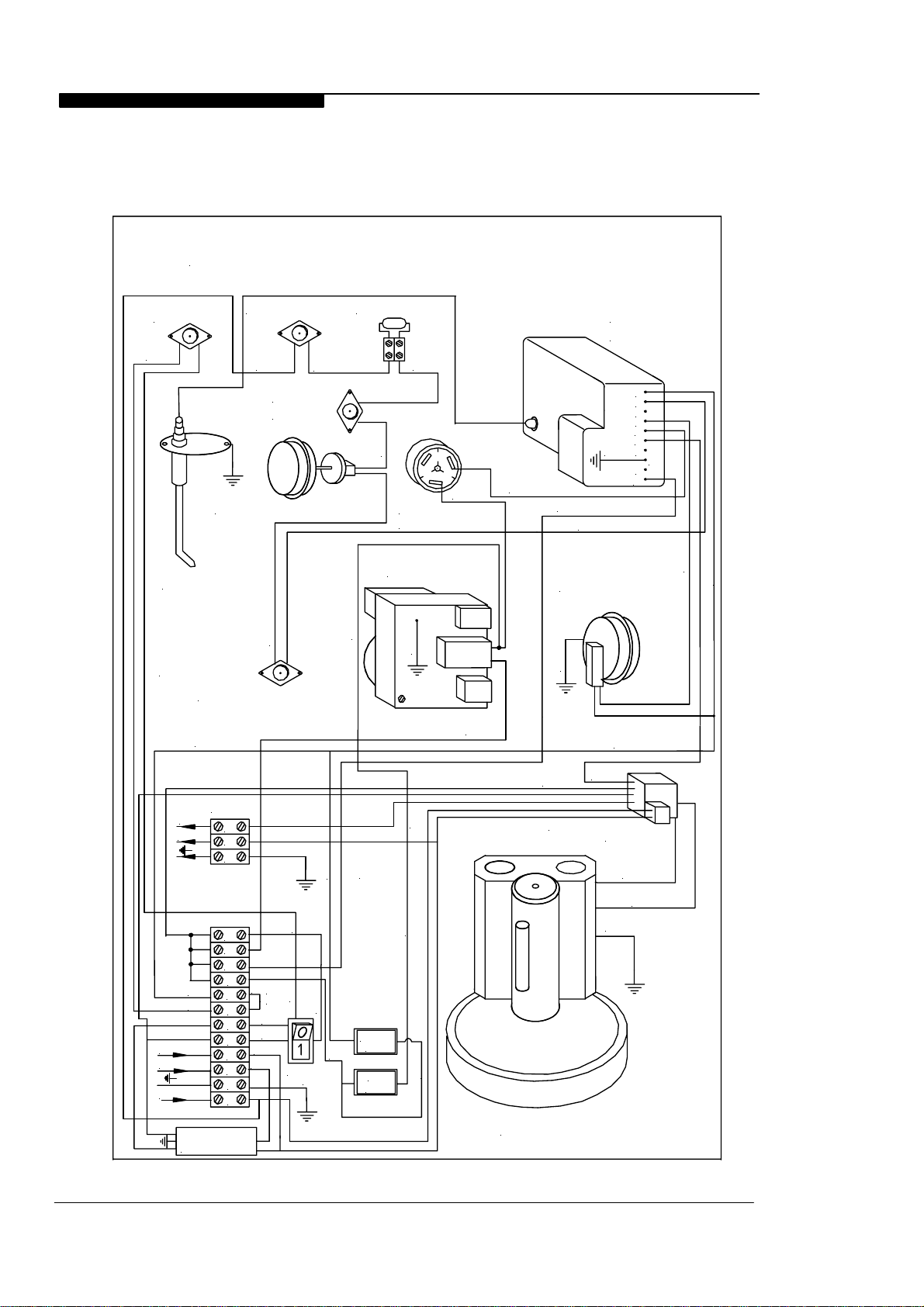

5.6 ILLUSTRATED WIRING DIAGRAM

ILLUSTRATED WIRING DIAGRAM

Boiler Stat

Low Water Pressure Switch

Ignition El ect r ode

Flue Overheat Stat

Flow Overheat Stat

51PK

52BK

Flow High Limit Stat

54G

Thermal Fuse

56R

53W

Gas Low Pressure Switch

Gas Valve

91OR

G/Y

93OR

11W

92OR

RAM Control

1 2 3 4 5 6 7

G/Y

10BK

55BR

Air Pressure Switch

G/Y

95G

93R

6BR

Relay

12B

PUMP

14 13

10BK

59PK

G/Y

N SL

8W 7W 6B

12 11

9 8 7 6 5 4 3 2 1

room

( )

stat

6BR 5BR

3BR

ON/OFF

SWITCH

12V

Lockout

Lamp

Run

Lamp

91OR

90R

Blower

FILTER

Installation & Servicing Instructions Page : 32

Page 36

WD52/0/1997 Chapter 5 : Fault Finding The Keston 130 Condensing Boiler

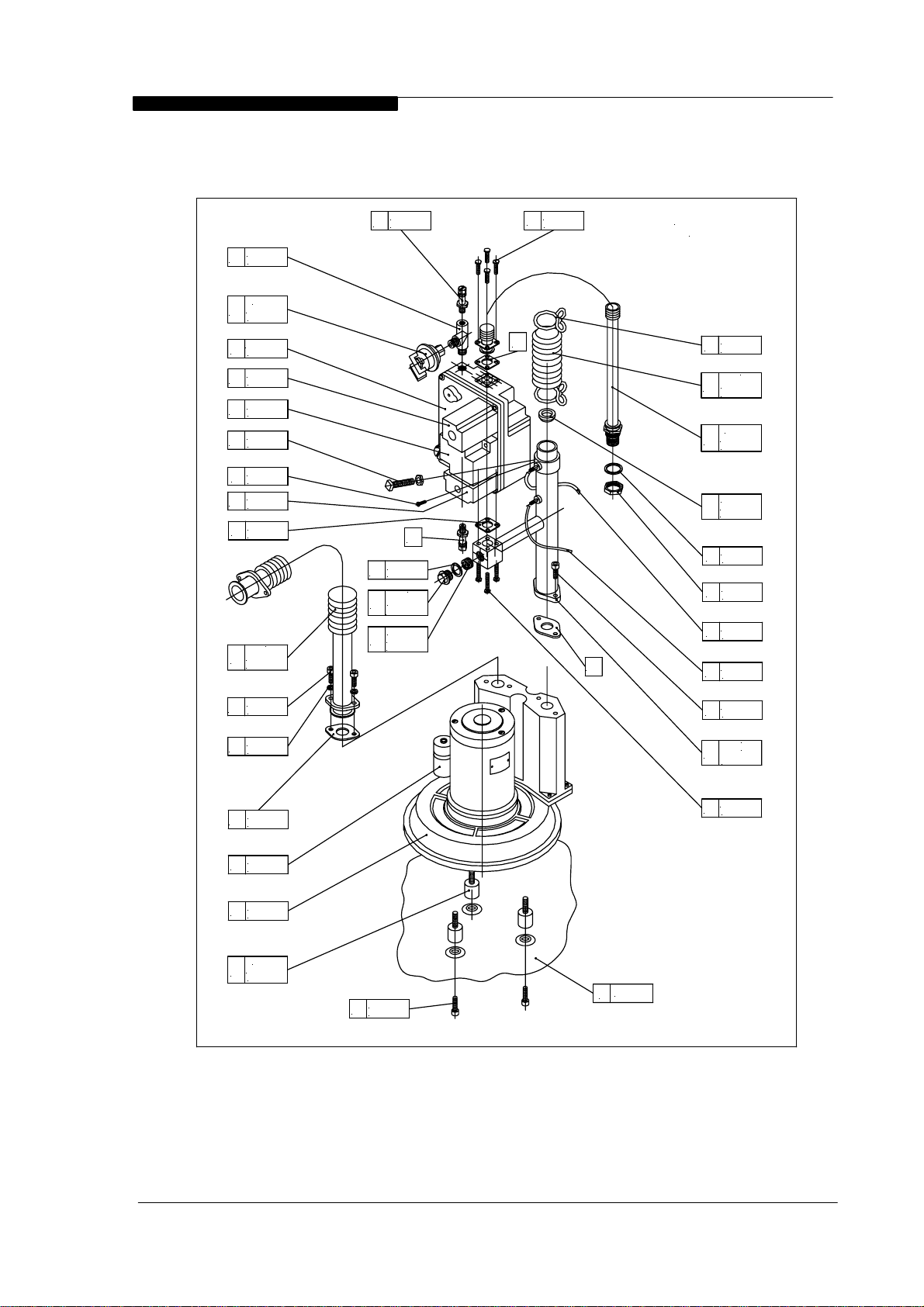

5.7 Exploded Assembly Diagrams

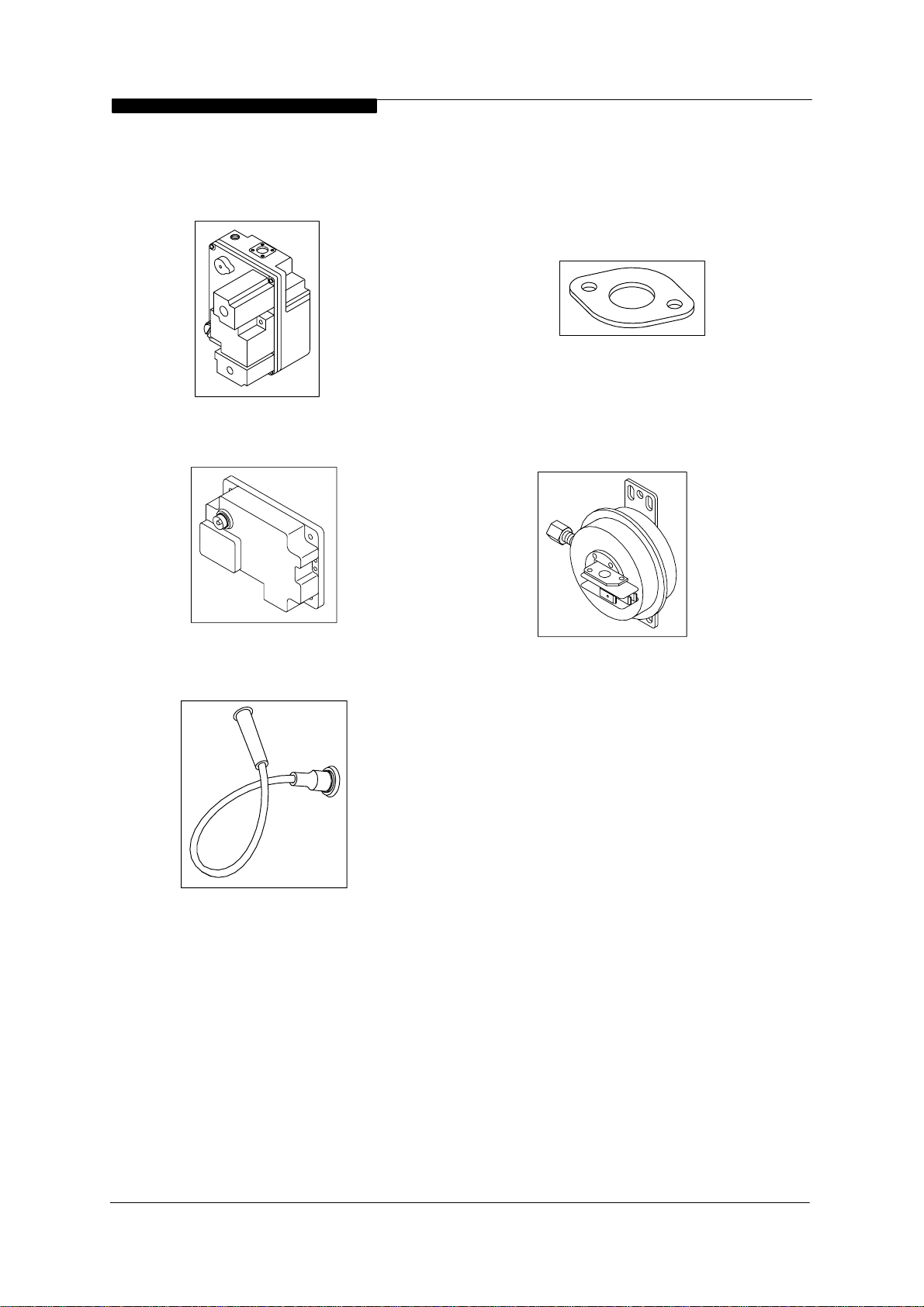

5.7.1 Boiler Controls Asembly

SCREW

154

106

RAM

156 122

RAM

124

123

04.1.00.78.0

IGNITION CONTROL

04.4.01.00.1

SCREW

04.1.00.84.0

IGNITION CABLE

04.4.11.00.1

RELAY SOCKET

17.4.04.00.0

RELAY

17.4.03.00.0

158

TR2 THERMOSTAT

17.4.11.00.0 OPTIONAL

SECTION 1

BOILER CONTROLS

K130 - 13.4.00.00.0

FUSE ISOLATOR

145

04.4.20.00.0

FUSE SOCKET

112

04.4.19.00.0

105

125

109

MAUVE

117

RAM

144

SECTION 1

121

113

RELAY CLAMP

17.4.00.02.0

SCREW

17.4.00.01.0

AIR PRESSURE

SWITCH

04.4.04.00.0

SCREW

04.1.00.40.0

HARNESS

13.4.10.00.2

MAINS

SUPRESSOR FILTER

04.4.02.00.0

SEALING GASKET

04.4.00.04.0

SECTION 1

ON/OFF SWITCH

04.4.06.00.0

107

THERMAL FUSE

04.4.18.00.0

108

148

162

111

110

162

119

116

13.4.00.10.0

13.4.00.03.1

SCREW

04.4.00.06.0

SECTION 1

TERMINAL BLOCK

04.4.05.00.0

TERMINAL BLOCK

BASE LABEL

SCREW

04.4.00.10.0

NEON BULB

04.4.12.00.0

GAUGE

04.4.09.00.0

115

RED LAMP

04.4.08.00.0

114

GREEN LAMP

04.4.07.00.0

Installation & Servicing Instructions Page : 33

Page 37

WD52/0/1997 Chapter 5 : Fault Finding The Keston 130 Condensing Boiler

5.7.2 Waterway, Condensate & Flue Assembly

SCREW

04.1.00.80.1

IGNITER

04.2.13.00.1

IGNITER GA SKET

04.2.00.28.2

PRESS. TEST FITT.

04.2.28.00.0

SCREW

04.2.00.29.1

MANIFOLD

17.2.00.27.2

SIGHT GLASS

04.2.12.00.1

GASKET

17.2.00.01.2

BURNER

13.2.04.00.0

HIGH VOLTAGE

LABEL

04.2.00.58.0

HEAT EXCHAN G ER INSULATION

17.2.03.00.1

GASKET

17.2.00.05.2

SECTION 3

SCREW

04.1.00.79.1

WATER WAY, CONDENSATE & FLUE ASSEMBLY

K130 - 13.2.00.00.0

EXHAUST PIPE

17.2.06.00.0

COMBUSTION TEST PLUG

04.2.00.49.1

FLUE OVERHEAT THERMOSTAT

04.2.19.00.0

SCREW

04.1.00.41.3

160

35 WATER FLOW

17.2.00.22.0

IMIT SHEATH

17.2.00.57.0

WATER OUT

17.2.00.24.1

FLOW HIGH LIMIT

THERMOSTAT

04.2.22.00.0

PIPE

MANIFOLD

HEAT EXCHANGER

17.2.01.00.2

WATER RETURN

MANIFOLD

17.2.00.23.0

GASKET

04.2.00.54.0

DRAIN VALVE

04.2.16.00.0

WATER RETURN

THERMOSTAT

04.2.17.00.0

SCREW

04.1.00.41.0

35 WATER RE T URN

17.2.00.06.0

PIPE

CONDENSATE

04.2.00.58.0

TRAP HOSE

SEEGER RING

04.2.00.53.0

CONDENSATE TRAP

04.2.14.00.1

CONDENSATE HOSE

04.2.00.59.0

HOSE CLAMP

04.2.00.57.0

154

WATER FLOW OUT

THERMOSTAT

04.2.21.00.0

SCREW

04.1.00.78.0

WATER PRESS URE

SWITCH

04.2.23.00.0

Installation & Servicing Instructions Page : 34

Page 38

WD52/0/1997 Chapter 5 : Fault Finding The Keston 130 Condensing Boiler

5.7.3 Air - Gas Assembly

GAS TEE

100

04.3.00.34.1

PRESSURE SWITCH

101

04.3.09.00.0

REGULATOR GAS VALVE

04.3.07.00.0

MAIN SOLENOID

149

04.3.07.01.0

CONNECTOR BLOCK

150

04.3.07.02.0

AIR ADJ. SCREW

103

17.3.10.00.0

AIR ORIFFICE SCREW

04.3.00.40.0 SECONDARY SOLENOID

157

04.3.07.03.0

GASKET

17.3.00.06.0

AIR/GAS

FLEXIBLE TUBE

17.3.05.00.1

LOW GAS

17.3.00.05.1

13.3.00.03.0-NG

13.3.00.03.1-LPG

PRESS. TEST FITT.

04.2.28.00.0

GASKET

17.3.00.04.1

AIR/GAS MANIFOLD PLUG

GAS ORIFICE

SCREW

04.3.00.28.0

104

AIR-GAS ASSEMBLY

K130 - 13.3.00.00.0

AIR HOSE CLAMP

17.3.00.07.0

AIR INLET FLEX. CONNECTOR

17.3.00.02.0

GAS INLET

FLEXIBLE TUBE

17.3.07.00.5

AIR ORIFICE

13.3.00.01.0-NG

131

13.3.00.01.1-LPG

GAS INLET GASKET

17.3.00.08.0

NUT

17.3.00.09.0

HIGH PRESS. TUBE

04.3.00.32.0

LOW PRESS. TUBE

04.3.00.31.0

155

102

104

SCREW

04.1.00.81.0

SEALING GASKET

04.1.00.38.0

GASKET

17.2.00.05.0

CAPACITOR

17.3.02.00.0

BLOWER

17.3.01.00.0

BLOWER

RUBBER ISOLATOR

04.3.04.00.0

SCREW

04.1.00.76.0

SECTION 1

SCREW

04.2.00.29.0

AIR/GAS

MANIFOLD

17.3.06.00.0

GAS VALVE SCREW

04.3.00.16.0

Installation & Servicing Instructions Page : 35

Page 39

WD52/0/1997 Chapter 5 : Fault Finding The Keston 130 Condensing Boiler

5.7.4 Casing Assembly

GAS TEE

100

04.3.00.34.1

LOW GAS

PRESSURE SWITCH

101

04.3.09.00.0

REGULATOR GAS VALVE

04.3.07.00.0

MAIN SOLENOID

149

04.3.07.01.0

CONNECTOR BLOCK

150

04.3.07.02.0

AIR ADJ. SCREW

103

17.3.10.00.0

AIR ORIFFICE SCREW

04.3.00.40.0 SECONDARY SOLENOID

157

04.3.07.03.0

GASKET

17.3.00.06.0

AIR/GAS FLEXIBLE TUBE

17.3.05.00.1

GASKET

17.3.00.04.1

AIR/GAS

MANIFOLD PLUG

17.3.00.05.1

GAS ORIFICE

13.3.00.03.0-NG

13.3.00.03.1-LPG

PRESS. TEST FITT.

04.2.28.00.0

SCREW

04.3.00.28.0

104

AIR-GAS ASSEMBLY

K130 - 13.3.00.00.0

AIR HOSE CLAMP

17.3.00.07.0

AIR INLET

FLEX. CONNECTOR

17.3.00.02.0

GAS INLET

FLEXIBLE TUBE

17.3.07.00.5

AIR ORIFICE

13.3.00.01.0-NG

131

13.3.00.01.1-LPG

GAS INLET GASKET

17.3.00.08.0

NUT

17.3.00.09.0

HIGH PRESS. TUBE

04.3.00.32.0

LOW PRESS. TUBE

04.3.00.31.0

155

102

104

SCREW

04.1.00.81.0

SEALING GASKET

04.1.00.38.0

GASKET

17.2.00.05.0

CAPACITOR

17.3.02.00.0

BLOWER

17.3.01.00.0

BLOWER

RUBBER ISOLATOR

04.3.04.00.0

SCREW

04.1.00.76.0

SECTION 1

SCREW

04.2.00.29.0

AIR/GAS

MANIFOLD

17.3.06.00.0

GAS VALVE SCREW

04.3.00.16.0

Installation & Servicing Instructions Page : 36

Page 40

WD52/0/1997 Chapter 5 : Fault Finding The Keston 130 Condensing Boiler

5.7.5 Exploded Diagrams Parts Reference List Boiler Controls Assembly (Fig. 5.7.1)

GC Number Code Description

E01-074 106 Ignition Control Box 379 744 109 Air Pressure Switch

114 076 111 Electrical Terminal Block 114 077 113 On/Off Switch 114 078 114 Green (Run) Lamp 114 079 115 Red (Lockout) Lamp 114 080 116 Pressure Gauge

Waterway, Condensate & Flue Assembly (Fig. 5.7.2) GC Number Code Description

114 115 42 Heat Exchanger E03-886 45 Burner

114 118 46 Burner Head Gasket 114 028 48 Sight Glass 375 527 49 Ignitor Gasket 114 120 50 Spark Ignition Electrode 114 029 53 Pressure Test Nipple 114 032 58 Condensate Trap 375 530 63 Boiler Thermostat 375 532 67 Flue Overheat Thermostat 114 043 69 Combustion Test Plug 375 533 71 Flow Overheat Thermostat 375 534 72 Flow High Limit Thermostat 114 045 73 Water Pressure Switch

Air - Gas Assembly (Fig. 5.7.3) GC Number Code Description

114 131 78 Combustion Blower E03-893 131 Air Orifice - NG E03-894 131 Air Orifice - LPG

375 536 91 Gas Valve 114 029 53 Pressure Test Nipple 114 073 101 Low Gas Pressure Switch E03-887 87 Gas Injector - NG

E03-888 87 Gas Injector - LPG

Casing Assembly (Fig. 5.7.4) GC Number Code Description

114 095 01 Cabinet E03-884 23 Data Badge 114 099 05 Air Filter Cover 114 105 19 Air Filter 114 096 02 Cabinet Top Cover 114 100 06 Burner Access Cover Plate E03-885 29 Illustrated Wiring Diagram

114 098 04 Front Door

Installation & Servicing Instructions Page : 37

Page 41

WD52/0/1997 Chapter 6 : Servicing The Keston 130 Condensing Boiler

6. ROUTINE (ANNUAL) SERVICING

To ensure the continued safe and efficient operation of the boiler it is necessary to carry out routine servicing at regular intervals. The frequency of the servicing will depend upon the particular operating conditions, but it is recommended that an annual service should be carried out by a qualified engineer.

The appliance has an integral air filter, mounted at the top right hand side of the boiler, to which the air intake pipe is connected. This filter should be ex amined every time the boiler is servic ed. It may need more frequent inspection ac cording to the condition of the atm osphere in which the air intake terminates.

Note: The air filter can be easily blocked if the boiler is running on or near a building site having

an excess of airborne dust. It is essential, with a premix gas burner, that the air is clean and free of dust.

It is the law that any service work must be carried out by competent qualified persons.

6.1 Pre-Service Checks

It is recommended that an inspection should be carried out prior to shutting down the unit for servicing. Remove the front cover by removing the screws retaining the top of the door and lifting the cover from the base (Front cover located by two pegs). The following items should be observed:

a. Smooth starting and running of the blower. b. Smooth lighting of the burner. c. Check for leakage of gas, gas/air or combustion products. d. Check for condensate leaks. e. Check the colour and appearance of the flame. A sky blue flame slightly off the

burner gauze is normal. The burner itself should appear dark. Any glow on the burner indicates gauze blockage requiring cleaning, an incorrect gas flow or an air intake blockage.

f. Check that the temperature differential between the flow and return pipes is less

than 15

C. The temperature difference should be between 10oC and 15oC. g. Check for water soundness. h. Inspect the flue vent and air intake pipework. Joints must be sound and all

pipework well bracketed.

i. Check that there is a steady fall back to the boiler from the flue pipe to allow

condensate to run back into the boiler (See Section 2.8.3 Slope).

j. With the boiler operating at a low return temperature (i.e. less than 50

C) check

that the condensate flows freely from the condensate line.

6.1.1 Burner & Heat Exchanger Blockage Checks

i) Turn off the boiler & shut off the gas supply to the boiler. ii) Remove the pressure point screws from points A & B. Attach a differential

gauge.

iii) Turn on the boiler and wait for the fan to reach full speed. Obviously the

burner will not light.

iv) The pressure difference should be between 10 mbar and 14 mbar (lowest

value represents a new appliance). If not clean the burner.

v) Turn off the electrical supply to the boiler.

Installation & Servicing Instructions Page : 38

Page 42

WD52/0/1997 Chapter 6 : Servicing The Keston 130 Condensing Boiler

Pressure Test

Point B

Burner Heat (From Above)

Pressure Test Point A

Heat Exchanger Shell

Fig 6.1.1 Pressure Test Point Locations

vi) Remove the pressure point screw from point C and transfer the tube from

point A to C, replacing the screw on point A.

vii) Turn on the electrical supply to the boiler (gas still off), wait for the fan to

reach full speed.

Flue

Flue Overheat Thermostat

Combustion Test Point

Pressure Test Point C

viii) The pressure difference should be between 9.5 mbar and 13.5 mbar

(lowest value represents new appliance). If not clean heat exchanger. ix) Disconnect the gauge from point B. Refit the screw. x) Read pressure of point C. xi) The maximum pressure should be 3.5 mbar. If the pressure is greater

than this check the flue for blockage. xii) Turn off the electrical supply to the boiler. xiii) Remove the pressure gauge tube and refit the screw. xiv) Open the gas service cock.

6.2 Recommended Routine Service

a. Inspect the air filter located at the top right hand side of the boiler. Release the

toggle catch on the filter tray and remove the filter. If the filter looks dirty remove the dirt with a vacuum cleaner or by other means. If

in any doubt renew the filter element.

b. Remove the burner head (Section 7.7) and inspect the burner appearance. Black

markings or other discolourations on the gauze indicate too much gas or a lack of air possibly due to a blocked air filter. Any breakages or damage to the burner mesh indicate the burner must be replaced.

c. If necessary, either due to discolouration or a high pressure differential between

points A & B in the pre-service checks, clean the burner with a mild detergent and rinse under a hot running tap.

Installation & Servicing Instructions Page : 39

household

Page 43

WD52/0/1997 Chapter 6 : Servicing The Keston 130 Condensing Boiler

d. If necessary, either from visual inspection or a high pressure differential between

points B & C in the pre-service checks, clean the heat exchanger using a suitable stiff plastic bristle brush, vacuum out any large particles and flush the heat exchanger with fresh water until the water flowing from the condensate drain is clear. When brushing the heat exchanger take care not to damage the condensing plug in the lower half of the heat exchanger.

e. Remove the condensate trap (Section 7.10) and clean by flushing through with

clean running water.

f. Check the electrode mounted on the burner head. If the point is damaged or

burnt replace it. Check that the spark gap measures 4 mm.

g. Replace the burner head, renewing the gasket if necessary, and reconnect the

gas/air supply and the ignition lead. Ensure the flanged gas/air supply joint is air tight.

h. Turn on the electrical supply to the boiler and allow the boiler to reach operating

temperature levels.

i. Visually inspect the burner through the glass spy hole at the burner head (a small

mirror will prove useful). j. Recheck the burner pressure by following the procedure detailed in Section 4.7 k. Remove the combustion test point plug from the flue pipe. This is situated around

150mm (6ins) from the bottom of the flue elbow at its connection to the heat

exchanger. l. Using an approved combustion tester sample the flue products via the

combustion test point. CO

levels of between 8.2% and 8.9%, for natural gas,

should be observed. If such levels are not observed tune the combustion as

described in Chapter 4 - Commissioning. Also check the gas flow as detailed in

Sections 4.8 and 4.9 m. Replace the combustion test point plug.

n. Check all joints for soundness up to the gas burner.

Installation & Servicing Instructions Page : 40

Page 44

WD52/0/1997 Chapter 7 : Replacement Of Parts The Keston 130 Condensing Boiler

7. REPLACEMENT OF PARTS

INDEX

7.0 GENERAL

7.1 PRECAUTIONS

7.2 ACCESS

7.3 PROCEDURES - GENERAL

7.4 ELECTRICAL

7.4.1 ON/OFF SWITCH

7.4.2 BOILER THERMOSTAT

7.4.3 NEONS

7.4.4 FLOW OVERHEAT, FLOW HIGH LIMIT & FLUE PROTECTION THERMOMSTATS

7.4.5 WATER PRESSURE SWITCH

7.4.6 IGNITION CONTROL BOX

7.4.7 AIR PRESSURE SWITCH

7.4.8 COMBUSTION BLOWER

7.4.9 GAS CONTROL VALVE

7.4.10 GAS LOW PRESSURE SWITCH

7.5 GAS ORIFICE

7.6 SPARK IGNITION/FLAME DETECTION ELECTRODE

7.7 BURNER HEAD & BURNER

7.8 HEAT EXCHANGER

7.9 AIR FILTER

7.10 CONDENSATE TRAP

7.11 PRESSURE GAUGE

7.12 SIGHT GLASS

7.13 HT IGNITION LEAD

7.14 AIR ORIFICE

Installation & Servicing Instructions Page : 41

Page 45

WD52/0/1997 Chapter 7 : Replacement Of Parts The Keston 130 Condensing Boiler

7.0 GENERAL

The following must always be carried out by a competent/qualified person.

7.1 PRECAUTIONS

i) Always switch off the mains electricity supply and disconnect the plug at the

isolating switch and socket. (If a switch only is used then remove the fuse.)

ii) Gain access to the appliance (Section 7.2) and turn off the gas supply at the

appliance service cock.

WARNING : Parts of the boiler internal wiring will remain live even after turning

the boiler ON/OFF switch to the OFF position. Shut off the power supply at the isolating switch before working on the appliance.

7.2 ACCESS

i) Remove the front door by removing the three screws to the front of the top panel.

The front panel may then be removed by tilting forward and lifting vertically to disengage the two locating studs in the base of the front panel.

ii) Access to the burner head can be gained by removing the access plate in the top

panel of the appliance.

iii) Access to the rear of the control panel and base of the unit can be gained by

removing the control panel at the bottom of the boiler. Remove the two screws to the control panel then gently pull the control panel free of the boiler casing. This is secured by three press studs, two on either side and a central press stud at the bottom of the control panel.

7.3 REPLACEMENT PROCEDURES

i) Always replace in the reverse order unless otherwise stated. ii) Electrical connections must be remade in accordance with the Wiring Diagram

(Section 5.5).

iii) Test the soundness of any gas carrying or water carrying joint broken during the

service procedures.

7.4 ELECTRICAL COMPONENTS

7.4.1 On/Off Switch (Fig. 5.7.1 item 113)

i) Isolate the appliance (Section 7.1) i) Gain access (Section 7.2) iii) Remove the push on connectors from the switch taking note of the

correct positions.

iv) Press in the catches and push the switch forwards through the control

panel. v) Reassemble (Section 7.3) v) Check for correct operation of the switch.

7.4.2 Boiler Thermostat (Fig. 5.7.2 item 63) i) Isolate the appliance (Section 7.1)

ii) Gain access (Section 7.2)

Installation & Servicing Instructions Page : 42

Page 46

WD52/0/1997 Chapter 7 : Replacement Of Parts The Keston 130 Condensing Boiler

iii) Remove the push on connectors from the thermostat taking note of the

correct positions. iv) Unscrew the two retaining screws and remove the thermostat. v) Reassemble (Section 7.3)

NB: When fitting the new thermostat it is an advantage to smear a

thin film of heat sink compound between the thermostat and plate. This, combined with fitting the new thermostat tightly to the plate, ensures a good contact.

7.4.3 Neons (Fig. 5.7.1 items 114 & 115) i) Isolate the appliance (Section 7.1)

ii) Gain access (Section 7.2) iii) Remove the push on connectors from the neon taking note of the correct

positions.

iv) Press in the catches and push the neon forward through the control

panel.

v) Pull the centre core of the neon from its housing to expose the bayonet

fitting bulb. vi) Reassemble (Section 7.3) vii) Check for correct operation of the neons.

7.4.4 Flow Overheat (Fig. 5.7.2 item 71) , Flow High Limit (Fig. 5.7.2 item 72) & Flue Protection Thermostats (Fig. 5.7.2 item 67)

i) Isolate the appliance (Section 7.1) ii) Gain access (Section 7.2) iii) Remove the push on connectors from the thermostat taking note of the

correct positions. iv) Unscrew the two retaining screws and remove the thermostat. v) Flue protection thermostat only

The thermostat seal is maintained via a small stainless steel disc

between thermostat and flue pipe. It is advised to use a small quantity of

leak sealant around the edge of the steel disc to prevent condensate

leakage from the flue. vi) Reassemble (Section 7.3)

NB: When fitting the new thermostat it is an advantage to smear a

thin film of heat sink compound between the thermostat and plate. This, combined with fitting the new thermostat tightly to the plate, ensures a good contact.

7.4.5 Water Pressure Switch (Fig. 5.7.2 item 73) i) Isolate the appliance (Section 7.1)

ii) Shut off the water supply to the appliance. iii) Gain access (Section 7.2) iv) Drain the system to below the level of the appliance using the drain off

tap at the base of the heat exchanger.

v) Remove the push on connectors from the water pressure switch taking

note of the correct positions. vi) Unscrew the pressure switch. vii) Reassemble (Section 7.3).

NB: Use a little jointing compound or PTFE tape on the thread. viii) Refill the system (See Section 4 - Commissioning).

7.4.6 Ignition Control Box (Fig. 5.7.1 item 106) i) Isolate the appliance (Section 7.1)

ii) Gain access (Section 7.2)

Installation & Servicing Instructions Page : 43

Page 47

WD52/0/1997 Chapter 7 : Replacement Of Parts The Keston 130 Condensing Boiler

iii) Remove the HT ignition lead. iv) Pull off the multi-pin connector away from the box. v) Unscrew the two screws securing the control box to the casing and

remove the box.

vi) Reassemble (Section 7.3)

7.4.7 Air Pressure Switch (Fig. 5.7.1 item 109) i) Isolate the appliance (Section 7.1)

ii) Gain access (Section 7.2) iii) Remove the push on connectors from the air pressure switch taking note

of the correct positions.

iv) Disconnect the union to one plastic tube connection and pull off the

second plastic tube from the air pressure switch.

v) Unscrew the two screws mounting the air pressure switch body to the

boiler casing.

vi) Reassemble (Section 7.3)

NB: Ensure the yellow/green earth connection tag is securely fixed

behind the lower mounting screw.

7.4.8 Combustion Blower (Fig. 5.7.3 item 78) NB: This unit is heavy and must therefore be handled carefully when

replacing. i) Isolate the appliance (Section 7.1) ii) Gain access (Section 7.2) iii) Disconnect the wires connecting the blower to the relay and pump

terminal strip (relay terminal number 6 and pump terminal 14) vi) Remove the allen screws fixing the air intake pipe flange and the gas/air

mixture pipe flange to the blower. v) Unscrew the three bolts fixing anti-vibration mounts to the combustion

blower through the base of the cabinet. vi) Reassemble (Section 7.3)

NB: When reassembling inspect any gaskets for damage and replace

if necessary.

vii) Reset the gas rate (See Section 4 - Commissioning)

7.4.9 Gas Control Valve (Fig. 5.7.3 item 91) i) Isolate the appliance (Section 7.1)

ii) Gain access (Section 7.2) iii) Remove the cover concealing the electrical connections on the front of

the gas valve.

iv) Remove the push on connectors exposed taking note of the correct

positions.

v) Remove the push on connectors to the gas low pressure switch taking

note of the correct positions. vi) Remove the earth connection to the side of the gas valve. vii) Remove the plastic air tube to the base of the gas valve. viii) Remove the four allen screws securing the gas inlet flanged connections

to the gas control valve. ix) Undo the four bolts fixing the base of the gas control valve to the gas

outlet block. x) Remove the gas valve. xi) Unscrew the gas low pressure switch at its connection to the gas control

valve body. xii) Reassemble (Section 7.3) xiii) Reset the gas rate (See Section 4 - Commissioning)

Installation & Servicing Instructions Page : 44

Page 48

WD52/0/1997 Chapter 7 : Replacement Of Parts The Keston 130 Condensing Boiler

7.4.10 Gas Low Pressure Switch (Fig. 5.7.3 item 101) i) Isolate the appliance (Section 7.1)

ii) Gain access (Section 7.2) iii) Remove the push on connectors to the gas low pressure switch taking

note of the correct positions. iv) Unscrew the gas low pressure switch from the brass holder. v) Reassemble (Section 7.3)

7.5 GAS ORIFICE (Fig 5.7.3 item 87) i) Isolate the appliance (Section 7.1)

ii) Gain access (Section 7.2) iii) Unscrew and remove the brass plug from the gas outlet block. iv) Remove the rubber seal from the injector housing. v) Insert a flat blade screwdriver into the exposed hole and unscrew the gas injector. vi) Check the injector is the correct size for the boiler size and fuel type.

vii) Reassemble (Section 7.3)

NB: Ensure that the injector is screwed fully home

viii) Reset the gas pressure (See Section 4 - Commissioning)

7.6 SPARK IGNITION/FLAME DETECTION ELECTRODE (Fig. 5.7.2 item 50) i) Isolate the appliance (Section 7.1)

ii) Gain access (Section 7.2) iii) Remove the pull off HT lead to the spark ignition electrode. iv) Remove the burner head (Section 7.7 steps iv) to vi)). v) Undo the screws to the spark ignition electrode flange located on the burner

head and withdraw the spark ignition electrode.

vi) Reassemble (Section 7.3)

NB: When reassembling inspect the gasket for damage and replace if

necessary. With the new spark ignition electrode in place it is essential to ensure the gap between the tip of the electrode and the burner surface is 4mm. Distances above or below 4mm will affect ignition performance. If necessary gently bend the electrode taking care not to damage the ceramic insulator.

7.7 BURNER HEAD & BURNER (Fig. 5.7.2 items 47 & 45) i) Isolate the appliance (Section 7.1)

ii) Gain access (Section 7.2) iii) Remove the pull off HT lead to the spark ignition/flame detection electrode head. iv) Remove the four screws retaining the access panel (Fig. 5.7.4 item 14) and

remove the access panel from the top of the cabinet.

iv) Remove the two allen screws fixing the flange gas/air mixture pipe connection to

the burner head.

v) Remove the five allen screws fixing the burner head to the top of the heat

exchanger.

vi) Withdraw the burner & burner head from the top of the heat exchanger through

the access panel opening in the top of the cabinet.

vii) Unscrew the burner from the burner head taking care not to damage the burner

mesh.

vi) Reassemble (Section 7.3)

NB: When reassembling inspect any gaskets for damage and replace if

necessary. Set the spark gap as detailed in Section 7.6

vi) Reset the gas rate (see Section 4 - Commissioning)

Installation & Servicing Instructions Page : 45

Page 49

WD52/0/1997 Chapter 7 : Replacement Of Parts The Keston 130 Condensing Boiler

7.8 HEAT EXCHANGER (Fig. 5.7.2 item 42) i) Isolate the appliance (Section 7.1)

ii) Gain access (Section 7.2) iii) Shut of the water supply to the appliance. iv) Remove the burner head (Section 7.7) v) Drain the system to below the level of the appliance using the drain off tap at the

base of the heat exchanger. vi) Remove the front control panel (Section 7.2 (iii)) vii) Remove the boiler thermostat (Section 7.4.2) viii) Remove the push on connectors to the water pressure switch, flow overheat

thermostat, flow high limit thermostat and flue protection thermostat taking note of

the correct positions. ix) Remove the condensate trap (Section 7.10) x) Remove the pressure gauge phial located next to the drain off tap. xi) Remove the air filter (Section 7.9) xii) Remove the two springs connecting the bottom tray of the air filter with the

cabinet top cover. xiii) Disconnect the flow and return connections to the boiler and remove (cut) their

olives from the pipes. xiv) Remove the push on flue and air connections to the flue and air pipes exiting the

top of the boiler. xv) Remove the four screws fixing the cabinet top cover to the cabinet body and

remove the top cover. xvi) Remove the nut fixing the strap retaining the base of the heat exchanger and pull

out the strap by unhooking it from its fixing behind the heat exchanger. xvii) Remove the allen screw securing the top of the heat exchanger to its mounting

bracket. xviii) Remove the heat exchanger, with pipework attached. xix) Remove the flow, return and flue pipework from the heat exchanger xx) Reassemble (Section 7.3) xxi) Recommission (Section 4 - Commissioning)

7.9 AIR FILTER (Fig. 5.7.4 item 19) i) Isolate the appliance (Section 7.1)

ii) Gain access (Section 7.2) iii) Drop the lower section of the air filter housing by releasing the toggle clip.

iv) Open the lower section as far as possible and pull out the combined paper filter

element with rubber seal.

v) Reassemble (Section 7.3)

7.10 CONDENSATE TRAP (Fig. 5.7.2 item 58) i) Isolate the appliance (Section 7.1)

ii) Gain access (Section 7.2) iii) Disconnect the condensate line from the base of the heat exchanger. iv) Disconnect the condensate line from the base of the flue assembly. v) Disconnect the condense lines from the projection of the condensate trap from

the base of the cabinet. vi) Withdraw the condensate trap. vii) Mop up any spilled condensate. viii) Reassemble (Section 7.3)

NB: When re-fitting the condensate trap pour water onto the condensate hose

from the base of the heat exchanger until nearly full. Then reconnect the condensate hose to the base of the heat exchanger.

7.11 PRESSURE GAUGE (Fig. 5.7.1 item 116)

Installation & Servicing Instructions Page : 46

Page 50

WD52/0/1997 Chapter 7 : Replacement Of Parts The Keston 130 Condensing Boiler

i) Isolate the appliance (Section 7.1) ii) Gain access (Section 7.2) iii) Shut off the pressure measurement point at the return drain valve located at the

base of the heat exchanger.

iv) Remove the phial from its mounting at the return pipe entry to the base of the heat

exchanger.

v) Press in the catches and push the pressure gauge forward through the control

panel. vi) Reassemble (Section 7.3) vii) Refill the system (See Section 4 - Commissioning)

7.12 SIGHT GLASS (Fig. 5.7.2 item 48) i) Isolate the appliance (Section 7.1)

ii) Gain access (Section 7.2) iii) Unscrew the sight glass fitting from the burner head. iv) Reassemble (Section 7.3)

7.13 HT IGNITION LEAD (Fig 5.7.1 item 122) i) Isolate the appliance (Section 7.1)

ii) Gain access (Section 7.2) iii) Remove the lead from the electrode and the ignition control box. iv) Reassemble (Section 7.3)

7.14 Air Orifice (Fig. 5.7.3 item 131) i) Isolate the appliance (Section 7.1)

ii) Gain access (Section 7.2) iii) Disconnect the flexible air intake hose from the air inlet manifold (Fig 5.7.3 item

85) iv) Unscrew the air orifice grub screw (Fig 5.7.3 item 84) to release the air orifice. v) Lift the air orifice from its seat in the air inlet manifold. vi) Reassemble (Section 7.3) NB: When replacing the air orifice ensure that the new orifice is seated with the

chamfer facing upwards.

Installation & Servicing Instructions Page : 47

Page 51

WD52/0/1997 Chapter 8 : Spare Parts Listings The Keston 130 Condensing Boiler

8. SHORT SPARE PARTS LIST

Item GC No Part Denomination Item GC No Part Denomination

19 114 105 Air Filter 45 E03 886 Burner

46 114 118Burner Manifold Gasket 49 375 527 Ignitor Gasket

50 114 120Ignitor/Sensor Probe 55 114 122Flexible Hose Gasket

63 375 530Boiler Thermostat 67 375 532Flue Thermostat

71 375 533Flow Overheat Thermostat 72 375 534Flow High Limit Stat

Installation & Servicing Instructions Page : 48

Page 52

WD52/0/1997 Chapter 8 : Spare Parts Listings The Keston 130 Condensing Boiler

Item GC No Part Denomination Item GC No Part Denomination

90 375 535Gas Valve Outlet Gasket 104 114 122Flexible Hose Gasket 91 375 536Gas Valve

106 E01-074 Ignition Control Box 109 379 744Air Pressure Switch

118 E01-075 HT Ignition Cable

Installation & Servicing Instructions Page : 49

Page 53

WD52/0/1997 Chapter 8 : Spare Parts Listings The Keston 130 Condensing Boiler

SHORT SPARE PARTS LIST FOR THE KESTON

CONDENSING BOILER RANGE

Item GC No Part Denomination

19 114 105 Air Filter 45 E03-886 Burner 46 114 118 Burner Manifold Gasket 49 375 527 Ignitor Gasket 50 114 120 Ignitor/Sensor Probe 55/104 114 122 Flexible Hose Gasket 63 375 530 Boiler Thermostat 67 375 532 Flue Thermostat 71 375 533 Flow Overheat Thermostat 72 375 534 Flow High Limit Thermostat 90 114 139 Gas Valve Gasket 91 375 536 Gas Multifunctional Control Valve 106 E01-074 Ignition Control Box 109 379 744 Air Pressure Switch 122 E01-075 HT Ignition Cable

Installation & Servicing Instructions Page : 50

Page 54

KESTON CONDENSING BOILERS

IMPORTANT

KESTON 130

INSTALLATION KEY POINTS

WD 98/0/1998

†

Read Installation Manual Carefully

Ensure that there is at least 9 feet head of water pressure at the top of the boiler.

DO NOT remove the dust caps from the air and exhaust pipes until ready to connect.

Ensure that ALL dust particles, filings , plastic chips etc. are removed from the inlet pipe.

If the installation is a replacement the system must be flushed clean. System should be drained hot, then refilled, then drained

again until the water is clean. Ensure that there is a proper electrical supply ie 230V fused at

10A for the permanent live. Take great care with pipe connections to ensure that no

damage is done to the internal pipework. Ensure that the 22mm condensate pipe is not exposed to

freezing conditions.

†

† †

† † † †

Make sure that the exhaust pipe terminates away from windows or vents and is out of reach.

Make sure that the air inlet and exhaust pipe outlets are at least 500mm apart.

Check tightness of all connections in the boiler before firing. Ensure that the terminals supplied are fitted to both the exhaust

and air inlet pipes. The system must be free from air before firing.

The pump must always run when the boiler is firing. Gravity circuits are not allowed. If TRV's are installed on radiators ensure that a bypass is

installed to maintain required flow.

Keston K130 Installation Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
