Kenwood TS-2000S, TS-2000SX, TS-2000V, TS-2000VX Service manual

ALL MODE MULTI-BAND TRANSCEIVER

TS-2000/B2000/2000X
TS-2000S/V/SX/VX

SERVICE MANUAL

SUPPLEMENT III

TS-2000/2000X/2000S/2000V/2000SX/2000VX

Phone jack (9P)
(E11-0705-05)

Key top (8 key)
(K29-5391-12)

Cabinet (Upper)
(A01-2176-21)

Knob ring (Main dial)
(K29-5395-04)

Front glass
(B10-2727-02)

© 2008-8 PRINTED IN JA PAN
B51-8846-00 (N) 242

Key top (4 key)
(K29-5394-22)

Knob (Outside)
(K29-5399-03) x 3

Knob (RIT, MULTI)
(K29-9419-03) x 2

TS-B2000

Knob
(K29-5397-13) x 2

MIC connector (8P)
(E06-0858-25)

Phone jack (9P)
(E11-0705-05)

MIC connector (8P)
(E06-0858-25)

Foot (Front)
(J02-0440-04)

Panel
(A62-0916-03)

Key top (25 key)
(K29-5392-22)

Knob (Main dial)
(K21-1104-03)

Key top (18 key)
(K29-5393-22)

Dressing plate
(B03-3608-03)

Foot (Front)
(J02-0442-04) x 2

Knob (Inside)
(K29-5398-03) x 3

Cabinet (Upper)
(A01-2176-21)

Foot (Front)
(J02-0442-04) x 2

This product complies with the RoHS directive for the European market.

This product uses Lead Free solder.

TS-2000/B2000/2000X
TS-2000S/2000V/2000SX/2000VX

Document Copyrights

Copyright 2008 by Kenwood Corporation. All rights re-

served.

No part of this manual may be reproduced, translated,
distributed, or transmitted in any form or by any means,
electronic, mechanical, photocopying, recording, or other-
wise, for any purpose without the prior written permission
of Kenwood.

CONTENTS

BEFORE USING THE SERVICE MANUAL ............................................... 3

PARTS LIST ............................................................................................... 4

ADJUSTMENT ........................................................................................ 21

Disclaimer

While every precaution has been taken in the preparation
of this manual, Kenwood assumes no responsibility for er-
rors or omissions. Neither is any liability assumed for dam-
ages resulting from the use of the information contained
herein. Kenwood reserves the right to make changes to any
products herein at any time for improvement purposes.

INTERCONNECTION DIAGRAM ............................................................ 37

PC BOARD

FINAL UNIT (X45-384X-XX) ................................................................ 39

FILTER UNIT (X51-318X-XX) .............................................................. 45

TX-RX 1 UNIT (X57-605X-XX) ............................................................ 47

TX-RX 3 UNIT (UT-20) (X57-607X-XX) ............................................... 49

SCHEMATIC DIAGRAM

FINAL UNIT (X45-384X-XX) ................................................................ 53

TX-RX 3 UNIT (UT-20) (X57-607X-XX) ............................................... 59

FILTER UNIT (X51-318X-XX) .............................................................. 63

TX-RX 1 UNIT (X57-605X-XX) ............................................................ 65

LEVEL DIAGRAM .................................................................................... 67

2

TS-2000/B2000/2000X
TS-2000S/2000V/2000SX/2000VX

BEFORE USING THE SERVICE MANUAL

This service manual (SUPPLEMENT III) describes the

■

information of the changed PCBs in the TS-2000/TS-
B2000/TS-2000X/ TS-2000S/TS-2000V/TS-2000SX/TS-
2000VX transceiver.

Refer to the appropriate TS-2000 service manual for

items which are not listed in this service manual.

q TS-2000/TS-2000X: B51-8558-00

TS-2000S/TS-2000V/TS-2000SX/TS-2000VX:

w

B51-8545-00

TS-B2000: B51-8569-00

e

TS-2000/TS-2000X/TS-B2000:

r

B51-8622-00 SUPPLEMENT

TS-2000/TS-B2000/TS-2000X/TS-2000S/TS-2000V/

t

TS-2000SX/TS-2000VX: B51-8773-00 SUPPLEMENT II

Model Name & Destination

TS-2000(K) 00100001~ - K1

TS-B2000(K) 00100001~ - K2

TS-2000X(K) 00100001~ 00300001~ K3

TS-2000(E) 00100001~ - E1

TS-B2000(E) - - E2

TS-2000(E2) 00100001~ - E3

TS-B2000(E2) - - E4

TS-2000X(E) 00100001~ 00300001~ E5

TS-2000S(J) 00700001~ - J

TS-2000V(J) 00700001~ - J1

TS-2000SX(J) 00300001~ 00300001~ J2

TS-2000VX(J) 00300001~ 00300001~ J3

X45-384,X51-318,X57-605 X57-607

Serial Numbers

• Refer to the table for the serial number of each trans-
ceiver with this service manual.

• Destination of the parts list/ PCB fi gures/ schematic dia-
grams of this service manual are changed from the for-
mer service manual.

Please read the following list, as they have been rear-

ranged.

Reference: TS-2000 (K)=K1

Destination of Parts list/ PCB

fi gures/ Schematic diagraams

Content of Parts list

■

• The transceiver mechanical components describes only
the changed parts and the added parts from the service
manual.

• Final unit (X45-384) describes all parts.

• Filter unit (X51-318) describes all parts.

• TX-RX 1 unit (X57-605) describes only parts of C/10 -
J/10.

• TX-RX 3 unit (X57-607) describes all parts.

Content of Adjustment method

■

Only the changed section is described.

• Transmitter Section and 1200MHz Unit Transmitter Sec-
tion

Content of PCB fi gures/ Schematic diagram

■

• Final unit (X45-384)/ Filter unit (X51-318)/ TX-RX 3 unit
(X57-607) describes all circuits.

• TX-RX1 unit (X57-605) describes only the unit section of
C/10 - J/10.

3

TS-2000/B2000/2000X
TS-2000S/2000V/2000SX/2000VX

PARTS LIST



C C 4 5 T H 1 H 2 2 0 J

1 2 3 4 5 6

1 = Type ... ceramic, electrolytic, etc. 4 = Voltage rating

2 = Shape ... round, square, etc. 5 = Value

3 = Temp. coefficient 6 = Tolerance

฀฀

1st Word C L P R S T U

Color* Black Red Orange Yellow Green Blue Violet

ppm/°C 0 –80 –150 –220 –330 –470 –750

CC45

Color*

2nd Word G H J K L

ppm/°C ±30 ±60 ±120 ±250 ±500

Example : CC45TH = –470±60ppm/°C

฀฀

010 = 1pF 2 2 0 = 22pF

100 = 10pF

101 = 100pF Multiplier

102 = 1000pF = 0.001μF 2nd number

103 = 0.01μF 1st number

฀฀฀฀

Code C D G J K M X Z P No code

(%) ±0.25 ±0.5 ±2 ±5 ±10 ±20 +40 +80 +100 More than 10μF : –10~+50

–20 –20 –0 Less than 4.7μF : –10~+75

฀฀

2nd word

1st word

0 1.0 1.25 1.6 2.0 2.5 3.15 4.0 5.0 6.3 8.0 –

1 10 12.5 16 20 25 31.5 40 50 63 80 35

2 100 125 160 200 250 315 400 500 630 800 –

3 1000 1250 1600 2000 2500 2150 4000 5000 6300 8000 –

฀฀

(EX) C C 7 3 F S L 1 H 0 0 0 J Refer to the table above.

1 2 3 4 5 6 7 1 = Type

(Chip) (CH, RH, UJ, SL) 2 = Shape

3 = Dimension

(EX) C K 7 3 F F 1 H 0 0 0 Z 4 = Temp. coefficient

1 2 3 4 5 6 7 5 = Voltage rating

(Chip) (B, F) 6 = Value

7 = Tolerance



฀฀฀

(EX) R D 7 3 E B 2 B 0 0 0 J

1 2 3 4 5 6 7

(Chip) (B, F)

฀฀฀฀

(EX) R D 1 4 B B 2 C 0 0 0 J

1 2 3 4 5 6 7

1 = Type 5 = Rating wattage

2 = Shape 6 = Value

3 = Dimension 7 = Tolerance

4 = Temp. coefficient

A B C D E F G H J K V

฀

Chip capacitor

Code L W T

Empty 5.6±0.5 5.0±0.5 Less than 2.0

A 4.5±0.5 3.2±0.4 Less than 2.0

B 4.5±0.5 2.0±0.3 Less than 2.0

C 4.5±0.5 1.25±0.2 Less than 1.25

D 3.2±0.4 2.5±0.3 Less than 1.5

E 3.2±0.2 1.6±0.2 Less than 1.25

F 2.0±0.3 1.25±0.2 Less than 1.25

G 1.6±0.2 0.8±0.2 Less than 1.0

H 1.0±0.05 0.5±0.05 0.5±0.05

Chip resistor

Code L W T

E 3.2±0.2 1.6±0.2 1.0

F 2.0±0.3 1.25±0.2 1.0

G 1.6±0.2 0.8±0.2 0.5±0.1

H 1.0±0.05 0.5±0.05 0.35±0.05

฀฀

Code Wattage Code Wattage Code Wattage

1J 1/16W 2C 1/6W 3A 1W

2A 1/10W 2E 1/4W 3D 2W

2B 1/8W 2H 1/2W

฀฀

Code B C D F G

(pF) ±0.1 ±0.25 ±0.5 ±1 ±2

L

T

W

4

PARTS LIST

TS-2000/B2000/2000X
TS-2000S/2000V/2000SX/2000VX

New Parts.

✽

Parts without Parts No. are not supplied.
Les articles non mentionnes dans le Parts No. ne sont pas fournis.
Teile ohne Parts No. werden nicht geliefert.

Ref. No.

indicates safety critical components.

New

Ad dress

Parts No. Description

parts

Desti-
nation

TS-2000/B2000/2000X/2000S/2000V/2000SX/2000VX

3 2C ✽ A10-4017-21 CHASSIS
5 1F ✽ A22-2524-01 SUB PANEL E3,E5,J
5 1F A22-2524-01 SUB PANEL J1,J2,J3
5 1F A22-2524-01 SUB PANEL K1,K3,E1
5 1F A22-2524-01 SUB PANEL K2,E2,E4

13 1J ✽ B52-0614-10 SCHEMATIC DIAGRAM E1,E2,E3
13 1J ✽ B52-0614-10 SCHEMATIC DIAGRAM E4,E5
13 1J ✽ B52-0614-10 SCHEMATIC DIAGRAM K1,K2,K3
14 1J ✽ B52-0616-10 SCHEMATIC DIAGRAM E1,E2,E3
14 1J ✽ B52-0616-10 SCHEMATIC DIAGRAM E4,E5

14 1J ✽ B52-0616-10 SCHEMATIC DIAGRAM K1,K2,K3
15 1J ✽ B52-0617-10 SCHEMATIC DIAGRAM E1,E2,E3
15 1J ✽ B52-0617-10 SCHEMATIC DIAGRAM E4,E5
15 1J ✽ B52-0617-10 SCHEMATIC DIAGRAM K1,K2,K3
16 1J ✽ B62-1220-60 INSTRUCTION MANUAL(JAPANESE) J,J1,J2

16 1J ✽ B62-1220-60 INSTRUCTION MANUAL(JAPANESE) J3
16 1J ✽ B62-1221-40 INSTRUCTION MANUAL(ENGLISH) E1,E2,E5
16 1J ✽ B62-1221-40 INSTRUCTION MANUAL(ENGLISH) K1,K2,K3
16 1J ✽ B62-1222-20 INSTRUCTION MANUAL(FRENCH) E1,E2,E5
16 1J ✽ B62-1223-20 INSTRUCTION MANUAL(SPANSISH) E3,E4

L : Scandinavia K : USA P : Canada
Y : PX (Far East, Hawaii) T : England E : Eu rope
Y : AAFES (Europe) X : Australia M : Oth er Areas

TS-2000/B2000/2000X/2000S/2000V/2000SX/2000VX (Y52-327X-XX)

Ref. No.

140 1I T91-0352-45 MICROPHONE E1,E2,E3
140 1I T91-0352-45 MICROPHONE E4,E5
140 1I T91-0352-45 MICROPHONE K1,K2,K3

143 1F ✽ W02-3727-05 ENCODER(RIT/SUB) E1,E3,E5
143 1F ✽ W02-3727-05 ENCODER(RIT/SUB) J,J1,J2
143 1F ✽ W02-3727-05 ENCODER(RIT/SUB) J3,K1,K3

Ad dress

New

Parts No. Description

parts

FINAL UNIT (X45-384X-XX)

Desti-
nation

FINAL UNIT (X45-384X-XX) 0-00 : J,J2,K1,K2,K3

0-01 : J1,J3 2-71 : E1,E2,E3,E4,E5

- C91-2691-05 CERAMIC 470PF 250WV
C1 CK73GB1H104K CHIP C 0.10UF K
C2 CK73GB1H103K CHIP C 0.010UF K
C3 CK73GB1H104K CHIP C 0.10UF K
C4 CK73GB1H103K CHIP C 0.010UF K

C5 CK73GB1H102K CHIP C 1000PF K
C6 CK73GB1H103K CHIP C 0.010UF K
C7 CK73GB1E105K CHIP C 1.0UF K
C8 CK73GB1H104K CHIP C 0.10UF K
C9 CK73GB1H103K CHIP C 0.010UF K

16 1J ✽ B62-1224-10 INSTRUCTION MANUAL(GERMAN) E1,E2,E5
16 1J ✽ B62-1225-10 INSTRUCTION MANUAL(ITALIAN) E1,E2,E5
16 1J ✽ B62-1226-10 INSTRUCTION MANUAL(DUTCH) E1,E2,E5
12 1J ✽ B46-0310-23 WARRANTY CARD E1,E2,E3
12 1J ✽ B46-0310-23 WARRANTY CARD E4,E5

12 1J ✽ B46-0469-30 WARRANTY CARD K1,K2,K3

19 2C E04-0167-15 RF COAXIAL RECEPTACLE(M)

- E07-0852-25 ROUND PLUG(MICROPHONE) E1,E2,E3

- E07-0852-25 ROUND PLUG(MICROPHONE) E4,E5

- E07-0852-25 ROUND PLUG(MICROPHONE) K1,K2,K3
50 2C ✽ E37-0891-15 LEAD WIRE(EXT AT)

- ✽ E37-1426-05 LEAD WIRE(X51 CN20,HF RX)

73 2B ✽ F10-3102-04 SHIELDING COVER(X51)

- 2B ✽ G02-1838-04 EARTH SPRING(Q7,8 UPPER):X45

- 3B,1A ✽ G02-1840-04

- 3B,1A ✽ G02-1841-04

- 2A ✽ G02-1842-04 EARTH SPRING(Q903 UNDER):X45

- 2A ✽ G02-1843-04 EARTH SPRING(Q903 UPPER):X45

80 3E ✽ G02-0854-13 FLAT SPRING(MAIN DIAL) E1,E3,E5
80 3E ✽ G02-0854-13 FLAT SPRING(MAIN DIAL) J,J1,J2
80 3E ✽ G02-0854-13 FLAT SPRING(MAIN DIAL) J3,K1,K3
89 3C ✽ G11-2588-14 RUBBER SHEET(CHASSIS FRONT)

123 2F ✽ K29-5392-22 KEY TOP(25KEY) E1,E3,E5
123 2F ✽ K29-5392-22 KEY TOP(25KEY) J,J1,J2
123 2F ✽ K29-5392-22 KEY TOP(25KEY) J3,K1,K3
124 2F ✽ K29-5393-22 KEY TOP(18KEY) E1,E3,E5
124 2F ✽ K29-5393-22 KEY TOP(18KEY) J,J1,J2

124 2F ✽ K29-5393-22 KEY TOP(18KEY) J3,K1,K3
127 3E ✽ K29-9419-03 KNOB(RIT,MULTI) E1,E3,E5
127 3E ✽ K29-9419-03 KNOB(RIT,MULTI) J,J1,J2
127 3E ✽ K29-9419-03 KNOB(RIT,MULTI) J3,K1,K3

EARTH SPRING(Q101,102,905 UNDER):X45
EARTH SPRING(Q101,102,905 UPPER):X45

C11 CK73GB1H104K CHIP C 0.10UF K
C12 CD04AZ1H100M ELECTRO 10UF 50WV
C13 CK73GB1H104K CHIP C 0.10UF K
C14 CK73GB1H102K CHIP C 1000PF K
C15 CK73GB1H104K CHIP C 0.10UF K

C17 CK73GB1H102K CHIP C 1000PF K
C18 CK73GB1H104K CHIP C 0.10UF K
C19 CK73GB1E105K CHIP C 1.0UF K
C20 CK73GB1H104K CHIP C 0.10UF K
C21 CD04AY1E470M ELECTRO 47UF 25WV

C22 CK73FB1E104K CHIP C 0.10UF K
C23 CK73GB1H102K CHIP C 1000PF K
C24,25 CK73FB1E104K CHIP C 0.10UF K
C26-28 CK73GB1E105K CHIP C 1.0UF K
C29 CK73FB1E104K CHIP C 0.10UF K

C30 CK73FB1H102K CHIP C 1000PF K
C31 CK73FB1E104K CHIP C 0.10UF K
C32,33 CK73GB1H102K CHIP C 1000PF K
C34 CK73FB1H103K CHIP C 0.010UF K
C35 CK73FB1E104K CHIP C 0.10UF K

C36 ✽ CD04BD1H220M ELECTRO 22UF 50WV
C37 CK73EB1H104K CHIP C 0.10UF K
C38 CM73F2H151J CHIP C 150PF J
C39-46 C93-0716-05 CHIP C 3300PF K
C47 CM73F2H331J CHIP C 330PF J

C50 CK73GB1H102K CHIP C 1000PF K
C51 CK73FB1A105K CHIP C 1.0UF K E2,E3,E4
C51 CK73FB1A105K CHIP C 1.0UF K E5
C51 CK73FB1A105K CHIP C 1.0UF K J,J2,K1
C51 CK73FB1A105K CHIP C 1.0UF K K2,K3,E1

C53 CK73GB1H102K CHIP C 1000PF K
C54 CK73GB1H103K CHIP C 0.010UF K
C56 CK73GB1H103K CHIP C 0.010UF K
C61,62 CM73F2H101J CHIP C 100PF J

J : TS-2000S J1 : TS-2000V J2 : TS-2000SX J3 : TS-2000VX
K1 : TS-2000 (K) K2 : TS-B2000 (K) K3 : TS-2000X (K)
E1 : TS-2000 (E) E2 : TS-B2000 (E) E3 : TS-2000 (E2) E4 : TS-B2000(E2) E5 : TS-2000X (E)

5

TS-2000/B2000/2000X
TS-2000S/2000V/2000SX/2000VX

PARTS LIST

FINAL UNIT (X45-384X-XX)

Ad dress

New

Parts No. Description

parts

Ref. No.

C63 CM73F2H271J CHIP C 270PF J
C64 CM73F2H471J CHIP C 470PF J
C65 CK73FB1E104K CHIP C 0.10UF K
C66 CK73EF1V225Z CHIP C 2.2UF Z
C67 CK73FB1E104K CHIP C 0.10UF K

Desti-
nation

Ref. No.

C239 C90-2021-05 ELECTRO 10UF 25WV
C240 CD04AZ1V102M ELECTRO 1000UF 35WV
C241 CK73FB1H102K CHIP C 1000PF K
C242 CK73FB1E104K CHIP C 0.10UF K
C243 CD04AZ1H100M ELECTRO 10UF 50WV

Ad dress

New

Parts No. Description

parts

Desti-
nation

C68 C93-0555-05 CHIP C 5.0PF C
C69 CK73FB1H102K CHIP C 1000PF K
C70 CK73FB1H103K CHIP C 0.010UF K
C71 ✽ CD04BD1H220M ELECTRO 22UF 50WV
C73 CD04BC1E221M ELECTRO 220UF 25WV

C75 C93-0563-05 CHIP C 18PF J
C76 C93-0555-05 CHIP C 5.0PF C
C79 ✽ CD04BD1V101M ELECTRO 100UF 35WV
C81 CC73GCH1H470J CHIP C 47PF J
C101 C93-0565-05 CHIP C 27PF J

C102 C93-0560-05 CHIP C 10PF D
C103 C93-0562-05 CHIP C 15PF J
C104,105 CC73FCH1H101J CHIP C 100PF J
C106,107 CC73FCH1H220J CHIP C 22PF J
C108,109 CC73FCH1H121J CHIP C 120PF J

C110,111 CK73GB1H104K CHIP C 0.10UF K
C112,113 CK73GB1H471K CHIP C 470PF K
C114-117 CM73F2H820J CHIP C 82PF J
C118 CK73FB1H471K CHIP C 470PF K
C119 CK73FB1H103K CHIP C 0.010UF K

C120 CK73FB1E104K CHIP C 0.10UF K
C121 CK73FB1H471K CHIP C 470PF K
C122 CK73FB1H103K CHIP C 0.010UF K
C123 CK73FB1H102K CHIP C 1000PF K
C124 CK73EF1V225Z CHIP C 2.2UF Z

C125,126 CM73F2H390J CHIP C 39PF J
C127-129 C93-0560-05 CHIP C 10PF D
C130,131 C93-0603-05 CHIP C 1000PF K
C132 CM73F2H200J CHIP C 20PF J
C133 C93-0562-05 CHIP C 15PF J

C244,245 CK73GB1H104K CHIP C 0.10UF K
C246,247 CK73FB1H102K CHIP C 1000PF K
C248 CK73GB1H103K CHIP C 0.010UF K
C249,250 CK73FB1H102K CHIP C 1000PF K
C251,252 CK73GB1H102K CHIP C 1000PF K

C253 CK73GB1H103K CHIP C 0.010UF K
C254,255 CK73GB1H102K CHIP C 1000PF K
C256 CD04AZ1E471M ELECTRO 470UF 25WV
C257 CD04AY1E470M ELECTRO 47UF 25WV
C258,259 CK73FB1H102K CHIP C 1000PF K

C801-804 CK73GB1H104K CHIP C 0.10UF K
C805 CK73FB1H102K CHIP C 1000PF K
C806,807 C91-3115-05 HV CAP 10PF 2KV
C808 CK73FB1E104K CHIP C 0.10UF K
C809,810 CK73FB1H103K CHIP C 0.010UF K

C811-816 C91-3115-05 HV CAP 10PF 2KV
C817-822 CK73FB1H103K CHIP C 0.010UF K
C823-830 C91-3115-05 HV CAP 10PF 2KV
C831-836 CK73FB1H103K CHIP C 0.010UF K
C837,838 C91-3126-05 HV CAP 10PF 3KV

C839-844 CK73FB1H103K CHIP C 0.010UF K
C845,846 C91-3127-05 HV CAP 18PF 3KV
C847-852 CK73FB1H103K CHIP C 0.010UF K
C853-856 C91-3127-05 HV CAP 18PF 3KV
C857-862 CK73FB1H103K CHIP C 0.010UF K

C863-866 C91-3123-05 HV CAP 150PF 3KV
C867-872 CK73FB1H103K CHIP C 0.010UF K
C873,874 C91-3123-05 HV CAP 150PF 3KV
C875-880 CK73FB1H103K CHIP C 0.010UF K
C881,882 C91-3123-05 HV CAP 150PF 3KV

C134,135 CM73F2H101J CHIP C 100PF J
C136 C93-0561-05 CHIP C 12PF J
C201 C91-2691-05 CERAMIC 470PF 250WV
C202 CK73GB1H103K CHIP C 0.010UF K
C204 CK73GB1H103K CHIP C 0.010UF K

C207 CD04AZ1E471M ELECTRO 470UF 25WV
C208 CK73FB1H102K CHIP C 1000PF K
C212 CK73FB1H102K CHIP C 1000PF K
C214 CK73GB1H103K CHIP C 0.010UF K
C217 CK73FB1H102K CHIP C 1000PF K

C219,220 CK73GB1H104K CHIP C 0.10UF K
C223,224 CK73GB1H103K CHIP C 0.010UF K
C225 CD04AZ1E471M ELECTRO 470UF 25WV
C226 CK73GB1H103K CHIP C 0.010UF K
C227 CK73GB1H102K CHIP C 1000PF K

C228 CK73GB1H103K CHIP C 0.010UF K
C229 CD04AZ1H100M ELECTRO 10UF 50WV
C230 CK73FB1E104K CHIP C 0.10UF K
C231 CK73GB1H104K CHIP C 0.10UF K
C232 CK73FB1E104K CHIP C 0.10UF K

C233,234 CK73GB1H104K CHIP C 0.10UF K
C235 CK73GB1H103K CHIP C 0.010UF K
C236 CK73FB1E104K CHIP C 0.10UF K
C237 CK73GB1H104K CHIP C 0.10UF K
C238 CD04AZ1H100M ELECTRO 10UF 50WV

6

C883-886 CK73FB1H103K CHIP C 0.010UF K
C887 C91-3123-05 HV CAP 150PF 3KV
C888,889 CK73FB1H103K CHIP C 0.010UF K
C890 C91-3123-05 HV CAP 150PF 3KV
C901 CC73FCH1H470J CHIP C 47PF J

C902 CC73FCH1H150J CHIP C 15PF J
C903 CD04AY1E470M ELECTRO 47UF 25WV
C904 CK73GB1H471K CHIP C 470PF K
C905,906 CK73GB1H103K CHIP C 0.010UF K
C907 CK73GB1H471K CHIP C 470PF K

C909 CK73GB1H471K CHIP C 470PF K
C912 CK73GB1H471K CHIP C 470PF K
C914 CK73GB1H104K CHIP C 0.10UF K
C915 CC73FCH1H470J CHIP C 47PF J
C916 CK73GB1H103K CHIP C 0.010UF K

C917 CC73GCH1H040B CHIP C 4.0PF B
C918 CC73FCH1H050B CHIP C 5.0PF B
C919 CK73GB1H471K CHIP C 470PF K
C921 CK73FB1H471K CHIP C 470PF K
C922 CK73GB1H103K CHIP C 0.010UF K

C926 CC73FCH1H471J CHIP C 470PF J
C928 CK73FB1E104K CHIP C 0.10UF K
C931,932 CC73FCH1H270J CHIP C 27PF J
C934 CK73GB1H471K CHIP C 470PF K
C936 CM73F2H200J CHIP C 20PF J

J : TS-2000S J1 : TS-2000V J2 : TS-2000SX J3 : TS-2000VX
K1 : TS-2000 (K) K2 : TS-B2000 (K) K3 : TS-2000X (K)
E1 : TS-2000 (E) E2 : TS-B2000 (E) E3 : TS-2000 (E2) E4 : TS-B2000(E2) E5 : TS-2000X (E)

Ref. No.

C938 CK73GB1H103K CHIP C 0.010UF K
C939 CM73F2H180J CHIP C 18PF J
C940 CC73FCH1H471J CHIP C 470PF J
C941 CM73F2H180J CHIP C 18PF J
C942 CK73FB1H103K CHIP C 0.010UF K

Ad dress

New

Parts No. Description

parts

PARTS LIST

Desti-
nation

Ref. No.

CN903,904 E23-1116-05 RELAY TERMINAL
CN905 E04-0190-05 PIN SOCKET
CN906 E23-0486-05 TERMINAL
CN907 E23-1310-05 TEST TERMINAL
W1 E37-0975-25 LEAD WIRE WITH TERMINAL J,J1,J2

TS-2000/B2000/2000X
TS-2000S/2000V/2000SX/2000VX

FINAL UNIT (X45-384X-XX)

Ad dress

New

Parts No. Description

parts

Desti-
nation

C943 C93-0554-05 CHIP C 4.0PF C
C944 CD04AZ1H100M ELECTRO 10UF 50WV
C945 CM73F2H080D CHIP C 8.0PF D
C946 CK73GB1H471K CHIP C 470PF K
C947 CM73F2H130J CHIP C 13PF J

C948 CK73GB1H103K CHIP C 0.010UF K
C949 C93-0557-05 CHIP C 7.0PF D
C950 CM73F2H100D CHIP C 10PF D
C951 C93-0556-05 CHIP C 6.0PF D
C952,953 CK73GB1H471K CHIP C 470PF K

C954 C93-0551-05 CHIP C 1.5PF C
C955 C93-0553-05 CHIP C 3.0PF C
C956 CK73GB1H103K CHIP C 0.010UF K
C958 CK73GB1H104K CHIP C 0.10UF K
C959 CD04AS1E470M ELECTRO 47UF 25WV

C960,961 CM73F2H270J CHIP C 27PF J
C962 CK73GB1H471K CHIP C 470PF K
C963 CK73GB1H103K CHIP C 0.010UF K
C965 CD04AZ1H100M ELECTRO 10UF 50WV
C966 CK73GB1H103K CHIP C 0.010UF K

C967 CK73GB1H471K CHIP C 470PF K
C968 C93-0603-05 CHIP C 1000PF K
C969 CK73GB1H471K CHIP C 470PF K
C970 CK73GB1H103K CHIP C 0.010UF K
C971 CK73GB1H471K CHIP C 470PF K

C973,974 CK73GB1H471K CHIP C 470PF K
C976 CK73GB1H471K CHIP C 470PF K
C978,979 C93-0554-05 CHIP C 4.0PF C
C980 C93-0557-05 CHIP C 7.0PF D
C981 CC73GCH1H471J CHIP C 470PF J

C982 CM73F2H100D CHIP C 10PF D
C985 C93-0553-05 CHIP C 3.0PF C
C987 CM73F2H150J CHIP C 15PF J
C989-991 CC73GCH1H101J CHIP C 100PF J
C993 C93-0556-05 CHIP C 6.0PF D

C994 C93-0555-05 CHIP C 5.0PF C
C995 C93-0566-05 CHIP C 33PF J
C996,997 CC73GCH1H471J CHIP C 470PF J
C998 CM73F2H150J CHIP C 15PF J

CN1,2 E04-0154-05 PIN SOCKET
CN4 E04-0154-05 PIN SOCKET
CN5 E40-6528-05 PIN ASSY
CN8 E40-6525-05 PIN ASSY
CN9 E40-6078-05 FLAT CABLE CONNECTOR

CN10 E40-5764-05 FLAT CABLE CONNECTOR
CN15 E41-1692-05 PIN ASSY
CN16 E41-1690-05 PIN ASSY
CN17 E23-1310-05 TEST TERMINAL
CN22 E41-1682-05 PIN ASSY

CN27 E40-6526-05 PIN ASSY
CN203,204 E23-1116-05 RELAY TERMINAL
CN801,802 E04-0154-05 PIN SOCKET
CN901 E04-0190-05 PIN SOCKET
CN902 E40-5765-05 FLAT CABLE CONNECTOR

J : TS-2000S J1 : TS-2000V J2 : TS-2000SX J3 : TS-2000VX
K1 : TS-2000 (K) K2 : TS-B2000 (K) K3 : TS-2000X (K)
E1 : TS-2000 (E) E2 : TS-B2000 (E) E3 : TS-2000 (E2) E4 : TS-B2000(E2) E5 : TS-2000X (E)

W1 E37-0975-25 LEAD WIRE WITH TERMINAL J3,K1,K2
W1 E37-0975-25 LEAD WIRE WITH TERMINAL K3
W1 ✽ E37-1435-05 LEAD WIRE WITH TERMINAL E1,E2,E3
W1 ✽ E37-1435-05 LEAD WIRE WITH TERMINAL E4,E5

✽ F12-0489-04 CONDUCTIVE SHEET
F1 F53-0328-05 FUSE(5A/32V)
F2 F52-0038-05 FUSE(BLADE )(4A/32V)
F3 F53-0391-05 FUSE(10A/60V)

- G13-2018-04 CUSHION

CN6,7 J13-0410-05 FUSE HOLDER

- L92-0105-05 TROIDAL CORE

- L92-0412-05 TROIDAL CORE E1,E2,E3

- L92-0412-05 TROIDAL CORE E4,E5

- ✽ L92-0475-05 TROIDAL CORE E1,E2,E3

- ✽ L92-0475-05 TROIDAL CORE E4,E5

L1 L41-4705-33 SMALL FIXED INDUCTOR(47UH)
L2 L41-1095-33 SMALL FIXED INDUCTOR(1.0UH)
L3 L39-1450-05 TOROIDAL COIL
L4 L33-0699-05 CHOKE COIL
L5 L41-4705-33 SMALL FIXED INDUCTOR(47UH)

L6,7 L33-0699-05 CHOKE COIL
L8 L39-1450-05 TOROIDAL COIL
L9 L33-0699-05 CHOKE COIL
L10-13 L92-0149-05 CHIP FERRITE
L14 ✽ L39-1434-15 TOROIDAL COIL

L15 L39-1451-05 TOROIDAL COIL
L16 L39-1490-05 TOROIDAL COIL
L19 L33-0625-15 TOROIDAL COIL
L20 L34-1231-15 AIR-CORE COIL
L22 L33-0651-05 CHOKE COIL

L101 L34-1058-05 AIR-CORE COIL
L102 L34-1177-05 AIR-CORE COIL
L103,104 L34-4606-15 AIR-CORE COIL
L105 L34-4652-05 AIR-CORE COIL
L106 L34-4658-05 AIR-CORE COIL

L107 L34-4652-05 AIR-CORE COIL
L108,109 L34-0452-05 AIR-CORE COIL
L110,111 ✽ L34-4655-05 AIR-CORE COIL
L130 ✽ L34-4882-05 AIR-CORE COIL
L201,202 L41-1005-33 SMALL FIXED INDUCTOR(10UH)

L203 L41-4705-33 SMALL FIXED INDUCTOR(47UH)
L204,205 L40-1001-12 SMALL FIXED INDUCTOR
L801 L40-1001-12 SMALL FIXED INDUCTOR
L802-805 L39-1441-05 TOROIDAL COIL
L806,807 L39-1440-05 TOROIDAL COIL

L808-810 L41-4705-33 SMALL FIXED INDUCTOR(47UH)
L811 L34-4633-05 AIR-CORE COIL
L812-814 L41-4705-33 SMALL FIXED INDUCTOR(47UH)
L815 L34-4630-05 AIR-CORE COIL
L816-818 L41-4705-33 SMALL FIXED INDUCTOR(47UH)

L819 L34-4490-05 AIR-CORE COIL
L820-822 L41-4705-33 SMALL FIXED INDUCTOR(47UH)
L823 L34-4490-05 AIR-CORE COIL

7

TS-2000/B2000/2000X
TS-2000S/2000V/2000SX/2000VX

PARTS LIST

FINAL UNIT (X45-384X-XX)

Ad dress

New

Parts No. Description

parts

Ref. No.

L824-826 L41-4705-33 SMALL FIXED INDUCTOR(47UH)
L827 L34-4628-05 AIR-CORE COIL
L828-830 L41-4705-33 SMALL FIXED INDUCTOR(47UH)
L831 L34-4490-05 AIR-CORE COIL
L832-834 L41-4705-33 SMALL FIXED INDUCTOR(47UH)

Desti-
nation

Ref. No.

R22 RK73FB2B000J CHIP R 0.0 J 1/8W
R23 RK73EB2E221J CHIP R 220 J 1/4W
R24 RK73FB2B100J CHIP R 10 J 1/8W E2,E3,E4
R24 RK73FB2B100J CHIP R 10 J 1/8W E5
R24 RK73FB2B100J CHIP R 10 J 1/8W J,J2,K1

Ad dress

New

Parts No. Description

parts

Desti-
nation

L835 L34-4490-05 AIR-CORE COIL
L836-838 L41-4705-33 SMALL FIXED INDUCTOR(47UH)
L840 L41-2275-33 SMALL FIXED INDUCTOR(0.022UH)
L901 L41-1085-33 SMALL FIXED INDUCTOR(0.1UH)
L903 L41-3375-33 SMALL FIXED INDUCTOR(0.033UH)

L905 L40-1075-92 SMALL FIXED INDUCTOR(10NH)
L907 L40-1085-92 SMALL FIXED INDUCTOR(100NH)
L908 L92-0443-05 CHIP FERRITE
L909,910 ✽ L34-4655-05 AIR-CORE COIL
L912 L34-1239-05 AIR-CORE COIL

L913 L34-1231-15 AIR-CORE COIL
L914 L34-1239-05 AIR-CORE COIL
L915 L34-1232-15 AIR-CORE COIL
L916 L34-4811-05 AIR-CORE COIL
L918,919 L34-4811-05 AIR-CORE COIL

L922,923 L34-4811-05 AIR-CORE COIL
L924 L34-1239-05 AIR-CORE COIL
L927-930 L41-1085-33 SMALL FIXED INDUCTOR(0.1UH)
L932 L34-4811-05 AIR-CORE COIL

R1 RK73GB2A150J CHIP R 15 J 1/10W
R2 RK73GB2A220J CHIP R 22 J 1/10W E2,E3,E4
R2 RK73GB2A220J CHIP R 22 J 1/10W E5
R2 RK73GB2A220J CHIP R 22 J 1/10W J,J2,K1
R2 RK73GB2A220J CHIP R 22 J 1/10W K2,K3,E1

R2 RK73GB2A270J CHIP R 27 J 1/10W J1,J3
R3 RK73GB2A820J CHIP R 82 J 1/10W
R4 RK73GB2A150J CHIP R 15 J 1/10W
R5 RK73GB2A100J CHIP R 10 J 1/10W E2,E3,E4
R5 RK73GB2A100J CHIP R 10 J 1/10W E5

R5 RK73GB2A100J CHIP R 10 J 1/10W J,J2,K1
R5 RK73GB2A100J CHIP R 10 J 1/10W K2,K3,E1
R5 RK73GB2A270J CHIP R 27 J 1/10W J1,J3
R6 RK73GB2A390J CHIP R 39 J 1/10W E2,E3,E4
R6 RK73GB2A390J CHIP R 39 J 1/10W E5

R6 RK73GB2A390J CHIP R 39 J 1/10W J,J2,K1
R6 RK73GB2A390J CHIP R 39 J 1/10W K2,K3,E1
R6,7 RK73GB2A330J CHIP R 33 J 1/10W J1,J3
R7 RK73GB2A100J CHIP R 10 J 1/10W E2,E3,E4
R7 RK73GB2A100J CHIP R 10 J 1/10W E5

R7 RK73GB2A100J CHIP R 10 J 1/10W J,J2,K1
R7 RK73GB2A100J CHIP R 10 J 1/10W K2,K3,E1
R8 RK73GB2A102J CHIP R 1.0K J 1/10W
R9 RK73GB2A152J CHIP R 1.5K J 1/10W
R10 RK73GB2A471J CHIP R 470 J 1/10W

R11 RK73GB2A270J CHIP R 27 J 1/10W
R12 RK73GB2A392J CHIP R 3.9K J 1/10W
R13 RK73GB2A100J CHIP R 10 J 1/10W
R14,15 RK73FB2B220J CHIP R 22 J 1/8W
R16 RK73GB2A221J CHIP R 220 J 1/10W

R17 RK73GB2A2R2J CHIP R 2.2 J 1/10W
R18 RK73FB2B220J CHIP R 22 J 1/8W
R19 RK73GB2A102J CHIP R 1.0K J 1/10W
R20 RK73GB2A331J CHIP R 330 J 1/10W
R21 RK73GB2A472J CHIP R 4.7K J 1/10W

8

J : TS-2000S J1 : TS-2000V J2 : TS-2000SX J3 : TS-2000VX
K1 : TS-2000 (K) K2 : TS-B2000 (K) K3 : TS-2000X (K)
E1 : TS-2000 (E) E2 : TS-B2000 (E) E3 : TS-2000 (E2) E4 : TS-B2000(E2) E5 : TS-2000X (E)

R24 RK73FB2B100J CHIP R 10 J 1/8W K2,K3,E1
R25 RK73FB2B102J CHIP R 1.0K J 1/8W
R26 RK73PB2H100J CHIP R 10 J 1/2W
R29 RK73GB2A472J CHIP R 4.7K J 1/10W
R30 ✽ RK73SB3A151J CHIP R 150 J 1W

R31 RK73EB2E1R0J CHIP R 1.0 J 1/4W
R34,35 RK73FB2B152J CHIP R 1.5K J 1/8W
R36,37 R92-1279-05 CHIP R 33 J 1W
R38 ✽ RK73SB3A470J CHIP R 47 J 1W
R39,40 R92-1279-05 CHIP R 33 J 1W

R42 ✽ RK73SB3A470J CHIP R 47 J 1W
R43,44 RK73FB2B472J CHIP R 4.7K J 1/8W
R46-51 RK73EB2E1R0J CHIP R 1.0 J 1/4W
R52 ✽ RK73SB3A4R7J CHIP R 4.7 J 1W
R53,54 RK73FB2B102J CHIP R 1.0K J 1/8W

R58 ✽ RK73PB2H4R7J CHIP R 4.7 J 1/2W
R101,102 RK73GB2A331J CHIP R 330 J 1/10W
R103,104 RK73GB2A152J CHIP R 1.5K J 1/10W
R105,106 RK73FB2B221J CHIP R 220 J 1/8W
R107 RS14DB3F101J FL-PROOF RS 100 J 3W

R108,109 R92-1061-05 JUMPER REST 0 OHM
R110 RK73GB2A000J CHIP R 0.0 J 1/10W
R201 RK73PB2H2R2J CHIP R 2.2 J 1/2W
R202 RK73GB2A472J CHIP R 4.7K J 1/10W
R203 RK73RB2H180J CHIP R 18 J 1/2W

R204 RK73GB2A472J CHIP R 4.7K J 1/10W
R205 RK73GB2A751J CHIP R 750 J 1/10W
R206 RK73GB2A223J CHIP R 22K J 1/10W
R207 RK73GB2A103J CHIP R 10K J 1/10W
R208 RK73GB2A102J CHIP R 1.0K J 1/10W

R209 RK73GB2A333J CHIP R 33K J 1/10W
R211-214 RK73FB2B101J CHIP R 100 J 1/8W
R215 RK73RB2H2R2J CHIP R 2.2 J 1/2W
R216 RK73GB2A473J CHIP R 47K J 1/10W
R217 RK73GB2A562J CHIP R 5.6K J 1/10W

R905 RK73FB2B4R7J CHIP R 4.7 J 1/8W
R907 ✽ RK73FB2B3R9J CHIP R 3.9 J 1/8W
R910 RK73FB2B471J CHIP R 470 J 1/8W
R911 ✽ R92-3625-05 CHIP R 0.1 J 1/3W
R912 RK73FB2B180J CHIP R 18 J 1/8W

R913 R92-1318-05 CHIP R 100 J 1W
R914 RK73RB2H151J CHIP R 150 J 1/2W
R915 RK73GB2A121J CHIP R 120 J 1/10W
R916 RK73GB2A471J CHIP R 470 J 1/10W E2,E3,E4
R916 RK73GB2A471J CHIP R 470 J 1/10W E5

R916 RK73GB2A471J CHIP R 470 J 1/10W J,J2,K1
R916 RK73GB2A471J CHIP R 470 J 1/10W K2,K3,E1
R916,917 RK73GB2A101J CHIP R 100 J 1/10W J1,J3
R917 RK73GB2A101J CHIP R 100 J 1/10W E2,E3,E4
R917 RK73GB2A101J CHIP R 100 J 1/10W E5

R917 RK73GB2A101J CHIP R 100 J 1/10W J,J2,K1
R917 RK73GB2A101J CHIP R 100 J 1/10W K2,K3,E1
R918 RK73GB2A121J CHIP R 120 J 1/10W
R919 RK73GB2A272J CHIP R 2.7K J 1/10W E2,E3,E4
R919 RK73GB2A272J CHIP R 2.7K J 1/10W E5

PARTS LIST

Ref. No.

R919 RK73GB2A272J CHIP R 2.7K J 1/10W J,J2,K1
R919 RK73GB2A272J CHIP R 2.7K J 1/10W K2,K3,E1
R919 RK73GB2A473J CHIP R 47K J 1/10W J1,J3
R920 RK73GB2A104J CHIP R 100K J 1/10W E2,E3,E4
R920 RK73GB2A104J CHIP R 100K J 1/10W E5

Ad dress

New

Parts No. Description

parts

Desti-
nation

TS-2000/B2000/2000X
TS-2000S/2000V/2000SX/2000VX

FINAL UNIT (X45-384X-XX)

FILTER UNIT (X51-3180-XX)

Ref. No.

IC801-803 UPD6345GS-A MOS-IC
Q1 DTB143EK DIGITAL TRANSISTOR
Q2 KRC102S-P DIGITAL TRANSISTOR
Q3 2SK2596-E FET
Q4 KRC102S-P DIGITAL TRANSISTOR

Ad dress

New

Parts No. Description

parts

Desti-
nation

R920 RK73GB2A104J CHIP R 100K J 1/10W J,J2,K1
R920 RK73GB2A104J CHIP R 100K J 1/10W K2,K3,E1
R920 RK73GB2A563J CHIP R 56K J 1/10W J1,J3
R921 RK73GB2A333J CHIP R 33K J 1/10W J1,J3
R921 RK73GB2A683J CHIP R 68K J 1/10W E2,E3,E4

R921 RK73GB2A683J CHIP R 68K J 1/10W E5
R921 RK73GB2A683J CHIP R 68K J 1/10W J,J2,K1
R921 RK73GB2A683J CHIP R 68K J 1/10W K2,K3,E1
R922 RK73GB2A563J CHIP R 56K J 1/10W
R923,924 RK73GB2A473J CHIP R 47K J 1/10W

R925 RK73FB2B220J CHIP R 22 J 1/8W E2,E3,E4
R925 RK73FB2B220J CHIP R 22 J 1/8W E5
R925 RK73FB2B220J CHIP R 22 J 1/8W J,J2,K1
R925 RK73FB2B220J CHIP R 22 J 1/8W K2,K3,E1
R925 RK73FB2B270J CHIP R 27 J 1/8W J1,J3

R927 RK73FB2B470J CHIP R 47 J 1/8W J1,J3
R928-930 RK73GB2A222J CHIP R 2.2K J 1/10W
VR1-4 R12-6740-05 TRIMMING POT.(10K)
VR101,102 R12-6740-05 TRIMMING POT.(10K)
VR901,902 R12-6740-05 TRIMMING POT.(10K)

K801,802 S76-0460-05 RELAY
K803 S76-0415-05 RELAY
K804,805 S76-0460-05 RELAY
K806 S76-0415-05 RELAY
K807,808 S76-0460-05 RELAY

K809 S76-0415-05 RELAY
K810,811 S76-0460-05 RELAY
K812 S76-0415-05 RELAY
K813,814 S76-0460-05 RELAY
K815 S76-0415-05 RELAY

K816,817 S76-0460-05 RELAY
K818 S76-0415-05 RELAY
K819,820 S76-0460-05 RELAY
K821 S76-0415-05 RELAY
K822,823 S76-0460-05 RELAY

K824 S76-0415-05 RELAY

D1 DAN235E DIODE
D2,3 DAN202U DIODE
D201 Z5W27V SURGE ABSORBER
D202 1SS355 DIODE
D203 02CZ16(Y)F ZENER DIODE

D204 1SS355 DIODE
D205-208 DAP202U DIODE
D801-824 1SS355 DIODE
D901 DAN202U DIODE
D904,905 MA3J742 DIODE

D906 MA4PH633 DIODE
D908 L7091CER DIODE
D909 HVU131-E DIODE

IC201 TA7808FQ ANALOGUE IC
IC202 KIA7808API MOS-IC
IC203 TA7805FQ MOS-IC
IC204 BA10T MOS-IC
IC205 BU2099FV MOS-IC

J : TS-2000S J1 : TS-2000V J2 : TS-2000SX J3 : TS-2000VX
K1 : TS-2000 (K) K2 : TS-B2000 (K) K3 : TS-2000X (K)
E1 : TS-2000 (E) E2 : TS-B2000 (E) E3 : TS-2000 (E2) E4 : TS-B2000(E2) E5 : TS-2000X (E)

Q5 ✽ RD06HHF1-102 FET
Q6 ✽ RD16HHF1-102 FET
Q7,8 RD100HHF1-102 FET
Q101,102 RD70HVF1-101 FET
Q201,202 DTD123EK DIGITAL TRANSISTOR

Q203,204 KRC102S-P DIGITAL TRANSISTOR
Q205-208 DTB143EK DIGITAL TRANSISTOR
Q209 KRC102S-P DIGITAL TRANSISTOR
Q210 IMD2A TRANSISTOR
Q211 DTB143EK DIGITAL TRANSISTOR

Q212 SI7445DP-E3 FET
Q213-215 DTB143EK DIGITAL TRANSISTOR
Q216,217 DTA143EKA DIGITAL TRANSISTOR
Q218 IMD2A TRANSISTOR
Q219 DTB143EK DIGITAL TRANSISTOR

Q220,221 2SK1830F FET
Q901 ✽ NESG260234 TRANSISTOR
Q903 ✽ PD55015S-E FET
Q905 RD60HUF1-101 FET
TH1 NCP18XW153J0S THERMISTOR

TH101 NCP18XW153J0S THERMISTOR
TH901 NCP18XW153J0S THERMISTOR

C2 CK73FB1H102K CHIP C 1000PF K
C3,4 CK73GB1H103K CHIP C 0.010UF K
C6 C93-0554-05 CHIP C 4.0PF C
C7 CC73FCH1H470J CHIP C 47PF J
C9-14 CK73GB1H103K CHIP C 0.010UF K

C15 CK73GB1H102K CHIP C 1000PF K
C16 C93-0553-05 CHIP C 3.0PF C
C17 CC73FCH1H560J CHIP C 56PF J
C18,19 CK73GB1H103K CHIP C 0.010UF K
C20 CK73FB1H102K CHIP C 1000PF K

C22 CD04AY1E470M ELECTRO 47UF 25WV
C23,24 CK73GB1H103K CHIP C 0.010UF K
C25-27 CK73FB1H103K CHIP C 0.010UF K
C28,29 CC73GCH1H470J CHIP C 47PF J
C31 CC73FCH1H050B CHIP C 5.0PF B

C201 CM73F2H102J CHIP C 1000PF J
C202 CM73F2H561J CHIP C 560PF J
C203 CM73F2H102J CHIP C 1000PF J
C204 CM73F2H821J CHIP C 820PF J
C205 C93-0573-05 CHIP C 120PF J

C206 CM73F2H102J CHIP C 1000PF J
C207 CK73FB1H103K CHIP C 0.010UF K
C208,209 C93-0570-05 CHIP C 68PF J
C251 CM73F2H561J CHIP C 560PF J
C252 C93-0570-05 CHIP C 68PF J

C253 CM73F2H102J CHIP C 1000PF J
C255 C93-0573-05 CHIP C 120PF J

FILTER UNIT (X51-3180-XX)

00 : J,J2,K,K2,K3,E1,E2,E3,E4,E5 01 : J1,J3

If a part reference number is listed in a shaded box,
that part does not come with the PCB.

9

TS-2000/B2000/2000X
TS-2000S/2000V/2000SX/2000VX

PARTS LIST

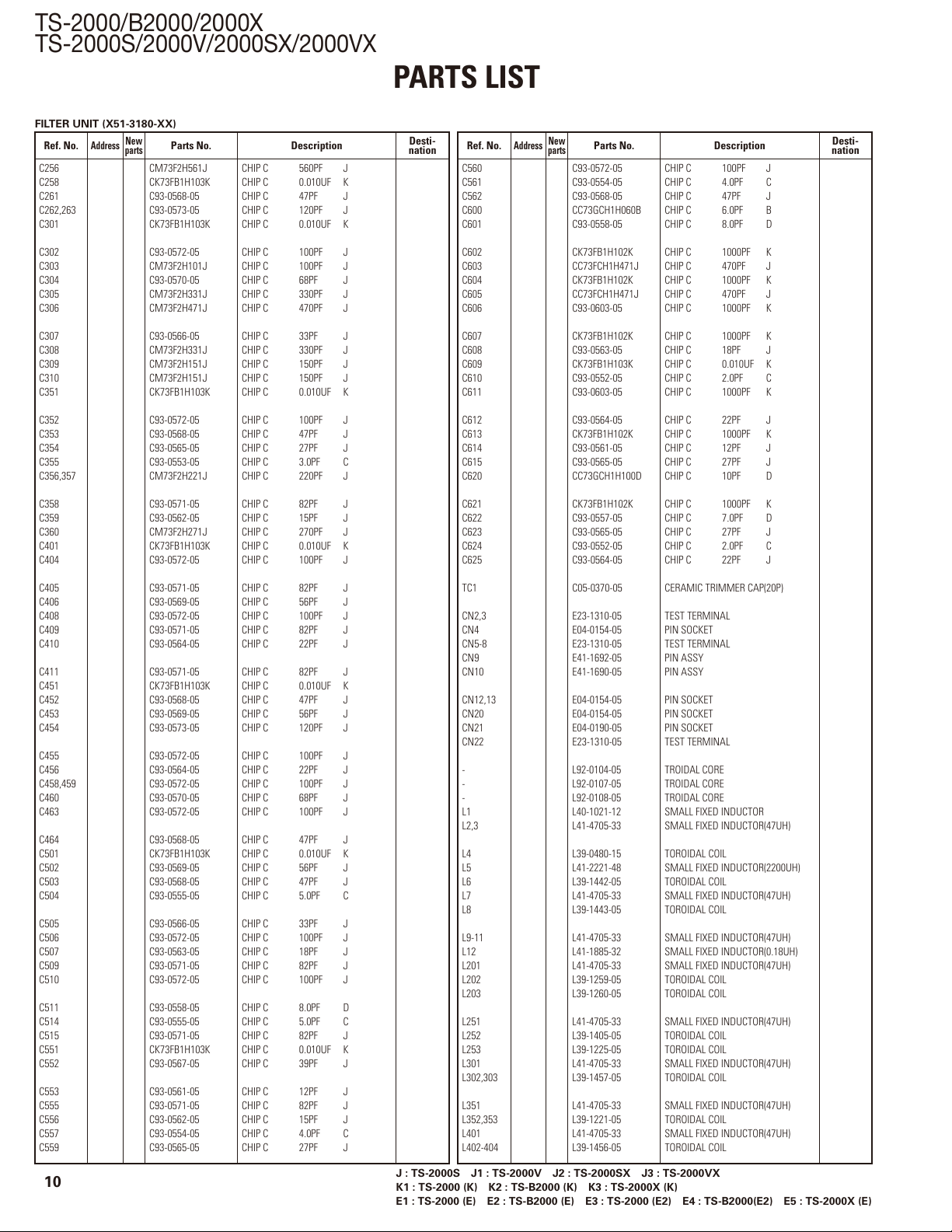

FILTER UNIT (X51-3180-XX)

Ad dress

New

Parts No. Description

parts

Ref. No.

C256 CM73F2H561J CHIP C 560PF J
C258 CK73FB1H103K CHIP C 0.010UF K
C261 C93-0568-05 CHIP C 47PF J
C262,263 C93-0573-05 CHIP C 120PF J
C301 CK73FB1H103K CHIP C 0.010UF K

Desti-
nation

Ref. No.

C560 C93-0572-05 CHIP C 100PF J
C561 C93-0554-05 CHIP C 4.0PF C
C562 C93-0568-05 CHIP C 47PF J
C600 CC73GCH1H060B CHIP C 6.0PF B
C601 C93-0558-05 CHIP C 8.0PF D

Ad dress

New

Parts No. Description

parts

Desti-
nation

C302 C93-0572-05 CHIP C 100PF J
C303 CM73F2H101J CHIP C 100PF J
C304 C93-0570-05 CHIP C 68PF J
C305 CM73F2H331J CHIP C 330PF J
C306 CM73F2H471J CHIP C 470PF J

C307 C93-0566-05 CHIP C 33PF J
C308 CM73F2H331J CHIP C 330PF J
C309 CM73F2H151J CHIP C 150PF J
C310 CM73F2H151J CHIP C 150PF J
C351 CK73FB1H103K CHIP C 0.010UF K

C352 C93-0572-05 CHIP C 100PF J
C353 C93-0568-05 CHIP C 47PF J
C354 C93-0565-05 CHIP C 27PF J
C355 C93-0553-05 CHIP C 3.0PF C
C356,357 CM73F2H221J CHIP C 220PF J

C358 C93-0571-05 CHIP C 82PF J
C359 C93-0562-05 CHIP C 15PF J
C360 CM73F2H271J CHIP C 270PF J
C401 CK73FB1H103K CHIP C 0.010UF K
C404 C93-0572-05 CHIP C 100PF J

C405 C93-0571-05 CHIP C 82PF J
C406 C93-0569-05 CHIP C 56PF J
C408 C93-0572-05 CHIP C 100PF J
C409 C93-0571-05 CHIP C 82PF J
C410 C93-0564-05 CHIP C 22PF J

C411 C93-0571-05 CHIP C 82PF J
C451 CK73FB1H103K CHIP C 0.010UF K
C452 C93-0568-05 CHIP C 47PF J
C453 C93-0569-05 CHIP C 56PF J
C454 C93-0573-05 CHIP C 120PF J

C455 C93-0572-05 CHIP C 100PF J
C456 C93-0564-05 CHIP C 22PF J
C458,459 C93-0572-05 CHIP C 100PF J
C460 C93-0570-05 CHIP C 68PF J
C463 C93-0572-05 CHIP C 100PF J

C464 C93-0568-05 CHIP C 47PF J
C501 CK73FB1H103K CHIP C 0.010UF K
C502 C93-0569-05 CHIP C 56PF J
C503 C93-0568-05 CHIP C 47PF J
C504 C93-0555-05 CHIP C 5.0PF C

C505 C93-0566-05 CHIP C 33PF J
C506 C93-0572-05 CHIP C 100PF J
C507 C93-0563-05 CHIP C 18PF J
C509 C93-0571-05 CHIP C 82PF J
C510 C93-0572-05 CHIP C 100PF J

C511 C93-0558-05 CHIP C 8.0PF D
C514 C93-0555-05 CHIP C 5.0PF C
C515 C93-0571-05 CHIP C 82PF J
C551 CK73FB1H103K CHIP C 0.010UF K
C552 C93-0567-05 CHIP C 39PF J

C553 C93-0561-05 CHIP C 12PF J
C555 C93-0571-05 CHIP C 82PF J
C556 C93-0562-05 CHIP C 15PF J
C557 C93-0554-05 CHIP C 4.0PF C
C559 C93-0565-05 CHIP C 27PF J

10

C602 CK73FB1H102K CHIP C 1000PF K
C603 CC73FCH1H471J CHIP C 470PF J
C604 CK73FB1H102K CHIP C 1000PF K
C605 CC73FCH1H471J CHIP C 470PF J
C606 C93-0603-05 CHIP C 1000PF K

C607 CK73FB1H102K CHIP C 1000PF K
C608 C93-0563-05 CHIP C 18PF J
C609 CK73FB1H103K CHIP C 0.010UF K
C610 C93-0552-05 CHIP C 2.0PF C
C611 C93-0603-05 CHIP C 1000PF K

C612 C93-0564-05 CHIP C 22PF J
C613 CK73FB1H102K CHIP C 1000PF K
C614 C93-0561-05 CHIP C 12PF J
C615 C93-0565-05 CHIP C 27PF J
C620 CC73GCH1H100D CHIP C 10PF D

C621 CK73FB1H102K CHIP C 1000PF K
C622 C93-0557-05 CHIP C 7.0PF D
C623 C93-0565-05 CHIP C 27PF J
C624 C93-0552-05 CHIP C 2.0PF C
C625 C93-0564-05 CHIP C 22PF J

TC1 C05-0370-05 CERAMIC TRIMMER CAP(20P)

CN2,3 E23-1310-05 TEST TERMINAL
CN4 E04-0154-05 PIN SOCKET
CN5-8 E23-1310-05 TEST TERMINAL
CN9 E41-1692-05 PIN ASSY
CN10 E41-1690-05 PIN ASSY

CN12,13 E04-0154-05 PIN SOCKET
CN20 E04-0154-05 PIN SOCKET
CN21 E04-0190-05 PIN SOCKET
CN22 E23-1310-05 TEST TERMINAL

- L92-0104-05 TROIDAL CORE

- L92-0107-05 TROIDAL CORE

- L92-0108-05 TROIDAL CORE
L1 L40-1021-12 SMALL FIXED INDUCTOR
L2,3 L41-4705-33 SMALL FIXED INDUCTOR(47UH)

L4 L39-0480-15 TOROIDAL COIL
L5 L41-2221-48 SMALL FIXED INDUCTOR(2200UH)
L6 L39-1442-05 TOROIDAL COIL
L7 L41-4705-33 SMALL FIXED INDUCTOR(47UH)
L8 L39-1443-05 TOROIDAL COIL

L9-11 L41-4705-33 SMALL FIXED INDUCTOR(47UH)
L12 L41-1885-32 SMALL FIXED INDUCTOR(0.18UH)
L201 L41-4705-33 SMALL FIXED INDUCTOR(47UH)
L202 L39-1259-05 TOROIDAL COIL
L203 L39-1260-05 TOROIDAL COIL

L251 L41-4705-33 SMALL FIXED INDUCTOR(47UH)
L252 L39-1405-05 TOROIDAL COIL
L253 L39-1225-05 TOROIDAL COIL
L301 L41-4705-33 SMALL FIXED INDUCTOR(47UH)
L302,303 L39-1457-05 TOROIDAL COIL

L351 L41-4705-33 SMALL FIXED INDUCTOR(47UH)
L352,353 L39-1221-05 TOROIDAL COIL
L401 L41-4705-33 SMALL FIXED INDUCTOR(47UH)
L402-404 L39-1456-05 TOROIDAL COIL

J : TS-2000S J1 : TS-2000V J2 : TS-2000SX J3 : TS-2000VX
K1 : TS-2000 (K) K2 : TS-B2000 (K) K3 : TS-2000X (K)
E1 : TS-2000 (E) E2 : TS-B2000 (E) E3 : TS-2000 (E2) E4 : TS-B2000(E2) E5 : TS-2000X (E)

PARTS LIST

Ref. No.

L451 L41-4705-33 SMALL FIXED INDUCTOR(47UH)
L452 ✽ L39-1519-05 TOROIDAL COIL
L453,454 L34-1279-05 AIR-CORE COIL
L501 L41-4705-33 SMALL FIXED INDUCTOR(47UH)
L502 L34-4661-05 AIR-CORE COIL

L503 L34-1281-05 AIR-CORE COIL
L551 L41-4705-33 SMALL FIXED INDUCTOR(47UH)
L552 L34-1359-05 AIR-CORE COIL
L553,554 L34-4662-05 AIR-CORE COIL
L601,602 L41-1095-33 SMALL FIXED INDUCTOR(1.0UH)

L603 L34-1239-05 AIR-CORE COIL
L604-606 ✽ L34-4882-05 AIR-CORE COIL
L608 L41-3378-03 SMALL FIXED INDUCTOR(33NH)
L609 L34-1088-05 AIR-CORE COIL

R1,2 RK73GB2A102J CHIP R 1.0K J 1/10W
R3,4 RK73FB2B101J CHIP R 100 J 1/8W
R5 RK73FB2B100J CHIP R 10 J 1/8W
R6,7 RK73GB2A104J CHIP R 100K J 1/10W
R8,9 RK73GB2A103J CHIP R 10K J 1/10W

R10,11 RK73GB2A152J CHIP R 1.5K J 1/10W
R12,13 RK73GB2A102J CHIP R 1.0K J 1/10W
R14,15 RK73RB2H330J CHIP R 33 J 1/2W
R16,17 RK73GB2A105J CHIP R 1.0M J 1/10W
R18 RK73FB2B333J CHIP R 33K J 1/8W E2,E3,E4

Ad dress

New

Parts No. Description

parts

Desti-
nation

TS-2000/B2000/2000X
TS-2000S/2000V/2000SX/2000VX

Ref. No.

K451,452 S76-0423-05 RELAY
K501,502 S51-1420-05 RELAY
K551,552 S51-1420-05 RELAY

D1,2 HSM88AS-E DIODE
D3,4 1SS348-F DIODE
D5-7 1SS355 DIODE
D8,9 DSA301LA DIODE
D201 1SS355 DIODE

D251 1SS355 DIODE
D301 1SS355 DIODE
D351 1SS355 DIODE
D401 1SS355 DIODE
D451 1SS355 DIODE

D501 1SS355 DIODE
D551 1SS355 DIODE
D601,602 MA3J742 DIODE
D603,604 L407CDB DIODE(50V/1W)
D605 MA4PH633 DIODE

D606,607 HVU131-E DIODE

IC1,2 TC7SU04FU-F MOS-IC
IC3 TA75S393F-F MOS-IC
IC4 TC7WH74FU-F MOS-IC
Q1,2 2SK208-F(GR) FET

Ad dress

New

Parts No. Description

parts

FILTER UNIT (X51-3180-XX)

TX-RX 1 UNIT (X57-605X-XX)

Desti-
nation

R18 RK73FB2B333J CHIP R 33K J 1/8W E5
R18 RK73FB2B333J CHIP R 33K J 1/8W J,J2,K1
R18 RK73FB2B333J CHIP R 33K J 1/8W K2,K3,E1
R18 RK73FB2B472J CHIP R 4.7K J 1/8W J1,J3
R19 RK73GB2A103J CHIP R 10K J 1/10W

R20 RK73FB2B101J CHIP R 100 J 1/8W
R21 R92-1316-05 CHIP R 39 J 1W
R22 RK73GB2A103J CHIP R 10K J 1/10W
R23,24 RK73FB2B101J CHIP R 100 J 1/8W
R25-28 RK73FB2B104J CHIP R 100K J 1/8W

R29 RK73GB2A274J CHIP R 270K J 1/10W
R451 RK73FB2B000J CHIP R 0.0 J 1/8W
R601 RK73FB2B680J CHIP R 68 J 1/8W
R602 RK73FB2B471J CHIP R 470 J 1/8W J1,J3
R602 RK73FB2B821J CHIP R 820 J 1/8W E2,E3,E4

R602 RK73FB2B821J CHIP R 820 J 1/8W E5
R602 RK73FB2B821J CHIP R 820 J 1/8W J,J2,K1
R602 RK73FB2B821J CHIP R 820 J 1/8W K2,K3,E1
R603 RK73FB2B681J CHIP R 680 J 1/8W
R604 RK73FB2B101J CHIP R 100 J 1/8W J1,J3

R604 RK73FB2B680J CHIP R 68 J 1/8W E2,E3,E4
R604 RK73FB2B680J CHIP R 68 J 1/8W E5
R604 RK73FB2B680J CHIP R 68 J 1/8W J,J2,K1
R604 RK73FB2B680J CHIP R 68 J 1/8W K2,K3,E1
R605 RS14DB3F820J FL-PROOF RS 82 J 3W

R610 RK73EB2E000J CHIP R 0.0 J 1/4W
VR1 R12-6730-05 TRIMMING POT.(220)
VR2 R12-6742-05 TRIMMING POT.(22K)

TX-RX 1 UNIT (X57-605X-XX) 0-00 : J,J2 0-01 : J1,J3

0-11 : K1,K3 0-12 : K2 2-71 : E1,E3,E5 2-72 : E2,E4

D953,954 B30-2217-05 LED(Y) E1,E3,E5
D953,954 B30-2217-05 LED(Y) J,J1,J2
D953,954 B30-2217-05 LED(Y) J3,K1,K3
D955 B30-2167-05 LED(GR) E1,E3,E5
D955 B30-2167-05 LED(GR) J,J1,J2

D955 B30-2167-05 LED(GR) J3,K1,K3
D956 B30-2218-05 LED(OR) E1,E3,E5
D956 B30-2218-05 LED(OR) J,J1,J2
D956 B30-2218-05 LED(OR) J3,K1,K3
D957 B30-2140-05 LED(Y) E1,E3,E5

D957 B30-2140-05 LED(Y) J,J1,J2
D957 B30-2140-05 LED(Y) J3,K1,K3
D958 B30-2168-05 LED(RED) K2,E2,E4

C950,951 CK73GB1H103K CHIP C 0.010UF K
C952-955 CK73EF1C105Z CHIP C 1.0UF Z E1,E3,E5
C952-955 CK73EF1C105Z CHIP C 1.0UF Z J,J1,J2
C952-955 CK73EF1C105Z CHIP C 1.0UF Z J3,K1,K3
C956-959 CK73GB1H103K CHIP C 0.010UF K

C962-965 CK73EF1C105Z CHIP C 1.0UF Z K2,E2,E4
C966 CK73GB1C104K CHIP C 0.10UF K K2,E2,E4
C967-969 CK73FB1C105K CHIP C 1.0UF K K2,E2,E4
C970 ✽ CD04AY1A101M ELECTRO 100UF 10WV
C971 CK73GB1A474K CHIP C 0.47UF K E1,E2,E3

K1 S51-1429-05 RELAY
K2,3 S76-0424-05 RELAY
K201,202 S76-0423-05 RELAY
K251,252 S76-0423-05 RELAY
K301,302 S76-0423-05 RELAY

K351,352 S76-0423-05 RELAY
K401,402 S76-0423-05 RELAY

J : TS-2000S J1 : TS-2000V J2 : TS-2000SX J3 : TS-2000VX
K1 : TS-2000 (K) K2 : TS-B2000 (K) K3 : TS-2000X (K)
E1 : TS-2000 (E) E2 : TS-B2000 (E) E3 : TS-2000 (E2) E4 : TS-B2000(E2) E5 : TS-2000X (E)

C971 CK73GB1A474K CHIP C 0.47UF K E4,E5
C972 CK73FB1C105K CHIP C 1.0UF K K2,E2,E4

CN950 E41-1686-05 PIN ASSY E1,E3,E5
CN950 E41-1686-05 PIN ASSY J,J1,J2
CN950 E41-1686-05 PIN ASSY J3,K1,K3
CN951 E41-1687-05 PIN ASSY
CN952 E40-6074-05 FLAT CABLE CONNECTOR E1,E3,E5

11

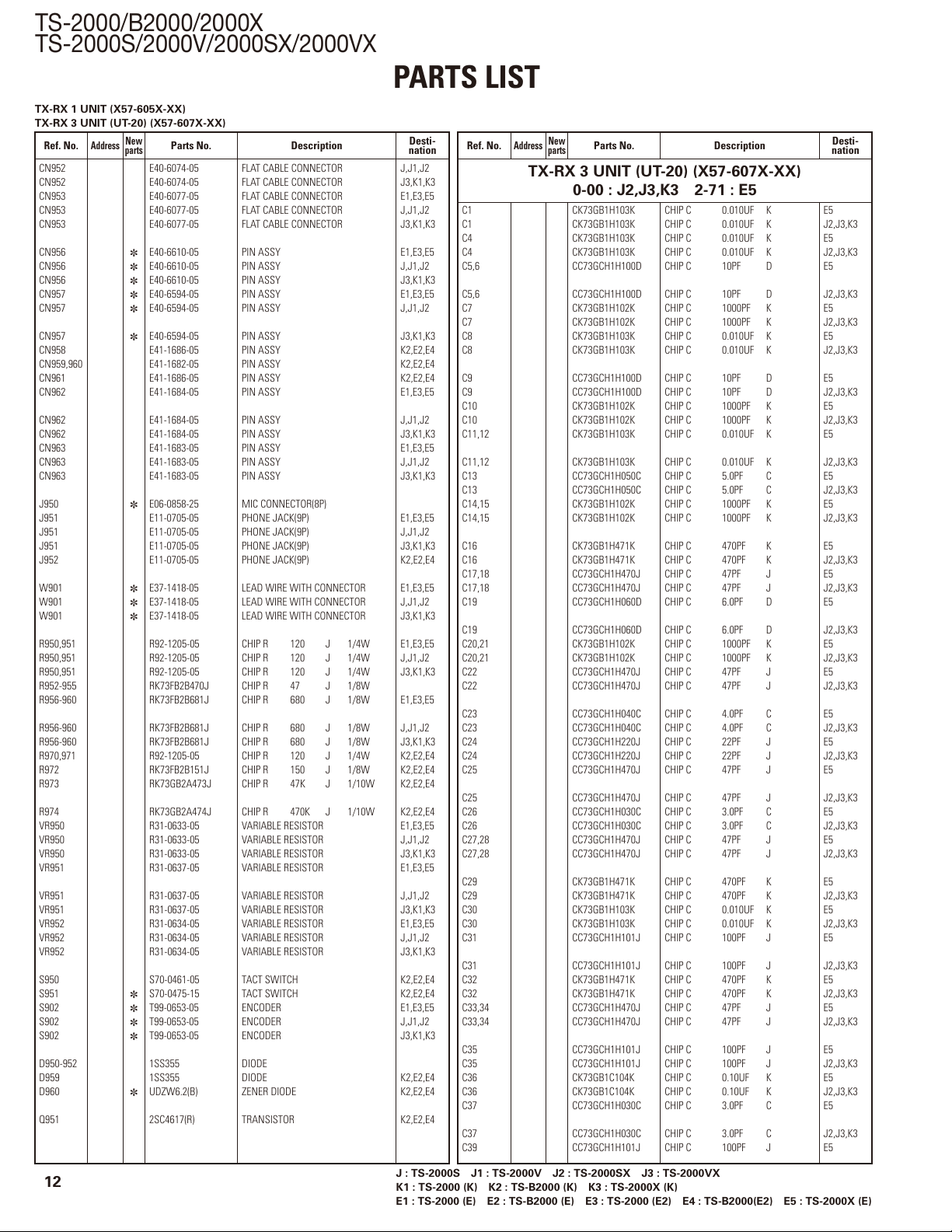

TS-2000/B2000/2000X
TS-2000S/2000V/2000SX/2000VX

PARTS LIST

TX-RX 1 UNIT (X57-605X-XX)
TX-RX 3 UNIT (UT-20) (X57-607X-XX)

Ad dress

New

Parts No. Description

parts

Ref. No.

CN952 E40-6074-05 FLAT CABLE CONNECTOR J,J1,J2
CN952 E40-6074-05 FLAT CABLE CONNECTOR J3,K1,K3
CN953 E40-6077-05 FLAT CABLE CONNECTOR E1,E3,E5
CN953 E40-6077-05 FLAT CABLE CONNECTOR J,J1,J2
CN953 E40-6077-05 FLAT CABLE CONNECTOR J3,K1,K3

CN956 ✽ E40-6610-05 PIN ASSY E1,E3,E5
CN956 ✽ E40-6610-05 PIN ASSY J,J1,J2
CN956 ✽ E40-6610-05 PIN ASSY J3,K1,K3
CN957 ✽ E40-6594-05 PIN ASSY E1,E3,E5
CN957 ✽ E40-6594-05 PIN ASSY J,J1,J2

CN957 ✽ E40-6594-05 PIN ASSY J3,K1,K3
CN958 E41-1686-05 PIN ASSY K2,E2,E4
CN959,960 E41-1682-05 PIN ASSY K2,E2,E4
CN961 E41-1686-05 PIN ASSY K2,E2,E4
CN962 E41-1684-05 PIN ASSY E1,E3,E5

CN962 E41-1684-05 PIN ASSY J,J1,J2
CN962 E41-1684-05 PIN ASSY J3,K1,K3
CN963 E41-1683-05 PIN ASSY E1,E3,E5
CN963 E41-1683-05 PIN ASSY J,J1,J2
CN963 E41-1683-05 PIN ASSY J3,K1,K3

J950 ✽ E06-0858-25 MIC CONNECTOR(8P)
J951 E11-0705-05 PHONE JACK(9P) E1,E3,E5
J951 E11-0705-05 PHONE JACK(9P) J,J1,J2
J951 E11-0705-05 PHONE JACK(9P) J3,K1,K3
J952 E11-0705-05 PHONE JACK(9P) K2,E2,E4

W901 ✽ E37-1418-05 LEAD WIRE WITH CONNECTOR E1,E3,E5
W901 ✽ E37-1418-05 LEAD WIRE WITH CONNECTOR J,J1,J2
W901 ✽ E37-1418-05 LEAD WIRE WITH CONNECTOR J3,K1,K3

R950,951 R92-1205-05 CHIP R 120 J 1/4W E1,E3,E5
R950,951 R92-1205-05 CHIP R 120 J 1/4W J,J1,J2
R950,951 R92-1205-05 CHIP R 120 J 1/4W J3,K1,K3
R952-955 RK73FB2B470J CHIP R 47 J 1/8W
R956-960 RK73FB2B681J CHIP R 680 J 1/8W E1,E3,E5

R956-960 RK73FB2B681J CHIP R 680 J 1/8W J,J1,J2
R956-960 RK73FB2B681J CHIP R 680 J 1/8W J3,K1,K3
R970,971 R92-1205-05 CHIP R 120 J 1/4W K2,E2,E4
R972 RK73FB2B151J CHIP R 150 J 1/8W K2,E2,E4
R973 RK73GB2A473J CHIP R 47K J 1/10W K2,E2,E4

R974 RK73GB2A474J CHIP R 470K J 1/10W K2,E2,E4
VR950 R31-0633-05 VARIABLE RESISTOR E1,E3,E5
VR950 R31-0633-05 VARIABLE RESISTOR J,J1,J2
VR950 R31-0633-05 VARIABLE RESISTOR J3,K1,K3
VR951 R31-0637-05 VARIABLE RESISTOR E1,E3,E5

VR951 R31-0637-05 VARIABLE RESISTOR J,J1,J2
VR951 R31-0637-05 VARIABLE RESISTOR J3,K1,K3
VR952 R31-0634-05 VARIABLE RESISTOR E1,E3,E5
VR952 R31-0634-05 VARIABLE RESISTOR J,J1,J2
VR952 R31-0634-05 VARIABLE RESISTOR J3,K1,K3

S950 S70-0461-05 TACT SWITCH K2,E2,E4
S951 ✽ S70-0475-15 TACT SWITCH K2,E2,E4
S902 ✽ T99-0653-05 ENCODER E1,E3,E5
S902 ✽ T99-0653-05 ENCODER J,J1,J2
S902 ✽ T99-0653-05 ENCODER J3,K1,K3

D950-952 1SS355 DIODE
D959 1SS355 DIODE K2,E2,E4
D960 ✽ UDZW6.2(B) ZENER DIODE K2,E2,E4

Q951 2SC4617(R) TRANSISTOR K2,E2,E4

12

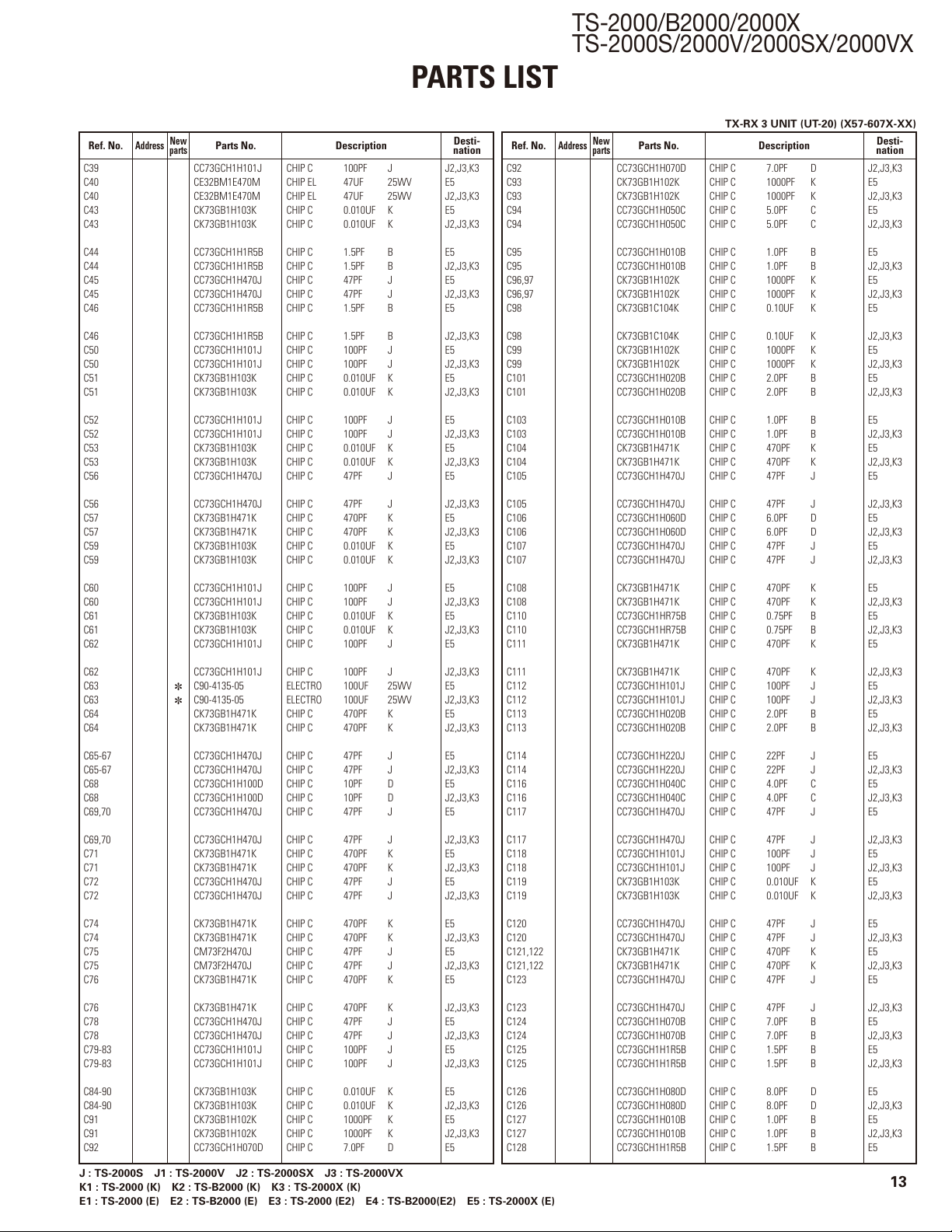

Desti-
nation

J : TS-2000S J1 : TS-2000V J2 : TS-2000SX J3 : TS-2000VX
K1 : TS-2000 (K) K2 : TS-B2000 (K) K3 : TS-2000X (K)
E1 : TS-2000 (E) E2 : TS-B2000 (E) E3 : TS-2000 (E2) E4 : TS-B2000(E2) E5 : TS-2000X (E)

Ref. No.

Ad dress

New

Parts No. Description

parts

Desti-
nation

TX-RX 3 UNIT (UT-20) (X57-607X-XX)

0-00 : J2,J3,K3 2-71 : E5

C1 CK73GB1H103K CHIP C 0.010UF K E5
C1 CK73GB1H103K CHIP C 0.010UF K J2,J3,K3
C4 CK73GB1H103K CHIP C 0.010UF K E5
C4 CK73GB1H103K CHIP C 0.010UF K J2,J3,K3
C5,6 CC73GCH1H100D CHIP C 10PF D E5

C5,6 CC73GCH1H100D CHIP C 10PF D J2,J3,K3
C7 CK73GB1H102K CHIP C 1000PF K E5
C7 CK73GB1H102K CHIP C 1000PF K J2,J3,K3
C8 CK73GB1H103K CHIP C 0.010UF K E5
C8 CK73GB1H103K CHIP C 0.010UF K J2,J3,K3

C9 CC73GCH1H100D CHIP C 10PF D E5
C9 CC73GCH1H100D CHIP C 10PF D J2,J3,K3
C10 CK73GB1H102K CHIP C 1000PF K E5
C10 CK73GB1H102K CHIP C 1000PF K J2,J3,K3
C11,12 CK73GB1H103K CHIP C 0.010UF K E5

C11,12 CK73GB1H103K CHIP C 0.010UF K J2,J3,K3
C13 CC73GCH1H050C CHIP C 5.0PF C E5
C13 CC73GCH1H050C CHIP C 5.0PF C J2,J3,K3
C14,15 CK73GB1H102K CHIP C 1000PF K E5
C14,15 CK73GB1H102K CHIP C 1000PF K J2,J3,K3

C16 CK73GB1H471K CHIP C 470PF K E5
C16 CK73GB1H471K CHIP C 470PF K J2,J3,K3
C17,18 CC73GCH1H470J CHIP C 47PF J E5
C17,18 CC73GCH1H470J CHIP C 47PF J J2,J3,K3
C19 CC73GCH1H060D CHIP C 6.0PF D E5

C19 CC73GCH1H060D CHIP C 6.0PF D J2,J3,K3
C20,21 CK73GB1H102K CHIP C 1000PF K E5
C20,21 CK73GB1H102K CHIP C 1000PF K J2,J3,K3
C22 CC73GCH1H470J CHIP C 47PF J E5
C22 CC73GCH1H470J CHIP C 47PF J J2,J3,K3

C23 CC73GCH1H040C CHIP C 4.0PF C E5
C23 CC73GCH1H040C CHIP C 4.0PF C J2,J3,K3
C24 CC73GCH1H220J CHIP C 22PF J E5
C24 CC73GCH1H220J CHIP C 22PF J J2,J3,K3
C25 CC73GCH1H470J CHIP C 47PF J E5

C25 CC73GCH1H470J CHIP C 47PF J J2,J3,K3
C26 CC73GCH1H030C CHIP C 3.0PF C E5
C26 CC73GCH1H030C CHIP C 3.0PF C J2,J3,K3
C27,28 CC73GCH1H470J CHIP C 47PF J E5
C27,28 CC73GCH1H470J CHIP C 47PF J J2,J3,K3

C29 CK73GB1H471K CHIP C 470PF K E5
C29 CK73GB1H471K CHIP C 470PF K J2,J3,K3
C30 CK73GB1H103K CHIP C 0.010UF K E5
C30 CK73GB1H103K CHIP C 0.010UF K J2,J3,K3
C31 CC73GCH1H101J CHIP C 100PF J E5

C31 CC73GCH1H101J CHIP C 100PF J J2,J3,K3
C32 CK73GB1H471K CHIP C 470PF K E5
C32 CK73GB1H471K CHIP C 470PF K J2,J3,K3
C33,34 CC73GCH1H470J CHIP C 47PF J E5
C33,34 CC73GCH1H470J CHIP C 47PF J J2,J3,K3

C35 CC73GCH1H101J CHIP C 100PF J E5
C35 CC73GCH1H101J CHIP C 100PF J J2,J3,K3
C36 CK73GB1C104K CHIP C 0.10UF K E5
C36 CK73GB1C104K CHIP C 0.10UF K J2,J3,K3
C37 CC73GCH1H030C CHIP C 3.0PF C E5

C37 CC73GCH1H030C CHIP C 3.0PF C J2,J3,K3
C39 CC73GCH1H101J CHIP C 100PF J E5

PARTS LIST

Ref. No.

C39 CC73GCH1H101J CHIP C 100PF J J2,J3,K3
C40 CE32BM1E470M CHIP EL 47UF 25WV E5
C40 CE32BM1E470M CHIP EL 47UF 25WV J2,J3,K3
C43 CK73GB1H103K CHIP C 0.010UF K E5
C43 CK73GB1H103K CHIP C 0.010UF K J2,J3,K3

Ad dress

New

Parts No. Description

parts

Desti-
nation

TS-2000/B2000/2000X
TS-2000S/2000V/2000SX/2000VX

TX-RX 3 UNIT (UT-20) (X57-607X-XX)

Ref. No.

C92 CC73GCH1H070D CHIP C 7.0PF D J2,J3,K3
C93 CK73GB1H102K CHIP C 1000PF K E5
C93 CK73GB1H102K CHIP C 1000PF K J2,J3,K3
C94 CC73GCH1H050C CHIP C 5.0PF C E5
C94 CC73GCH1H050C CHIP C 5.0PF C J2,J3,K3

Ad dress

New

Parts No. Description

parts

Desti-
nation

C44 CC73GCH1H1R5B CHIP C 1.5PF B E5
C44 CC73GCH1H1R5B CHIP C 1.5PF B J2,J3,K3
C45 CC73GCH1H470J CHIP C 47PF J E5
C45 CC73GCH1H470J CHIP C 47PF J J2,J3,K3
C46 CC73GCH1H1R5B CHIP C 1.5PF B E5

C46 CC73GCH1H1R5B CHIP C 1.5PF B J2,J3,K3
C50 CC73GCH1H101J CHIP C 100PF J E5
C50 CC73GCH1H101J CHIP C 100PF J J2,J3,K3
C51 CK73GB1H103K CHIP C 0.010UF K E5
C51 CK73GB1H103K CHIP C 0.010UF K J2,J3,K3

C52 CC73GCH1H101J CHIP C 100PF J E5
C52 CC73GCH1H101J CHIP C 100PF J J2,J3,K3
C53 CK73GB1H103K CHIP C 0.010UF K E5
C53 CK73GB1H103K CHIP C 0.010UF K J2,J3,K3
C56 CC73GCH1H470J CHIP C 47PF J E5

C56 CC73GCH1H470J CHIP C 47PF J J2,J3,K3
C57 CK73GB1H471K CHIP C 470PF K E5
C57 CK73GB1H471K CHIP C 470PF K J2,J3,K3
C59 CK73GB1H103K CHIP C 0.010UF K E5
C59 CK73GB1H103K CHIP C 0.010UF K J2,J3,K3

C60 CC73GCH1H101J CHIP C 100PF J E5
C60 CC73GCH1H101J CHIP C 100PF J J2,J3,K3
C61 CK73GB1H103K CHIP C 0.010UF K E5
C61 CK73GB1H103K CHIP C 0.010UF K J2,J3,K3
C62 CC73GCH1H101J CHIP C 100PF J E5

C62 CC73GCH1H101J CHIP C 100PF J J2,J3,K3
C63 ✽ C90-4135-05 ELECTRO 100UF 25WV E5
C63 ✽ C90-4135-05 ELECTRO 100UF 25WV J2,J3,K3
C64 CK73GB1H471K CHIP C 470PF K E5
C64 CK73GB1H471K CHIP C 470PF K J2,J3,K3

C95 CC73GCH1H010B CHIP C 1.0PF B E5
C95 CC73GCH1H010B CHIP C 1.0PF B J2,J3,K3
C96,97 CK73GB1H102K CHIP C 1000PF K E5
C96,97 CK73GB1H102K CHIP C 1000PF K J2,J3,K3
C98 CK73GB1C104K CHIP C 0.10UF K E5

C98 CK73GB1C104K CHIP C 0.10UF K J2,J3,K3
C99 CK73GB1H102K CHIP C 1000PF K E5
C99 CK73GB1H102K CHIP C 1000PF K J2,J3,K3
C101 CC73GCH1H020B CHIP C 2.0PF B E5
C101 CC73GCH1H020B CHIP C 2.0PF B J2,J3,K3

C103 CC73GCH1H010B CHIP C 1.0PF B E5
C103 CC73GCH1H010B CHIP C 1.0PF B J2,J3,K3
C104 CK73GB1H471K CHIP C 470PF K E5
C104 CK73GB1H471K CHIP C 470PF K J2,J3,K3
C105 CC73GCH1H470J CHIP C 47PF J E5

C105 CC73GCH1H470J CHIP C 47PF J J2,J3,K3
C106 CC73GCH1H060D CHIP C 6.0PF D E5
C106 CC73GCH1H060D CHIP C 6.0PF D J2,J3,K3
C107 CC73GCH1H470J CHIP C 47PF J E5
C107 CC73GCH1H470J CHIP C 47PF J J2,J3,K3

C108 CK73GB1H471K CHIP C 470PF K E5
C108 CK73GB1H471K CHIP C 470PF K J2,J3,K3
C110 CC73GCH1HR75B CHIP C 0.75PF B E5
C110 CC73GCH1HR75B CHIP C 0.75PF B J2,J3,K3
C111 CK73GB1H471K CHIP C 470PF K E5

C111 CK73GB1H471K CHIP C 470PF K J2,J3,K3
C112 CC73GCH1H101J CHIP C 100PF J E5
C112 CC73GCH1H101J CHIP C 100PF J J2,J3,K3
C113 CC73GCH1H020B CHIP C 2.0PF B E5
C113 CC73GCH1H020B CHIP C 2.0PF B J2,J3,K3

C65-67 CC73GCH1H470J CHIP C 47PF J E5
C65-67 CC73GCH1H470J CHIP C 47PF J J2,J3,K3
C68 CC73GCH1H100D CHIP C 10PF D E5
C68 CC73GCH1H100D CHIP C 10PF D J2,J3,K3
C69,70 CC73GCH1H470J CHIP C 47PF J E5

C69,70 CC73GCH1H470J CHIP C 47PF J J2,J3,K3
C71 CK73GB1H471K CHIP C 470PF K E5
C71 CK73GB1H471K CHIP C 470PF K J2,J3,K3
C72 CC73GCH1H470J CHIP C 47PF J E5
C72 CC73GCH1H470J CHIP C 47PF J J2,J3,K3

C74 CK73GB1H471K CHIP C 470PF K E5
C74 CK73GB1H471K CHIP C 470PF K J2,J3,K3
C75 CM73F2H470J CHIP C 47PF J E5
C75 CM73F2H470J CHIP C 47PF J J2,J3,K3
C76 CK73GB1H471K CHIP C 470PF K E5

C76 CK73GB1H471K CHIP C 470PF K J2,J3,K3
C78 CC73GCH1H470J CHIP C 47PF J E5
C78 CC73GCH1H470J CHIP C 47PF J J2,J3,K3
C79-83 CC73GCH1H101J CHIP C 100PF J E5
C79-83 CC73GCH1H101J CHIP C 100PF J J2,J3,K3

C84-90 CK73GB1H103K CHIP C 0.010UF K E5
C84-90 CK73GB1H103K CHIP C 0.010UF K J2,J3,K3
C91 CK73GB1H102K CHIP C 1000PF K E5
C91 CK73GB1H102K CHIP C 1000PF K J2,J3,K3
C92 CC73GCH1H070D CHIP C 7.0PF D E5

J : TS-2000S J1 : TS-2000V J2 : TS-2000SX J3 : TS-2000VX
K1 : TS-2000 (K) K2 : TS-B2000 (K) K3 : TS-2000X (K)
E1 : TS-2000 (E) E2 : TS-B2000 (E) E3 : TS-2000 (E2) E4 : TS-B2000(E2) E5 : TS-2000X (E)

C114 CC73GCH1H220J CHIP C 22PF J E5
C114 CC73GCH1H220J CHIP C 22PF J J2,J3,K3
C116 CC73GCH1H040C CHIP C 4.0PF C E5
C116 CC73GCH1H040C CHIP C 4.0PF C J2,J3,K3
C117 CC73GCH1H470J CHIP C 47PF J E5

C117 CC73GCH1H470J CHIP C 47PF J J2,J3,K3
C118 CC73GCH1H101J CHIP C 100PF J E5
C118 CC73GCH1H101J CHIP C 100PF J J2,J3,K3
C119 CK73GB1H103K CHIP C 0.010UF K E5
C119 CK73GB1H103K CHIP C 0.010UF K J2,J3,K3

C120 CC73GCH1H470J CHIP C 47PF J E5
C120 CC73GCH1H470J CHIP C 47PF J J2,J3,K3
C121,122 CK73GB1H471K CHIP C 470PF K E5
C121,122 CK73GB1H471K CHIP C 470PF K J2,J3,K3
C123 CC73GCH1H470J CHIP C 47PF J E5

C123 CC73GCH1H470J CHIP C 47PF J J2,J3,K3
C124 CC73GCH1H070B CHIP C 7.0PF B E5
C124 CC73GCH1H070B CHIP C 7.0PF B J2,J3,K3
C125 CC73GCH1H1R5B CHIP C 1.5PF B E5
C125 CC73GCH1H1R5B CHIP C 1.5PF B J2,J3,K3

C126 CC73GCH1H080D CHIP C 8.0PF D E5
C126 CC73GCH1H080D CHIP C 8.0PF D J2,J3,K3
C127 CC73GCH1H010B CHIP C 1.0PF B E5
C127 CC73GCH1H010B CHIP C 1.0PF B J2,J3,K3
C128 CC73GCH1H1R5B CHIP C 1.5PF B E5

13

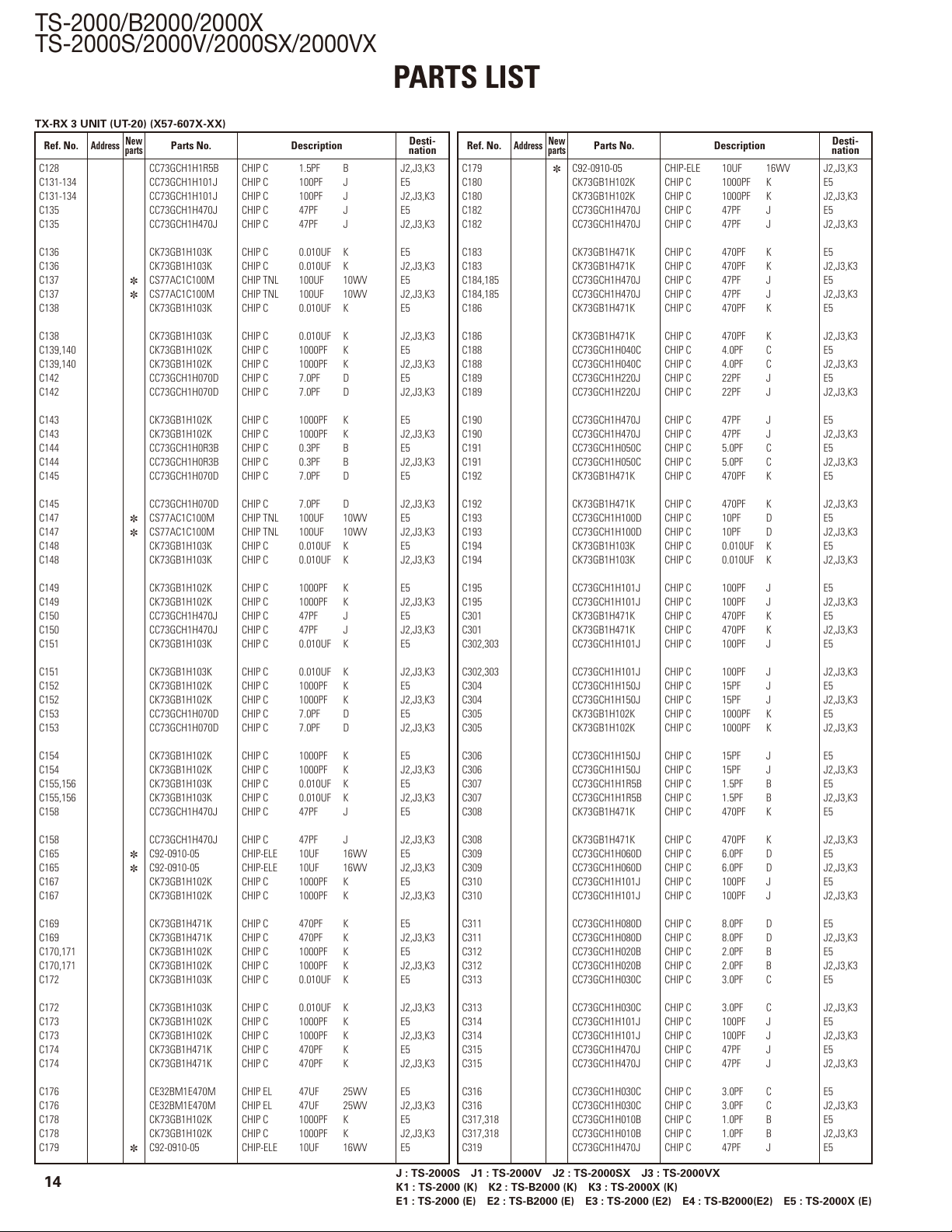

TS-2000/B2000/2000X
TS-2000S/2000V/2000SX/2000VX

PARTS LIST

TX-RX 3 UNIT (UT-20) (X57-607X-XX)

Ad dress

New

Parts No. Description

parts

Ref. No.

C128 CC73GCH1H1R5B CHIP C 1.5PF B J2,J3,K3
C131-134 CC73GCH1H101J CHIP C 100PF J E5
C131-134 CC73GCH1H101J CHIP C 100PF J J2,J3,K3
C135 CC73GCH1H470J CHIP C 47PF J E5
C135 CC73GCH1H470J CHIP C 47PF J J2,J3,K3

Desti-
nation

Ref. No.

C179 ✽ C92-0910-05 CHIP-ELE 10UF 16WV J2,J3,K3
C180 CK73GB1H102K CHIP C 1000PF K E5
C180 CK73GB1H102K CHIP C 1000PF K J2,J3,K3
C182 CC73GCH1H470J CHIP C 47PF J E5
C182 CC73GCH1H470J CHIP C 47PF J J2,J3,K3

Ad dress

New

Parts No. Description

parts

Desti-
nation

C136 CK73GB1H103K CHIP C 0.010UF K E5
C136 CK73GB1H103K CHIP C 0.010UF K J2,J3,K3
C137 ✽ CS77AC1C100M CHIP TNL 100UF 10WV E5
C137 ✽ CS77AC1C100M CHIP TNL 100UF 10WV J2,J3,K3
C138 CK73GB1H103K CHIP C 0.010UF K E5

C138 CK73GB1H103K CHIP C 0.010UF K J2,J3,K3
C139,140 CK73GB1H102K CHIP C 1000PF K E5
C139,140 CK73GB1H102K CHIP C 1000PF K J2,J3,K3
C142 CC73GCH1H070D CHIP C 7.0PF D E5
C142 CC73GCH1H070D CHIP C 7.0PF D J2,J3,K3

C143 CK73GB1H102K CHIP C 1000PF K E5
C143 CK73GB1H102K CHIP C 1000PF K J2,J3,K3
C144 CC73GCH1H0R3B CHIP C 0.3PF B E5
C144 CC73GCH1H0R3B CHIP C 0.3PF B J2,J3,K3
C145 CC73GCH1H070D CHIP C 7.0PF D E5

C145 CC73GCH1H070D CHIP C 7.0PF D J2,J3,K3
C147 ✽ CS77AC1C100M CHIP TNL 100UF 10WV E5
C147 ✽ CS77AC1C100M CHIP TNL 100UF 10WV J2,J3,K3
C148 CK73GB1H103K CHIP C 0.010UF K E5
C148 CK73GB1H103K CHIP C 0.010UF K J2,J3,K3

C149 CK73GB1H102K CHIP C 1000PF K E5
C149 CK73GB1H102K CHIP C 1000PF K J2,J3,K3
C150 CC73GCH1H470J CHIP C 47PF J E5
C150 CC73GCH1H470J CHIP C 47PF J J2,J3,K3
C151 CK73GB1H103K CHIP C 0.010UF K E5

C151 CK73GB1H103K CHIP C 0.010UF K J2,J3,K3
C152 CK73GB1H102K CHIP C 1000PF K E5
C152 CK73GB1H102K CHIP C 1000PF K J2,J3,K3
C153 CC73GCH1H070D CHIP C 7.0PF D E5
C153 CC73GCH1H070D CHIP C 7.0PF D J2,J3,K3

C183 CK73GB1H471K CHIP C 470PF K E5
C183 CK73GB1H471K CHIP C 470PF K J2,J3,K3
C184,185 CC73GCH1H470J CHIP C 47PF J E5
C184,185 CC73GCH1H470J CHIP C 47PF J J2,J3,K3
C186 CK73GB1H471K CHIP C 470PF K E5

C186 CK73GB1H471K CHIP C 470PF K J2,J3,K3
C188 CC73GCH1H040C CHIP C 4.0PF C E5
C188 CC73GCH1H040C CHIP C 4.0PF C J2,J3,K3
C189 CC73GCH1H220J CHIP C 22PF J E5
C189 CC73GCH1H220J CHIP C 22PF J J2,J3,K3

C190 CC73GCH1H470J CHIP C 47PF J E5
C190 CC73GCH1H470J CHIP C 47PF J J2,J3,K3
C191 CC73GCH1H050C CHIP C 5.0PF C E5
C191 CC73GCH1H050C CHIP C 5.0PF C J2,J3,K3
C192 CK73GB1H471K CHIP C 470PF K E5

C192 CK73GB1H471K CHIP C 470PF K J2,J3,K3
C193 CC73GCH1H100D CHIP C 10PF D E5
C193 CC73GCH1H100D CHIP C 10PF D J2,J3,K3
C194 CK73GB1H103K CHIP C 0.010UF K E5
C194 CK73GB1H103K CHIP C 0.010UF K J2,J3,K3

C195 CC73GCH1H101J CHIP C 100PF J E5
C195 CC73GCH1H101J CHIP C 100PF J J2,J3,K3
C301 CK73GB1H471K CHIP C 470PF K E5
C301 CK73GB1H471K CHIP C 470PF K J2,J3,K3
C302,303 CC73GCH1H101J CHIP C 100PF J E5

C302,303 CC73GCH1H101J CHIP C 100PF J J2,J3,K3
C304 CC73GCH1H150J CHIP C 15PF J E5
C304 CC73GCH1H150J CHIP C 15PF J J2,J3,K3
C305 CK73GB1H102K CHIP C 1000PF K E5
C305 CK73GB1H102K CHIP C 1000PF K J2,J3,K3

C154 CK73GB1H102K CHIP C 1000PF K E5
C154 CK73GB1H102K CHIP C 1000PF K J2,J3,K3
C155,156 CK73GB1H103K CHIP C 0.010UF K E5
C155,156 CK73GB1H103K CHIP C 0.010UF K J2,J3,K3
C158 CC73GCH1H470J CHIP C 47PF J E5

C158 CC73GCH1H470J CHIP C 47PF J J2,J3,K3
C165 ✽ C92-0910-05 CHIP-ELE 10UF 16WV E5
C165 ✽ C92-0910-05 CHIP-ELE 10UF 16WV J2,J3,K3
C167 CK73GB1H102K CHIP C 1000PF K E5
C167 CK73GB1H102K CHIP C 1000PF K J2,J3,K3

C169 CK73GB1H471K CHIP C 470PF K E5
C169 CK73GB1H471K CHIP C 470PF K J2,J3,K3
C170,171 CK73GB1H102K CHIP C 1000PF K E5
C170,171 CK73GB1H102K CHIP C 1000PF K J2,J3,K3
C172 CK73GB1H103K CHIP C 0.010UF K E5

C172 CK73GB1H103K CHIP C 0.010UF K J2,J3,K3
C173 CK73GB1H102K CHIP C 1000PF K E5
C173 CK73GB1H102K CHIP C 1000PF K J2,J3,K3
C174 CK73GB1H471K CHIP C 470PF K E5
C174 CK73GB1H471K CHIP C 470PF K J2,J3,K3

C176 CE32BM1E470M CHIP EL 47UF 25WV E5
C176 CE32BM1E470M CHIP EL 47UF 25WV J2,J3,K3
C178 CK73GB1H102K CHIP C 1000PF K E5
C178 CK73GB1H102K CHIP C 1000PF K J2,J3,K3
C179 ✽ C92-0910-05 CHIP-ELE 10UF 16WV E5

14

J : TS-2000S J1 : TS-2000V J2 : TS-2000SX J3 : TS-2000VX
K1 : TS-2000 (K) K2 : TS-B2000 (K) K3 : TS-2000X (K)
E1 : TS-2000 (E) E2 : TS-B2000 (E) E3 : TS-2000 (E2) E4 : TS-B2000(E2) E5 : TS-2000X (E)

C306 CC73GCH1H150J CHIP C 15PF J E5
C306 CC73GCH1H150J CHIP C 15PF J J2,J3,K3
C307 CC73GCH1H1R5B CHIP C 1.5PF B E5
C307 CC73GCH1H1R5B CHIP C 1.5PF B J2,J3,K3
C308 CK73GB1H471K CHIP C 470PF K E5

C308 CK73GB1H471K CHIP C 470PF K J2,J3,K3
C309 CC73GCH1H060D CHIP C 6.0PF D E5
C309 CC73GCH1H060D CHIP C 6.0PF D J2,J3,K3
C310 CC73GCH1H101J CHIP C 100PF J E5
C310 CC73GCH1H101J CHIP C 100PF J J2,J3,K3

C311 CC73GCH1H080D CHIP C 8.0PF D E5
C311 CC73GCH1H080D CHIP C 8.0PF D J2,J3,K3
C312 CC73GCH1H020B CHIP C 2.0PF B E5
C312 CC73GCH1H020B CHIP C 2.0PF B J2,J3,K3
C313 CC73GCH1H030C CHIP C 3.0PF C E5

C313 CC73GCH1H030C CHIP C 3.0PF C J2,J3,K3
C314 CC73GCH1H101J CHIP C 100PF J E5
C314 CC73GCH1H101J CHIP C 100PF J J2,J3,K3
C315 CC73GCH1H470J CHIP C 47PF J E5
C315 CC73GCH1H470J CHIP C 47PF J J2,J3,K3

C316 CC73GCH1H030C CHIP C 3.0PF C E5
C316 CC73GCH1H030C CHIP C 3.0PF C J2,J3,K3
C317,318 CC73GCH1H010B CHIP C 1.0PF B E5
C317,318 CC73GCH1H010B CHIP C 1.0PF B J2,J3,K3
C319 CC73GCH1H470J CHIP C 47PF J E5

PARTS LIST

Ref. No.

C319 CC73GCH1H470J CHIP C 47PF J J2,J3,K3
C320 C92-0920-05 CHIP-ELE 330UF 16WV E5
C320 C92-0920-05 CHIP-ELE 330UF 16WV J2,J3,K3
C323 CC73GCH1H470J CHIP C 47PF J E5
C323 CC73GCH1H470J CHIP C 47PF J J2,J3,K3

C326,327 CC73GCH1H470J CHIP C 47PF J E5
C326,327 CC73GCH1H470J CHIP C 47PF J J2,J3,K3
C328,329 CK73GB1H103K CHIP C 0.010UF K E5
C328,329 CK73GB1H103K CHIP C 0.010UF K J2,J3,K3
C332 CK73GB1C473K CHIP C 0.047UF K E5

C332 CK73GB1C473K CHIP C 0.047UF K J2,J3,K3
C333,334 CS77CA1A3R3M CHIP TNTL 3.3UF 10WV E5
C333,334 CS77CA1A3R3M CHIP TNTL 3.3UF 10WV J2,J3,K3
C335 ✽ C92-0872-05 CHIP TNTL 0.068UF 35WV E5
C335 ✽ C92-0872-05 CHIP TNTL 0.068UF 35WV J2,J3,K3

C336 CK73GB1H182K CHIP C 1800PF K E5
C336 CK73GB1H182K CHIP C 1800PF K J2,J3,K3
C367 CC73GCH1H101J CHIP C 100PF J E5
C367 CC73GCH1H101J CHIP C 100PF J J2,J3,K3
C368,369 CC73GCH1H020B CHIP C 2.0PF B E5

C368,369 CC73GCH1H020B CHIP C 2.0PF B J2,J3,K3
C370-374 CK73GB1H103K CHIP C 0.010UF K E5
C370-374 CK73GB1H103K CHIP C 0.010UF K J2,J3,K3
C377-379 CK73GB1H103K CHIP C 0.010UF K E5
C377-379 CK73GB1H103K CHIP C 0.010UF K J2,J3,K3

C380 CC73GCH1H270J CHIP C 27PF J E5
C380 CC73GCH1H270J CHIP C 27PF J J2,J3,K3
C381,382 CK73GB1H103K CHIP C 0.010UF K E5
C381,382 CK73GB1H103K CHIP C 0.010UF K J2,J3,K3
C383 CC73GCH1H080D CHIP C 8.0PF D E5

C383 CC73GCH1H080D CHIP C 8.0PF D J2,J3,K3
C384-386 CK73GB1H103K CHIP C 0.010UF K E5
C384-386 CK73GB1H103K CHIP C 0.010UF K J2,J3,K3
C387 CK73GB1C104K CHIP C 0.10UF K E5
C387 CK73GB1C104K CHIP C 0.10UF K J2,J3,K3

C388 CC73GCH1H330J CHIP C 33PF J E5
C388 CC73GCH1H330J CHIP C 33PF J J2,J3,K3
C389 CC73GCH1H050C CHIP C 5.0PF C E5
C389 CC73GCH1H050C CHIP C 5.0PF C J2,J3,K3
C390-393 CK73GB1H103K CHIP C 0.010UF K E5

C390-393 CK73GB1H103K CHIP C 0.010UF K J2,J3,K3
C394 CC73GCH1H010B CHIP C 1.0PF B E5
C394 CC73GCH1H010B CHIP C 1.0PF B J2,J3,K3
C395,396 CC73GCH1H180J CHIP C 18PF J E5
C395,396 CC73GCH1H180J CHIP C 18PF J J2,J3,K3

Ad dress

New

Parts No. Description

parts

Desti-
nation

TS-2000/B2000/2000X
TS-2000S/2000V/2000SX/2000VX

TX-RX 3 UNIT (UT-20) (X57-607X-XX)

Ref. No.

C500 CC73GCH1H470J CHIP C 47PF J J2,J3,K3
TC301 C05-0393-05 CERAMIC TRIMMER CAPACITOR(8P) E5
TC301 C05-0393-05 CERAMIC TRIMMER CAPACITOR(8P) J2,J3,K3

- E23-0433-05 EARTH LUG E5

- E23-0433-05 EARTH LUG J2,J3,K3
501 3B ✽ E30-3457-15 ANTENNA CABLE E5
501 3B ✽ E30-3457-15 ANTENNA CABLE J2,J3,K3
W4 E37-0885-15 LEAD WIRE WITH CONNECTOR(0.8D) E5

W4 E37-0885-15 LEAD WIRE WITH CONNECTOR(0.8D) J2,J3,K3
W2 E37-0894-05 LEAD WIRE WITH TERMINAL E5
W2 E37-0894-05 LEAD WIRE WITH TERMINAL J2,J3,K3
W3 E37-0895-05 LEAD WIRE WITH TERMINAL E5
W3 E37-0895-05 LEAD WIRE WITH TERMINAL J2,J3,K3

504 3C E37-0943-05 LEAD WIRE WITH MINIPIN PLUG E5
504 3C E37-0943-05 LEAD WIRE WITH MINIPIN PLUG J2,J3,K3
CN5 E40-6527-05 PIN ASSY E5
CN5 E40-6527-05 PIN ASSY J2,J3,K3
CN6 E40-5978-05 FLAT CABLE CONNECTOR E5

CN6 E40-5978-05 FLAT CABLE CONNECTOR J2,J3,K3
CN7,8 E04-0428-05 PIN SOCKET E5
CN7,8 E04-0428-05 PIN SOCKET J2,J3,K3
CN9 E04-0190-05 PIN SOCKET E5
CN9 E04-0190-05 PIN SOCKET J2,J3,K3

CN11-16 E04-0428-05 PIN SOCKET E5
CN11-16 E04-0428-05 PIN SOCKET J2,J3,K3

506 3C F10-2368-03 SHIELDING PLATE E5
506 3C F10-2368-03 SHIELDING PLATE J2,J3,K3

- F10-2390-04 SHIELDING CASE E5

- F10-2390-04 SHIELDING CASE J2,J3,K3

- F10-2391-04 SHIELDING CASE E5

- F10-2391-04 SHIELDING CASE J2,J3,K3

- F10-2394-04 SHIELDING CASE E5

- F10-2394-04 SHIELDING CASE J2,J3,K3

- F10-2396-03 SHIELDING COVER(IC3) E5

- F10-2396-03 SHIELDING COVER(IC3) J2,J3,K3

F1 ✽ F53-0375-05 FUSE(0.5A 32V) E5
F1 ✽ F53-0375-05 FUSE(0.5A 32V) J2,J3,K3

511 3C G10-1218-04 FIBROUS SHEET E5
511 3C G10-1218-04 FIBROUS SHEET J2,J3,K3

512 3B J21-8401-04 MOUNTING HARDWARE E5
512 3B J21-8401-04 MOUNTING HARDWARE J2,J3,K3

- J61-0307-05 BAND E5

- J61-0307-05 BAND J2,J3,K3

Ad dress

New

Parts No. Description

parts

Desti-
nation

C397 CK73GB1H103K CHIP C 0.010UF K E5
C397 CK73GB1H103K CHIP C 0.010UF K J2,J3,K3
C398 CC73GCH1H330J CHIP C 33PF J E5
C398 CC73GCH1H330J CHIP C 33PF J J2,J3,K3
C399-401 CK73GB1H103K CHIP C 0.010UF K E5

C399-401 CK73GB1H103K CHIP C 0.010UF K J2,J3,K3
C402 CC73GCH1H010B CHIP C 1.0PF B E5
C402 CC73GCH1H010B CHIP C 1.0PF B J2,J3,K3
C403 CC73GCH1H030C CHIP C 3.0PF C E5
C403 CC73GCH1H030C CHIP C 3.0PF C J2,J3,K3

C404 CK73GB1H102K CHIP C 1000PF K E5
C404 CK73GB1H102K CHIP C 1000PF K J2,J3,K3
C409 CC73GCH1H010B CHIP C 1.0PF B E5
C409 CC73GCH1H010B CHIP C 1.0PF B J2,J3,K3
C500 CC73GCH1H470J CHIP C 47PF J E5

J : TS-2000S J1 : TS-2000V J2 : TS-2000SX J3 : TS-2000VX
K1 : TS-2000 (K) K2 : TS-B2000 (K) K3 : TS-2000X (K)
E1 : TS-2000 (E) E2 : TS-B2000 (E) E3 : TS-2000 (E2) E4 : TS-B2000(E2) E5 : TS-2000X (E)

CF1,2 L72-1026-05 CERAMIC FILTER(8.4MHz) E5
CF1,2 L72-1026-05 CERAMIC FILTER(8.4MHz) J2,J3,K3
L2 ✽ L34-4838-05 COIL E5
L2 ✽ L34-4838-05 COIL J2,J3,K3
L3 ✽ L34-4845-05 COIL E5

L3 ✽ L34-4845-05 COIL J2,J3,K3
L4 L41-1005-39 SMALL FIXED INDUCTOR(10U) E5
L4 L41-1005-39 SMALL FIXED INDUCTOR(10U) J2,J3,K3
L5 ✽ L34-4845-05 COIL E5
L5 ✽ L34-4845-05 COIL J2,J3,K3

L6 L92-0403-05 CHIP FERRITE E5
L6 L92-0403-05 CHIP FERRITE J2,J3,K3
L7,8 ✽ L39-1515-05 TOROIDAL COIL E5
L7,8 ✽ L39-1515-05 TOROIDAL COIL J2,J3,K3
L9 ✽ L34-4844-05 COIL E5

15

TS-2000/B2000/2000X
TS-2000S/2000V/2000SX/2000VX

PARTS LIST

TX-RX 3 UNIT (UT-20) (X57-607X-XX)

Ad dress

New

Parts No. Description

parts

Ref. No.

L9 ✽ L34-4844-05 COIL J2,J3,K3
L10 ✽ L79-1877-15 DIELECTRIC FILTER E5
L10 ✽ L79-1877-15 DIELECTRIC FILTER J2,J3,K3
L11 L40-1075-92 SMALL FIXED INDUCTOR(10NH) E5
L11 L40-1075-92 SMALL FIXED INDUCTOR(10NH) J2,J3,K3

Desti-
nation

Ref. No.

L52 ✽ L79-1875-15 DIELECTRIC FILTER J2,J3,K3
L301 L40-1085-92 SMALL FIXED INDUCTOR(100NH) E5
L301 L40-1085-92 SMALL FIXED INDUCTOR(100NH) J2,J3,K3
L302 L40-1278-60 SMALL FIXED INDUCTOR(12NH) E5
L302 L40-1278-60 SMALL FIXED INDUCTOR(12NH) J2,J3,K3

Ad dress

New

Parts No. Description

parts

Desti-
nation

L12 ✽ L79-1877-15 DIELECTRIC FILTER E5
L12 ✽ L79-1877-15 DIELECTRIC FILTER J2,J3,K3
L13,14 L92-0403-05 CHIP FERRITE E5
L13,14 L92-0403-05 CHIP FERRITE J2,J3,K3
L15 L41-2775-33 SMALL FIXED INDUCTOR(0.027UH) E5

L15 L41-2775-33 SMALL FIXED INDUCTOR(0.027UH) J2,J3,K3
L16 L92-0443-05 CHIP FERRITE E5
L16 L92-0443-05 CHIP FERRITE J2,J3,K3
L17 L41-3375-33 SMALL FIXED INDUCTOR(0.033UH) E5
L17 L41-3375-33 SMALL FIXED INDUCTOR(0.033UH) J2,J3,K3

L18 L92-0443-05 CHIP FERRITE E5
L18 L92-0443-05 CHIP FERRITE J2,J3,K3
L19-21 L92-0403-05 CHIP FERRITE E5
L19-21 L92-0403-05 CHIP FERRITE J2,J3,K3
L22 ✽ L34-4838-05 COIL E5

L22 ✽ L34-4838-05 COIL J2,J3,K3
L23 L41-1005-39 SMALL FIXED INDUCTOR(10U) E5
L23 L41-1005-39 SMALL FIXED INDUCTOR(10U) J2,J3,K3
L24 ✽ L34-4844-05 COIL E5
L24 ✽ L34-4844-05 COIL J2,J3,K3

L25 ✽ L34-4845-05 COIL E5
L25 ✽ L34-4845-05 COIL J2,J3,K3
L26-28 ✽ L34-4843-05 COIL E5
L26-28 ✽ L34-4843-05 COIL J2,J3,K3
L29 ✽ L34-4844-05 COIL E5

L29 ✽ L34-4844-05 COIL J2,J3,K3
L30 ✽ L79-1874-15 DIELECTRIC FILTER E5
L30 ✽ L79-1874-15 DIELECTRIC FILTER J2,J3,K3
L31 L40-8265-92 SMALL FIXED INDUCTOR(8.2NH) E5
L31 L40-8265-92 SMALL FIXED INDUCTOR(8.2NH) J2,J3,K3

L303,304 L40-1085-92 SMALL FIXED INDUCTOR(100NH) E5
L303,304 L40-1085-92 SMALL FIXED INDUCTOR(100NH) J2,J3,K3
L305,306 L40-2275-92 SMALL FIXED INDUCTOR(22NH) E5
L305,306 L40-2275-92 SMALL FIXED INDUCTOR(22NH) J2,J3,K3
L307 L40-1875-92 SMALL FIXED INDUCTOR(18NH) E5

L307 L40-1875-92 SMALL FIXED INDUCTOR(18NH) J2,J3,K3
L308 L40-8265-92 SMALL FIXED INDUCTOR(8.2NH) E5
L308 L40-8265-92 SMALL FIXED INDUCTOR(8.2NH) J2,J3,K3
L309 L40-2275-92 SMALL FIXED INDUCTOR(22NH) E5
L309 L40-2275-92 SMALL FIXED INDUCTOR(22NH) J2,J3,K3

L310 L40-5663-92 SMALL FIXED INDUCTOR(5.6NH) E5
L310 L40-5663-92 SMALL FIXED INDUCTOR(5.6NH) J2,J3,K3
L312 L40-4763-92 SMALL FIXED INDUCTOR(4.7NH) E5
L312 L40-4763-92 SMALL FIXED INDUCTOR(4.7NH) J2,J3,K3
L315 L40-4763-92 SMALL FIXED INDUCTOR(4.7NH) E5

L315 L40-4763-92 SMALL FIXED INDUCTOR(4.7NH) J2,J3,K3
L318,319 L40-2275-92 SMALL FIXED INDUCTOR(22NH) E5
L318,319 L40-2275-92 SMALL FIXED INDUCTOR(22NH) J2,J3,K3
L320,321 ✽ L34-4843-05 COIL E5
L320,321 ✽ L34-4843-05 COIL J2,J3,K3

L322 L40-8265-92 SMALL FIXED INDUCTOR(8.2NH) E5
L322 L40-8265-92 SMALL FIXED INDUCTOR(8.2NH) J2,J3,K3
L323 ✽ L41-1595-39 SMALL FIXED INDUCTOR(1.5U) E5
L323 ✽ L41-1595-39 SMALL FIXED INDUCTOR(1.5U) J2,J3,K3
L336 L40-2285-92 SMALL FIXED INDUCTOR(220NH) E5

L336 L40-2285-92 SMALL FIXED INDUCTOR(220NH) J2,J3,K3
L337 L40-5663-92 SMALL FIXED INDUCTOR(5.6NH) E5
L337 L40-5663-92 SMALL FIXED INDUCTOR(5.6NH) J2,J3,K3
L338 L34-4817-05 COIL E5
L338 L34-4817-05 COIL J2,J3,K3

L32 L40-6865-92 SMALL FIXED INDUCTOR(6.8NH) E5
L32 L40-6865-92 SMALL FIXED INDUCTOR(6.8NH) J2,J3,K3
L33 ✽ L79-1876-15 DIELECTRIC FILTER E5
L33 ✽ L79-1876-15 DIELECTRIC FILTER J2,J3,K3
L34 L40-1075-92 SMALL FIXED INDUCTOR(10NH) E5

L34 L40-1075-92 SMALL FIXED INDUCTOR(10NH) J2,J3,K3
L35 L40-5663-92 SMALL FIXED INDUCTOR(5.6NH) E5
L35 L40-5663-92 SMALL FIXED INDUCTOR(5.6NH) J2,J3,K3
L36 L40-2263-92 SMALL FIXED INDUCTOR(2.2NH) E5
L36 L40-2263-92 SMALL FIXED INDUCTOR(2.2NH) J2,J3,K3

L37 L40-6865-92 SMALL FIXED INDUCTOR(6.8NH) E5
L37 L40-6865-92 SMALL FIXED INDUCTOR(6.8NH) J2,J3,K3
L38 L40-5663-92 SMALL FIXED INDUCTOR(5.6NH) E5
L38 L40-5663-92 SMALL FIXED INDUCTOR(5.6NH) J2,J3,K3
L40,41 L41-1005-39 SMALL FIXED INDUCTOR(10U) E5

L40,41 L41-1005-39 SMALL FIXED INDUCTOR(10U) J2,J3,K3
L42,43 ✽ L34-4844-05 COIL E5
L42,43 ✽ L34-4844-05 COIL J2,J3,K3
L44 L41-1005-39 SMALL FIXED INDUCTOR(10U) E5
L44 L41-1005-39 SMALL FIXED INDUCTOR(10U) J2,J3,K3

L45 ✽ L34-4844-05 COIL E5
L45 ✽ L34-4844-05 COIL J2,J3,K3
L49-51 L41-1005-39 SMALL FIXED INDUCTOR(10U) E5
L49-51 L41-1005-39 SMALL FIXED INDUCTOR(10U) J2,J3,K3
L52 ✽ L79-1875-15 DIELECTRIC FILTER E5

16

J : TS-2000S J1 : TS-2000V J2 : TS-2000SX J3 : TS-2000VX
K1 : TS-2000 (K) K2 : TS-B2000 (K) K3 : TS-2000X (K)
E1 : TS-2000 (E) E2 : TS-B2000 (E) E3 : TS-2000 (E2) E4 : TS-B2000(E2) E5 : TS-2000X (E)

L339 L34-4826-05 COIL E5
L339 L34-4826-05 COIL J2,J3,K3
L340-342 ✽ L34-4846-05 COIL E5
L340-342 ✽ L34-4846-05 COIL J2,J3,K3
L343 L41-1005-33 SMALL FIXED INDUCTOR(10UH) E5

L343 L41-1005-33 SMALL FIXED INDUCTOR(10UH) J2,J3,K3
L344 L41-4705-39 SMALL FIXED INDUCTOR(47U) E5
L344 L41-4705-39 SMALL FIXED INDUCTOR(47U) J2,J3,K3
L345 L41-1005-33 SMALL FIXED INDUCTOR(10UH) E5
L345 L41-1005-33 SMALL FIXED INDUCTOR(10UH) J2,J3,K3

L346 L40-1085-92 SMALL FIXED INDUCTOR(100NH) E5
L346 L40-1085-92 SMALL FIXED INDUCTOR(100NH) J2,J3,K3
L347 L40-4763-92 SMALL FIXED INDUCTOR(4.7NH) E5
L347 L40-4763-92 SMALL FIXED INDUCTOR(4.7NH) J2,J3,K3
L348 L40-5663-92 SMALL FIXED INDUCTOR(5.6NH) E5

L348 L40-5663-92 SMALL FIXED INDUCTOR(5.6NH) J2,J3,K3
L349 L40-1875-92 SMALL FIXED INDUCTOR(18NH) E5
L349 L40-1875-92 SMALL FIXED INDUCTOR(18NH) J2,J3,K3
XF1 ✽ L71-0575-15 MCF E5
XF1 ✽ L71-0575-15 MCF J2,J3,K3

XF2 L71-0576-05 MCF E5
XF2 L71-0576-05 MCF J2,J3,K3

P 3C N30-2606-48 PAN HEAD MACHINE SCREW E5
P 3C N30-2606-48 PAN HEAD MACHINE SCREW J2,J3,K3

PARTS LIST

Ref. No.

- N67-2608-48 PAN HEAD SEMS SCREW E5

- N67-2608-48 PAN HEAD SEMS SCREW J2,J3,K3
R 3C N87-2606-48 BRAZIER HEAD TAPTITE SCREW E5
R 3C N87-2606-48 BRAZIER HEAD TAPTITE SCREW J2,J3,K3

CP1,2 RK74GB1J101J CHIP-COM 100 J 1/16W E5
CP1,2 RK74GB1J101J CHIP-COM 100 J 1/16W J2,J3,K3
R2,3 RK73GB2A102J CHIP R 1.0K J 1/10W E5
R2,3 RK73GB2A102J CHIP R 1.0K J 1/10W J2,J3,K3
R4 RK73GB2A103J CHIP R 10K J 1/10W E5

R4 RK73GB2A103J CHIP R 10K J 1/10W J2,J3,K3
R5 RK73GB2A273J CHIP R 27K J 1/10W E5
R5 RK73GB2A273J CHIP R 27K J 1/10W J2,J3,K3
R6 RK73GB2A100J CHIP R 10 J 1/10W E5
R6 RK73GB2A100J CHIP R 10 J 1/10W J2,J3,K3

R7 RK73GB2A102J CHIP R 1.0K J 1/10W E5
R7 RK73GB2A102J CHIP R 1.0K J 1/10W J2,J3,K3
R8,9 RK73GB2A680J CHIP R 68 J 1/10W E5
R8,9 RK73GB2A680J CHIP R 68 J 1/10W J2,J3,K3
R10 RK73GB2A103J CHIP R 10K J 1/10W E5

R10 RK73GB2A103J CHIP R 10K J 1/10W J2,J3,K3
R11 RK73GB2A273J CHIP R 27K J 1/10W E5
R11 RK73GB2A273J CHIP R 27K J 1/10W J2,J3,K3
R12,13 RK73GB2A330J CHIP R 33 J 1/10W E5
R12,13 RK73GB2A330J CHIP R 33 J 1/10W J2,J3,K3

R14,15 RK73GB2A331J CHIP R 330 J 1/10W E5
R14,15 RK73GB2A331J CHIP R 330 J 1/10W J2,J3,K3
R16 RK73GB2A101J CHIP R 100 J 1/10W E5
R16 RK73GB2A101J CHIP R 100 J 1/10W J2,J3,K3
R17 RK73GB2A271J CHIP R 270 J 1/10W E5

R17 RK73GB2A271J CHIP R 270 J 1/10W J2,J3,K3
R18 RK73GB2A180J CHIP R 18 J 1/10W E5
R18 RK73GB2A180J CHIP R 18 J 1/10W J2,J3,K3
R19 RK73GB2A271J CHIP R 270 J 1/10W E5
R19 RK73GB2A271J CHIP R 270 J 1/10W J2,J3,K3

R20 RK73GB2A471J CHIP R 470 J 1/10W E5
R20 RK73GB2A471J CHIP R 470 J 1/10W J2,J3,K3
R21 RK73GB2A271J CHIP R 270 J 1/10W E5
R21 RK73GB2A271J CHIP R 270 J 1/10W J2,J3,K3
R22 RK73GB2A272J CHIP R 2.7K J 1/10W E5

R22 RK73GB2A272J CHIP R 2.7K J 1/10W J2,J3,K3
R23 RK73GB2A180J CHIP R 18 J 1/10W E5
R23 RK73GB2A180J CHIP R 18 J 1/10W J2,J3,K3
R24 RK73GB2A472J CHIP R 4.7K J 1/10W E5
R24 RK73GB2A472J CHIP R 4.7K J 1/10W J2,J3,K3

R25 RK73GB2A271J CHIP R 270 J 1/10W E5
R25 RK73GB2A271J CHIP R 270 J 1/10W J2,J3,K3
R26 RK73GB2A330J CHIP R 33 J 1/10W E5
R26 RK73GB2A330J CHIP R 33 J 1/10W J2,J3,K3
R27 RK73GB2A222J CHIP R 2.2K J 1/10W E5

R27 RK73GB2A222J CHIP R 2.2K J 1/10W J2,J3,K3
R28 RK73GB2A101J CHIP R 100 J 1/10W E5
R28 RK73GB2A101J CHIP R 100 J 1/10W J2,J3,K3
R29 RK73GB2A151J CHIP R 150 J 1/10W E5
R29 RK73GB2A151J CHIP R 150 J 1/10W J2,J3,K3

R30 RK73GB2A390J CHIP R 39 J 1/10W E5
R30 RK73GB2A390J CHIP R 39 J 1/10W J2,J3,K3
R31 RK73GB2A151J CHIP R 150 J 1/10W E5
R31 RK73GB2A151J CHIP R 150 J 1/10W J2,J3,K3
R32 RK73GB2A101J CHIP R 100 J 1/10W E5

J : TS-2000S J1 : TS-2000V J2 : TS-2000SX J3 : TS-2000VX
K1 : TS-2000 (K) K2 : TS-B2000 (K) K3 : TS-2000X (K)
E1 : TS-2000 (E) E2 : TS-B2000 (E) E3 : TS-2000 (E2) E4 : TS-B2000(E2) E5 : TS-2000X (E)

Ad dress

New

Parts No. Description

parts

Desti-
nation

Ref. No.

R32 RK73GB2A101J CHIP R 100 J 1/10W J2,J3,K3
R33 RK73GB2A181J CHIP R 180 J 1/10W E5
R33 RK73GB2A181J CHIP R 180 J 1/10W J2,J3,K3
R34 RK73GB2A000J CHIP R 0.0 J 1/10W E5
R34 RK73GB2A000J CHIP R 0.0 J 1/10W J2,J3,K3

R35 RK73GB2A680J CHIP R 68 J 1/10W E5
R35 RK73GB2A680J CHIP R 68 J 1/10W J2,J3,K3
R36 RK73GB2A121J CHIP R 120 J 1/10W E5
R36 RK73GB2A121J CHIP R 120 J 1/10W J2,J3,K3
R37 RK73GB2A152J CHIP R 1.5K J 1/10W E5

R37 RK73GB2A152J CHIP R 1.5K J 1/10W J2,J3,K3
R38,39 RK73GB2A470J CHIP R 47 J 1/10W E5
R38,39 RK73GB2A470J CHIP R 47 J 1/10W J2,J3,K3
R40 RK73GB2A151J CHIP R 150 J 1/10W E5
R40 RK73GB2A151J CHIP R 150 J 1/10W J2,J3,K3

R41 RK73GB2A390J CHIP R 39 J 1/10W E5
R41 RK73GB2A390J CHIP R 39 J 1/10W J2,J3,K3
R42 RK73GB2A151J CHIP R 150 J 1/10W E5
R42 RK73GB2A151J CHIP R 150 J 1/10W J2,J3,K3
R43 RK73GB2A331J CHIP R 330 J 1/10W E5

R43 RK73GB2A331J CHIP R 330 J 1/10W J2,J3,K3
R44 ✽ RK73GB2A3R9J CHIP R 3.9 J 1/10W E5
R44 ✽ RK73GB2A3R9J CHIP R 3.9 J 1/10W J2,J3,K3
R45 RK73GB2A182J CHIP R 1.8K J 1/10W E5
R45 RK73GB2A182J CHIP R 1.8K J 1/10W J2,J3,K3

R46 RK73GB2A152J CHIP R 1.5K J 1/10W E5
R46 RK73GB2A152J CHIP R 1.5K J 1/10W J2,J3,K3
R47,48 RK73GB2A182J CHIP R 1.8K J 1/10W E5
R47,48 RK73GB2A182J CHIP R 1.8K J 1/10W J2,J3,K3
R50 ✽ RK73PB2H181J CHIP R 180 J 1/2W E5

R50 ✽ RK73PB2H181J CHIP R 180 J 1/2W J2,J3,K3
R51 RK73GB2A101J CHIP R 100 J 1/10W E5
R51 RK73GB2A101J CHIP R 100 J 1/10W J2,J3,K3
R52 RK73GB2A821J CHIP R 820 J 1/10W E5
R52 RK73GB2A821J CHIP R 820 J 1/10W J2,J3,K3

R53 RK73GB2A332J CHIP R 3.3K J 1/10W E5
R53 RK73GB2A332J CHIP R 3.3K J 1/10W J2,J3,K3
R54 RK73GB2A101J CHIP R 100 J 1/10W E5
R54 RK73GB2A101J CHIP R 100 J 1/10W J2,J3,K3
R55 RK73GB2A682J CHIP R 6.8K J 1/10W E5

R55 RK73GB2A682J CHIP R 6.8K J 1/10W J2,J3,K3
R56 RK73GB2A680J CHIP R 68 J 1/10W E5
R56 RK73GB2A680J CHIP R 68 J 1/10W J2,J3,K3
R57,58 RK73GB2A222J CHIP R 2.2K J 1/10W E5
R57,58 RK73GB2A222J CHIP R 2.2K J 1/10W J2,J3,K3

R59 RK73GB2A000J CHIP R 0.0 J 1/10W E5
R59 RK73GB2A000J CHIP R 0.0 J 1/10W J2,J3,K3
R60 RK73GB2A332J CHIP R 3.3K J 1/10W E5
R60 RK73GB2A332J CHIP R 3.3K J 1/10W J2,J3,K3
R61 RK73GB2A000J CHIP R 0.0 J 1/10W E5

R61 RK73GB2A000J CHIP R 0.0 J 1/10W J2,J3,K3
R62,63 RK73GB2A102J CHIP R 1.0K J 1/10W E5
R62,63 RK73GB2A102J CHIP R 1.0K J 1/10W J2,J3,K3
R64 RK73GB2A101J CHIP R 100 J 1/10W E5
R64 RK73GB2A101J CHIP R 100 J 1/10W J2,J3,K3

R65 RK73GB2A471J CHIP R 470 J 1/10W E5
R65 RK73GB2A471J CHIP R 470 J 1/10W J2,J3,K3
R66 RK73GB2A474J CHIP R 470K J 1/10W E5
R66 RK73GB2A474J CHIP R 470K J 1/10W J2,J3,K3
R67 RK73GB2A823J CHIP R 82K J 1/10W E5

TS-2000/B2000/2000X
TS-2000S/2000V/2000SX/2000VX

TX-RX 3 UNIT (UT-20) (X57-607X-XX)

Ad dress

New

Parts No. Description

parts

Desti-
nation

17

TS-2000/B2000/2000X
TS-2000S/2000V/2000SX/2000VX

PARTS LIST

TX-RX 3 UNIT (UT-20) (X57-607X-XX)

Ad dress

New

Parts No. Description

parts

Ref. No.

R67 RK73GB2A823J CHIP R 82K J 1/10W J2,J3,K3
R68 RK73GB2A273J CHIP R 27K J 1/10W E5
R68 RK73GB2A273J CHIP R 27K J 1/10W J2,J3,K3
R70 RK73GB2A470J CHIP R 47 J 1/10W E5
R70 RK73GB2A470J CHIP R 47 J 1/10W J2,J3,K3

Desti-
nation

Ref. No.

R101 RK73GB2A822J CHIP R 8.2K J 1/10W J2,J3,K3
R102 RK73GB2A153J CHIP R 15K J 1/10W E5
R102 RK73GB2A153J CHIP R 15K J 1/10W J2,J3,K3
R103 RK73GB2A471J CHIP R 470 J 1/10W E5
R103 RK73GB2A471J CHIP R 470 J 1/10W J2,J3,K3

Ad dress

New

Parts No. Description

parts

Desti-
nation

R71 RK73GB2A221J CHIP R 220 J 1/10W E5
R71 RK73GB2A221J CHIP R 220 J 1/10W J2,J3,K3
R72 RK73GB2A271J CHIP R 270 J 1/10W E5
R72 RK73GB2A271J CHIP R 270 J 1/10W J2,J3,K3
R73 RK73GB2A330J CHIP R 33 J 1/10W E5

R73 RK73GB2A330J CHIP R 33 J 1/10W J2,J3,K3
R74 RK73GB2A180J CHIP R 18 J 1/10W E5
R74 RK73GB2A180J CHIP R 18 J 1/10W J2,J3,K3
R75 RK73GB2A271J CHIP R 270 J 1/10W E5
R75 RK73GB2A271J CHIP R 270 J 1/10W J2,J3,K3

R76,77 RK73GB2A221J CHIP R 220 J 1/10W E5
R76,77 RK73GB2A221J CHIP R 220 J 1/10W J2,J3,K3
R78 RK73GB2A333J CHIP R 33K J 1/10W E5
R78 RK73GB2A333J CHIP R 33K J 1/10W J2,J3,K3
R79,80 RK73GB2A473J CHIP R 47K J 1/10W E5

R79,80 RK73GB2A473J CHIP R 47K J 1/10W J2,J3,K3
R81 RK73GB2A101J CHIP R 100 J 1/10W E5
R81 RK73GB2A101J CHIP R 100 J 1/10W J2,J3,K3
R82 RK73GB2A820J CHIP R 82 J 1/10W E5
R82 RK73GB2A820J CHIP R 82 J 1/10W J2,J3,K3

R83 RK73GB2A470J CHIP R 47 J 1/10W E5
R83 RK73GB2A470J CHIP R 47 J 1/10W J2,J3,K3
R85 RK73GB2A330J CHIP R 33 J 1/10W E5
R85 RK73GB2A330J CHIP R 33 J 1/10W J2,J3,K3
R86 RK73GB2A473J CHIP R 47K J 1/10W E5

R86 RK73GB2A473J CHIP R 47K J 1/10W J2,J3,K3
R87 RK73GB2A103J CHIP R 10K J 1/10W E5
R87 RK73GB2A103J CHIP R 10K J 1/10W J2,J3,K3
R88 RK73GB2A101J CHIP R 100 J 1/10W E5
R88 RK73GB2A101J CHIP R 100 J 1/10W J2,J3,K3

R104,105 RK73GB2A101J CHIP R 100 J 1/10W E5
R104,105 RK73GB2A101J CHIP R 100 J 1/10W J2,J3,K3
R106 RK73GB2A331J CHIP R 330 J 1/10W E5
R106 RK73GB2A331J CHIP R 330 J 1/10W J2,J3,K3
R108 RK73GB2A102J CHIP R 1.0K J 1/10W E5

R108 RK73GB2A102J CHIP R 1.0K J 1/10W J2,J3,K3
R110 RK73FB2B471J CHIP R 470 J 1/8W E5
R110 RK73FB2B471J CHIP R 470 J 1/8W J2,J3,K3
R111 RK73GB2A103J CHIP R 10K J 1/10W E5
R111 RK73GB2A103J CHIP R 10K J 1/10W J2,J3,K3

R112 RK73GB2A222J CHIP R 2.2K J 1/10W E5
R112 RK73GB2A222J CHIP R 2.2K J 1/10W J2,J3,K3
R113 RK73FB2B100J CHIP R 10 J 1/8W E5
R113 RK73FB2B100J CHIP R 10 J 1/8W J2,J3,K3
R115 RK73FB2B000J CHIP R 0.0 J 1/8W E5

R115 RK73FB2B000J CHIP R 0.0 J 1/8W J2,J3,K3
R117 RK73GB2A271J CHIP R 270 J 1/10W E5
R117 RK73GB2A271J CHIP R 270 J 1/10W J2,J3,K3
R118 RK73GB2A180J CHIP R 18 J 1/10W E5
R118 RK73GB2A180J CHIP R 18 J 1/10W J2,J3,K3

R119,120 RK73GB2A271J CHIP R 270 J 1/10W E5
R119,120 RK73GB2A271J CHIP R 270 J 1/10W J2,J3,K3
R121 RK73GB2A180J CHIP R 18 J 1/10W E5
R121 RK73GB2A180J CHIP R 18 J 1/10W J2,J3,K3
R122 RK73GB2A271J CHIP R 270 J 1/10W E5

R122 RK73GB2A271J CHIP R 270 J 1/10W J2,J3,K3
R123 RK73GB2A273J CHIP R 27K J 1/10W E5
R123 RK73GB2A273J CHIP R 27K J 1/10W J2,J3,K3
R124 RK73GB2A103J CHIP R 10K J 1/10W E5
R124 RK73GB2A103J CHIP R 10K J 1/10W J2,J3,K3

R89 RK73GB2A102J CHIP R 1.0K J 1/10W E5
R89 RK73GB2A102J CHIP R 1.0K J 1/10W J2,J3,K3
R90 RK73GB2A470J CHIP R 47 J 1/10W E5
R90 RK73GB2A470J CHIP R 47 J 1/10W J2,J3,K3
R91 RK73GB2A103J CHIP R 10K J 1/10W E5

R91 RK73GB2A103J CHIP R 10K J 1/10W J2,J3,K3
R92 RK73GB2A472J CHIP R 4.7K J 1/10W E5
R92 RK73GB2A472J CHIP R 4.7K J 1/10W J2,J3,K3
R93 RK73GB2A823J CHIP R 82K J 1/10W E5
R93 RK73GB2A823J CHIP R 82K J 1/10W J2,J3,K3

R94 RK73GB2A471J CHIP R 470 J 1/10W E5
R94 RK73GB2A471J CHIP R 470 J 1/10W J2,J3,K3
R95 RK73GB2A561J CHIP R 560 J 1/10W E5
R95 RK73GB2A561J CHIP R 560 J 1/10W J2,J3,K3
R96 RK73GB2A101J CHIP R 100 J 1/10W E5

R96 RK73GB2A101J CHIP R 100 J 1/10W J2,J3,K3
R97 RK73GB2A270J CHIP R 27 J 1/10W E5
R97 RK73GB2A270J CHIP R 27 J 1/10W J2,J3,K3
R98 RK73GB2A560J CHIP R 56 J 1/10W E5
R98 RK73GB2A560J CHIP R 56 J 1/10W J2,J3,K3

R99 RK73GB2A332J CHIP R 3.3K J 1/10W E5
R99 RK73GB2A332J CHIP R 3.3K J 1/10W J2,J3,K3
R100 RK73GB2A152J CHIP R 1.5K J 1/10W E5
R100 RK73GB2A152J CHIP R 1.5K J 1/10W J2,J3,K3
R101 RK73GB2A822J CHIP R 8.2K J 1/10W E5

18

J : TS-2000S J1 : TS-2000V J2 : TS-2000SX J3 : TS-2000VX
K1 : TS-2000 (K) K2 : TS-B2000 (K) K3 : TS-2000X (K)
E1 : TS-2000 (E) E2 : TS-B2000 (E) E3 : TS-2000 (E2) E4 : TS-B2000(E2) E5 : TS-2000X (E)

R125 RK73GB2A470J CHIP R 47 J 1/10W E5
R125 RK73GB2A470J CHIP R 47 J 1/10W J2,J3,K3
R126 RK73GB2A101J CHIP R 100 J 1/10W E5
R126 RK73GB2A101J CHIP R 100 J 1/10W J2,J3,K3
R127 RK73GB2A000J CHIP R 0.0 J 1/10W E5

R127 RK73GB2A000J CHIP R 0.0 J 1/10W J2,J3,K3
R130 RK73GB2A472J CHIP R 4.7K J 1/10W E5
R130 RK73GB2A472J CHIP R 4.7K J 1/10W J2,J3,K3
R131 RK73GB2A182J CHIP R 1.8K J 1/10W E5
R131 RK73GB2A182J CHIP R 1.8K J 1/10W J2,J3,K3

R132 RK73GB2A180J CHIP R 18 J 1/10W E5
R132 RK73GB2A180J CHIP R 18 J 1/10W J2,J3,K3
R133 RK73GB2A470J CHIP R 47 J 1/10W E5
R133 RK73GB2A470J CHIP R 47 J 1/10W J2,J3,K3
R134 RK73GB2A561J CHIP R 560 J 1/10W E5

R134 RK73GB2A561J CHIP R 560 J 1/10W J2,J3,K3
R135 RK73GB2A560J CHIP R 56 J 1/10W E5
R135 RK73GB2A560J CHIP R 56 J 1/10W J2,J3,K3
R140,141 RK73FB2B470J CHIP R 47 J 1/8W E5
R140,141 RK73FB2B470J CHIP R 47 J 1/8W J2,J3,K3

R301 RK73GB2A471J CHIP R 470 J 1/10W E5
R301 RK73GB2A471J CHIP R 470 J 1/10W J2,J3,K3
R302 RK73GB2A470J CHIP R 47 J 1/10W E5
R302 RK73GB2A470J CHIP R 47 J 1/10W J2,J3,K3
R303 RK73GB2A121J CHIP R 120 J 1/10W E5

PARTS LIST

Ref. No.

R303 RK73GB2A121J CHIP R 120 J 1/10W J2,J3,K3
R304 RK73GB2A100J CHIP R 10 J 1/10W E5
R304 RK73GB2A100J CHIP R 10 J 1/10W J2,J3,K3
R305 RK73GB2A103J CHIP R 10K J 1/10W E5
R305 RK73GB2A103J CHIP R 10K J 1/10W J2,J3,K3

Ad dress

New

Parts No. Description

parts

Desti-
nation

TS-2000/B2000/2000X
TS-2000S/2000V/2000SX/2000VX

TX-RX 3 UNIT (UT-20) (X57-607X-XX)

Ref. No.

R361 RK73GB2A682J CHIP R 6.8K J 1/10W J2,J3,K3
R362 RK73GB2A101J CHIP R 100 J 1/10W E5
R362 RK73GB2A101J CHIP R 100 J 1/10W J2,J3,K3
R363 RK73GB2A151J CHIP R 150 J 1/10W E5
R363 RK73GB2A151J CHIP R 150 J 1/10W J2,J3,K3

Ad dress

New

Parts No. Description

parts

Desti-
nation

R306 RK73GB2A332J CHIP R 3.3K J 1/10W E5
R306 RK73GB2A332J CHIP R 3.3K J 1/10W J2,J3,K3
R307 RK73GB2A470J CHIP R 47 J 1/10W E5
R307 RK73GB2A470J CHIP R 47 J 1/10W J2,J3,K3
R309,310 RK73GB2A000J CHIP R 0.0 J 1/10W E5

R309,310 RK73GB2A000J CHIP R 0.0 J 1/10W J2,J3,K3
R311 RK73GB2A331J CHIP R 330 J 1/10W E5
R311 RK73GB2A331J CHIP R 330 J 1/10W J2,J3,K3
R312 RK73GB2A823J CHIP R 82K J 1/10W E5
R312 RK73GB2A823J CHIP R 82K J 1/10W J2,J3,K3

R314,315 RK73GB2A000J CHIP R 0.0 J 1/10W E5
R314,315 RK73GB2A000J CHIP R 0.0 J 1/10W J2,J3,K3
R318 RK73GB2A102J CHIP R 1.0K J 1/10W E5
R318 RK73GB2A102J CHIP R 1.0K J 1/10W J2,J3,K3
R319 RK73GB2A823J CHIP R 82K J 1/10W E5

R319 RK73GB2A823J CHIP R 82K J 1/10W J2,J3,K3
R321 RK73GB2A101J CHIP R 100 J 1/10W E5
R321 RK73GB2A101J CHIP R 100 J 1/10W J2,J3,K3
R322 RK73GB2A821J CHIP R 820 J 1/10W E5
R322 RK73GB2A821J CHIP R 820 J 1/10W J2,J3,K3

R323 RK73GB2A220J CHIP R 22 J 1/10W E5
R323 RK73GB2A220J CHIP R 22 J 1/10W J2,J3,K3
R324 RK73GB2A101J CHIP R 100 J 1/10W E5
R324 RK73GB2A101J CHIP R 100 J 1/10W J2,J3,K3
R325 RK73GB2A182J CHIP R 1.8K J 1/10W E5

R325 RK73GB2A182J CHIP R 1.8K J 1/10W J2,J3,K3
R326 RK73GB2A222J CHIP R 2.2K J 1/10W E5
R326 RK73GB2A222J CHIP R 2.2K J 1/10W J2,J3,K3
R327,328 RK73GB2A000J CHIP R 0.0 J 1/10W E5
R327,328 RK73GB2A000J CHIP R 0.0 J 1/10W J2,J3,K3

R364 RK73GB2A101J CHIP R 100 J 1/10W E5
R364 RK73GB2A101J CHIP R 100 J 1/10W J2,J3,K3
R365 RK73GB2A223J CHIP R 22K J 1/10W E5
R365 RK73GB2A223J CHIP R 22K J 1/10W J2,J3,K3
R366 RK73GB2A822J CHIP R 8.2K J 1/10W E5

R366 RK73GB2A822J CHIP R 8.2K J 1/10W J2,J3,K3
R367 RK73GB2A221J CHIP R 220 J 1/10W E5
R367 RK73GB2A221J CHIP R 220 J 1/10W J2,J3,K3
R368 RK73GB2A000J CHIP R 0.0 J 1/10W E5
R368 RK73GB2A000J CHIP R 0.0 J 1/10W J2,J3,K3

R369 RK73GB2A330J CHIP R 33 J 1/10W E5
R369 RK73GB2A330J CHIP R 33 J 1/10W J2,J3,K3
R370 RK73GB2A183J CHIP R 18K J 1/10W E5
R370 RK73GB2A183J CHIP R 18K J 1/10W J2,J3,K3
R371-373 RK73GB2A330J CHIP R 33 J 1/10W E5

R371-373 RK73GB2A330J CHIP R 33 J 1/10W J2,J3,K3
R374 RK73GB2A222J CHIP R 2.2K J 1/10W E5
R374 RK73GB2A222J CHIP R 2.2K J 1/10W J2,J3,K3
R375 RK73GB2A101J CHIP R 100 J 1/10W E5
R375 RK73GB2A101J CHIP R 100 J 1/10W J2,J3,K3

R376 RK73GB2A153J CHIP R 15K J 1/10W E5
R376 RK73GB2A153J CHIP R 15K J 1/10W J2,J3,K3
R377 RK73GB2A682J CHIP R 6.8K J 1/10W E5
R377 RK73GB2A682J CHIP R 6.8K J 1/10W J2,J3,K3
R378 RK73GB2A151J CHIP R 150 J 1/10W E5

R378 RK73GB2A151J CHIP R 150 J 1/10W J2,J3,K3
R379 RK73GB2A101J CHIP R 100 J 1/10W E5
R379 RK73GB2A101J CHIP R 100 J 1/10W J2,J3,K3
R381 RK73GB2A000J CHIP R 0.0 J 1/10W E5
R381 RK73GB2A000J CHIP R 0.0 J 1/10W J2,J3,K3

R329 RK73GB2A474J CHIP R 470K J 1/10W E5
R329 RK73GB2A474J CHIP R 470K J 1/10W J2,J3,K3
R330 RK73GB2A222J CHIP R 2.2K J 1/10W E5
R330 RK73GB2A222J CHIP R 2.2K J 1/10W J2,J3,K3
R331 RK73GB2A103J CHIP R 10K J 1/10W E5

R331 RK73GB2A103J CHIP R 10K J 1/10W J2,J3,K3
R332 RK73GB2A000J CHIP R 0.0 J 1/10W E5
R332 RK73GB2A000J CHIP R 0.0 J 1/10W J2,J3,K3
R333 RK73GB2A103J CHIP R 10K J 1/10W E5
R333 RK73GB2A103J CHIP R 10K J 1/10W J2,J3,K3

R334 RK73GB2A392J CHIP R 3.9K J 1/10W E5
R334 RK73GB2A392J CHIP R 3.9K J 1/10W J2,J3,K3
R335 RK73GB2A000J CHIP R 0.0 J 1/10W E5
R335 RK73GB2A000J CHIP R 0.0 J 1/10W J2,J3,K3
R342 RK73GB2A000J CHIP R 0.0 J 1/10W E5

R342 RK73GB2A000J CHIP R 0.0 J 1/10W J2,J3,K3
R343 RK73GB2A331J CHIP R 330 J 1/10W E5
R343 RK73GB2A331J CHIP R 330 J 1/10W J2,J3,K3
R351 RK73GB2A000J CHIP R 0.0 J 1/10W E5
R351 RK73GB2A000J CHIP R 0.0 J 1/10W J2,J3,K3

R359 RK73GB2A101J CHIP R 100 J 1/10W E5
R359 RK73GB2A101J CHIP R 100 J 1/10W J2,J3,K3
R360 RK73GB2A153J CHIP R 15K J 1/10W E5
R360 RK73GB2A153J CHIP R 15K J 1/10W J2,J3,K3
R361 RK73GB2A682J CHIP R 6.8K J 1/10W E5

J : TS-2000S J1 : TS-2000V J2 : TS-2000SX J3 : TS-2000VX
K1 : TS-2000 (K) K2 : TS-B2000 (K) K3 : TS-2000X (K)
E1 : TS-2000 (E) E2 : TS-B2000 (E) E3 : TS-2000 (E2) E4 : TS-B2000(E2) E5 : TS-2000X (E)

R383 RK73GB2A102J CHIP R 1.0K J 1/10W E5
R383 RK73GB2A102J CHIP R 1.0K J 1/10W J2,J3,K3
R384 RK73GB2A470J CHIP R 47 J 1/10W E5
R384 RK73GB2A470J CHIP R 47 J 1/10W J2,J3,K3
R385,386 RK73GB2A103J CHIP R 10K J 1/10W E5

R385,386 RK73GB2A103J CHIP R 10K J 1/10W J2,J3,K3
R389 RK73GB2A181J CHIP R 180 J 1/10W E5
R389 RK73GB2A181J CHIP R 180 J 1/10W J2,J3,K3
R390 RK73GB2A270J CHIP R 27 J 1/10W E5
R390 RK73GB2A270J CHIP R 27 J 1/10W J2,J3,K3

R391 RK73GB2A181J CHIP R 180 J 1/10W E5
R391 RK73GB2A181J CHIP R 180 J 1/10W J2,J3,K3
R392 RK73GB2A681J CHIP R 680 J 1/10W E5
R392 RK73GB2A681J CHIP R 680 J 1/10W J2,J3,K3
R500,501 RK73FB2B000J CHIP R 0.0 J 1/8W E5

R500,501 RK73FB2B000J CHIP R 0.0 J 1/8W J2,J3,K3
R502 RD14BB2C152J RD 1.5K J 1/6W E5
R502 RD14BB2C152J RD 1.5K J 1/6W J2,J3,K3
VR1 ✽ R32-0756-05 TRIMMING POT.(22K/8) E5
VR1 ✽ R32-0756-05 TRIMMING POT.(22K/8) J2,J3,K3

VR2 R32-0767-05 TRIMMING POT.(1.0K/8) E5
VR2 R32-0767-05 TRIMMING POT.(1.0K/8) J2,J3,K3

D1 HSB88WS DIODE E5
D1 HSB88WS DIODE J2,J3,K3

19

TS-2000/B2000/2000X
TS-2000S/2000V/2000SX/2000VX

PARTS LIST

TX-RX 3 UNIT (UT-20) (X57-607X-XX)

Ad dress

New

Parts No. Description

parts

Ref. No.

D2 1SS355 DIODE E5
D2 1SS355 DIODE J2,J3,K3
D3,4 ✽ HSM88ASR-E DIODE E5
D3,4 ✽ HSM88ASR-E DIODE J2,J3,K3
D5-7 ✽ L7091CER DIODE E5

Desti-
nation

Ref. No.

Q16,17 2SC4617(R) TRANSISTOR J2,J3,K3
Q18 KRC102S-P DIGITAL TRANSISTOR E5
Q18 KRC102S-P DIGITAL TRANSISTOR J2,J3,K3
Q19 2SC3356-A TRANSISTOR E5
Q19 2SC3356-A TRANSISTOR J2,J3,K3

Ad dress

New

Parts No. Description

parts

Desti-
nation

D5-7 ✽ L7091CER DIODE J2,J3,K3
D8 DAN235E DIODE E5
D8 DAN235E DIODE J2,J3,K3
D9 1SS355 DIODE E5
D9 1SS355 DIODE J2,J3,K3

D10,11 RN731V DIODE E5
D10,11 RN731V DIODE J2,J3,K3
D12,13 DAN202K DIODE E5
D12,13 DAN202K DIODE J2,J3,K3
D301 1SV283F VARIABLE CAPACITANCE DIODE E5

D301 1SV283F VARIABLE CAPACITANCE DIODE J2,J3,K3
D302 ✽ UDZW4.7(B) ZENER DIODE E5
D302 ✽ UDZW4.7(B) ZENER DIODE J2,J3,K3
D303 ✽ L7091CER DIODE E5
D303 ✽ L7091CER DIODE J2,J3,K3

D304 MA2S111-F DIODE E5
D304 MA2S111-F DIODE J2,J3,K3
D305 1SV283F VARIABLE CAPACITANCE DIODE E5
D305 1SV283F VARIABLE CAPACITANCE DIODE J2,J3,K3
D306 015AZ3.3(X)F ZENER DIODE E5

D306 015AZ3.3(X)F ZENER DIODE J2,J3,K3

IC1 UPC2709TB-A IC(TX RF AMPLIFIER) E5
IC1 UPC2709TB-A IC(TX RF AMPLIFIER) J2,J3,K3
IC3 ✽ RA18H1213G-101 IC(FINAL POWER MODULE) E5
IC3 ✽ RA18H1213G-101 IC(FINAL POWER MODULE) J2,J3,K3
IC4 AD9851BRS MOS-IC(DDS) J2,J3,K3

IC4 ✽ AD9851BRSZ MOS-IC(DDS) E5
IC5 LMX2316TMX MOS-IC(PLL) E5
IC5 LMX2316TMX MOS-IC(PLL) J2,J3,K3
Q1,2 3SK131-A(M) FET E5
Q1,2 3SK131-A(M) FET J2,J3,K3

Q20 2SC3357-A TRANSISTOR E5
Q20 2SC3357-A TRANSISTOR J2,J3,K3
Q301 2SK508NV(K52) FET E5
Q301 2SK508NV(K52) FET J2,J3,K3
Q302 2SC5066-F(O) TRANSISTOR E5

Q302 2SC5066-F(O) TRANSISTOR J2,J3,K3
Q303,304 2SC4617(R) TRANSISTOR E5
Q303,304 2SC4617(R) TRANSISTOR J2,J3,K3
Q305-307 2SC3722K(R) TRANSISTOR E5
Q305-307 2SC3722K(R) TRANSISTOR J2,J3,K3

Q310-312 2SC4617(R) TRANSISTOR E5
Q310-312 2SC4617(R) TRANSISTOR J2,J3,K3
Q313,314 3SK131-A(M) FET E5
Q313,314 3SK131-A(M) FET J2,J3,K3
Q315 2SC4617(R) TRANSISTOR E5

Q315 2SC4617(R) TRANSISTOR J2,J3,K3
TH1 157-102-65001 THERMISTOR E5
TH1 157-102-65001 THERMISTOR J2,J3,K3
TH2 157-502-65001 THERMISTOR E5
TH2 157-502-65001 THERMISTOR J2,J3,K3

TH500 NCP18XW153J0S THERMISTOR E5
TH500 NCP18XW153J0S THERMISTOR J2,J3,K3

Q3 2SC3356-A TRANSISTOR E5
Q3 2SC3356-A TRANSISTOR J2,J3,K3
Q4 UMC4N TRANSISTOR E5
Q4 UMC4N TRANSISTOR J2,J3,K3
Q5 2SC4093-A TRANSISTOR E5

Q5 2SC4093-A TRANSISTOR J2,J3,K3
Q6 ✽ NESG260234 TRANSISTOR E5
Q6 ✽ NESG260234 TRANSISTOR J2,J3,K3
Q7,8 2SK520-A(K43) FET E5
Q7,8 2SK520-A(K43) FET J2,J3,K3

Q9 3SK131-A(M) FET E5
Q9 3SK131-A(M) FET J2,J3,K3
Q10 3SK320-FP FET E5
Q10 3SK320-FP FET J2,J3,K3
Q11 ✽ 2SC5008-T1-A TRANSISTOR E5

Q11 ✽ 2SC5008-T1-A TRANSISTOR J2,J3,K3
Q12 ✽ NE34018 FET E5
Q12 ✽ NE34018 FET J2,J3,K3
Q13 2SC4617(R) TRANSISTOR E5
Q13 2SC4617(R) TRANSISTOR J2,J3,K3

Q14,15 2SC5108(Y)F TRANSISTOR E5
Q14,15 2SC5108(Y)F TRANSISTOR J2,J3,K3
Q16,17 2SC4617(R) TRANSISTOR E5

20

J : TS-2000S J1 : TS-2000V J2 : TS-2000SX J3 : TS-2000VX
K1 : TS-2000 (K) K2 : TS-B2000 (K) K3 : TS-2000X (K)
E1 : TS-2000 (E) E2 : TS-B2000 (E) E3 : TS-2000 (E2) E4 : TS-B2000(E2) E5 : TS-2000X (E)

Transmitter Section

Item Condition

1. Final idling
current

(HF/VHF)

1) Display f. : 14.100MHz
Mode : USB
Final unit (A/2)
VR1, 2, 3, 4 : MIN
Transmit

TS-2000/B2000/2000X
TS-2000S/2000V/2000SX/2000VX

ADJUSTMENT (K/E TYPE)

Measurement Adjustment

Test-

equipment

DC. A Rear

Unit

panel

Terminal

DC Final

Unit Parts Method

(A/2)

Check the default
current (Io).

VR1 Io + 500mA = I

A

VR2 I

+ 1000mA = I

Specifi cations / Remarks

A

±50mA

B

±100mA

2) Display f. : 145.900MHz
Mode : USB
VR101, 102 : MIN
Transmit

2. 29.1MHz

frequency

3. Final idling
current

(UHF)

4. TX BPF

(VHF)

• Perform the following in the adjustment mode. Item 5~8 and 12~28.

To terminate the adjustment menu in the middle, save your settings with Menu No. 124.

1) Display f. : 29.100MHz
Mode : FM
Transmit

1) Display f. : 430.000MHz
Mode : USB
Final unit (B/2)
VR901, 902 : MIN
Transmit

1) Display f. : 145.900MHz K

144.900MHz E
Mode : CW
Disconnect the cable from

CN4 and insert a cable from

the spectrum analyzer.
Transmit
After the adjustment, con-

nect the cable to CN4.

f. counter

DC. A Rear

Spectrum
analyzer

TX-RX1
(A/10)

panel

TX-RX2
(A/11)

CN14

DC Final

CN4

TX-RX1
(A/10)

(B/2)

TX-RX2
(A/11)

VR3 I

VR4 I

VR101

VR102

TC3 29.10000MHz ±20Hz

VR902

VR901

TC12
TC13

TC14

B

+ 700mA = I

C

+ 700mA

IB + 2000mA = I

ID + 2000mA

Check the default
current (Io).

Io + 2500mA = I

IE + 200mA ±20mA

IF output max.

229MHz spurious
level min.

C

±50mA

D

±100mA

E

±100mA

5. TX BPF
(UHF)

1) Menu No. : 15
(Frequency : 435.1MHz)
Disconnect the cable from

CN3 and insert a cable from

the spectrum analyzer.
Transmit

2) Menu No. : 16
(Frequency : 420.1MHz)
Transmit

3) Menu No. : 17
(Frequency : 439.99MHz)
Transmit

4) Menu No. : 18
(Frequency : 449.9MHz)
Transmit
After the adjustment, con-

nect the cable to CN3.

Spectrum
analyzer

TX-RX2
(A/11)

CN3 Front

panel

TX-RX2
(A/11)

Front
panel

[+] key
or
[–] key
L90
L91
TC4
TC5
TC6
TC8
TC10

[+] key
or
[–] key

After setting the
adjustment value
to 131, adjust the
trimmers and coils
to have a maximum
IF output.

Output gain max. 6dBm or more

8dBm or more

21

TS-2000/B2000/2000X
TS-2000S/2000V/2000SX/2000VX

ADJUSTMENT (K/E TYPE)

Measurement Adjustment

Item Condition

6. ALC
reference

voltage

1) Menu No. : 00
(Frequency : 14.1MHz)
Transmit

Test-

equipment

DC V.M

Unit

TX-RX1
(A/10)

Terminal

TP3 Front

panel

Unit Parts Method

[+] key

Set the adjustment
value within the limit

or

of the specifi ed volt-

[–] key

age.

Specifi cations / Remarks

2.7V±0.1V

7. TX IF gain
(HF)

8. TX IF BPF
(HF)

9. TX mixer
balance

10. Maximum
power

UHF

1) Menu No. : 78
(Frequency : 18.1MHz)
Transmit

1) Menu No. : 19
(Frequency : 14.1MHz)
Transmit

1) Display f. : 50.100MHz
Mode : CW
Transmit

This item was deleted due to a circuit modifi cation.

50Ω dummy
Oscilloscope
Spectrum
analyzer

CN14

TX-RX1
(A/10)

Front
panel

TX-RX1
(A/10)

TX-RX1
(A/10)

L109
L108
L105
L103
L102
L100
L99
L98
L96

[+] key
or
[–] key
L100
L99
L98
L96
L102
VR3

VR2

Drive output level
max.

Change the adjust-
ment values to get
the peak reading to
a maximum output.

68.985MHz
spurious level min.

–6dBm or more

4dBm or more

VHF

11. Null 1) Display f. : 14.1MHz

12. Power
frequency
characteristic

(HF)

Mode : CW
Transmit

1) Menu No. : 68
(Frequency : 14.1MHz)
Transmit

2) Menu No. : 120
(Frequency : 51.99MHz)
Transmit

3) Menu No. : 68
(Frequency : 14.1MHz)
Transmit

22

Power
meter

DC V.M
Oscilloscope

Rear
panel

Final
(A/2)

ANT1

CN19

Filter

Front
panel

Filter

TC1

VSR voltage min. 0.3V or less

VR1

Set it at the center
position.

[+] key

Set the adjustment
value within the

or

limit of the specifi ed

[–] key

power.

VR1

100W ±3W

Check 100W±5W

100W±3W

Item Condition

13. HF power
POC

100W

50W 2) Menu No. : 69

1) Menu No. : 68
(Frequency : 14.1MHz)
Transmit

Transmit

TS-2000/B2000/2000X
TS-2000S/2000V/2000SX/2000VX

ADJUSTMENT (K/E TYPE)

Measurement Adjustment

Test-

equipment

Power
meter

Unit

Rear
panel

Terminal

ANT1 Front

Unit Parts Method

panel

[+] key

Set the adjustment
value within the

or

limit of the specifi ed

[–] key

power.

Specifi cations / Remarks

100W±3W

50W±2W

25W 3) Menu No. : 70

10W 4) Menu No. : 71

5W 5) Menu No. : 72

14. Band TGC

1.8MHz

3.5MHz 2) Menu No. : 74

7.0MHz 3) Menu No. : 75

10MHz 4) Menu No. : 76

14MHz 5) Menu No. : 77

18MHz 6) Menu No. : 78

21MHz 7) Menu No. : 79

24MHz 8) Menu No. : 80

28MHz 9) Menu No. : 81

52MHz 10) Menu No. : 82

15. Power PGC

50W

25W 2) Menu No. : 84

Transmit

Transmit

Transmit

1) Menu No. : 73
(Frequency : 1.83MHz)
Transmit

(Frequency : 3.51MHz)
Transmit

(Frequency : 7.01MHz)
Transmit

(Frequency : 10.1MHz)
Transmit

(Frequency : 14.1MHz)
Transmit

(Frequency : 18.1MHz)
Transmit

(Frequency : 21.1MHz)
Transmit

(Frequency : 24.9MHz)
Transmit

(Frequency : 28.1MHz)
Transmit

(Frequency : 50.1MHz)
Transmit

1) Menu No. : 83
(Frequency : 14.1MHz)
Transmit

Transmit

25W±1W

10W±0.5W

5W±0.3W

100W±3W

50W±2W

25W±1W

10W 3) Menu No. : 85

Transmit

5W 4) Menu No. : 86

Transmit

10W±0.5W

5W±0.3W

23

TS-2000/B2000/2000X
TS-2000S/2000V/2000SX/2000VX

ADJUSTMENT (K/E TYPE)

Measurement Adjustment

Item Condition

16. VHF power
POC

100W

50W 2) Menu No. : 92

1) Menu No. : 91
(Frequency : 145.9MHz)
Transmit

Transmit

Test-

equipment

Power
meter

Unit

Rear
panel

Terminal

ANT144

Unit Parts Method

Front
panel

[+] key

Set the adjustment
value within the

or

limit of the specifi ed

[–] key

power.

Specifi cations / Remarks

100W±3W

50W±2W

25W 3) Menu No. : 93

Transmit

10W 4) Menu No. : 94

Transmit

5W 5) Menu No. : 95

17. VHF band
TGC

18. VHF power
PGC

50W

25W 2) Menu No. : 98

10W 3) Menu No. : 99

5W 4) Menu No. : 100

19. UHF power
POC

50W

Transmit

1) Menu No. : 96
(Frequency : 145.9MHz)
Transmit

1) Menu No. : 97
(Frequency : 145.9MHz)
Transmit

Transmit

Transmit

Transmit

1) Menu No. : 101
(Frequency : 438.1MHz)
Transmit

ANT430

25W±1W

10W±0.5W

5W±0.3W

100W±3W

50W±2W

25W±1W

10W±0.5W

5W±0.3W

50W±2W

25W 2) Menu No. : 102

Transmit

12.5W 3) Menu No. : 103

5W 4) Menu No. : 104

20. UHF band

TGC

21. UHF power
PGC

25W

12.5W 2) Menu No. : 107

5W 3) Menu No. : 108

Transmit

Transmit

1) Menu No. : 105
(Frequency : 438.1MHz)
Transmit

1) Menu No. : 106
(Frequency : 438.1MHz)
Transmit

Transmit

Transmit

24

25W±1W

12.5W±0.5W

5W±0.3W

50W±2W

25W±1W

12.5W±0.5W

5W±0.3W
