Kenwood DV-2070, DV-203 Schematic
CD/VIDEO-CD/DVD PLAYER
PHONES LEVEL
MAXMIN
PHONES
ON SCREEN
PANEL UP / DOWN
RETURN
3
7
4¢
OPEN/CLOSE
DVD MENU
ENTER
1¡
VIRTUAL
SURROUND
96 kfs
DTS
ON OFF
POWER
COMPONENT VIDEO OUTPUT
Y
Cb Cr
(PCM/BIT STREAM)
COAXIAL OPTICAL
DIGITAL OUTPUT
CENTER
S-VIDEO 1
VIDEO OUTPUT
MIX LINE
OUTPUT
S-VIDEO 2
FRONT SURROUND SUBWOOFER
6CH. OUTPUT
L
R
L
R
1
2
DV-203/2070
DVF-5010/9010/K7010

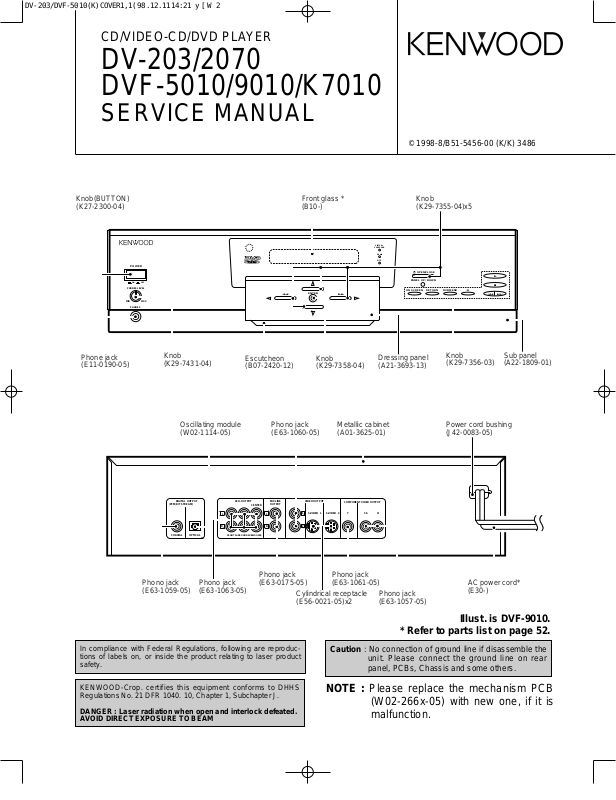

SERVICE MANUAL
© 1998-8/B51-5456-00 (K/K) 3486
Knob(BUTTON)
(K27-2300-04)
Phone jack
(E11-0190-05)
Knob
(K29-7431-04)
Oscillating module
(W02-1114-05)
Escutcheon
(B07-2420-12)
Phono jack
(E63-1060-05)
Front glass *
(B10-)
Knob
(K29-7358-04)
Dressing panel
(A21-3693-13)
Metallic cabinet
(A01-3625-01)
Knob
(K29-7355-04)x5
Knob
(K29-7356-03)
Power cord bushing
(J42-0083-05)
Sub panel
(A22-1809-01)
Phono jack
Phono jack
(E63-1059-05)
Phono jack
(E63-1063-05)
(E63-0175-05)
In compliance with Federal Regulations, following are reproductions of labels on, or inside the product relating to laser product
safety.
KENWOOD-Crop. certifies this equipment conforms to DHHS
Regulations No. 21 DFR 1040. 10, Chapter 1, Subchapter J.
DANGER : Laser radiation when open and interlock defeated.
AVOID DIRECT EXPOSURE TO BEAM
Phono jack
(E63-1061-05)
Cylindrical receptacle
(E56-0021-05)x2
Caution : No connection of ground line if disassemble the
NOTE : Please replace the mechanism PCB
AC power cord*
Phono jack
(E30-)
(E63-1057-05)
Illust. is DVF-9010.
* Refer to parts list on page 52.
unit. Please connect the ground line on rear
panel, PCBs, Chassis and some others.
(W02-266x-05) with new one, if it is
malfunction.
