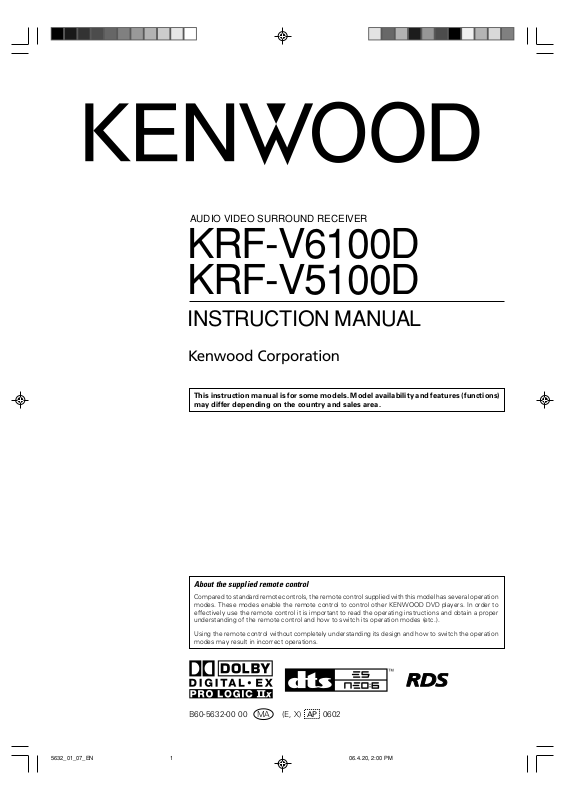

Kenwood B60-5632-00, KRF-V6100D, KRF-V5100D User Manual
AUDIO VIDEO SURROUND RECEIVER
KRF-V6100D
KRF-V5100D
INSTRUCTION MANUAL
This instruction manual is for some models. Model availability and features (functions)
may differ depending on the country and sales area.
About the supplied remote control
Compared to standard remote controls, the remote control supplied with this model has several operation
modes. These modes enable the remote control to control other KENWOOD DVD players. In order to
effectively use the remote control it is important to read the operating instructions and obtain a proper
understanding of the remote control and how to switch its operation modes (etc.).
Using the remote control without completely understanding its design and how to switch the operation
modes may result in incorrect operations.
B60-5632-00 00 MA (E, X) AP 0602
Before applying power
Caution : Read this page carefully to ensure safe operation.
Units are designed for operation as follows.
Australia ........................................................... AC 240 V only
Europe and U.K. ............................................... AC 230 V only
Information on Disposal of Old Electrical and
Electronic Equipment (applicable for EU countries
that have adopted separate waste collection
systems)
Contact your local authority for details in locating a recycle facility
nearest to you.
Proper recycling and waste disposal will help conserve resources
whilst preventing detrimental effects on our health and the
environment.
Safety precautions
WARNING :
TO PREVENT FIRE OR ELECTRIC SHOCK,
DO NOT EXPOSE THIS APPLIANCE TO
RAIN OR MOISTURE.
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT
REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS
INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
Products with the symbol (crossed-out wheeled bin)cannot
be disposed as household waste.
Old electrical and electronic equipment should be recycled
at a facility capable of handling these items and their waste
byproducts.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
THE LIGHTNING FLASH WITH ARROWHEAD SYMBOL,
WITHIN AN EQUILATERAL TRIANGLE, IS INTENDED TO
ALERT THE USER TO THE PRESENCE OF UNINSULATED
“DANGEROUS VOLTAGE” WITHIN THE PRODUCT’S
ENCLOSURE THAT MAY BE OF SUFFICIENT MAGNITUDE
TO CONSTITUTE A RISK OF ELECTRIC SHOCK TO
PERSONS.
THE EXCLAMATION POINT WITHIN AN EQUILATERAL
TRIANGLE IS INTENDED TO ALERT THE USER TO THE
PRESENCE OF IMPORTANT OPERATING AND
MAINTENANCE (SERVICING) INSTRUCTIONS IN THE
LITERATURE ACCOMPANYING THE APPLIANCE.
Unpacking
Unpack the unit carefully and make sure that all the accessories are
present.
FM indoor antenna (1) AM loop antenna (1)
Remote control unit (1) Batteries (R03/AAA) (2)
RC-R0630E
If any accessories are missing, or if the unit is damaged or fails to operate,
notify your dealer immediately. If the unit was shipped to you directly,
notify your shipper immediately. Kenwood recommends that you retain
the original carton and packing materials in case you need to move or ship
the unit in the future.
Keep this manual handy for future reference.
How to use this manual
This manual is divided into four sections, Preparations, Operations,
Remote Control, and Additional Information.
Preparations
Shows you how to connect your audio and video components to this
model and prepare the surround processor.
Since this model works with all of your audio and video components, we
will guide you in setting up your system to be as easy as possible.
Operations
Shows you how to operate the various functions available on this model.
Remote Control
Shows you how to operate other components using the remote control,
as well as a detailed explanation of all remote control operations. Once
you have setup the remote control, you’ll be able to operate both this
model and your KENWOOD DVD player using the remote control
supplied with this model.
Additional Information
Shows you additional information such as “In case of difficulty”
(troubleshooting) and “Specifications”.
Memory back up function
Please note that the following items will be deleted from the unit's
memory if the power cord is disconnected from the AC outlet for
approximately 1 day.
• Power mode
• Input selector settings
• Picture output
• Speaker ON/OFF
• Volume level
• BASS, TREBLE, INPUT level
• TONE ON/OFF
• LOUDNESS ON/OFF
• ACTIVE EQ mode
• Dimmer level
EN
2
• MD/TAPE settings
• Input mode setting
• Speaker settings
• Sound mode settings
• Distance setting
• Listen mode setting
• Broadcast band
• Frequency setting
• Preset stations
• Tuning mode
IMPORTANT SAFETY INSTRUCTIONS
Caution: Read this page carefully to ensure safe operation.
Read Instructions – All the safety and operating instructions
should be read before the product is operated.
Retain Instructions – The safety and operating instructions
should be retained for future reference.
Heed Warnings – All warnings on the product and in the
operating instructions should be adhered to.
Follow Instructions – All operating and use instructions
should be followed.
1. Cleaning – Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners.
Use a damp cloth for cleaning.
2. Attachments – Do not use attachments not recommended by the product manufacturer as they may cause
hazards.
3. Water and Moisture – This product shall not be exposed
to dripping and splashing – for example, near a bath tub, wash
bowl, kitchen sink, or laundry tub; in a wet basement; or near
a swimming pool; and the like. Do not place an object containing liquid, such as a flower vase, on the appliance.
4. Accessories – Do not place this product on an unstable
cart, stand, tripod, bracket, or table. The product may fall,
causing serious injury to a child or adult, and serious damage
to the product. Use only with a cart, stand, tripod, bracket, or
table recommended by the manufacturer. Any mounting of
the product should follow the manufacturer’s instructions,
and should use a mounting accessory recommended by the
manufacturer.
A product and cart combination should be
moved with care. Quick stops, excessive force,
and uneven surfaces may cause the product and
cart combination to overturn.
5. Ventilation – Slots and openings in the cabinet are provided for ventilation and to ensure reliable operation of the
product and to protect it from overheating, and these openings must not be blocked or covered. The openings should
never be blocked by placing the product on a bed, sofa, rug,
or other similar surface. This product should not be placed in
a built-in installation such as a bookcase or rack unless proper
ventilation is provided or the manufacturer’s instructions have
been adhered to.
6. Power Sources – This product should be operated only
from the type of power source indicated on the product. If
you are not sure of the type of power supply to your home,
consult your product dealer or local power company.
7.
CAUTION - Polarization – This product may be
equipped with a polarized alternating-current line plug (a plug
having one blade wider than the other). This plug will fit into
the power outlet only one way. This is a safety feature. If you
are unable to insert the plug fully into the outlet, try reversing
the plug. If the plug should still fail to fit, contact your electrician to replace your obsolete outlet. Do not defeat the safety
purpose of the polarized plug.
8. Power Cord Protection – Power-supply cords should be
routed so that they are not likely to be walked on or pinched
by items placed upon or against them, paying particular attention to cords at plugs, convenience receptacles, and the
point where they exit from the product.
9. Lightning – For added protection for this product during
a lightning storm, or when it is left unattended and unused
for long periods of time, unplug it from the wall outlet and
disconnect the antenna or cable system. This will prevent
damage to the product due to lightning and power-line surges.
10.Overloading – Do not overload wall outlets, extension
cords, or integral convenience receptacles as this can result
in a risk of fire or electric shock.
11.Object and Liquid Entry – Never push objects of any
kind into this product through openings as they may touch
dangerous voltage points or short-out parts that could result
in a fire or electric shock. Never spill liquid of any kind on the
product.
12.Servicing – Do not attempt to service this product yourself as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.
13.Damage Requiring Service – Unplug this product from
the wall outlet and refer servicing to qualified service personnel under the following conditions:
a) When the power-supply cord or plug is damaged,
b) If liquid has been spilled, or objects have fallen into
the product,
c) If the product has been exposed to rain or water,
d) If the product does not operate normally by following
the operating instructions.
e) If the product has been dropped or damaged in any
way, and
f) When the product exhibits a distinct change in per-
formance – this indicates a need for service.
g) If an abnormal smell or smoke is detected.
14.Replacement Parts – When replacement parts are re-
quired, be sure the service technician has used replacement
parts specified by the manufacturer or have the same characteristics as the original part. Unauthorized substitutions may
result in fire, electric shock, or other hazards.
15.Safety Check – Upon completion of any service or repairs to this product, ask the service technician to perform
safety checks to determine that the product is in proper operating condition.
16.Wall or Ceiling Mounting – This product should be
mounted to a wall or ceiling only as recommended by the
manufacturer.
17.Heat – This product should be situated away from heat
sources such as radiators, heat registers, stoves, or other
products that produce heat. Do not place a flaming object,
such as a candle or lantern, or near the product.
18.Power Lines – An outside antenna system should not be
located in the vicinity of overhead power lines or other electric light or power circuits, or where it can fall into such power
lines or circuits. When installing an outside antenna system,
extreme care should be taken to keep from touching such
power lines or circuits as contact with them might be fatal.
19.Outdoor Antenna Grounding – If an outside antenna or
cable system is connected to the product, be sure the antenna or cable system is grounded so as to provide some
protection against voltage surges and built-up static charges.
Article 810 of the National Electrical Code, ANSI/NFPA 70,
provides information with regard to proper grounding of the
mast and supporting structure, grounding of the lead-in wire
to an antenna discharge unit, size of grounding conductors,
location of antenna-discharge unit, connection to grounding
electrodes, and requirements for the grounding electrode.
EXAMPLE OF ANTENNA
GROUNDING AS PER NATIONAL
ELECTRICAL CODE
GROUND
CLAMPS
ELECTRIC
SERVICE
EQUIPMENT
NEC – NATIONAL ELECTRICAL CODE
Notes
1. Item 7 is not required except for grounded or polarized
equipment.
2. Item 19 complies with UL in the U.S.A.
ANTENNA
LEAD IN WIRE
ANTENNA
DISCHARGE UNIT
(NEC SECTION 810-20)
GROUNDING CONDUCTORS
(NEC SECTION 810-21)
GROUND CLAMP
POWER SERVICE GROUNDING
ELECTRODE SYSTEM
(NEC ART 250, PART H)
EN
3
Before applying power
Contents
Caution : Read the pages marked carefully to ensure
Preparations
safe operation.
Before applying power ............................................................. 2
Safety precautions .................................................................... 2
Unpacking ................................................................................. 2
How to use this manual ............................................................ 2
IMPORTANT SAFETY INSTRUCTIONS ................................... 3
Preparing the remote control ................................................... 4
Special features ........................................................................ 5
Names and functions of parts ................................................. 6
Main unit ................................................................................... 6
Remote control unit .................................................................. 7
Setting up the system ........................................ 8
Connecting a DVD player (6-channel input) ....... 9
Connecting audio components ........................ 10
Connecting video components ........................ 11
Connecting video components (COMPONENT
VIDEO) (KRF-V6100D only) .............................. 12
Digital connections .......................................... 13
Connecting the speakers .................................14
Connecting the terminals ................................ 15
Connecting the antennas ................................. 15
Preparing for surround sound ....................... 16
Speaker settings .............................................. 16
Normal playback.............................................. 19
Preparing for playback ..................................... 19
Listening to a source component .................... 19
Adjusting the sound ......................................... 20
Recording .......................................................... 21
Recording audio (analog sources) ................... 21
Recording video ............................................... 21
Recording audio (digital sources) .................... 21
Listening to radio broadcasts ....................... 22
Tuning (non-RDS) radio stations ...................... 22
Using RDS (Radio Data System) ..................... 22
Operations
Presetting radio stations manually .................. 23
Receiving preset stations ................................ 23
Receiving preset stations in order (P.CALL) ... 24
Using the RDS DISP. (Display) key ................. 24
Presetting RDS stations
(RDS AUTO MEMORY) ................................... 25
Tuning by Program TYpe (PTY search) ............ 25
Ambience effects ............................................. 26
Surround modes .............................................. 26
Surround play ................................................... 28
DVD 6-channel playback .................................. 29
Convenient functions ....................................... 30
Remote
Control
Additional
Information
Basic remote control operations for KENWOOD
DVD players ...................................................... 32
DVD player operation keys .............................. 32
In case of difficulty .......................................... 33
Specifications (For Europe) ........................... 35
Specifications (For Australia) ....................... 36
Preparing the remote control
Loading the batteries
1 Remove the cover. 2 Insert the batteries.
3 Close the cover.
• Insert two AAA-size (R03) batteries as indicated by the polarity
markings.
Operation
When the STANDBY indicator is lit, the power turns ON when you press
RECEIVER key on the remote control unit. When the power comes
the
ON, press the key you want to operate.
Operating range
(Approx.)
Infrared ray system
• When pressing more than one remote control key successively,
press the keys securely by leaving an interval of 1 second or more
between keys.
Notes
1. The supplied batteries may have shorter lives than ordinary batteries
due to use during operation checks.
2. When the remote-controllable distance gets shorter than before,
replace both batteries with new ones.
3. Placing the remote sensor in direct sunlight, or in direct light from a
high frequency fluorescent lamp may cause a malfunction.
In such a case, change the location of the system installation to
prevent malfunction.
Remote sensor
EN
4
Before applying power
Special features
True home theater sound
This model incorporates a wide variety of surround modes to bring you
maximum enjoyment from your video software. Select a surround mode
according to your equipment or the software you are going to play and
enjoy! §
Dolby Digital and Dolby Digital EX
The Dolby Digital mode lets you enjoy full digital surround from software
processed in the Dolby Digital format. Dolby Digital provides up to 5.1
channels of independent digital audio for better sound quality and more
powerful presence than conventional Dolby Surround. As for Dolby
Digital EX, it creates six full-bandwidth output channels from the 5.1
channel sources. This is done using a matrix decoder that derives three
surround channels from the two in the original recording. For best result,
Dolby Digital EX should be used with movie soundtracks recorded with
Dolby Digital Surround EX.
Dolby Pro Logic
Dolby Pro Logic II, whilst totally compatible with its predecessor Pro
Logic, provides greater advantages in surround sound. It allows user
to enjoy the conventional stereo or Dolby Surround with a convincing
“5.1 like” presentation. Pro Logic
controlling the overall spatial, dimensionality and frontal sound field
imaging. Pro Logic
software marked
CD. When listening to music, you will be able to enjoy the experience of
sheer STEREO surround sound.
Dolby Pro Logic
It creates 6.1 channel and 7.1 channel surround sound from stereo or 5.1
channel signals. This feature provides you an astonishing ambience
effect which makes you feel you are surrounded by natural sound.
Especially 7.1 channel surround sound can produce real back sound from
Surround Back speakers.
IIX
and Dolby Pro Logic
II
II offers special features for
II produces an impressive surround sound from video
and three-dimensional space from music
IIx enhanced Dolby Pro Logic II’s features.
DTS and DTS-ES
DTS (Digital Theater System) is a 5.1 channel digital audio format that
provides five full-spectrum channels and one low-frequency (subwoofer)
channel for unprecedented clarity, optimum channel separation and a
(wide) dynamic range.
DTS-ES (Extended Surround) presents 6.1 channels surround system
with additional Surround back channel which evolved from the
conventional 5.1 channels surround system. DTS-ES format that was
recorded in DVD, CD or LD comprises of two modes. DTS-ES Discrete
6.1 produces the discrete surround back which is completely independent
and DTS-ES Matrix 6.1 produces the surround back which synthesized
within the left and right surround channels using matrix technology. DTSES has perfect compatibility with the conventional 5.1 channels surround
system. 6.1 channels surround with an additional surround back presents
a more natural presence and surround effects by increasing the impression
of the sound image from back.
Important:
When a DTS disc is played on a CD, LD or DVD player, noise may be
output from the analog output. It is recommended that you connect the
digital output of the player to the digital input of this unit.
DSP surround modes
The DSP (Digital Signal Processor) used for this model incorporates a
variety of high quality adjustable sound fields, like “ARENA”, “JAZZ
CLUB”, “THEATER”, “STADIUM” and “DISCO”. It is compatible with
almost any kind of program source.
DVD 6-channel input
If you own a DVD player equipped with 6-channel output, this model
allows you to obtain the full surround sound impact of DVD source
material featuring multi-channel encoding. Since the source signals are
digital and each channel is input independently, the resulting ambience
is far superior to what can be achieved with conventional surround sound
systems.
ACTIVE EQ
ACTIVE EQ mode will produce a more dynamic sound quality in any
condition. You can enjoy a more impressive sound effect when ACTIVE
EQ is turned on.
IR (InfraRed) remote control
In addition to the basic receiver operations, this IR remote control
supplied can also control KENWOOD DVD players directly without using
the DVD Special features.
RDS (Radio Data System) tuner
This model is equipped with an RDS tuner that provides several convenient
tuning functions: RDS Auto Memory, to automatically preset up to 40
RDS stations broadcasting different programs; station name display, to
show you the name of the current broadcast station; and PTY search to
let you tune stations by program type.
PTY (Program TYpe) search
Tune the stations by specifying the type of program you want to hear.
Neo:6
Neo:6 is a new technology which was developed by DTS. It can produce
high grade 6 channels surround with an astonishing fidelity from 2
channels content. Neo:6 has 2 modes, “CINEMA” mode is for movie
playback and “MUSIC” mode is for music playback.
EN
5
Names and functions of parts
R
S
F
ON/S
Y
S
Y
Q
L
EAUTO/MONO
Y
SETUP
E
N
UP
OR
SOUND
E
Main unit
Speaker indicator
CLIP indicator
MUTE indicator
LOUDNESS indicator
TONE indicator
TUNED indicator
PTY indicator
AUTO indicator
RDS indicator
ST. indicator
Input channel indicators
*The Input channel indicators light
up to indicate the channels contained in the input signal. The “S”
indicator lights when the surround
component consists of a single
channel.
TANDB
TANDB
PEAKERS ON/OF
ACTIVE E
LISTEN MOD
INPUT MOD
POWE
ON OFF
PHONES
ACTIVE EQDTSDOLBY DIGITA
Frequency display,
Input display,
Preset channel display,
Surround mode display
Display
MEMOR
DIGITAL indicator
Band indicators
DOLBY DIGITAL
indicator
PRO LOGIC
indicator
MULTI CONTROLINPUT SELECT
AUTO DETECT
indicator
DSP MODE
indicator
DOW
NEO:6
indicator
VOLUME CONTROL
6CH INPUT indicator
DTS indicator
DISCRETE 6.1
indicator
MATRIX 6.1
indicator
MUT
1 POWER ON/OFF key ^
Use to turn the main power ON/OFF.
2 ON/STANDBY
key ^
Use to switch the power ON/STANDBY when
the POWER is turned ON.
STANDBY indicator
3 DIMMER key
Use to select the REC MODE. ¡
Use to adjust the brightness of the display.
⁄
4 LISTEN MODE key •
Use to select the listening mode.
5 Surround LED (light-emitting diode)
indicators
ACTIVE EQ mode LED indicator )
Lights when this model is in the ACTIVE EQ
mode.
DTS mode LED indicator •
Lights when this model is in the DTS mode.
6 SOUND key º
Use to adjust the sound quality and the
ambience effects.
7 MULTI CONTROL knob ^
Use to control a variety of settings.
8 INPUT SELECTOR knob (
Use to select the input sources.
9 VOLUME CONTROL knob (
0 PHONES jack )
Use for headphone listening.
! SPEAKERS ON/OFF key (
Use to turn the speakers ON/OFF.
@ ACTIVE EQ key )
Use to select ACTIVE EQ setting.
# INPUT MODE key 8
Use to switch between full auto, digital and
analog inputs.
$ BAND key ™
Use to select the broadcast band.
% AUTO/MONO key
Use to change “TAPE” indication to “MD”.
Use to select the auto tuning mode. ™
^ MEMORY key £
Use to store radio stations in the preset
memory.
& SETUP key ^
Use to select the speakers' settings etc.
* MUTE key )
Use to temporarily mute the sound.
DOLBY DIGITAL mode LED indicator •
Lights when this model is in the Dolby Digital
mode.
Standby mode
While the standby indicator is lit, a small amount of power is supplied to the system to back up the memory. This is called standby mode. Under the
condition, the system can be turned ON by the remote control unit.
EN
6
(
Names and functions of parts
Remote control unit
CD/DVD
VIDEO 1
LISTEN MODE
ACTIVE EQ
TOP MENU
ENTER
RETURN ON SCREEN
BASS BOOST
AUDIO
BAND
LOUDNESS
SUBTITLE
MD/TAPE RECEIVER
DVD/6CHVIDEO 2
DVD
SET UP
TONE
DIMMER
SOUND
MULTI CONTROL
MENU
MUTE
RDS DISP.
DISC SEL.
PTY
DISC SKIP
REPEATANGLE
1 Input Selector keys (TUNER, CD/DVD, MD/TAPE,
VIDEO 1, VIDEO 2, DVD/6CH, AUX) (
Use to select the input sources.
2 Numeric keys
Use to operate the DVD player. ¤
Use to call up preset stations. £
3 LISTEN MODE key •
Use to select the listening mode.
4 ACTIVE EQ key )
Use to select ACTIVE EQ setting.
5 %/fi/@/# keys
ENTER key
TOP MENU key
MENU key
RETURN key
ON SCREEN key
Use to operate the DVD player. ¤
6 8 key ¤
Use to operate the DVD player.
BAND key ™
Use to select the broadcast band.
6 key ¤
Use to operate the DVD player.
AUTO/MONO key ™
Use to select the auto tuning mode.
7 key ¤
Use to operate the DVD player.
7 P.CALL4/¢ keys
Use to call preset channel. ¢
Use to operate the DVD player. ¤
8 BASS BOOST key )
Use to select the maximum adjustment setting for
the low frequency range.
LOUDNESS key )
Use to switch the status of LOUDNESS.
9
RECEIVER key ^
Use to turn this model on and off.
DVD key ¤
0
Use to turn on the DVD player on and off.
! SETUP key
Use to select the speakers’ settings etc. ^
Use to operate the DVD player. ¤
@ TONE key )
Use to switch the status of TONE control.
# SOUND key º
Use to adjust the sound quality and ambience effects.
$ DIMMER key
Use to adjust the brightness of the display. ⁄
Use to operate the DVD player. ¤
% MULTI CONTROL %/fi keys ^
Use to control a variety of settings.
^ VOLUME %/fi keys (
Use to adjust volume setting.
& MUTE key )
Use to temporarily mute the sound.
* TUNING 1/¡ keys
Use to select the radio station. ™
Use to operate the DVD player. ¤
( RDS DISP. key ¢
Use for RDS function.
PTY key ∞
Use for PTY search.
DISC SEL. key
DISC SKIP key
AUDIO key
SUBTITLE key
ANGLE key
REPEAT key
Use to operate the DVD player. ¤
• Some keys can be used for operating KENWOOD DVD players by pressing the CD/DVD or DVD/6CH key beforehand. ¤
EN
7
Setting up the system
Make connections as shown in the following pages.
When connecting the related system components, be
sure to refer to the instruction manuals supplied with
the components you are connecting.
Do not connect the power cord to a wall outlet until all
connections are completed.
Notes
1. Be sure to insert all connection cords securely. If their connections are
imperfect, the sound may not be produced or there will be noise
interference.
2. Be sure to remove the power cord from the AC outlet before plugging
or unplugging any connection cords. Plugging/unplugging connection
cords without disconnecting the power cord can cause malfunctions
and may damage the unit.
3. Do not connect power cords from components whose power
consumption is larger than what is indicated on the AC outlet at the
rear of this unit.
Analog connections
Audio connections are made using RCA pin cords. These cables transfer
stereo audio signal in an “analog” form. This means the audio signal
corresponds to the actual audio of two channels. These cables usually
have 2 plugs at each end, red for the right channel and white for the left
channel. These cables are usually packed together with the source unit,
or are available at your local electronics retailer.
Microcomputer malfunction
If operation is not possible or an erroneous display appears, even
though all connections have been made properly, reset the
microcomputer by referring to “In case of difficulty”. ‹
CAUTION
Install the equipment so that the power outlet is easily accessible
and, in case of emergency, immediately unplug the power cord from
the power outlet.
The power in this equipment will not be completely cut off from the
AC wall outlet when the main switch is turned OFF.
Input mode settings
“CD/DVD”, “VIDEO2” and “DVD/6CH” inputs each include jacks
for digital audio input and analog audio input.
After completing connections and turning on this model, follow the
steps below.
LISTEN MODE INPUT SELECTOR
INPUT MODE
1 Use the INPUT SELECTOR knob to select “CD/DVD”,
“VIDEO2”, “DVD/6CH”.
2 Press the INPUT MODE key.
Each press switches the setting as follows:
In DTS play mode
1 F-AUTO (digital input, analog input)
2 D-MANUAL (digital input)
In CD/DVD, VIDEO2, DVD/6CH play mode
1 F-AUTO (digital input, analog input)
2 D-MANUAL (digital input)
3 6CH INPT (DVD/6CH input) *
4 ANALOG (analog input)
* “6CH INPT” setting can be switched only when the input
selector is set to “DVD/6CH”.
Digital input:
Select this setting to play digital signals from a DVD, CD, or LD
player.
Analog input:
Select this setting to play analog signals from a cassette deck, VCR,
or record player.
Auto detect:
In “F-AUTO” (full auto) mode (AUTO DETECT and DIGITAL
indicators light up), this model detects the digital or analog input
signals automatically. Priority is given to digital signal during input
mode selection. This model will select the input mode and listening
mode automatically during playback to match the type of input
signal (Dolby Digital, PCM, DTS ) and the speaker setting. The initial
factory setting is full auto.
To keep this model set to the currently selected listening mode, use
the INPUT MODE key to select “D-MANUAL” (digital manual).
However, even when this setting is selected, there may be cases
in which the listening mode is selected automatically to match a
Dolby Digital source signal depending on the combination of listening
mode and source digital.
In D-MANUAL mode, if the audio reproduction stops in the middle
due to change in the input signals etc, press the LISTEN MODE key.
If the INPUT MODE key is pressed quickly, sound may not be
produced. Press the INPUT MODE key again.
EN
8
Setting up the system
Connecting a DVD player (6-channel input)
If you have connected a DVD player to this model with digital connection, be sure to read the “Input mode settings” section carefully. 8
Australia
For COMPONENT VIDEO
connection
(KRF-V6100D only) @
DVD
IN
VIDEO 2
IN
VIDEO
VIDEO 1
IN
MONITOR
OUT
VIDEO 1
OUT
DVD
IN
FRONT
DVD / 6CH INPUT
SURROUND
WOOFER
CENTER
SUB
Other countries
COAXIAL OPTICAL
VIDEO 2
DVD / 6CH
CD / DVD
DIGITAL IN
VIDEO OUT
(Yellow RCA
pin cord)
S-VIDEO cord
(KRF-V6100D only)
FRONT
OUT L/R
DVD player
S-VIDEO
OUT
SURROUND
OUT L/R
COAXIAL
DIGITAL
OUT
(AUDIO)
SUBWOOFER
OUT
CENTER OUT
EN
9
Setting up the system
Connecting audio components
L
R
EUROPE
To AC wall outlet
AUDIO
AUX CD/ DVD
REC OUT PLAY IN
MD / TAPE
IN
OUT
REC OUT PLAY IN
VIDEO 1
OUT
IN
Video component
OUT
Cassette deck or MD recorder
CD or DVD player
OUT
Other component
CAUTION
Be sure to adhere to the following, or proper ventilation will be blocked causing damage or fire hazard.
• Do not place any objects impairing heat radiation onto the top of the unit.
• Leave some space around the unit (from the largest outside dimension including projection) equal to or greater than, shown below.
Top panel : 50 cm Side panel : 10 cm Back panel : 10 cm
EN
10
Setting up the system
Connecting video components
About the S-VIDEO
jacks
S-VIDEO
Use the S-VIDEO jacks to
make connections to
video components with
S-VIDEO IN/OUT jacks.
If you use the S-VIDEO
•
jacks to connect your video
playback components, be
sure to use the S-VIDEO
jacks when connecting
your monitor and video
recording components.
S-VIDEO
VIDEO 2INDVDINMONITOR
S-VIDEO jacks
(For KRF-V6100D)
OUT
* DVD IN input jack is used for
either CD/DVD input or DVD/
6CH input.
DVD
IN
VIDEO 2
IN
VIDEO 1
VIDEO
IN
MONITOR
OUT
VIDEO 1
OUT
Video
IN
Monitor TV
AUDIO
REC OUT PLAY IN
VIDEO 1
PLAY IN
VIDEO 2
Video
IN
Video OUT Audio OUT
Video OUT
Video deck
DVD player or LD player
A video component with digital audio outputs should be connected to the VIDEO 2 jacks.
Audio IN
Audio OUT
11
EN
