Drawer Dishwasher
Use&CareGuide
®
Models: 465.1332% 465.1333%
= color number
465.1334 _
Co

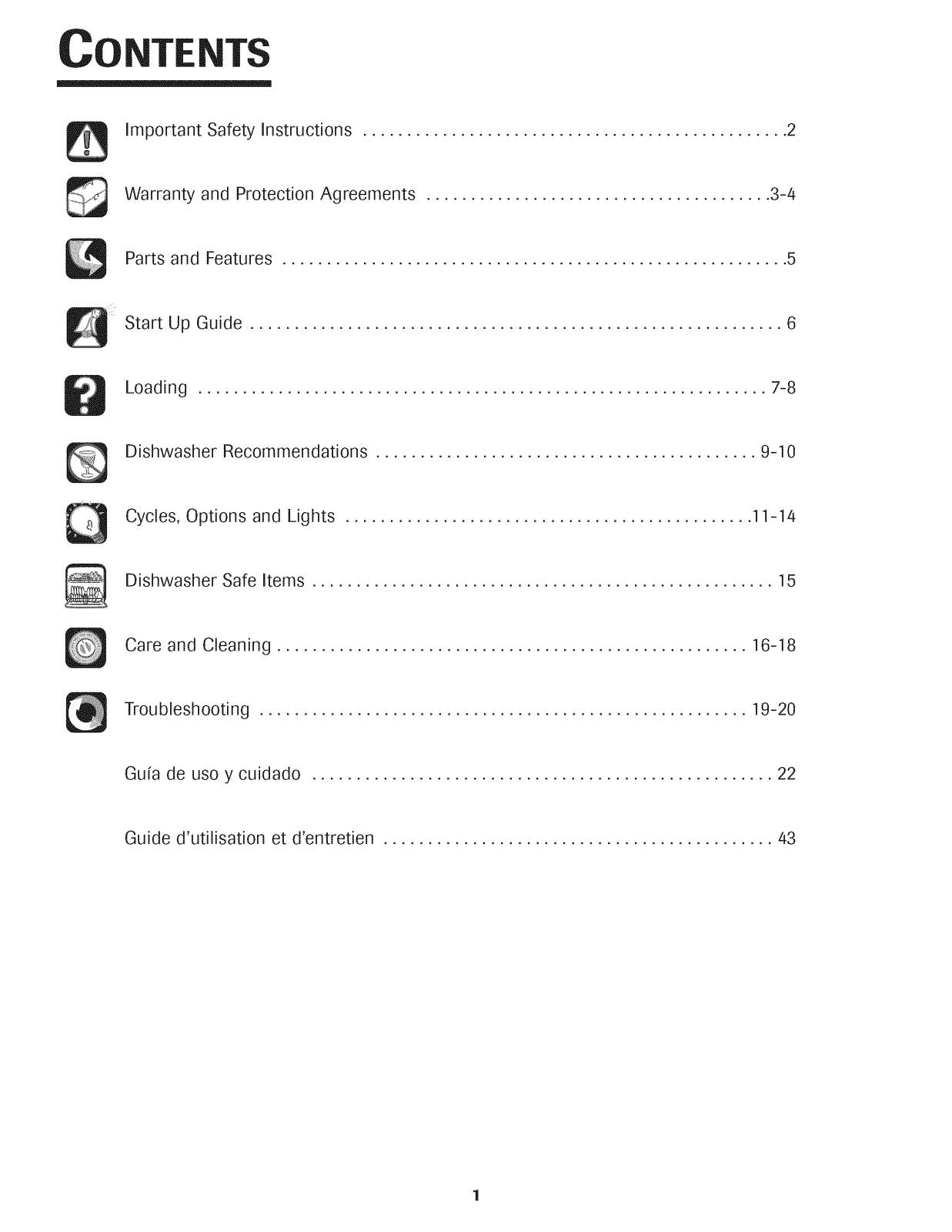

Important Safety Instructions ................................................ 2
Warranty and Protection Agreements 3-4
Parts and Features ......................................................... 5
Start Up Guide ............................................................ 6
Loading ................................................................ 7-8
Dishwasher Recommendations ........................................... 9-10
@
Cycles, Options and Lights .............................................. 11-14
Dishwasher Safe Items .................................................... 15
Care and Cleaning ..................................................... 16-18
Troubleshooting ....................................................... 19-20
Gufa de uso y cuidado .................................................... 22
Guide d'utilisation et d'entretien ............................................ 43

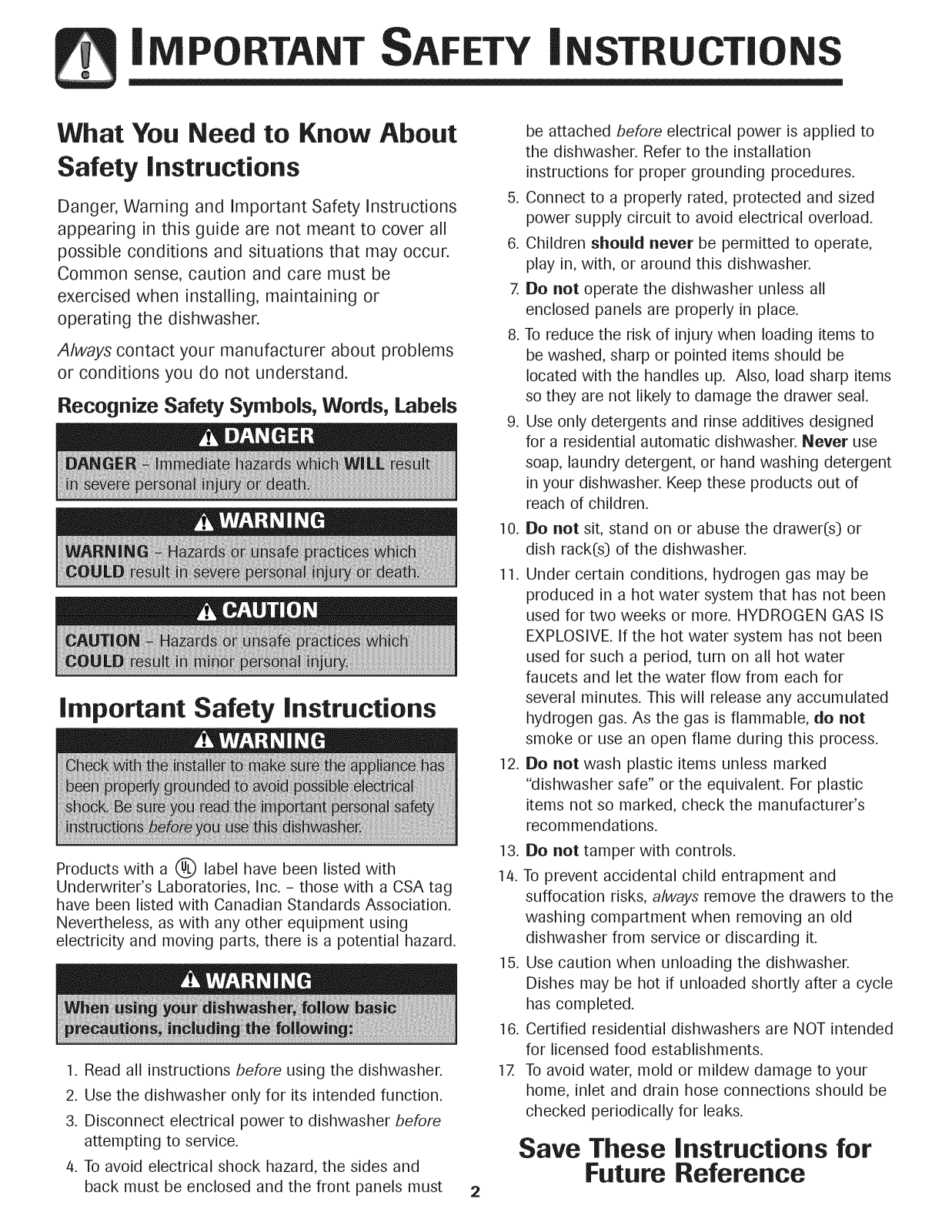

SAFETY
What You Need to Know About
Safety Instructions
Danger, Warning and important Safety instructions
appearing in this guide are not meant to cover all
possible conditions and situations that may occur.
Common sense, caution and care must be
exercised when installing, maintaining or
operating the dishwasher.
Always contact your manufacturer about problems
or conditions you do not understand.
Recognize Safety Symbols, Words, Labels
important Safety instructions
be attached before electrical power is applied to
the dishwasher. Refer to the installation
instructions for proper grounding procedures.
5. Connect to a properly rated, protected and sized
power supply circuit to avoid electrical overload.
6. Children should never be permitted to operate,
play in, with, or around this dishwasher
7. Do not operate the dishwasher unless all
enclosed panels are properly in place.
8. To reduce the risk of injury when loading items to
be washed, sharp or pointed items should be
located with the handles up. Also, load sharp items
so they are not likely to damage the drawer seal.
9. Use only detergents and rinse additives designed
for a residential automatic dishwasher. Never use
soap, laundry detergent, or hand washing detergent
in your dishwasher. Keep these products out of
reach of children.
10. Do not sit, stand on or abuse the drawer(s) or
dish rack(s) of the dishwasher.
11. Under certain conditions, hydrogen gas may be
produced in a hot water system that has not been
used for two weeks or more. HYDROGEN GAS IS
EXPLOSIVE. If the hot water system has not been
used for such a period, turn on all hot water
faucets and let the water flow from each for
several minutes. This will release any accumulated
hydrogen gas. As the gas is flammable, do not
smoke or use an open flame during this process.
12. Do not wash plastic items unless marked
"dishwasher safe" or the equivalent. For plastic
items not so marked, check the manufacturer's
recommendations.
Products with a (_ label have been listed with
Underwriter's Laboratories, inc. - those with a CSA tag
have been listed with Canadian Standards Association.
Nevertheless, as with any other equipment using
electricity and moving parts, there is a potential hazard.
1. Read all instructions before using the dishwasher.
2. Use the dishwasher only for its intended function.
3. Disconnect electrical power to dishwasher before
attempting to service.
4. To avoid electrical shock hazard, the sides and
back must be enclosed and the front panels must
13. Do not tamper with controls.
14. To prevent accidental child entrapment and
suffocation risks, always remove the drawers to the
washing compartment when removing an old
dishwasher from service or discarding it.
15. Use caution when unloading the dishwasher.
Dishes may be hot if unloaded shortly after a cycle
has completed.
16. Certified residential dishwashers are NOT intended
for licensed food establishments.
17. To avoid water, mold or mildew damage to your
home, inlet and drain hose connections should be
checked periodically for leaks.
Save These instructions for
Future Reference

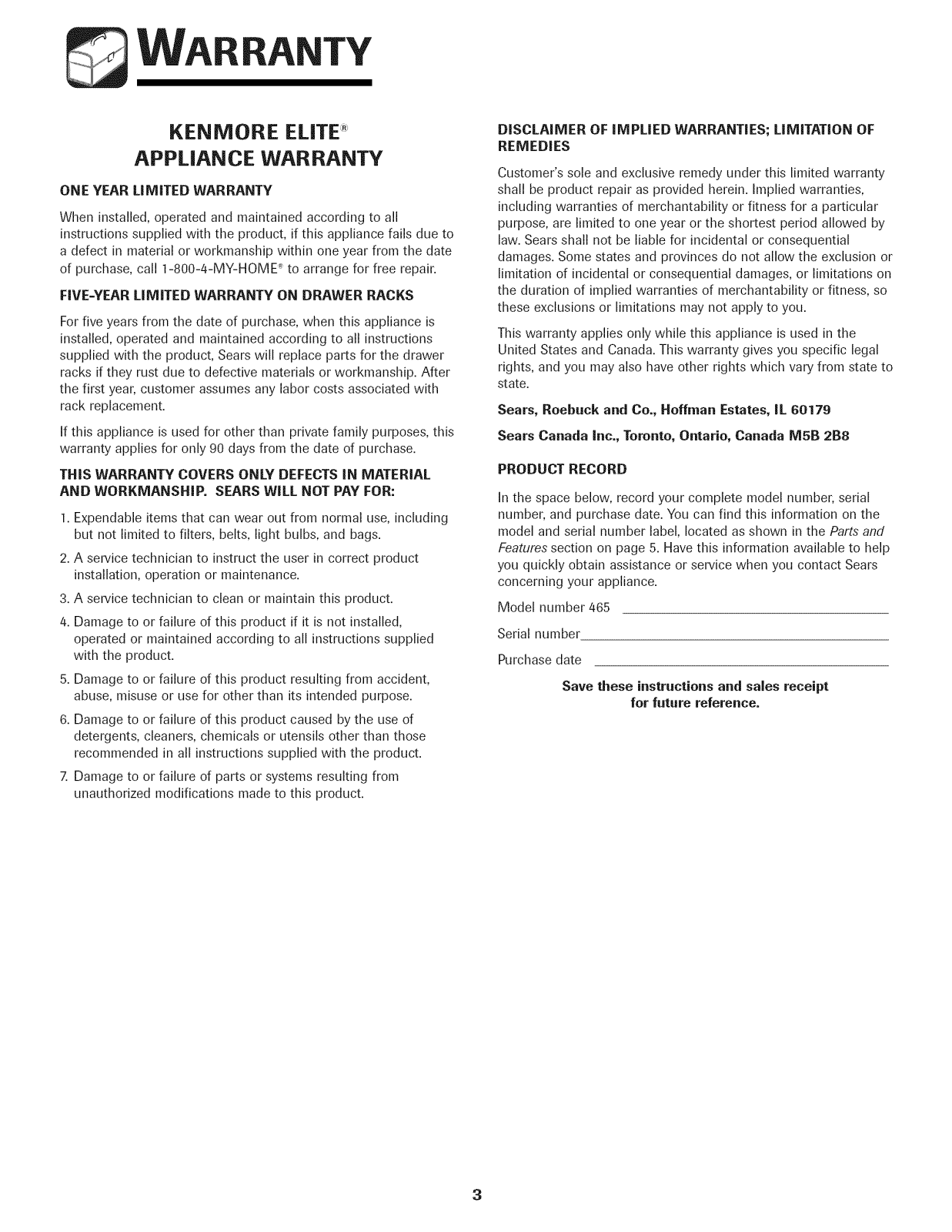

WARRANTY
KENMORE ELITE
APPLIANCE WARRANTY
ON E YEAR LI MITED WARRANTY
When installed, operated and maintained according to all
instructions supplied with the product, if this appliance fails due to
a defect in material or workmanship within one year from the date
of purchase, call 1-800-4-MY-HOME Rto arrange for free repair.
RVE=YEAR LIMITED WARRANTY ON DRAWER RACKS
For five years from the date of purchase, when this appliance is
installed, operated and maintained according to all instructions
supplied with the product, Sears will replace parts for the drawer
racks if they rust due to defective materials or workmanship. After
the first year, customer assumes any labor costs associated with
rack replacement.
If this appliance is used for other than private family purposes, this
warranty applies for only 90 days from the date of purchase.
THiS WARRANTY COVERS ONLY DEFECTS IN MATERIAL
AND WORKMANSHIP. SEARS WILL NOT PAY FOR:
1. Expendable items that can wear out from normal use, including
but not limited to filters, belts, light bulbs, and bags.
2. A service technician to instruct the user in correct product
installation, operation or maintenance.
3. A service technician to clean or maintain this product.
4. Damage to or failure of this product if it is not installed,
operated or maintained according to all instructions supplied
with the product.
5. Damage to or failure of this product resulting from accident,
abuse, misuse or use for other than its intended purpose.
6. Damage to or failure of this product caused by the use of
detergents, cleaners, chemicals or utensils other than those
recommended in all instructions supplied with the product.
7. Damage to or failure of parts or systems resulting from
unauthorized modifications made to this product.
DiSCLAiMER OF iMPLiED WARRANTIES; LiMiTATiON OF
REMEDIES
Customer's sole and exclusive remedy under this limited warranty
shall be product repair as provided herein. Implied warranties,
including warranties of merchantability or fitness for a particular
purpose, are limited to one year or the shortest period allowed by
law. Sears shall not be liable for incidental or consequential
damages. Some states and provinces do not allow the exclusion or
limitation of incidental or consequential damages, or limitations on
the duration of implied warranties of merchantability or fitness, so
these exclusions or limitations may not apply to you.
This warranty applies only while this appliance is used in the
United States and Canada. This warranty gives you specific legal
rights, and you may also have other rights which vary from state to
state.
Sears, Roebuck and Co., Hoffman Estates, IL 60179
Sears Canada Inc., Toronto, Ontario, Canada M5B 2B8
PRODUCT RECORD
In the space below, record your complete model number, serial
number, and purchase date. You can find this information on the
model and serial number label, located as shown in the Parts, and
Features section on page 5. Have this information available to help
you quickly obtain assistance or service when you contact Sears
concerning your appliance.
Model number 465
Serial number
Purchase date
Save these instructions and sales receipt
for future reference.
PROTECTI
in the USA

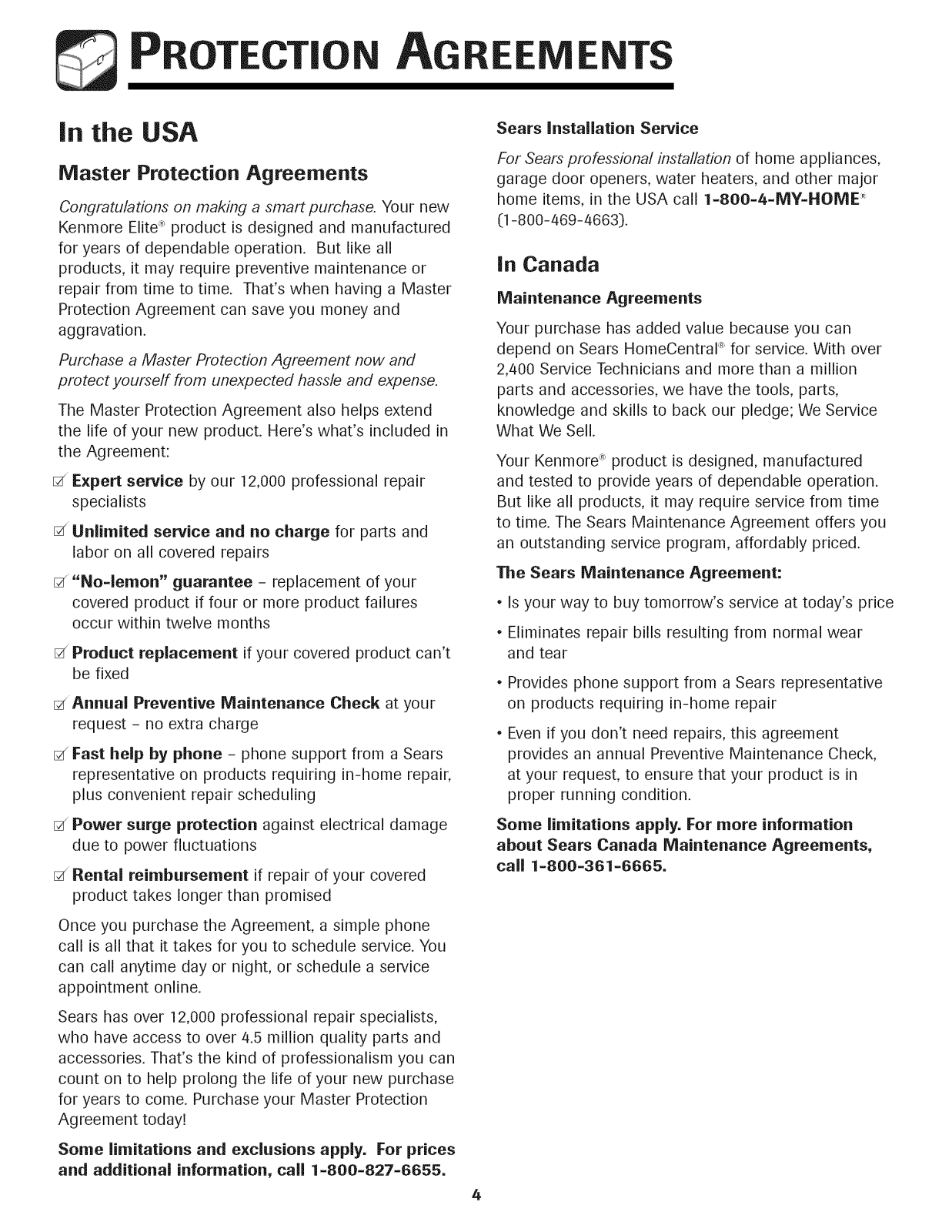

Master Protection Agreements
Congratulations on making a smart purchase. Your new
Kenmore Elite_ product is designed and manufactured
for years of dependable operation. But like all
products, it may require preventive maintenance or
repair from time to time. That's when having a Master
Protection Agreement can save you money and
aggravation.
Purchase a Master Protection Agreement now and
protect yourself from unexpected hassle and expense.
The Master Protection Agreement also helps extend
the life of your new product. Here's what's included in
the Agreement:
Expert service by our 12,000 professional repair
specialists
Unlimited service and no charge for parts and
labor on all covered repairs
"No-lemon" guarantee - replacement of your
covered product if four or more product failures
occur within twelve months
Product replacement if your covered product can't
be fixed
Annual Preventive Maintenance Check at your
request - no extra charge
Fast help by phone - phone support from a Sears
representative on products requiring in-home repair,
plus convenient repair scheduling
Sears installation Service
For Sears professional installation of home appliances,
garage door openers, water heaters, and other major
home items, in the USA call I-BOO-a-MY-HOME _
(1-800-469-4663).
In Canada
Maintenance Agreements
Your purchase has added value because you can
depend on Sears HomeCentral _ for service. With over
2,400 Service Technicians and more than a million
parts and accessories, we have the tools, parts,
knowledge and skills to back our pledge; We Service
What We Sell.
Your Kenmore :_product is designed, manufactured
and tested to provide years of dependable operation.
But like all products, it may require service from time
to time. The Sears Maintenance Agreement offers you
an outstanding service program, affordably priced.
The Sears Maintenance Agreement:
* Is your way to buy tomorrow's service at today's price
* Eliminates repair bills resulting from normal wear
and tear
* Provides phone support from a Sears representative
on products requiring in-home repair
• Even if you don't need repairs, this agreement
provides an annual Preventive Maintenance Check,
at your request, to ensure that your product is in
proper running condition.
_f Power surge protection against electrical damage
due to power fluctuations
Rental reimbursement if repair of your covered
product takes longer than promised
Once you purchase the Agreement, a simple phone
call is all that it takes for you to schedule service. You
can call anytime day or night, or schedule a service
appointment online.
Sears has over 12,000 professional repair specialists,
who have access to over 4.5 million quality parts and
accessories. That's the kind of professionalism you can
count on to help prolong the life of your new purchase
for years to come. Purchase your Master Protection
Agreement today!
Some limitations and exclusions apply. For prices
and additional information, call 1-800-827-665;5.
Some limitations apply. For more information
about Sears Canada Maintenance Agreements,
call 1-800-361-6665.
4

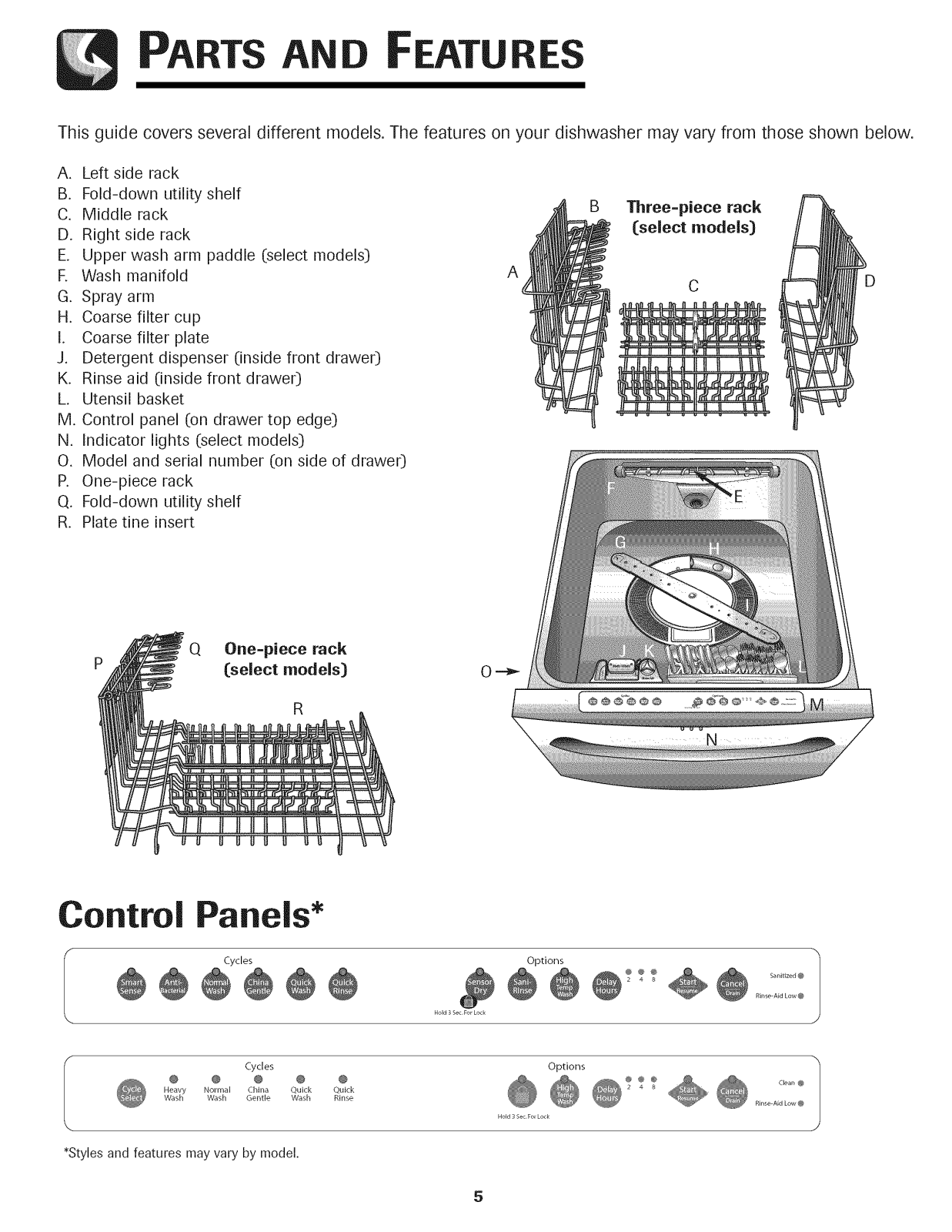

PARTS
Thisguidecoversseveraldifferentmodels.The featureson your dishwashermay varyfrom thoseshown below.
A. Left side rack
B. Fold-down utility shelf
C. Middle rack
D. Right side rack
E. Upper wash arm paddle (select models}
R Wash manifold
G. Spray arm
H. Coarse filter cup
I. Coarse filter plate
J. Detergent dispenser (inside front drawer)
K. Rinse aid (inside front drawer)
L. Utensil basket
M. Control panel (on drawer top edge}
N. Indicator lights (select models}
O. Model and serial number (on side of draweO
P. One-piece rack
Q. Fold-down utility shelf
R. Plate tine insert
A
B
Three-piece rack
(select models[}
f
@ @ @ @ @
Heavy Nolrn® China Quick Quick
Wash Wash Gentle Wash Rinse
\
*Styles and features may vary by model.
Cycles
Options
tit _ ........... ®
Hold B 5ec For Lock
Options
Rinse Aid Low®
C_ean ®
Rinse Aid Low @
START |

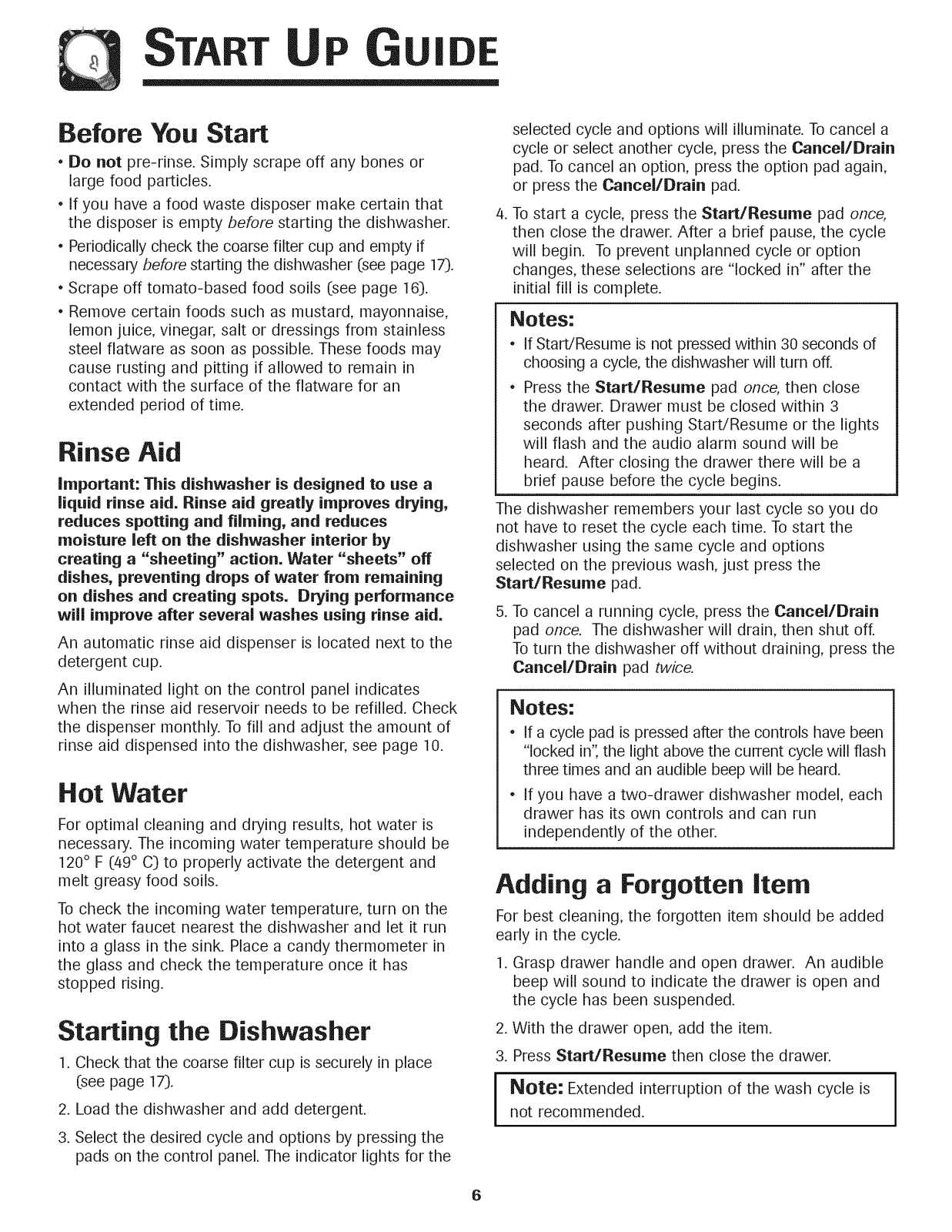

Before You Start
• Do not pre-rinse. Simply scrape off any bones or
large food particles.
• If you have a food waste disposer make certain that
the disposer is empty before starting the dishwasher.
• Periodically check the coarse filter cup and empty if
necessary before starting the dishwasher (see page 17).
• Scrape off tomato-based food soils (see page 16).
• Remove certain foods such as mustard, mayonnaise,
lemon juice, vinegar, salt or dressings from stainless
steel flatware as soon as possible. These foods may
cause rusting and pitting if allowed to remain in
contact with the surface of the flatware for an
extended period of time.
Rinse Aid
important: This dishwasher is designed to use a
liquid rinse aid. Rinse aid greatly improves drying,
reduces spotting and filming, and reduces
moisture left on the dishwasher interior by
creating a "sheeting" action. Water "sheets" off
dishes, preventing drops of water from remaining
on dishes and creating spots. Drying performance
will improve after several washes using rinse aid.
An automatic rinse aid dispenser is located next to the
detergent cup.
An illuminated light on the control panel indicates
when the rinse aid reservoir needs to be refilled. Check
the dispenser monthly. To fill and adjust the amount of
rinse aid dispensed into the dishwasher, see page 10.
Hot Water
For optimal cleaning and drying results, hot water is
necessary. The incoming water temperature should be
120° F (49° C[}to properly activate the detergent and
melt greasy food soils.
To check the incoming water temperature, turn on the
hot water faucet nearest the dishwasher and let it run
into a glass in the sink. Place a candy thermometer in
the glass and check the temperature once it has
stopped rising.
selected cycle and options will illuminate. To cancel a
cycle or select another cycle, press the Cancel/Drain
pad. To cancel an option, press the option pad again,
or press the Cancel/Drain pad.
.
To start a cycle, press the StarUResume pad once,
then close the drawer. After a brief pause, the cycle
will begin. To prevent unplanned cycle or option
changes, these selections are "locked in" after the
initial fill is complete.
Notes:
• If Start/Resume is not pressed within 30 seconds of
choosing a cycle, the dishwasher will turn off.
• Press the Start/Resume pad once, then close
the drawer. Drawer must be closed within 3
seconds after pushing Start/Resume or the lights
will flash and the audio alarm sound will be
heard. After closing the drawer there will be a
brief pause before the cycle begins.
The dishwasher remembers your last cycle so you do
not have to reset the cycle each time. To start the
dishwasher using the same cycle and options
selected on the previous wash, just press the
Start/Resume pad.
5. To cancel a running cycle, press the Cancel/Drain
pad once. The dishwasher will drain, then shut off.
To turn the dishwasher off without draining, press the
Cancel/Drain pad twice.
Notes:
• If a cycle pad is pressed after the controls have been
"locked in",the light above the current cycle will flash
three times and an audible beep will be heard.
• If you have a two-drawer dishwasher model, each
drawer has its own controls and can run
independently of the other.
Adding a Forgotten item
For best cleaning, the forgotten item should be added
early in the cycle.
1. Grasp drawer handle and open drawer. An audible
beep will sound to indicate the drawer is open and
the cycle has been suspended.
Starting the Dishwasher
1. Check that the coarse filter cup is securely in place
(see page 17).
2. Load the dishwasher and add detergent.
3. Select the desired cycle and options by pressing the
pads on the control panel. The indicator lights for the
2. With the drawer open, add the item.
3. Press Start/Resume then close the drawer.
Note: Extended interruption of the wash cycle is
not recommended.
6
I

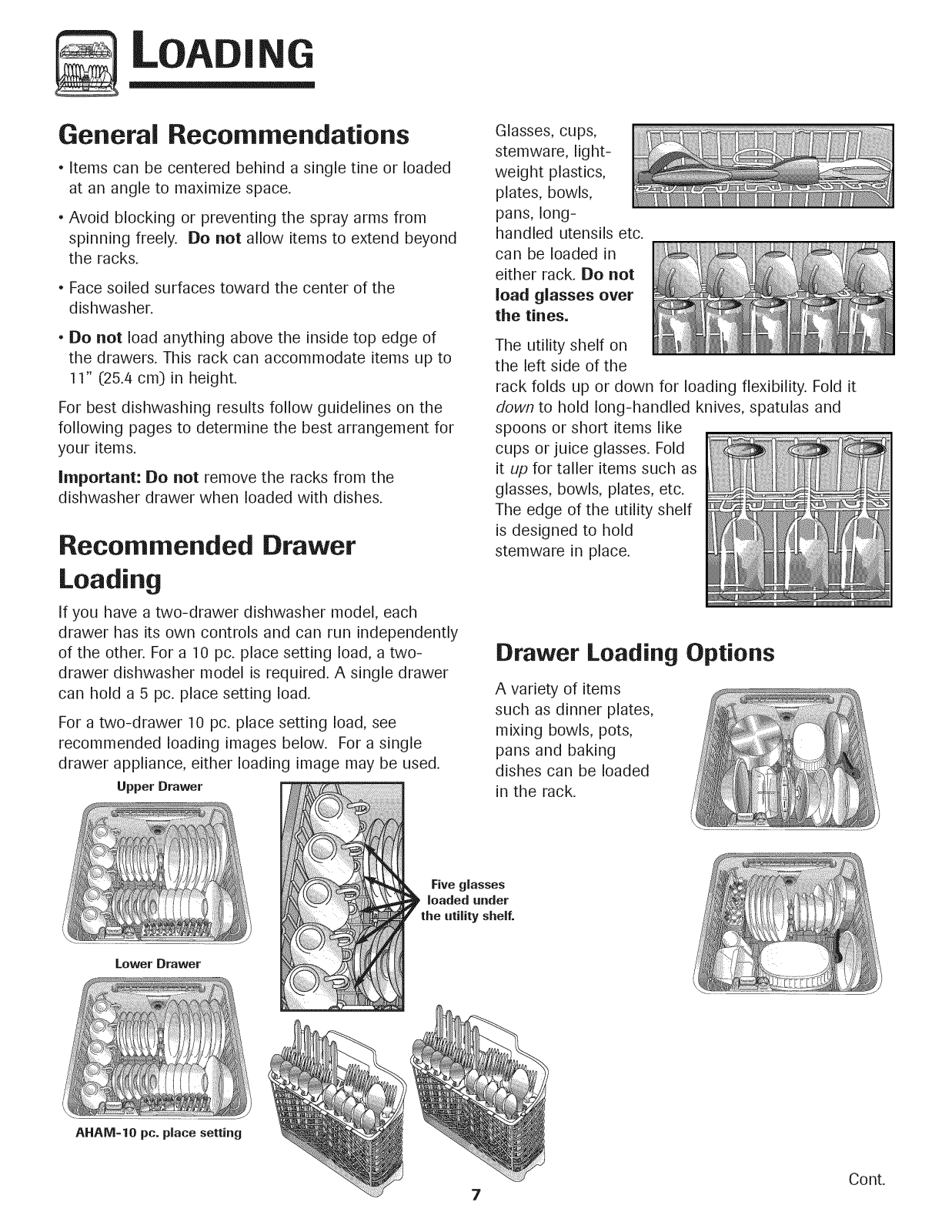

Loading...
