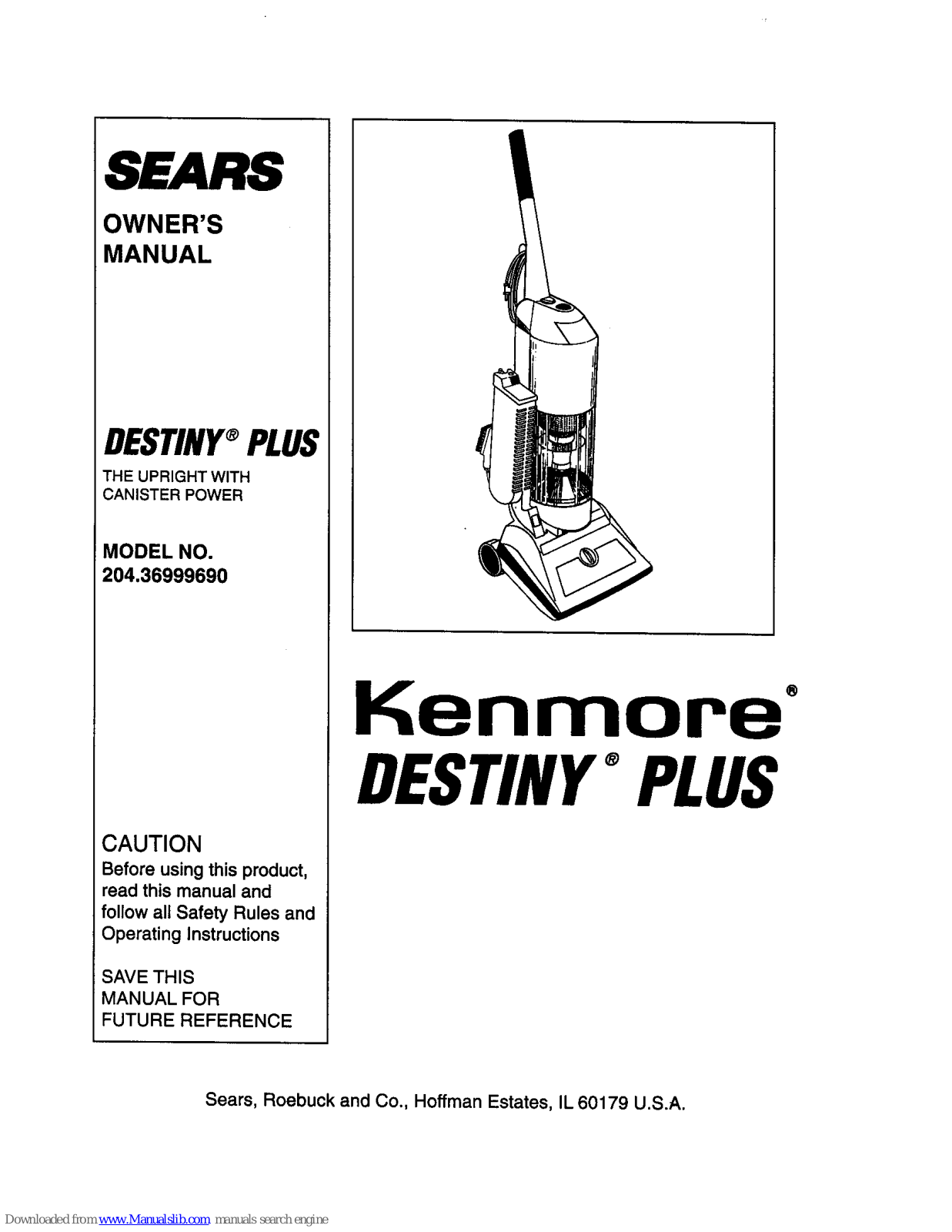

Kenmore DESTINY PLUS 204.3699969, DESTINY PLUS 204.36999690 Owner's Manual

SEARS

OWNER'S
MANUAL

DESTINY_PLUS

THE UPRIGHT WITH
CANISTER POWER

MODEL NO.

204.36999690

CAUTION

Before using this product,
read this manual and

follow all Safety Rules and

Operating Instructions

SAVE THIS
MANUAL FOR

FUTURE REFERENCE

Kenmore"

DESTINY°PLUS

Sears, Roebuck and Co., Hoffman Estates, IL 60179 U.S.A.

DESTINY°PLUS

THE UPRIGHT WITH CANISTER POWER

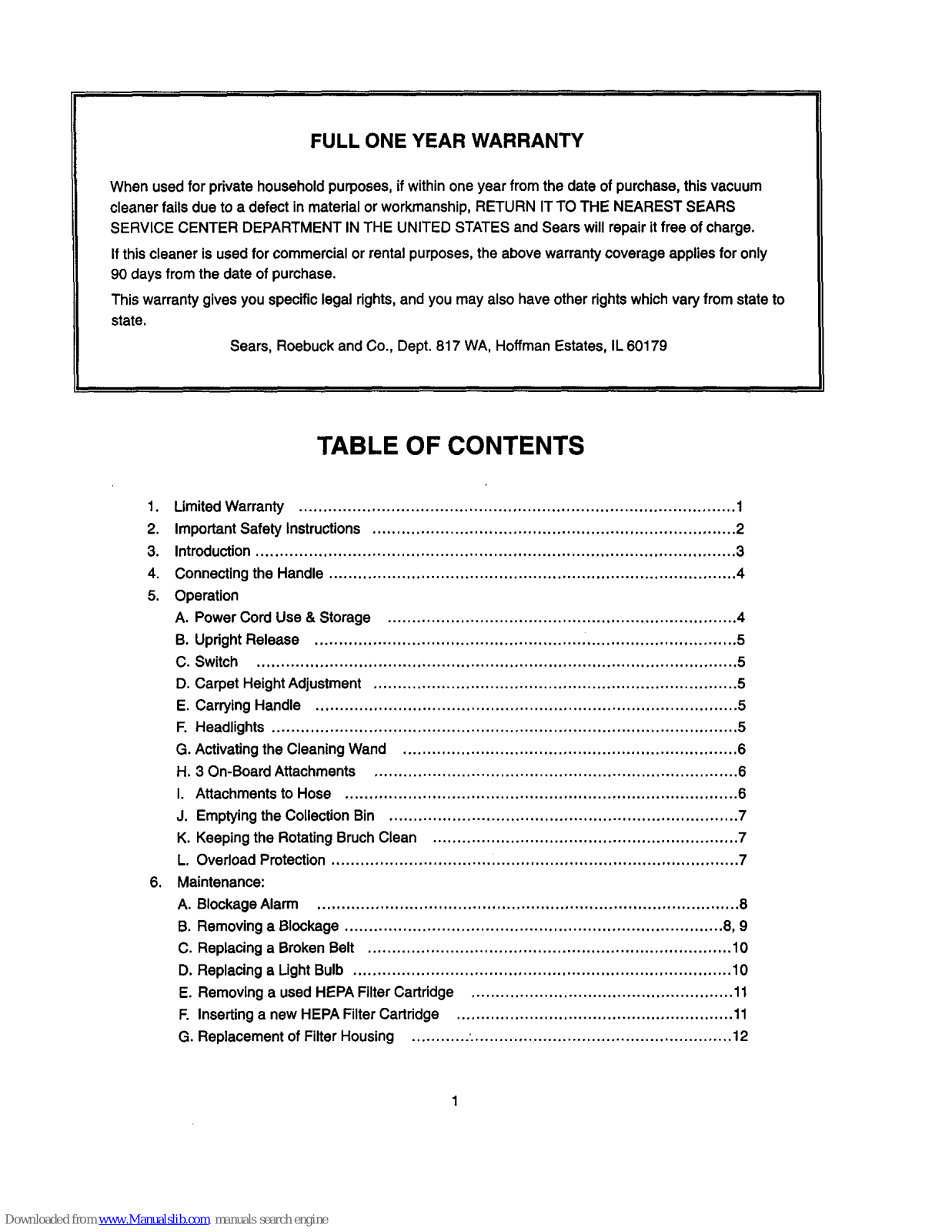

FULL ONEYEAR WARRANTY

When used for private household purposes, if withinone year from the date of purchase, this vacuum
cleaner fails due to a defect in material or workmanship, RETURN IT TO THE NEAREST SEARS

SERVICE CENTER DEPARTMENT IN THE UNITED STATES and Sears will repair it free of charge.
It this cleaner is used for commercial or rental purposes, the above warranty coverage applies for only

90 days from the date of purchase.
This warranty gives you specific legal rights,and you may also have other rightswhich vary from state to

state.

Sears, Roebuck and Co., Dept. 817 WA, Hoffman Estates, IL 60179

TABLE OF CONTENTS

1. Limited Warranty .......................................................................................... 1

2. Important Safety Instructions ........................................................................... 2

3. Introduction ................................................................................................... 3

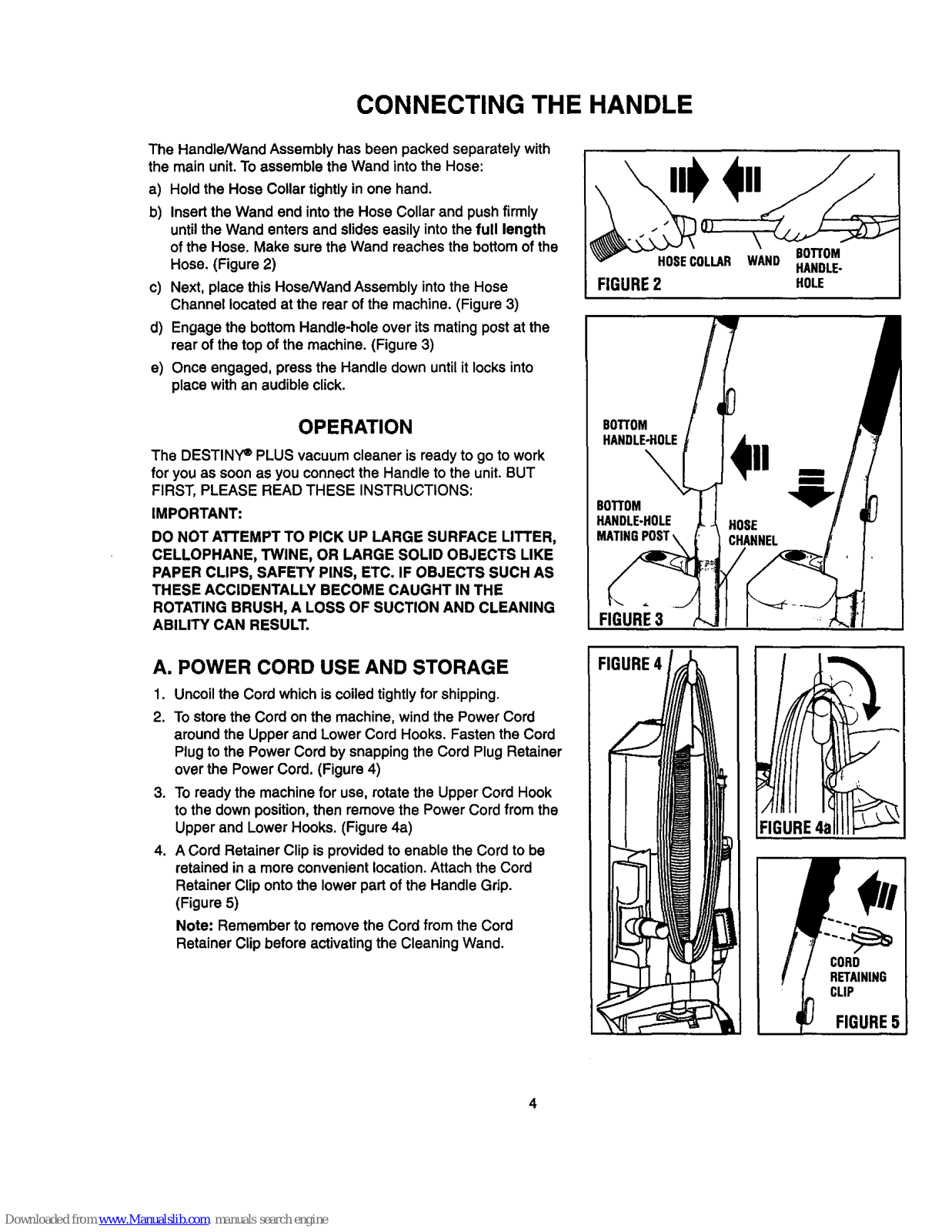

4. Connecting the Handle .................................................................................... 4

5. Operation

A. Power Cord Use & Storage ........................................................................ 4

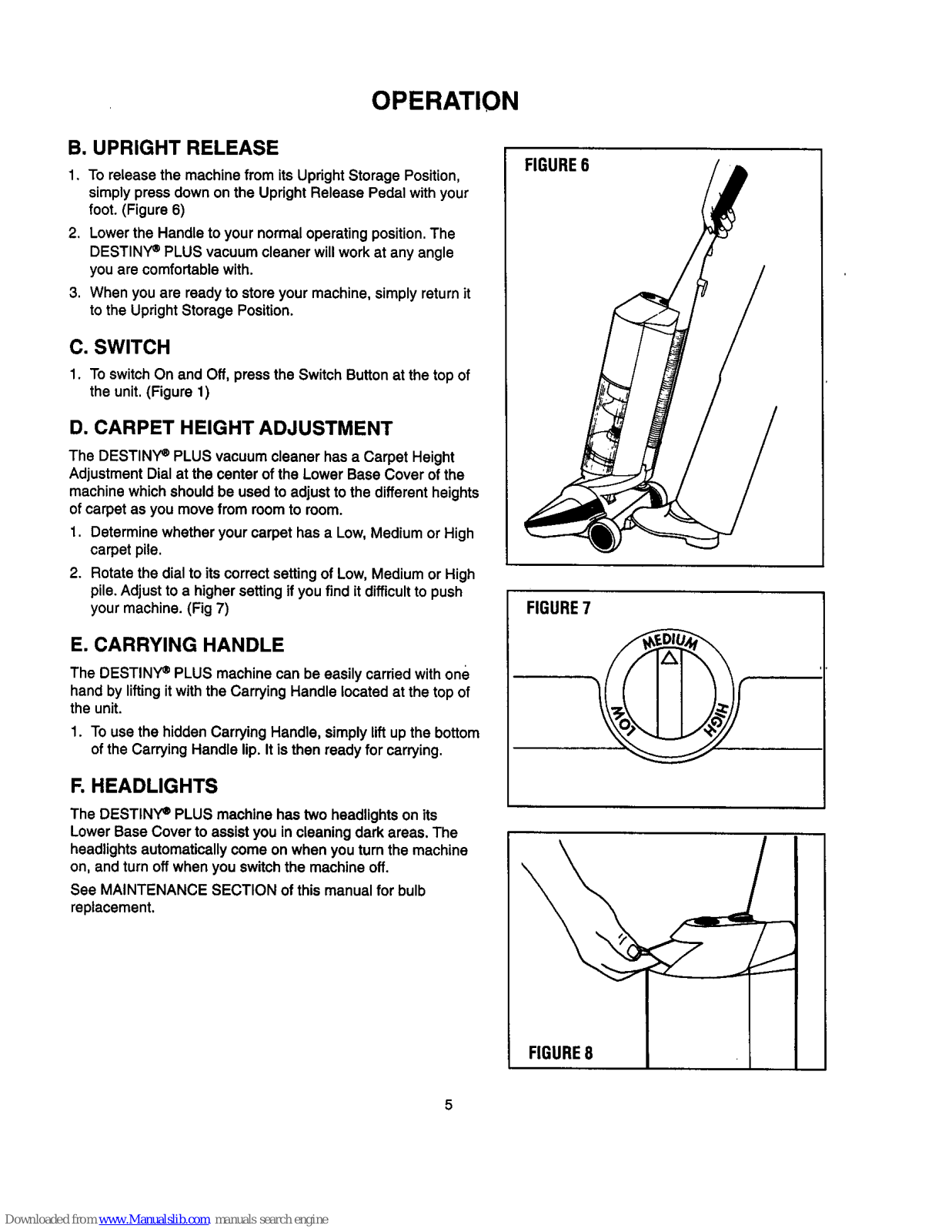

B. Updght Release ....................................................................................... 5

C. Switch ................................................................................................... 5

D. Carpet Height Adjustment ........................................................................... 5

E. Carrying Handle ....................................................................................... 5

F. Headlights ................................................................................................ 5

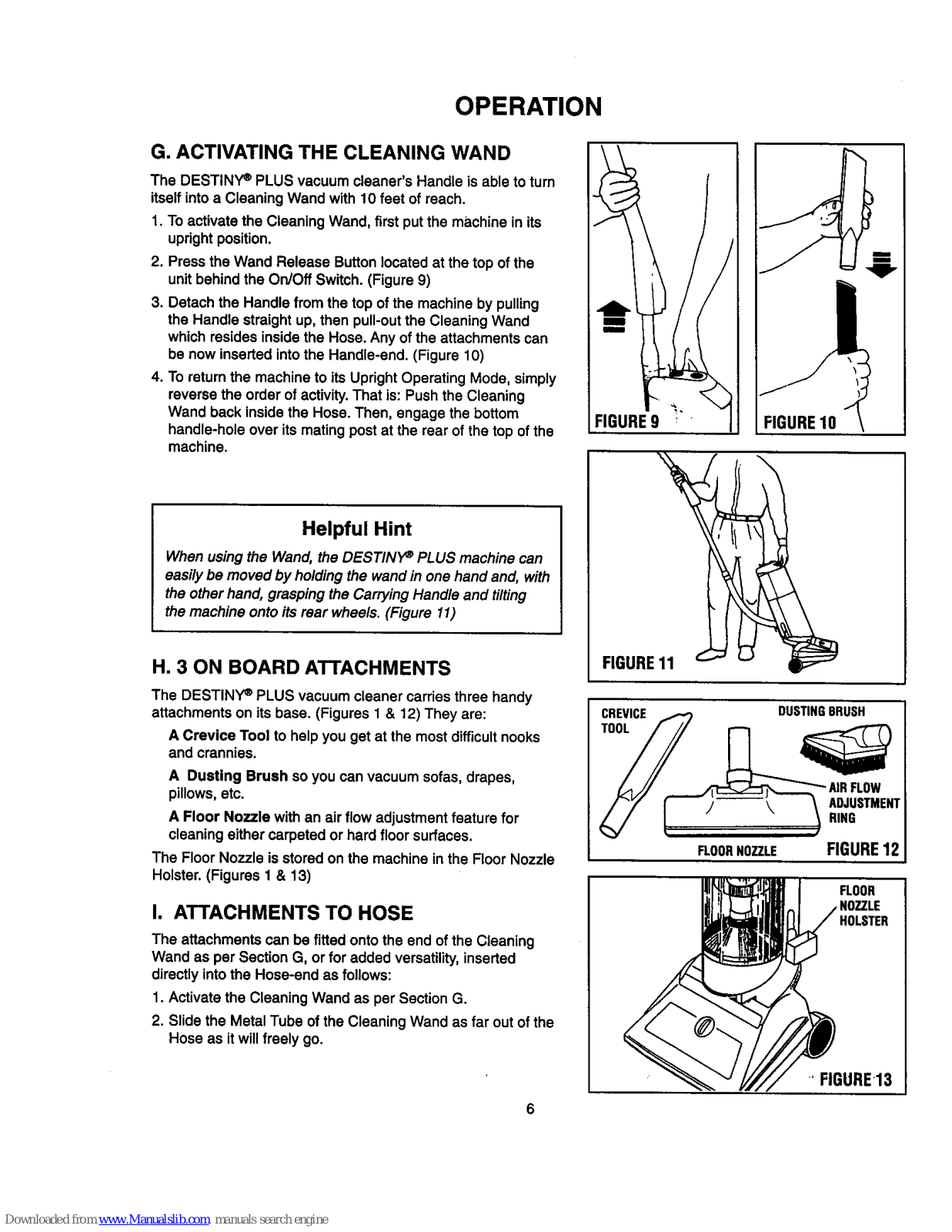

G. Activating the Cleaning Wand ..................................................................... 6

H. 3 On-Board Attachments ........................................................................... 6

I. Attachments to Hose ................................................................................. 6

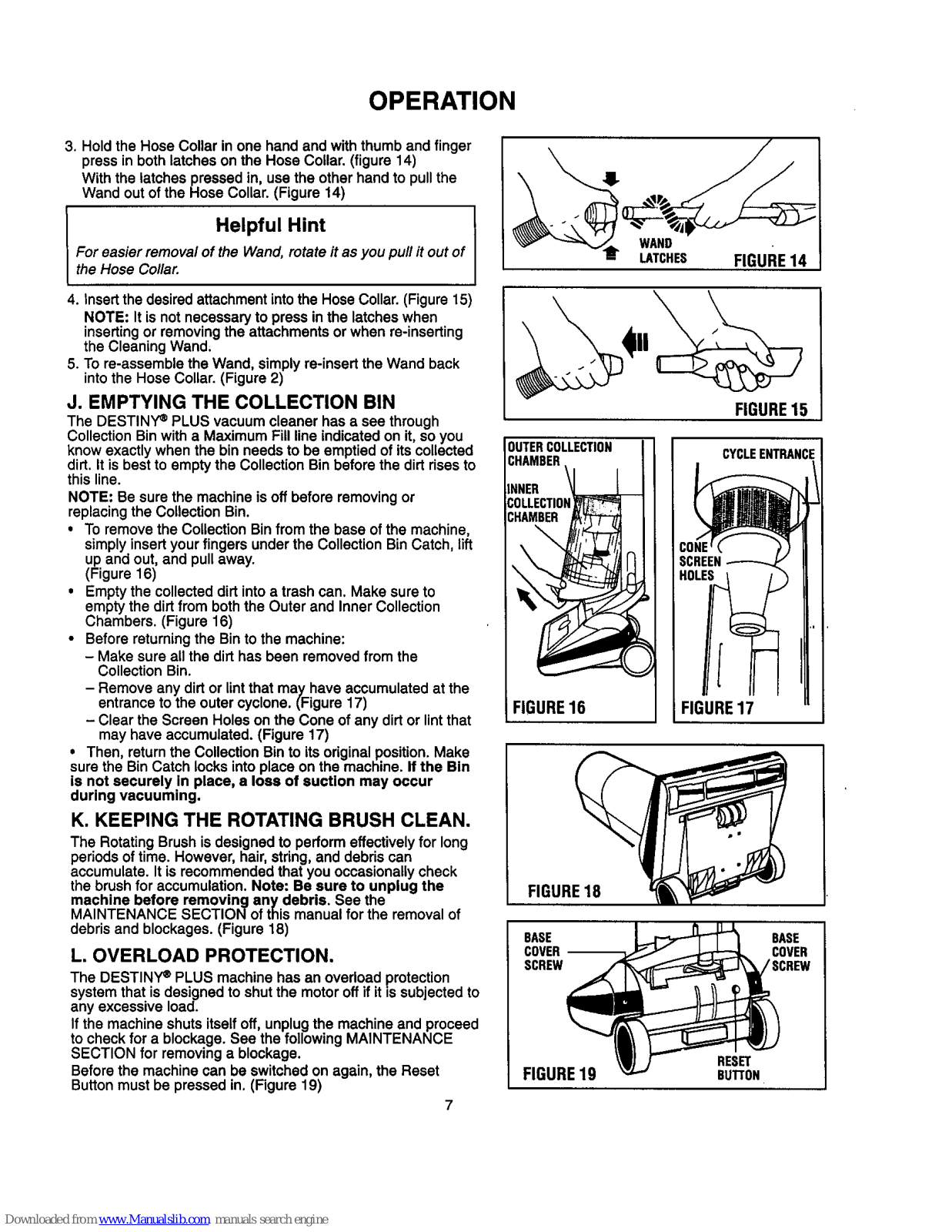

J. Emptying the Collection Bin ........................................................................ 7

K. Keeping the Rotating Bruch Clean ............................................................... 7

L. Ovedoad Protection .................................................................................... 7

6. Maintenance:

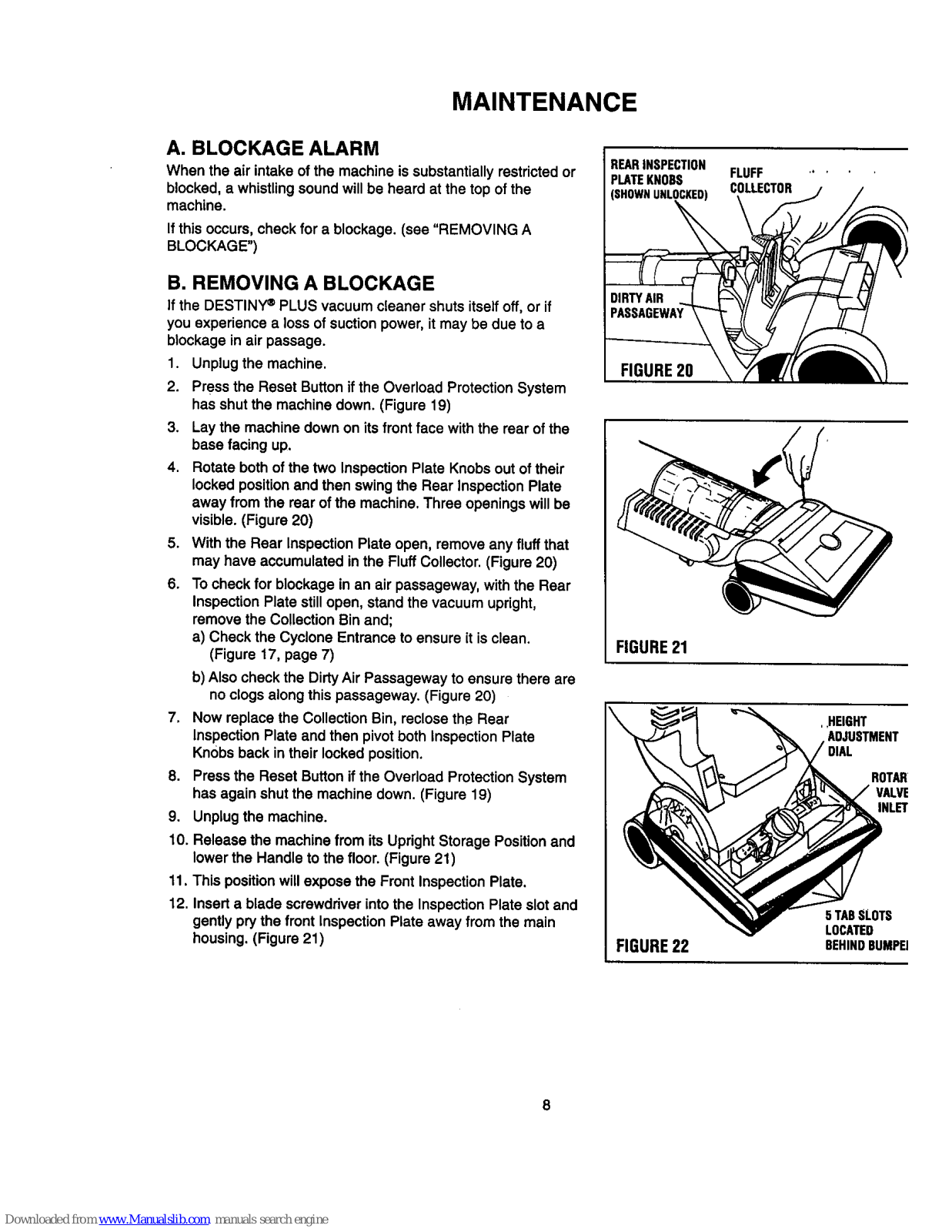

A. Blockage Alarm ....................................................................................... 8

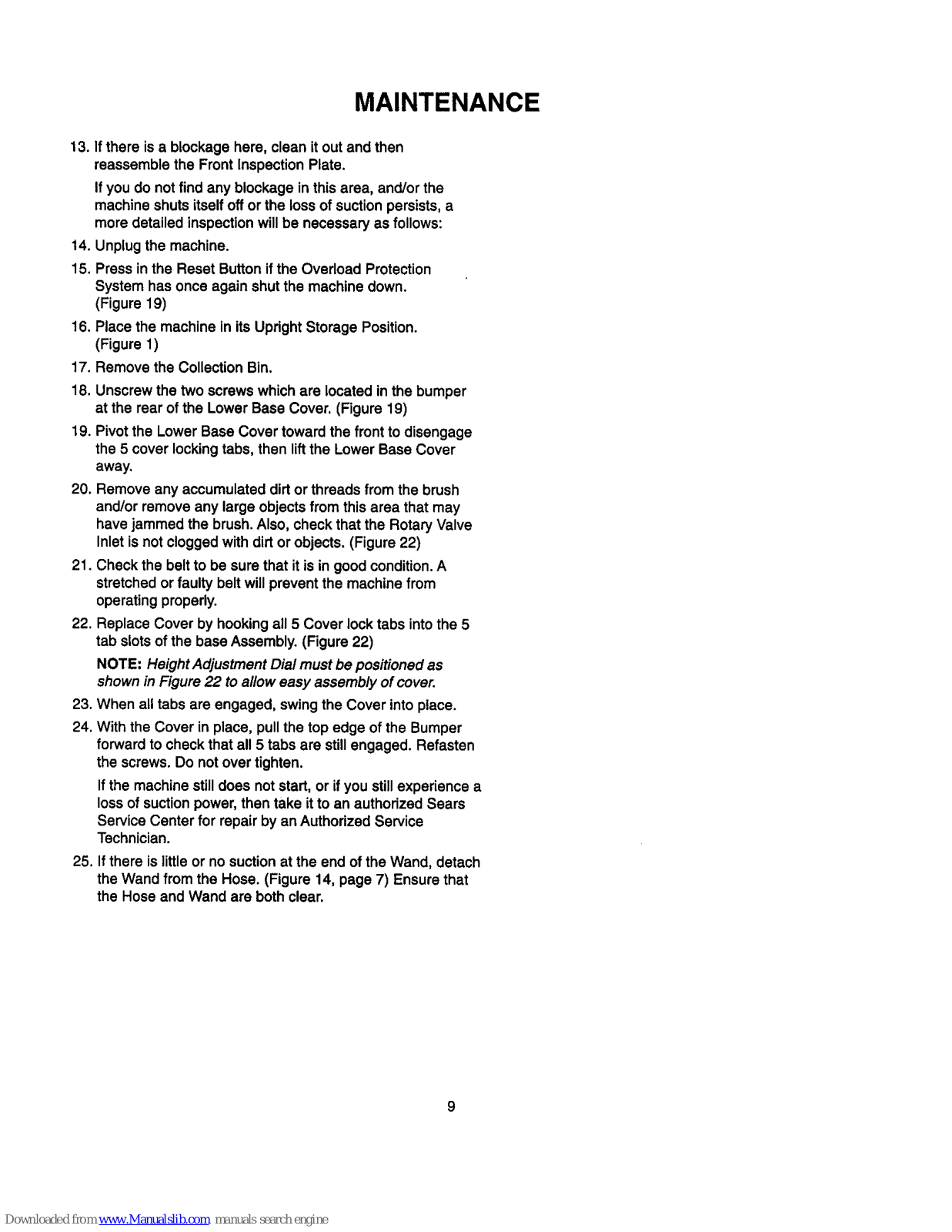

B. Removing a Blockage .............................................................................. 8, 9

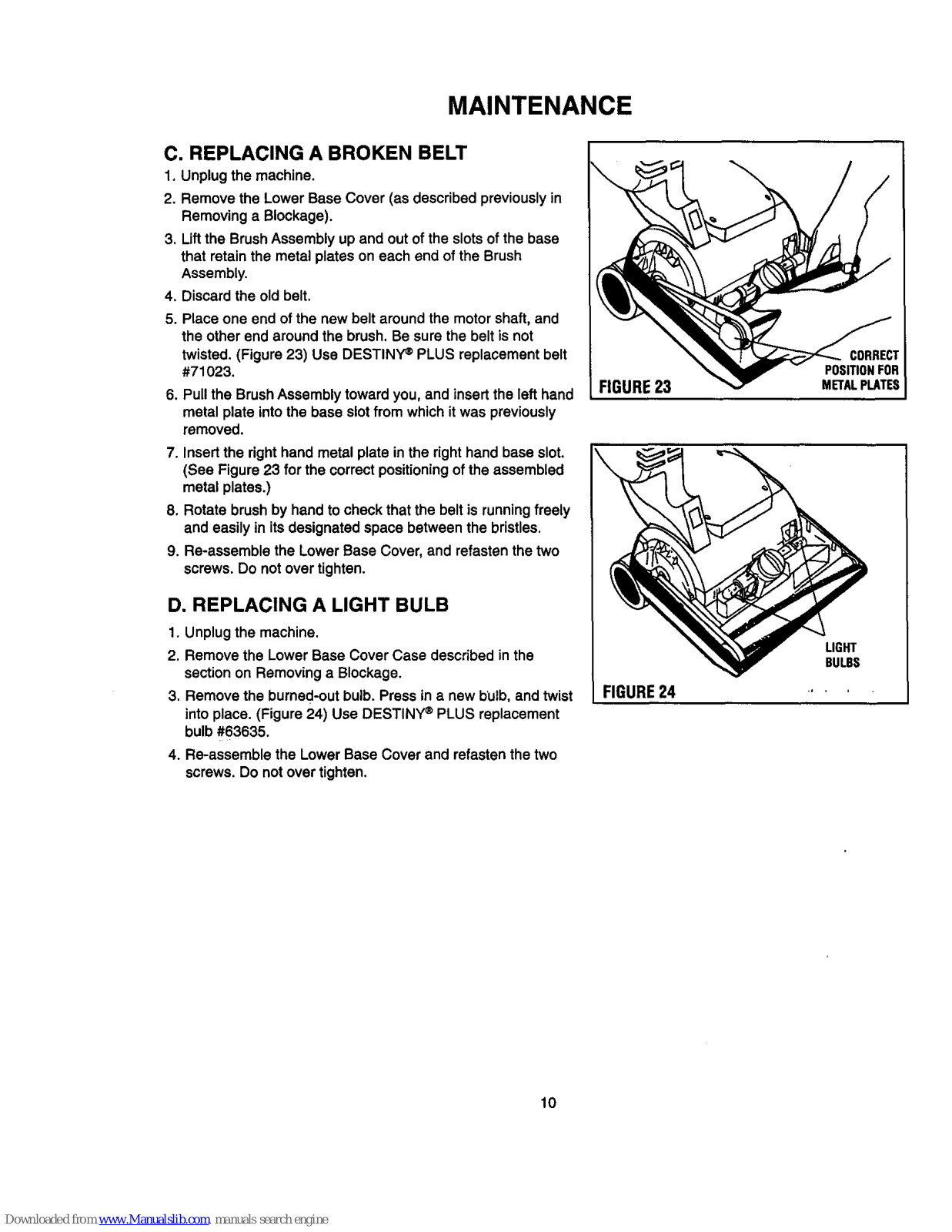

C. Replacing a Broken Belt ........................................................................... 10

D. Replacing a Ught Bulb .............................................................................. 10

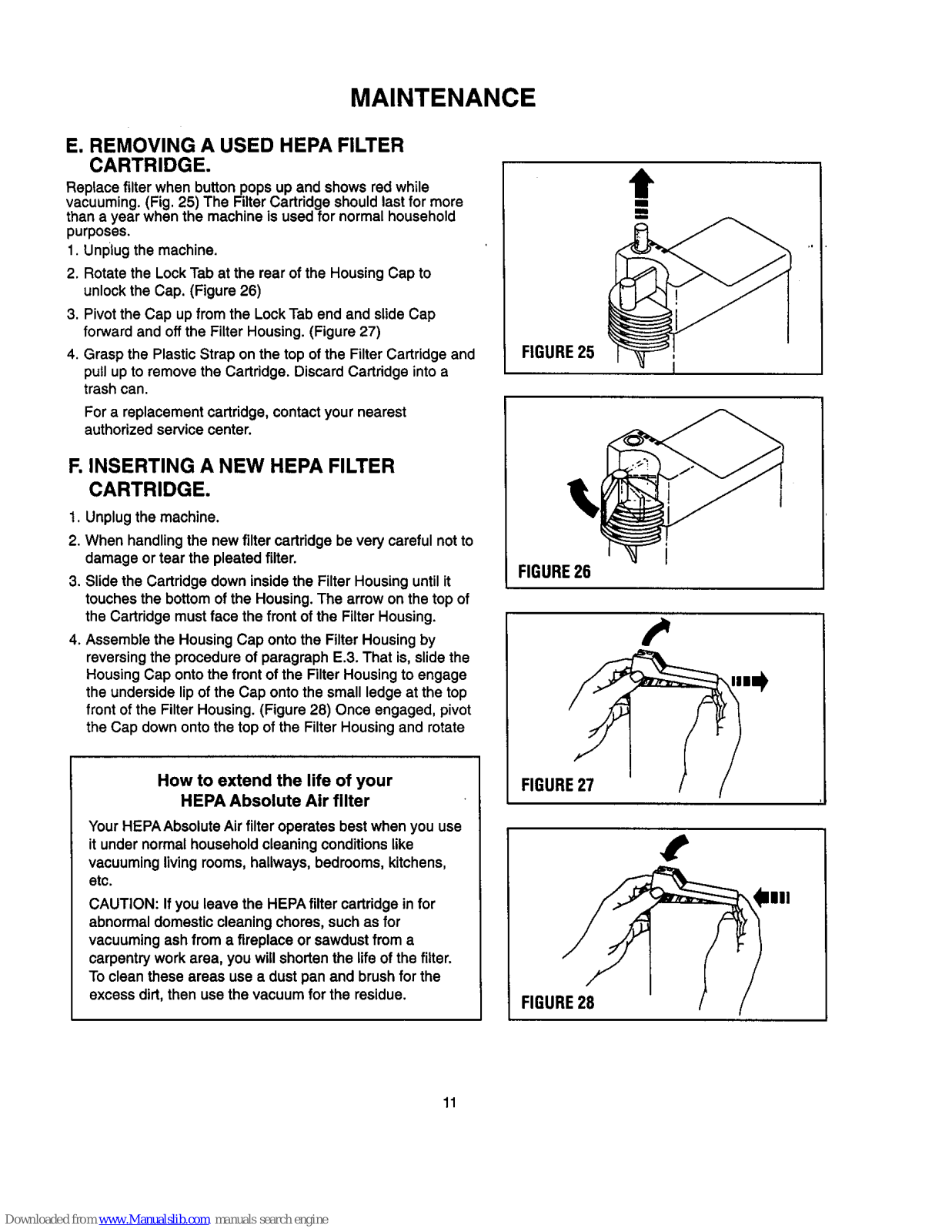

E. Removing a used HEPA Filter Cartridge ...................................................... 11

F. Inserting a new HEPA Filter Cartridge ......................................................... 11

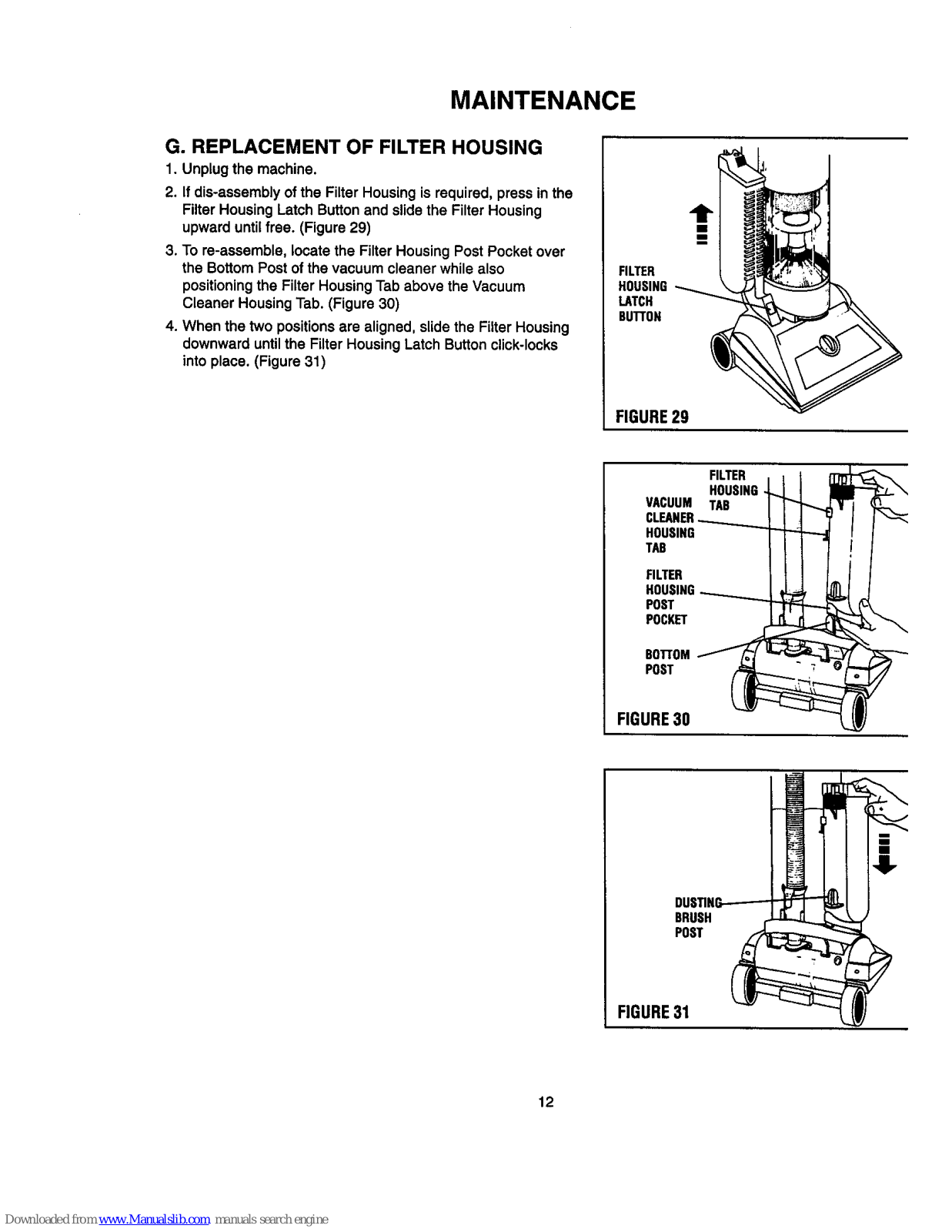

G. Replacement of Filter Housing ............ :..................................................... 12

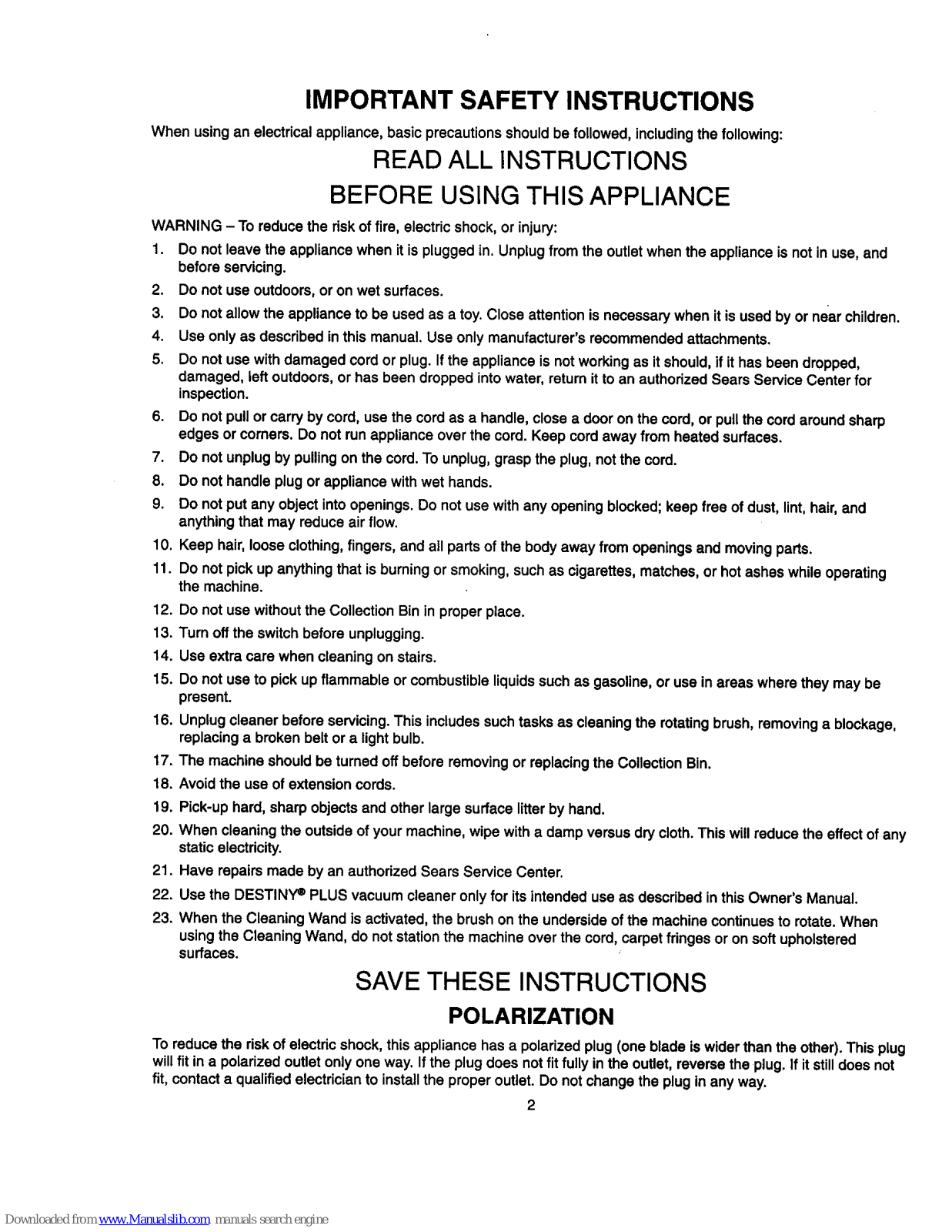

IMPORTANT SAFETY INSTRUCTIONS

When using an electrical appliance, basic precautions should be followed, includingthe following:

READ ALL INSTRUCTIONS

BEFORE USING THIS APPLIANCE

WARNING - To reduce the risk of fire, electric shock, or injury:

1. Do not leave the appliance when it is plugged in. Unplug from the outlet when the appliance is not in use, and
before servicing.

2. Do not use outdoors, or on wet surfaces.

3. Do not allow the appliance to be used as a toy. Close attention is necessary when it is used by or near children.

4. Use only as described in this manual. Use only manufacturer's recommended attachments.

5. Do not use with damaged cord or plug. If the appliance is not working as it should, if it has been dropped,
damaged, left outdoors, or has been dropped into water, return it to an authorized Sears Service Center for

inspection.

6. Do not pull or carry by cord, use the cord as a handle, close a door on the cord, or pull the cord around sharp
edges or comers. Do not run appliance over the cord. Keep cord away from heated surfaces.

7. Do not unplug by pulling on the cord. To unplug, grasp the plug, not the cord.

8. Do not handle plug or appliance with wet hands.

9. Do not put any object into openings. Do not use with any opening blocked; keep free of dust, lint, hair, and
anything that may reduce air flow.

10. Keep hair, loose clothing, fingers, and all parts of the body away from openings and moving parts.

11. Do not pick up anything that is burning or smoking, such as cigarettes, matches, or hot ashes while operating
the machine.

12. Do not use without the Collection Bin in proper place.

13. Turn off the switch before unplugging.

14. Use extra care when cleaning on stairs.

15. Do not use to pick up flammable or combustible liquidssuch as gasoline, or use in areas where they may be
present.

16. Unplug cleaner before servicing. This includes such tasks as cleaning the rotating brush, removing a blockage,
replacing a broken belt or a light bulb.

17. The machine should be turned off before removing or replacing the Collection Bin.

18. Avoid the use of extension cords.

19. Pick-up hard, sharp objects and other large surface litter by hand.

20. When cleaning the outside of your machine, wipe with a damp versus dry cloth. This will reduce the effect of any
static electdcity.

21. Have repairs made by an authorized Sears Service Center.

22. Use the DESTINY e PLUS vacuum cleaner only for its intended use as described in this Owner's Manual.

23. When the Cleaning Wand is activated, the brush on the underside of the machine continues to rotate. When
using the Cleaning Wand, do not station the machine over the cord, carpet fringes or on soft upholstered

Surfaces.

SAVETHESEINSTRUCTIONS

POLARIZATION

To reduce the risk of electric shock, this appliance has a polarized plug (one blade is wider than the other). This plug
will fit in a polarized outlet only one way. Ifthe plug does not fit fully in the outlet, reverse the plug. If itstill does not
fit, contact a qualified electrician to install the proper outlet. Do not change the plug in any way.

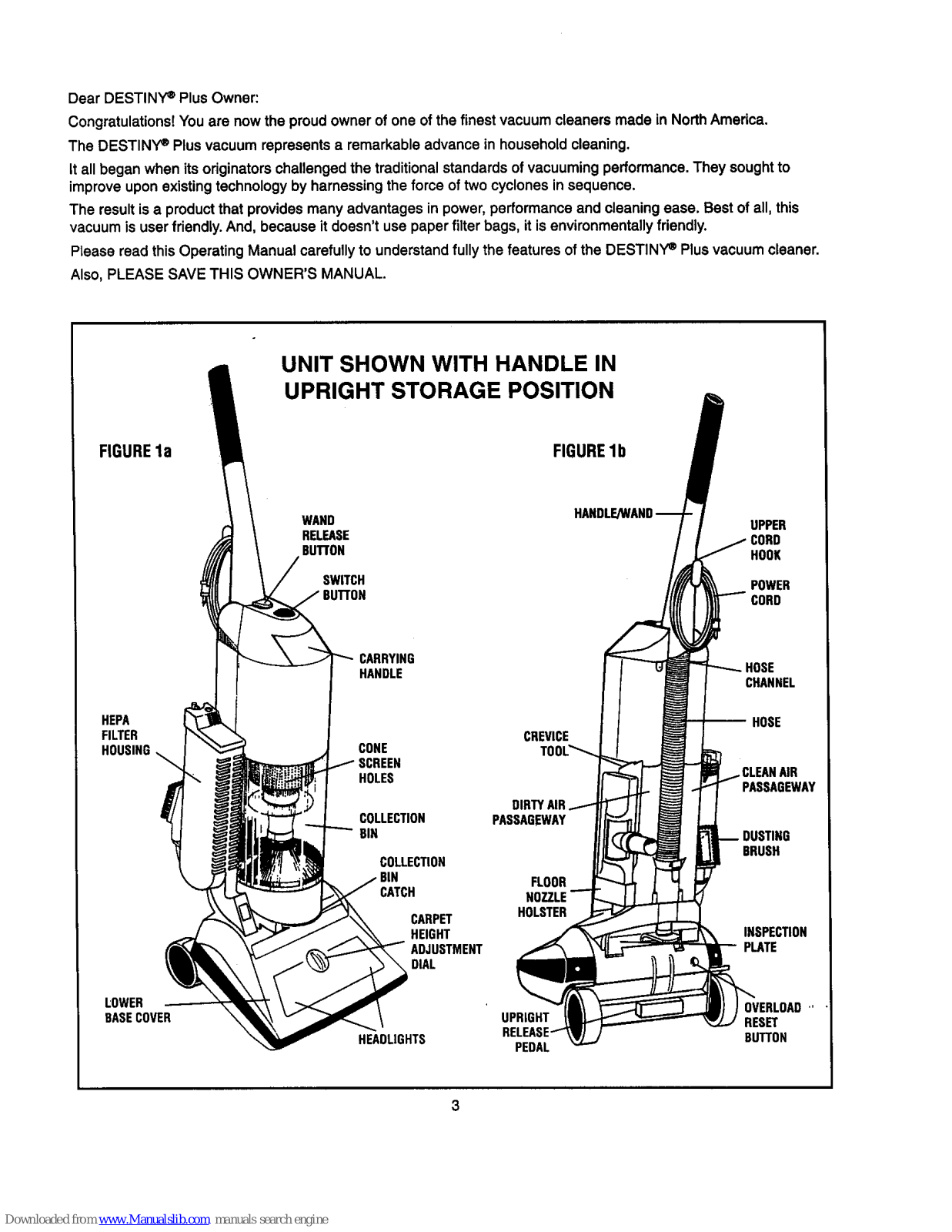

Dear DESTINY e Plus Owner:
Congratulations! You are now the proud owner of one of the finest vacuum cleaners made in North America.

The DESTINY e Plus vacuum represents a remarkable advance in household cleaning.

It all began when its originators challenged the traditional standards of vacuuming performance. They sought to
improve upon existing technology by harnessing the force of two cyclones in sequence.

The result isa product that provides many advantages in power, performance and cleaning ease. Best of all, this

vacuum is user friendly. And, because it doesn't use paper filter bags, it isenvironmentally friendly.

Please read this Operating Manual carefully to understand fully the features of the DESTINY e Plus vacuum cleaner.

Also, PLEASE SAVE THIS OWNER'S MANUAL.

UNIT SHOWN WITH HANDLE IN

UPRIGHT STORAGE POSITION

FIGUREla FIGURElb

WAND UPPER

RELEASE CORD
BUTTON HOOK

SWITCH

POWER
CORD

HANDLE

CHANNEL

HEPA -- HOSE
FILTER CREVICE

CONE

HOLES

COLLECTION
BIN

COLLECTION

CATCH

CARPET
HEIGHT

DIAL

DIRTYAIR

PASSAGEWAY

FLOOR

HOLSTER

PASSAGEWAY

BRUSH

INSPECTION
PLATE

LOWER

BASECOVER

HEADLIGHTS

UPRIGHT

PEDAL

OVERLOAD"
RESET
BUTTON

3
