Kenmore D02 M90225 Use & Care Manual

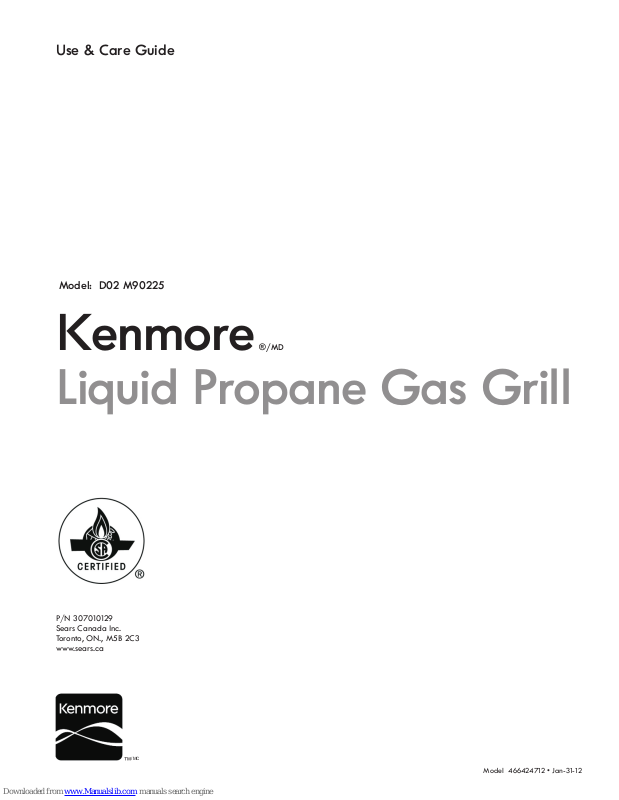

Use & Care Guide

Model: D02 M90225

Kenmore

®/MD

Liquid Propane Gas Grill

P/N 307010129
Sears Canada Inc.
Toronto, ON., M5B 2C3
www.sears.ca

/MC

™

Model 466424712 • Jan-31-12

DANGER

WARNING

If you smell gas:

1. Shut off gas to the appliance.

2. Extinguish any open flame.

3. Open lid.

4. If odor continues, keep away from the appliance
and immediately call your gas supplier or your
fire department.

WARNING

1. Do not store or use gasoline or other
flammable liquids or vapors in the vicinity of
this or any other appliance.

2. An LP Tank not connected for use shall not
be stored in the vicinity of this or any other
appliance.

Call the Grill Information Center for Help and Parts

Missing Parts? Assembly Questions?
Before returning grill to store, call 1-800-241-7548

Product Record

IMPORTANT: Fill out the product record information below.

Model Number

Serial Number

See rating label on grill for serial number.

Operation Problems?

CALIFORNIA PROPOSITION 65

1. Combustion by-products produced when using this
product contain chemicals known to the State of
California to cause cancer, birth defects, and other
reproductive harm.

2. This product contains chemicals, including lead
and lead compounds, known to the State of
California to cause cancer, birth defects or other
reproductive harm.

Wash your hands after handling this product.

Installation Safety Precautions

• Use grill, as purchased, only with LP (propane) gas and the
regulator/valve assembly supplied.

• Grill installation must conform with local codes, or in the
absence of local codes, with either the National Fuel Gas
Code, ANSI Z223.1/ NFPA 54, Natural Gas and Propane
Installation Code, CSA B149.1, or Propane Storage and
Handling Code, B149.2.

• All electrical accessories (such as a rotisserie) must be
electrically grounded in accordance with local codes, or
National Electrical Code, ANSI / NFPA 70 or Canadian
Electrical Code, CSA C22.1. Keep any electrical cords and/or
fuel supply hoses away from any hot surfaces.

• Grill is not for use in or on recreational vehicles and/or boats.

• This grill is safety certified for use in the United States and/or
Canada only. Do not modify for use in any other location.
Modification will result in a safety hazard.

Safety Symbols

The symbols and boxes shown below explain what each heading
means. Read and follow all of the messages found throughout
the manual.

Date Purchased

To Installer/Assembler: Leave these instructions with
consumer.

To Consumer: Keep this manual for future reference.

CAUTION

Some parts may contain sharp edges, especially
as noted in these instructions.
Wear protective gloves if necessary.

CAUTION

For residential use only. Do not use for commercial
cooking.

© 2011 KCD IP, LLC

2 • 466424712

DANGER

DANGER: Indicates an imminently hazardous situation
which, if not avoided, will result in death or serious injury.

WARNING

WARNING: Be alert to the possibility of serious bodily injury
if the instructions are not followed. Be sure to read and
carefully follow all of the messages.

CAUTION

CAUTION: Indicates a potentially hazardous situation which,
if not avoided, may result in minor or moderate injury.

Printed in China

Table of Contents WARRANTY

For Your Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Grill Information Center

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

KENMORE GRILL WARRANTY

Product Record Information . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Safety Symbols. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Installation Safety Precautions . . . . . . . . . . . . . . . . . . . . . . . . . 2

Kenmore Grill Warranty. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Grilling Guide. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-7

Use and Care. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-13

Parts List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

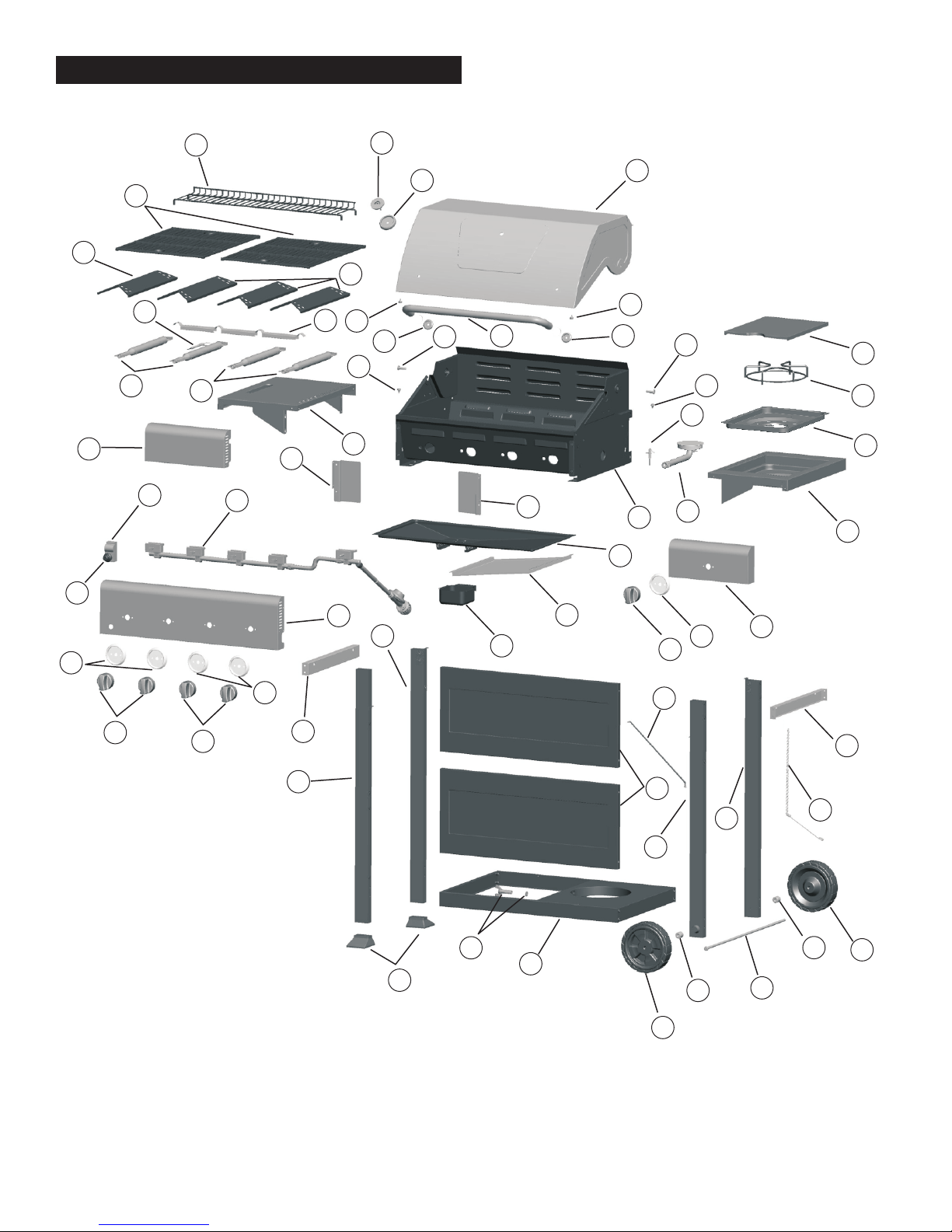

Parts Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

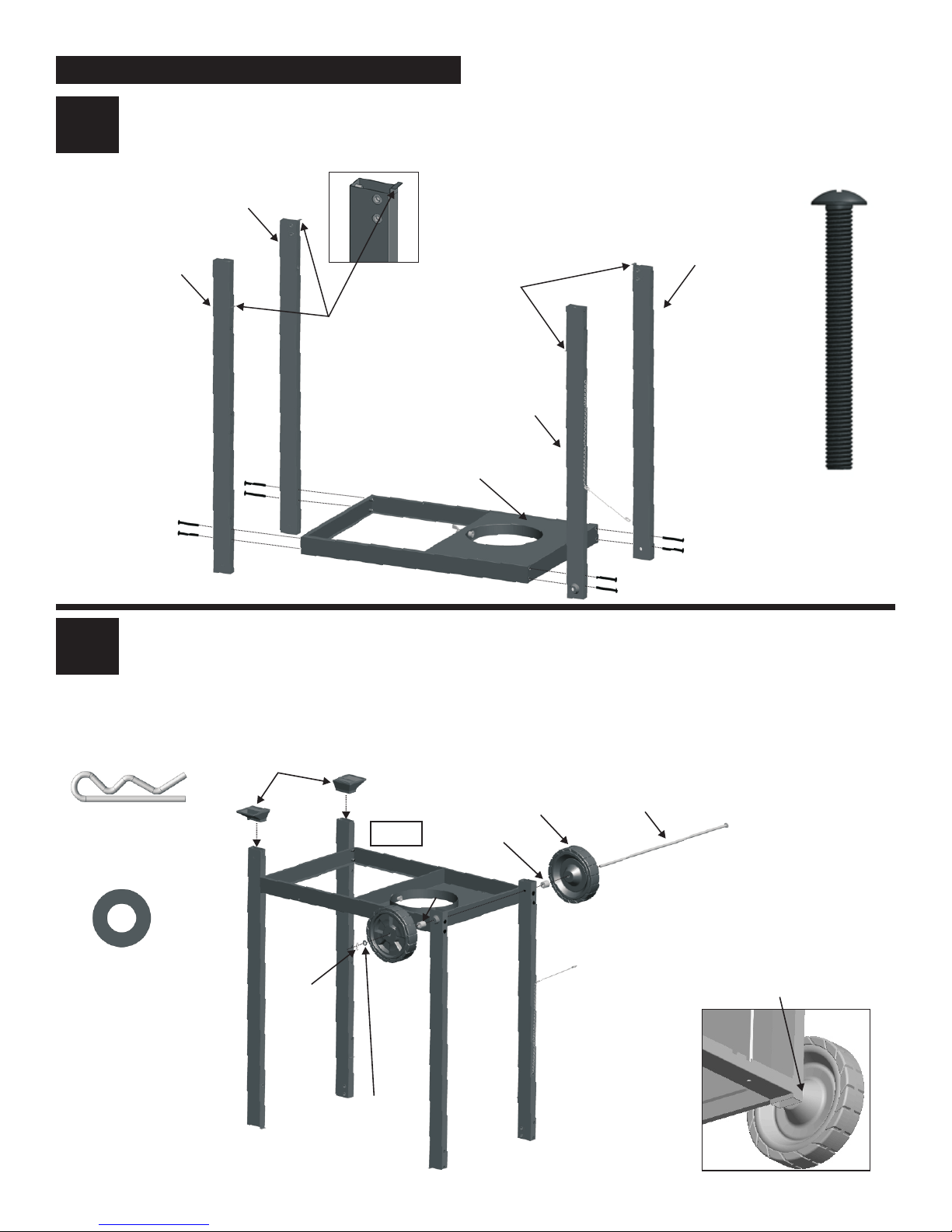

Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16-24

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25-27

WARNING

• Read and follow all Safety, Assembly,
and Use and Care Instructions in this
Guide before assembling and cooking
with this grill.

• Failure to follow all instructions in this
Use and Care Guide may lead to fire or
explosion, which could result in property
damage, personal injury or death.

One Year Full Warranty on Kenmore Grill

If this grill fails due to a defect in material or workmanship
within one year from the date of purchase, call 1-800-241-

7548 to arrange for free repair parts (or replacement if repair

proves impossible).

One-Year Limited Warranty on Burners

For one year from the date of purchase, any burner that
rusts through will be replaced free of charge.

All warranty coverage excludes ignitor batteries and grill part
paint loss, discoloration or surface rusting, which are either
expendable parts that can wear out from normal use within
the warranty period, or are conditions that can be the result
of normal use, accident or improper maintenance.

All warranty coverage is void if this grill is ever used for
commercial or rental purposes.

All warranty coverage applies only if this grill is used in
Canada.

Sears Canada Inc.

Toronto, ON., M5B 2C3

This Grill is for Outdoor Use Only

Tools needed for assembly:

Adjustable wrench (not provided)
Screwdriver (not provided)

7/16" Combination wrench (not provided)

466424712 • 3

GRILLING GUIDE – Getting Started

First Time Use
Read your Assembly Manual and ensure the grill is put
together properly. Remove all Point-of-Purchase advertising
material from all grill surfaces before first use. We
recommend operating your grill on its highest setting for 15­20 minutes prior to your first use. This aids in removing the
oils used during manufacturing.

Lava Rock / Briquettes
This gas grill has been designed, engineered, and tested to
be used with flame tamers or heat diffuser plates to provide
more even heating, improve the cleaning process, and
reduce flare-ups. The addition of after market lava rocks,
charcoal, or briquettes of any type will cause poor
combustion and increase the likelihood of a grease fire, and
is not recommended. Using briquettes, lava rock, or
charcoal in this grill will void your warranty. For extra
smoke flavor, we recommend using a smoker box with wood
chips.

Temperature - Convective Grills ONLY.
The temperature gauge in the hood of your new grill
measures air temperature. The air temperature inside your
grill will never be as hot as the temperature at the cooking
surface.

Note: Since 1995, all regulators (the part that attaches to
the gas tank to regulate the flow of gas) have included a
safety feature that restricts gas flow in the event of a gas
leak. You can inadvertently activate this safety feature
without having a gas leak. This typically occurs when you
turn on the gas using the grill control knob before you turn
on the LP tank valve. If the gas regulator safety feature
activates, the grill will only reach temperatures between
250°F and 300°F even with all burners on the high setting.

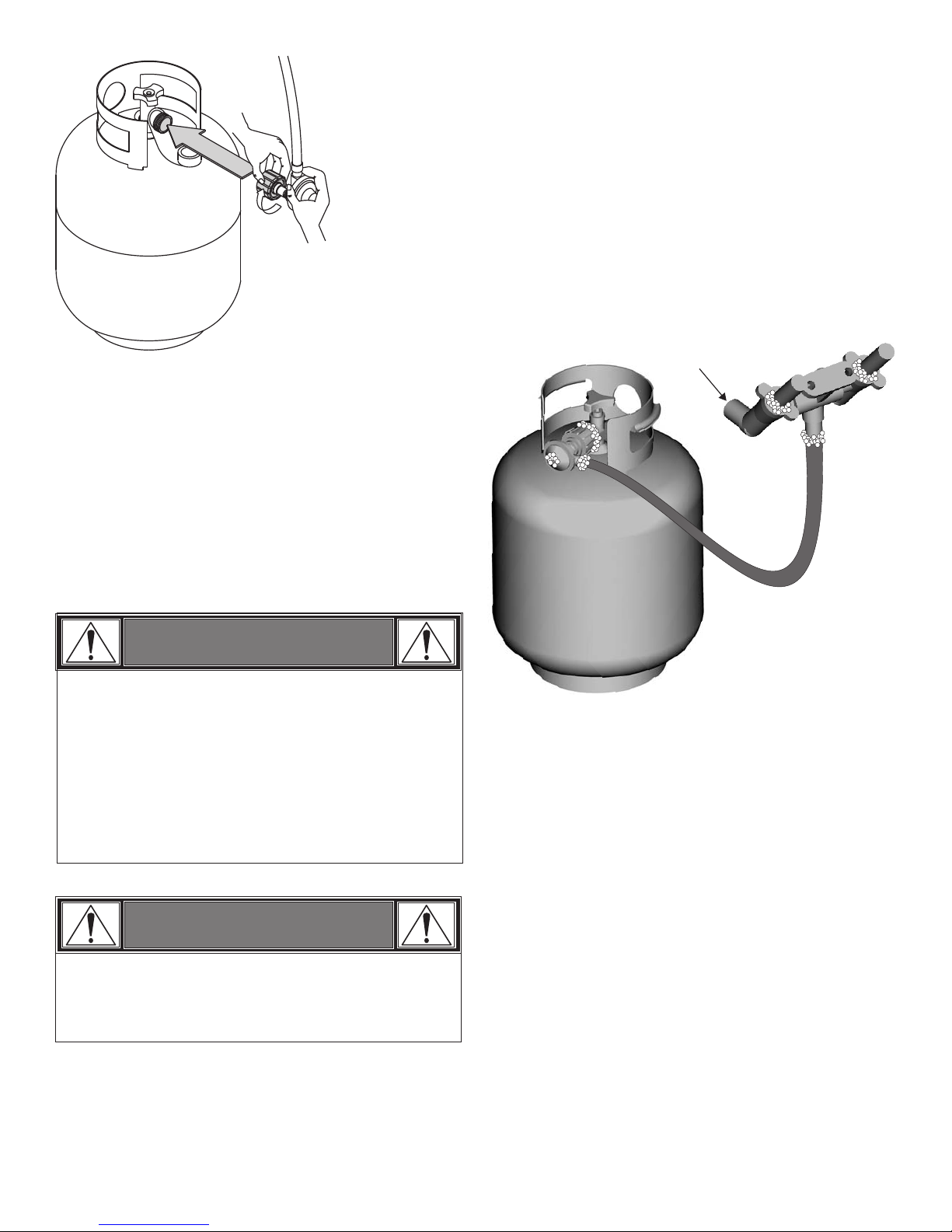

Regulator

Coupling Nut

If your grill is not getting hotter than 250°F to 300°F these
steps should be taken first to reset the gas regulator safety
device:

1. Open the grill lid.

2. Turn off all knobs on the control panel in front.

3. Turn off the tank knob.

4. Disconnect the regulator from the LP tank.

5. Wait 30 seconds.

6. Reconnect the regulator to the LP tank.

7. Slowly open the LP tank knob all the way. Do not put
excessive force on the valve at the full open position to
avoid damaging the valve.

8. Turn on the appropriate control knob and light the grill
per the instructions on the control panel.

An illustration of this process is included in this Use & Care
Guide. See Troubleshooting section for additional
information.

4 • 466424712

Pre-Heating Your Grill
Just like your home oven, your grill should be pre-heated to
provide optimum performance. Pre-heat the grill on high for
10-15 minutes – longer if weather conditions require. Please
refer to the lighting instructions inside the Use & Care Guide
if you have questions about how to light your grill. A
match-light chain and hole is provided for your
convenience.

GRILLING GUIDE – Grilling 101

Outdoor grilling is really quite simple. You'll succeed with
burgers, dogs, or steaks usually on your very first try. With
experience, you will learn how to work with your grill,
creating more imaginative meals all the time. This
knowledge makes up the art of grilling. Before you start
grilling, organize your food according to cooking technique
and required cooking time, and optimize the use of your
grilling area.

Direct Cooking
Direct cooking involves grilling your meat directly over high
heat. It is perfect for searing steaks, chops, and other
smaller pieces of meat and vegetables that quickly make
their way to the table.

Rotisserie Cooking
Rotisserie cooking is best for 'round' meat, such as large
roasts, whole poultry, and pork. It generally requires an
accessory motor and spit rod that allows the meat to be
turned at a constant speed. Rotisserie cooking is best done
in front of a special rotisserie burner, or utilizing an indirect
cooking burner arrangement. A pan can be placed
underneath the meat to catch grease and food drippings,
and helps minimize clean-up.

Indirect Cooking
Indirect cooking utilizes select burners to circulate heat
throughout the grill, without direct contact between the
meat and the flame. The meat is placed over the burner
that is 'off'. This method is generally used to slow cook
large cuts of meat and poultry. A pan can be placed
underneath the meat to catch grease and food drippings,
and helps minimize clean-up.

Food Safety

Food safety is a very important part of enjoying the
outdoor cooking experience. To keep food safe from
harmful bacteria, follow these four basic steps:

Clean: Wash hands, utensils, and surfaces with hot soapy
water before and after handling raw meat.
Separate: Separate raw meats from ready-to-eat foods to
avoid cross contamination. Use a clean platter and utensils
when removing cooked foods.
Cook: Cook meat and poultry thoroughly to kill bacteria.
Use a thermometer to ensure proper internal food
temperatures.
Chill: Refrigerate prepared foods and leftovers promptly.

466424712 • 5

GRILLING GUIDE – Tips & Tricks

Food Temperatu re

Beef, veal and lamb (pieces and whole cuts) -

medium-rare 63°C (145°F)
Beef, veal and lamb (pieces and whole cuts) ­medium 71°C (160°F)
Beef, veal and lamb (pieces and whole cuts) ­well done 77°C (170°F

Po rk (pieces and whole cuts) 71°C (160°F)
Po ultry (e.g. chicken, turkey, duck) - pieces 74°C (165°F)
Po ultry - whole 85°C (185°F)

Ground me at and me at mixture s (e.g.

burgers, sausages, meatballs, meatloaf,
casseroles)- beef, veal, lamb and pork 71°C (160°F)

Ground me at and me at mixture s - poultry 74°C (165°F)
Egg di shes 74°C (165°F)
Othe rs (hot dogs, stuffing and leftovers) 74°C (165°F)

Cooking on your new grill is a hands-on experience, and it
is recommended to remain outside with your grill while
cooking. Grilling can be affected by many external
conditions. In cold weather, you will need more heat to
reach an ideal cooking temperature, and grilling may take
longer. The meat's internal temperature and thickness can
also affect cooking times. Cold and thicker meats will take
longer to cook.

Internal Meat Temperatures

Meat cooked on a grill often browns very fast on the
outside. Therefore, use a meat thermometer to ensure it has
reached safe internal temperatures.

Canadian Food Inspection Agency

Recommended Internal cooking tempeaures

Wood Chips

For extra smoke flavor when grilling, try adding wood
chips. Soak the chips in water for approximately 30
minutes before adding to a smoke box or pan. Place smoke
box or pan on top of the cooking grate above the flame.
Turn grill on high until the wood starts to smoke. Reduce
heat to desired temperature for cooking, and place food on
cooking grate as desired. Close lid to retain more smoke.
Hardwood varieties that work particularly well with grilled
foods include Alder, Apple, Cherry, Grapevines, Hickory,
Mesquite, Oak, Rosemary and Sassafras.

Skewers

Metal skewers should be flat, with long handles. Round
skewers allow food to roll when turned, so it may not cook
as evenly. Use metal skewers when cooking meat kabobs.
Wooden skewers should be soaked in water for an hour
before use, and are best used for quick cooking foods such
as vegetables and fruits.

Sauces

Sauces containing sugars and fats can cause flare-ups, and
your food may burn. In general, apply these sauces during
the final 10 minutes of cooking. Keep in mind, use of
excessive sauces or glazes will also require extra cleaning
afterwards.

Marinades and Rubs

To enhance the flavor of grilled foods, a liquid marinade or
dry rub can be used prior to cooking. Meat can be either
soaked or injected with liquid marinade up to 24 hours
prior to grilling. Dry rubs can be applied directly to the
meat immediately before grilling.

6 • 466424712

Utensils

Use tongs or a spatula to handle the food instead of a fork,
and don't turn the food too
often. Piercing the food
with a fork will release
juices that you want in
the meat, and may
cause flare-ups.

GRILLING GUIDE – Cleaning Your Grill

Why Clean?

We've all heard the saying 'An ounce of prevention is worth
a pound of cure'. This is great advice when it comes to
keeping your grill clean.

Routine Care

Periodic cleaning of this grill is necessary,
as grill fires can occur when grease and
food debris collect in the bottom of the grill.
After each use, remove any remaining
food particles from the cooking grate and
inside of the grill using a grill brush. Do
this after the grill has cooled down, yet is
still warm. It is much easier to clean food
particles while warmth is still present, than
after the food particles have completely
cooled and hardened. This grill is not
designed to be 'burned off' by closing the
lid and turning the burners on High for an
extended time. The excessive heat
generated can cause leftover grease to
catch fire, and can cause permanent
damage to your grill.

Cooking surfaces: If a bristle brush is used to clean any of
the grill cooking surfaces, ensure no loose bristles remain on
cooking surfaces prior to grilling. It is not recommended to
clean cooking surfaces while grill is hot.

Storing Your Grill

• Clean cooking grates.

• Store grill in dry location.

• When LP cylinder is connected to grill, store outdoors in a

well ventilated space and out of reach of children.

• Cover grill if stored outdoors. Choose from a variety of

grill covers offered by manufacturer.

• Store grill indoors ONLY if LP cylinder is turned off,

disconnected, and removed from grill. Never store LP
cylinder indoors.

• When removing grill from storage, follow the 'Cleaning

the Burner Assembly' instructions in the Use and Care
section of the Use and Care Guide.

General Cleaning

Plastic parts: Wash with warm soapy water and wipe dry.
Do not use abrasive cleaners, degreasers or a concentrated
grill cleaner on plastic parts. Damage to and failure of
parts can result.

Porcelain surfaces: Because of glass-like composition, most
residue can be wiped away with baking soda/water
solution or glass cleaner. Use non-abrasive scouring powder
for stubborn stains.

Painted surfaces: Wash with mild detergent or non-abrasive
cleaner and warm water. Wipe dry with a soft non­abrasive cloth.

Stainless steel surfaces: Stainless steel can rust under certain
conditions. This can be caused by environmental conditions
such as chlorine or salt water, or improper
cleaning tools such as wire or steel
wool. It can also discolor due to heat,
chemicals, or grease build-up. To
maintain your grill's high quality
appearance, wash with mild detergent
and warm water, or use a stainless
steel grill cleaner. Baked-on grease
deposits may require the use of an
abrasive plastic cleaning pad. Use only
in direction of brushed finish to avoid
damage. Do not use abrasive pad on
areas with graphics.

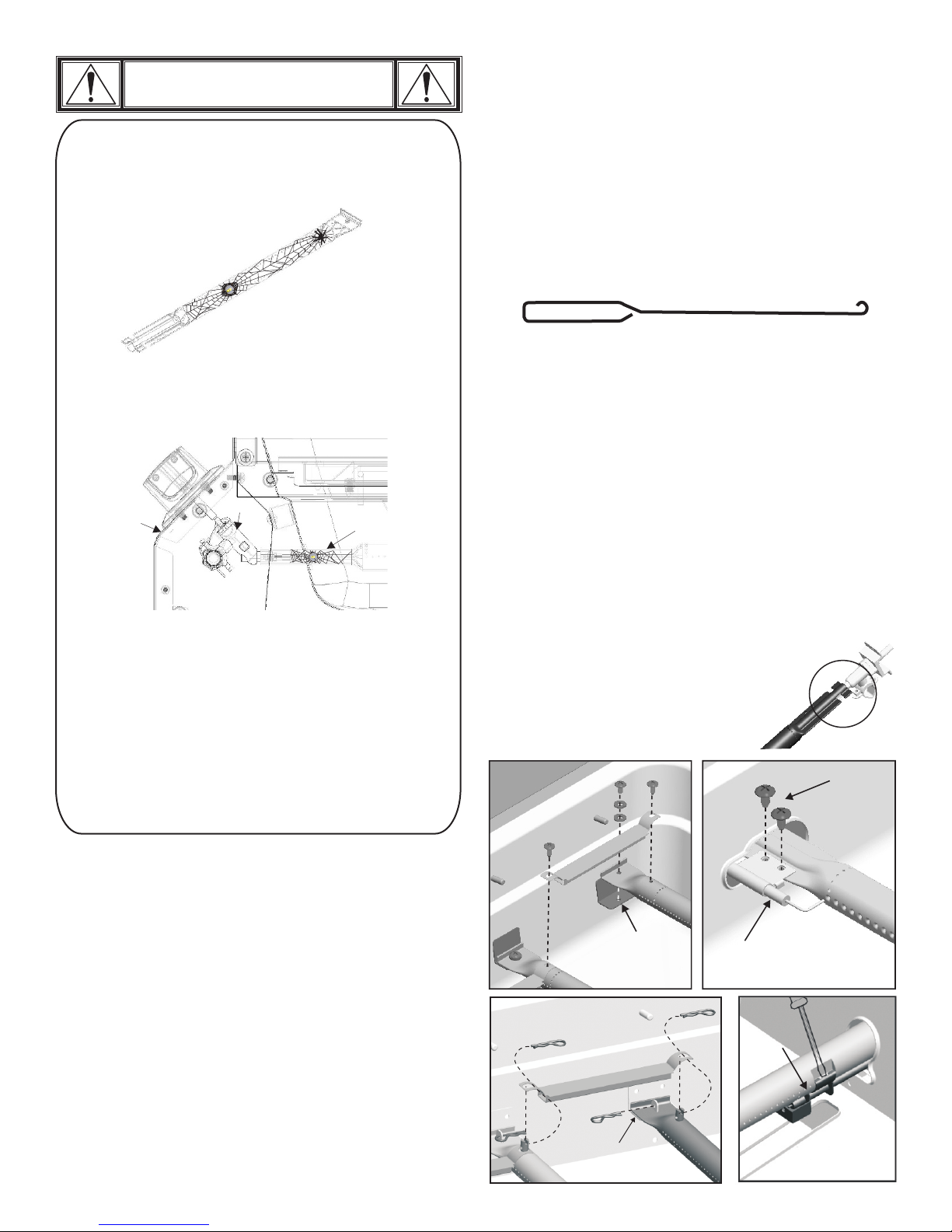

Critters

Spiders like to make their homes in the burner tubes of
grills. These must be inspected and cleaned regularly to
ensure there are no blockages. Refer to the Use and Care
portion of this Use and Care Guide for complete
information.

466424712 • 7

USE AND CARE

DANGER

• NEVER store a spare LP cylinder under or near the

appliance or in an enclosed area.

LP Tank

• The LP Tank used with your grill must meet the following
requirements:

• Use LP Tanks only with these required measurements: 12"
(30.5cm) (diameter) x 18" (45.7 cm) (tall) with 20 lb. (9 kg.)
capacity maximum.

• LP Tanks must be constructed and marked in accordance with
specifications for LP Tanks of the U.S. Department of
Transportation (DOT) or for Canada, CAN/CSA-B339, tanks,
spheres and tubes for transportation of dangerous goods.
Transport Canada (TC). See LP Tank collar for marking.

• LP Tank valve must have:

• Type 1 outlet compatible with

regulator or grill.

• Safety relief valve.

• Never fill a cylinder beyond 80% full.

• If the information in the two points above is not

followed exactly, a fire causing death or serious
injury may occur.

• An overfilled or improperly stored cylinder is a

hazard due to possible gas release from the safety
relief valve. This could cause an intense fire with
risk of property damage, serious injury or death.

• If you see, smell or hear gas escaping, immediately

get away from the LP cylinder and appliance and
call your fire department.

LP Tank Removal, Transport And Storage

•Turn OFF all control knobs and LP cylinder valve. Turn coupling
nut counterclockwise by hand only - do not use tools to
disconnect. Loosen cylinder screw beneath bottom shelf or

disconnect other retention means, then lift PL cylinder up and

and out of cart. Install safety cap onto LP cylinder valve.

Always use cap and strap supplied with valve.

Failure to use safety cap as directed may result in serious
personal injury and/or property damage.

LP Tank Valve

Safety Cap

Retainer Strap

• A disconnected LP tank in storage or being transported must
have a safety cap installed (as shown). Do not store an LP
tank in enclosed spaces such as a carport, garage, porch,
covered patio or other building. Never leave an LP tank
inside a vehicle which may become overheated by the sun.

• Do not store an LP tank in an area where children play.

8 • 466424712

• UL listed Overfill Protection
Device (OPD). This OPD safety

feature is identified by a unique triangular hand wheel. Use

only LP Tanks equipped with this type of valve.

• LP Tank must be arranged for vapor withdrawal and include
collar to protect LP Tank valve. Always keep LP Tanks in
upright position during use, transit or storage.

LP Tank in upright position for vapor withdrawal

OPD Hand Wheel

LP (Liquefied Petroleum Gas)

• LP gas is nontoxic, odorless and colorless when produced. For
Your Safety, LP gas has been given an odor (similar to rotten

cabbage) so that it can be smelled.

• LP gas is highly flammable and may ignite unexpectedly when
mixed with air.

LP Tank Filling

• Use only licensed and experienced dealers.

• LP dealer must purge new tank before filling.

• Dealer should NEVER fill LP Tank more than 80% of LP Tank

volume. Volume of propane in tank will vary by temperature.

• A frosty regulator indicates gas overfill. Immediately close LP
Tank valve and call local LP gas dealer for assistance.

• Do not release liquid propane (LP) gas into the atmosphere.
This is a hazardous practice.

• To remove gas from LP Tank, contact an LP dealer or call a
local fire department for assistance. Check the telephone
directory under “Gas Companies” for nearest certified LP
dealers.

LP Tank Exchange

• Many retailers that sell grills offer you the option of
replacing your empty LP tank through an exchange service.
Use only those reputable exchange companies that inspect,
precision fill, test and certify their tanks. Exchange your

tank only for an OPD safety feature-equipped tank as
described in the "LP Tank" section of this manual.

• Always keep new and exchanged LP tanks in upright
position during use, transit or storage.

• Leak test new and exchanged LP tanks BEFORE
connecting to grill.

• Place dust cap on cylinder valve outlet whenever the
cylinder is not in use. Only install the type of dust cap on
the cylinder valve outlet that is provided with the cylinder
valve. Other types of caps or plugs may result in leakage
of propane.

LP Tank Leak Test

For your safety

• Leak test must be repeated each time LP tank is exchanged
or refilled.

• Do not smoke during leak test.

• Do not use an open flame to check for gas leaks.

• Grill must be leak tested outdoors in a well-ventilated area,
away from ignition sources such as gas fired or electrical
appliances. During leak test, keep grill away from open
flames or sparks.

• Use a clean paintbrush and a 50/50 mild soap and water
solution. Brush soapy solution onto areas indicated by
arrows in figure below. Leaks are indicated by growing
bubbles.

WARNING

Connecting Regulator To The LP Tank

1. LP tank must be properly secured onto grill. (Refer to
assembly section.)

2. Turn all control knobs to the OFF position.

3. Turn LP tank OFF by turning OPD hand wheel clockwise to a

full stop.

4. Remove the protective cap from LP tank valve. Always use
cap and strap supplied with valve.

c

k

w

o

i

l

s

e

OPD Hand Wheel

Type 1 outlet with
thread on outside

Strap and Cap

Do not insert a POL transport plug
(plastic part with external threads)

into the Type 1 tank valve outlet.
It will defeat the Safety Relief Valve

feature.

Safety Relief Valve

C

f

f

O

If “growing” bubbles appear do not use or move the LP tank.

Contact an LP gas supplier or your fire department!

 Do not use household cleaning agents. Damage to gas

valve/hose/regulator components can result.

5. Hold regulator and insert nipple into LP
tank valve. Hand-tighten the coupling
nut, holding regulator in a straight line
with LP tank valve so as not to cross­thread the connection.

Nipple has to be centered
into the LP tank valve.

466424712 • 9

Leak Testing Valves, Hose and Regulator

1. Turn all grill control knobs to OFF.

Straight

Hold coupling nut and regulator
as shown for proper connection
to LP tank valve.

6. Turn the coupling nut clockwise and tighten to a full stop. The
regulator will seal on the back-check feature in the LP tank
valve, resulting in some resistance. An additional one-half to

three-quarters turn is required to complete the
connection. Tighten by hand only – do not use tools.

NOTE:

If you cannot complete the connection, disconnect regulator and
repeat steps 5 and 6. If you are still unable to complete the

connection, do not use this regulator!

Call for identical replacement parts.1-800-241-7548

2. Be sure regulator is tightly connected to LP tank.

3. Completely open LP tank valve by turning OPD hand wheel
counterclockwise. If you hear a rushing sound, turn gas off
immediately. There is a major leak at the connection. Correct

before proceeding by calling for replacement parts at
1-800-241-7548.

4. Brush soapy solution onto areas where bubbles are shown in
picture below:

Never remove threaded
orifice at end of valve.

DANGER

• Do not insert any tool or foreign objects into the valve
outlet

or safety relief valve. You may damage the
valve and cause a leak. Leaking propane may result in
explosion, fire, severe personal injury, or death.

• If a leak is detected at any time, STOP and call the fire
department.

• If you cannot stop a gas leak, immediately close LP tank
valve and call LP gas supplier or your fire department!

WARNING

• Never attempt to attach this grill to the self-contained LP gas

system of a camper trailer or motor home.

• Do not use grill until leak-tested.

5. If “growing” bubbles appear, there is a leak. Close LP tank
valve immediately and retighten connections. If leaks cannot
be stopped do not try to repair. Call for replacement
parts at .1-800-241-7548

6. Always close LP tank valve after performing leak test by
turning hand wheel clockwise.

10 • 466424712

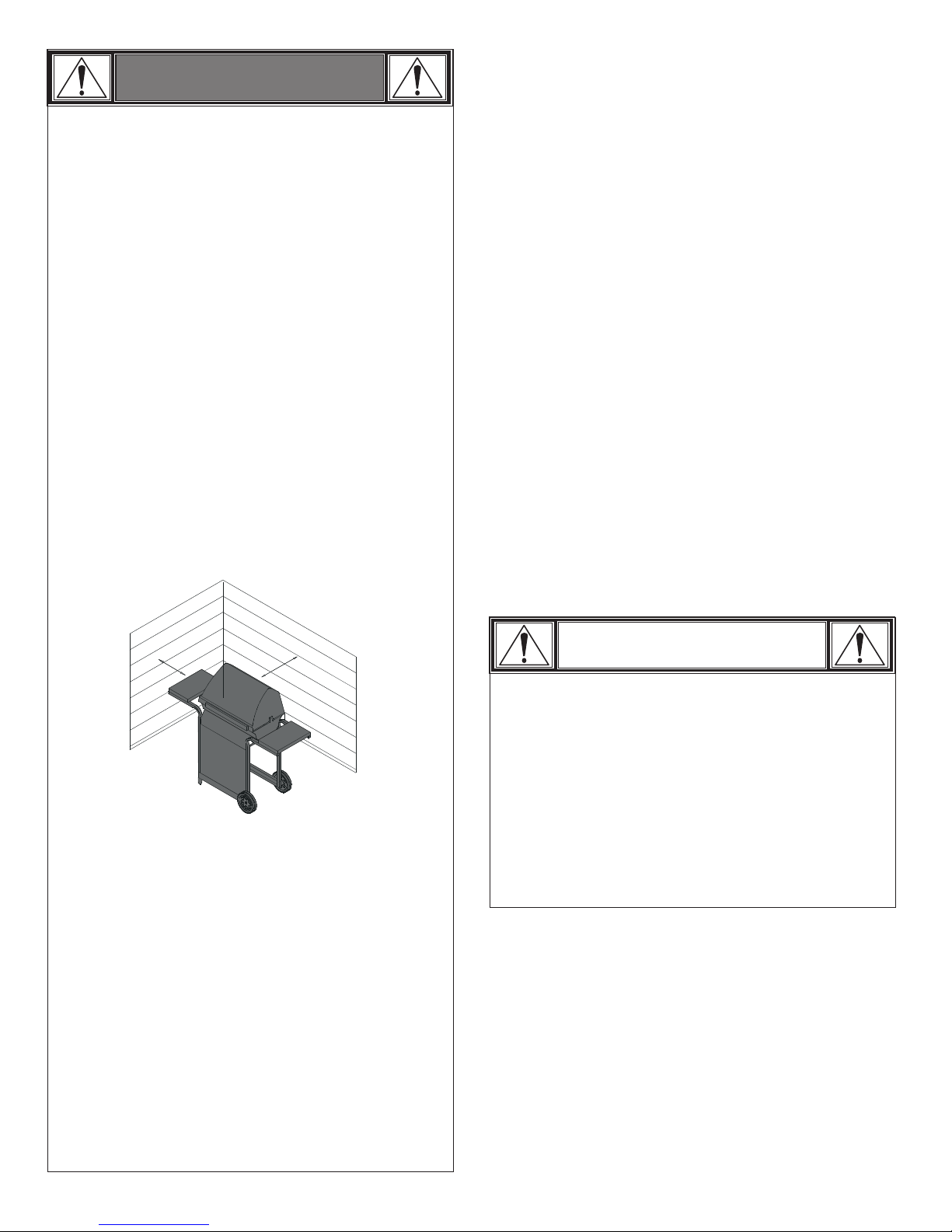

WARNING

For Safe Use of Your Grill and to Avoid Serious
Injury:

• Do not let children operate or play near grill.

• Keep grill area clear and free from materials that burn.

• Do not block holes in sides or back of grill.

• Check burner flames regularly.

• Use grill only in well-ventilated space. NEVER use in
enclosed space such as carport, garage, porch,
covered patio, or under an overhead structure of any
kind.

• Do not use charcoal or ceramic briquets in a gas grill.
(Unless briquets are supplied with your grill.)

Do not cover grates with aluminum foil or any other

•

material. This will block burner ventilation and create
a potentially dangerous condition resulting in
property damage and/or personal injury.

• Use grill at least 3 ft. from any wall or surface.

Maintain 10 ft. clearance to objects that can catch fire
or sources of ignition such as pilot lights on water

heaters, live electrical appliances, etc.

Safety Tips

 Before opening LP cylinder valve, check the coupling nut for

tightness.

 When grill is not in use, turn off all control knobs and LP

cylinder valve.

 Never move grill while in operation or still hot.
 Use long-handled barbecue utensils and oven mitts to avoid

burns and splatters.

 Maximum load for sideburner and side shelf is 10 lbs.
 The grease tray must be inserted into grill and emptied after

each use. Do not remove grease tray until grill has
completely cooled.

Clean grill often, preferably after each cookout. If a bristle



brush is used to clean any of the grill cooking surfaces,

ensure no loose bristles remain on cooking surfaces prior to
grilling. It is not recommended to clean cooking surfaces
while grill is hot.

 If you notice grease or other hot material dripping from grill

onto valve, hose or regulator, turn off gas supply at once.
Determine the cause, correct it, then clean and inspect valve,
hose and regulator before continuing. Perform a leak test.

 Keep ventilation openings in cylinder enclosure (grill cart) free

and clear of debris.

 Do not store objects or materials inside the grill cart

enclosure that would block the flow of combustion air to the
underside of either the control panel or the firebox bowl.

 The regulator may make a humming or whistling noise during

operation. This will not affect safety or use of grill.

 If you have a grill problem see the "Troubleshooting Section".
 If the regulator frosts, turn off grill and LP cylinder valve

immediately. This indicates a problem with the cylinder and it
should not be used on any product. Return to supplier!

•

Apartment Dwellers:

Check with management to learn the requirements
and fire codes for using an LP gas grill in your
apartment complex. If allowed, use outside on the
ground floor with a three (3) foot clearance from
walls or rails. Do not use on or under balconies.

• NEVER attempt to light burner with lid closed. A
buildup of non-ignited gas inside a closed grill is
hazardous.

• Never operate grill with LP cylinder out of correct
position specified in assembly instructions.

• Always close LP cylinder valve and remove
coupling nut before moving LP cylinder from
specified operation position.

CAUTION

• Putting out grease fires by closing the lid is not
possible. Grills are well ventilated for safety
reasons.

• Do not use water on a grease fire. Personal injury
may result. If a grease fire develops, turn knobs
and LP cylinder off.

• Do not leave grill unattended while preheating or
burning off food residue on HIGH. If grill has not
been regularly cleaned, a grease fire can occur

that may damage the product. Follow instructions
on General Grill Cleaning and Cleaning The Burner
Assembly to prevent grease fires.

Ignitor Lighting the Grill

Do not lean over grill while lighting.

Turn OFF gas burner control valves.

1.
Turn ON gas at LP cylinder.

2.

Open lid during lighting.

3.
To ignite, push and turn the IGNITION BURNER knob to HI.

4.

Push and hold ELECTRONIC IGNITION button until the

5.
IGNITION BURNER lights.

6. If ignition does NOT occur in 5 seconds, turn the burner
controls OFF, wait 5 minutes and repeat the lighting
procedure.

7.

To ignite remaining burners, turn each burner knob in
sequence to the HI position, starting with the burner closest

closest to the IGNITION BURNER.

466424712 • 11

Ignitor Lighting (continued)

8. Once each burner has ignited, turn knobs to desired setting.

9. If ignitor does not work, follow match lighting instructions.

WARNING

Turn controls and gas source or tank OFF when not
in use.

CAUTION

If ignition does NOT occur in 5 seconds, turn the
burner controls OFF, wait 5 minutes and repeat the
lighting procedure. If the burner does not ignite with
the valve open, gas will continue to flow out of the
burner and could accidently ignite with risk of injury.

Match-Lighting

Do not lean over grill while lighting.

1. Open lid. Turn ON gas at LP cylinder.

2. Place match into match holder (hanging from side panel of

grill). Light match; then light burner by placing match through
the match light hole on right or left side of grill.

3. Push in and turn far right or far left burner knob to the HI
position, depending on match light hole selected. Be sure
burner lights and stays lit.

4. Light adjacent burners in sequence by pushing knobs in and
turning to the HI position.

Sideburner Ignitor Lighting

Do not lean over grill while lighting.

1. Open sideburner lid. Turn ON gas at LP cylinder.

2. Turn sideburner knob to the HI position, push and hold

ELECTRONIC IGNITION button.

3. If sideburner does NOT light within 5 seconds, turn knob to

OFF, wait 5 minutes, then
repeat lighting procedure.

Sideburner Match Lighting

1. Open sideburner lid. Turn ON

gas at LP cylinder.

2. Place lit match near burner.

3. Turn sideburner knob to the
HI position.

Be sure burner lights and
stays lit.

12 • 466424712

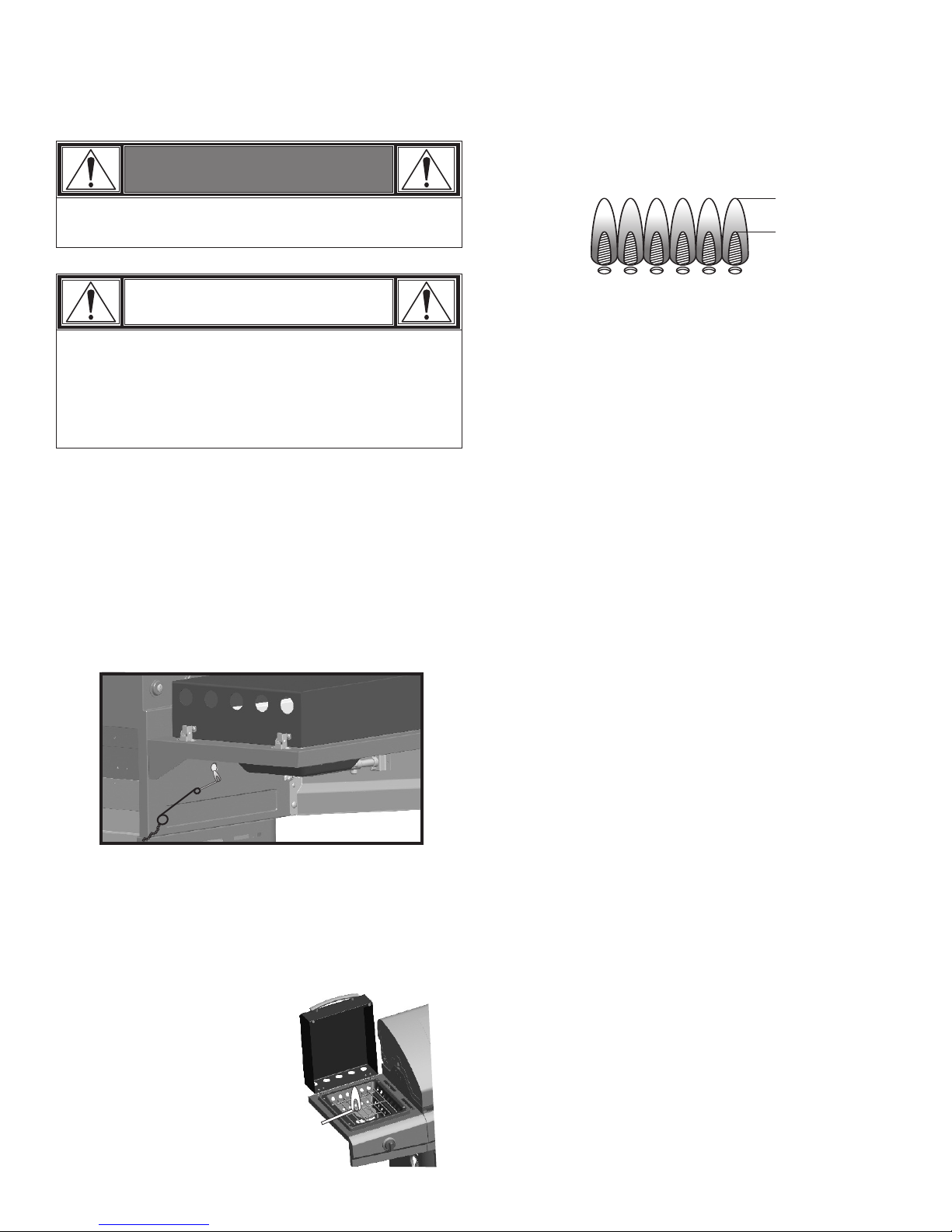

Burner Flame Check

• Remove cooking grates and Heat Diffusers. Light burners, rotate
knobs from HI to LOW. You should see a smaller flame in
LOW position than seen on HI. Perform burner flame check
on sideburner, also. Always check flame prior to each use. If
only low flame is seen refer to "Sudden drop or low flame" in
the Troubleshooting Section.

HI

LOW

Turning Grill Off

• Turn all knobs to the OFF position. Turn LP cylinder OFF by
turning hand-wheel clockwise to a full stop.

Ignitor Check

• Turn gas off at LP cylinder. Press and hold electronic ignitor
button. A "Click" should be heard and spark seen each time
between each collector box or burner and electrode. See
"Troubleshooting" if no click or spark.

Valve Check

• Important: Make sure gas is off at LP cylinder before
checking valves. Knobs lock in position. To check

valves, first push in knobs and release, knobs should spring
back. If knobs do not spring back, replace valve assembly
before using grill. Turn knobs to LOW position then turn back to

OFF

position. Valves should turn smoothly.

OFF

Hose Check

• Before each use, check to see if hoses are cut or worn.
Replace damaged hoses before using grill. Use only

identical replacement part valve/hose/regulator as
specified in the Parts List of this Use and Care Guide.

General Grill Cleaning

• Do not mistake brown or black accumulation of grease and
smoke for paint. Interiors of gas grills are not painted at the
factory (and should never be painted). Apply a strong solution
of detergent and water or use a grill cleaner with scrub brush
on insides of grill lid and bottom. Rinse and allow to completely
air dry. Do not apply a caustic grill/oven cleaner to painted

surfaces.

• Plastic parts: Wash with warm soapy water and wipe dry.
Do not use citrisol, abrasive cleaners, degreasers or a
concentrated grill cleaner on plastic parts. Damage to and
failure of parts can result.

• Porcelain surfaces: Because of glass-like composition, most
residue can be wiped away with baking soda/water solution or
specially formulated cleaner. Use nonabrasive scouring powder
for stubborn stains.

• Painted surfaces: Wash with mild detergent or nonabrasive
cleaner and warm soapy water. Wipe dry with a soft
nonabrasive cloth.

• Stainless steel surfaces: To maintain your grill’s high quality
appearance, wash with mild detergent and warm soapy water
and wipe dry with a soft cloth after each use. Baked-on grease
deposits may require the use of an abrasive plastic cleaning
pad. Use only in direction of brushed finish to avoid damage.
Do not use abrasive pad on areas with graphics.

• Cooking surfaces: If a bristle brush is used to clean any of

the grill cooking surfaces, ensure no loose bristles remain on
cooking surfaces prior to grilling. It is not recommended to
clean cooking surfaces while grill is hot.

CAUTION

SPIDER ALERT!

Important: Always ensure that the venturi burner tubes are clean. A

venturi burner tube has a narrow area in which spiders tend to build
nests.

SPIDER AND WEBS

INSIDE BURNER TUBE

If you notice that your grill is getting hard to light or that the
flame isn’t as strong as it should be, take the time to check and
clean the burner tubes.

CONTROL PANEL

VALVE

Spiders or small insects have been known to create “flashback”
problems. The spiders spin webs, build nests and lay eggs in the
grill’s venturi tube(s) obstructing the flow of gas to the burner.
The backed-up gas can ignite in the burner tube behind the
control panel. This is known as a flashback and it can damage
your grill and even cause injury.

To prevent flashbacks and ensure good performance the burner
and venturi tube assembly should be removed from the grill
and cleaned before use whenever the grill has been idle for an
extended period.

SPIDER WEBS

INSIDE VENTURI TUBE

BURNER

3. Remove carryover tubes and burners.

4.

Detach electrode from burner.

NOTE: Removal/Detachment method will depend on the
burner configuration. See different configurations in
illustrations below.

5. Carefully lift each burner up and away from valve openings.

We suggest three ways to clean the burner tubes. Use the one

easiest for you.

(A) Bend a stiff wire (a light weight coat hanger works well)

into a small hook. Run the hook through each burner
tube several times.

(B) Use a narrow bottle brush with a flexible handle (do not

use a brass wire brush), run the brush through each
burner tube several times.

(C) Wear eye protection: Use an air hose to force air into

the burner tube and out the burner ports. Check each
port to make sure air comes out each hole.

6. Wire brush entire outer surface of burner to remove food

residue and dirt.

7. Clean any blocked ports with a stiff wire such as an open

paper clip.

8. Check burner for damage, due to normal wear and corrosion

some holes may become enlarged. If any large cracks or
holes are found replace burner.

VERY IMPORTANT: Burner tubes must reengage valve

openings. See illustration at right.

9. Attach electrode to burner.

10. Carefully replace burners.

Correct

burner-to-valve

engagement

11. Attach burners to brackets on firebox.

12. Reposition carryover tubes and attach

to burners. Replace heat diffusers and
cooking grates.

Remove screws

Firebox

Storing Your Grill

• Clean cooking grates.

• Store in dry location.

• When LP cylinder is connected to grill, store outdoors in a
well ventilated space and out of reach of children.

• Cover grill if stored outdoors. Choose from a variety of grill
covers offered by manufacturers.

• Store grill indoors ONLY if LP cylinder is turned off and
disconnected, removed from grill and stored outdoors.

• When removing grill from storage, follow “Cleaning the
Burner Assembly” instructions before starting grill.

Cleaning the Burner Assembly

Follow these instructions to clean and/or replace parts of
burner assembly or if you have trouble igniting grill.

1. Turn gas OFF at control knobs and LP cylinder.

2.

Remove cooking grates and heat diffusers.

Firebox

be

tu

Carryover

burner
bracket

Carryover tube

Firebox burner
bracket

Firebox

Electrode

Electrode

Pry off
electrode with
a flat blade
screwdriver

466424712 • 13

PARTS LIST

Key Qty Description Part #

1 1 LEFT FRONT LEG SH101002725

2 1 LEFT REAR LEG SH101002726

3 2 LEG EXTENDER 302470076

4 1 RIGHT FRONT LEG SH101002723

5 1 RIGHT REAR LEG SH101002724

6 1 M ATCH HOLDER SH101002728

7 1 BOTTOM SHELF SH101002720

8 2 WHEEL 302450005

9 1 AXLE ROD 302460003

10 2 WHEEL SPACER 302470077

11 2 SIDE BRACE, F/ CART SH101002722

12 2 FRONT PANEL 204060004

13 1 TANK EXCLUSION 302470136

14 1 GRILL LID SH101002701

15 1 BEZEL, F/ TEM PERATURE GAUGE 201150002

16 1 TEMPERATURE GAUGE SH302020010

17 1 HANDLE, F/ LID SH101002703

18 2 HANDLE END, F/ LID HANDLE 201090001

19 4 LID BUM PER 302060001

20 1 TOP LID HARDWARE SH101002704

21 1 FIREBOX, GRILL BOTTOM SH101002705

22 4 MAIN BURNER 302120027

23 1 ELECTRODE, MAIN BURNER SH101002706

24 1 BURNER CARRY OVER TUBE SH101002707

25 1 BRACKET, F/ CONTROL PANEL, LEFT SH101002708
26 1

BRACKET, F/ CONTROL PANEL,
RIGHT

SH101002709

27 1 CONTROL PANEL, MAIN SH101002732

28 1 ELECTRONIC IGNITION M ODULE 302260011

29 1 BUTTON, F/ IGNITION MODULE 302260011-1
30 1

HOSE VALVE REGULATOR
ASSEM BLY

SH101002727

31 5 BEZEL F/ CONTROL KNOB 302240001

32 5 CONTROL KNOB 302230015-3

33 1 LEFT FASCIA SH101002731

34 1 LEFT SIDE SHELF SH101002717

35 1 RIGHT FASCIA SH101002730

36 1 RIGHT SIDE SHELF SH101002712

37 1 DRIP PAN, F/ SB SH101002729

38 1 SIDE BURNER LID SH101002715

39 1 ELECTRODE, F/ SB SH101002714

NOTE: Some grill parts shown in the assembly steps may differ slightly in appearance from those on
your particular grill model. However, the method of assembly remains the same.

14 · 466424712

Key Qty Description Part #

40 1 SIDEBURNER 302140010

41 1 SIDEBURNER GRATE 302080010

42 1 GREASE TRAY SH101002711

43 1 HEAT SHIELD, F/ TANK SH101002719

44 1 GREASE PAN 202140010

45 4 HEAT DIFFUSER 202150009

46 2 COOKING GRATE 302110037

47 1 WARMING RACK 302070017

48 1 WING SCREW TANK SH101002721

NOT Pictured

… 1 HARDWARE PACK 505000039
… 1 ASSEM BLY M ANUAL, ENGLISH 307010129
… 1 ASSEM BLY M ANUAL, FRENCH 307010130

To order replacement parts after using grill,
call 1-800-241-7548.

PARTS DIAGRAM

31

45

29

33

46

22

23

28

4

7

22

30

25

24

27

45

34

19

19

16

18

15

14

19

20

17

18

20

19

38

41

39

37

26

21

40

36

42

43

2

44

31

32

35

32

32

31

13

11

11

1

12

5

6

4

48

10

8

7

3

10

9

8

· 15466424712

ASSEMBLY

Bottom Shelf and Legs

1

□ Attach legs to bottom shelf with 1/4-20x2-3/8" machine screws. Be sure that metal tabs on legs

face to cart interior as shown.

Left Rear Leg

Left Front Leg

Wheels and Leg Extenders

2

□ Turn cart upside down.
□ Push leg extenders into left legs as shown.
□ From front side of cart, insert axle rod through wheel, wheel spacer, right legs, another wheel spacer

and wheel. Secure with one axle washer and hitch pin. Be sure that cone side of each wheel is
against leg.

Right legs are shorter and have
wheel axle holes at base.

Right Rear Leg

Metal Tabs

Metal Tabs

Right Front Leg

Bottom Shelf

1/4-20x2-3/8"

Machine Screws

Qty. 8

Leg Extenders

Hitch Pin

Qty. 1

Axle Washer

Qty. 1

16 · 466424712

Hitch Pin

Axle Washer

Front

Wheel Spacer

Wheel Spacer

Wheel

Axle Rod

"Cone" side of wheel against leg

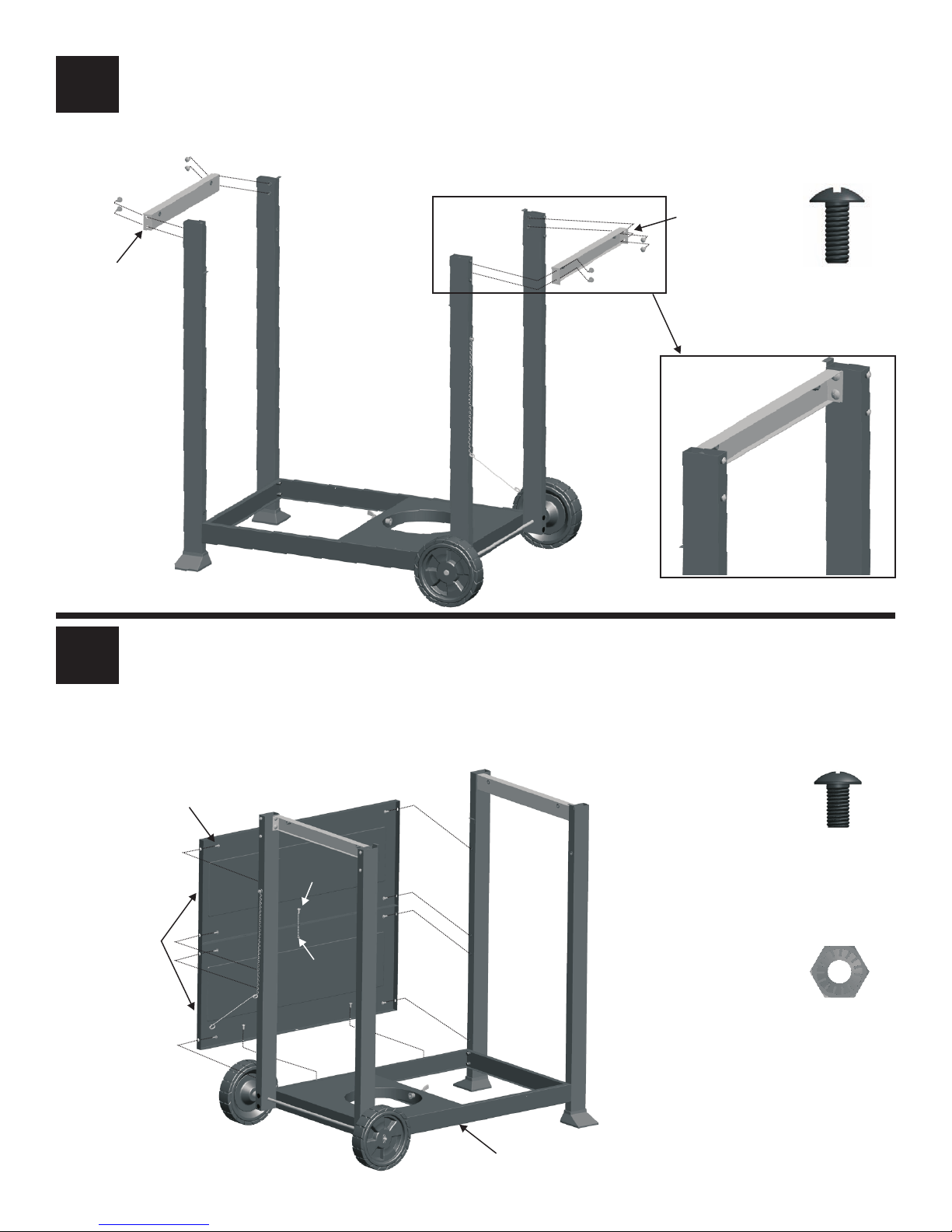

3

Side Braces

□ Turn cart upright.
□ Attach side braces to legs using four 1/4-20x1/2" machine screws on each side. Make sure that flat

side of brace faces to cart interior. Orient side braces so that the threaded inserts are at the top.

Side Brace

Side Brace

Front Panels

4

□ Fit one front panel between front legs and attach with two #8-32x3/8"machine screws each side.

□ Fit the other front panel between front legs and attach with two #8-32x3/8"machine screws each

1/4-20x1/2"

Machine Screws

Qty. 8

Then attach the front panel to bottom shelf with two #8-32x3/8"machine screws.

side. Then use one #8-32x3/8"machine screw and keps nut to secure two front panels in the middle
hole as shown.

#8-32x3/8"

Machine Screw

#8-32x3/8"

Machine Screw

Front Panels

#8-32

Keps Nut

#8-32x3/8"

Machine Screws

Qty. 11

#8-32

Keps Nut

Qty. 1

Bottom Shelf

466424712 · 17

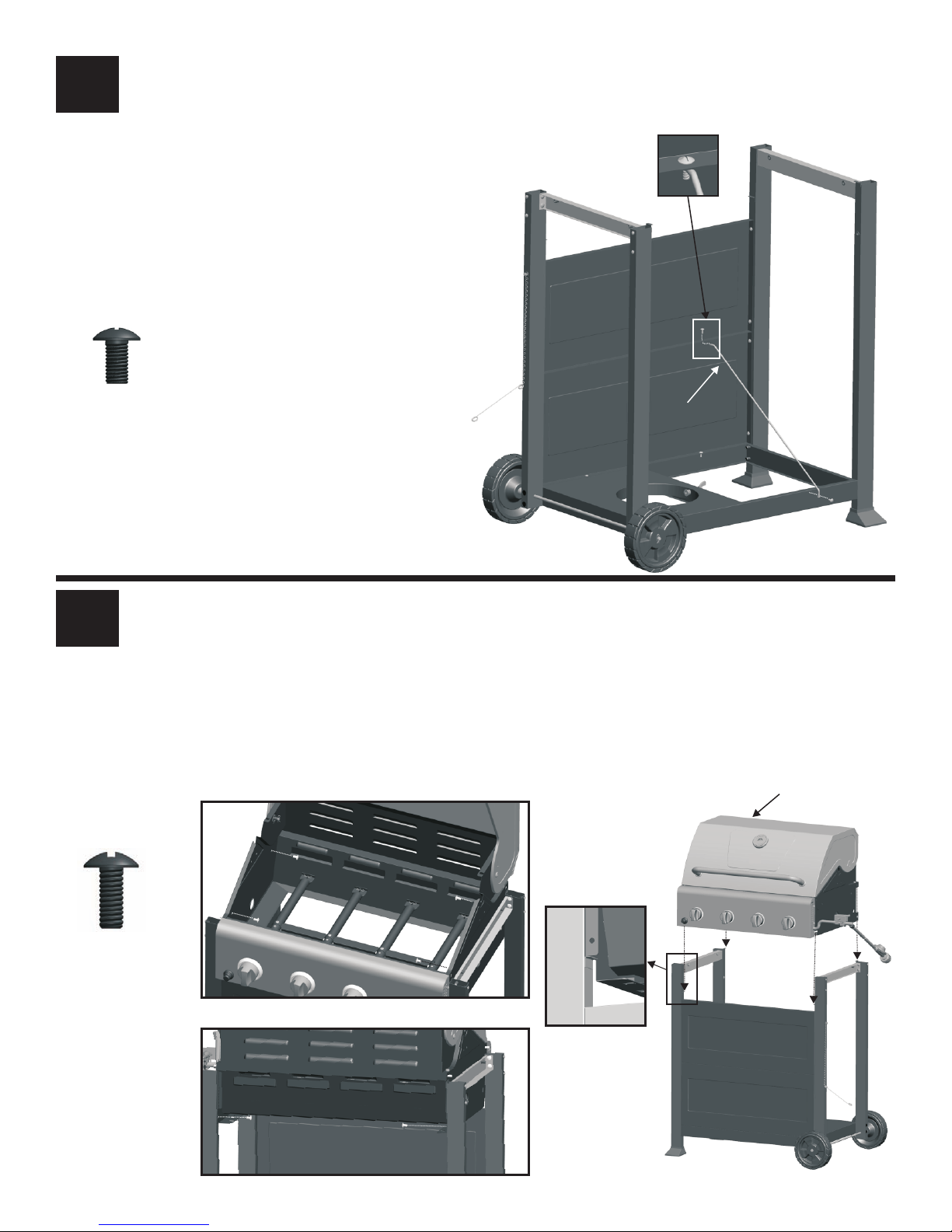

5

Tank Exclusion Brace

□ Use two #8-32x3/8"machine screw to attach

tank exclusion brace to bottom shelf and front
panels as shown. Threaded tips (round hole)
attaches to front panel. Other tip (oblong hole)
attaches to bottom shelf.

#8-32x3/8"

Machine Screws

Qty. 2

Grill Head

46

□ This step requires two people to lift and position grill head onto card.
□ Cut tie wraps from regulator hose and remove styrofoam. Carefully lower the grill head onto cart,

making sure the regulator hose and side burner ignition wire are hanging outside cart. Rest the back
and front of grill head on tabs protruding from front and rear legs as indicated by arrows in figure (A).

□ Open top lid, and use four 1/4-20x1/2" machine screws to attach grill head from inner firebox to

cart side braces as shown (B).

□ Use two 1/4-20x1/2" machine screws to attach grill head to the two rear legs as shown (C).

Tank Exclusion
Brace

Grill Head

B

A

1/4-20x1/2"

Machine Screws

Qty. 6

18 · 466424712

C

7

A

Left Side Shelf

□ Loosen 4 preassembled screws in the left rear leg and left front leg, shown (A), to within 1/8" of

surface. Hang left side shelf onto the screws through the keyhole slots in the shelf. Fully tighten all
preassembled screws. Use one #8-32x3/8"machine screw to attach left fascia to control panel as
shown (A1).

□ Use two 1/4-20x1/2" machine screws to attach left side shelf to firebox from inner firebox as

shown (B).

1/4-20x1/2"

Machine Screws

Qty. 2

A1

#8-32x3/8"

Machine Screws

Qty. 1

B

466424712 · 19

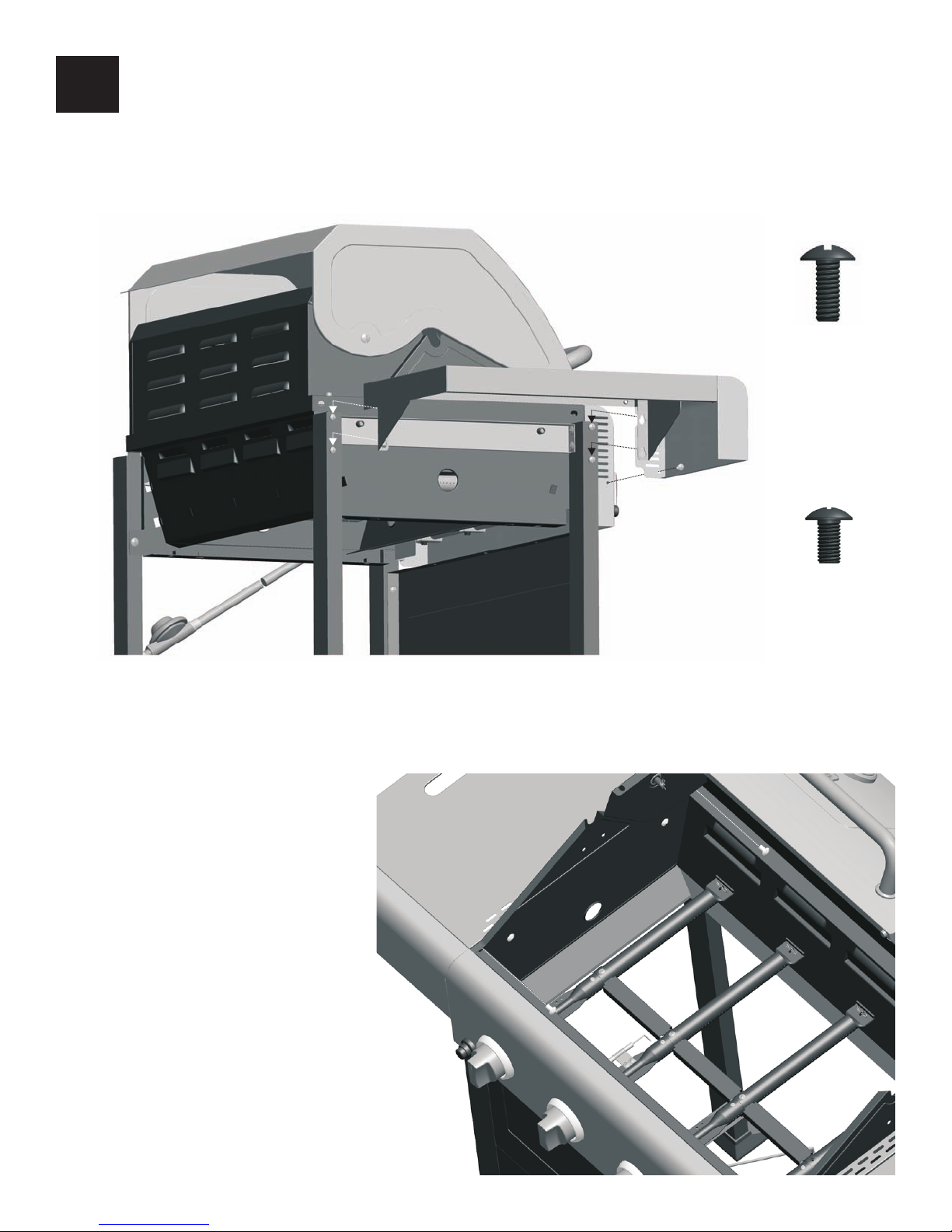

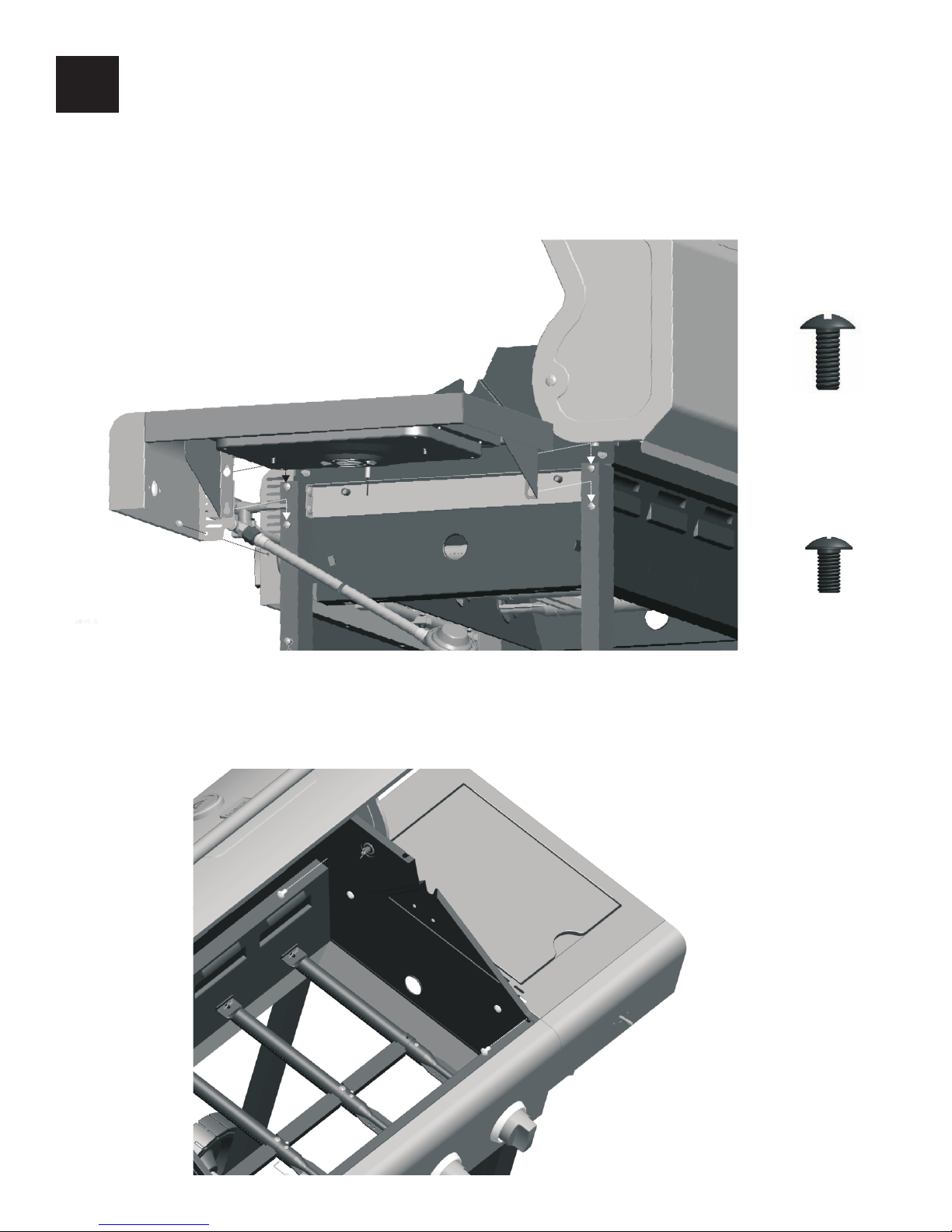

8

Side Burner Shelf

□ Raise side burner lid and remove side burner grate.
□ Loosen 4 preassembled screws in the right rear leg and right front leg, shown (A), to within 1/8" of

surface. Hang side burner shelf onto the screws through the keyhole slots in the shelf. Fully tighten
all preassembled screws. Use one #8-32x3/8" machine screw to attach right fascia to control panel
as shown (A1).

□ Use two 1/4-20x1/2" machine screws to attach side burner shelf to firebox as shown (B).

A

1/4-20x1/2"

Machine Screws

Qty. 2

A1

#8-32x3/8"

Machine Screws

Qty. 1

B

20 · 466424712

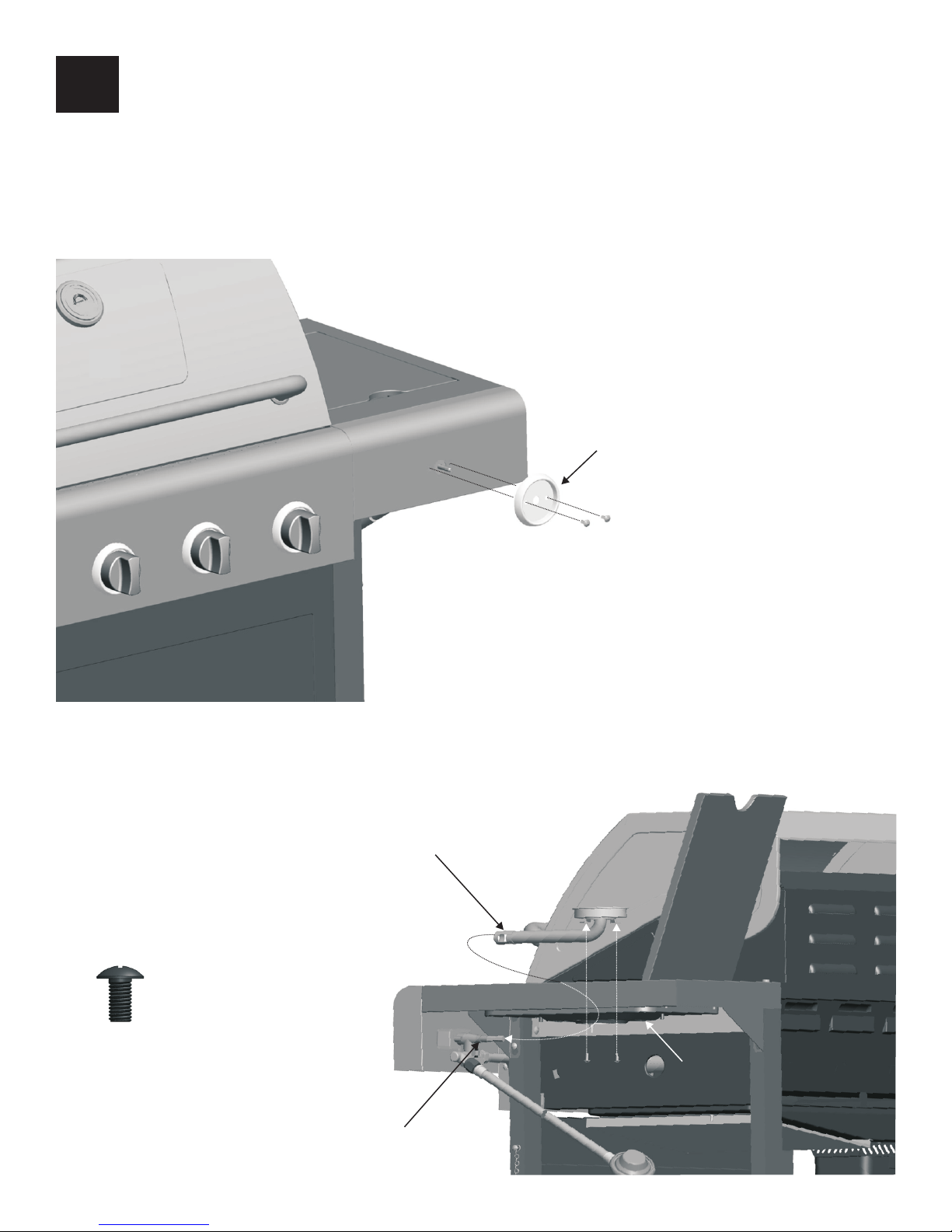

9

Side Burner Valve and Bezel

□ Remove the two screws, shown A, preassembled to the side burner valve.
□ Insert the side burner valve control stem through the fascia and side burner bezel, shown A. Use the

two previously removed screws to attach side burner valve to fascia and bezel.

□ Insert side burner valve into side burner tube. Use two #8-32x3/8 screws to tighten side burner to

drip pan, shown B.

□ Replace side burner grate.

A

Sideburner Bezel

B

#8-32x3/8"

Machine Screws

Qty. 2

Sideburner Tube

Drip Pan

Sideburner Valve

466424712 · 21

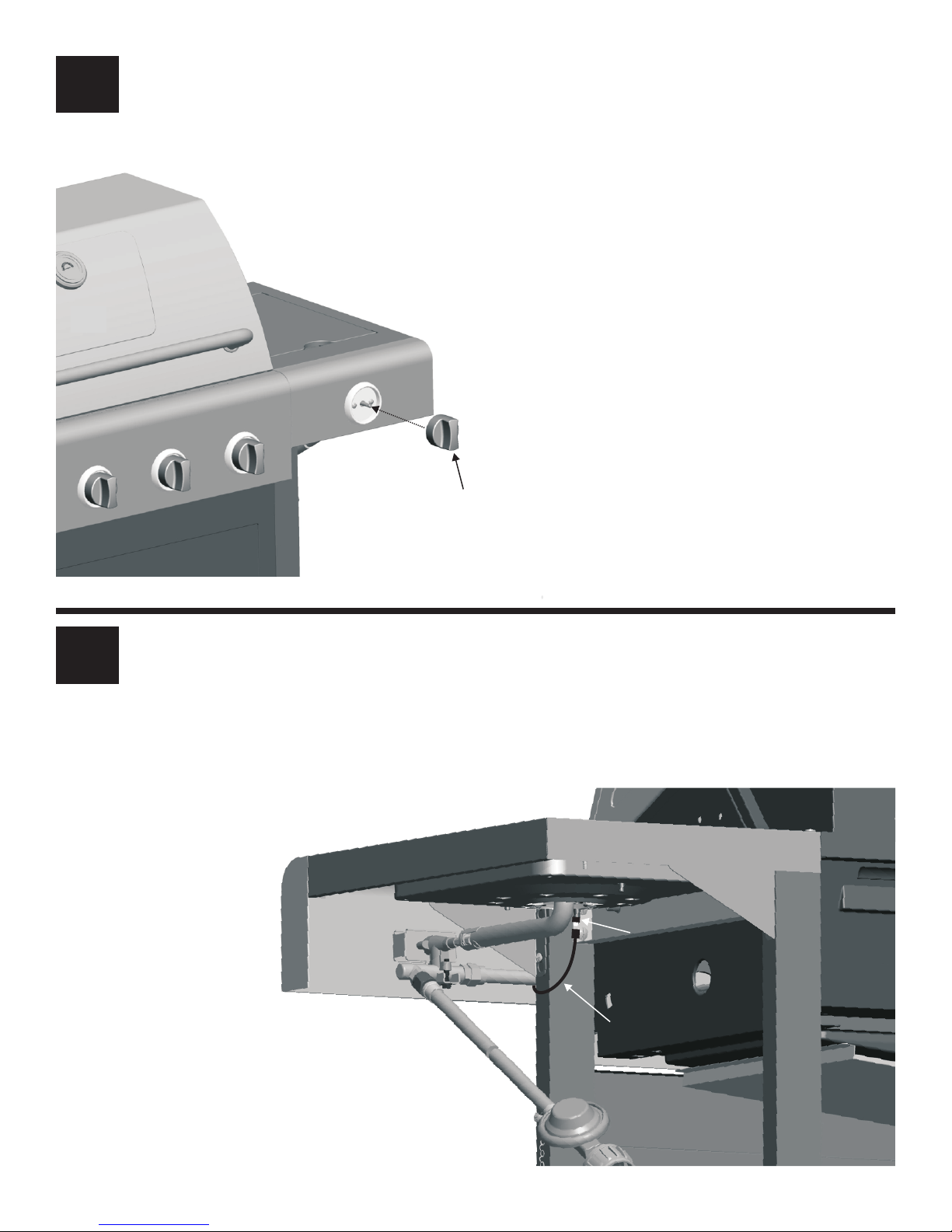

10

Sideburner Knob

□ Push knob onto valve stem.

Sideburner Knob

411

Side Burner Ignitor Wire

□ Insert the socket pin of sideburner electrode wire into harness of ignitor wire as shown below.

Sideburner
Electrode Wire

Ignitor Wire

22 · 466424712

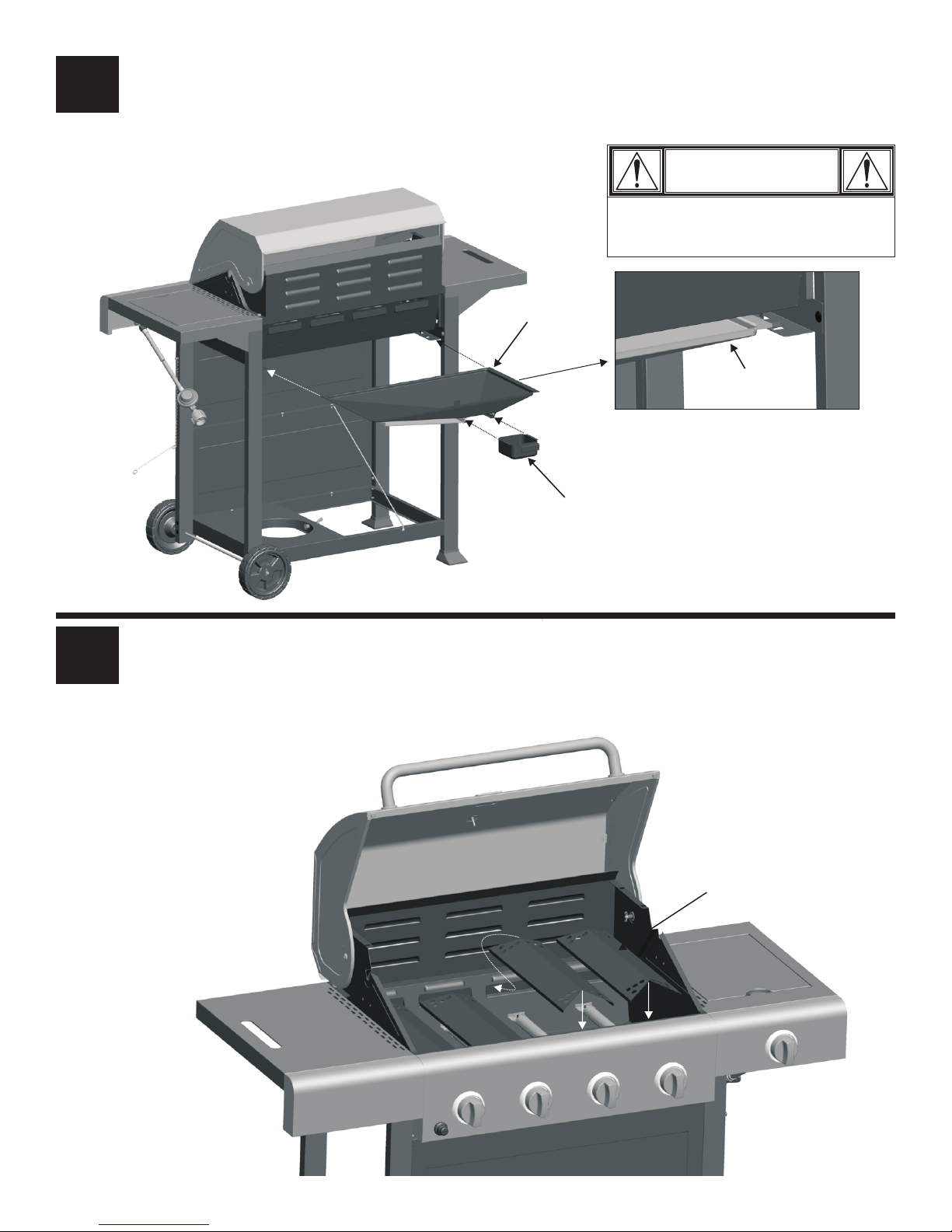

12

Grease Tray and Grease Pan

□ Slide grease tray, oriented as shown, onto rails beneath firebox past rail stops. Slide grease pan

onto rails beneath grease tray past rail stops.

CAUTION

Failure to install grease cup clip and cup
will cause hot grease to drip from bottom
of grill with risk of fire or property damage.

Grease Tray

Grease Tray

Grease Pan

413

Heat Diffusers

□ Place heat diffusers over burners as shown. Diffuser ends insert into channels on front and back of

firebox.

Heat Diffuser

466424712 · 23

14

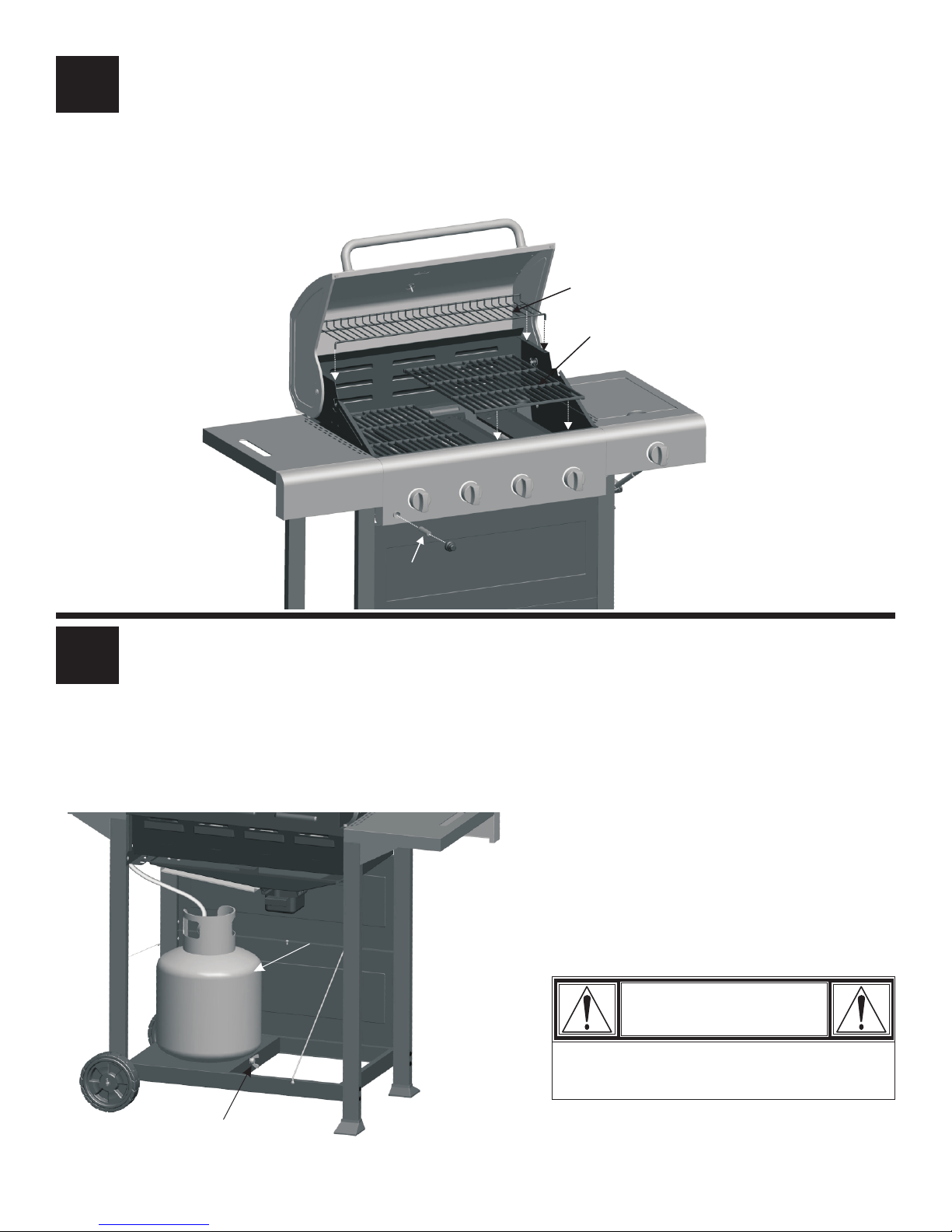

Install Grates, Warming Rack and Battery

□ Insert grates so that side with four corner feet face down. To obtain sear marks in cooked meat, be

sure to insert grates so that side with four corner feet faces down. Install warming rack into firebox
with legs inserted into sidewall holes as shown.

□ Unscrew ignitor cap and insert AAA battery into ignitor slot with positive end(+) facing outward.

Replace the ignitor cap.

Warming Rack

Cooking Grate

415

_

+

AAA Battery

□ LP tank is sold separately. Use only with an OPD (over-fill protection device) equipped LP tank. Fill
and leak check before attaching to grill and regulator (see Use and Care section).

□ Place LP tank into hole in bottom shelf with tank collar opening facing the front right leg of cart as

shown. Finger tighten tank thumbscrew to hold LP tank securely in place.

See Use and Care section to correctly Leak Test and
perform the Burner Flame Check.

LP Tank

Tank Thumbscrew

24 · 466424712

CAUTION

Failure to install tank correctly may cause gas hose
to be damaged in operation, resulting in the risk of
fire.

EMERGENCIES: If a gas leak cannot be stopped, or a fire occurs due to gas leakage, call the fire department.

Emergencies

Gas leaking from
cracked/cut/burned
hose.

Gas leaking from LP
cylinder.

Gas leaking from LP
cylinder valve.

Gas leaking between
LP cylinder and
regulator connection.

Fire coming through
control panel.

Grease fire or
continuous excessive
flames above cooking
surface.

Troubleshooting

Problem

Burner(s) will not light
using ignitor.
(See Electronic Ignition
Troubleshooting also)

Continued on next
page.

Possible Cause

• Damaged hose.

• Mechanical failure due to rusting or
mishandling.

• Failure of cylinder valve from
mishandling or mechanical failure.

• Improper installation, connection not
tight, failure of rubber seal.

• Fire in burner tube section of burner
due to blockage.

• Too much grease buildup in burner
area.

Possible Cause

GAS ISSUES:

• Trying to light wrong burner.

• Burner not engaged with control valve.

• Obstruction in burner.

• No gas flow.

Prevention/Solution

• Turn off gas at LP cylinder or at source on natural gas systems.
If the hose is cracked or cut but not burned, simply replace
valve/hose/ regulator. If the hose is burned, the cause could be
other than a faulty valve/hose/regulator. Discontinue use of
grill until a plumber or gas technician has investigated and
corrected the problem.

• Replace LP cylinder.

• Turn off LP cylinder valve. Return LP cylinder to gas supplier.

• Turn off LP cylinder valve. Remove regulator from cylinder and
visually inspect rubber seal for damage. See LP Cylinder Leak
Test and Connecting Regulator to the LP Cylinder.

• Turn off control knobs and LP cylinder valve. Leave lid open to
allow flames to die down. After fire is out and grill is cold,
remove burner and inspect for spider nests or rust.
Alert and Cleaning the Burner Assembly sections of this Use &
Care Guide.

• Turn off control knobs and LP cylinder valve. Leave lid open to
allow flames to die down. After cooling, clean food particles
and excess grease from inside firebox area, grease tray, and
other surfaces.

Prevention/Solution

• See instructions on control panel and in Use and Care section.

• Make sure valves are positioned inside of burner tubes.

• Ensure burner tubes are not obstructed with spider webs or other
matter. See cleaning section of Use and Care.

• Make sure LP cylinder is not empty. If LP cylinder is not empty,
refer to “Sudden drop in gas flow.”

See Spider

• Vapor lock at coupling nut to LP
cylinder.

• Coupling nut and LP cylinder valve not
fully connected.

ELECTRICAL ISSUES:

• Electrode cracked or broken; “sparks at
crack.”

• Electrode tip not in proper position.

• Wire and/or electrode covered with
cooking residue.

• Wires are loose or disconnected.

• Wires are shorting (sparking) between
ignitor and electrode.

• Dead battery.

• Turn off knobs and disconnect coupling nut from LP cylinder.
Reconnect and retry.

• Turn the coupling nut approximately one-half to three-quarters
additional turn until solid stop. Tighten by hand only - do not
use tools.

• Replace electrode(s).

Main Burners:

• Tip of electrode should be pointing toward gas port opening on
burner. The distance should be 1/8” to 1/4”. Adjust if necessary.

Sideburner:

• Tip of electrode should be pointing toward gas port opening on
burner. the distance should be 1/8” to 3/16”. Adjust if necessary.

• Clean wire and/or electrode with rubbing alcohol and clean
swab.

• Reconnect wires or replace electrode/wire assembly.

• Replace ignitor wire/electrode assembly.

• Replace with a new alkaline battery.

466424712 • 25

Troubleshooting (continued)

Problem

Burner(s) will not light
using ignitor.
(See Electronic Ignition
Troubleshooting also)

Burner(s) will not
match light.

Sudden drop in gas
flow or low flame.

Flames blow out.

Possible Cause

ELECTRONIC IGNITION:

• No spark, no ignition noise.

• No spark, some ignition noise.

• Sparks, but not at electrode or at full
strength.

• See “GAS ISSUES:” on previous page.

• Match will not reach.

• Improper method of match-lighting.

• Out of gas.

• Excess flow valve tripped.

• Vapor lock at coupling nut/LP cylinder
connection.

• High or gusting winds.

• Low on LP gas.

Prevention/Solution

• See Section I of Electronic Ignition System.

• See Section II of Electronic Ignition System.

• See Section III of Electronic Ignition System.

• Use long-stem match (fireplace match).

• See “Match-Lighting” section of Use and Care.

• Check for gas in LP cylinder.

• Turn off knobs, wait 30 seconds and light grill. If flames are still
low, turn off knobs and LP cylinder valve. Disconnect regulator.
Reconnect regulator and leak-test. Turn on LP cylinder valve,
wait 30 seconds and then light grill.

• Turn off knobs and LP cylinder valve. Disconnect coupling nut
from cylinder. Reconnect and retry.

• Turn front of grill to face wind or increase flame height.

• Refill LP cylinder.

Flare-up.

Persistent grease fire.

Flashback...
(fire in burner tube(s)).

Unable to fill LP
cylinder.

One burner does not
light from other
burner(s).

• Excess flow valve tripped.

• Grease buildup.

• Excessive fat in meat.

• Excessive cooking temperature.

• Grease trapped by food buildup
around burner system.

• Burner and/or burner tubes are

blocked.

• Some dealers have older fill nozzles
with worn threads.

• Grease buildup or food particles in
end(s) of carryover tube(s).

• Refer to “Sudden drop in gas flow” above.

• Clean burners and inside of grill/firebox.

• Trim fat from meat before grilling.

• Adjust (lower) temperature accordingly.

• Turn knobs to OFF. Turn gas off at LP cylinder. Leave lid in
position

and let fire burn out. After grill cools, remove and clean

all parts.

• Turn knobs to OFF. Clean burner and/or burner tubes. See
burner cleaning section of Use and Care.

• The worn nozzles don’t have enough “bite” to engage the valve.
Try a second LP dealer.

• Clean carry-over tube(s) with wire brush.

26 • 466424712

Troubleshooting - Electronic Ignition

Problem (Ignition)

SECTION I

No sparks appear at
any electrodes when
Electronic Ignition

Button is pressed; no

be heard noise can

from spark module.

SECTION II

No sparks appear at
any electrodes when
Electronic Ignition
Button is pressed; noise

be heard from can

spark module.

Possible Cause

• Battery not installed
properly.

• Dead battery.

• Button assembly not
installed properly.

• Faulty spark module.

• Output lead
connections not
connected.

Check Procedure

• Check battery orientation.

• Has battery been used
previously?

• Check to insure threads are
properly engaged. Button
should travel up and down
without binding.

• If no sparks are generated
with new battery and good
wire connections, module is
faulty.

• Are output connections on
and tight?

Prevention/Solution

• Install battery (make sure that “+” and “–”
connectors are oriented correctly, with “+” end up
and “–” end down.)

• Replace battery with a new alkaline battery.

• Unscrew button cap assembly and reinstall,
making

sure threads are aligned and engaged

fully.

• Replace spark module assembly.

• Remove and reconnect all output connections at
module and electrodes.

SECTION III

Sparks are present
but not at all
electrodes and/or not
at full strength

• Output lead
connections not
connected.

• Arcing to grill away
from burner(s).

• Weak battery.

• Electrodes are wet.

• Electrodes cracked or
broken “sparks at
crack”.

• Are output connections on
and tight?

• If possible, observe grill in
dark location. Operate
ignition system and look for
arcing between output wires
and grill frame.

• All sparks present but weak
or at slow rate.

• Has moisture accumulated
on electrode and/or in
burner ports?

• Inspect electrodes for
cracks.

• Remove and reconnect all output connections at
module and electrodes.

• If sparks are observed other than from burner(s),
wire insulation may be damaged. Replace wires.

• Replace battery with a new alkaline

battery.

• Use paper towel to remove moisture.

• Replace cracked or broken electrodes.

466424712 • 27
