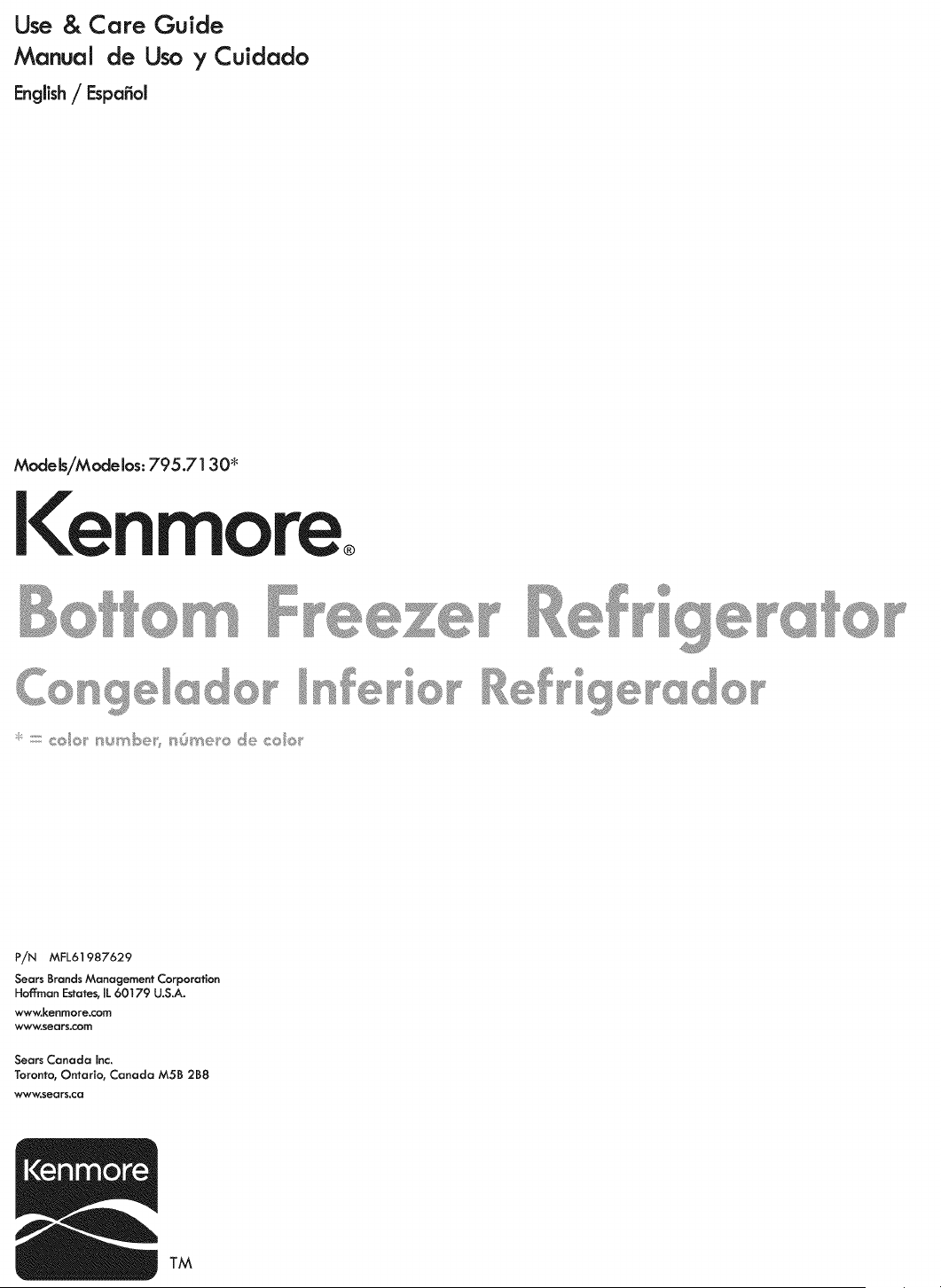

Kenmore BOTTOM FREEZER 795.713 Use and care guide

Download

Use & Care Guide

Manual de Uso y Cuidado

English / Espaiol

Models/Modelos: 795.7130 _

i<enmoreo

P/N MFL61987629

Sears Brands Management Corporation Hoffman Estates, IL 60179 U.S.A.

www.kenmore.com

www_sea rs.com

Sears Canada inc.

Toronto, Ontario, Canada M5B 2B8

wv#w, sears.ca

eFoIo

WARRANTY

PROTECTION AGREEMENTS

iMPORTANT SAFETY INSTRUCTIONS

GROUNDING REQUIREMENTS

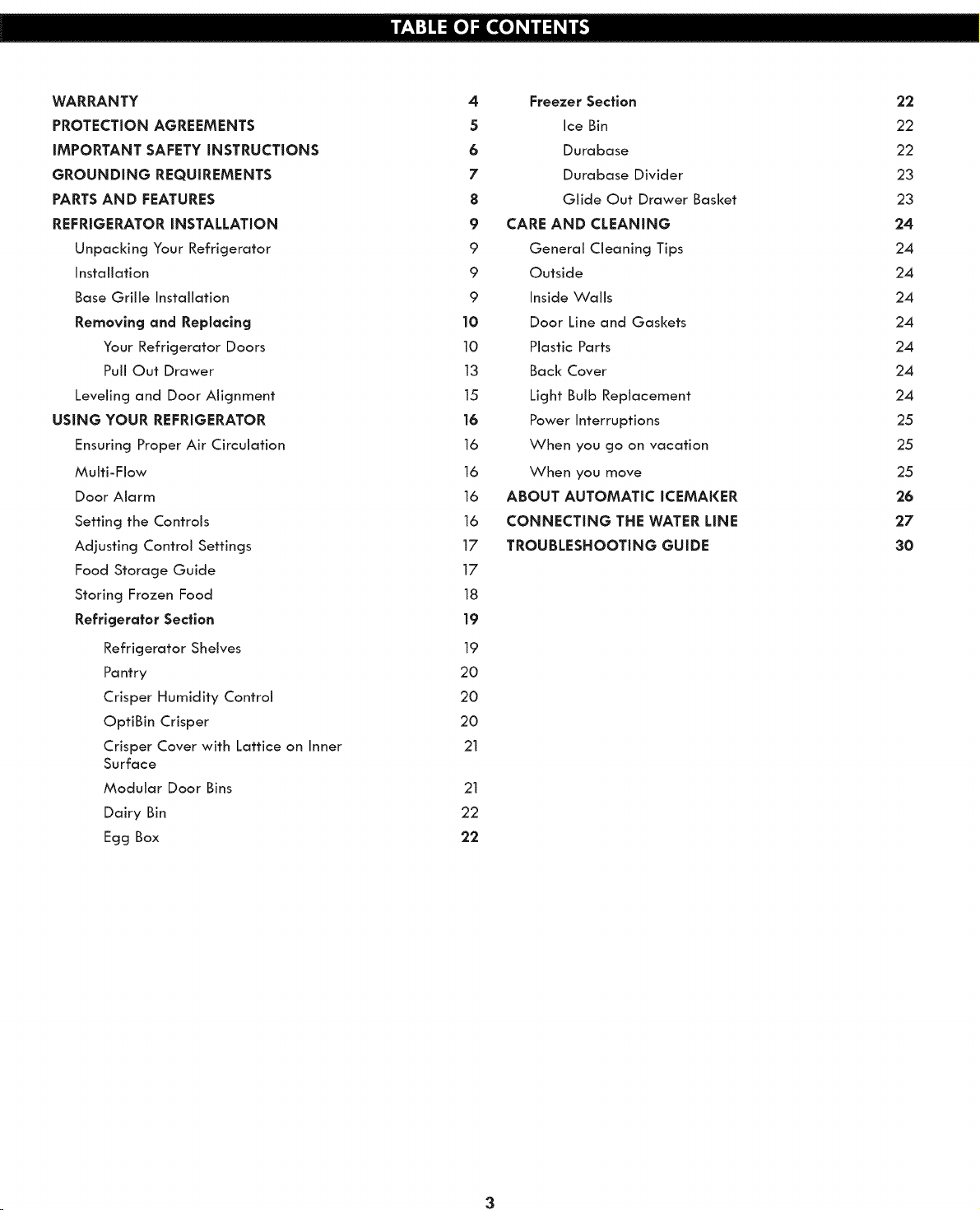

PARTS AND FEATURES

REFRIGERATOR INSTALLATION

Unpacking Your Refrigerator

Installation

Base Grille Installation

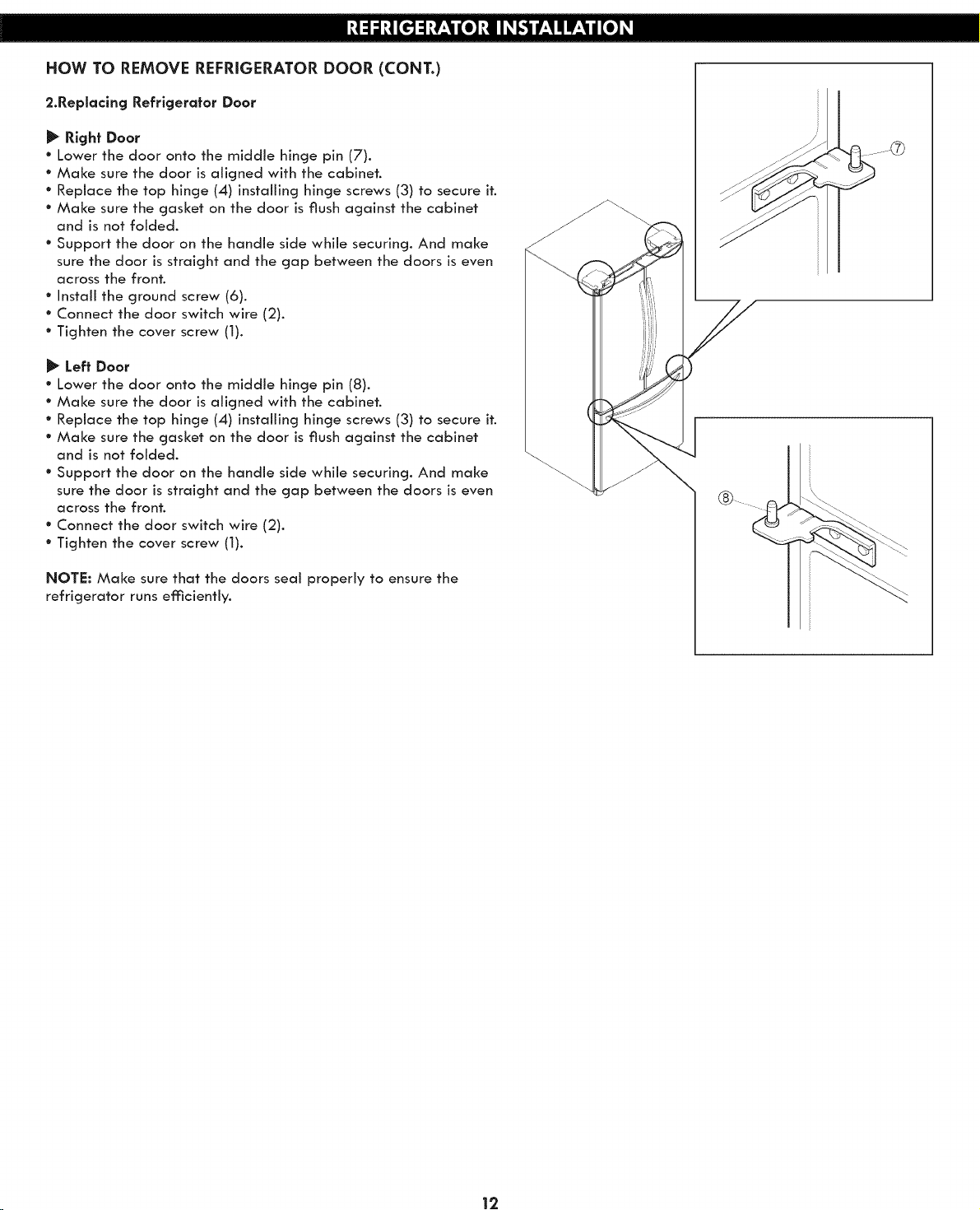

Removing and Replacing

Your Refrigerator Doors

Pull Out Drawer

Leveling and Door Alignment

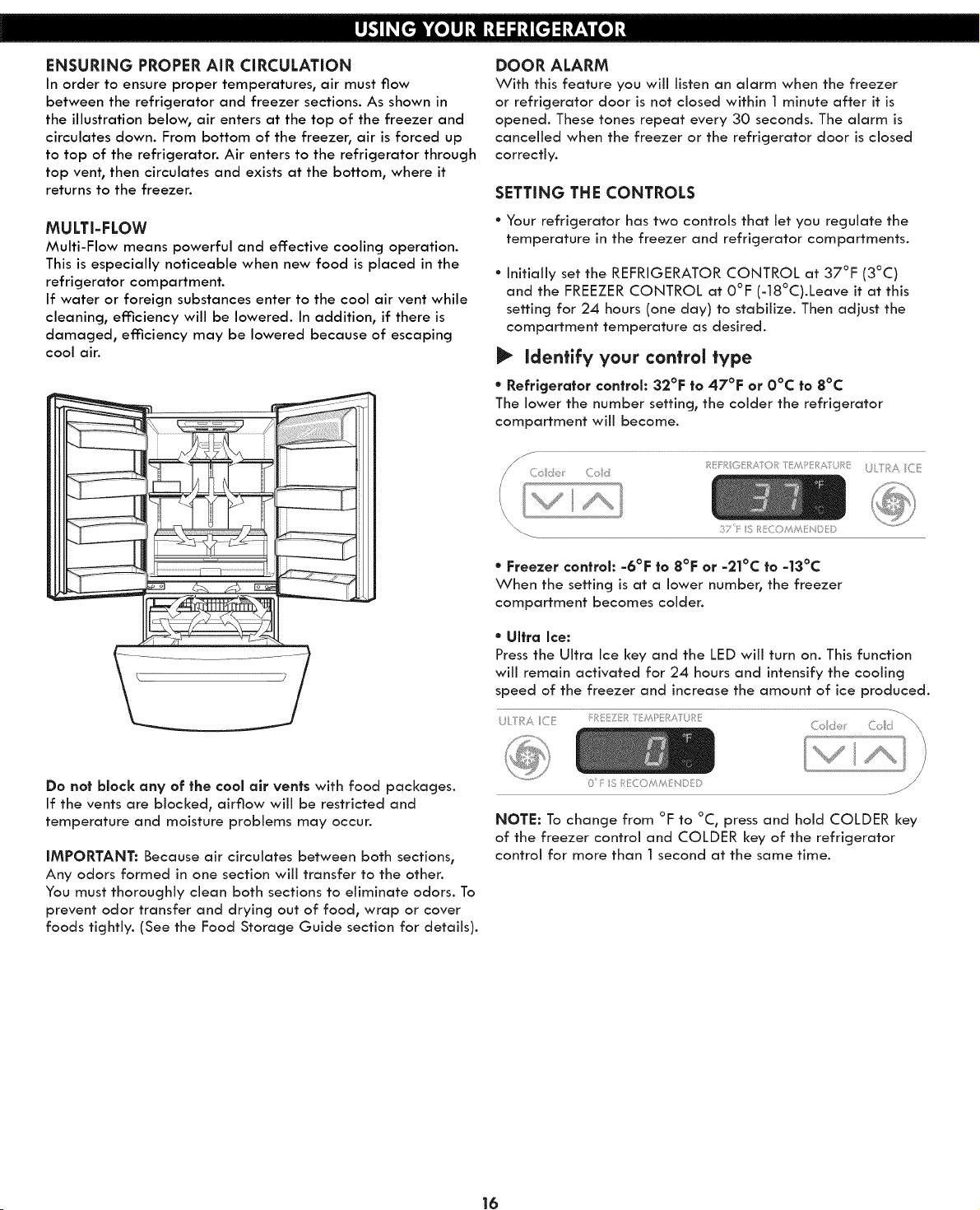

USING YOUR REFRIGERATOR

Ensuring Proper Air Circulation

Multi-Flow

Door Alarm

Setting the Controls

Adjusting Control Settings

Food Storage Guide

Storing Frozen Food

Refrlgera|or Sectlon

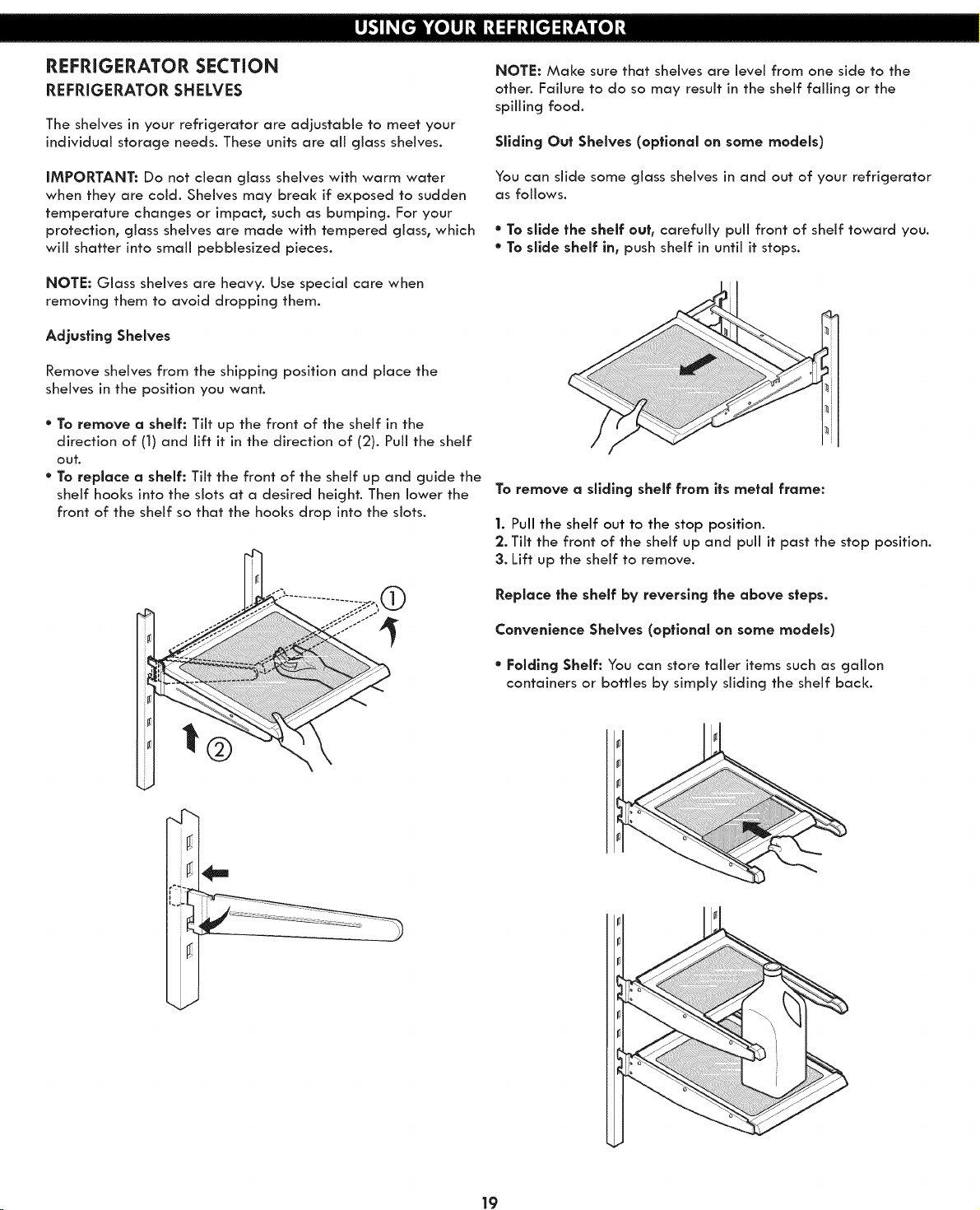

Refrigerator Shelves

Pantry

Crisper Humidity Control

OptiBin Crisper

Crisper Cover with Lattice on Inner Surface

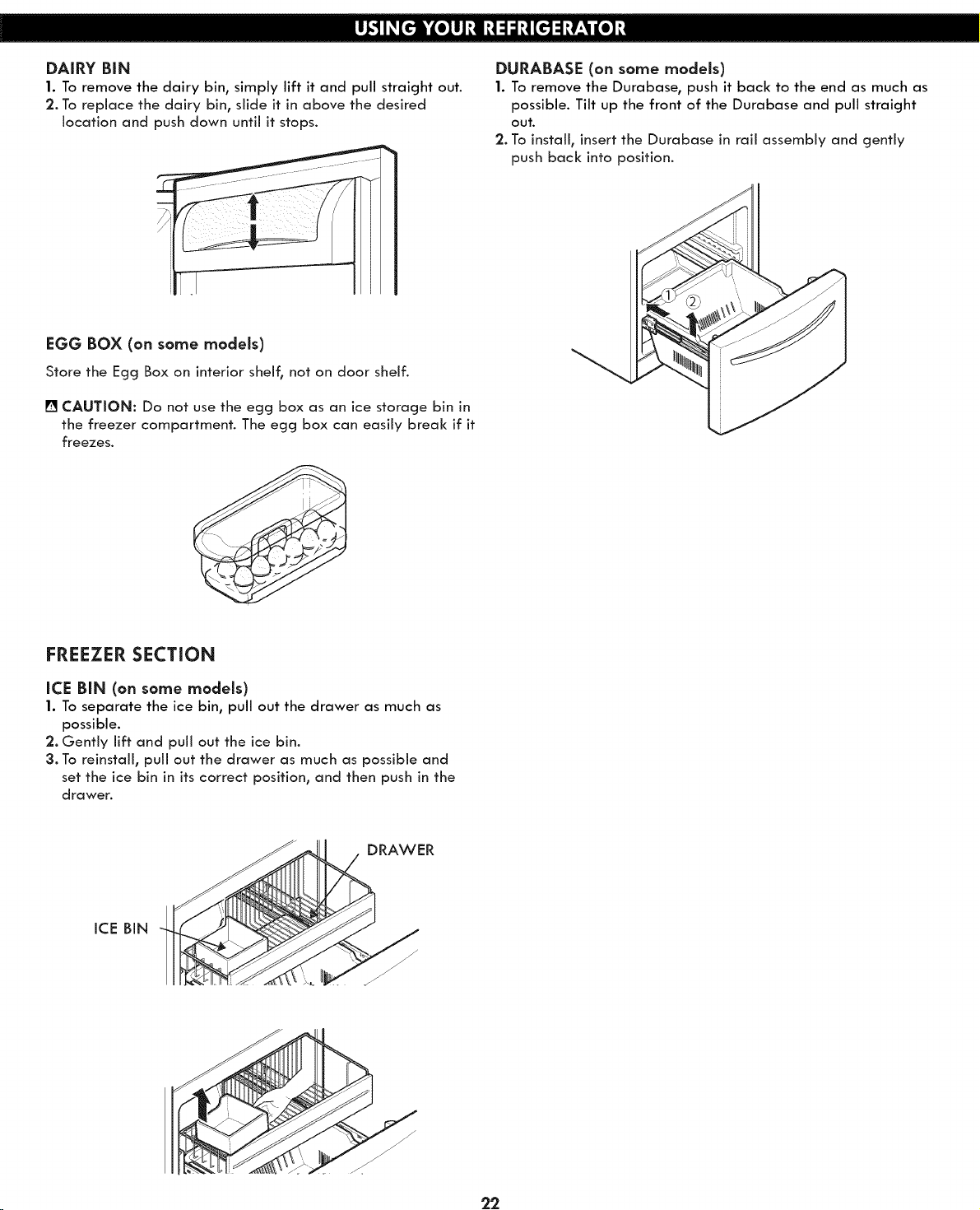

Modular Door Bins

Dairy Bin

Egg Box

4 Freezer Section

5 Ice Bin

6 Durabase

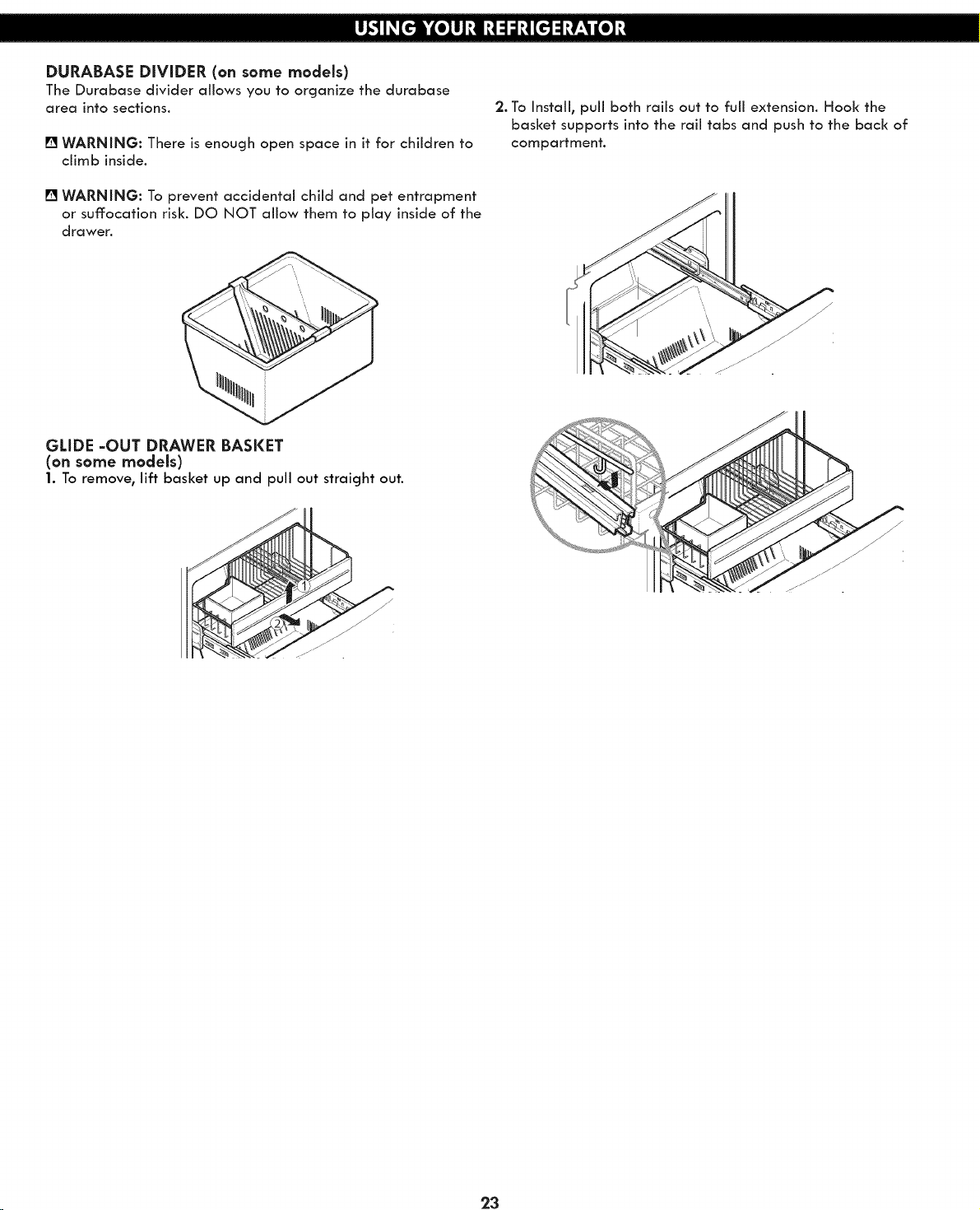

7 Durabase Divider

8 Glide Out Drawer Basket

9 CARE AND CLEANING

9 General Cleaning Tips

9 Outside

9 Inside Wails

10 Door Line and Gaskets

10 Plastic Parts

13 Back Cover

15 Light Bulb Replacement

16 Power Interruptions

16 When you go on vacation

16 When you move

16 ABOUT AUTOMATIC ICEMAKER

16 CONNECTING THE WATER LINE

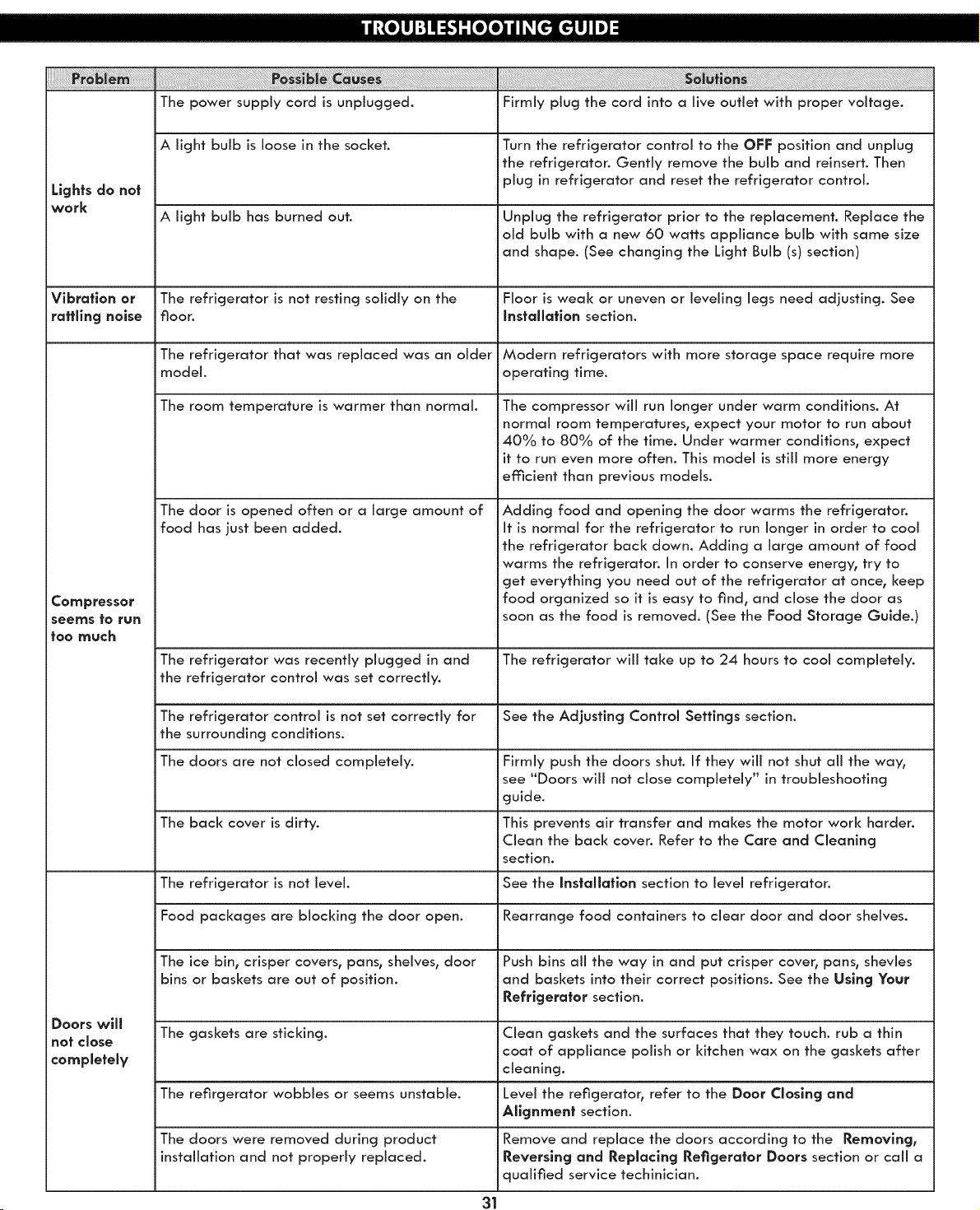

17 TROUBLESHOOTING GUIDE

BOTTOM FREEZER REFRIGERATOR

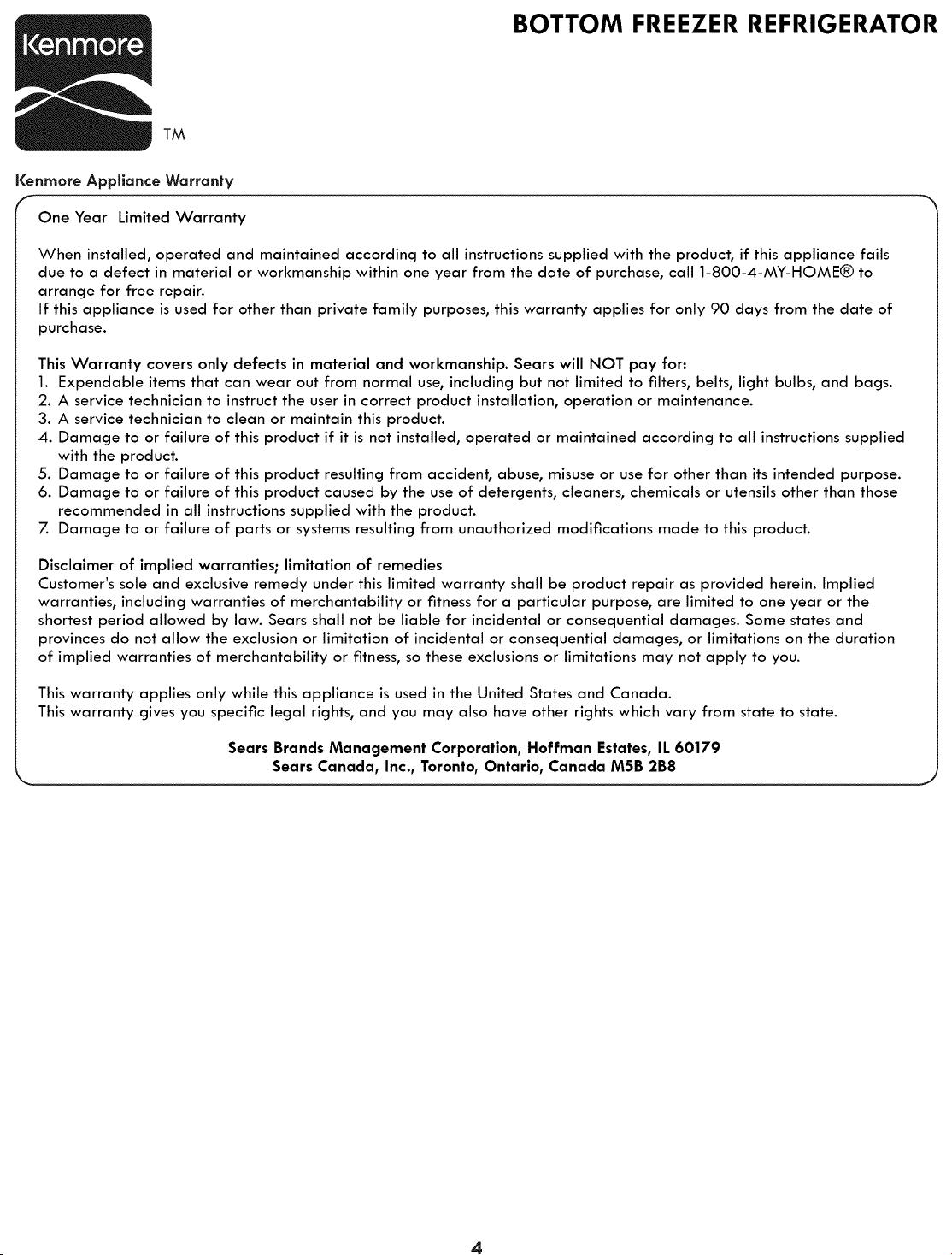

Kenmore Appliance Warranty

One Year Limited Warranty

When installed, operated and maintained according to all instructions supplied with the product, if this appliance fails due to a defect in material or workmanship within one year from the date of purchase, call 1-800-4-MY-HOME® to arrange for free repair.

If this appliance is used for other than private family purposes, this warranty applies for only 90 days from the date of

purchase.

This Warranty covers only defects in material and workmanship. Sears will NOT pay for:

1. Expendable items that can wear out from normal use, including but not limited to filters, belts, light bulbs, and bags.

2. A service technician to instruct the user in correct product installation, operation or maintenance.

3. A service technician to clean or maintain this product.

4. Damage to or failure of this product if it is not installed, operated or maintained according to all instructions supplied with the product.

5. Damage to or failure of this product resulting from accident, abuse, misuse or use for other than its intended purpose.

6. Damage to or failure of this product caused by the use of detergents, cleaners, chemicals or utensils other than those recommended in all instructions supplied with the product.

7. Damage to or failure of parts or systems resulting from unauthorized modifications made to this product.

Disclaimer of implied warranties; limitation of remedies Customer's sole and exclusive remedy under this limited warranty shall be product repair as provided herein. Implied warranties, including warranties of merchantability or fitness for a particular purpose, are limited to one year or the shortest period allowed by law. Sears shall not be liable for incidental or consequential damages. Some states and provinces do not allow the exclusion or limitation of incidental or consequential damages, or limitations on the duration of implied warranties of merchantability or fitness, so these exclusions or limitations may not apply to you.

This warranty applies only while this appliance is used in the United States and Canada. This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.

Sears Brands Management Corporation, Hoffman Estates, IL 60179

Sears Canada, Inc., Toronto, Ontario, Canada MSB 2B8

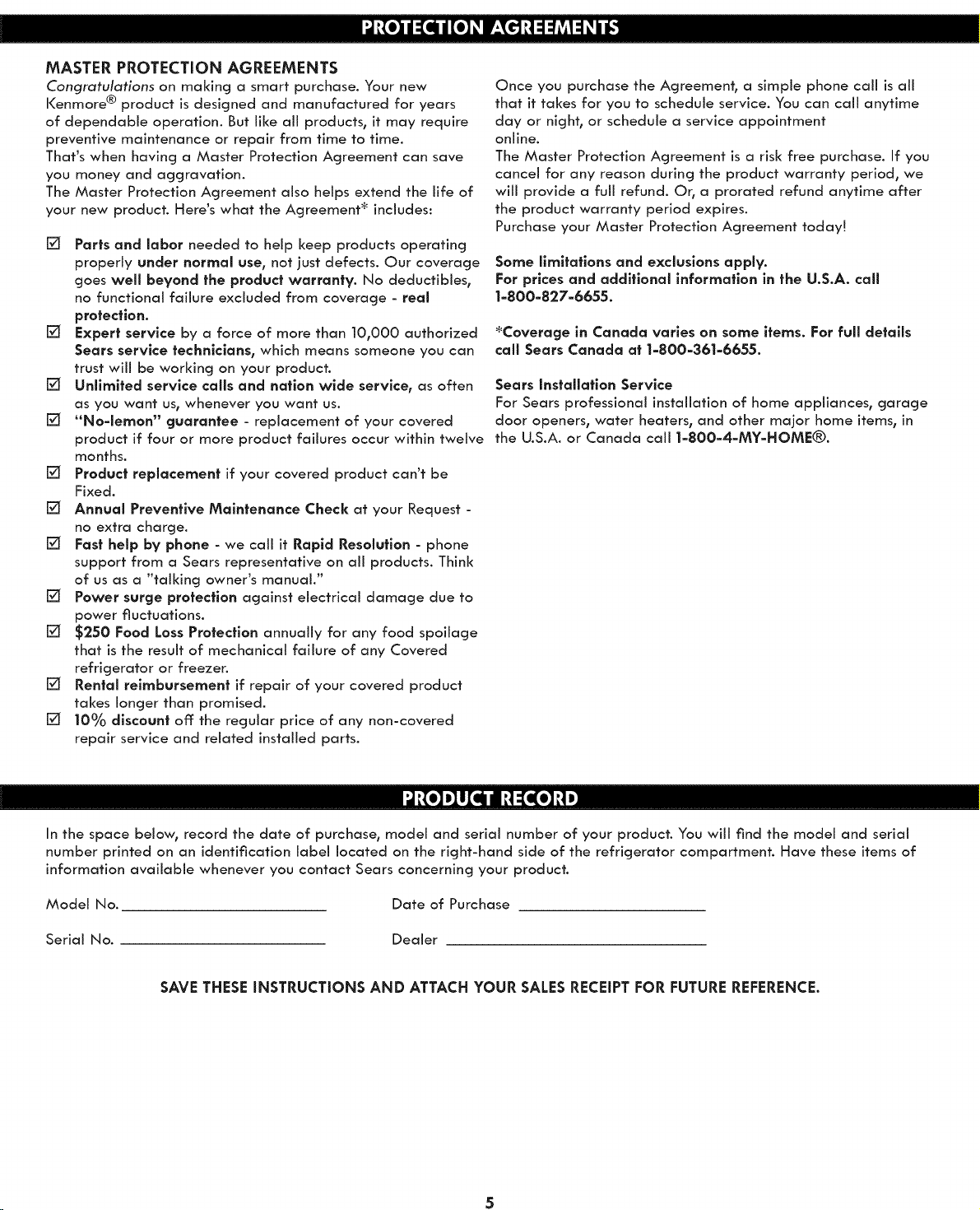

MASTER PROTECTION AGREEMENTS

Congratulations on making a smart purchase. Your new Kenmore ® product is designed and manufactured for years

of dependable operation. But like all products, it may require

preventive maintenance or repair from time to time. That's when having a Master Protection Agreement can save you money and aggravation. The Master Protection Agreement also helps extend the life of your new product. Here's what the Agreement _ includes:

[] Parts and labor needed to help keep products operating

properly under normal use, not just defects. Our coverage

goes well beyond the product warranty. No deductibles,

no functional failure excluded from coverage - real

protection.

[] Expert service by a force of more than 10,000 authorized

Sears service technicians, which means someone you can

trust will be working on your product.

[] Unlimited service calls and nation wide service, as often

as you want us, whenever you want us.

[] _No-lemon" guarantee - replacement of your covered

product if four or more product failures occur within twelve months.

[] Product replacement if your covered product can't be

Fixed.

[] Annual Preventive Maintenance Check at your Request -

no extra charge.

[] Fast help by phone - we call it Rapid Resolution - phone

support from a Sears representative on all products. Think of us as a "talking owner's manual."

[] Power surge protection against electrical damage due to

power fluctuations.

[] $250 Food Loss Protection annually for any food spoilage

that is the result of mechanical failure of any Covered

refrigerator or freezer.

[] Rental reimbursement if repair of your covered product

takes longer than promised.

[] 10% discount off the regular price of any non-covered

repair service and related installed parts.

Once you purchase the Agreement r a simple phone cail is aii that it takes for you to schedule service. You can caii anytime day or night, or schedule a service appointment online. The Master Protection Agreement is a risk free purchase. If you cancel for any reason during the product warranty period, we wiii provide a fuji refund. Or, a prorated refund anytime after the product warranty period expires.

Purchase your Master Protection Agreement today!

Some limitations and exclusions apply. For prices and additional information in the U.S.A. call 1-800-827-6655.

*Coverage in Canada varies on some items. For full details call Sears Canada at 1-800-361-6655.

Sears Installation Servlce

For Sears professional installation of home appliances, garage

door openers, water heaters, and other major home items, in the U.S.A. or Canada call 1-800-4-MY-HOME®.

In the space below, record the date of purchase, model and serial number of your product. You wilt find the model and serial

number printed on an identification label located on the right-hand side of the refrigerator compartment. Have these items of information available whenever you contact Sears concerning your product.

Model No. Date of Purchase

Serial No. Dealer

SAVE THESE INSTRUCTIONS AND ATTACH YOUR SALES RECEIPT FOR FUTURE REFERENCE.

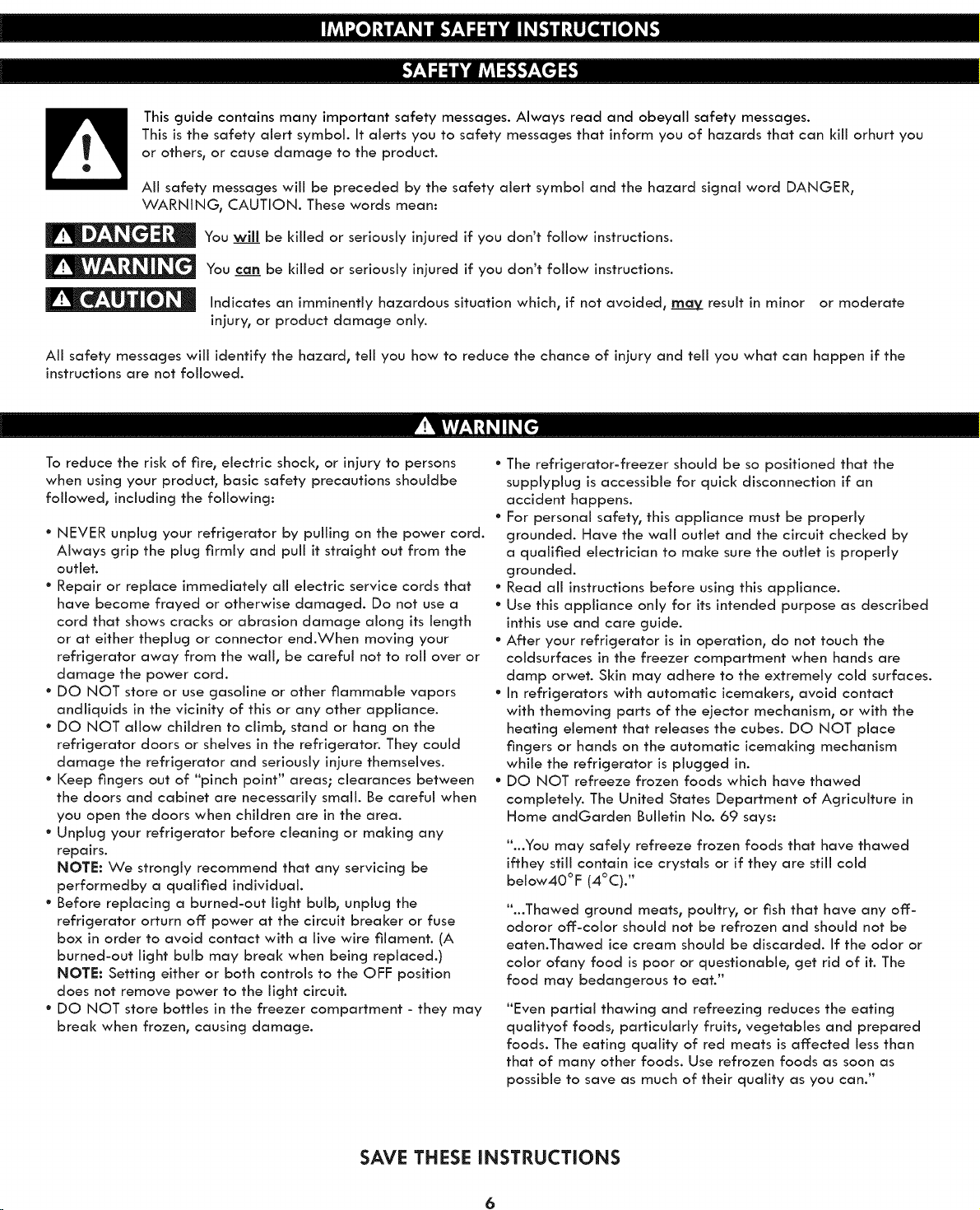

This guide contains many important safety messages. Always read and obeyall safety messages. This is the safety alert symbol. It alerts you to safety messages that inform you of hazards that can kill orhurt you or others, or cause damage to the product.

All safety messages will be preceded by the safety alert symbol and the hazard signal word DANGER, WARNING, CAUTION. These words mean:

You wlll be killed or seriously injured if you don't follow instructions.

You can be killed or seriously injured if you don't follow instructions.

Indicates an imminently hazardous situation which, if not avoided, _ result in minor or moderate

injury, or product damage only.

Aii safety messages wiii identify the hazard, teli you how to reduce the chance of injury and teli you what can happen if the instructions are not followed.

To reduce the risk of fire, electric shock, or injury to persons when using your product, basic safety precautions shouidbe followed, including the following:

° NEVER unplug your refrigerator by pulling on the power cord.

Always grip the plug firmly and pull it straight out from the outlet.

° Repair or replace immediately all electric service cords that

have become frayed or otherwise damaged. Do not use a cord that shows cracks or abrasion damage along its length or at either theplug or connector end.When moving your

refrigerator away from the wall, be careful not to roll over or damage the power cord.

° DO NOT store or use gasoline or other flammable vapors

andliquids in the vicinity of this or any other appliance.

° DO NOT allow children to climb, stand or hang on the

refrigerator doors or shelves in the refrigerator. They could damage the refrigerator and seriously injure themselves.

° Keep fingers out of "pinch point" areas; clearances between

the doors and cabinet are necessarily small. Be careful when you open the doors when children are in the area.

° Unplug your refrigerator before cleaning or making any

repairs.

NOTE: We strongly recommend that any servicing be

performedby a qualified individual.

° Before replacing a burned-out light bulb, unplug the

refrigerator orturn off power at the circuit breaker or fuse

box in order to avoid contact with a live wire filament. (A

burned-out light bulb may break when being replaced.)

NOTE: Setting either or both controls to the OFF position does not remove power to the light circuit.

° DO NOT store bottles in the freezer compartment - they may

break when frozen, causing damage.

° The refrigerator-freezer should be so positioned that the

supplyplug is accessible for quick disconnection if an accident happens.

° For personal safety, this appliance must be properly

grounded. Have the wail outlet and the circuit checked by a qualified electrician to make sure the outlet is properly

grounded. ° Read all instructions before using this appliance. * Use this appliance only for its intended purpose as described

inthis use and care guide. ° After your refrigerator is in operation, do not touch the

coldsurfaces in the freezer compartment when hands are

damp orwet. Skin may adhere to the extremely cold surfaces. ° In refrigerators with automatic icemakers, avoid contact

with themoving parts of the ejector mechanism, or with the

heating element that releases the cubes. DO NOT place

fingers or hands on the automatic icemaking mechanism

while the refrigerator is plugged in. ° DO NOT refreeze frozen foods which have thawed

completely. The United States Department of Agriculture in

Home andGarden Bulletin No. 69 says:

"...You may safely refreeze frozen foods that have thawed

ifthey still contain ice crystals or if they are still cold

below40°F (4°C)."

"...Thawed ground meats, poultry, or fish that have any off-

odoror off-color should not be refrozen and should not be

eaten.Thawed ice cream should be discarded. If the odor or

color ofany food is poor or questionable, get rid of it. The

food may bedangerous to eat."

"Even partial thawing and refreezing reduces the eating

qualityof foods, particularly fruits, vegetables and prepared

foods. The eating quality of red meats is affected less than

that of many other foods. Use refrozen foods as soon as

possible to save as much of their quality as you can."

SAVE THESE INSTRUCTIONS

This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or

Jack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.

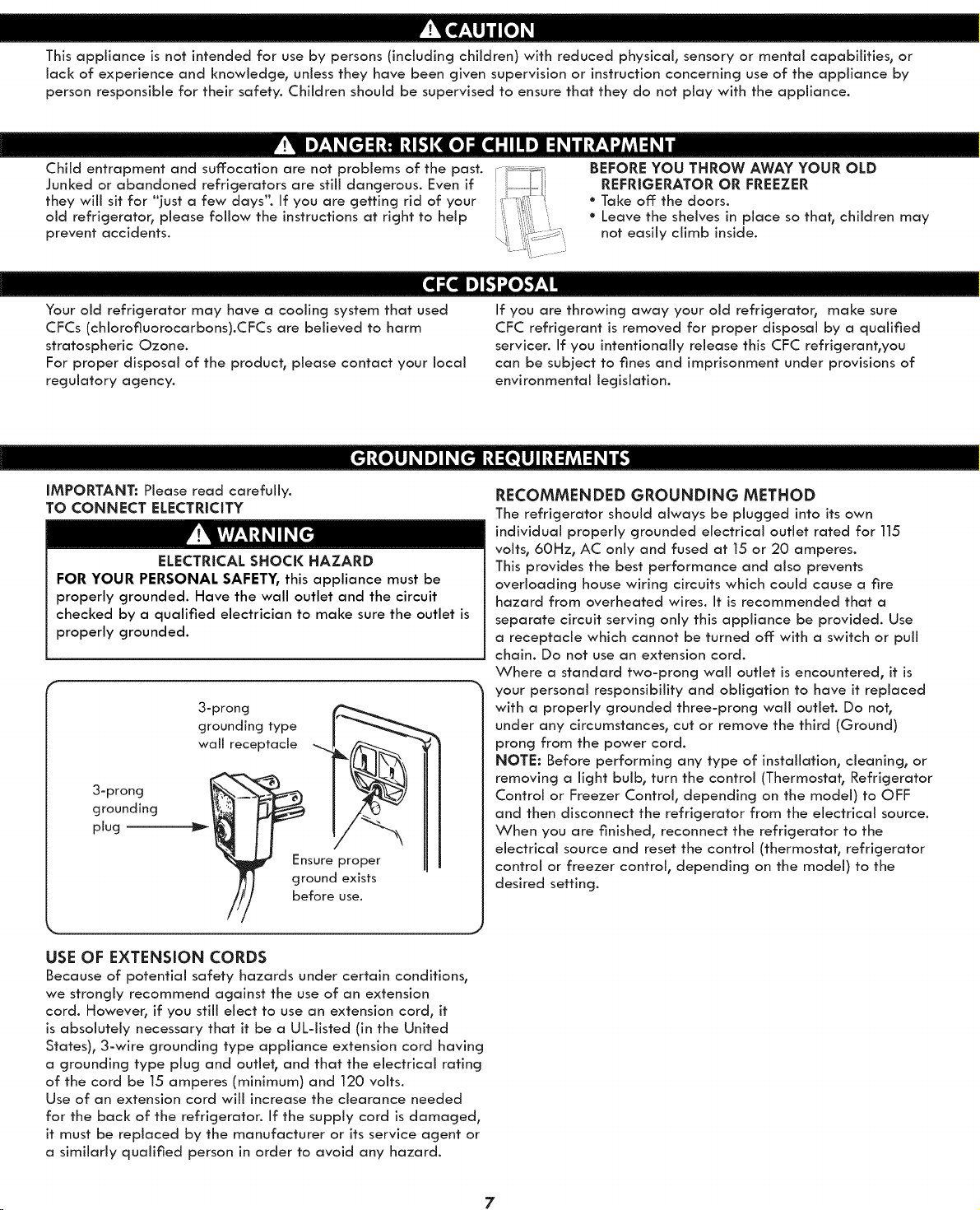

Child entrapment and suffocation are not problems of the past. Junked or abandoned refrigerators are still dangerous. Even if they will sit for "just a few days". If you are getting rid of your old refrigerator, please follow the instructions at right to help

prevent accidents.

[e] e q

Your old refrigerator may have a cooling system that used CFCs (chlorofiuorocarbons).CFCs are believed to harm stratospheric Ozone.

For proper disposal of the product, please contact your local regulatory agency.

[€'_o]i_ _[_ [_e _U]l_t:f,'_l:l_/ L[,,"]

IMPORTANT: Please read carefully.

TO CONNECT ELECTRICITY

ELECTRICAL SHOCK HAZARD

FOR YOUR PERSONAL SAFETY, this appliance must be properly grounded. Have the wall outlet and the circuit checked by a qualified electrician to make sure the outlet is

properly grounded.

grounding type wail receptacle

grounding

plug

3=prong

/ before use.

% J

USE OF EXTENSION CORDS

Because of potential safety hazards under certain conditions, we strongly recommend against the use of an extension cord. However, if you still elect to use an extension cord, it is absolutely necessary that it be a UL-listed (in the United States), 3-wire grounding type appliance extension cord having a grounding type plug and outlet, and that the electrical rating of the cord be 15 amperes (minimum) and 120 volts.

Use of an extension cord will increase the clearance needed for the back of the refrigerator. If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid any hazard.

Ensure proper ground exists

BEFORE YOU THROW AWAY YOUR OLD

REFRIGERATOR OR FREEZER

• Take off the doors.

° Leave the shelves in place so that, children may

not easily climb inside.

If you are throwing away your old refrigerator, make sure CFC refrigerant is removed for proper disposal by a qualified servicer. If you intentionally release this CFC refrigerant, you can be subject to fines and imprisonment under provisions of environmental legislation.

RECOMMENDED GROUNDING METHOD The refrigerator should always be plugged into its own individual properly grounded electrical outlet rated for 115 volts, 60Hz, AC only and fused at 15 or 20 amperes.

This provides the best performance and also prevents overloading house wiring circuits which could cause a fire hazard from overheated wires. It is recommended that a separate circuit serving only this appliance be provided. Use a receptacle which cannot be turned off with a switch or pull chain. Do not use an extension cord. Where a standard two-prong wail outlet is encountered, it is your personal responsibility and obligation to have it replaced with a properly grounded three-prong wall outlet. Do not, under any circumstances, cut or remove the third (Ground) prong from the power cord. NOTE: Before performing any type of installation, cleaning, or removing a light bulb, turn the control (Thermostat, Refrigerator Control or Freezer Control, depending on the model) to OFF and then disconnect the refrigerator from the electrical source. When you are finished, reconnect the refrigerator to the electrical source and reset the control (thermostat, refrigerator control or freezer control, depending on the model) to the desired setting.

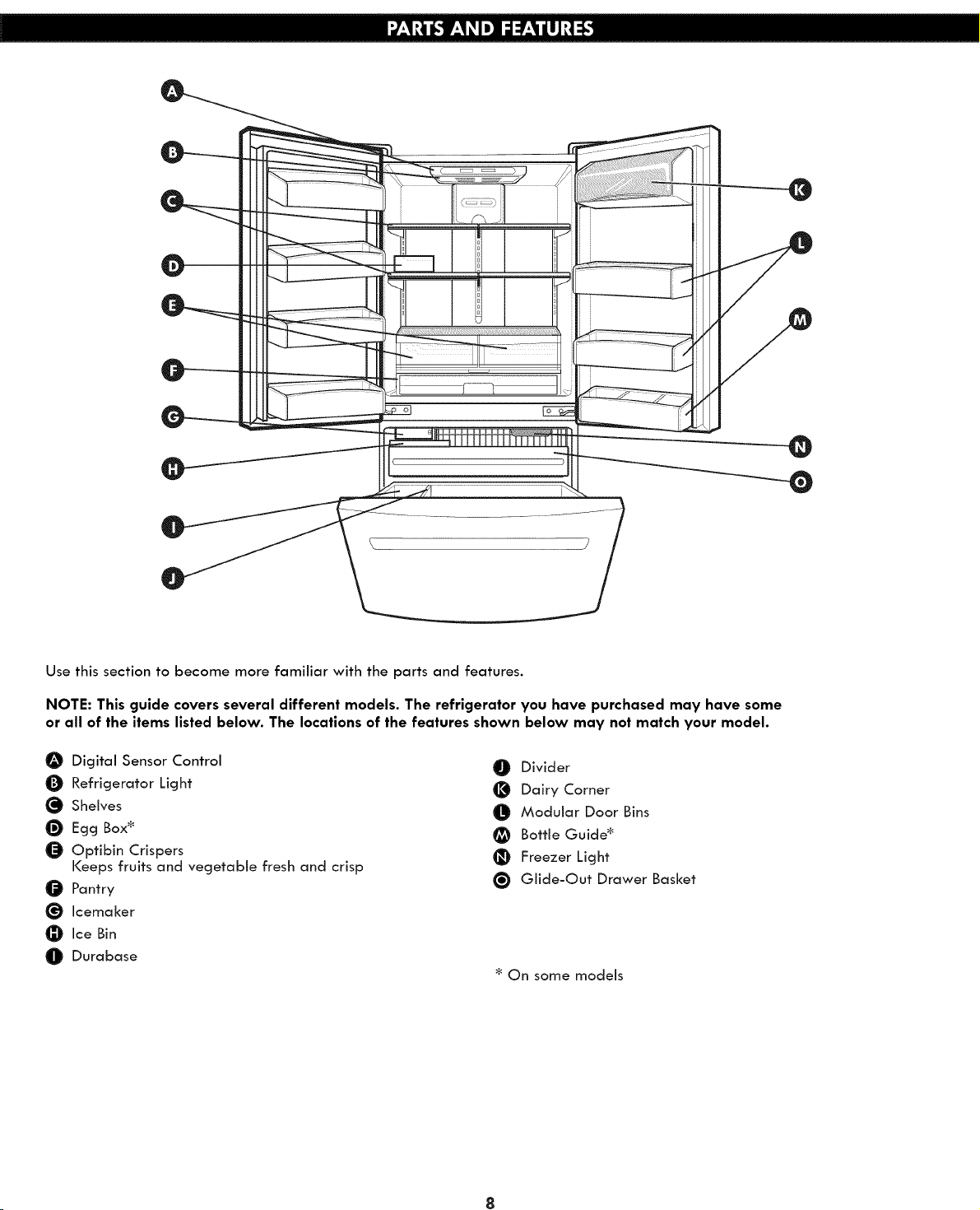

Use this section to become more familiar with the parts and features.

NOTE: This guide covers several different models. The refrigerator you have purchased may have some

or all of the items listed below. The locations of the features shown below may not match your model.

0 Digital Sensor Control

0 Refrigerator Light

Shelves

Egg Box*

Optibin Crispers

Keeps fruits and vegetable fresh and crisp

Pantry

Icemaker

Ice Bin

_D Durabase

Divider

Dairy Corner

O Modular Door Bins

Bottle Guide*

Freezer Light

Glide-Out Drawer Basket

* On some models

EXCESSIVE WEIGHT HAZARD

Use two or more people to move and install refrigerator. Failure to do so can result in back or other injury.

UNPACKING YOUR REFRIGERATOR

Remove tape and any temporary labels from your refrigerator before using. Do not remove any warning type labels, the model and serial number label, or the techsheet (on some

models), that is attached to back wall of the refrigerator. To remove any remaining tape or glue, rub the area briskly with your thumb. Tape or glue residue can also be easily

removed by rubbing a small amount of liquid dish soap over

the adhesive with your fingers. Wipe with warm water and dry. [] CAUTION: Avoid placing the unit near heat sources, direct

Do not use sharp instruments, rubbing alcohol, flammable fluids or abrasive cleaners to remove tape or glue. These products sunlight or moisture.

can damage the surface of your refrigerator. For more NOTE: For proper air circulation, best cooling and energy information, see the Important Safety Instructions section, consumption results, maintain a minimun distance of 2 inches

Refrigerator shelves are installed in the shipping position.

Please reinstall shelves according to your individual storage

needs.

When Moving Your Refrigerator: Your refrigerator is heavy. When moving the refrigerator for cleaning or service, be sure to protect the floor. Always pull the refrigerator straight out when moving it. Do not wiggle or walk the refrigerator when trying to move it, as floor damage could occur.

(5.08 cm) form adjacent items and surfaces.

1. Clean your refrigerator thoroughly and wipe off: all dust accumulated during shipping.

2. Install accessories such as ice cube bin, drawers, shelves, etc., in their proper places. They are packed together to prevent possible damage during shipment.

3. Let your refrigerator run for 2 or 3 hours before store food in it. Check the flow of cold air in the freezer compartment to ensure proper cooling. Your refrigerator is now ready for use.

-_1 P- -_1

(5.08 cm) 2" (5.08 cm) 2"

EXPLOSION HAZARD

Keep flammable materials and vapors, such as gasoline, away from refrigerator. Failure to do so can result in death, explosion or fire.

iNSTALLATiON

1. To avoid vibration, the unit must be level. If it is required, adjust the leveling screws to compensate for unevenness of the floor. The front should be slightly higher than the rear to aid in door closing. Leveling screws can be turned easily by tipping the cabinet slightly. Turn the leveling screws clockwise

( =t._ ) to raise the unit, counterclockwise ( _,m, ) to lower it.

2. Install this appliance in an area where the temperature is

between 55°F (13°C) and 110°F (43°C.) If the temperature

around the appliance is too low or high, cooling ability may

be adversely affected.

3. Keep the refrigerator at a proper distance from adjacent items and surfaces. Too small a distance may result in

lowered freezing capability and increased electricity charge

consumption.

Be careful when you work with hinge, base grille, stopper etc. You may be injured. Do not put hands or metal sticks into air vents, base grille or bottom of refrigerator. You may be injured or receive an electrical shock.

BASE GRILLE iNSTALLATiON

To install or repUace base grllUe:

1. Remove the 2 screws from the bottom front part of refrigerator.

2. Place the base grille into position and insert and tighten

screws.

To remove the base grille

1. Remove screws from the base grille and remove it.

2. Reattach screws to the base of refrigerator.

TOOLS YOU MAY NEED

I -_ 10mm _ _ 1/4 in

NOTE: It is always recommended that the doors be removed when it is necessary to move the refrigerator through a narrow

opening. If it is necessary to remove the handles follow the directions below.

318 in |

NOTE: Handle appearance may vary from illustrations on this page.

HOW TO REMOVE DOOR HANDLE

I, Removlng Refrlgerafor Handle

* Loosen the set screws with the 3/3 2 " Allen wrench and remove

the handle.

NOTE: if the handle mounting fasteners need to be tightened or Mountinc

removed_ use a 1/4 " Alien wrench. Fasteners

Set Screw

2. Removing Freezer Drawer Handle * Loosen the set screws located on the lower side of the handle

with the 3/32" Allen wrench and remove the handle.

NOTE: If the handle mounting fasteners need to be tightened or removed° use a 1/4 " Allen wrench.

HOWTO REMOVE REFRIGERATOR DOOR

1. Removing Refrigerator Door NOTE: Handle appearance may vary. IMPORTANT: Before you begin, turn the refrigerator OFF and unplug it. Remove food and any bins from doors.

Left Door

• Loosen the cover screws (1).

• Disconnect door switch wire (2).

° Loosen hinge bolts (3). ° Lift off: the top hinge (4). ° Place the door on a non-scratching surface with the inside up.

Right Door

• Loosen the cover screws (1).

• Disconnect door switch wire (2).

° Disconnect wire harness (5). ° Loosen hinge bolts (3). ° Loosen ground screw (6). ° Lift off: the top hinge (4). ° Place the door on a non-scratching surface with the inside up.

[] CAUTION: When removing top hinge, be careful that the door does not fail forward.

(1)

i ¸. ._ . /

(4)

(1)!_

(2)

HOW TO REMOVE REFRIGERATOR DOOR (CONT.)

2.Replaclng Refrigerator Door

!_ Right Door

• Lower the door onto the middle hinge pin (7).

° Make sure the door is aligned with the cabinet. ° Replace the top hinge (4) installing hinge screws (3) to secure it. ° Make sure the gasket on the door is flush against the cabinet

and is not folded.

° Support the door on the handle side while securing. And make

sure the door is straight and the gap between the doors is even across the front.

° Install the ground screw (6). ° Connect the door switch wire (2). ° Tighten the cover screw (1).

!_ Left Door

° Lower the door onto the middle hinge pin (8). ° Make sure the door is aligned with the cabinet. ° Replace the top hinge (4) installing hinge screws (3) to secure it. ° Make sure the gasket on the door is flush against the cabinet

and is not folded.

° Support the door on the handle side while securing. And make

sure the door is straight and the gap between the doors is even across the front.

° Connect the door switch wire (2). ° Tighten the cover screw (1).

NOTE: Make sure that the doors seal properly to ensure the

refrigerator runs emciently.

HOW TO REMOVE AND iNSTALL THE PULL OUT DRAWER

1. Removing Pull out Drawer

[] CAUTION: When removing drawer doob do not hold it

by the handle. The door could fall down and you may be injured. Grasp the door with both hands as pictured below when removing.

IMPORTANT: To avoid possible injury, product or property

damage, you will need two persons to perform the following

instructions.

•Puli the drawer open to fuji lower extension. Remove the durabase by lifting it from rail system.

Fig. l _I se

° Press both hangers with yours thumbs to lift it up.

Fig. 2

[] CAUTION: When laying down the drawer, be careful not

to damage the floor or hurt your feet with the sharp edges on hinge side.

• With both hands, hold both sides of the door and pull it up to separate it from the rails.

Fig. 5 _ ._._ )"_

_a D°°r

supports

: il tabes

Separate the left and right rail cover.

Fig. 3

Remove the screws of the rail on both sides.

Fig. 4

screw

Push the rails back into drawer cavity. With both hands, hold the center of the bar and push it in so that both rails go back simultaneously.

Fig. 7

Fig. 8

HOW TO REMOVE AND iNSTALL THE PULL OUT

DRAWER (CONT.)

2. _ns|aHIng PuH OUt Drawer

IMPORTANT: To avoid possible injury, product or property damage, you will need two people to perform the following instructions.

• With both hands, hold the center of the bar and pull it out to let both rails out to full extension simultaneously.

f- .

" Align the top holes of the rail cover with the top holes of

the door supports to assemble the rail cover.

Fig. 13

• Verify the hole's assembly.

° Hook door supports into rail tabs.

F" ,^ Door Supports_

• Lower door into final position and tighten the screws.

Fig. 11

Screws

" Make sure you have the correct rail cover for each side.

Right

Rail cover

Fig. 14 _"'_

Fig. 15

• With the rails pulled out to fuji extension, insert the durabase in the rail assembly.

Fig. 16

[] WARNING: To prevent accidental child and pet

entrapment or suffocation risk, DO NOT allow them to play inside of drawer.

F,g12

[] WARNING: DO NOT step or sit down on Freezer

Drawer.

LEVELING AND DOOR ALIGNMENT Door Alignment

Leveling

Your refrigerator has two front leveling screws, one on the right and one on the left. If your refrigerator seems unsteady or you want the doors to close easier, adjust the refrigerator's tilt using

the instructions below:

1. Plug the refrigerator's power cord into a 3-prong grounded outlet. Move the refrigerator into its final position.

2. Turn the leveling screw clockwise to raise that side of the

refrigerator or counterclockwise to lower it. It may take

several turns of the leveling screw to adjust the tilt of the

refrigerator.

NOTE: Having someone push against the top of the refrigerator takes some weight off the leveling screws. This makes it easier to adjust the screws.

if the space between your doors is uneven, follow the

instructions below to align the doors:

|. With one hand, lift up the door you want to raise at middle

hinge.

2. With other hand, use pliers to insert snap ring as shown.

3. insert additional snap rings until the doors are aligned. (Three snap rings are provided with unit.)

3. Open both doors again and check to make sure that they close easily. If not, flit the refrigerator slightly more to the

rear by turning both leveling screws clockwise. It may take

several more turns, and you should turn both leveling screws the same amount.

4. Re-adjust if necessary.

5. Replace the base cover.

NOTE: Your new refrigerator is uniquely designed with two fresh food doors. Either door can be opened or closed independently of one another. You may have to exert slight

pressure on doors to get them to dose completely.

ENSURING PROPER AiR CiRCULATiON

In order to ensure proper temperatures, air must flow between the refrigerator and freezer sections. As shown in

the illustration below, air enters at the top of the freezer and circulates down. From bottom of the freezer, air is forced up to top of the refrigerator. Air enters to the refrigerator through top vent, then circulates and exists at the bottom, where it

returns to the freezer.

DOOR ALARM

With this feature you will listen an alarm when the freezer or refrigerator door is not closed within I minute after it is opened. These tones repeat every 30 seconds. The alarm is cancelled when the freezer or the refrigerator door is closed correctly.

SETTING THE CONTROLS

MULTI-FLOW

Multi-Flow means powerful and efl:ective cooling operation. This is especially noticeable when new food is placed in the

refrigerator compartment.

If water or foreign substances enter to the cool air vent while cleaning, efficiency will be lowered. In addition, if there is damaged, efficiency may be lowered because of escaping

cool air.

° Your refrigerator has two controls that let you regulate the

temperature in the freezer and refrigerator compartments.

° Initially set the REFRIGERATOR CONTROL at 37°F (3°C)

and the FREEZER CONTROL at O°F (-18°C).Leave it at this setting for 24 hours (one day) to stabilize. Then adjust the compartment temperature as desired.

identify your control type

* Refrigerator control: 32°F to 47°F or O°C to 8°C The lower the number setting, the colder the refrigerator compartment will become.

CoJ_: Cot:

* Freezer control: -6°F to 8°F or -21°C to -13°C

When the setting is at a lower numbeb the freezer

compartment becomes colder.

* Ultra Ice:

Press the Ultra Ice key and the LED will turn on. This function will remain activated for 24 hours and intensify the cooling speed of the freezer and increase the amount of ice produced.

S ::RG RASO FM ERAtA]

3}' ; S ;:{(MH _q/ ED

L _ i:!A CE

Do not block any of the cool air vents with food packages. If the vents are blocked, airflow will be restricted and

temperature and moisture problems may occur.

IMPORTANT: Because air circulates between both sections,

Any odors formed in one section will transfer to the other. You must thoroughly clean both sections to eliminate odors. To

prevent odor transfer and drying out of food, wrap or cover

foods tightly. (See the Food Storage Guide section for details).

VAt

O'f !_, kz2(}MM_q)F:/i

NOTE: To change from °F to °C, press and hold COLDER key of the freezer control and COLDER key of the refrigerator

control for more than 1 second at the same time.

identify your control type

* Refrigerator control: position ] to 7

(32°F to 47°F or O°C to 8°C)

The higher the number setting, the colder the refrigerator compartment wiil become.

/ / }RA C_

* Freezer control: position 1 to 7

(-6°F to 8°F or -21°C to -13°C) When the setting is at a higher number, the freezer compartment becomes colder.

U{TRA C_:

• Ultra Ice

Press the Ultra Ice key and the LED will turn on. This function

will remain activated for 24 hours and intensify the cooling

speed of the freezer and increase the amount of ice

produced.

ADJUSTING CONTROL SETTINGS

Give the refrigerator time to cooJ down completely before adding food. It is best to wait 24 hours before you put food into the refrigerator. The mid-settings indicated in the previous section should be correct for normal household refrigerator usage. The controls are set correctly when mill< or juice is as cold as you like and when ice cream is firm.

The refrigerator control functions as the thermostat for the entire appliance (refrigerator and freezer sections). The Colder the number setting, the longer the compressor will run to keep the temperature colder. The freezer control adjusts the cold air flow from the freezer to the refrigeraton Setting the freezer control to a lower temperature keeps more cold air in the freezer compartment to make it colder.

If you need to adjust temperatures in the refrigerator or freezer,

start by adjusting the refrigerator first. Wait 24 hours after the

refrigerator adjustment to check the freezer temperature. If it is

too warm or too cold, then adjust the freezer control as well.

i;/'_ ZER H £_ P/ RA/" jR/

l 2 :; 2 6

£1) D R_C<9_, _ N_©E C 3 ©/P,

_ .......... .... f

\\\/

Use the settings listed in the chart below as a guide. Always remember to wait at least 24 hours between adjustments.

CONDmON/REASON:

RECOMMENDED

ADJUSTMENT:

REFRIGERATOR section too

Wa rm

• Door opened often

Turn the REFRIGERATOR

control to next higher number, wait 24 hours, then re-check

° Large amont of food

added

° Room temperatue very

warm

FREEZER section too worm/ ice not mode fast enough ° Door opened often °Large amount of food

Turn the FREEZER control to next higher number, wait 24 hours, then re-check.

Move items out of airstream

added

° Very cold room

temperature [can not cycle often enough)

° Heavy ice usage *Air vents blocked by items

REFRIGERATOR section too cold "Controls not set correctly

Turn the REFRIGERATOR control to next lower number, wait 24 hours, then re-check

for your conditions

FREEZER section too cold

"Controls not set correctly

for your conditions

Turn FREEZER control to next

lower number, wait 24 hours, then re-check

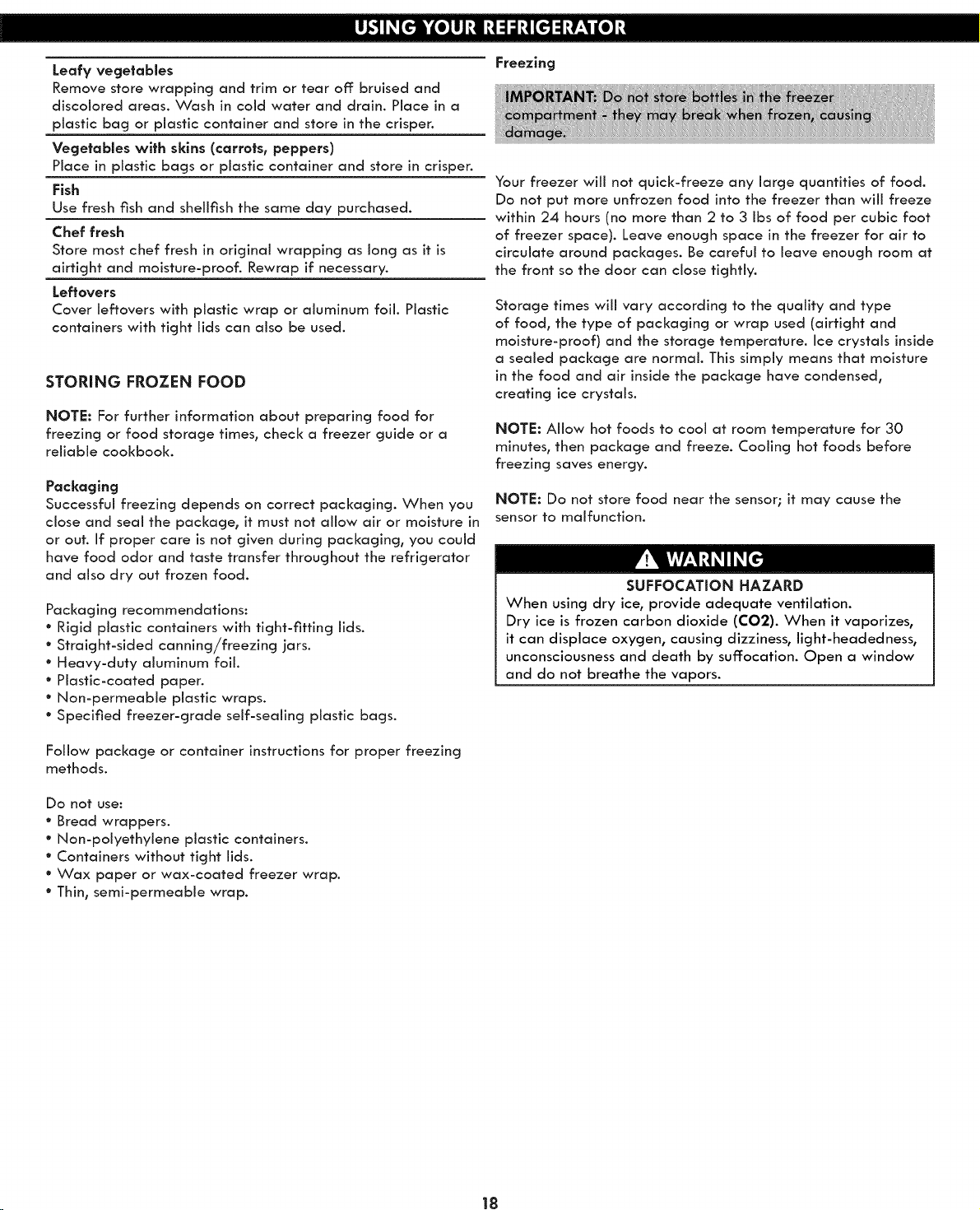

FOOD STORAGE GUIDE

Storing Fresh Food

Wrap or store food in the refrigerator in airtight and moisture-proof material unless otherwise noted. This prevents food odor and taste transfer throughout the refrigerator. For dated products, check date code to ensure freshness.

Butter or margarine Keep opened butter in a covered dish or closed compartment. When storing an extra supply, wrap in freezer packaging and freeze.

Cheese

Store in the original wrapping until you are ready to use it. Once opened, rewrap tightly in plastic wrap or aluminum foil.

Milk

Wipe mill< cartons. For best storage, place mill< on interior shelf, not on door shelf.

Eggs

Store in original carton on interior shelf, not on door shelf.

Fruit Wash, let dry, and store in refrigerator in plastic bags or in the crisper. Do not wash or hull berries until you are ready to use them. Sort and keep berries in their original container in a crisper, or store in a loosely closed paper bag on a refrigerator shelf.

Leafy vegetables Remove store wrapping and trim or tear off: bruised and

discolored areas. Wash in cold water and drain. Place in a

plastic bag or plastic container and store in the crisper.

Vegetables with skins (carrots, peppers)

Place in plastic bags or plastic container and store in crisper.

Fish

Use fresh fish and shellfish the same day purchased.

Chef fresh

Store most chef fresh in original wrapping as long as it is airtight and moisture-proof. Rewrap if necessary.

Leftovers

Cover leftovers with plastic wrap or aluminum foil. Plastic containers with tight lids can also be used.

STORING FROZEN FOOD

NOTE: For further information about preparing food for

freezing or food storage times, check a freezer guide or a

reliable cookbook.

Packaging Successful freezing depends on correct packaging. When you close and seal the package, it must not allow air or moisture in or out. If proper care is not given during packaging, you could

have food odor and taste transfer throughout the refrigerator and also dry out frozen food.

Packaging recommendations:

° Rigid plastic containers with tight-fitting lids. * Straight-sided canning/freezing jars.

° Heavy-duty aluminum foil. ° Plastic-coated paper.

° Non-permeable plastic wraps. ° Specified freezer-grade self-sealing plastic bags.

Freezing

Your freezer wiii not quick-freeze any large quantities of food.

Do not put more unfrozen food into the freezer than will freeze within 24 hours (no more than 2 to 3 ibs of food per cubic foot of freezer space). Leave enough space in the freezer for air to circulate around packages. Be careful to leave enough room at the front so the door can close tightly.

Storage times will vary according to the quality and type of food, the type of packaging or wrap used (airtight and moisture-proof) and the storage temperature. Ice crystals inside a sealed package are normal. This simply means that moisture in the food and air inside the package have condensed, creating ice crystals.

NOTE: Allow hot foods to cool at room temperature for 30 minutes, then package and freeze. Cooling hot foods before freezing saves energy.

NOTE: Do not store food near the sensor; it may cause the sensor to malfunction.

SUFFOCATION HAZARD When using dry ice, provide adequate ventilation. Dry ice is frozen carbon dioxide (CO2). When it vaporizes, it can displace oxygen, causing dizziness, light-headedness, unconsciousness and death by sufl:ocation. Open a window and do not breathe the vapors.

Follow package or container instructions for proper freezing methods.

Do not use:

° Bread wrappers. * Non-polyethylene plastic containers. ° Containers without tight lids. * Wax paper or wax-coated freezer wrap.

° Thin, semi-permeable wrap.

REFRIGERATOR SECTION REFRIGERATORSHELVES

The shelves in your refrigerator are adjustable to meet your individual storage needs. These units are aii glass shelves.

NOTE: Make sure that shelves are level from one side to the other. Failure to do so may result in the shelf failing or the spilling food.

Sliding Out Shelves (optlonal on some models)

IMPORTANT: Do not clean glass shelves with warm water when they are cold. Shelves may break if exposed to sudden temperature changes or impact, such as bumping. For your

protection, glass shelves are made with tempered glass, which wiii shatter into small pebbiesized pieces.

NOTE: Glass shelves are heavy. Use special care when

removing them to avoid dropping them.

Adjusting Shelves

Remove shelves from the shipping position and place the shelves in the position you want.

* To remove a shelf: Tilt up the front of the shelf in the

direction of (1) and lift it in the direction of (2). Pull the shelf

out.

* To replace a shelf: Tilt the front of the shelf up and guide the

shelf hooks into the slots at a desired height. Then lower the front of the shelf so that the hooks drop into the slots.

You can slide some glass shelves in and out of your refrigerator as follows.

* To slide the shelf out, carefully puii front of shelf toward you. " To slide shelf in, push shelf in until it stops.

To remove a sliding shelf from its metal frame:

1. Pull the shelf out to the stop position.

2. Tilt the front of the shelf up and pull it past the stop position.

3. Lift up the shelf to remove.

Replace the shelf by reversing the above steps.

Convenience Shelves (optlonal on some models)

* Folding Shelf: You can store taller items such as gallon

containers or bottles by simply sliding the shelf back.

PANTRY

(on some models) Adjust the control to desired temperature by moving from

COLD to COLDER.

Pull forward to open. Lift slightly and pull it out to remove.

CRISPER HUMIDITY CONTROL

(on some models)

You can control the amount of humidity in the moisturesealed crispers. Adjust the control to any setting between "FRUIT" and

"VEGETABLE',.

"FRUIT" Lets moist air out from crisper for best storage of fruits.

"VEGETABLE" Keeps moist air in crisper for best storage of fresh_ leafy vegetables.

To remove the glass:

1. Lift up the glass after inserting a screwdriver under the crisper cover.

2. Pull glass cover up and out.

To remove the crisper cover support: NOTE: Remove glass before removing the crisper cover

support.

While holding the crisper cover support with both hands (as shown in the image below). Pull forward and slightly lift the

front part.

OPTIBIN CRISPERS (on some models) The OptiBin Crispers provide fresher-tasting fruit and vegetables by letting you easily control humidity inside the crisper. The OptiBin Crispers include: 1) a humidity control knob at the front of the crisper cover and 2) a large lattice on the inner surface of the cover to hold or release moisture.

To remove the crisper:

1. Slide crisper straight out to the stop.

2. Lift the front of the crisper_ then puii it out to remove.

3. Replace the crisper by sliding it back in fully past the drawer stop.

[] WARNING: Be careful when handling the glass cover since

the glass is not attached to the cover.

To remove the glass:

1. Lift up the glass after inserting a screwdriver under the crisper cover.

2. Puii up and out.

To remove the crisper:

1. Slide crisper straight out to the stop.

2. Lift the front of the crisper, then pull it out to remove.

3. Replace the crisper by sliding it back in fully past the drawer

stop.

To replace lattice on inner surface:

1. For each lattice insert middle tab in 1 (closed to glass cover)

and pull sides of the cover to insert lattice.

CRISPER COVER WITH LATTICE ON INNER SURFACE

(on some models)

To remove the crisper cover:

1. Remove both crisper drawers.

2. While holding the crisper cover support (2), pull the cover up and out(l).

[] WARNING: Be careful when handing the glass cover since

the glass is not attached to the cover.

To remove the lattice on inner surface:

MODULAR DOOR BINS

The door bins are removable for easy cleaning and adjusting.

1. To remove the bin, simply lift the bin up and pull straight out.

2. To replace the bin, slide it in above the desired support

button and push down until it stops.

[] WARNING: Injury could occur if door bins are not firmly

assembled.

NOTE: DO NOT adjust a bin that is loaded with food.

[] CAUTION: DO NOT allow children to play with the baskets.

Sharp corners on baskets could cause injury.

NOTE: Do not change the location of the lower bin in the upper doors with the others, or the doors will not close properly.

1. Remove crisper cover (as illustrated above).

2. Hold the glass cover and overturn the crisper cover.

3. For each lattice hold the lattice and pull sides of the cover outward to remove lattice.

DAIRY BiN

1. To remove the dairy bin, simply lift it and pull straight out.

2. To replace the dairy bin, slide it in above the desired

location and push down until it stops.

EGG BOX (on some models)

Store the Egg Box on interior shelf, not on door shelf.

[] CAUTION: Do not use the egg box as an ice storage bin in

the freezer compartment. The egg box can easily break if it freezes.

DURABASE (on some models)

1. To remove the Durabase, push it back to the end as much as possible. Tilt up the front of the Durabase and pull straight

out.

2, To JnstaJJ, insert the Durabase in rail assembly and gentJy

push back into position.

FREEZER SECTION

iCE BiN (on some models)

1. To separate the ice bin, pull out the drawer as much as possible.

2o Gently lift and pull out the ice bin.

3. To reinstall, pull out the drawer as much as possible and

set the ice bin in its correct position, and then push in the drawer.

DRAWER

ICE BiN

DURABASE DiViDER (on some models) The Durabase divider allows you to organize the durabase area into sections.

[] WARNING: There is enough open space in it for children to

climb inside.

[] WARNING: To prevent accidental child and pet entrapment

or suffocation risl<. DO NOT allow them to play inside of the drawer,

GLIDE -OUT DRAWER BASKET

(on some models)

1. To remove, lift basket up and pull out straight out.

2. To Install, pull both rails out to full extension. Hook the

basket supports into the rail tabs and push to the back of

compartment.

EXPLOSION HAZARD

Use non-flammable cleaner.

Failure to do so can result in death, explosion, or fire.

Both the refrigerator and freezer sections defrost automatically.

However, clean both sections about once a month to prevent

odors. Wipe up spills immediately.

GENERAL CLEANING TIPS

° Unplug refrigerator or disconnect power.

• Remove aii removable parts, such as shelves, crispers, etc. ° Use a clean sponge or soft cloth and a mild detergent in

warm water. Do not use abrasive or harsh cleaners. ° Hand wash, rinse and dry all surfaces thoroughly. ° Plug in refrigerator or reconnect power.

OUTSIDE

PLASTIC PARTS (covers and panels)

Do not use windows sprays, abrasive cleaners, or flammable fluids. These can scratch or damage the material. Use a clean sponge or soft cloth and a mild detergent in warm water. Wash, rinse and dry aii surfaces thoroughly.

BACK COVER

ELECTRICAL SHOCK HAZARD

Before you begin, either unplug the refrigerator or turn off: power at the circuit breaker or fuse box. Failure to do so could result in death or serious injury.

NOTE: Back cover should only be removed by a quaEfied technician.

Clean the vents on the back cover. Use a vacuum cleaner with the

brush attachment, at least twice a year to keep your refrigerator working emcientiy.

Waxing external painted metal surfaces helps provide rust

protection. Do not wax plastic parts. Wax painted metal

surfaces at least twice a year using appliance wax (or auto

paste wax). Apply wax with a clean, soft cloth. For products with a stainless steel exterior, use a clean sponge

or soft cloth and a mild detergent in warm water.

Do not use abrasive or harsh cleaners. Dry thoroughly with a

soft cloth.

NOTE: Avoid door surface contact with chemical products that

contain Phosphate or Chlorine.

INSIDE WALLS (allow freezer to warm up so cloth will nat stick)

To help remove odors, you can wash the inside of the

refrigerator with a mixture of baking soda and warm water. Mix 2 tablespoons baking soda to 1 quart of water (26 g soda to 1 liter water). Be sure the baking soda is completely dissolved so does it not scratch the surfaces of the refrigerator.

DOOR LINERS AND GASKETS

Do not use cleaning waxes, concentrated detergents, bleaches,

or cleaners containing petroleum plastic parts.

LIGHT BULB REPLACEMENT

ELECTRICAL SHOCK HAZARD

Before replacing a burned-out light bulb, either unplug the refrigerator or turn off: power at the circuit breaker or fuse

box.

NOTE: Moving the control to the OFF position does not remove power to the light circuit.

NOTE: Not oil appliance bulbs wiii fit your refrigerator. Be sure

to replace the bulb with a maximum rating of 60 watts and is

the same size and shape.

NOTE: The light bulbs wiii turn off: if door is left open for seven continuous minutes. Shutting door for one second will make light bulbs come back on.

To change the refrigerator light:

1. Unplug the power cord from the outlet.

2. Remove refrigerator shelves.

3. Release the hooks on the front of the light shield with the help of a flat screwdriver and pull the shield down to remove

it.

4.Turn the bulb counter clockwise.

5. To assemble, first insert the hooks at the back and then push up the light shield.

WHEN YOU GO ON VACATION

If you choose to leave the refrigerator on while you are

away, follow these steps to prepare your refrigerator before

you leave.

1. Use up any perishables and freeze other items.

2. Empty the ice bin.

If you choose to turn the refrigerator off before you leave,

follow these steps.

To change the freezer light:

1. Unplug refrigerator or disconnect power.

2. Reach behind light shield to remove bulb.

3. Replace bulb with a 60 watts appliance bulb in the

refrigerator as shown in Picture 1.

...............

4. Plug in refrigerator or reconnect power.

POWER iNTERRUPTiONS

If the electricity goes Off, caii the power company and ask how long it will be off.

1. If the power will be out for 24 hours or less, keep both

refrigerator doors closed to help foods stay cold and frozen.

2. If the power will be out for more than 24 hours:

A)Remove all frozen food and store it in a frozen food

locker.

1. Remove all food from the refrigerator.

2. Depending on your model, set the thermostat control (refrigerator control) to OFF. See the Setting the Controls section.

3. Clean refrigerator, wipe it and dry well.

4.Tape rubber or wood blocks to the tops of both doors to prop them open far enough for air to get in. This stops odor and mold from building up.

WHEN YOU MOVE

When you are moving your refrigerator to a new home, follow these steps to prepare it for the move.

1. Remove all food from the refrigerator and pack all frozen food in dry ice.

2. Depending on your model, turn the thermostat control (refrigerator control) to OFF. See the Setting the Controls

section.

3. Unplug the refrigerator.

4. Empty the water from the defrost pan.

5. Clean, wipe and dry thoroughly.

6. Take out all removable parts, wrap them weii and tape them together so they do not shift and rattle during the move.

7. Depending on the model, lower the front of the refrigerator so it roils more easily OR screw in the leveling legs all the way so they do not scrape the floor. See the Door Closing

section.

8. Tape the doors shut and tape the power cord to the refrigerator cabinet.

When you get to your new home, put everything back and refer to the Insfalllng Your Refrigerator section for preparation

instructions.

B)Place 2 Ibs of dry ice in the freezer for every cubic foot

of freezer space. This will keep the food frozen for two to four days. While handling dry ice, wear gloves to protect your hands from frostbite.

C)tf neither a food locker nor dry ice is available, consume

or can perishable food at once.

ICEMAKER

PERSONAL INJURY HAZARD Avoid contact with the moving parts of the ejector mechanism, or with the heating element that releases the cubes. DO NOT place fingers or hands on the automatic icemaking mechanism while the refrigerator is plugged in.

OPERATION iNSTRUCTiONS

NOTE: Automatic Ice Maker feature is included only in certain models. Please check your product specification.

A newly=installed refrigerator may take 12 to 24 hours to

begin making ice.

Switch

Arm

This type of icemaker wiii produce twelve cubes per cycle approximately 80 -100 cubes in a 24-hour period, depending on freezer compartment temperature, room temperature,

number of door openings and other operating conditions.

WHEN YOU SHOULD SET THE ICEMAKER POWER

SWITCH TO O (OFF)

° When the water supply will be shut off for several hours. * When the ice storage bin is removed for more than a minute

or two.

° When the refrigerator will not be used for several days.

NORMAL SOUNDS YOU MAY HEAR

The icemaker water valve wiii buzz as the icemaker fills with water. If the power switch is in the I (ON) position, it will buzz even if it has not yet been hooked up to water. To stop the buzzing, move the power switch to O (OFF).

NOTE: Keeping the power switch in the I (OFF) position before the water line is connected can damage the icemaker.

° You wiii hear the sound of cubes dropping into the bin and

water running in the pipes as the icemaker refills.

PREPARING FOR VACATION

Set the icemaker power switch to 0 (OFF) and shut off the water supply to the refrigeraton

If the surrounding air temperature wiii drop below freezing, have a qualified servicer drain the water supply system to prevent serious property damage due to flooding from ruptured water lines or connections.

If the refrigerator is used before the water connection is made

to the icemaker, set the power switch to O (OFF).

When the refrigerator has been connected to the water supply, set the power switch to I (ON). The icemaker will fill with water only when it cools to freezing. A newly-installed refrigerator may take 12 to 24 hours to begin

making ice cubes.

Throw away the first few batches of ice to allow the water line to clean

Be sure nothing interferes with the sweep of the feeler arm.

When the bin fills to the level of the feeler arm, the icemaker will stop producing ice.

It is normal for some cubes to be stuck together.

If ice is not used frequently, old ice cubes will become cloudy,

taste stale, and shrink.

NOTE: Water line installation is needed when the Automatic

Ice Maker and/or Water Dispenser features are available on

your product.

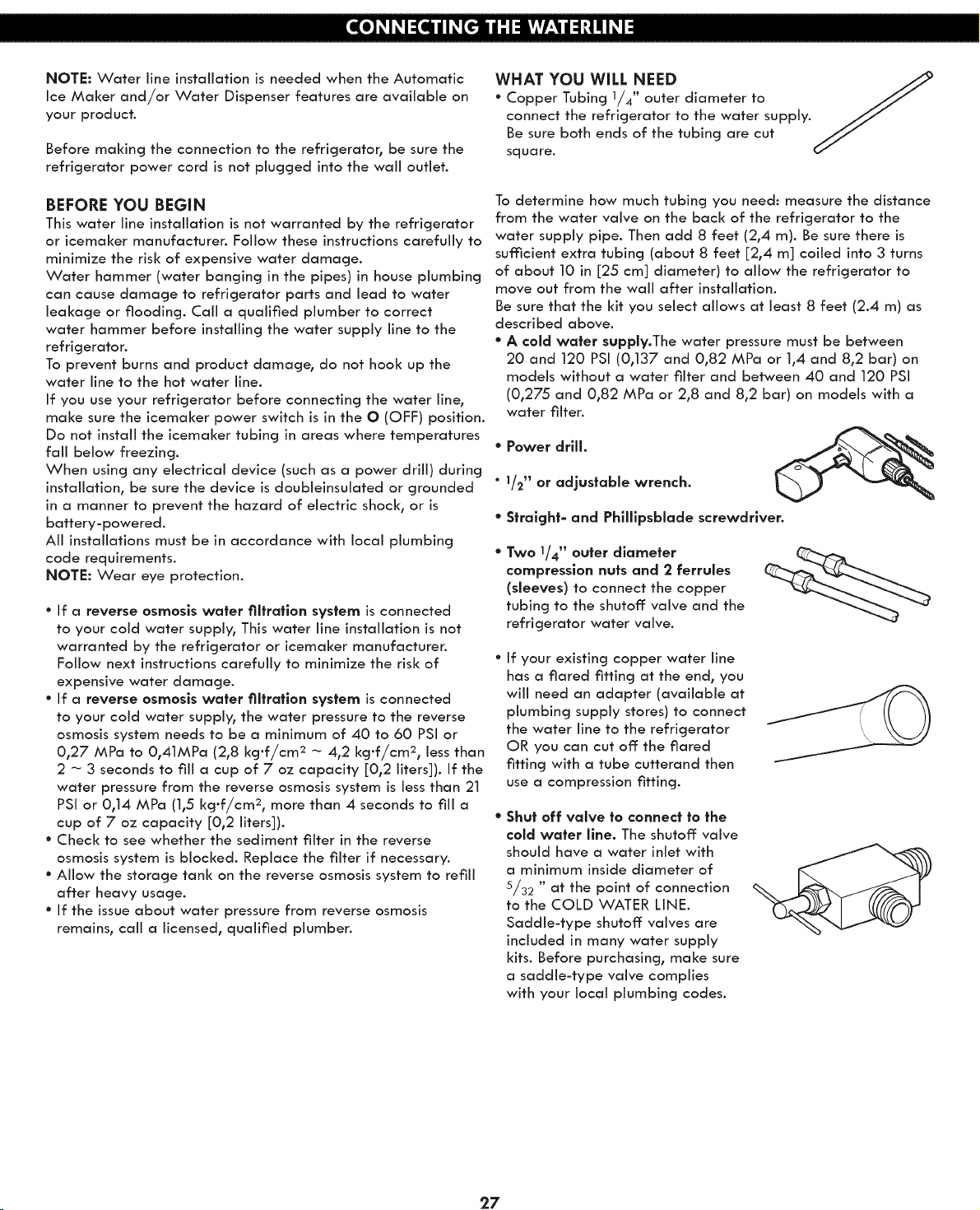

Before making the connection to the refrigerator, be sure the refrigerator power cord is not plugged into the wail outlet.

WHAT YOU WILL NEED

° Copper Tubing 1/4" outer diameter to

connect the refrigerator to the water supply.

Be sure both ends of the tubing are cut

square.

BEFORE YOU BEGIN

This water line installation is not warranted by the refrigerator or icemaker manufacturer. Follow these instructions carefully to

minimize the risk of expensive water damage. Water hammer (water banging in the pipes) in house plumbing can cause damage to refrigerator parts and lead to water

leakage or flooding. Call a qualified plumber to correct water hammer before installing the water supply line to the

refrigerator. To prevent burns and product damage, do not hook up the water line to the hot water line.

If you use your refrigerator before connecting the water line,

make sure the icemaker power switch is in the O (OFF} position.

Do not install the icemaker tubing in areas where temperatures fall below freezing. When using any electrica! device (such as a power drill) during installation, be sure the device is doubleinsulated or grounded in a manner to prevent the hazard of electric shod<, or is

battery-powered. All installations must be in accordance with local plumbing code requirements.

NOTE: Wear eye protection.

° If a reverse osmosis water filtration system is connected

to your cold water supply, This water line installation is not warranted by the refrigerator or icemaker manufacturer.

Follow next instructions carefully to minimize the risk of

expensive water damage.

* If a reverse osmosis water filtration system is connected

to your cold water supply, the water pressure to the reverse osmosis system needs to be a minimum of 40 to 60 PSI or 0,27 MPa to 0,41MPa (2,8 kg'f/cm 2 - 4,2 kg'f/cm 2, Jessthan 2 - 3 seconds to fill a cup of 7 oz capacity [0,2 liters]). If the water pressure from the reverse osmosis system is Jess than 21

PSI or 0,14 MPa (1,5 kg'f/cm 2, more than 4 seconds to fill a

cup of 7 oz capacity [0,2 liters]).

° Check to see whether the sediment filter in the reverse

osmosis system is blocked. Replace the filter if necessary.

° Allow the storage tank on the reverse osmosis system to refill

after heavy usage.

° If the issue about water pressure from reverse osmosis

remains, carl a licensed, qualified plumber.

To determine how much tubing you need: measure the distance from the water valve on the back of the refrigerator to the water supply pipe. Then add 8 feet (2,4 m). Be sure there is sufficient extra tubing (about 8 feet [2,4 m] coiled into 3 turns of about 10 in [25 cm] diameter) to allow the refrigerator to

move out from the wall after installation.

Be sure that the kit you select allows at least 8 feet (2.4 m) as

described above.

* A cold water supply.The water pressure must be between

20 and 120 PSI (0,137 and 0,82 MPa or 1,4 and 8,2 bar) on models without a water filter and between 40 and 120 PSI

(0,275 and 0,82 MPa or 2,8 and 8,2 bar) on models with a water filter.

* Power drift.

" 1/2" or adjustable wrench.

• Straight= and Phifflpsblade screwdriver.

* Two 1/4" outer diameter

compression nuts and 2 ferrules (sJeeves) to connect the copper tubing to the shutoff valve and the refrigerator water valve.

• If your existing copper water line has a flared fitting at the end, you will need an adapter (available at plumbing supply stores) to connect the water line to the refrigerator OR you can cut off the flared fitting with a tube cutterand then use a compression fitting.

* Shut off valve to connect to the

cold wafer llne. The shutoff valve should have a water inlet with a minimum inside diameter of

5/3 2 " at the point of connection to the COLD WATER LINE.

Saddle-type shutoff valves are included in many water supply kits. Before purchasing, make sure a saddle-type valve complies with your local plumbing codes.

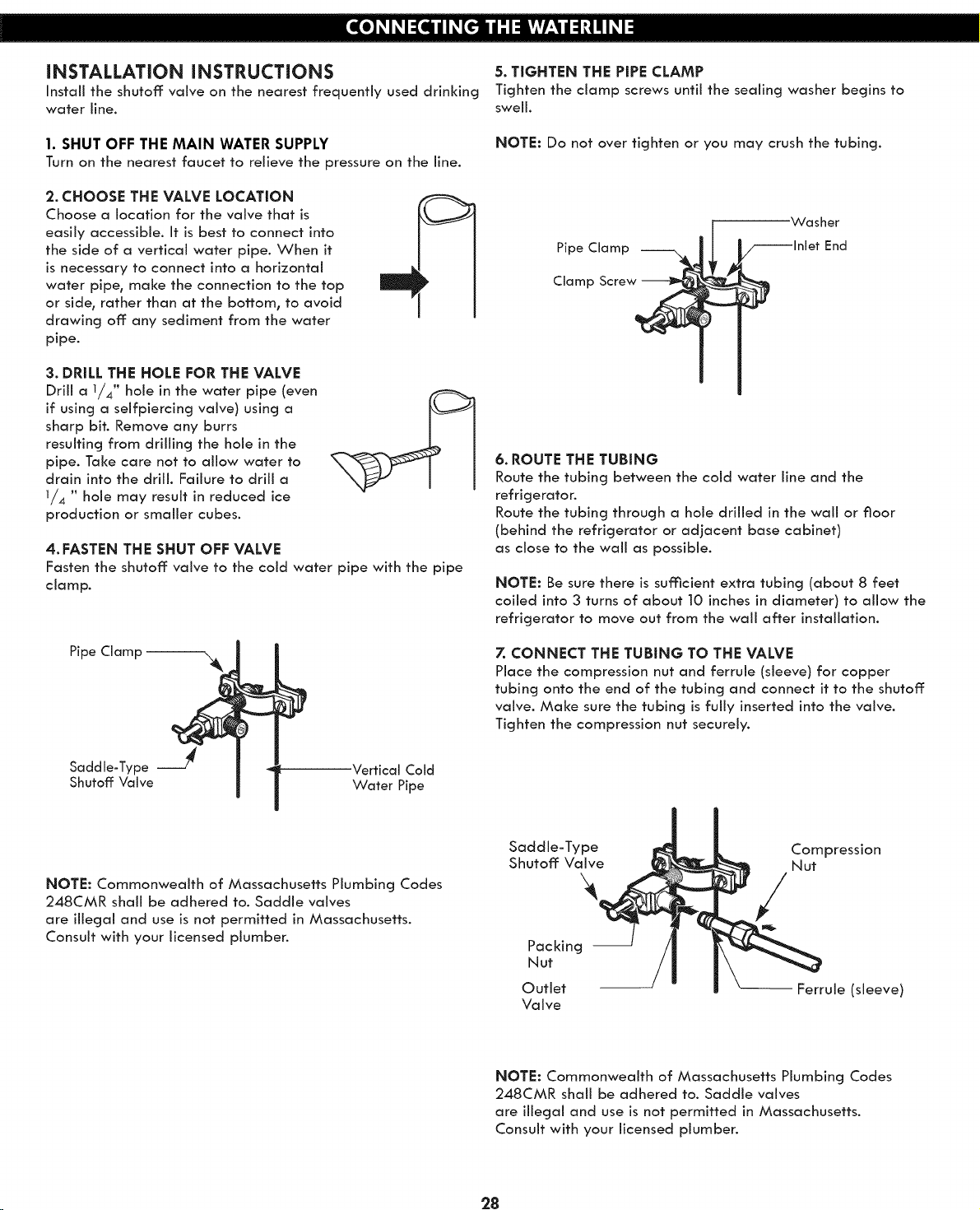

iNSTALLATiON iNSTRUCTiONS

Install the shutoff valve on the nearest frequently used drinking

water line.

5. TIGHTEN THE PIPE CLAMP

Tighten the clamp screws until the sealing washer begins to swell.

1. SHUT OFF THE MAIN WATER SUPPLY

Turn on the nearest faucet to relieve the pressure on the line.

2. CHOOSE THE VALVE LOCATION Choose a location for the valve that is

easily accessible. It is best to connect into the side of a vertical water pipe. When it is necessary to connect into a horizontal water pipe_ make the connection to the top or side_ rather than at the bottom_ to avoid drawing off any sediment from the water

pipe.

3. DRILL THE HOLE FOR THE VALVE

Drill a 1/4" hole in the water pipe (even

if using a seifpiercing valve) using a sharp bit. Remove any burrs

resulting from drilling the hole in the pipe. Take care not to allow water to

drain into the drill. Failure to drill a

1/4 " hole may result in reduced ice

production or smaller cubes.

4.FASTEN THE SHUT OFF VALVE

Fasten the shutoff valve to the cold water pipe with the pipe

clamp.

NOTE: Do not over tighten or you may crush the tubing.

Washer

Pipe Clamp

Clamp Screw

-Jlnlet End

6. ROUTE THE TUBING

Route the tubing between the cold water line and the

refrigerator.

Route the tubing through a hole drilled in the wall or floor (behind the refrigerator or adjacent base cabinet) as close to the wail as possible.

NOTE: Be sure there is sufficient extra tubing (about 8 feet coiled into 3 turns of about 10 inches in diameter) to allow the

refrigerator to move out from the wall after installation.

Pipe Clamp

Saddle-Type JJ_

Shutoff Valve

Vertical Cold

Water Pipe

NOTE: Commonwealth of Massachusetts Plumbing Codes

248CMR shall be adhered to. Saddle valves

are illegal and use is not permitted in Massachusetts. Consult with your licensed plumber.

7. CONNECT THE TUBING TO THE VALVE

Place the compression nut and ferrule (sleeve) for copper tubing onto the end of the tubing and connect it to the shutoff valve. Make sure the tubing is fully inserted into the valve. Tighten the compression nut securely.

Saddle-Type Compression Shutoff Valve Nut

Packing -- Nut

Outlet Ferrule (sleeve) Valve

NOTE: Commonwealth of Massachusetts Plumbing Codes 248CMR shall be adhered to. Saddle valves

are illegal and use is not permitted in Massachusetts. Consult with your licensed plumber.

8. FLUSH OUT THE TUBING

Turn the main water supply on and flush out the tubing until the water is clear.

Shut the water off: at the water valve

after about one quart of water has been flushed through the tubing.

|O.TURN THE WATER ON AT THE SHUT OFF VALVE

Tighten any connections that leak.

Reattach the compressor compartment access cover.

9. CONNECT THE TUBING TO THE REFRIGERATOR

NOTES:

. Before making the connection to the refrigerator, be sure the

refrigerator power cord is not plugged into the wall outlet.

° If your refrigerator does not have a water filter, we

recommend installing one. If your water supply has sand or

particles that could clog the screen of the refrigerator's water

valve. Install the filter in the water line near the refrigerator.

IMPORTANT: Do not use old, worn or used waterlines, only use new for a better use and service.

Connect only to the supply of drinking water for your safety and health.

Remove the plastic flexible cap from the water valve

connection.

11. PLUG IN THE REFRIGERATOR

Arrange the coil of tubing so that it

does not vibrate against the back of

the refrigerator or against the wall.

Push the refrigerator back to the wall.

12. START THE ICEMAKER

Set the icemaker power switch to the I (ON) position. The

icemaker wiii not begin to operate until it reaches its operating temperature of 15°F (-9°C) or below. It will then

begin operation automatically if the icemaker power switch is in the I (ON) position.

Place the compression nut and ferrule (sleeve) onto the end of

the tubing.

Insert the end of the tubing into the connection as far as

possible. While holding the tubing, tighten the fitting.

1/4"

Nut

Ferule

(sleeve)

Refrigerator Connection

Fasten the tubing into the tubing Clamp attached to the back

of the refrigeraton

First, loosen the screw fastening the clamp. Next, insert the

tubing in the groove. Finally, re-fasten the screw.

UNDERSTANDING SOUNDS YOU MAY HEAR

Your new refrigerator may make sounds that your old one did

not make. Because the sounds are new to you, you might be

concerned about them. Most of the new sounds are normal.

Hard surfaces, like the floor, walls and cabinets, can make the sounds seem louder than they actually are. The following describes the kinds of sounds and what may be making them.

• The defrost timer will click when the automatic defrost cycle begins and ends. The thermostat control (or refrigerator control, depending on the model) will also click when cycling

on and off:.

• Rattling noises may come from the flow of refrigerant_ the water line, or items stored on top of the refrigerator.

• Your refrigerator is designed to run more emcientiy to keep your food items at the desired temperature.

• The high emciency compressor may cause your new refrigerator to run longer than your old one, and you may hear a pulsating or high-pitched sound.

• You may hear the evaporator fan motor circulating the air through the refrigerator and freezer compartments. As each cycle ends, you may hear a gurgling sound due to the refrigerant flowing in your refrigerator. Contraction and expansion of the inside wails may cause a popping noise. Water dripping on the defrost heater during a defrost cycle may cause a sizzling sound. You may hear air being forced over the condenser by the

condenser fan.

You may hear water running into the drain pan during the defrost cycle.

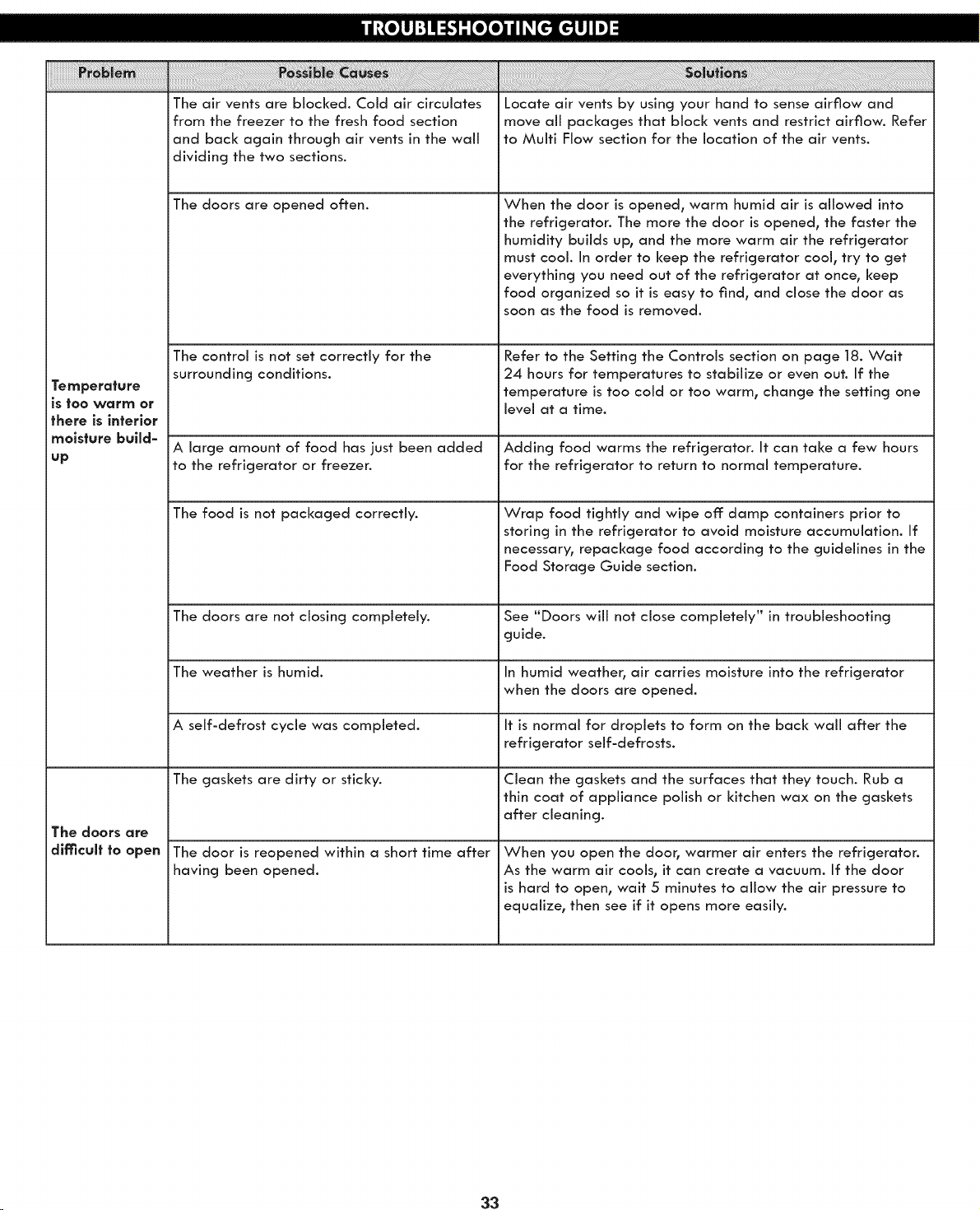

Refrigerator is

not cooling

iliii i i ii i

The power supply cord is unplugged.

A household fuse has blown or a circuit breaker has tripped.

The refrigerator control is set to the OFF position.

The refrigerator is in the defrost cycle.

Display shows the word OFF:. (Style 1)

The control panel lights are blinking secuentiaiiy. (1-2-3-4-5-6-7) (Style 2)

Firmly plug the cord into a live outlet with proper voltage (see Electrical & Grounding Requirements).

Replace the fuse or reset the circuit breaken

If the word OFF is in the Freezer and Refrigerator Display, hold COLDER key on the refrigerator over 3 sec.

Wait about 30 minutes for defrost cycle to end.

The refrigerator has been put into the store Demo (Demonstration) Mode. The Demonstration Mode disables the cooling system; only the lamps and display work normaliy. To disable press either of the Co_d :"7:_]buttons for 5 sec.

The refrigerator has been put into the store Demo (Demonstration) Mode. The Demonstration Mode disables the cooling system; only the lamps and display work _prmaiiy. To disable press ULTRA iCE and Adjust Temp buttons ate the same time for 5 seconds.

The power supply cord is unplugged.

Firmly plug the cord into a live outlet with proper voltage.

Lights do not

work

Compressor

seems to run

too much

A light bulb is loose in the socket

A light bulb has burned out.

The refrigerator is not resting solidly on the floor.

The refrigerator that was replaced was an older model.

The room temperature is warmer than normal.

The door is opened often or a large amount of

food has just been added.

The refrigerator was recently plugged in and

the refrigerator control was set correctly.

Turn the refrigerator control to the OFF position and unplug

the refrigerator. Gently remove the bulb and reinsert. Then

plug in refrigerator and reset the refrigerator control.

Unplug the refrigerator prior to the replacement. Replace the

old bulb with a new 60 watts appliance bulb with same size

and shape. (See changing the Light Bulb (s) section)

Floor is weal< or uneven or leveling legs need adjusting. See installation section.

Modern refrigerators with more storage space require more operating time.

The compressor will run longer under warm conditions. At normal room temperatures, expect your motor to run about

40% to 80% of the time. Under warmer conditions, expect

it to run even more often. This model is still more energy efficient than previous models.

Adding food and opening the door warms the refrigerator.

It is normal for the refrigerator to run longer in order to cool the refrigerator back down. Adding a large amount of food warms the refrigerator. In order to conserve energy, try to

get everything you need out of the refrigerator at once, keep

food organized so it is easy to find, and close the door as

soon as the food is removed. (See the Food Storage Guide.)

The refrigerator wiii take up to 24 hours to cool completely.

Doors will not close

completely

The refrigerator control is not set correctly for

the surrounding conditions.

The doors are not closed completely.

The back cover is dirty.

The refrigerator is not level.

Food packages are blocking the door open.

The ice bin, crisper covers, pans, shelves, door bins or baskets are out of position.

The gaskets are sticking.

The reflrgerator wobbles or seems unstable.

The doors were removed during product

installation and not properly replaced.

See the Adjusting Control Settings section.

Firmly push the doors shut. If they will not shut all the way,

see "Doors will not close completely" in troubleshooting

guide.

This prevents air transfer and makes the motor work harder.

Clean the back cover. Refer to the Care and Cleaning

section.

See the Installation section to level refrigerator.

Rearrange food containers to clear door and door shelves.

Push bins all the way in and put crisper cove D pans, shevles

and baskets into their correct positions. See the Using Your

Refrigerator section.

Clean gaskets and the surfaces that they touch, rub a thin

coat of appliance polish or kitchen wax on the gaskets after

cleaning.

Level the reflgerator, refer to the Door CIoslng and Allgnment section.

Remove and replace the doors according to the Removing,

Reversing and Replaclng Refigerafor Doors section or call a

qualified service techinician.

There is

water in the

defrosf drain

pan

The

refrlgerafor

seems to

The sounds may be normal for your refrigerator.

Refer to the Understanding Sound You May Hear section.

make too much noise

New installation. Wait 24 hours after icemaker installation for ice production

to begin. Wait 72 hours for full ice production.

The refrigerator is not connected to a water Connect refrigerator to the water supply and turn water

supply or the supply shutoff valve is not turned shutoff valve fully open.

on.

Reverse osmosis water filtration system is Reverse osmosis filtration systems can reduce the water connected to your cold water supply, pressure below the minimum amount and result in icemaker

issues.

I<ink in the water source line. A kink in the line can reduce water flow. Straighten the water

source line.

A large amount of ice recently has been Allow 24 hours for the icemaker to produce more ice. removed. NOTE: An extra ice bucket is provided in the freezer section.

The icemaker is not turned on. Locate the icemaker on/off switch and confirm it is in the ON

The icemaker

is not

There is something on the ice-detecting sensor. Foreign substances or frost on the ice-detecting sensor can

(I) position.

producing ice interrupt ice production. Make sure the sensor area is clean at

or not enough all times for proper operation.

ice The temperature setting for the freezer is too Below 0°F is the recommended temperature for the freezer

warm. compartment for normal ice production. If the freezer

temperature is warmer, ice production will be affected.

The doors are opened often. If the doors of the unit are opened often, the cold air wiii

escape which will prevent the unit from maintaining the set temperature. Lowering the temperature can help, as well as

not opening the doors as frequently.

The doors are not closing properly. If the doors are not properly closed, ice production will be

affected.

The ice compartment door is not dosing If the ice compartment door is not properly dosed, ice properly, production will be affected. Make sure ice compartment door

is dosed for proper operation.

The air vents are blocked. Cold air circulates from the freezer to the fresh food section and back again through air vents in the waft dividing the two sections.

Locate air vents by using your hand to sense airflow and move all packages that block vents and restrict airflow. Refer

to Multi Flow section for the location of the air vents.

Temperoture

is too worm or

there is interior

moisture build-

The doors are opened often.

The control is not set correctly for the surrounding conditions.

A large amount of food has just been added to the refrigerator or freezer.

The food is not packaged correctly.

The doors are not closing completely.

The weather is humid.

When the door is opened, warm humid air is allowed into

the refrigerator. The more the door is opened, the faster the

humidity builds up, and the more warm air the refrigerator

must cool. In order to keep the refrigerator cool, try to get everything you need out of the refrigerator at once, keep food organized so it is easy to find, and close the door as soon as the food is removed.

Refer to the Setting the Controls section on page 18. Wait 24 hours for temperatures to stabilize or even out. If the temperature is too cold or too warm, change the setting one

level at a time.

Adding food warms the refrigerator. It can take a few hours for the refrigerator to return to normal temperature.

Wrap food tightly and wipe off: damp containers prior to

storing in the refrigerator to avoid moisture accumulation. If

necessary, repackage food according to the guidelines in the

Food Storage Guide section.

See '"Doors will not close completely" in troubleshooting

guide.

In humid weather, air carries moisture into the refrigerator when the doors are opened.

The doors ore difficult to open

A self-defrost cycle was completed.

The gaskets are dirty or sticky.

The door is reopened within a short time after

having been opened.

It is normal for droplets to form on the back waft after the

refrigerator self-defrosts.

Clean the gaskets and the surfaces that they touch. Rub a

thin coat of appliance polish or kitchen wax on the gaskets

after cleaning.

When you open the door, warmer air enters the refrigerator. As the warm air cools, it can create a vacuum. If the door is hard to open, wait 5 minutes to allow the air pressure to equalize, then see if it opens more easily.

(1-888-784-6427)

www.sears.ca

www.sears.com

® Registered Trademark / TMTrademark of KCD IP, LLC in the United States, or Sears Brands, LLC in other countries

® Marca Registrada / TMMarca de Fabrica de KCD IP, LLC en Estados Unidos, o Sears Brands, LLC en otros paises

Kenmore BOTTOM FREEZER 795.713 Use and care guide

Specifications and Main Features

Frequently Asked Questions

User Manual
