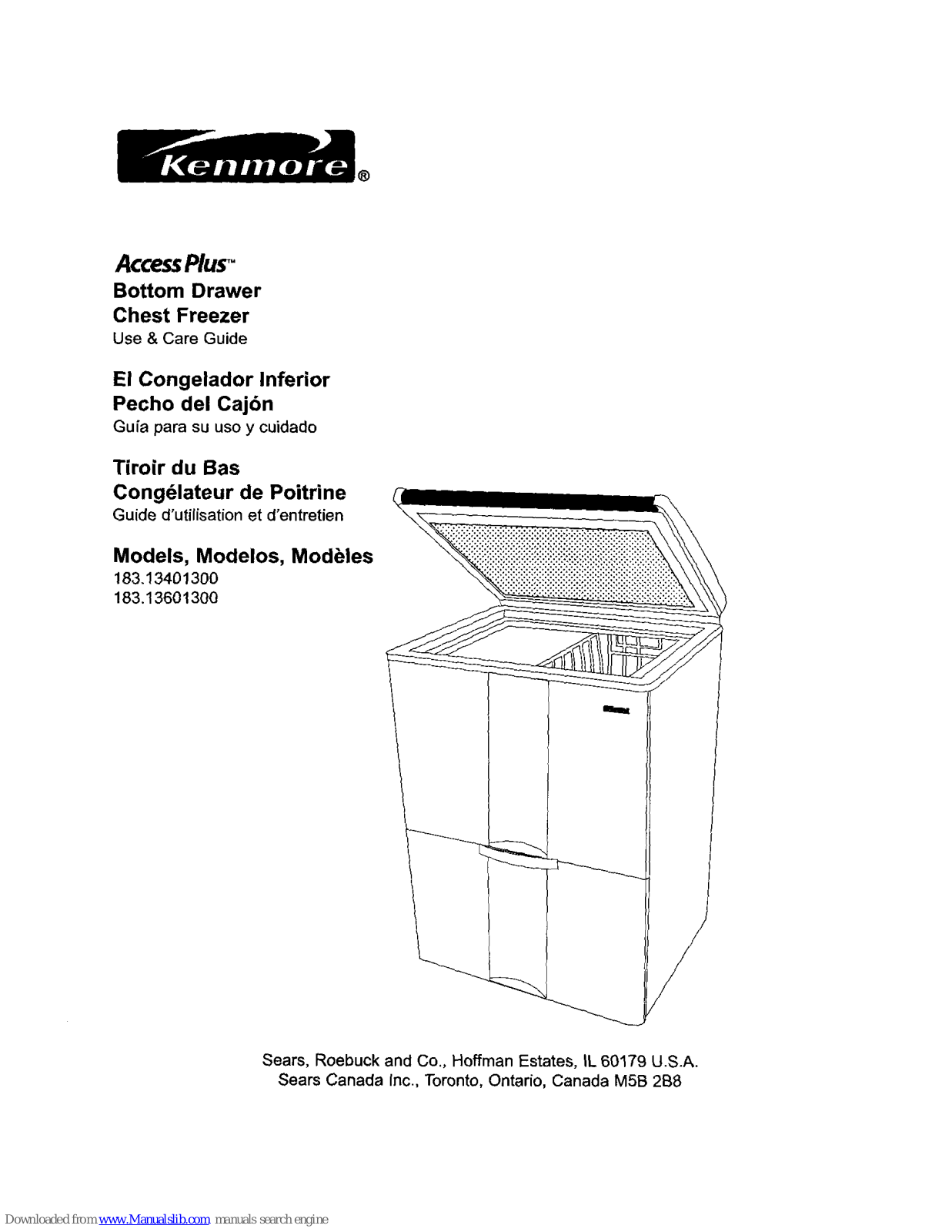

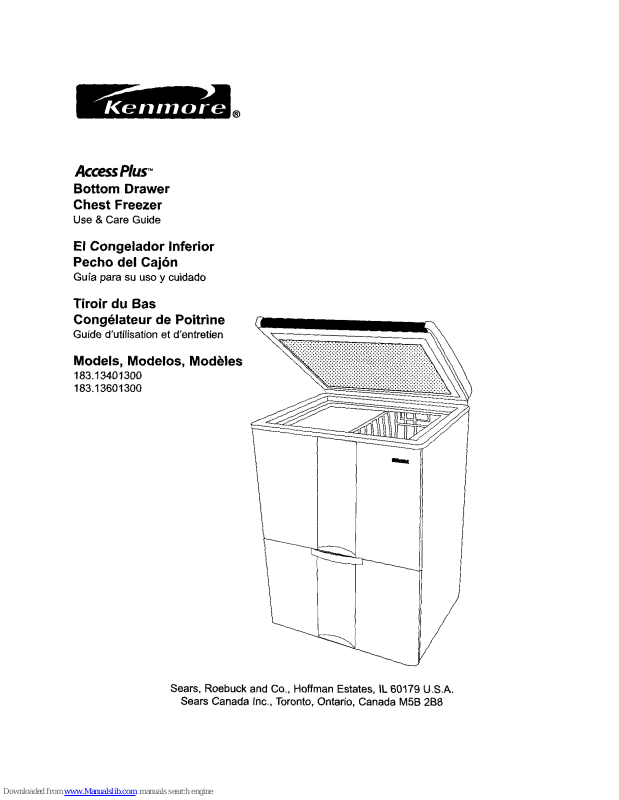

Page 1
®
AccessPlusTM
Bottom Drawer
Chest Freezer
Use & Care Guide
El Congelador Inferior
Pecho del Cajbn
Gu[a para su uso y cuidado
Tiroir du Bas
Congdlateur de Poitrine
Guide d'utilisation et d'entretien
Models, Modelos, ModUles
183.13401300
183.13601300
Sears, Roebuck and Co., Hoffman Estates, IL 60179 U.S.A.
Sears Canada Inc., Toronto, Ontario, Canada M5B 2B8

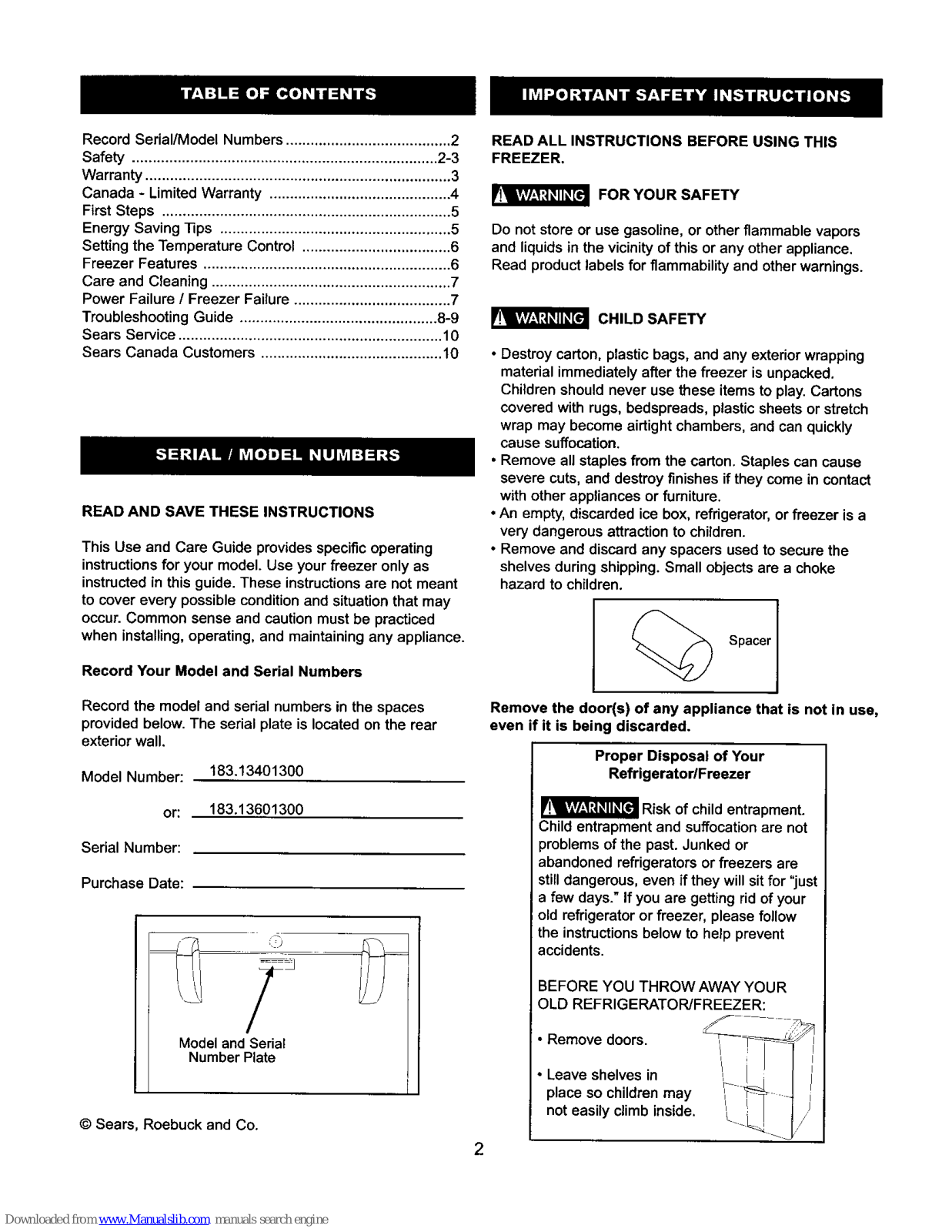

Page 2
Record Serial/Model Numbers ........................................ 2
Safety .......................................................................... 2-3
Warranty .......................................................................... 3
Canada - Limited Warranty ............................................ 4
First Steps ...................................................................... 5
Energy Saving _ps ........................................................ 5

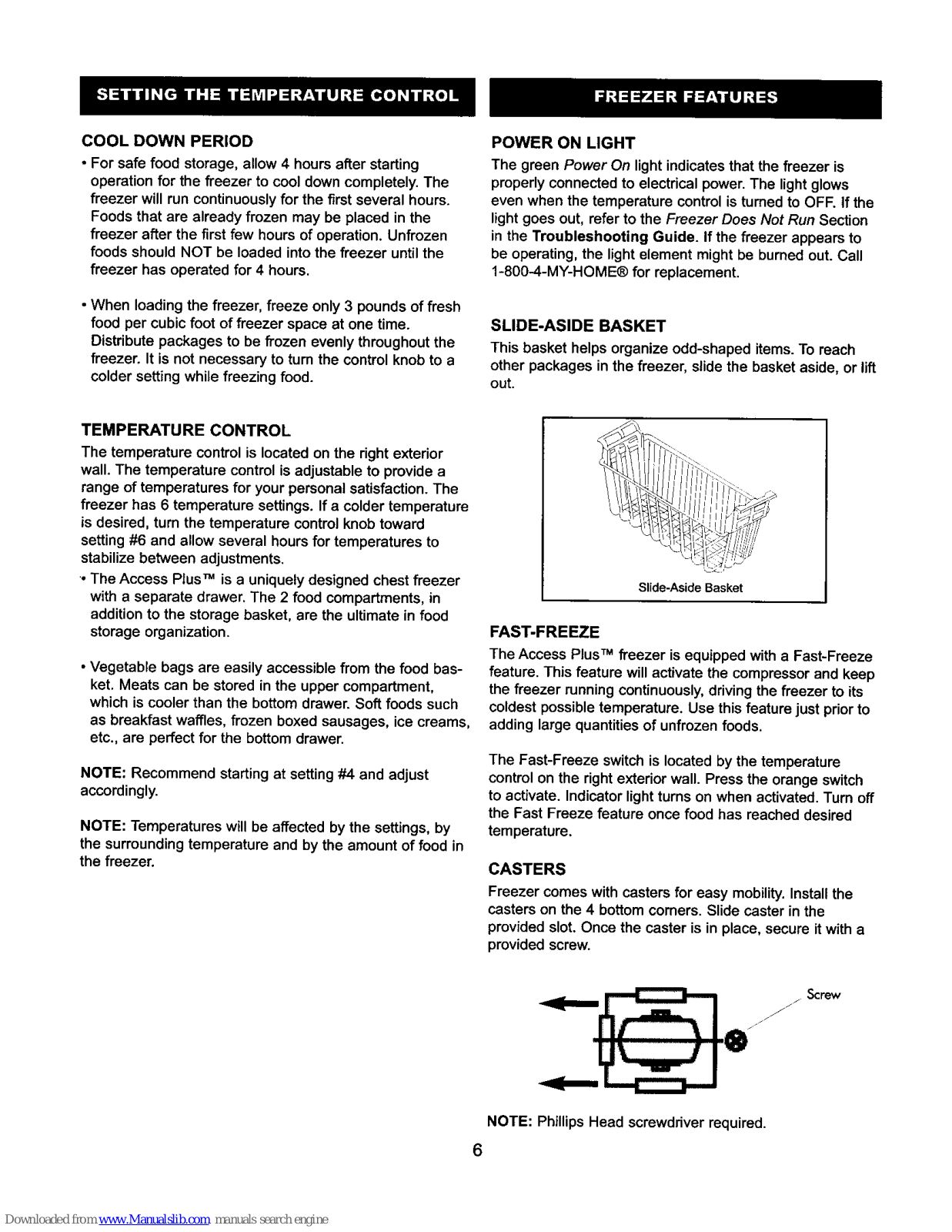

Setting the Temperature Control .................................... 6
Freezer Features ............................................................ 6
Care and Cleaning .......................................................... 7
Power Failure / Freezer Failure ...................................... 7

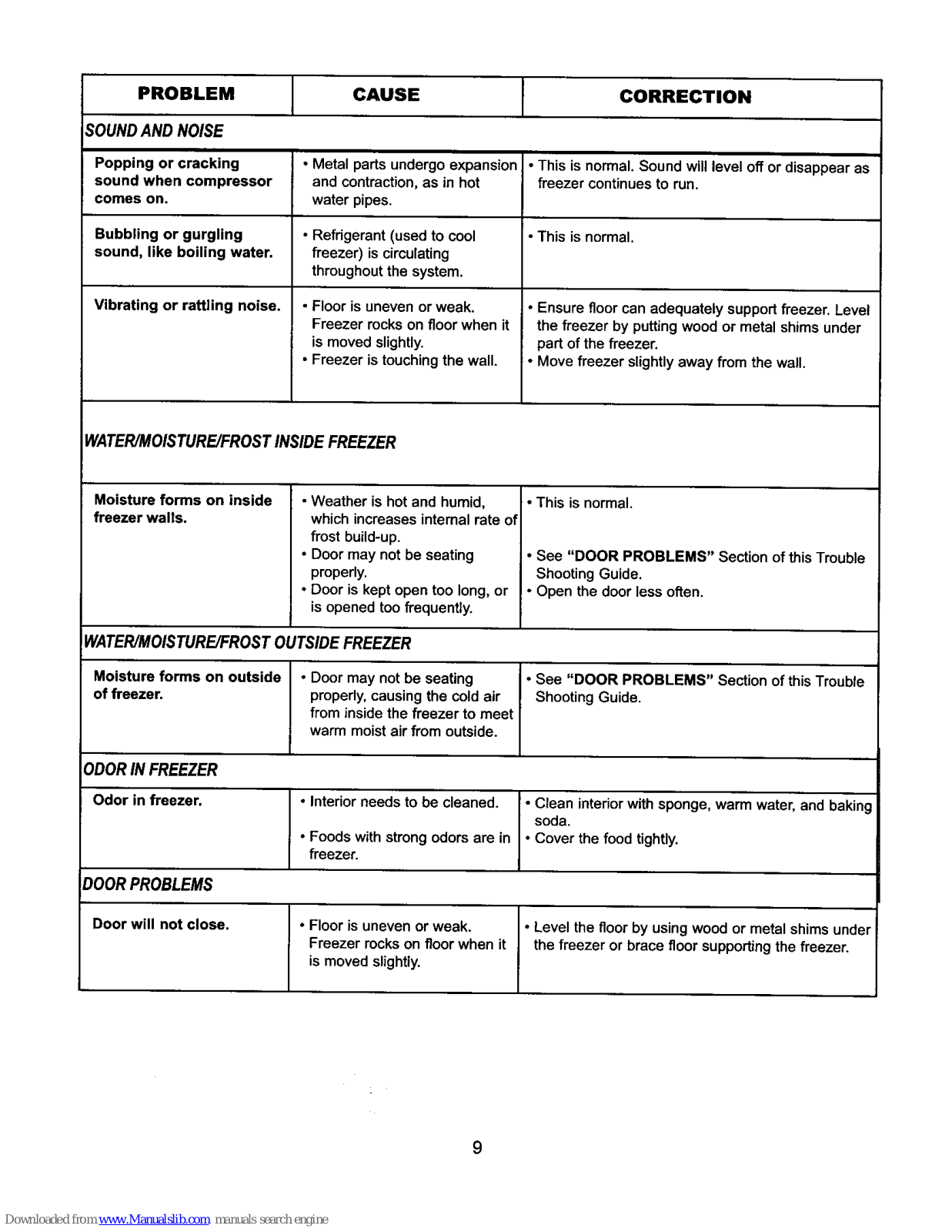

Troubleshooting Guide ................................................ 8-9
Sears Service ................................................................ 10
Sears Canada Customers ............................................ 10
READ AND SAVE THESE INSTRUCTIONS
This Use and Care Guide provides specificoperating
instructions for your model. Use your freezer only as
instructed in this guide. These instructions are not meant
to cover every possible condition and situation that may
occur. Common sense and caution must be practiced
when installing, operating, and maintaining any appliance.
Record Your Model and Serial Numbers
Record the model and serial numbers in the spaces
provided below. The serial plate is located on the rear
exterior wall.
Model Number: 183.13401300
or: 183.13601300
Serial Number:
Purchase Date:
©
/
Model and Serial
NumberPlate
© Sears, Roebuck and Co.
READ ALL INSTRUCTIONS BEFORE USING THIS
FREEZER,
_ FOR YOUR SAFETY
Do not store or use gasoline, or otherflammable vapors
and liquids in the vicinity of this or any other appliance.
Read product labels for flammability and other warnings.
_ CHILD SAFETY
• Destroy carton, plastic bags, and any exterior wrapping
material immediately after the freezer is unpacked.
Children should never use these items to play. Cartons
covered with rugs, bedspreads, plastic sheets or stretch
wrap may become airtight chambers, and can quickly
cause suffocation.
• Remove all staplesfrom the carton. Staples can cause
severe cuts,and destroyfinishesifthey come in contact
with other appliances orfurniture.
• An empty, discarded ice box, refrigeretor,orfreezer isa
very dangerous attraction to children.
• Remove and discard any spacers used to secure the
shelves during shipping. Small objects are a choke
hazard to children.
Spacer I
Remove the door(s) of any appliance that is not in use,
even if it is being discarded.
Proper Disposal of Your
Refrigerator/Freezer
_Risk of child entrapment.
Child entrapment and suffocation are not
problems of the past. Junked or
abandoned refrigerators or freezers are
still dangerous, even if they will sit for "just
a few days." If you are getting rid of your
old refrigerator or freezer, please follow
the instructions below to help prevent
accidents.
BEFORE YOU THROW AWAY YOUR
OLD REFRIGERATOR/FREEZER:
• Remove doors.
• Leave shelves in I
place so children may
not easily climb inside.
2

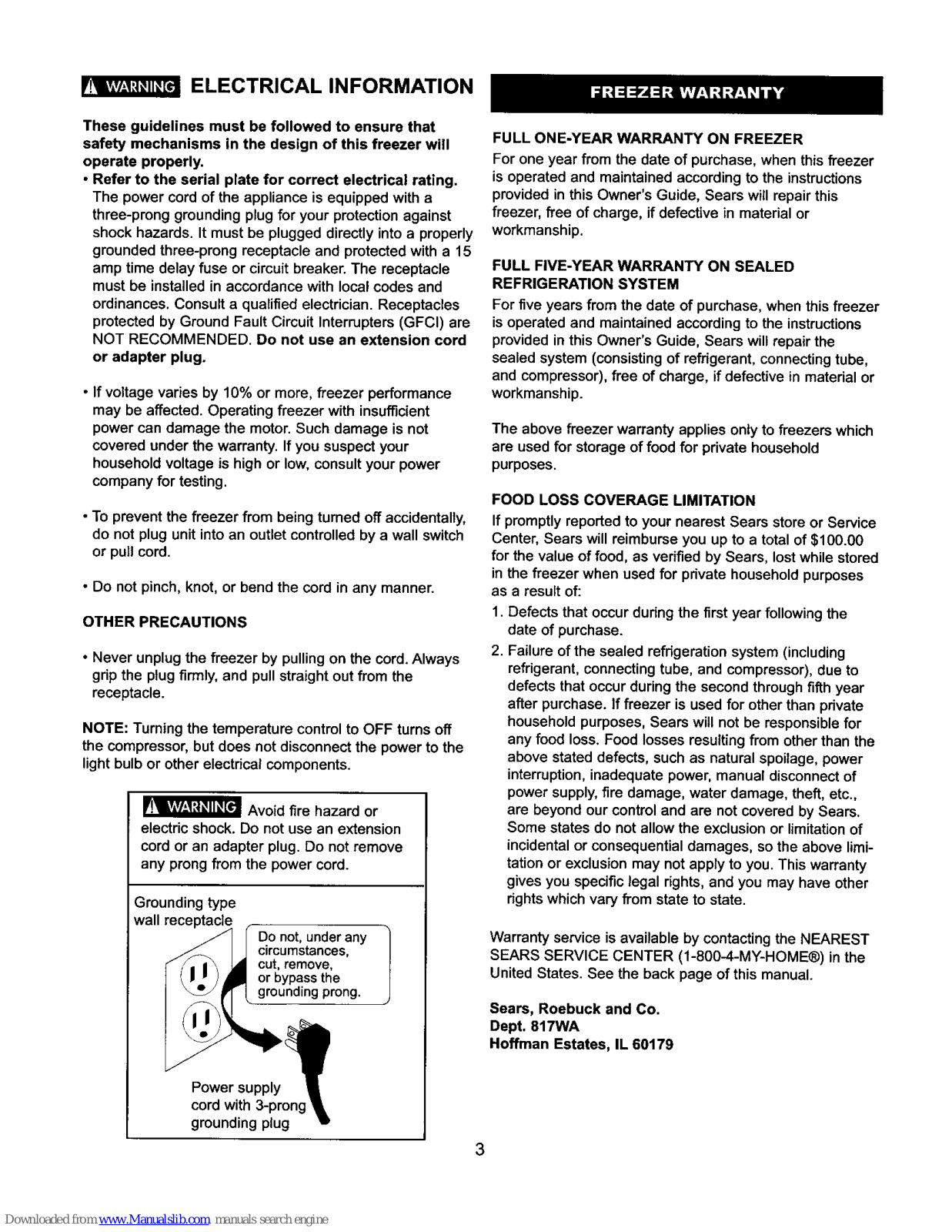

Page 3
ELECTRICAL INFORMATION
These guidelines must be followed to ensure that
safety mechanisms in the design of this freezer will
operate properly,
• Refer to the serial plate for correct electrical rating,
The power cord of the appliance is equippedwith a
three-prong groundingplugfor your protectionagainst
shock hazards, It must be plugged directlyintoa properly
groundedthree-prong receptacleand protectedwith a 15
amp time delay fuse or circuitbreaker.The receptacle
mustbe installedin accordance with localcodes and
ordinances. Consulta qualifiedelectrician, Receptacles
protectedby Ground Fault Circuit Interrupters(GFCI) are
NOT RECOMMENDED, Do not use an extension cord
or adapter plug.
• If voltage varies by 10% or more, freezer performance
may be affected. Operating freezer with insufficient
power can damage the motor. Such damage is not
covered under the warranty. If you suspect your
household voltage is high or low, consult your power
company for testing.
• To prevent the freezer from being turned offaccidentally,
do not plug unit into an outlet controlled by a wall switch
or pull cord.
• Do not pinch, knot,or bend the cord in any manner.
OTHER PRECAUTIONS
• Never unplugthe freezer by pulling on the cord.Always
grip the plug firmly, and pull straight out from the
receptacle.
NOTE: Turning the temperature control to OFF turns off
the compressor, but does not disconnect the power to the
light bulb or other electrical components.
_ Avoid fire hazard or
electric shock. Do not use an extension
cord or an adapter plug. Do not remove
any prong from the power cord.
Grounding type
wall
Do not, under any
circumstances,
cut, remove,
or bypass the
grounding prong.
Power supply _
cord with 3-prong
grounding plug
3
FULL ONE-YEAR WARRANTY ON FREEZER
For one year from the date of purchase, when this freezer
is operated and maintained according to the instructions
provided in this Owner's Guide, Sears will repair this
freezer, free of charge, if defective in material or
workmanship.
FULL FIVE-YEAR WARRANTY ON SEALED
REFRIGERATION SYSTEM
For five years from the date of purchase, when this freezer
is operated and maintained according to the instructions
provided in this Owner's Guide, Sears will repair the
sealed system (consisting of refrigerant, connecting tube,
and compressor), free of charge, if defective in material or
workmanship.
The above freezer warrantyapplies only to freezers which
are used for storage of food for privatehousehold
purposes.
FOOD LOSS COVERAGE LIMITATION
If promptly reported toyour nearest Sears store or Service
Center, Sears will reimburse you up to a total of $100.00
for the value of food, as verified by Sears, lost while stored
in the freezer when used for private household purposes
as a result of:
1,
2.
Defects that occurdunng the first year following the
date of purchase.
Failure of the sealed refrigeration system (including
refrigerant, connecting tube, and compressor), due to
defects that occur during the second through fifth year
after purchase, if freezer is used for other than pdvate
household purposes, Sears will not be responsible for
any food loss. Food losses resulting from other than the
above stated defects, such as natural spoilage, power
interruption, inadequate power, manual disconnect of
power supply, fire damage, water damage, theft, etc.,
are beyond our control and are not covered by Sears.
Some states do not allow the exclusion or limitation of
incidental or consequential damages, so the above limi-
tation or exclusion may not apply to you. This warranty
gives you specific legal rights, and you may have other
hghts which vary from state to state.
Warranty service is available by contacting the NEAREST
SEARS SERVICE CENTER (1-800-4-MY-HOME®) in the
United States. See the back page of this manual.
Sears, Roebuck and Co.
Dept. 817WA
Hoffman Estates, IL 60179

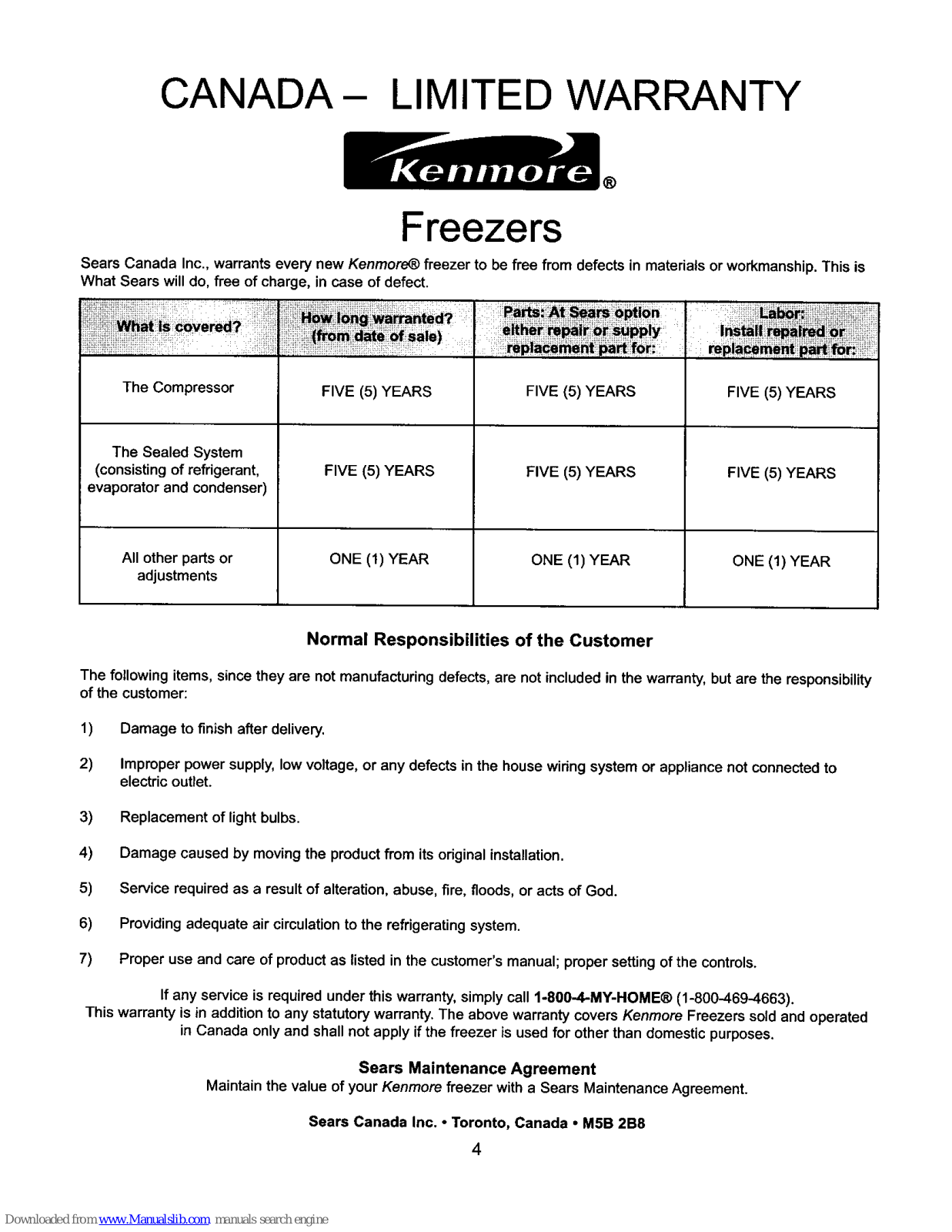

Page 4
CANADA- LIMITED WARRANTY
®
Freezers
Sears Canada Inc., warrants every new Kenmore@ freezer to be free from defects in materials or workmanship. This is
What Sears will do, free of charge, in case of defect.
The Compressor
The Sealed System
(consisting of refrigerant,
evaporator and condenser)
All other parts or
adjustments
FIVE (5) YEARS
FIVE (5) YEARS
ONE(1)YEAR
FIVE (5) YEARS
FIVE (5) YEARS
ONE(1)YEAR
• :_!_ _ _••_i_i_!_i_!_ _ _!_
F VE(S)YEARS
FIVE (5) YEARS
ONE(1)YEAR
Normal Responsibilities of the Customer
The followingitems, since they are not manufacturing defects, are notincludedin the warranty, butare the responsibility
ofthe customer:
1) Damage to finish after delivery,
2) Improperpower supply,low voltage, or any defects inthe house wiring systemor appliancenot connectedto
electricoutlet.
3) Replacement of lightbulbs.
4) Damage caused by movingthe productfrom its originalinstallation.
5) Service requiredas a result of alteration,abuse, fire, floods,or acts of God.
6) Providingadequate air circulationtothe refrigeratingsystem.
7) Properuse and care of productas listedin the customer's manual; proper settingof the controls.
If any service is required under thiswarranty,simplycall 1-800-4-MY-HOME® (1-800-469-4663).
Thiswarranty is in additionto any statutorywarranty,The above warranty covers Kenmore Freezers soldand operated
in Canada only andshall notapply if the freezer is used for otherthan domesticpurposes.
Sears Maintenance Agreement
Maintainthe value of your Kenmorefreezer with a Sears MaintenanceAgreement.
Sears Canada Inc. • Toronto, Canada ° M5B 2B8
4

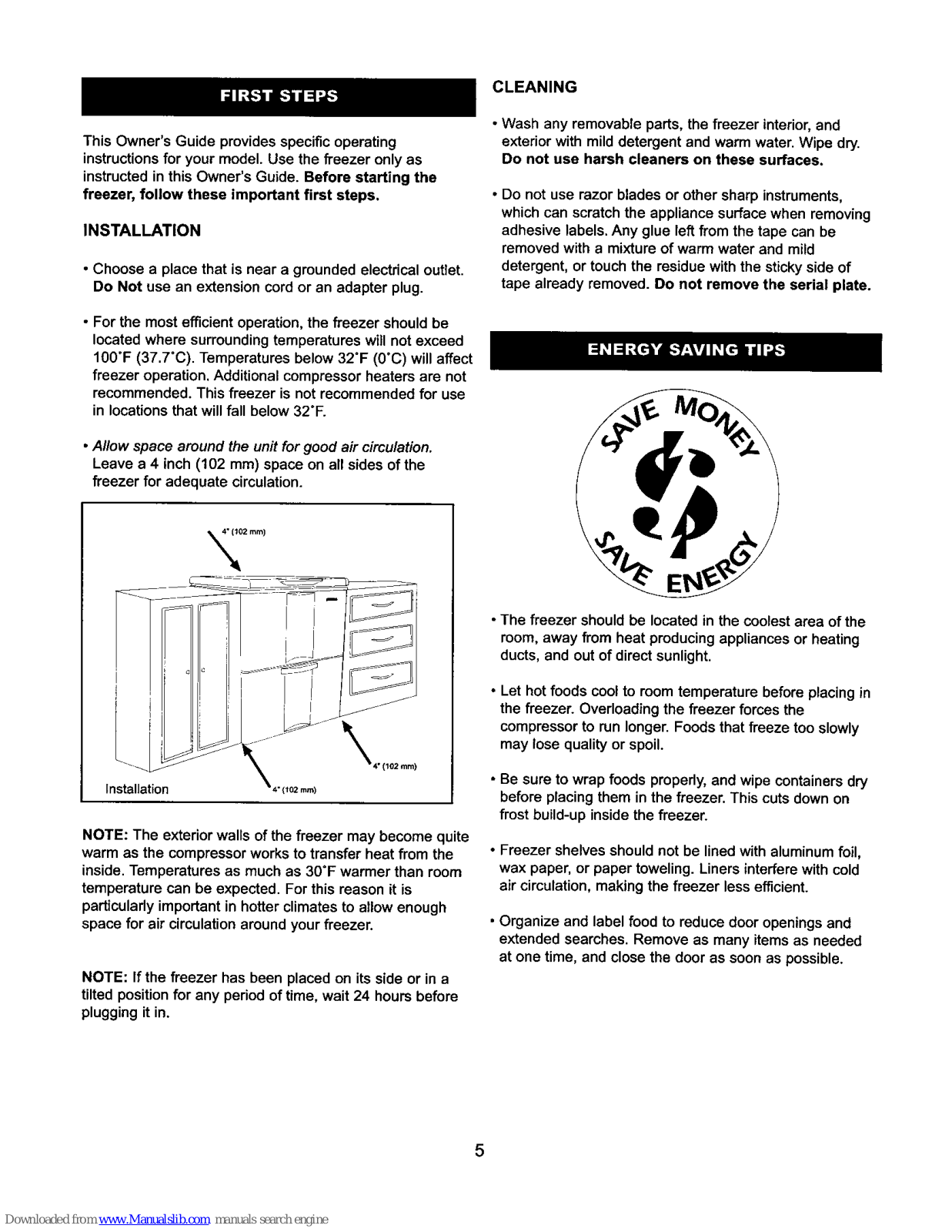

Page 5
This Owner's Guide provides specific operating
instructions for your model. Use the freezer only as
instructedin this Owner's Guide. Before starting the
freezer, follow these important first steps.
|NSTALLAT|ON
• Choose a place that is near a grounded electrical outlet.
Do Not use an extension cord or an adapter plug.
• For the most efficient operation, the freezer shouldbe
located where surrounding temperatures will not exceed
100°F (37.TC). Temperatures below 32"F (0°C) will affect
freezer operation. Additional compressor heaters are not
recommended. This freezer is not recommended for use
in locations that will fall below 32°F.
•Allow space around the unit for good air circulation.
Leave a 4 inch (102 mm) space on all sides of the
freezer for adequate circulation.
Installation
NOTE: The exterior walls of the freezer may become quite
warm as the compressor works to transfer heat from the
inside• Temperaturesas much as 30°F warmer than room
temperature can be expected. For this reason it is
particularly important in hotter climates to allow enough
space for air circulationaround yourfreezer.
NOTE: If the freezer has been placedon its side or in a
tilted position for any period of time, wait 24 hours before
pluggingit in.
CLEANING
•Wash any removable parts, the freezer interior,and
exterior with mild detergent and warm water• Wipe dry.
Do not use harsh cleaners on these surfaces.
• Do not use razor blades or other sharpinstruments,
which can scratch the appliance surface when removing
adhesive labels. Any glue left from the tape can be
removed with a mixture of warm water and mild
detergent, or touch the residue with the sticky side of
tape already removed. Do not remove the serial plate.
•The freezer should be located in the coolest area of the
room, away from heat producingappliances or heating
ducts, and out of direct sunlight.
• Let hot foods cool to room temperature before placing in
the freezer. Overloading the freezer forces the
compressor to run longer• Foods that freeze too slowly
may lose quality or spoil.
• Be sure to wrap foods properly,and wipe containersdry
beforeplacing them inthe freezer, Thiscuts down on
frost build-up inside the freezer.
• Freezer shelves shouldnot be linedwith aluminum foil,
wax paper, or paper toweling. Liners interfere with cold
air circulation, making the freezer less efficient.
• Organize and label food to reduce door openingsand
extended searches. Remove as many items as needed
at one time, and close the door as soon as possible.
5
Page 6
COOL DOWN PERIOD
• For safe food storage, allow 4 hours after starting
operation for the freezer to cool down completely. The
freezer will run continuously for the first several hours.
Foods that are already frozen may be placed in the
freezer after the first few hours of operation. Unfrozen
foods should NOT be loaded into the freezer until the
freezer has operated for 4 hours.
• When loading the freezer, freeze only 3 pounds of fresh
food per cubic foot of freezer space at one time.
Distribute packages to be frozen evenly throughout the
freezer. It is not necessary to turn the control knob to a
colder setting while freezing food.
POWER ON LIGHT
The green Power On light indicates that the freezer is
properly connected to electrical power. The light glows
even when the temperature control is turned to OFF. If the
light goes out, refer to the Freezer Does Not Run Section
in the Troubleshooting Guide. If the freezer appears to
be operating, the light element might be burned out. Call
1-800--4-MY-HOME®for replacement.
SLIDE-ASIDE BASKET
This basket helps organize odd-shaped items. To reach
other packages in the freezer, slide the basket aside, or lift
out.
TEMPERATURE CONTROL
The temperature control is located on the right exterior
wall. The temperature control is adjustable to provide a
range of temperatures for your personal satisfaction. The
freezer has 6 temperature settings. If a colder temperature
is desired, turn the temperature control knob toward
setting #6 and allow several hours for temperatures to
stabilize between adjustments.
• The Access Plus TM is a uniquely designed chest freezer
with a separate drawer. The 2 food compartments, in
addition to the storage basket, are the ultimate in food
storage organization.
• Vegetable bags are easily accessible from the food bas-
ket. Meats can be stored in the upper compartment,
which is cooler than the bottom drawer. Soft foods such
as breakfast waffles, frozen boxed sausages, ice creams,
etc., are perfect for the bottom drawer.
NOTE: Recommend starting at setting#4 and adjust
accordingly.
NOTE: Temperatures will be affected by the settings, by
the surrounding temperature and by the amount of food in
the freezer.
Slide-Aside Basket
FAST-FREEZE
The Access PlusTM freezer is equipped with a Fast-Freeze
feature. This feature will activate the compressor and keep
the freezer running continuously, driving the freezer to its
coldest possible temperature. Use this feature just prior to
adding large quantities of unfrozen foods.
The Fast-Freeze switch is located by thetemperature
control on the right exterior wall. Press the orange switch
to activate. Indicator light turns on when activated. Turn off
the Fast Freeze feature once food has reached desired
temperature.
CASTERS
Freezer comes with casters for easy mobility. Install the
casters on the 4 bottomcomers. Slide casterin the
providedslot. Once the caster is in place,secure itwith a
providedscrew.
JJ
NOTE: Phillips Head screwddver required.
6
._:rew

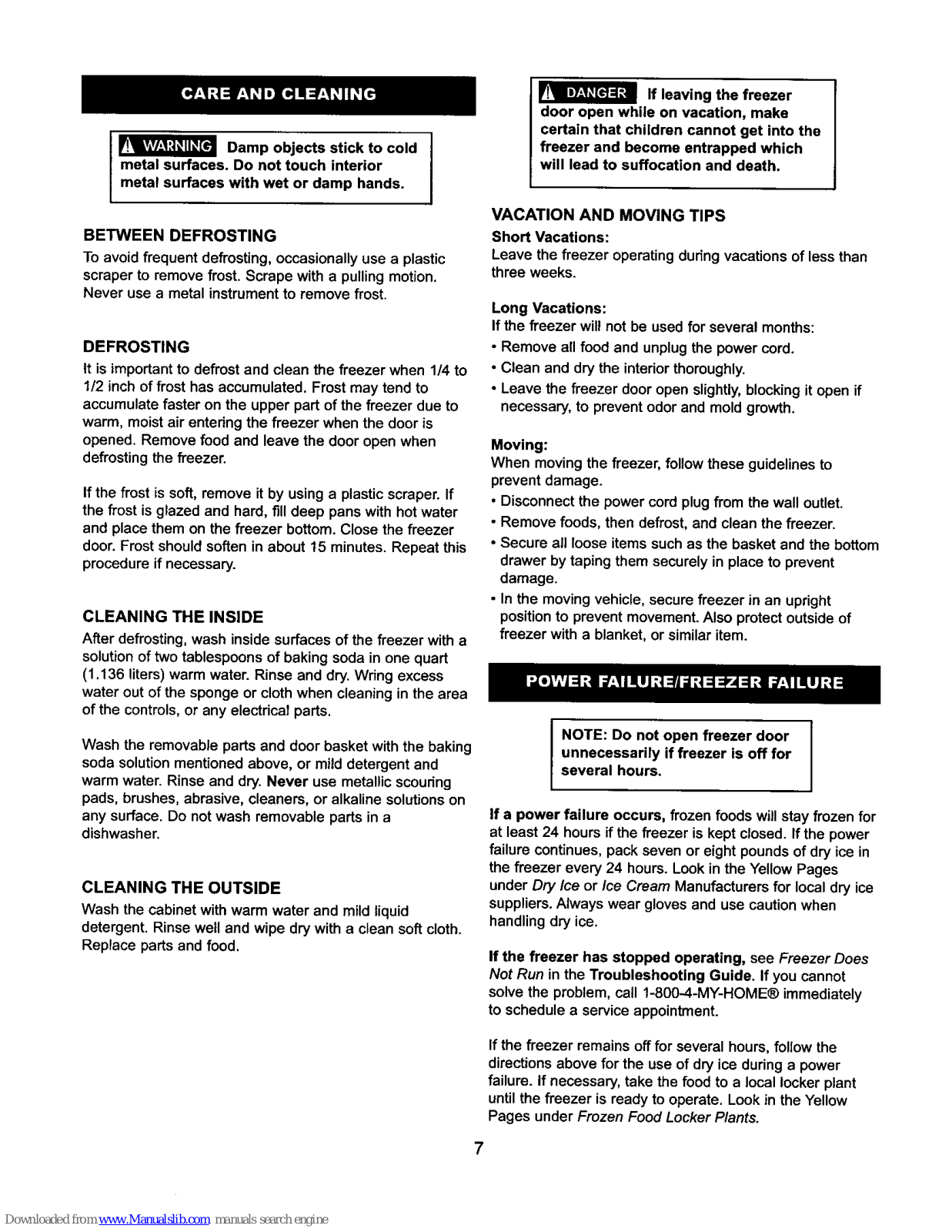

Page 7
Damp objects stick to cold I
metal surfaces. Do not touch interior
I
meta surfaces w th wet or damp hands.
BETWEEN DEFROSTING
To avoid frequent defrosting, occasionally use a plastic
scraper to remove frost. Scrape with a pulling motion.
Never use a metal instrument to remove frost.
DEFROSTING
It is important to defrost and clean the freezer when 1/4 to
1/2 inch of frost has accumulated. Frost may tend to
accumulate faster on the upper part of the freezer due to
warm, moist air entedng the freezer when the door is
opened. Remove food and leave the door open when
defrosting the freezer.
Ifthe frost is soft, remove itby using a plastic scraper. If
the frost is glazed and hard, fill deep pans with hot water
and place them on the freezer bottom. Close the freezer
door. Frost should soften in about 15 minutes. Repeat this
procedure if necessary.
CLEANING THE INSIDE
After defrosting, wash inside surfaces of the freezer with a
solution of two tablespoons of baking soda in one quart
(1.136 liters) warm water. Rinse and dry. Wring excess
water out of the sponge or cloth when cleaning in the area
of the controls, or any electrical parts.
Wash the removable parts and door basket with the baking
soda solution mentioned above, or mild detergent and
warm water. Rinse and dry. Never use metallic scoudng
pads, brushes, abrasive, cleaners, or alkaline solutions on
any surface. Do not wash removable parts in a
dishwasher.
CLEANINGTHEOUTSIDE
Wash the cabinet with warm water and mild liquid
detergent. Rinse well and wipe dry with a clean soft cloth.
Replace parts and food.
If leaving the freezer
door open while on vacation, make
certain that children cannot get into the
freezer and become entrapped which
will lead to suffocation and death.
VACATION AND MOVING TIPS
Short Vacations:
Leave the freezer operatingduringvacations of lessthan
three weeks.
Long Vacations:
If the freezer will not be used for several months:
• Remove all food and unplug the power cord.
• Clean and dry the interior thoroughly.
• Leave the freezer door open slightly, blocking it open if
necessary, to prevent odor and mold growth.
Moving:
When moving the freezer, follow these guidelines to
prevent damage.
• Disconnect the power cord plug from the wall outlet.
• Remove foods, then defrost, and clean the freezer.
• Secure all loose items such as the basket and the bottom
drawer by taping them securely in place to prevent
damage.
• In the moving vehicle, secure freezer in an upright
position to prevent movement. Also protect outside of
freezer with a blanket, or similar item.
[
NOTE: Do not open freezer door J
unnecessarily if freezer is off for
I
several hours.
If a power failure occurs, frozen foods will stay frozen for
at least 24 hoursif the freezer is kept closed. Ifthe power
failure continues,pack sevenor eightpounds of dryice in
the freezer every 24 hours. Look inthe Yellow Pages
under Dry Ice or Ice Cream Manufacturers for localdry ice
suppliers.Always wear glovesand use cautionwhen
handlingdry ice.
If the freezer has stopped operating, see Freezer Does
Not Run in the Troubleshooting Guide. If you cannot
solve the problem,call 1-800-4-MY-HOME@ immediately
to schedulea serviceappointment.
If the freezer remains offfor several hours, follow the
directions above for the use of dry ice during a power
failure. If necessary, take the food to a local locker plant
until the freezer is ready to operate. Look in the Yellow
Pages under Frozen Food Locker Plants.
7

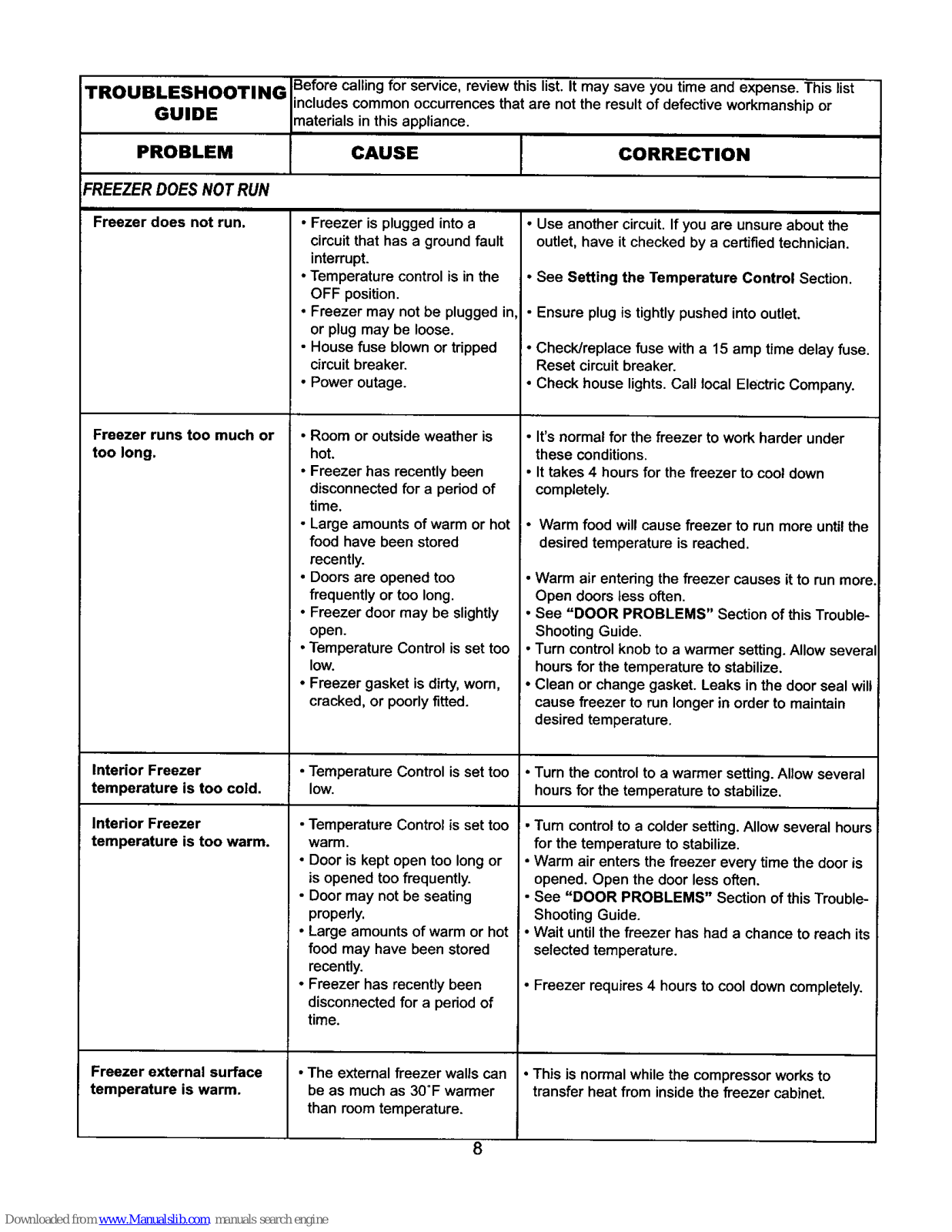

Page 8
TROUBLESHOOTI NG
GUIDE
3efore callingfor service, review this list. It may save you time and expense. Thislist
ncludes common occurrences that are not the result of defective workmanship or
"naterials in this appliance.
PROBLEM CAUSE CORRECTION
FREEZER DOES NOT RUN
Freezer does not run.
Freezer runs too much or
too long,
• Freezer is plugged into a
circuit that has a ground fault
interrupt.
• Temperature control is in the
OFF position.
• Freezer may not be plugged in,
or plug may be loose.
• House fuse blown or tripped
circuit breaker.
• Power outage.
• Room or outside weather is
hot.
• Freezer has recently been
disconnected for a period of
time.
• Large amounts of warm or hot
food have been stored
recently.
• Doors are opened too
frequently or too long.
• Freezer door may be slightly
open.
•Temperature Control is set too
low.
• Freezer gasket is dirty, worn,
cracked, or poorly fitted.
• Use another circuit. Ifyou are unsure about the
outlet, have it checked by a certified technician.
• See Setting the Temperature Control Section.
• Ensure plug is tightly pushed into outlet.
• Check/replace fuse with a 15amp time delay fuse.
Reset circuit breaker.
Check house lights. Call local Electric Company.
It's normal for the freezer to work harder under
these conditions.
It takes 4 hours for the freezer to cool down
completely.
Warm food will cause freezer to run more untilthe
desired temperature is reached.
Warm air entering the freezer causes it to runmore
Open doorsless often.
See "DOOR PROBLEMS" Sectionof thisTrouble-
ShootingGuide.
Turn control knob to a warmer setting.Allow severa
hoursfor the temperatureto stabilize.
• Clean or change gasket. Leaks inthe doorseal will
cause freezer to run longer in order to maintain
desired temperature.
Interior Freezer • Temperature Controlis set too • Turn the control to a warmer setting.Allow several
temperature is too cold. low. hours for the temperatureto stabilize.
Interior Freezer
temperature is too warm.
Freezer external surface
temperature is warm.
•Temperature Controlis set too
warm.
• Door is kept open too long or
is opened too frequently.
• Door may not be seating
properly.
• Large amounts of warm or hot
food may have been stored
recently.
• Freezer has recently been
disconnected for a period of
time.
•The external freezer walls can
be as much as 30°F warmer
than room temperature.
• rum control to a colder setting. Allowseveral hours
for the temperature to stabilize.
• Warm air enters the freezer every time the dooris
opened. Open the door lessoften.
• See "DOOR PROBLEMS" Section of thisTrouble-
Shooting Guide.
• Wait untilthe freezer has had a chance to roachits
selectedtemperature.
• Freezer requires4 hours to cool down completely.
• This is normalwhilethe compressorworksto
transferheat from insidethe freezer cabinet.
8
Page 9
PROBLEM CAUSE CORRECTION
SOUND AND NOISE
Popping or cracking • Metal parts undergoexpansion • This is normal.Soundwill level off ordisappearas
sound when compressor and contraction,as in hot freezer continuesto run.
comes on. water pipes.
Bubbling or gurgling • Refrigerant(used to cool • This is normal.
sound, like boiling water, freezer) is circulating
throughoutthe system.
Vibrating or rattling noise. • Flooris unevenor weak. • Ensure floorcan adequately supportfreezer. Level
Freezer rockson floorwhen it the freezer by puttingwood or metal shimsunder
ismoved slightly, part of the freezer.
• Freezer istouchingthe wall. • Move freezer slightlyaway from the wall.
WATER/MOISTURE/FROST INSIDE FREEZER
Moisture forms on inside • Weather is hot and humid,
freezer walls, which increasesinternalrate of
frost build-up.
• Door may not be seating
properly.
• Door is keptopen too long, or
isopened toofi'equently.
• This is normal.
• See "DOOR PROBLEMS" Section of this Trouble
Shooting Guide.
• Open the door less often.
WATER/MOISTURE/FROST OUTSIDE FREEZER
Moisture forms on outside
of freezer,
• Door may not be seating
properly, causingthe cold air
from inside the freezer to meet
warm moistair from outside.
See "DOOR PROBLEMS" Section of thisTrouble
Shooting Guide.
ODORINFREEZER
Odor in freezer.
• Interiorneeds to be cleaned.
• Foods with strong odors are in
freezer.
• Clean interiorwith sponge,warm water, and baking
soda.
• Cover the food tightly.
DOORPROBLEMS
Door will not close.
• Floor is uneven or weak. • Level the floor by usingwood or metal shimsunder
Freezer rocks on floorwhen it the freezer or brace floor supporting the freezer.
is moved slightly.
9
Loading...
