Kenmore 95113 Installation Instructions

Installation Instructions Instrucciones de instalación Instructions d’installation

English/Español/Français

Kenmore®

Electric Range Estufa eléctrica Cuisinière électrique

P/N W11047687A

Sears Brands Management Corporation Hoffman Estates, IL 60179 U.S.A.

www.kenmore.com www.sears.com

Sears Canada Inc. Toronto, Ontario, Canada M5B 2C3

www.sears.ca

TABLE OF CONTENTS

RANGE SAFETY ....................................................................2

INSTALLATION REQUIREMENTS ..........................................3

Tools and Parts .................................................................................3

Location Requirements ...................................................................3

Electrical Requirements - U.S.A. Only ..........................................5

Electrical Requirements - Canada Only ......................................6

INSTALLATION INSTRUCTIONS ...........................................6

Unpack Range .................................................................................6

Install Anti-Tip Bracket ...................................................................6

Adjust Leveling Legs ...................................................................... 7

Level Range ......................................................................................8

Electrical Connection - U.S.A. Only .............................................8

Verify Anti-Tip Bracket Is InstalledandEngaged .................... 13

Remove/Replace Drawer ............................................................. 13

Oven Door...................................................................................... 13

Complete Installation .................................................................... 14

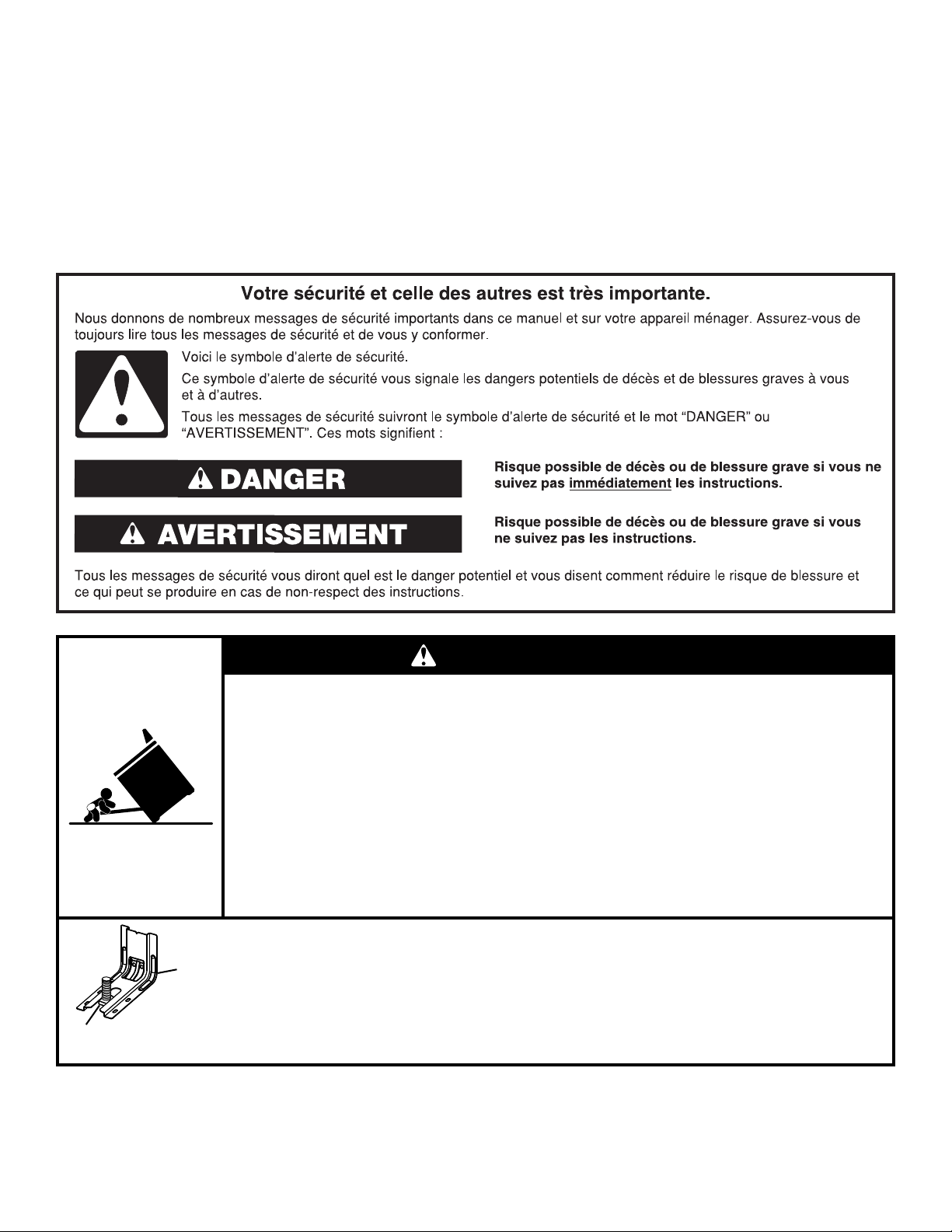

RANGE SAFETY

Your safety and the safety of others are very important.

We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages.

This is the safety alert symbol.

This symbol alerts you to potential hazards that can kill or hurt you and others.

All safety messages will follow the safety alert symbol and either the word “DANGER” or “WARNING.”

These words mean:

You can be killed or seriously injured if you don't immediately

DANGER

WARNING

follow instructions.

You

can be killed or seriously injured if you don't

instructions.

All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can happen if the instructions are not followed.

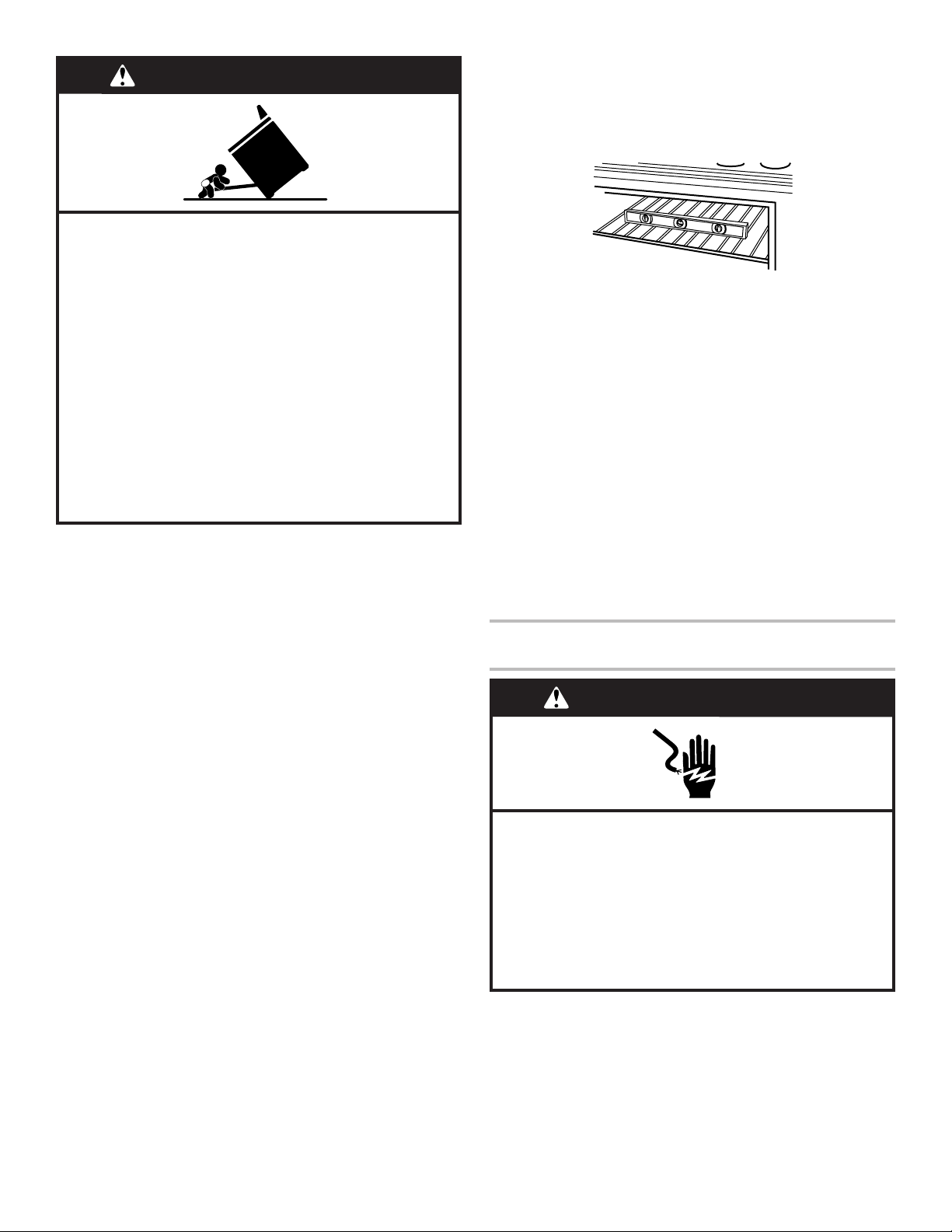

WARNING

Tip Over Hazard

A child or adult can tip the range and be killed.

Install anti-tip bracket to floor or wall per installation instructions.

Slide range back so rear range foot is engaged in the slot of the anti-tip bracket.

Re-engage anti-tip bracket if range is moved.

Do not operate range without anti-tip bracket installed and engaged.

Failure to follow these instructions can result in death or serious burns to children and adults.

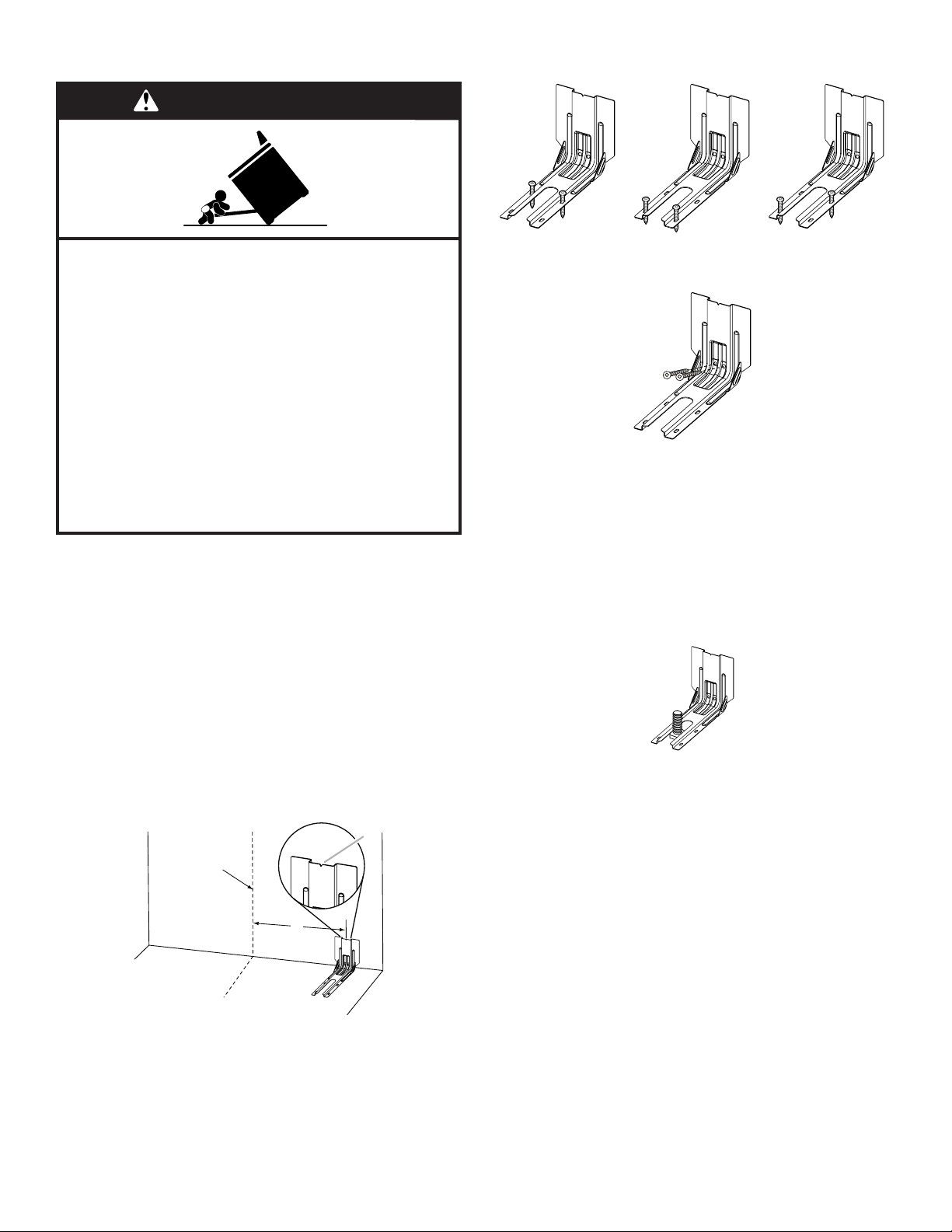

To verify the anti-tip bracket is installed and engaged:

Anti-Tip Bracket

Range Foot

• Slide range forward.

• Look for the anti-tip bracket securely attached to floor or wall.

• Slide range back so rear range foot is under anti-tip bracket.

• See installation instructions for details.

INSTALLATION REQUIREMENTS

Tools and Parts

Gather the required tools and parts before starting installation. Read and follow the instructions provided with any tools

listedhere.

Tools Needed

■ Tape measure

■ Flat-blade screwdriver

■ Phillips screwdriver

■ Level

■ Hand or electric drill

■ Wrench or pliers

■ Marker or pencil

■ Masking tape

Parts Supplied

Check that all parts are included.

■ 10-32 hex nuts (attached to terminal block) (3)

■ Direct wire lugs (3)

■ #10 x 1

/8" (4.1 cm) screws

(for mounting anti-tip bracket)(2)

■ Anti-tip bracket (inside oven cavity)

Anti-tip bracket must be securely mounted to the back wall or floor. Thickness of flooring may require longer screws to anchor bracket to subfloor. Longer screws are available from your local hardware store.

Parts Needed

If using a power supply cord kit:

■ A UL Listed power supply cord kit marked for use with

ranges. The cord should be rated at 250 volts minimum,

40or 50 amps, that is marked for use with nominal 13/8"

(3.5 cm) diameter connection opening and must end in ring

terminals or open-end spade terminals with upturnedends.

■ A UL Listed strain relief.

Check local codes. Check existing electrical supply. See the appropriate “Electrical Requirements” section.

It is recommended that all electrical connections be made by

a licensed, qualied electrical installer.

■

/4" (6.4 mm) drive ratchet

■

/4" (6.4 mm) nut driver

■

/8" (9.5 mm) and 5/16"

(8mm) nut driver

■

/8" (3.2 mm) drill bit

(forwood oors)

■ Tin snips or large wire

cutters (for cutting ground strap if necessary)

Location Requirements

IMPORTANT: Observe all governing codes and ordinances.

■ It is the installer’s responsibility to comply with installation

clearances specied on the model/serial/rating plate. The

model/serial/rating plate is located behind the oven door on the top right-hand side of the oven frame.

■ The range should be located for convenient use in

thekitchen.

■ Recessed installations must provide complete enclosure

ofthe sides and rear of the range.

■ All openings in the wall or oor where range is to be

installed must be sealed.

■ Cabinet opening dimensions that are shown must be used.

Given dimensions are minimum clearances.

■ The anti-tip bracket must be installed. To install the anti-tip

bracket shipped with the range, see the “Install Anti-Tip Bracket” section.

■ Grounded electrical supply is required. See the appropriate

“Electrical Requirements” section.

■ Contact a qualied oor covering installer to check that

theoor covering can withstand at least 200°F (93°C).

■ Use an insulated pad or

range if installing range over carpeting.

IMPORTANT: To avoid damage to your cabinets, check with your builder or cabinet supplier to make sure that the materials used will not discolor, delaminate, or sustain other damage. This oven has been designed in accordance with

therequirements of UL and CSA International and complies

with the maximum allowable wood cabinet temperatures of

194°F (90°C).

Mobile Home - Additional Installation Requirements

The installation of this range must conform to the Manufactured Home Construction and Safety Standard, Title

24 CFR, Part 3280 (formerly the Federal Standard for Mobile

Home Construction and Safety, Title 24, HUD Part 280). When such standard is not applicable, use the Standard for

Manufactured Home Installations, ANSI A225.1/NFPA 501A orlocal codes.

In Canada, the installation of this range must conform with

thecurrent standards CAN/CSA - A240 - latest edition or withlocal codes.

/4" (0.64 cm) plywood under

Mobile Home Installations Require:

■ When this range is installed in a mobile home, it must be

secured to the oor during transit. Any method of securing

the range is adequate as long as it conforms to the standards listed above.

■ Four-wire power supply cord or cable must be used in a

mobile home installation. The appliance wiring will need

tobe revised. See the “Electrical Connection - U.S.A. Only”

section.

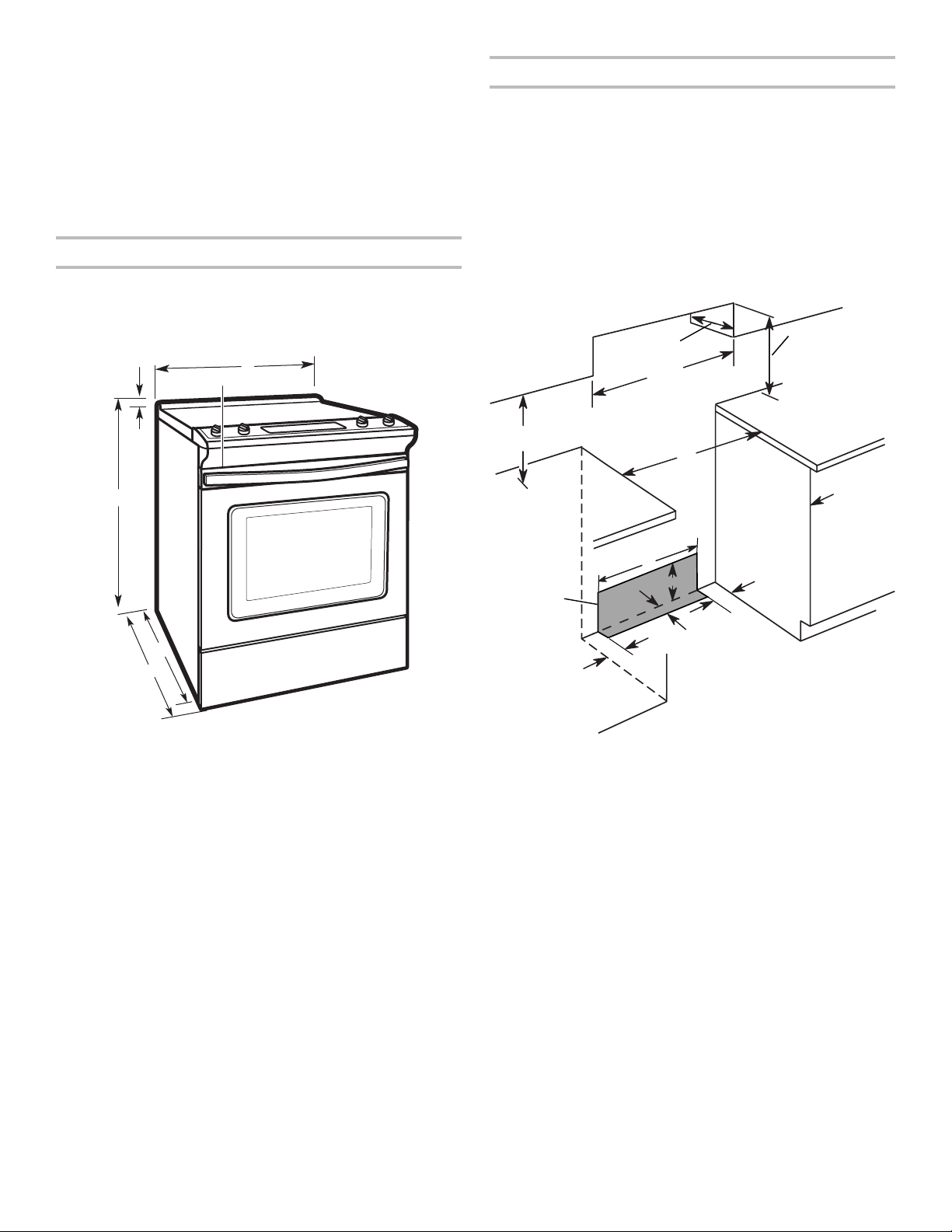

Product Dimensions

Cabinet Dimensions

Cabinet opening dimensions shown are for 25" (64.0 cm) countertop depth, 24" (61.0 cm) base cabinet depth, and

36"(91.4 cm) countertop height.

IMPORTANT: If installing a range hood or microwave hood combination above the range, follow the range hood or microwave hood combination installation instructions for dimensional clearances above the cooktop surface.

Range may be installed next to combustible walls with

zeroclearance.

This manual covers several models. Your model may appear

dierent from the models depicted. Dimensions given are

maximum dimensions across all models.

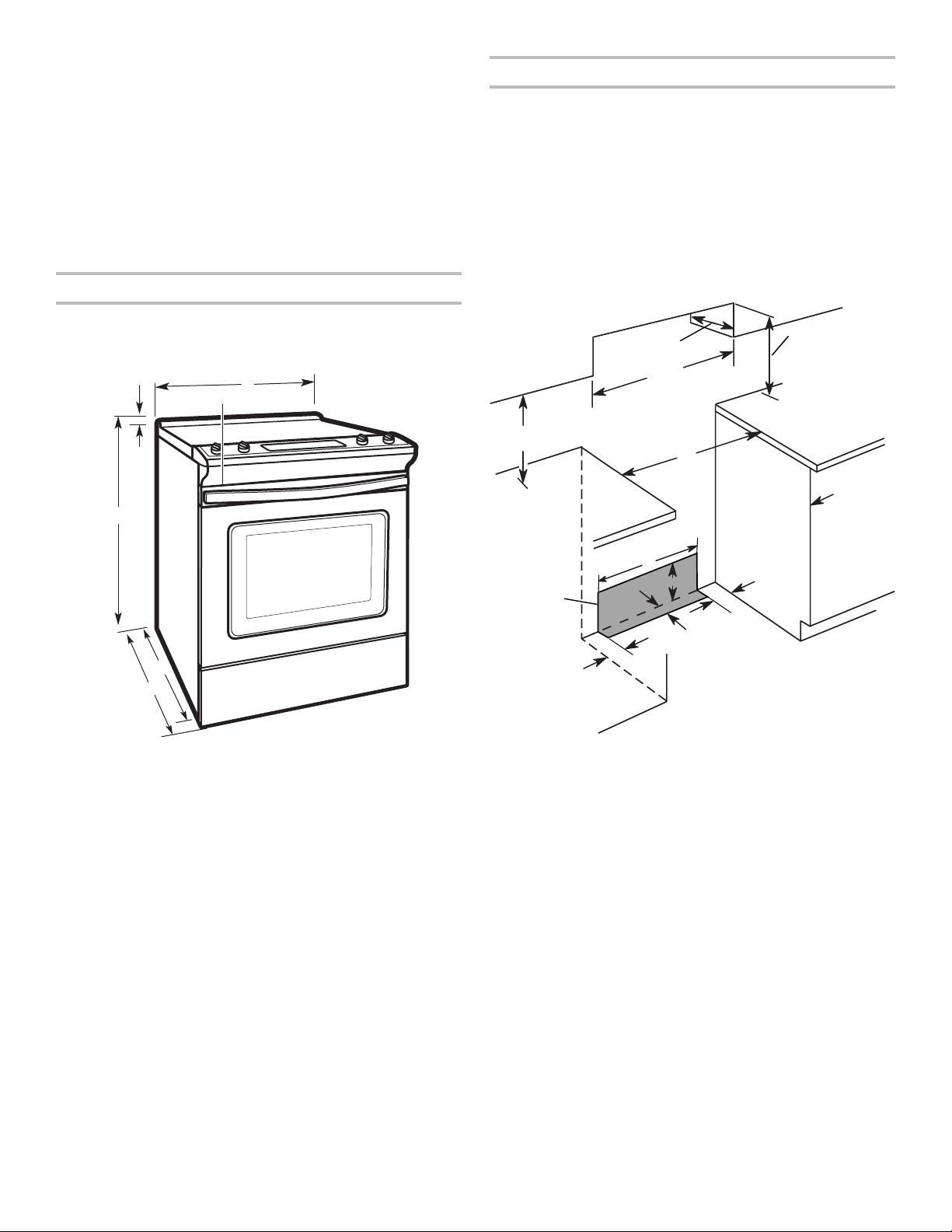

A. 13/16" (3.0 cm) height from

cooktop to top of vent

B. 297/8" (75.9 cm)

C. Model/serial/rating plate

(located behind the oven door on the top right-hand side of the oven frame)

D. 36" (91.4 cm) height to top of

cooktop edge with leveling legs screwed all the way in*

E. 2825/64" (72.1 cm) max. depth

from front of console to back of range

F. 291/64" (73.7 cm) max. depth

from handle to back of range

IMPORTANT: Range must be level after installation. Follow the

instructions in the “Level Range” section. Using the cooktop as a reference for leveling the range is not recommended.

* Range can be raised approximately 1" (2.5 cm) by adjusting

the leveling legs.

A. 18" (45.7 cm) upper side cabinet to countertop B. 13" (33 cm) max. upper cabinet depth C. 30" (76.2 cm) min. opening width

D. For minimum clearance to top of cooktop, see NOTE.

E. 30" (76.2 cm) min. opening width

F. The shaded area is recommended for installation of grounded outlet.

G. 131/8" (33.3 cm) H. 711/16" (19.5 cm) I. 413/16" (12.2 cm) J. 311/16" (9.4 cm) K. Cabinet door or hinges should not extend into the cutout.

NOTE: 24" (61.0 cm) minimum when bottom of wood or metal cabinet is shielded by not less than 1/4" (0.64 cm)

ame-retardant millboard covered with not less than No.28

MSG sheet steel, 0.015" (0.4 mm) stainless steel, 0.024"

(0.6mm) aluminum, or 0.020" (0.5 mm) copper.

30" (76.2 cm) minimum clearance between the top of the cooking platform and the bottom of an uncovered wood

ormetal cabinet.

Electrical Requirements - U.S.A. Only

If codes permit and a separate ground wire is used, it is

recommended that a qualied electrical installer determine

that the ground path and wire gauge are in accordance with local codes.

Do not use an extension cord. Be sure that the electrical connection and wire size are

adequate and in conformance with the National Electrical

Code, ANSI/NFPA 70 - latest edition and all local codes and

ordinances. A copy of the above code standards can be obtained from:

National Fire Protection Association

1 Batterymarch Park

Quincy, MA 02169-7471

WARNING: Improper connection of the equipment-grounding conductor can result in a risk of electric shock. Check with a

qualied electrician or service technician if you are in doubt as

to whether the appliance is properly grounded. Do not modify

the power supply cord plug. If it will not t the outlet, have a proper outlet installed by a qualied electrician.

■ A UL Listed conduit connector must be provided at each

end of the power supply cable (at the range and at the junction box).

■ Wire sizes and connections must conform with the rating

ofthe range.

■ The tech sheet and wiring diagram are located on the back

of the range in a plastic bag.

If Connecting to a 3-Wire System:

Local codes may permit the use of a UL Listed, 3-wire, 250-volt, 40- or 50-amp range power supply cord (pigtail). This cord contains 3 copper conductors with ring terminals or open-end spade terminals with upturned ends, terminating in a NEMA Type 10-50P plug on the supply end. Connectors on the appliance end must be provided at the point the power supply cord enters the appliance. This uses a 3-wire receptacle of NEMA Type 10-50R.

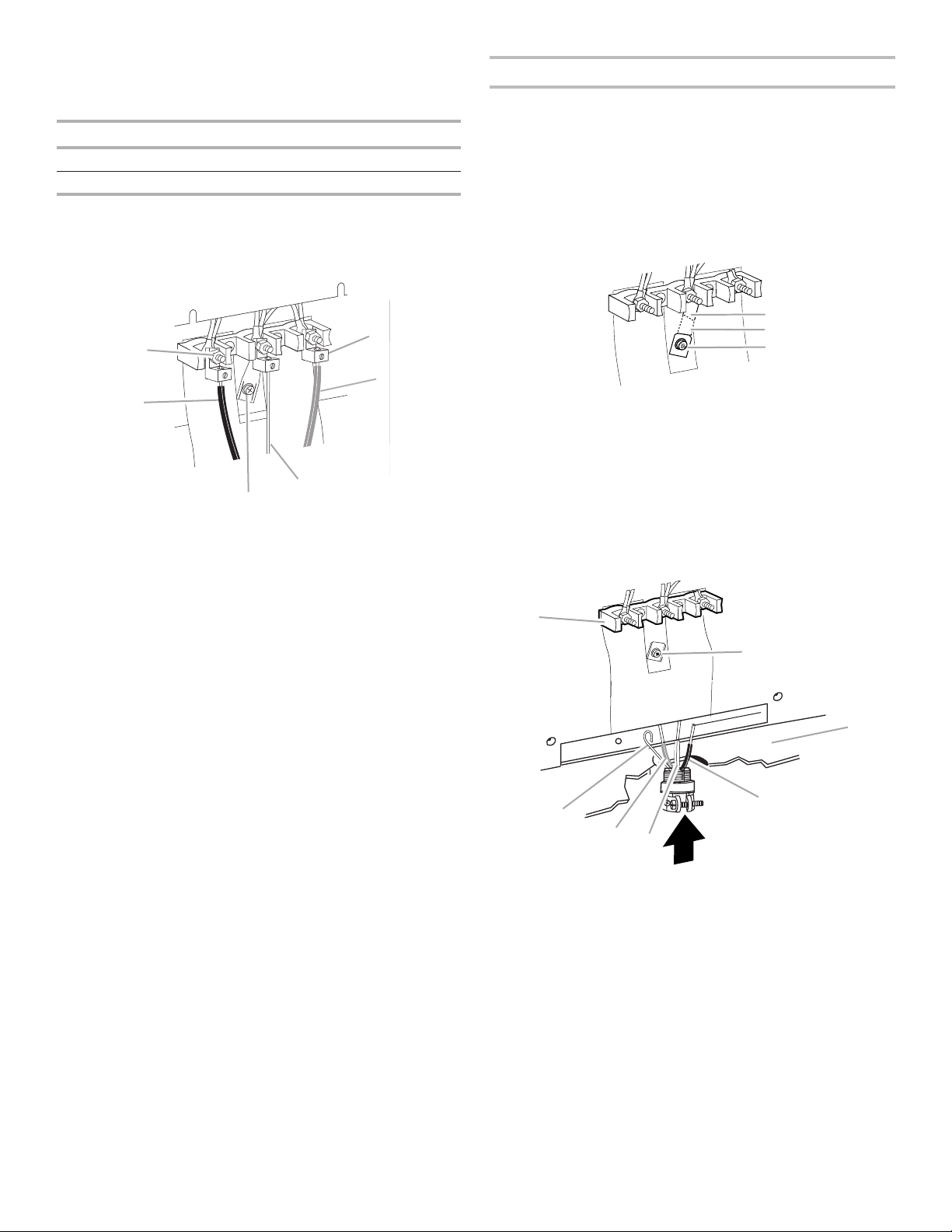

Electrical Connection

To properly install your range, you must determine the type of electrical connection you will be using and follow the instructions provided for it here.

■ Range must be connected to the proper electrical voltage

and frequency as specied on the model/serial/rating

plate. The model/serial/rating plate is located behind the oven door on the top right-hand side of the oven frame.

■ This range is manufactured with the neutral terminal

connected to the cabinet. Use a 3-wire, UL Listed, 40- or 50-amp power supply cord (pigtail). See the following Range Rating chart. If local codes do not permit ground through the neutral, use a 4-wire power supply cord rated at 250 volts, 40 or 50 amps and investigated for use

withranges.

Range Rating* Specified Rating of

Power Supply Cord Kit and Circuit Protection

120/240 Volts 120/208 Volts Amps

8.8 - 16.5 KW 7.8 - 12.5 KW 40 or 50**

16.6 - 22.5 KW 12.6 - 18.5 KW 50

* The NEC calculated load is less than the total connected

load listed on the model/serial/rating plate.

** If connecting to a 50-amp circuit, use a 50-amp rated cord

with kit. For 50-amp rated cord kits, use kits that specify use

with a nominal 13/8" (3.5 cm) diameter connection opening.

■ A circuit breaker is recommended.

■ The range can be connected directly to the circuit breaker

box (or fused disconnect) through exible or nonmetallic

sheathed, copper, or aluminum cable. See the “Electrical Connection - U.S.A. Only” section.

■ Allow at least 6 ft (1.8 m) of slack in the line so that the

range can be moved if servicing is ever necessary.

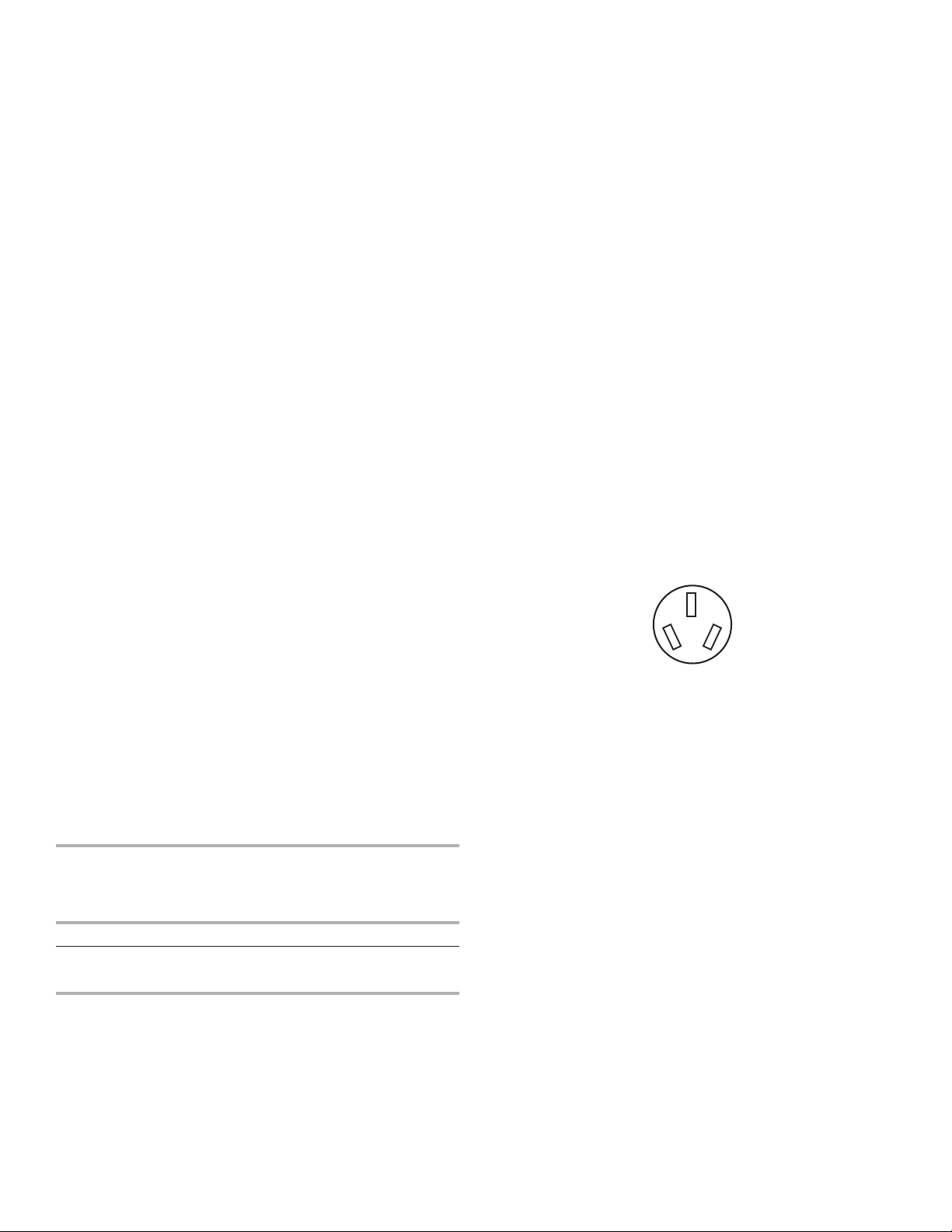

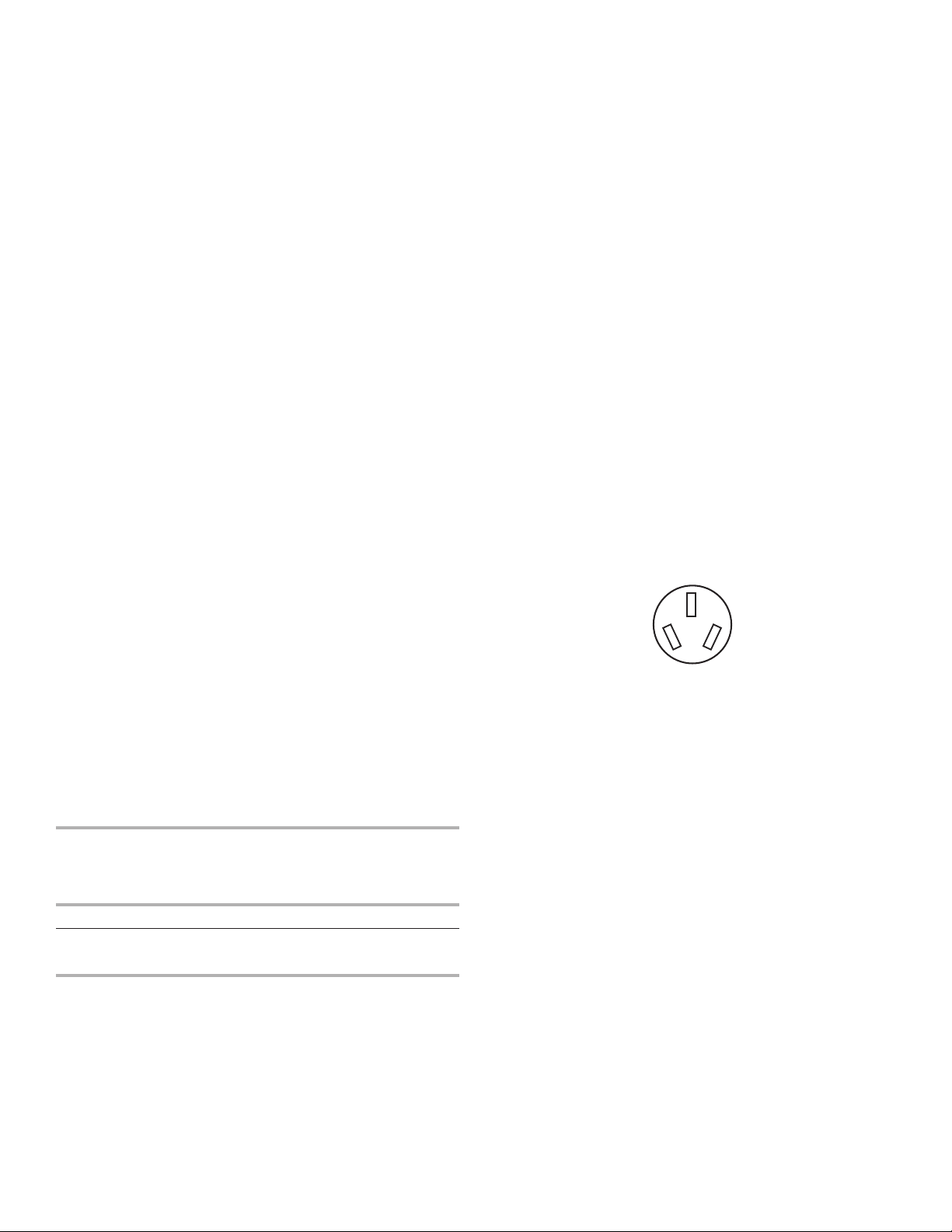

3-wire receptacle (10-50R)

If Connecting to a 4-Wire System:

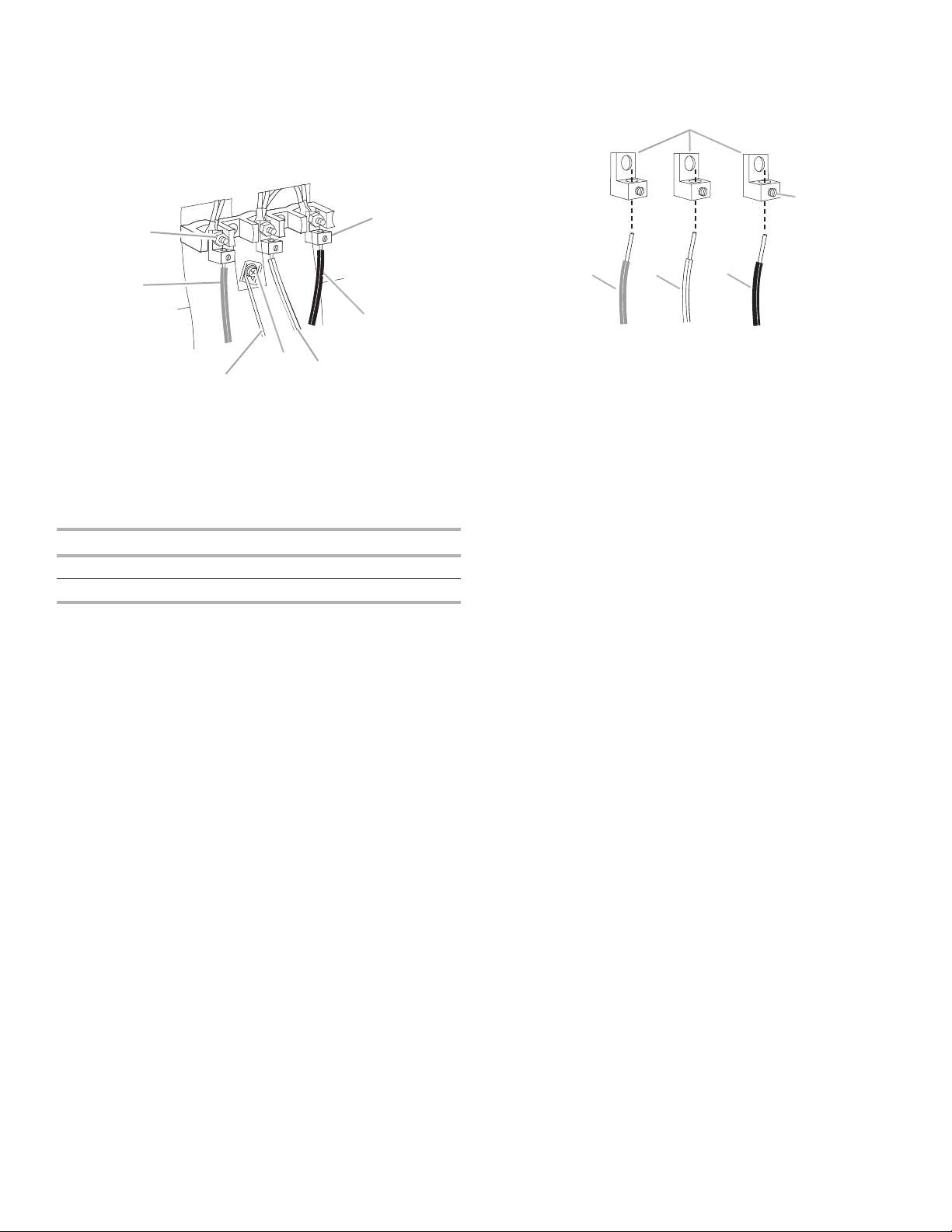

This range is manufactured with the ground connected to the neutral by a link. The ground must be revised so the green ground wire of the 4-wire power supply cord is connected to the cabinet. See the “Electrical Connection - U.S.A. Only” section.

Grounding through the neutral conductor is prohibited for new

branch-circuit installations (1996 NEC), mobile homes and

recreational vehicles, or an area where local codes prohibit grounding through the neutral conductor.

When a 4-wire receptacle of NEMA Type 14-50R is used, a matching UL Listed, 4-wire, 250-volt, 40- or 50-amp, range power supply cord (pigtail) must be used. This cord contains 4 copper conductors with ring terminals or open-end spade terminals with upturned ends, terminating in a NEMA Type 14-50P plug on the supply end.

The fourth (grounding) conductor must be identied by a green

or green/yellow cover and the neutral conductor by a white cover. Cord should be Type SRD or SRDT with a UL Listed strain relief and be at least 4 ft (1.22 m) long.

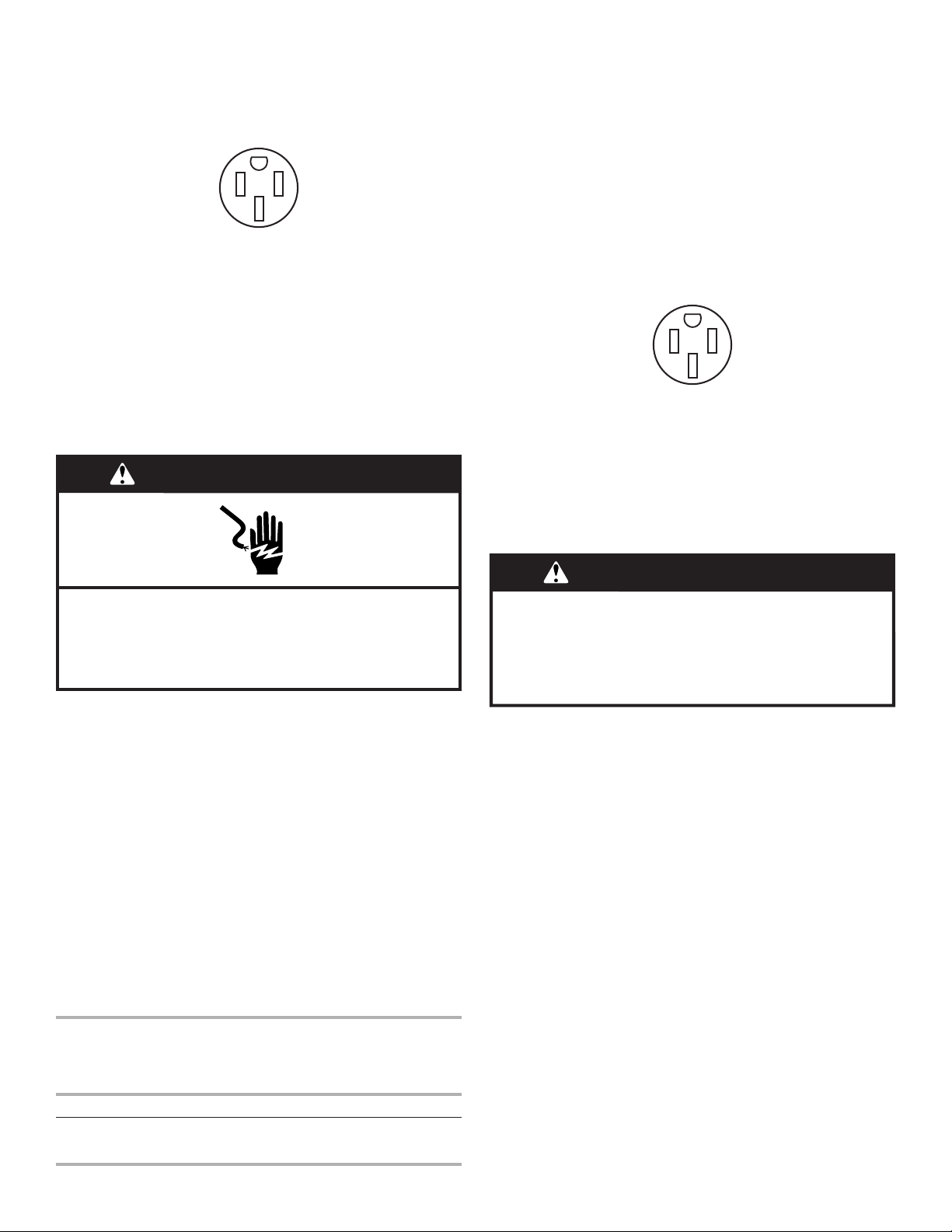

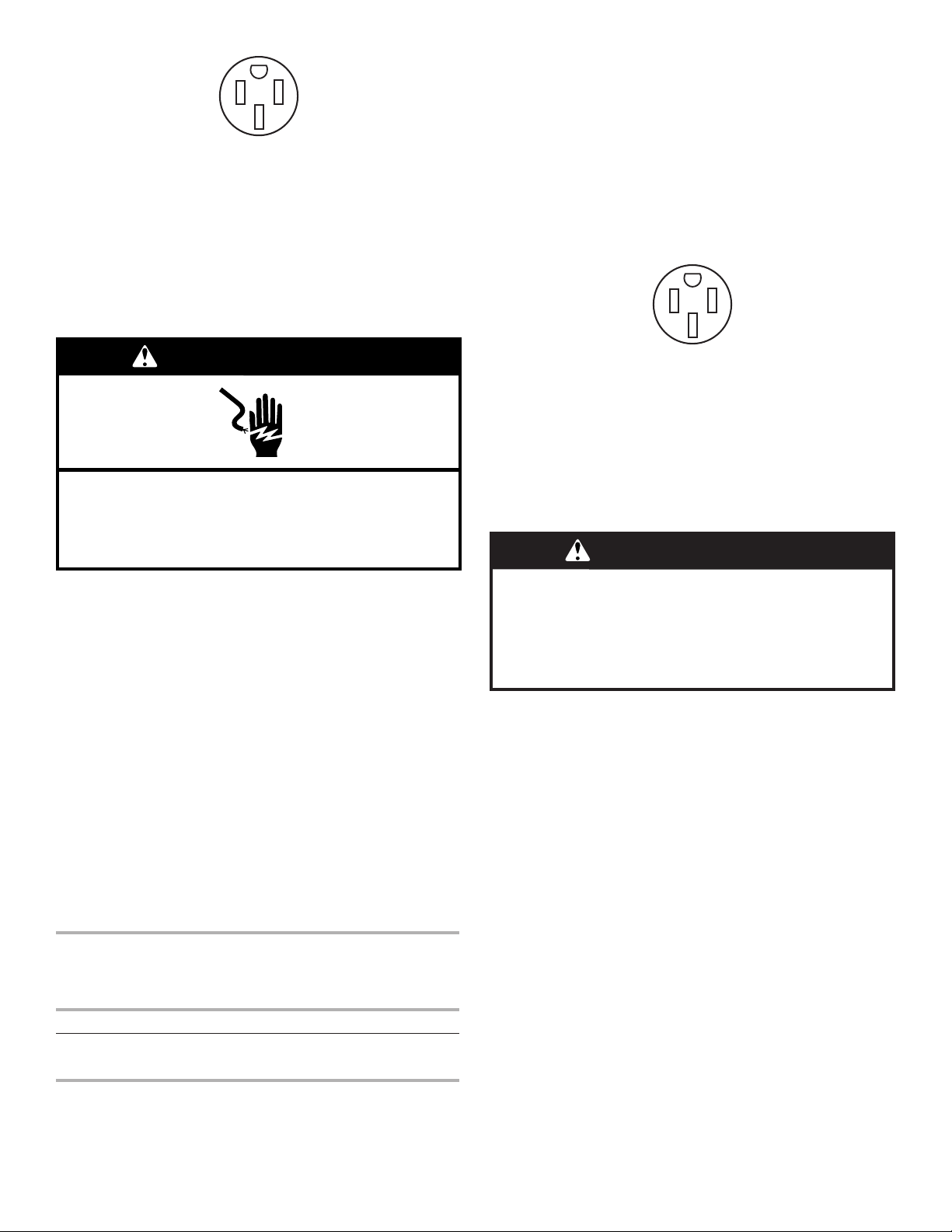

4-wire receptacle (14-50R)

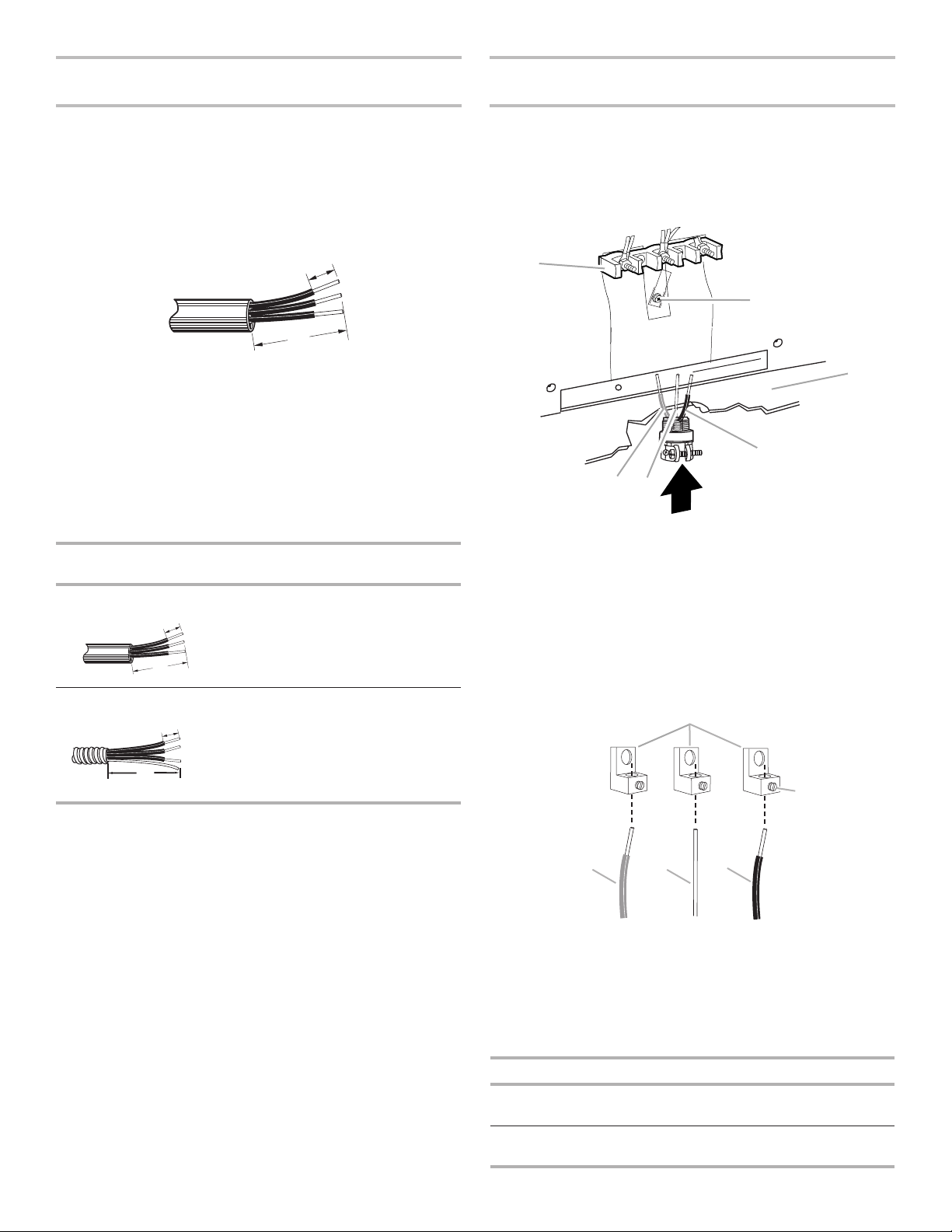

The minimum conductor sized for the copper 4-wire power cord are:

40-amp circuit 2 No.-8 conductors 1 No.-10 white neutral 1 No.-10 green grounding

Electrical Requirements - Canada Only

WARNING

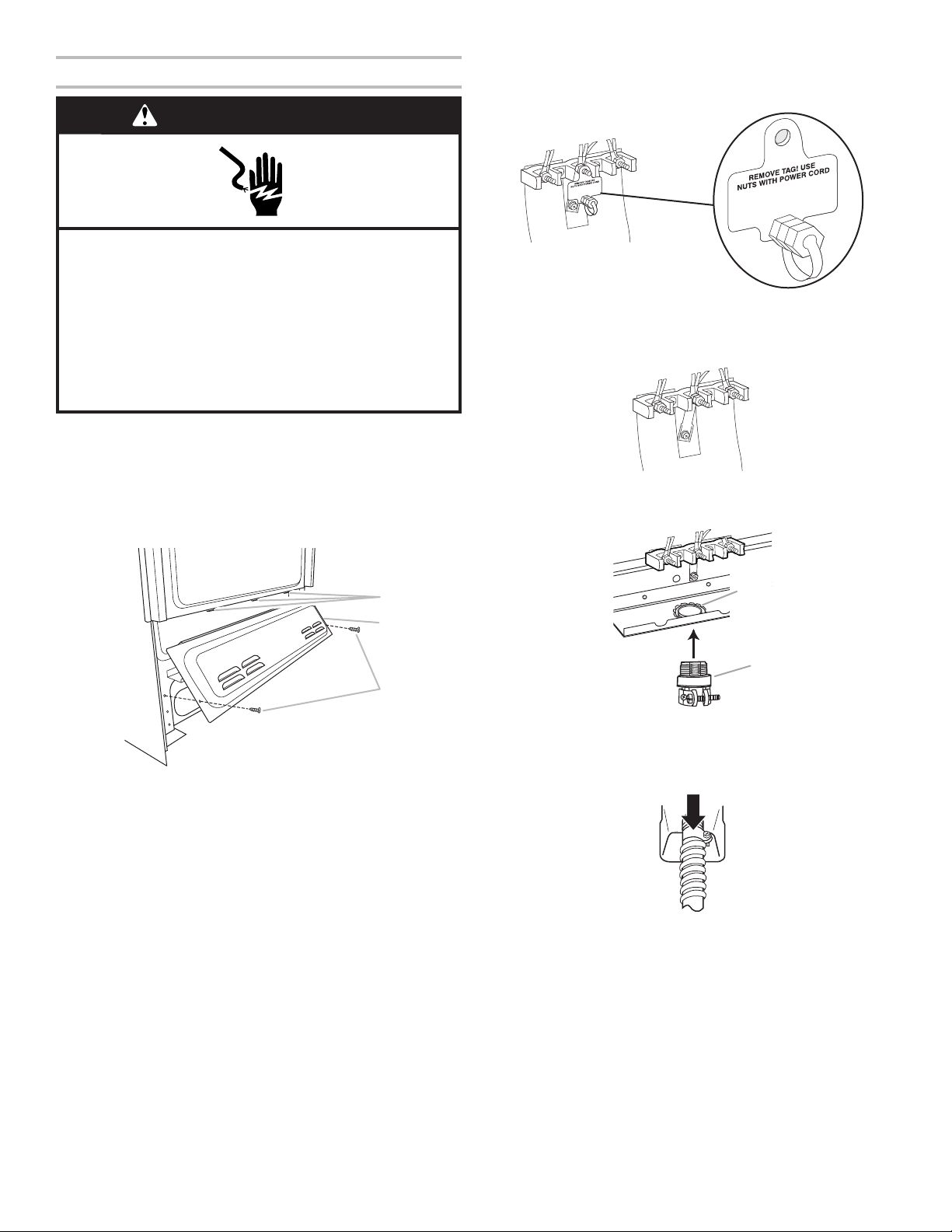

INSTALLATION INSTRUCTIONS

WARNING

Electrical Shock Hazard

Electrically ground range.

Failure to do so can result in death, fire, or electrical shock.

If codes permit and a separate ground wire is used, it is

recommended that a qualied electrical installer determine

that the ground path is adequate and both it and the wire gauge are in accordance with local codes.

Be sure that the electrical connection and wire size are adequate and in conformance with CSA Standard C22.1, Canadian Electrical Code, Part 1 - latest edition, and all local codes and ordinances.

A copy of the above code standards can be obtained from:

Canadian Standards Association

178 Rexdale Blvd.

Toronto, ON M9W 1R3 CANADA

■ Check with a qualied electrical installer if you are not sure

the range is properly grounded.

Range Rating* Specified Rating of

Power Supply Cord Kit and Circuit Protection

120/240 Volts 120/208 Volts Amps

8.8 - 16.5 KW 7.8 - 12.5 KW 40 or 50**

16.6 - 22.5 KW 12.6 - 18.5 KW 50

Unpack Range

Excessive Weight Hazard

Use two or more people to move and install range.

Failure to do so can result in back or other injury.

1. Remove shipping materials, tape, and lm from the range.

Keep cardboard bottom under range. Do not dispose of anything until the installation is complete.

2. Remove oven racks and parts package from oven and

shipping materials.

3. To remove cardboard bottom, rst take 4 cardboard

corners from the carton. Stack 1 cardboard corner on top of another. Repeat with the other 2 corners. Place them

lengthwise on the oor behind the range to support the

range when it is laid on its back.

4. Using 2 or more people, rmly grasp the range and gently

lay it on its back on the cardboard corners.

5. Remove cardboard bottom. The leveling legs can be adjusted while the range is on its

back. See the “Adjust Leveling Legs” section. NOTE: To place range back up into a standing position, put a

sheet of cardboard or hardboard on the oor in front of range to protect the ooring. Using 2 or more people, stand range

back up onto the cardboard or hardboard.

Install Anti-Tip Bracket

WARNING

* The NEC calculated load is less than the total connected

load listed on the model/serial/rating plate.

** If connecting to a 50-amp circuit, use a 50-amp rated cord

with kit. For 50-amp rated cord kits, use kits that specify use

with a nominal 13/8" (3.5 cm) diameter connection opening.

■ A circuit breaker is recommended.

■ This range is equipped with a CSA International Certied

Power Cord intended to be plugged into a standard 14-50R wall receptacle. Be sure the wall receptacle is within reach

of range’s nal location.

■ Do not use an extension cord.

■ The tech sheet and wiring diagram are located on the back

of the range in a plastic bag.

Tip Over Hazard

A child or adult can tip the range and be killed.

Install anti-tip bracket to floor or wall per installation instructions.

Slide range back so rear range foot is engaged in the slot of the anti-tip bracket.

Re-engage anti-tip bracket if range is moved.

Do not operate range without anti-tip bracket installed and engaged.

Failure to follow these instructions can result in death or serious burns to children and adults.

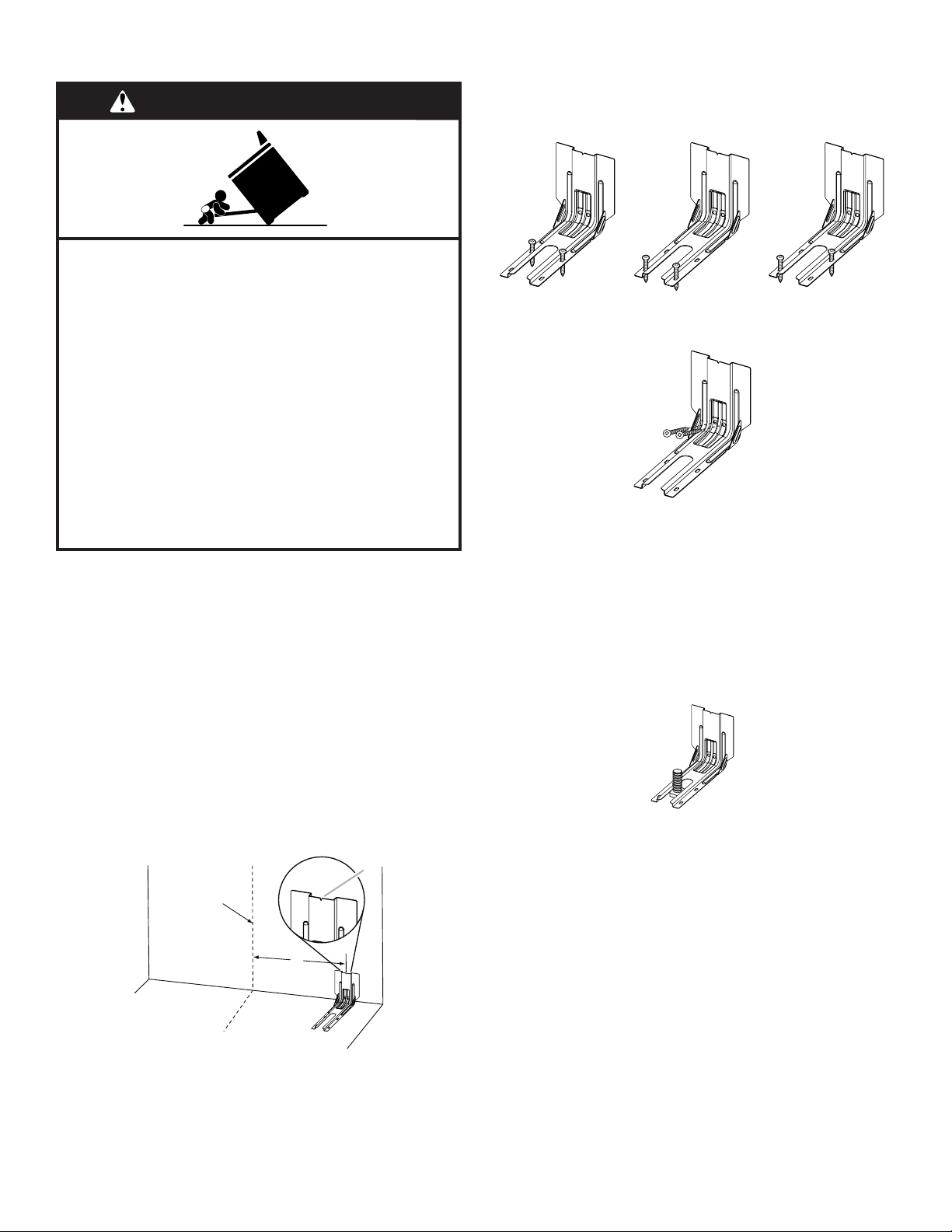

1. Remove the anti-tip bracket from the inside of the oven.

2. Determine which mounting method to use: oor or wall.

If you have a stone or masonry floor, you can use the wall-mounting method. If you are installing the range in

amobile home, you must secure the range to the floor.

This anti-tip bracket and screws can be used with wood

ormetal studs.

3. Determine and mark centerline of the cutout space. The

mounting bracket can be installed on either the left-hand

orright-hand side of the cutout. Position mounting bracket

against the wall in the cutout so that the V-notch of the bracket is 121/2" (31.8 cm) from centerline as shown.

Centerline

A. 121/2" (31.8 cm) B. Bracket V-notch

4. Drill two 1/8" (3 mm) holes that correspond to the bracket

holes of the determined mounting method. See the following illustrations.

Floor Mounting

8. Move range forward onto shipping base, cardboard,

orhardboard to continue installing the range, using thefollowing installation instructions.

Adjust Leveling Legs

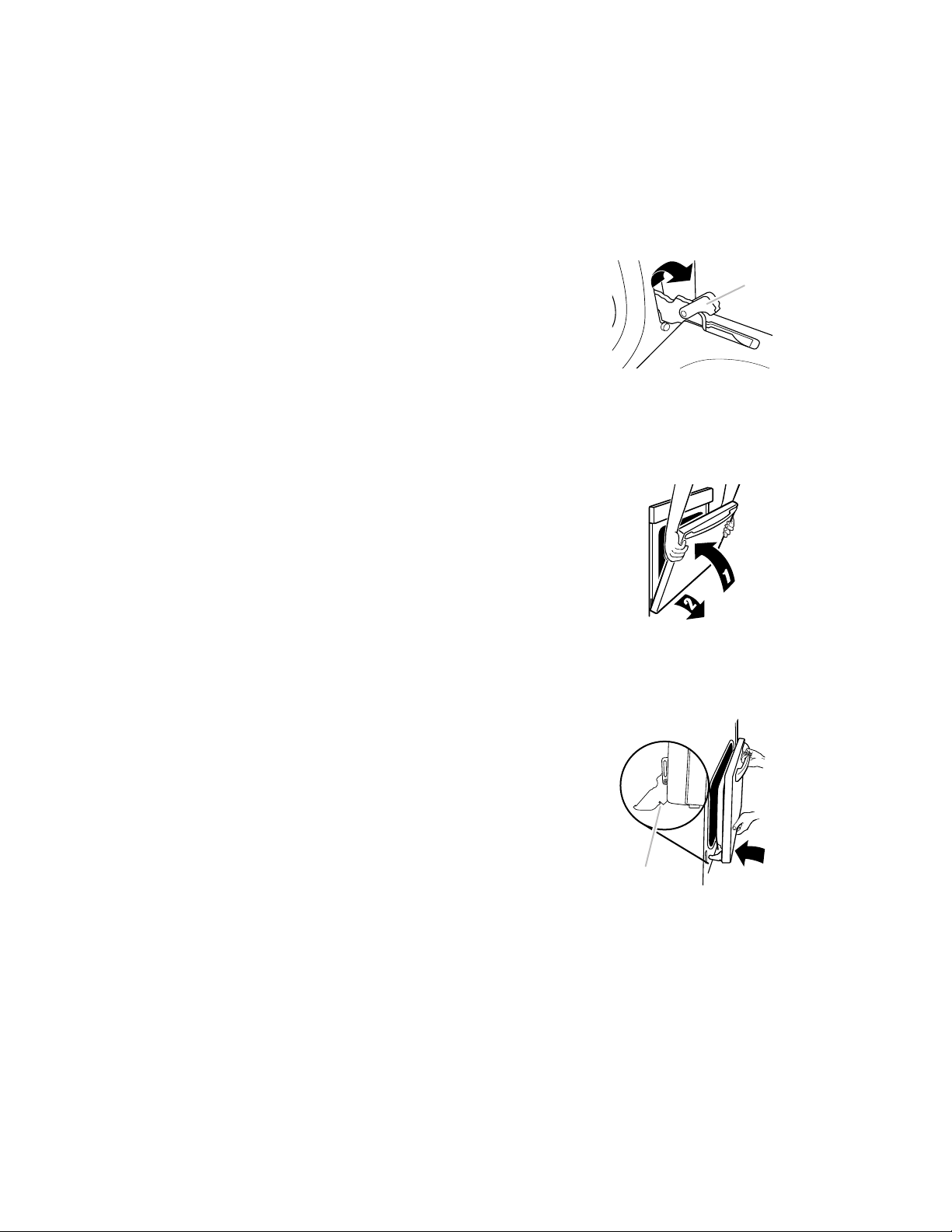

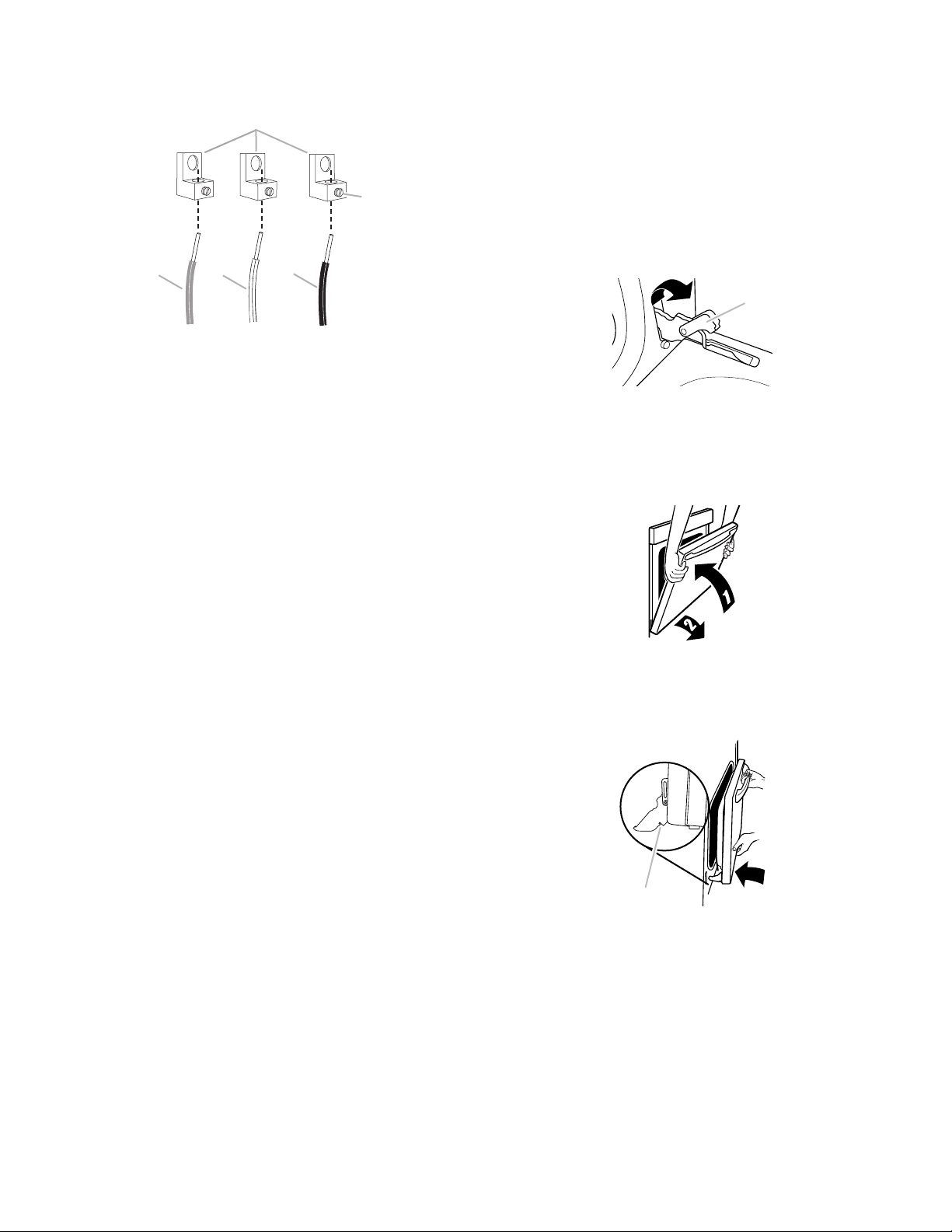

1. If range height adjustment is necessary, use a wrench

orpliers to loosen the 4 leveling legs.

This may be done with the range on its back or with the range supported on 2 legs after the range has been placed back to a standing position.

NOTE: To place range back up into a standing position, put a sheet of cardboard or hardboard in front of range. Using 2 or more people, stand range back up onto the cardboard or hardboard.

WARNING

Tip Over Hazard

A child or adult can tip the range and be killed.

Install anti-tip bracket to floor or wall per installation instructions.

Slide range back so rear range foot is engaged in the slot of the anti-tip bracket.

Re-engage anti-tip bracket if range is moved.

Do not operate range without anti-tip bracket installed and engaged.

Failure to follow these instructions can result in death or serious burns to children and adults.

Rear position Front position

Diagonal (2 options)

Wall Mounting

5. Using the two #10 x 15/8" (4.1 cm) Phillips-head screws

provided, mount anti-tip bracket to the wall or oor.

6. Move range close enough to opening to allow for nal

electrical connections. Remove shipping base, cardboard,

orhardboard from under range.

7. Move range into its nal location, making sure rear leveling

leg slides into anti-tip bracket.

2. Measure the distance from the top of the counter to

theoor.

3. Measure the distance from the top of the cooktop to the

bottom of the leveling legs. This distance should be the same. If it is not, adjust the leveling legs to the correct height. The leveling legs can be loosened to add up to a maximum of 1" (2.5 cm). A minimum of 3/16" (5 mm)

isneeded to engage the anti-tip bracket.

NOTE: If height adjustment is made when range is standing, tilt the range back to adjust the front legs, and then tilt forward to adjust the rear legs.

4. When the range is at the correct height, check that there

is adequate clearance under the range for the anti-tip

bracket. Before sliding range into its nal location, check

that the anti-tip bracket will slide under the range and onto the rear leveling leg prior to anti-tip bracket installation.

NOTE: If a Trim Kit will be used, the top of the cooktop should be higher than the counter. See the Installation Instructions included with the Trim Kit for the correct height.

Level Range

1. Place a standard at rack in oven.

2. Place level on the rack and check levelness of the range,

rst side to side, then front to back.

3. If range is not level, pull range forward until rear leveling

leg is removed from the anti-tip bracket.

4. Use a 1/4" drive ratchet, wrench, or pliers to adjust leveling

legs up or down until the range is level. Push range back into position. Check that rear leveling leg is engaged in the anti-tip bracket.

Electrical Connection - U.S.A. Only

If your home has a 3- or 4-wire receptacle, continue with “Install Using a Power Supply Cord.” If your home has a 3- or 4-wire direct connection, go to “Install Using Direct Wire.”

Install Using a Power Supply Cord

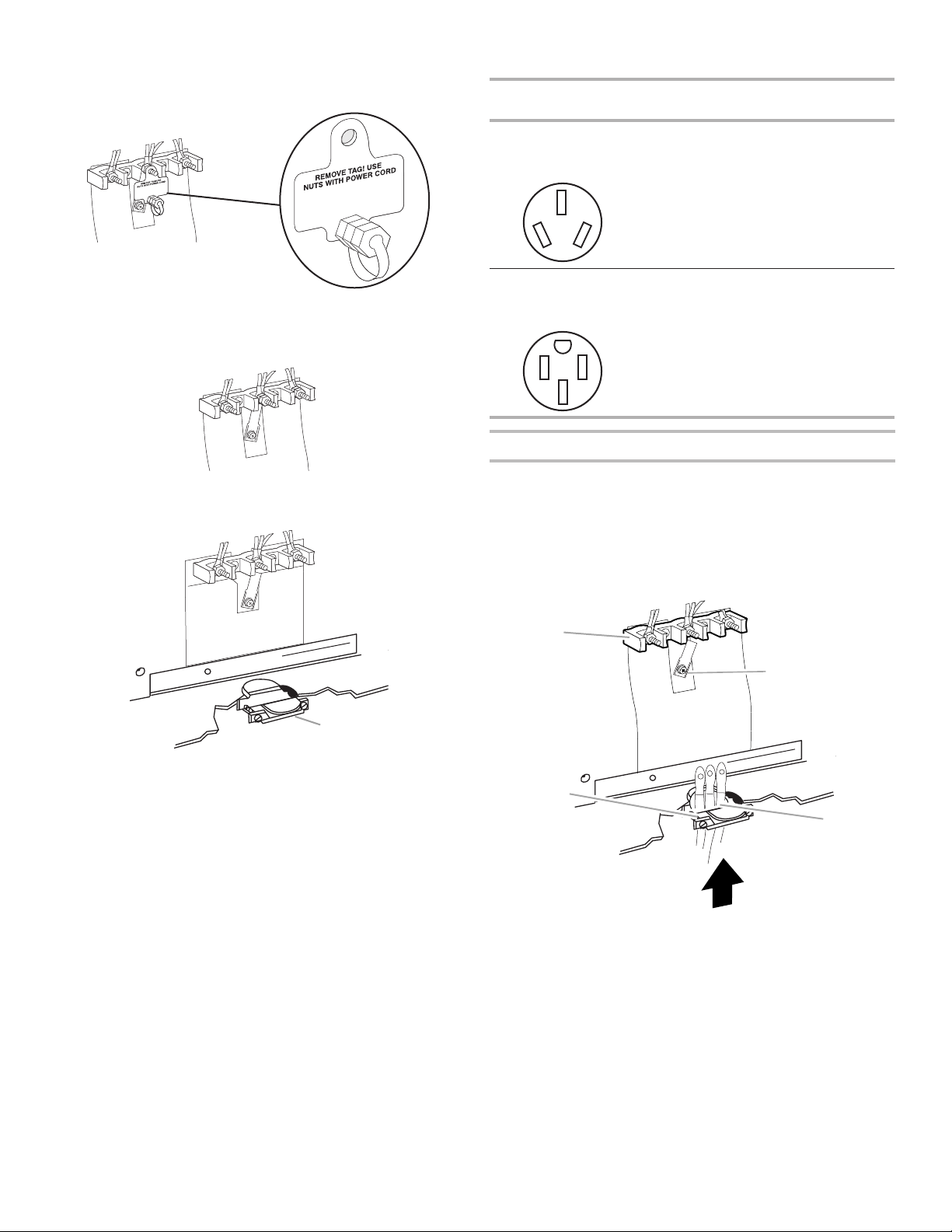

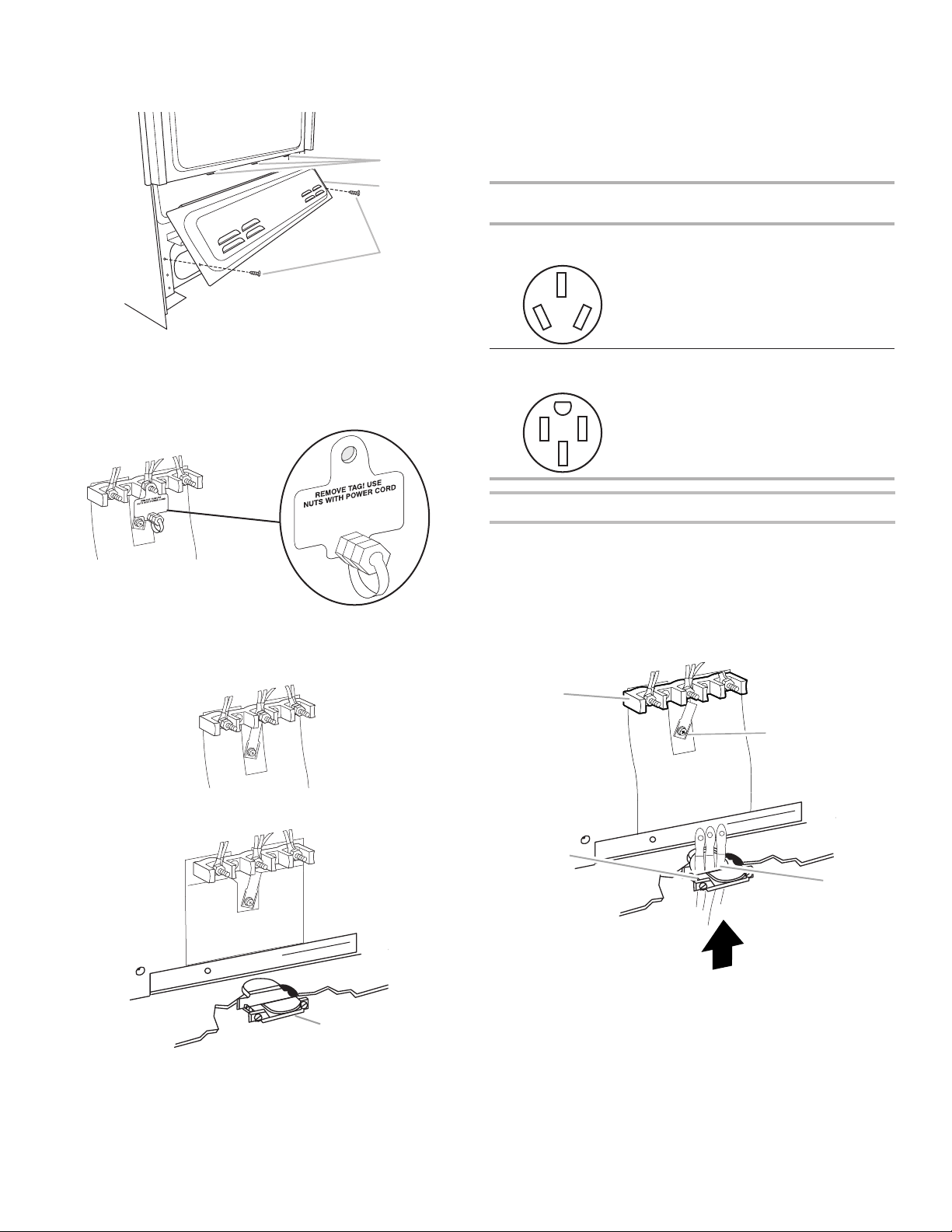

3. Depending on your model, remove plastic tag holding three

10-32 hex nuts from the middle post of the terminal block.

Remove the top 10-32 hex nut from each of the 3 terminal blocks and set aside.

4. Assemble a UL Listed strain relief in the opening.

WARNING

Electrical Shock Hazard

Disconnect power before servicing.

Use a new 40 amp power supply cord.

Plug into a grounded outlet.

Failure to follow these instructions can result in death, fire, or electrical shock.

Power Supply Cord Strain Relief

1. Disconnect power.

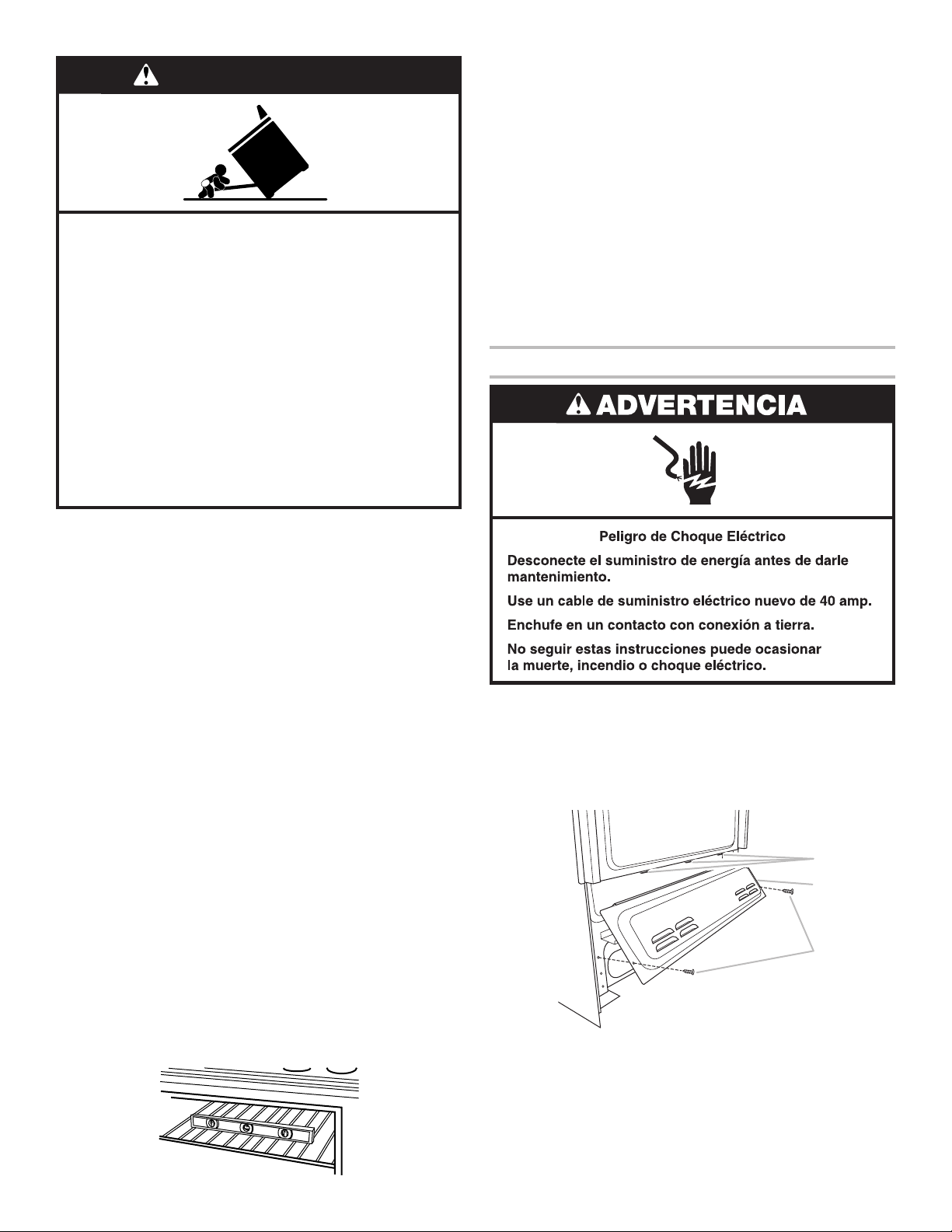

2. Remove the lower access cover screws located on the back

of the range. Pull the bottom of the cover toward you and out to remove cover from range.

A. UL Listed strain relief

5. Complete installation following instructions for your type

ofelectrical connection:

4-wire (recommended) 3-wire (if 4-wire is not available)

A. Mounting tabs (3) B. Lower access cover C. Screws (2)

Electrical Connection Options

If your home has: And you will be

Go to section:

connecting to:

3-wire receptacle (NEMA type 10-50R)

A UL Listed, 250-volt minimum,

3-Wire Connection: Power

Supply Cord 40- or 50-amp range power supply cord

4-wire receptacle (NEMA type 14-50R)

A UL Listed, 250-volt minimum,

4-Wire

Connection: Power

Supply Cord 40- or 50-amp range power supply cord

3-Wire Connection: Power Supply Cord

Use this method only if local codes permit connecting chassis ground conductor to neutral wire of power supply cord.

1. Feed the power supply cord through the strain relief on the

cord/conduit plate on bottom of range. Allow enough slack to easily attach the wiring to the terminal block.

2. Use 3/8" (1.0 cm) nut driver to connect the neutral (white)

wire to the center terminal block post with 1 of the 10-32 hex nuts.

A. 10-32 hex nut B. Line 2 (red) wire C. Ground-link screw

D. Neutral (white) wire E. Line 1 (black) wire

3. Connect line 2 (red) and line 1 (black) wires to the outer

terminal block posts with 10-32 hex nuts.

4. Firmly tighten hex nuts. NOTE: For power supply cord replacement, use only a

power cord rated at 250 volts minimum, 40 or 50 amps, that is marked for use with nominal 13/8" (3.5 cm) diameter connection opening, with ring terminals and marked for use with ranges.

5. Tighten strain relief screws. IMPORTANT: Verify the tightness of the hex nuts.

6. Replace lower access cover.

4-Wire Connection: Power Supply Cord

Use this method for:

■ New branch-circuit installations (1996 NEC)

■ Mobile homes

■ Recreational vehicles

■ In an area where local codes prohibit grounding through

the neutral

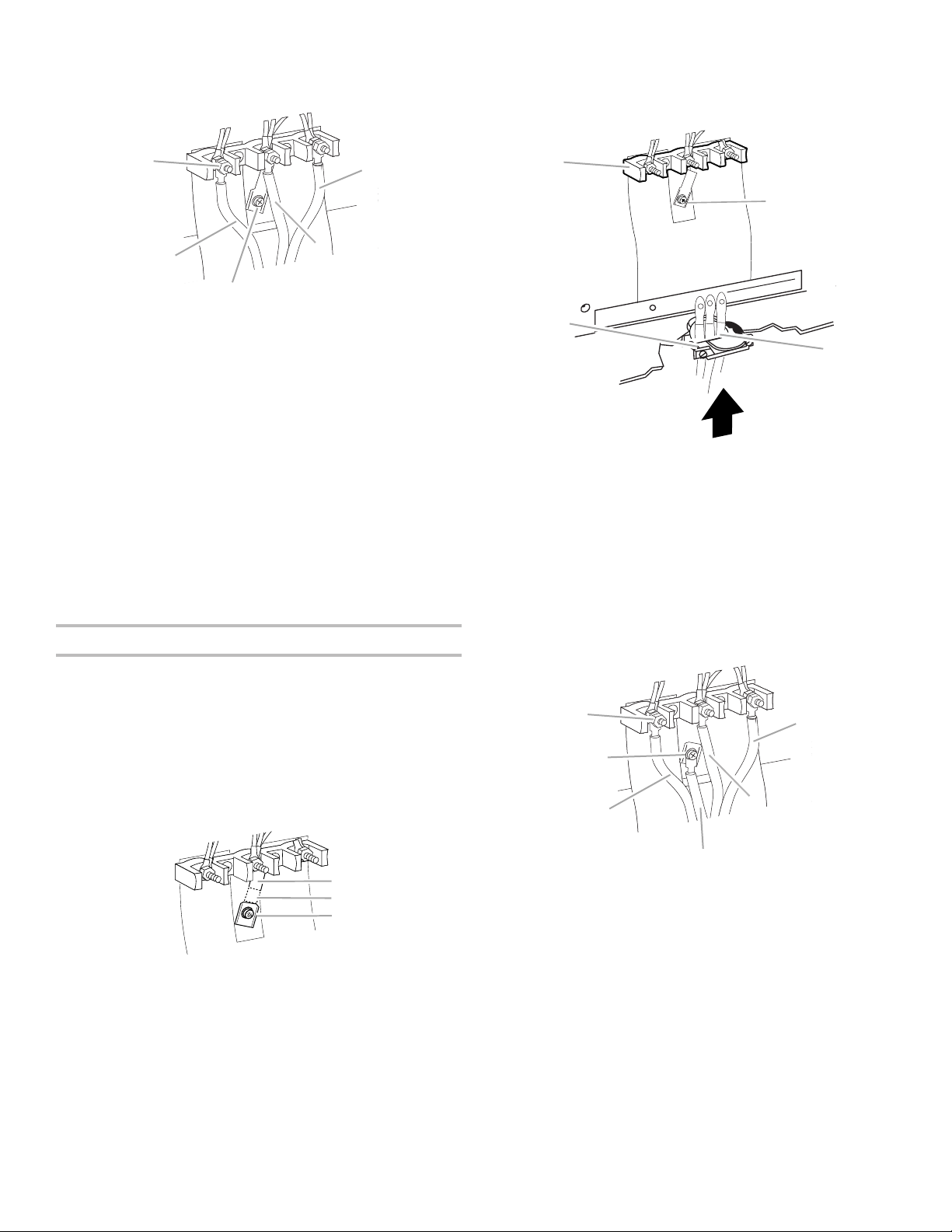

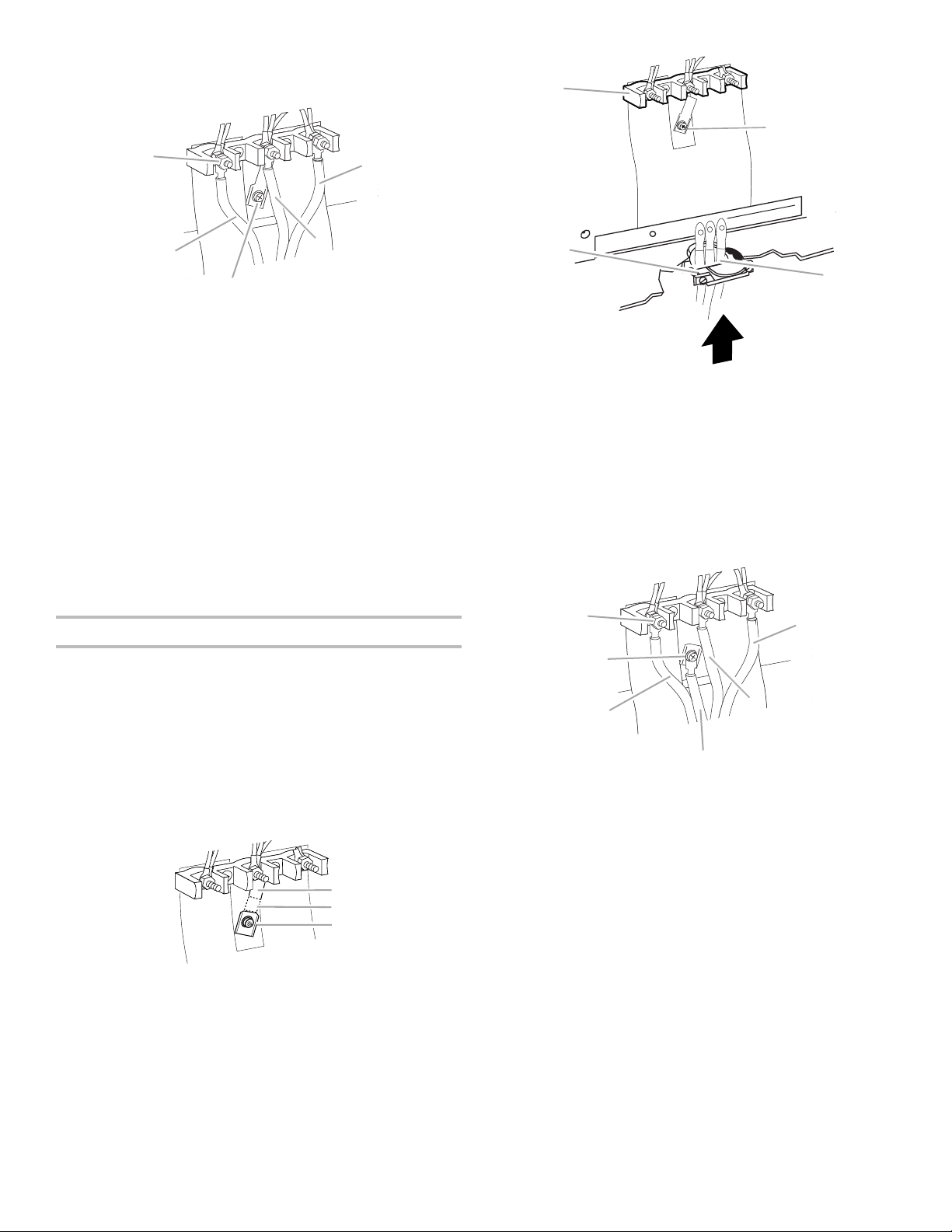

1. Cut out and remove part of metal ground strap, as shown.

A. Terminal block B. Ground-link screw C. UL Listed strain relief D. Power supply cord wires - large opening

A. Metal ground strap B. Discard C. Ground-link screw

2. Use a Phillips screwdriver to remove the ground-link screw from the back of the range. Save the ground-link screw and the end of the ground link under the screw.

3. Feed the power supply cord through the strain relief on the

WARNING

cord/conduit plate on bottom of range. Allow enough slack to easily attach the wiring to the terminal block.

A. Terminal block B. Ground-link screw C. UL Listed strain relief D. Power supply cord wires

4. Use a Phillips screwdriver to connect the green ground wire

from the power supply cord to the range with the groundlink screw and ground-link section. The ground wire must be attached over the ground-link section.

5. Use 3/8" (1.0 cm) nut driver to connect the neutral (white)

wire to the center terminal block post with 1 of the 10-32 hex nuts.

Install Using Direct Wire

Electrical Shock Hazard

Disconnect power before servicing.

Use 8 gauge copper or 6 gauge aluminum wire.

Electrically ground range.

Failure to follow these instructions can result in death, fire, or electrical shock.

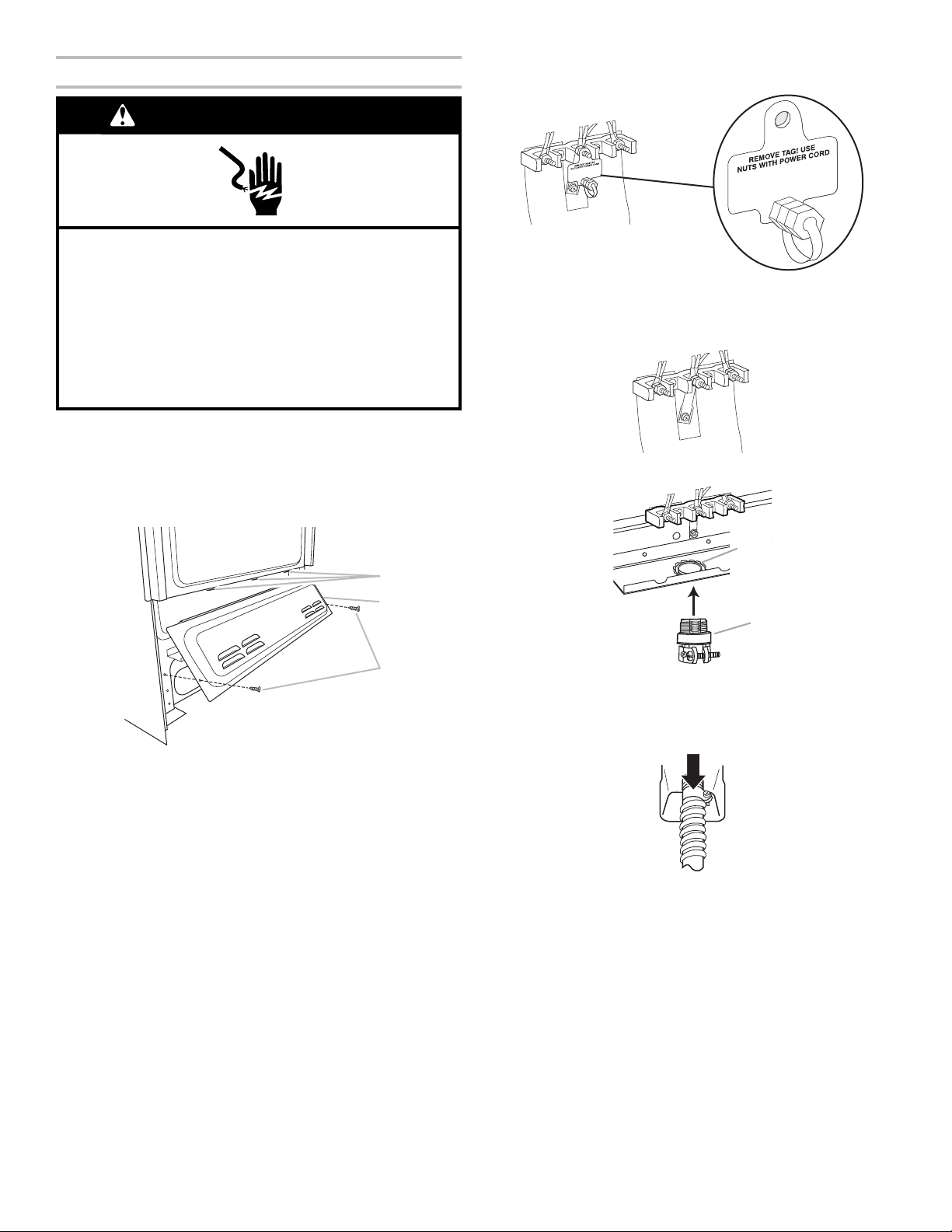

Direct Wire Strain Relief

1. Disconnect power.

2. Remove the lower access cover screws located on the back

of the range. Pull the bottom of the cover toward you and out to remove cover from range.

A. 10-32 hex nut B. Ground-link screw C. Line 2 (red) wire

D. Green ground wire E. Neutral (white) wire

F. Line 1 (black) wire

A. Mounting tabs (3) B. Lower access cover C. Screws (2)

6. Connect line 2 (red) and line 1 (black) wires to the outer

terminal block posts with 10-32 hex nuts.

7. Firmly tighten hex nuts. NOTE: For power supply cord replacement, use only a

power cord rated at 250 volts minimum, 40 or 50 amps, that is marked for use with nominal 13/8" (3.5 cm) diameter connection opening, with ring terminals and marked for use with ranges.

8. Tighten strain relief screws. IMPORTANT: Verify the tightness of the hex nuts.

9. Replace lower access cover.

3. Depending on your model, remove plastic tag holding three

(7.6 cm)

(12.7 cm)

10-32 hex nuts from the middle post of the terminal block.

Remove the top 10-32 hex nut from each of the 3 terminal blocks and set aside.

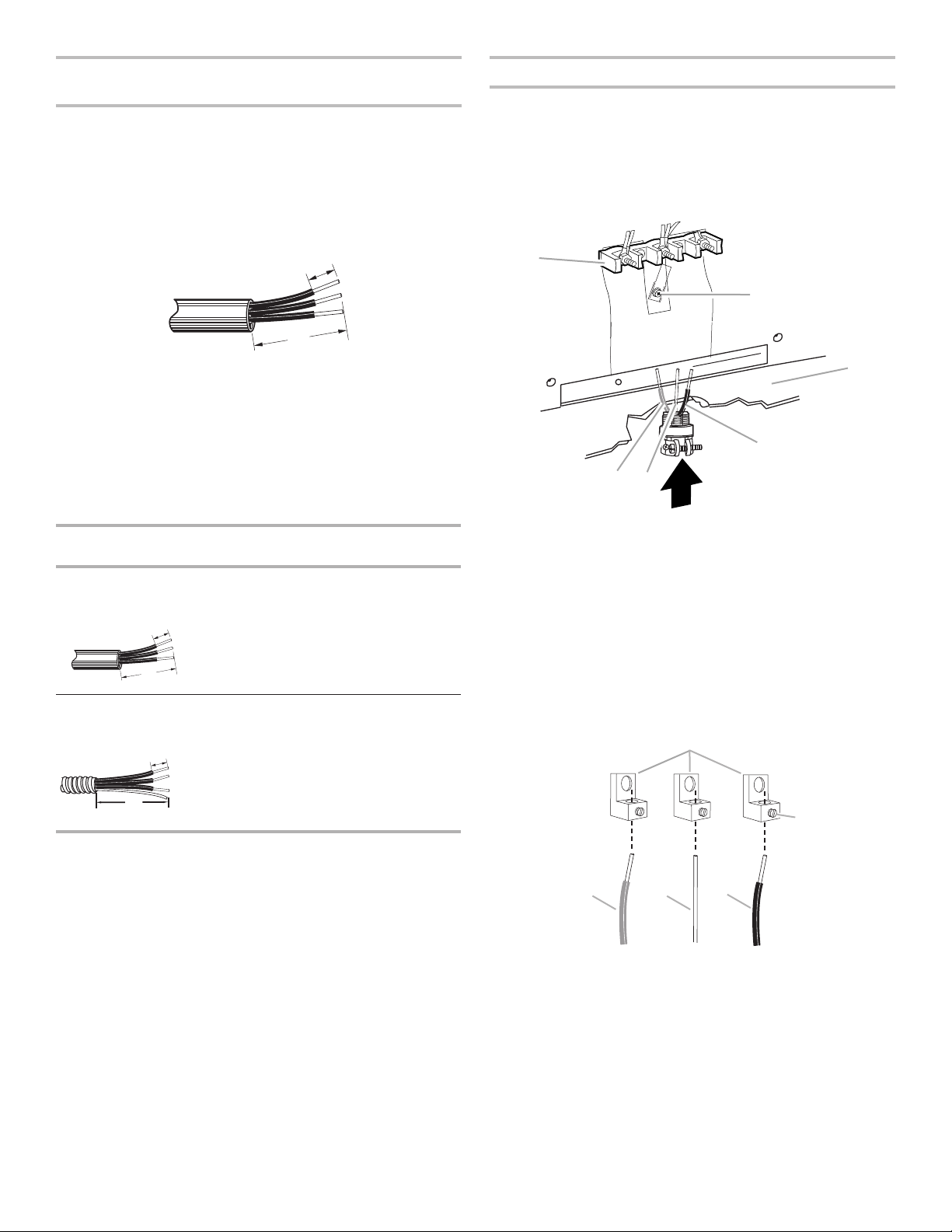

1. Strip outer covering back 3" (7.6 cm) to expose wires. Strip

the insulation back 3/8" (1.0 cm) from the end of each wire.

³⁄₈

(1.0 cm)

2. Allow enough slack in the wire to easily attach the wiring

terminal block.

3. Complete installation following instructions for your type

ofelectrical connection:

4-wire (recommended) 3-wire (if 4-wire is not available)

Electrical Connection Options

4. Assemble a UL Listed conduit connector in the opening.

A. Removable retaining nut B. Conduit

5. Tighten strain relief screw against the exible conduit.

If your home has: And you will be

Go to section:

connecting to:

3-wire direct A circuit breaker

³⁄₈

(1.0 cm)

box or fused disconnect

4-wire direct A circuit breaker

³⁄₈

(1.0 cm)

box or fused disconnect

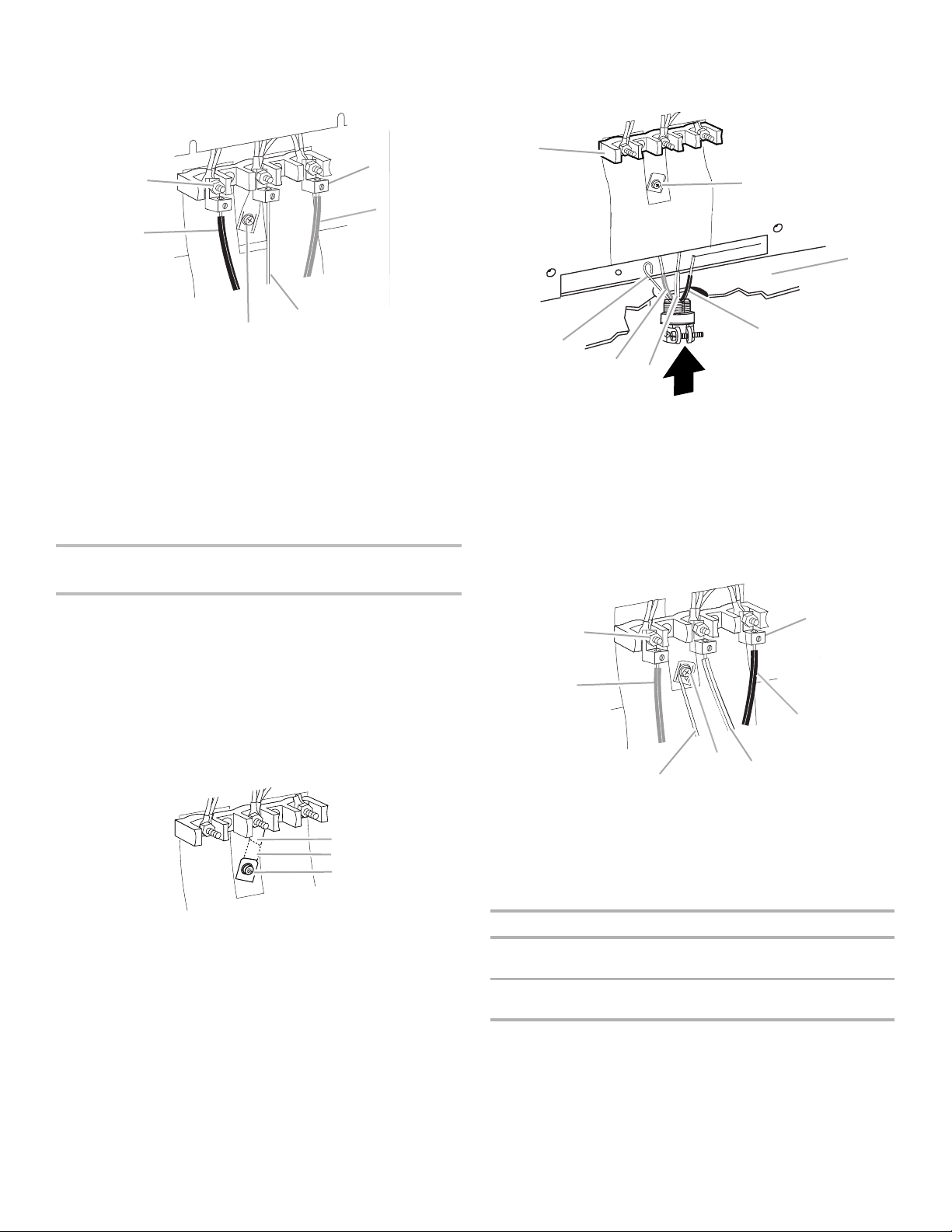

3-Wire Connection: Direct Wire

4-Wire Connection: Direct Wire

3-Wire Connection: Direct Wire

Use this method only if local codes permit connecting ground conductor to neutral supply wire.

1. Pull the wires through the conduit on cord/conduit plate on

bottom of range. Allow enough slack to easily attach the wiring to the terminal block.

Direct Wire Installation: Copper or Aluminum Wire

This range may be connected directly to the fuse disconnect or circuit breaker box. Depending on your electrical supply, make the required 3-wire or 4-wire connection.

A. Terminal block B. Ground-link screw C. Cord/conduit plate

D. Line 2 (red) wire E. Bare (green) ground wire

F. Line 1 (black) wire

2. Attach terminal lugs to line 2 (red), bare (green) ground,

and line 1 (black) wires. Loosen (do not remove) the setscrew on the front of the terminal lug and insert exposed wire end through bottom of terminal lugs. Securely tighten setscrew to torque as shown in the following Bare Wire

Torque Specications chart.

4-Wire Connection: Direct Wire

Use this method for:

■ New branch-circuit installations (1996 NEC)

■ Mobile homes

■ Recreational vehicles

■ In an area where local codes prohibit grounding through

the neutral

1. Cut out and remove part of metal ground strap, as shown.

A. Terminal lug B. Setscrew C. Line 2 (red) wire D. Bare (green) ground wire E. Line 1 (black) wire

Bare Wire Torque Specifications

Attaching terminal lugs to the terminal block - 20 lbs-in.

(2.3N-m)

Wire Awg Torque

8 gauge copper 25 lbs-in. (2.8 N-m) 6 gauge aluminum 35 lbs-in. (4.0 N-m)

3. Use 3/8" (1.0 cm) nut driver to connect the bare (green) ground wire to the center terminal block post with 1 of

the10-32 hex nuts.

A. Metal ground strap B. Discard C. Ground-link screw

2. Use a Phillips screwdriver to remove the ground-link screw

from the back of the range. Save the ground-link screw

andthe end of the ground link under the screw.

3. Pull the wires through the strain relief on bottom of

range.Allow enough slack to easily attach wiring to theterminalblock.

A. Terminal block B. Ground-link screw

A. 10-32 hex nut B. Line 2 (red) wire C. Ground-link screw

4. Connect line 2 (red) and line 1 (black) wires to the outer terminal block posts with 10-32 hex nuts.

5. Firmly tighten hex nuts. IMPORTANT: Verify the tightness of the hex nuts.

D. Bare (green) ground wire E. Line 1 (black) wire

F. Terminal lug

C. Cord/conduit plate D. Bare (green) ground wire

E. Line 2 (red) wire

F. Neutral (white) wire

G. Line 1 (black) wire

6. Replace lower access cover.

4. Attach terminal lugs to line 1 (black), neutral (white), and

line 2 (red) wires. Loosen (do not remove) the setscrew on the front of the terminal lug and insert exposed wire end through bottom of terminal lugs. Securely tighten setscrew to torque as shown in the following Bare Wire Torque

Specications chart.

Verify Anti-Tip Bracket

IsInstalledandEngaged

1. Slide range into nal location, making sure rear leveling leg

slides into anti-tip bracket.

2. Remove the premium storage drawer. See the “Remove/

Replace Drawer” section.

3. Use a ashlight to look underneath the bottom of

therange.

4. Visually check that the rear range foot is inserted into the

slot of the anti-tip bracket.

A. 10-32 hex nut B. Line 2 (red) wire C. Bare (green)

ground wire

D. Ground-link screw E. Neutral (white) wire

F. Line 1 (black) wire

G. Terminal lug

Bare Wire Torque Specifications

Attaching terminal lugs to the terminal block - 20 lbs-in.

(2.3N-m)

Wire Awg Torque

8 gauge copper 25 lbs-in. (2.8 N-m) 6 gauge aluminum 35 lbs-in. (4.0 N-m)

5. Use a hex or Phillips screwdriver to connect the bare (green)

ground wire to the range with the ground-link screwand

ground-link section. The ground wire must be attached over the ground-link section and must not contact any

otherterminal.

6. Use 3/8” (1.0 cm) nut driver to connect the neutral (white) wire to the center terminal block post with 1 of the 10-32 hex nuts.

Remove/Replace Drawer

Remove all items from inside the storage drawer, and then allow the range to cool completely before attempting to remove the drawer.

To Remove:

1. Open the drawer to its fully open position.

2. Raise the front edge, and then lift out.

To Replace:

1. Align the forward drawer notches with the notches in the

drawer rails on both sides. Place the rear alignment tabs into the drawer rails on both sides.

2. Push the drawer in all the way.

3. Gently open and close the drawer to ensure it is seated

properly on the rails on both sides.

Oven Door

For normal range use, it is not suggested to remove the oven

door. However, if removal is necessary, make sure the oven

iso and cool. Then, follow these instructions. The oven door isheavy.

To Remove:

1. Open oven door all the way.

2. Pinch the hinge latch between 2 ngers and pull forward.

Repeat on other side of oven door.

A. Hinge latch

A. Terminal lug B. Setscrew C. Line 2 (red) wire

7. Connect line 2 (red) and line 1 (black) wires to the outer

D. Neutral (white) wire E. Line 1 (black) wire

3. Close the oven door as far as it will shut.

terminal block posts with 10-32 hex nuts.

8. Firmly tighten hex nuts. IMPORTANT: Verify the tightness of the hex nuts.

9. Replace lower access cover.

4. Lift the oven door while holding both sides. Continue to push the oven door closed and pull it away

from the oven doorframe.

To Replace:

1. Insert both hanger arms into the door. Be sure that the hinge

notches are engaged in the oven doorframe.

A. Hinge notch

2. Open the oven door. The door should be able to open all the way.

3. Move the hinge levers back to the locked position. Check that the door is free to open and close and is level while closed. If it is not, repeat the removal and installation procedures.

Complete Installation

1. Check that all parts are now installed. If there is an

extrapart, go back through the steps to see which step wasskipped.

2. Check that you have all of your tools.

3. Check that you have all of the range accessories,

especiallyoven racks. These accessories may be intherange packaging.

4. Dispose of/recycle all packaging materials.

5. Check that the range is level. See the “Level Range” section.

6. Use a mild solution of liquid household cleaner and warm

water to remove waxy residue caused by shipping material.

Dry thoroughly with a soft cloth. For more information, see

the “Range Care” section of the Use & Care Guide.

7. Read the Use & Care Guide.

8. Plug power cord into a grounded outlet. Turn power on.

9. Turn on surface elements and oven. See the Use & Care

Guide for specic instructions on range operation.

NOTE: Odors and smoke are normal when the oven is used the first few times.

If Range Does Not Operate, Check the Following:

■ Household fuse is intact and tight or circuit breaker has

nottripped.

■ Range is plugged into a grounded outlet.

■ Electrical supply is connected.

IMPORTANT: If the range control displays an “F9” or “F9, E0” error code, the electrical outlet in the home may

be miswired. Disconnect power and contact a qualified electrician to verify the electrical supply.

10. When the range has been on for 5 minutes, check for

heat. If the range is cold, turn o the range and contact aqualied electrician.

If You Need Assistance or Service:

Please reference the back cover of the Use & Care Guide

tocontact service.

+ 30 hidden pages
