Congratulations on making a smart purchase. Your new
Kenmore® product is designed and manufactured for years of
dependable operation. But like all products, it may require
preventive maintenance or repair from time to time. That’s when
having a Master Protection Agreement can save you money and
aggravation.
Purchase a Master Protection Agreement now and protect
yourself from unexpected hassle and expense.
The Master Protection Agreement also helps extend the life of
your new product. Here’s what’s included in the Agreement:
✓ Expert service by our 12,000 professional repair specialists
✓ Unlimited service and no charge for parts and labor on all
covered repairs
✓ “No-lemon” guarantee - replacement of your covered
product if four or more product failures occur within twelve
months
✓ Product replacement if your covered product can’t be fixed
✓ Annual Preventive Maintenance Check at your request - no
extra charge
✓ Fast help by phone - phone support from a Sears technician
on products requiring in-home repair, plus convenient repair
scheduling
✓ Power surge protection against electrical damage due to
power fluctuations
✓ Rental reimbursement if repair of your covered product takes
longer than promised
Once you purchase the Agreement, a simple phone call is all that
it takes for you to schedule service. You can call anytime day or
night, or schedule a service appointment online.
Sears has over 12,000 professional repair specialists, who have
access to over 4.5 million quality parts and aocessories. That’s
the kind of professionalism you can count on to help prolong the
life of your new purchase for years to come. Purchase your
Master Protection Agreement today!
Some limitations and exclusions apply. For prices and
additional information, call 1-800-827-6655.
Sears Installation Service
For Sears professional installation of home appliances, garage
door openers, water heaters, and other major home items, in the
U.S.A. call 1-800-4-MY-HOME®.
Maintenance Agreements
Your purchase has added value because you can depend on
Sears HomeCentral® for service. With over 2,400 Service
Technicians and more than a million parts and accessories, we
have the tools, parts, knowledge and skills to back our pledge:
We Service What We Sell.
Your Kenmore® product is designed, manufactured and tested to
provide years of dependable operation. But like all products, it may
require service from time to time. The Sears Maintenance Agreement
offers you an outstanding service program, affordably priced.
The Sears Maintenance Agreement
■ Is your way to buy tomorrow’s service at today’s price
■ Eliminates repair bills resulting from normal wear and tear
■ Provides phone support from a Sears technician on products
requiring in-home repair
■ Even if you don’t need repairs, provides an annual Preventive
Maintenance Check, at your request, to ensure that your
product is in proper running condition.
Some limitations apply. For more information about Sears
Canada Maintenance Agreements, call 1-800-361-6665.
Product Record
In the space below, record your complete model number, serial
number, and purchase date. You can find this information on the
model and serial number label.
Elave this information available to help you quickly obtain assistance
or service when you contact Sears concerning your appliance.
Model number 110.
Serial number
Purchase date
Inlet Hose replacement date
Inlet Hose replacement date
Inlet Hose replacement date
Replace inlet hoses after 5 years of use to reduce the risk of hose
failure.
Save these instructions and your sales receipt for future
reference.
For one year from the date of purchase, when installed and
operated according to the Use & Care Guide, this washer will be
repaired free of charge if defective in material or workmanship.
Service must be provided by a Sears Service Department in the
United States or Canada or an authorized agent.
Warranty Restriction
■ If this washer is used for other than private family purposes,
this warranty applies for only 90 days from the date of
purchase.
■ Use of any laundry detergent not specifically designated for
Eligh Efficiency (EIE) washers will void this warranty.
Warranty Service
Warranty service Is available by calling 1-800-4-MY-HOME®. This
warranty applies only while this washer is used in the United
States or Canada.
This warranty gives you specific legal rights, and you may also
have other rights, which vary, from state to state or province to
province.
For Sears warranty information or to contact a Sears Service
Center, please reference the service numbers located on the
back page of this manual.
Sears, Roebuck and Co.
D/817WA, Hoffman Estates, IL 60179
Sears Canada Inc.
Toronto, Ontario, Canada MSB 2B8
Full One-Year Warranty on Mechanical Parts
For one year from the date of purchase, supplier will repair or replace
any of ifs mechanical parts if defective in material or workmanship.
This Pedestal must be installed with this washer according to the
instructions provided in the Pedestal Installation Instructions.
Warranty Restriction
If the pedestal is subject to other than private family use and or if
the pedestal is used with any other product than those listed in
the installation instructions, the above warranty coverage is null
and void.
Product Record
In the space below, record your complete model number, serial
number, and purchase date. You can find this information on the
model and serial number label.
Elave this information available to help you quickly obtain assistance
or service when you contact Sears concerning your pedestal.
Model number 110._
Serial number
Purchase date
Save these instructions and your saies receipt for future
reference.
______
WASHER SAFETY
Your safety and the safety of others are very important.
We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety
messages.
This is the safety alert symbol.
This symbol alerts you to potential hazards that can kill or hurt you and others.
All safety messages will follow the safety alert symbol and either the word “DANGER” or “WARNING."
These words mean:
You can be killed or seriously injured if you don't immediately
ADANGER
iâk A R NIN G
All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can
happen if the instructions are not followed.
IMPORTANT SAFETY INSTRUCTIONS
WARNING: To reduce the risk of fire, electric shock, or injury to persons when using the washer, follow basic precautions,
including the following:
follow instructions.
You can be killed or seriously injured if you don’t follow
instructions.
Read all instructions before using the washer.
Do not wash articles that have been previously cleaned
in, washed in, soaked In, or spotted with gasoline,
dry-cleaning solvents, other flammable, or explosive
substances as they give off vapors that could ignite or
explode.
Do not add gasoline, dry-cleaning solvents, or other
flammable, or explosive substances to the wash water.
These substances give off vapors that could ignite or
explode.
Under certain conditions, hydrogen gas may be
produced in a hot water system that has not been used
for 2 weeks or more. HYDROGEN GAS IS
EXPLOSIVE. If the hot water system has not been
used for such a period, before using the washing
machine, turn on all hot water faucets and let the water
flow from each for several minutes. This will release
any accumulated hydrogen gas. As the gas is
flammable, do not smoke or use an open flame during
this time.
SAVE THESE INSTRUCTIONS
■ Do not allow children to play on or in the washer. Close
supervision of children is necessary when the washer is used
near children.
■ Before the washer is removed from service or discarded,
remove the door or lid.
■ Do not reach into the washer if the drum, tub or agitator is
moving.
■ Do not install or store the washer where it will be exposed to
the weather.
■ Do not tamper with controls.
■ Do not repair or replace any part of the washer or attempt any
servicing unless specifically recommended in this manual or in
published user-repair instructions that you understand and
have the skills to carry out.
■ See “Electrical Requirements” for grounding instructions.
INSTALLATION REQUIREMENTS
Gather the required tools and parts before starting installation.
The parts supplied are in the washer drum.

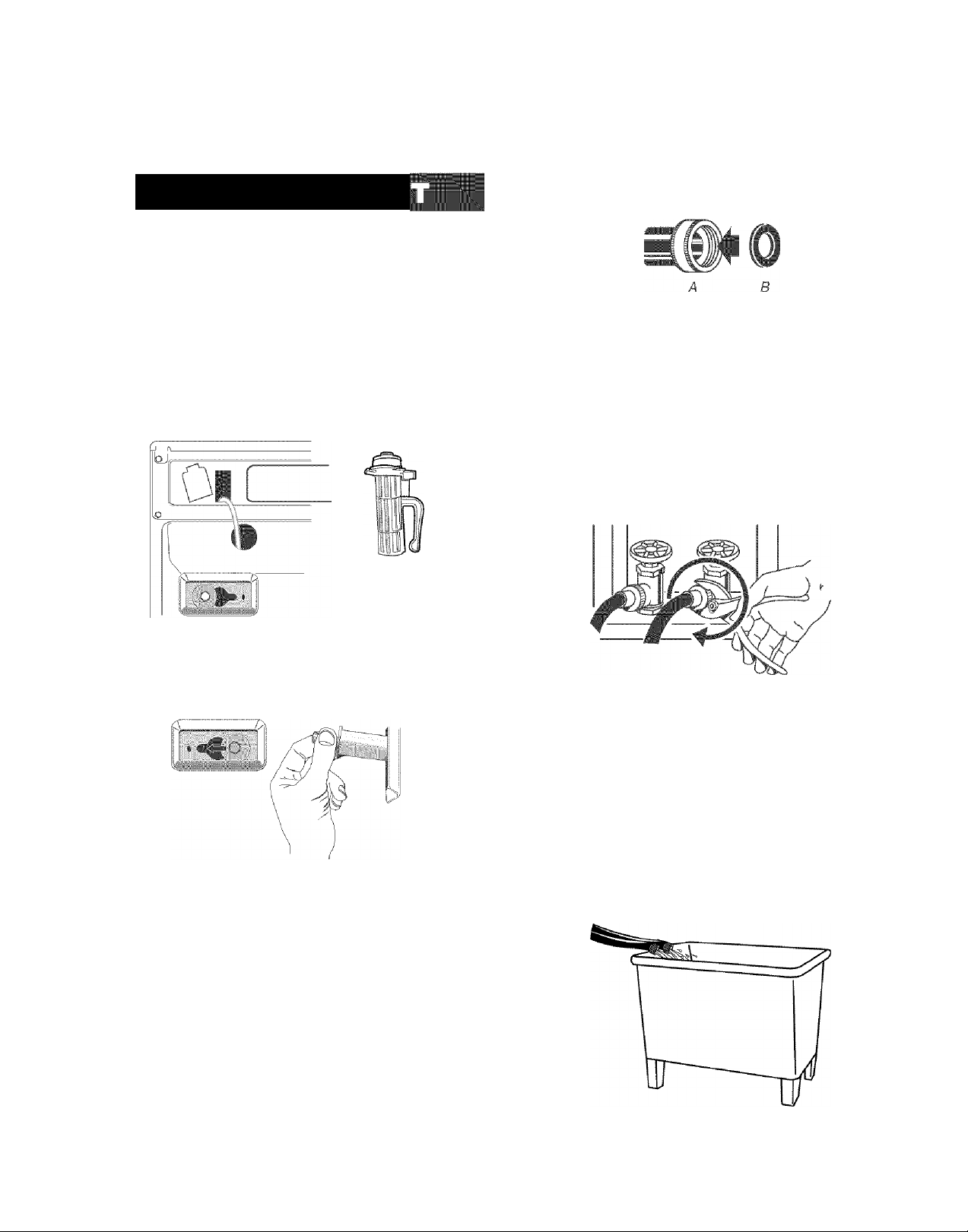

Tools needed for connecting the water inlet hoses
■ Pliers (that open to 1®/i6" [39.5 mm])
■ Flashlight (optional)
Tools needed for installation
■ Open end wrenches 17 mm and 13 mm
■ Level
■ Wood block
■ Ruler or measuring tape

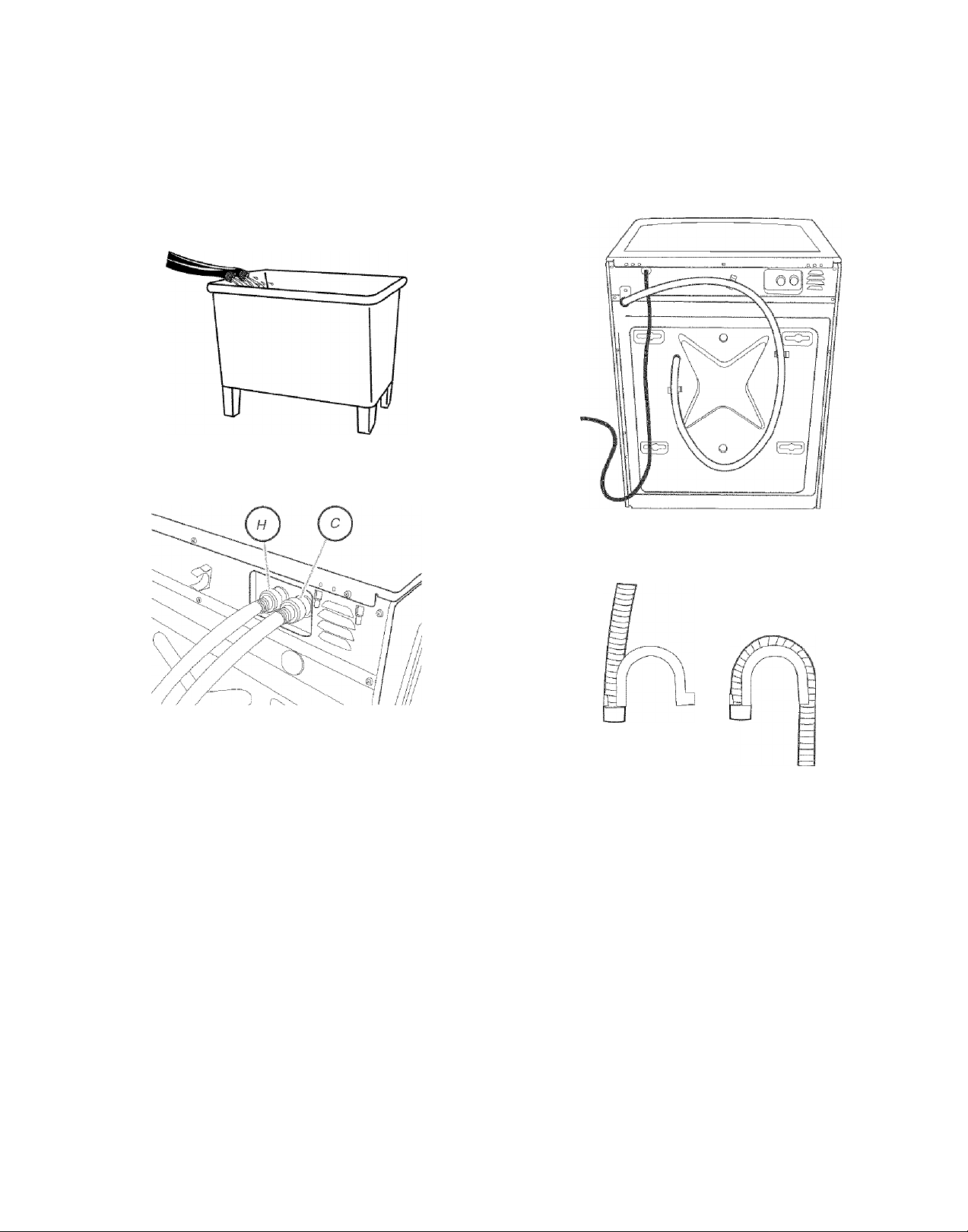

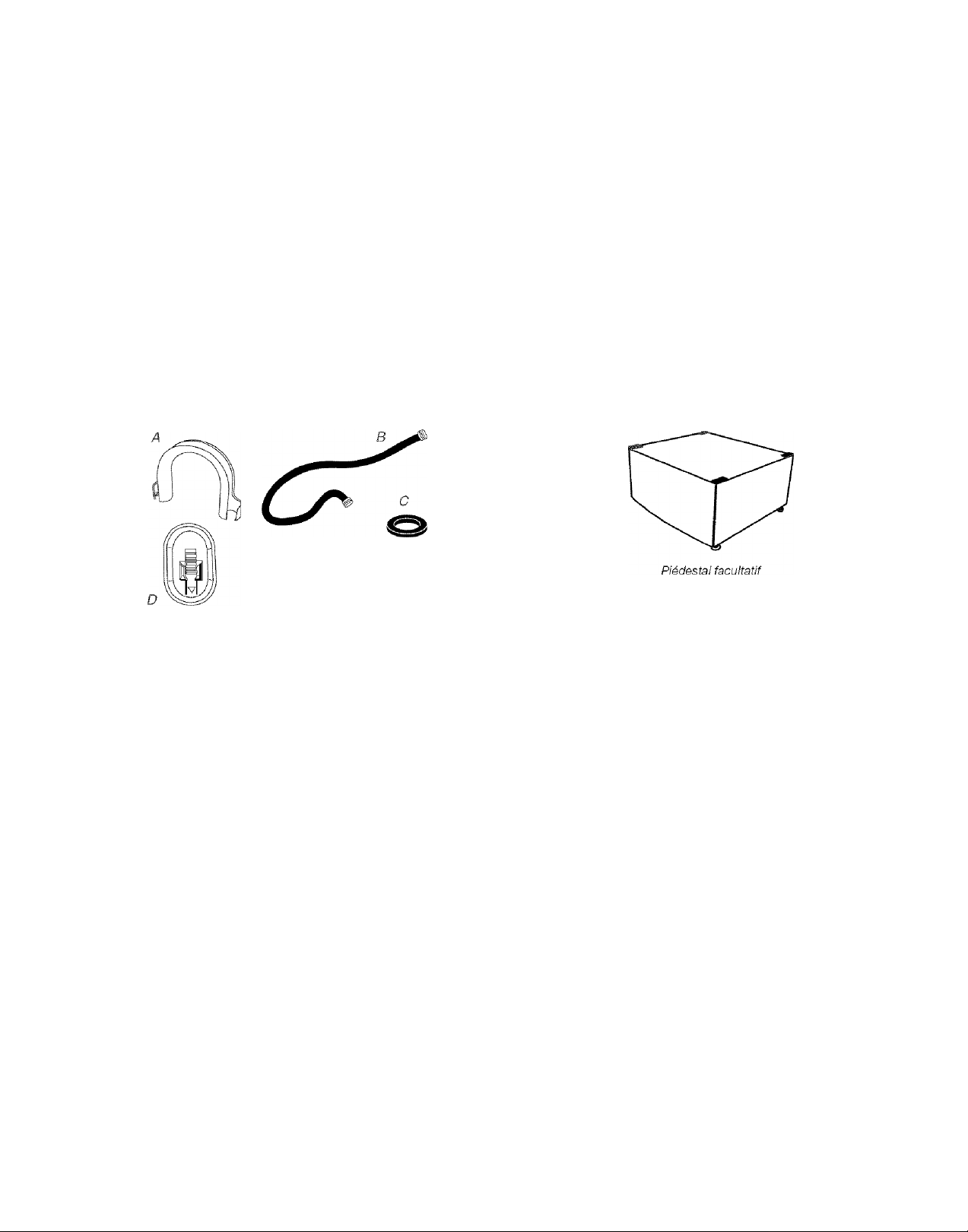

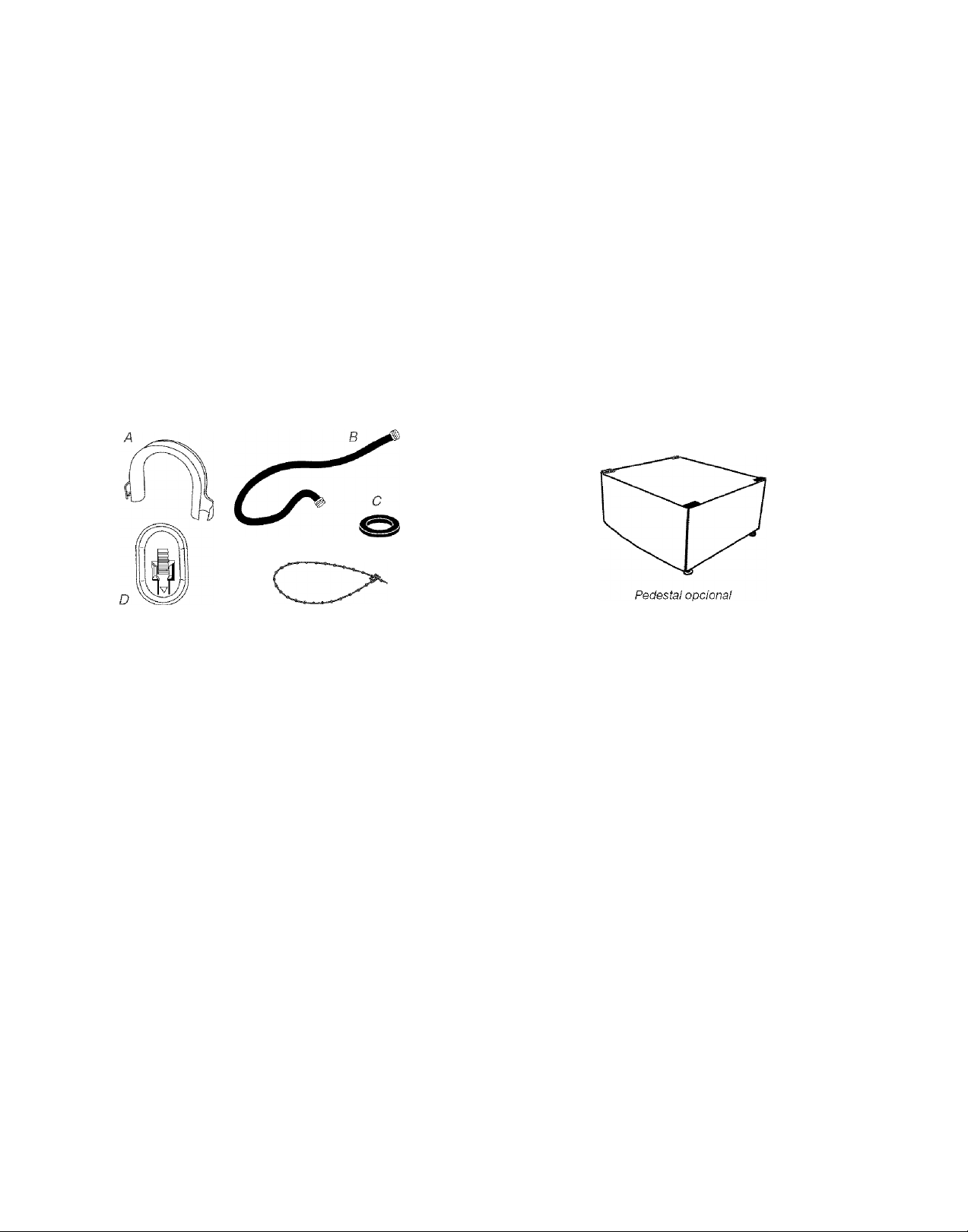

Parts supplied
C~>
A Drain hose form
B. Inlet hose (2)
C. Inlet hose washer (4)
Alternate Parts
Parts listed are available from your local Sears store or Sears
Service Center. For further information, please call
tall drain tub or utility sink and sump
pump (available from local plumbing
suppliers)
additional drain hose, Part
Number 8318155; and connector kit,
Part Number 285863
4 ft (1.2 m) drain hose extension kit. Part
Number 285863
2 longer water fill hoses:
6 ft (1.8 m) Part Number 76314
10 ft (3.0 m) Part Number 350008
D. Transport bolt hole
plug (4)
E. Beaded strap
Pedestal
You have the option of purchasing a pedestal for this washer. You
may select a 10" (25.4 cm) pedestal. Remember that the pedestal
will add to the total height of the unit.
Optional pedestal
To order, call your local Sears store. For further information,
please cal 11-800-4-MY-HOME® (1-800-469-4663).
Are you planning to stack your Kenmore washer and dryer? To do
so, find the stack kit (Part Number 8572546) in the drum of the
matching Kenmore dryer. Follow Instructions included with the
kit. See “Location Requirements.”
Selecting the proper location for your washer improves
performance and minimizes noise and possible washer “walk.”
Your washer can be installed under a custom counter, or in a
basement, laundry room, closet, or recessed area. See “Drain
System.”
Companion appliance location requirements should also be
considered. Proper installation is your responsibility.
You will need
■ A water heater set to deliver 120°F (49°C) water to the
washer.
■ A grounded electrical outlet located within 6 ft (1.8 m) of
where the power cord is attached to the back of the washer.
See “Electrical Requirements.”
■ Hot and cold water faucets located within 4 ft (1.2 m) of the
hot and cold water fill valves, and water pressure of
20-100 psi (137.9-689.6 kPa).
■ A level floor with a maximum slope of 1" (2.5 cm) under entire
washer. Installing the washer on soft floor surfaces, such as
carpets or surfaces with foam backing, is not recommended.
■ A sturdy and solid floor to support the washer with a total
weight (water and load) of 400 lbs (180 kg).
Do not operate your washer in temperatures below 32°F {0°C).
Some water can remain in the washer and can cause damage in
low temperatures.

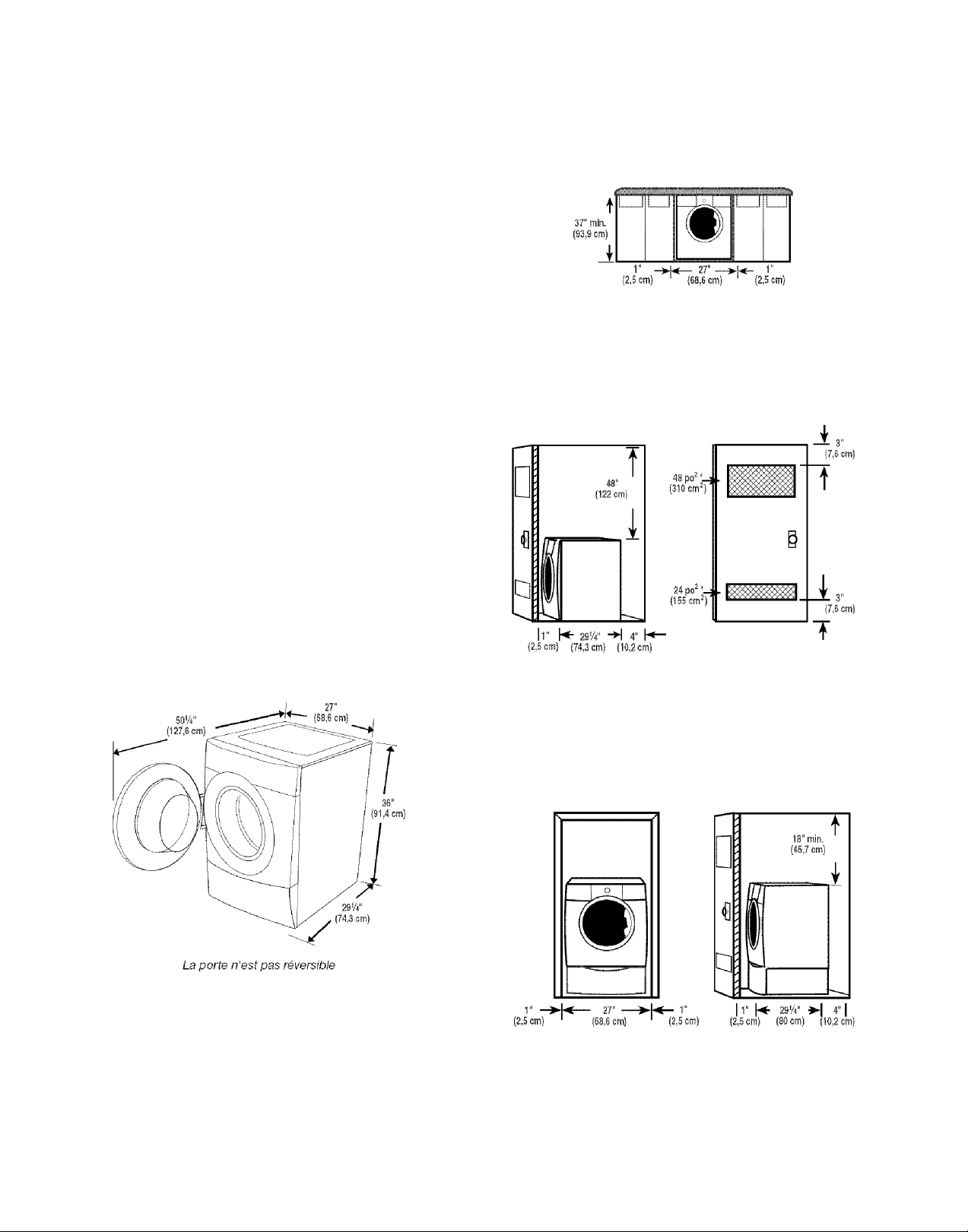

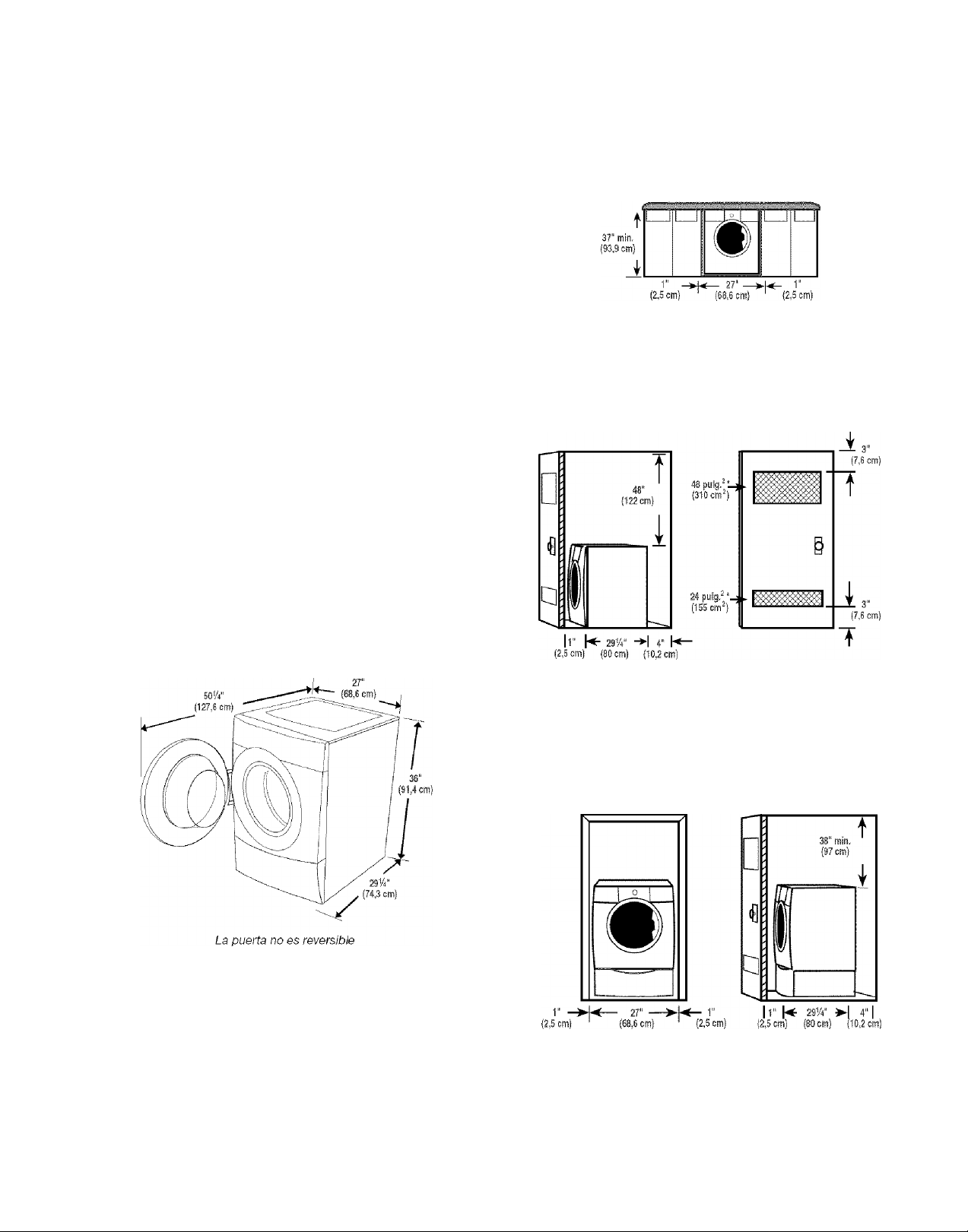

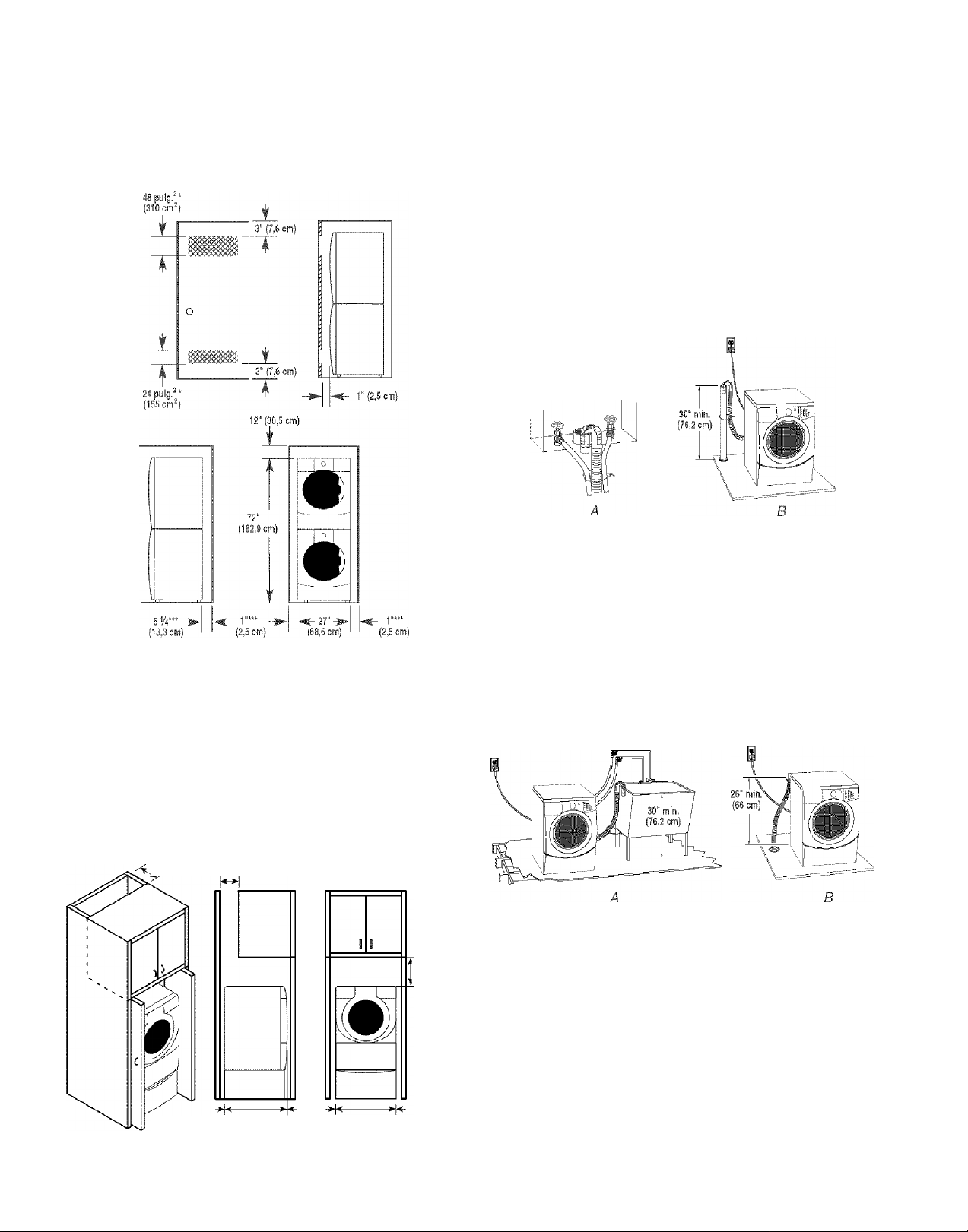

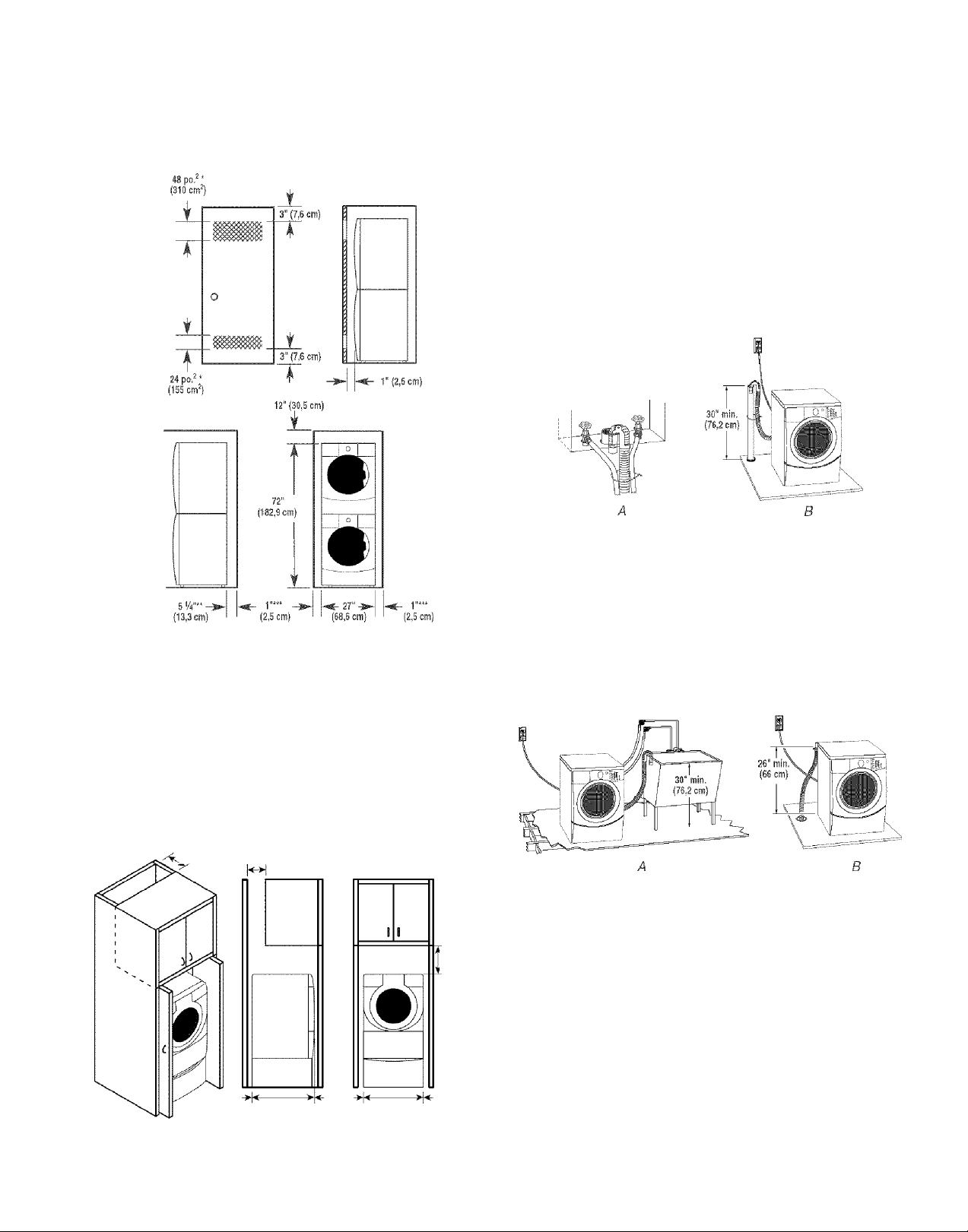

Installation clearances
■ The location must be large enough to allow the washer door
to be fully opened.
■ Additional spacing should be considered for ease of
installation and servicing. The door opens more than 90° and
it is not reversible.
■ Additional clearances might be required for wall, door, and
floor moldings.
■ Additional spacing of 1" (2.5 cm) on all sides of the washer is
recommended to reduce noise transfer.
■ Companion appliance spacing should also be considered.
Washer Dimensions
Recommended installation spacing for recessed or
closet installation, with or without a pedestal
The dimensions shown are for the recommended spacing.
Recessed area or closet installation
48 iri.
(310 cm
|r 29V4" -H 4"
(2.5 era) (go cm) (10.2 cm)
A. Side view - closet or confined area
B. Closet door with vents
* Min. top and bottom air openings for closet door.
Recessed or closet installation - Washer on pedestal
(7,6 era)
(7,6 era)
Recommended installation spacing for custom
undercounter installation
The dimensions shown are for the recommended spacing.
Custom undercounter installation - Washer only
A. Recessed area
B. Side view - closet or confined area
Recommended installation spacing for recessed or
closet installation, with stacked washer and dryer
The dimensions shown are for the recommended spacing.
48 in.^
The washer can be installed using the standpipe drain system
(floor or wall), the laundry tub drain system, or the floor drain
system. Select the drain hose installation method you need. See
“Tools and Parts.”
Standpipe drain system - wall or floor (views A & B)
The standpipe drain requires a minimum diameter standpipe of
2" (5 cm). The minimum carry-away capacity can be no less than
17 gal. (64 L) per minute.
The top of the standpipe must be at least 30" (76.2 cm) high and
no higher than 96" (2.4 m) from the bottom ot the washer.
Laundry tub drain system (view ^
The laundry tub needs a minimum 20 gal. (76 L) capacity. The top
of the laundry tub must be at least 30" (76.2 cm) above the floor.
*Min. top and bottom air openings for closet door.
‘External exhaust elbow requires additional space.
‘Wall, door and floor molding may require additional spacing.
Recommended installation spacing for cabinet
installation
The dimensions shown are for the recommended spacing.
For cabinet installation, with a door, the minimum ventilation
openings in the top are required.
r (17.8 cm) 7" (17.8 cm)
'9'
, (22.9 cm)
Floor drain system (view B)
The floor drain system requires a siphon break that may be
purchased separately. See “Tools and Parts.”
The siphon break must be a minimum of 28" (71 cm) from the
bottom of the washer. Additional hoses might be needed.
Electrical Shock Hazard
Plug into a grounded 3 prong outlet.
Do not remo¥e ground prong.
Do not use an adapter.
Do not use an extension cord.
Failure to follow these instructions can result in death,
fire, or electrical shock.
A 120 volt, 60 Hz., AC only, 15- or 20-amp, fused electrical
supply is required. A time-delay fuse or circuit breaker is
recommended. It is recommended that a separate circuit
serving only this appliance be provided.
This washer is equipped with a power supply cord having a
3 prong grounding plug.
To minimize possible shock hazard, the cord must be
plugged into a mating. 3 prong, grounding-type outlet,
grounded in accordance with local codes and ordinances. If a
mating outlet is not available, it is the personal responsibility
and obligation of the customer to have the properly grounded
outlet installed by a qualified electrician.
If codes permit and a separate ground wire is used, it is
recommended that a qualified electrician determine that the
ground path is adequate.
Do not ground to a gas pipe.
Check with a qualified electrician if you are not sure the
washer is properly grounded.
Do not have a fuse in the neutral or ground circuit.
GROUNDING INSTRUCTIONS
For a grounded, cord-connected washer:
This washer must be grounded. In the event of a malfunction
or breakdown, grounding will reduce the risk of electrical
shock by providing a path of least resistance for electric
current. This washer is equipped with a cord having an
equipment-grounding conductor and a grounding plug. The
plug must be plugged into an appropriate outlet that is
properly Installed and grounded in accordance with all local
codes and ordinances.
WARNING; Improper connection of the equipment
grounding conductor can result in a risk of electric shock.
Check with a qualified electrician or serviceman if you are in
doubt as to whether the appliance is properly grounded.
Do not modify the plug provided with the appliance -- if it will
not fit the outlet, have a proper outlet installed by a qualified
electrician.
For a permanently connected washer:
This washer must be connected to a grounded metal,
permanent wiring system, or an equipment grounding
conductor must be run with the circuit conductors and
connected to the equipment-grounding terminal or lead on
the appliance.
INSTALLATION INSTRUCTIONS
A WARNING
Excessive Weight Hazard
Use two or more peopie to move and instail washer.
Failure to do so can result in back or other injury.
Insert new flat washers (supplied) into each end of the inlet
hoses. Firmly seat the washers in the couplings.
J
IMPORTANT: Position the washer so that the rear of the unit is
within approximately 3 ft (90 cm) of its final location.

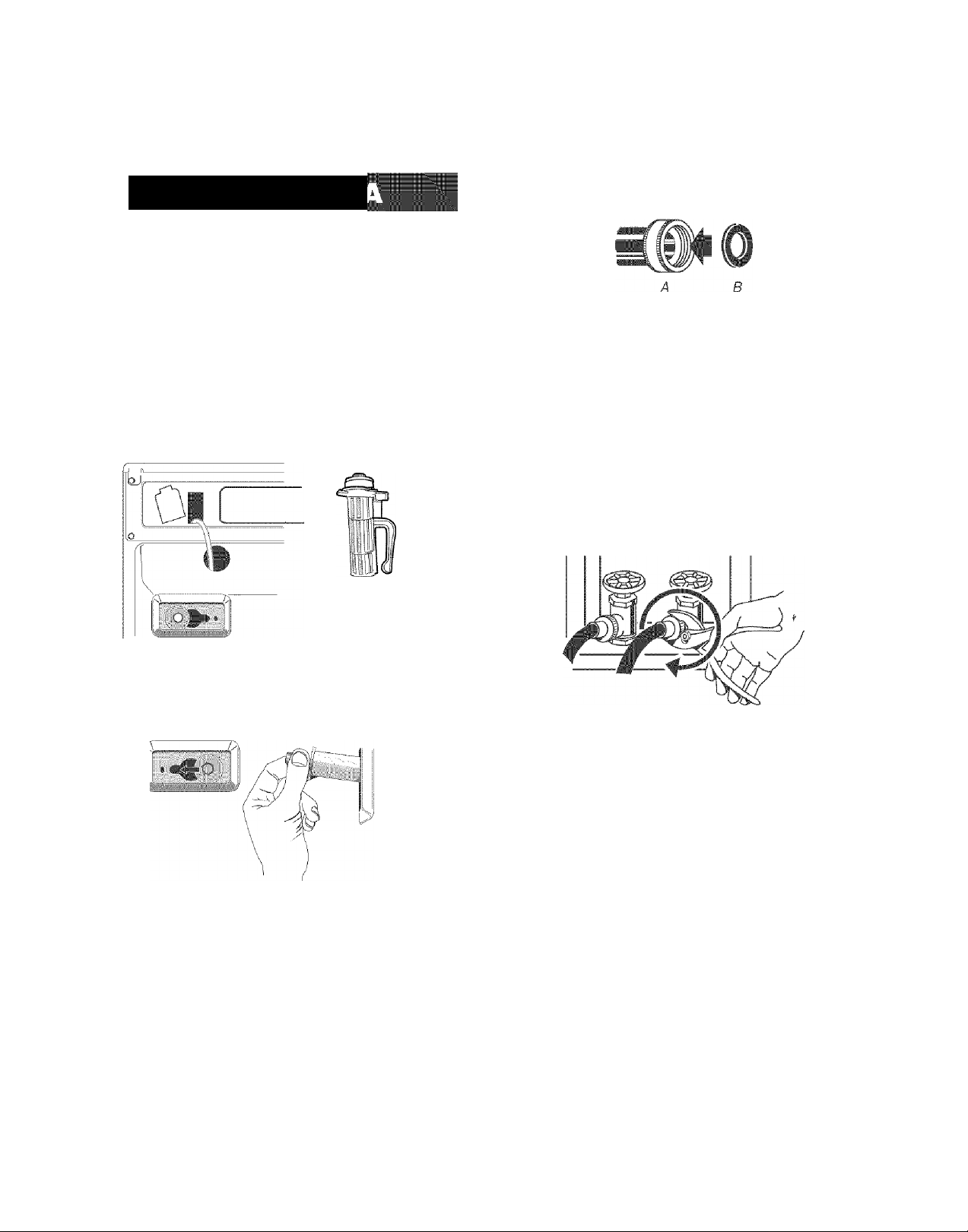

There are 4 blue bolts in the rear panel of the washer that support
the suspension system during transportation. These bolts also
retain the power cord inside the washer until the bolts are
1. Using a 13 mm wrench, loosen each of the bolts.
2. Once the bolt is loose, move it to the center of the hole and
completely pull out the bolt, including the plastic spacer
covering the bolt.
A. Coupling
B. Washer
Connect the inlet hoses to the water faucets
Make sure the washer drum is empty.
1. Attach a hose to the hot water faucet. Screw on coupling by
hand until it is seated on the washer.
Attach a hose to the cold water faucet. Screw on coupling by
hand until it is seated on the washer.
Using pliers, tighten the couplings with an additional
two-thirds turn.
NOTE: Do not overtighten or use tape or sealants on the valve.
Damage to the valves can result.
3. Once all 4 bolts are removed, discard the bolts and spacers.
Then pull the power cord through the opening of the rear
panel and close the hole with the attached cap.
4. Close the bolt holes with the 4 transport bolt hole plugs.
NOTE: If the washer is to be transported at a later date, call your
local service center. To avoid suspension and structural damage,
your machine must be properly set up for relocation by a certified
technician.
Clear water lines
Run water through both faucets and inlet hoses, into a
laundry tub, drainpipe or bucket, to get rid of particles in the
water lines that might clog the inlet valve screens.
Check the temperature of the water to make sure that the hot
water hose is connected to the hot water faucet and that the
cold water hose is connected to the cold water faucet.
Connect the inlet hoses to the washer
Proper routing of the drain hose protects your floors from
damage due to water leakage. Read and follow these
instructions.
Remove drain hose from the washer
Gently pull the corrugated drain hose from the shipping clips.
Laundry tub drain or standpipe drain
Connect the drain hose form to the corrugated drain hose.

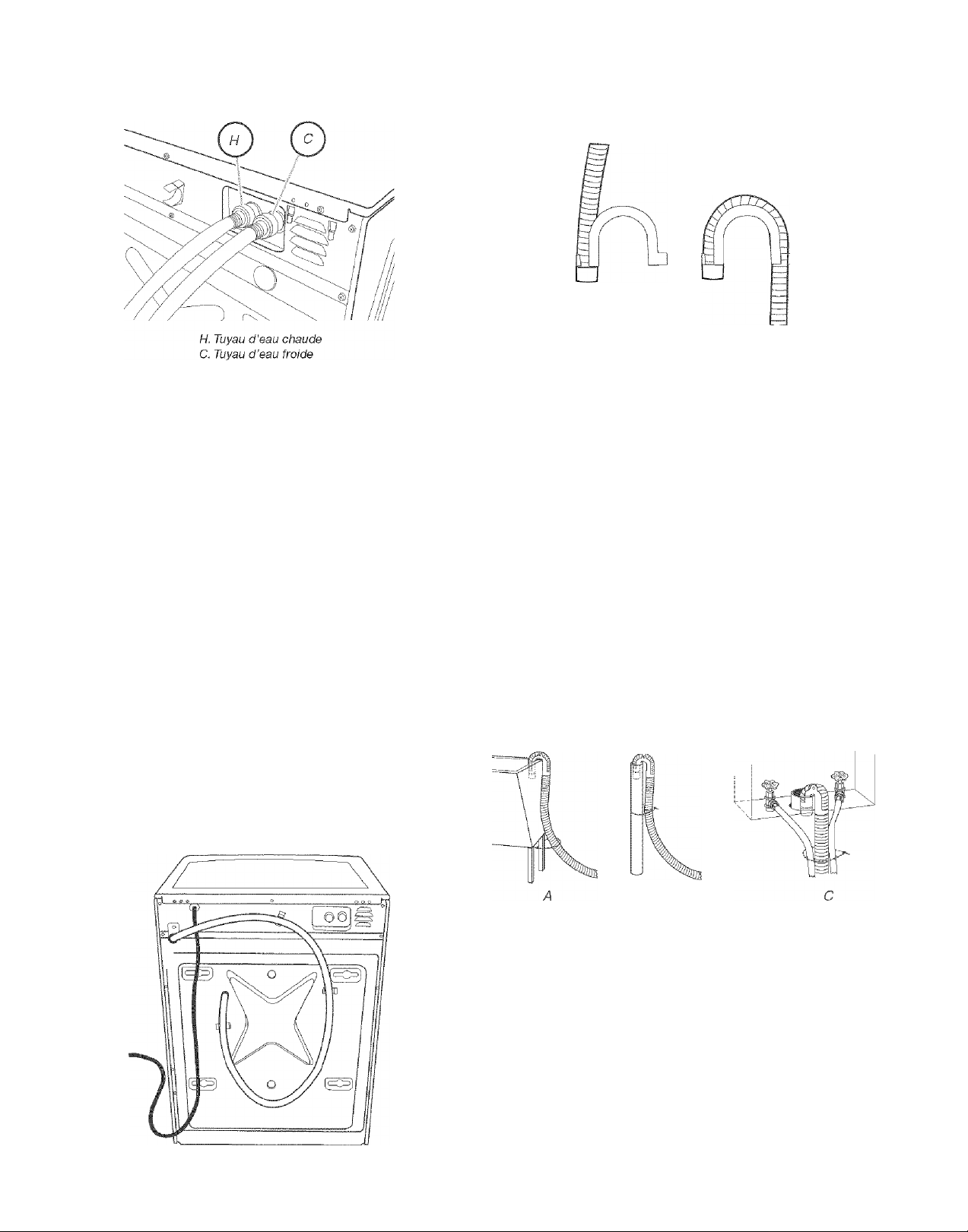

H. Hot water inlet
C. Cold water inlet
1. Attach the hot water hose to the washer’s hot (H) water inlet
valve. Screw on coupling by hand until it is seated on the
washer.
2. Attach the cold water hose to the washer’s cold (C) water
faucet. Screw on coupling by hand until it is seated on the
washer.
3. Using pliers, tighten the couplings with an additional
two-thirds turn.
NOTE: Do not overtighten. Damage to the coupling can
result.
4. Turn on the water faucets completely and check for leaks.
NOTE: Replace inlet hoses after 5 years of use to reduce the
risk of hose faiiure. Record hose installation or replacement
dates on the hoses for future reference.
Periodically inspect and replace hoses if bulges, kinks, cuts,
wear, or leaks are found.
A B
A. Snap either end of the drain hose form to the drain hose at
the point where the corrugation begins.
B. Bend drain hose over drain hose form and snap into place.
To keep drain water from going back into the washer:
■ Do not straighten the drain hose, and do not force excess
drain hose into standpipe. Hose should be secure, but loose
enough to provide a gap for air.
■ Do not lay excess hose on the bottom of the laundry tub.
Floor drain
You may need additional parts. See Floor drain under “Tools and
Parts.’’
10
1. Drape the power cord over the washer top.
2. Move the washer to its final location.

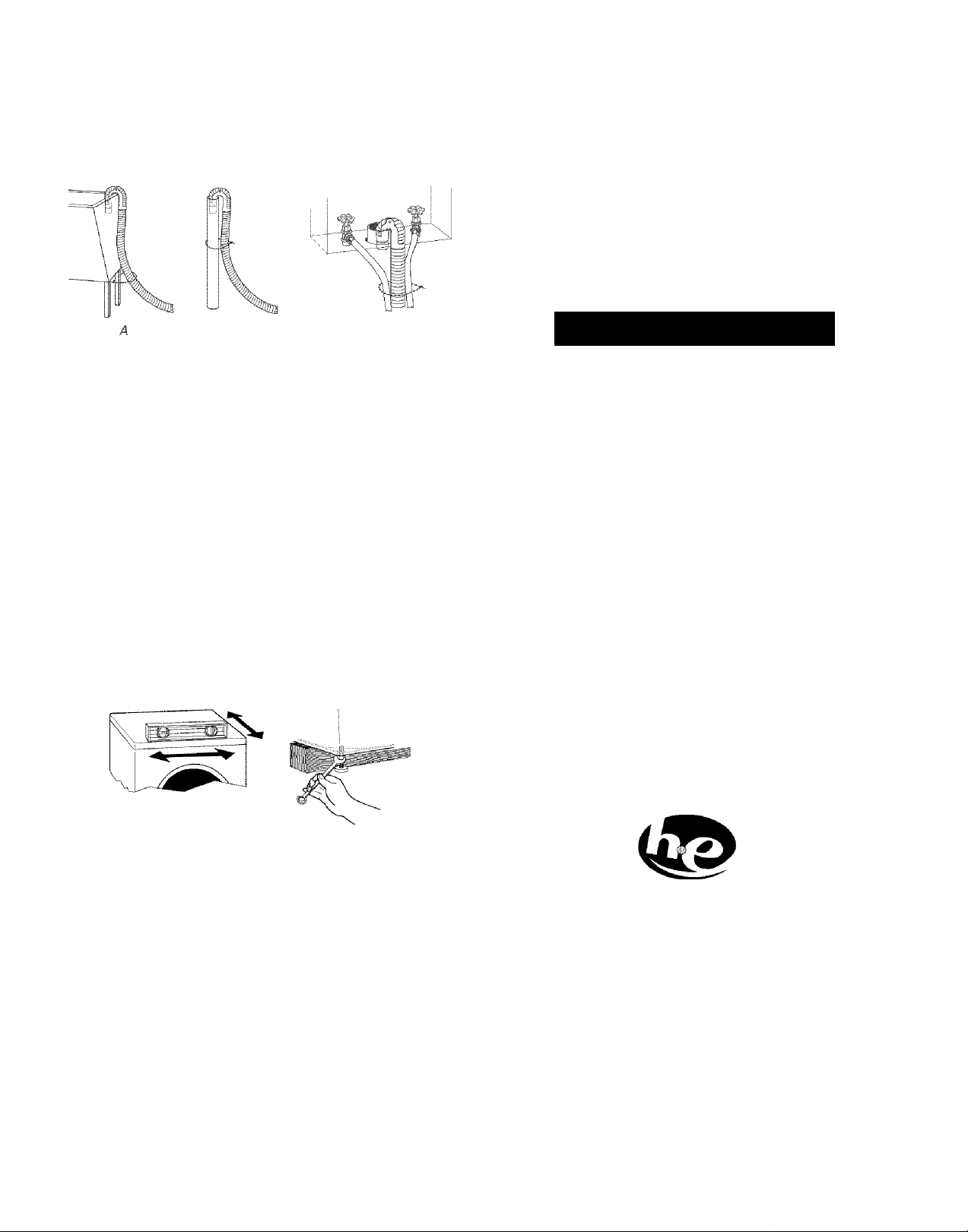

3. Place the drain hose in the laundry tub or standpipe as
shown. See illustrations A and B.
B C
4. If the washer faucets and the drain standpipe are recessed,
put the hooked end of the drain hose in the standpipe as
shown. See illustration C.
NOTES:
■ Do not force excess drain hose back into the rear of the washer.
■ To avoid siphoning, do not seal the drain hose into the
standpipe.
One foot has been installed at a different height on your new
washer. The other three feet were preset at the factory. Properly
leveling your washer will minimize excessive noise and vibration.

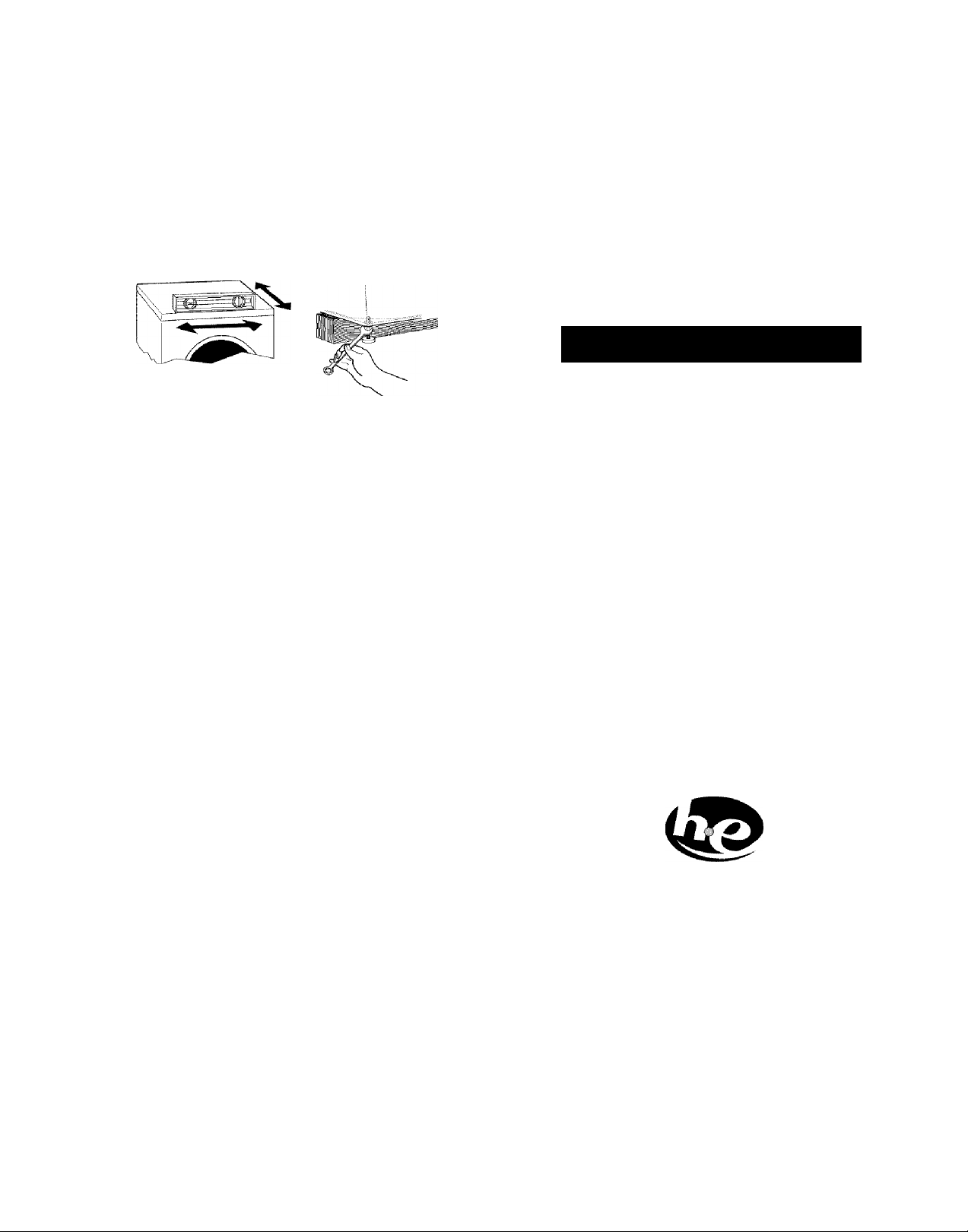

1. Push on the upper front panel to be sure that the washer is on
the rear feet. Lower right front foot until it contacts the floor.
Check the levelness of the washer by placing a level on the
top edge of the washer, first side to side, then front to back.
1.
Check the electrical requirements. Be sure that you have the
correct electrical supply and the recommended grounding
method. See “Electrical Requirements.’’
Check that all parts are now Installed. If there is an extra part,
go back through the steps to see which step was skipped.
Check that you have all of your tools.
3.
4.
Dispose of or recycle all packaging materiais.
5.
Check that the water faucets are on.
6.
Check for leaks around fauoets and inlet hoses.
AWARNING
Electrical Shock Hazard
Plug into a grounded 3 prong outlet
Do not remove ground prong.
Do not use an adapter.
Do not use an extension cord.
Failure to follow these instructions can result in death,
fire, or electrical shock.
7. Plug into a grounded 3 prong outlet.

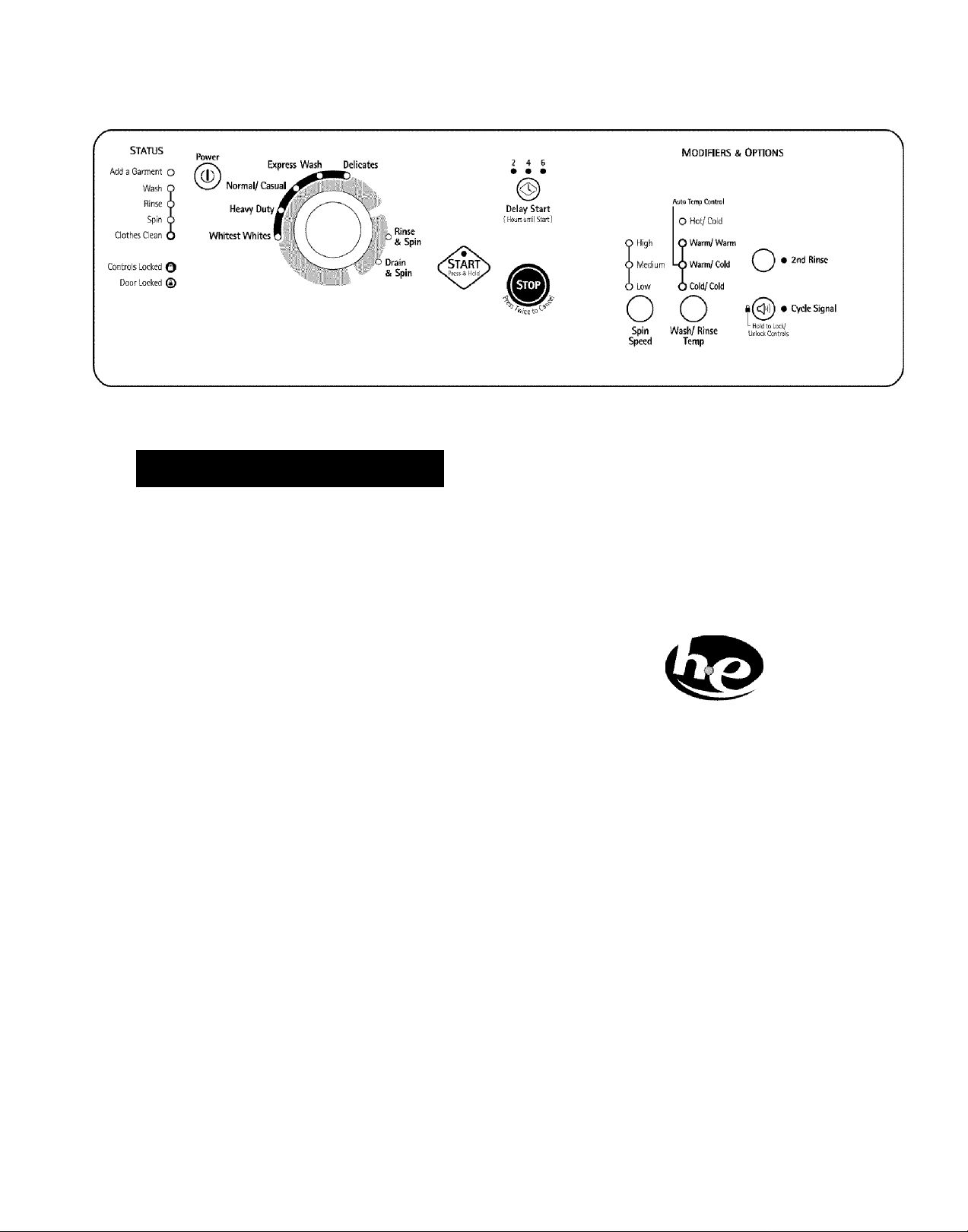

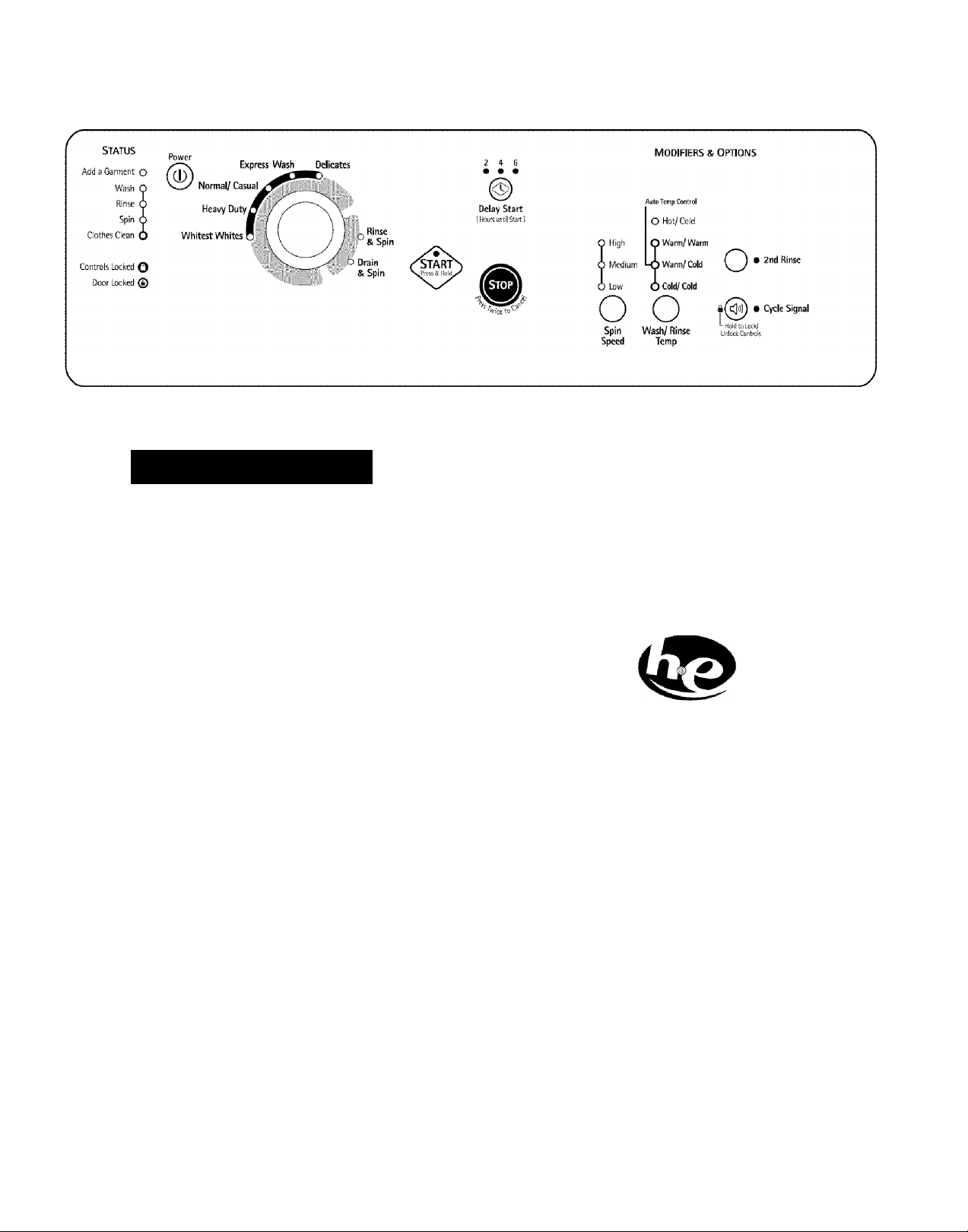

8. Read “Washer Use.”
9. To test and to clean your washer, using only “HE” High
Efficiency detergent, measure the amount of detergent
recommended by the manufacture for a medium size load.
Pour the detergent into the detergent dispenser. Select
NORMAL/CASUAL, and then select START. Allow the washer
to complete one whole cycle.
If the washer is against a wall, move the washer out slightly
before tipping back. If the washer is not level, first prop the
front with a wood block and adjust the feet as necessary;
then prop the back and adjust feet as necessary. Repeat this
step until washer is level.
Make sure that all four feet are stable and resting on the floor.
Then check that the appliance is perfectly level (use a level).
After the washer is level, use a 17 mm open-end wrench to
3.
turn the nuts on the feet tightly against the washer cabinet.
IMPORTANT: All four feet must be tightened. If the nuts are
not tight against the washer cabinet, the washer may vibrate.
4.
When you are pushing on the edges of the washing machine
top plate, the machine should not move front to back, side to
side, or diagonally.
5.
Slide the washer to its final location.
6.
Confirm the levelness of the washer.
m
Use only HE High Efficiency detergent.
11
FEATURES AND BENEFITS
Your new front-loading high efficiency washer, was designed to
conserve resources and lower your water and energy bills. The
washer is designed to determine and then provide the amount of
water needed for the best performance. The time of operation
may be greater for this new system than for a conventional
washer.
Electronic Controls
Flexible electronic controls are easy to use whether you are a
beginner or an expert.
Auto Water Level
Adjusting to the size of the load, this feature allows the washer to
use the minimal amount of water needed to clean and rinse the
clothes. With a low water level, you can obtain the same results
with smaller amounts of additives. Because only the required
amount of water is used, the washer saves energy, too. You can
obtain the same washing results for small and large loads size.
Larger Load Size
Since there is no agitator, you can wash larger, bulkier Items such
as an average size sleeping bag. You are also able to wash more
clothes at one time, which means fewer loads. You can wash a
pillow or a large stuffed teddy bear.
Suspension System
To reduce washer “walk” and “off-balance” conditions, your new
washer combines:
■ 2 Springs to isolate vibration
■ 3 Shock absorbers at the washer base to minimize movement
Spin Speeds
This washer automatically selects the spin speed based on the
cycle selected. This factory setting can be changed, however.
This washer offers up to three different spin speed choices.
Add A Garment
This option Is available in all wash cycles except RInse/SpIn and
Draln/Spin. When this option is available at the beginning of the
cycle the Add A Garment status light will illuminate for the first
7 minutes. This washer allows a 7-minute period in which
forgotten garments may be added to a load.
Dynamic Balance
A precision balancing system that allows the washer to reach
spin speeds of up to 1,100 rpm. The washer spins faster so that
clothes coming out of the washer will dry faster. In addition, if the
Dynamic Balance system detects off-balance loads during
spinning, it redistributes the clothes so that they are evenly
balanced.
Detergent Advantage System Dispenser
The three compartments in the dispenser allow loading of all
laundry additives before the washer is started. The additives will
be dispensed into the wash at the optimal time for high
performance cleaning. The bleach release system Is included in
the detergent advantage system. The detergent Is added at the
beginning of the cycle, and the bleach is added after the
enzymes have had a chance to do their cleaning. The fabric
softener is dispensed in the rinse cycle or In the 2ND RINSE, if
selected. The Detergent Advantage System Dispenser tray is
easily removed for cleaning.
Stainless Steel Drum
The stainless steel drum eliminates corrosion and enables higher
spin speeds for more water extraction, reducing drying time.
Adaptive Variable Speed Motor
The motor adapts to the load size and to the cycle selected to
give the optimum cleaning, rinsing, and spinning conditions. The
motor can handle slow speeds needed for wool and delicate
items and is powerful enough to drive a large clothes load into a
1,100 rpm spin.
Use only HE High Efficiency detergent.
12
AWARNING
WASHER USE
Before washing clothes tor the first time, choose the Normal/
Casual cycle and run It without clothes. Use only HE High
Efficiency detergent. Use Va the manufacturer’s recommended
amount tor a medium sized load. This initial cycle serves to
ensure the interior is clean before washing clothes.
JÊ
Fire Hazard
Never place items in the washer that are dampened
with gasoline or other flammable fluids.
No washer can completely remove oil.
Do not dry anything that has ever had any type of oil on
it {inciuding cooking oils).
Doing so can result in death, explosion, or fire.
WARNING: To reduce the risk of fire, electric shock, or injury to
persons, read the IMPORTANT SAFETY INSTRUCTIONS before
operating this appliance.
The following is a guide to using your washer. Please refer to
specific sections of this manual for more detailed information.
Do not store laundry products on the top surface of this washer.
Vibration is normal during operation.
Use only High Efficiency detergents. The package tor this type of
detergent will be marked “HE” or “High Efficiency.” This wash
system, along with less water, will create too much sudsing with a
regular non-HE detergent. Using regular detergent will likely result In
washer errors, longer cycle times and reduced rinsing performance.
It may also result In component failures and noticeable mold or
mildew. HE detergents are made to produce the right amount of
suds for the best performance. Follow the manufacturer's
instructions to determine the amount of detergent to use.
Use only HE High Efficiency detergent.
For All Wash Cycles
1. To load washer
Open the washer door by pulling on the handle. Sort laundry
according to color and type of fabric. Place a load of sorted
clothes in the washer. Do not overload washer. Overloading
can cause poor cleaning.
■ The washer can be fully loaded, but not tightly packed.
Washer door should close easily.
■ Mix large and small items. Avoid washing a single Item.
Load evenly.
■ Wash small items such as infant socks in mesh garment
bags. It is recommended that more than one garment bag
be used and that each garment bag be filled with equal
amounts of material.
■ When unloading garments, occasionally check under the
rubber rim at the front of the tub for small items.
2. Close the washer door by pushing it firmly until the lock
clicks. The washer door will remain locked during the wash
cycle.
NOTE: After any wash cycle is completed, the door must be
opened and then closed before a new cycle can begin. The
door can be opened only if STOP is selected while the ADD A
GARMENT light is illuminated or it the cycle has been
canceled. See “To cancel a cycle" in the "Changing Cycles,
Options and Modifiers" section,
3. Open the dispenser drawer and add laundry products to the
detergent, bleach, or fabric softener compartments. Close
drawer slowly to avoid spills. See “Using the Dispenser.”
NOTE: Use only HE High Efficiency detergents.
4. Turn on the washer by selecting POWER. Select one of the
cycles by turning the cycle selector. The indicator light for the
selected cycle will illuminate. When selecting a Wash Cycle,
the preset Modifiers and Options, Water Temp, and Spin
Speed for the selected cycle will illuminate. The preset
settings provide the recommended fabric care for the
selected cycle. See “Wash Cycles,”
13
5. Select the desired OPTIONS. Not all Options are available
with all cycies. See “Options.”
6. Select the desired MODIFIERS. Not all Modifiers are available
with all Cycles and Options. See “Modifiers.”
7. If desired, select the CYCLE SIGNAL. The signal is helpful
when you are washing items that should be removed from the
washer as soon as it stops. Press CYCLE SIGNAL once to
turn it on. The indicator light will illuminate. Press again to
turn it off.
8. To begin the wash cycle immediately
Select and hold START {for approximately 1 second).
■ If you do not select START within 5 minutes of choosing a
cycle, the washer automatically shuts off.
■ When the wash cycle is complete, the CLOTHES CLEAN
status light illuminates, the door unlocks, and the wash
load can be removed from the washer. The washer
powers down automatically 5 minutes after the cycle is
complete and the CLOTHES CLEAN light goes off. To
power down the washer manually after the wash cycle is
complete, select STOP once.
9. To begin the wash cycle later
Select DELAY START until the desired delay time (in hours)
shows. Select START.
■ When delaying a cycle, use only powdered detergents in
the main wash compartment since liquid detergents may
seep out of the compartment during Delay, before the
wash cycle begins.
Your new washer has a dispenser drawer with three separate
compartments for your laundry additives—one is for detergent,
one is for liquid chlorine bleach, and one is for liquid fabric
softener. Laundry additives are diluted and dispensed
automatically at the proper time during the wash cycle, making it
unnecessary for you to return to the washer during the cycle to
add them.
It is normal for small amounts of water to remain in the
dispensers when the wash cycle is complete.
Do not put laundry additives directly into the wash tub. Always
use the proper dispensers when adding laundry additives.
Choosing the Right Detergent
Use only High Efficiency detergents. The package for this type of
detergent will be marked “HE” or “High Efficiency.” This wash
system, along with less water, will create too much sudsing with a
regular non-HE detergent. Using regular detergent will likely result in
washer errors, longer cycle times and reduced rinsing performance.
It may also result in component failures and noticeable mold or
mildew. HE detergents are made to produce the right amount of
suds for the best performance. Eollow the manufacturer's
instructions to determine the amount of detergent to use.
Use only HE High Efficiency detergent.
To fill dispenser compartments
1. Pull out the dispenser drawer.
2. Add the desired laundry product to the proper compartment.
3. Push in the dispenser drawer slowly and completely (to avoid
a spill).
C
D
A. Dispenser release lever
B. Main Wash detergent compartment
C. Liquid chlorine bleach compartment
D. Fabric softener compartment
Main Wash detergent compartment
(Letter B in Dispenser Illustration)
Add liquid or powdered HE detergent to this compartment for
your main wash cycle.
■ Powdered color-safe bleach may be added to the Main Wash
compartment along with the powdered detergent.
■ Liquid detergent: Measure the amount of liquid detergent with
the measurement device which comes with the detergent.
Add no more than the manufacturer's recommended amount.
The liquid detergent flows immediately into the washer.
■ Powdered detergent: Measure the amount of powdered
detergent with the measurement device which comes with
the detergent. Add no more than the manufacturers
recommended amount.
■ Do not fill beyond the "Max" level
NOTE: Overfilling could cause an over sudsing condition.
Chlorine bleach compartment
(Letter C in Dispenser Illustration)
Add NO MORE THAN % cup (160 mL) liquid chlorine bleach to
this compartment. The bleach will be automatically diluted and
dispensed at the best time during the first rinse after the wash
cycle. This compartment cannot dilute powdered bleach.
■ Use only liquid chlorine bleach in this dispenser. Do not use
this dispenser to add powdered chlorine or any form of colorsafe bleach to your load.
■ Always measure liquid chlorine bleach. Use a measuring cup
with a pour spout; do not guess. Follow the manufacturer’s
directions for safe use.
■ Do not fill beyond the “MAX” level.
NOTE: Overfilling could cause garment damage.
Fabric softener compartment
(Letter D in Dispenser Illustration)
Add V4 cup (60 mL) liquid fabric softener to this compartment.
Fabric softener will be automatically dispensed in the final rinse
or in the 2ND RINSE, if selected.
■ Do not fill beyond the “MAX” level.
14
1. To pause the washer at any time, select ST OP.
2. To continue the cycle, select and hold START (for
approximately 1 second).
Not all Options and Modifiers are available with all Cycles.
Cycles, Options and Modifiers can be changed anytime before
START is selected.
To stop a cycle and select a new cycle
Adding items
You can add items to the washer after the wash cycle has
started, if the ADD A GARMENT status light is illuminating. All
cycles have this feature except Rinse/ Spin and Drain/Spin.
To add items
1. Select STOP. The washer door unlocks, and items can be
added.
2. To continue the cycle, close the door and select and hold
START (for approximately 1 second).
3. To unlock the door after the Add a Garment period, press
STOP twice. This will cancel the Wash Cycle.
1.
Select STOP once.
2.
Select desired cycle.
3.
Select the desired OPTIONS and MODIFIERS.
4.
Select and hold START (for approximately 1 second) to restart
the washer at the beginning of the new cycle.
To cancel a cycle
1. Select STOP twice.
2. The washer powers down, the door unlocks, and clothes can
be removed.
NOTE: If the water level or the temperature is too high, the
washer will drain automatically before the door unlocks.
To change Options or Modifiers after the cycle has
started
1. Select STOP.
2. Select the desired OPTIONS or MODIFIERS. If the option or
modifier are not available, the machine will beep.
3. Select and hold START (for approximately 1 second) to
continue the cycle.
To drain the washer manually
1. Select STOP.
2. Select DRAIN & SPIN.
3. Select and hold START (for approximately 1 second) to begin
the drain.
4. When the spin is complete, the door unlocks. Items can be
removed from the washer.
Clothes Clean
The Clothes Clean light comes on when the cycle is complete.
Light will stay on until door is opened.
Locking controls
The Control Lock prevents unintended use of the washer. You
can also use the control lock feature to prevent unintended cycle
or option changes during a cycle. When CONTROL LOCKED is
lit, all buttons are disabled except for STOP and POWER. You
can lock the controls while the washer is operating.
To lock the controls
Select and hold CYCLE SIGNAL for 3 seconds.
• Cycle Signal
L Hold to Lock/
UnlodiCofstroSs
The CONTROL LOCKED status light illuminates.
To unlock the controls
Select and hold CYCLE SIGNAL for 3 seconds until the
CONTROL LOCKED Status light turns off.
Expected Cycle Time
The cycle times vary automatically based on your water pressure,
water temperature, detergent, and clothes load. The cycle time
will be extended if oversudsing occurs or the load is unbalanced.
The suds reduction routine removes extra suds and assures
proper rinsing of your garments. The options you select will also
affect the cycle times that are shown in the Preset Cycle Settings
table.
Door Locked
These lights show which portion of the cycle the washer Is
operating. They also indicate when you can add an additional
item to the wash cycle and when the controls are locked.
STATUS
Add a Garment O
Wash I
Rinse I
Spin I
Clothes Clean i
Controls Locked Q
Door Locked
When the status light illuminates, the door is locked.
Wash Cycles
Choose Wash Cycles by rotating the Cycles selector knob to the
desired cycle. The indicator light for the cycle selected will
illuminate. Each cycle is designed for different types of fabric and
soil levels.
Express Wash
Normal/ Casual
Heavy Duty
Whitest Whiles
Délicates
...^ Rinse
• : • & Spin
Drain
& Spin
15
Each cycle has a preset cycle time, WASH/RINSE TEMR
SPIN SPEED and may have preset Options and Modifiers.
The preset settings provide the recommended fabric care for
the selected cycle.
The preset settings can be changed anytime before START is
seiected. Not all Options and Modifiers are available with all
Cycles. To change settings after the cycle has started, select
stop then select the desired settings. Select and hold
START [tor approximately 1 second] to continue the cycle.
Express Wash
Use this cycle to wash small loads of 2-3 lightly soiled garments
that are needed in a hurry. This cycle combines fast-speed
tumbling, a shortened wash time, and extra high speed spin to
shorten drying time. Large wash loads will result in the machine
increasing the wash time.
Delicate
Preset Cycle Settings
Each cycle has a preset Cycle Time, Water Temp, and Spin
Speed. The preset settings provide the recommended fabric care
for the selected cycle. See chart.
Cycle
Estimated
Time*
Wash/Rinse
Temp
Spin Speed
(hr;min)
Whitest Whites1:25Hot/ColdHigh
Heavy Duty1:10Hot/ColdHigh
Normal/Casual0:52Warm/ColdHigh
Express Wash
‘The cycle times vary automatically based on your water
pressure, water temperature, detergent, and clothes load.
The cycle time will be extended if oversudsing occurs or the
load is unbalanced.
Use this cycle to wash sheer fabrics and lingerie. This cycle
combines low-speed tumbling and medium-speed spin for gentle
fabric care.
■ Use mesh garment bags to wash undergarments such as
underwire bras, items with strings, and small items such as
socks.
Rinse & Spin
Use this cycle to get a rinse and spin only. This cycle combines
fast-speed tumbling and high speed spin. If desired, you can
reduce the spin speed by selecting the speed you want from the
SPIN SPEED modifier.
Rinse & Spin is useful for
■ Loads that need rinsing only.
■ Adding fabric softener to a load using the fabric softener
dispenser.
Drain & Spin
Use this cycle to drain your washer or to drain and spin your
wash load. The spin speed is preset to high. If desired, you can
reduce the spin speed by selecting the speed you want from the
SPIN SPEED modifier.
NOTE: Loads of synthetics, delicate fabrics, handwashables, and
woolens should be drained with no spin or low spin to avoid
fabric stress.
Whitest Whites
This cycle is especially designed for cleaning loads of soiled
white fabrics with the addition of bleach. Hot washing
temperatures assure optimal bleach activity. An additional rinse
provides optimal rinse performance to avoid chlorine residues on
your laundry. This cycle combines fast-speed tumbling, longer
wash time, and high speed spin to shorten drying time.
Heavy Duty
Use this cycle to wash loads of sturdy, colorfast fabrics and
Heavy soiled garments. This cycle combines fast-speed
tumbling, longer wash time, and high speed spin to shorten
drying times.
Normal/Casual
Use this cycle to wash loads of no-iron fabrics such as sport
shirts, blouses, casual business clothes, permanent press
blends, cottons and linens, and synthetic fabrics. This cycle
combines medium-speed tumbling, high-speed spin, and a load
cooling process to reduce wrinkling.
As with any new product, you will hear sounds that you are not
accustomed to. You may hear various sounds when the door is
locked or unlocked, and during the washing, rinsing, or spinning
process. Between changes in wash actions, there will be
momentary pauses. You will hear water spraying and splashing
during the wash and rinse cycles. These new sounds and pauses
are part of normal washer operation. See “Troubleshooting.”
You can customize your wash by adding OPTIONS to your cycle
selections. You can add or change an option after starting a cycle
anytime before the selected option begins. Not all Options are
available with all cycles.
• 2nd Rinse
O
®Signal
Hold to Lock/
Unlock Controls
See the “Laundry Guide” section for an overview of possible
options for each Wash Cycle selection.
If an option is avaiiable with a selected cycle, the light for that
option will illuminate when selected.
If an option is unavailable with a selected cycle, there will be a
short tone and the light for that option will not illuminate when
selected.
16
2nd Rinse
A second rinse can be used to aid in the removal of detergent or
bleach residue from garments. This option provides an additional
rinse with the same water temperature as the Normal rinse.
Cycle Signal
This signal is helpful when you are removing items from the
washer as soon as it stops. Select ON or OFF.
Warm rinses leave the loads dryer than cold rinses. Warm rinses
increase wrinkling. In cold climates, a warm rinse makes the load
more comfortable to handle. Cold rinses save energy.
Temperature Guide
Wash Water TemperatureSuggested Fabrics
HOTWhites and pastels
Heavy soils
WARMBright colors
Moderate to light soils
Preset cycle settings of Water Temperature, Spin Speed, and
Rinse Options can be changed. You can change a modifier after
starting a cycle anytime before the selected Modifier begins. Not
all Modifiers are available with all options and cycles.
Auto Temp Contfol
O Hot/Cold
p Warm/ Warrrr
High
Medium L p Warm/ Colti
Low
О СоМ/ Cold
o o
Spin Wash/ Rinse
Speed Temp
To change the spin speed, select the SPIN SPEED button
until the desired setting illuminates.
To change the water temperature, select the WASH/RINSE
TEMP button until the desired setting illuminates.
Wash/Rinse Temp
Select a water temperature based on the type of load you are
washing. Use the warmest wash water safe for fabrics. Follow
garment label instructions.
COLDColors that bleed or fade
Light soils
In wash water temperatures colder than 60°F (15.6°C),
detergents do not dissolve well. Soils may be difficult to remove.
Auto Temp Control
АТС (Auto Temp Control) electronically senses and maintains a
uniform water temperature. АТС regulates incoming hot and cold
water. The АТС is automatically turned ON when a cycle is
selected. See Preset Cycle Settings table in “Cycles.”
■ АТС ensures consistent cleaning.
■ АТС works for the wash temperature with Warm/Warm,
Warm/Cold, and Cold/Cold settings.
■ АТС works for the rinse temperature with the Warm/Warm
setting.
■ The Cold rinse temperatures depend on the cold water at
your faucet.
Refer to this chart for suggested load types and their corresponding cycles. Listed to the right are the options available to each of these
washer cycles.
CYCLESUGGESTED LOAD TYPEAVAILABLE CPTICNS
Delay Start 2nd Rinse Cycle Signal
Whitest WhitesSoiled white fabrics✓✓✓
Heavy DutyHeavily soiled underwear, towels, shirts, etc., made of cotton✓✓✓
Norma l/CasualNormally soiled blouses, shirts, overalls, etc., made of
✓✓✓
polyester, nylon, cotton, linen, or cotton blends
Express WashSmall loads of 2-3 lightly soiled cotton, polyester, nylon, and
✓✓✓
cotton blends.
DelicateCurtains and delicate clothing, dresses, skirts, shirts and
✓✓✓
blouses
Rinse & SpinAll loads✓✓✓
Drain & SpinAll loads✓✓
17
LAUNDRY TIPS
Preparing clothes for washing
Follow these recommendations to help you prolong the life of
your garments.
■ Use only High Efficiency detergents. The package for this
type of detergent wiil be marked “HE” or “High Efficiency.”
This wash system, along with less water, will create too much
sudsing with a regular non-HE detergent. Using regular
detergent will likely result in washer errors, longer cycle times
and reduced rinsing performance. It may also result in
component failures and noticeable mold or mildew. HE
detergents are made to produce the right amount of suds for
the best performance. Follow the manufacturer's instructions
to determine the amount of detergent to use.
Use only HE High Efficiency detergent
Ciose zippers, snaps, and hooks to avoid snagging other
items. Remove pins, buckles, and other hard objects to avoid
scratching the washer interior. Remove non-washable trim
and ornaments.
Empty pockets and turn them inside-out.
Turn down cuffs; brush away lint and dirt.
Turn synthetic knits inside-out to avoid piliing.
Tie strings and sashes so they will not tangle.
Mend tears, loose hems, and seams.
Treat spots and stains.
Stained or wet garments should be washed promptly for best
results.
Mix large and small items, avoid washing single items, and
load evenly.
Wash small items, such as infant socks. In a mesh garment
bags. To create a balanced load it Is recommend that more
than one garment bag be used, and that each garment bag
be filled with equal amounts of material.
NOTE: If you are washing only small items, it is recommend
that more than one mesh garment bag be used, and that
each garment bag be filled with equal amounts of material.
Sorting
■ Separate heavily soiled items from lightly soiled ones, even if
they would normally be washed together. Separate lint-givers
(towels, chenille) from lint-takers (corduroy, synthetics,
permanent press). When possible, turn lint-givers inside-out.
■ Separate dark colors from light colors, colorfast items from
noncolorfast items.
■ Sort by fabric and construction (sturdy cottons, knits, delicate
items).
Unloading
■ Remove clothes from washer after the cycle is completed.
Metal objects such as zippers, snaps, and buckles may rust if
left in the washer basket for a long time.
■ When unloading garments, occasionally check under the
rubber rim at the front of the tub for small items.
8 bath towels10 washcloths
8 hand towels1 bath mat
Délicates
3 camisoles2 bras
4 slips2 nighties
4 panties
EXPRESS WASH cycle2 dress shirt
(2-3 garments)1 pair dress pants
18
stain Use Liquid Chlorine Use suggested
or Color-Save Bleach Wash Cycle
V V A /1^
StainUse Liquid Chlorine Use suggested
or Color-Save Bleach Wash Cycle
Products
Warm/Soak
Prewash
Whitest Whites
\ZP
Coffee/
Chocolate
Heavy DutyHeavy Duty
Cosmetics
Warm/Soak
Prewash
Heavy Duty
Ring around
the Collar
Dirty Motor
Oil
Do not tumble dry soiled or stained items. Heat may permanently set stains.
WASHER CARE
Warm/Soak
Prewash
Whitest Whites
Mud
Normal/Casual
Cleaning the door seal/bellow
1. Open the washer door and remove any clothing or items from
the washer.
2. Inspect the gray colored seal/bellow between the door
opening and the basket for stained areas. Pull back the seal/
bellow to inspect all areas under the seal/bellow and to check
for foreign objects.

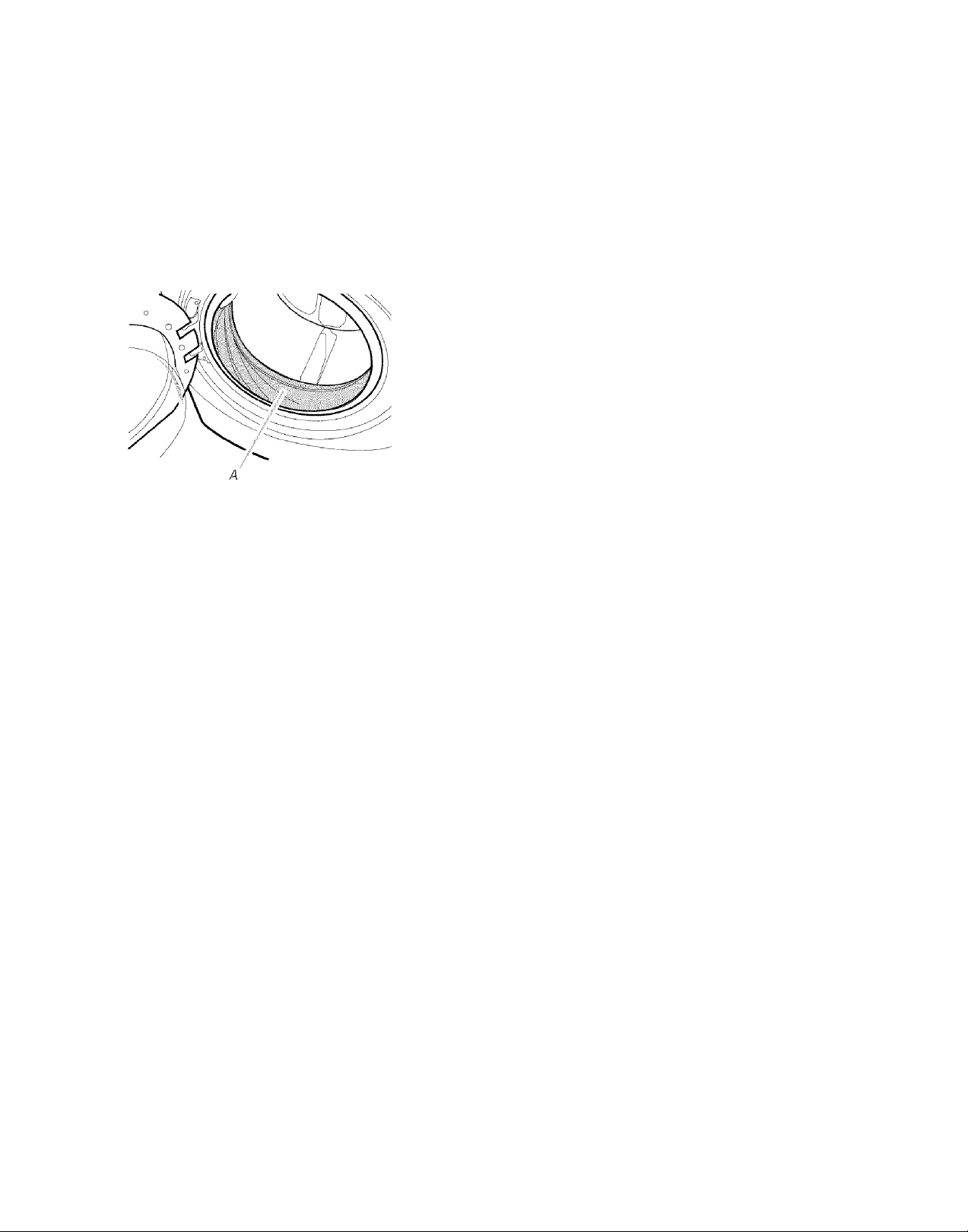

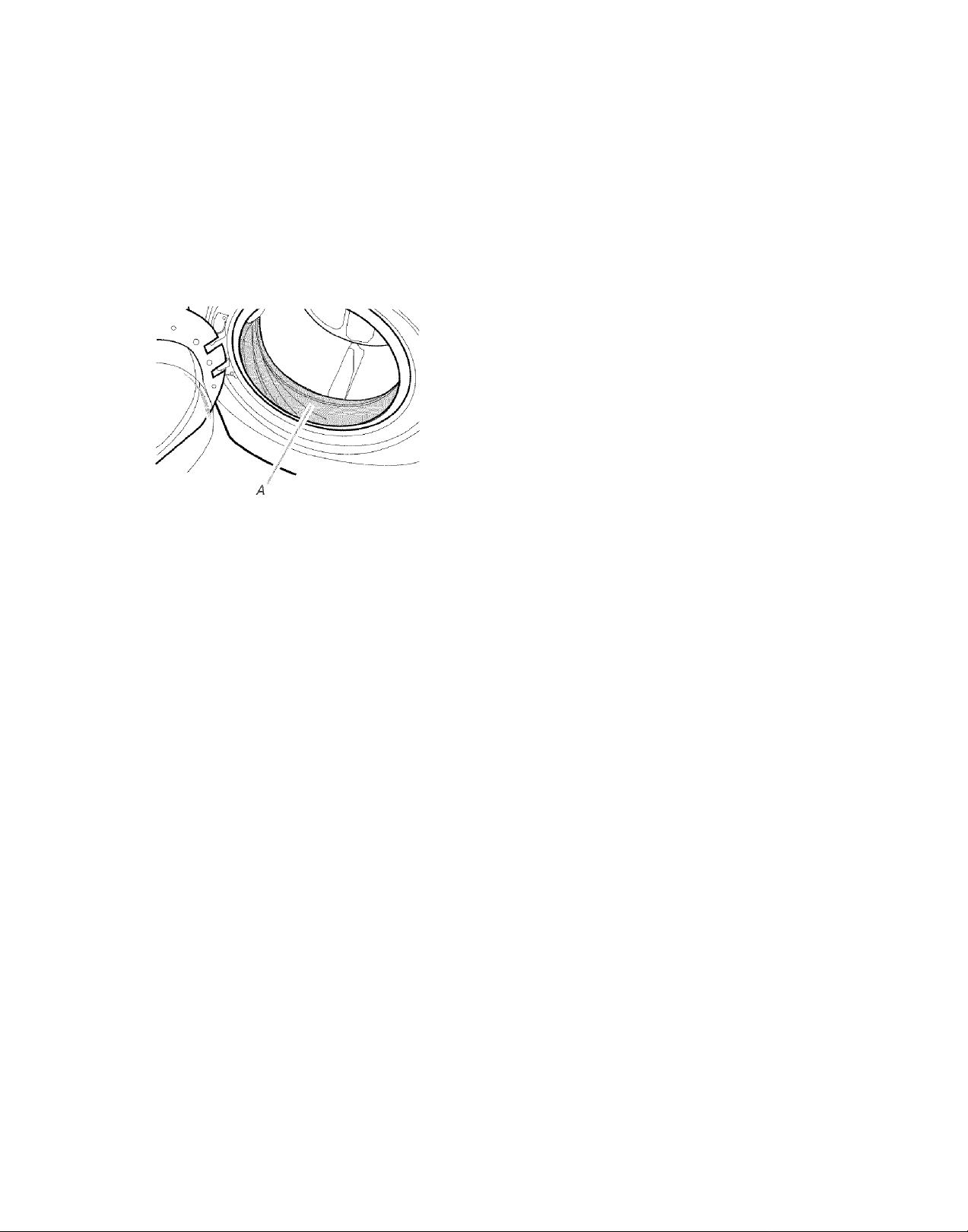

A, Seal/Bellow
3. If stained areas are found, wipe down these areas of the seal/
bellow, using the procedure that follows.
a) Mix a dilute solution, using % cup (177 mL) of liquid
chlorine bleach, and 1 gal. (3.8 L) of warm tap water,
b) Wipe the seal/bellow area with the dilute solution, using a
damp cloth.
c) Let stand 5 minutes.
d) Wipe down area thoroughly with a dry cloth and let the
washer interior air dry with door open.
IMPORTANT:
■ Wear rubber gloves when cleaning for prolonged periods.
■ Refer to the bleach manufacturer’s instructions for proper
use.
19
Washer Maintenance Procedure
Your washer has a special cycle stored within the machine’s
programming. Pressing a specific combination of buttons will
access this cleaning cycle. This cycle uses higher water volumes
in combination with liquid chlorine bleach to thoroughly clean the
inside of your washing machine.
NOTES:
■ Read these instructions completely before beginning the
cleaning process.
■ If necessary, the cleaning cycle may be interrupted by
pressing the STOP button. This will stop the cycle. A RINSE &
SPIN cycle must then be run to thoroughly rinse the
remaining bleach from the unit. Failure to do so will cause
damage to the unit and clothing added to the next cycle.
Begin procedure
1. Open the washer door and remove any clothing or items from
the washer.
2. Be sure the door is closed.
3. Open the dispenser drawer and immediately add % cup
(160 mL) of liquid chlorine bleach to the bleach compartment.
NOTE: Do not add any detergent to this cycle. Use of more
than % cup (160 mL) of bleach will cause product damage
over time.
4. Be sure dispenser drawer is closed.
5. To enter the cycle, a specific combination of buttons must be
pressed.
■ Select the POWER button.
■ Select the RINSE & SPIN program.
■ Select the LOW Spin Speed.
■ Select WARM/COLD Water Temperature.
■ Disable the CYCLE SIGNAL.
■ Set DELAY WASH to 0 hours.
■ Push, the 2ND RINSE Option button 4 times within
5 seconds, to start the cycle. The door will lock.
NOTE: The basket will rotate, then the door will unlock,
lock again, and then the cycle will continue.
■ The machine will not fill, but the basket will rotate while
the washer runs a short sensing cycle. This will take
approximately 3 minutes.
6. The cycle will determine If items are in the washer.
a) If no items are detected in the washer, it will proceed
to Step 7.
b) If any items are detected in the washer, all the Cycle
lights will flash and the WASH, and CONTROLS
LOCKED lights will remain lit. The door will unlook.
■ Press STOP to cancel the failure code. Then
repeat steps 1,2 and 5, to start the cycle again.
Always do the following to maintain washer freshness
■ Use only HE High Efficiency detergent.
■ Leave the door slightiy open after each cycle to allow for
better ventilation and drying of washer interior.
■ Repeat the cleaning procedure monthly, using % cup
(160 mL) of liquid chlorine bleach.
■ If the procedure does not sufficiently improve the machine
freshness, please evaluate your installation and usage
conditions for other causes.
Cleaning the exterior
Use a soft damp cloth or sponge to wipe up any spills.
Occasionally wipe the outside of your washer to keep it looking
new. Use mild soap and water. Do not use abrasive products.
Cleaning the dispenser drawer
The dispenser drawer is removable for easy cleaning.
1. Unlock the dispenser drawer by pressing the Release Lever.
See “Using the Dispenser.’’ Remove the drawer.
2. Remove the inserts (the siphon from the softener and bleach
compartments).
3. Wash the parts under running water.
NOTE: Do not wash oomponents in the dishwasher.
4. Replace the inserts and return the dispenser to the drawer.
Replace inlet hoses after five years of use to reduce the risk of
hose failure. Periodically inspect and replace inlet hoses if
bulges, kinks, cuts, wear or leaks are found.
When replacing your inlet hoses, record the date of replacement.
Install and store your washer where it will not freeze. Because
some water may stay In the hoses, freezing can damage your
washer. If storing or moving your washer during freezing weather,
winterize it.
Non-use or vacation care:
Operate your washer only when you are at home. If you will be on
vacation or not using your washer for an extended period of time,
you should:
■ Unplug washer or disconnect power.
■ Turn off the water supply to the washer. This helps avoid
accidental flooding (due to a water pressure surge) while you
are away.
■ Slightly open door to provide ventilation.
7. Once the cycle has begun, allow the cycle to complete.
8. After the cycle is complete, leave the door open, slightly, to
allow for better ventilation and drying of washer interior.
20
To winterize washer:
1. Put 1 qt (1 L) of R.V.-type antifreeze in the drum.
2. Run washer on a Drain & Spin cycle.
3. Unplug washer or disconnect power.
4. Shut off both water faucets.
5. Disconnect water inlet hoses from faucets and drain.
To use washer again;To transport the washer;
1. Flush water pipes.
2. Reconnect water inlet hoses to faucets.
3. Turn on both water faucets.
^WARNING
Electricai Shock Hazard
Plug into a grounded 3 prong outlet.
Do not remove ground prong.
Do not use an adapter.
Do not use an extension cord.
Failure to follow these instructions can result in death,
fire, or electrical shock.
4. Plug in washer or reconnect power.
5. Run the washer through the Normal/Casual cycle. Use only
HE High Efficiency detergent. Use V4 the manufacturer’s
recommended amount for a medium sized load.
1. If washer will be moved during freezing weather, put in 1 qt
(1 L) of R.V.-type antifreeze in the drum. Run washer on a
Drain & Spin cycle.
2. Unplug the power cord.
3. Disconnect the drain hose from the drain system and attach
to rear panel clips.
4. Shut off both water faucets.
5. Disconnect the water inlet hoses from faucets, then drain the
hoses and clip them to the rear panel of the washer.
6. IMPORTANT: Call service. Do not reuse transport bolts. Unit
must be transported in the upright position. To avoid
suspension and structural damage, your machine must be
properly set up for relocation by a certified technician.
Reinstalling the washer
1. Follow the “Installation Instructions” to locate, level and
connect the washer.
2. Run the washer through the Normal/Casual cycle to clean the
washer and remove the antifreeze, if used. Use only HE High
Efficiency detergent. Use Va the manufacturer’s
recommended amount for a medium sized load.
TROUBLESHOOTING
First try the soiutions suggested here to possibiy avoid the cost of a service caii.,
Error codes
When all cycle indicator lights are blinking, see which status light
is also illuminated and then check the list below for potential
problem and troubleshooting checks. An error code may be
shown in the Estimated Time Remaining display {on some
models).
■ “Rinse” and “Clothes Clean” Status Light illuminated or
“F20” on display (on some models) (Water Inlet Problem —
no water or insufficient water supply)
Select PAUSE/CANCEL twice to cancel the cycle. Unplug
washer or disconnect power.
Check the following:
Are water faucets completely turned on?
Are screens at inlet hose connection to washer clogged? Are
water inlet hoses kinked?
Are water inlet hoses frozen?
AWARNING
>¿9
%r
Electrical Shock Hazard
Plug into a grounded 3 prong outlet
Do not remove ground prong.
Do not use an adapter.
Do not use an extension cord.
Failure to follow these instructions can result in death,
fire, or electrical shock.
Plug in washer or reconnect power. Re-select cycle and press
START. If the problem remains, call for service.
21
“Add a Garment,” “Rinse” and “Clothes Clean” Status
Lights illuminated or “F21” on display (on some models)
(Drain Problem)
Select PAUSE/CANCEL twice to cancel the cycle. Unplug
washer or disconnect power.
Check the following:
Is the drain hose kinked?
Is the drain hose frozen?
Is the drain hose clogged?
Is the drain hose more than 96" (2.4 m) above the floor?
Any other Status light combination (Electrical Problem)
Select PAUSE/CANCEL twice to cancel the cycle. Select
DRAIN & SPIN if there is excessive water in the washer.
Re-select cycle and press START. If the problem remains, call
for service.
Noisy, vibrating, off-baiance
Is the washer level?
The washer must be level. The four feet should be properly
installed, and the nuts should be tightened against the
washer cabinet.
All four feet of the washer must be in firm contact with the
floor. If the washer is on a pedestal, the washer must be
secured to the pedestal and all four pedestal feet must be in
firm contact with the floor.
Washer making a different noise?
As with any new product, you will hear sounds that you are
not accustomed to. You may hear various sounds when the
door is locked or unlocked, and during the washing, rinsing,
or spinning process. Between changes in wash actions, there
will be momentary pauses. You will hear water spraying and
splashing during the wash and rinse cycles. These new
sounds and pauses are part of normal washer operation.
Is washer installed on a sturdy and solid floor?
Refer to the “Installation Instructions” for flooring
requirements. Noise and vibration may be reduced by placing
a piece of Ya" (19.1 mm) plywood underneath your washer.
The plywood may extend underneath both washer and dryer
to keep them at equal heights.
Is the washer gurgling or humming?
As water is drained from the washer, you may hear air being
pulled through the pump. This happens during the end of
draining. It is normal.
Are you washing items with metal snaps, buckles or
zippers?
You may hear metal items touching the washer drum. This is
normal.
Were the 4 shipping bolts in the back of the machine
removed?
See “Remove Transport System.”
Leaking
Was the door opened during “Add a garment”?
Water can drip off the inside of the door when opened after
the start of a cycle.
Is HE detergent being used?
The non-High Efficiency detergents can cause over sudsing
which can leak from the rear of the washer.
Are the fill hoses tight?
Are the fill hose gaskets properly seated?
Check both ends of each hose. See “Connect the Inlet
Hoses” in the Installation Instructions.
Is the drain hose properly installed?
The drain hose should be secured to the drainpipe or laundry
tub. See “Secure Drain Hose” in the Installation Instructions.
Is the sink or drain clogged?
Sink and drainpipe must be able to carry away 17 gal. (64 L)
of water per minute. If clogged or slow, water can back up
out of drainpipe or sink. Check household plumbing (laundry
tubs, faucets, drainpipe, water pipes) for leaks.
Dispenser operation
Did you follow the manufacturer’s directions when adding
detergent and fabric softener to the dispensers?
Measure detergent and fabric softener. Slowly pour into the
dispensers. Wipe up all spills. Dilute fabric softener in the
fabric softener dispenser.
Did you put powdered or liquid color-safe bleach into the
liquid chlorine bleach dispenser (on some models)?
Add powdered or liquid color-safe bleach to the Main Wash
compartment. Do not use the chlorine bleach dispenser for
color-safe bleach.
Is the fabric softener dispenser clogged?
Clean the fabric softener dispenser. See “Washer Care” for
details.
Are the laundry products in the correct dispenser
compartment?
Add the correct amounts of detergent, fabric softener or
liquid chlorine bleach to the correct compartments. Add
powdered or liquid color-safe bleach to the Main Wash
compartment. Be sure to match powdered color-safe bleach
wifh powdered detergent or match liquid color-safe bleach
with liquid detergent.
Is there water in the dispenser at the end of the cycle?
A small amount of water will remain in the dispenser
compartment. This is normal.
Washer odor
See “Cleaning Your Washer” in “Washer Care.”
Are you using HE detergent?
Use of non-HE detergent can cause a film residue which can
result in odor.
Did you leave the door open after use?
This washer has a tight seal to avoid water leaks. To avoid
odors leave the door open to allow the washer to dry
between uses.
Door won't unlock
Did all of the water drain out of the washer during the
spin?
Select DRAIN & SPIN to remove any water remaining In the
washer. The washer door will unlock at the end of the drain.
Is the door locked and is the “Add a garment” light on?
Press STOP once. The door will unlock.
22
Washer won't run, fill, rinse or tumble; washer stopsWasher continues to fill or drain, cycle seems stuck
Is the top of drain hose lower than 30" (76 cm) on washer?
^WARNING
The top of the drain hose must be at least 30" (76 cm) above
the floor. See “Drain System” in the Installation Instructions.
Does the drain hose fit too tightly in the standpipe, or is it
taped to the standpipe?
The drain hose should be loose yet fit securely. Do not seal
the drain hose with tape. The hose needs an air gap. See
“Secure Drain Hose” in the Installation Instructions.
Electricai Shock Hazard
Plug into a grounded 3 prong outlet.
Do not remove ground prong.
Do not use an adapter.
Do not use an extension cord.
Failure to follow these instructions can result in death,
fire, or electrical shock.
Is the power cord plugged into a grounded 3 prong
outlet?
Plug power cord into a grounded 3 prong outlet.
Are you using an extension cord?
Do not use an extension cord.
Has a household fuse blown, or has a circuit breaker
tripped?
Replace the fuse, or reset the circuit breaker. If the problem
continues, call an electrician.
Are both the hot and cold water faucets turned on?
Turn on the water.
Is the water inlet hose kinked?
Straighten the hoses.
Are the water inlet valve screens clogged?
Turn off the water and remove inlet hoses from the washer.
Remove any accumulated film or particles. Reinstall hoses,
turn on water and check for leaks.
Is the washer in a normal pause in the cycle?
The washer pauses for about 2 minutes during certain cycles.
Allow the cycle to continue. Some cycles feature periods of
tumbling and soak.
Is the washer overloaded?
Wash smaller loads.
Is the washer door firmly shut?
The door must be closed during operation.
Are the shipping bolts removed?
All four shipping bolts must be removed for proper operation
of the washer.
Has a cycle been selected, but START has not been
selected and held for 1 second?
Press and hold START, for 1 second.
Was the door open after completion of last cycle?
The door must be opened and closed again to start a new
cycle.
Washer won’t drain or spin, water remains in washer
Is the drain hose clogged, or the end of the drain hose
more than 96" (2.4 m) above the floor?
Is your voltage low?
Check electrical source or call electrician. Do not use an
extension cord.
Excessive suds?
When excessive suds are detected, a special suds routine
automatically starts. Cycle will complete once extra suds are
removed. This will occur more frequently when a non-HE
detergent is used.
Is the toad balanced?
A single or bulky item may cause imbalance. Add more items
or redistribute the load.
Not enough water/Not enough suds
Low water?
This washer uses very little water to provide good cleaning
results. You will see little or no water splashing in this washer.
This is normal.
Are you using HE detergent?
HE detergent is a low sudsing detergent. This is normal and
will not affect cleaning performance.
Wash/Rinse temperature
Are the hot and cold water inlet hoses reversed?
See “Connect the Inlet Hoses” in the Installation Instructions.
Are you washing many loads?
As your frequency of loads washed increases, the water
temperature may decrease for hot and warm temperatures.
This is normal.
Cycle time changes/Cycle too long
Estimated cycle time?
The cycle times vary automatically based on your water
pressure, water temperature, detergent, and clothes load.
The cycle time will be extended if oversudsing occurs or the
load is unbalanced. The SUDs routine removes extra suds
and assures proper rinsing of your garments. The options you
select will also affect the cycle times that are shown in the
Preset Cycle Settings table.
Excessive suds?
When excessive suds are detected, a special suds routine
automaticaily starts. This routine will add time to the original
cycle.
23
Did the load cause imbalance?
When too much imbalance occurs, an imbalance routine will
start to redistribute the load. During the imbalance routine the
time displayed may pause until this activity is complete, then
resume with the remainder of the cycle.
Are you washing a single item or bulky load?
Spin time is added if an unbalanced load is detected. The
washer will attempt to redistribute the load with additional
tumbling.
Did you wash a large load on the Express Wash cycle?
The Express Wash cycle is designed for smaller load sizes
(2-3 items) of lightly soiled garments. If larger loads are
washed in this cycle, wash time will be increased.
Did you wash a large load in a gentle or Délicates cycle?
When using the Express Wash, Handwash, or Délicates wash
cycles you should use small loads. This ensures a gentle
wash for your garments without increasing cycle times.
Load too wet
Did you use the right cycle for the load being washed?
Select a cycle with a higher spin speed.
Did you wash a single item or bulky items or have you
overloaded the washer?
A single item, bulky items, or overloading may cause
imbalance. Add items or try to evenly distribute your wet
laundry in the drum, and start a Drain & Spin cycle. If the
laundry is still wet, take half of the load out of the washer and
try again.
Did you use HE detergent?
Suds during rinse and spin cycles can reduce spin speed.
Use HE detergent.
Residue, lint, stains on load; gray whites, dingy colors
Did you add detergent to the dispenser?
For best results, add detergent to the detergent
compartment. Do not add detergent to the washer drum.
Did you sort properly?
Sort lint givers (towels, chenille) from lint takers (corduroy,
synthetics). Dye transfer can occur when mixing whites and
colors in a load. Sort dark clothes from whites and lights.
Did you overload the washer?
Do not overload the washer. The washer can be fully loaded,
but not tightly packed. The wash load must be balanced. Lint
can be trapped in the load if overloaded.
Check the following:
Was paper or tissue left in pockets?
Did you use enough HE detergent?
Follow manufacturer’s recommendations for the type of load
you are washing. For best performance, use only High
Efficiency detergent. Use enough detergent to remove soil and
hold It in suspension.
Do you have hard water?
Use more detergent for washing heavy soils in cold or hard
water.
Is your water colder than 60°F {15.6°C)?
Wash water colder than 60°F (15.6°C) may not completely
dissolve the detergent. Use hot or warm washes If safe for the
fabric load. Make sure your hot water system is adequate to
provide a hot water wash.
Are you using a low speed wash cycle?
Powdered detergents may not dissolve well in a slow-speed
cycle. For best results, use liquid detergent for slow-speed
cycles such as Délicates.
Did you unload the washer promptly?
To avoid dye transfer, unload the washer as soon as it stops.
Did you use a fabric softener dispensing ball?
Dispensing balls will not operate correctly with this washer.
Add liquid fabric softener to the fabric softener compartment.
Did you use powdered detergent in a low-speed cycle?
Consider using liquid detergent.
Did you use Express Wash on a large load?
For best results, use Express Wash for small, lightly soiled
loads.
Load is wrinkied, twisted, tangied
Did you unload the washer promptly?
Unload the washer as soon as it stops.
Did you use the right cycle for the load being washed?
Use the Délicates cycle or another cycle with a low spin
speed to reduce wrinkling.
Did you overload the washer?
The wash load must be balanced and not overloaded. Loads
should tumble freely during washing.
Was the wash water warm enough to relax wrinkles?
If safe for load, use warm or hot wash water.
Are the hot and cold water hoses reversed?
Check to be sure the hot and cold water hoses are connected
to the right faucets. A hot rinse followed by spin will cause
wrinkling. See “Connect the Inlet Hoses” in the Installation
Instructions.
24
Loading...
+ 56 hidden pages
You need points to download manuals.
1 point = 1 manual.
You can buy points or you can get point for every manual you upload.
