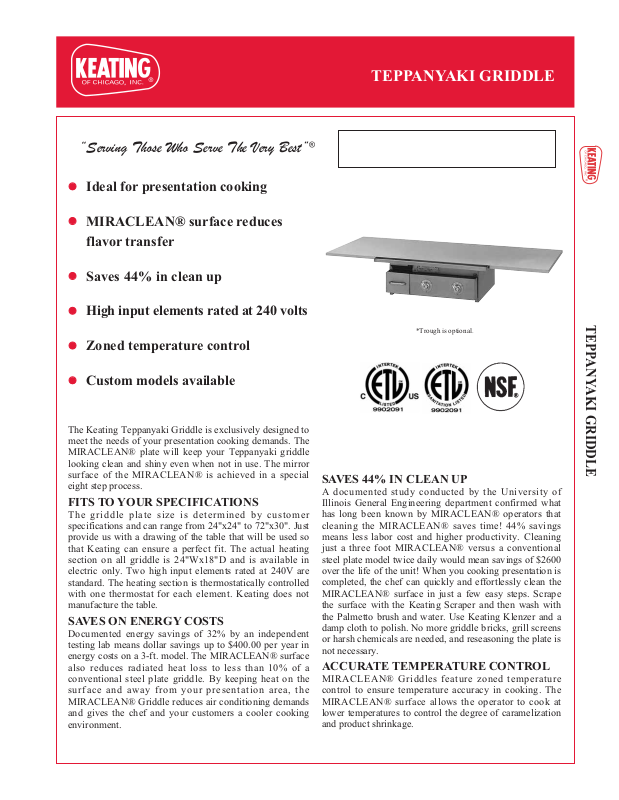

TEPPANYAKI GRIDDLE



Ideal for presentation cooking



MIRACLEAN® surface reduces

flavor transfer



Saves 44% in clean up



High input elements rated at 240 volts



Zoned temperature control



Custom models available

The Keating Teppanyaki Griddle is exclusively designed to
meet the needs of your presentation cooking demands. The
MIRACLEAN® plate will keep your Teppanyaki griddle
looking clean and shiny even when not in use. The mirror
surface of the MIRACLEAN® is achieved in a special
eight step process.

FITS TO YOUR SPECIFICATIONS

The griddle plate size is determined by customer
specifications and can range from 24"x24" to 72"x30". Just
provide us with a drawing of the table that will be used so
that Keating can ensure a perfect fit. The actual heating
section on all griddle is 24"Wx18"D and is available in
electric only. Two high input elements rated at 240V are
standard. The heating section is thermostatically controlled
with one thermostat for each element. Keating does not
manufacture the table.

SAVES ON ENERGY COSTS

Documented energy savings of 32% by an independent
testing lab means dollar savings up to $400.00 per year in
energy costs on a 3-ft. model. The MIRACLEAN® surface
also reduces radiated heat loss to less than 10% of a
conventional steel plate griddle. By keeping heat on the
surface and away from your presentation area, the
MIRACLEAN® Griddle reduces air conditioning demands
and gives the chef and your customers a cooler cooking
environment.

SAVES 44% IN CLEAN UP

A documented study conducted by the University of
Illinois General Engineering department confirmed what
has long been known by MIRACLEAN® operators that
cleaning the MIRACLEAN® saves time! 44% savings
means less labor cost and higher productivity. Cleaning
just a three foot MIRACLEAN® versus a conventional
steel plate model twice daily would mean savings of $2600
over the life of the unit! When you cooking presentation is
completed, the chef can quickly and effortlessly clean the
MIRACLEAN® surface in just a few easy steps. Scrape
the surface with the Keating Scraper and then wash with
the Palmetto brush and water. Use Keating Klenzer and a
damp cloth to polish. No more griddle bricks, grill screens
or harsh chemicals are needed, and reseasoning the plate is
not necessary.

ACCURATE TEMPERATURE CONTROL

MIRACLEAN® Griddles feature zoned temperature
control to ensure temperature accuracy in cooking. The
MIRACLEAN® surface allows the operator to cook at
lower temperatures to control the degree of caramelization
and product shrinkage.

TEPPANYAKI GRIDDLE

“Serving Those Who Serve The Very Best”

®

*Trough is optional.

TEPPANYAKI GRIDDLE

DESCRIPTION

The Keating Teppanyaki MIRACLEAN® Griddle
consists of a griddle plate equipped with electric elements.
An automatic temperature control mechanism is arranged
and designed for the proper cooking of food on a griddle
surface.

SPECIFICATIONS
Griddle Plate to be made of high carbon, 3/4" steel plate

upon which a trivalent chromium surface has been applied
in a special eight step process to ensure a mirror smooth
surface. The MIRACLEAN® plate has an emissivity
rating of .078.

Electric Elements to be two high input elements rated 7.9
kW at 240 volts. Elements are to be stainless steel. Each
element is encased in insulation and held tightly in place
with a molded steel cover.

Thermostat to be close range, hydraulic type, accurate to
±5° from 250° to 550°F, with one thermostat for each
element. Application of this thermostat is patented by
Keating.

Drain Trough an optional drain trough across the front
with a 4" x 1-1/2" drain in the left front (unless otherwise
specified). The drain is located above a large stainless
steel grease drawer with baffles and a rear handle. The
grease trough is 14 gauge stainless steel.

Standard Accessories to include one long-handle
palmetto brush, one egg turner, one can of Keating
Klenzer.

Electrical Connections to have 3 wire terminal block
with ground for field wiring. (See local codes for supply
line requirements).

Special Order Options may include stainless steel
perimeter, trough options, custom griddle styles and
configurations.

NOTE: Customer must provide drawing of table that will
be used, and table must be ventilated. Keating does not
manufacture the table.

TEPPANYAKI GRIDDLE

As continuous product improvement occurs, specifications may be changed without notice.

Printed in U.S.A. Teppanyaki2007 5/07

KEATING OF CHICAGO, INC.

Toll Free 1-800-KEATING

www.keatingofchicago.com

Electric Load

*480V is optional and must be specified.

kw

5.9

6.6

7.9

*7.9

Volts AC

208
220
240
480

1-Phase Amps

28
30
33

–

3-Phase Amps

14-25-14
15-26-16
16-28-16

8-14-8

"A" dimensions: (per

customer specifications)

24" to 72"

"B" dimensions:
18", 24", 30"

NOT FOR OUTDOOR INSTALLATION
NOT FOR DOMESTIC INSTALLATION
