Page 1
MG-2/MG-4
GAS HOT
PLATE
SERVICE
MANUAL
KEEP THIS MANUAL FOR TRAINING NEW PERSONNEL
1-800-KEATING
www .keatingofchicago.com
Hot Plate 0107 09/07
Page 2
SECTION I INTRODUCTION
General Information . . . . . . . . . . . . . . . . . . . . . . . . .1
Ratings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1
Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1
Standard Features . . . . . . . . . . . . . . . . . . . . . . . . . .1
Model Variations . . . . . . . . . . . . . . . . . . . . . . . . . . .1
Safety Precautions . . . . . . . . . . . . . . . . . . . . . . . .1-2
SECTION II INSTALLATION
Damage During Shipment . . . . . . . . . . . . . . . . . . . .2
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-3
Positioning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
Restraining Devices . . . . . . . . . . . . . . . . . . . . . . . . .3
Electrical Connection . . . . . . . . . . . . . . . . . . . . . . . .3
Gas Leak Testing . . . . . . . . . . . . . . . . . . . . . . . . .3-4
SECTION III OPERATING
Lighting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
Shutdown . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
SECTION IV MAINTENANCE
Warranty Repairs . . . . . . . . . . . . . . . . . . . . . . . . . . .4
Preventive Maintenance . . . . . . . . . . . . . . . . . . . . .4
SECTION V SERVICE DIAGNOSIS
General . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
Trouble Shooting Chart . . . . . . . . . . . . . . . . . . . . . .5
SECTION VI ORDERING PARTS
Ordering Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
Warning and Operating Plates . . . . . . . . . . . . . . . .5
Hot Plate Parts List . . . . . . . . . . . . . . . . . . . . . . . . .6
Hot Plate Assembly . . . . . . . . . . . . . . . . . . . . . . . . .7
SECTION VII WIRING DIAGRAMS
Hot Plate Wiring and Ladder Diagrams . . . . . . . . . .8
Warranty
TABLE OF CONTENTS
Page 3
POST THIS LABEL IN A
PROMINENT LOCATION ON
YOUR UNIT
i
IMPORTANT
IN THE EVENT A GAS ODOR IS DETECTED,
SHUT DOWN UNITS AT MAIN SHUT OFF VALVE
AND CONTACT THE LOCAL GAS COMPANY OR
GAS SUPPLIER FOR SERVICE.
FOR YOUR SAFETY
DO NOT STORE OR USE GASOLINE OR OTHER
FLAMMABLE VAPORS OR LIQUIDS IN THE VICINITY
OF THIS OR ANY OTHER APPLIANCE.
IMPROPER INSTALLATION, ADJUSTMENT,
ALTERATION, SERVICE OR MAINTENANCE CAN
CAUSE PROPERTY DAMAGE, INJURY OR DEATH.
READ THE INSTALLATION, OPERATING AND
MAINTENANCE INSTRUCTIONS THOROUGHLY
BEFORE INSTALLING OR SERVICING THIS
EQUIPMENT.
WARNING
Do not store flammable
liquids near this or any
other appliance.
WARNING
Improper installation
can cause damage,
injury or death.
Page 4
I INTRODUCTION
GENERAL
Keating MG-2 and MG-4 Hot Plates are designed to
give maximum production efficiency; delivering high
quality food products. The following design features are
incorporated in all Keating Hot Plates.
STANDARD FEATURES
Highly polished stainless steel front
Infinite controls
12" working height
Gas and air adjustments
Easy access for servicing
3/4" gas connection
100% factory testing
RATINGS
15,000 BTU/hr. input per burner (natural gas and
Propane)
4" WC (natural gas) or 10" WC (Propane) burner gas
pressure
49 (natural gas) or 53 (Propane) burner orifice size
3/4" gas supply pipe recommended
OPTIONS
Natural Gas or Propane
Spark Ignition System
24" or 30" depth
MODEL VARIATIONS
MG-2 Model: The MG-2 model has two burners
MG-4 Model: The MG-4 model has four burners
SAFETY PRECAUTIONS
WARNING
THIS SYMBOL WARNS YOU THAT SERIOUS BURNS
OR OTHER INJURIES MAY RESULT IF SAFETY
INSTRUCTIONS ARE NOT FOLLOWED.
This service manual should be retained in a safe
place for future reference. The installation of your new
hot plate must conform to local codes or in the absence
of local codes, with the current National Fuel Gas Code
ANSI Z223.1/NFPA 54, Natural Gas Installation Code
CAN/CGA-B149.1 or Propane Installation Code
CAN/CGA-B149.2.
Your ventilation hood, when installed, must conform
to the current ANSI/NFPA 96 standard.
No frame or restriction shall be constructed around
the hot plate that will restrict air movement into the hot
plate’s combustion area or prevent proper ventilation.
Keating hot plates are designed to operate on the gas
fuel specified on the serial plate and must not be
operated with another gas fuel. They cannot be
converted to another gas fuel by turning or engaging a
switch.
FOR YOUR SAFETY: Do not store or use gasoline or
other flammable vapors and liquids in the vicinity of
this or any appliance.
You will post, in a prominent location, instructions to be
followed in the event the user smells gas. This
information shall be obtained from your local gas
supplier. You may use the yellow stick-on label
temporarily until you receive the data from your local
gas supplier.
IMPORTANT: In the event a gas odor is detected,
shut down unit at main shut-off valve and contact
the local gas company or gas supplier for
emergency service.
Suitable for installation on combustible surfaces.
You must maintain this appliance free and clear from
combustibles.
You must maintain the following minimum clearances
from combustible and noncombustible construction:
Clearances: Combustible Noncombustible
Construction
Construction
Back 6" 0"
Right Side 6" 0"
Left Side 6" 0"
You must install this appliance at least 16" away from
any open flame.
Adequate clearance for servicing and proper
operation must be maintained. Your hot plate is
designed to be serviced from the front.
Keating commercial hot plates are intended for other
than household use.
ALWAYS instruct new employees on proper hot plate
operation.
A hot plate should be operated ONLY by properly
trained personnel.
ALWAYS turn hot plate off each night.
ALWAYS disconnect fuel source before servicing.
NEVER leave a hot plate unattended during
operation.
NEVER introduce objects into hot plate, while
operational, which are not designed or made for
cooking.
1
Page 5
2
THIS HOT PLATE MAY NOT BE ALTERED,
MODIFIED OR CHANGED IN ANY WAY.
The State of California enacted the California Safe
drinking water and Toxic Enforcement Act of 1986,
(Prop.65), which “prohibits any person in the course of
doing business from knowingly and intentionally
exposing any individual to a chemical known to the
State of California to cause cancer or reproductive
toxicity without first giving clear and reasonable warning
to such individuals.” The Governor’s Scientific Advisory
Panel added carbon monoxide to the list of hazardous
chemicals known to cause reproductive harm.
In order to establish full compliance with Proposition 65,
we attached a yellow warning label to each gas fired hot
plate manufactured by Keating of Chicago, Inc.
Carbon monoxide would not be present in
concentrations that would pose a “significant risk” to the
consumer when the equipment is installed, operated
and maintained as follows:
Installed under a properly designed operating
exhausting good.
Connected to the type of gas for which the hot plate
is manufactured.
Pressure regulator is installed in the appliance and
adjusted for the manifold pressure marked on the
serial plate.
Adequate air supply to the appliance.
In-line pressure regulator, not supplied by Keating,
must be installed outside the appliance.
The equipment is operated in the manner intended
using the proper utensils.
Keep the equipment clean and have it checked
periodically.
Burner air adjustments, mechanical maintenance and
repairs must be performed by qualified service
personnel.
If the equipment is not installed, operated and
maintained in accordance with the above,
concentrations of carbon monoxide in excess of the
established limits could be present in the kitchen
environment.
ALL PERSONNEL IN THE WORK PLACE WHO MAY
BE SUBJECT TO ANY EXPOSURE OF CARBON
MONOXIDE MUST BE WARNED OF SUCH
POSSIBLE EXPOSURE. THIS WARNING SHOULD BE
CONVEYED IN A MANNER SO THAT IT IS CLEARLY
UNDERSTOOD BY THE EMPLOYEE, AND THE
EMPLOYEE SHOULD BE ASKED IF IN FACT HE OR
SHE UNDERSTANDS THE CORRECT METHOD OF
OPERATION OF THE EQUIPMENT AND THAT A RISK
OF EXPOSURE EXISTS IF THE EQUIPMENT IS
OPERATED IMPROPERLY.
WARNING
IF NOT INSTALLED, OPERATED AND MAINTAINED
IN ACCORDANCE WITH THE MANUFACTURER’S
INSTRUCTIONS, THIS PRODUCT COULD EXPOSE
YOU TO SUBSTANCES IN FUEL OR IN FUEL
COMBUSTION WHICH CAN CAUSE DEATH OR
SERIOUS ILLNESS AND WHICH ARE KNOWN TO
THE STATE OF CALIFORNIA TO CAUSE CANCER,
BIRTH DEFECTS OR OTHER REPRODUCTIVE
HARM.
II INSTALLATION
This hot plate MUST be installed, inspected, and
serviced by qualified and/or certified and/or licensed
service personnel – you may void your Keating warranty
if installation is not completed per current local, national
and Keating specifications. Contact your dealer for
assistance.
DAMAGE DURING SHIPMENT
The hot plate has been assembled, tested and
inspected at the factory. Upon arrival, the complete hot
plate should be checked for any damage that may have
occurred during shipment.
The carrier is responsible for all damage in transit
whether visible or concealed. Do not pay for the freight
bill until the hot plate has been thoroughly checked for
damage. If concealed damage is found later, contact the
carrier immediately to file a claim.
What to do if equipment arrives damaged:
VISIBLE LOSS OR DAMAGE – Be certain to note this
on the freight or express receipt and have it signed by
the delivery person.
FILE CLAIM FOR DAMAGES IMMEDIATELY –
Regardless of extent of damage.
CONCEALED LOSS OR DAMAGE – If damage is
noticed when equipment is unpacked, notify the freight
company immediately, and file a “concealed damage
claim”. This MUST be done immediately. Be sure to
retain the shipping container for inspection.
Keating does not assume responsibility for Loss OR
Damage incurred in transit.
INSTALLATION
Installation must conform with local codes or, in
absence of local codes, with current National Fuel
Gas Code ANSI Z223.1/NFPA 54, Natural Gas
Installation Code CAN/CGA-B149.1 or Propane
Installation Code CAN/CGA-B149.2. When pressure

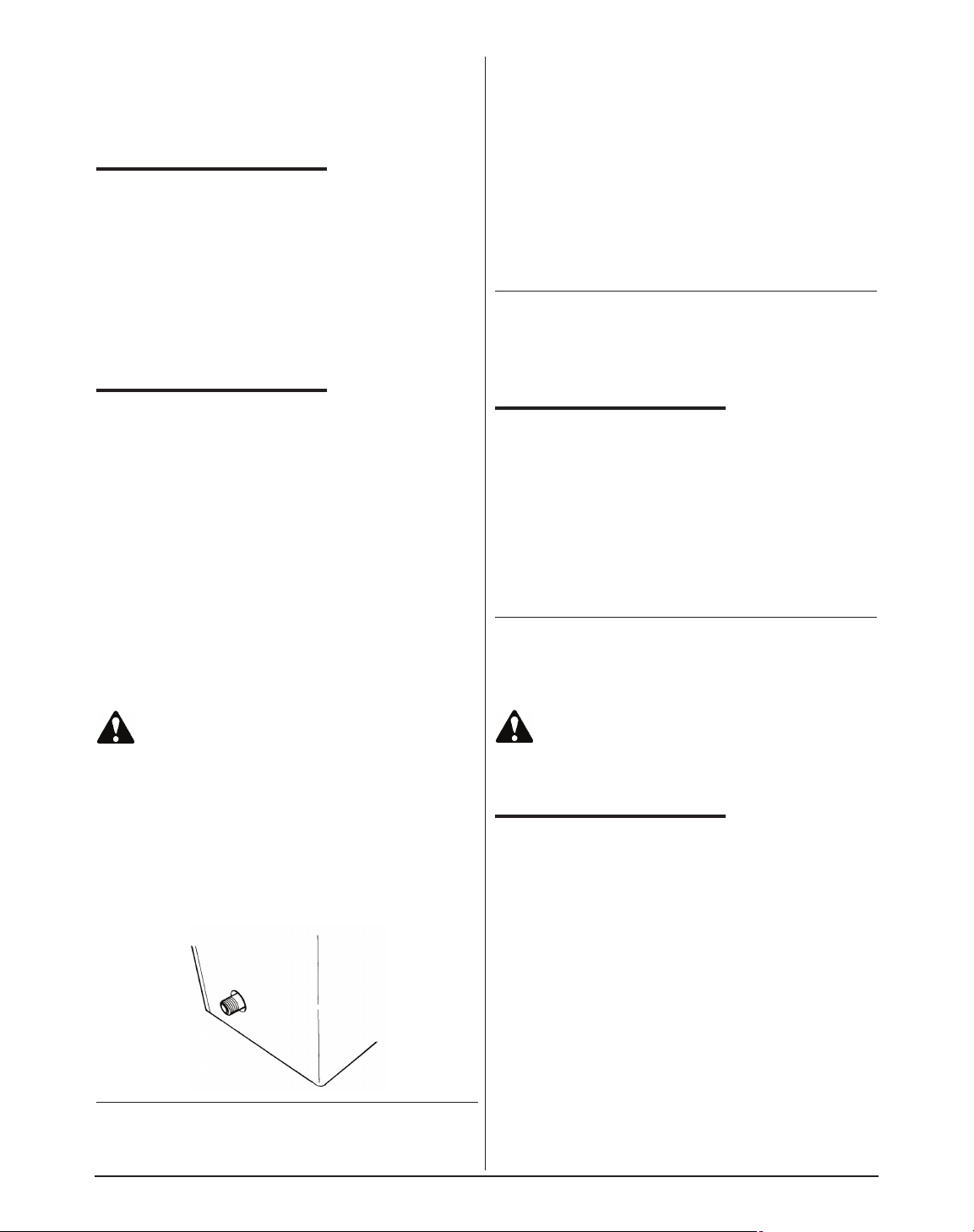

Page 6
testing at test pressures less than to equal to 1/2 psig
(3.45 KPA), hot plate must be isolated from gas supply
piping. When pressure testing at test pressures above
1/2 psig (3,45 KPA), hot plate must be disconnected
from gas supply piping system.
POSITIONING
The hot plate must be no closer than 6" from any
combustible material and 16" away from any open
flame. The hot plate must be placed under an exhaust
hood with a fire retardant system. Your ventilation hood,
when installed, must conform to the current ANSI/NFPA
96 standard. ALL connections and placement must
comply with local and national codes. It is the
responsibility of the owner and local installer to comply
with these regulations when installing the hot plate.
RESTRAINING DEVICES
Hot plates must be restrained to prevent tipping
when installed in order to avoid splashing, spilling, etc.
of hot liquid. The restraining method may be a manner
of installation or by separate means. Adequate means
must also be provided to limit the movement of the
appliance without depending on the connector,the
quick-disconnect devise or its associated piping to limit
the appliance movement.
Connectors must comply with the current ANSI
Z21.69/CAN 1 6.10-88 standard for connectors for
movable gas appliances. Quick-disconnect devices
must comply with the current ANSI Z21.41/CAN 1 6.9M79 standard for quick-disconnect devices meet these
standards.
WARNING
PIPE JOINT COMPOUNDS RESISTANT TO
PROPANE GASES MUST BE USED.
BEFORE OPERATING THIS HOT PLATE, CHECK
PIPE JOINTS FOR LEAKS BY USING A SOAP
AND WATER SOLUTION ONLY. DO NOT USE AN
OPEN FLAME!
Figure 2-1 Main Gas Connection
FOR YOUR SAFETY: Do not store or use gasoline or
other flammable vapors and liquids in the vicinity of
this or any other appliance.
Connect the hot plate to the main gas supply line at the
rear of the hot plate. The piping should be a minimum of
3/4" IPS supply pipe for a single hot plate.
A 3/4" NPT manual gas valve is shipped with each
single hot plate for field installation. The required gas
pressure for proper operation of each hot plate is 4"
water column for natural gas and 10" water column for
Propane gas.
In-line pressure regulators are not supplied by Keating.
They are to be provided and installed by others as
directed by local codes.
NOTE: If more than one gas hot plate is on the same
supply line, you may require a larger line. Consult your
local gas company to assure adequate volume and
pressure. Refer to serial plate for proper gas
requirements for your particular model.
ELECTRICAL CONNECTION
The Keating hot plate with an optional spark ignitor is
equipped with a 6' neoprene covered, 3 wire electrical
cord with a three-pronged grounded plug for protection
against electrical shock. This plug must be placed into a
120V properly grounded three-pronged outlet. For
proper grounding procedures see local codes or, in the
absence of local codes, the current National Electrical
Code ANSI/NFPA 70 or Canadian Electrical Code CAN
22.1 as applicable.
NOTE: For hot plates with optional spark ignitors, the
electrical wiring diagram is located on the front of the
control panel. Hot plates with constant pilots do not
require any electrical connections.
WARNING
DO NOT CUT OR REMOVE THE GROUNDING
PRONG FROM THIS PLUG.
GAS LEAK TESTING
Prior to lighting your hot plate:
1. Make sure all manual gas valves and gas valves
(infinite controls) are in the “OFF” (fully clockwise)
position.
2. Turn main ON/OFF manual gas valve to the “ON”
position.
3. Have your plumber or gas company check for leaks
with a soap solution. (NEVER check with a match!)
4. Have your plumber or gas company representative
light the constant pilot. (Not necessary if your hot
plate has an optional spark ignitor.)
3
Page 7
4
WARNING
PROPANE GAS MAY EVENTUALLY LOSE ITS ODOR
AND PRECAUTIONS SHOULD BE TAKEN TO
ASSURE THAT IT IS NOT PRESENT EVEN THOUGH
YOU DO NOT DETECT AN ODOR. IF THERE IS ANY
DOUBT, YOU SHOULD CALL YOUR LOCAL
PROPANE GAS SUPPLIER FOR ASSISTANCE.
III OPERATING
LIGHTING
Keating hot plates are designed to provide maximum
efficiency and deliver high quality food products. Follow
lighting procedure below.
WARNING
OPERATION OF THIS HOT PLATE SHOULD BE
LIMITED TO PERSONNEL WHO HAVE BEEN
THOROUGHLY TRAINED IN OPERATING
PROCEDURES.
1. Open the manual gas valve.
2. For hot plates with constant pilots, light the constant
pilot (located between the front and rear burners)
with a match. For hot plates with spark ignitors,
push in the red knob and rotate it fully
counterclockwise unit the burner ignites.
CAUTION: For hot plates with spark ignitors, rotating
the red knob without holding it in may damage the gas
valve (infinite switch).
CAUTION: If the pilot or burner fails to stay lit, wait five
minutes before attempting to relight to allow any
accumulated gas to escape.
3. For hot plates with constant pilots, rotate the red
knob counterclockwise to the desired setting. For
hot plates with spark ignitors, rotate the red knob
clockwise to the desired setting after the burner
ignites.
NOTE: The left knob operates the back burner and the
right knob operates the front burner.
SHUTDOWN
1. Rotate the red knob fully clockwise for each burner.
CLEANING
When cleaning your hot plate, use Keating Klenzer, the
finest dry stainless steel polish available, to restore your
hot plate’s exterior to it original luster. Keating Klenzer is
USDA approved.
CAUTION: For hot plates with optional spark ignitors,
disconnect the electrical power source before doing any
cleaning.
IV MAINTENANCE
WARRANTY REPAIRS
Keating’s warranty begins with the date of installation. In
the event that your hot plate, under warranty, needs
repairs other than routine maintenance or cleaning, you
are requested to contact Keating of Chicago (at 1-800KEATING) before calling a local service company.
PREVENTIVE MAINTENANCE
Preventive maintenance should be done in daily,
weekly, monthly and yearly intervals as necessary.
Following preventive maintenance procedures will help
keep your hot plate working efficiently. Proper care and
servicing will lead to years of quality performance.
PREVENTIVE MAINTENANCE CHART
TIME OPERATOR/OWNER SECTION QUALIFIED SERVICE
FRAME PERSONNEL ONLY
At Least Check controls III
Daily Drain and clean drip
pan. III
At Least
Weekly Clean hot plate. III
At Least V Disassemble hot
Yearly* plate to clean
burners and orifices.
*High production facilities should be checked more often.
Page 8
V SERVICE DIAGNOSIS
On constant pilot models, the pilot light will be
between 3/8" to 1/2" high and burn clear blue. The
constant pilot consumes about 180 BTU/hr. of gas and
is used to ignite the burners.
A. Trouble Shooting
The following diagnosis is only to be used as a guide to
qualified service personnel. Keating recommends that
you use a qualified service company. Call 1-800KEATING if you need assistance in locating a qualified
service company.
VII PARTS LISTS
ORDERING PARTS
Parts may be ordered by part number by calling Keating
at 1-800-KEATING or your service company. You may
also order on-line at Keating’s part store,
www.keatingofchicago.com
Refer to the Keating Hot Plate Limited Warranty for
complete service and ordering information.
The model/serial plate is located on the front of the
control panel. The serial and model numbers are
necessary when ordering.
WARNING AND OPERATING
PLATES
All warning and operating plates on the Keating Hot
Plate should be in a place at all times. If plates are
damaged or lost, replace them immediately.
5
PROBLEM PROBABLE CAUSE SOLUTION
Constant pilot won’t light. a. Gas isn’t turned on. a. Turn gas valve on. If using flexible
connector with quick disconnect, make
sure that the quick disconnect is
completely engaged.
b. Clogged constant pilot orifice. b. Clean the pilot orifice.
Delayed ignition. a. Low gas supply or pressure. a. Verify size of incoming gas line to
equipment and check gas pressure.
b. Low pilot flame height. b. Adjust pilot flame height. Use a qualified
service company.
Flames are too high. a. Gas valve (infinite control) set a. Turn valve counterclockwise to decrease
too high. gas flow.
b. Excessive gas supply or pressure. b. Check to see if an inline regulator is
present in the main gas line. Have a
qualified service person adjust it and
check orifices to ensure proper sizes. If
an inline regulator is not present, have
one installed.
c. Exhaust problems. c. Contact your HVAC representative.
Flames are low or come a. Gas valve (infinite control) set a. Turn valve clockwise to increase gas
out of burner air shutter too low. flow.
b. Low gas supply or pressure. b. Verify size of incoming gas line to
equipment and check gas pressure.
Page 9
6
GAS HOT PLATE PARTS LIST
PART
ITEM DESCRIPTION MG-2 MG-4 NUMBER
1 GAS VALVE (INFINITE CONTROL) WITH NG ORIFICE #49
CONSTANT PILOT 2 4 002666
SPARK IGNITOR 2 4 002666
ORIFICE, HOODED, NATURAL GAS, #49 2 4 002676
GAS VALVE (INFINITE CONTROL) WITH PROPANE ORIFICE #53
CONSTANT PILOT 2 4 002666
SPARK IGNITOR 2 4 002666
ORIFICE, HOODED, PROPANE, #53 2 4 032164
2 KNOB, RED, GAS VALVE 2 4 002667
3 CONSTANT PILOT VALVE 1 2 004266
4 CONSTANT PILOT ASSEMBLY WITH ORIFICE 1 2 004259
5 CONSTANT PILOT MOUNTING BRACKET
24" DEEP 1 2 ------
30" DEEP 1 2 -----6 SPARK IGNITOR SWITCH 2 4 002666
7 SPARK IGNITOR MODULE 1 2 008934
8 SPARK ELECTRODE WITH WIRE 1 2 013899
9 SPARK ELECTRODE MOUNTING BRACKET
ABOVE ELECTRODE 1 2 ------
BELOW ELECTRODE, 24" DEEP 1 2 ------
BELOW ELECTRODE, 30" DEEP 1 2 ------
10 WORK BOX, SPARK IGNITOR MODULE 1 2 ------
11 BURNER
FRONT, 24" DEEP 1 2 006464
FRONT, 30" DEEP 1 2 002651
REAR, 24" DEEP 1 2 006465
REAR, 30" DEEP 1 2 006466
12 PRESSURE REGULATOR
NATURAL GAS 1 2 004236
PROPANE 1 2 023527
13 CORD WITH PLUG, 6', 16/3 SJO FOR SPARK IGNITOR
WITH WIRING HARNESS FOR MG-2 1 ------
CORD WITH PLUG ONLY 1 1 006315
WIRE HARNESS ONLY 1 2 ------
14 CONDUIT, 1/2" (SPECIFY FOR 24" OR 30" DEEP) 1 2 -----15 BUSHING, STRAIN RELIEF 1 2 000470
16 CONDUIT CONNECTOR, 1/2" 2 4 -----17 BURNER GRATE 2 4 002674
18 GRATE DIVIDER
MG-2, 24" DEEP 1 014601
MG-2, 30" DEEP 1 007895
MG-4, 24" DEEP 1 014602
MG-4, 30" DEEP 1 008933
19 CONTROL PANEL
MG-2 1 ------
MG-4 1 ------
20 DRIP PAN ASSEMBLY
MG-2 24/30, MG-4 24 1 2 018548
MG-4 30 1 2 019086
21 GRATE SEPARATOR, MG-4 2 002663
Page 10
7
HOT PLATE ASSEMBLY
NOTE: MG-4 hot plates are built as two
MG-2 hot plates side by side. The MG-2 is
shown here.
NOTE: Part numbers correspond with the
Hot Plate Parts list on page 9.
Page 11
8
VIII WIRING DIAGRAMS
MG SI WIRING AND LADDER DIAGRAMS
The diagrams below apply to hot plates with spark ignition (“SI”). Hot plates with constant pilots (“CP”) do not
have any electrical connections.
NOTE: MG-4 hot plates are essentially two MG-2 hot plates side by side. Each cabinet half has its own spark
module, electrode and ignitor switches.
Page 12
LIMITED WARRANTY
Keating Of Chicago, Inc. ("Keating”) warrants to the original purchaser. ("Customer"), all new Keating Fryers, Filter Systems, Griddles, Keep Krisp
®
, Custom Pasta Systems, Top-Side™ Cookers, Computer Timers, Fryer &
Pasta Vessels, and Keating replacement parts ("products") installed after June 1, 1994 to be free to defects in material or workmanship, subject to the following terms and conditions.
LENGTH OF WARRANTY
All products other than Fryer & Pasta Vessels and replacement parts shall be warranted for a period of one year from the date of original equipment installation. Keating replacement parts are warranted for a period of ninety
days from the date of installation. Fryer & Pasta Vessels are warranted as described below.
FRYER & PASTA VESSEL WARRANTY
Fryers purchased after June 1, 1994 carry a prorated vessel warranty on defects in materials or workmanship to the Customer based on the following scale:
Time from Installation Date Fryer Vessel Warranty Credit
13-60 months 100%
61-72 months 80%
73-84 months 60%
85-96 months 40%
97-108 months 20%
109-120 months 10%
The credit for the defective fryer & pasta vessel shall be applied against the cost of the replacement vessel, utilizing Keating's then current price, upon return of the vessel to Keating, (Freight to be paid by Keating within
the first 2 months only), only during the first 60 months as described above, subject to the limitations described below.
LIMITATIONS OF LIABILITY
In the event of warranty claim or otherwise, the sole obligation of Keating shall be the repair and/or replacement at the option of Keating of the product or component or part thereof. Such repair or replacement shall be
at the expense of Keating except that the Customer shall pay the following expenses: all freight and labor expense for Keating replacement parts for all other products, mileage exceeding 50 miles or travel more than one
hour, labor costs of more than one person, overtime rates, truck charges, difference between ground and other mode of transportation, and holiday charges. Any repair or replacement under this Limited Warranty does not
constitute an extension of the original warranty for any period for the product or for any component or part thereof. Parts to be replaced under this Limited Warranty will be repaired at the option of Keating with new or
functionally operative parts. Keep Krisps and Computer Timers must be returned to Keating for warranty repair or replacement. Field repairs of those items are not authorized.
THE LIABILITY OF KEATING ON ANY CLAIM OF ANY KIND, INCLUDING CLAIMS BASED ON WARRANTY, EXPRESSED OR IMPLIED, CONTRACT, NEGLIGENCE, STRICT LIABILITY OR ANY
OTHER THEORIES SHALL BE SOLELY AND EXCLUSIVELY THE REPAIR OR REPLACEMENT OF THE PRODUCT AS STATED HEREIN, AND SUCH LIABILITY SHALL NOT INCLUDE, AND CUSTOMER
SPECIFICALLY RENOUNCES ANY RIGHTS TO RECOVER, SPECIAL, INCIDENTAL, CONSEQUENTIAL OR OTHER INJURIES TO PERSONS OR DAMAGE TO PROPERTY, LOSS OF PROFITS OR
ANTICIPATED PROFITS, OR LOSS OF USE OF THE PRODUCT.
If any oral statements have been made regarding the Keating products, such statements do not constitute warranties and are not part of the contract sale. This Limited Warranty constitutes the complete, final and exclusive
statement with regard to warranties.
THIS LIMITED WARRANTY IS EXCLUSIVE AND IS IN LIEU OF ALL OTHER WARRANTIES WHETHER WRITTEN, ORAL, STATUTORY OR IMPLIED, INCLUDING BUT NOT LIMITED TO ANY
WARRANTY OF MERCHANTABILITY OR FITNESS FOR PARTICULAR PURPOSE OR WARRANTY AGAINST LATENT DEFECTS.
EXCLUSIONS
The warranties provided by Keating of Chicago, Inc. do not apply in the following instances:
1. Defects arising out of or resulting from improper installation or maintenance, abuse, misuse, modification or alteration by unauthorized service personnel, or any other condition not attributable to a defect in material or
workmanship. Proper installation and maintenance are the responsibility of the installer and Customer, respectively. Proper installation and maintenance procedures are prescribed by the Keating Service Manual.
2. In the event that the product was damaged after leaving the factory due to flood, fire, other acts of God or accident, damage during shipment should be reported to the carrier and is not the responsibility of Keating.
3. In the event the serial number or rating plate has been removed from the product or altered.
4. On parts which would normally be worn or replaced under normal conditions, including but not limited to electric bulbs, fuses, interior and exterior finishes, gaskets and radiants.
5. With regard to adjustments and calibrations such as leveling, tightening of fasteners or plumbing connections, improper gas pressure or improper electrical supply, the checking of and changes in adjustment and
calibrations are the responsibility of the installer. Proper installation procedures are prescribed by the Keating Service Manual.
6. In the event of unauthorized repairs or alterations to the Keating product.
7. With the use of sodium chloride in pasta vessels or harsh chemicals in fryer or pasta vessels.
OTHER TERMS AND CONDITIONS
The Customer must provide proof of purchase from Keating.
This Limited Warranty is valid in the 50 United States, its territories, and Canada, and is void elsewhere.
Keating products are sold for commercial use only. If any Keating product is sold as a component of another product or used as a consumer product, such Keating product is sold As Is without any warranty.
If any provision of this Limited Warranty is held to be unenforceable under the law of any jurisdiction, such provision shall be inapplicable in such jurisdiction, and the remainder of the warranty shall remain unaffected.
Further in such event, the maximum exclusion or limitation allowable under applicable law shall be deemed substituted for the unenforceable provision.
This Limited Warranty shall be governed by and construed in accordance with the laws of the State of Illinois.
TO SECURE WARRANTY SERVICE
All repair services under this Limited Warranty must be authorized by Keating or performed at Keating. Authorization may be obtained by calling 1-800-KEATING within the Continental United States, Alaska, Hawaii,
Puerto Rico and Canada during normal business hours (7:00 a.m. through 6:00 p.m. Central Time, Monday through Friday). When calling, please have the following information available: (1) name, address and
telephone number of the Customer; (2) location of product, if different; (3) name, model number and serial number of the product; (4) installation date; and (5) description of defect. Keating will then issue a service
authorization work order number to one of its approved independent servicing organizations, or request the product or part be shipped to Keating for repair or replacement, as appropriate. Any defective part subject to a
claim under this Limited Warranty must be shipped freight prepaid to Keating for testing and examination. Keating's decision as to the cause and nature of any defect under this Limited Warranty shall be final.
KEATING
KEATING OF CHICAGO, INC., 1-800-KEATING WWW.KEATINGOFCHICAGO.COM
REFILE/warranty 8/07
WARRANTY
Page 13
SERVICE INFORMATION
If you have a service related question call 1-800-KEATING.
Please state the nature of the call; it will ensure speaking with the appropriate person.
Have your serial and model number available when ordering parts.
KEATING OF CHICAGO, INC.
8901 W. 50th Street, McCook, Illinois 60525-6001
Phone: (708) 246-3000 FAX: (708) 246-3100
Toll Free 1-800-KEATING (In U.S. and Canada)
www.keatingofchicago.com
*As continuous product improvement occurs, specifications may be changed without notice.
KEATING LIMITED WARRANTY CARD
PLEASE COMPLETE AND MAIL AT ONCE–WARRANTY IS NOT IN EFFECT UNTIL CARD IS RETURNED
COMPANY: ________________________________________________________________________________________________
ADDRESS: ________________________________________________________________________________________________
CITY: ____________________________________________________________ STATE: ____________ ZIP: ________________
DEALER: __________________________________________________________________________________________________
DATE OF PURCHASE: ______________________________________________ INVOICE NUMBER: ______________________
SERIAL NUMBER:
__________________________ FRYER FILTER SYSTEM GRIDDLE
REMARKS:
________________________________ TOP-SIDE COOKER HOT PLATE PASTA PLUS
I HAVE READ THE INSTALLATION AND OPERATION INSTRUCTIONS.
SIGNED: ________________________________________________________________ DATE:
________________________
Serving Those Who Serve The Very Best
KEATING LIMITED WARRANTY CARD
PLEASE COMPLETE AND MAIL AT ONCE–WARRANTY IS NOT IN EFFECT UNTIL CARD IS RETURNED
COMPANY: ________________________________________________________________________________________________
ADDRESS: ________________________________________________________________________________________________
CITY: ____________________________________________________________ STATE: ____________ ZIP: ________________
DEALER: __________________________________________________________________________________________________
DATE OF PURCHASE: ______________________________________________ INVOICE NUMBER: ______________________
SERIAL NUMBER:
__________________________ FRYER FILTER SYSTEM GRIDDLE
REMARKS:
________________________________ TOP-SIDE COOKER HOT PLATE PASTA PLUS
I HAVE READ THE INSTALLATION AND OPERATION INSTRUCTIONS.
SIGNED: ________________________________________________________________ DATE:
________________________
Serving Those Who Serve The Very Best
Loading...
