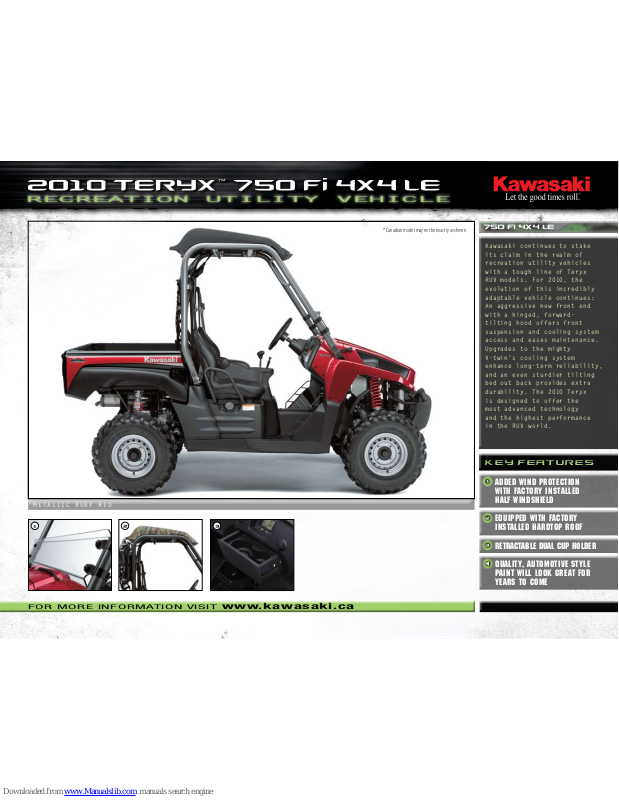

Kawasaki TERYX 750 4X4 LE - BROCHURE 2010 Brochure
750 FI 4X4 LE
METALLIC RUBY RED
FOR MORE INFORMATION VISIT
www.kawasaki.ca
Kawasaki continues to stake
its claim in the realm of
recreation utility vehicles
with a tough line of Teryx
RUV models. For 2010, the
evolution of this incredibly
adaptable vehicle continues:
An aggressive new front end
with a hinged, forwardtilting hood offers front
suspension and cooling system
access and eases maintenance.
Upgrades to the mighty
V-twin’s cooling system
enhance long-term reliability,
and an even sturdier tilting
bed out back provides extra
durability. The 2010 Teryx
is designed to offer the
most advanced technology
and the highest performance
in the RUV world.
KEY FEATURESKEY FEATURES
2010 TERYX™ 750 Fi 4X4 LE2010 TERYX™ 750 Fi 4X4 LE
RECREATION UTILITY VEHICLE
* Canadian model may not be exactly as shown
Added wind protection
with factory installed
half windshield
1
Equipped with factory
installed hardtop roof
2
Retractable dual cup holder
3
Quality, automotive style
paint will look great for
years to come
s
1 2 3
KAWASAKI CARES:
Warning: The TERYX can be hazardous to operate. For your safety, always wear a helmet, eye protection and protective
clothing. Never operate under the influence of drugs or alcohol. Avoid excessive speeds and stunt driving. Be extra careful on
difficult terrain. Protect the environment. The Kawasaki TERYX Recreation Utility Vehicle is an off-highway vehicle only, and is not
designed, equipped or manufactured for use on public streets, roads or highways.
Specifications
Kawasaki subscribes to the guidelines
of Tread Lightly!, a program dedicated
to protecting the great outdoors through
education and fostering responsible
enjoyment of public lands.
kawasaki.ca/good-
times-protection-plan
kawasaki.ca/accessories
Up to
tHREE yEaRs
additional
covERagE
with the
Good Times™
Protection Plan*
For more information visit:
kawasaki.ca/good-times-protection-plan
Take an in-depth tour
@
www.kawasaki.ca/teryx
*Depending on the program purchased.
To view our compleTe
accessory caTalogue visiT:
CAMOUFLAGE REALTREE AP G
Engine type
4-stroke, liquid-cooled, 90º V-Twin
Displacement
749cc
Bore x stroke
85 x 66 mm
Compression ratio
8.8:1
Fuel system
Fuel Injection: 34 mm x 2 (Mikuni)
Ignition
Electric
Electrical
12-volt DC; 12 amp-hour battery, alternator
Drive train
Kawasaki Automatic Power Drive System; continuously variable belt-drive
transmission with high and low range plus reverse and Kawasaki Engine
Brake Control
Final drive
2WD/4WD, Shaft
Exhaust
Stainless steel Muffler with USFS-approved spark arrestor
Tire, front
Maxxis
®
tubeless, 26 x 8-12
Tire, rear
Maxxis® tubeless, 26 x 10-12
Front suspension
Double wishbone with 5-way preload-adjustable gas charged shocks
Rear suspension
Double wishbone with preload-adjustable reservoir equipped gas-charged shocks
Wheel travel,front/rear
190/190 mm (7.5/7.5 in.)
Steeri ng
Rack and pinion
Brakes, front/rear
Dual 200 mm discs with 2-piston calipers/Enclosed wet multi-plate
Fuel capacity
28.0 litres (6.2 gal.)
Dimensions (LxWxH)
2955 x 1485 x 2020 mm (116.3 x 58.5 x 79.5 in.)
Curb weight*
645 kg (1,422 lbs.)
Wheelbase
1930 mm (76.0 in.)
Ground clearance
295 mm (11.6 in.) (Centre of chasis)
Cargo bed (LxWxH)
830 x 1120 x 280 mm (32.7 x 44.1 x 11.0 in.)
Cargo bed load capacity
227 kg (500 lbs.)
Towing capacity
591 kg (1,303 lbs.)
Lights
(2) 35-watt headlights with dual 27/8 tail/stoplight
Warranty
6 months
The specifications mentioned here apply to and have been achieved
by production models under standard operating conditions. We intend
only to give a fair description of the vehicle and its performance
capabilities but these specifications may not apply to every machine
supplied for sale. Kawasaki Heavy Industries, Ltd. reserves the right to
alter specifications without prior notice. Equipment illustra ted and
specifications may vary to meet individual markets. Available colours
may vary by market.
TERYX™ 750 FI 4X4 LE
ACCESSORIESACCESSORIES
1. Aluminum Top
2. Bed Tonneau Cover
3. Bed Rails
4. Bumper Braces
5. Front A-Arm
6. Front Skid Plate
21
3
4
5 6
* Includes all necessary materials and fluids to operate correctly, full tank of fuel (more than 90% of capacity) and tool kit (if supplied)
* Shown with optional accessory gun boot
Canadian model may not be exactly as shown
