Kawasaki FE290 User Manual
286cm
3
7.1kW (9.5Hp) / 3600rpm
Let the good times roll.
5
6
7
8
9
10
Hp
3
4
5
4
3
7
6
8
kW
2
OUTPUT
2000
3000
3600
ENGINE SPEED rpm
14
15
N-m
TORQUE
20
18
19
17
12
13
ft.lbs
TORQUE
MAXIMUM OUTPUT
RECOMMENDED
MAXIMUM OUTPUT

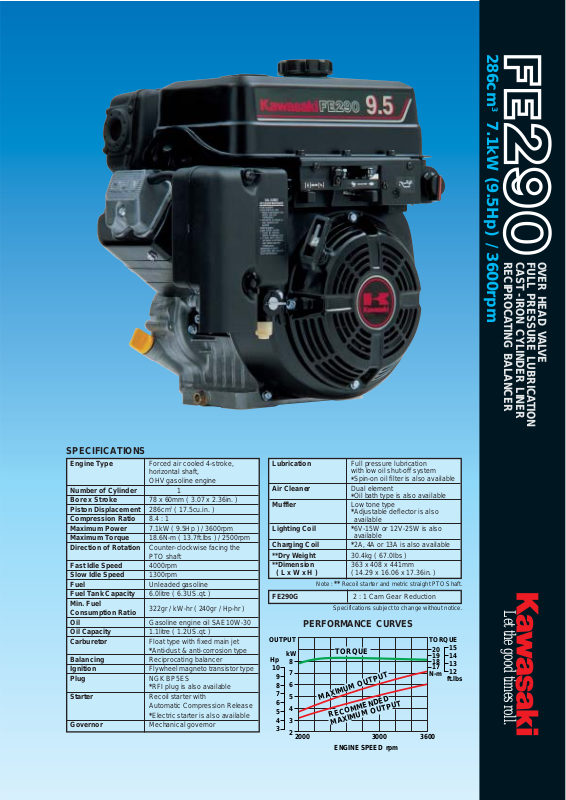

SPECIFICATIONS
Engine Type Forced air cooled 4-stroke,
horizontal shaft,
OHV gasoline engine
Number of Cylinder 1
Bore x Stroke 78 x 60mm ( 3.07 x 2.36in. )
Piston Displacement 286cm3( 17.5cu.in. )
Compression Ratio 8.4 : 1
Maximum Power 7.1kW ( 9.5Hp ) / 3600rpm
Maximum Torque 18.6N-m ( 13.7ft.lbs ) / 2500rpm
Direction of Rotation Counter-clockwise facing the
PTO shaft
Fast Idle Speed 4000rpm
Slow Idle Speed 1300rpm
Fuel Unleaded gasoline
Fuel Tank Capacity 6.0litre ( 6.3US.qt. )
Min. Fuel
322gr / kW-hr ( 240gr / Hp-hr )
Consumption Ratio
Oil Gasoline engine oil SAE10W-30
Oil Capacity 1.1litre ( 1.2US.qt. )
Carburetor Float type with fixed main jet
*Anti-dust & anti-corrosion type
Balancing Reciprocating balancer
Ignition Flywheel magneto transistor type
Plug NGK BP5ES
*RFI plug is also available
Starter Recoil starter with
Automatic Compression Release
*Electric starter is also available
Governor Mechanical governor
Lubrication Full pressure lubrication
with low oil shut-off system
*
Spin-on oil filter is also available
Air Cleaner Dual element
*
Oil bath type is also available
Muffler Low tone type
*Adjustable deflector is also
available
Lighting Coil *6V-15W or 12V-25W is also
available
Charging Coil
*
2A, 4A or 13A is also available
**Dry Weight 30.4kg ( 67.0Ibs )
**Dimension 363 x 408 x 441mm
( L x W x H ) ( 14.29 x 16.06 x 17.36in. )
FE290G 2 : 1 Cam Gear Reduction
Specifications subject to change without notice.
Note : ** Recoil starter and metric straight PTO Shaft.
PERFORMANCE CURVES
OVER HEAD V ALVE
FULL PRESSURE LUBRICA TION
CAST - IRON CYLINDER LINER
RECIPROCA TING BALANCER
FE290 : DIMENSIONAL SPECIFICATIONS Unit : mm ( in.
)
Ø50
DE
PTH 4
(1.96)
8-Ø9 (0.35)
HOLES
(6.49)
Ø165
21 (0.82)
116.5 (4.58) 131 (5.15)
Ø12
408 (16.06)
30°
30°
(5.00)
7
45°
45°
183.5 (7.22)145 (5.70)
Ø146.08
257 (10.11)
(5
.
7
5)
DEPTH 4
441 (17.36)
353.5 (13.91)
8-M8 x 1.25
DEPTH 15
21
(0.82)
14
(0.05)
29 (1.14)
133.5 (5.25)
125.5 (4.94) 196.5 (7.73)
85 (3.34) 195 (7.67)
103.9 (4.09) 150.5 (5.92)
106.3 (4.18)
363 (14.29)
14 (0.55)
11.5
(0.45)
303 (11.92)
108 (4.25)
12 (0.47) 90.5 (3.56) 105 (4.13) 12 (0.47)
FE290D : SHAFT VARIATION
7 (0.27)
STRAIGHT SHAFT ( METRIC )
21 (0.82)
M8 x 1.25
DEPTH 22
41 (0.61)
Ø25 (0.98)
FE290G : PTO FLANGE AND SHAFT
(2.73)(0.80)
120°
120°
44 (1.73)
60 (2.36)
4 (0.15)
6-M8 x 1.25
DEPTH 15
Ø92
62)
(3.
42
(1.65)
57
(2.24)
12
(0.47)
72 (2.83) 20.6 (0.81)
Ø25.4 (1.00)
62 (2.44)
4 (0.15)
3/16 TAPER
5/16-24 UNF
Ø30
(1.18)
DEPTH 18
29.4 (1.15)
Ø22.15 (0.87)
47
(1.85)
80.5 (3.16)
Ø29 (1.14)
4 (0.15)
TAPERED SHAFT ( INCH )
Ø30 (1.18)
6.3 (0.24)
21.8 (0.85)
7/16-24 UNF
DEPTH 22
STRAIGHT SHAFT ( INCH )
60 (2.36)
24.5 (0.96)109 (4.29)
7 (0.27)
21 (0.82)
42 (1.65)
Ø25 (0.98)
20.4 69.4
67 (2.63)
74 (2.91)
94 (3.70)
119 (4.68)
M8 x 1.25
DEPTH 22
STRAIGHT SHAFT ( METRIC )
