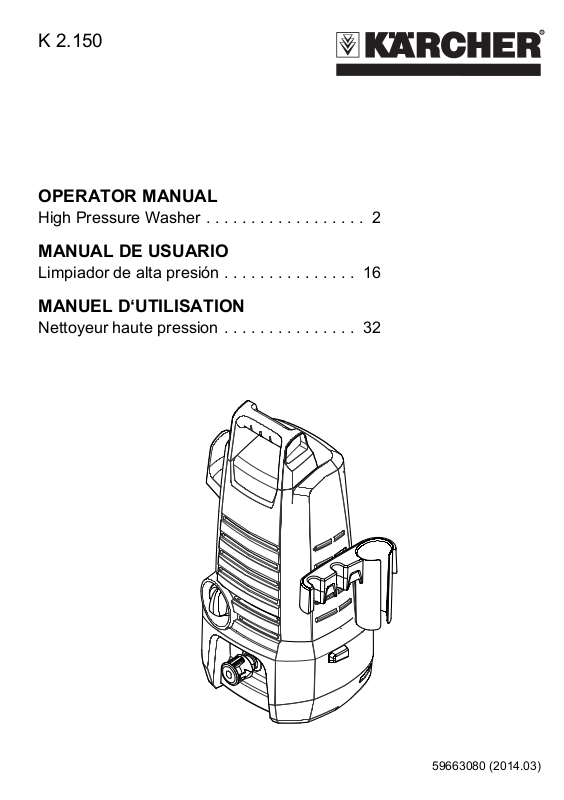

K 2.150

OPERATOR MANUAL

High Pressure Washer . . . . . . . . . . . . . . . . . . 2

MANUAL DE USUARIO

Limpiador de alta presión . . . . . . . . . . . . . . . 16

MANUEL D‘UTILISATION

Nettoyeur haute pression . . . . . . . . . . . . . . . 32
59663080 (2014.03)
HIGH PRESSURE WASHER OPERATOR MANUAL
Model Overview 3 Important Safety Instructions 4 Assembly Instructions 6 Operating Instructions 6 Using the Accessories 7 Working with Detergents 8 Taking a Break 9 Shutting Down and Clean-Up 9 Winterizing and Long-Term Storage 10 Maintenance Instructions 10 Cleaning Tips 11 Optional Cleaning Accessories 12 Troubleshooting 14
Safety Alert Symbols
DANGER
indicates “an imminently hazardous situ­ation which, if not avoided, will result in death or serious injury.
WARNING
indicates “a potentially hazardous situa­tion which, if not avoided, could result in death or injury.’’
CAUTION
indicates “a potentially hazardous situa­tion which, if not avoided, may result in minor or moderate injury or in property damage incidents.”
Specifications
Max. Pressure 1500 PSI Max. Water Flow 1.3 GPM Amp draw 13 AMPS Voltage 120 V Part No. 1.601-660.0 Serial no.
Owner/User Responsibility
The owner and/or user must have an un­derstanding of the manufacturer’s oper­ating instructions and warnings before using this pressure washer. Warning information should be empha­sized and understood. If the operator is not fluent in English, the manufacturer’s instructions and warnings shall be read to and discussed with the operator in the operator’s native language by the purchaser/owner, mak­ing sure that the operator comprehends its contents. Owner and/or user must study and maintain for future reference the manu­facturers’ instructions.
For household use only!
Customer Support
USA and Canada
In the U.S. or Canada, please call 1-800-537-4129 for warranty issues and visit www.karcher-help.com for techni­cal support and product assistance. Please take a moment to register your pressure washer online at www.karcher-register.com. Be sure to save your purchase receipt, it will be re­quired for repairs covered by warranty.
Customer Support Mexico
Call: 01-800-024-13-13 for help or visit our website: www.karcher.com.mx
MODEL OVERVIEW
1 Quick connect high pressure outlet 2 High pressure outlet 3 ON/OFF switch 4 Hose/Cord Hook 5 Handle 6 Spray Wand Storage 7 Garden hose connector (female) 8 Water inlet connector 9 Water inlet 10 Detergent siphon tube with filter
11 Accessories holder 12 Power cord with Ground Fault Circuit
Interrupter (GFCI) 13 Trigger gun 14 Trigger gun safety lock 15 Key to disconnect the high pressure
hose from the trigger gun 16 High pressure hose 17 Dirtblaster ® (Rotary spray wand) 18 Vario Power Spray wand
English 3
IMPORTANT SAFETY INSTRUCTIONS
WARNING
When using this product basic precau­tions should always be followed, includ­ing the following:
Read all the instructions before using
the product.
To reduce the risk of injury, close su-
pervision is necessary when a prod­uct is used near children.
Know how to stop the product and
bleed pressures quickly. Be thor­oughly familiar with the controls.
Stay alert – watch what you are do-
ing.
Do not operate the product when fa-
tigued or under the influence of alco­hol or drugs.
Keep operating area clear of all per-
sons.
Do not overreach or stand on unsta-
ble support. Keep good footing and balance at all times.
Follow the maintenance instructions
specified in the manual.
This product is provided with a
Ground Fault Circuit Interrupter built into the power cord plug. If replace­ment of the plug or cord is needed, use only identical replacement parts.
WARNING
Risk of Injection or Injury – Do Not Direct Discharge Stream At Persons.
High pressure jets can be dangerous
if misused. The jet must not be di­rected at persons, animals, electrical devices, or the unit itself.
Wear safety goggles.
WARNING
Risk Of Explosion – Do not spray flammable liquids.
Do not use acids, alkaline, solvents,
or any flammable material in this product. These products can cause
physical injuries to the operator and
irreversible damage to the machine.
WARNING – Risk of Electrocu-
tion
Inspect cord before using – Do not
use if cord is damaged.
Keep all connections dry and off the
ground.
Do not touch plug with wet hands.Do not use extension cord with this
product.
Connect to individual branch circuit
only.
CAUTION
This unit has been designed for use with cleaning detergents recommended by the manufacturer. The use of other cleaning detergents may affect the operation of the machine and void the warranty.
CAUTION
Gun Kicks Back – Hold with both
hands.
The Spray Gun Safety Lock prevents
the spray from accidentally being en-
gaged. This safety feature DOES
NOT lock spray in the ON position.
WARNING
DO NOT SPRAY ELECTRICAL APPA-
RATUS AND WIRING.
DO NOT USE WITH FLAMMABLE LIQ-
UIDS AND TOXIC CHEMICALS.
HIGH PRESSURE. KEEP CLEAR OF
NOZZLE.
INJECTION HAZARD: EQUIPMENT
CAN CAUSE SERIOUS INJURY IF
THE SPRAY PENETRATES THE
SKIN. DO NOT POINT THE GUN AT
ANYONE OR ANY PART OF THE
BODY. IN CASE OF PENETRATION
SEEK MEDICAL AID IMMEDIATELY.
THIS SYSTEM IS CAPABLE OF PRO-
DUCING 1600 PSI TO AVOID RUP-
TURE AND INJURY, DO NOT
OPERATE THIS PUMP WITH COM­PONENTS RATED LESS THAN 1600 PSI WORKING PRESSURE (INCLUD­ING BUT NOT LIMITED TO SPRAY GUNS, HOSE AND HOSE CONNEC­TIONS).
BEFORE SERVICING, CLEANING OR
REMOVING ANY PARTS, SHUT OFF POWER AND RELIEVE PRESSURE.
IF CONNECTION IS MADE TO A PO-
TABLE WATER SYSTEM, THE SYS­TEM SHALL BE PROTECTED AGAINST BACK FLOW.
SERVICING OF A DOUBLE-
INSULATED PRODUCT
In a double-insulated product, two sys­tems of insulation are provided instead of grounding. No grounding means is provided on a double-insulated product, nor should a means for grounding be added to the product. Servicing a dou­ble-insulated product requires extreme care and knowledge of the system, and should be done only by qualified service personnel. Replacement parts for a dou­ble-insulated product must be identical to the parts they replace. A doubleinsu­lated product is marked with the words “DOUBLE INSULATION” or “DOUBLE INSULATED”. The symbol “ ” may also be marked on the product.
GROUND FAULT CIRCUIT
INTERRUPTER PROTECTION
This pressure washer is provided with a ground-fault circuit-interrupter (GFCI) built into the plug of the power-supply cord. This device provides additional protection from the risk of electric shock. Should replacement of the plug or cord become necessary, use only identical replacement parts that include GFCI protection.
WATER SUPPLY
(Cold Water Only)
CAUTION
When connecting the water inlet to the water supply mains, local regulations of your water company must be observed. In some areas the unit must not be con­nected directly to the public drinking wa­ter supply. This is to ensure that there is no feedback of chemicals into the water supply. Direct connection via a receiver tank or backflow preventer, for example, is permitted. Dirt in the feed water will damage the unit. To avoid this risk, we recommend fitting a water filter.
Garden hose must be at least 13 mm
or 16 mm (1/2 inch or 5/8) inch in di-
ameter.
Flow rate of water supply must not
fall below 7.6 L/min. (2 GPM/gallons
per minute).
Flow rate can be determined by run-
ning the water for one minute into an
empty 20 litre (5-gallon) container.
The water supply temperature must
not exceed 40°C/104°F.
Never use the pressure washer to
draw in water contaminated with sol-
vents, e.g. paint thinners, gasoline,
oil, etc.
Always prevent debris from being
drawn into the unit by using a clean
water source.
SAVE THESE INSTRUCTIONS!
English 5
ASSEMBLY INSTRUCTIONS
STEP 1:
Slide the transport handle into place.
STEP 2:
Attach the accessories holder.
STEP 3:
Install the supplied connector to the unit’s water inlet. Note: Never attach the garden hose connector to the unit’s water inlet!
Note: Make sure the connection nip-
ple is aligned correctly. Check the
connection by pulling on the high
pressure hose.
Check the secure connection by pull-
ing on the high pressure hose.
Disconnect:
Press the disconnect key on the trig-
ger gun and remove the high pres-
sure hose from the trigger gun.
OPERATING
INSTRUCTIONS
STEP 1:
Insert one end of the high pressure
hose tightly into the quick connect on
the unit, it will lock in audibly.
Note: Make sure the connection nip-
ple is aligned correctly. Check the
connection by pulling on the high
pressure hose.
Check the secure connection by pull-
ing on the high pressure hose.
STEP 4:
Fasten the quick connect to the high pressure outlet.
STEP 5:
Insert one end of the high pressure hose into the trigger gun until it locks audibly.
STEP 2:
Insert the spray wand of your choice
into the trigger gun. Press in against
the spring tension and twist into
locked position.
STEP 3:
1 Screw the supplied garden hose con-
nector on to the end of your garden hose.
2 Push the garden hose connector on
to the water inlet connector and make sure you hear it click into place before proceeding.
STEP 4:
Connect garden hose to the cold wa­ter source and turn water on com­pletely.
Note: The actual appearance of the GFCI may
be different from this illustration.
STEP 6:
Unlock the trigger gun safety lock.
Trigger the gun to eliminate trapped
air, wait for a steady flow of water to
emerge from the spray nozzle.
STEP 7:
Turn on the high pressure washer (I/
ON).
The motor starts only if the trigger
of the gun is pulled and shuts off
when the trigger is released.
STEP 5:
Plug the Ground Fault Circuit Inter­rupter (GFCI) into a working outlet.
We recommend that you test the GFCI as part of your startup procedure each time you use your pressure washer. To learn how to peform this test on your unit, visit http://www.karcherresidential.com/ gfci_test.php for detailed instructions for your type of GFCI.
WARNING
Do not use if above test fails.
USING THE ACCESSORIES
WARNING
To avoid serious injury never point
spray nozzle at yourself, other per-
sons or animals.
Always test an inconspicuous area
before cleaning with high pressure.
English 7
Dirtblaster®
This nozzle features a 0º pencil jet
which rotates 360º for maximum dirt cutting action, effectively increasing cleaning performance up to 50%. This nozzle combines the cleaning performance of a 0º pencil jet with the surface coverage of a wide angle nozzle.
Not recommended for soft materi­als, siding, painted surfaces, decks or autos.
Before cleaning any surface an in-
conspicuous area should be cleaned to test spray pattern and distance for maximum cleaning results.
Vario Power Spray Wand
WORKING WITH
DETERGENTS
Detergents can only be applied at low pressure.
STEP 1:
Install the Vario Power Spray Wand.
Set the spray wand to the low pres-
sure setting (Mix).
STEP 2:
Fill a container with Kärcher deter-
gent. Place the filter end of detergent
siphon tube into the container.
The Vario Power Spray Wand allows
you to adjust the cleaning pressure. To clean at maximum pressure, the wand must be positioned to the high pressure setting (Max). For reduced pressure turn the wand collar in the "Min" direction.
To apply detergent, the wand must be positioned to the low pressure setting (Mix).
STEP 3:
Turn on the pressure washer (I). Pull
trigger to operate unit. Liquid deter-
gent is drawn into the unit and mixed
with water. Apply detergent to work
area. Do not allow detergent to dry
on surface.
STEP 4:
To rinse, move the VPS out of "Mix"
position and pull trigger to operate
unit.
STEP 5:
Cleaning up: Always draw fresh wa-
ter through the detergent tank or si-
phon tube when done to flush any
remaining detergents from the injec-
tion system.
For best results see Cleaning Tips for specific information on how to clean different surfaces.
Always Use Kärcher ® Detergent for Best Results
Kärcher ® biodegradable detergents are specially formulated to protect the envi­ronment and your pressure washer. The special formula won’t clog the suction tube filter and will protect the internal parts of the pressure washer for a longer life. For Kärcher ® detergents, check your retailer or visit our website:
www.buykarcher.com
CAUTION
Never use:
Bleach, chlorine products and other
corrosive chemicals
Liquids containing solvents (i.e.,
paint thinners, gasoline, oils)
Tri-sodium phosphate productsAmmonia productsAcid-based products
These chemicals will harm the unit and will damage the surface being cleaned.
Use of these items will void the war­ranty.
SHUTTING DOWN AND
CLEAN-UP
STEP 1:
Turn the switch to OFF (0) position
and unplug cord from outlet.
STEP 2:
Turn off the water source.
STEP 3:
Press trigger to release water pres-
sure.
STEP 4:
Release trigger and engage gun
safety lock.
TAKING A BREAK ... five
minutes or more
STEP 1:
Release trigger and engage gun safety lock.
STEP 2:
Turn pressure washer to OFF (0) po­sition.
English 9
CAUTION
When disconnecting the supply or high pressure hose, warm water may leak from the connector after operation.
STEP 5:
Disconnect the garden hose from the water inlet on the unit.
and accessories and will void the war­ranty. Kärcher® also recommends the regular practice of using a pump protector like “Kärcher® Pump Guard” to prevent cold weather damage during storage in the winter months.
CARE AND MAINTENANCE
INSTRUCTIONS
Cleaning the water inlet filter
STEP 6:
Push the housing of the quick con­nect toward the rear and disconnect the high pressure hose from the unit.
WINTERIZING AND LONG-
TERM STORAGE
1 Disconnect all water connections. 2 Turn on the machine for a few sec-
onds, until the water which had re­mained in the pump exits, turn off immediately.
3 Do not allow high pressure hose to
become kinked.
4 Store the machine and accessories
in a room which does not reach freezing temperatures. DO NOT store near furnace or other sources of heat as it may dry out the pump seals.
CAUTION
Failure to follow the above directions will result in damage to the pump assembly
STEP 1:
Disconect the connector from the
water inlet.
STEP 2:
Pull out water inlet filter with flat-nose
pliers.
STEP 3:
Rinse out water inlet filter in warm
water.
STEP 4:
Reinsert water inlet filter into the wa-
ter inlet.
Maintenance
The unit is maintenance-free.
10 English
CLEANING TIPS
CAUTION
Before cleaning any surface an in-
conspicuous area should be cleaned to test spray pattern and distance for maximum cleaning results.
If painted surfaces are peeling or
chipping, use extreme caution as pressure washer may remove the loose paint from the surface.
When using on surfaces which might
come in contact with food, flush sur­faces with plenty of drinking water.
For additional cleaning tips and a
complete video library, visit our web­site:
www.karcherresidential.com
Deck Cleaning
(with or without detergent). Pre-rinse
deck and surrounding area with fresh water. If using detergent, apply to sur­face at low pressure. For best results, limit your work area to smaller sections of approximately 2.3 m² (25 sq. ft.). Al­low detergent to remain on surface 1-3 minutes. Do not allow detergent to dry on surface. Rinse at high pressure in a long sweeping motion keeping the spray nozzle approximately 7.5-15 cm (3-6 in.) from the cleaning surface. Always clean from top to bottom and from left to right. When moving on to a new section of the cleaning surface, be sure to overlap the previous section to eliminate stop marks and ensure a more even cleaning result.
House Siding
(with or without detergent). Pre-rinse
cleaning surface with fresh water. If us­ing detergent, apply to surface at low pressure (for best results, limit your work area to sections of approximately
1.8 m (6 ft.) and always apply detergent
from bottom to top). Allow detergent to remain on surface 1-3 minutes. Do not allow detergent to dry on surface, if sur­face appears to be drying, simply wet down surface with fresh water. If need­ed, use special wash brush attachment (not included) to remove stubborn dirt. Rinse at high pressure from top to bot­tom in an even sweeping motion keep­ing the spray nozzle approximately
1.8 m (6 ft.) from the cleaning surface.
Cement Patios, Brick and Stone
(with or without detergent). Pre-rinse
cleaning surface with fresh water. If us­ing detergent or Degreaser, apply to surface at low pressure. For best re­sults, limit your work area to smaller sec­tions of approximately 2.3 m² (25 sq. ft.). Allow detergent or Degreaser to remain on surface 1-3 minutes. Do not allow de­tergent to dry on surface. Rinse at high pressure in a sweeping motion keeping the spray nozzle approximately 7.5­15 cm (3-6 in.) from the cleaning sur­face. Always clean from top to bottom and from left to right. For removing ex­tremely stubborn stains, use the Dirtblaster ® Nozzle.
Cars, Boats and Motorcycles
(with or without detergent). Pre-rinse
vehicle with fresh water. If using deter­gent, apply to surface at low pressure. For best results, clean one side of vehi­cle at a time and always apply detergent from bottom to top, do not allow deter­gent to dry on surface. If needed, use special wash brush attachment (not in­cluded) to remove stubborn dirt. Rinse at high pressure in a sweeping motion keeping the spray nozzle approximately 15-20 cm (6-8 in.) from the cleaning sur­face (distance should increase when rinsing pin-striping or other sensitive
English 11
surfaces). Always clean from top to bot­tom and from left to right. For best re­sults, wipe surface dry with a chamois or soft dry cloth.
Barbecue Grills, Outdoor Power
Equipment and Gardening Tools
(with or without detergent). Pre-rinse
cleaning surface with fresh water. If us­ing detergent or Degreaser, apply deter­gent at low pressure. Allow detergent to remain on surface 1-3 minutes. Do not allow detergent to dry on surface. Rinse at high pressure keeping the spray noz­zle approximately 7.5-15 cm (3-6 in.) from the cleaning surface. For removing extremely stubborn dirt, it may be nec­essary to move the spray nozzle even closer to the surface for greater dirt cut­ting action.
Patio and Lawn Furniture
(with or without detergent). Pre-rinse
furniture and surrounding area with fresh water. If using detergent, apply to surface at low pressure. Allow detergent to remain on surface 1-3 minutes. Do not allow detergent to dry on surface. If needed use special Wash Brush Attach­ment (not included) to remove stubborn dirt. Rinse at high pressure in a sweep­ing motion keeping the spray nozzle ap­proximately 7.5-15 cm (3-6 in.) from the cleaning surface. For best results, clean from top to bottom and from left to right.
OPTIONAL CLEANING
ACCESSORIES
Optional accessories are available to further enhance your cleaning capabili­ties. These accessories are accurate as of the printing date of this manual. Please check our website for pricing and up-to-date information.
Pump Guard
Specially formulated to protect your pressure washer from freezing, corro­sion and premature wear. The Pump Guard also adds lubrication to valves and seals to prevent sticking. Highly rec­ommended for all Kärcher ® pressure washers!
Part No. 9.558-998.0
7.5 m (25 ft.) Extension High­Pressure Hose
Extension Hose for all Kärcher ® high pressure washers between the original equipment hose and gun up to 2000 PSI.
Part No. 2.642-588.0
1.67 m (66 in.) Extension Wand (four-piece)
Need to clean second story windows or other high areas? Increase the reach of your pressure washer by up to 1.67 m (66 in.) with this extension kit. Includes 4 aluminum sections for variable length.
1.67 m (66 in.) fully assembled. Fits most Kärcher ® pressure washers up to 2300 PSI. (bayonet)
Part No. 2.640-746.0
12 English
Rotating Wash Brush (bayonet)
For more effortless cleaning of all smooth surfaces (painted, glass and plastic) try the Kärcher ® Rotating Wash Brush. Use it on your automobile, house
siding or windows. The water pressure from your pressure washer causes the inner brushes to gently spin, making your cleaning job much easier. The an­gle of brush head is adjustable to help you reach difficult areas. Excellent for the application of detergent. A must­have accessory designed for Kärcher ® pressure washers up to 2300 PSI. (bay­onet)
Part No. 2.640-743.0
Soft Clean Washing Brush
Made with soft bristles that will not harm painted surfaces. Easily attaches direct­ly to the trigger gun. Ideal for stubborn dirt on cars, boats, patio furniture and other surfaces. Great for applying deter­gent. Fits most Kärcher ® pressure washers up to 2300 PSI. (bayonet)
Part No. 2.640-740.0
7.5 m (25 ft.) Pipe Cleaning Kit (bayonet)
Need to clean blocked pipes, drains or downspouts? The Kärcher ® pipe clean­ing kit is the answer! The pipe cleaner propels itself forward while simultane­ously flushing out debris. For example, insert the cleaning nozzle in the base of a downspout, pull the trigger on the pressure washer gun and watch as the nozzle shoots out leaves and other de­bris while climbing upward. Connects di­rectly to the trigger gun of most Kärcher ® pressure washers up to 2300 PSI. (bayonet)
Part No. 2.640-747.0
tack the rust and paint with our eco­friendly alternative. Fits most Kärcher ® pressure washers up to 2300 PSI. (bay­onet)
Part No. 2.638-792.0
Detergent Foamer Attachment
Ideal for applications which require a thick foam. Simply fill the resevoir cup with liquid pressure washer detergent to generate a foam spray. Connects direct­ly to the trigger gun. Fits most Kärcher ® pressure washers up to 2300 PSI. (bay­onet)
Part No. 6.964-507.0
T 200 Wide Area Surface Cleaner
For cleaning surfaces such as patios, terraces and driveways without splash­back, there is no better solution than the Kärcher ® T 200. It saves time by clean­ing a 30 cm (1 ft.) wide area gently as it hovers, providing consistent, streak-free cleaning. When you finish cleaning the patio and driveway, remove the wand and use the handle to clean garage doors and other vertical surfaces. In­cludes two nozzles which spin at high speed for optimum results. Our top sell­ing accessory for Kärcher ® pressure washers up to 2300 PSI. (bayonet)
Part No. 2.642-188.0
Wet Sandblasting Kit (bayonet)
Why spend hours stripping old paint and rust by hand using harsh chemicals? Let the Kärcher ® Wet Sandblasting Kit do the work! Attach the kit to your pressure washer, add abrasive material and at-
English 13
TROUBLESHOOTING
WARNING
Disconnect the unit from the power source before making any repair.
Issue Cause Solution
Motor will not start On/Off switch is in the “OFF”
(0) position. Power cord is not plugged in. Plug in power cord. Electrical outlet does not
supply adequate power. Tripped GFCI plug. Press “RESET” button on
Tripped circuit breaker. Switch off pressure washer.
Unit does not reach high pressure.
Output pressure varies high and low.
Diameter of garden hose is too small.
Water supply is restricted. Check garden hose for kinks,
Not enough inlet water supply. Open water source full force. Water inlet filter is clogged. Remove filter and rinse out in
Spray wand is on low pressure position.
Not enough inlet water supply. Turn water on full force. Check
Pump is sucking air. Check that hoses and fittings
Water inlet filter is clogged. Remove filter and rinse out in
Discharge nozzle is obstructed.
Calcified gun, hose or spray wand.
Turn switch to the “ON” (I) position
Try a different outlet.
GFCI plug.
The reset comes automatically once the temperature of the unit drops.
Replace with a 16 mm (5/8 inch) or larger garden hose.
leaks and blockage.
warm water. Turn spray wand to high
pressure position.
garden hose for kinks, leaks or blockage.
are air tight. Turn off machine and purge pump by squeezing trigger gun until a steady flow of water emerges through the nozzle.
warm water. Blow out or remove debris with
a fine needle. Run distilled vinegar through
detergent suction tube.
14 English
Issue Cause Solution
No detergent. Detergent siphon tube not
Check connection. properly connected to the ma­chine.
Detergent is too thick. Dilute detergent, for best
results use Kärcher detergent. Filter on detergent siphon tube
is clogged. Damaged or clogged detergent
siphon tube. Spray wand is in high pressure
position. Discharge nozzle is
obstructed.
Garden hose connection leaks.
Loose fittings. Tighten fittings. Missing/worn rubber washer. Insert new washer.
Spray wand leaks. Spray wand not properly
attached.
Run warm water through filter
to remove debris.
Remove obstruction or replace
detergent siphon tube.
Turn spray wand tip to low
pressure position.
Blow out or remove debris with
fine needle.
Insert the spray wand into the
trigger gun. Carefully press in
against the spring tension and
twist into the locked position. Broken o-ring or plastic insert. Call Customer Support
Pump is noisy. Pump is sucking air. Check that hoses and fittings
are air tight. Turn off machine
and purge pump by squeezing
trigger gun until a steady flow
of water emerges through the
nozzle.
Water leaks from pump (up to 10 drops per minute
Loose fittings. Check that all fittings are tight. Water seals are damaged or
Call Customer Support worn.
is permissible). Oil drip. Oil seals are damaged or worn. Call Customer Support
If you encounter any additional difficulties not listed, please visit our website.
USA / Canada:
www.karcher-help.com
Mexico:
www.karcher.com.mx
English 15
Loading...
+ 33 hidden pages
