Kanomax 6113, 6114 Specifications

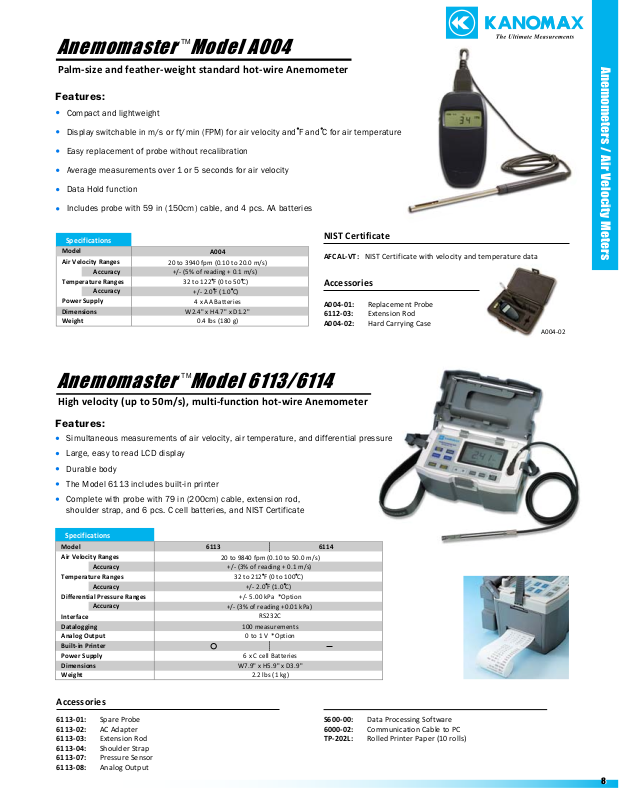

Anemomaster Model 6113/6114

TM

High velocity (up to 50m/s), multi-function hot-wire Anemometer

Features:

Simultaneous measurements of air velocity, air temperature, and differential pressure

Large, easy to read LCD display

Durable body

The Model 6113 includes built-in printer

Complete with probe with 79 in (200cm) cable, extension rod,
shoulder strap, and 6 pcs. C cell batteries, and NIST Certificate

Specifications

Model
Air Velocity Ranges

Accuracy

Temperature Ranges

Accuracy

Differential Pressure Ranges

Accuracy

Interface
Datalogging
Analog Output

Built-in Printer
Power Supply

Dimensions
Weight

6113 6114

20 to 9840 fpm (0.10 to 50.0 m/s)

+/- (3% of reading + 0.1 m/s)

32 to 212 F (0 to 100 C)

+/- 2.0 F (1.0 C)

+/- 5.00 kPa *Option

+/- (3% of reading +0.01 kPa)

RS232C

100 measurements

0 to 1 V *Option

6 x C cell Batteries

W7.9" x H5.9" x D3.9"

2.2 lbs (1 kg)

Accessories

6113-01:
6113-02:
6113-03:
6113-04:
6113-07:
6113-08:

Spare Probe
AC Adapter
Extension Rod
Shoulder Strap
Pressure Sensor
Analog Output

S600-00:
6000-02:
TP-202L:

Data Processing Software
Communication Cable to PC
Rolled Printer Paper (10 rolls)
