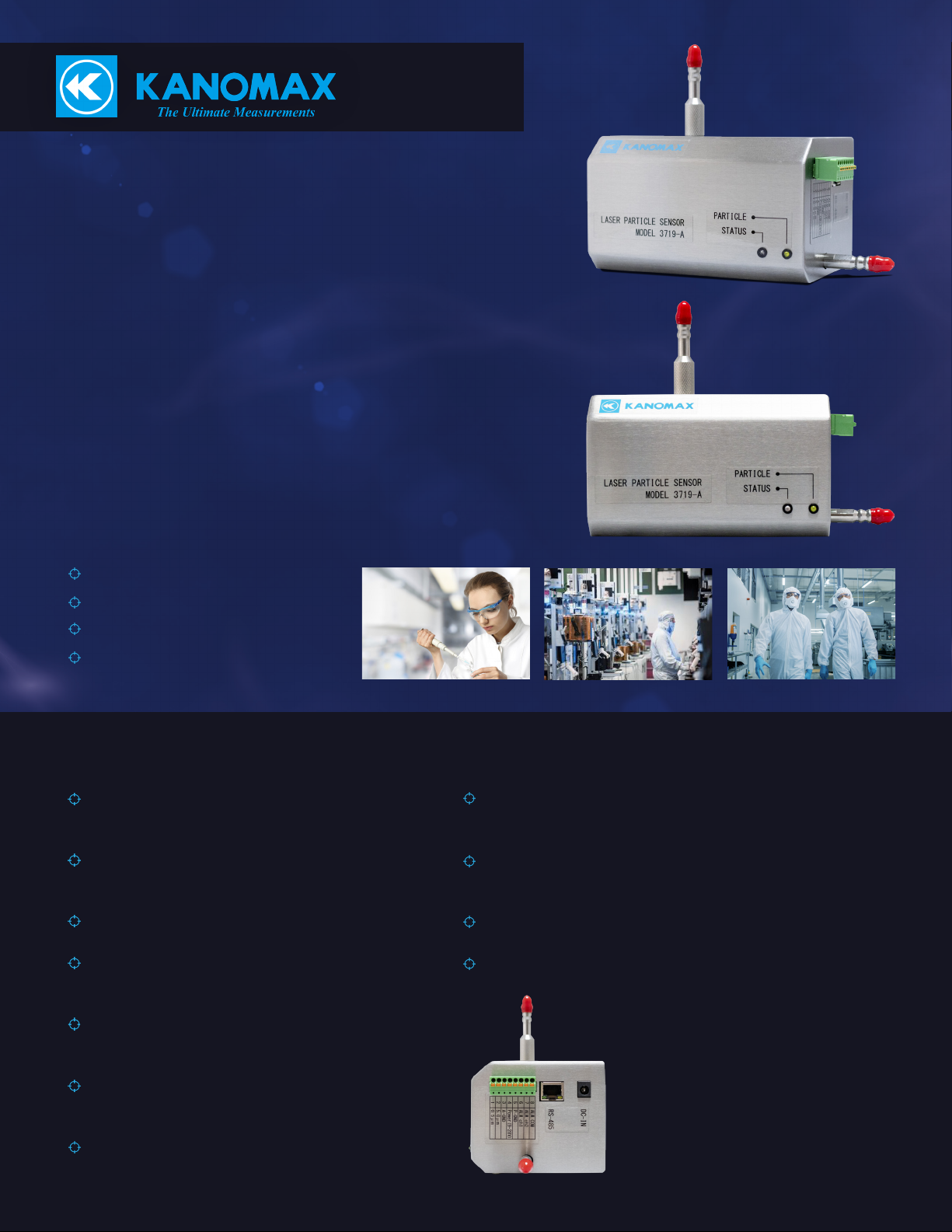

REMOTE PARTICLE SENSOR
WITH ANALOG OUTPUT
MODELS 3718-A/3719-A
2-channel remote particle sensors for facility
monitoring applications
Kanomax particle sensors with analog output are designed
to t into your existing monitoring system, or they can be
used as a stand-alone unit to monitor a critical area when
connected to an alarm or controller. The Kanomax particle
sensor is available with both 0.1 and 1.0 CFM owrates and
also comes in two different ranges: 0.3 and 0.5 micrometers
or 0.5 and 5.0 micrometers.
Applications
Facility particle monitoring
Hospital surgical room
Cleanroom monitoring
Building monitoring systems
FEATURES AND BENEFITS
2-channel particle sensor with Modbus
communication via RS485 interface.
Flexible 4-20mA analog output (1.0 cfm unit
only).
0.1 cfm and 1.0 cfm ow rates are available.
Outputs particle counts, error status and alarm
signal.
Able to connect to a PLC or data logger for facility monitoring applications.
Conguration software is included for easy user
parameter setup.
Power can be provided via a network connection
or AC adaptor.
Stainless steel housing.
3-year warranty included.
Can be added to a process or building
automation system.
Fully compliant with ISO21501-4 calibration
standard and JIS B9921.
Page 2
PRODUCT SPECIFICATIONS
FEATURE
Model
Particle Size Distribution
Rated Flow 28.3L/min (1CFM)
Optical Source Laser Diode
Counting Efciency Compliant with ISO21501-4, JIS B 9921
Max Detectable Concentration
Setting Parameter
Sampling Pump External vacuum>51kPa
VALUE
3718-A
0.3μm, 0.5μm
500,000CNT/ft
Sampling Time: 1 to 60 seconds
Output Range Setting (To be congured for each particle size)
Count: 0-10CNT, 0-100CNT, 0-1,000CNT, 0-10,000CNT
Concentration: 0-10CNT/cf, 0-100CNT/cf, 0-1,000CNT/cf,
0-1,000,000CNT/cf
0-353CNT/ m3, 0-3,530CNT/m3,
0-35,300CNT/m3, 0-35,300,000CNT/m3
Alarm Setting: 0%-100%
Address Setting: 0-512
Error Output Setting: ON/OFF
3
3719-A
0.5μm, 5.0μm
Interface RS485, Analog Output (4-20mA)
Communication RS485
Setting Software Japanese, English
Power Supply
Operating Environment
Storing Environment Temperature: -10 to 50°C, Humidity: 95%RH or less (Non-condensing)
Dimension 133mm (W) × 95mm (D)× 80mm (H)
Weight 1.0kg
Standard Accessories
Optional Accessories
1.) DC Power Supply: DC 9V-28V
2.) AC Adapter: AC 100-240V (50-60Hz), DC 12V
10~30°C, 20~85%RH (Non-condensing)
User’s Manual (English)(1), User’s Manual (Japanese) (1), AC adapter (1), Zero Filter (1), Adapter 1
(1), Adapter 2 (1), Tygon Tube 1 (1), Setting Software DVD - 3718/19-40 (1)
USB-RS485 Converter 3716A-20 (Converter + Converter Connecting Cable), Converter
Connecting Cable 3716A-21, RS232c-RS485 Converter 3716A-22 (Converter + Converter
Connecting Cable), Isokinetic Probe - 3905-07 (1), Isokinetic Suction Probe 3718-01 (1), Tygon
Tube 1 (1), Tygon Tube 2 (1)
