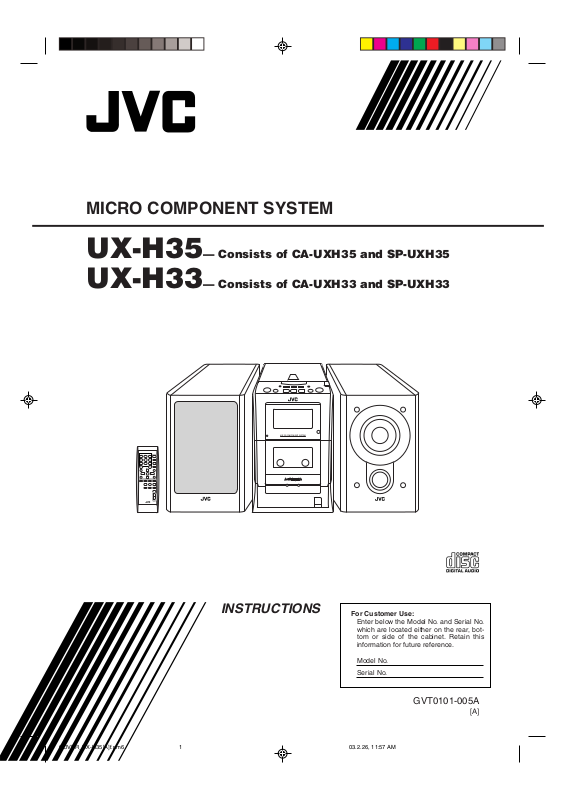

JVC UX-H35 User Manual
MICRO COMPONENT SYSTEM
UX-H35— Consists of CA-UXH35 and SP-UXH35
UX-H33— Consists of CA-UXH33 and SP-UXH33
MICRO COMPONENT SYSTEM
INSTRUCTIONS
For Customer Use:
Enter below the Model No. and Serial No.
which are located either on the rear, bottom or side of the cabinet. Retain this
information for future reference.
Model No.
Serial No.
GVT0101-005A
[A]
Warnings, Cautions and Others
CAUTION— (standby/on) button!
Disconnect the mains plug to shut the power off completely (all
lamps and indications go off). The (standby/on) button in
any position does not disconnect the mains line.
• When the unit is on standby, the STANDBY lamp lights red.
• When the unit is turned on, the STANDBY lamp goes off.
The power can be remote controlled.
CAUTION
To reduce the risk of electrical shocks, fire, etc.:
1. Do not remove screws, covers or cabinet.
2. Do not expose this appliance to rain or moisture.
CAUTION
• Do not block the ventilation openings or holes.
(If the ventilation openings or holes are blocked by a
newspaper or cloth, etc., the heat may not be able
to get out.)
• Do not place any naked flame sources, such as
lighted candles, on the apparatus.
• When discarding batteries, environmental problems
must be considered and local rules or laws
governing the disposal of these batteries must be
followed strictly.
• Do not expose this apparatus to rain, moisture,
dripping or splashing and that no objects filled with
liquids, such as vases, shall be placed on the
apparatus.
G-1
15 cm
15 cm
IMPORTANT FOR LASER PRODUCTS
REPRODUCTION OF LABELS
1 CLASSIFICATION LABEL ON EXTERIOR SURFACE 2 WARNING LABEL INSIDE THE UNIT
CAUTION: Invisible laser
radiation when open and
interlock failed or defeated.
AVOID DIRECT EXPOSURE
TO BEAM. (e)
ADVARSEL: Usynlig laserstråling ved åbning, når
sikkerhedsafbrydere er ude
af funktion. Undgå udsættelse for stråling (d)
VARNING: Osynlig laserstrålning när denna del är
öppnad och spärren är
urkopplad. Betrakta ej
strålen. (s)
VARO: Avattaessa ja suojalukitus ohitettaessa olet
alttiina näkymättö mälle
lasersäteilylle. Älä katso
säteeseen. (f)
1. CLASS 1 LASER PRODUCT
2. CAUTION: Invisible laser radiation when open and interlock
failed or defeated. Avoid direct exposure to beam.
3. CAUTION: Do not open the top cover. There are no user
serviceable parts inside the unit; leave all servicing to
qualified service personnel.
CAUTION: Proper Ventilation
To avoid risk of electric shock and fire, and to prevent damage, locate the apparatus as follows:
1 Front: No obstructions and open spacing.
2 Sides/ Top/ Back: No obstructions should be placed in the areas shown by the dimensions below.
3 Bottom: Place on a level surface. Maintain an adequate air path for ventilation by placing on a stand
with a height of 10 cm or more.
Front view
Side view
15 cm
15 cm
1 cm
1 cm
UX-H35/UX-H33
15 cm
UX-H35
UX-H33
10 cm
G-2
Introduction
We would like to thank you for purchasing one of our JVC products.
Before operating this unit, read this manual carefully and thoroughly to obtain
the best possible performance from your unit, and retain this manual for future
reference.
About This Manual
This manual is organized as follows:
• The manual mainly explains operations using the
buttons on the remote control.
You can use the buttons both on the remote
control and on the main unit for the same
operations if they have the same or similar names
(or marks), unless mentioned otherwise.
• Basic and common information that is the same for
many functions is grouped in one place, and is not
repeated for each procedure. For instance, we do not
repeat the information about turning on/off the unit,
setting the volume, changing the sound effects, and
others, which are explained in the section “Common
Operations” on pages 10 and 11.
• The following symbols are used in this manual:
Gives you warning and caution to
prevent damage or risk of fire/electric
shock.
Furthermore, it gives you information
about what is not good for obtaining
the best possible performance from the
unit.
Gives you information and hints you
should know.
Power sources
• When unplugging the unit from the wall outlet,
always pull on the plug, not the AC power cord.
DO NOT handle the AC power cord with
wet hands.
Moisture condensation
Moisture may condense on the lens inside the unit in
the following cases:
• After starting heating in the room
• In a damp room
• If the unit is brought directly from a cold to a warm
place
Should condensation occur, the unit may malfunction.
In this case, leave the unit turned on for a few hours
until the moisture evaporates, unplug the AC power
cord, then plug it in again.
Others
• Should any metallic object or liquid fall into the unit,
unplug the power cord and consult your dealer
before operating any further.
• If you are not going to operate the unit for an
extended period of time, unplug the power cord.
DO NOT disassemble the unit since there
are no user serviceable parts inside.
Precautions
Installation
• Install in a place which is level, dry and neither too
hot nor too cold—between 5˚C and 35˚C.
• Install the unit in a location with adequate
ventilation to prevent internal heat buildup in the
unit.
• Leave sufficient distance between the unit and the
TV.
• Keep the speakers away from the TV to avoid
interference with TV.
DO NOT install the unit in a location near
heat sources, or in a place subject to direct
sunlight, excessive dust or vibration.
1
If anything goes wrong, unplug the power cord and
consult your dealer.
Contents
Location of the Buttons ............................................... 3
Main Unit .......................................................................... 3
Remote Control ................................................................. 5
Getting Started............................................................. 6
Supplied Accessories ......................................................... 6
Connecting Antennas ........................................................ 6
Connecting Speakers ......................................................... 7
Connecting Other Equipment ............................................ 8
Putting the Batteries into the Remote Control .................. 9
Common Operations ................................................. 10
Setting the Clock ............................................................. 10
Turning On the Power ..................................................... 11
Adjusting the Volume ...................................................... 11
Adjusting the Tone (Bass/Treble).................................... 11
Reinforcing the Bass Sound ............................................ 11
Listening to FM and AM Broadcasts ....................... 12
Tuning in to a Station ...................................................... 12
Presetting Stations ........................................................... 12
Tuning in to a Preset Station ........................................... 13
Playing Back Discs ..................................................... 14
Playing Back the Entire Disc—Normal Play .................. 14
Basic Disc Operations ..................................................... 15
Programming the Playing Order of the Tracks
—Program Play......................................................... 15
Playing at Random—Random Play ................................ 16
Repeating Tracks—Repeat Play...................................... 16
Playing Back Tapes ....................................................17
Playing Back a Tape ........................................................ 17
Recording ................................................................... 18
Recording on a Tape ........................................................ 18
Disc Direct Recording .....................................................19
One Track Recording ...................................................... 19
Using the Timers ........................................................ 20
Using Daily Timer and Recording Timer ........................ 20
Using Snooze Timer ........................................................ 22
Using Sleep Timer........................................................... 22
Maintenance ...............................................................23
Troubleshooting ......................................................... 24
Specifications.............................................................. 24
2
Location of the Buttons
Become familiar with the buttons on your unit.
Main Unit
Top view
Front view
1
2
3
4
5
6
PHONES
ONE TOUCH
COMPACT
DIGITAL AUDIO
7
8
TIMER/SNOOZE
REC
AUX
MULTI CONTROL
4
7
BAND
TAPE CD
TUNER
¢
VOLUME
AHB PRO
OPEN
9
p
q
w
STANDBY
MICRO COMPONENT SYSTEM
r
e
t
3
SNOOZE
r
twe
Display window
Continued
1234
5
REC ON
REC
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15
PROGRAM RANDOM ALL OVER
See the pages in parentheses for details.
Main unit
1 PHONES jack (11)
2 Disc cover
3 TIMER/SNOOZE button (10, 20 – 22)
4 ONE TOUCH REC (recording) button (18, 19)
(standby/on) button (11, 21)
5
6 Source buttons
• AUX, @ # TAPE, BAND TUNER, and
#/8 CD
Pressing one of these buttons also turns on the
unit.
7 MULTI CONTROL buttons
• 4 (reverse skip), 7 (stop), and ¢ (forward
skip)
8 AHB (Active Hyper Bass) PRO button (11)
9 0 OPEN (disc cover open) button (14)
p VOLUME + / – buttons (11)
q Display window
w STANDBY lamp (11)
e Cassette holder
r Remote sensor
t ) (cassette holder open) button (17 – 19)
67
BASS
SLEEP SNOOZE
MONOCLOCKOFF
Display window
1 Tape operation indicators
• 2 3 (tape direction),
(reverse mode)
2
(timer) indicator
3 REC (recording timer) indicator
4 ON/OFF (timer on-time/off-time) indicators
5 CLOCK indicator
BASS
6
SLEEP
7
8
9 MONO and STEREO indicators
p Main display
• Shows the source name, frequency, etc.
q Track calender indicators
w PROGRAM indicator
e RANDOM indicator
r Repeat indicators
•
t OVER indicator
STEREO
indicator
indicator
indicator
and ALL
8
9
p
q
REC
(recording), and
4
Remote Control
1
4
1
2
3
4
5
6
7
7
10
BASS
CD TAPE
3
2
5
6
9
8
10
UP
DOWN
TUNER AUX
REV.MODE FM MODE
RANDOM
PRGM
STANDBY/ON
DISPLAY
CLOCK
/TIMER
SLEEP
TREBLE
CANCELSET
AUTO
PRESET
REPEAT
AHB PRO
8
9
p
q
w
e
r
t
y
u
i
See the pages in parentheses for details.
1 Number buttons
2 BASS button (11)
3 Multi control buttons
UP, 4 (reverse skip), 7 (stop), ¢
•
(forward skip), and
DOWN
4 SET button (13)
5 Source buttons
• 3/8 CD, 2 3 TAPE, TUNER, and AUX
Pressing one of these buttons also turns on the
unit.
6 REV.MODE (reverse mode) button (17 – 19)
7 PRGM (program) button (15)
8 STANDBY/ON
button (11, 21)
9 DISPLAY button (10)
p CLOCK/TIMER button (10, 20, 21)
q SLEEP button (22)
w TREBLE button (11)
e CANCEL button (16)
r AUTO PRESET button (12)
t FM MODE button (12)
y REPEAT button (16)
u RANDOM button (16)
i AHB (Active Hyper Bass) PRO button (11)
o VOLUME + / – button (11)
o
VOLUME
STANDBY
MICRO COMPONENT SYSTEM
When using the remote control, point it at the
remote sensor on the front panel.
5
Getting Started
Continued
Supplied Accessories
Make sure that you have all the following items.
The number in parentheses indicates the quantity of
each piece supplied.
• AM loop antenna (1)
• FM antenna (1)
• AC power cord (1)
• Remote control (1)
• Batteries (2)
If anything is missing, consult your dealer
immediately.
Connecting Antennas
FM antenna
FM antenna (supplied)
To connect an outdoor FM antenna
Before connecting the antenna, disconnect the supplied
FM antenna.
Outdoor FM antenna
(not supplied)
Coaxial cable (not supplied)
A 75 Ω antenna with coaxial type connector
(IEC or DIN 45325) should be used.
1 Attach the FM antenna to the FM
COAXIAL 75 Ω terminal.
2 Extend the FM antenna.
3 Fasten it up in the position which gives
you the best reception, then fix it on the
wall, etc.
About the supplied FM antenna
The FM antenna supplied with this unit can be used as
temporary measure. If reception is poor, you can connect an
outdoor FM antenna.
6
Loading...
