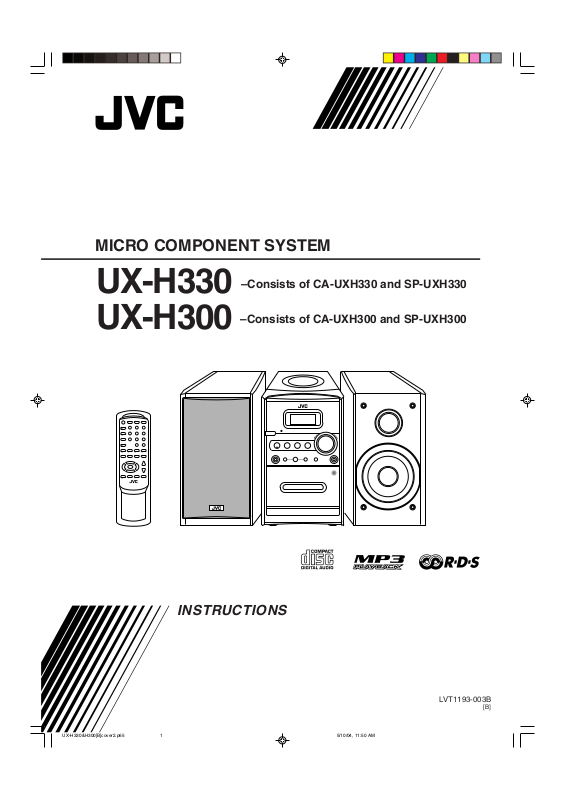

JVC UX-H300B, UX-H330B User Manual

MICRO COMPONENT SYSTEM

UX-H330 UX-H300

–Consists of CA-UXH330 and SP-UXH330

–Consists of CA-UXH300 and SP-UXH300

INSTRUCTIONS

LVT1193-003B

[B]

Warnings, Cautions and Others

10 cm

15 cm

1 cm

15 cm

1 cm

15 cm

CAUTION - INVISIBLE LASER RADIATION WHEN OPEN AND INTERLOCKS

DEFEATED. AVOID EXPOSURE TO BEAM.

VORSICHT ! UNSICHTBARE LASERSTRAHLUNG TRITT AUS, WENN DECKEI.

GEÖFFNET UND WENN SICHERHEITSVERRIEGELUNG ÜBERBRÜCKT IST. NICHT DEM STRAHL AUSSETZEN!

VARNING - OSYNLIG LASERSTRÄLNING NÄR DENNA DEL ÄR ÖPPNAD OCH

SPÄRR ÄR URKOPPLAD STRÅLEN ÄR FARLIG.

ADVARSEL -USYNLIG LASERSTRÅLING VED ÅBNING NÅR

SIKKERHEDSAFBRYDERE ER UDE AF FUNKTION. UNDGÅ UDSÆTTELSE FOR STRÅLING.

IMPORTANT for the U.K. DO NOT cut off the mains plug from this equipment. If the plug

fitted is not suitable for the power points in your home or the cable is too short to reach a power point, then obtain an appropriate safety approved extension lead or consult your dealer.

BE SURE to replace the fuse only with an identical approved type, as originally fitted.

If nonetheless the mains plug is cut off ensure to remove the fuse and dispose of the plug immediately, to avoid a possible shock hazard by inadvertent connection to the mains supply.

If this product is not supplied fitted with a mains plug then follow the instructions given below:

IMPORTANT: DO NOT make any connection to the terminal which is marked

with the letter E or by the safety earth symbol or coloured green or green-and-yellow.

The wires in the mains lead on this product are coloured in accordance with the following code:

Blue : Neutral Brown : Live

As these colours may not correspond with the coloured markings identifying the terminals in your plug proceed as follows:

The wire which is coloured blue must be connected to the terminal which is marked with the letter N or coloured black.

The wire which is coloured brown must be connected to the terminal which is marked with the letter L or coloured red.

IF IN DOUBT—CONSULT A COMPETENT ELECTRICIAN.

CAUTION— (STANDBY/ON) button!

Disconnect the mains plug to shut the power off completely (all lamps and indications go off). The (STANDBY/ON) button in any position does not disconnect the mains line.

• When the unit is on standby, the STANDBY lamp lights red.

• When the unit is turned on, the STANDBY lamp goes off.

The power can be remote controlled.

CAUTION

To reduce the risk of electrical shocks, fire, etc.:

1. Do not remove screws, covers or cabinet.

2. Do not expose this appliance to rain or moisture.

CAUTION

• Do not block the ventilation openings or holes. (If the ventilation openings or holes are blocked by a newspaper or cloth, etc., the heat may not be able to get out.)

• Do not place any naked flame sources, such as lighted candles, on the apparatus.

• When discarding batteries, environmental problems must be considered and local rules or laws governing the disposal of these batteries must be followed strictly.

• Do not expose this apparatus to rain, moisture, dripping or splashing and that no objects filled with liquids, such as vases, shall be placed on the apparatus.

IMPORTANT FOR LASER PRODUCTS

1. CLASS 1 LASER PRODUCT

2. CAUTION: Do not open the top cover. There are no user serviceable parts inside the unit; leave all servicing to qualified service personnel.

3. CAUTION: Visible and invisible laser radiation when open and interlock failed or defeated. Avoid direct exposure to beam.

4. REPRODUCTION OF LABEL: CAUTION LABEL, PLACED INSIDE THE UNIT.

CAUTION: Proper Ventilation

To avoid risk of electric shock and fire, and to prevent damage, locate the apparatus as follows: 1 Front:

No obstructions and open spacing.

2 Sides/ Top/ Back:

No obstructions should be placed in the areas shown by the dimensions below.

3 Bottom:

Place on the level surface. Maintain an adequate air path for ventilation by placing on a stand with a height of 10 cm or more.

Front view

Side view

G-1

UX-H330/UX-H300

SAFETY INSTRUCTIONS

✮✮✮✮✮✮✮✮✮✮✮✮✮✮✮✮✮✮✮✮✮✮✮✮✮✮✮✮✮✮✮✮✮✮✮✮✮✮✮✮✮✮✮✮✮✮✮

“SOME DOS AND DON’TS ON THE SAFE USE OF EQUIPMENT”

This equipment has been designed and manufactured to meet international safety standards, but like any electrical equipment, care must be taken if you are to obtain the best results and safety is to be assured.

Do read the operating instructions before you attempt to use the equipment.

Do ensure that all electrical connections (including the mains plug, extension leads and interconnections between pieces of equipment) are properly made and in accordance with the manufacturer’s instructions. Switch off and withdraw the mains plug when making or changing connections.

Do consult your dealer if you are ever in doubt about the installation, operation or safety of your equipment.

Do be careful with glass panels or doors on equipment.

DON’T continue to operate the equipment if you are in any doubt about it working normally, or if it is damaged in any way —switch off, withdraw the mains plug and consult your dealer.

DON’T remove any fixed cover as this may expose dangerous voltages.

DON’T leave equipment switched on when it is unattended unless it is specifically stated that it is designed for unattended operation or has a standby mode. Switch off using the switch on the equipment and make sure that your family know how to do this.

Special arrangements may need to be made for infirm or handicapped people.

DON’T use equipment such as personal stereos or radios so that you are distracted from the requirements of traffic safety. It is illegal to watch television whilst driving.

DON’T listen to headphones at high volume as such use can permanently damage your hearing.

DON’T obstruct the ventilation of the equipment, for example with curtains or soft furnishings.

Overheating will cause damage and shorten the life of the equipment.

DON’T use makeshift stands and NEVER fix legs with wood screws—to ensure complete safety always fit the manufacturer’s approved stand or legs with the fixings provided according to the instructions.

DON’T allow electrical equipment to be exposed to rain or moisture.

ABOVE ALL

— NEVER let anyone, especially children, push anything into holes, slots or any other opening in the case—this

could result in a fatal electrical shock.

— NEVER guess or take chances with electrical equipment of any kind—it is better to be safe than sorry!

G-2

Introduction

We would like to thank you for purchasing one of our JVC products.

Before operating this unit, read this manual carefully and thoroughly to

obtain the best possible performance from your unit, and retain this manual

for future reference.

About This Manual

This manual is organized as follows:

• This manual mainly explains operations using the buttons on the remote control. You can use the buttons both on the remote control and on the unit for the same operations if they have the same or similar names (or marks), unless mentioned otherwise.

• Basic and common information that is the same for many functions is grouped in one place, and is not repeated for each procedure. For instance, we do not repeat the information about turning on/off the unit, setting the volume, changing the sound effects, and others, which are explained in the section “Common Operations” on pages 8 and 9.

• The following symbols are used in this manual:

Gives you warning and caution to prevent damage or risk of fire/electric shock. In addition, we put information here about conditions which will prevent getting the best possible performance from the unit.

Gives you information and hints you need to know.

Power sources

• When unplugging the unit from the wall outlet, always pull on the plug, not the AC power cord.

DO NOT handle the AC power cord with wet hands.

Moisture condensation

Moisture may condense on the lenses inside the unit in the following cases:

• After starting to heat the room.

• In a damp room.

• If the unit is brought directly from a cold to a warm place.

Should this occur, the unit may malfunction. In this case, leave the unit turned on for a few hours until the moisture evaporates, unplug the AC power cord, then plug it in again.

Others

• Should any metallic object or liquid fall into the unit, unplug the AC power cord and consult your dealer before operating any further.

• If you are not going to operate the unit for an extended period of time, unplug the AC power cord from the wall outlet.

• Rating label is placed on the exterior of the bottom.

DO NOT disassemble the unit since there are no user serviceable parts inside.

Precautions

Installation

• Install in a place which is level, dry and neither too hot nor too cold—between 5˚C and 35˚C.

• Install the unit in a location with adequate ventilation to prevent internal heat buildup.

• Leave sufficient distance between the unit and the TV.

• Keep the speakers away from the TV to avoid interference with TV.

DO NOT install the unit in a location near heat sources, or in a place subject to direct sunlight, excessive dust or vibration.

If anything goes wrong, unplug the AC power cord and consult your dealer.

Contents

Location of the Buttons and Controls ............................. 3

Main Unit .................................................................................. 3

Remote Control ......................................................................... 5

Getting Started .................................................................. 6

Unpacking ................................................................................. 6

Connecting AM (MW) and FM Antennas ................................. 6

Connecting Speakers ................................................................. 6

Connecting Other Equipment .................................................... 7

Putting the Batteries into the Remote Control .......................... 7

Common Operations ......................................................... 8

Setting the Clock ....................................................................... 8

Turning On the Power ............................................................... 8

Turning Off the Unit Automatically (Auto Standby) ................ 8

Selecting the Source .................................................................. 9

Adjusting the Volume ................................................................ 9

Fade-Out Muting (FADE MUTING) ........................................ 9

Selecting the Sound Modes ....................................................... 9

Reinforcing the Bass Sound ...................................................... 9

Checking the Clock Time During Play ..................................... 9

Playing Back Discs .......................................................... 10

Playing Back the Entire Disc—Normal Play .......................... 10

Basic Disc Operations ............................................................. 11

Programming the Track Playing Order—Program Play ......... 11

Repeating Tracks—Repeat Play .............................................. 12

Playing at Random—Random Play......................................... 13

Displaying the Remaining Time during Playback................... 13

Playing Back Tapes.......................................................... 14

Playing Back a Tape ................................................................ 14

Listening to FM and AM (MW) Broadcasts ................. 15

Tuning in to a Station .............................................................. 15

Presetting Stations ................................................................... 15

Tuning in to a Preset Station ................................................... 16

Receiving FM Stations with RDS ........................................... 16

Changing the RDS Information............................................... 16

Searching for Programs by PTY Codes (PTY Search) ........... 17

Using an External Equipment ........................................ 18

Listening to the External Equipment ....................................... 18

Recording ......................................................................... 19

Recording on a Tape ................................................................ 19

Recording Discs—Disc Synchronized Recording .................. 20

Using the Timers.............................................................. 21

Using Daily Timer and Recording Timer ................................ 21

Using Snooze Timer ................................................................ 22

Using Sleep Timer ................................................................... 23

Maintenance..................................................................... 24

Troubleshooting ............................................................... 25

Specifications ................................................................... 26

Location of the Buttons and Controls

OPEN

COMPACT

DIGITAL AUDIO

DAILY TIMER/SNOOZE

COMPACT

DIGITAL AUDIO

STANDBY

PHONES DOWN

#/8

7¢

UP AUX

PUSH OPEN

TAPE FM/AM AUX

VOLUME

+–

MICRO COMPONENT SYSTEM

AUTO REVERSE

REC

e r

Become familiar with the buttons and controls on your unit.

Main Unit

Top view

Front view

Display window

SOUND

BASS

ON DAILY 123

OFF

ALL GR. RDS TOTAL REMAIN

MHz k

SLEEP SNOOZEREC ST MP3MONO

SOUND BASS REC

A.STANDBYPRGM RANDOM

452316789pq

sa;

See pages in parentheses for details.

Continued

Main unit

1 Disc cover (10) 2 ) OPEN (disc cover open) (10) 3 DAILY TIMER/SNOOZE button (22) 4 Remote sensor (5) 5 STANDBY lamp (8) 6 (STANDBY/ON) button (8) 7 Source buttons

• CD #¥8, TAPE ¤‹, FM/AM, AUX

Pressing one of these buttons also turns on the unit.

8 PHONES jack (9) 9 Multi control buttons

• DOWN 4, 7, UP ¢

p Cassette holder (14, 19, 20) q Display window w VOLUME + / – control (9) e AUX jack (7, 18) r REC button (19, 20) t PUSH OPEN button (14, 19)

Display window

1 DAILY 1/2/3 (timer number) indicator 2 (timer) indicator 3 ON/OFF (timer on-time/off-time) indicators 4 REC (recording timer) indicator 5 (group folder) indicator 6 SLEEP indicator 7 SNOOZE indicator 8 FM mode indicators

• MONO, ST (stereo)

9 MP3 indicator p q w REC (recording) indicator e 2 3 (tape direction) indicator r Repeat indicators

• , ALL, GR. (group)

t (reverse mode) indicator y PRGM (program) indicator u RANDOM indicator i RDS indicator o Main display ; Remain indicators

• TOTAL, REMAIN

a A.STANDBY indicator s Frequency indicators

• MHz, kHz

indicator

REC

RM- SUX

H300R R

EMOTE CONTROL

STANDBY/ON

SLEEP

123

456

7809

CLOCK

/TIMER

PRESET GROUP

DOWN

PRESET GROUP

SET

CANCEL

RANDOM

TAPE

PROGRAM /RDS SEARCH /RDS MODE

FM/AM AUX

OVER

REPEAT REMAIN

SOUND/HBS BEAT CUT REV.MODE FADE MUTING

VOLUME

DISPLAY FM MODE A. STANDBY

3/8

u i

;

Remote Control

See pages in parentheses for details.

1 STANDBY/ON button (8, 22) 2 SLEEP button (23) 3 CLOCK/TIMER button (8, 21) 4 SET button (8, 15, 21, 22) 5 CANCEL button (21, 22) 6 Source buttons

• CD 3¥8, TAPE 2 3, FM/AM, AUX

Pressing one of these buttons also turns on the unit.

7 RANDOM button (13) 8 PROGRAM button (11, 12) 9 Multi control buttons

• PRESET GROUP /UP, PRESET GROUP /DOWN

• 4, 7, ¢

p SOUND/HBS button (9) q BEAT CUT button (19) w DISPLAY button (9) e A. (auto) STANDBY button (8) r FM MODE button (15) t Number buttons (11, 15, 16) y OVER button (11, 15, 16) u • REMAIN button (13)

• RDS MODE button (16)

i • REPEAT button (12)

• RDS SEARCH button (17)

o VOLUME + / – buttons (9, 22) ; FADE MUTING button (9) a REV. (reverse) MODE button (14, 19, 20)

COMPACT

DIGITAL AUDIO

STANDBY

PHONES DOWN

#/8

TAPE FM/AM AUX

UP AUX

7¢

VOLUME

+–

When using the remote control, point it at the remote sensor on the front panel.

Getting Started

AM LOOP

FM ANTENNA

2,3

Do not connect the AC power cord until all other connections have been made.

Continued

Unpacking

After unpacking, check to be sure that you have all the following items. The number in parentheses indicates the quantity of each piece supplied.

• AM (MW) loop antenna (1)

• Remote control (1)

• Batteries (2)

If any item is missing, consult your dealer immediately.

Connecting AM (MW) and FM Antennas

AM (MW) loop antenna

(supplied)

Connecting Speakers

You can connect the speakers using the speaker cords.

Red

Black

Red

Speaker cord

Black

Speaker cord

FM antenna

Connect the supplied AM (MW) loop antenna to the AM LOOP terminal.

Place the antenna away from the unit and adjust its position for the best reception.

Adjust the position for the FM antenna for the best reception.

For better reception of both FM and AM (MW)

• Make sure the antenna conductors do not touch any other terminals or connecting cords.

• Keep the antennas away from metallic parts of the unit, connecting cords, and the AC power cord.

Right speaker

Hold the clamp of the speaker terminal.

Insert the end of the speaker cord into the terminal.

Match the polarity of the speaker terminals: red cord to ª and black cord to ·.

Release your finger from the clamp.

IMPORTANT:

• Use only speakers with the same speaker impedance as indicated by the speaker terminals on the rear of the unit.

• DO NOT connect more than one speaker to one speaker terminal.

Left speaker

AUX

Do not connect the AC power cord until all other connections have been made.

To remove the speaker grilles

The speaker grilles are removable as the illustration below.

Holes

To remove the speaker grille, insert your fingers around the projection at the top of the speaker grille, then pull gently towards you while holding the side. Do the same for the rest of projections one at a time.

To attach the speaker grille, put the projections of the speaker grille into the holes of the speaker.

Projections

Speaker grille

Putting the Batteries into the Remote Control

Insert the batteries—AAA/UM-4/R03—into the remote control by matching the polarity (+ and –) on the batteries with the + and – marking on the battery compartment. When the remote control can no longer operate the unit, replace both batteries at the same time.

AAA/UM-4/R03

Connecting Other Equipment

To connect an audio equipment

You can connect audio equipment—used only as a playback device.

• DO NOT connect any equipment while the power is on.

• DO NOT plug in any equipment until all connections are complete.

For playing other equipment through this unit,

connect between the audio output jacks on the other equipment and AUX jack by using audio cords with mini plugs (not supplied).

To audio output

To Audio equipment

• DO NOT use an old battery together with a new one.

• DO NOT use different types of batteries together.

• DO NOT expose batteries to heat or flame.

• DO NOT leave the batteries in the battery

compartment when you are not going to use the remote control for an extended period of time. Otherwise, the remote control will be damaged from battery leakage.

When the audio equipment has pin jacks for audio output: Be sure that the pin plugs of the audio cords are colored— white plugs and jacks are for left audio signals, and red ones for right audio signals.

NOW you are ready to plug in the unit.

IMPORTANT:

Be sure to check that all connections have been made before plugging in the power cord.

+ 22 hidden pages

JVC UX-H300B, UX-H330B User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
