Introduction

Thank you for purchasing a JVC product. Please read all instructions carefully before operation, to ensure your complete understanding and to obtain the best possible performance from the unit.

Precautions

Installation

• Install in a place which is level, dry and neither too hot nor too cold—between 5°C and 35°C.

• Install the System in a location with adequate ventilation to prevent internal heat buildup inside the System.

DO NOT install the System in a location near heat sources, or in a place subject to direct sunlight, excessive dust or vibration.

• Leave sufficient distance between the System and the TV.

• Keep the speakers away from the TV to avoid interference with TV.

Power sources

• When unplugging the System from the wall outlet, always pull on the plug, not the AC power cord.

DO NOT handle the AC power cord with wet hands.

Others

• Should any metallic object or liquid fall into the System, unplug the AC power cord and consult your dealer before operating any further.

DO NOT disassemble the System since there are no user serviceable parts inside.

• If you are not going to operate the System for an extended period of time, unplug the AC power cord from the wall outlet.

If anything goes wrong, unplug the AC power cord and consult your dealer.

English

Moisture condensation

Moisture may condense on the lenses inside the System in the following cases:

• After starting to heat the room

• In a damp room

• If the System is brought directly from a cold to a warm place

Should this occur, the System may malfunction. In this case, leave the System turned on for a few hours until the moisture evaporates, unplug the AC power cord, then plug it in again.

For safety, observe the following carefully:

• Make sure there is good ventilation around the main unit. Poor ventilation could overheat and damage the System.

• DO NOT block the ventilation openings or holes. If they are blocked by a newspaper or cloth, etc., the heat may not be able to get out.

English

How to Read This Manual

To make this manual as simple and easy-to-understand as possible, we have adapted the following methods:

• Button and control operations are explained as listed in the table below. In this manual, the operations using the remote control is mainly explained; however, you can use the buttons and controls on the main unit if they have the same (or similar) name and marks.

•

Some related tips and notes are explained later in the sections “Learning More about This System” and “Troubleshooting” , but not in the same section explaining the operations.

If you want to know more about the functions, or if you have a doubt about the functions, go to these sections and you will find the answers.

Indicates that you press the button

briefly

Indicates that you press the button

briefly and repeatedly

you want is selected.

Indicates that you press one of the buttons.

until an option

2sec.

Indicates that you button for specified seconds.

press and hold

the

• The number inside the arrow indicates the period of press (in this example, 2 seconds).

• If no number is inside the arrow, press and hold until the entire procedure is complete or until you get a result you want.

• Indicates that you turn the control toward the specified direction(s).

Remote ONLY

Indicates that this operation is only possible using the remote control.

Indicates that this operation is only possible

Main Unit

ONLY

using the buttons and controls on the main unit.

Getting Started

Step 1:Unpack the package and

check the accessories.

Step 2:Prepare the remote control.

Step 1: Unpack

After unpacking, check to be sure that you have all the following items. The number in parentheses indicates the quantity of each piece supplied.

• FM antenna (1)

• AM loop antenna (1)

• Remote control (1)

•Batteries (2) If any item is missing, consult your dealer immediately.

Step 2: Prepare the Remote Control

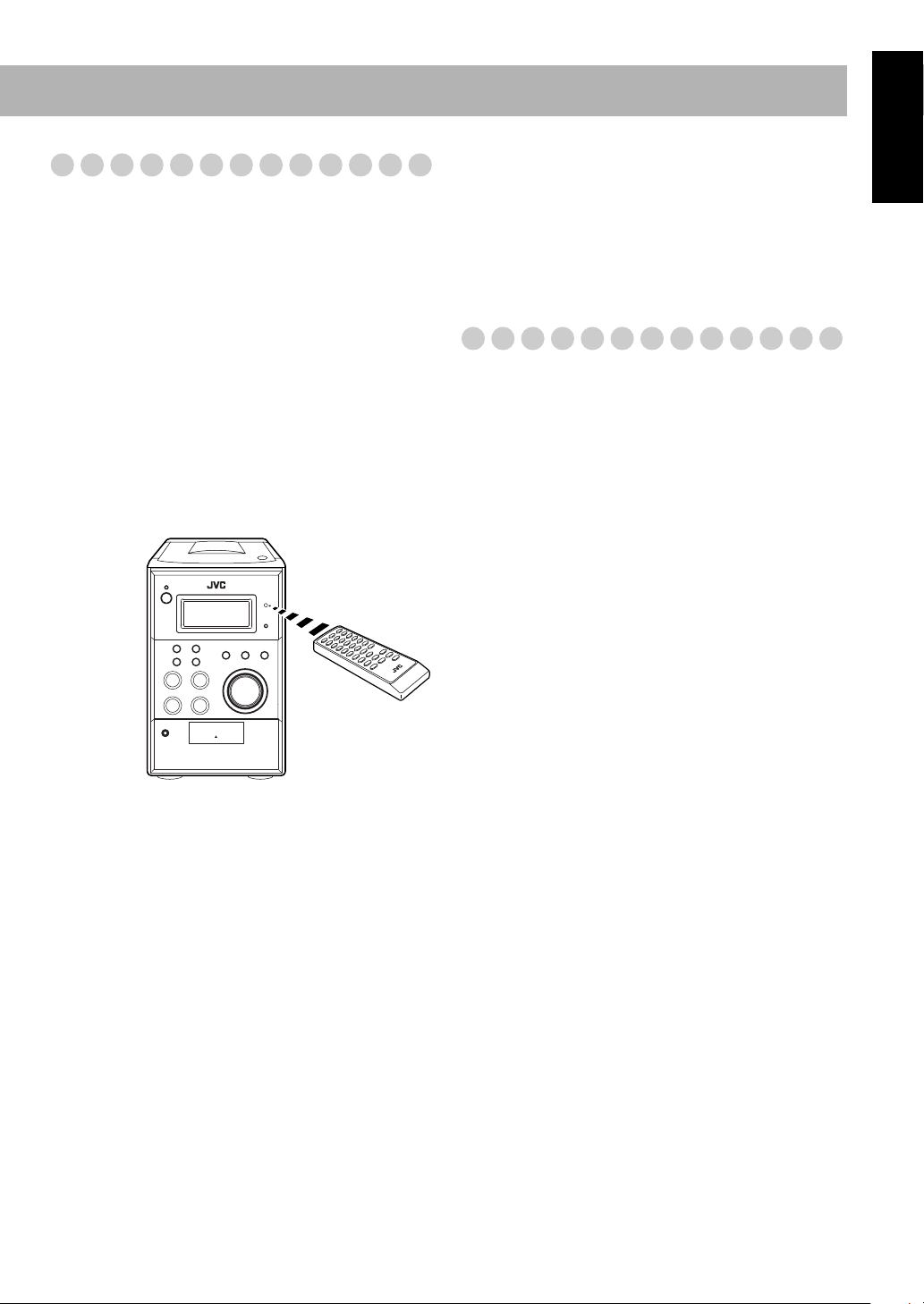

Insert the batteries into the remote control by matching the polarity (+ and –) correctly.

• If the range or effectiveness of the remote control decreases, replace both batteries.

English

Step 3:Hook up the components such

as AM/FM antennas, speakers, etc. (see pages 5 to 6).







 







Finally plug the AC power cord. Now you can operate the System.

R03(UM-4)/AAA(24F)

Caution

Battery shall not be exposed to excessive heat such as sunshine, fire or the like.

English

Step 3: Hook Up

If you need more detailed information, see page 6

Illustrations of the input/output terminals below are typical examples. When you connect Digital Audio Player, etc., refer also to their manuals since the terminal names actually printed on the rear may vary.

Turn the power off to all components before connections.

FM antenna (supplied)

Extend it so that you can obtain the best reception.

To a wall outlet Plug the AC power cord only after all connections are complete.

AM loop antenna (supplied)

Turn it until the best reception is obtained.

Red

Black

To connect the AM loop antenna

Make sure to connect the wire correctly.

1 Hold

2 Insert

For better FM/AM reception

Outdoor FM

Outdoor FM antenna

antenna (not supplied)

(not supplied)

3 Release

To connect the speaker cords

Make sure the both speakers are connected correctly and firmly.

1 Unlock

2 Insert

When connecting the speaker cords, match the polarity of the speaker terminals: The black cord to (-), the red cord to (+).

3 Lock

English

Vynile-covered wire (not supplied)

Extend it horizontally.







 

AM loop antenna

Keep it connected.

Disconnect the supplied FM antenna, and connect to an outdoor FM antenna using a 75 Ω wire with coaxial type connector (IEC or DIN45325).







• Make sure the antenna conductors do not touch any other terminals, connecting cords and power cord. Also, keep the antennas away from metallic parts of the System, connecting cords, and the AC power cord. This could cause poor reception.

• DO NOT connect more than one speaker to each terminal.

• DO NOT allow the conductor of the speaker cords to be in touch with the metallic parts of the System.

• If the AM loop antenna wire or speaker cords are covered with vinyl, remove the vinyl to expose the tip of the antenna wire or speaker cords by twisting the vinyl.

Before Operating the System

English

The indications on the display teach you a lot of things while you are operating the System. Before operating the System, be familiar with when and how the indicator illuminates on the display.

123456789

REPEAT1

GROUP RANDOM PROG.

TRACK WMA MP3 CD USB

SLEEP

HBS JAZZ POPROCK CLASSIC MONOST

10 11 12 13 14 15

Indications on the main display

• While listening to radio:

Band Frequency

• While playing a CD:

TRACK

Track number Elapsed

playing time

• While selecting AUX:

MHz

• While playing an MP3:

Track number in current group

• While selecting USB MEMORY:

TRACK WMA USB

Current

track

number

Elapsed playing time

• While disc play is stopped:

CD:

kHz MHz

Source name

TRACK

MP3

Elapsed playing time

1 REPEAT mode indicator

• Lights when Repeat Play mode is activated.

2 TRACK indicator

• Audio disc : Lights during playback and stop.

• MP3/WMA disc : Lights during playback.

3 GROUP indicator

• MP3/WMA disc : Lights during stop.

4 MP3/WMA indicator

• Lights when MP3/WMA disc (file) is detected.

5 RANDOM indicator

• Lights when Random Play mode is activated.

6 CD indicator

• Lights when Audio disc is detected.

7 E indicator

• 3: Lights when disc or USB is playing.

• 8: Lights when disc or USB is paused.

8 PROG. (Program) indicator

• Lights when Program Play mode is activated.

9 USB indicator

• Flashes when USB mass storage class device is activated.

p SLEEP indicator

• Lights when the Sleep Timer is activated.

q HBS indicator

• Lights when HBS (Hyper Bass Sound) mode is activated. (see page 12)

w SOUND MODE indicator

• Lights the selected sound mode. (see page 12)

e FM reception indicator

• MONO: Lights while the FM monaural mode is activated.

• ST: Lights while FM stereo station with sufficient signal strength is tuned in.

r Frequency indicators

• Lights when frequency is detected.

t TIMER indicator

• : Lights when Daily Timer stands by; flashes while working.

MP3/WMA:

Total track number

GROUP

Total group number Total track number

Total playing time

MP3

Daily Operations—Playback

Numeric

buttons

4/1/

Á/¢

PRESET TUNING/

GROUP

DISPLAY/ PROGRAM

STOP 7

1 Turn on the power.

English

The STANDBY lamp on the main unit turns off.

2 Select the source.

Playback automatically starts if the selected source is ready to start.

• If you press AUX, start playback source on the external component.

3 Adjust the volume. 4 Operate the target source as explained

later.

To turn off (standby) the System

The STANDBY lamp on the main unit lights up.

• A small amount of power is always consumed even while on standby.

For private listening

Connect a pair of headphones to the PHONES jack on the main unit. The sound will no longer come out of the speakers. Be sure to turn down the volume before connecting or putting the headphones.

• Disconnecting the headphones will activate the speakers again.

VOLUME

USB

MEMORY

TRACK CD

FM/AM/AUX

DO NOT turn off (stand by) the System with the volume set to an extremely high level; otherwise, the sudden blast of sound can damage your hearing, speakers and/or headphones when you turn on the System or start playback.

How to Select Numbers







Examples:

• Within 99 songs

15: 10 → 1 → 5

• More than 100 songs in

15: 10 → 0 → 1 → 5 150: 10 → 1 → 5 → 0

> =

Current Group.

> =

English

Listening to the Radio

To select the band (FM or AM)

FM/AM/AUX

You can also carry out the same operation using the FM/ AM/AUX on the System.

FM FM MONO

AUX

To tune in to a station

While FM or AM is selected...

Remote control: Main unit:

1 sec.

TUNING/GROUP

Frequency starts changing on the display. When a station (frequency) with sufficient signal strength is tuned in, the frequency stops changing.

• When you repeatedly press the button, the frequency changes step by step.

To stop searching manually,

If the received FM station is hard to listen

Select "FM MONO"

press either button.

1 sec.

To preset the stations

You can preset 20 FM and 10 AM stations.

1 Tune in to a station you want to preset. 2 Activate the preset number entry mode.

DISPLAY/

PROGRAM

• Finish the following process while the indication on the display is flashing.

PROG.

kHz

3 Select a preset number for the station you store.

• How to Select Numbers, see page 8.

• You can also use the 4/¢ buttons.

4 Store the station.

DISPLAY/

PROGRAM

To tune in to a preset station

1 Select a band (FM or AM).

FM/AM/AUX

FM AMFM MONO

AUX

2 Select a number of the preset station you stored.

How to Select Numbers, see page 8. You can also use the 4/¢ .

FM/AM/AUX

FM MONO:

FM FM MONO AM

AUX

Reception will improve though stereo effect is lost. MONO indicator lights up.

Playable media and files

This system can playback following types of media and files.

Media Audio CD, CD-R/RW, USB mass

storage class device

File format MP3, WMA

Audio CD CD-R CD-RW

• This system may not playback some files even though their formats are listed above.

• Caution for DualDisc playback The Non-DVD side of a “DualDisc” does not comply with the “Compact Disc Digital Audio” standard. Therefore, the use of Non-DVD side of a DualDisc on this product may not be recommended.

• Microsoft and Windows Media are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries.

Playing Back from the USB mass storage class device

This System is equipped with a USB MEMORY terminal on the front panel. You can connect a USB mass storage class device such as a USB flash memory device, Digital Audio Player (DAP) to this System. This System cannot recognize a USB mass storage class device whose rating exceeds 5V/ 500mA.

IMPORTANT

• You cannot send any data to your USB mass storage class device from this System.

• You cannot connect a computer to the USB MEMORY terminal of the system.

• Always set volume to “VOL MIN” when connecting or disconnecting the other equipment.

• Connect the USB mass stotrage class device directly to the system. Using a USB hub may result in malfunction.

• Coded or encrypted tracks in a special method cannot be played on the unit.

• The USB mass storage device’s battery is charged while the System is turned on.

English

Playing Back a Disc

Main Unit

To insert a disc

You can insert discs while playing another source.

To start: To pause: To stop:

CD CD

ONLY

STOP

To release, press again.

To connect the USB mass storage class device

When connecting a USB mass storage class device, refer also to its manual.

DAP

• When disconnecting the USB mass storage class device, make sure that the System is in the stop condition.

To play back sounds on the USB mass storage class device

To start: To pause: To stop:

USB

MEMORY

• The USB indicator on the display lights while USB MEMORY is selected.

USB

MEMORY

STOP

English

To select a track/group

To select a track:

Increases the track numbers.

Decreases the track numbers.

To select a group (MP3/WMA disc, USB device only):

Increases the group numbers.

Decreases the group numbers.

To locate a particular portion

While playing a disc, press and hold until the portion you want is reached.

Fast-forwards the track.

Fast-reverses the track.

To locate a track directly and start play

How to Select Numbers, see page 8.

• When you play MP3/WMA disc, USB mass storage class device, the selectable tracks by using numeric keys are limited to a current group.

Remote ONLY

Playing Back Other Equipment

To connect other equipment

By using a stereo mini plug cord (not supplied), you can connect equipment with analog audio output jacks such as a Digital Audio Player, or a TV, etc.

Stereo mini plug cord (not supplied)

Portable audio device, Game

(front panel)

If the audio output on the other equipment is not stereo mini plug type,

Use a plug adapter to convert the stereo mini plug to the corresponding plug of the audio output. Refer to the manuals supplied with the other equipment.

IMPORTANT

• Always set volume to “VOL MIN” when connecting or disconnecting the other equipment.

To select AUX

FM/AM/AUX

machine, etc.

To display ID3 tag

Press DISPLAY/PROGRAM while playing MP3/WMA disc.

DISPLAY/

PROGRAM

ID3 ON

ID3 OFF

When “ID3 ON” is set, ID3 tag is displayed after the source is indicated.

Daily Operations—Sound & Other Adjustments

Remote control

CLOCK/

SLEEP

4/¢

SOUND

MODE

FADE MUTING

VOLUME +/–

HBS

Adjusting the Volume

You can adjust the volume level from level 0 (VOL MIN) to level 31 (VOL MAX).

Remote control: Main unit:

VOLUME

Remote

Remote ONLY

ONLY

press again, or

To drop the volume in a moment

FADE

MUTING

To restore the volume,

adjust the volume level.

Adjusting the Sound

To reinforce the bass sound —HBS

You can enjoy powerful bass sound with the Hyper-Bass Sound effect.

HBS

English

Main unit

4/¢

CLOCK/ SLEEP

VOLUME +/–

Canceled

(No indication)

Sound Mode

You can select one of 4 SEA (Sound Effect Amplifier) modes. You can use this effect only for playback.

SOUND MODE

ROCK

JAZZ

POP

JAZZ Accented lower frequencies for jazz-

type music.

ROCK Boosts low and high frequencies.

POP Good for vocal music.

CLASSIC Good for classical music.

No sound effect applies.

indication

CLASSIC

No indication (No sound effect)

+ 37 hidden pages
