JVC UX-G3, UX-G4 User Manual

0 (0)
JVC UX-G3, UX-G4 User Manual

MICRO COMPONENT SYSTEM

SISTEMAS DE MICROCOMPONENTES SISTEMA DE MICRO COMPONENTES

UX-G4 –Consists of CA-UXG4 and SP-UXG4

UX-G3 –Consists of CA-UXG3 and SP-UXG3

English

Español

Português

¡ATENCION!

Antes de operar su equipo, lea cuidadosamente este instructivo.

INSTRUCTIONS

MANUAL DE INSTRUCCIONES

INSTRUÇÕES

LVT1364-009A

[UW]

Warnings, Cautions and Others Avisos, precauciones y otras notas Advertências, precauções e outras notas

CAUTION— (STANDBY/ON) button!

Disconnect the mains plug to shut the power off completely (all lamps and indications go off). The (STANDBY/ON) button in any position does not disconnect the mains line.

When the unit is on standby, the STANDBY lamp lights red.

When the unit is turned on, the STANDBY lamp goes off.

The power can be remote controlled.

PRECAUCIÓN—Botón (en espera/encendido)

Desconecte el enchufe tomacorriente para desconectar la alimentación completamente (se apagan todas las lámparas e indicaciones). Ninguna posición del botón (en espera/ encendido) conseguirá desconectar la red de alimentación eléctrica.

Cuando la unidad está en espera, la lámpara STANDBY se enciende en rojo.

Cuando la unidad está encendida, la lámpara STANDBY se apaga.

La alimentación puede controlarse mediante control remoto.

CUIDADO—botão (standby/on) !

Desligue a ficha da tomada da parede para desligar completamente a alimentação (todas as luzes e indicadores apagam-se). O botão (standby/on), quer esteja premido ou solto, não desliga a alimentação principal.

Quando a unidade estiver em standby, a luz STANDBY fica vermelha.

Quando a unidade estiver ligada, a luz STANDBY apaga-se.

A alimentação pode ser controlada à distância.

G-1

CAUTION

To reduce the risk of electrical shocks, fire, etc.:

1.Do not remove screws, covers or cabinet.

2.Do not expose this appliance to rain or moisture.

PRECAUCIÓN

Para reducir riesgos de choques eléctricos, incendio, etc.:

1.No extraiga los tornillos, los cubiertas ni la caja.

2.No exponga este aparato a la lluvia o a la humedad.

PRECAUÇÃO

Para reduzir riscos de choques elétricos, incêndio, etc.:

1.Não remova parafusos e tampas ou desmonte a caixa.

2.Não exponha este aparelho à chuva nem à umidade.

CAUTION

Do not block the ventilation openings or holes.

(If the ventilation openings or holes are blocked by a newspaper or cloth, etc., the heat may not be able to get out.)

Do not place any naked flame sources, such as lighted candles, on the apparatus.

When discarding batteries, environmental problems must be considered and local rules or laws governing the disposal of these batteries must be followed strictly.

Do not expose this apparatus to rain, moisture, dripping or splashing and that no objects filled with liquids, such as vases, shall be placed on the apparatus.

PRECAUCIÓN

No obstruya las rendijas o los orificios de ventilación.

(Si las rendijas o los orificios de ventilación quedan tapados con un periódico, un trozo de tela, etc., no se podrá disipar el calor).

No ponga sobre el aparato ninguna llama al descubierto, como velas encendidas.

Cuando tenga que descartar las pilas, tenga en cuenta los problemas ambientales y observe estrictamente los reglamentos o las leyes locales sobre disposición de las pilas.

No exponga este aparato a la lluvia, humedad, goteos o salpicaduras. Tampoco ponga recipientes conteniendo líquidos, como floreros, encima del aparato.

PRECAUÇÃO

Não obstrua as aberturas e orifícios de ventilação. (Se os orifícios ou aberturas de ventilação estiverem obstruídos por qualquer papel ou tecido, não haverá circulação do ar quente.)

Não coloque nenhum objeto com chamas, como velas acesas, sobre o aparelho.

Ao descartar as baterias, leve em consideração os problemas que possam ser causados ao meio ambiente e os regulamentos e leis locais e governamentais sobre recolhimento dessas baterias devem ser rigorosamente seguidos.

Não exponha este aparelho à chuva, umidade, pingos ou esguichos de água, nem coloque em cima do mesmo qualquer tipo de recipiente que contenha líquidos, como por exemplo vasos.

G-2

CAUTION: Proper Ventilation

To avoid risk of electric shock and fire, and to prevent damage, locate the apparatus as follows:

1

Front:

No obstructions and open spacing.

2

Sides/ Top/ Back:

No obstructions should be placed in the areas shown by the dimensions below.

3

Bottom:

Place on the level surface. Maintain an adequate air path for ventilation by placing on a stand with a height of





10 cm or more.

PRECAUCIÓN: Ventilación correcta

Para evitar el riesgo de descargas eléctricas e incendio y prevenir posibles daños, instale el equipo en un lugar que cumpla los

siguientes requisitos:



1

Parte frontal:

Sin obstrucciones, espacio abierto.

2

Lados/parte superior/parte posterior:





No debe haber ninguna obstrucción en las áreas mostradas por las dimensiones de la siguiente figura.

3

Parte inferior:

Sitúe el equipo sobre una superficie nivelada. Mantenga un espacio adecuado para permitir el paso del aire y





una correcta ventilación, situando el equipo sobre un soporte de 10 o más cm de allura.

PRECAUÇÃO: Ventilação adequada

Para evitar riscos de choques elétricos e incêndios, e prevenir avarias, instale o aparelho como segue:

1

Parte frontal:

Sem obstruções e espaços abertos.

2

Partes laterais/ Tampa/ Posterior:





Nenhuma obstrução deverá ser colocada entre as áreas cujas dimensões são indicadas abaixo.

3

Parte inferior:

Instale-o sobre uma superfície plana. Deverá ser mantido espaço suficiente para a ventilação se este for





instalado numa posição que tenha uma altura de 10 cm ou mais.

Front view

Side view

Vista frontal

Vista lateral

Vista frontal

Vista lateral

15 cm

1 cm

1 cm

15 cm

15 cm



10 cm

UX-G4/UX-G3

15 cm

15 cm

UX-G4/UX-G3

G-3

INVISIBLE LASER RADIATION WHEN OPEN AND INTERLOCKS DEFEATED. AVOID EXPOSURE TO BEAM.
UNSICHTBARE LASERSTRAHLUNG TRITT AUS, WENN DECKEI. GEÖFFNET UND WENN SICHERHEITSVERRIEGELUNG ÜBERBRÜCKT IST. NICHT DEM STRAHL AUSSETZEN!
OSYNLIG LASERSTRÄLNING NÄR DENNA DEL ÄR ÖPPNAD OCH SPÄRR ÄR URKOPPLAD STRÅLEN ÄR FARLIG.

IMPORTANT FOR LASER PRODUCTS



IMPORTANTE PARA PRODUCTOS LÁSER







1.CLASS 1 LASER PRODUCT

2.CAUTION: Do not open the top cover. There are no user serviceable parts inside the unit; leave all servicing to qualified service personnel.

3.CAUTION: Visible and invisible laser radiation when open and interlock failed or defeated. Avoid direct exposure to beam.

4.REPRODUCTION OF LABEL: CAUTION LABEL, PLACED INSIDE THE UNIT.

PARA PRODUTOS LASER, IMPORTANTE

1.PRODUTO LASER DE CLASSE 1

2.PRECAUÇÃO: não abrir a cobertura superior. Dentro da unidade não existem partes cuja manutenção tenha de ser feita pelo usuário; deixe qualquer manutenção a cargo do pessoal de serviço qualificado.

3.PRECAUÇÃO: radiação laser visível e invisível quando se abre e com a conexão interna em falha ou frustrada. Evite a exposição direta ao raio.

4.REPRODUÇÃO DE ETIQUETA: ETIQUETA DE AVISO SITUADA

NO INTERIOR DA UNIDADE.

1.PRODUCTO LÁSER CLASE 1

2.PRECAUCIÓN: No abra la tapa superior. En el interior de la unidad no hay piezas que pueda reparar el usuario; encargue el servicio a personal técnico cualificado.

3.PRECAUCIÓN: Radiación láser visible e invisible en caso de apertura o con interbloqueo averiado o defectuoso. Evite la exposición directa a los haces.

4.RREPRODUCCIÓN DE LA ETIQUETA: ETIQUETA DE

PRECAUCIÓN, COLOCADA EN EL INTERIOR DE LA UNIDAD.

CAUTION -

VORSICHT !

VARNING -

ADVARSEL -USYNLIG LASERSTRÅLING VED ÅBNING NÅR SIKKERHEDSAFBRYDERE ER UDE AF FUNKTION. UNDGÅ UDSÆTTELSE FOR STRÅLING.

G-4

English

Introduction

We would like to thank you for purchasing one of our JVC products. Before operating this unit, read this manual carefully and thoroughly to obtain the best possible performance from your unit, and retain this manual for future reference.

About This Manual

This manual is organized as follows:

This manual mainly explains operations using the buttons on the remote control.

You can use the buttons both on the remote control and on the unit for the same operations if they have the same or similar names (or marks), unless mentioned otherwise.

Basic and common information that is the same for many functions is grouped in one place, and is not repeated for each procedure. For instance, we do not repeat the information about turning on/off the unit, setting the volume, changing the sound effects, and others, which are explained in the section “Common Operations” on pages 9 and 10.

The following symbols are used in this manual:

Gives you warning and caution to prevent damage or risk of fire/electric shock.

In addition, we put information here about conditions which will prevent getting the best possible performance from the unit.

Gives you information and hints you need to know.

Power sources

When unplugging the unit from the wall outlet, always pull on the plug, not the AC power cord.

DO NOT handle the AC power cord with wet hands.

Moisture condensation

Moisture may condense on the lenses inside the unit in the following cases:

After starting to heat the room.

In a damp room.

If the unit is brought directly from a cold to a warm place. Should this occur, the unit may malfunction. In this case, leave the unit turned on for a few hours until the moisture evaporates, unplug the AC power cord, then plug it in again.

Others

Should any metallic object or liquid fall into the unit, unplug the AC power cord and consult your dealer before operating any further.

If you are not going to operate the unit for an extended period of time, unplug the AC power cord from the wall outlet.

Rating label is placed on the exterior of the bottom.

DO NOT disassemble the unit since there are no user serviceable parts inside.

Precautions

Installation

Install in a place which is level, dry and neither too hot nor too cold—between 5˚C and 35˚C.

Install the unit in a location with adequate ventilation to prevent internal heat buildup.

Leave sufficient distance between the unit and the TV.

Keep the speakers away from the TV to avoid interference with TV.

DO NOT install the unit in a location near heat sources, or in a place subject to direct sunlight, excessive dust or vibration.

If anything goes wrong, unplug the AC power cord and consult your dealer.

1

Contents

Location of the Buttons and Controls .............................

3

Main Unit ..................................................................................

3

Remote Control .........................................................................

5

Getting Started ..................................................................

6

Unpacking .................................................................................

6

Connecting AM and FM Antennas ............................................

6

Connecting Speakers .................................................................

6

Connecting Other Equipment ....................................................

7

Adjusting the Voltage Selector ..................................................

7

Putting the Batteries into the Remote Control ..........................

8

Common Operations .........................................................

9

Setting the Clock .......................................................................

9

Turning On the Power ...............................................................

9

Turning Off the Unit Automatically (Auto Standby) ................

9

Selecting the Source ................................................................

10

Adjusting the Volume ..............................................................

10

Fade-Out Muting (FADE MUTING) ......................................

10

Selecting the Sound Modes .....................................................

10

Reinforcing the Bass Sound ....................................................

10

Checking the Clock Time During Play ...................................

10

Playing Back Discs ..........................................................

11

Playing Back the Entire Disc—Normal Play ..........................

11

Basic Disc Operations .............................................................

12

Programming the Track Playing Order—Program Play..........

12

Repeating Tracks—Repeat Play ..............................................

13

Playing at Random—Random Play .........................................

14

Displaying the Remaining Time during Playback ...................

14

Playing Back Tapes..........................................................

15

Playing Back a Tape ................................................................

15

Listening to FM and AM Broadcasts.............................

16

Setting the Tuner Interval Spacing ..........................................

16

Tuning in to a Station ..............................................................

16

Presetting Stations ...................................................................

16

Tuning in to a Preset Station ...................................................

17

Using an External Equipment ........................................

17

Listening to the External Equipment .......................................

17

Recording .........................................................................

18

Recording on a Tape ................................................................

18

Recording Discs—Disc Synchronized Recording ..................

19

Using the Timers ..............................................................

20

Using Daily Timer and Recording Timer ................................

20

Using Snooze Timer ................................................................

21

Using Sleep Timer ...................................................................

22

Maintenance.....................................................................

23

Troubleshooting ...............................................................

24

Specifications ...................................................................

24

English

2

English

Location of the Buttons and Controls

Become familiar with the buttons and controls on your unit.

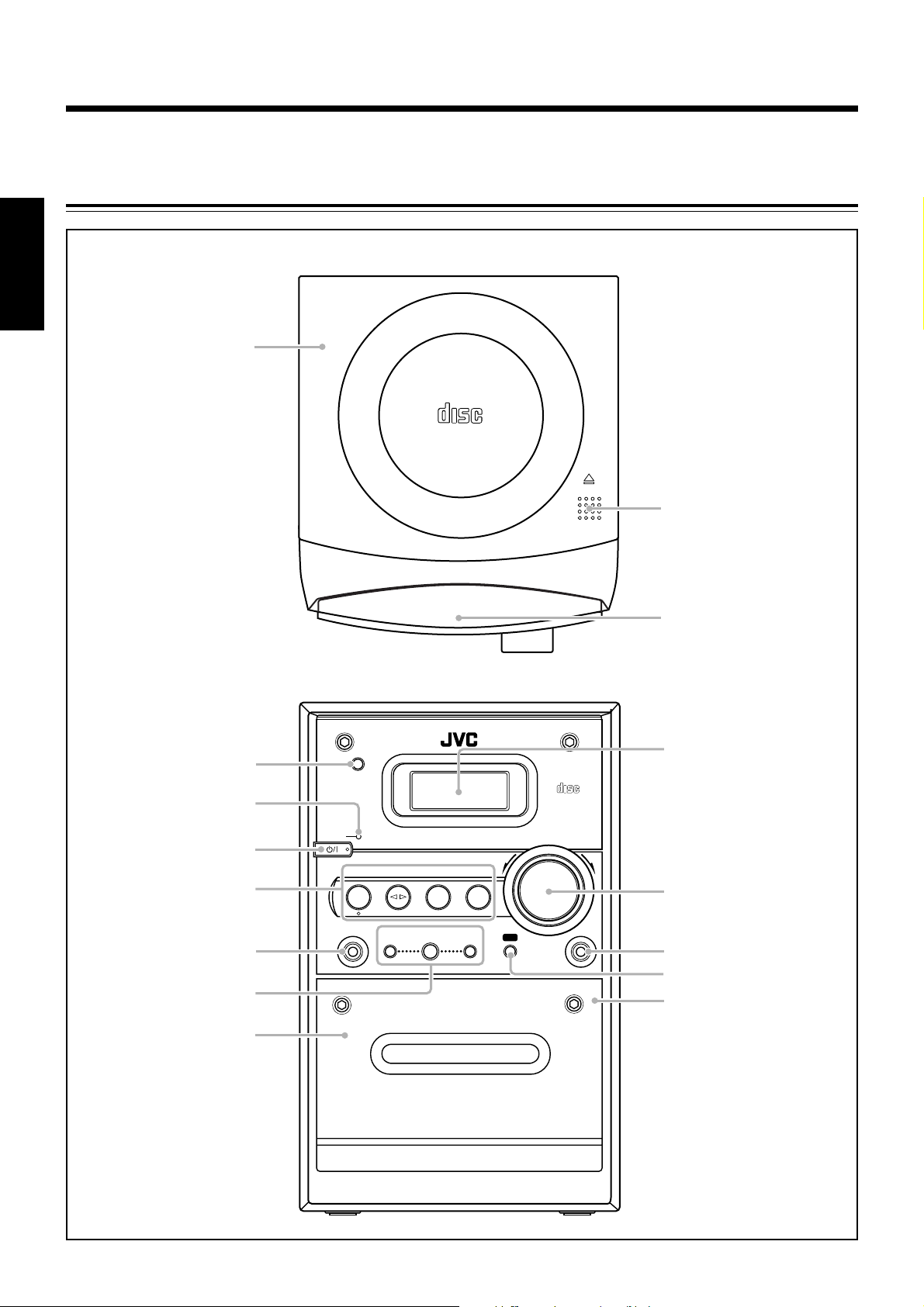

Main Unit

Top view

1

COMPACT

DIGITAL AUDIO

OPEN

2

D A I L Y T I M E R / S N O O Z E

3

Front view

4

q





COMPACT

5

DIGITAL AUDIO



6

STANDBY









VOLUME



















+













CD

TAPE

FM/AM

AUX





7

#/8









w



PHONES

DOWN



UP

REC

AUX





4

7

¢



8

9 p

PUSH OPEN

A U T O R E V E R S E

e r t

MICRO COMPONENT SYSTEM

3

Continued

Display window

1 2 3 4 5 6 7

8

9 p q w

REC

SLEEP

SNOOZE

MONO ST

ON OFF

DAILY 123

ALL GR. PRGM RANDOM

e r t y u

i

MP3 SOUND

BASS REC

MHz

kHz

TOTAL

REMAIN

A.STANDBY

o

; a

English

See pages in parentheses for details.

Main unit

Display window

1

Disc cover (11)

1

DAILY 1/2/3 (timer number) indicator

2 ) OPEN (disc cover open) (11)

2



(timer) indicator

3

DAILY TIMER/SNOOZE button (21)

3

ON/OFF (timer on-time/off-time) indicators

4

Remote sensor (5)

4

REC (recording timer) indicator

5

STANDBY lamp (9)

5



(group folder) indicator

6



(STANDBY/ON) button (9)

6

SLEEP indicator





7

Source buttons

7

SNOOZE indicator



CD #¥8, TAPE ¤‹, FM/AM, AUX

8

FM mode indicators





Pressing one of these buttons also turns on the unit.



MONO, ST (stereo)

8

PHONES jack (10)

9

MP3 indicator

9

Multi control buttons

p SOUND indicator



DOWN 4, 7, UP ¢

q BASS indicator

p Cassette holder (15, 18, 19)

w REC (recording) indicator

q Display window

e 2 3 (tape direction) indicator

w VOLUME + / – control (10, 16)

r Repeat indicators

e AUX jack (7, 17)



, ALL, GR. (group)

r REC button (18, 19)

t



(reverse mode) indicator

t PUSH OPEN (15, 18)

y PRGM (program) indicator







u RANDOM indicator







i Main display







o Remain indicators









TOTAL, REMAIN







; A.STANDBY indicator







a Frequency indicators









MHz, kHz

4

English

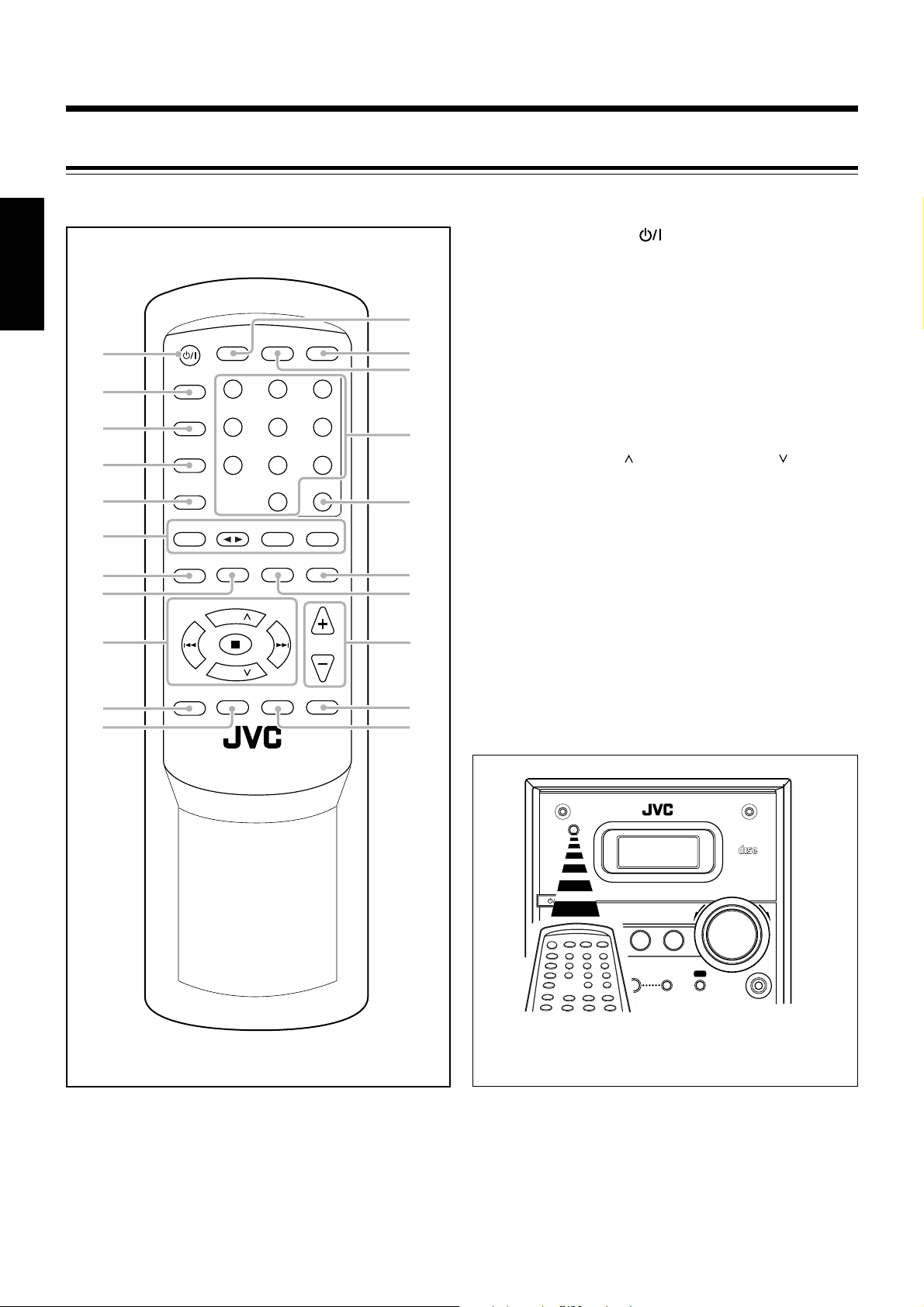

Remote Control

See pages in parentheses for details.













1

STANDBY/ON

button (9, 21)

















2

SLEEP button (22)























3

CLOCK/TIMER button (9, 20)



















4

SET button (9, 16, 20, 21)



















w

5

CANCEL button (20, 21)



















6

Source buttons

































1

STANDBY/ON

DISPLAY

FM MODE

A. STANDBY

e



CD 3¥8, TAPE 2 3, FM/AM, AUX

























Pressing one of these buttons also turns on the unit.











r





SLEEP







7

RANDOM button (14)









2

1

2

3



























8

PROGRAM button (12, 13)











CLOCK



























9

Multi control buttons









3

/TIMER









































4

5

6

t



• PRESET GROUP

/UP, PRESET GROUP

/DOWN













4

SET











4, 7, ¢













7

8

9



















p SOUND/HBS button (10)

















OVER













CANCEL







q BEAT CUT button (16, 18)









5







y













0

















w DISPLAY button (10)





























6

CD

TAPE

FM/AM

AUX



e A. (auto) STANDBY button (9)







3/8























r FM MODE button (16)











RANDOM

PROGRAM

REPEAT

REMAIN











7

u

t Number buttons (12, 17)

































y OVER button (12, 17)









8









i











UP





u REMAIN button (14)































PRESET







i REPEAT button (13)













GROUP















9

























VOLUME

o

o VOLUME + / – buttons (10)











DOWN







; FADE MUTING button (10)











PRESET







a REV. (reverse) MODE button (15, 18, 19)







GROUP

























SOUND/HBS

BEAT CUT

REV.MODE FADE MUTING

















p









;















q









a





































COMPACT

























DIGITAL AUDIO

























VOLUME























+

















APE

FM/AM

AUX

























UP

REC

AUX





















¢



















When using the remote control, point it at the















remote sensor on the front panel.





5

























Getting Started

Do not connect the AC power cord until all other

Continued







connections have been made.















Unpacking

After unpacking, check to be sure that you have all the following items.

The number in parentheses indicates the quantity of each piece supplied.

AM loop antenna (1)

AC plug adaptor (1)

Remote control (1)

Batteries (2)

If any item is missing, consult your dealer immediately.

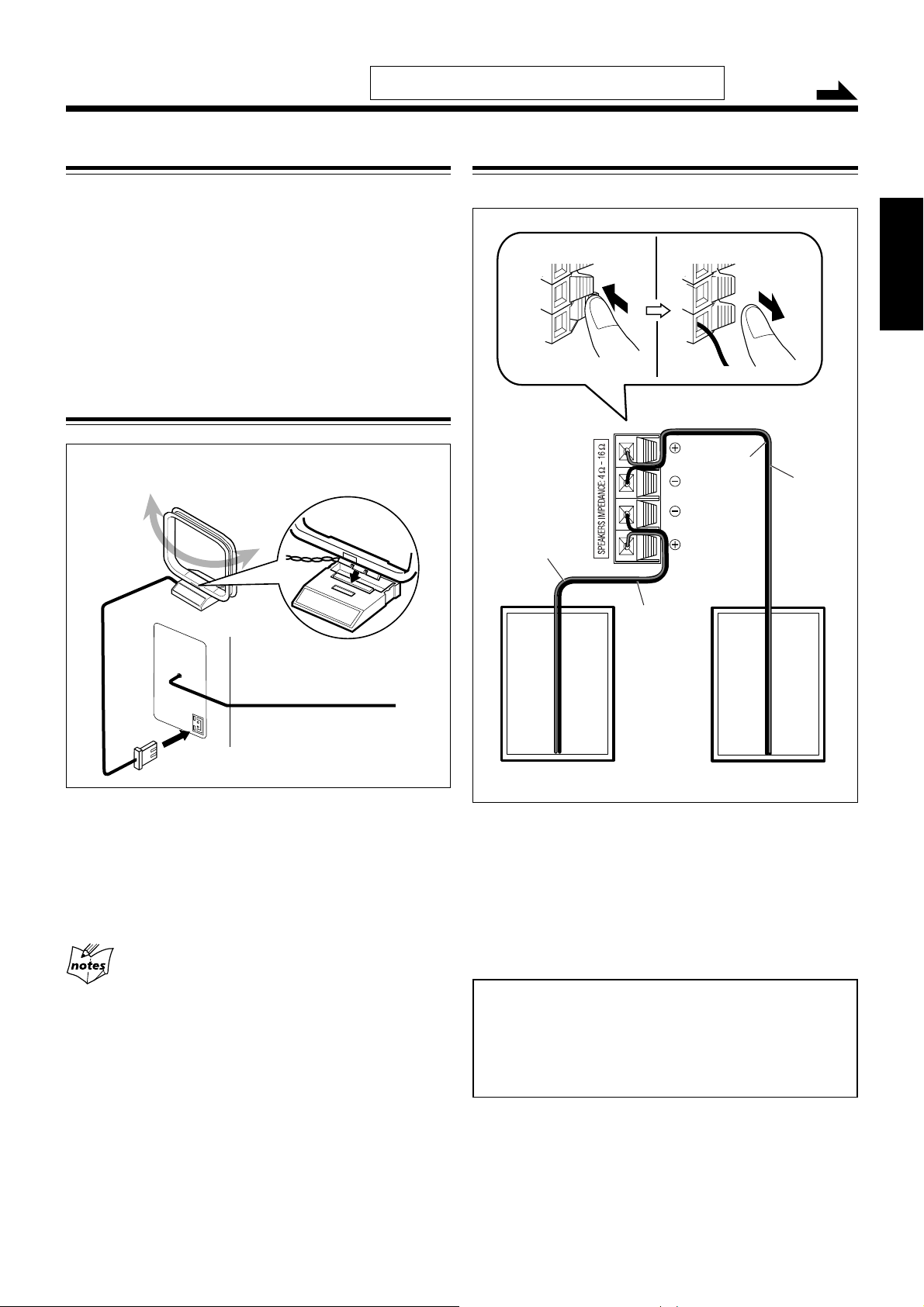

Connecting AM and FM Antennas

1 AM loop antenna (supplied)

FM



ANTENNA



AM

2 FM antenna

LOOP



1 Connect the supplied AM loop antenna to the AM LOOP terminal.

Place the antenna away from the unit and adjust its position for the best reception.

2Adjust the position for the FM antenna for the best reception.

For better reception of both FM and AM

Make sure the antenna conductors do not touch any other terminals or connecting cords.

Keep the antennas away from metallic parts of the unit,

connecting cords, and the AC power cord.

Connecting Speakers

You can connect the speakers using the speaker cords.

1

2,3

Ò

Black



Red

Â



Red



Speaker

Speaker

cord

cord

Black



Right speaker

Left speaker

1Hold the clamp of the speaker terminal.

2Insert the end of the speaker cord into the

terminal.

Match the polarity of the speaker terminals: red cord to ª and black cord to ·.

3 Release your finger from the clamp.

IMPORTANT:

Use only speakers with the same speaker impedance as indicated by the speaker terminals on the rear of the unit.

DO NOT connect more than one speaker to one speaker terminal.

English

6

English

Do not connect the power cord until all other connections have been made.

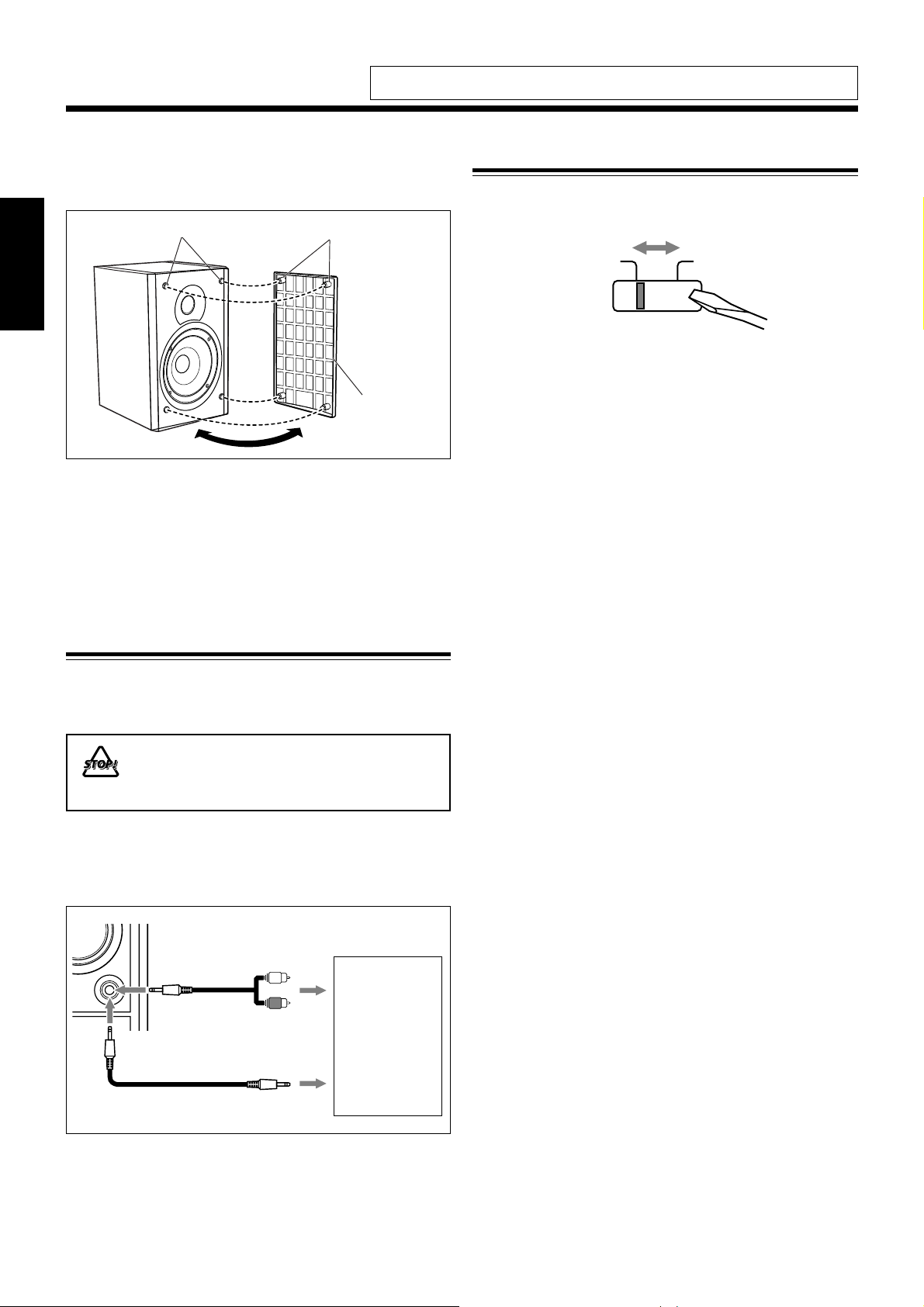

To remove the speaker grilles

The speaker grilles are removable as the illustration below.

Holes

Projections

Speaker grille

To remove the speaker grille, insert your fingers around the projection at the top of the speaker grille, then pull gently towards you while holding the side.

Do the same for the rest of projections one at a time.

To attach the speaker grille, put the projections of the speaker grille into the holes of the speaker.

Adjusting the Voltage Selector

Before plugging in the unit, set the correct voltage for your area with the voltage selector on the rear of the unit.

AC 220-240V



AC 110-127V













VOLTAGE SELECTOR

Use a screwdriver to move the voltage selector so the voltage number is the same as the voltage where you are plugging in the unit. (See the back cover page.)

Connecting Other Equipment

To connect an audio equipment

You can connect audio equipment—used only as a playback device.

• DO NOT connect any equipment while the power is on.

DO NOT plug in any equipment until all connections are complete.

For playing other equipment through this unit, connect between the audio output jacks on the other equipment and AUX jack by using audio cords with mini plugs (not supplied).

To audio output



L



R



OR

To

Audio equipment



To audio output



When the audio equipment has pin jacks for audio output: Be sure that the pin plugs of the audio cords are colored— white plugs and jacks are for left audio signals, and red ones for right audio signals.

7

Putting the Batteries into the Remote Control

Insert the batteries—R03(UM-4)/AAA(24F)—into the remote control by matching the polarity (+ and –) on the batteries with the + and – marking on the battery compartment. When the remote control can no longer operate the unit, replace both batteries at the same time.

1

2

R03(UM-4)/AAA(24F)

3

English

NOW you are ready to plug in the unit.

IMPORTANT:

Be sure to check that all connections have been made before plugging in the power cord.

DO NOT use an old battery together with a new one.

DO NOT use different types of batteries together.

DO NOT expose batteries to heat or flame.

DO NOT leave the batteries in the battery compartment when you are not going to use the remote control for an extended period of time. Otherwise, the remote control will be damaged from battery leakage.

8

English

Common Operations

Setting the Clock

Before operating the unit any further, first set the unit’s clock. When you plug in the power cord, “0:00” starts flashing on the display.

You can set the clock when the unit is either turned on or in standby mode.

To adjust the clock

On the remote control ONLY:

1 Press CLOCK/TIMER repeatedly to show the current time indication.

The hour indication starts flashing.

CLOCK /TIMER

On the remote control ONLY:

1 Press CLOCK/TIMER.

The hour indication starts flashing.

2 Press UP or DOWN to adjust the hour, then press SET.

When you press and hold UP or DOWN, the hour indication changes continuously.

The minute indication starts flashing.

• The clock is working even while setting.

3 Press UP or DOWN to adjust the minute, then press SET.

When you press and hold UP or DOWN, the minute indication changes continuously.

The built-in clock starts.

CLOCK /TIMER

UP

PRESET

GROUP

DOWN

PRESET

GROUP

SET

UP

PRESET

GROUP

DOWN

PRESET

GROUP

SET

2 Repeat steps 2 and 3 on the left column.

Turning On the Power

To turn on the unit, press STANDBY/ON . STANDBY/ON

The STANDBY lamp on the unit goes off.

When you press the source button—CD 3/8, TAPE 2 3, FM/AM and AUX, the unit automatically turns on.

To turn off the unit (standby), press STANDBY/ON again.

The STANDBY lamp on the unit lights red.

“0:00” flashes on the display until you set the built-in clock. After setting the clock, the clock time will appear on the display while the unit is in standby mode.

A little power is always consumed even while the unit is in standby mode.

To switch off the power supply completely, unplug the AC power cord from the AC outlet.

Turning Off the Unit Automatically

(Auto Standby)

Using Auto Standby, the unit automatically turns itself off (on standby) about 3 minutes after playing back a disc or a tape.

You can also turn off the unit automatically by using the Sleep Timer. (See page 22.)

When you unplug the AC power cord or if a power failure occurs

The clock is reset to “0:00.” If this happens, set the clock again.

The clock may gain or lose 1 to 2 minutes per month

If this happens, reset the clock.

On the remote control ONLY:

To activate Auto Standby, press A.STANDBY. A. STANDBY

The A.STANDBY indicator appears on the display.

When the playback is stopped, the A.STANDBY indicator starts flashing on the display.

To deactivate Auto Standby, press A.STANDBY again. The A.STANDBY indicator goes off.

9

Selecting the Source

To select the source, press CD 6, TAPE 2 3, FM/AM, or AUX.

When you select CD as the source, playback starts automatically.

To operate the CD player, see pages 11 to 14. To operate the tape deck, see page 15.

To operate the tuner (FM or AM), see pages 16 and 17. To record on a tape, see pages 18 and 19.

To use an external equipment, see page 17.

Adjusting the Volume

You can adjust the volume level only while the unit is turned on. The volume level can be adjusted between “VOL MIN,” “VOL 1” – “VOL 29,” and “VOL MAX.”

• The volume level has no effect on recording.

To increase the volume, press VOLUME + (or

turn VOLUME control clockwise on the unit).

VOLUME

To decrease the volume, press VOLUME – (or turn VOLUME control counterclockwise on the unit).

When you press and hold either button, you can change the volume level continuously.

English

Selecting the Sound Modes

You can select one of the 4 sound modes.

This function also affects the sound from headphones.

This function only affects the playback sound, and does not affect your recording.

On the remote control ONLY:

To select the sound modes, press SOUND/HBS

SOUND/HBS



repeatedly.



Each time you press the button, the sound mode changes as follows:

ROCK POP CLASSIC

FLAT JAZZ

(Canceled)

ROCK: Powerful sound emphasizing treble and bass. POP: More presence in the vocals and midrange. CLASSIC: Enriched sound with fine treble and ample bass. JAZZ: Accented lower frequencies for jazz-type music. FLAT: Equalizer effect is canceled.

SOUND

When the sound mode is activated, the SOUND indicator lights up on the display.

For private listening

Connect a pair of headphones to the PHONES jack. No sound comes out of the speakers. Be sure to turn down the volume before connecting or putting on the headphones.

DO NOT turn off (standby) the unit with the volume set to an extremely high level; Otherwise, the

sudden blast of sound can damage your hearing, speakers and/or headphones when you turn on the unit or start playing any source.

REMEMBER you cannot adjust the volume level while the unit is in standby mode.

Reinforcing the Bass Sound

You can boost the bass sound.

This function only affects the playback sound, and does not affect your recording.

On the remote control ONLY:

Press and hold SOUND/HBS.

SOUND/HBS



Each time you press and hold the SOUND/ HBS, HBS turns on and off.

BASS

When the HBS is activated, the BASS indicator lights up on the display.

Fade-Out Muting (FADE MUTING)

On the remote control ONLY:

FADE MUTING

Press FADE MUTING.

The volume level decreases to “VOL MIN,” and “MUTING” appears on the display.

To release muting, press FADE MUTING again. The volume level resumes to the previous level.

Checking the Clock Time During Play

On the remote control ONLY:

Press DISPLAY.

DISPLAY

• Each time you press the button, the display changes the clock indication and the normal indication alternately. After changing the

display to the clock indication, operating any button or control also changes the display to the normal indication.

10

English

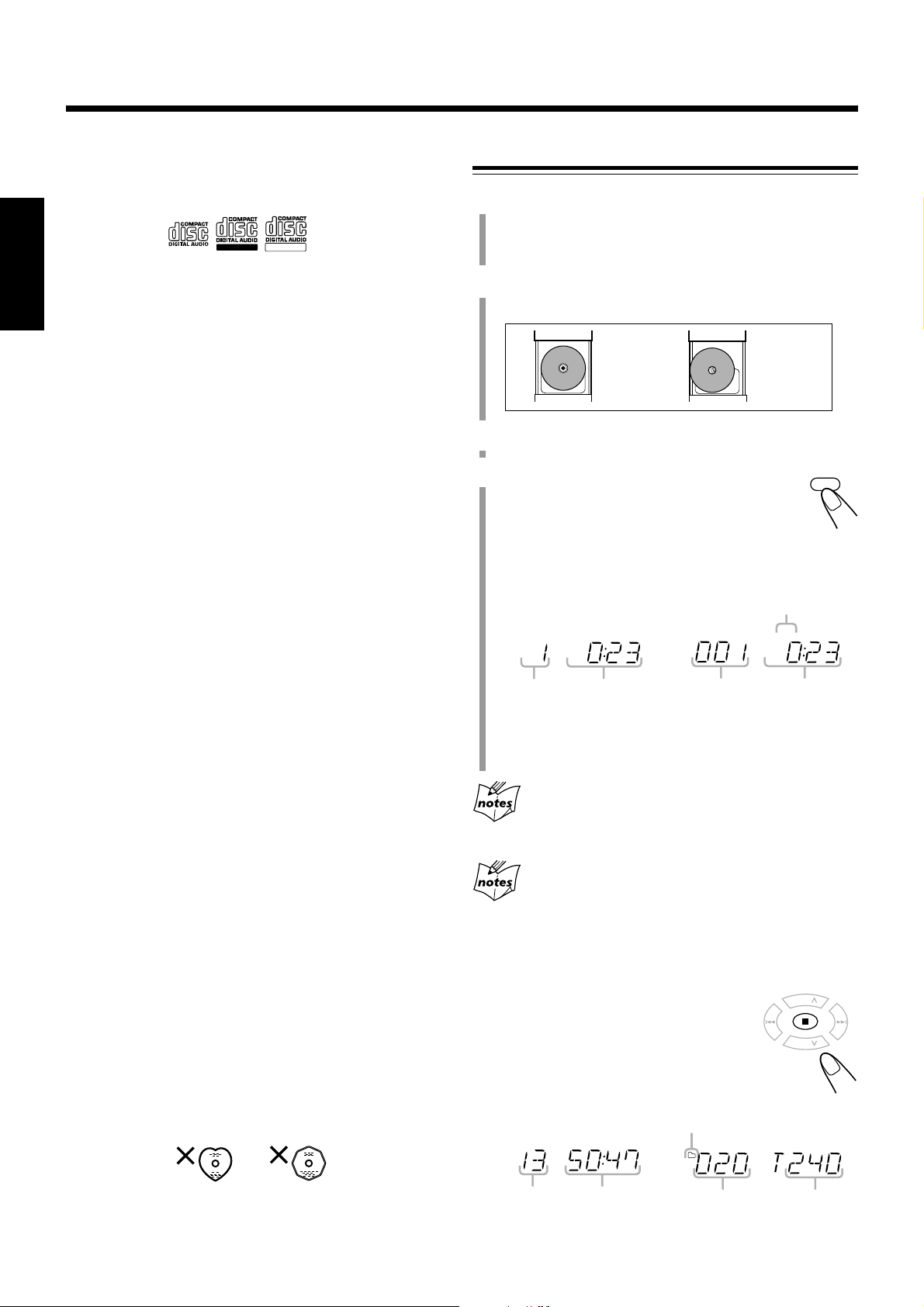

Playing Back Discs

This unit has been designed to play back the following discs—CD, CD-R, and CD-RW.

Only CDs bearing these marks can be used with this Systems.

Recordable ReWritable

You can play back the discs containing the tracks in music CD format or MP3 files in ISO 9660 format.

In this instruction, we call a disc recorded MP3 files “MP3 disc,” and “file” is also referred to as “track.”

When playing CD-Rs or CD-RWs

Before playing CD-Rs or CD-RWs, read their instructions or cautions carefully.

User-edited CD-Rs (CD-Recordable) and CD-RWs (CDReWritable) can be played only if they are already “finalized.”

This unit supports “multi-session” discs (up to 5 sessions).

This unit cannot play “packet write” discs.

Some CD-Rs or CD-RWs may not play on this unit because of their disc characteristics, damage or stain on them, or if the player’s lens is dirty.

CD-RWs may require a longer readout time. This is because the reflectance of CD-RWs is lower than for regular discs.

Notes for MP3 files

The player can only recognize files with “MP3” or “mp3” as the extensions, which can be in any combination of upper and lower case. The file name needs to be up to 20 characters.

This unit recognizes files and folders on a disc in the following conditions (including the root folder):

up to 512 folders and files.

up to 8th layers.

It is recommended that you record your material at a 44.1 kHz sampling rate, using the 128 kbps data transfer rate.

Some MP3 files or discs may not be played back because of their characteristics or recording conditions.

MP3 discs requires a longer readout time than normal discs because of the complexity of the folder/file configuration.

MP3i and MP3 Pro are not available.

General notes

In general, you will have the best performance by keeping your discs and the mechanism clean.

Store discs in their cases, and keep them in cabinets or on shelves.

Keep the unit’s disc cover closed when not in use.

Continued use of irregular shape discs (heart-shape, octagonal, etc.) can damage the unit.

Playing Back the Entire Disc—Normal Play

1 Press ) OPEN on top of the unit.

The disc cover opens.

• You can insert a disc while listening to another source.

2 Place a disc correctly with its label side up.

Good

Not good

3 Close the disc cover gently.











4

Press CD 6.

CD



The unit automatically turns on and the source changes to the CD player.

After loading the disc, the first track of the disc starts playing.

When playing

When playing MP3 disc:

audio CD:



MP3 indicator











MP3

Current track

Elapsed

Current track

Elapsed

number

playing time

number

playing time

The disc automatically stops when the last track has finished playing.

While “READING” appears on the display

You cannot make any operation until the unit finishes reading the disc.

While playing back an MP3 disc

ID3 Tag information (the name of the title, artist, and album up to 30 characters) will be shown on the display. When the name is too long to be displayed at once, it is scrolled.

This unit supports ID3 Tag ver. 1.0.







UP





PRESET

To stop playing, press 7.



GROUP









The total track (or group) number and total







DOWN

playing time appear on the display.

PRESET

GROUP

When stop playing

When stop playing

audio CD:

MP3 disc:







Group folder indicator

MP3

Caution for DualDisc playback



TOTAL



TOTAL







Total track

Total playing

Total group

Total track

The Non-DVD side of a “DualDisc” does not comply with

number

time

number

number

the “Compact Disc Digital Audio” standard. Therefore, the









use of Non-DVD side of a DualDisc on this product may not

• Total playing time does not appear when MP3 disc is

be recommended.

loaded.







11

Continued

To remove the disc, press ) OPEN on the unit, then take out the disc by holding it at the edges while pressing the unit’s pivot lightly.

If the disc cannot be read correctly (because it is scratched, for example) or an unreadable CD-R or CD-RW is inserted

Playback will not start.

If no disc is inserted

“NO DISC” appears on the display.

To locate a particular point in a track

During play, press and hold ¢ or 4 (or

PRESET







UP

UP ¢ or DOWN 4 on the unit).

GROUP







¢ (UP ¢):

Fast-forwards the







DOWN

PRESET

GROUP



tracks.







4 (DOWN 4):

Fast-reverses the









tracks.







Programming the Track Playing Order

—Program Play

DO NOT open the disc cover by hand as it will be damaged.

You can arrange the order in which tracks play before you start playing. You can program up to 60 tracks.

Basic Disc Operations

While playing a disc, you can do the following operations.

To stop playing for a moment

During play, press CD 3/8.







CD









While pausing, the elapsed playing time flashes on







the display.











To resume playing, press CD 3/8 again.







To go to another track





UP



PRESET

Before or during play, press ¢ or 4

(or

GROUP







UP ¢ or DOWN 4 on the unit)











DOWN

repeatedly.





PRESET





GROUP











¢ (UP ¢):

Skips to the beginning of









the next or succeeding tracks.

4 (DOWN 4): Goes back to the beginning of the current or previous tracks.

To go to another track directly using the number buttons

On the remote control ONLY:

Pressing the number button(s) before or

1

2

3

during play allows you to start playing the







track number you want.

4

5

6

Ex.: For track number 5, press 5.







For track number 15, press OVER,

7

8

9

then press 1, 5.





OVER

For track number 20, press OVER,



0



then press 2, 0.







(For MP3 disc only)







For track number 20, press OVER, then







press 0, 2, 0.







For track number 156, press OVER, then press 1, 5, 6.

On the remote control ONLY:

1 Place a disc.

If the current source is not the CD player, press CD 6, then 7 before going to the next step.

2 Press PROGRAM.

PROGRAM

The PRGM (program) indicator starts flashing on the display.

PRGM

3 Press ¢ or 4 to select the



UP





GROUP









PRESET



track number, then press







PROGRAM.





GROUP









DOWN









PRESET





Program step







Track number

number













PROGRAM



PRGM









You can also use the number button(s)

1

2

3

to select a track number.









• For the operation of the number

4

5

6

buttons, see “To go to another track







directly using the number buttons” on

7

8

9

the left column.







OVER







0



When you are programming from MP3 disc

Pressing PRESET GROUP or PRESET GROUP selects the first track of each group.

4 Repeat step 3 to program other tracks you want.

English

12

English

5 Press CD 3/8.

CD





The tracks are played in the order you have







programed.











When you finished programming the 60th track

“FULL” will appear on the display.

To stop playing, press 7.

PRESET



UP



GROUP



DOWN



PRESET



GROUP

Repeating Tracks—Repeat Play

You can have all the tracks, the program or individual track currently playing, repeat as many times as you like.

On the remote control ONLY:

Press REPEAT repeatedly before or

REPEAT

during playback.



Each time you press the button, Repeat Play changes as follows, and the following repeat indicators light up on the display:

To check the program contents

PROGRAM



You can check the program contents by pressing PROGRAM repeatedly before or after playback.

To modify the program

PROGRAM

Press PROGRAM repeatedly until the program







step number you want to modify appears. Then







follow step 3 of the programming procedure.







• Pressing 0 deletes the selected step.







To add tracks in the program, press

PROGRAM

PROGRAM repeatedly until “0” appears as the







track number. Then follow steps 3 of the







programming procedure.







To exit from the Program Play

GROUP





UP



PRESET

Press 7 during stop playback.













The PRGM indicator goes off from the

PRESET



DOWN

display.

GROUP







To clear the program

Press 7 for more than 2 seconds while the PRGM indicator lights up on the display.

If you press ) to remove the disc when the CD player selected as the source, the program will be also cleared.

While the PRGM indicator lights

Auto Standby function does not take effect.

ALL

Repeat indicators

When playing back audio CD:

ALL

Canceled

ALL: In Normal Play, repeats all the tracks.

In Program Play, repeats all the tracks in the program.

: Repeats one track.

When playing back MP3 disc:

ALL

GR.

Canceled



ALL: In Normal Play, repeats all the tracks.

In Program Play, repeats all the tracks in the program.

GR.: In Normal Play, repeats all the tracks in a group.

In Program Play and Random Play, this function is not available.

: Repeats one track.

In Random Play, this function is not available.

To cancel Repeat Play, press REPEAT

REPEAT



repeatedly until the repeat indicator goes off.



13

Playing at Random—Random Play

You can play the tracks at random.

On the remote control ONLY:

Press RANDOM.

RANDOM



The RANDOM and indicators light up on the display.

RANDOM

To stop playing, press 7.

To exit from Random Play, press RANDOM. The RANDOM and indicators go off.

It is not possible to activate the Random Play function during Program Play.

English

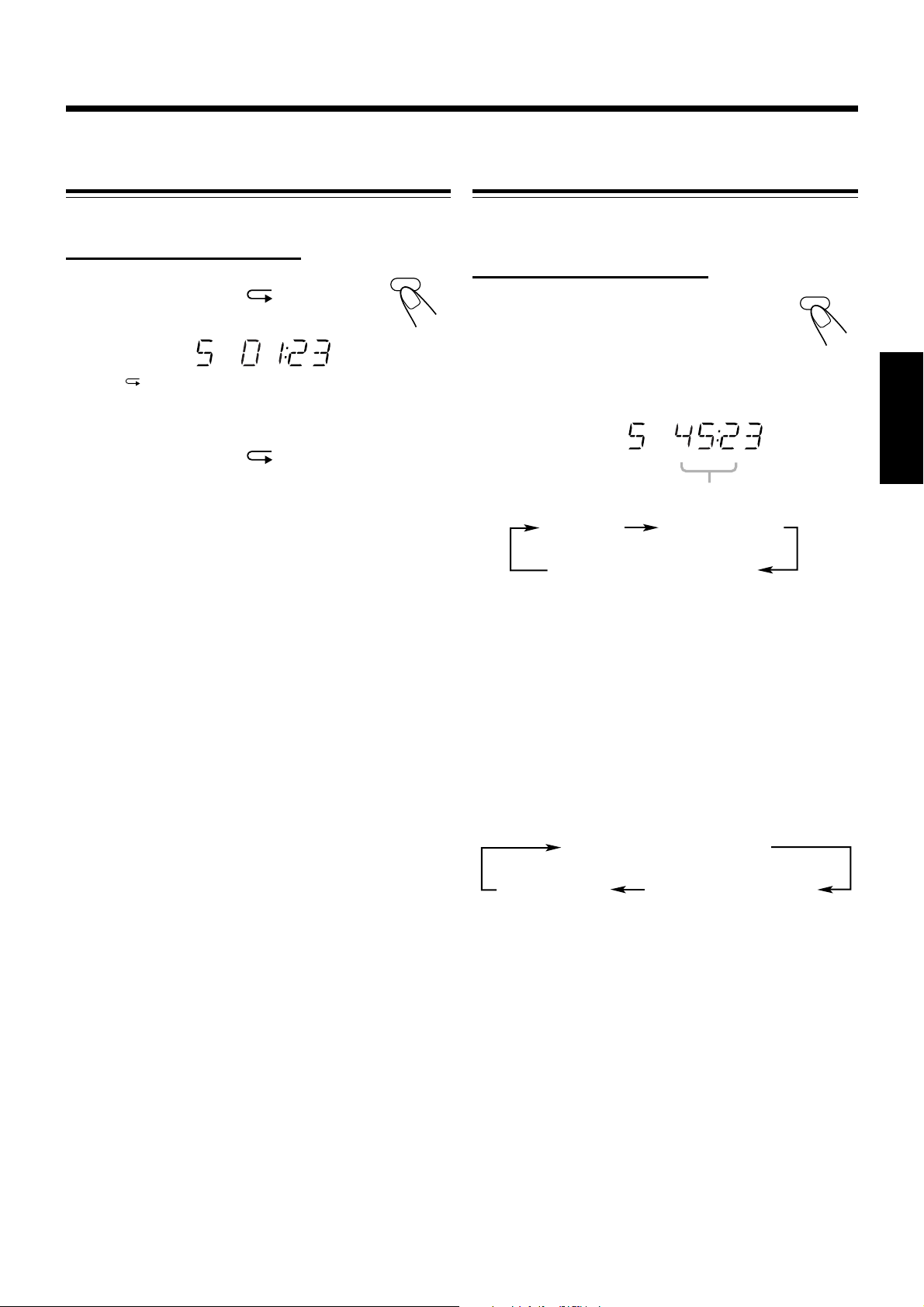

Displaying the Remaining Time during

Playback

You can display the remaining time of the current track/disc and the elapsed time of the current track/disc during playing.

On the remote control ONLY:

Press REMAIN repeatedly.

REMAIN

When playing back audio CD:

Each time you press the button, the display changes as follows, and the following remain indicators light up on the display:

TOTAL REMAIN

Remain indicators

REMAIN



TOTAL REMAIN*



(No Indication)

REMAIN: Shows the remaining time of the current track.

TOTAL REMAIN: Shows the remaining time of the disc. No indication: Shows the elapsed time of the current

track.

*Remaining time of the disc (TOTAL REMAIN) will not be displayed in the following cases:

During Random Play.

During Program Play.

When playing back MP3 disc:

Each time you press the button, the display changes as follows:

ID3 Tag information*

Normal



Group name/track name



indication

*ID3 Tag information shows the name of the title, artist, and album in sequence.

Some characters may not be shown correctly.

If the file does not have any information, “NO INFO” appears.

14

English

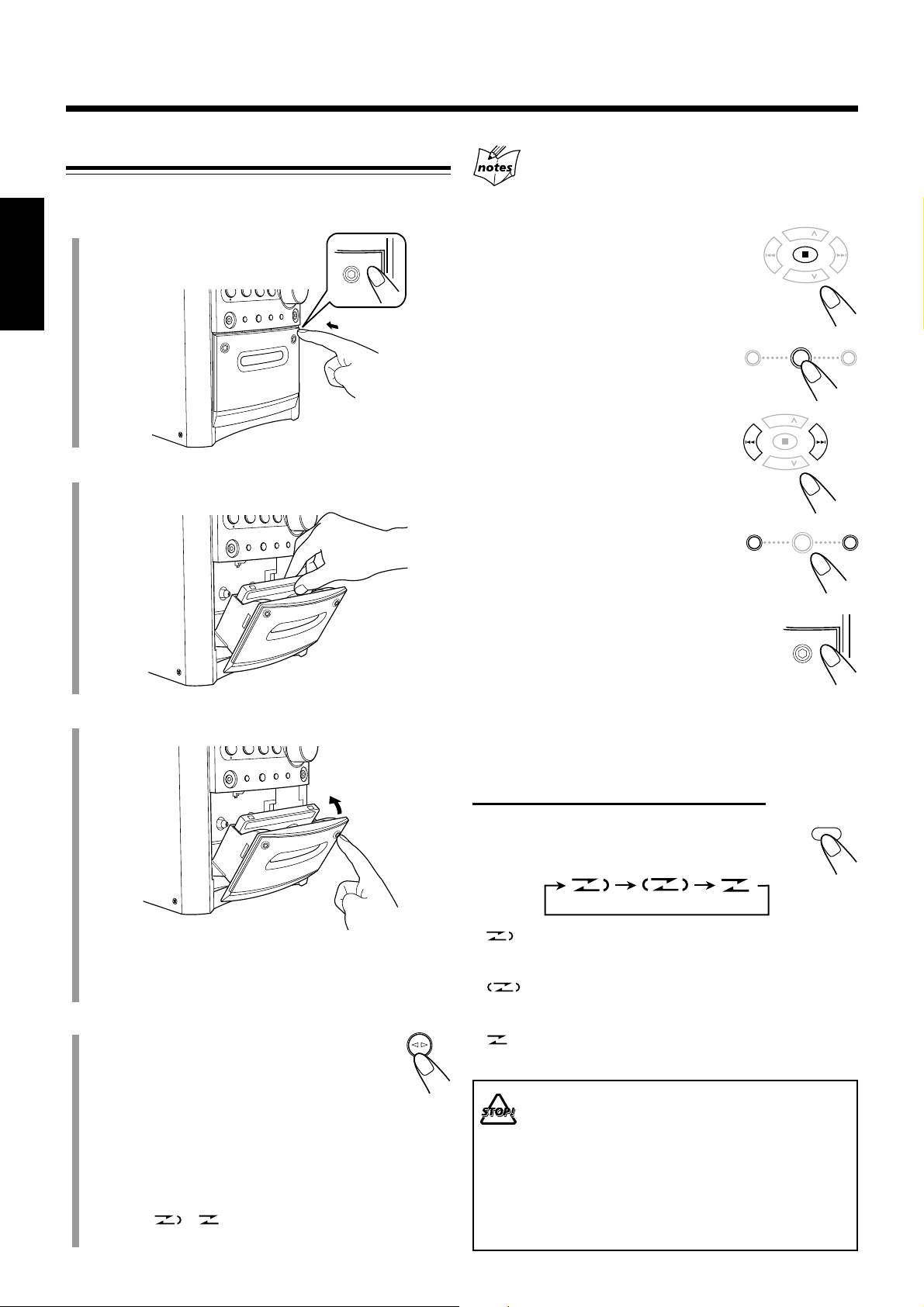

Playing Back Tapes

Playing Back a Tape

You can play back type I tapes only.

1 Press PUSH OPEN.

The cassette holder opens.

PUSH

2 Put a cassette in with the exposed part of the tape down.

3 Close the cassette holder gently.

If no cassette is inserted when you press TAPE ¤ ‹

“NO TAPE” appears on the display.

UP

To stop playing, press 7.

PRESET

GROUP



DOWN



PRESET



GROUP

DOWN



UP

4

7

¢

UP

To fast-wind to the left or to the right, PRESET

GROUP

press ¢ or 4 (or UP ¢ or DOWN

4 on the unit). DOWN

PRESET

GROUP

The tape direction indicator ( 3 or 2 ) starts flashing rapidly on the display.

DOWN



UP

4

7

¢

To remove the cassette, press PUSH OPEN on the unit while playback is stopped.

PUSH

To play both sides—Reverse Mode

You can set the deck to play just one side of a tape, both sides once, or both sides continuously.

On the remote control ONLY:

Press REV.MODE (reverse mode).

REV.MODE



Each time you press the button, the Reverse Mode changes as follows:

When a tape is inside of the cassette holder, the tape direction indicator ( 3 ) lights up on the display.

4 Press TAPE ¤ ‹.

TAPE

Playback starts (if the unit has been on standby, the unit automatically turns on). The tape direction indicator ( 3 or 2 ) starts flashing slowly on the display.

Each time you press the button, the tape direction changes:

3: plays the front side.

2: plays the reverse side.

When the tape plays to the end, the deck automatically stops if the Reverse Mode is set to or . (See “To play both sides—Reverse Mode.”)

: The deck automatically stops after playing both sides of the tape. Stops when playback in the 2 directions are finished.

: The deck continues to play both sides of the tape 10 times, then stops playback automatically.

: The deck automatically stops after playing one side of the tape.

• DO NOT turn off the unit while playing back or recording a tape. The cassette deck or tapes may be damaged.

The use of C-120 or longer tape is not recommended, since characteristic deterioration may occur and this tape easily jams in the pinch rollers and the capstans.

This unit is not compatible with type II and type IV tapes.

15

Listening to FM and AM Broadcasts

Continued





Setting the Tuner Interval Spacing

You can only change the FM or AM tuner interval spacing while tuning in to a FM or AM station.

On the unit ONLY:

1

Press FM/AM to select either “FM”

FM/AM



or “AM.”

2 Turn the VOLUME + / – control while pressing and holding 7.

As you turn the VOLUME + / – control, the interval spacing for the selected band alternates as follows:

For FM: 50 kHz and 100 kHz*

For AM: 9 kHz and 10 kHz*

* Initial setting

DOWN



UP

4

7

¢

+

VOLUME

When you change the setting

The preset stations for both FM and AM are erased. You will need to preset the stations again. (See the right column.)

To stop during searching, press ¢ or 4 (or UP ¢ or DOWN 4 on the unit).

When you repeatedly press ¢ or 4 (or UP ¢ or

DOWN 4 on the unit)

The frequency changes step by step.

To change the FM reception mode



On the remote control ONLY:



When an FM stereo broadcast is hard to

FM MODE

receive or noisy, press FM MODE so that the



“MONO” appears on the display. The MONO



indicator also lights up. Reception will improve.



To restore the stereo effect, press FM MODE again so that “STEREO” appears on the display and the MONO indicator goes off. In stereo mode, you can hear stereo sound when a stereo program is broadcast.

The stereo effect also restores when:

Changing the band (FM or AM).

Changing the station frequency.

Changing the playing source.

Turning off (or on) the unit.

To reduce the beat—Beat Cut

On the remote control ONLY:

BEAT CUT

Tuning in to a Station

1

Press FM/AM to select either “FM”

FM/AM





or “AM.”





The unit automatically turns on and tunes in to





the previously received station—either FM or AM.



• Each time you press the button, the band alternates



between FM and AM.



MHz

If the station previously selected is stored in a preset number, the preset number will appear instead of “FM” or “AM.”

2 Press and hold ¢ or 4 (or



UP

PRESET





GROUP

UP ¢ or DOWN 4 on the



















unit) for more than 1 second.

DOWN

PRESET





GROUP

¢ (UP ¢):

Increases the frequencies.

4 (DOWN 4):

Decreases the frequencies.

The unit starts searching for stations and stops when a station of sufficient signal strength is tuned in.

If an FM program is broadcast in stereo, the ST (stereo) indicator lights up on the display (only when the reception is good).

If the beats are heard, press BEAT CUT repeatedly until the beats are reduced.

Each time you press the button, the display alternates between “CUT-1” and “CUT-2.”

Presetting Stations

You can preset 30 FM and 10 AM stations manually.

In some cases, test frequencies have been already stored for the tuner since the factory examined the tuner preset function before shipment. This is not a malfunction. You can preset the stations you want into memory by following the presetting method.

There is a time limit in doing the following steps. If the setting is canceled before you finish, start again from step 2.

On the remote control ONLY:

1 Tune in to the station you want to preset.

• See “Tuning in to a Station” on the left column.

2

Press SET.

SET



“00” starts flashing on the display.

MHz

PRGM

English

16

English

3

Press PRESET GROUP or

UP

PRESET





GROUP



PRESET GROUP to select a

DOWN



preset number, then press SET.



PRESET





GROUP

The preset station is stored in memory.

Even if you do not press SET, the station will automatically be stored on

the selected preset number 5 seconds later.

You can also use the number button(s)

1

2

3

to select a preset number.







• In this case, you do not have to press

4

5

6

SET.







Ex.: To select a preset number 5, press

7

8

9

5.

OVER



To select a preset number 15,

0



press OVER, then press 1, 5.



To select a preset number 20,



press OVER, then press 2, 0.



4 To preset more stations, repeat steps 1 to 3 above, allocating a different preset number to each station.

Storing a new station on an already assigned number erases the previously stored one.

When you unplug the AC power cord or if a power

failure occurs

The preset stations will remain in the unit.

Tuning in to a Preset Station

On the remote control ONLY:

1 Press FM/AM to select either “FM” or FM/AM

“AM.”

The unit automatically turns on and tunes in to the previously received station—either FM or AM.

Each time you press the button, the band alternates between FM and AM.

2

Press PRESET GROUP or

UP

PRESET

GROUP



PRESET GROUP repeatedly

DOWN



to select a preset number.



PRESET





GROUP

To tune in to a preset station directly using the number buttons

On the remote control ONLY:

Pressing the number button(s) allows

1

you to select the preset number you



want.

4

Ex.: For preset number 5, press 5.



For preset number 15, press

7

OVER, then press 1, 5.



For preset number 20, press OVER, then press 2, 0.

2 3

5 6

8 9

OVER

0

Using an External Equipment

Listening to the External Equipment

You can listen to the external equipment such as MD recorder, cassette deck, or other auxiliary.

First, make sure that the external equipment is properly connected to the unit. (See page 7.)

1 Set the volume level to the minimum position.

2 Press AUX.

AUX

“AUX” appears on the display.

3 Start playing the external equipment.

4 Adjust the volume level to the level you want to listen to.

To exit AUX mode, select other source.

For operation of the external equipment

Refer to its instructions.

17

Recording

Continued





IMPORTANT:

It may be unlawful to record or play back copyrighted material without the consent of the copyright owner.

The recording level is automatically set correctly, so it is not affected by the other sound settings. Thus, during recording you can adjust the sound you are actually listening to without affecting the recording level.

If recordings you have made have excessive noise or static, the unit may be too close to a TV. Increase the distance between the TV and the unit.

You can only use type I tape for recording.

• DO NOT turn off the unit while playing back or recording a tape. The cassette deck or tapes may be damaged.

DO NOT use type II and type IV tapes since the unit is not compatible with such tapes.

The use of C-120 or longer tape is not recommended, since characteristic deterioration may occur and this tape easily jams in the pinch rollers and the capstans.

At the start and end of cassette tapes

There is leader tape which cannot be recorded onto. Thus, when recording from discs, FM/AM broadcasts, or external equipment, wind the leader tape first to ensure that the recording will be made without losing any music.

To protect your recordings

Cassettes have two small tabs on the back to protect against unexpected erasure or re-recording.

To protect your recording, remove these tabs.

To re-record on a protected tape, cover the holes with adhesive tape.

Adhesive tape

Recording on a Tape

On the unit ONLY:

1 Put a recordable cassette in with the exposed part of the tape down.

• See also page 15.

2 Close the cassette holder gently.

3 Start playing the source—FM, AM, or auxiliary equipment connected to AUX jack.

When the source is FM or AM, tune in to the station you want to record.

When recording from discs, see “Recording Discs— Disc Synchronized Recording” on page 19.

4 Press REC (recording).

REC





• The REC indicator appears and 3 indicator













lights up on the display.







REC







MHz







Press TAPE ¤ ‹.



5

TAPE





3 indicator starts flashing and the recording













starts.











If no cassette is inserted when you press REC

“NO TAPE” appears on the display.

If a protected tape is inserted when you press REC

“PROTECT” appears on the display.

To stop recording for a moment, press REC.

REC

The recording is paused. To resume recording,



press TAPE ¤ ‹.







To stop recording, press 7.

DOWN



UP

4

7

¢







The recording stops.

To remove the cassette, press PUSH OPEN while recording is stopped.

PUSH

To record on both sides—Reverse Mode

On the remote control ONLY:

Press REV.MODE (reverse mode) until REV.MODE

or is lit.

• When using the Reverse Mode for recording,

lights up and start recording in the forward ( 3 ) direction first.

To cancel the Reverse Mode, press REV.MODE repeatedly until is lit.

To reduce the beat—Beat Cut



On the remote control ONLY:



If the beats are heard while recording an AM

BEAT CUT

broadcast, press BEAT CUT repeatedly until the



beats are reduced.



• Each time you press the button, the display



alternates between “CUT-1” and “CUT-2.”



English

18

English

Recording Discs

—Disc Synchronized Recording

You can start disc play and recording at the same time.

On the unit ONLY:

1 Put a recordable cassette in with the exposed part of the tape down.

• See also page 15.

2 Close the cassette holder gently.

3 Press CD /8 to select the CD player as the source.

4 Press 7 to stop the disc

4



DOWN

playback.



You can make a program (see page

12)if you want.

CD

#/8

UP

7¢

5

Press REC (recording).

REC







REC indicator lights up on the display.











REC







TOTAL



6



Press TAPE ¤ ‹.

TAPE

“SYNC REC” appears and 3 indicator lights up on the display.

CD playback and tape recording starts automatically.

REC

If no cassette is inserted when you press REC

“NO TAPE” appears on the display.

If a protected tape is inserted when you press REC

“PROTECT” appears on the display.

To stop recording for a moment, press REC.



REC







Both the CD playback and tape recording are





paused. To resume recording, press TAPE ¤ ‹.





To stop recording, press 7.

DOWN



UP

4

7

¢

The recording stops and the CD playback is paused.

To record on both sides—Reverse Mode

On the remote control ONLY:

Press REV.MODE (reverse mode)

REV.MODE







repeatedly until

or

is lit.



When using the Reverse Mode for Disc Synchronized Recording, lights up and the

recording starts in the forward ( 3 ) direction first. When the tape reaches its end, the CD playback is paused until the tape recording changes to the reverse direction, then the recording continues.

To cancel the Reverse Mode, press REV.MODE repeatedly until is lit.

When making Sleep Timer settings while Recording

Set enough time to allow for the disc to finish playing; otherwise, the power will go off before recording is completed.

19
