JVC UX-A10DVD User Manual

Download

MICRO COMPONENT MD SYSTEM

UX-A10DVD

—Consists of CA-UXA10DVD and SP-UXA10DVD

English

—

CA-UXA10DVD

MARK ABC

123

GHI JKL MNO

456

PQRS TUV WXYZ

789

10 0 +10

PLAY MODE

ON SCREEN

ZOOM

SUB TITLE

AUDIO

TITLE SEARCH

LP:

TOP MENU

SET

DVD

SELECT

STROBE

PREV.

GROUP SKIP–+SLOW

MD GROUP

TITLE/EDIT

SP/LP2/LP4

SHIFT

RM-SUXA10DVDU REMOTE CONTROL

SP-UXA10DVD

DVD/SUPER VCD/VCD/CD

STANDBY/ON

DEF

DISP/CHARA

CLOCK/TIMER

A.P.

SLEEP

OFF

DVD

REV. MODE

COLOR

LEVEL

DIGEST

DIMMER

ANGLE

MENU CHOICE

ENTER

CANCEL RETURN

FM/AM

TAPE

/AUX

FM MODE

SLOW

3D PHONIC

AHB PRO

FADE MUTINGMDGROUP REC

SOUND

VOLUME

MD LOADING MECHANISM

REV.MODE

DVD MD TAPE

AUTO REVERSE

UX-A10DVD

DIGITAL

COMPACT

SUPER VIDEO

DIGITAL

COMPACT

SUPER VIDEO

AUX

FM/AM

3•WAY SPEAKER SYSTEM3•WAY SPEAKER SYSTEM

INSTRUCTIONS

For Customer Use:

Enter below the Model No. and Serial No. which are located either on the rear, bottom or side of the cabinet. Retain this information for future reference.

Model No.

Serial No.

LVT0954-002A

[UB]

Warnings, Cautions and Others

Caution— button!

Disconnect the mains plug to shut the power off completely. The

button in any position does not disconnect the mains line.

The power can be remote controlled.

CAUTION

To reduce the risk of electrical shocks, fire, etc.:

1. Do not remove screws, covers or cabinet.

2. Do not expose this appliance to rain or moisture.

CAUTION

• Do not block the ventilation openings or holes. (If the ventilation openings or holes are blocked by a newspaper or cloth, etc., the heat may not be able to get out.)

• Do not place any naked flame sources, such as lighted candles, on the apparatus.

• When discarding batteries, environmental problems must be considered and local rules or laws governing the disposal of these batteries must be followed strictly.

• Do not expose this apparatus to rain, moisture, dripping or splashing and that no objects filled with liquids, such as vases, shall be placed on the apparatus.

Caution: Proper Ventilation

To avoid risk of electric shock and fire, and to prevent damage, locate the apparatus as follows: 1 Front: No obstructions and open spacing. 2 Sides/ Top/ Back: No obstructions should be placed in the areas shown by the dimensions

3 Bottom: Place on the level surface. Maintain an adequate air path for ventilation by

Front view Side view

15 cm

below.

placing on a stand with a height of 10 cm or more.

15 cm

1 cm

15 cm

1 cm

UX-A10DVD

10 cm

15 cm

UX-A10DVD

15 cm

G-1

IMPORTANT FOR LASER PRODUCTS /

REPRODUCTION OF LABELS /

1 CLASSIFICATION LABEL ON EXTERIOR SURFACE

2 WARNING LABEL INSIDE THE UNIT

CLASS 1 LASER PRODUCT

1. CLASS 1 LASER PRODUCT

2. CAUTION: Visible and invisible laser radiation when open and interlock failed or defeated. Avoid direct exposure to beam.

3. CAUTION: Do not open the top cover. There are no user serviceable parts inside the unit; leave all servicing to qualified service personnel.

G-2

Introduction

English

We would like to thank you for purchasing one of our JVC products.

Before operating this unit, read this manual carefully and thoroughly to obtain

the best possible performance from your unit, and retain this manual for

future reference.

About This Manual

This manual is organized as follows:

• This manual mainly explains playback and editing operations using the remote control, and other operations such as recording using the buttons on the main unit. You can use the buttons both on the remote control and on the main unit for the same operations if they have the same or similar names (or marks), unless mentioned otherwise.

• Basic and common information that is the same for many functions is grouped in one place, and is not repeated for each procedure. For instance, we do not repeat the information about turning on/off the unit, setting the volume, changing the sound effects, and others, which are explained in the section “Basic and Common Operations” on pages 18 to 23.

• The following symbols are used in this manual:

Gives you warning and caution to prevent damage or risk of fire/electric shock. Furthermore, gives you information which is not good for obtaining the best possible performance from the unit.

Gives you information and hints you had better know.

• Although the speakers are magnetically shielded, the TV may be mottled. In this case, keep the distance from the speakers to the TV until the speakers does not affect the TV.

DO NOT install the unit in a location near heat sources, or in a place subject to direct sunlight, excessive dust or vibration.

Power sources

• When unplugging the unit from the wall outlet, always pull on the plug, not the AC power cord.

DO NOT handle the AC power cord with wet hands.

Moisture condensation

Moisture may condense on the lenses inside the unit in the following cases:

• After starting to heat the room

• In a damp room

• If the unit is brought directly from a cold to a warm place

Should this occur, the unit may malfunction. In this case, leave the unit turned on for a few hours until the moisture evaporates, unplug the AC power cord, then plug it in again.

Others

• The electronic swing panel may malfunction when you use this unit under intense light such as sunlight.

Precautions

Installation

• Install in a place which is level, dry and neither too hot nor too cold—between 5˚C and 35˚C.

• The unit is equipped with the cooling fan which makes possible the high-powered operations with the limited space. When the temperature inside the unit increases due to operating the unit at high volume or consecutively, the cooling fan activates to lower the temperature. Install the unit in a location with adequate ventilation to prevent internal heat buildup in the unit.

• Leave sufficient distance between the unit and the TV.

DO NOT expose this unit to intense light.

• Should any metallic object or liquid fall into the unit, unplug the AC power cord and consult your dealer before operating any further.

• If you are not going to operate the unit for an extended period of time, unplug the AC power cord from the wall outlet.

DO NOT disassemble the unit since there are no user serviceable parts inside.

If anything goes wrong, unplug the AC power cord and consult your dealer.

Location of the Buttons and Controls........... 3

About Discs...................................................... 6

Playable Disc Types ........................................................ 6

Disc structure .................................................................. 7

Getting Started................................................ 8

Unpacking ....................................................................... 8

Putting the Batteries into the Remote Control ................8

Connecting Antennas ...................................................... 8

Connecting Speakers ...................................................... 9

Connecting a TV ........................................................... 10

Connecting Other Equipment ....................................... 11

Setting the DVD Player ................................................ 13

Setting the Clock .......................................................... 17

Basic and Common Operations................... 18

Turning On the Power................................................... 19

Selecting the Sources and Starting Play ....................... 20

Adjusting the Volume ................................................... 20

Reinforcing the Bass Sound ......................................... 21

Selecting the Sound Modes .......................................... 21

Changing the Display Illumination............................... 22

Adjusting the Audio Input Level .................................. 23

Prohibiting Disc Ejection.............................................. 23

Listening to FM and AM Broadcasts .......... 24

Setting the AM Tuner Interval Spacing ........................ 25

Tuning in to a Station.................................................... 25

Presetting Stations ........................................................ 26

Tuning in to a Preset Station......................................... 26

Playing Back Discs........................................ 27

Loading a Disc ..............................................................28

DVD Basic Operations ................................................. 29

SVCD/VCD/Audio CD Basic Operations .................... 30

MP3 Basic Operations .................................................. 32

Searching for a Particular Point .................................... 33

Playing Back by Using the Disc Menu ......................... 34

Repeating Playback ...................................................... 35

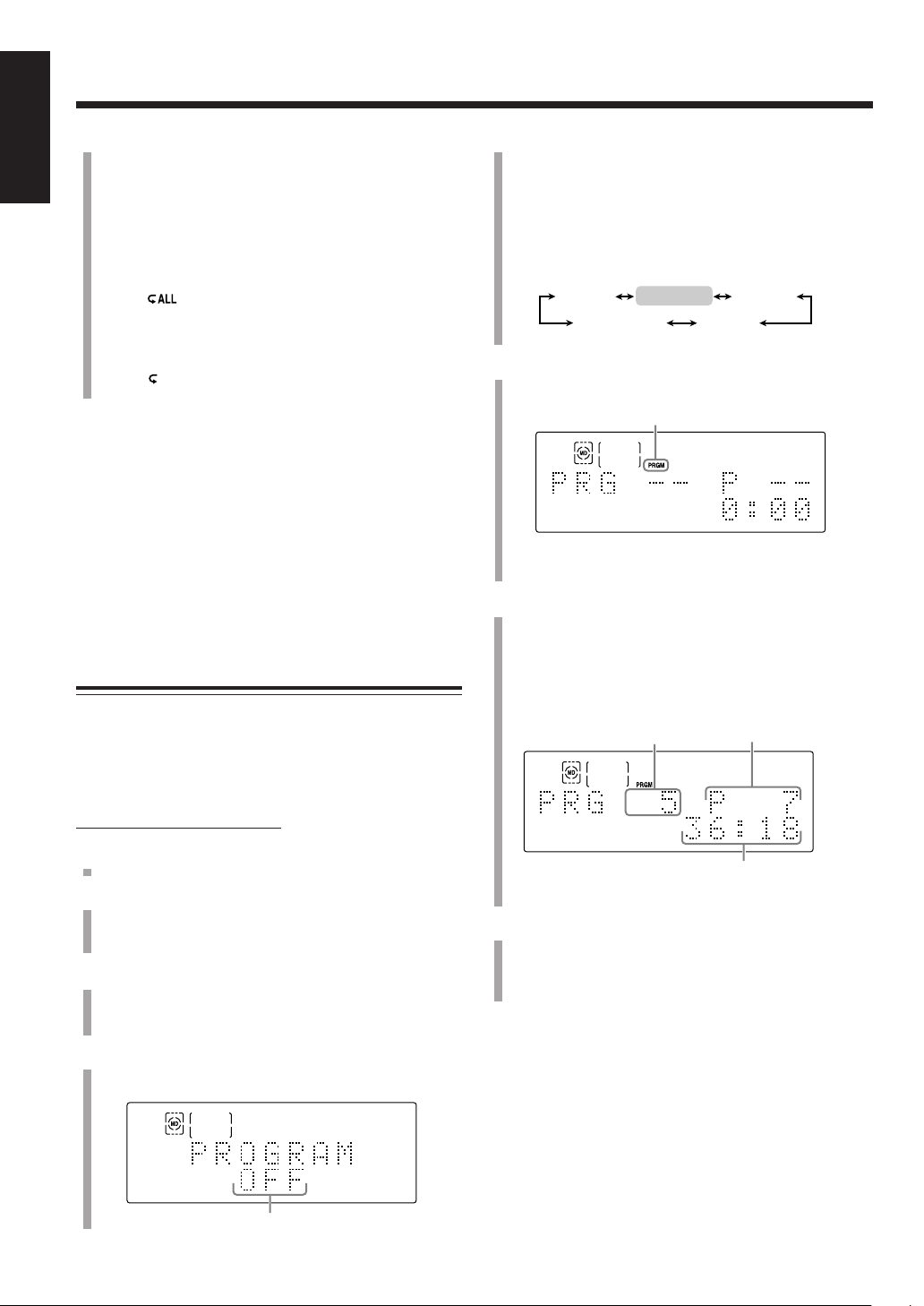

Programming the Playing Order—Program Play ......... 37

Playing at Random—Random Play .............................. 39

Playing Back MDs ........................................ 40

Playing Back the Entire MD ......................................... 41

MD Basic Operations ................................................... 41

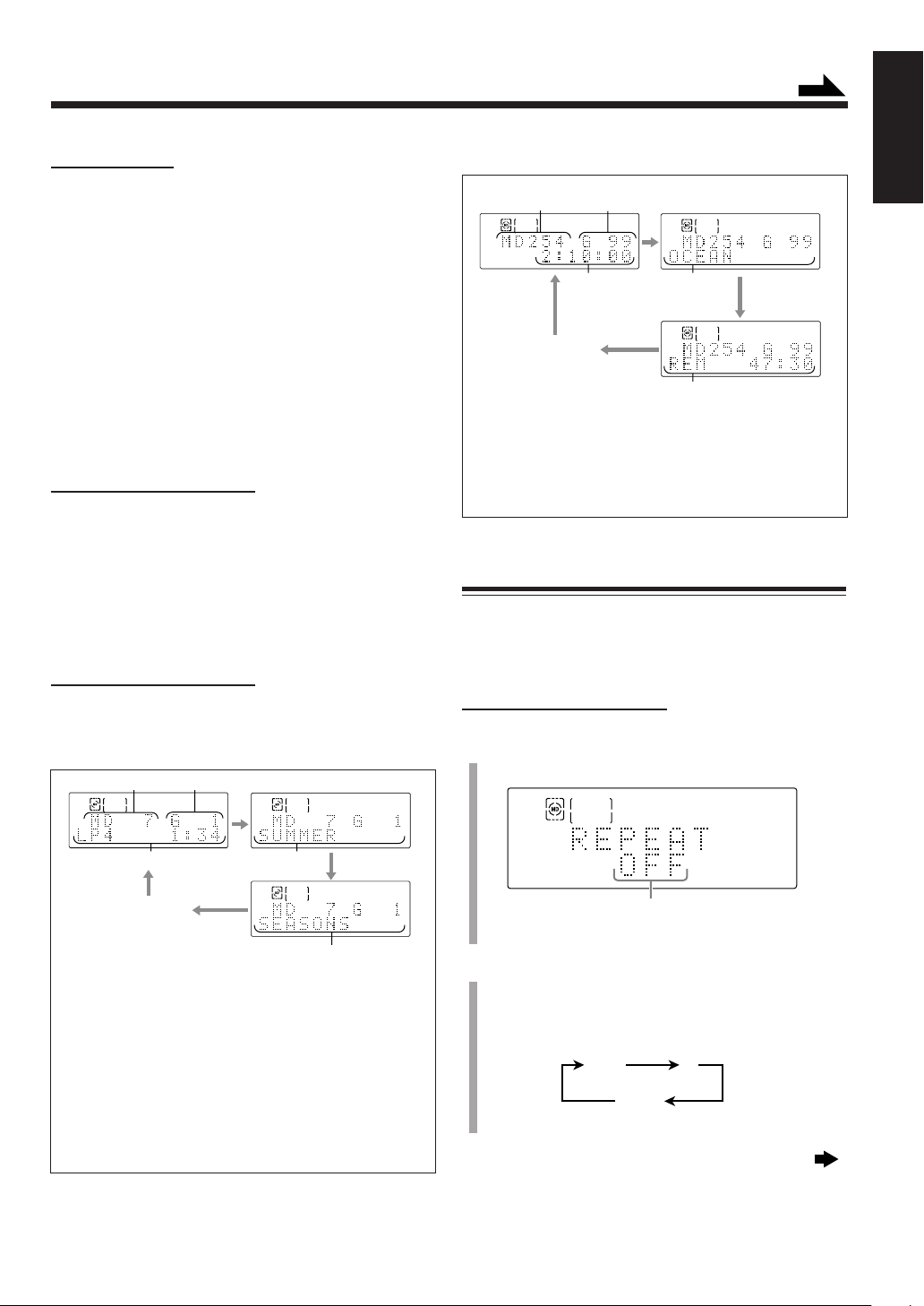

Repeating Tracks—Repeat Play ................................... 42

Programing the Playing Order of the Tracks

—Program Play ......................................................... 43

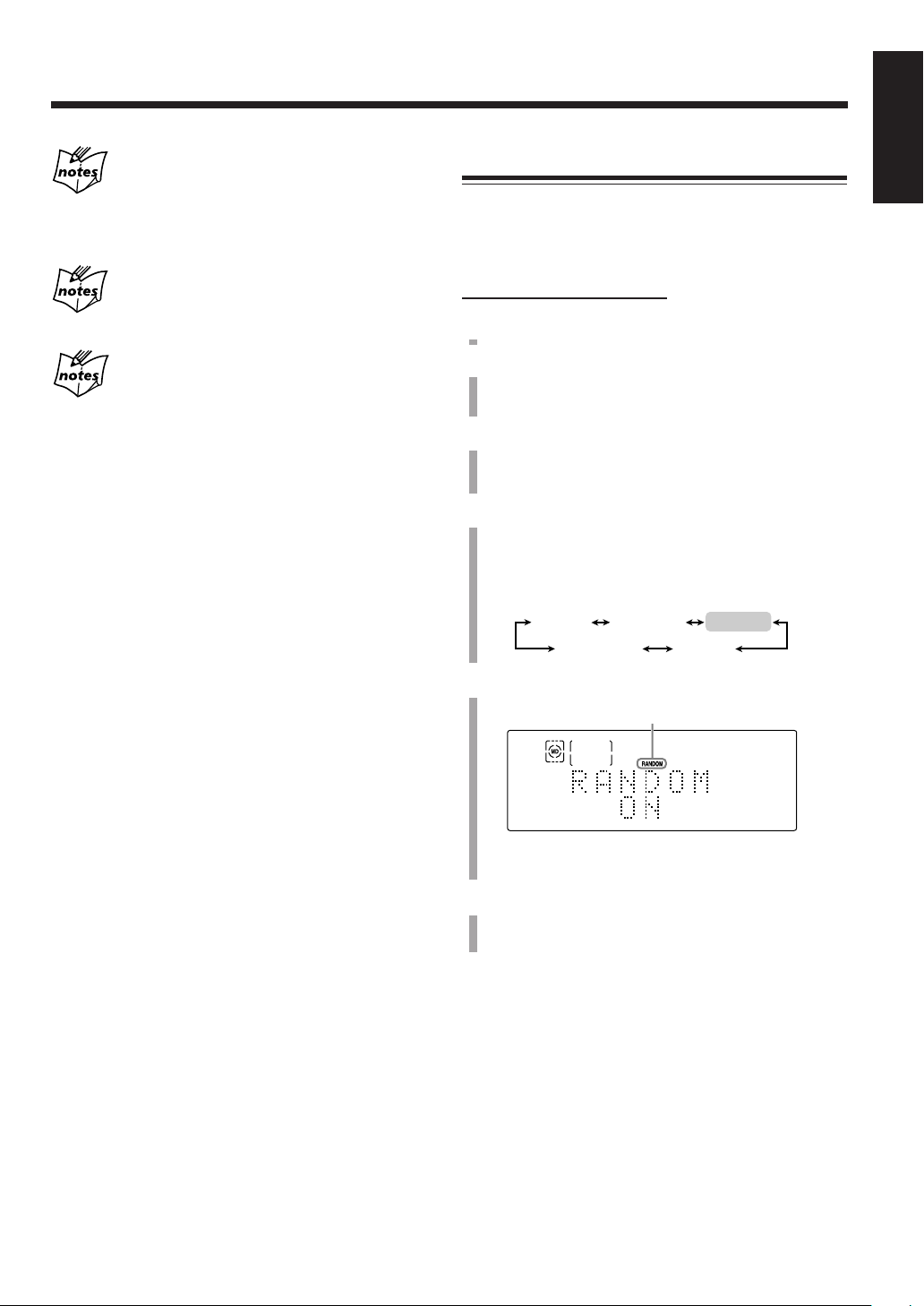

Playing at Random—Random Play .............................. 44

Playing Tracks in a Group—Group Play ...................... 45

Searching for Tracks to Play—MD Title Search .......... 46

Playing Back Tapes ....................................... 47

Playing Back a Tape ..................................................... 48

Special Disc Playback ................................... 49

Locating a Scene by Selecting the Chapter Number

—Chapter Search ...................................................... 50

Locating a Position by Selecting the Playing Time

—Time Search .......................................................... 50

Viewing the Desired Chapters/Tracks—Digest ............ 51

Selecting the Multi-Angle Views ..................................52

Selecting the Audio Language or Sound ...................... 53

Selecting the Subtitle Language ................................... 53

Playing a Still Picture/Frame-by-Frame ....................... 54

Showing Continuous Still Pictures—Strobe................. 54

Playing Back in Slow-Motion—Slow .......................... 54

Zooming in the Picture—Zoom .................................... 55

Enjoying Virtual Surround Sound—3D PHONIC ........ 55

Recording ...................................................... 56

Before You Start Recording on an MD ......................... 57

Setting MD Recording Modes ...................................... 59

Recording a Disc onto an MD

—Disc Synchronized Recording............................... 59

Recording Other Sources onto an MD.......................... 61

Before You Start Recording on a Tape.......................... 62

Recording onto a Tape .................................................. 63

Recording a Disc onto an MD and a Tape

—Disc Synchronized Recording............................... 64

Editing MDs .................................................. 65

Guidance—MD Group Functions ................................ 66

Introducing Group Editing Functions ...........................67

Forming a Group—FORM GR..................................... 68

Adding a Track to a Group—ENTRY GR .................... 69

Dividing a Group—DIVIDE GR .................................. 70

Joining Two Groups—JOIN GR ................................... 71

Moving a Group—MOVE GR...................................... 72

Ungrouping Tracks—UNGROUP ................................ 73

Dissolving All Groups—UNGR ALL .......................... 73

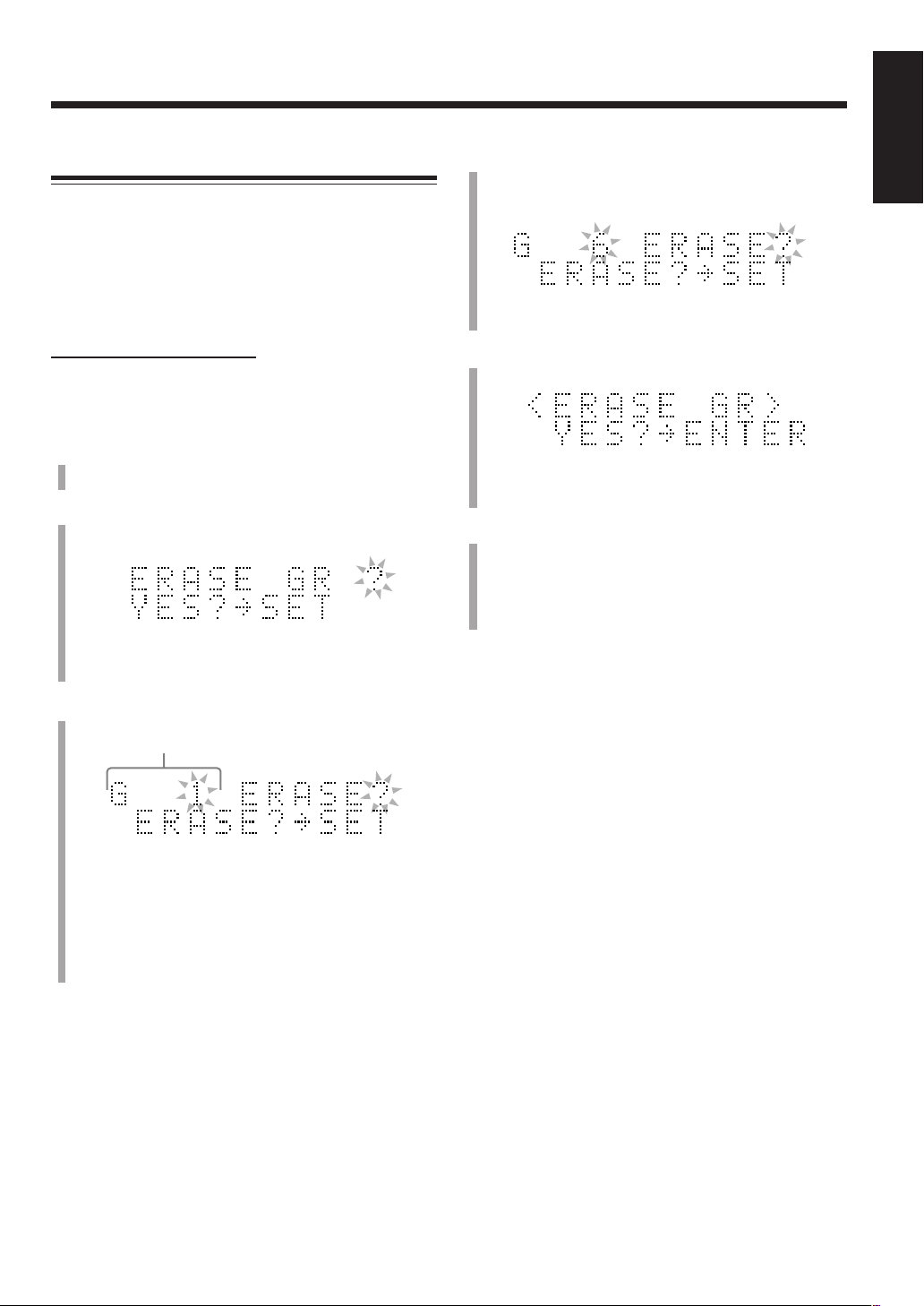

Erasing Tracks in a Group—ERASE GR .....................74

Introducing Track Editing Functions ............................ 75

Dividing a Track—DIVIDE ......................................... 76

Joining Two Tracks—JOIN .......................................... 77

Moving a Track—MOVE ............................................. 78

Erasing Tracks—ERASE.............................................. 79

Erasing All Tracks—ALL ERASE ............................... 79

Assigning Titles to an MD............................................ 80

Changing the DVD Initial Settings.............. 83

Basic Procedure ............................................................ 84

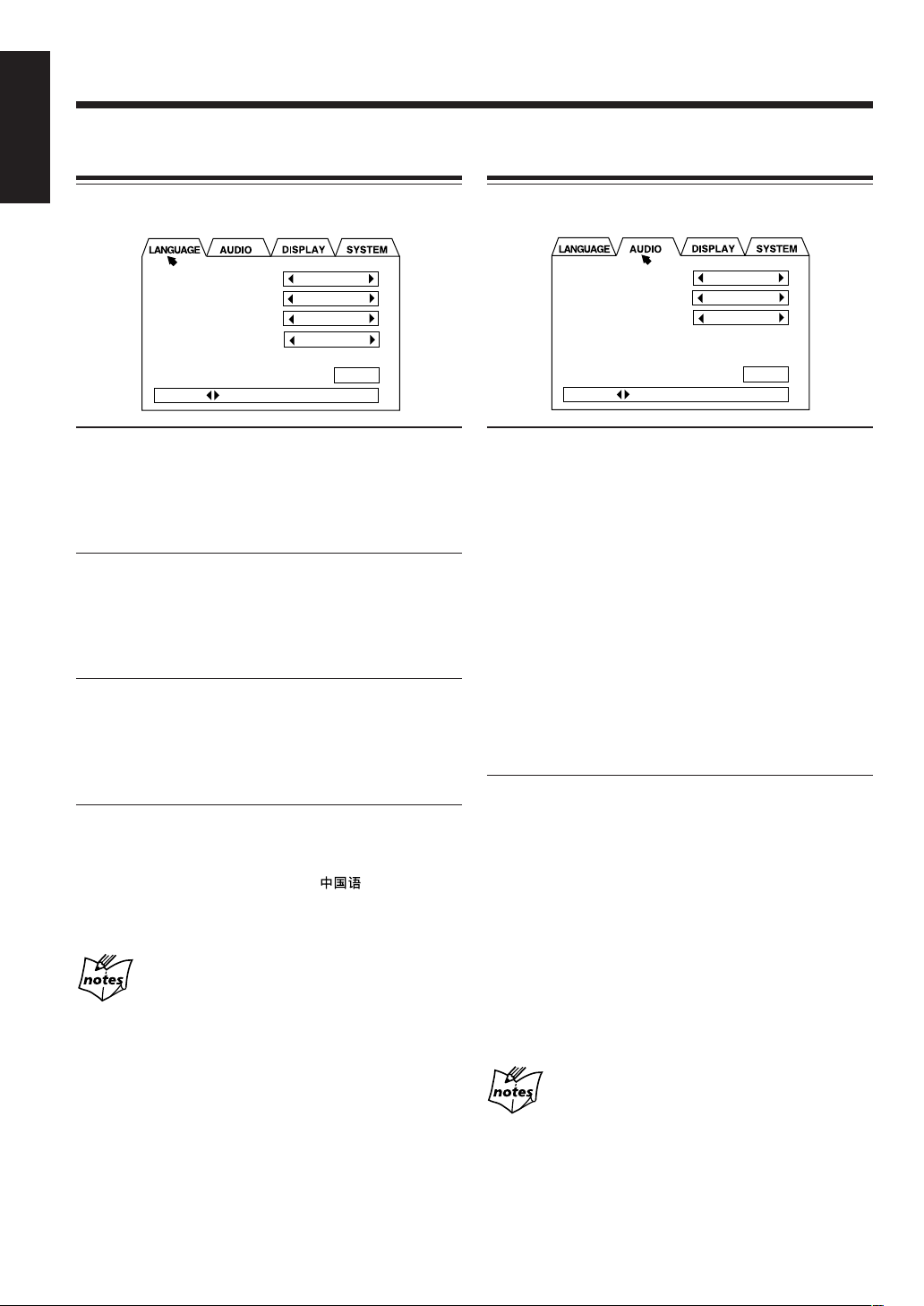

Changing the Initial Language Settings........................ 85

Changing the Various Audio Settings ........................... 85

Changing the Display Settings ..................................... 86

Changing the System Settings ...................................... 86

Limitting Playback of DVD—Parental Lock ............... 87

Using the Timers ........................................... 88

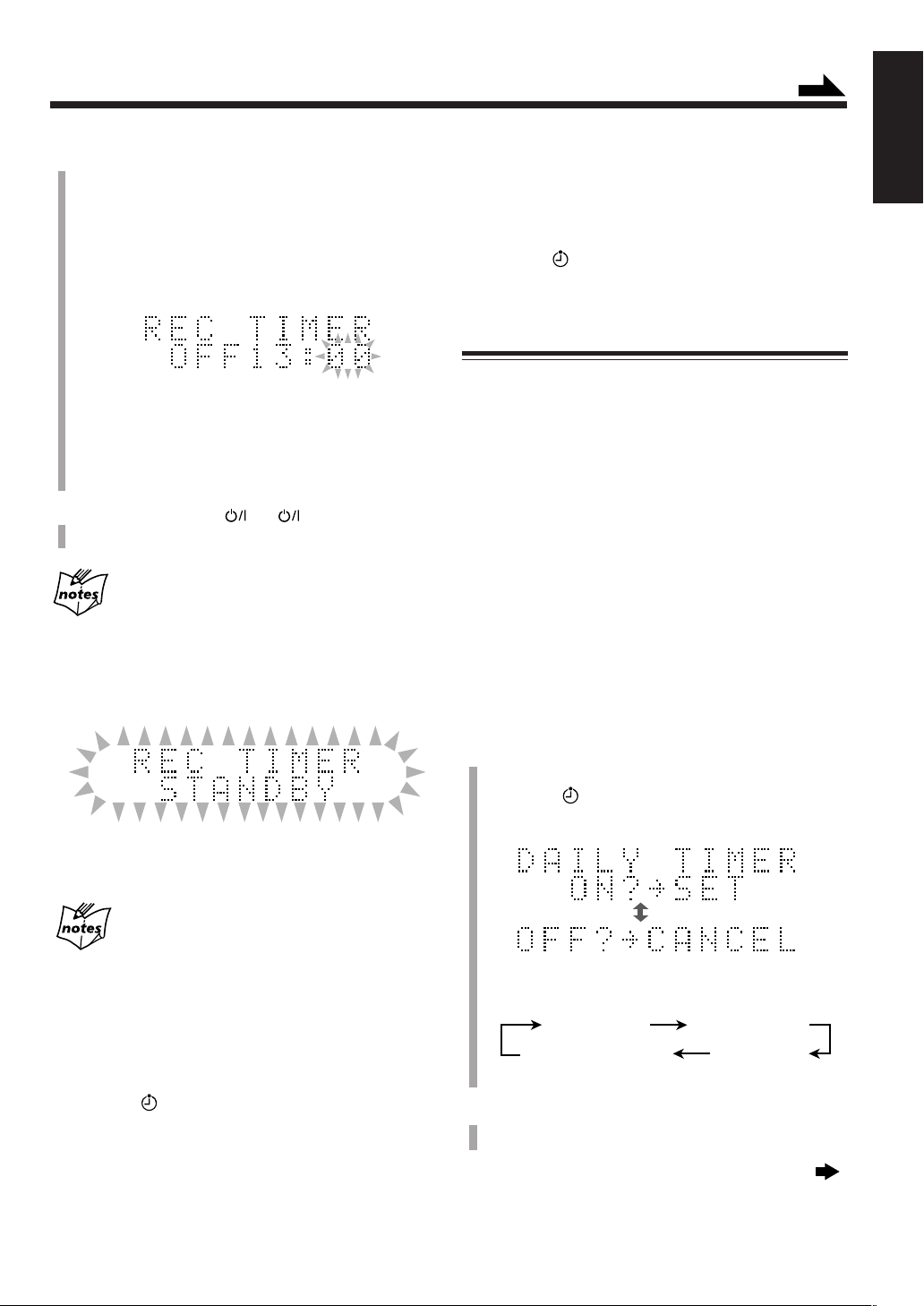

Using the Recording Timer........................................... 89

Using the Daily Timer .................................................. 90

Using the Sleep Timer .................................................. 92

Using AV COMPU LINK Control System... 93

Maintenance .................................................. 94

Disc/MD Messages ........................................ 95

Troubleshooting ............................................ 97

Table of Language Codes ............................. 99

Table of Country/Area Codes .................... 100

Specifications............................................... 102

English

Location of the Buttons and Controls

Become familiar with the buttons and controls on your unit.

English

Main Unit

3 4 5

6 7

8 9 p

DVD/SUPER VCD/VCD/CD

MD LOADING MECHANISM

DVD MD TAPE

AUTO REVERSE

UX-A10DVD

DIGITAL

REV.MODE

AUX

FM/AM

SUPER VIDEO

COMPACT

e r

t y

i o ; a

s d

Main unit

See pages in parentheses for details.

1 Disc tray (inside the electronic swing panel) (28) 2 Display window (4) 3 MD 0 (eject) button (19, 41, 81, 82)

• Pressing this button also turns on the unit.

4 MD #¥8 (play/pause) button (19, 20, 41)

• Pressing this button also turns on the unit.

(Standby/On) button and STANDBY lamp (19, 25,

90, 91)

6 DVD 0 (eject) button (19, 28 – 30, 86, 87)

• Pressing this button also turns on the unit.

7 DVD #¥8 (play/pause) button (19, 20, 28 – 33, 86)

• Pressing this button also turns on the unit.

8 Multi operation buttons

• DOWN and UP buttons

• 4 (reverse search/fast-wind to the left), 7 (stop) and ¢ (forward search/fast-wind to the right) buttons

9 TAPE @ # (play) button (19, 20, 48)

• Pressing this button also turns on the unit.

p 3D PHONIC button (55)

q Cassette holder (48) w Electronic swing panel e MD loading slot (inside the electronic swing panel)

(41)

r REV. MODE button (23, 48, 89) t AUX button (19, 20, 23)

• Pressing this button also turns on the unit.

y COLOR/DEMO button (13, 22) u VOLUME + / – control (20) i AHB PRO (Active Hyper Bass Pro) button (21) o FM/AM button (19, 20, 25)

• Pressing this button also turns on the unit.

; Remote sensor a ) (PUSH OPEN) (48)

• Push this mark to open and close the cassette holder.

s ONE TOUCH MD REC button (59, 61) d ONE TOUCH TAPE REC button (63) f MD&TAPE REC button (64) g PHONES jack (20)

Display window on the electronic swing panel

English

Display window

See pages in parentheses for details.

1 Disc indicator (28) 2 MD indicator (41, 61) 3 MD recording indicators

• MD REC indicator (59 – 61, 64, 68 – 74, 76 – 79, 81,

82)

• Recording length mode indicators (59) SP, LP2 and LP4

• GROUP indicator (59)

4 Disc/MD play mode indicators (35 – 39, 42 – 45)

• PRGM (program), RANDOM, Repeat mode ( ,

, ), and GROUP

5 TAPE indicator (48, 64)

REC indicator (63, 64)

6 Tape operation indicators (48, 63)

• 2 3 (tape direction) and (reverse mode)

7 SOUND indicator (21) 8 3D PHONIC indicator (55) 9 AHBPRO (Active Hyper Bass Pro) indicator (21) 0 TITLE indicator (46)

SEARCH indicator (46, 50)

- A.P.off (Auto Power off) indicator (19) = PBC indicator (30, 34) ~ Timer mode indicators

(timer) (89 – 92)

•

• DAILY (Daily Timer) (90, 91)

• REC (Recording Timer) (89, 90)

• SLEEP (Sleep Timer) (92)

! FM mode indicators (25)

• STEREO and MONO

@ Main display

• Shows the source name and other information.

90-

DVD MD TAPE

DIGITAL

DVD/SUPER VCD/VCD/CD

AUTO REVERSE

MD LOADING MECHANISM

AUX

REV.MODE

FM/AM

UX-A10DVD

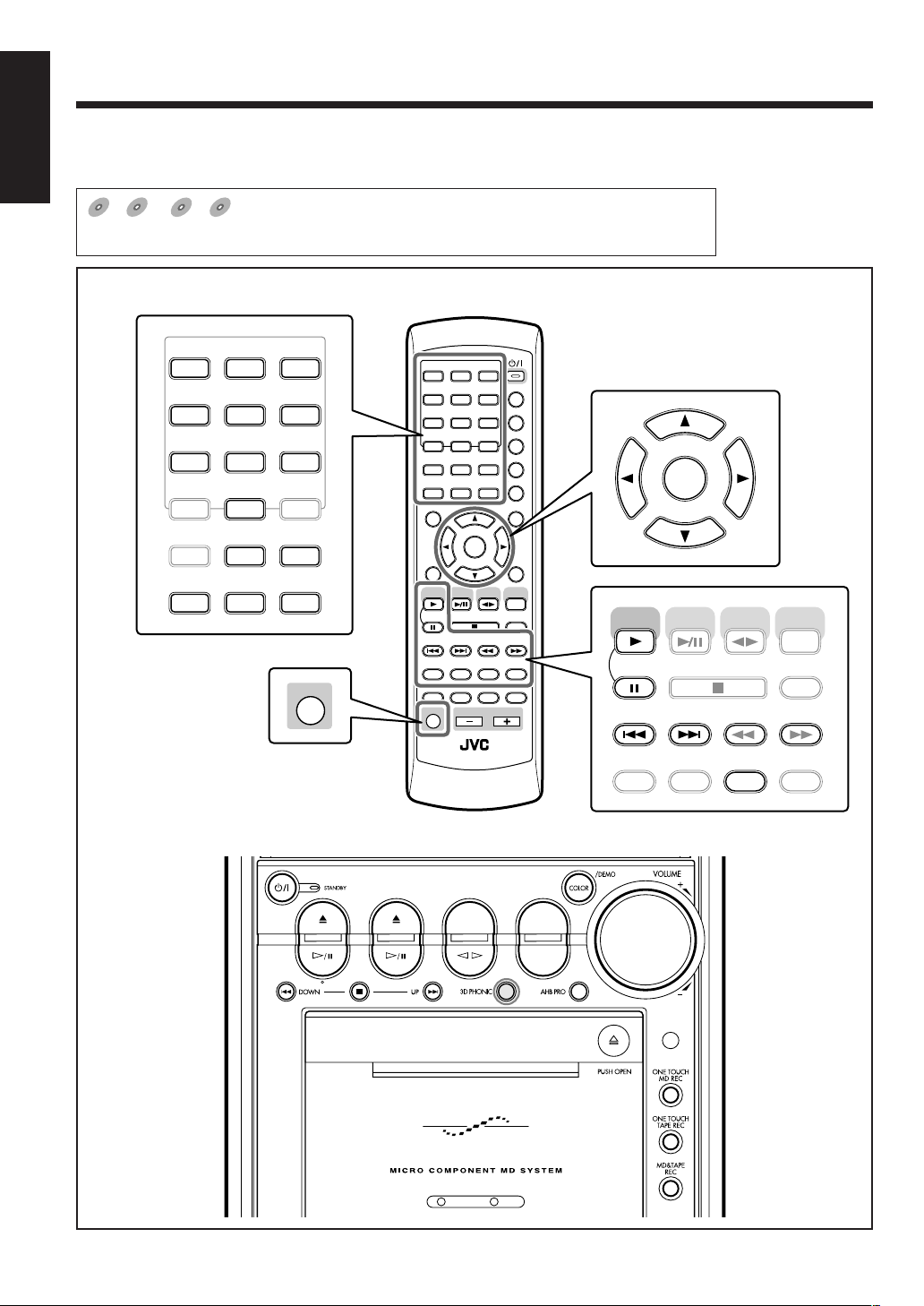

When using the remote control, point it at the remote sensor on the main unit.

COMPACT

SUPER VIDEO

English

Remote Control

See pages in parentheses for details.

MARK ABC

123

GHI JKL MNO

2 3

456

PQRS TUV WXYZ

789

10 0 +10

ON SCREEN

AUDIO

LP:

4 5

TOP MENU

SET

DVD

SELECT

STROBE

PREV.

GROUP SKIP

TITLE/EDIT

w e

SP/LP2/LP4

r t

SHIFT

RM-SUXA10DVDU REMOTE CONTROL

PLAY MODE

ZOOM

SUB TITLE

TITLE SEARCH

ENTER

MD GROUP

TITLE/EDIT

GROUP REC

STANDBY/ON

DEF

REV. MODE

DIGEST

ANGLE

MENU CHOICE

TAPE

–+

SLOW

3D PHONIC

FADE

MUTING

VOLUME

DISP/CHARA

CLOCK/TIMER

A.P.

SLEEP

OFF

DVD

COLOR

LEVEL

DIMMER

CANCEL RETURN

FM/AM

/AUX

FM MODE

SLOW

AHB PRO

SOUND

;

a s

j k l

/ z x c

1 Number buttons

• 1 – 10, 0 and +10 buttons

• Character entry buttons (MARK, A – Z, 0 – 9) (46, 81)

2 PLAY MODE button (35 – 39, 42 – 45, 50)

ZOOM button* (55)

3 ON SCREEN button (29, 31, 33) 4 AUDIO button (53)

LP: button* (59)

5 SUB TITLE button (53)

TITLE SEARCH button* (46)

6 TOP MENU button (34) 7 Cursor 2/3/5/∞ and ENTER buttons 8 SET button 9 Source selecting buttons

• DVD SELECT 3 (play) button (14, 19, 20, 28 – 33,

35, 37, 39, 86)

• MD 3¥8 (play/pause) button (19, 20, 41, 43 – 46)

• TAPE 2 3 (play) button (19, 20, 48)

• FM/AM/AUX button (19, 20, 23, 25, 26)

Pressing one of these buttons also turns on the unit.

p 8 (pause) button (29, 31, 32, 54)

STROBE button (54)

q ¢ and 4 buttons

GROUP SKIP ¢/4 buttons* (33, 45, 69 – 74) PREV. and NEXT buttons (34, 51)

w MD TITLE/EDIT button (76 – 80) e MD GROUP TITLE/EDIT button (68 – 74, 80) r SP/LP2/LP4 button (59) t MD GROUP REC button (59, 90) y SHIFT button u STANDBY/ON

button (19, 90, 91)

i DISP/CHARA (display/character) button (17, 42, 46,

60, 61, 81)

o CLOCK/TIMER button (17, 89 – 91) ; SLEEP button (92)

A.P.OFF button* (19)

a COLOR button (13, 22)

DVD LEVEL button* (30)

s REV. MODE button (48, 63, 89)

DIGEST button* (51)

d DIMMER button (22) f ANGLE button (52) g MENU button (34)

CHOICE button* (14 – 16, 84)

h CANCEL button

RETURN button* (34)

j FM MODE button (25) k 7 (stop) button l ¡ and 1 buttons

SLOW + / – buttons (54)

/ AHB PRO (Active Hyper Bass Pro) button (21) z 3D PHONIC button (55) x SOUND button (21) c FADE MUTING buttons (20) v VOLUME + / – buttons (20)

* These buttons function while pressed with SHIFT.

About Discs

Continued

Playable Disc Types

This unit has been designed to play back the following discs:

• This unit can also play back MP3 files recorded on CD-Rs and CD-RWs. For in-depth information about MP3, see “MP3 Basic Operations” on page 32.

• We refer to DVD Video as DVD in this manual.

Disc

Type

DVD

VIDEO

Video CD

(VCD)

Super Video

(SVCD)

Mark

(Logo)

Video

Format*

NTSC

PA L

Region Code*

Number

ALL

• Continued use of irregular shape discs (heart-shape, octagonal, etc.) can damage the unit.

• The Macrovision’s copy protection system is applied to this unit. If you make a copy from a disc recorded this copy protection signal on your VCR, the copy cannot be played back normally.

Note on Region Code

DVD players and DVDs have their own Region Code numbers. This unit can play back only DVDs recorded with the NTSC or PAL color system whose Region Code numbers include “3.”

Ex.:

If a DVD with the improper Region Code numbers is loaded, “REGION CODE ERROR” appears on the display and playback cannot start.

*2 Note on Video Format

• DVDs recorded with the PAL color system cannot be converted into the NTSC color system.

• DVDs recorded with the NTSC color system can be converted into the PAL color system.

• When playing back a SVCD or VCD, the unit can convert both from PAL to NTSC and NTSC to PAL.

English

Audio CD

CD-R

CD-RW

COMPACT

DIGITAL AUDIO

In addition to the above discs, this unit can play back audio data recorded on CD Text, CD-G (CD Graphics), and CD-Extra.

• The following discs cannot be played back: DVD Audio, DVD-ROM, DVD-RAM, DVD-RW, DVD-R, CD-ROM, CD-I (CD-I Ready), Photo CD, etc. Playing back these discs will generate noise and damage the speakers.

• On some DVD, SVCD, or VCD, the actual operations may be different from what is explained in this manual, due to the programming and disc structure; such difference are not a malfunction of this unit.

Notes on CD-R and CD-RW

• User-edited CD-Rs (Recordable) and CD-RWs (Rewritable) can be played back only if they have been “finalized.”

• The unit can play back CD-Rs or CD-RWs if they have been recorded in the audio CD format. The unit can also play back CD-Rs or CD-RWs if MP3 files are recorded on them. However, these discs may not play back because of their disc characteristics, recording conditions, damage to the disc.

• Before playing back CD-Rs or CD-RWs, read their instructions or cautions carefully.

• CD-RWs may require a longer readout time, as the reflectance of CD-RWs is lower than for regular CDs.

This product incorporates copyright protection technology that is protected by method claims of certain U.S. patents and other intellectual property rights owned by Macrovision Corporation and other rights owners. Use of this copyright protection technology must be authorized by Macrovision Corporation, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision Corporation. Reverse engineering or disassembly is prohibited.

English

About audio formats

Some audio formats used on discs are described below:

• Linear PCM

Uncompressed digital audio, the same format used on CDs and most studio masters. DVD supports 2-channels at sampling rates of 48/96 kHz and quantization of 16/20/24 bits. Audio CD/Video CD is limited to 2-channels at 44.1 kHz at 16 bits.

• Dolby Digital

A surround audio format configured with up to six channels. Because the “LFE (Low-Frequency Effect for sub-woofer, etc.)” channel is an auxiliary channel, so this format is called “5.1-channel system.” Not all Dolby Digital discs contain six (5.1) channel information.

• DTS (Digital Theater Systems)

A surround audio format configured with up to six (5.1) channel which is the same as Dolby Digital. Because the compression ratio is lower than for Dolby Digital, it provides wider dynamic range and better separation. Not all DTS discs contain six (5.1) channel information.

• MPEG Multichannel

A surround audio format which can handle the augmentative 7.1-channel format (rare for home use), as well as 5.1-channel.

Disc structure

A DVD consists of “titles,” and each title may be divided into “chapters.” (See Example 1.) For example, if a DVD disc contains some movies, each movie may have its own title number, and it may be further divided into chapters.

Example 1: DVD

On the other hand, a SVCD, VCD, and Audio CD consist of “tracks.” (See Example 2.) In general, each track has its own track number. (On some discs, each track may also be divided by Indexes.)

Example 2: SVCD/VCD/Audio CD

IMPORTANT:

• This unit does not provide the DTS decoding function. The sound signals of DTS are only output through the DVD OPTICAL DIGITAL OUT terminal and are not output through the speakers of this unit. To listen to the sound of DTS, connect a DTS decoder or an amplifier compatible with DTS.

• To reproduce the multichannel sounds such as Dolby Digital 5.1 ch, DTS Digital Surround and MPEG Multichannel, connect an amplifier or a decoder compatible with these multichannel sources to this unit. (See page 11.)

• Playing back an Audio CD whose sound is encoded with DTS may generate noise and damage the speakers. When playing such a disc, turn the volume level on this unit to minimum.

Getting Started

R6P(SUM-3)/AA(15F)

Continued

Unpacking

After unpacking, check to be sure that you have all the following items. The number in parentheses indicates the quantity of each piece supplied.

• FM antenna (1)

• AM loop antenna (1)

• Remote control (1)

• Batteries (2)

• Video cord (1)

• Speaker cords (2) If any item is missing, consult your dealer immediately.

Putting the Batteries into the Remote Control

Insert the batteries—R6P(SUM-3)/AA(15F)—into the remote control by matching the polarity (+ and –) on the batteries with the + and – marking on the battery compartment. When the remote control can no longer operate the unit, replace both batteries at the same time.

Connecting Antennas

FM antenna

FM antenna (supplied)

Attach the FM antenna to the FM (75 Ω) COAXIAL terminal.

Extend the FM antenna.

Fasten it up in the position which gives you the best reception.

The FM antenna supplied with this unit can be used as temporary measure. If reception is poor, you can connect an outdoor FM antenna.

About the supplied FM antenna

ANTENNA

FM (75 ) COAXIAL

LOOP

AM EXT

English

To connect an outdoor FM antenna

Before connecting it, disconnect the supplied FM antenna.

Outdoor FM antenna (not supplied)

ANTENNA

FM (75 ) COAXIAL

• DO NOT use an old battery together with a new one.

• DO NOT use different types of batteries together.

• DO NOT expose batteries to heat or flame.

• DO NOT leave the batteries in the battery compartment when you are not going to use the remote control for an extended period of time. Otherwise, the remote control will be damaged from battery leakage.

A 75 Ω antenna with coaxial type connector (IEC or DIN 45325) should be used.

LOOP

AM EXT

English

AM antenna

Connecting Speakers

AM loop antenna (supplied)

ANTENNA

COMPU

LINK

Vinyl-covered wire (not supplied)

To connect speakers

You can connect the speakers using the speaker cords.

Red

Speaker cord

Speaker terminals

SPEAKERS

RIGHT

SPEAKER IMPEDANCE 6~16Ω

Black

LEFT

3,4

Red

Speaker cord

Black

If the cords are covered with insulation, remove the short section of insulation at the end of each cord by twisting and pulling it off.

Connect the AM loop antenna to the AM LOOP terminals as illustrated.

Turn the AM loop antenna until you have the best reception.

To connect an outdoor AM antenna

When reception is poor, connect a single vinyl-covered wire to the AM EXT terminal and extend it horizontally. The AM loop antenna must remain connected.

• Make sure the antenna conductors do not touch any other

• Keep the antennas away from metallic parts of the unit,

For better reception of both FM and AM

terminals or connecting cords.

connecting cords, and the AC power cord.

INPUTINPUT

Rear of the right speaker

If the cords are covered with insulation, remove the short section of insulation at the end of each cord by twisting and pulling it off.

Hold the clamp of the speaker terminal.

Insert the end of the speaker cord into the terminal.

Match the polarity of the speaker terminals: (+) to (+) and (–) to (–).

Release your finger from the clamp.

IMPORTANT

• Use only speakers with the same speaker impedance as indicated by the speaker terminals on the rear of the unit.

• DO NOT connect more than one speaker to one speaker terminal.

Rear of the left speaker

To remove the speaker grilles

The speaker grilles are removable as illustrated below:

Projections

To remove the speaker grille, insert your fingers at the top of the speaker grille, then pull towards you. Also pull the bottom towards you.

To attach the speaker grille, put the projections of the speaker grille into the holes of the speaker.

Holes

Speaker grille

Connecting a TV

Connect your TV and this unit using the composite video cord (supplied) or an S-video cord (not supplied).

• DVDs are protected by the copyguard system. Connecting to a TV through a VCR (or to a TV with a built-in VCR) may cause distortion of picture.

• You can also use JVC’s AV COMPU LINK control system. (See page 93.)

AUDIO

VIDEO OUT

SELECT

PAL NTSC

VIDEO OUT SELECT switch

VIDEO OUT

VIDEO

S-VIDEO

OPTICAL DIGITAL IN

DVD OPTICAL DIGITAL OUT

AUX

PCM

PCM/ STREAM

RIGHT LEFT

English

Caution on installation

This unit is compact but high powered, so it has a builtin cooling fan which operates when the internal heat rises due to continuous use and/or high volume level. If you want to place speakers or any equipment on the sides of the unit, leave a space of at least 1 cm between the main unit and each other unit to obtain sufficient cooling effect.

S-video cord* (not supplied)

Video cord (supplied)

*Using an S-video cord

gives you a better quality picture

To video inputTo S-video input

To select the color system

This unit is compatible with the PAL and NTSC systems. Set the VIDEO OUT SELECT switch on the rear panel while in standby mode to match the color system of your TV. Make sure that the color system marked on the package of a DVD, SVCD, or VCD matches that of your TV.

VIDEO OUT

SELECT

PAL NTSC

Before playing back a disc, select the correct “MONITOR TYPE” in the DISPLAY menu according to the aspect ratio of your TV. See “To select the monitor type” on page 15.

English

Connecting Other Equipment

You can connect other equipment such as a digital decorder to reproduce multichannel sounds or audio equipment which can be used as a playback device.

When you connect and use such equipment, refer also to its manual.

• DO NOT connect other equipment while the power is on.

• DO NOT plug in any equipment until all connections are complete.

To connect audio equipment with an optical digital input terminal—such as a digital decoder

By using an optical digital cord (not supplied), you can connect audio equipment with an optical digital input terminal. To reproduce multichannel sounds such as Dolby Digital

5.1 ch, DTS Digital Surround or MPEG Multichannel, connect a digital decoder or an amplifier with a built-in decorder .

• See “About sounds output through the DVD OPTICAL DIGITAL OUT terminal” on the right column.

Protective plug

Before connecting the

AUDIO

OPTICAL DIGITAL IN

DVD OPTICAL DIGITAL OUT

PCM

PCM/ STREAM

other equipment, remove the protective plug from the terminal.

Before playing back a disc, select “DIGITAL AUDIO OUTPUT” in the AUDIO menu according to audio equipment connected to the DVD OPTICAL DIGITAL OUT terminal. See “To select the output signal type” on page 16.

About sounds output through the DVD OPTICAL DIGITAL OUT terminal

Digital signals (Linear PCM, Dolby Digital*, DTS**, MPEG Multichannel) are output from the disc played back on the built-in DVD player. To reproduce multichannel sounds such as Dolby Digital 5.1 ch, DTS Digital Surround and MPEG Multichannel, connect an amplifier or a decoder compatible with these multichannel sources to this terminal.

• Digital signals from an MD played back on the builtin MD player are not output through this terminal.

* Manufactured under license from Dolby

** Manufactured under license from Digital Theater

Systems, Inc. US Pat. No. 5,451,942 and other world-wide patents issued and pending. “DTS,” and “DTS Digital Surround” are trademarks of Digital Theater Systems, Inc. Copyright 1996, 2000 Digital Theater Systems, Inc. All Rights Reserved.

AUX

RIGHT LEFT

Optical digital cord

To the optical digital input

Audio equipment with an optical digital input

To connect audio equipment with an optical digital output terminal

By using an optical digital cord (not supplied), you can connect audio equipment with an optical digital output terminal.

Protective plug

To connect analog audio equipment

By using an RCA pin plug cord (not supplied), you can connect analog audio equipment.

• Be sure that the plugs of the audio cords and the jacks on the rear of the unit are color-coded: White plugs and jacks are for left audio signals, and red ones for right audio signals.

Analog audio equipment

English

Before connecting the other equipment, remove the protective

AUDIO

OPTICAL DIGITAL IN

DVD OPTICAL DIGITAL OUT

PCM

PCM/ STREAM

plug from the terminal.

Optical digital

AUX

RIGHT LEFT

cord

To the optical digital output

Audio equipment with an optical digital output

To listen to or to record the sound from audio equipment connected to the OPTICAL DIGITAL IN terminal, select

“AUX-DIGITAL” as the source to play. (See page 20.)

• You can only play the sources recorded with Linear PCM

through the OPTICAL DIGITAL IN terminal.

To audio output

AUDIO

OPTICAL DIGITAL IN

DVD OPTICAL DIGITAL OUT

PCM

PCM/ STREAM

Left

Right

RCA pin plug cord

Right

AUX

RIGHT LEFT

Left

To listen to or to record the sound from analog audio equipment connected to the AUX jacks, select “AUX” as the source to play. (See page 20.)

When connecting audio equipment to the OPTICAL DIGITAL IN terminal

The above connection allows you to perform digital-to-digital recording on an MD. (See page 61.)

DO NOT play the sources recorded with other than Linear PCM, such as Dolby Digital or DTS, through the OPTICAL DIGITAL IN terminal. Playing such sources may cause noises from the speakers and may damage them.

English

NOW you are ready to plug in the unit and any other connected equipment.

ANTENNA

COMPU

LINK

VIDEO OUT

SELECT

PAL NTSC

S-VIDEO

VIDEO OUT

VIDEO

SPEAKERS

AUDIO

OPTICAL DIGITAL IN

DVD OPTICAL DIGITAL OUT

AUX

RIGHT LEFT

RIGHT

SPEAKER IMPEDANCE 6~16Ω

PCM

PCM/ STREAM

LEFT

Setting the DVD Player

You need to set the following, using the setting menu shown on the TV, before starting playback.

• You can select the language used in the setting menu.

• If an Audio CD or MP3 disc is loaded, you cannot show the

setting menu. Before starting the setting, remove the disc.

• For further information about the setting menu, see pages 83 to 87.

Step 1: Selecting the On-screen language for the

setting menu

Step 2: Selecting the monitor type according to

your TV

AC power cord

To a wall outlet

When you connect the AC power cord into a wall outlet, the unit automatically starts the display demonstration (Automatic display demonstration).

• Each time you press and hold COLOR/DEMO (or COLOR on the remote control) for more than 2 seconds, the Automatic display demonstration turns on (“DEMO ON” appears in the main display) and off (“DEMO OFF” appears in the main display).

To stop and cancel the display demonstration manually,

press COLOR/DEMO (or COLOR on the remote control) during display demonstration while the unit is in standby mode.

• Pressing DIMMER (see page 22) or DISP/CHARA (see page 17) also cancels the display demonstration.

•“0:00” flashes in the main display until you set the built-in clock. After setting the clock, the clock time will appear in the main display while the unit is turned off. To set the built-in clock, see “Setting the Clock” on page

17.

To start the display demonstration manually, press COLOR/DEMO (or COLOR on the remote control) while the unit is in standby mode.

• Each time you press the button, the display demonstration alternates between on and off.

If audio equipment is connected to the DVD OPTICAL DIGITAL OUT terminal:

Step 3: Selecting the output signal type

If audio equipment is NOT connected to the DVD OPTICAL DIGITAL OUT terminal:

Setting is finished.

Go to the next page to start the setting.

If no operation is done for about five minutes while the setting menu appears on the TV

The screen saver screen (see page 28) automatically appears on the TV instead of the setting menu to prevent the TV screen from being damaged. To show the setting menu again, press CHOICE while holding down SHIFT.

ANGLE

LP:

TITLE SEARCH

Continued

On the remote control ONLY:

MENU CHOICE

DVD

SELECT

SHIFT

TOP MENU

SET

DVD

SELECT

STROBE

PREV.

TITLE/EDIT

SP/LP2/LP4

SHIFT

GROUP SKIP

MD GROUP

TITLE/EDIT

GROUP REC

ENTER

SLOW

3D PHONIC

VOLUME

MENU CHOICE

TAPE

–+

FADE

MUTING

CANCEL RETURN

FM/AM

/AUX

FM MODE

SLOW

AHB PRO

SOUND

ENTER

To select the On-screen language for the setting menu—Step 1:

Turn on the TV and select the correct input mode on the TV.

Press DVD SELECT 3, then 7.

The unit turns on and the DVD player is selected as the source to play. The opening screen appears on the TV.

Press Cursor ∞ repeatedly to move to “

Press Cursor 3/2 to select the language you want.

” (ON SCREEN LANGUAGE).

You can select the language from among ENGLISH, Chinese (

), and Spanish (ESPAÑOL). The language for the setting menu changes to the one you select.

MENU LANGUAGE AUDIO LANGUAGE SUBTITLE ON SCREEN LANGUAGE

PRESS KEY

Ex.: “ENGLISH” is selected.

CHINESE CHINESE CHINESE ENGLISH

EXIT

• The language in other indications shown on the TV

while you operate the unit also changes to the one you select.

English

Press CHOICE while holding down SHIFT.

The

(LANGUAGE) menu appears on the TV.

• When you purchased this unit, the On-screen language used for the setting menu is set to Chinese

(

• A selected item shows in green.

Go to “To select the monitor type” on the next page.

English

To select the monitor type—Step 2:

You need to select the monitor type to match your TV to play back DVDs recorded with a height/width ratio of 16:9.

Press Cursor 5 repeatedly to move to “LANGUAGE.”

MENU LANGUAGE AUDIO LANGUAGE SUBTITLE ON SCREEN LANGUAGE

PRESS KEY

Press Cursor 3/2 repeatedly to move to

CHINESE CHINESE CHINESE ENGLISH

EXIT

“DISPLAY.”

DISPLAY menu appears on the TV.

7 Guidelines to select the monitor type

Selectable types: 4:3 LB

, 16:9 WIDE, 4:3 PS

• 4:3 LB (Letter Box) :

Select when viewing on a TV whose aspect ratio is 4:3. While viewing a wide screen picture, the black bars appear on the top and the bottom of the screen.

• 16:9 WIDE:

Select when viewing on a TV whose aspect ratio is 16:9.

MONITOR TYPE SCREEN SAVER ON SCREEN GUIDE

PRESS KEY

Press Cursor ∞ to move to “MONITOR

4:3 LB

MODE 2

EXIT

TYPE.”

MONITOR TYPE SCREEN SAVER ON SCREEN GUIDE

PRESS KEY

Press Cursor 3/2 to select the monitor type.

4:3 LB

MODE 2

EXIT

Select the monitor type according to the guidelines on the right column.

• If audio equipment is connected to the DVD OPTICAL

DIGITAL OUT terminal:

Go to “To select the output signal type” on the next page.

• 4:3 PS (Pan Scan)

Select when viewing on a TV whose aspect ratio is 4:3. While viewing a wide screen picture, the black bars do not appear; however, a portion of the left and right edges of the picture will not show on the screen.

• Even if “4:3 PS become “4:3 LB

” is selected, the screen size may

” while playing some DVDs.

This depends on how the DVD is programed and recorded.

• If a disc (or some portions of the disc) is recorded with video signals of 4:3 aspect ratio, this setting does not take effect. The pictures are displayed with full 4:3 aspect ratio or with 4:3 Letter Box.

• If audio equipment is NOT connected to the DVD OPTICAL DIGITAL OUT terminal:

The setting is done. Press CHOICE while holding down SHIFT.

The setting menu goes off.

To select the output signal type—Step 3:

If you connect audio equipment to the DVD OPTICAL DIGITAL OUT terminal, you need to select the type of digital signals output through the terminal according to the particular kind of audio equipment.

Press Cursor 5 to move to “DISPLAY.”

MONITOR TYPE SCREEN SAVER ON SCREEN GUIDE

PRESS KEY

Press Cursor 2 to move to “AUDIO.”

AUDIO menu appears on the TV.

DIGITAL AUDIO OUTPUT DOWN MIX COMPRESSION

PRESS KEY

Press Cursor ∞ to move to “DIGITAL AUDIO OUTPUT.”

DIGITAL AUDIO OUTPUT DOWN MIX COMPRESSION

PRESS KEY

Press Cursor 3/2 to select the output signal type.

Select the output signal type according to the guidelines on the right column.

To exit from the setting menu, press CHOICE while holding down SHIFT. The setting menu goes off.

• You can also exit from the setting menu by pressing

Cursor 5/∞ to select EXIT in the menu, then press ENTER.

4:3 LB

MODE 2

EXIT

STREAM/PCM

Lo / Ro

EXIT

STREAM/PCM

Lo / Ro

EXIT

7 Guidelines to select the output signal type

Selectable types: STREAM/PCM, PCM ONLY, DOLBY DIGITAL/PCM

• STREAM/PCM:

Select when connecting an amplifier or a decoder compatible with DTS, Dolby Digital and MPEG Multichannel.

• PCM ONLY:

Select when connecting an amplifier compatible only with Linear PCM or a digital recording device such an MD recorder, DAT deck, etc.

• DOLBY DIGITAL/PCM:

Select when connecting an amplifier or a decoder compatible only with Dolby Digital.

Output Signals Through the DVD OPTICAL DIGITAL OUT Terminal

Playback disc

DVD with 48 kHz, 16 bit Linear PCM

DVD with 48 kHz, 20/24 bit Linear PCM

DVD with 96 kHz, Linear PCM

DVD with Dolby Digital

DVD with DTS DVD with

MPEG Multichannel

SVCD/VCD/ Audio CD

Audio CD with DTS Digital Surround

MP3 disc

The sound signals of DTS are not output from the DVD OPTICAL DIGITAL OUT terminal. To listen to the sound of DTS on audio equipment connected to the terminal, select “STREAM/PCM” as the output signal type.

Also set “DOWN MIX” in the AUDIO menu. (See page 85.)

STREAM/PCM

48 kHz, 16 bit Linear PCM

48 kHz, 20/24 bit Linear PCM

No output

Dolby Digital bitstream

DTS bitstream

MPEG bitstream

44.1 kHz, 16 bit Linear PCM

DTS bitstream

No output

When “PCM ONLY” or “DOLBY DIGITAL/PCM” is selected as the output signal type

When “PCM ONLY” is selected as the output signal type

Output signals

PCM ONLY

48 kHz, 16 bit Linear PCM

No output 48 kHz,

16 bit Linear PCM

DOLBY DIGITAL/ PCM

Dolby Digital bitstream

English

Setting the Clock

You can set the clock when the unit is either turned on or in standby mode.

On the remote control ONLY:

PLAY MODE

ZOOM

SUB TITLE

TITLE SEARCH

MD GROUP

ENTER

DEF

REV. MODE

DIGEST

ANGLE

TAPE

SLOW

STANDBY/ON

DISP/CHARA

CLOCK/TIMER

SLEEP

COLOR

DIMMER

MENU CHOICE

CANCEL RETURN

FM/AM

FM MODE

– +

SLOW

DISP/CHARA

CLOCK/TIMER

A.P. OFF

DVD

LEVEL

/AUX

SET

Press CLOCK/TIMER.

MARK ABC

123

GHI JKL MNO

456

PQRS TUV WXYZ

789

10 0 +10

ON SCREEN

AUDIO

LP:

TOP MENU

SET

DVD

SELECT

STROBE

PREV.

GROUP SKIP

“0:00” appears in the main display with the hour digit flashing.

Press ¢ or 4 repeatedly to adjust the hour.

• When you press and hold the button, the hour digit changes continuously.

• You can also use the number buttons.

– To adjust the hour to 5, press 5. – To adjust the hour to 12, press +10, then 2. – To adjust the hour to 20, press +10, then 10 (or

press +10 twice, then 0).

Press SET to set the hour.

The minute digit starts flashing.

• If you want to change the hour again, press CANCEL. The hour digit starts flashing again.

CANCEL

RETURN

PREV. NEXT

GROUP SKIP

Press ¢ or 4 repeatedly to adjust the minute.

• When you press and hold the button, the minute digit changes continuously.

• You can also use the number buttons.

– To adjust the minute to 5, press 5. – To adjust the minute to 25, press +10, +10, then 5. – To adjust the minute to 30, press +10, +10, then 10

(or press +10 three times, then 0).

Press SET to finish setting the clock.

The built-in clock starts.

Once you have adjusted the clock, you need to press CLOCK/TIMER repeatedly until the clock setting screen appears in the main display (the hour digit starts flashing).

The clock loses its setting and resets to “0:00.” If this happens, set the clock again.

To adjust the clock again

When you unplug the AC power cord or if a power failure occurs

To turn off the clock indication (power save mode)

On the remote control ONLY:

Press DISP/CHARA while the unit is in standby mode. “DISPLAY OFF” appears in the main display and the clock indication goes off.

To turn on the clock indication, press DISP/CHARA again while the unit is in standby mode. “DISPLAY ON” appears in the main display.

To show the clock when the unit is turned on

On the remote control ONLY:

Press DISP/CHARA repeatedly until the clock indication appears in the main display.

• If an MD is inserted, the MD remaining recording time (“REC REMAIN”) is shown before the clock indication.

Basic and Common Operations

The buttons emphasized in the illustration below are used and explained in the following section (pages 19 to 23).

Remote control

STANDBY/ON

SLEEP

COLOR

DIMMER

TITLE/EDIT

SP/LP2/LP4

SHIFT

A.P.

OFF

DVD

LEVEL

MD GROUP

TITLE/EDIT

GROUP REC

3D PHONIC

FADE

MUTING

VOLUME

AHB PRO

SOUND

SET

DVD

SELECT

ENTER

TAPE

CANCEL

RETURN

FM/AM

/AUX

MARK ABC

GHI JKL MNO

PQRS TUV WXYZ

10 0 +10

ON SCREEN

AUDIO

TOP MENU

SET

DVD

SELECT

STROBE

PREV.

TITLE/EDIT

SP/LP2/LP4

SHIFT

RM-SUXA10DVDU REMOTE CONTROL

DEF

123

456

789

PLAY MODE

REV. MODE

ZOOM

DIGEST

SUB TITLE

ANGLE

TITLE SEARCH

LP:

ENTER

TAPE

SLOW

GROUP SKIP

MD GROUP

TITLE/EDIT

3D PHONIC

FADE

MUTING

GROUP REC

VOLUME

STANDBY/ON

DISP/CHARA

CLOCK/TIMER

A.P.

SLEEP

OFF

DVD

COLOR

LEVEL

DIMMER

MENU CHOICE

CANCEL

RETURN

FM/AM

/AUX

FM MODE

–+

SLOW

AHB PRO

SOUND

English

Main unit

DVD MD TAPE

AUTO REVERSE

UX-A10DVD

DIGITAL

REV.MODE

AUX

FM/AM

English

Turning On the Power

When you press one of the source selecting buttons, the unit automatically turns on (and starts playback if the source is ready).

On the remote control:

DVD

SELECT

TAPE

FM/AM

/AUX

To turn off the unit automatically (Auto Power Off)

Using the Auto Power Off function, the unit automatically turns itself off if no sound comes in for more than 3 minutes except when FM or AM is selected as the source. If an operation is done during this 3-minute period, Auto Power Off is canceled temporarily even though no sound comes in.

• You can also turn off the unit automatically by using the sleep timer. (See page 92.)

On the main unit

* Pressing DVD 0 or MD 0 also turns on the unit.

DVD

TAPE

AUX

FM/AM

To turn on the unit without playing, press STANDBY/ON

(or on the main unit). The STANDBY lamp on the main unit goes off. “HELLO” appears in the main display.

To turn off the unit (on standby), press STANDBY/ON

(or on the main unit) again. The STANDBY lamp on the main unit lights up. “SEE YOU” appears in the main display.

• When you use the Resume function (see page 86),

turning off the power while playing a disc stops playback and stores the stop point. By pressing DVD SELECT 3 (or DVD #¥8 on the main unit), you can turn on the unit and start playback again from the position where you have stopped— Resume play. (“RESUME” appears in the main display.)

• A little power is always consumed even while the unit is

in standby mode.

On the remote control ONLY: To activate Auto Power Off, press A.P.OFF while holding

down SHIFT. The A.P.off (Auto Power off) indicator lights up on the display.

• When no sound comes in, the A.P.off indicator starts flashing on the display. About 20 seconds before the unit turns itself off, “AUTO POWER OFF” starts flashing in the main display.

A.P.off indicator

To deactivate Auto Power Off, press A.P.OFF while holding down SHIFT. The A.P.off indicator goes off.

To switch off the power supply completely, unplug the AC power cord from the AC outlet.

When you unplug the AC power cord or if a power

The settings you have done will be erased.

failure occurs

Selecting the Sources and Starting Play

To select the tuner or external equipment as the source On the remote control:

Press FM/AM/AUX. The unit automatically turns on (when the unit is in standby), and the last selected source appears in the main display.

• Each time you press the button, the source changes as follows:

AUX-DIGITAL

On the main unit:

• Press FM/AM to select the tuner. Each time you press the button, the band alternates between FM and AM.

• Press AUX to select external equipment. Each time you press the button, the source alternates between “AUX” and “AUX-DIGITAL.” –Select “AUX” to listen to the sound from external

equipment connected to the AUX jacks.

–Select “AUX-DIGITAL” to listen to the sound from

external equipment connected to the OPTICAL DIGITAL IN terminal.

• For more detailed tuner operations, see pages 24 to 26.

• For operating external equipment, see its manual also.

To select the DVD player as the source, press DVD SELECT 3 (or DVD #¥8 on the main unit). The unit automatically turns on (when the unit is in standby), and “READING” appears in the main display for a while.

• Play will start if a disc is in the disc tray.

•“NO DISC” will appear in the main display if a disc is

not loaded.

To stop playback, press 7.

• For more detailed operations, see pages 27 to 39, 49 to 55.

To select the MD player as the source, press MD 3/8. The unit automatically turns on (when the unit is in standby), and “MD READING” appears in the main display for a while.

• Play will start if an MD is in the MD loading slot.

•“MD NO DISC” will appear in the main display if an

MD is not loaded.

To stop playback, press 7.

• For more detailed operations, see pages 40 to 46.

To select the tape as the source, press TAPE 2 3. The unit automatically turns on (when the unit is in standby), and “TAPE” appears in the main display.

• Play will start if a tape is in the cassette holder.

To stop playback, press 7.

• For more detailed operations, see pages 47 and 48.

AUX

English

When changing from another source to “AUX” or “AUX-DIGITAL”

If the sound from the component connected to the AUX jacks or the OPTICAL DIGITAL IN terminal is too loud or is not loud enough (without changing the volume level), you can change the audio input level through the AUX jacks or the OPTICAL DIGITAL IN terminal. (See page 23.)

Adjusting the Volume

You can adjust the volume level only while the unit is turned on.

• The volume level has no effect on recording.

On the remote control: To increase the volume, press VOLUME +.

To decrease the volume, press VOLUME –.

• When you press and hold each button, you can change the volume level continuously.

On the main unit: To increase the volume, turn VOLUME + / – control

clockwise. To decrease the volume, turn VOLUME + / – control counterclockwise.

• You can adjust the volume level within the range of 0 (silent) to 40 (maximum).

For private listening

Connect a pair of headphones to the PHONES jack. No sound comes out of the speakers. Be sure to turn down the volume before connecting or putting on the headphones.

DO NOT turn off (on standby) the unit with the volume set to an extremely high level; Otherwise, the sudden blast of sound can damage your hearing, speakers and/or headphones when you turn on the unit or start playing any source. REMEMBER you cannot adjust the volume level while the unit is in standby mode.

To turn down the volume level temporarily

On the remote control ONLY:

Press FADE MUTING. The volume level gradually decreases to “VOLUME 0.”

To restore the sound, press FADE MUTING again.

• Turning VOLUME + / – control clockwise (to +) on the unit or pressing VOLUME + on the remote control also restores the sound.

English

(

)

Reinforcing the Bass Sound

Selecting the Sound Modes

The richness and fullness of the bass sound is clearly maintained regardless of how low you set the volume

—Active Hyper Bass Pro.

• This function also affects the sound from headphones.

• This function affect neither recording nor the signals

output through the DVD OPTICAL DIGITAL OUT termminal.

To get the effect, press AHB PRO repeatedly so that “AHB PRO 1” or “AHB PRO 2” appears in the main display. The AHBPRO indicator also lights up on the display.

AHBPRO indicator

Ex.: When you select “AHB PRO 1.”

• Each time you press the button, the Active Hyper Bass Pro mode changes as follows:

AHB PRO 1 AHB PRO 2

AHB PRO OFF

canceled

You can select one of four preset sound modes.

• This function also affects the sound from headphones.

• This function affect neither recording nor the signals

output through the DVD OPTICAL DIGITAL OUT termminal.

On the remote control ONLY: To select the sound modes, press SOUND repeatedly until

the sound mode you want appears in the main display. The SOUND indicator also lights up on the display.

• Each time you press the button, the sound mode changes as follows:

ROCK

POP

FLAT

CLASSIC

JAZZ

(canceled)

ROCK: Boosts low and high frequency.

Good for acoustic music.

POP: Good for vocal music or voice. CLASSIC: Good for classical music. JAZZ: Good for jazz music. FLAT: Cancels the sound mode.

SOUND indicator

•“AHB PRO 2” is more effective than “AHB PRO 1.”

To cancel the effect, press AHB PRO repeatedly until

“AHB PRO OFF” appears in the main display. The AHBPRO indicator goes off.

Ex.: When you select “ROCK.”

To check the sound mode currently selected, press SOUND. The currently selected sound mode will appear in the main display.

To cancel the sound modes, press SOUND repeatedly until “FLAT” appears in the main display. The SOUND indicator goes off.

Changing the Display Illumination

You can change the illumination color and brightness of the electronic swing panel and the display window.

To select the illumination color

You can set the illumination color to your preference.

To create your favorite colors

You can create two favorite colors and store them in memory as “MANUAL1” and “MANUAL2.”

• There is a time limit in doing the following steps. If the unit exits from the color adjusting mode before you finish, start from step 1 again.

On the remote control ONLY:

English

Press COLOR (or COLOR/DEMO on the main unit) repeatedly while the unit is turned on until the color you want appears in the main display.

• Each time you press the button, the illumination color changes as follows:

RAINBOW: The rainbow colors illuminate the electronic

GRADATION: The illumination color changes gradually.

swing panel and the display.

WATER: A blue-based illumination pattern.

FANTASY: Pastel colors illuminate the electronic swing

CANDLE: A red-based illumination pattern.

panel and the display.

FOREST: A green-based illumination pattern.

SNOW: A white-based illumination pattern.

SKY: A sky-color based illumination pattern.

MANUAL1:

MANUAL2:

The color changes according to the time if the built-in clock is set. If not, “ADJUST! CLOCK” flashes in the main display when you select this illumination color.

You can set the illumination color as you like (see the right column).

(back to the beginning)

Press COLOR repeatedly until “MANUAL1” or “MANUAL2” appears in the main display.

The brightness level to be adjusted starts flashing.

Red Green Blue

To adjust the brightness of each color

1) Press Cursor 3/2 to select one of the

fundamental colors (Red, Green, Blue) you want to adjust.

2) Press Cursor 5/∞ repeatedly to adjust the level

of the brightness (within the range of 0 to 3).

• As you increase the number, the color becomes brighter.

• To restore the initial color for “MANUAL1” or “MANUAL2,” press CANCEL.

3) Repeat steps 1) and 2) to create your favorite color.

4) Press SET.

Your favorite color is stored.

If you do not make any adjustment for about 8

The normal display resumes and the color you have created up to that time is stored.

seconds

Listening to FM and AM Broadcasts

The buttons emphasized in the illustration below are used and explained in the following section (pages 25 and 26).

Remote control

PLAY MODE

ZOOM

SUB TITLE

TITLE SEARCH

MD GROUP

TITLE/EDIT

GROUP REC

ENTER

REV. MODE

DIGEST

ANGLE

SLOW

3D PHONIC

MUTING

VOLUME

STANDBY/ON

DEF

DISP/CHARA

CLOCK/TIMER

COLOR

DIMMER

MENU CHOICE

FM/AM

TAPE

FM MODE

–+

SLOW

FADE

SLEEP

CANCEL

RETURN

/AUX

AHB PRO

SOUND

A.P. OFF

DVD

LEVEL

FM/AM

/AUX

FM MODE

MARK ABC

DEF

123

GHI JKL MNO

456

PQRS TUV WXYZ

789

10 0 +10

SET

PREV. NEXT

GROUP SKIP

MARK ABC

123

GHI JKL MNO

456

PQRS TUV WXYZ

789

10 0 +10

ON SCREEN

AUDIO

LP:

TOP MENU

SET

DVD

SELECT

STROBE

PREV.

GROUP SKIP

TITLE/EDIT

SP/LP2/LP4

SHIFT

RM-SUXA10DVDU REMOTE CONTROL

English

Main unit

REV.MODE

DVD MD TAPE

AUTO REVERSE

UX-A10DVD

AUX

FM/AM

English

Setting the AM Tuner Interval Spacing

Some countries space AM stations 9 kHz apart, and some countries use 10 kHz spacing. When shipped, the built-in AM tuner is set to 9 kHz spacing. You can change it to 9 kHz or 10 kHz spacing.

On the main unit ONLY: To set the AM tuner to the 10 kHz spacing, be sure that

the unit is turned off, but is plugged into a wall outlet. While holding ¢, press in to 530 kHz.

To set it back to the 9 kHz spacing, be sure that the unit is turned off, but is plugged into a wall outlet. While holding 4, press in to 531 kHz.

When you change the AM tuner interval spacing

The preset stations you have set (both FM and AM) will be erased. In this case, preset stations again. See “Presetting Stations” on the next page.

. The unit turns on and tunes

Tuning in to a Station

Press FM/AM/AUX (or FM/AM on the main unit) to select either “FM” or “AM.”

When you press the button for the first time, the unit automatically turns on with the last selected source.

On the remote control:

• Each time you press the button, the source changes as follows:

To stop during searching, press ¢ or 4 (or UP or DOWN on the main unit).

When you repeatedly press ¢ or 4 (or UP or DOWN on the main unit)

The frequency changes step by step.

To change the FM reception mode

When an FM stereo broadcast is noisy or hard to receive, you can change the FM reception mode to improve the reception.

On the remote control ONLY: Press FM MODE.

• Each time you press the button, FM reception mode alternates between STEREO and MONO.

STEREO: Normally select this.

You can hear stereo sound when a program is broadcast in stereo. The STEREO indicator lights while receiving the FM stereo broadcast (only when the reception is good).

MONO: Select this when an FM stereo broadcast is

noisy or hard to receive. Reception improves though stereo effect is lost. The MONO indicator lights up on the display.

AUX-DIGITAL

On the main unit:

• Each time you press the button, the band alternates between FM and AM.

Press and hold ¢ or 4 (or UP or DOWN on the main unit) until the station frequencies start changing continuously in the main display.

• ¢ (UP): Increases the frequencies.

• 4 (DOWN): Decreases the frequencies.

The unit starts searching for stations and stops when a station of sufficient signal strength is tuned in.

• If an FM program is broadcast in stereo, the STEREO indicator lights up on the display.

AUX

Presetting Stations

You can preset 30 FM and 15 AM stations manually.

In some cases, test frequencies have been already stored for the tuner since the factory examined the tuner preset function before shipment. This is not a malfunction. You can preset the stations you want into memory by following the presetting method.

• There is a time limit in doing the following steps. If the setting is canceled before you finish, start from step again.

On the remote control ONLY:

Tune in to the station (either FM or AM) you want to preset.

• See “Tuning in to a Station” on the previous page.

Press SET.

The preset number starts flashing as follows:

Ex.: When you select an FM station in step 1.

When you unplug the AC power cord or if a power failure occurs

The FM and AM preset stations will be erased in a day. If this happens, preset the stations again.

Tuning in to a Preset Station

On the remote control ONLY:

Press FM/AM/AUX to select either “FM” or “AM.”

When you press the button for the first time, the unit automatically turns on with the last selected source.

• Each time you press the button, the source changes as follows:

AUX-DIGITAL

Press the number buttons to select a preset number.

Ex.: For preset number 5, press 5.

For preset number 15, press +10, then 5. For preset number 20, press +10, then 10. For preset number 30, press +10, +10, then 10.

AUX

English

• The unit always starts from the preset number 1.

Press the number buttons to select a preset number.

Ex.: For preset number 5, press 5.

For preset number 15, press +10, then 5. For preset number 20, press +10, then 10. For preset number 30, press +10, +10, then 10.

• You can also select the preset number by pressing

¢ or 4.

Press SET again.

“STORED” appears in the main display for a while.

The tuned station in step number selected in step

• Storing a new station on an already assigned number erases the previously stored one.

is stored in the preset

Playing Back Discs

English

The buttons emphasized in the illustration below are used and explained in the following section (pages 28 to 39).

SVCD

DVD

SVCD

DVD

VCD

Remote control

ON SCREEN

Audio CD

Anduio CD

MARK ABC

shows the types of discs the operation is available for.

MP3

DEF

123

GHI JKL MNO

456

PQRS TUV WXYZ

789

10 0 +10

PLAY MODE

ZOOM

REV. MODE

DIGEST

SHIFT

MARK ABC

GHI JKL MNO

PQRS TUV WXYZ

10 0 +10

ON SCREEN

AUDIO

TOP MENU

SET

DVD

SELECT

STROBE

PREV.

TITLE/EDIT

SP/LP2/LP4

SHIFT

RM-SUXA10DVDU REMOTE CONTROL

DEF

123

456

789

PLAY MODE

REV. MODE

ZOOM

DIGEST

SUB TITLE

ANGLE

TITLE SEARCH

LP:

ENTER

TAPE

SLOW

GROUP SKIP

MD GROUP

TITLE/EDIT

3D PHONIC

FADE

MUTING

GROUP REC

VOLUME

STANDBY/ON

DISP/CHARA

CLOCK/TIMER

A.P.

SLEEP

OFF

DVD

COLOR

LEVEL

DIMMER

MENU CHOICE

CANCEL RETURN

FM/AM

/AUX

FM MODE

–+

SLOW

AHB PRO

SOUND

DVD

COLOR

LEVEL

TOP MENU

SET

DVD

SELECT

STROBE

PREV. NEXT

GROUP SKIP

ENTER

SLOW

MENU CHOICE

CANCEL

RETURN

FM/AM

TAPE

/AUX

FM MODE

–+

SLOW

Main unit

REV.MODE

DVD MD TAPE

AUTO REVERSE

UX-A10DVD

AUX

FM/AM

IMPORTANT:

Before performing any operations for DVD, SVCD and VCD, make sure of the following.

• Check the connection with the TV.

• Turn on the TV and select the correct input on the TV to view the pictures or on-screen menus/indications on the TV screen.

• Select the correct color system.

Loading a Disc

Available for:

Press DVD 0 on the main unit.

The unit automatically turns on, the electronic swing panel slides downward, then the disc tray comes out.

DVD

SVCD

VCD

Audio CD

Anduio CD

MP3

English

To prevent screen burn-out with the screen saver

A TV screen may be burned out if a static picture is displayed for a long time. To prevent this, the unit automatically dims the screen if a static picture is displayed for over 5 minutes (the screen saver function).

• Pressing any button will cancel the screen saver function.

• You can select the screen saver mode. (See page 86.)

• The screen saver does not work for Audio CDs and MP3 discs.

On-screen guide icons

• During DVD playback, the following guide icons may appear for a while on the TV screen:

–“ ” : appears at the beginning of a scene

containing multi-angle views.

–“ ” : appears at the beginning of a scene

containing multi-audio languages.

” : appears at the beginning of a scene

–“

containing multi-subtitle languages.

•“ ” (Play), “ ” (Pause), “ ”/“ ” (Fast forward/backward), “ forward/backward): appears when you perform each operation.

• If “

• In some cases, without showing “ ,” operations will not

• If you do not want the on-screen guide icons to appear, see

” appears on the TV screen when pressing

a button, the disc cannot accept an operation you

have tried to do, or information required for that operation is not recorded on the disc.

More about the on-screen guide icons

be accepted.

page 86.

”/“ ” (Slow-motion

Disc tray

Electronic swing panel

Place a disc correctly on the circle of the disc tray with its label side up.

Good

• When using an 8 cm disc, place it on the inner circle of the disc tray.

Press DVD 0.

The disc tray closes, then the electronic swing panel slides upward automatically.

• If you press DVD #/8 on the main unit (or DVD SELECT 3 on the remote control) instead of DVD 0, the disc tray and electronic swing panel closes, then playback starts.

To remove the disc, press DVD 0.

• After removing the disc, press DVD 0 again to close the

disc tray.

• When you use the Resume function (see page 86),

pressing DVD 0 erases the memory of the position where you have stopped playback.

About the disc indicators

No good

When a DVD is loaded.

• The disc indicator rotates while a disc is being played.

• The disc indicator goes off when there is no disc in the disc tray.

When a VCD or SVCD is loaded.

When an Audio CD or MP3 disc is loaded.

English

DVD Basic Operations

Available for:

• To play back a SVCD, VCD, or Audio CD, see page 30.

• To play back an MP3 disc, see page 32.

• Playback will stop when a disc menu appears on the TV

screen. If a menu appears while playing, see “Playing

Back by Using the Disc Menu” on page 34.

Load a disc.

• With some DVDs, playback starts automatically after

you close the disc tray by pressing DVD 0.

DVD

To go to another chapter

Press 4 or ¢ during playback.

• 4: Goes back to the beginning of the current or

previous chapters.

• ¢: Skips to the beginning of the next or succeeding

chapters.

Some DVDs may not accept this operation.

To go to a particular title or chapter directly using the number buttons

Press DVD #/8 on the main unit (or DVD SELECT 3 on the remote control).

After reading the disc contents, playback starts from the first chapter of the first title.

• The disc playing information appears on the display.

Current title No.

Current chapter No.

Elapsed playing time

To stop play for a moment, press DVD #¥8 (or 8 on the remote control). While pausing, the elapsed playing time and the disc indicator flash on the display.

• To start playback again, press DVD #¥8 again (or press DVD SELECT 3 on the remote control).

To stop playing, press 7.

• This unit can store the stop point, and when you start playback again by pressing DVD #¥8 (or DVD SELECT 3 on the remote control), playback starts from the position where you have stopped—Resume play. (“RESUME” appears on the display.) To use Resume play, you need to turn on the Resume function. (See page 86.)

• To stop completely when you use the Resume function, press 7 twice. Playback will starts from the beginning of the disc.

On the remote control ONLY:

• Pressing the number buttons before playback allows you to start playing with the title number you want.

• Pressing the number buttons during playback allows you to start playing with the chapter number of the currently playing title you want. Ex.: To select number 5, press 5.

To select number 10, press 10. To select number 20, press +10, +10 then 0. To select number 23, press +10, +10 then 3.

Number buttons may be used for selecting an item in the menu. (See page 34.)

If a menu is shown on the TV while playing a DVD

To show the on-screen indication

You can show the following information on the TV while playing back a DVD.

On the remote control ONLY: To show the on-screen indication, press ON SCREEN

while playing a DVD.

• Each time you press the button, the indication on the TV change as follows:

Current disc information

Off

(No indication)

Disc playing

information

SVCD

VCD

Anduio CD

Audio CD

Continued

• Current disc information

1 / 2 1 / 2 1 / 5

ENGLISH ENGLISH

2 34

1 : Current disc information 2 : Total number of multi-angle views 3 : Total number of audio languages 4 : Total number of subtitles

• Disc playing information

TITLE

CHAP.

TIME

1:33:33

BITRATE

3.3

Mbps

1 : Current title number 2 : Current chapter number 3 : Elapsed playing time of the current title 4 : Transmission rate

To increase the DVD’s sound level

The DVD’s audio sound is recorded at a lower level than for other discs such as VCDs or Audio CDs. If you feel the sound is not strong enough to listen to when playing back a DVD, you can increase the sound level of DVD playback in advance.

• Once you adjust this setting, it is effective every time you play back a DVD.

• This setting does not effect any discs other than DVDs.

• The audio output level through the DVD OPTICAL DIGITAL OUT terminal does not change if you change the DVD sound level.

On the remote control ONLY: To increase the sound level of DVD playback, press DVD

LEVEL while holding down SHIFT.

• Each time you press the buttons, the sound level changes as follows:

NORMAL

MIDDLE

HIGH

SVCD/VCD/Audio CD Basic Operations

Available for:

• To play back a DVD, see page 29.

• To play back an MP3 disc, see page 32.

• While playing a SVCD or VCD with the PBC function,

the playback will stop when a disc menu appears. If a

menu appears while playing a SVCD or VCD with PBC function, see “Playing Back by Using the Disc Menu” on page 34.

Load a disc.

Press DVD #/8 on the main unit (or DVD SELECT 3 on the remote control).

After reading the disc contents, playback starts from the first track.

• The disc playing information appears on the display.

Current track No.

Elapsed playing timeCurrent disc type*

Ex.: When a VCD is played without the PBC function.

* About the indication of current disc type

– “VCD”: shows a SVCD or VCD is loaded. – “CD”: shows an Audio CD is loaded.

• While playing a SVCD or VCD with the PBC function, “PBC” rather than the current track number appears in the main display and the PBC indicator lights up. (About the PBC function, see pages 34 and

35.)

PBC indicator

English

The selected level appears on the display.

Ex.: When “MIDDLE” is selected.

• When you purchased this unit, the DVD sound level is set to “MIDDLE.”

Ex.: When a VCD is played with the PBC function.

English

To stop play for a moment, press DVD #¥8 (or 8 on the remote control). While pausing, the elapsed playing time and the disc indicator flash on the display.

• To start playback again, press DVD #¥8 again (or press DVD SELECT 3 on the remote control).

To stop playing, press 7.

• This unit can store the stop point, and when you start playback again by pressing DVD #¥8 (or DVD SELECT 3 on the remote control), playback starts from the position where you have stopped—Resume play. (“RESUME” appears on the display.) To use the Resume play, you need to turn on the Resume function. (See page 86.) – The Resume function does not work for Audio CDs. – When using Resume play on SVCD or VCD with the

PBC function, playback starts a little before the position where you have stopped.

• To stop completely when you use the Resume function, press 7 twice.

To go to another track

Press 4 or ¢ during playback.

• 4: Goes back to the beginning of the current or

previous tracks.

• ¢: Skips to the beginning of the next or succeeding

tracks.

To show the on-screen indication

You can show the following information on the TV while playing back a disc.

On the remote control ONLY: To show the on-screen indication, press ON SCREEN

while playing a disc.

TRACK

TIME

3:33 PBC

Ex.: When SVCD or VCD with the PBC function is a playing

source.

1 : Current track number 2 : Elapsed playing time of the current track 3 : • “PBC” is shown when a SVCD or VCD with the

PBC function is played.

• “EACH” is shown when a SVCD or VCD without the PBC function or an Audio CD is played.

To erase the on-screen indication, press ON SCREEN again.

While playing a SVCD or VCD with the PBC

The ¢ and 4 buttons may be used for the operations for a disc menu. (See page 34.)

function

To go to a particular track directly using the number buttons

On the remote control ONLY:

Pressing the number buttons before or during playback allows you to start playing with the track number you want. Ex.:To select number 5, press 5.

To select number 10, press 10. To select number 20, press +10, +10 then 0. To select number 23, press +10, +10 then 3.

While playing a SVCD or VCD with the PBC

If a menu is shown on the TV, number buttons may be used for selecting an item in the menu. (See page 34.)

function

Continued

MP3 Basic Operations

Available for:

• To play back a DVD, see page 29.

• To play back a SVCD, VCD, or Audio CD, see page 30.

About MP3 disc

What is MP3?

MP3 is an abbreviation of Motion Picture Experts Group 1 (or MPEG-1) Audio Layer 3. MP3 is simply a file format with a data compression. By using MP3 format, one CD-R or CD-RW can contain 10 times as much data volume as a regular CD can.

Disc structure

On an MP3 disc, each item (song) is recorded as a track (file), which usually belongs to a group (folder).

Track 1

This unit can recognize up to 99 groups and up to 254 tracks per group; however, the number of tracks to be played back on a disc is limited to 1023. If a disc includes more than 1023 tracks, the unit ignores any tracks which have been assigned track numbers exceeding 1023. The unit also ignores any non-MP3 files on the disc.

Group 1

MP3

Track 2

Track 3

Group 2

Track 4 Track 5

Unavailable functions for MP3 disc

• There are some restriction for playback of MP3 discs. Following functions are not available for MP3 discs. – Screen saver function (See page 28.) – Forward/Reverse search (See page 33.) – A-B repeat (See page 36.) – Time search (See page 50.) – 3D PHONIC (See page 55.) – Resume playback (See page 86.)

• This unit cannot show the names of tracks (files) and groups (folders) on an MP3 disc.

Load a disc.

Press DVD #/8 on the main unit (or DVD SELECT 3 on the remote control).

After reading the disc contents, playback starts.

• The disc playing information appears on the display.

Current group No.

Current track No.

English

NOTES for MP3 discs

• MP3 discs (either CD-R or CD-RW) require a longer readout time, due to the complexity of the folder/file configuration.

• When making an MP3 disc, select ISO 9660 Level 1 or Level 2 as the disc format.

• Some MP3 discs may not be played back because of their disc characteristics or recording conditions.

• The unit does not support “packet writing” of discs.

• If there are any tracks (files) which are stored on a disc directly and do not belong to any group (folder), the unit recognizes them as belonging to a particular group.

• The unit does not output a digital audio signal from the DVD OPTICAL DIGITAL OUT terminal when playing back an MP3 disc.

• The unit plays back groups/tracks on an MP3 disc in alphabetical order.

Ex.:When there are three title groups [one], [two] and [three] on

a disc:

Recorded playback order

123

one

The playback order on this unit is [one], [three] then [two].

Playback order on this unit

123

one

Tracks in a group are played back in the same way. An MP3 disc on the market may be played back in a different order from the order printed on its sleeve.

two

three

two

Elapsed playing time

To stop play for a moment, press DVD #¥8 (or 8 on the remote control). While paused, the elapsed playing time and the disc indicator flash on the display.

• To start playback again, press DVD #¥8 again (or press DVD SELECT 3 on the remote control).

To stop playing, press 7.

To go to another track

Press 4 or ¢ during playback.

• 4: Goes back to the beginning of the current or

previous tracks.

• ¢: Skips to the beginning of the next or succeeding

tracks.

While playback is stopped

You cannot select a track. The 4 and ¢ buttons works to select groups.

English

To go to another group

On the remote control ONLY:

Press GROUP SKIP 4 or GROUP SKIP ¢ while holding down SHIFT during playback.

• GROUP SKIP 4: Goes back to the previous groups.

• GROUP SKIP ¢: Skips to the beginning of the next

or succeeding groups.

To show the on-screen indication

You can show the following information on the TV while playing back a disc.

On the remote control ONLY: To show the on-screen indication, press ON SCREEN

while playing a MP3 disc.

MP3

GROUP 3 TRACK

TIME

3:33

BITRATE

128

kbps

You can select a group by pressing 4 or ¢.

While playback is stopped

To go to a particular group or track directly using the number buttons

On the remote control ONLY:

To select the group you want to play

Press the number buttons to select a group number (up to

99) while playback is stopped. Ex.:To select number 5, press 5.

To select number 10, press 10. To select number 20, press +10 then 10. To select number 23, press +10, +10 then 3.

To select the track you want to play

Press the number buttons to select a track number (up to

254) during playback. Ex.:To select number 5, press 5.

To select number 10, press 10. To select number 20, press +10, +10 then 0. To select number 23, press +10, +10 then 3. To select number 150, press +10 fifteen times, then 0.

1 : Current group number 2 : Current track number 3 : Elapsed playing time of the current track 4 : Transmission rate*

* The transmission rate will change according to the

recording conditions. This is not a malfunction.

To erase the on-screen indication, press ON SCREEN again.

Searching for a Particular Point

Available for:

You can search for a particular portion while playing a disc —Forward/Reverse search.

• When playing a DVD, SVCD, or VCD disc, no sound comes out during Forward/Reverse Search.

On the remote control:

Forward search

To fast-forward the chapter or track, press ¡ while playing a disc.

• Each time you press the button, the search speed increases.

DVD

SVCD

VCD

Audio CD

Anduio CD

Reverse search

To fast-reverse the chapter or track, press 1 while playing a disc.

• Each time you press the button, the search speed increases.

To go back to normal play, press DVD SELECT 3 (or DVD #¥8 on the main unit).

When playing a DVD, SVCD, or VCD disc

The current search speed (x2 to x60) appears on the TV.

Continued

On the main unit:

Forward search

To fast-forward the chapter or track, press and hold ¢ while playing a disc.

• If you keep holding down the button for a certain period of time, the search speed increases.

Reverse search

To fast-reverse the chapter or track, press and hold 4 while playing a disc.

• If you keep holding down the button for a certain period of time, the search speed increases.

To go back to normal play, release the button.

The current search speed (x2 and x20) appears on the TV.

When playing a DVD, SVCD, or VCD disc

Playing Back by Using the Disc Menu

Available for:

Some DVDs are recorded with their own menus which show their contents. SVCDs or VCDs with the Playback Control (PBC) function also have their own menus, such as lists of songs. You can play back the discs by using these menus.

7 When playing a DVD

DVD discs generally have their own menus which show the disc contents. These menus contain various items such as titles of movies, names of songs, or artist information, and display them on the TV screen. You can play back by using these menus.

On the remote control ONLY:

Press TOP MENU or MENU.

The menu appears on the TV.

Ex.:

DVD

SVCD

VCD

Normally, a DVD containing more than one title will list the titles in a title menu. Press TOP MENU to show the title menu. Some DVD discs may also have a different menu which is shown by pressing MENU.

• See the instructions of each DVD disc for its particular menu.

Use Cursor 2/3/5/∞ to select a desired item, then press ENTER.

Playback of the selected item starts.

• With some discs, you can also select items by entering the corresponding number using the number buttons.

7 When playing a SVCD or VCD

When a SVCD or VCD with the Playback Control function (PBC) is detected, the PBC indicator lights up on the display. The PBC function allows you to operate the SVCD or VCD by using menus. When you start playback, a menu automatically appears on the TV screen.

• A menu may be a list of items, divided screens, or some moving pictures. (See “PBC operation concept” on the next page.)

• See also the instructions of each disc for its particular menu.

Ex.:

On the remote control ONLY: To select the number of the desired item, press the

number buttons. Ex.:To select number 5, press 5.

To select number 10, press 10. To select number 20, press +10, +10 then 0. To select number 23, press +10, +10 then 3.

The system starts playback from the selected item. To return to the previous menu, press RETURN while

holding down SHIFT.

English

When “NEXT” or “PREVIOUS” is shown on the menu:

You can go to other pages of the menu.

• To go to the next page, press NEXT (¢).

• To return to the previous page, press PREV. (4).

English

PBC operation concept

Repeating Playback

7 Repeat play

To cancel the PBC function:

Press 7 during playback. Playback stops.

Press the number buttons to select the track number you want to play. Playback starts from the selected track without the PBC function.

To activate the PBC function again, press 7 once or twice to stop playback completely, then press DVD SELECT 3.

• When you use the Resume function, press 7 twice to

stop playback completely.

You can also activate the PBC function during playback without the PBC function as follows:

Press PLAY MODE. The play mode screen appears on the TV.

REPEAT A-B REPEAT TIME SEARCH PBC CALL

Available for:

DVD

SVCD

VCD

Audio CD

Anduio CD

You can repeat playback of disc’s contents as follows: – For DVD: You can repeat the current title or chapter.

• The repeat play cannot be used on some DVD discs.

• For DVD, you can select “REPEAT” only during playback.

– For SVCD, VCD, or Audio CD:

You can repeat a track or all tracks.

• You can only use the repeat play on SVCD or VCD without the PBC function.

– For MP3 disc:

You can repeat a groups or all groups.

On the remote control ONLY:

Press PLAY MODE before or during play.

The play mode screen appears on the TV.

REPEAT PROGRAM RANDOM

Ex.: While playback is stopped.

REPEAT A-B REPEAT TIME SEARCH CHAP. SEARCH

Ex.: During DVD playback.

Press Cursor 2/3 to move to “REPEAT.”

Press ENTER repeatedly to select the repeat play mode you want.

The selected repeat mode is shown on the TV and in the main display of this unit.

• Each time you press the button, the repeat play mode changes as follows:

For DVD:

Ex.: During playback.

DVD CONTROL

REPEAT A-B REPEAT TIME SEARCH CHAP. SEARCH

REPEAT TITLE

TITLE

CHAPTER

No indication

(canceled)

MP3

Use Cursor 2/3 to move to “PBC CALL,” then press ENTER.

• You cannot cancel the PBC function from the play mode screen.

• TITLE: Current title will be repeated.

• CHAPTER: Current chapter will be repeated.

For SVCD, VCD, or Audio CD:

Ex.: During VCD playback.

VCD CONTROL

REPEAT A-B REPEAT TIME SEARCH PBC CALL

REPEAT ALL

ALL

No indication

(canceled)

• ALL: All tracks on the disc or all tracks in the

program will be repeated.

•1: Current track will be repeated.

For MP3 disc:

Ex.: During playback.

CD CONTROL

REPEAT A-B REPEAT TIME SEARCH

REPEAT ALL

ALL

No indication

(canceled)

7 A-B repeat play

Available for:

While playing, you can select a portion you want to repeat.

• During the program play (see page 37), random play (see page 39), or repeat play, you cannot perform the A-B repeat play.

• You cannot perform the A-B repeat play between different chapters or different titles on a DVD.

On the remote control ONLY:

Press PLAY MODE during play.

The play mode screen appears on the TV.

Press Cursor 3/2 to move to “A-B REPEAT.”

REPEAT A-B REPEAT TIME SEARCH CHAP. SEARCH

Ex.: While a DVD is played back.

Press ENTER at the starting point from which you want to repeat (point A).

The A-B repeat indication appears on the TV.

DVD

SVCD

VCD

Audio CD

Anduio CD

English

• ALL: All groups on the disc or all groups in the

program will be repeated.

•1: Current group will be repeated.

The corresponding repeat mode indicators light up on the display.

• When “TITLE” or “ALL” is selected: The

indicator lights up on the display.

• When “CHAPTER” or “1” is selected: The indicator lights up on the display.

To erase the play mode screen, press PLAY MODE. To stop playing, press 7. To cancel the repeat play, perform steps

and 2, then press ENTER repeatedly until the repeat mode indication disappear from the TV. “REPEAT OFF” appears in the main display and the repeat mode indicator goes off. To erase the play mode screen, press PLAY MODE.

• Pressing 7 during the repeat play of DVD stops

playback and cancels the repeat play.

• Ejecting the disc or turning off the unit will also cancel

the repeat play.

A 1:12 : 34 B : :

• The following indication also appears on the display.

A-B repeat indicator

Press ENTER again at the end point to which you want to repeat (point B).

The A-B repeat play begins. The unit automatically locates point A and starts repeating the portion between points A and B.

To erase the play mode screen, press PLAY MODE. To cancel the A-B repeat play, press ENTER.

The A-B repeat play is canceled and normal playback continues from that point .

English

3MP3

Programming the Playing Order —Program Play

Available for:

You can arrange the order of playback before you start playing. – For DVD: You can arrange the order in which the titles

play.

• The program play cannot be used on some DVD discs.

– For SVCD, VCD, Audio CD:

You can arrange the order in which the tracks play.

– For MP3 disc:

You can arrange the order in which the groups play.

• You can program up to 18 steps.

• You cannot perform the program play while the random play is activated. (See page 39.)

On the remote control ONLY:

Load a disc.

Press DVD SELECT 3, then 7.

The source is changed to the DVD player and playback is stopped.

Press PLAY MODE.

The play mode screen appears on the TV.

REPEAT PROGRAM RANDOM

DVD

SVCD

VCD

Audio CD

Anduio CD

MP3

Press the number buttons to enter a title, track, or group number you want to program.

The selected number is shown on the program screen. Ex.: To select number 5, press 5.

To select number 10, press 10. To select number 20, press +10 +10 then 0. To select number 23, press +10, +10 then 3.

Selected title, track, or group number

To program other titles, tracks, or groups, repeat

step

REPEAT PROGRAM RANDOM

1 2 3 4 5 6 8 3 9 4 18 15 7 8 9 10 11 12 12 11 1 2 5 7 13 14 15 16 17 18 16 6 13 10 22 14

• You can also check the program settings on the display.

The current title/track/group No.*

PRGM indicator

Step No.

Press Cursor 3/2 to move to “PROGRAM,” then press ENTER.

The program screen appears on the TV.

REPEAT PROGRAM RANDOM

1 2 3 4 5 6

7 8 9 10 11 12

13 14 15 16 17 18

The PRGM (program) indicator lights up on the display.

Step Nos.

Total playing time*

Ex.: When an Audio CD is loaded and 18 tracks have

been programed.

*1• When a DVD is loaded, “T” (title) appears before the

number.

• When an MP3 disc is loaded, “G” (group) appears before the number.

*2When a DVD or an MP3 disc is loaded, the total playing

time does not appear.

Press DVD SELECT 3.

The program screen goes off and your program starts playing.

• If you press one of the recording buttons—ONE TOUCH MD REC, ONE TOUCH TAPE REC, or MD&TAPE REC, you can start recording. (See “Recording” on pages 56 to 64.)

To stop playing, press 7. Playback stops, but the program play is still activated.

• To exit from the program play, see “To exit from the program play” on the right column.

To go to the next steps, press ¢.

• You cannot go back to the previous steps by pressing

If your entry is ignored

You have tried to program a title/track/group number that does not exist on the disc (for example, selecting track 14 on a disc that only has 12 tracks). Such entries are ignored.

If the total playing time exceeds 100 minutes

The total playing time in the main display will not be shown. (“– – : – –” will appear.)

To check the programed contents

On the TV:

Press PLAY MODE. The programed contents appear on the TV. To erase the play mode screen, press PLAY MODE.

On the display:

Press ¢ or 4 while the program play is stopped.

• ¢: Shows the programed tracks in the programed

order.

• 4: Shows them in the reverse order.

To modify the program

You can modify the program before or after playing.

To show the program screen:

Press PLAY MODE while the program play is stopped. The program screen appears on the TV.

• If you press the button during playback, the program screen appears on the TV, but you cannot modify your program.

Press Cursor 3/2 to move to “PROGRAM.” Now you can modify your program.

To erase the last step, press CANCEL.

• Each time you press the button, the last programed step is erased from the program.

To add steps in the program before play, simply select the numbers you want to add by pressing the number buttons.

To erase the entire program, press and hold CANCEL for about 3 seconds.

• Ejecting the disc or turning off the unit also erase the program.

To exit from the program play

When the program play is stopped, perform steps 3 and on page 37 so that the program screen disappears from the TV. “PROGRAM OFF” appears in the main display and the PRGM (program) indicator goes off. To erase the play mode screen, press PLAY MODE.

• Each time you press ENTER in step turns on and off.

• Ejecting the disc or turning off the unit will also cancel the program play and erase the program.

, the program play

English

3MP3

Playing at Random—Random Play

Available for:

You can play disc’s contents in random order. – For DVD: You can play the titles in random order.

• The random play cannot be used on some DVD discs.

– For SVCD, VCD, Audio CD:

You can play the tracks in random order.

– For MP3 disc:

You can play the groups in random order.

• You cannot perform the random play while the program play is activated. (See page 37.)

On the remote control ONLY:

Load a disc.

DVD

SVCD

VCD

Audio CD

Anduio CD

MP3

Press DVD SELECT 3.

Playback starts in random order. The random play ends when all titles, tracks, or groups are played once.

• If you press one of the recording buttons—ONE TOUCH MD REC, ONE TOUCH TAPE REC, or MD&TAPE REC, you can start recording. (See “Recording” on pages 56 to 64.)

To skip the playing title, track, or group, press ¢.

• You cannot go back to the previous title, track, or group

by pressing 4.

To stop playing, press 7. Playback stops, but the random play is still activated.

• To exit from the random play, see “To exit from the random play” below.

Press DVD SELECT 3, then 7.

The source is changed to the DVD player and playback is stopped.

Press PLAY MODE.

The play mode screen appears on the TV.

REPEAT PROGRAM RANDOM

Press Cursor 3/2 to move to “RANDOM,” then press ENTER.

“RANDOM” appears under the play mode screen.

REPEAT PROGRAM RANDOM

RANDOM

“RANDOM ON” appears in the main display and the RANDOM indicator lights up.

To exit from the random play

When the random play is stopped, perform steps 3 and 4 so that “RANDOM” disappears from the TV. “RANDOM OFF” appears in the main display and the RANDOM indicator goes off. To erase the play mode screen, press PLAY MODE.

• Each time you press ENTER in step mode turns on and off.

• Ejecting the disc or turning off the unit will also cancel the random play.

, the random play

Playing Back MDs

The buttons emphasized in the illustration below are used and explained in following section (pages 41 to 46).

Remote control

MARK ABC

123

GHI JKL MNO

456

PQRS TUV WXYZ

789

10 0 +10

ON SCREEN

PLAY MODE

AUDIO

TITLE SEARCH

LP:

PREV. NEXT

GROUP SKIP

ZOOM

SUB TITLE

DEF

REV. MODE

DIGEST

ANGLE

MARK ABC

123

GHI JKL MNO

456

PQRS TUV WXYZ

789

10 0 +10

PLAY MODE

ON SCREEN

ZOOM

SUB TITLE

AUDIO

TITLE SEARCH

LP:

TOP MENU

ENTER

SET

DVD

SELECT

STROBE

PREV.

GROUP SKIP

MD GROUP

TITLE/EDIT

3D PHONIC

SP/LP2/LP4

GROUP REC

SHIFT

VOLUME

DEF

REV. MODE

DIGEST

ANGLE

TAPE

–+

SLOW

FADE

MUTING

STANDBY/ON

DISP/CHARA

CLOCK/TIMER

SLEEP

COLOR

DIMMER

MENU CHOICE

CANCEL RETURN

FM/AM

/AUX

FM MODE

SLOW

AHB PRO

SOUND

DISP/CHARA

A.P.

OFF

DVD LEVEL

ENTER

SET

CANCEL

RETURN

English

Main unit

SHIFT

RM-SUXA10DVDU REMOTE CONTROL

REV.MODE

DVD MD TAPE

AUTO REVERSE

UX-A10DVD

AUX

FM/AM

English

Playing Back the Entire MD

Press MD 0 on the main unit.

The unit automatically turns on, the electronic swing panel slides upward, then the MD loading slot appears.

• If an MD is already in the MD loading slot, it will be ejected.

Insert an MD into the MD loading slot.

The MD is pulled in, then the electronic swing panel slides downward automatically.

Insert an MD in the same way as indicated on the MD.

MD loading slot

• When the current source is MD, the information on the loaded MD appears in the main display as follows:

1 MD indicator 2 Total track No. 3 Total group No. (when the MD has groups)* 4 Total playing time*

When the loaded MD has no group, the total group number will be indicated as “– –.”

When the loaded MD has a title, it will appear in the main display before the total playing time appears.

Press MD 3/8.

The MD indicator starts flashing on the display and MD playback starts from the first track.

• The recording length mode (SP/LP2/LP4) appears in the main display. (About the recording length mode, see the right column.)

MD playback stops automatically after playing all the tracks on the MD.

To stop playing, press 7. To remove the MD, press MD 0.

• After removing the MD, press MD 0 again to close the

electronic swing panel.

While the unit is pulling in the MD:

• DO NOT press MD 0.

• DO NOT close the electronic swing panel by force.

About the MD indicator

An MD is

loaded.

If the MD or track has a title

The title will appear in the main display for a while. (If a title is long and cannot be shown at a time, the unit scrolls the title to show the entire title.)

About recording length mode

MDs are played back in the same recording length mode as they were recorded. When an MD starts playing, the playback mode of the currently playing track appears in the main display.

SP: Indicates the tracks recorded in standard stereo recording

mode on this unit or those recorded on an MD recorder

incompatible with MDLP (see below).

LP2: Indicates the tracks recorded in 2 times long-hour stereo

recording mode.

LP4: Indicates the tracks recorded in 4 times long-hour stereo

recording mode.

For more details, see page 58.

MDLP features a new sound compression method (ATRAC3) and a 2 times (or 4 times) long-hour stereo recording and playing function. The MDLP logo is marked on the MD recorders and players compatible with MDLP. It is also marked on MDs pre-recorded in ATRAC3 (excluding recordable MDs).

During

playback.

During pause.

MD Basic Operations

While playing an MD, you can do the following operations.

To stop playback for a moment

Press MD 3/8. The MD indicator and the elapsed playing time start flashing on the display.

To resume playback, press MD 3/8 again.

To locate a particular point in a track during play

On the remote control: Press ¡ or 1.

• ¡: Fast-forwards the track.

• 1: Fast-reverses the track. To go back to normal play, press MD 3/8.

Continued

On the main unit: Press and hold ¢ or 4.

• ¢: Fast-forwards the track.

• 4: Fast-reverses the track.

To go back to normal play, release the button.

To go to another track

Press ¢ or 4 repeatedly.

• ¢: Skips to the beginning of the next or succeeding

tracks.

• 4: Goes back to the beginning of the current or

previous tracks.

To go to another track directly using the number buttons

On the remote control ONLY:

Pressing the number button(s) allows you to start playing the track number you want. Ex.: For track number 5, press 5.

For track number 15, press +10, then 5. For track number 20, press +10, then 10. For track number 32, press +10, +10, +10, then 2.

To change the information shown in the main display

On the remote control ONLY:

Each time you press DISP/CHARA, the information in the main display changes as follows:

While playing or pausing:

While stopped:

Clock time

1 Total track No. 2 Total group No.*

When the disc has no group, “– –” will appear.

When the disc has no title, “NO TITLE” will appear.

3 Total playing time 4 Disc title* 5 Remaining recording time

Repeating Tracks—Repeat Play

You can repeat all the tracks, the program, a group or the individual track currently playing as many times as you like.

• You cannot perform the A-B repeat play for MDs.

On the remote control ONLY:

Press PLAY MODE during or before play.

“REPEAT” appears in the main display.

English

Clock time

1 Current track No. 2 Current group No.* 3 Recording length mode

and elapsed playing time

When the current track does not belong to any group or when the disc has no group, “– –” will appear.

When the current track has no title, “NO TR TITLE” will appear.

When the current group has no title, “NO GR TITLE” will appear.

4 Current track title*

5 Current group title*

Current setting also appears.

Press ENTER repeatedly to select the repeat play mode you want.

• Each time you press the button, the repeat play mode changes as follows:

ALL

OFF

(canceled)

Continued next page

English

• ALL:

–For normal play or the random play:

Repeats all the tracks on the MD.

–For the program play mode:

Repeats the program.

–For the group play mode:

Repeats all the tracks in a group.

The

•1:

Repeats one track. The indicator lights up on the display.

To return to the normal display, press PLAY MODE. To stop playing, press 7. To cancel the repeat play, perform steps

42, so that “REPEAT OFF” appears in the main display and the repeat mode indicator goes off. To return to the normal display, press PLAY MODE.

• Ejecting the MD or turning off the unit will also cancel the repeat play.

indicator lights up on the display.

and 2 on page

Programing the Playing Order of the Tracks —Program Play

You can arrange the order in which the tracks play before you start playing. You can program up to 32 tracks.

• You cannot perform the program play while the random play (see page 44) or the group play (see page 45) is activated.

On the remote control ONLY:

• When the program play is activated, the program entry display appears in the main display after a few seconds. (See step 5.)

• Each time you press the button, play mode changes as follows:

REPEAT

Normal play

Press ENTER to enter the program play.

The program entry display appears in the main display.

PRGM (program) indicator lights up.

• Each time you press the button, the program play turns on and off.

Press the number buttons to select the tracks you want to program.

Ex.: For track number 5, press 5.

For track number 15, press +10, then 5. For track number 20, press +10, then 10. For track number 32, press +10, +10, +10, then 2.

The last programed track No.

PROGRAM

RANDOM

GROUP

Step No.

Load an MD.

Press MD 3/8, then 7.

The source is changed to “MD” and playback is stopped.

Press PLAY MODE.

“REPEAT” (with its current setting) appears in the main display.

Press Cursor 3/2 so that “PROGRAM” appears in the main display.

Appears only when the program play is deactivated.

Total playing time

Ex.: Seven tracks have been programed.

Press MD 3/8.

The tracks are played in the order you have programed. The program play ends when all the programed tracks are played back.

To stop playing, press 7. Playback stops, but the program play is still activated.

• To exit from the program play, see “To exit from the program play” on the next page.

If your entry is ignored

You have tried to program a track that does not exist on the MD (for example, selecting track 14 on an MD that only has 12 tracks). Such entries are ignored.

If you try to program a 33rd step

“MEMORY FULL” will appear in the main display.

If the total playing time exceeds 150 minutes

The total playing time will not be shown. (“– – : – –” will appear.)

To check the program contents

Press ¢ or 4 while the program play is stopped.

• ¢: Shows the programed tracks in the programed order.

• 4: Shows them in the reverse order.

To modify the program

You can modify the program before or after playing.

Press PLAY MODE while the program play is stopped. “REPEAT” appears in the main display.

Press Cursor 3/2 so that “PROGRAM” appears in the main display. “PROGRAM” turns into the program entry display after a few seconds. Now you can modify your program.

To erase the last step, press CANCEL.

• Each time you press the button, the last programed step is erased from the program.

To add steps in the program before play, simply select the track numbers you want to add by pressing the number buttons.

To erase the entire program, press and hold CANCEL for about 3 seconds.

• Ejecting the MD or turning off the unit also erase the program.

To exit from the program play

When the program play is stopped, perform steps 3 to 5 on page 43 so that “PROGRAM OFF” appears in the main display and the PRGM (program) indicator goes off. To return to the normal display, press PLAY MODE.

• Each time you press ENTER in step 5, the program play turns on and off.

• Ejecting the MD or turning off the unit will also cancel the program play and erase the program.

Playing at Random—Random Play

You can play MD’s contents in random order.

• You cannot perform the random play while the program

play (see page 43) or the group play (see page 45) is activated.

On the remote control ONLY:

Load an MD.

Press MD 3/8, then 7.

The source is changed to “MD” and playback is stopped.

Press PLAY MODE.

“REPEAT” (with its current setting) appears in the main display.

Press Cursor 3/2 repeatedly so that “RANDOM” (with its current setting) appears in the main display.

• Each time you press the button, play mode changes as follows:

REPEAT

Press ENTER to enter the random play.

• Each time you press the button, the random play turns “ON” and “OFF.”

Press MD 3/8.

Playback starts in random order. The random play ends when all the tracks are played once.

To skip the playing track, press ¢.

• You cannot go back to the previous tracks by pressing

To stop playing, press 7. “MD RANDOM” appears in the main display.

PROGRAM

Normal play

RANDOM indicator lights up.

To exit from the random play

When the random play is stopped, perform steps 3 to 5 so that “RANDOM OFF” appears in the main display and the RANDOM indicator goes off. To return to the normal display, press PLAY MODE.

• Ejecting the MD or turning off the unit will also cancel the random play.

RANDOM

GROUP

English

Playing Tracks in a Group—Group Play

You can play back only tracks in a group.

• To make or edit groups, see pages 66 to 74.

• You cannot perform the group play while the program

play (see page 43) or the random play (see page 44) is activated.

On the remote control ONLY:

Load an MD including (a) groups.

Press MD 3/8, then 7.

The source is changed to “MD” and playback is stopped.

Press PLAY MODE.

“REPEAT” (with its current setting) appears in the main display.

Press Cursor 3/2 repeatedly so that “GROUP” (with its current setting) appears in the main display.

• Each time you press the button, play mode changes as follows:

REPEAT

Normal play

PROGRAM

RANDOM

GROUP

To go to another group, press GROUP SKIP ¢ or GROUP SKIP 4 while holding down SHIFT.

• GROUP SKIP ¢: Skips to the first track in the next or

succeeding groups.

• GROUP SKIP 4: Goes back to the first track in the

current or previous groups.

To go to another track in the same group, press ¢ or 4 repeatedly.

• ¢: Skips to the beginning of the next or succeeding

tracks.

• 4: Goes back to the beginning of the current or

previous tracks.

To stop playing, press 7.

To exit from the group play

When the group play is stopped, perform steps 3 to 5 so that “GROUP OFF” appears in the main display and the GROUP indicator goes off. To return to the normal display, press PLAY MODE.

• Pressing one of number buttons also cancels the group play and starts normal play from the track selected by the button.

• Ejecting the MD or turning off the unit will also cancel the random play.

Press ENTER to enter the group play.

GROUP indicator lights up.

• Each time you press the button, the group play turns “ON” and “OFF.”

Press MD 3/8.

The tracks in the selected group are played.

• When the loaded MD has no groups, all the tracks on the MD are played back in the same way as in normal play.

The group play ends when all the tracks in the selected group are played back.

Searching for Tracks to Play —MD Title Search

You can search for the tracks by their titles and play them back. For details on assigning a title, see pages 80 to 82.

On the remote control ONLY:

Load an MD.

Press MD 3/8, then 7.

The source is changed to “MD” and playback is stopped.

Press TITLE SEARCH while holding down SHIFT.

“TITLE” and the character entry position appear in the main display and the TITLE SEARCH indicator lights up on the display. The play mode changes to normal play.

TITLE SEARCH indicator

Character set

Character entry position

2) Press the character entry button for a character you want to enter.

Ex.:

• To enter an “A” or “a,” press ABC once.

To enter a “B” or “b,” press ABC twice. To enter a “C” or “c,” press ABC three times.

• To enter a symbol, press MARK repeatedly until

the mark you want appears.

Available symbols:

(Blank)

• To enter a numeral, press 0 – 9.

• To enter a space while entering a title, press

Cursor 3 twice.

• To move the character entry position while

entering a title, press Cursor 3 or 2.

• If you have entered an incorrect character, press

Cursor 3 or 2 to select the character you want to correct, then press CANCEL to delete it.

3) Repeat steps characters.

• If the character you want to enter next is assigned

to the same button you have just pressed in step

– 2), press Cursor 3 once to move the character

entry position to the right.

– 1) and 4 – 2) to enter other

English

Enter the character(s) to search for the track title.

You can enter up to 5 characters. The unit will search for the tracks which have the entered characters at the head of their titles.

• You can also search for the tracks which do not have

a title. In this case, go to step character.

1) Press DISP/CHARA to select the character set you want.

• Each time you press the button, the character set

changes as follows:

Capital letters &

Symbols

without entering any

Small letters &

Numerals

Symbols

Press ENTER.

“SEARCH ........” scrolls and the TITLE and SEARCH

indicators start flashing on the display. The unit starts searching for the track.

• When the track with the desired title is found, the unit plays back the track. (After the track is played, the unit starts searching for the next matching track.)

• If no track with the desired title is found, “SEARCH END” appears in the main display and Normal play mode resumes (the TITLE and SEARCH indicators go off).

To skip the current playing track and search for the next track, press ¢.

To cancel the title searching, press TITLE SEARCH

while holding down SHIFT. When you press the buttons during playback or search, normal play resumes.

Playing Back Tapes

English

The buttons emphasized in the illustration below are used and explained in the following section (page 48).

Remote control

Main unit

STROBE

PREV. NEXT

GROUP SKIP

SLOW

PLAY MODE

ZOOM

SUB TITLE

TITLE SEARCH

MD GROUP

TITLE/EDIT

GROUP REC

ENTER

3D PHONIC

VOLUME

REV. MODE

DIGEST

ANGLE

TAPE

SLOW

MUTING

STANDBY/ON

DEF

DISP/CHARA

CLOCK/TIMER

SLEEP

COLOR

DIMMER

MENU CHOICE

FM/AM

FM MODE

–+

SLOW

AHB PRO

FADE

SOUND

CANCEL RETURN

/AUX

A.P. OFF

DVD LEVEL

REV. MODE

DIGEST

TAPE

MARK ABC

123

GHI JKL MNO

456

PQRS TUV WXYZ

789

10 0 +10

ON SCREEN

AUDIO

LP:

TOP MENU

SET

DVD

SELECT

STROBE

PREV.

GROUP SKIP

–

TITLE/EDIT

SP/LP2/LP4

SHIFT

RM-SUXA10DVDU REMOTE CONTROL

REV.MODE

DVD MD TAPE

AUTO REVERSE

UX-A10DVD

AUX

FM/AM

Playing Back a Tape

You can play back type I tapes.

Push ) (PUSH OPEN). The cassette holder opens.

) (PUSH OPEN)

Cassette holder

Put a cassette in with the exposed part of the tape down.

Cassette holder

To stop during play, press 7. To fast-wind to the left, press 4. To fast-wind to the right, press ¢. To remove the cassette, push ) (PUSH OPEN).

DO NOT push ) (PUSH OPEN) during tape play.

To play both sides—Reverse mode

You can set the deck to play just one side or both sides of a tape once, or both sides continuously.

Press REV. MODE.

• Each time you press the button, the reverse mode changes as follows:

: Plays back only one side (front or reverse). : Plays back the front and reverse sides once. : Plays back both front and reverse sides

continuously.

English

Push ) (PUSH OPEN) gently to close the cassette holder.

Press TAPE 2 3. Playback starts (if the unit is in standby, the unit automatically turns on). To change the tape direction, press TAPE 2 3.

• Each time you press the button, the tape direction changes as follows:

: Plays the front side (left to right).

: Plays the reverse side (right to left).

TAPE indicator

Reverse mode and tape direction indicators

Tape direction (left to right)

When the tape plays to the end, the deck automatically stops if the reverse mode is set to “To play both sides—Reverse mode” in the right column.)

or . (See

• The use of the C-120 or thinner tape is not recommended, since characteristic deterioration may occur and this tape easily jams in the pinch rollers and the capstans.

• You can also play back type II and type IV tapes; however, the sound quality (tone) may not be reproduced properly.

Special Disc Playback

DAnduio CD

English

The buttons emphasized in the illustration below are used and explained in the following section (pages 50 to 55).

DVD

SVCD

VCD

shows the types of discs the operation is available for.

Audio CD

Anduio C

• The functions in this section do not work for MP3 discs.

Remote control

MARK ABC

123

GHI JKL MNO

456

PQRS TUV WXYZ

789

10 0 +10

AUDIO

LP:

PLAY MODE

ZOOM

SUB TITLE

TITLE SEARCH

ON SCREEN

DEF

REV. MODE

DIGEST

ANGLE

SHIFT

MARK ABC

123

GHI JKL MNO

456

PQRS TUV WXYZ

789

10 0 +10

PLAY MODE

ON SCREEN

AUDIO

TITLE SEARCH

LP:

TOP MENU

SET

DVD

SELECT

STROBE

PREV.

GROUP SKIP

MD GROUP

TITLE/EDIT

SP/LP2/LP4

GROUP REC

SHIFT

ZOOM

SUB TITLE

REV. MODE

ENTER

SLOW

3D PHONIC

MUTING

VOLUME

STANDBY/ON

DEF

DISP/CHARA

CLOCK/TIMER

COLOR

DIGEST

DIMMER

ANGLE

MENU CHOICE

TAPE

FM MODE

–+

SLOW

FADE

SLEEP

CANCEL RETURN

FM/AM

/AUX

AHB PRO

SOUND

A.P. OFF

DVD

LEVEL

ENTER

DVD

SELECT

STROBE

PREV.

GROUP SKIP

SLOW

FM/AM

TAPE

/AUX

FM MODE

–+

SLOW

Main unit

RM-SUXA10DVDU REMOTE CONTROL

REV.MODE

DVD MD TAPE

AUTO REVERSE

UX-A10DVD

AUX

FM/AM

TITLE/EDIT

MD GROUP

TITLE/EDIT

3D PHONIC AHB PRO

Continued

IMPORTANT:

Before performing any operations for DVD, SVCD and VCD, make sure of the following.

• Check the connection with the TV.

• Turn on the TV and select the correct input on the TV to view the pictures or on-screen menus/indications on the TV screen.

• Select the correct color system.

Locating a Scene by Selecting the Chapter Number—Chapter Search

Available for:

If the current title is divided into chapters, you can skip to the chapter you want by selecting the chapter number.

• You cannot perform this function while the program or the random play is activated.

On the remote control ONLY:

Press PLAY MODE during play.

The play mode screen appears on the TV.

Press Cursor 3/2 to move to “CHAP. SEARCH,” then press ENTER.

“GO TO CHAPTER =” appears on the TV.

• The chapter search indication appears and the SEARCH indicator also lights up on the display.

Enter a chapter number by pressing the number buttons (0 to 9).

• The 10 button works to enter “0.”

Ex.:To enter chapter number 3, press 3.

To enter chapter number 23, press 2 and 3.

To cancel misentry, repeat step number appears after “=.”

Press ENTER.

Playback starts from the beginning of the selected chapter.

DVD

DVD CONTROL

REPEAT A-B REPEAT TIME SEARCH CHAP. SEARCH

DVD CONTROL

REPEAT A-B REPEAT TIME SEARCH CHAP. SEARCH

REPEAT CHAPTER

GO TO CHAPTER =

until the correct

Locating a Position by Selecting the Playing Time—Time Search

Available for:

You can play a disc from the position you want by specifying the elapsed time from the beginning of the current title or track.

• You cannot use this function while a SVCD or VCD is played back with the PBC function.

• You cannot use this function for some DVDs without time information.

• You cannot perform this function while the program or the random play is activated.

On the remote control ONLY:

Press PLAY MODE during play.

The play mode screen appears on the TV.

DVD CONTROL

REPEAT A-B REPEAT TIME SEARCH CHAP. SEARCH

Press Cursor 3/2 to move to “TIME SEARCH,” then press ENTER.

“GO TO” appears on the TV.

• You can specify the time as follows: –For DVD: Hours, minutes, and seconds –For SVCD, VCD, or Audio CD:

DVD CONTROL

REPEAT A-B REPEAT TIME SEARCH CHAP. SEARCH

REPEAT CHAPTER

GO TO

: :

Ex.: While an DVD is played back.

• The time search indication appears and the SEARCH indicator also lights up on the display.

SVCD

DVD

SVCD

DVD

Minutes and seconds

VCD

Continued next page

Audio CD

Anduio CD

English

To erase the on-screen indication, press PLAY MODE again.

English

Enter the playing time by pressing the number buttons (0 to 9).

• The 10 button works to enter “0.”

Ex.: To play back from the position of “0:23:45.”

_ : _ _ : _ _

Press 0

« 0 : _ _ : _ _

Press 2

« 0 : 2 _ : _ _

Press 3

« 0 : 2 3 : _ _

Press 4

« 0 : 2 3 : 4 _

Press 5

0 : 2 3 : 4 5

(Always enter all digits.) To cancel misentry, press Cursor 2.

• Each time you press the button, the last number you entered is erased.

Viewing the Desired Chapters/Tracks— Digest

Available for:

You can view nine opening scenes of chapters or tracks at a time and select the desired scene from those displayed on the TV directly.

• You cannot use this function while a SVCD or VCD is played back with the PBC function.

• You cannot perform this function while the program or the random play is activated.

On the remote control ONLY:

Press DIGEST while holding down SHIFT.

The digest screen appear in sequence (up to nine pictures at a time) on the TV.

This scene is selected.

DVD

SVCD

VCD

Press ENTER.

Playback starts from the selected position of the current title or track.

To erase the on-screen indication, press PLAY MODE again.

For DVD:

– While stopped:

The opening scenes of each title appear.

– During playback:

The opening scenes of each chapter in the current title appear.

For SVCD or VCD:

The opening scenes of each track appear.

Press Cursor 2/3/5/∞ to move to a scene you want to start playback.

• If there are more than nine scenes, you can move to the next digest screen (page).

To show other pages of the digest screen,

• To show the next page, press NEXT (¢).

• To show the previous page, press PREV. (4).

• You can also show other pages as follows:

To show the previous page, press Cursor 2/3/5/∞ to select the left top scene, then press Cursor 2.

Press Cursor 3/2 to select a view angle you want.

• Each time you press the button, the view angle changes as follows:

1 / 3

English

To show the next page, press Cursor 2/3/5/∞ to select the right bottom scene, then press Cursor 3.

Press ENTER.

Playback starts with the selected scene.

With some discs

Depending on the contents, it may take some time before all the scenes appear on the TV.

Selecting Multi-Angle Views

Available for:

While playing a disc containing multi-angle views, you can view the same scene at different angles.

DVD

1 / 3

Ex.: When the disc has 3 angle views.

• You can also select a view angle by pressing ANGLE repeatedly.

To erase the on-screen indication, press ENTER.

2 / 3

3 / 3

To show all angle views

On the remote control ONLY:

Press and hold ANGLE for more than 1 second.

Up to nine pictures of the different camera angles recorded on the disc appear on the TV.

This picture is selected.

To change angle views

On the remote control ONLY:

Press ANGLE.

The on-screen indication appears on the TV.

1 / 3

Ex.: When the disc has 3 angle views.

Ex.: When 3 angles are recorded.

Press Cursor 2/3/5/∞ to move to the desired view.

Press ENTER.

The angle list goes off, and playback starts at the selected view angle.

You cannot listen to the sound.

While the angle list is shown on the TV

English

Selecting the Audio Language or Sound

To erase the on-screen indication, press ENTER.

Available for:

DVD

SVCD

VCD

While playing a disc containing audio languages (sound tracks), you can select the language (sound) to listen to.

On the remote control ONLY:

Press AUDIO.

The on-screen indication appears on the TV.

1 / 3 ENGLISH

Ex.: While a DVD which has 3 selections is played back.

Press Cursor 3/2 to select an audio language (sound) you want.

• Each time you press the button, the audio language (sound) changes as follows:

For DVD:

1 / 3 ENGLISH

1 / 3

ENGLISH

3 / 3

Ex.: When the disc has 3 selections—English, French,

and Spanish.

SPANISH

2 / 3

FRENCH

For SVCD:

STEREO-1

R-2

L-2 R-1

STEREO-2

L-1

• STEREO-1/STEREO-2:

To listen to normal stereo playback of STEREO-1 or 2 channel.

• L-1/L-2:

To listen to the L (left) 1 or 2 audio channel.

• R-1/R-2:

To listen to the R (right) 1 or 2 audio channel.

For VCD:

STEREO

• STEREO: To listen to normal stereo playback.

•L: To listen to the L (left) audio channel.

•R: To listen to the R (right) audio channel.

When selecting a language for some DVDs

Its abbreviation will be shown. (See page 99.)

Selecting the Subtitle Language

Available for:

While playing a disc containing subtitles in different languages, you can select the subtitle to be displayed on the TV.

On the remote control ONLY:

Press SUB TITLE.

The on-screen indication appears on the TV.

• Each time you press the button, the subtitle turns on and off.

ON 1 / 3 ENGLISH

Ex.: While a DVD which has 3 selections is played back.

Press Cursor 3/2 to select a subtitle language you want.

• Each time you press the button, the subtitle language changes as follows:

For DVD:

ON 1 / 3 ENGLISH

1 / 3

– / 3

(OFF)

Ex.: When the disc has 3 selections—English, French,

Spanish and no subtitle (OFF).

For SVCD:

ON 1 / 4

– / 4

(OFF)

Four subtitle channels shows whether or not any subtitles are actually available.

To show no subtitle, select “–.”

To erase the on-screen indication, press ENTER.

DVD

ENGLISH

1 / 4

SVCD

4 / 4

2 / 3

FRENCH

3 / 3

SPANISH

2 / 4

3 / 4

• You can also select a audio language (sound) by pressing AUDIO repeatedly.

Its abbreviation will be shown. (See page 99.)

When selecting a language for some DVDs

Playing a Still Picture/Frame-by-Frame

Available for:

You can freeze a picture and advance the still picture frame by frame.

On the remote control ONLY:

DVD

SVCD

VCD

Nine screens of the same pictures appear and is played frame-by-frame at normal speed in following cases

• If you press and hold STROBE for more than 1 second during normal playback.

• If you press DVD SELECT 3 after pressing and holding STROBE in step 2.

English

Press 8 once during play.

A still picture appears on the TV.

Press 8 repeatedly.

• Each time you press the button, the still picture advances frame by frame.

To go back to normal play, press DVD SELECT 3.

Showing Continuous Still Pictures—Strobe

Available for:

You can view the nine continuous still pictures.

On the remote control ONLY:

Press STROBE during play at the point where you want to view continuous still pictures.

A still picture appears on the TV.

Press and hold STROBE for more than 1 second.

Nine continuous still pictures appear on the TV.

• Each time you press the button, next nine still pictures appear.

DVD

SVCD

VCD

Playing Back in Slow-Motion—Slow

Available for:

You can enjoy the slow-motion playback.

• Reverse slow-motion playback cannot be used on some SVCDs or VCDs.

On the remote control ONLY:

Press 8 once during play.

A still picture appears on the TV.

Press SLOW

• Each time you press SLOW +, forward slow-motion

speed changes as follows:

• Each time you press SLOW −, reverse slow-motion

speed changes as follows:

No sound is heard during the slow-motion playback.

+ or SLOW

1/32

1/2

1/16

DVD

SVCD

1/16

1/12

VCD

−−

−.

−−

1/8

1/41/3

1/8

1/41/3

To cancel the strobe play, press and hold STROBE so that a still picture resumes, then press DVD SELECT 3 to go back to normal play.

To go back to normal play, press DVD SELECT 3.

English

Zooming in the Picture—Zoom

Available for:

DVD

You can zoom a picture by 2 times.

On the remote control ONLY:

Press ZOOM while holding down SHIFT.

“ZOOM” appears on the TV.

• Each time you press the buttons, the picture is zoomed in and out alternately.

SVCD

VCD

ZOOM

Enjoying Virtual Surround Sound —3D PHONIC

Available for:

Using the 3D PHONIC function, you can get a simulated surround effect.

• For SVCD or VCD, you can use the 3D PHONIC function only when the AUDIO setting is set to STEREO. (See page 53.)

Press 3D PHONIC repeatedly to select the 3D PHONIC mode you want.

• Each time you press the button, the 3D PHONIC mode changes as follows:

3D PHONIC ACTION

DVD

SVCD

VCD

Audio CD

Anduio CD

Normal Zoomed

Press Cursor 2/3/5/∞ to select the position you

want to zoom in.

ZOOM

To go back to normal play, press ZOOM while holding down SHIFT.

While zoomed in, the picture may look coarse.

ACTION

OFF

(canceled)

DRAMA

THEATER

• ACTION*: Suitable for action movies and sports

programs in which sounds dynamically move.

• DRAMA: Natural and warm sound. You can enjoy

movies in a relaxed mood.

• THEATER: You can enjoy sound effects like in a major

theater in Hollywood.

* When a DVD recorded in Dolby Digital containing more

than 3 channels, “ACTION” does not appear.

When the 3D PHONIC function is activated, the 3D PHONIC indicator lights up on the display.

To erase the on-screen indication, press ENTER.

• If no operation is done for about 5 seconds, the on-screen display goes off.

• The 3D PHONIC function works correctly when playing back

• The 3D PHONIC function does not affect the DTS or Dolby

• If a DVD whose sound is recorded in Linear PCM, you cannot

• While you use the 3D PHONIC function, the “DOWN MIX”

• For SVCD or VCD, when the 3D PHONIC function is active,

More about the 3D PHONIC function

discs recorded in the Dolby Surround or Dolby Digital 5.1 ch format. It also works when playing back any discs other the above, but does not provide the correct effect.

Digital signal from the DVD OPTICAL DIGITAL OUT terminal.

use the 3D PHONIC function.

and “COMPRESSION” settings in the AUDIO menu are deactivated temporary. (See pages 85 and 86.)

changing the AUDIO setting cancels the 3D PHONIC function. (See page 53.)

Recording

The buttons emphasized in the illustration below are used and explained in the following section (pages 57 to 64).

For recording operations, you primarily use the buttons on the main unit.

DVD

SVCD

VCD

Audio CD

Anduio CD

shows the types of discs the operation is available for.

MP3

Main unit

REV.MODE

DVD MD TAPE

AUTO REVERSE

UX-A10DVD

AUX

FM/AM

English

Remote control

SP/LP2/LP4

SHIFT

AUDIO

LP:

GROUP REC

MARK ABC

PQRS TUV WXYZ

ON SCREEN

AUDIO

TOP MENU

DVD

SELECT

STROBE

PREV.

TITLE/EDIT

SP/LP2/LP4

SHIFT

RM-SUXA10DVDU REMOTE CONTROL

DEF

123

GHI JKL MNO

456

789

10 0 +10

PLAY MODE

REV. MODE

ZOOM

DIGEST

SUB TITLE

ANGLE

TITLE SEARCH

LP:

ENTER

SET

TAPE

GROUP SKIP

SLOW

MD GROUP

TITLE/EDIT

3D PHONIC

FADE

MUTING

GROUP REC

VOLUME

STANDBY/ON

DISP/CHARA

CLOCK/TIMER

A.P.

SLEEP

OFF

DVD

COLOR

LEVEL

DIMMER

MENU CHOICE

CANCEL RETURN

FM/AM

/AUX

FM MODE

–+

SLOW

AHB PRO

SOUND

DISP/CHARA

REV. MODE

DIGEST

SET

DVD

SELECT

TAPE

FM/AM

/AUX

STROBE FM MODE

English

Before You Start Recording on an MD

• It may be unlawful to record or play back copyrighted material without the consent of the copyright owner.

• When you record onto a partially recorded MD, its contents are not erased or overwritten. The recording starts from the point following the last recorded track of the MD. If you want to record on such an MD from the beginning, you have to erase its contents first (see “Erasing All Tracks —ALL ERASE” on page 79).

• When an MD is fully recorded, recording will stop automatically.

• The recording level is automatically set correctly, so it is not affected by the volume level. Thus, during recording you can adjust the sound you are actually listening to without affecting the recording level.

• While recording, you can hear sound mode effect and/or the AHB PRO (Active Hyper Bass Pro) effect through the speakers or headphones. However, the sound is recorded without these effects (see pages 21).

• While recording, the 3D PHONIC function (see page 55) or the COMPRESSION function (see page 86) is activated, the sound is recorded with these effects.

• This unit automatically selects either digital or analog recording according to the playback source.

– For SVCD, VCD, and Audio CD: Digital recording is used. – For DVD and MP3 disc: Analog recording is used. – For “AUX-DIGITAL”: Digital recording is used. – For other analog sources—“FM,” “AM,” “TAPE,” “AUX”:

Analog recording is used.

• You cannot record more than 254 tracks onto an MD, even if there is still enough recording time remaining on it.

About the track marks

When playing an MD, you can move among the tracks. You can do this because there is a mark recorded at the beginning of each track enabling you to locate the track. This mark is called a “track mark” and the portion between two adjacent track marks is called a “track.”

• When using the disc synchronized recording, a

track mark is recorded at the beginning of each chapter and track. You cannot put a track mark on manually.

• When recording from an analog source—“FM,” “AM,” “TAPE,” “AUX,” no track mark is recorded on the MD. This means that, when playing this MD, the MD recorder will regard the entire recording as one track (track 1). You will not be able to select directly a song or navigate through songs.

However, if there is a blank of 3 seconds or more, the MD recorder will consider it as a blank separating 2 tracks and consequently put a track mark (except when recording from an FM or AM broadcast).

To set a track mark manually while recording an analog source, press SET on the remote control at the

place where you want to put a track mark.

To avoid erasing important recordings

The recordable MD has an erasure prevention tab so that important recordings are not accidentally erased. When you finish recording or editing, slide to open the erasure prevention tab on the cartridge side. New recording or editing is now no longer possible. (If you try to do, “DISC PROTECTED” appears in the main display.) To do re-recording or editing, return the tab to the closed position.

Erasure prevention tab

Recording/Editing possible

Disc protected: Recording/Editing not possible

To add a track mark after recording is over, you can use the DIVIDE function. (See page 76.)

If “PLAYBACK DISC” appears in the main display when you try to record on an MD

The MD is only for playback use, not for recording. (See page

96.)

Stereo Long-Hour Recording (MDLP)

On conventional MD recorders, 2 times long-hour recording on MDs has been possible only in monaural sound, but this unit allows for 2 times or 4 times longhour recording without losing stereo sound by the latest ATRAC3* techniques. * See “ATRAC (Adaptive TRansform Acoustic Coding)/

ATRAC3 (

)” below.

To check the remaining recording time

Load an MD to record on.

Select the source to record (except “MD”).

Press DISP/CHARA repeatedly until “REC REMAIN” and the remaining time based on the current recording mode* appear in the main display.

* When the source is “MD,” the remaining time will be

shown based on SP mode.

English

With this feature, you can record on a single MD using different recording length modes—SP: Standard Play, LP2: 2 Times Long Play, LP4: 4 Times Long Play. SP: Signifies standard-hour stereo recording. The

amount of time usable for recording is the same as shown on the package of the MD.

LP2:Signifies 2 times long-hour stereo recording. The

amount of time usable for recording is twice as long as shown on the package of the MD.

LP4:Signifies 4 times long-hour stereo recording. The

amount of time usable for recording is 4 times as long as shown on the package of the MD.

REMEMBER to check the remaining recording time

Precautions for performing long-hour stereo recording

After having made long-hour stereo recordings on this unit, pay attention to the following:

• Songs (tracks) recorded in 2 times or 4 times longhour recording mode can only be played back on equipment provided with MDLP, compatible with a long-hour stereo recording function; otherwise, “LP:” is displayed before a title and playback proceeds without sound.

• When editing songs (tracks) on an MD, you cannot join (JOIN) songs (tracks) recorded in different recording length modes (SP/LP2/LP4).

of MDs before starting recording

The remaining recording time of MDs will be calculated and shown, based on the recording length mode (SP/LP2/ LP4) currently selected. Before starting recording or using the Recording Timer, check the recording time remaining on the MD for each recording length mode (SP/LP2/LP4) and select the optimum recording length mode.

• You cannot make a long-hour monaural recording using this

• Sound quality will decrease as the recording length mode

More about MDLP

unit.

changes to LP2 (little) and LP4 (much). To obtain the best sound quality, it is recommended to use the SP mode when recording.

SCMS (Serial Copy Management System)

The MD recorder integrated to this unit uses the Serial Copy Management System which allows only first-generation digital copies to be made of premastered software (like CDs or prerecorded MDs).

1st Generation

ABCDEFG

CD-R/RWCD

2nd Generation

ABCDEFG

ATRAC (Adaptive TRansform Acoustic Coding)/ATRAC3 ( )

The MD provides 80 minute recording and playback time, much more than an audio CD, but in a diameter of only 64 mm. This ability to store such a large amount of data is the result of ATRAC, an audio compression technique developed for MD. This technology cuts out faint sounds that would not be heard by the human beings. This technology, based on human sensitivity to sounds, reduces recorded data volume up to about one-fifth of the original data volume.

Furthermore, this unit takes advantage of the latest ATRAC3 techniques, which can reduce the amount of data to record to one-10th or one-20th of the original data volume. This allows for 2 times or 4 times long-hour stereo recording on this unit.

English

Setting MD Recording Modes

Before recording on MDs, set the recording length mode (SP/LP2/LP4), “LP:”-prefix addition mode, and the group recording mode.

On the remote control ONLY:

To set the MD recording length mode

The MD recording length mode can be set and stored for each source.

1) Select the source to record.

2) Press SP/LP2/LP4.

• Each time you press the button, the recording length mode changes to “SP,” “LP2,” “LP4.” SP: Records using standard-hour stereo recording.

The SP indicator lights up on the display.

LP2: Records using 2 times long-hour stereo

recording. The LP2 indicator lights up on the display.

LP4: Records using 4 times long-hour stereo

recording. The LP4 indicator lights up on the display.

Recording a Disc onto an MD—Disc Synchronized Recording

Using the disc synchronized recording method, you can start and stop disc play and MD recording at the same time.

• During the disc synchronized recording, some operations which would affect the recording (both audio and video) are prohibited.

7 From an SVCD, VCD, Audio CD, or MP3 disc

Available for:

• Digital recording method is used for SVCD/VCD/Audio CD-to-MD recording, while analog recording method is used for MP3 disc-to-MD recording.

Prepare a disc.

After placing a disc, press DVD #/8 (or DVD SELECT 3 on the remote control), then 7 before going to the next step.

• You can create a program (see page 37) or select the random play mode (see page 39) as you wish.

SVCD

VCD

Audio CD

Anduio CD

MP3

To set “LP:”-prefix addition mode

You can select whether or not to add “LP:” to the head of the title for the tracks recorded using the stereo long-hour recording mode (LP2 or LP4).

Press LP: while holding down SHIFT.

• Each time you press the buttons, the “LP:”-prefix addition mode turns on and off.

“(LP:) ON”:

Adds “LP:” to the head of the track title. The total number of characters you can enter for an MD is reduced (for details, see page 80).

“(LP:) OFF”:

Does not add “LP:” to the head of the track title.

To set the group recording mode

You can form a new group easily while recording using the group recording function.

Press MD GROUP REC.

• Each time you press the button, the group recording function turns on and off.

“MD GROUP ON”:

All the tracks recorded at a time will form a new group. The GROUP indicator lights up on the display.

“MD GROUP OFF”:

Cancels the group recording function. All tracks are recorded as independent tracks. The GROUP indicator goes off from the display.

Insert a recordable MD into the MD loading slot.

Set the MD recording length mode, “LP:”-prefix addition mode, and the group recording mode.

See the left column.

Press ONE TOUCH MD REC on the main unit.

Recording starts and the MD REC indicator starts flashing on the display.

MD recording indicators

Remaining recording time

Ex.: An audio CD is now recorded on an MD using

LP2 and the group recording.

After recording, both the DVD player and the MD recorder stop automatically.

To stop recording, press 7. “WRITING” flashes in the main display for a while.

When recording from a CD-R or CD-RW

You cannot make a digital recording from a digital-copied CD-R or CD-RW on an MD. “SCMS CANNOT COPY” appears in the main display and an analog recording starts. (See page 58.)

Elapsed playing time

SVCD

VCD

Anduio CD

Audio CD

7 From a DVD

To record a single track during play or pause

English

Available for:

DVD

• Analog recording method is used for DVD-to-MD recording.

Prepare a disc.

After placing a disc, press DVD #/8 (or DVD SELECT 3 on the remote control), then 7 before going to the next step.

• You can create a program (see page 37) or select the random play mode (see page 39) as you wish.

Insert a recordable MD into the MD loading slot.

Set the MD recording length mode, “LP:”-prefix addition mode, and the group recording mode.

See “Setting MD Recording Modes” on page 59.

Press ONE TOUCH MD REC on the main unit.

Recording starts and the MD REC indicator starts flashing on the display.

Elapsed playing time of

MD recording indicators

Remaining recording time

Ex.: A DVD is now recorded on an MD using LP2 and

the group recording.

the current title

After recording, both the DVD player and the MD recorder stop automatically.

To stop recording, press 7. “WRITING” flashes in the main display for a while.

Available for:

• You can do this operation for SVCD or VCD only without the PBC function.

On the main unit ONLY: While playing back or pausing a track you want to

record, press ONE TOUCH MD REC.

The playback of the track is stopped, and the same track starts playing from the beginning again. This time, the MD recorder starts recording the track.

• After the track is recorded, both the DVD player and the MD recorder stop automatically.

If you do the above operation for a DVD or an MP3

Recording starts from the point where you press the button and does not stop after the current chapter or track is recorded. (Playback also continues.)

disc

To change the information shown in the main display

On the remote control ONLY: Press DISP/CHARA.

• Each time you press the button, the information in the main display changes as follows:

For SVCD, VCD, or Audio CD:

Ex.: When recording an Audio CD.

Clock time

For MP3 disc:

When recording from some DVDs which have its

Playback may not go further from the point where the menu is shown. (You cannot select any item on the menu during recording.) In such a case, stop the recording and select the point where you want to start recording as follows:

1 2

3 4

Start disc playback. Select the item on the disc menu which you want to record. The selected item starts playback. Press 8 where you want to start recording. Press ONE TOUCH MD REC to start recording.

Clock time

For DVD:

Clock time

1 Current track No. 2 MD track No. 3 MD group No.*

*When recording on the MD which has no group and when

the group recording is not activated, “– –” will appear.

4 Current group No. 5 Current title No. 6 Current chapter No.

English

Recording Other Sources onto an MD

• Digital recording method is used for AUX-DIGITAL-toMD recording, while analog recording method is used for FM/AM/AUX-to-MD recording.

Sound synchronized recording

When recording from external equipment, recording starts automatically when the source sound comes into the unit, and stops automatically if no sound comes into the unit for more than 30 seconds.

Prepare the source to record. To record from FM/AM broadcasts:

Press FM/AM (or FM/AM/AUX on the remote control) to select either “FM” or “AM,” then tune in to the station you want.

• For more detailed tuner operations, see pages 25 and

26.

To record from a tape:

1) After putting a cassette, press TAPE @ #, then 7 to

select “TAPE” as the source.

2) Press REV. MODE to select the reverse mode (see page 48).

To record from external equipment:

Press AUX (or FM/AM/AUX on the remote control) repeatedly to select “AUX” or “AUX-DIGITAL” and prepare the external equipment.

• Adjust audio input level through the AUX jacks or

the OPTICAL DIGITAL IN terminal if necessary (see page 23).

• For operation of the external equipment, see its

manual also.

Press ONE TOUCH MD REC on the main unit.

• When recording from an FM/AM broadcast or a tape, recording starts and the MD REC indicator starts flashing on the display.

• When recording from external equipment, the following indication appears in the main display.

–When “AUX” is selected: “AUX = MD” –When “AUX-DIGITAL” is selected:

“AUX-D = MD”

MD and MD REC indicator are flashing.

Ex.: When recording from “AUX-DIGITAL” using the

group recording.

When recording from external equipment, go to step

Starts playback on external equipment.

When the sound from external equipment comes into the unit, recording starts.

To set a track mark manually while recording, press SET on the remote control at the place where you want.

You cannot set a track mark manually while recording.

To stop recording, press 7. “WRITING” flashes in the main display for a while.

When “AUX-DIGITAL” is the source to record

To change the information shown in the main display

Insert a recordable MD into the MD loading slot.

Set the MD recording length mode, “LP:”-prefix addition mode, and the group recording mode.

See “Setting MD Recording Modes” on page 59.

On the remote control ONLY: Press DISP/CHARA.

• Each time you press the button, the information in the main display changes as follows:

Clock time

Ex.: When you record an FM broadcast.

1 Source indication 2 Remaining recording time 3 MD track No. 4 MD group No. (When the group recording is not

activated, “– –” will appear.)

Before You Start Recording on a Tape

• It may be unlawful to record or play back copyrighted material without the consent of the copyright owner.

• While recording, the 3D PHONIC function (see page 55) or the COMPRESSION function (see page 86) is activated, the sound is recorded with these effects.

• If recordings you have made have excessive noise or static, the unit may be too close to a TV. Place the unit away from the TV.

• You can use only type I tapes for recording.

English

To protect your recordings

Cassettes have two small taps on the back to protect against unexpected erasure or recording. To protect your recording, remove these tabs. To re-record on a protected tape, cover the holes with adhesive tape.

Adhesive tape

Do not use type II and type IV tapes since the unit is not compatible with such tapes.

The use of the C-120 or thinner tape is not recommended, since characteristic deterioration may occur and this tape easily jams in the pinch rollers and the capstans.

To keep the best recording and playback sound quality

If the heads, capstans, and pinch rollers of the cassette deck become dirty, the following will occur:

• Loss of sound quality

• Discontinuous sound

• Fading

• Incomplete erasure

• Difficulty in recording

To clean the heads, capstans, and pinch rollers

Use a cotton swab moistened with alcohol.

Pinch roller

Capstans

Erase head

Record/play head

To demagnetize the head

Turn off the unit, and use a head demagnetizer (available at electronics and audio shops).

At the start and end of cassette tapes

There is leader tape which cannot be recorded onto. Thus, when recording discs, MDs, or radio broadcasts, wind the leader tape first to ensure that the recording will be made without any music part lost.

English

Recording onto a Tape

You can use only type I tapes for recording.

Prepare the source to record. To record from a disc:

1) Load a disc.

2) Press DVD #/8 (or DVD SELECT 3 on the remote control), then 7 before going to the next step.

• You can create a program (see page 37) or select the

random play mode (see page 39) as you wish.

Press ONE TOUCH TAPE REC on the main unit.

Recording starts and the REC indicator starts flashing on the display.

• When recording from external equipment, start playback after the following indication appears in the main display.

–When “AUX” is selected: “AUX = TAPE” –When “AUX-DIGITAL” is selected:

“AUX-D = TAPE”

To stop recording, press 7.

To record from an MD:

1) Load an MD.

2) Press MD #/8, then 7 to change the source to

“MD.”

• You can create a program (see page 43) or select the random play mode (see page 44) or the group play mode (see page 45) as you wish.

To record from FM/AM broadcasts:

Press FM/AM (or FM/AM/AUX on the remote control) to select either “FM” or “AM,” then tune in to the station you want.

• For more detailed tuner operations, see pages 25 and

26.

To record from external equipment:

Press AUX (or FM/AM/AUX on the remote control) repeatedly to select “AUX” or “AUX-DIGITAL” and prepare the external equipment.

• Adjust audio input level through the AUX jacks or the OPTICAL DIGITAL IN terminal if necessary. (See page 23.)

• For operation of external equipment, see its manual also.

Put a recordable cassette into the cassette holder.

Press REV. MODE to select the reverse mode.

• Each time you press the button, the reverse mode changes as follows:

Recording on one side.

Recording on both sides once.

When recording a disc (except DVD and MP3 disc), or an MD

• A 4-second blank is automatically made on the tape before each

track. To record without the blank, press DVD #/8 or MD #/8 twice in step 1, then press ONE TOUCH TAPE REC.

• When the front side of the tape ends in the middle of a track, the recording on the reverse side starts from the beginning of that track (if the reverse mode is set to ). However, if the front side ends within 12 seconds from the beginning of a track, recording on the reverse side starts from the previous track.

When recording from some DVDs which have its menu

To record a single track during play

• This operation is available for SVCD and VCD without the PBC function, Audio CD, and MD.

On the main unit ONLY: While playing back a track you want to record, press

ONE TOUCH TAPE REC. The playback of the track is stopped, and the same track starts playing from the beginning again. This time, the cassette deck starts recording the track.

• After the track is recorded, both playback and recording stop automatically.

When you press ONE TOUCH TAPE REC while pausing a track

Recording starts from that point.

will be shown during recording when you

select

If you do the above operation for a DVD or an MP3 disc

Recording starts from the point where you press the button and does not stop after the current chapter or track is recorded. (Playback also continues.)

SVCD

VCD

Anduio CD

Audio CD

Recording a Disc onto an MD and a Tape —Disc Synchronized Recording

English

When recording on an MD and a tape at the same time

A 4-second blank before each track is not made on the tape.

Available for:

Using the disc synchronized recording method, you can start and stop disc play, MD and tape recordings at the same time.

Prepare a disc.

After placing a disc, press DVD #/8 (or DVD SELECT 3 on the remote control), then 7 before going to the next step.

• You can create a program (see page 37) or select the random play mode (see page 39) as you wish.

Insert a recordable MD into the MD loading slot and put a recordable cassette into the cassette holder.

For the MD:

Set the MD recording length mode, “LP:”-prefix addition mode, and the group recording mode. (See “Setting MD Recording Modes” on page 59.)

For the tape:

Press REV. MODE to select the reverse mode ( (See page 63.)

Press MD&TAPE REC on the main unit.

Recording start and the MD REC and REC indicators start flashing on the display.

MD and tape recording indicators

DVD

SVCD

VCD

Audio CD

Anduio CD

MP3

When recording from some DVDs which have its

To record a single track during play or pause

Available for:

• You can do this operation for SVCD or VCD only without the PBC function.

On the main unit ONLY: While playing back or pausing a track you want to

record, press MD&TAPE REC.

The playback of the track is stopped, and the same track starts playing from the beginning again. This time, the MD recorder and cassette deck start recording the track.

• After the track is recorded, both playback and recording stop automatically.

If you do the above operation for a DVD or an MP3

Recording starts from the point where you press the button and does not stop after the current chapter or track is recorded. (Playback also continues.)

disc

After recording, the DVD player, the MD recorder and the cassette deck stop automatically.

To stop recording, press 7. “WRITING” flashes in the main display for a while.

Editing MDs

English

The buttons emphasized in the illustration below are used and explained in the following section (pages 66 to 82).

Remote control

MARK ABC

123

GHI JKL MNO

456

PQRS TUV WXYZ

789

10 0 +10

PREV.

TITLE/EDIT

SP/LP2/LP4

SHIFT

GROUP SKIP

MD GROUP

TITLE/EDIT

GROUP REC

SLOW

3D PHONIC

FADE

MUTING

VOLUME

STANDBY/ON

DEF

DISP/CHARA

CLOCK/TIMER

SLEEP

–+

SLOW

AHB PRO

SOUND

A.P. OFF

MARK ABC

GHI JKL MNO

PQRS TUV WXYZ

10 0 +10

ON SCREEN

AUDIO

TOP MENU

SET

DVD

SELECT

STROBE

PREV.

TITLE/EDIT

SP/LP2/LP4

SHIFT

RM-SUXA10DVDU REMOTE CONTROL

DEF

123

456

789

PLAY MODE

REV. MODE

ZOOM

DIGEST

SUB TITLE

ANGLE

TITLE SEARCH

LP:

ENTER

TAPE

SLOW

GROUP SKIP

MD GROUP

TITLE/EDIT

3D PHONIC

FADE

MUTING

GROUP REC

VOLUME

STANDBY/ON

DISP/CHARA

CLOCK/TIMER

A.P.

SLEEP

OFF

DVD

COLOR

LEVEL

DIMMER

MENU CHOICE

CANCEL RETURN

FM/AM

/AUX

FM MODE

–+

SLOW

AHB PRO

SOUND

TOP MENU

SET

ENTER

MENU CHOICE

CANCEL

RETURN

Main unit

REV.MODE

DVD MD TAPE

AUTO REVERSE

UX-A10DVD

AUX

FM/AM

Guidance—MD Group Functions

English

To add to the conventional MD editing functions (called the track editing functions in this manual), MD group functions help you to classify the tracks by making groups on your MD.

Classifying the tracks on an MD

MDLP enables you to record more tracks on a single MD than the conventional recording method. So, there are many tracks which have been recorded from the various sources—discs, FM, and so on—on your MD.

In that case, if you can classify the tracks by source, by album, or by artist, the playback of your favorite songs becomes much easier.

Track No.

1A23456

BBBBB

Tr ac k

23456

BBBBB

Group 1 Group 2

CCDE

CC9D10E

In the figure above, as an example, there are 5 different genres (from A to E) of tracks on the MD. Using MD group functions, you can form a group by genre B tracks as Group 1.

By forming groups on the MD, you can classify the tracks by each genre—the album title, the artist, etc. You can also assign a name to each group. (See pages 80 to 82.)

910

Group 3

Using MD group functions

MD group functions consist of group play, group recording and group editing.

• Group play (see page 45):

You can play back and repeat the desired group without making a program: For example, you can play back genre B tracks continuously by selecting group 1 in the left figure.

• Group recording (see page 59):

You can form a group while tracks are being recorded.

• Group editing:

You can edit the groups using the following functions: – Forming a group (FORM GR) – Adding a track to a group (ENTRY GR) – Dividing a group (DIVIDE GR) – Joining two groups (JOIN GR) – Moving a group (MOVE GR) – Ungrouping tracks (UNGROUP) – Dissolving all groups (UNGR ALL) – Erasing tracks in a group (ERASE GR)

How to make up groups

You can make up groups using two methods: the forming-a-group function and the group recording function.

• Forming-a-group function—FORM GR:

Select this function when you want to make groups after recording. (See page 68.)

• Group recording function:

Select this function when you want to record and group tracks at the same time. (See page 59.)

About information concerning MD group functions

Once you edit an MD using MD group functions, the MD is assigned some characters as the information concerning MD group functions. These characters appear only when you play back the MD using the equipment incompatible with MD group functions. If you edit the characters using such equipment, the groups on the MD will be dissolved.

English

Introducing Group Editing Functions

The groups and tracks can be edited in many ways (the group editing functions and the track editing functions). From this page to page 74, the group editing functions are explained. For details of the track editing functions, see pages 75 to 79.

Forming a group (FORM GR): Page 68

This function forms a series of tracks or a single track into a new group.

1 2 3 4 5 6 7 8 9 10 11 12 13

Track No.

Group 1

1 2 3 4 5

6 7 8 9 10

11 12 13

Adding a track to a group (ENTRY GR): Page 69

This function enters the selected track into a group.

Group 1

Group 2

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15

Track No.

Group 1

1 2 3 4 5 6 7 8 9

Group 2

10 11 12 13 14 15

Dividing a group (DIVIDE GR): Page 70

This function divides a group containing more than one track.

Group 1 Group 2

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15

Track No.

Group 1 Group 2

1 2 3 4 5 6 7 8 9 10

Group 3

11 12 13 14 15

Joining two groups (JOIN GR): Page 71

This function joins two adjacent groups into a single group.

Group 1 Group 2 Group 3

1 2 3 4 5 6 7 8 9 10

Group 1

1 2 3 4 5 6 7 8 9 10

11 12 13 14 15

Track No.

Group 2

11 12 13 14 15

Moving a group (MOVE GR): Page 72

This function moves the selected group by reordering the group and track numbers.

Group 1

1 2 3 4

Group 1

1 2 3 4

Group 2

5 6 7 8 9 10 11

Group 2

5 6 7 8

Group 3

9 10 11

Group 4

12 13 14

Group 4

12 13 14

Group 5

15 16 17

Group 5

15 16 17

Group 6

18 19 20

Track No.

Group 6

18 19 20

Ungrouping tracks (UNGROUP): Page 73

This function dissolves a group.

9 10 11

Group 4

12 13 14

Group 3

Group 5

15 16 17

4 Group 5

Group

15 16 17 18 19 2012 13 14

Group 6

18 19 20

Track No.

Group 1

1 2 3 4

Group 1

1 2 3 4

Group 2 Group 3

5 6 7 8

Group 2

5 6 7 8

Dissolving all groups (UNGR ALL): Page 73

This function dissolves all the groups.

9 10 11

Group 4

12 13 14

Group 5

15 16 17

Group 6

18 19 20

Track No.

Group 1

Group 2 Group 3

1 2 3 4

5 6 7 8

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20

Erasing tracks in a group (ERASE GR): Page 74

This function erases the tracks in the selected group.

Group 1

Group 2 Group 3

1 2 3 4

5 6 7 8

Track No.

Group 1

Group 2 Group 3

1 2 3 4

5 6 7 89 10

If “PLAYBACK DISC” or “DISC PROTECTED”

You cannot edit such MDs. (See pages 95 and 96.)

appears when you try to edit an MD

9 10 11

Group 4

12 13 14

Group 4

12 13 14

Group 5

15 16 17

Group 5

15 16 17

Group 6

18 19 20

Blank

You can edit the MD as long as playback is stopped. However,

During the program or random play mode

editing groups and/or tracks will restore normal play mode (the program in memory will be cleared).

Forming a Group—FORM GR

This function allows you to form a group from a series of tracks which do not belong to other groups. You can form a group with a single track. Once a new group is formed, the other groups are renumbered.

• You can form up to 99 groups on a single MD.

• To stop any time during the editing process before step press MD GROUP TITLE/EDIT.

On the remote control ONLY:

In the following example, the process is explained from the very beginning—that is, inserting a disc. You can also edit an MD during playback (in normal play mode).

Insert an MD you want to edit into the MD loading slot.

Press MD GROUP TITLE/EDIT repeatedly until “FORM GR ?” appears in the main display.

Press SET.

• If the track selected belongs to another group, “GROUP TRACK” appears in the main display. Select a track which do not belong to another group in step 4 again.

• If you want to form a group with the selected track

only, go to step

• To cancel the setting, press CANCEL, then repeat

from step 4.

Press ¢ or 4 to select the last track of the new group.

• You can select the track using the number buttons. In this case, the selected track starts playback repeatedly.

Press SET.

Ex.: When track 5 is selected.

English

• If you want to stop this editing process, press CANCEL.

Press SET.

Track Nos. to form a new group

• During playback: The currently playing track number starts flashing.

Press ¢ or 4 to select the first track of a new group you will make.

• You can select the track using the number buttons. In this case, the selected track starts playback repeatedly.

Ex.: When track 3 is selected.

• If the track selected belongs to another group, “GROUP TRACK” appears in the main display. Select a track which do not belong to another group

in step

• To cancel the setting, press CANCEL, then repeat from step 4.

Press ENTER.

“EDITING” appears in the main display for a while, then “WRITING” and the MD REC indicator flashes while the changes you have made are recorded on the MD.

To dissolve the group again, see the UNGROUP function on page 73.

You are trying to form a new group which includes another group between the first and the last track. In this case, dissolve the previous group and form a new one again.

again.

When “CANNOT FORM!” appears in step

English

Adding a Track to a Group—ENTRY GR

This function allows you to enter a track into a group. The track will be added as the last track in the selected group. The track numbers will be renumbered.

• To stop any time during the editing process before step press MD GROUP TITLE/EDIT.

On the remote control ONLY:

In the following example, the process is explained from the very beginning—that is, inserting a disc. You can also edit an MD during playback (in normal play mode).

Insert an MD you want to edit into the MD loading slot.

Press MD GROUP TITLE/EDIT repeatedly until “ENTRY GR ?” appears in the main display.

• If you want to stop this editing process, press CANCEL.

Press SET.

• If the loaded MD has no groups, you cannot go on to the following steps.

• When the selected track belongs to a group, its group number appears in the main display.

• To cancel the setting, press CANCEL, then repeat from step 4.

Press GROUP SKIP ¢ or GROUP SKIP 4 while holding down SHIFT to select the group.

Ex.: When group 18 is selected.

Press SET.

Track No.

• During playback:

The currently playing track number starts flashing.

Press ¢ or 4 to select the track.

• You can select the track using the number buttons. In this case, the selected track starts playback repeatedly.

Ex.: When track 13 is selected.

• To cancel the setting, press CANCEL, then repeat

from step

Press ENTER.

“EDITING” appears in the main display for a while, then “WRITING” and the MD REC indicator flashes while the changes you have made are recorded on the MD.

You are trying to enter the selected track into the same group again. Repeat procedure from step 6.

When “CANNOT ENTRY!” appears in step

Dividing a Group—DIVIDE GR

This function allows you to divide one group into two separate groups. You cannot divide a group containing only a single track. When the original group has a title, both new groups are reassigned the same title as the original group. Once a new group is divided, the other groups are renumbered.

• To stop any time during the editing process before step press MD GROUP TITLE/EDIT.

On the remote control ONLY:

In the following example, the process is explained from the very beginning—that is, inserting a disc. You can also edit an MD during playback (in normal play mode).

Insert an MD you want to edit into the MD loading slot.

Press MD GROUP TITLE/EDIT repeatedly until “DIVIDE GR?” appears in the main display.

• If you want to stop this editing process, press CANCEL.

Press SET.

Group No. Track No.

Press ¢ or 4 to select the track as the dividing point.

The track selected in this step will be the first track in the divided group.

• You can select the track using the number buttons. In this case, the selected track starts playback repeatedly.

Ex.: When track 8 is selected.

• You cannot select the first track in a group or an ungrouped track as the dividing point.

Press SET.

• To cancel the setting, press CANCEL, then repeat from step 4.

Press ENTER.

“EDITING” appears in the main display for a while, then “WRITING” and the MD REC indicator flashes while the changes you have made are recorded on the MD.

To join the divided groups again, see the JOIN GR function on page 71.

English

• If the loaded MD has no groups, you cannot go on to the following steps.

• During playback: The currently playing track number and its group number will appear. If the track does not belong to any group, the group number will be indicated by “– –.”

Press GROUP SKIP ¢ or GROUP SKIP 4 while holding down SHIFT to select the group you want to divide.

The first track of the selected group

Ex.: When group 2 is selected.

English

Joining Two Groups—JOIN GR

This function allows you to join two adjacent groups into a single group. When the groups have their own titles, the title of the preceding group is reassigned to the joined group. Once two groups are joined, the other groups are renumbered.

• To stop any time during the editing process before step

press MD GROUP TITLE/EDIT.

On the remote control ONLY:

In the following example, the process is explained from the very beginning—that is, inserting a disc. You can also edit an MD during playback (in normal play mode).

Insert an MD you want to edit into the MD loading slot.

Press MD GROUP TITLE/EDIT repeatedly until “JOIN GR ?” appears in the main display.

• If you want to stop this editing process, press CANCEL.

Press SET.

• To cancel the setting, press CANCEL, then repeat from step

Press ENTER.

“EDITING” appears in the main display for a while, then “WRITING” and the MD REC indicator flashes while the changes you have made are recorded on the MD.

To divide the group again, see the DIVIDE GR function on page 70.

You are trying to join two groups which are separated by one or more tracks. In such a case, move the tracks or one of the groups so that the groups are adjacent. (See pages 72 and 78.)

When “CANNOT JOIN” appears in step

Press SET.

Group Nos. to be joined

• If the loaded MD has only one or no groups, you cannot go on to the following steps.

• During playback: The group number of the currently playing track will appear on the right. If the track does not belong to any group, the group number will be indicated by “– –.”

Press GROUP SKIP ¢ or GROUP SKIP 4 while holding down SHIFT to select the two adjacent groups you want to join.

Ex.: When groups 7 and 8 are selected.

Moving a Group—MOVE GR

This function allows you to move a group. Once a group is moved, the tracks and the other groups are renumbered.

• To stop any time during the editing process before step press MD GROUP TITLE/EDIT.

On the remote control ONLY:

In the following example, the process is explained from the very beginning—that is, inserting a disc. You can also edit an MD during playback (in normal play mode).

Insert an MD you want to edit into the MD loading slot.

Press MD GROUP TITLE/EDIT repeatedly until “MOVE GR ?” appears in the main display.

Press SET.

• To cancel the setting, press CANCEL, then repeat

from step

Press GROUP SKIP ¢ or GROUP SKIP 4 while holding down SHIFT to select the position where you want to move the group.

Press SET.

Ex.: When group 3 is moved to group 10.

English

• If you want to stop this editing process, press CANCEL.

Press SET.

Group No. to be moved to

• If the loaded MD has only one or no groups, you cannot go on to the following steps.

• During playback: The group number of the currently playing track will appear on the right. If the track does not belong to any group, the group number will be indicated by “– –.”

Press GROUP SKIP ¢ or GROUP SKIP 4 while holding down SHIFT to select the group you want to move.

Ex.: When group 3 is selected.

Group No. to be moved from

• To cancel the setting, press CANCEL, then repeat

from step

Press ENTER.

“EDITING” appears in the main display for a while, then “WRITING” and the MD REC indicator flashes while the changes you have made are recorded on the MD.

English

Ungrouping Tracks—UNGROUP

This function allows you to dissolve a group. You cannot erase the tracks using this function. Once tracks are ungrouped, the other groups are renumbered.

• To stop any time during the editing process before step

press MD GROUP TITLE/EDIT.

On the remote control ONLY:

In the following example, the process is explained from the very beginning—that is, inserting a disc. You can also edit an MD during playback (in normal play mode).

Insert an MD you want to edit into the MD loading slot.

Press MD GROUP TITLE/EDIT repeatedly until “UNGROUP ?” appears in the main display.

• If you want to stop this editing process, press CANCEL.

Press SET.

Group No.

Press SET.

• To cancel the setting, press CANCEL, then repeat

from step

Press ENTER.

“EDITING” appears in the main display for a while, then “WRITING” and the MD REC indicator flashes while the changes you have made are recorded on the MD.

Dissolving All Groups—UNGR ALL

This function allows you to dissolve all the groups. You cannot erase the tracks using this function.

• To stop any time during the editing process before step 4, press MD GROUP TITLE/EDIT.

On the remote control ONLY:

In the following example, the process is explained from the very beginning—that is, inserting a disc. You can also edit an MD during playback (in normal play mode).

Insert an MD you want to edit into the MD loading slot.

• If the loaded MD has no groups, you cannot go on to the following steps.

• During playback: The group number of the currently playing track will appear. If the track does not belong to any group, the group number will be indicated by “– –.”

Press GROUP SKIP ¢ or GROUP SKIP 4 while holding down SHIFT to select the group you want to dissolve.

Ex.: When group 3 is selected.

Press MD GROUP TITLE/EDIT repeatedly until “UNGR ALL ?” appears in the main display.

• If you want to stop this editing process, press CANCEL.

Press SET.

• To cancel the setting, press CANCEL.

Press ENTER.

“EDITING” appears in the main display for a while, then “WRITING” and the MD REC indicator flashes while the changes you have made are recorded on the MD.

Erasing Tracks in a Group—ERASE GR

This function allows you to erase a group together with tracks in the group. You cannot recover the tracks in the erased group. Once a group is erased, the other tracks and groups are renumbered.

• To stop any time during the editing process before step press MD GROUP TITLE/EDIT.

On the remote control ONLY:

In the following example, the process is explained from the very beginning—that is, inserting a disc. You can also edit an MD during playback (in normal play mode).

Insert an MD you want to edit into the MD loading slot.

Press MD GROUP TITLE/EDIT repeatedly until “ERASE GR ?” appears in the main display.

• If you want to stop this editing process, press CANCEL.

Press GROUP SKIP ¢ or GROUP SKIP 4 while holding down SHIFT to select the group you want to erase.

Press SET.

• To cancel the setting, press CANCEL, then repeat

Press ENTER.

“EDITING” appears in the main display for a while, then “WRITING” and the MD REC indicator flashes while the changes you have made are recorded on the MD.

Ex.: When group 6 is selected.

from step 4.

English

Press SET.

Group No.

• If the loaded MD has no groups, you cannot go on to the following steps.

• During playback: The group number of the currently playing track will appear. If the track does not belong to any group, the group number will be indicated by “– –.”

English

Introducing Track Editing Functions

The groups and tracks can be edited in many ways (the group editing functions and the track editing functions). From this page to page 79, the track editing functions are explained. For details of the group editing functions, see pages 67 to 74.

Dividing a track (DIVIDE): Page 76

This function divides a track by adding a track mark at the desired point in the middle or where you want to search for later.

After dividing track A

B CA D

B C

Track No.

Joining two tracks (JOIN): Page 77

This function joins two adjacent tracks into a single track by deleting a track mark.

After joining tracks A and B

354

B CAED

C D

Track No.

Moving a track (MOVE): Page 78

This function moves a track by reordering the track numbers.

After moving track B

B CAED

C D

Track No.

Erasing all tracks (ALL ERASE): Page 79

This function erases data on a disc entirely.

After erasing all tracks

354

B CAED

Track No.

Blank disc

Erasing a portion of a track

By combining “DIVIDE,” “ERASE” and “JOIN,” for example, it is possible to erase only a part of an existing track.

Part to be erased

A2 A3A1 CB

A3A1 CB

BCA

354

Track No.

Blank

Dividing track A into 3 tracks

Erasing track A2

Joining tracks A1 and A3

Erasing tracks (ERASE): Page 79

This function erases selected tracks. After the erasure, the subsequent tracks are justified and their track numbers are renumbered automatically. You can erase up to 15 tracks at a time.

After erasing tracks B and D

354

B CAED

Track No.

Blank

If “PLAYBACK DISC” or “DISC PROTECTED” appears when you try to edit an MD

You cannot edit such MDs. (See pages 95 and 96.)

During the program or random play mode

You can edit the MD as long as playback is stopped. However, editing groups and/or tracks will restore normal play mode (the program in memory will be cleared).

Dividing a Track—DIVIDE

This function allows you to divide one track into two separate tracks. It is useful, for example, when you want to add track marks at a certain point within a track or if you want to separate a recording. When the original track has a title, both new tracks are reassigned the same title as the original track. Once a track is divided, the other tracks are renumbered.

• To stop any time during the editing process before step press MD TITLE/EDIT.

On the remote control ONLY:

In the following example, the process is explained from the very beginning—that is, inserting a disc. You can also edit an MD during playback (in normal play mode).

Insert an MD you want to edit into the MD loading slot.

Press MD TITLE/EDIT repeatedly until “DIVIDE ?” appears in the main display.

Press SET when you find the point where you want to divide the track.

“POSIT. (position) 0” appears in the main display, and the unit repeats the selected point—a 3-second period following the dividing point.

• If the loaded MD has 254 tracks, “DISC FULL” will appear (see “MD limitations” on page 96) and you cannot go on to the following steps.

• If the dividing point is satisfactory, go to step If not, go to the next step.

• To cancel the setting, press CANCEL, then repeat

from step

Press Cursor 2/3 to precisely adjust the dividing point.

When you stop pressing the buttons, the unit repeats the newly selected dividing point.

• You can shift the dividing point up to ±128. This range (±128) corresponds to approximately ±8* seconds from the original point (Position 0).

English

• If the loaded MD has no tracks, “DIVIDE ?” will not appear.

• If you want to stop this editing process, press CANCEL.

Press SET.

The first track on the MD starts playback repeatedly.

Press ¢ or 4 to select the track you want to divide.

• You can select the track using the number buttons.

Track No.

Ex.: When track 12 is selected.

• If you press and hold ¢ (or 4), you can fast-forward (or fast-reverse) the selected track.

Elapsed playing time

Ex.: When adjusting the point by –103.

* When the recording length mode of the selected

track is “SP.” For “LP2,” it is approximately ±16 seconds, and for “LP4” approximately ±32 seconds.

• When you find the right position, go to the next step.

• To cancel the setting, press CANCEL, then repeat

from step

Press SET.

Press ENTER.

“EDITING” appears in the main display for a while, then “WRITING” and the MD REC indicator flashes while the changes you have made are recorded on the MD.

To join the divided tracks again, see the JOIN function on page 77.

English

Joining Two Tracks—JOIN

This function allows you to join two adjacent tracks into one track. When the tracks have their own titles, the title of the preceding track is reassigned to the newly joined track. Once two tracks are joined, the other tracks and/or the groups are renumbered.

• To stop any time during the editing process before step

press MD TITLE/EDIT.

On the remote control ONLY:

In the following example, the process is explained from the very beginning—that is, inserting a disc. You can also edit an MD during playback (in normal play mode).

Insert an MD you want to edit into the MD loading slot.

Press SET.

• To cancel the setting, press CANCEL, then repeat

from step

Press ENTER.

“EDITING” appears in the main display for a while, then “WRITING” and the MD REC indicator flashes while the changes you have made are recorded on the MD.

To divide the track again, see the DIVIDE function on page 76.

Press MD TITLE/EDIT repeatedly until “JOIN ?” appears in the main display.

• If the loaded MD has no tracks, “JOIN ?” will not appear.

• If you want to stop this editing process, press CANCEL.

Press SET.

Track Nos. to be joined

• If the loaded MD has only one track, you cannot go on to the following steps.

Press ¢ or 4 to select the two adjacent tracks you want to join.

• You can select the tracks using the number buttons, by selecting the succeeding track of two you want to join. In this case, the selected track starts playback repeatedly.

You cannot join the following tracks.

If “CANNOT JOIN” appears in step

• Tracks recorded using different MD recording length modes (SP, LP2, LP4). (See page 58.)

• Digital-recording tracks and analog-recording tracks.

• Tracks recorded using the monaural long recording method (not available on this unit) and stereo-recording tracks.

When the track belongs to a group

If the preceding track of two tracks you want to join belongs to a group, the newly joined track will belong to that group. On the other hand, if the preceding track does not belong to any group, the newly joined track will not belong to any group even if the succeeding track belongs to a group.

Ex.: When tracks 2 and 3 are selected.

Moving a Track—MOVE

This function allows you to move a track to the position you prefer. It is useful to change the order of the tracks as you like. Once a track is moved, the tracks and/or the groups are renumbered.

• To stop any time during the editing process before step press MD TITLE/EDIT.

On the remote control ONLY:

In the following example, the process is explained from the very beginning—that is, inserting a disc. You can also edit an MD during playback (in normal play mode).

Insert an MD you want to edit into the MD loading slot.

Press MD TITLE/EDIT repeatedly until “MOVE ?” appears in the main display.

• If the loaded MD has no tracks, “MOVE ?” will not appear.

• If you want to stop this editing process, press CANCEL.

Press SET.

Track No. to be moved to

• To cancel the setting, press CANCEL, then repeat from step 4.

Press ¢ or 4 to select the position where you want to move the track.

• You can select the track using the number buttons. In this case, the selected track starts playing repeatedly.

Ex.: When track 3 is moved to track 8.

• If the track selected in this step belongs to a group,

the track selected in step same group after moving.

Press SET.

will be entered into the

English

Press SET.

Track No. to be moved from

• If the loaded MD has only one track, you cannot go on to the following steps.

Press ¢ or 4 to select the track you want to move.

• You can select the track using the number buttons. In this case, the selected track starts playback repeatedly.

Ex.: When track 3 is selected.

• To cancel the setting, press CANCEL, then repeat from step 4.

Press ENTER.

“EDITING” appears in the main display for a while, then “WRITING” and the MD REC indicator flashes while the changes you have made are recorded on the MD.

English

Erasing Tracks—ERASE

This function allows you to erase unwanted tracks. You cannot recover the erased tracks. Once tracks are erased, the other tracks and/or groups are renumbered. You can erase up to 15 tracks at a time.

• To stop any time during the editing process before step press MD TITLE/EDIT.

On the remote control ONLY:

In the following example, the process is explained from the very beginning—that is, inserting a disc. You can also edit an MD during playback (in normal play mode).

Insert an MD you want to edit into the MD loading slot.

Press MD TITLE/EDIT repeatedly until “ERASE?” appears in the main display.

• If the loaded MD has no tracks, “ERASE?” will not appear.

• If you want to stop this editing process, press CANCEL.

Repeat steps 4 and 5 to select all the tracks you want to erase.

• You can select up to 15 tracks. If you select a 16th track to erase, “MEMORY FULL” will appear in the main display.

Press ENTER.

“EDITING” appears in the main display for a while, then “WRITING” and the MD REC indicator flashes while the changes you have made are recorded on the MD.

Erasing All Tracks—ALL ERASE

This function allows you to erase all the data on an MD. You cannot recover the erased data.

On the remote control ONLY:

In the following example, the process is explained from the very beginning—that is, inserting a disc. You can also edit an MD during playback (in normal play mode).

Press SET.

Track No.

Press ¢ or 4 to select the track you want to erase.

• You can select the track using the number buttons. In this case, the selected track starts playback repeatedly.

Press SET.

” appears in the main display.

“ The track marked with “

Ex.: When track 5 is selected.

• If you do not want to erase the track, press CANCEL to remove “

.”

” will be erased.

Insert an MD you want to edit into the MD loading slot.

Press MD TITLE/EDIT repeatedly until “ALL ERASE?” appears in the main display.

• If you want to stop this editing process, press CANCEL.

Press SET.

• To cancel the setting, press CANCEL.

Press ENTER.

“EDITING” appears in the main display for a while, then “WRITING” and the MD REC indicator flashes while the changes you have made are recorded on the MD. “BLANK DISC” appears in the main display.

Continued

Assigning Titles to an MD

You can assign a name to each MD, to each group and to each track using alphabetic characters (uppercase and lowercase), symbols and numerals. Once a title is assigned, it is displayed for your confirmation.

• You cannot edit titles composed of more than 61 characters.

About the number of characters entered for an MD

The total number of characters that you can enter for an MD is

1792. The maximum number that you can enter for each title is

61. (However, the actual number you can enter may be slightly less than these maximum numbers due to MD limitations—see page 96.)

• A space can be counted as one character.

• When the stereo long-hour recording (LP2 or LP4, see page

58) method is used for recording, the maximum number you can enter for a track title is automatically reduced since “LP:” and a space are automatically added to the beginning of the track title. Consequently this reduces the total number of characters you can enter for an MD. Ex.: You can enter up to 10 characters for each track if an

MD is composed of 120 tracks recorded using the stereo long-hour recording method.

In the following example, the process is explained from the very beginning—that is, inserting a disc. If you have

already started recording or playing, start from step

• You can also edit titles during playback (in normal play mode).

• To exit from the title entry screen any time during the process, press MD TITLE/EDIT or MD GROUP TITLE/ EDIT repeatedly.

Insert an MD you want to edit into the MD loading slot.

Put the unit into the title entry mode. For the disc and track title:

Press MD TITLE/EDIT. The Disc title entry screen appears in the main display.

For the group title:

Press MD GROUP TITLE/EDIT. The Group title entry screen appears in the main display.

Press Cursor 3/2 to change the title entry mode.

• Each time you press the button, the title entry mode changes as follows:

For the disc and track title:

DISC TITLE? 1 TITLE? 2 TITLE?

The last

track title

For the group title:

GR– – TITLE? GR1 TITLE?

The last group title

3 TITLE?

GR2 TITLE?

English

Press SET to enter the selected title entry mode.

Character entry position

Character set

Ex.: When the disc has no title.

Continued next page

English

Enter characters.

1) Press DISP/CHARA to select the character set you want.

• Each time you press the button, the character set

changes as follows:

Capital letters &

Symbols

Numerals

2) Press the character entry button for a character you want to input.

Ex.:

• To enter an “A” or “a,” press ABC once.

To enter a “B” or “b,” press ABC twice. To enter a “C” or “c,” press ABC three times.

• To enter a symbol, press MARK repeatedly until

the mark you want appears.

Available symbols:

(Blank)

• To enter a numeral, press 0 – 9.

• To enter a space while entering a title, press

Cursor 3 twice.

• To move the character entry position while

entering a title, press Cursor 3 or 2*.

• If you have entered an incorrect character, press

Cursor 3 or 2 to select the character you want to correct, then press CANCEL to delete it.

Small letters &

Symbols

Press ENTER to finish the current title entry.

The next title entry screen appears.

For the disc title:

The track title entry screen for the track 1 appears.

For the track title:

The next track title entry screen appears (or the unit exits from the title entry screen if the current track is the last one on the MD).

For the group title:

The next group title entry screen appears (or the same screen still remains if the current group is the last one on the MD).

If you want to go on assigning a name, repeat steps

Press CANCEL to exit from the title entry mode.

• During recording, do not go to the next step until the recording ends.

Press MD 0 on the main unit to eject the MD.

“WRITING” and the MD REC indicator flash while the editing you have made is being recorded on the MD.

When you unplug the AC power cord or if a power

The titles you have made are not record.

failure occurs before step

Be sure to eject an MD to record the titles before unpluging the power cord.

* If you press Cursor 2 repeatedly during recording, the

entered characters may be displayed incorrectly. In this case, press MD TITLE/EDIT or MD GROUP TITLE/ EDIT, then repeat from step 2 again.

3) Repeat steps 5 – 1) and 5 – 2) to enter other characters.

• If the character you want to enter next is assigned

to the same button you have just pressed in step

– 2), press Cursor 3 once to move the character

entry position to the right.

• There is a limitation of character numbers that the

main display can show at a time. Each time you enter a character exceeding the limitation, the leftmost character disappears from the main display.

• During playback:

You can assign titles during play or recording

Entering a track title

The MD recorder repeats playback of the current track until you press ENTER in step 6 on page 81. When you press ENTER, the next track will be played.

Entering a disc title

The MD recorder repeats playback of all tracks of the MD until you press ENTER in step 6 on page 81. When you press ENTER, the MD recorder enters the track title entry mode.

Entering a group title

The MD recorder repeats playback of the tracks in the group until you press ENTER in step 6 on page 81. When you press ENTER, the MD recorder enters the next group title entry mode.

• During recording:

Entering a track title

The MD recorder continues recording even after you press ENTER in step 6 on page 81. When you press ENTER, a track title is assigned to the track where you have started the title entry. If you do not press ENTER before recording ends, the track title assigned will be canceled.

• During Disc Synchronized Recording (see page 59):

You can assign the disc title, and 16 track titles one after another as recording goes on. The track titles you have entered are automatically assigned to the tracks recorded on the MD in sequential order. If you enter 17th track title or more, they are ignored.

Changing the Title

You can make a correction or change the title.

Follow steps 1 to 4 on page 80.

Select the character you want to correct, by pressing Cursor 3/2.

• Make sure that the character you want to change is flashing.

Press CANCEL to delete the character you have selected in the above step.

• To erase all the characters, press CANCEL repeatedly until all the characters are erased, then go to step 6 of the current procedure.

Input the correct character, referring to step 5 on page 81.

Repeat steps 2 to 4 of the current procedure to correct more characters.

Press ENTER to finish correcting the title.

• If you want to correct another title, select another title entry mode by pressing Cursor 3/2, press SET, then

repeat from step

• If you want to finalize the correction, go to the next step.

of the current procedure.

English

Press MD 0 on the main unit to eject the MD.

“WRITING” and the MD REC indicator flash while the changes you have made are recorded on the MD.

Changing the DVD Initial Settings

English

The buttons emphasized in the illustration below are used and explained in the following section (pages 84 to 87).

Remote control

Main unit

MARK ABC

DEF

123

GHI JKL MNO

456

PQRS TUV WXYZ

789

10 0 +10

SHIFT

MARK ABC

GHI JKL MNO

PQRS TUV WXYZ

10 0 +10

ON SCREEN

AUDIO

LP:

TOP MENU

SET

DVD

SELECT

STROBE

PREV.

TITLE/EDIT

SP/LP2/LP4

SHIFT

RM-SUXA10DVDU REMOTE CONTROL

DEF

123

456

789

PLAY MODE

REV. MODE

ZOOM

DIGEST

SUB TITLE

ANGLE

TITLE SEARCH

ENTER

TAPE

SLOW

GROUP SKIP

MD GROUP

TITLE/EDIT

3D PHONIC

FADE

MUTING

GROUP REC

VOLUME

STANDBY/ON

DISP/CHARA

CLOCK/TIMER

A.P.

SLEEP

OFF

DVD

COLOR

LEVEL

DIMMER

MENU CHOICE

CANCEL RETURN

FM/AM

/AUX

FM MODE

–+

SLOW

AHB PRO

SOUND

TOP MENU

SET

ENTER

MENU CHOICE

CANCEL

RETURN

REV.MODE

DVD MD TAPE

AUTO REVERSE

UX-A10DVD

AUX

FM/AM

Using the setting menu, you can store the initial selection for audio languages (sound) and subtitle languages for DVD playback as well as other settings.

Setting menu

• LANGUAGE menu (see page 85)

MENU LANGUAGE AUDIO LANGUAGE SUBTITLE ON SCREEN LANGUAGE

PRESS KEY

• AUDIO menu (see page 85)

DIGITAL AUDIO OUTPUT DOWN MIX COMPRESSION

PRESS KEY

• DISPLAY menu (see page 86)

CHINESE CHINESE CHINESE ENGLISH

EXIT

STREAM/PCM

Lo / Ro

EXIT

Usable buttons

Basic Procedure

The setting menu appears only when the selected source is the DVD player and the disc is not played back.

• When an Audio CD or MP3 disc is loaded, you cannot show the setting menu.

On the remote control ONLY:

Press CHOICE while holding down SHIFT.

The LANGUAGE menu appears on the TV.

Press Cursor 3/2 to move to the menu you want—LANGUAGE, AUDIO, DISPLAY, or SYSTEM.

MENU LANGUAGE AUDIO LANGUAGE SUBTITLE ON SCREEN LANGUAGE

PRESS KEY

Ex.: When selecting LANGUAGE menu.

Press Cursor ∞/5 to move to an item you want to set.

A selected item shows in green.

CHINESE CHINESE CHINESE ENGLISH

EXIT

English

MONITOR TYPE SCREEN SAVER ON SCREEN GUIDE

PRESS KEY

• SYSTEM menu (see page 86)

RESUME AV COMPULINK MODE

PRESS KEY

4:3 LB

MODE 2

OFF

DVD 1

EXIT

MENU LANGUAGE AUDIO LANGUAGE SUBTITLE ON SCREEN LANGUAGE

PRESS KEY

Ex.: When selecting “MENU LANGUAGE.”

Press Cursor 3/2 to select a proper setting you

CHINESE CHINESE CHINESE ENGLISH

EXIT

want.

To set other items on the same menu, repeat steps and 4.

To set other items on the different menus, repeat steps 2 to 4.

When finished, press Cursor ∞ to move to “EXIT,” then press ENTER.

The setting menu disappears.

To exit from the setting menu any time during the above procedure, press CHOICE while holding down

SHIFT. The setting menu disappears. The settings you have done up to that time will be stored.

English

Changing the Initial Language Settings

Changing the Various Audio Settings

On the LANGUAGE menu, you can select the following initial languages.

MENU LANGUAGE AUDIO LANGUAGE SUBTITLE ON SCREEN LANGUAGE

PRESS KEY

CHINESE CHINESE CHINESE ENGLISH

EXIT

• MENU LANGUAGE:

Select the initial language for the DVD disc menu. Selectable languages—ENGLISH, SPANISH, FRENCH, CHINESE, GERMAN, ITALIAN, JAPANESE, AA – ZU (Language code: See page 99.)

• AUDIO LANGUAGE:

Select the initial language for audio sound language. Selectable languages—ENGLISH, SPANISH, FRENCH, CHINESE, GERMAN, ITALIAN, JAPANESE, AA – ZU (Language code: See page 99.)

• SUBTITLE:

Select the initial language for subtitles. Selectable languages—ENGLISH, SPANISH, FRENCH, CHINESE, GERMAN, ITALIAN, JAPANESE, AA – ZU (Language code: See page 99.)

• ON SCREEN LANGUAGE:

Select the language for the on-screen menus and indications. Selectable languages—ENGLISH, ESPAÑOL (Spanish)

The original language will be selected as the initial language regardless of your setting in the following case:

– If the language you have selected is not recorded on the disc. – If the disc is programed to be played back in the original

language.

(Chinese),

On the AUDIO menu, you can change the following sound settings.

DIGITAL AUDIO OUTPUT DOWN MIX COMPRESSION

PRESS KEY

STREAM/PCM

Lo / Ro

OFF

EXIT

• DIGITAL AUDIO OUTPUT:

Set the output signal type through the DVD OPTICAL DIGITAL OUTPUT terminal. (See also page 16.)

– Select “STREAM/PCM” when connecting an

amplifier or a decoder compatible with Dolby Digital, DTS*, and MPEG Multichannel.

– Select “PCM ONLY” when connecting an amplifier

compatible only with Linear PCM, or a digital recording device such an MD recorder, DAT deck, etc.

– Select “DOLBY DIGITAL/PCM” when connecting

an amplifier or a decoder compatible only with Dolby Digital.

* This unit does not have the DTS decoding function.

To listen to DTS encoded sound, connect a DTS decoder or a DTS compatible amplifier.

• DOWN MIX:

When playing a DVD whose audio sound is recorded with the multichannel surround, this unit properly converts the sound signals into 2-channels. Set this item according to your audio system.

– Select “Lt/Rt” when connecting an amplifier with the

surround decoder.

– Select “Lo/Ro” when listening to the playback sound

through the speaker connected to this unit or when recording on this unit. Also select “Lo/Ro” when connecting an amplifier without the surround decoder or a digital recording device.

• The DOWN MIX function does not work when the 3D

More about DOWN MIX

PHONIC function is activated. (See page 55.)

• The DOWN MIX setting does not affect DTS signals.

• COMPRESSION:

When listening to the sound with only Dolby Digital, you can produce a powerful sound even at a low volume level by compressing the dynamic range (difference between the maximum and minimum sound levels).

– Select “ON” when you want to apply the compression

effect (useful late at night).

– Select “OFF” when you want surround sound with its

full dynamic range (no effect applied).

More about COMPRESSION

• The COMPRESSION function does not work when the 3D PHONIC function is activated. (See page 55.)

• The COMPRESSION function does not affect digital signals output through the DVD OPTICAL DIGITAL OUT terminal.

English

• SCREEN SAVER:

Select the screen saver to prevent the TV monitor from burning out. (See page 28.)

– Select “MODE 1” to activate the screen saver by

making the TV screen dark.

– Select “MODE 2” to activate the screen saver by

showing the original screen-saver.

– Select “OFF” to deactivate this function.

• ON SCREEN GUIDE:

By watching the on-screen guide icons shown on the TV screen, you can see what you are doing while operating the DVD player. (See page 28.)

– Select “ON” to show the on-screen guide icons. – Select “OFF” to deactivate this function.

Changing the Display Settings

On the DISPLAY menu, you can change the following display settings.

MONITOR TYPE SCREEN SAVER ON SCREEN GUIDE

PRESS KEY

• MONITOR TYPE:

Set the monitor type to use while playing back a DVD recorded with 16:9 wide screen video signal. (See also page 15.)

– Select “4:3 LB (Letter Box)

TV whose aspect ratio is 4:3. While viewing a wide screen picture, the black bars appear on the top and the bottom of the screen.

– Select “16:9 WIDE” when viewing on a TV whose

aspect ratio is 16:9.

– Select “4:3 PS (Pan Scan)

TV whose aspect ratio is 4:3. While viewing a wide screen picture, the black bars do not appear; however, a portion of the left and right edges of the picture will not show on the screen.

4:3 LB

MODE 2

EXIT

” when viewing on a

Changing the System Settings

On the SYSTEM menu, you can change the following settings.

RESUME AV COMPULINK MODE

PRESS KEY

• RESUME:

This unit can store the stop-point where DVD, SVCD or VCD playback stops. When you press DVD SELECT 3 (or DVD #¥8 on the main unit) to start playback again, it starts from where it has been stopped—Resume play.

• Pressing DVD 0 to eject the disc erases the stored

position.

– Select “ON” to activate Resume play. – Select “OFF” to deactivate Resume play. Playback

always starts from the beginning of a disc.

• AV COMPULINK MODE :

When connecting this unit to a JVC TV with the AV COMPU LINK remote control system, select the proper setting. See page 93 for more details. Selectable modes—“DVD 1,” “DVD 2,” and “DVD 3.”

OFF

DVD 1

EXIT

English

Temporary Level Change ? PASSWORD

YES

– – – –

PRESS ENTER EXECUTIVE

This DISC can't play now!

Limitting Playback of DVD—Parental Lock

Using this function, you can restrict playback of DVD containing violent scenes (and those not suitable for your family members).

• This function is only possible for the DVDs containing such rating level information—Level 1 (most restrictive) to Level 8 (least restrictive).

Setting the parental lock

You can set the parental lock only when a DVD is loaded and playback is stopped.

On the remote control ONLY:

Press ENTER while holding down 7.

The PARENTAL LOCK screen appears on the TV.

• When you set the parental lock for the first time, points to “Country Code.” (Go to step 3.)

• When you change the parental lock settings,

points to “PASSWORD.” (Go to step 2.)

Country Code Set Level PASSWORD

PRESS KEY ENTER

H K

–

– – – –

EXIT

Press the number buttons (0 – 9) to enter a new password (4 digits), then press ENTER.

moves to “EXIT.”

Press ENTER.

The parental lock level is set and the PARENTAL LOCK screen disappears.

To exit from the PARENTAL LOCK screen any time during the above procedure, press ENTER while holding

down 7.

• If you exit from the PARENTAL LOCK screen before finishing

• If you enter the wrong password 3 times in step 2, moves to

• If you forget your password, enter “8888.”

When you set the parental lock

step 5, the setting you have made or changed is not stored. Repeat from step 1 again.

“EXIT” and Cursor 5 and ∞ do not work. Press ENTER to exit from the PARENTAL LOCK screen, then repeat from step 1 again.

Unlocking the Parental Lock Temporarily

Some discs cannot be played back at all when the parental lock is set. If you insert such a disc and try to play it, the following PARENTAL LOCK screen appears on the TV. You can unlock the parental lock setting temporarily on this screen.

Press the number buttons (0 to 9) to enter the current password (4 digits), then press ENTER.

moves to “Country Code.”

• If you enter the wrong password, “WRONG! RETRY···” appears. Enter the correct password.

Press Cursor 3/2 repeatedly to select a proper country code, then press ENTER.

moves to “Set Level.”

• For country code list, see pages 100 and 101.

Press Cursor 3/2 repeatedly to select a parental lock level, then press ENTER.

moves to “PASSWORD.”

• Each time you press the button, the parental lock level changes as follows. You can play back only the DVD whose rating level is less than the level you set.

–

• If you do not want to make any restriction, select “–.”

On the remote control ONLY:

Press Cursor 5/∞ to select “YES,” then press ENTER.

moves to “PASSWORD.”

• When selecting “NO,” press DVD 0 to remove the

disc.

Press the number buttons (0 – 9) to enter the current password (4 digits).

The parental lock is temporarily unlocked and playback starts.

• If you enter the wrong password, “WRONG!

RETRY···” appears. Enter the correct password.

If you enter the wrong password 3 times

moves to “NO” and Cursor 5 and ∞ do not work. Press DVD

0 to remove the disc.

• If you forget your password, enter “8888.”

Using the Timers

The buttons emphasized in the illustration below are used and explained in the following section (pages 89 to 92).

Remote control

STANDBY/ON

DEF

MNO

WXYZ

+10

REV. MODE

DIGEST

CANCEL

RETURN

DISP/CHARA

CLOCK/TIMER

A.P.

SLEEP

OFF

DVD

COLOR

LEVEL

PREV.

GROUP SKIP

TITLE/EDIT

SP/LP2/LP4

SET

MD GROUP

TITLE/EDIT

GROUP REC

MARK ABC

PQRS TUV WXYZ

ON SCREEN

AUDIO

TOP MENU

DVD

SELECT

STROBE

PREV.

TITLE/EDIT

SP/LP2/LP4

SHIFT

RM-SUXA10DVDU REMOTE CONTROL

DEF

123

GHI JKL MNO

456

789

10 0 +10

PLAY MODE

REV. MODE

ZOOM

DIGEST

SUB TITLE

ANGLE

TITLE SEARCH

LP:

ENTER

SET

TAPE

GROUP SKIP

SLOW

MD GROUP

TITLE/EDIT

3D PHONIC

FADE

MUTING

GROUP REC

VOLUME

STANDBY/ON

DISP/CHARA

CLOCK/TIMER

A.P.

SLEEP

OFF

DVD

COLOR

LEVEL

DIMMER

MENU CHOICE

CANCEL

RETURN

FM/AM

/AUX

FM MODE

–+

SLOW

AHB PRO

SOUND

English

Main unit

REV.MODE

DVD MD TAPE

AUTO REVERSE

UX-A10DVD

AUX

FM/AM

English

Three timers are available—Recording Timer, Daily Timer and Sleep Timer.

• Before using these timers, make sure the built-in

clock is set correctly (see page 17).

• When using the tuner as the source, preset stations in advance (see page 26).

Select the source to record.

1) Press ¢ or 4 repeatedly to select the source.

• Each time you press the button, the source changes as follows:

AUX-DIGITAL

AUX

Using the Recording Timer

With the Recording Timer, you can make an unattended recording.

• You can set the Recording Timer whether the unit is turned on or in standby mode.

• To correct a misentry any time during the setting process, press CANCEL.

• To exit from the timer setting mode during the setting process, press CLOCK/TIMER repeatedly until the source indication appears.

How the Recording Timer actually works

The unit automatically turns on, muting the volume, and starts recording on the MD or the tape when the timer-on time comes. Then, when the timer-off time comes, the unit automatically turns off (stands by). The Recording Timer works only once, but the timer settings remain stored in memory until you reset them or unplug the AC power cord.

Press CLOCK/TIMER repeatedly until “REC TIMER” appears in the main display.

The timer ( ) indicator lights up and the REC indicator starts flashing on the display.

• When you select “FM” or “AM,” press SET, then

select a preset number by pressing ¢ or 4.

• When you select “AUX” or “AUX-DIGITAL,”

set the timer function of the external component as well.

2) Press SET.

The device to be recorded onto flashes in the main display.

Select the device to be recorded onto.

1) Press ¢ or 4 repeatedly to select the device.

MD REC

2) Press SET.

• When you select “MD REC,” select the MD

recording length mode (see page 59) by pressing ¢ or 4, then press SET again.

• When you select “TAPE REC,” select the reverse

mode (see page 48) by pressing REV. MODE.

The hour digit of the timer-on time starts flashing.

Set the timer-on time.

1) Press ¢ or 4 repeatedly to adjust the hour.

You can adjust the hour using the number buttons.

2) Press SET.

The minute digit starts flashing.

3) Press ¢ or 4 repeatedly to adjust the minute.

You can adjust the minute using the number buttons.

TAPE REC

• Each time you press the button, the timer mode change as follows:

REC TIMER DAILY TIMER

Source indication

Clock time

(canceled)

Press SET.

The source name flashes in the main display.

Ex.: When you set timer-on time to 11:30.

4) Press SET.

The hour digit of the timer-off time starts flashing.

Continued

Set the timer-off time.

1) Press ¢ or 4 repeatedly to adjust the hour.

You can adjust the hour using the number buttons.

2) Press SET.

The minute digit starts flashing.

3) Press ¢ or 4 repeatedly to adjust the minute.

You can adjust the minute using the number buttons.

Ex.: When you set timer-off time to 13:00.

4) Press SET.

The REC indicator stops flashing and remains lit. The contents of this setting appear in the main display for your confirmation.

Press STANDBY/ON (or on the main unit) to turn off the unit if necessary.

If the unit is already turned on when the timer-on

The Recording Timer has no affect at all.

About 20 seconds before the timer-on time, the REC indicator and “REC TIMER STANDBY” start flashing on the display.

time comes

To turn on the Recording Timer again

Press CLOCK/TIMER repeatedly until “REC TIMER” appears in the main display.

Press SET repeatedly until the settings are shown in the main display for your confirmation. The timer ( ) and REC indicators light up on the display.

Using the Daily Timer

With the Daily Timer, you can wake up to your favorite music or radio program.

• You can set the Daily Timer whether the unit is turned on or in standby mode.

• To correct a mesentery any time during the setting process, press CANCEL.

• To exit from the timer setting mode during the setting process, press CLOCK/TIMER repeatedly until the source indication appears.

How the Daily Timer actually works

The unit automatically turns on, and starts playing the specified source when the timer-on time comes. Then, when the timer-off time comes, the unit automatically turns off (stands by). The Daily Timer repeats every day, and the timer settings remain stored in memory until you reset them or unplug the AC power cord.

English

To record onto an MD using the Group recording, press MD GROUP REC to turn on the Group recording after setting the Recording Timer (before turning off the unit).

When you press 7 while the Recording Timer works

The recording stops but the timer function is not canceled. The unit automatically turns off (stands by) when the timer-off time comes.

To turn off the Recording Timer after its setting is done

Press CLOCK/TIMER repeatedly until “REC TIMER” appears in the main display.

Press CANCEL. The timer ( display.

) and REC indicators go off from the

Press CLOCK/TIMER repeatedly until “DAILY TIMER” appears in the main display.

The timer ( indicator starts flashing on the display.

• Each time you press the button, the timer mode changes as follows:

) indicator lights up and the DAILY

REC TIMER DAILY TIMER

Source indication

Clock time

(canceled)

Press SET.

The source name flashes in the main display.

Continued next page

English

Select the source to play back.

1) Press ¢ or 4 repeatedly to select the source.

• Each time you press the button, the source changes as follows:

AUX-DIGITAL

• You can also use the source selecting buttons.

• When you select “DVD/CD,” “MD” or “TAPE,” prepare it for playing back.

• When you select “FM” or “AM,” press SET, then select a preset number by pressing ¢ or 4.

• When you select “AUX” or “AUX-DIGITAL,” set the timer function of the external component as well.

2) Press SET.

The hour digit of the timer-on time starts flashing.

Set the timer-on time.

1) Press ¢ or 4 repeatedly to adjust the hour.

You can adjust the hour using the number buttons.

2) Press SET.

The minute digit starts flashing.

3) Press ¢ or 4 repeatedly to adjust the minute.

You can adjust the minute using the number buttons.

DVD/CD

AUX

TAPE

Adjust the volume level.

1) Press ¢ or 4 repeatedly to adjust the volume

level.

• You can adjust the volume level to “– –” or within the range of 0 (silent) to 40 (maximum).

• When you select “VOLUME – –,” the volume is set to the current volume level.

2) Press SET.

The DAILY indicator stops flashing and remains lit. The contents of this setting appear in the main display for your confirmation.

Press STANDBY/ON (or on the main unit) to turn off the unit if necessary.

If the unit is already turned on when the timer-on

The Daily Timer has no affect at all.

About 20 seconds before the timer-on time, the DAILY indicator and “DAILY TIMER STANDBY” start flashing on the display.

time comes

Ex.: When you set timer-on time to 7:00.

4) Press SET.

The hour digit of the timer-off time starts flashing.

Set the timer-off time.

1) Press ¢ or 4 repeatedly to adjust the hour.

You can adjust the hour using the number buttons.

2) Press SET.

The minute digit starts flashing.

3) Press ¢ or 4 repeatedly to adjust the minute.

You can adjust the minute using the number buttons.

Ex.: When you set timer-off time to 8:00.

4) Press SET.

The volume setting appears in the main display.

To turn off the Daily Timer after its setting is done

Press CLOCK/TIMER repeatedly until “DAILY TIMER” appears in the main display.

Press CANCEL. The timer ( display.

To turn on the Daily Timer again

Press CLOCK/TIMER repeatedly until “DAILY TIMER” appears in the main display.

Press SET repeatedly until the settings are shown in the main display for your confirmation. The timer ( ) and DAILY indicators light up on the display.

• When you change the source.

• When you enter the MD editing or title entry mode.

• When you turn off the Daily Timer.

) and DAILY indicators go off from the

The Daily Timer will be canceled and the unit will not turn off automatically in the following cases:

Using the Sleep Timer

With the Sleep Timer, you can fall asleep to your favorite music or radio program.

• You can set the Sleep Timer when the unit is turned on.

How the Sleep Timer actually works

The unit automatically turns off after the specified length of time passes.

On the remote control ONLY:

To sleep with the Sleep Timer and wake up with the Daily Timer

The unit turns off when the shut-off time comes (set by the Sleep Timer), and turns on when the timer-on time (set by the Daily Timer) comes.

Set the Daily Timer as explained on pages 90 and 91.

Start playing back any source you want to listen to before sleep.

Set the Sleep Timer.

English

Press SLEEP.

The timer ( the display. “SLEEP 10” appears in the main display for a while.

• Each time you press the button, the length of time changes as follows:

Press SET or wait for about 5 seconds.

The illumination of the electronic swing panel and display window dim. The timer ( remain lit.

To check the remaining time until shut-off time, press SLEEP once. The remaining time until shut-off time appears for about 5 seconds.

To change the shut-off time, press SLEEP repeatedly until the length of time you want appears.

To cancel the setting, press SLEEP repeatedly until the current source indication appears in the main display. The timer (

The Sleep Timer will be also canceled in the following cases:

• When you turn off the unit.

• When you operate other timer settings.

• When you adjust the clock.

) and SLEEP indicators start flashing on

Source indication

) and SLEEP indicators go off.

(canceled)

) and SLEEP indicators stop flashing and

120

Timer Priority

Since each timer can be set separately, you may wonder what happens if the setting for these timers overlaps. Here are the priorities for each timer.

• If the Recording Timer is set to come on earlier than the Daily Timer:

6:00 7:307:006:30

Recording Timer

Daily Timer

The Daily Timer is canceled.

• If the Daily Timer is set to come on earlier than the Recording Timer:

6:00 7:307:006:30

Daily Timer

Recording Timer

The Recording Timer is canceled.

• If the Recording and Daily Timer is set to come on at the same time:

6:00 7:307:006:30

Recording Timer

Daily Timer

The Daily Timer is canceled.

• If the Recording or Daily Timer is set to come on earlier than the shut-off time of the Sleep Timer:

22:0021:30 22:3021:00

Sleep Timer

Recording or Daily Timer

The Recording or Daily Timer is canceled.

The Sleep Timer and the Auto Power Off (see page 19) can be used at the same time.

Using AV COMPU LINK Control System

English

The AV COMPU LINK control system allows you to use JVC’s TV with simple operations. To use AV COMPU LINK control system, you need to connect this unit and a TV through the AV COMPU LINK terminals.

AV COMPU LINK Connection

Connect JVC video components with AV COMPU LINK jack by using a cord with monaural mini-plugs (not supplied).

• You need to set “AV COMPULINK MODE” in the SYSTEM menu correctly to use AV COMPU LINK control system. (See page 86.)

• Refer also to the manual supplied with your TV.

Cord with monaural mini-plugs

COMPU

LINK

(not supplied)

To AV COMPU LINK jack

The unit

Set “AV COMPU LINK” in the SYSTEM menu as follows.

• Select “DVD 1” (initial setting) when connecting to the VIDEO-3 (DVD) input jack of the TV.

• Select “DVD 2” when connecting to the VIDEO-1 input jack of the TV.

• Select “DVD 3” when connecting to the VIDEO-2 input jack of the TV.

You can connect a JVC video component that has AV COMPU LINK II, AV COMPU LINK III, or AV COMPU LINK EX jack can be connected to this unit.

One-touch DVD play

Simply by starting playback on the unit, the TV automatically turns on and changes the input mode to the appropriate position so that you can view the playback picture.

• The TV does not automatically turn off even if you turn off the unit.

When the main power of the TV is off or the power cord of the TV is unplugged, you cannot use the one-touch play.

Maintenance

To get the best performance of the unit, keep your discs, tapes and mechanism clean.

General Notes

In general, you will have the best performance by keeping your discs, MDs and the mechanism clean.

• Store discs and MDs in their cases, and keep them in cabinets or on shelves.

• Keep the electronic swing panel closed when not in use.

Handling MDs

Cleaning the unit

• Stains on the unit Should be wiped off with a soft cloth. If the unit is heavily stained, wipe it with a cloth soaked in waterdiluted neutral detergent and wrung well, then wipe clean with a dry cloth.

• Since the unit may deteriorate in quality, become

damaged or get its paint peeled off, be careful about the following:

- DO NOT wipe it with a hard cloth.

- DO NOT wipe it strong.

- DO NOT wipe it with thinner or benzine.

- DO NOT apply any volatile substance such as

insecticides to it.

- DO NOT allow any rubber or plastic to remain in

contact with it for a long time.

• Clean MDs regularly.

- If dust or dirt gets on cartridge, wipe it off with a soft dry cloth.

English

• Do not open the shutter.

- The shutter is locked so that it will not open. Trying to force it open will break the MD. If the shutter opens accidentally, close it again quickly without touching the MD inside.

• Do not place MDs in the following places:

- High temperature areas such as

in direct sunlight or inside a car.

- High humidity areas, e.g. in a

bathroom.

- On a beach or sandy area.

Handling discs

DO NOT use any solvent—such as conventional record cleaner, spray, thinner, or benzine—to clean the disc.

• Remove the disc from its case by holding it at the edge while pressing the center hole lightly.

• Do not touch the shiny surface of the disc, or bend the disc.

• Put the disc back in its case after use to prevent warping.

• Be careful not to scratch the surface of the disc when placing it back in its case.

• Avoid exposure to direct sunlight, temperature extremes, and moisture.

To clean the disc

Wipe the disc with a soft cloth in a straight line from center to edge.

Handling cassette tapes

• If the tape is loose in its cassette, take up the slack by inserting a pencil in one of the reels and rotating.

• If the tape is loose, it may get stretched, cut, or caught in the cassette.

• Be careful not to touch the tape surface.

• Avoid the following places to store the tape:

- In dusty places

- In direct sunlight or heat

- In moist areas

- On a TV or speaker

- Near a magnet

Disc/MD Messages

English

For discs:

For MD:

Message

NO DISC

ERROR

REGION

CODE ERROR

Message

BLANK DISC

CANNOT ENTRY!

CANNOT FORM!

CANNOT GROUP!

CANNOT JOIN

CANNOT TITLE

DISC FULL

DISC

PROTECTED

EMERGENCY

STOP

GROUP FULL

GROUP TRACK

LOAD ERROR

MD NO DISC

NON AUDIO

CAN NOT COPY

PLAYBACK

DISC

Signification

No disc is on the disc tray. You are trying to play back a

CD-R/RW which has not been “finalized.”

The unit and disc Region Code number are incompatible.

Signification

The disc is blank.

The track has already been in the selected group.

You are trying to form a new group including other groups.

There is no more space for storing information concerning MD group. (The information concerning MD group is recorded in the area where the titles are recorded.)

You are trying to join tracks (shorter than 8 seconds) or groups which cannot be joined.

You are trying to enter the title on the MD which already has over 1 792 characters in total.

There is no more space on the MD or there are over 254 tracks.

MD is write-protected.

A malfunction has occurred during recording.

You are trying to form over 99 groups.

You are trying to make a group by including a track which belongs to another group.

MD is not loaded correctly. There is no MD. You are trying to copy an non-audio

disc like a CD-ROM. You are trying to edit or record on a

playback-only MD.

Solution

Place a disc on the disc tray. This is not a malfunction. You can play

back “finalized” CD-R/RWs.

Change the disc. (See page 28.)

Solution

Change the MD if you want to enjoy playback.

This is not a malfunction. (See “Adding a Track to a Group—ENTRY GR” on page 69.)

This is not a malfunction. (See “Forming a Group—FORM GR” on page 68.)

You cannot form a group any more on the MD. (Erase the disc or track titles you do not need.)

This is not a malfunction. (See pages 71, 77 and 96.)

This is not a malfunction. (See “Assigning Titles to an MD” on page

80.) Use another recordable MD or erase

some tracks. Unprotect the MD or use another. (See

page 57.) Stop playback, eject the MD and re-

insert it. This is not a malfunction. There can

only be up to 99 groups on an MD. This is not a malfunction. (See

“Forming a Group—FORM GR” on page 68.)

Eject the MD and re-insert it. Put an MD. Stop recording.

Use a recordable MD.

Message

READ ERROR

The UTOC fails to be read. (See below.)

Signification

Digital copy of the 2nd generation is

SCMS CANNOT

prohibited.

COPY

You are trying to edit the track recorded on the personal computer.

TRACK

PROTECTED

UTOC (User Table Of Contents)

Found only on recordable MDs, this area contains sub-data (track number, recording data, etc.) which can be rewritten by the user. UTOC enables us to search for tracks quickly and edit tracks on the MD.

Solution

Turn off the unit, then turn on it again. You cannot make a digital recording

from a duplicated CD-R/RW onto an MD. If you try to do so, the unit will automatically convert the digital signals to analog signals.

Follow the instructions shown in the main display. (Ex.: When “YES?=ENTER” and “NO?=CANCEL” appears in the main display alternately, press ENTER to make your edition; otherwise, press CANCEL.)

3:12 4:15 6:05

English

MD limitations

The MD records data in an original format that differs from that of conventional cassette tapes or DATs. Since there are some limitations with this recording format, the following types of symptoms may occur. These symptoms are not malfunctions.

Symptoms

“DISC FULL” appears, even though there is still enough remaining time on an MD.

There is a maximum number of tracks which can be recorded, regardless of recording time. More than 254

Cause

tracks cannot be recorded on an MD.

“DISC FULL” appears, even though the number of tracks and recording time do not reach the limit.

• Repeating erasure and recording on the same MD creates many blank portions sparsely on the MD. When recording on such an MD, a track is recorded on these

The JOIN function sometimes does not work.

blank portions sparsely. If a track is divided and recorded into so many portions, “DISC FULL” appears.

• If a divided portion of less than 8 seconds is made while

The remaining time on the MD does not increase even when tracks are erased.

a track is recorded on the MD, that track cannot be joined to another track using the JOIN function. Furthermore, if that track is erased, the remaining time of the MD may not increase exactly by the erased

The sound drops out during fast forward or fast reverse.

amount.

• If a track has been divided into many portions while being recorded on the MD, sounds will drop out while fast forwarding or reversing such an MD.

The amount of recorded time on the MD added to the amount of remaining time is shorter than the MD’s total allowable recording time.

You cannot record on a blank portion of less than 12 seconds (SP mode) on the MD. For this reason, the actual recording time of discs may become shorter.

Troubleshooting

English

If you are having a problem with your unit, check this list for a possible solution before calling for service. If you cannot solve the problem from the hints given here, or the unit has been physically damaged, call a qualified person, such as your dealer, for service.

Symptom

Power does not come on.

No sound is heard from the speakers.

Unable to operate the remote control.

General

Operations are disabled.

The unit is shut off right after turning it on or starting playback.

Poor radio reception.

Possible Cause

The power cord is not connected to an AC outlet.

• Connections are incorrect or loose.

• A pair of headphones is connected.

• The path between the remote control

and the remote sensor on the unit is blocked.

• The batteries have lost their charge.

• You are using the remote control too

far from the main unit.

The built-in microprocessor has malfunctioned due to external electrical interference.

The speaker cords are short-circuited or an internal malfunction with the unit occurred.

• The antenna is not connected correctly.

• The AM loop antenna is too close to

the unit.

Action

Insert the plug into the socket.

• Check all connections and make corrections. (See pages 8 to 13.)

• Unplug the headphones from the PHONES jack.

• Remove the obstruction.

• Replace the batteries. (See page 8.)

• Signals cannot reach the remote

sensor. Move close to the main unit.

Unplug the AC power cord then plug it back in.

Unplug the AC power cord, check the connection of the speaker cords, then plug the AC power cord again. If the symptom still persists, consult your dealer.

• Reconnect the antenna securely.

• Change the position and direction of

the AM loop antenna.

Tuner

Loaded disc cannot be ejected.

The disc does not play.

Disc

Video and audio are distorted.

• The FM antenna is not properly extended and positioned.

• The main AC power cord is not plugged in.

• The Disc Lock function is in use.

• The CD is upside down.

• The unit and disc Region Code

numbers are incompatible.

• Parental lock is in use.

• The disc is dirty or scratched.

• A VCR is connected between the unit

and the TV.

• Extend FM antenna and orient to the best reception position.

• Plug in the AC power cord.

• Cancel the Disc Lock function. (See

page 23.)

• Put the CD in with the label side up.

• Replace the disc. (See page 28.)

• Unlock the parental lock. (See page 87.)

• Clean or replace the disc. (See pages

28 and 94.)

• Connect the unit and TV directly. (See page 10.)
