Page 1
PC-X250

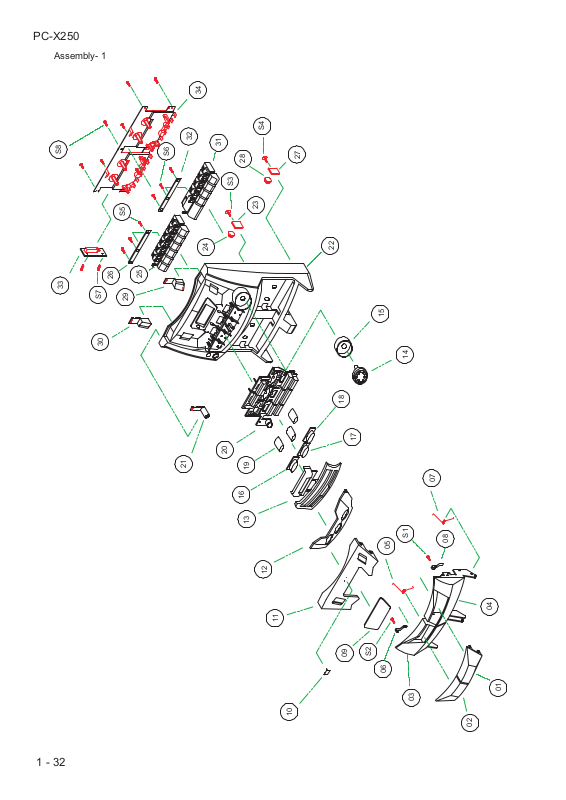

Assembly- 1
S8
34
S4
32
S6
31
28
S3
27
S5
24
25
26
33
S7
29
30
20
21
23
22
15
14
18
17
19
07
1 - 32
16
13
S1
05
12
11
S2
09
06
03
10
08
04
01
02
Page 2
Assembly- 1
PC-X250
!
ITEM Q'TY
01 525-073030-011 RIGHT CASS DOOR LENS 1
02 525-072030-011 LEFT CASS DOOR LENS 1
03 525-0030S3-012 LEFT CASS DOOR 1
04 525-0130S3-012 RIGHT CASS DOOR 1
05 766-250000-000 LEFT CASS DOOR SPRING 1
06 525-029300-000 LEFT CASS TAPE BRACKET 1
07 766-250000-000 RIGHT CASS DOOR SPRING 1
08 525-029300-000 RIGHT CASS TAPE BRACKET 1
09 525-080400-013 CD DISPLAY LENS 1
10 500-810200-011 "JVC" NAME PLATE 1
11 525-045430-013 DISPLAY PANEL 1
12 525-0453S3-011 CONTROL PLATE 1
13 525-045817-011 FUNCTION PLATE 1
14 525-0074S3-000 VOLUME KNOB 1
15 525-090427-000 VOLUME KNOB RING 1
16 525-078827-011 RADIO KNOB LENS 1
17 525-078327-011 CD KNOB LENS 1
18 525-078027-011 TAPE KNOB LENS 1
19 525-080800-000 REFLECTION LENS 3
20 525-0500S3-013 CD CONTROL KNOB 12pcs/KIT
21 525-0072S3-000 SUPER BASS KNOB 1
22 525-0010S3-012 FRONT CABINET 1
23 539-121200-000 LEFT CASS DOOR GEAR HOLDER 1
24 539-121100-000 LEFT CASS DOOR GEAR 1
25 525-0102S3-012 LEFT CASS KNOB 5pcs/KIT
26 463-380000-000 LEFT CASS KNOB PLATE 1
27 539-121200-000 RIGHT CASS DOOR GEAR HOLDER 1
28 539-121100-000 RIGHT CASS DOOR GEAR 1
29 525-0085S3-000 EQ KNOB 1
30 525-0510S3-000 POWER CONTROL KNOB 1
31 525-0108S3-012 RIGHT CASS KNOB 6pcs/KIT
32 463-380000-000 RIGHT CASS KNOB PLATE 1
33 248-250813-000 RECORDING BOARD 1
34 156-255609-254 CASS DECK 1
S1 238-120060-602 SCREW 2 X 6 PB 1 FIX RIGHT TAPE BRACKET
S2 238-120060-602 SCREW 2 X 6 PB 1 FIX LEFT TAPE BRACKET
S3 238-130080-632 SCREW 3 X 8 PWB 1 FIX LEFT CASS DOOR GEAR
S4 238-130080-632 SCREW 3 X 8 PWB 1 FIX RIGHT CASS DOOR GEAR
S5 238-130060-602 SCREW 3 X 6 PB 3 FIX LEFT CASS DOOR PLATE
S6 238-130060-602 SCREW 3 X 6 PB 3 FIX RIGHT CASS DOOR PLATE
S7 238-220050-903 SCREW 2 X 5 MC 2 FIX THE RECORDING BOARD
S8 238-130100-602 SCREW 3 X 10 PB 6 FIX CASS DECK
PARTS NUMBER PARTS NAME DESCRIPTION/LOCALITY
1 - 33
Page 3
PC-X250
Assembly- 2
14
S6
S8
15
S7
20
S9
19
18
12
17
16
11
01
02
S5
03
13
S2
S1
S4
04
10
09
08
07
06
05
S3
1 - 34
Page 4
Assembly- 2
PC-X250
ITEM Q'TY
!
01 466-756350-050 PVC BACK LIGHT PLATE 1
02 206-106938-000 REMOTE RECEIVER 1
03 525-031064-000 CD DISPLAY BRACKET 1
04 248-250802-117 AUDIO BOARD 1
05 453-030100-050 METAL WASHER 4
06 458-328840-220 RUBBER SILICON 4
07 356-110300-091 CD DECK 1
08 539-121200-000 CD DOOR GEAR HOLDER 1
09 539-121100-000 CD DOOR GEAR 1
10 525-0470S3-000 CD TRAY 1
11 479-328800-000 CD DOOR SPRING 1
12 846-209000-000 CD DOOR LOCK 1
13 248-250801-123 TUNER BOARD 1
14 408-146395-150 HEAT SINK 1
15 217-200035-050 LEAF SWITCH 1
16 500-291942-501 CD CHUCK (M) 1
PARTS NAME DESCRIPTION/LOCALITYPART NO.
17 473-300160-500 CD MAGNET RING 1
18 525-080330-011 CD DOOR LENS 1
19 500-100000-000 CD CHUCK (A) 1
20 525-0490S3-014 CD DOOR 1
S1 238-130150-602 SCREW 3 x 15 PB 2 FROM AUDIO BOARD TO CD TRAY
S2 238-130080-602 SCREW 3 x 8 PB 8 FIX THE AUDIO BOARD
S3 238-126080-632 SCREW 2.6 X 8 PWB 4 FIX THE CD DECK
S4 238-130100-602 SCREW 3 x 10 PB 2 FROM CD TRAY TO FRONT CABINET
S5 238-230086-202 SCREW 3 X 8 BB ( HARD ) 1 FIX HEAT SINK
S6 238-130080-602 SCREW 3 X 8 PB 3 FIX THE MAIN BOARD
S7 238-120060-602 SCREW 2 X 6 PB ( BLACK ) 1 FIX CD LEAF SWITCH
S8 238-130082-102 SCREW 3 X 8 KB ( BLACK ) 2 FIX CD DOOR LENS
S9 238-220060-202 SCREW 2 X 6 BB 1 FIX CD CHUCK A
1 - 35
Page 5
PC-X250
Assembly- 3
S2
S3
02
01
04
S1
03
05
S4
12
08
S5
07
13
06
11
09
10
1 - 36
Page 6
Assembly- 3
PC-X250
ITEM PART NO. Q'TY
!
01 158-000117-622 AC SOCKET 1
!
02 500-025100-000 AC SOCKET COVER 1
!
03 152-112560-225 POWER TRANSFORMER 1
!
04 248-250812-100 RECTIFIER BOARD 1
05 525-0020S3-012 BACK CABINET 1
06 763-250000-000 BATTERY SPRING ( +/-- ) 1
07 764-701300-000 BATTERY SPRING ( +) 1
08 765-901000-000 BATTERY SPRING ( -- ) 1
09 763-455000-000 BATTERY SPRING ( +/-- ) 1
10 763-331800-000 BATTERY SPRING ( +/-- ) 1
11 525-0040S3-000 BATTERY DOOR 1
12 466-756350-050 1 COVER THE VOLTAGE SELECTOR HOLE
PARTS NAME DESCRIPTION/LOCALITY
PVC PLATE FOR VOLTAGE
SELECTOR HOLE
13 155-420026-238 RADIO ANTENNA 1
S1 238-130200-632 SCREW 3 X 20 PWB 2 FIX POWER TRANSFORMER
S2 238-128120-602 SCREW 2.8 X 12 PB 2 FIX AC SOCKET COVER
S3 238-130080-602 SCREW 3 X 8 PB 1 FIX RECTIFIER BOARD
S4 238-128120-602 SCREW 3 X 10 PB 1 FIX AUX JACK
S5 238-130100-203 SCREW 3 X 10 BM ( BLACK ) 1 FIX RADIO ANTENNA
1 - 37
Page 7
PC-X250
Assembly- 4
01
S2
S3
S1
1 - 38
Page 8
Assembly- 4
PC-X250
ITEM PART NO. Q'TY
!
1 525-0050S3-000 HANDLE 1
S1 238-130250-602 SCREW 3 X 25 PB 5 FROM FRONT CASINET TO BACK CABINET
S2 238-130100-602 SCREW 3 X 10 PB 1 FIX THE AUX JACK
S3 238-128120-602 SCREW 2 X 5 MC 2 FIX THE RECORDING BOARD
PARTS NAME DESCRIPTION/LOCALITY
1 - 39
Page 9
PC-X250
Assembly- 5
S1
07
04
S2
03
06
02
S3
01
Assembly- 6
05
1 - 40
Page 10
Assembly- 5
FOR RIGHT SPEAKER BOX ASSEMBLY
PC-X250
ITEM Q'TY
!
01 500-810200-011 "JVC" NAME PLATE 1
02 525-040000-000 SPEAKER NET HOLDER 1
03 525-0410S3-010 SPEAKER BOX PANEL 1
04 154-178450-329 LOUD SPEAKER 1
05 154-508380-609 SPEAKER 1
06 525-026900-000 SPEAKER CORD HOLDER 1
07 525-0390S3-008 RIGHT SPEAKER BOX BACK 1
S1 238-130300-602 SCREW 3 X 30 PB 6
S2 238-130080-632 SCREW 3 X 8 PWB 2 FIX THE SPEAKER
S3 238-130080-632 SCREW 3 X 8 PWB 4
FOR LEFT SPEAKER BOX ASSEMBLY
ITEM Q'TY
01 500-810200-011 "JVC" NAME PLATE 1
PART NO. PARTS NAME DESCRIPTION/LOCALITY
PART NO. PARTS NAME DESCRIPTION/LOCALITY
FROM SPEAKER PANEL TO SPEAKER BOX BACK
FIX THE LOUD SPEAKER
02 525-040000-000 SPEAKER NET HOLDER 1
03 525-0410S3-010 SPEAKER BOX PANEL 1
04 154-508380-609 SPEAKER 1
05 154-178450-329 LOUD SPEAKER 1
06 525-026900-000 SPEAKER CORD HOLDER 1
07 525-0390S3-002 LEFT SPEAKER BOX BACK 1
S1 238-130300-602 SCREW 3 X 30 PB 6
S2 238-130080-632 SCREW 3 X 8 PWB 4 FIX THE SPEAKER
S3 238-130080-632 SCREW 3 X 8 PWB 2
FROM SPEAKER PANEL TO SPEAKER BOX BACK
FIX THE LOUD SPEAKER
1 - 41
Page 11
PC-X250
P.2
Packing
P.1
P.10 P.11
P.3
P.4
P.5
P.6
P.8
P.9
P.7
P.15
P.20
P.14
P.12
P.13
P.16
P.17
P.18
P.19
1-42
P.21
P.22
Page 12
Packing List
PC-X250
Item Part's Name Parts No.
P.1 Poly Bag
RC27-100S3-011
P.2 Remote Control Unit
P.3 Instruction Manual
P.4 Warranty Card
P.5 Registration card
601-250000-010
602-700388-001
602-700337-000
P.6 Safety Instruction Sheet 602-900276-000
P.7 Poly Bag 676-070100-040
P.8 Poly Bag 676-040130-040
P.9 Power Cord Set 151-117117-612
P.10 Poly Form, Top Left
875-351000-000
P.11 Poly Form, Top Right
P.12 Poly Bag 676-215240-040
P.13 Main Unit P.14 Speaker Unit, Left AS00-25002
P.15 Poly Bag 676-180240-040
P.16 Speaker Unit, Right AS00-25008
P.17 Poly Bag 676-180240-040
P.18
POP Label-Left
POP Label-Right
P.19 Poly Form, Bottom Right
629-080097-000
629-080096-000
875-351000-000
P.20 Poly Form, Bottom Left
P.21 Gift Box 891-250102-010
P.22 Bar Code Label 612-080131-000
1 - 43
Page 13
PC-X250
VICTOR COMPANY OF JAPAN, LIMITED. (By JCA)
AUDIO & COMMUNICATION BUSINESS DIVISION
PERSONAL & MOBILE NETWORK BUSINESS UNIT. 10-1, 1 Chome, Ohwatari-machi, Maebashi-city, 371-8543, Japan.
(By JCA)
No. 28001
