Thank you for buying this JVC LCD flat television. To make sure you understand how to use your new TV, please read this manual thoroughly before you begin. (“LCD” stands for Liquid Crystal Display.)

WARNING: TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS

APPLIANCE TO RAIN OR MOISTURE.

WARNING

• The TV may fall causing injuries. Hold the bottom of the stand with your hand and tilt the TV up and down.

• Do not allow children to hang from the TV, place their elbows on the TV or lean against the TV. Doing so may cause the TV to fall over and lead to injuries.

CAUTION

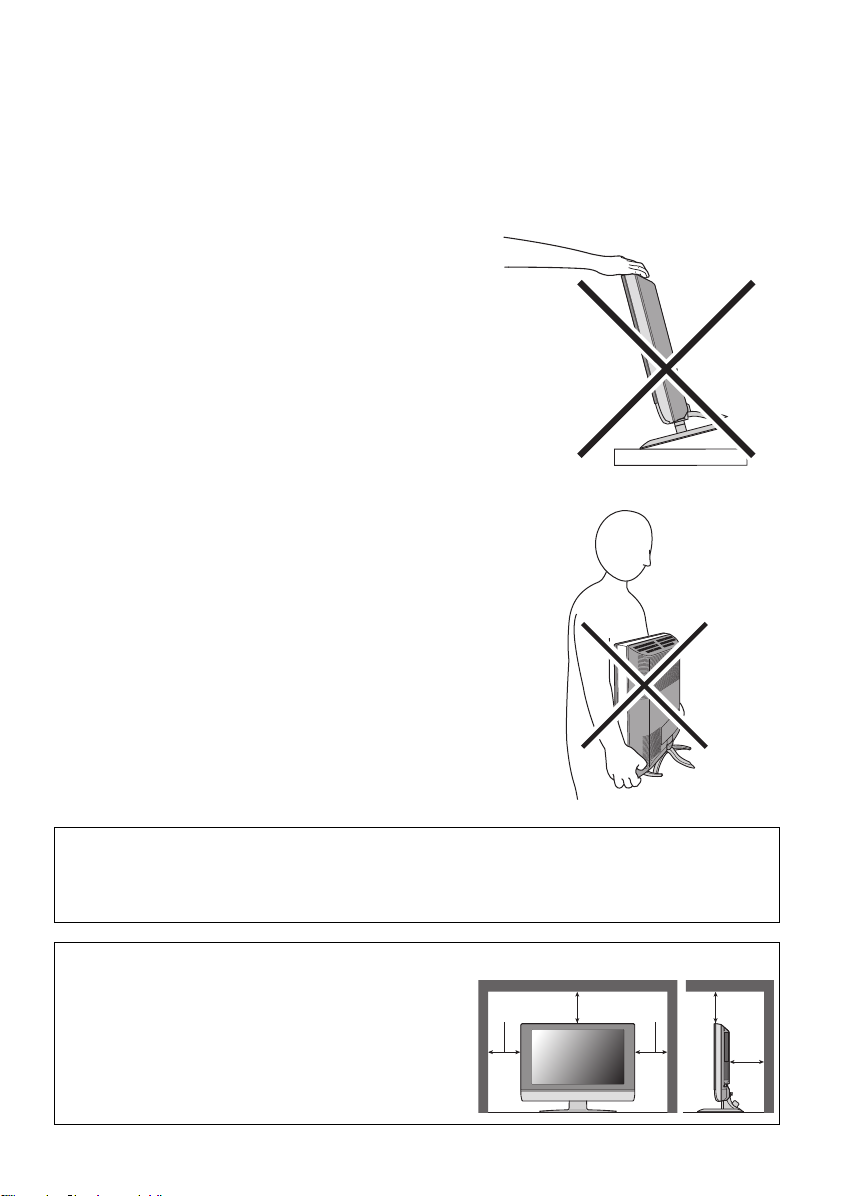

• The TV screen may be damaged if the TV is carried as shown in the diagram below. The TV should always be carried by two people.

ENGLISH

Pixel defects

LCDs use collections of fine points (“pixels”) to display images. While there is no problem with more than 99.99% of these pixels, please understand that a very small number of pixels may not light, or may light all the time.

Distance recommendations

Avoid improper installation and never position the unit where good ventilation is impossible. When installing this TV, distance recommendations must be maintained between the set and the wall, as well as inside a tightly enclosed area or piece of furniture. Keep to the minimum distance guidelines shown for safe operation.

150 mm 150 mm

200 mm 200 mm

50 mm

1

Failure to take the following precautions may cause damage to the television or remote control.

DO NOT block the TV’s ventilation openings or holes.

(If the ventilation openings or holes are blocked by a newspaper or cloth, etc., the heat may not be able to get out.)

DO NOT place anything on top of the TV.

(such as cosmetics or medicines, flower vases, potted plants, cups, etc.)

DO NOT allow objects or liquid into the cabinet openings.

(If water or liquid is allowed to enter this equipment, fire or electric shock may be caused.)

DO NOT place any naked flame sources, such as lighted candles, on the TV. DO NOT subject the TV to direct sunlight.

The surface of the TV screen is easily damaged. Be very careful with it when handling the TV. Should the TV screen become soiled, wipe it with a soft dry cloth. Never rub it forcefully. Never use any cleaner or detergent on it.

If there is a fault, unplug the unit and call a service technician. Do not attempt to repair it yourself or remove the rear cover.

 Cleaning the screen

The screen is coated with a special thin film to reduce reflection. If this film is damaged, uneven colors, discoloration, scratches, and other problems that cannot be repaired may occur. Pay attention to the following when handling the screen.

• Do not use glue or adhesive tape on the screen.

• Do not write on the screen.

• Do not allow the screen to come in contact with any hard objects.

• Do not allow condensation to form on the screen.

• Do not use alcohol, thinner, benzene or other solvents on the screen.

• Do not rub the screen hard.

CAUTION:

• Operate only from the power source specified (AC 110 – 240 V, 50/60 Hz) on the unit.

• Avoid damaging the AC plug and power cord.

• When you are not using this unit for a long period of time, it is recommended that you disconnect the power cord from the main outlet.

2

CONTENTS

Setting up your TV ...................................4

Installation.................................................. 4

Using the stand .......................................... 4

Removing the terminal cover ..................... 5

Connecting the aerial and video cassette

recorder (VCR) ....................................... 6

Connecting the power cord to the AC

outlet....................................................... 7

Putting the batteries into the remote

control..................................................... 7

Initial settings ............................................. 7

T-V LINK functions................................... 10

TV buttons and functions......................12

Turn the TV on from standby mode ......... 12

Choose a TV channel .............................. 12

Watch images from external devices....... 12

Adjust the volume .................................... 13

Using the Menu........................................ 13

Remote control buttons and

functions..............................................14

Turn the TV on or off from standby mode Choose a TV channel and watch images

from external devices ........................... 15

Adjust the volume .................................... 16

Information function ................................. 16

ZOOM function......................................... 17

3D SOUND function ................................. 18

Return to TV channel instantly................. 18

Favourite channel function....................... 19

Operating a JVC brand VCR or DVD

player.................................................... 20

... 14

Teletext function ....................................21

Basic operation ........................................ 21

Using the List Mode ................................. 21

Hold.......................................................... 22

Sub-page ................................................. 22

Reveal...................................................... 22

Size .......................................................... 22

Index ........................................................ 23

Cancel...................................................... 23

Using the TV’s menu..............................24

Basic operation ........................................ 24

PICTURE menu ......................................25

PICTURE MODE...................................... 25

BRIGHT-1 ................................................ 25

CONTRAST ............................................. 25

BRIGHT-2 ................................................ 25

SHARP..................................................... 25

COLOUR.................................................. 25

HUE.......................................................... 25

COLOUR TEMP....................................... 25

FEATURES .............................................. 26

SOUND menu ......................................... 28

STEREO / I • II ......................................... 28

BASS........................................................ 28

TREBLE ................................................... 28

BALANCE ................................................ 28

3D SOUND............................................... 28

FEATURES menu................................... 29

SLEEP TIMER ......................................... 29

CHILD LOCK............................................ 29

APPEARANCE......................................... 30

BLUE BACK ............................................. 30

FAVOURITE SETTING ............................ 31

SET UP menu ......................................... 32

AUTO PROGRAM.................................... 32

EDIT/MANUAL ......................................... 32

LANGUAGE ............................................. 36

DECODER (EXT-2).................................. 36

EXT SETTING.......................................... 37

Displaying a computer screen.............. 40

Connecting to the computer ..................... 40

Watching images from a computer ..........40

Table of signals for each type of

computer............................................... 40

Additional preparation ..........................41

Connecting external equipment ...............41

CH/CC numbers ..................................... 44

Troubleshooting ....................................46

Specifications ........................................49

ENGLISH

3

Setting up your TV

• When you install the TV on the wall, only use a JVC wall mounting unit (optional) which is designed for this TV.

• Make sure that the TV is installed on the wall by a skilled installer.

Installation

Cautions for installation

• Install the TV in a corner on a wall or on the floor so as to keep cords out of the way.

• The TV will generate a slight amount of heat during operation. Ensure that sufficient space is available around the TV to allow satisfactory cooling. See “Distance recommendations” on page 1.

Using the stand

This TV comes with a table top stand already attached.

This stand can be used to adjust the direction of the TV screen to the left or right.

 Rotate the TV to the left and right:

While holding the bottom of the stand with one hand, use your other hand to hold the edge of the panel and slowly adjust the direction of the TV screen.

4

Setting up your TV

Removing the terminal cover

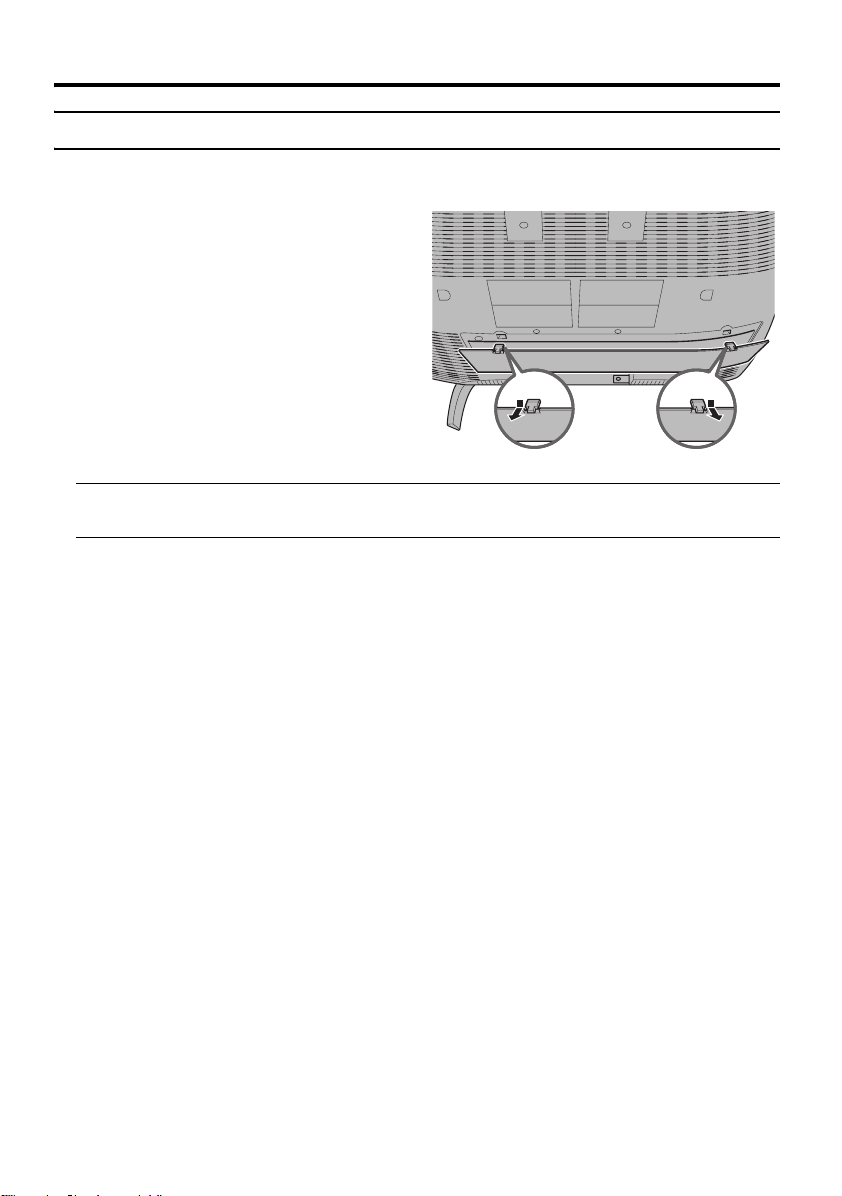

There are connection terminals behind the cover on the rear of the TV. Remove the cover before connecting an antenna or VCR.

Remove the cover by removing the hooks. When replacing the cover, place the side of the cover against the TV and insert the hooks.

• Leave the cover off if they do not fit properly. Do not force to replace the cover. Doing so may cause damage to the connection cables and the cover.

ENGLISH

5

Setting up your TV

Connecting the aerial and video cassette recorder (VCR)

• The connecting cables are not provided.

• For further details, refer to the manuals provided with the devices to be connected.

Caution

• Turn off all the equipment including the TV before connecting anything.

 If you are connecting a VCR,

follow A → B → C in the diagram opposite.

 If you are not connecting a VCR,

follow 1.

without terminal covers

Aerial

To use the T-V LINK functions, you must have a T-V LINK compatible VCR connected by a SCART cable C to the EXT2 terminal on the TV. For details about T-V LINK functions, see “T-V LINK functions” on page 10.

• You can watch a video using the VCR without doing C. For details, see your VCR instruction manual.

• To connect more equipment, please see “Connecting external equipment” on page 41.

• If you connect a decoder to a T-V LINK compatible VCR, set the DECODER (EXT-2) function to ON. For details, see “DECODER (EXT-2)” on page 36. Otherwise, you will not be able to watch scrambled channels.

21-pin

SCART

Cable

VCR

AV IN/OUT

Terminal

75-ohm Coaxial

Cable

To Aerial

Input

To Aerial

Output

75-ohm Coaxial

Cable

6

Setting up your TV

s

Connecting the power cord to the AC outlet

Insert the AC plug on the power cord from the TV into an AC outlet.

Caution

• Operate only from the power source specified (AC 110 – 240 V, 50/60 Hz) on the unit.

• Remove the AC plug from the outlet to completely disconnect the TV from the power supply.

Putting the batteries into the remote control

Use two AA/R6 dry cell batteries. Insert the batteries from the - end, making sure the + and - polarities are correct.

• Follow the warnings printed on the batteries.

• Battery life is about six months to one year, depending on how much you use the remote control.

• The batteries we supply are only for setting up and testing your TV, please replace them as soon as you need to.

• If the remote control does not work properly, replace the batteries.

Initial settings

When the TV is first turned on, it goes into the initial settings mode, and you will see the JVC logo. Follow the instructions on the screen display to make the initial settings.

# button

VCR/TV/DVD switch

Yellow button

Blue button

7 button

1 Make sure to set the VCR/TV/DVD

switch on the remote control to the TV position

• You cannot turn the TV on when the VCR/TV/DVD switch is set to the VCR or DVD position.

2 Press the # button on the remote

control

The TV turns on from standby mode and the JVC logo is displayed.

• Check that the AC plug on the power cord from the TV is connected to AC outlet.

ENGLISH

Remote control

sensor

Power lamp

7

Setting up your TV

• If the JVC logo does not appear this is because your TV has already been turned on for the first time: use the “LANGUAGE” and “AUTO PROGRAM” functions to make the initial settings. For details, see “SET UP menu” on page 32.

3 Press the a button

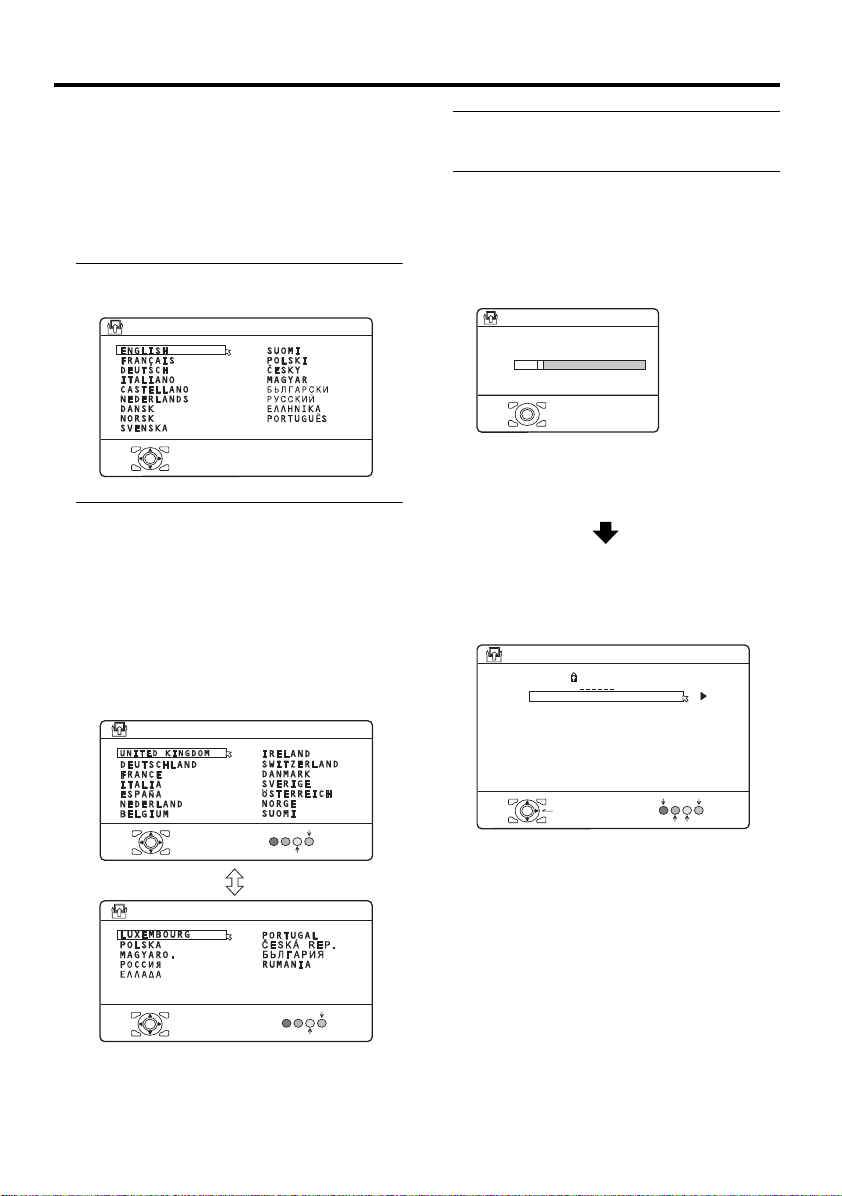

The LANGUAGE menu appears.

> LANGUAGE

OK

D0002(E)-EN

4 Press the 6 buttons to choose

ENGLISH. Then press the a button

The on-screen display will then be in English. The COUNTRY menu appears as a submenu of the AUTO PROGRAM function. There are two COUNTRY menus. Pressing the yellow button changes the COUNTRY menu as follows:

> COUNTRY

OK

> COUNTRY

START

MORE

5 Press the 5 and 6 buttons to

choose the country where you are

6 Press the blue button to start the

AUTO PROGRAM function

The AUTO PROGRAM menu appears and received TV channels are automatically stored in the programme numbers (PR).

>> AUTO PROGRAM

CH 28

14%

OK

D0004-EN

• To cancel the AUTO PROGRAM function: Press the b button.

After the TV channels have been registered in the programme numbers (PR), the EDIT menu appears

> EDIT

D0038-EN

PR ID AV 01 02 03 04 05 06 07 08 09

OK

MOVE

BBC1

CH/CC

CH CH CH CH CH CH CC CC CC

ID

INSERT

21 22 23 24 25 26 01 02 03

MANUAL

DELETE

• If you want to, you can now edit the programme numbers (PR) using the EDIT/MANUAL function. For details, see “EDIT/MANUAL” on page 32.

• If you do not want to edit programme numbers (PR), go to the next step.

OK

D0003-EN

START

MORE

8

7 Press the a button to display the

T-V LINK menu

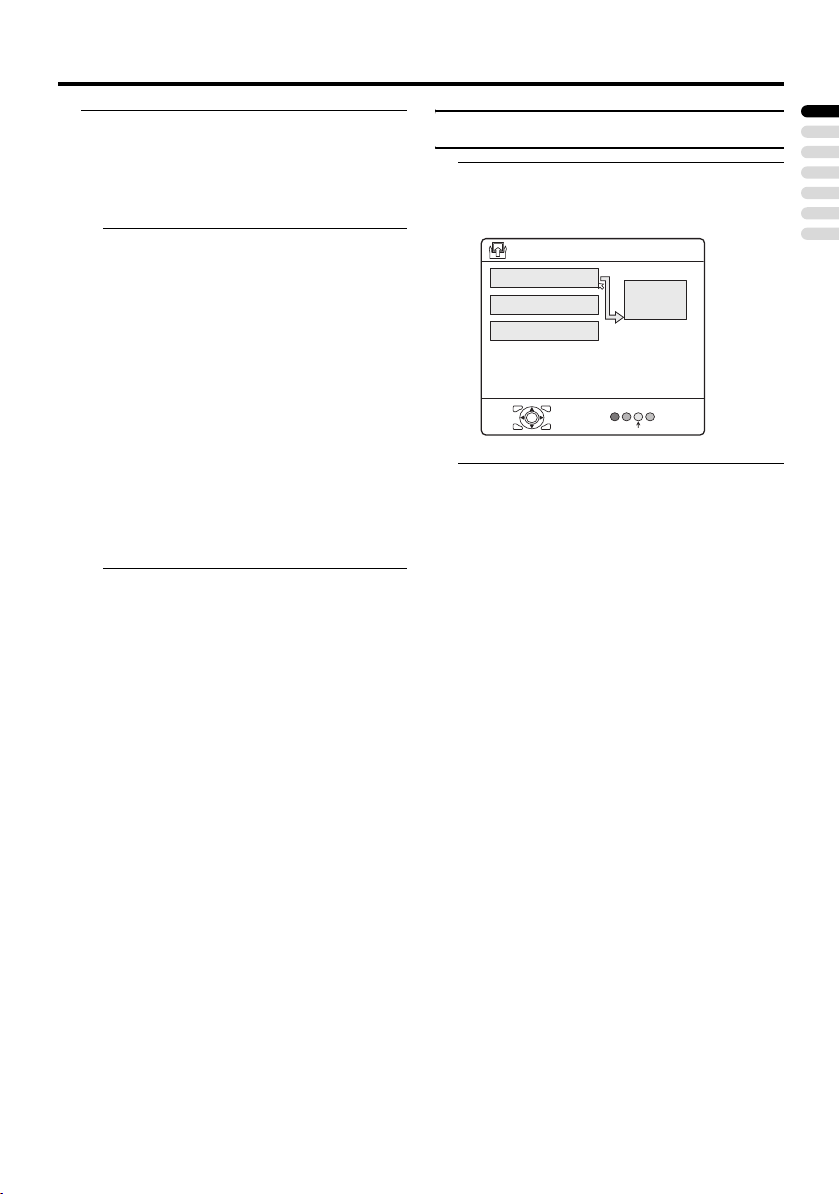

T-V LINK

DOWNLOAD TV RECORDING DEVICE

Setting up your TV

EXIT

OK

D0005

-EN

If you do not have a T-V LINK compatible VCR connected:

Press the b button to exit the T-V LINK menu. The T-V LINK menu disappears.

If you have a T-V LINK compatible VCR connected to the EXT-2 terminal:

Follow the operating procedure “Downloading the data to VCR” on page 10 to transmit the Programme number (PR) data.

Now, the initial settings are complete, and you can watch the TV

• If your TV can detect the TV channel name from the TV channel broadcast signal, the TV channel name is assigned to the programme number (PR) to which the TV channel has been set. However, which TV channels are set to which programme numbers (PR) will depend on the area in which you live.

• If a TV channel you want to view is not set to a programme number (PR), you can set it using the MANUAL function. For details, see “EDIT/MANUAL” on page 32.

• The AUTO PROGRAM function does not set the programme number PR 0 (AV) for your video cassette recorder. You will need to set this using the MANUAL function.

ENGLISH

9

Setting up your TV

 Downloading the data to VCR

You can transmit to the latest Programme numbers (PR) data to a VCR with the T-V LINK function.

Caution

• This only works when a T-V LINK compatible VCR is connected to the EXT-2 terminal.

• This only works when the T-V LINK menu is being displayed.

T-V LINK

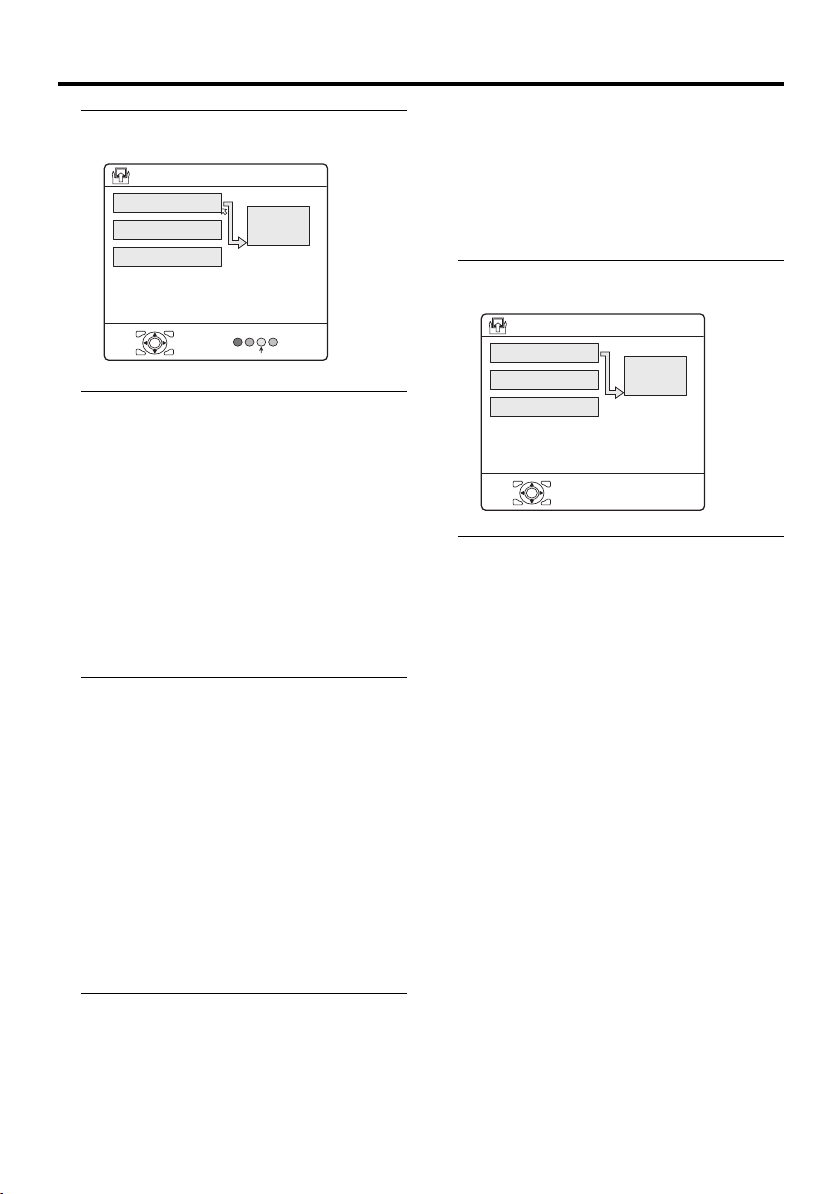

DOWNLOAD TV RECORDING DEVICE

EXIT

OK

D0005

-EN

1 Turn on the VCR

2 Press the a button

The data transmission begins.

TV RECORDING DEVICE

TRANSFER. . . . .

D0037

-EN

The T-V LINK menu disappears once the data transmission ends.

When the T-V LINK menu is changed over to another menu:

The TV has finished its menu. This new menu is operated from the VCR. See the VCR instruction manual for what to do next.

If “FEATURE NOT AVAILABLE” appears at the T-V LINK menu:

Check the following three items. Then press the 2 button to retry data transmission.

• Has a T-V LINK compatible VCR been connected to the EXT-2 terminal?

• Has the VCR power been turned on?

• Does the SCART cable that is connected to the EXT-2 terminal to TV LINK compatible VCR have all its proper connections?

T-V LINK functions

When you have a T-V LINK compatible VCR connected to the EXT-2 Terminal on the TV, it is easier to set up the VCR and to view videos. T-V LINK uses the following features:

To use T-V LINK functions:

A “T-V LINK compatible VCR” means a JVC video cassette recorder with the T-V LINK logo, or with one of the following logos. However, these VCRs may support some or all of the features described earlier. For details, see your VCR instruction manual.

“Q-LINK” (a trademark of Panasonic Corporation) “Data Logic” (a trademark of Metz Corporation) “Easy Link” (a trademark of Phillips Corporation) “Megalogic” (a trademark of Grundig Corporation) “SMARTLINK” (a trademark of Sony Corporation).

10

Setting up your TV

 Pre-set download

The VCR will automatically download the registered data on the TV channels from the TV. This means you do not need to set up the program channels on your VCR manually. The preset download function automatically begins when the initial setting is complete or whenever you carry out the AUTO PROGRAM or EDIT/MANUAL functions.

You can also carry out this function using your VCR controls.

When “FEATURE NOT AVAILABLE” is displayed:

If “FEATURE NOT AVAILABLE” is displayed, the download was not performed correctly. Before trying to download again, check that:

• the VCR power is turned on

• the VCR is T-V LINK compatible

• the VCR is connected to the EXT-2 terminal

• the SCART cable is fully wired.

 Direct Rec

“What You See Is What You Record” You can easily record to VCR the images

that you are watching on the TV. For details, read the manual for your VCR.

Use your VCR controls. “DEVICE IS RECORDING” is displayed.

In the following situations, the VCR will stop recording if the TV is turned off, if the TV channel or input is changed, or if the menu is displayed on the TV:

• when recording images from an external device connected to the TV (for example a camcorder)

• when recording a TV channel after it has been unscrambled on a decoder

• when recording a TV channel by using the TV’s output because the VCR’s own tuner cannot properly receive that channel.

You cannot carry out Direct Rec using your TV’s control. Generally, the VCR cannot record a TV channel that it cannot receive properly on its own tuner, even if you can view that TV channel on the TV. However, some VCRs can record a TV channel by using the TV’s output if that channel can be viewed on the TV. For details, see your VCR instruction manual.

When the VCR is not ready, the following messages are displayed.

ERROR MESSAGE

NO RECORDING

NO RECORDING POSSIBLE

NO RECORDING, MEDIA PROBLEM

NO RECORDING, DEVICE BUSY

Cause and countermeasure

The VCR is not able to record. Check the VCR.

The TV input is set to EXT-4 or PC. Since the EXT-4 picture or PC picture cannot be output to EXT-2, DIRECT REC is not possible.

The recording device is not ready to record. Check the VCR tape.

The recording device cannot record as it is recording or playing. Check the VCR.

Refer to the VCR instruction manual.

ENGLISH

11

TV buttons and functions

Turn the TV on from standby mode

Press the A button or the P p buttons to turn the TV on from standby mode.

When the TV is turned on, the power lamp lights blue.

To turn the TV off:

Press the A button again. The power lamp goes off.

Caution

•The A button on the TV does not fully

isolate the TV from the AC supply. If you are not going to use the TV for a long period, be sure to disconnect the AC plug from the AC socket.

Choose a TV channel

Press the P p buttons to choose a programme number (PR) or an EXT terminal

Refer to the pages in parentheses for details.

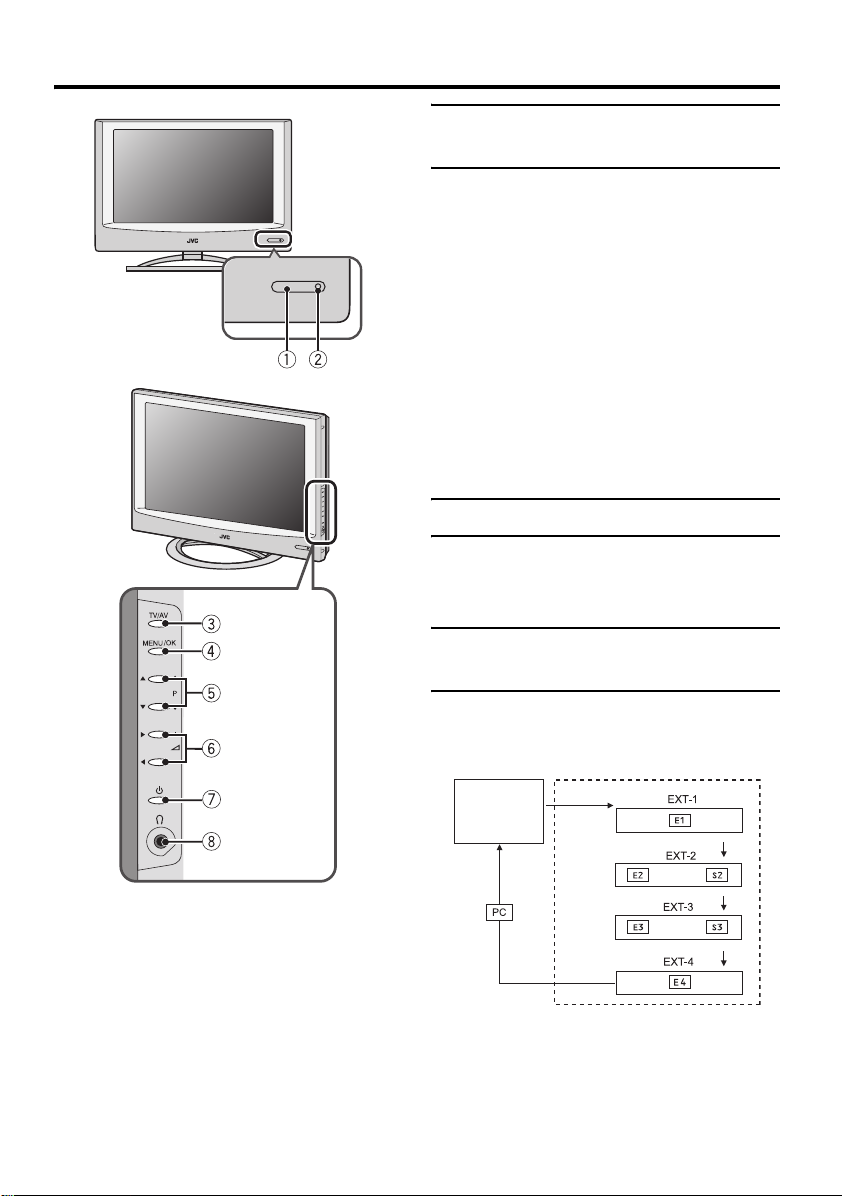

1 Remote control sensor 2 Power lamp (page 7) 3 TV/AV button (page 12) 4 MENU/OK button (pages 13, 24) 5 P p buttons (page 12) 6 r (Volume) q buttons (page 13) 7 A (Stand by) button (page 12) 8 Headphone jack (mini jack) (page 41)

12

Watch images from external devices

Press the TV/AV button to choose an EXT terminal

TV mode EXT modes

Last

Programme

number

or

Adjust the volume

Press the r (Volume) q buttons

The volume level indicator appears.

TV buttons and functions

Using the Menu

Use the MENU/OK button

Refer to “Using the TV’s menu” (see page 24) for details of using the menu.

ENGLISH

13

Remote control buttons and functions

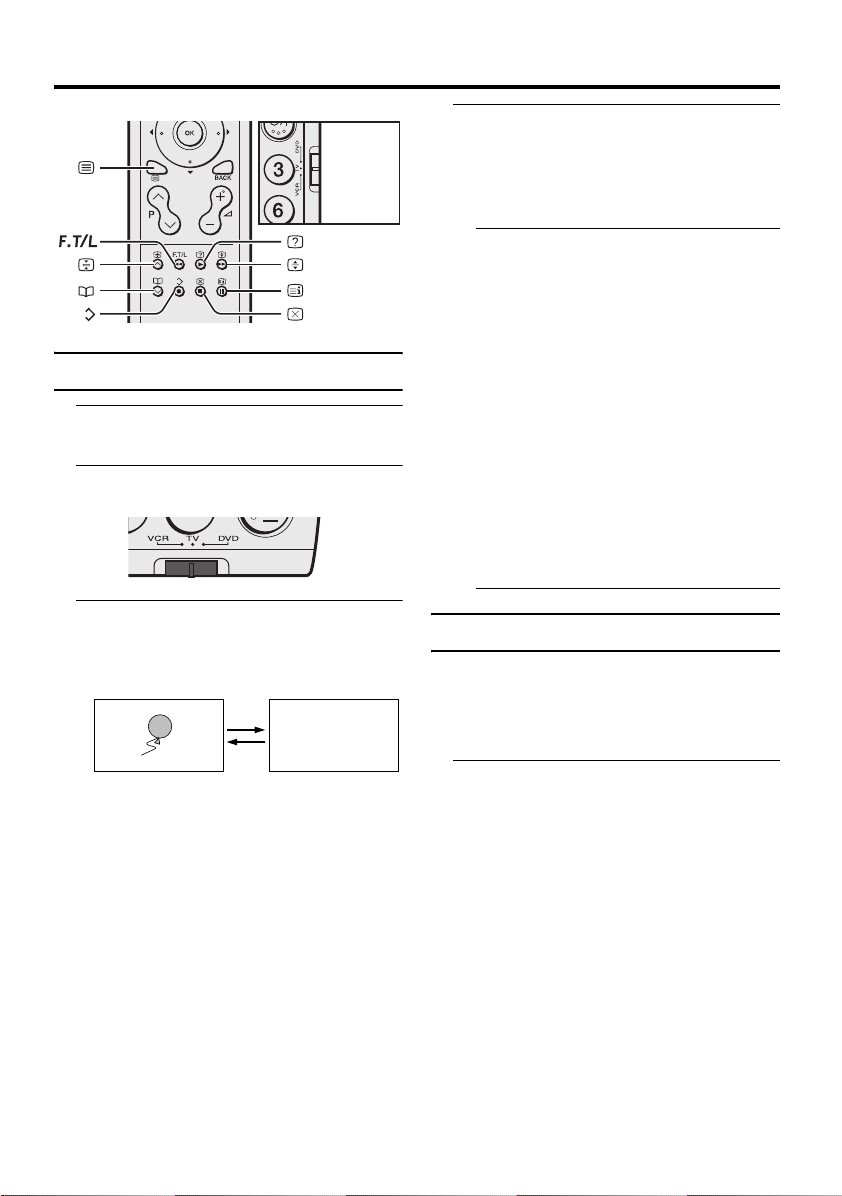

1 Muting button 2 Number buttons 3 Information button

1

2

3

4 5

6

7 8

~

!

@ #

$ %

^

4 c button 5 i button 6 b button 7 7 buttons 8 g (Text) button 9 p p buttons 0 VCR/DVD/Teletext control buttons

- p buttons = d (Favourite) button ~ # (Standby) button ! VCR/TV/DVD switch @ G button # Colour buttons $ H button % a button ^ b button & r (Volume) q buttons

Turn the TV on or off from standby mode

14

9

0

=

&

Press the # (standby) button to turn the TV on or off

When the TV is turned on, the power lamp lights blue.

• The power can be turned on by pressing

the b button, p p buttons or Number buttons.

To turn the TV on or off, set the VCR/TV/ DVD switch on the remote control to the TV position and press the # button. If the VCR/TV/DVD switch on the remote control is set to a position other than TV, the TV will not be turned on or off even if the # button is pressed.

Remote control buttons and functions

Choose a TV channel and watch images from external devices

 Use the number buttons:

Enter the programme number (PR) of the channel using the number buttons.

Example:

•PR 6 → press 6

• PR 12 → press 1 and 2

 Use the p p buttons:

Press the p p buttons to choose the programme number (PR) you want or an EXT terminal.

 Use the AV button:

Press the AV button to choose an EXT terminal.

TV mode EXT modes

Programme

numbers

PR 1 – PR 99

or

• Since this TV is designed to make full use of the resolution of the original video source, the motion may appear unnatural when the video source is input with progressive-scanning component signals. If this happens, change the output setting of the connected device to interlacescanning component signal output. See the instructions that came with the device for more information.

• The PC sound is the same as the EXT-3 sound.

To return to a TV channel:

Press the b button, the 6 buttons or the number buttons.

To use the programme number PR 0 (AV):

When the TV and VCR are connected only by the aerial cable, choosing the programme number PR 0 (AV) allows you to view images from the VCR. Set the VCR RF channel to the programme number PR 0 (AV) manually. For details, see “EDIT/ MANUAL” on page 32. Pressing the G button changes the choice as follows:

TV mode EXT modes

Programme

numbers

PR 1 – PR 99

PR 0

EXT-1

EXT-2

or

ENGLISH

• You can choose a video input signal from the S-VIDEO signal (Y/C signal) and regular video signal (composite signal). For details, see “S-IN (S-VIDEO input)” on page 37.

• If you do not have a clear picture or no colour appears, change the colour system manually. See “COLOUR SYSTEM” on page 26.

• If you choose an EXT terminal with no input signal, the EXT terminal number becomes fixed on the screen.

EXT-3

or

EXT-4

• The VCR sends its playback image along the aerial cable as an RF (radio frequency) signal.

• Also see your VCR instruction manual.

15

Remote control buttons and functions

Adjust the volume

Press the r q buttons to adjust the volume.

The volume level indicator appears and the volume changes as you press the r q buttons.

 Muting the sound

Press the l (muting) button to turn off the sound.

Pressing the l (muting) button again restores the previous volume level.

Information function

You can see the channel number of the programme you are watching, the current time or the PR LIST. From the PR LIST, you can choose a channel or EXT terminal.

Press the h (Information) button to display the information you want to

see.

Pressing the h (Information) button changes the display as follows:

PR LIST

PR ID

AV

BBC1

01 02 03 04 05 06 07

OK

+8-8

D0011-EN

Channel number display:

The channel number and channel name (when the channel name is registered) of the programme you are watching or the EXT terminal number is displayed.

Channel number display

12 : 00

No indication

Time display:

The current time of the teletext data is displayed. If the TV has not received a TV channel that has teletext programmes since it was turned on, the time display is blank. To view the current time, choose a TV channel that has teletext programmes.

• An incorrect current time is sometimes displayed when watching videos.

PR LIST:

The programme number (PR) and EXT terminal list is displayed. Pressing the a button after choosing the programme number (PR) or EXT terminal with the 7 buttons will display the chosen programme or EXT terminal.

• For programme numbers (PR) for which the CHILD LOCK function is set, the n (CHILD LOCK) mark is displayed. For details see “CHILD LOCK” on page 29.

• For programme numbers (PR) which is registered as a favourite channel, the d (favourite) mark is displayed. For details see “Favourite channel function” on page 19.

16

Remote control buttons and functions

ZOOM function

You can change the screen size according to the picture aspect ratio. Choose the optimum one from the following ZOOM modes.

• The ZOOM mode is fixed at FULL when you are using the TV as a PC screen.

AUTO:

When a WSS (Wide Screen Signalling) signal, which shows the aspect ratio of the picture, is included in the broadcast signal or the signal from an external device, the TV automatically changes the ZOOM mode to 16:9 ZOOM mode or FULL mode according to the WSS signal. If a WSS signal is not included, the picture is displayed according to the ZOOM mode set with the 4:3 AUTO ASPECT function.

• For details of the 4:3 AUTO ASPECT function, see “4:3 AUTO ASPECT” on page 27.

• When the AUTO (WSS) mode does not function correctly due to poor WSS signal quality or when you want to change the ZOOM mode, press the c button and change to another ZOOM mode.

REGULAR:

Use to view a normal picture (4:3 aspect ratio) as this is its original shape.

PANORAMIC:

This stretches the left and right sides of a normal picture (4:3 aspect ratio) to fill the screen, without making the picture appear unnatural.

• The top and bottom of the picture are slightly cut off.

14:9 ZOOM:

This zooms up the wide picture (14:9 aspect ratio) to the upper and lower limits of the screen.

16:9 ZOOM:

This zooms up the wide picture (16:9 aspect ratio) to the full screen.

16:9 ZOOM SUBTITLE:

This zooms up the wide picture (16:9 aspect ratio) with subtitles to the full screen.

FULL:

This uniformly stretches the left and right sides of a normal picture (4:3 aspect ratio) to fill the wide TV screen.

• For 16:9 aspect ratio pictures that have been squeezed into a normal picture (4:3 aspect ratio), use the FULL mode to restore the picture to its original shape.

 Choose the ZOOM mode

1 Press the c button to display

the ZOOM menu

ZOOM

AUTO REGULAR PANORAMIC 14:9 ZOOM 16:9 ZOOM 16:9 ZOOM SUBTITLE FULL

OK

D0009-EN

2 Press the 6 buttons to choose a

ZOOM mode. Then press the a button

The picture expands and the chosen ZOOM mode is displayed in about 5 seconds.

• The ZOOM mode may be automatically changed by the control signal from an external device. When you want to return to the previous ZOOM mode, choose the ZOOM mode again.

ENGLISH

17

Remote control buttons and functions

 Adjusting the visible area of the


If subtitles or the top (or bottom) of the picture are cut off, you can adjust the visible area of the picture manually.

1 Press the c button

The ZOOM menu appears.

2 Press the a button to display the

ZOOM mode indicator

The indicator appears.

16 : 9 ZOOM

D0010-EN

3 While it is displayed, press the 6

buttons to change the position of the picture

• You cannot adjust the visible area in REGULAR or FULL mode.

The visible area adjustment is saved even after the TV channel is changed. However, it is cancelled if the following operations are performed.

• The power is turned off/on

• The ZOOM mode is changed

• g (Text) button is pressed

• The TV is switched between TV mode and EXT mode

MONO:

Select the MONO mode, when you listen to the mono sound. You can enjoy the sound for a wider audience similar to stereo sound.

OFF:

The 3D SOUND function switches off.

• You can choose the 3D SOUND mode with the “SOUND menu” (see page 28).

Return to TV channel instantly

You can return to a TV channel instantly.

Press the b button

The TV returns to the TV mode and a TV channel appears.

3D SOUND function

You can enjoy sounds with a wider ambience.

• This function does not work for the sound from headphones.

Press the i button to select one of 3D SOUND modes

ON:

When you listen to stereo sound, please select ON mode. You can enjoy sound similar to the experience at the theatre.

18

Remote control buttons and functions

Favourite channel function

You can register your favourite TV channels (PR 1 – PR 99) in the number buttons 1 to 4. After registering, the channel can be called by pressing the d (favourite) button and a number button 1 to 4.

 Favourite channel registration

1 In the normal screen, choose a TV

channel (PR 1 – PR 99) that you want to register

For details, refer to “Choose a TV channel and watch images from external devices” on page 15.

2 Press and hold the d (favourite)

button for three seconds or more

Then “SET 1-4?” appears on the screen.

3 Press one of the number buttons 1

to 4

The current channel is registered in the pressed number button. After “PROGRAMMED!” appears on the screen, the favourite channel icon appears at the top-right of the screen.

• If the channel you are trying to register is already registered in one of the other number buttons 1 to 4, “NOT AVAILABLE” appears on the screen.

• Channels locked with the CHILD LOCK function cannot be registered.

• If AUTO PROGRAM is performed, the registered favourite channels are reset.

 Calling the favourite channel

1 In the normal screen, press the d

(favourite) button

Then “FAVORITE1-4?” appears.

2 Press one of the number buttons 1

to 4

The called favourite channel appears on the screen.

• If a number button in which no channel is registered is pressed, “NO MEMORY” appears on the screen.

 Setting the picture effect

When a favourite channel has been chosen with the d (favourite) button and number buttons 1 to 4, picture effect settings can be memorised for each favourite channel by setting the picture effects in the PICTURE menu (see page 25). The following items in the PICTURE menu (see page 25) are memorised. PICTURE MODE BRIGHT-1 CONTRAST BRIGHT-2 SHARP COLOUR HUE COLOUR TEMP. DIGITAL VNR COLOUR SYSTEM The last setting made for each item is memorised.

ENGLISH

• When you want to delete a favourite channel, delete the set channel and set contents with FAVOURITE SETTING (see page 31) in the FEATURES menu.

19

Remote control buttons and functions

Operating a JVC brand VCR or DVD player

These buttons will operate a JVC brand VCR or DVD player. Pressing a button that looks the same as the device’s original remote control button has the same effect as the original remote control.

1 Set the VCR/TV/DVD Switch to the

VCR or DVD position

VCR:

When you are operating the VCR, set the switch to the VCR position.

• You can turn the VCR on or off with

the # (standby) button.

DVD:

When you are operating the DVD player, set the switch to the DVD position.

• You can turn the DVD player on or off

with the # (standby) button.

• You can also press the H or T button and display the DVD disc menu screen, and then operate by pressing the 7 buttons.

2 Press the VCR/DVD Control Button

to control your VCR or DVD player

• If your device is not made by JVC, these buttons will not work.

• Even if your device is made by JVC, some of these buttons may not work, depending on the device you are using.

• You can use the p buttons to choose a TV channel the VCR will receive, or choose the chapter the DVD player plays back.

• Some models of DVD player use the p buttons for both operating the fast forward/backward functions and for choosing the chapter. In this case, the 253 buttons do not work.

You cannot turn the TV on or off when the VCR/TV/DVD switch is set to the VCR or DVD position. When you turn the TV on or off, set the VCR/TV/DVD switch to the TV position.

20

Teletext function

VCR/TV/ DVD

4 Choose a teletext page by pressing

the p p buttons, number buttons or colour buttons

To return to the TV mode:

Press the b button or g (Text) button.

Basic operation

1 Choose a TV channel with a teletext

broadcast

2 Set the VCR/TV/DVD switch to the

TV position

3 Press g (Text) button to display

the teletext

Pressing g (Text) button changes the mode as follows:

TEXT

---

TEXT

---

TV mode Text mode

• If you have trouble receiving teletext broadcasts, consult your local dealer or the teletext station.

• The ZOOM function will not work in the TV and text mode or Text mode.

• You cannot operate menus when viewing a teletext programme.

• Language display depends on the country which was set on the COUNTRY menu. If characters on a Teletext programme do not appear properly, change the COUNTRY setting to other country’s. To change the COUNTRY setting, perform steps 1 and 2 of the “AUTO PROGRAM” procedure on page 32 and then press the a button.

Using the List Mode

You can store the numbers of your favourite teletext pages in memory and call them up quickly using the colour buttons.

 To store the page numbers:

1 Press B button to go into the

List mode

The page numbers you have stored are displayed at the bottom of the screen.

ENGLISH

21

Teletext function

2 Press a colour button to choose a

position. Then press the number buttons to enter the page number

3 Press and hold down the A (Store)

button

The four page numbers blink white to show that they are stored in memory.

 To call up a stored page:

1 Press the B button to enter the

List mode

2 Press a colour button having a

stored page

To exit the List mode:

Press the B button again.

Hold

You can hold a teletext page on the screen for as long as you want, even while several other teletext pages are being received.

Press the C (Hold) button

Hold indication

Sub-page

Some teletext pages include sub-pages that are automatically displayed. You can hold any sub-page, or view it at any time.

1 Press the d (Favourite) button to

operate the Sub-page function

2 Press the Number buttons to enter

a sub-page number

Example:

• 3rd sub-page → press 0, 0, 0 and 3.

To cancel the Sub-page function:

Press the d (Favourite) button again.

Reveal

Some teletext pages include hidden text (such as answers to a quiz). You can display the hidden text.

Each time you press the E (Reveal) button, text is hidden or revealed

Size

You can double the height of the teletext display.

Press the F (Size) button

To cancel the Hold function:

Press C (Hold) button again.

22

Index

You can return to the index page instantly.

Press the G (Index) button

Returns to page 100 or a previously specified page.

Cancel

You can search for a teletext page while watching TV.

1 Press the number button to enter a

page number, or press a colour button

The TV searches for a teletext page.

2 Press H (Cancel) button

The TV programme appears. When the TV finds the teletext page, its page number appears in the upper left of the screen.

3 Press H (Cancel) button to return

to a teletext page when the page number is on the screen

• The TV mode cannot be resumed by

pressing the H (Cancel) button. To return to the TV mode press b.

Teletext function

ENGLISH

23

Using the TV’s menu


This TV has a number of functions you can operate using menus. To use all your TV’s functions, you need to understand the basic menu operating techniques fully.

Buttons used to operate the menus

Basic operation

1 Press the H button to display

the menu bar

D0105-EN

2 Press the 5 buttons to choose

the menu you want to use and then press the a button

Types of menu

PICTURE menu

D0106

Choose to set the screen settings.

SOUND menu

D0107

Choose to set the sound settings.

FEATURES menu

D0108

Choose to set the sleep timer and child lock settings.

SET UP menu

Choose to edit the channels or

D0109

set the display language settings.

• The menu will disappear after about one minute if no operation is performed.

Operation with the buttons on the TV

You can also operate the menus using the buttons on the front panel of the TV.

D1105-EN

Chosen menu

3 Press the 6 buttons to choose

the item to be set, press the 5 buttons to set the item, and then press the a button

If there are sub-menus, use the 7 buttons to operate them.

• Press the b button to return to

the previous menu.

• Press the b or H button to exit

from the menu.

• Some menu items may not be operated or set depending on the TV status or other menu item settings. Menu items that cannot be operated or set are displayed in grey in the menu and cannot be chosen.

24

Chosen menu name

TV/AV button

MENU/OK button

6 buttons

5 buttons

PICTURE menu


STANDARD

PICTURE MODE BRIGHT-1 CONTRAST BRIGHT-2 SHARP COLOUR HUE COLOUR TEMP. FEATURES

OK

D0014

-EN

• While the PICTURE menu is displayed, pressing the blue button will set the BRIGHT-1, CONTRAST, BRIGHT-2, SHARP, COLOUR, HUE settings to their default settings.

• When watching the picture from EXT-1 to EXT-4 or the PC, picture effect settings can be memorised for each external input by setting the picture effects in the PICTURE menu. The following items in the PICTURE menu are memorised. PICTURE MODE BRIGHT-1 CONTRAST BRIGHT-2 SHARP COLOUR HUE COLOUR TEMP. DIGITAL VNR COLOUR SYSTEM The last setting made for each item is memorised.

PICTURE MODE

You can choose one of three PICTURE MODEs to adjust the picture settings automatically.

BRIGHT:

Heightens contrast and sharpness.

STANDARD:

Standardizes picture adjustment.

SOFT:

Softens contrast and sharpness.

STANDARD

COOL

RESET

BRIGHT-1

You can adjust the back light.

2 : darker 3 : brighter

CONTRAST

You can adjust the picture contrast.

2 :lower 3 : higher

BRIGHT-2

You can adjust the picture brightness.

2 : darker 3 : brighter

SHARP

You can adjust the picture sharpness.

2 : softer 3 :sharper

COLOUR

You can adjust the picture colour.

2 : lighter 3 :deeper

HUE

You can adjust the picture tint.

2 : reddish 3 :greenish

• You can change the HUE setting (picture hue) when the colour system is NTSC

3.58, or NTSC 4.43.

COLOUR TEMP.

You can select one of three COLOUR TEMP. modes (three tones of white) to adjust the white balance of the picture. Since white is the colour which is used as a reference for all the other colours, changing the COLOUR TEMP. mode affects the appearance of all the other colours on the screen.

ENGLISH

25

PICTURE menu

COOL:

A bluish white. Using this mode when watching bright pictures allows you to enjoy a more vivid and bright picture.

NORMAL:

The normal white colour.

WARM:

A reddish white. Using this mode when watching films allows you to enjoy colours that are characteristic of films.

FEATURES

Choose FEATURES and press the a or 3 button to display the sub-menu.

> FEATURES

DIGITAL VNR COLOUR SYSTEM 4:3 AUTO ASPECT

OK

D1015-EN

 DIGITAL VNR

The DIGITAL VNR function cuts down the amount of ‘noise’ (‘snow’ or interference) in the original picture.

ON:

This function is turned on.

OFF:

This function is turned off.

AUTO(LOW)

 COLOUR SYSTEM

The colour system is chosen automatically. However, if the picture is not clear or no colour appears, choose the colour system manually.

1 Choose COLOUR SYSTEM. Then

press the a or 3 button

The sub-menu of the COLOUR SYSTEM function appears.

>> COLOUR SYSTEM

AUTO

OK

D0016-EN

2 Press the 6 buttons to choose

the appropriate colour system. Then press the a button

PAL:

PAL system

SECAM:

SECAM system

NTSC 3.58:

NTSC 3.58 MHz system

NTSC 4.43:

NTSC 4.43 MHz system

AUTO:

This function detects a colour system from the input signal. You can only use this when you are viewing a picture from programme number PR 0 (AV), or an EXT terminal.

• The AUTO function may not function properly if you have poor signal quality. If the picture is abnormal in the AUTO function, choose another colour system manually.

• When in the Programme numbers PR 0 (AV) to PR 99, you cannot choose NTSC

3.58 or NTSC 4.43.

• COLOUR SYSTEM cannot be chosen when you are watching the PC picture.

26

 4:3 AUTO ASPECT

You can choose one of three ZOOM modes, REGULAR, PANORAMIC or 14:9 ZOOM, as the ZOOM mode for the normal picture (4:3 aspect ratio).

1 Choose 4:3 AUTO ASPECT then

press the a button

>> 4:3 AUTO ASPECT

PANORAMIC REGULAR 14:9 ZOOM

OK

D0017-EN

2 Press the 6 buttons to choose a

ZOOM mode

PICTURE menu

ENGLISH

27

SOUND menu

SOUND

STEREO/ BASS TREBLE BALANCE

D0019

3D SOUND

OK

-EN

OFF

• When the headphones are connected, only “STEREO / I • II” can be used.

STEREO / I • II

When you are viewing a bilingual broadcast programme, you can choose the sound from Bilingual I (Sub I) or Bilingual II (Sub II). If you have poor reception on a stereo broadcast, you can change from stereo to mono sound so that you can hear the broadcast more clearly and easily.

s: Stereo sound

v : mono sound

t : Bilingual I (sub I)

u : Bilingual II (sub II)

• The sound mode you can choose differs depending on the TV programme.

• This function does not work in the EXT modes.

BALANCE

You can adjust the volume balance between the left and right speaker.

2 : turn the left speaker’s volume level up. 3 : turn the right speaker’s volume level up.

3D SOUND

You can enjoy Surround sound with a “live” effect by using the 3D SOUND function.

• You can choose a 3D SOUND mode from ON, MONO and OFF modes. For details, see “3D SOUND function” on page 18.

• You can also operate the 3D SOUND function with the i button. For details, see “3D SOUND function” on page 18.

BASS

You can adjust the low tone of the sound.

2 : weaker 3 :strong

TREBLE

You can adjust the high tone of the sound.

2 : weaker 3 :strong

28

FEATURES menu

FEATURES

SLEEP TIMER CHILD LOCK APPEARANCE BLUE BACK FAVOURITE SETTING

OK

D0023-EN

TYPE A

ON

SLEEP TIMER

You can set the TV to automatically turn off after a set period of time.

1 Choose SLEEP TIMER. Then press

the a or 3 button

A Sub-menu of the SLEEP TIMER function appears.

> SLEEP TIMER

0120

OFF

OK

D0024-EN

2 Press the 5 buttons to set the

period of time. Then press the a button

You can set the period of time for up to 120 minutes (2 hours) in 10 minute steps.

• One minute before the SLEEP TIMER function turns off the TV, “GOODNIGHT!” appears.

• The SLEEP TIMER function cannot be used to turn off the TV’s main power.

• When the SLEEP TIMER function is on, you can display the sub-menu of the SLEEP TIMER function again to confirm or change the remaining period of time of the SLEEP TIMER function. Press the a button to leave the menu after confirming or changing the remaining time.

To cancel the SLEEP TIMER function:

Press the 2 button to set the period of time to “OFF”.

CHILD LOCK

When there is a TV channel you do not want your children to watch, you can use the CHILD LOCK function to lock out the TV channel. Even when a child chooses a programme number (PR) for a locked TV channel the screen will change to blue and display n (CHILD LOCK) so the TV channel cannot be viewed. Unless you enter a pre-set ID number by a special operation, the lock cannot be released and the child cannot view the TV channel.

 To set the CHILD LOCK function

1 Choose CHILD LOCK, then press

the 0 button

“SET ID NO.” (ID number setting screen) appears.

>> SET ID NO.

040

0

OK

D0025-EN

2 Set the ID number to your liking

1 Press the 6 buttons to choose

a number.

2 Press the 5 buttons to move

the cursor.

3 Press the a button

The Sub-menu of CHILD LOCK appears.

>> CHILD LOCK

D0026-EN

PR ID AV 01 02 03 04 05 06 07 08 09

OK

BBC1

CH/CC

CH CH CH CH CH CH CC CC CC

21 22 23 24 25 26 01 02 03

LOCK

ENGLISH

29

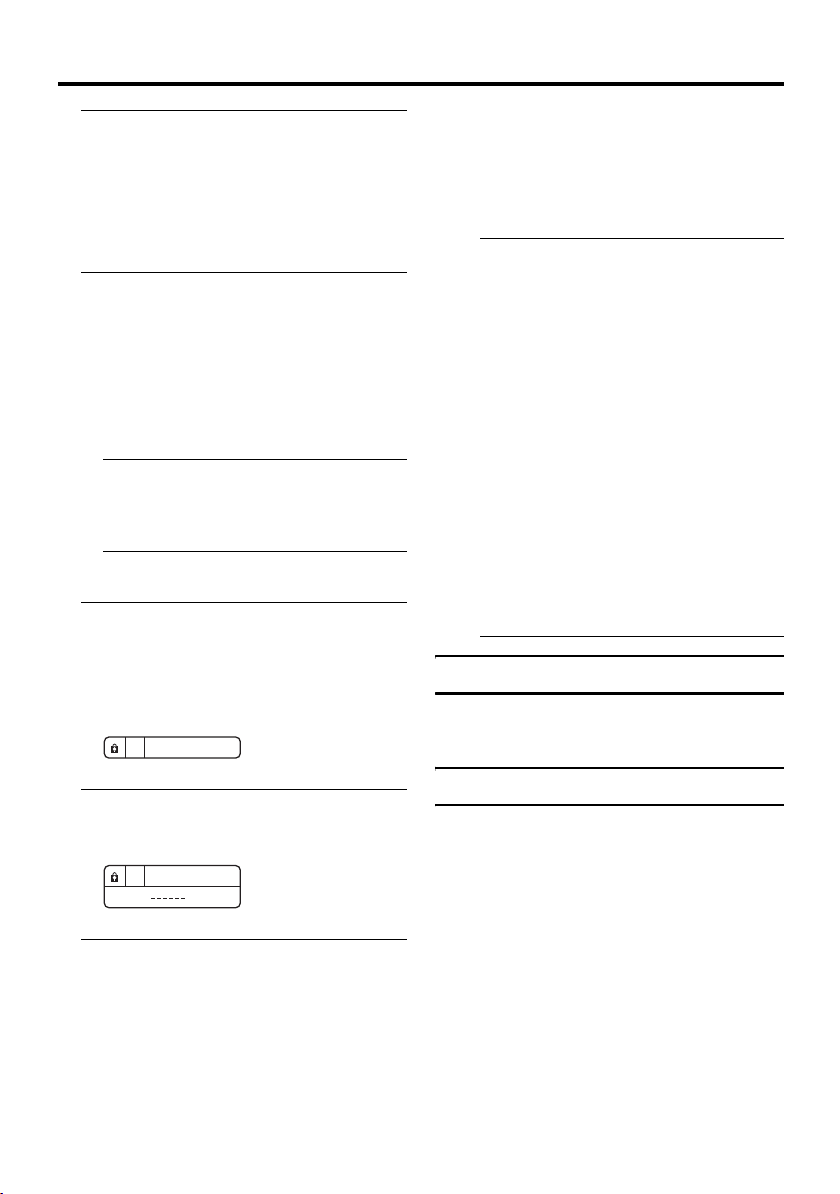

FEATURES menu

4 Press the 6 buttons to choose a

TV channel

Every time you press the 6 buttons, the Programme number (PR) changes, and the picture of the TV channel registered in the Programme number (PR) is displayed on the screen.

5 Press the blue button and set the

CHILD LOCK function. Then press the a button

n (CHILD LOCK) appears and the TV channel is locked.

To reset the CHILD LOCK function:

Press the blue button again. n (CHILD LOCK) disappears.

To disable easy resetting of the CHILD LOCK function, the menu disappears if you choose the CHILD LOCK function and press the a button.

 To view a locked TV channel

1 Choose a programme number (PR)

of a locked TV channel with the number buttons or PR LIST

The screen changes to blue and the n (CHILD LOCK) appears. You cannot view the TV channel.

5

D0027-EN

2 Press the h (Information) button to

display “ID NO.” (ID No. input screen)

5

ID NO. :

D0028-EN

3 Press the number buttons to enter

the ID number

The lock is temporarily released so you can view the TV channel.

If you have forgotten the ID number:

Perform step 1 of “To set the CHILD LOCK function”. After confirming the ID number, press the b button to exit the menu.

• Even if you reset the lock temporarily, it does not mean that the CHILD LOCK function set for the TV channel is cancelled. The next time anyone tries to view the TV channel, it will be locked again.

• When you want to cancel the CHILD LOCK function, you must perform the operation “To set the CHILD LOCK function” again.

• To stop it being easy to choose the programme number (PR) of a locked TV channel, the programme number (PR) has been set so that it cannot be chosen with the 6 buttons or the buttons of the TV.

• To stop it being easy to reset the lock, “ID NO.” (ID No. input screen) is set so that it cannot appear unless you press the h (Information) button.

APPEARANCE

Press the 5 button and choose the format in which the channel number is displayed from two types: TYPE A and TYPE B.

BLUE BACK

You can set the TV to automatically change to a blue screen and mute the sound if the signal is weak or absent, or when there is no input from an external device.

ON:

This function is turned on.

OFF:

This function is turned off.

30

FAVOURITE SETTING

Chose when deleting the favourite channels registered in the buttons 1 to 4.

1 Choose FAVOURITE SETTING,

then press the a or 3 button

The FAVOURITE SETTING menu appears.

FAVOURITE SETTING

FEATURES menu

ENGLISH

1

2

3

4

OK

D0112-EN

PR

PR 01

PR

07

01

RESET

2 Press the 6 buttons and chose

the favourite channel that you want to delete

3 Press the blue button

The chosen favourite channel and set contents are deleted.

• For details of the favourite channels, see “Favourite channel function” on page 19.

31

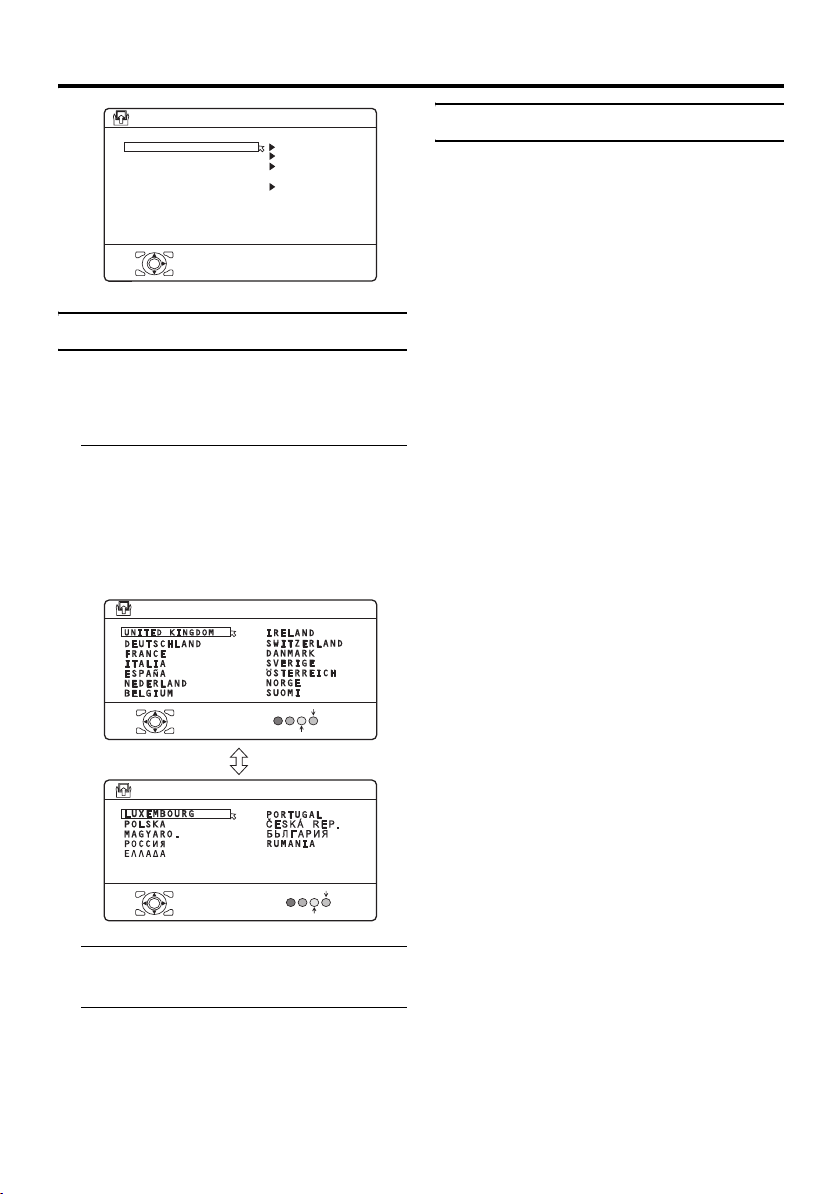

SET UP menu

SET UP

AUTO PROGRAM EDIT/MANUAL LANGUAGE DECODER(EXT-2) EXT SETTING

D0029

-EN

OK

OFF

AUTO PROGRAM

You can again perform the AUTO PROGRAM function TV channel automatic registration which was performed in the “Initial settings” (page 7).

1 Choose AUTO PROGRAM, then

press the a or 3 button

The COUNTRY menu appears as a submenu of the AUTO PROGRAM function. There are two COUNTRY menus. Pressing the yellow button changes the COUNTRY menu as follows:

> COUNTRY

OK

> COUNTRY

OK

D0003-EN

2 Press the 5 and 6 buttons to

choose the country where you are

START

MORE

START

MORE

EDIT/MANUAL

The EDIT/MANUAL functions are divided into two types:

• editing the current programme numbers (PR) (EDIT functions); and

• manually storing a TV channel you want to view on a particular programme number (PR) (MANUAL function).

Here are the details about these functions:

MOVE:

This function changes the programme number (PR) of a TV channel.

ID:

This function registers a channel name (ID) to a TV channel.

INSERT:

This function adds a new TV channel in the current programme numbers (PR) list by using the CH/CC number.

• You cannot use the INSERT function if you do not know the channel number of a TV channel. Use the MANUAL function to register a TV channel in the programme number (PR).

DELETE:

This function deletes a TV channel you do not want to list.

MANUAL:

This function manually stores a new TV channel in a programme number (PR).

Caution

• Using the MOVE, DELETE or INSERT functions rewrites the current programme numbers (PR) list. Therefore, the programme numbers (PR) of some of the TV channels will change.

• Using the MANUAL function for a TV channel for which the CHILD LOCK function has been set cancels the CHILD LOCK function for that channel.

3 Perform steps 5 and 6 of the “Initial

settings” (page 8)

32

SET UP menu

• Using the MANUAL function for a TV channel for which the DECODER (EXT-2) function has been set to ON returns the setting of the DECODER (EXT-2) function for that channel to OFF.

• When a TV channel has already been registered in PR 99, using the INSERT function deletes that TV channel.

 Basic operation

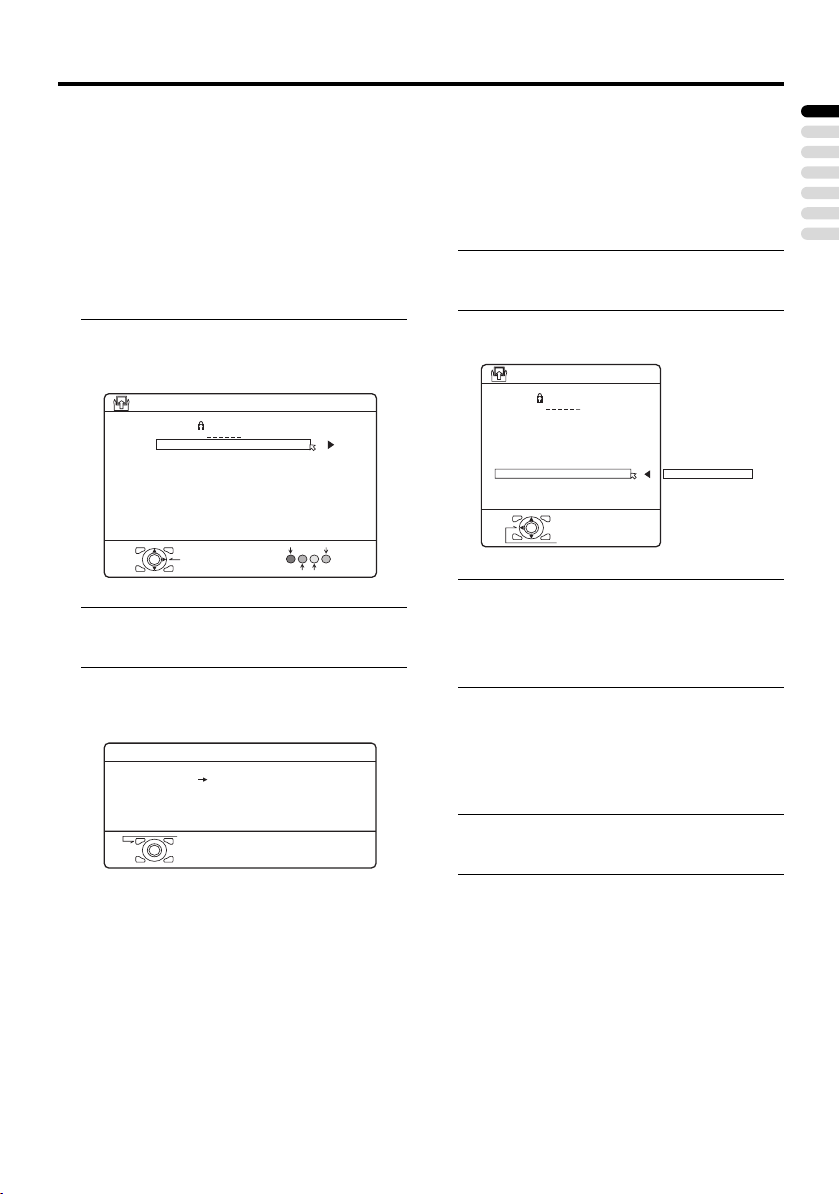

1 Choose EDIT/MANUAL, then press

the a or 3 button

The EDIT menu appears.

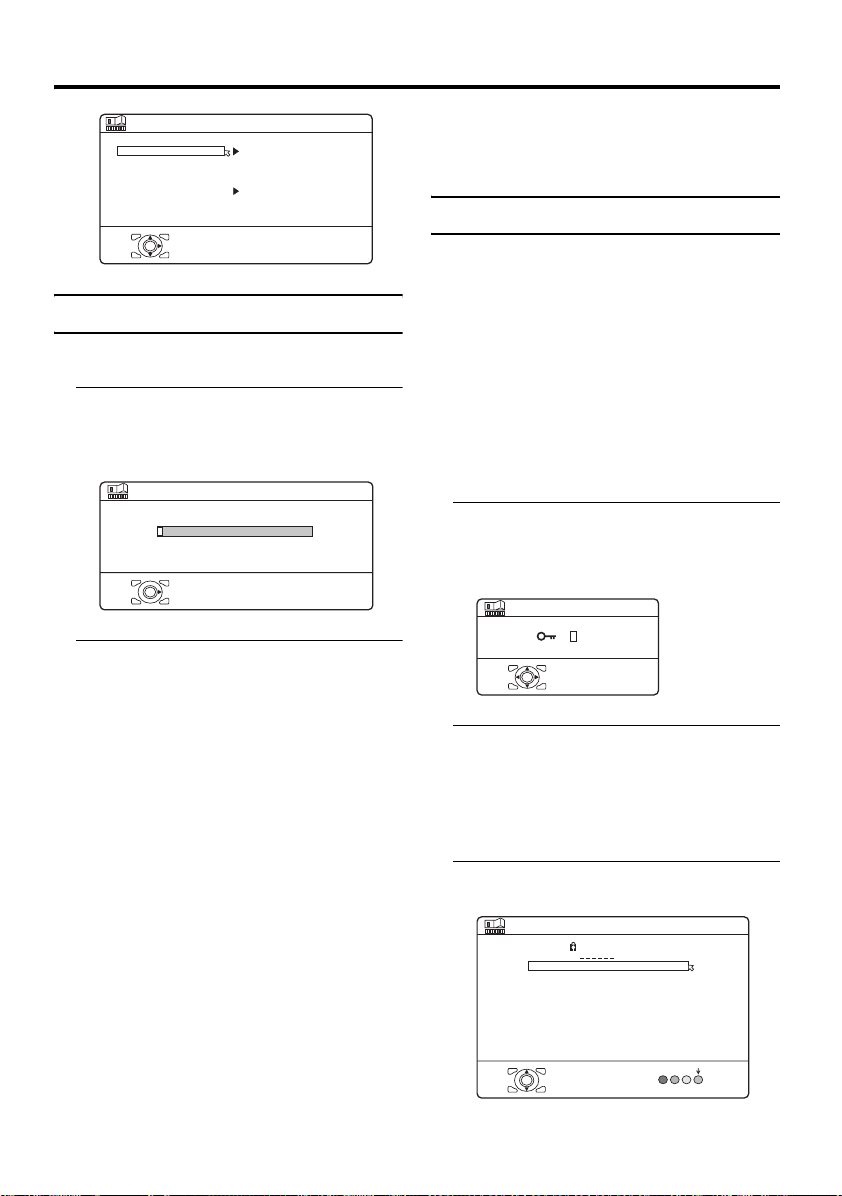

> EDIT

PR ID AV 01 02 03 04 05 06 07 08 09

OK

MOVE

D0038-EN

2 Follow the description for the

function you want to use

3 Press the a button to complete

the settings

The T-V LINK menu appears.

T-V LINK

DOWNLOAD TV RECORDING DEVICE

EXIT

OK

D0005

-EN

If you do not have a T-V LINK compatible VCR connected:

Press the b button to exit the T-V LINK menu. The T-V LINK menu disappears.

If you have a T-V LINK compatible VCR connected to the EXT-2 terminal:

Follow “Downloading the data to VCR” on page 10 to transmit the programme number (PR) data.

BBC1

CH/CC

CH CH CH CH CH CH CC CC CC

ID

INSERT

21 22 23 24 25 26 01 02 03

MANUAL

DELETE

• For programme number PR 0, “AV” appears in the programme numbers (PR) list.

• An EXT terminal number does not appear in the programme numbers (PR) list.

 MOVE

1 Press the 6 buttons to choose a

TV channel

2 Press the 3 button to start the

MOVE function

> EDIT

PR ID AV 01 02 03 04 05 06 07 08 09

D0030-EN

CH/CC

21

CH

BBC1

OK

STORE

CH CH CH CH CH

CCCC02

22 23 24 25 26

03

CC

3 Press the 6 buttons to choose a

new programme number (PR)

To cancel the MOVE function:

Press the b button.

4 Press the 2 button to change the

programme number (PR) of a TV channel to a new programme number (PR)

 DELETE

1 Press the 6 buttons to choose a

TV channel

2 Press the yellow button to delete

the TV channel

The TV channel is deleted from the programme numbers (PR) list.

ENGLISH

01

33

SET UP menu

 ID

1 Press the 6 buttons to choose a

TV channel

2 Press the red button to start the ID

function

> EDIT

BBC1

M

CH/CC

CH CH CH CH CH CH CC CC CC

CH/CC

CH CH CH CH CH CH CC CC CC

CH/CC

CH CH CH CH CH CH CC CC CC

21 22 23 24 25 26 01 02 03

ID LIST

ID LIST M6 MBC MCM MDR MOVIE MTV MTV1 MTV2 MTV3

PR ID AV 01 02 03 04 05 06 07 08 09

OK

D0031-EN

3 Press the 6 buttons to choose

the first character of a channel name (ID) you want to give the TV channel

> EDIT

PR ID AV 01 02 03 04 05 06 07 08 09

OK

D0032-EN

4 Press the blue button to display the

ID LIST (channel name list)

> EDIT

PR ID AV 01

BBC1 02 03 04 05 06 07

M 08 09

OK

D0033-EN

5 Press the 6 buttons to choose

the channel name (ID)

To cancel the ID function:

Press the b button.

6 Press the a button to give a

channel name (ID) to a TV channel

• You can give your own unique channel name (ID) to the TV channel. When you have finished step 3, do not go to step 4. Press the 5 buttons to move the cursor, and press the 6 buttons to choose each character of the channel name (ID). Then press the a button to register the channel name (ID) to the TV channel.

Before performing INSERT or MANUAL operation

• If you register the TV channel (SECAML system) from a French station, be sure to set the COUNTRY setting to FRANCE. If the COUNTRY setting is not set to FRANCE, perform steps 1 and 2 of the “AUTO PROGRAM” (page 32) procedure and set the COUNTRY setting to FRANCE before pressing the a button.

• A CH/CC number unique to this TV and corresponding to the Channel number of a TV channel is required. Find the corresponding CH/CC number from a table “CH/CC numbers” on page 44 based on the Channel number of the TV channel.

• When the COUNTRY setting is not FRANCE, use a two-digit CH/CC number. When the COUNTRY setting is FRANCE, use a three-digit CH/CC number.

34

SET UP menu

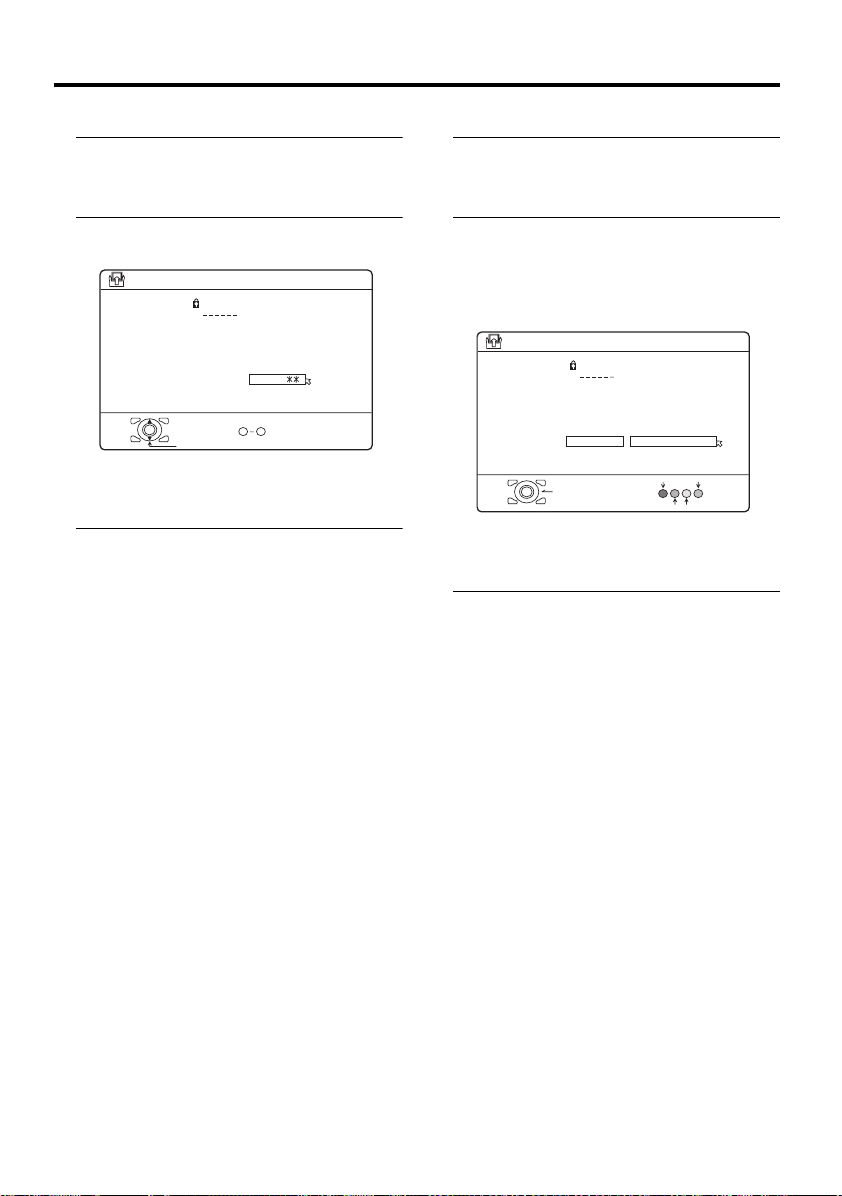

 INSERT

1 Press the 6 buttons to choose a

programme number (PR) for which you will register a new TV channel

2 Press the green button and start

the INSERT function

> EDIT

PR ID AV 01 02 03 04 05 06 07 08 09

OK

D0034-EN

CH/CC

To cancel the INSERT function:

Press the b button.

3 Press the 6 buttons to choose

“CH” or “CC”, then enter the remaining CH or CC number

When the COUNTRY setting is FRANCE:

Choose “CH1”, “CH2”, “CC1” or “CC2”.

The TV shifts to registration mode. When the registration is completed, the picture of the TV channel appears on the screen.

• The CH/CC number is a number given to each broadcast frequency that carries a TV channel. If the TV cannot detect the TV channel corresponding to the broadcast frequency indicated by the CH/CC number, a “no-signal” picture appears.

BBC1

CH/CC

CH CH CH CH CH CH CC CCCC02

0 9

21 22 23 24 25 26

03

 MANUAL

1 Press the 6 buttons to choose a

programme number (PR) for a new TV channel

2 Press the blue button to activate

the MANUAL function

At the right side following the CH/CC number, the SYSTEM (broadcasting system) of the TV channel appears.

> MANUAL

BBC1

CH/CC

CH CH CH CH CH CH CC CC CC

SEARCH+

SEARCH-

21 22 23 24 25 26

(

)

01

B / G 02 03

FINE-

FINE+

PR ID AV 01 02 03 04 05 06 07 08 09

OK

SYSTEM

D0035-EN

To cancel the MANUAL function:

Press the b button.

3 Press the 3 button to choose the

SYSTEM (broadcasting system) for a TV channel you want to register

TV channel (SECAM-L system) from a French station:

Set the SYSTEM to “L”. If it is set to one other than “L”, you cannot receive the TV channel of the SECAM-L system.

Other TV channels:

If you do not know the correct broadcasting system, set the SYSTEM to “B/G”. If “B/G” is not correct, you will not hear the sound normally when the TV detects a TV channel. In this case, retry to set the SYSTEM correctly so that no problem arises.

ENGLISH

35

SET UP menu

4 Press the green or red button to

search for a TV channel

Scanning stops when the TV finds a TV channel. Then the TV channel is displayed.

5 Press the green or red button

repeatedly until the TV channel you want appears

If the TV channel reception is poor:

Press the blue or yellow button to finetune the TV channel.

6 Press the a button and register

the TV channel to a Programme number (PR)

The normal EDIT menu is resumed.

LANGUAGE

The LANGUAGE setting which was performed in the “Initial settings” (page 7) can be changed.

1 Choose LANGUAGE, then press

the a or 3 button

A sub-menu of the LANGUAGE function appears.

> LANGUAGE

DECODER (EXT-2)

If you have a decoder connected to a T-V LINK compatible VCR, which in turn is connected to the EXT-2 terminal, use the DECODER (EXT-2) function to unscramble the scrambled TV channels.

1 Turn on the decoder power

2 Display the scrambled TV channel

on the TV

Even if the decoder is working, a scrambled picture appears.

3 Display the SET UP menu and

choose DECODER (EXT-2)

SET UP

AUTO PROGRAM EDIT/MANUAL LANGUAGE DECODER(EXT-2) EXT SETTING

OK

D0029

-EN

4 Press the 5 buttons to choose

ON

An unscrambled picture appears.

To cancel the DECODER (EXT-2) function:

Press the 5 buttons to choose OFF.

OFF

OK

D0002-EN

2 Press the 5 and 6 buttons to

choose a language. Then press the a button

36

5 Press the a button to complete

the setting

The T-V LINK menu appears.

T-V LINK

DOWNLOAD TV RECORDING DEVICE

EXIT

OK

D0005

-EN

You can send the programme numbers data to a VCR with the T-V LINK function.

SET UP menu

6 Turn on the VCR, and then press

the a button to transmit the data to VCR

The T-V LINK menu disappears once the data transmission ends.

If the DECODER (EXT-2) function has been set to “ON” but the TV channel cannot be unscrambled, check the following:

• Has the decoder been connected to the VCR properly according to the VCR and decoder instruction manuals?

• Has the decoder power been turned on?

• Can the TV channel be unscrambled with a decoder?

• Do you need to change the VCR settings in order to connect the decoder? Confirm that the VCR is set properly by rechecking the VCR instruction manual.

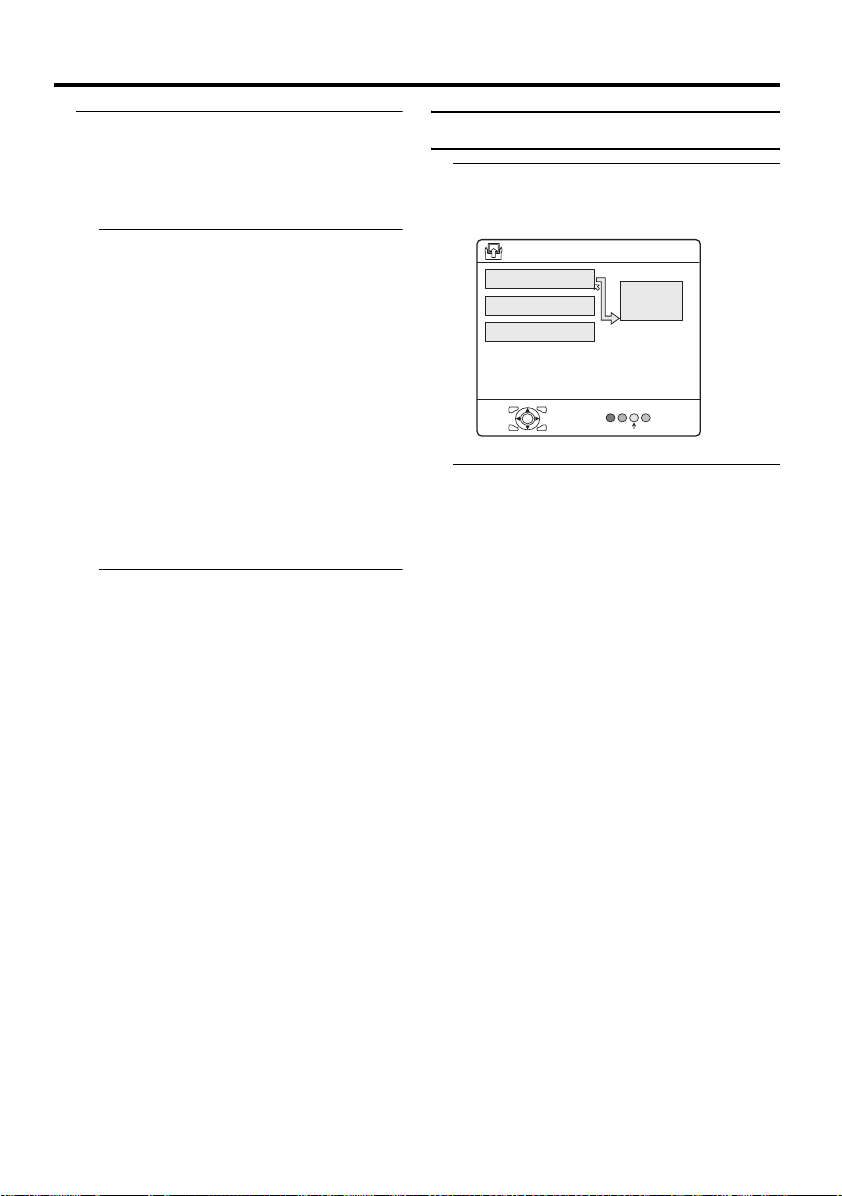

EXT SETTING

1 Choose EXT SETTING, then press

the a or 3 button

The EXT SETTING menu appears.

EXT SETTING

>

EXT-1

EXT-3

TV

OK

D0020-EN

2 Follow the instructions for the

function you want to use and operate the function

S-IN:

You can enjoy the high-quality picture of the S-VIDEO signal (Y/C signal).

ID LIST:

You can have a name for each of the devices connected for each EXT terminal.

DUBBING:

You can choose a signal source to be output from an EXT-2 terminal.

 S-IN (S-VIDEO input)

You can connect a device (such as an S-VHS VCR) to enjoy the high-quality picture of the S-VIDEO signal (Y/C signal).

Preparation:

• First read the device’s instruction manual and “Additional preparation” on page 41 to connect the device to the TV properly. Second, follow the device’s instruction manual to set the device so that it sends an S-VIDEO signal (Y/C signal) to the TV.

• Do not set S-IN (S-VIDEO input) to an EXT terminal connected to a device which cannot output an S-VIDEO (Y/C signal).

DUBBING EXT-2

S-IN

ENGLISH

37

SET UP menu

1 Press the 5 or 6 buttons to

choose an EXT terminal

EXT SETTING

>

EXT-1

EXT-3

TV

OK

D0020-EN

DUBBING EXT-2

S-IN

2 Press the yellow button and set the

S-IN (S-VIDEO input). Then press the a button

An S-IN (S-VIDEO input) mark is displayed. You can view an S-VIDEO signal (Y/C signal) instead of the regular video signal (composite signal).

To cancel the S-IN (S-VIDEO input) setting:

Press the yellow button and turn off S-IN (SVIDEO input) mark. The regular video signal (composite signal) pictures are resumed.

• Setting S-IN (S-VIDEO input) changes the head character from “E” to “S”. When an EXT terminal receives a normal video signal, “E1”, “E2” or “E3” appears on the display. This changes to “S1”, “S2” or “S3” when it receives an S-VIDEO signal.

• Even a device which can output an S-VIDEO signal (Y/C signal) may output a regular video signal (composite signal) depending on the device setting. If a picture cannot appear because the S-IN (S-VIDEO input) setting has been made, read the device instruction manual carefully again to check for the device settings.

 DUBBING

You can choose a signal source to be output from the EXT-2 terminal.

You can do this with the output signals of the devices connected to other EXT terminals, or with the picture and sound from a TV channel you are currently viewing.

1 Press the 5 buttons to choose

the arrow from the menu

> EXT SETTING

EXT-1

EXT-3

TV

OK

D0022

-EN

2 Press the 6 buttons to choose an

EXT terminal or TV. Then press the a button

The arrow in the menu represents a signal flow. The left side of the arrow shows a signal source output from the EXT-2 terminal.

EXT-1/EXT-3:

The output signal of the device connected to an EXT terminal passes through the TV and is output from the EXT-2 terminal.

TV:

The picture and sound of the TV channel you are currently viewing are output from the EXT-2 terminal.

DUBBING EXT-2

38

• During dubbing, you cannot turn off the TV. Turning off the TV also turns off the output from the EXT-2 terminal.

• When you choose an EXT terminal as an output, you can view a TV programme or a picture from the other EXT terminal while dubbing the picture from a device connected to the EXT terminal onto a VCR connected to the EXT-2 terminal.

• The RGB signals from TV games cannot be output. Teletext programmes cannot be output.

SET UP menu

ENGLISH

39

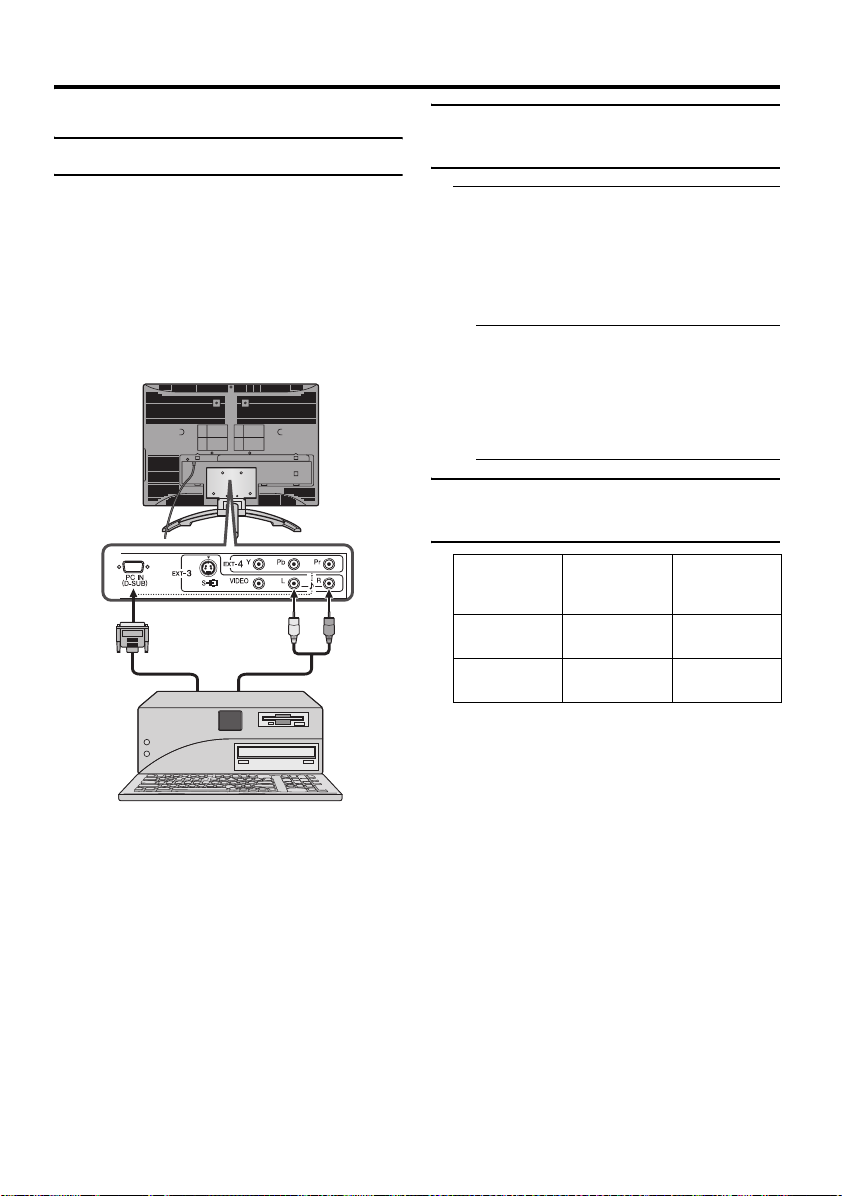

Displaying a computer screen

This TV can be used as a computer screen.

Connecting to the computer

Use a D-SUB cable to connect the TV’s PC IN terminal to the computer’s analogue RGB output terminal. If you want to listen to the sound from the computer, use an audio cable to connect the EXT-3 L/R terminal to the computer’s sound output terminal. When the sound from the computer is mono, connect to the EXT-3 L terminal.

• Refer to the computer manual for a detailed explanation of the connections at the computer side.

• Ensure that the connectors are facing the correct way when connecting.

• After connecting the D-SUB cable, tighten the two screws to fix the connector in place.

Watching images from a computer

After starting the computer, press the G or p p buttons to choose “PC”

“PC” is after EXT-4. You can listen to the sound when the sound from the computer is connected to the EXT-3 L/R terminal.

• When the sound from the computer is connected to EXT-3, by choosing external input EXT-3 the sound from the computer can be listened to, but the images from the computer cannot be seen.

Table of signals for each type of computer

Resolution Vertical

640 × 480 (VGA)

1024 × 768 (XGA)

* Only the above formats are supported. * Even with the above formats and at

60 Hz, some problems may be experienced depending on the quality of the synchronous signal. (Depending on the quality, some pictures may not be displayed properly.)

* Apple Macintosh

supported.

When a picture is not displayed

Check the computer’s refresh rate and set it to 60 Hz. Refer to the computer’s instruction manual. Computers which cannot have their refresh rate set to 60 Hz cannot be used with this unit.

frequency (Hz)

60.0 31.5

60.0 42.0

*

computers are not

Horizontal frequency (kHz)

40

* Apple Macintosh is a registered

trademark of Apple Computer, Inc.

Additional preparation

Connecting external equipment

Connect the equipment to the TV, making the correct rear panel and front panel connections.

Before connecting anything:

• Read the manuals that came with the equipment. Depending on the equipment, the connection method may be different from the diagram. Also, the equipment settings may need to change depending on the connection method.

• Turn off all the equipment including the TV.

• The “Specifications” on page 49 give the details of the EXT terminals. If you are connecting equipment not listed in the following connection diagram, see the table to choose the best EXT terminal.

• Connecting cables are not supplied.

 Connecting the PC

For details, see “Connecting to the computer” on page 40.

1 VCR (composite signal) 2 VCR (composite signal/S-VIDEO signal) 3 T-V LINK compatible VCR (composite

signal/S-VIDEO signal)

4 Decoder 5 DVD player (composite signal/S-VIDEO

signal)

6 DVD player (composite signal/RGB

signal)

7 DVD player (component video signals;

Y/Pb/Pr)

8 TV game (composite signal/RGB signal) 9 TV game (composite signal/S-VIDEO

signal)

0 Headphones

- Camcorder (composite signal/S-VIDEO

signal)

= SCART cable ~ Audio cable ! Video cable @ S-VIDEO cable # Component cable

ENGLISH

41

Additional preparation

without terminal covers

42

Additional preparation

 Equipment which can output the

S-VIDEO signal (Y/C signal) such as an S-VHS VCR

Connect the equipment to an EXT terminal other than EXT-1/EXT-4. You can choose between an S-VIDEO signal (Y/C signal) and a regular video signal (composite signal). For details of how to operate the equipment, see “S-IN (S-VIDEO input)” on page 37.

 T-V LINK compatible VCR

Be sure to connect the T-V LINK compatible VCR to the EXT-2 terminal. If not, the T-V LINK function will not work properly.

• When connecting a T-V LINK compatible VCR to the EXT-2 terminal, be sure to connect the decoder to the VCR. If not, the T-V LINK function may not work properly.

• When you connect the decoder to the VCR, after you have stored TV channels in the programme numbers (PR) list, set the DECODER (EXT-2) function for the programme number (PR) to ON to unscramble a scrambled TV channel. For details, see “DECODER (EXT-2)” on page 36.

 Connecting headphones

Connect the headphones with a stereo minijack (3.5 mm diameter) to the headphone socket at the TV rear panel.

• No sound comes from the TV speakers when the headphones are connected.

 Video or sound signal output from

the EXT-2 terminal

You can change over the output of the video/ sound signal from the EXT-2 terminal. This is useful when you want to dub the video/ sound from another device onto the VCR connected to the EXT-2 terminal. For details on how to do this, see “DUBBING” on page 38.

• The signals from EXT-4 and PC IN terminal cannot be output from EXT-2.

 TV output from the EXT-1 terminal

The video/sound signal of a TV channel you are viewing is always output from the EXT-1 terminal.

• Changing over a programme number (PR) also changes over the TV output from the EXT-1 terminal.

• The video/sound signal from an EXT terminal cannot be output.

• Teletext programmes cannot be output.

ENGLISH

43

CH/CC numbers

When you want to use the INSERT function on page 35, find the CH/CC number corresponding to the Channel number of the TV channel from this table.

CH Channel

CH 02 / CH 202 E2, R1

CH 03 / CH 203 E3, ITALY A

CH 04 / CH 204 E4, ITALY B, R2

CH 05 / CH 205 E5, ITALY D, R6

CH 06 / CH 206 E6, ITALY E, R7

CH 07 / CH 207 E7, ITALY F, R8

CH 08 / CH 208 E8, R9

CH 09 / CH 209 E9, ITALY G

CH 10 / CH 210 E10, ITALY H, R10

CH 11 / CH 211

CH 12 / CH 212

CH 21 / CH 221 E21, R21

CH 22 / CH 222 E22, R22

CH 23 / CH 223 E23, R23

CH 24 / CH 224 E24, R24

CH 25 / CH 225 E25, R25

CH 26 / CH 226 E26, R26

CH 27 / CH 227 E27, R27

CH 28 / CH 228 E28, R28

CH 29 / CH 229 E29, R29

CH 30 / CH 230 E30, R30

CH 31 / CH 231 E31, R31

CH 32 / CH 232 E32, R32

CH 33 / CH 233 E33, R33

CH 34 / CH 234 E34, R34

CH 35 / CH 235 E35, R35

CH 36 / CH 236 E36, R36

CH 37 / CH 237 E37, R37

CH 38 / CH 238 E38, R38

CH 39 / CH 239 E39, R39

E11, ITALY H+1, R11

E12, ITALY H+2, R12

CH Channel

CH 40 / CH 240 E40, R40

CH 41 / CH 241 E41, R41

CH 42 / CH 242 E42, R42

CH 43 / CH 243 E43, R43

CH 44 / CH 244 E44, R44

CH 45 / CH 245 E45, R45

CH 46 / CH 246 E46, R46

CH 47 / CH 247 E47, R47

CH 48 / CH 248 E48, R48

CH 49 / CH 249 E49, R49

CH 50 / CH 250 E50, R50

CH 51 / CH 251 E51, R51

CH 52 / CH 252 E52, R52

CH 53 / CH 253 E53, R53

CH 54 / CH 254 E54, R54

CH 55 / CH 255 E55, R55

CH 56 / CH 256 E56, R56

CH 57 / CH 257 E57, R57

CH 58 / CH 258 E58, R58

CH 59 / CH 259 E59, R59

CH 60 / CH 260 E60, R60

CH 61 / CH 261 E61, R61

CH 62 / CH 262 E62, R62

CH 63 / CH 263 E63, R63

CH 64 / CH 264 E64, R64

CH 65 / CH 265 E65, R65

CH 66 / CH 266 E66, R66

CH 67 / CH 267 E67, R67

CH 68 / CH 268 E68, R68

CH 69 / CH 269 E69, R69

CC Channel

CC 01 / CC 201 S1

CC 02 / CC 202 S2

CC 03 / CC 203 S3

CC 04 / CC 204 S4

CC 05 / CC 205 S5

CC 06 / CC 206 S6

CC 07 / CC 207 S7

CC 08 / CC 208 S8

CC 09 / CC 209 S9

CC 10 / CC 210 S10

CC 11 / CC 211 S11

CC 12 / CC 212 S12

CC 13 / CC 213 S13

CC 14 / CC 214 S14

CC 15 / CC 215 S15

CC 16 / CC 216 S16

CC 17 / CC 217 S17

CC 18 / CC 218 S18

CC 19 / CC 219 S19

CC 20 / CC 220 S20

CC 21 / CC 221 S21

CC 22 / CC 222 S22

CC 23 / CC 223 S23

CC 24 / CC 224 S24

CC 25 / CC 225 S25

CC 26 / CC 226 S26

CC 27 / CC 227 S27

CC 28 / CC 228 S28

CC 29 / CC 229 S29

CC 30 / CC 230 S30

CC Channel

CC 31 / CC 231 S31

CC 32 / CC 232 S32

CC 33 / CC 233 S33

CC 34 / CC 234 S34

CC 35 / CC 235 S35

CC 36 / CC 236 S36

CC 37 / CC 237 S37

CC 38 / CC 238 S38

CC 39 / CC 239 S39

CC 40 / CC 240 S40

CC 41 / CC 241 S41

CC 75 / CC 275 X

CC 76 / CC 276 Y, R3

CC 77 / CC 277 Z, ITALY C, R4

CC 78 / CC 278 Z+1, R5

CC 79 / CC 279 Z+2

CH Channel

CH 102 F2

CH 103 F3

CH 104 F4

CH 105 F5

CH 106 F6

CH 107 F7

CH 108 F8

CH 109 F9

CH 110 F10

CH 121 F21

CH 122 F22

CH 123 F23

CH 124 F24

CH 125 F25

CH 126 F26

CH 127 F27

CH 128 F28

CH 129 F29

CH 130 F30

CH 131 F31

CH 132 F32

CH 133 F33

CH 134 F34

CH 135 F35

CH 136 F36

CH 137 F37

CH 138 F38

CH 139 F39

CH 140 F40

44

CH Channel

CH 141 F41

CH 142 F42

CH 143 F43

CH 144 F44

CH 145 F45

CH 146 F46

CH 147 F47

CH 148 F48

CH 149 F49

CH 150 F50

CH 151 F51

CH 152 F52

CH 153 F53

CH 154 F54

CH 155 F55

CH 156 F56

CH 157 F57

CH 158 F58

CH 159 F59

CH 160 F60

CH 161 F61

CH 162 F62

CH 163 F63

CH 164 F64

CH 165 F65

CH 166 F66

CH 167 F67

CH 168 F68

CH 169 F69

CC Frequency (MHz)

CC 110 116 - 124

CC 111 124 - 132

CC 112 132 - 140

CC 113 140 - 148

CC 114 148 - 156

CC 115 156 - 164

CC 116 164 - 172

CC 123 220 - 228

CC 124 228 - 236

CC 125 236 - 244

CC 126 244 - 252

CC 127 252 - 260

CC 128 260 - 268

CC 129 268 - 276

CC 130 276 - 284

CC 131 284 - 292

CC 132 292 - 300

CC 133 300 - 306

CC 141 306 - 311

CC 142 311 - 319

CC 143 319 - 327

CC 144 327 - 335

CC 145 335 - 343

CC 146 343 - 351

CC 147 351 - 359

CC 148 359 - 367

CC 149 367 - 375

CC 150 375 - 383

CC 151 383 - 391

CC Frequency (MHz)

CC 152 391 - 399

CC 153 399 - 407

CC 154 407 - 415

CC 155 415 - 423

CC 156 423 - 431

CC 157 431 - 439

CC 158 439 - 447

CC 159 447 - 455

CC 160 455 - 463

CC 161 463 - 469

CH/CC numbers

• When two CH/CC numbers correspond to one Channel number, choose either one according to the current COUNTRY setting. When the COUNTRY setting is other than FRANCE, choose a two-digit CH/CC number. When the COUNTRY setting is FRANCE, choose a three-digit CH/ CC number.

• Find the CH/CC number (CC110 to CC161) corresponding to the TV channel (SECAM-L system) from a French cable TV station, based on the broadcast frequency of the TV channel. When you do not know the broadcast frequency, please contact the cable TV station.

• The CH/CC numbers of CH102-CH169 and CC110-CC161 correspond to the TV channels being broadcast by a SECAM-L system. The other CH/CC numbers correspond to the TV channels being broadcast by a method other than a SECAM-L system.

ENGLISH

45

Troubleshooting

If a problem arises while you are using the TV, please read this troubleshooting guide carefully before you ask to have the TV repaired. You may be able to fix it easily by yourself. For example, if the mains plug is disconnected from the mains outlet, or the TV aerial has problems, you may think there is a problem with the TV itself.

Important:

• This troubleshooting guide only covers problems whose causes are not easy to decide. If you have a question when you are operating a function, read the page(s) for that function carefully, not this troubleshooting guide.

• If you follow the advice in this troubleshooting guide without any success, unplug the mains plug and ask for your TV to be repaired. Do not attempt to repair the TV by yourself or to remove the rear cover of the TV.

 If you cannot turn on the TV

• Is the mains plug connected to the mains outlet?

• Is the power lamp lit? If not, press the A button on the TV.

• Make sure you set the VCR/TV/DVD switch to the TV position. You cannot turn the TV on when the VCR/TV/DVD switch is set to the VCR or DVD position.

 If you cannot turn off the TV

• Make sure you set the VCR/TV/DVD switch to the TV position. You cannot turn the TV off when the VCR/TV/DVD switch is set to the VCR or DVD position.

 No picture or no sound

• Have you chosen a TV channel with very poor reception? If so, the BLUE BACK function will be activated: the entire screen becomes blue, and the sound is muted. If you still want to view the TV channel, follow the description “BLUE BACK” on page 30 to change the BLUE BACK function setting to OFF.

• If the SYSTEM setting for a TV channel is incorrect, it may prevent the sound from being issued. Follow the description “EDIT/MANUAL” on page 32 to use the MANUAL function to try to change the SYSTEM setting.

 Poor picture

• If noise (snow) totally blocks out the picture, there may be a problem with the aerial or aerial cable. Check the following to try to solve the problem:

– Have the TV and aerial been connected

properly? – Has the aerial cable been damaged? – Is the aerial pointing in the right

direction? – Is the aerial itself faulty?

• If the TV or aerial suffers interference from other equipment, stripes or noise may appear in the picture. Move any equipment such as an amplifier, personal computer, or a hair drier, that can cause interference away from your TV. Or try moving the TV. If the aerial suffers interference from a radio tower or highvoltage wire, please contact your local dealer.

• If the TV suffers interference from signals reflecting from mountains or buildings, double-pictures (ghosting) will occur. Try to change the aerial’s direction or replace it with one with better directionality.

• Are your COLOUR SYSTEM settings correct? Follow the description “COLOUR SYSTEM” on page 26 to try to solve the trouble.

• Have the COLOUR and BRIGHT settings been adjusted properly? Follow the description “BRIGHT-2” and “COLOUR” on page 25 to try to adjust them properly.

46

Troubleshooting

• Videotaping teletext is not recommended because it may not record correctly.

• When viewing images from commercially available video software products, or videos from videotapes which have been recorded improperly, the top of the image may be distorted. This is due to the condition of the video signal. There is nothing wrong with the TV.

• Since this TV is designed to make full use of the resolution of the original video source, the motion may appear unnatural when the video source is input with progressive-scanning component signals. If this occurs, change the output setting of the connected device to interlacescanning component signal output. See the instructions that came with the device for more information.

 Poor sound

• Have you adjusted BASS or TREBLE properly? If not, follow the description “BASS” or “TREBLE” on page 28.

• When TV channel reception is poor, it can be hard to hear stereo or bilingual sound. In this case, follow the description “STEREO / I • II” on page 28 to hear the sound more easily by changing it to a mono sound.

 If the TV does not respond to the

remote control

• Have the batteries of the remote control worn out? Follow the description “Putting the batteries into the remote control” on page 7 and replace them with new batteries.

• Have you attempted to use the remote control from the sides or rear of the TV or from more than seven metres away from the TV? Use the remote control in front of your TV or from less than seven metres away.

• When you are viewing a teletext programme, you cannot operate the menus. Press the b button to return to the ordinary TV programme, and then try operating the menus.

• If the TV suddenly stops responding, disconnect the power cord of the TV from the AC outlet. Connect them to the AC outlet again to turn on the TV. If the TV returns to a normal state, it is not a failure.

 Other issues

• When the SLEEP TIMER function operates, the TV is automatically turned off. If the TV suddenly turns off, try to press the # (standby) button to turn on the TV once again. If the TV goes back to normal, there is no problem.

• When the TV is receiving a wide-screen signal (WSS) or a signal from an external device affecting the screen size, the ZOOM mode automatically changes. When you want to resume the previous ZOOM mode, press the c button again.

• It takes a short period of time from the time an operation such as changing channels is performed until an image is displayed. This is not a fault. This is the time needed for the image to stabilize before it can be displayed.

• The TV may make a crackling sound due to a sudden change in temperature. The picture or sound may be normal. If you hear crackling sounds frequently while you are viewing the TV, there may be other causes. As a precaution, ask your service technician to inspect it.

ENGLISH

47

Troubleshooting

• The top of the TV and the screen may become hot during use but this has no affect on the performance of the TV. Make sure that the ventilation holes are not blocked.

• When the picture is unstable, the screen may become white for a moment. This happens when the signal which drives the liquid crystal is missing. This is not a fault.

• When a still image has been displayed for a long period, a faint residual image may remain on the screen for a short time after the power has been turned off or when another image is displayed. This is not a fault and the image will eventually disappear.

48

Specifications

Model LT-26A60BU/LT-26A60SU

Broadcasting systems CCIR B/G, I, D/K, L Colour systems PAL, SECAM

Channels and frequencies F2-F10, F21-F69, 116-172, E2-E12, E21-E69, S1-S41, X, Y, Z, Z+1, Z+2, A-H,

Sound-multiplex systems NICAM (B/G, I, D/K, L) system, A2 (B/G, D/K) system Teletext systems FLOF (Fastext), TOP, WST (World Standard System) Power requirements 110 - 240 V AC, 50/60 Hz Power consumption 125 W (Standby: 2.0 W) Screen size Viewable area 66 cm (measured diagonally) Audio output Rated Power output: 5 W + 5 W Speakers 6.6 cm round × 2 EXT-1 terminal Euroconnector (21-pin, SCART)

EXT-2 terminal Euroconnector (21-pin, SCART)

EXT-3 terminal RCA connectors × 3

EXT-4 terminal RCA connectors × 3 + EXT-3 L/R

PC INPUT terminal Analog RGB D-SUB (15 pin) × 1

Headphone jack Stereo mini-jack (3.5 mm in diameter) Dimensions (W × H × D) 686 mm × 525 mm × 225 mm

Weight 15.6 kg

Accessories Remote control unit × 1 (RM-C1816S)

We may change the design and specifications without notice.

Pictures displayed on the screen using this TV’s ZOOM functions should not be shown for any commercial or demonstration purpose in public places (cafes, hotels, etc.) without the consent of the owners of copyright of the original picture sources, as this would be an infringement of copyright.

• The EXT terminals also support the NTSC 3.58/4.43 MHz system.

H+1, H+2, R1-R12, R21-R69

• French cable TV channel of broadcast frequencies 116 - 172 MHz and 220 469 MHz.

• Video input, Audio L/R inputs and RGB inputs are available.

• TV broadcast outputs (Video and Audio L/R) are available.

• Video input, S-VIDEO (Y/C) input, Audio L/R inputs and RGB inputs are available.

• Video and Audio L/R outputs are available.

• T-V LINK functions are available.

S-VIDEO connector × 1

• Video input, S-VIDEO (Y/C) input and Audio L/R inputs are available.

• Component video (Y, Pb, Pr) input and Audio L/R inputs are available.

• 625p, 525p, and 750p signals are available. 750p signal is only available for 60Hz.

• Some DVD players can output 625p, 525p and 750p signals.

• 750p are new high-definition signals.

• PC signal is available. Refer to page 40 for details of the signals which can be input.

686 mm × 474 mm × 121.5 mm (without stand)

12.4 kg (without stand)

AA/R6 dry cell battery × 2

ENGLISH

49

50

LT-26A60SJ

WIDE LCD PANEL TV

INSTRUCTIONS



Warning

DO NOT cut off the mains plug from this equipment.

for the power points in your home or the cable is too short to reach a power point, then obtain an appropriate safety approved extension lead or adaptor or consult your dealer.

If nonetheless the mains plug is cut off, remove the fuse and dispose of the plug immediately, to avoid a possible shock hazard by inadvertent connection to the mains supply.

If a new mains plug has to be fitted, then follow the instruction given below:

Important

Do not make any connection to the larger terminal which is marked with the letter E or

by the safety earth symbol or coloured green or green-and-yellow.

The wires in the mains lead on this product are coloured in accordance with the following code: Blue: Neutral Brown: Live



Guidelines for safe operation

This equipment has been designed and manufactured to comply with international safety standards. However, as with any electrical appliance, care must be taken to ensure optimal results and operational safety.

• Before attempting to use this equipment, read the operating instructions thoroughly.

• Ensure that all electrical connections (including the mains plug, extension leads, etc.) have been made in accordance with the manufacturer’s instructions.

• If ever in doubt about the installation, operation or safety of this equipment, consult your dealer.

• Handle all glass panels or covers with care.

• Never operate this equipment if it appears damaged or operates abnormally. Turn the power off, disconnect the main power plug and consult your dealer.

• Never remove any affixed panels or covers. Doing so may result in electrical shock.

• Never leave this equipment operating unattended unless otherwise specifically stated that it is designed to do so or in standby mode. Only use the designated power switch to turn off the power and ensure that all potential users are instructed how to do so. Make special arrangements for infirm or handicapped persons.

• Never watch TV while operating a motor vehicle. It is illegal to watch TV while driving.

• Never listen to headphones at high volume. Doing so may damage your hearing.

• Never obstruct the ventilation of this equipment. Doing so may cause overheating and result in a malfunction or damage.

• Never use makeshift stands or attempt to affix legs with wood screws. When using a manufacturer’s approved stand or legs, use only the fixtures provided and follow the installation instructions.

• Never allow this equipment to be exposed to rain or moisture.

• Never allow anyone, especially children, to insert anything into an opening in the case. Doing so may result in a fatal electrical shock.

• Never guess or take chances with electrical equipment of any kind. It is better to be safe than sorry.

If the plug fitted is not suitable

As these colours may not correspond with the coloured marking identifying the terminals in your plug proceed as follows:

The wire which is coloured blue must be connected to the terminal which is marked with the letter N or coloured black.

The wire which is coloured brown must be connected to the terminal which is marked with the letter L or coloured red.

When replacing the fuse, use only a correctly rated approved type and always re-fit the fuse cover.

 If in doubt — consult a competent

electrician.

How to replace the fuse

Open the fuse compartment with a blade screwdriver, and replace the fuse.

Fuse

Thank you for buying this JVC LCD flat television. To make sure you understand how to use your new TV, please read this manual thoroughly before you begin. (“LCD” stands for Liquid Crystal Display.)

WARNING: TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS

APPLIANCE TO RAIN OR MOISTURE.

WARNING

• The TV may fall causing injuries. Hold the bottom of the stand with your hand and tilt the TV up and down.

• Do not allow children to hang from the TV, place their elbows on the TV or lean against the TV. Doing so may cause the TV to fall over and lead to injuries.

CAUTION

• The TV screen may be damaged if the TV is carried as shown in the diagram below. The TV should always be carried by two people.

Pixel defects

LCDs use collections of fine points (“pixels”) to display images. While there is no problem with more than 99.99% of these pixels, please understand that a very small number of pixels may not light, or may light all the time.

Distance recommendations

Avoid improper installation and never position the unit where good ventilation is impossible. When installing this TV, distance recommendations must be maintained between the set and the wall, as well as inside a tightly enclosed area or piece of furniture. Keep to the minimum distance guidelines shown for safe operation.

150 mm 150 mm

200 mm 200 mm

50 mm

1

Failure to take the following precautions may cause damage to the television or remote control.

DO NOT block the TV’s ventilation openings or holes.

(If the ventilation openings or holes are blocked by a newspaper or cloth, etc., the heat may not be able to get out.)

DO NOT place anything on top of the TV.

(such as cosmetics or medicines, flower vases, potted plants, cups, etc.)

DO NOT allow objects or liquid into the cabinet openings.

(If water or liquid is allowed to enter this equipment, fire or electric shock may be caused.)

DO NOT place any naked flame sources, such as lighted candles, on the TV. DO NOT subject the TV to direct sunlight.

The surface of the TV screen is easily damaged. Be very careful with it when handling the TV. Should the TV screen become soiled, wipe it with a soft dry cloth. Never rub it forcefully. Never use any cleaner or detergent on it.

If there is a fault, unplug the unit and call a service technician. Do not attempt to repair it yourself or remove the rear cover.

 Cleaning the screen

The screen is coated with a special thin film to reduce reflection. If this film is damaged, uneven colors, discoloration, scratches, and other problems that cannot be repaired may occur. Pay attention to the following when handling the screen.

• Do not use glue or adhesive tape on the screen.

• Do not write on the screen.

• Do not allow the screen to come in contact with any hard objects.

• Do not allow condensation to form on the screen.

• Do not use alcohol, thinner, benzene or other solvents on the screen.

• Do not rub the screen hard.

CAUTION:

• Operate only from the power source specified (AC 110 – 240 V, 50/60 Hz) on the unit.

• Avoid damaging the AC plug and power cord.

• When you are not using this unit for a long period of time, it is recommended that you disconnect the power cord from the main outlet.

2

CONTENTS

Setting up your TV ...................................4

Installation.................................................. 4

Using the stand .......................................... 4

Removing the terminal cover ..................... 5

Connecting the aerial and video cassette

recorder (VCR) ....................................... 6

Connecting the power cord to the AC

outlet....................................................... 7

Putting the batteries into the remote

control..................................................... 7

Initial settings ............................................. 7

T-V LINK functions................................... 10

TV buttons and functions......................12

Turn the TV on from standby mode ......... 12

Choose a TV channel .............................. 12

Watch images from external devices....... 12

Adjust the volume .................................... 13

Using the Menu........................................ 13

Remote control buttons and

functions..............................................14

Turn the TV on or off from standby mode Choose a TV channel and watch images

from external devices ........................... 15

Adjust the volume .................................... 16

Information function ................................. 16

ZOOM function......................................... 17

3D SOUND function ................................. 18

Return to TV channel instantly................. 18

Favourite channel function....................... 19

Operating a JVC brand VCR or DVD

player.................................................... 20

... 14

Teletext function ....................................21

Basic operation ........................................ 21

Using the List Mode ................................. 21

Hold.......................................................... 22

Sub-page ................................................. 22

Reveal...................................................... 22

Size .......................................................... 22

Index ........................................................ 23

Cancel...................................................... 23

Using the TV’s menu..............................24

Basic operation ........................................ 24

PICTURE menu ......................................25

PICTURE MODE...................................... 25

BRIGHT-1 ................................................ 25

CONTRAST ............................................. 25

BRIGHT-2 ................................................ 25

SHARP..................................................... 25

COLOUR.................................................. 25

HUE.......................................................... 25

COLOUR TEMP....................................... 25

FEATURES .............................................. 26

SOUND menu ......................................... 28

STEREO / I • II ......................................... 28

BASS........................................................ 28

TREBLE ................................................... 28

BALANCE ................................................ 28

3D SOUND............................................... 28

FEATURES menu................................... 29

SLEEP TIMER ......................................... 29

CHILD LOCK............................................ 29

APPEARANCE......................................... 30

BLUE BACK ............................................. 30

FAVOURITE SETTING ............................ 31

SET UP menu ......................................... 32

AUTO PROGRAM.................................... 32

EDIT/MANUAL ......................................... 32

LANGUAGE ............................................. 36

DECODER (EXT-2).................................. 36

EXT SETTING.......................................... 37

Displaying a computer screen.............. 40

Connecting to the computer ..................... 40

Watching images from a computer ..........40

Table of signals for each type of

computer............................................... 40

Additional preparation ..........................41

Connecting external equipment ...............41

CH/CC numbers ..................................... 44

Troubleshooting ....................................46

Specifications ........................................49

3

Setting up your TV

• When you install the TV on the wall, only use a JVC wall mounting unit (optional) which is designed for this TV.

• Make sure that the TV is installed on the wall by a skilled installer.

Installation

Cautions for installation

• Install the TV in a corner on a wall or on the floor so as to keep cords out of the way.

• The TV will generate a slight amount of heat during operation. Ensure that sufficient space is available around the TV to allow satisfactory cooling. See “Distance recommendations” on page 1.

Using the stand

This TV comes with a table top stand already attached.

This stand can be used to adjust the direction of the TV screen to the left or right.

 Rotate the TV to the left and right:

While holding the bottom of the stand with one hand, use your other hand to hold the edge of the panel and slowly adjust the direction of the TV screen.

4

Setting up your TV

Removing the terminal cover

There are connection terminals behind the cover on the rear of the TV. Remove the cover before connecting an antenna or VCR.

Remove the cover by removing the hooks. When replacing the cover, place the side of the cover against the TV and insert the hooks.

• Leave the cover off if they do not fit properly. Do not force to replace the cover. Doing so may cause damage to the connection cables and the cover.

5

Setting up your TV

Connecting the aerial and video cassette recorder (VCR)

• The connecting cables are not provided.

• For further details, refer to the manuals provided with the devices to be connected.

Caution

• Turn off all the equipment including the TV before connecting anything.

 If you are connecting a VCR,

follow A → B → C in the diagram opposite.

 If you are not connecting a VCR,

follow 1.

without terminal covers

Aerial

To use the T-V LINK functions, you must have a T-V LINK compatible VCR connected by a SCART cable C to the EXT2 terminal on the TV. For details about T-V LINK functions, see “T-V LINK functions” on page 10.

• You can watch a video using the VCR without doing C. For details, see your VCR instruction manual.

• To connect more equipment, please see “Connecting external equipment” on page 41.

• If you connect a decoder to a T-V LINK compatible VCR, set the DECODER (EXT-2) function to ON. For details, see “DECODER (EXT-2)” on page 36. Otherwise, you will not be able to watch scrambled channels.

21-pin

SCART

Cable

VCR

AV IN/OUT

Terminal

75-ohm Coaxial

Cable

To Aerial

Input

To Aerial

Output

75-ohm Coaxial

Cable

6

Setting up your TV

s

Connecting the power cord to the AC outlet

Insert the AC plug on the power cord from the TV into an AC outlet.

Caution

• Operate only from the power source specified (AC 110 – 240 V, 50/60 Hz) on the unit.

• Remove the AC plug from the outlet to completely disconnect the TV from the power supply.

Putting the batteries into the remote control

Use two AA/R6 dry cell batteries. Insert the batteries from the - end, making sure the + and - polarities are correct.

• Follow the warnings printed on the batteries.

• Battery life is about six months to one year, depending on how much you use the remote control.

• The batteries we supply are only for setting up and testing your TV, please replace them as soon as you need to.

• If the remote control does not work properly, replace the batteries.

Initial settings

When the TV is first turned on, it goes into the initial settings mode, and you will see the JVC logo. Follow the instructions on the screen display to make the initial settings.

# button

VCR/TV/DVD switch

Yellow button

Blue button

7 button

1 Make sure to set the VCR/TV/DVD

switch on the remote control to the TV position

• You cannot turn the TV on when the VCR/TV/DVD switch is set to the VCR or DVD position.

2 Press the # button on the remote

control

The TV turns on from standby mode and the JVC logo is displayed.

• Check that the AC plug on the power cord from the TV is connected to AC outlet.

Remote control

sensor

Power lamp

7

Setting up your TV

• If the JVC logo does not appear this is because your TV has already been turned on for the first time: use the “LANGUAGE” and “AUTO PROGRAM” functions to make the initial settings. For details, see “SET UP menu” on page 32.

3 Press the a button

The LANGUAGE menu appears.

> LANGUAGE

OK

D0002(E)-EN

4 Press the 6 buttons to choose

ENGLISH. Then press the a button

The on-screen display will then be in English. The COUNTRY menu appears as a submenu of the AUTO PROGRAM function. There are two COUNTRY menus. Pressing the yellow button changes the COUNTRY menu as follows:

> COUNTRY

OK

> COUNTRY

OK

D0003-EN

START

MORE

START

MORE

5 Press the 5 and 6 buttons to

choose the country where you are

6 Press the blue button to start the

AUTO PROGRAM function

The AUTO PROGRAM menu appears and received TV channels are automatically stored in the programme numbers (PR).

>> AUTO PROGRAM

CH 28

14%

OK

D0004-EN

• To cancel the AUTO PROGRAM function: Press the b button.

After the TV channels have been registered in the programme numbers (PR), the EDIT menu appears

> EDIT

D0038-EN

PR ID AV 01 02 03 04 05 06 07 08 09

OK

MOVE

BBC1

CH/CC

CH CH CH CH CH CH CC CC CC

INSERT

21 22 23 24 25 26 01 02 03

ID

MANUAL

DELETE

• If you want to, you can now edit the programme numbers (PR) using the EDIT/MANUAL function. For details, see “EDIT/MANUAL” on page 32.

• If you do not want to edit programme numbers (PR), go to the next step.

• When the COUNTRY setting is UNITED KINGDOM, channels other than CH 21 to CH 69 (E21-E69) cannot be registered by AUTO PROGRAM.

8

7 Press the a button to display the

T-V LINK menu

T-V LINK

DOWNLOAD TV RECORDING DEVICE

EXIT

OK

D0005

-EN

If you do not have a T-V LINK compatible VCR connected:

Press the b button to exit the T-V LINK menu. The T-V LINK menu disappears.

If you have a T-V LINK compatible VCR connected to the EXT-2 terminal:

Follow the operating procedure “Downloading the data to VCR” on page 10 to transmit the Programme number (PR) data.

Now, the initial settings are complete, and you can watch the TV

• If your TV can detect the TV channel name from the TV channel broadcast signal, the TV channel name is assigned to the programme number (PR) to which the TV channel has been set. However, which TV channels are set to which programme numbers (PR) will depend on the area in which you live.

• If a TV channel you want to view is not set to a programme number (PR), you can set it using the MANUAL function. For details, see “EDIT/MANUAL” on page 32.

• The AUTO PROGRAM function does not set the programme number PR 0 (AV) for your video cassette recorder. You will need to set this using the MANUAL function.

Setting up your TV

For users in the UK:

If you have any problems setting up your new TV, please call the Helpline on 0870 330 5000.

For users in the Republic of Ireland:

If you have any problems setting up your new TV, please call the Helpline on 1890-582500.

9

Setting up your TV

 Downloading the data to VCR

You can transmit to the latest Programme numbers (PR) data to a VCR with the T-V LINK function.

Caution

• This only works when a T-V LINK compatible VCR is connected to the EXT-2 terminal.

• This only works when the T-V LINK menu is being displayed.

T-V LINK

DOWNLOAD TV RECORDING DEVICE

EXIT

OK

D0005

-EN

1 Turn on the VCR

2 Press the a button

The data transmission begins.

TV RECORDING DEVICE

TRANSFER. . . . .

D0037

-EN

The T-V LINK menu disappears once the data transmission ends.

When the T-V LINK menu is changed over to another menu:

The TV has finished its menu. This new menu is operated from the VCR. See the VCR instruction manual for what to do next.

If “FEATURE NOT AVAILABLE” appears at the T-V LINK menu:

Check the following three items. Then press the 2 button to retry data transmission.

• Has a T-V LINK compatible VCR been connected to the EXT-2 terminal?

• Has the VCR power been turned on?

• Does the SCART cable that is connected to the EXT-2 terminal to TV LINK compatible VCR have all its proper connections?

T-V LINK functions

When you have a T-V LINK compatible VCR connected to the EXT-2 Terminal on the TV, it is easier to set up the VCR and to view videos. T-V LINK uses the following features:

To use T-V LINK functions:

A “T-V LINK compatible VCR” means a JVC video cassette recorder with the T-V LINK logo, or with one of the following logos. However, these VCRs may support some or all of the features described earlier. For details, see your VCR instruction manual.

“Q-LINK” (a trademark of Panasonic Corporation) “Data Logic” (a trademark of Metz Corporation) “Easy Link” (a trademark of Phillips Corporation) “Megalogic” (a trademark of Grundig Corporation) “SMARTLINK” (a trademark of Sony Corporation).

10

Setting up your TV

 Pre-set download

The VCR will automatically download the registered data on the TV channels from the TV. This means you do not need to set up the program channels on your VCR manually. The preset download function automatically begins when the initial setting is complete or whenever you carry out the AUTO PROGRAM or EDIT/MANUAL functions.

You can also carry out this function using your VCR controls.

When “FEATURE NOT AVAILABLE” is displayed:

If “FEATURE NOT AVAILABLE” is displayed, the download was not performed correctly. Before trying to download again, check that:

• the VCR power is turned on

• the VCR is T-V LINK compatible

• the VCR is connected to the EXT-2 terminal

• the SCART cable is fully wired.

 Direct Rec

“What You See Is What You Record” You can easily record to VCR the images

that you are watching on the TV. For details, read the manual for your VCR.

Use your VCR controls. “DEVICE IS RECORDING” is displayed.

In the following situations, the VCR will stop recording if the TV is turned off, if the TV channel or input is changed, or if the menu is displayed on the TV:

• when recording images from an external device connected to the TV (for example a camcorder)

• when recording a TV channel after it has been unscrambled on a decoder

• when recording a TV channel by using the TV’s output because the VCR’s own tuner cannot properly receive that channel.

You cannot carry out Direct Rec using your TV’s control. Generally, the VCR cannot record a TV channel that it cannot receive properly on its own tuner, even if you can view that TV channel on the TV. However, some VCRs can record a TV channel by using the TV’s output if that channel can be viewed on the TV. For details, see your VCR instruction manual.

When the VCR is not ready, the following messages are displayed.

ERROR MESSAGE

NO RECORDING

NO RECORDING POSSIBLE

NO RECORDING, MEDIA PROBLEM

NO RECORDING, DEVICE BUSY

Cause and countermeasure

The VCR is not able to record. Check the VCR.

The TV input is set to EXT-4 or PC. Since the EXT-4 picture or PC picture cannot be output to EXT-2, DIRECT REC is not possible.

The recording device is not ready to record. Check the VCR tape.

The recording device cannot record as it is recording or playing. Check the VCR.

Refer to the VCR instruction manual.

11

TV buttons and functions

Turn the TV on from standby mode

Press the A button or the P p buttons to turn the TV on from standby mode.

When the TV is turned on, the power lamp lights blue.

To turn the TV off:

Press the A button again. The power lamp goes off.

Caution

•The A button on the TV does not fully

isolate the TV from the AC supply. If you are not going to use the TV for a long period, be sure to disconnect the AC plug from the AC socket.

Choose a TV channel

Press the P p buttons to choose a programme number (PR) or an EXT terminal

Refer to the pages in parentheses for details.

1 Remote control sensor 2 Power lamp (page 7) 3 TV/AV button (page 12) 4 MENU/OK button (pages 13, 24) 5 P p buttons (page 12) 6 r (Volume) q buttons (page 13) 7 A (Stand by) button (page 12) 8 Headphone jack (mini jack) (page 41)

12

Watch images from external devices

Press the TV/AV button to choose an EXT terminal

TV mode EXT modes

Last

Programme

number

or

Adjust the volume

Press the r (Volume) q buttons

The volume level indicator appears.

Using the Menu

Use the MENU/OK button

Refer to “Using the TV’s menu” (see page 24) for details of using the menu.

TV buttons and functions

13

Remote control buttons and functions

1 Muting button 2 Number buttons 3 Information button

1

2

3

4 5

6

7 8

~

!

@ #

$ %

^

4 c button 5 i button 6 b button 7 7 buttons 8 g (Text) button 9 p p buttons 0 VCR/DVD/Teletext control buttons

- p buttons = d (Favourite) button ~ # (Standby) button ! VCR/TV/DVD switch @ G button # Colour buttons $ H button % a button ^ b button & r (Volume) q buttons

Turn the TV on or off from standby mode

14

9

0

=

&

Press the # (standby) button to turn the TV on or off

When the TV is turned on, the power lamp lights blue.

• The power can be turned on by pressing

the b button, p p buttons or Number buttons.

To turn the TV on or off, set the VCR/TV/ DVD switch on the remote control to the TV position and press the # button. If the VCR/TV/DVD switch on the remote control is set to a position other than TV, the TV will not be turned on or off even if the # button is pressed.

Remote control buttons and functions

Choose a TV channel and watch images from external devices

 Use the number buttons:

Enter the programme number (PR) of the channel using the number buttons.

Example:

•PR 6 → press 6

• PR 12 → press 1 and 2

 Use the p p buttons:

Press the p p buttons to choose the programme number (PR) you want or an EXT terminal.

 Use the AV button:

Press the AV button to choose an EXT terminal.

TV mode EXT modes

Programme

numbers

PR 1 – PR 99

or

• Since this TV is designed to make full use of the resolution of the original video source, the motion may appear unnatural when the video source is input with progressive-scanning component signals. If this happens, change the output setting of the connected device to interlacescanning component signal output. See the instructions that came with the device for more information.

• The PC sound is the same as the EXT-3 sound.

To return to a TV channel:

Press the b button, the 6 buttons or the number buttons.

To use the programme number PR 0 (AV):

When the TV and VCR are connected only by the aerial cable, choosing the programme number PR 0 (AV) allows you to view images from the VCR. Set the VCR RF channel to the programme number PR 0 (AV) manually. For details, see “EDIT/ MANUAL” on page 32. Pressing the G button changes the choice as follows:

TV mode EXT modes

Programme

numbers

PR 1 – PR 99

PR 0

EXT-1

EXT-2

or

• You can choose a video input signal from the S-VIDEO signal (Y/C signal) and regular video signal (composite signal). For details, see “S-IN (S-VIDEO input)” on page 37.

• If you do not have a clear picture or no colour appears, change the colour system manually. See “COLOUR SYSTEM” on page 26.

• If you choose an EXT terminal with no input signal, the EXT terminal number becomes fixed on the screen.

EXT-3

or

EXT-4

• The VCR sends its playback image along the aerial cable as an RF (radio frequency) signal.

• Also see your VCR instruction manual.

15

Remote control buttons and functions

Adjust the volume

Press the r q buttons to adjust the volume.

The volume level indicator appears and the volume changes as you press the r q buttons.

 Muting the sound

Press the l (muting) button to turn off the sound.

Pressing the l (muting) button again restores the previous volume level.

Information function

You can see the channel number of the programme you are watching, the current time or the PR LIST. From the PR LIST, you can choose a channel or EXT terminal.

Press the h (Information) button to display the information you want to

see.

Pressing the h (Information) button changes the display as follows:

PR LIST

PR ID

AV

BBC1

01 02 03 04 05 06 07

OK

+8-8

D0011-EN

Channel number display:

The channel number and channel name (when the channel name is registered) of the programme you are watching or the EXT terminal number is displayed.

Channel number display

12 : 00

No indication

Time display:

The current time of the teletext data is displayed. If the TV has not received a TV channel that has teletext programmes since it was turned on, the time display is blank. To view the current time, choose a TV channel that has teletext programmes.

• An incorrect current time is sometimes displayed when watching videos.

PR LIST:

The programme number (PR) and EXT terminal list is displayed. Pressing the a button after choosing the programme number (PR) or EXT terminal with the 7 buttons will display the chosen programme or EXT terminal.

• For programme numbers (PR) for which the CHILD LOCK function is set, the n (CHILD LOCK) mark is displayed. For details see “CHILD LOCK” on page 29.

• For programme numbers (PR) which is registered as a favourite channel, the d (favourite) mark is displayed. For details see “Favourite channel function” on page 19.

16

Remote control buttons and functions

ZOOM function

You can change the screen size according to the picture aspect ratio. Choose the optimum one from the following ZOOM modes.

• The ZOOM mode is fixed at FULL when you are using the TV as a PC screen.

AUTO:

When a WSS (Wide Screen Signalling) signal, which shows the aspect ratio of the picture, is included in the broadcast signal or the signal from an external device, the TV automatically changes the ZOOM mode to 16:9 ZOOM mode or FULL mode according to the WSS signal. If a WSS signal is not included, the picture is displayed according to the ZOOM mode set with the 4:3 AUTO ASPECT function.

• For details of the 4:3 AUTO ASPECT function, see “4:3 AUTO ASPECT” on page 27.

• When the AUTO (WSS) mode does not function correctly due to poor WSS signal quality or when you want to change the ZOOM mode, press the c button and change to another ZOOM mode.

REGULAR:

Use to view a normal picture (4:3 aspect ratio) as this is its original shape.

PANORAMIC:

This stretches the left and right sides of a normal picture (4:3 aspect ratio) to fill the screen, without making the picture appear unnatural.

• The top and bottom of the picture are slightly cut off.

14:9 ZOOM:

This zooms up the wide picture (14:9 aspect ratio) to the upper and lower limits of the screen.

16:9 ZOOM:

This zooms up the wide picture (16:9 aspect ratio) to the full screen.

16:9 ZOOM SUBTITLE:

This zooms up the wide picture (16:9 aspect ratio) with subtitles to the full screen.

FULL:

This uniformly stretches the left and right sides of a normal picture (4:3 aspect ratio) to fill the wide TV screen.

• For 16:9 aspect ratio pictures that have been squeezed into a normal picture (4:3 aspect ratio), use the FULL mode to restore the picture to its original shape.

 Choose the ZOOM mode

1 Press the c button to display

the ZOOM menu

ZOOM

AUTO REGULAR PANORAMIC 14:9 ZOOM 16:9 ZOOM 16:9 ZOOM SUBTITLE FULL

OK

D0009-EN

2 Press the 6 buttons to choose a

ZOOM mode. Then press the a button

The picture expands and the chosen ZOOM mode is displayed in about 5 seconds.

• The ZOOM mode may be automatically changed by the control signal from an external device. When you want to return to the previous ZOOM mode, choose the ZOOM mode again.

17

Remote control buttons and functions

 Adjusting the visible area of the


If subtitles or the top (or bottom) of the picture are cut off, you can adjust the visible area of the picture manually.

1 Press the c button

The ZOOM menu appears.

2 Press the a button to display the

ZOOM mode indicator

The indicator appears.

16 : 9 ZOOM

D0010-EN

3 While it is displayed, press the 6

buttons to change the position of the picture

• You cannot adjust the visible area in REGULAR or FULL mode.

The visible area adjustment is saved even after the TV channel is changed. However, it is cancelled if the following operations are performed.

• The power is turned off/on

• The ZOOM mode is changed

• g (Text) button is pressed

• The TV is switched between TV mode and EXT mode

MONO:

Select the MONO mode, when you listen to the mono sound. You can enjoy the sound for a wider audience similar to stereo sound.

OFF:

The 3D SOUND function switches off.

• You can choose the 3D SOUND mode with the “SOUND menu” (see page 28).

Return to TV channel instantly

You can return to a TV channel instantly.

Press the b button

The TV returns to the TV mode and a TV channel appears.

3D SOUND function

You can enjoy sounds with a wider ambience.

• This function does not work for the sound from headphones.

Press the i button to select one of 3D SOUND modes

ON:

When you listen to stereo sound, please select ON mode. You can enjoy sound similar to the experience at the theatre.

18

Remote control buttons and functions

Favourite channel function

You can register your favourite TV channels (PR 1 – PR 99) in the number buttons 1 to 4. After registering, the channel can be called by pressing the d (favourite) button and a number button 1 to 4.

 Favourite channel registration

1 In the normal screen, choose a TV

channel (PR 1 – PR 99) that you want to register

For details, refer to “Choose a TV channel and watch images from external devices” on page 15.

2 Press and hold the d (favourite)

button for three seconds or more

Then “SET 1-4?” appears on the screen.

3 Press one of the number buttons 1

to 4

The current channel is registered in the pressed number button. After “PROGRAMMED!” appears on the screen, the favourite channel icon appears at the top-right of the screen.

• If the channel you are trying to register is already registered in one of the other number buttons 1 to 4, “NOT AVAILABLE” appears on the screen.

• Channels locked with the CHILD LOCK function cannot be registered.

• If AUTO PROGRAM is performed, the registered favourite channels are reset.

 Calling the favourite channel

1 In the normal screen, press the d

(favourite) button

Then “FAVORITE1-4?” appears.

2 Press one of the number buttons 1

to 4

The called favourite channel appears on the screen.

• If a number button in which no channel is registered is pressed, “NO MEMORY” appears on the screen.

 Setting the picture effect

When a favourite channel has been chosen with the d (favourite) button and number buttons 1 to 4, picture effect settings can be memorised for each favourite channel by setting the picture effects in the PICTURE menu (see page 25). The following items in the PICTURE menu (see page 25) are memorised. PICTURE MODE BRIGHT-1 CONTRAST BRIGHT-2 SHARP COLOUR HUE COLOUR TEMP. DIGITAL VNR COLOUR SYSTEM The last setting made for each item is memorised.

• When you want to delete a favourite channel, delete the set channel and set contents with FAVOURITE SETTING (see page 31) in the FEATURES menu.

19

Remote control buttons and functions

Operating a JVC brand VCR or DVD player

These buttons will operate a JVC brand VCR or DVD player. Pressing a button that looks the same as the device’s original remote control button has the same effect as the original remote control.

1 Set the VCR/TV/DVD Switch to the

VCR or DVD position

VCR:

When you are operating the VCR, set the switch to the VCR position.

• You can turn the VCR on or off with

the # (standby) button.

DVD:

When you are operating the DVD player, set the switch to the DVD position.

• You can turn the DVD player on or off

with the # (standby) button.

• You can also press the H or T button and display the DVD disc menu screen, and then operate by pressing the 7 buttons.

2 Press the VCR/DVD Control Button

to control your VCR or DVD player

• If your device is not made by JVC, these buttons will not work.

• Even if your device is made by JVC, some of these buttons may not work, depending on the device you are using.

• You can use the p buttons to choose a TV channel the VCR will receive, or choose the chapter the DVD player plays back.

• Some models of DVD player use the p buttons for both operating the fast forward/backward functions and for choosing the chapter. In this case, the 253 buttons do not work.

You cannot turn the TV on or off when the VCR/TV/DVD switch is set to the VCR or DVD position. When you turn the TV on or off, set the VCR/TV/DVD switch to the TV position.

20

Teletext function

VCR/TV/ DVD

Basic operation

1 Choose a TV channel with a teletext

broadcast

2 Set the VCR/TV/DVD switch to the

TV position

4 Choose a teletext page by pressing

the p p buttons, number buttons or colour buttons

To return to the TV mode:

Press the b button or g (Text) button.

• If you have trouble receiving teletext broadcasts, consult your local dealer or the teletext station.

• The ZOOM function will not work in the TV and text mode or Text mode.

• You cannot operate menus when viewing a teletext programme.

• Language display depends on the country which was set on the COUNTRY menu. If characters on a Teletext programme do not appear properly, change the COUNTRY setting to other country’s. To change the COUNTRY setting, perform steps 1 and 2 of the “AUTO PROGRAM” procedure on page 32 and then press the a button.

3 Press g (Text) button to display

the teletext

Pressing g (Text) button changes the mode as follows:

TEXT

---

TEXT

---

TV mode Text mode

Using the List Mode

You can store the numbers of your favourite teletext pages in memory and call them up quickly using the colour buttons.

 To store the page numbers:

1 Press B button to go into the

List mode

The page numbers you have stored are displayed at the bottom of the screen.

21

Teletext function

2 Press a colour button to choose a

position. Then press the number buttons to enter the page number

3 Press and hold down the A (Store)

button

The four page numbers blink white to show that they are stored in memory.

 To call up a stored page:

1 Press the B button to enter the

List mode

2 Press a colour button having a

stored page

To exit the List mode:

Press the B button again.

Hold

You can hold a teletext page on the screen for as long as you want, even while several other teletext pages are being received.

Press the C (Hold) button

Hold indication

Sub-page

Some teletext pages include sub-pages that are automatically displayed. You can hold any sub-page, or view it at any time.

1 Press the d (Favourite) button to

operate the Sub-page function

2 Press the Number buttons to enter

a sub-page number

Example:

• 3rd sub-page → press 0, 0, 0 and 3.

To cancel the Sub-page function:

Press the d (Favourite) button again.

Reveal

Some teletext pages include hidden text (such as answers to a quiz). You can display the hidden text.

Each time you press the E (Reveal) button, text is hidden or revealed

Size

You can double the height of the teletext display.

Press the F (Size) button

To cancel the Hold function:

Press C (Hold) button again.

22

Index

You can return to the index page instantly.

Press the G (Index) button

Returns to page 100 or a previously specified page.

Cancel

You can search for a teletext page while watching TV.

1 Press the number button to enter a

page number, or press a colour button

The TV searches for a teletext page.

2 Press H (Cancel) button

The TV programme appears. When the TV finds the teletext page, its page number appears in the upper left of the screen.

3 Press H (Cancel) button to return

to a teletext page when the page number is on the screen

• The TV mode cannot be resumed by

pressing the H (Cancel) button. To return to the TV mode press b.

Teletext function

23

Using the TV’s menu


This TV has a number of functions you can operate using menus. To use all your TV’s functions, you need to understand the basic menu operating techniques fully.

Buttons used to operate the menus

Basic operation

1 Press the H button to display

the menu bar

D0105-EN

2 Press the 5 buttons to choose

the menu you want to use and then press the a button

Types of menu

PICTURE menu

D0106

Choose to set the screen settings.

SOUND menu

D0107

Choose to set the sound settings.

FEATURES menu

D0108

Choose to set the sleep timer and child lock settings.

SET UP menu

Choose to edit the channels or

D0109

set the display language settings.

• The menu will disappear after about one minute if no operation is performed.

Operation with the buttons on the TV

You can also operate the menus using the buttons on the front panel of the TV.

D1105-EN

Chosen menu

3 Press the 6 buttons to choose

the item to be set, press the 5 buttons to set the item, and then press the a button

If there are sub-menus, use the 7 buttons to operate them.

• Press the b button to return to

the previous menu.

• Press the b or H button to exit

from the menu.

• Some menu items may not be operated or set depending on the TV status or other menu item settings. Menu items that cannot be operated or set are displayed in grey in the menu and cannot be chosen.

24

Chosen menu name

TV/AV button

MENU/OK button

6 buttons

5 buttons

PICTURE menu


STANDARD

PICTURE MODE BRIGHT-1 CONTRAST BRIGHT-2 SHARP COLOUR HUE COLOUR TEMP. FEATURES

OK

D0014

-EN

• While the PICTURE menu is displayed, pressing the blue button will set the BRIGHT-1, CONTRAST, BRIGHT-2, SHARP, COLOUR, HUE settings to their default settings.

• When watching the picture from EXT-1 to EXT-4 or the PC, picture effect settings can be memorised for each external input by setting the picture effects in the PICTURE menu. The following items in the PICTURE menu are memorised. PICTURE MODE BRIGHT-1 CONTRAST BRIGHT-2 SHARP COLOUR HUE COLOUR TEMP. DIGITAL VNR COLOUR SYSTEM The last setting made for each item is memorised.

PICTURE MODE

You can choose one of three PICTURE MODEs to adjust the picture settings automatically.

BRIGHT:

Heightens contrast and sharpness.

STANDARD:

Standardizes picture adjustment.

SOFT:

Softens contrast and sharpness.

STANDARD

COOL

RESET

BRIGHT-1

You can adjust the back light.

2 : darker 3 : brighter

CONTRAST

You can adjust the picture contrast.

2 :lower 3 : higher

BRIGHT-2

You can adjust the picture brightness.

2 : darker 3 : brighter

SHARP

You can adjust the picture sharpness.

2 : softer 3 :sharper

COLOUR

You can adjust the picture colour.

2 : lighter 3 :deeper

HUE

You can adjust the picture tint.

2 : reddish 3 :greenish

• You can change the HUE setting (picture hue) when the colour system is NTSC

3.58, or NTSC 4.43.

COLOUR TEMP.

You can select one of three COLOUR TEMP. modes (three tones of white) to adjust the white balance of the picture. Since white is the colour which is used as a reference for all the other colours, changing the COLOUR TEMP. mode affects the appearance of all the other colours on the screen.

25

PICTURE menu

COOL:

A bluish white. Using this mode when watching bright pictures allows you to enjoy a more vivid and bright picture.

NORMAL:

The normal white colour.

WARM:

A reddish white. Using this mode when watching films allows you to enjoy colours that are characteristic of films.

FEATURES

Choose FEATURES and press the a or 3 button to display the sub-menu.

> FEATURES

DIGITAL VNR COLOUR SYSTEM 4:3 AUTO ASPECT

OK

D1015-EN

 DIGITAL VNR

The DIGITAL VNR function cuts down the amount of ‘noise’ (‘snow’ or interference) in the original picture.

ON:

This function is turned on.

OFF:

This function is turned off.

AUTO(LOW)

 COLOUR SYSTEM

The colour system is chosen automatically. However, if the picture is not clear or no colour appears, choose the colour system manually.

1 Choose COLOUR SYSTEM. Then

press the a or 3 button

The sub-menu of the COLOUR SYSTEM function appears.

>> COLOUR SYSTEM

AUTO

OK

D0016-EN

2 Press the 6 buttons to choose

the appropriate colour system. Then press the a button

PAL:

PAL system

SECAM:

SECAM system

NTSC 3.58:

NTSC 3.58 MHz system

NTSC 4.43:

NTSC 4.43 MHz system

AUTO:

This function detects a colour system from the input signal. You can only use this when you are viewing a picture from programme number PR 0 (AV), or an EXT terminal.

• The AUTO function may not function properly if you have poor signal quality. If the picture is abnormal in the AUTO function, choose another colour system manually.

• When in the Programme numbers PR 0 (AV) to PR 99, you cannot choose NTSC

3.58 or NTSC 4.43.

• COLOUR SYSTEM cannot be chosen when you are watching the PC picture.

26

 4:3 AUTO ASPECT

You can choose one of three ZOOM modes, REGULAR, PANORAMIC or 14:9 ZOOM, as the ZOOM mode for the normal picture (4:3 aspect ratio).

1 Choose 4:3 AUTO ASPECT then

press the a button

>> 4:3 AUTO ASPECT

PANORAMIC REGULAR 14:9 ZOOM

OK

D0017-EN

2 Press the 6 buttons to choose a

ZOOM mode

PICTURE menu

27

SOUND menu

SOUND

STEREO/ BASS TREBLE BALANCE

D0019

3D SOUND

OK

-EN

OFF

• When the headphones are connected, only “STEREO / I • II” can be used.

STEREO / I • II

When you are viewing a bilingual broadcast programme, you can choose the sound from Bilingual I (Sub I) or Bilingual II (Sub II). If you have poor reception on a stereo broadcast, you can change from stereo to mono sound so that you can hear the broadcast more clearly and easily.

s: Stereo sound

v : mono sound

t : Bilingual I (sub I)

u : Bilingual II (sub II)

• The sound mode you can choose differs depending on the TV programme.

• This function does not work in the EXT modes.

BALANCE

You can adjust the volume balance between the left and right speaker.

2 : turn the left speaker’s volume level up. 3 : turn the right speaker’s volume level up.

3D SOUND

You can enjoy Surround sound with a “live” effect by using the 3D SOUND function.

• You can choose a 3D SOUND mode from ON, MONO and OFF modes. For details, see “3D SOUND function” on page 18.

• You can also operate the 3D SOUND function with the i button. For details, see “3D SOUND function” on page 18.

BASS

You can adjust the low tone of the sound.

2 : weaker 3 :strong

TREBLE

You can adjust the high tone of the sound.

2 : weaker 3 :strong

28

FEATURES menu

FEATURES

SLEEP TIMER CHILD LOCK APPEARANCE BLUE BACK FAVOURITE SETTING

OK

D0023-EN

TYPE A

ON

SLEEP TIMER

You can set the TV to automatically turn off after a set period of time.

1 Choose SLEEP TIMER. Then press

the a or 3 button

A Sub-menu of the SLEEP TIMER function appears.

> SLEEP TIMER

0120

OFF

OK

D0024-EN

2 Press the 5 buttons to set the

period of time. Then press the a button

You can set the period of time for up to 120 minutes (2 hours) in 10 minute steps.

• One minute before the SLEEP TIMER function turns off the TV, “GOODNIGHT!” appears.

• The SLEEP TIMER function cannot be used to turn off the TV’s main power.

• When the SLEEP TIMER function is on, you can display the sub-menu of the SLEEP TIMER function again to confirm or change the remaining period of time of the SLEEP TIMER function. Press the a button to leave the menu after confirming or changing the remaining time.

To cancel the SLEEP TIMER function:

Press the 2 button to set the period of time to “OFF”.

CHILD LOCK

When there is a TV channel you do not want your children to watch, you can use the CHILD LOCK function to lock out the TV channel. Even when a child chooses a programme number (PR) for a locked TV channel the screen will change to blue and display n (CHILD LOCK) so the TV channel cannot be viewed. Unless you enter a pre-set ID number by a special operation, the lock cannot be released and the child cannot view the TV channel.

 To set the CHILD LOCK function

1 Choose CHILD LOCK, then press

the 0 button

“SET ID NO.” (ID number setting screen) appears.

>> SET ID NO.

040

0

OK

D0025-EN

2 Set the ID number to your liking

1 Press the 6 buttons to choose

a number.

2 Press the 5 buttons to move

the cursor.

3 Press the a button

The Sub-menu of CHILD LOCK appears.

>> CHILD LOCK

D0026-EN

PR ID AV 01 02 03 04 05 06 07 08 09

OK

BBC1

CH/CC

CH CH CH CH CH CH CC CC CC

21 22 23 24 25 26 01 02 03

LOCK

29

FEATURES menu

4 Press the 6 buttons to choose a

TV channel

Every time you press the 6 buttons, the Programme number (PR) changes, and the picture of the TV channel registered in the Programme number (PR) is displayed on the screen.

5 Press the blue button and set the

CHILD LOCK function. Then press the a button

n (CHILD LOCK) appears and the TV channel is locked.

To reset the CHILD LOCK function:

Press the blue button again. n (CHILD LOCK) disappears.

To disable easy resetting of the CHILD LOCK function, the menu disappears if you choose the CHILD LOCK function and press the a button.

 To view a locked TV channel

1 Choose a programme number (PR)

of a locked TV channel with the number buttons or PR LIST

The screen changes to blue and the n (CHILD LOCK) appears. You cannot view the TV channel.

5

D0027-EN

2 Press the h (Information) button to

display “ID NO.” (ID No. input screen)

5

ID NO. :

D0028-EN

3 Press the number buttons to enter

the ID number

The lock is temporarily released so you can view the TV channel.

If you have forgotten the ID number:

Perform step 1 of “To set the CHILD LOCK function”. After confirming the ID number, press the b button to exit the menu.

• Even if you reset the lock temporarily, it does not mean that the CHILD LOCK function set for the TV channel is cancelled. The next time anyone tries to view the TV channel, it will be locked again.

• When you want to cancel the CHILD LOCK function, you must perform the operation “To set the CHILD LOCK function” again.

• To stop it being easy to choose the programme number (PR) of a locked TV channel, the programme number (PR) has been set so that it cannot be chosen with the 6 buttons or the buttons of the TV.

• To stop it being easy to reset the lock, “ID NO.” (ID No. input screen) is set so that it cannot appear unless you press the h (Information) button.

APPEARANCE

Press the 5 button and choose the format in which the channel number is displayed from two types: TYPE A and TYPE B.

BLUE BACK

You can set the TV to automatically change to a blue screen and mute the sound if the signal is weak or absent, or when there is no input from an external device.

ON:

This function is turned on.

OFF:

This function is turned off.

30

FAVOURITE SETTING

Chose when deleting the favourite channels registered in the buttons 1 to 4.

1 Choose FAVOURITE SETTING,

then press the a or 3 button

The FAVOURITE SETTING menu appears.

FAVOURITE SETTING

FEATURES menu

1

2

3

4

OK

D0112-EN

PR

PR 01

PR

07

01

RESET

2 Press the 6 buttons and chose

the favourite channel that you want to delete

3 Press the blue button

The chosen favourite channel and set contents are deleted.

• For details of the favourite channels, see “Favourite channel function” on page 19.

31

SET UP menu

SET UP

AUTO PROGRAM EDIT/MANUAL LANGUAGE DECODER(EXT-2) EXT SETTING

D0029

-EN

OK

OFF

AUTO PROGRAM

You can again perform the AUTO PROGRAM function TV channel automatic registration which was performed in the “Initial settings” (page 7).

1 Choose AUTO PROGRAM, then

press the a or 3 button

The COUNTRY menu appears as a submenu of the AUTO PROGRAM function. There are two COUNTRY menus. Pressing the yellow button changes the COUNTRY menu as follows:

> COUNTRY

OK

> COUNTRY

OK

D0003-EN

2 Press the 5 and 6 buttons to

choose the country where you are

START

MORE

START

MORE

EDIT/MANUAL

The EDIT/MANUAL functions are divided into two types:

• editing the current programme numbers (PR) (EDIT functions); and

• manually storing a TV channel you want to view on a particular programme number (PR) (MANUAL function).

Here are the details about these functions:

MOVE:

This function changes the programme number (PR) of a TV channel.

ID:

This function registers a channel name (ID) to a TV channel.

INSERT:

This function adds a new TV channel in the current programme numbers (PR) list by using the CH/CC number.

• You cannot use the INSERT function if you do not know the channel number of a TV channel. Use the MANUAL function to register a TV channel in the programme number (PR).

DELETE:

This function deletes a TV channel you do not want to list.

MANUAL:

This function manually stores a new TV channel in a programme number (PR).

Caution

• Using the MOVE, DELETE or INSERT functions rewrites the current programme numbers (PR) list. Therefore, the programme numbers (PR) of some of the TV channels will change.

• Using the MANUAL function for a TV channel for which the CHILD LOCK function has been set cancels the CHILD LOCK function for that channel.

3 Perform steps 5 and 6 of the “Initial

settings” (page 8)

32

SET UP menu

• Using the MANUAL function for a TV channel for which the DECODER (EXT-2) function has been set to ON returns the setting of the DECODER (EXT-2) function for that channel to OFF.

• When a TV channel has already been registered in PR 99, using the INSERT function deletes that TV channel.

 Basic operation

1 Choose EDIT/MANUAL, then press

the a or 3 button

The EDIT menu appears.

> EDIT

PR ID AV 01 02 03 04 05 06 07 08 09

OK

MOVE

D0038-EN

2 Follow the description for the

function you want to use

3 Press the a button to complete

the settings

The T-V LINK menu appears.

T-V LINK

DOWNLOAD TV RECORDING DEVICE

EXIT

OK

D0005

-EN

If you do not have a T-V LINK compatible VCR connected:

Press the b button to exit the T-V LINK menu. The T-V LINK menu disappears.

If you have a T-V LINK compatible VCR connected to the EXT-2 terminal:

Follow “Downloading the data to VCR” on page 10 to transmit the programme number (PR) data.

BBC1

CH/CC

CH CH CH CH CH CH CC CC CC

ID

INSERT

21 22 23 24 25 26 01 02 03

MANUAL

DELETE

• For programme number PR 0, “AV” appears in the programme numbers (PR) list.

• An EXT terminal number does not appear in the programme numbers (PR) list.

 MOVE

1 Press the 6 buttons to choose a

TV channel

2 Press the 3 button to start the

MOVE function

> EDIT

PR ID AV 01 02 03 04 05 06 07 08 09

D0030-EN

CH/CC

21

CH

BBC1

OK

STORE

CH CH CH CH CH

CCCC02

22 23 24 25 26

03

CC

3 Press the 6 buttons to choose a

new programme number (PR)

To cancel the MOVE function:

Press the b button.

4 Press the 2 button to change the

programme number (PR) of a TV channel to a new programme number (PR)

 DELETE

1 Press the 6 buttons to choose a

TV channel

2 Press the yellow button to delete

the TV channel

The TV channel is deleted from the programme numbers (PR) list.

01

33

SET UP menu

 ID

1 Press the 6 buttons to choose a

TV channel

2 Press the red button to start the ID

function

> EDIT

BBC1

M

CH/CC

CH CH CH CH CH CH CC CC CC

CH/CC

CH CH CH CH CH CH CC CC CC

21 22 23 24 25 26 01 02 03

ID

21 22 23 24 25 26 01 02 03

ID

PR ID AV 01 02 03 04 05 06 07 08 09

OK

D0031-EN

3 Press the 5 buttons to move the

cursor, and press the 6 buttons to choose each character of the channel name (ID). Then press the a button to register the channel name (ID) to the TV channel.

> EDIT

PR ID AV 01 02 03 04 05 06 07 08 09

OK

D0032-EN

Before performing INSERT or MANUAL operation

• If you register the TV channel (SECAML system) from a French station, be sure to set the COUNTRY setting to FRANCE. If the COUNTRY setting is not set to FRANCE, perform steps 1 and 2 of the “AUTO PROGRAM” (page 32) procedure and set the COUNTRY setting to FRANCE before pressing the a button.

• A CH/CC number unique to this TV and corresponding to the Channel number of a TV channel is required. Find the corresponding CH/CC number from a table “CH/CC numbers” on page 44 based on the Channel number of the TV channel.

• When the COUNTRY setting is not FRANCE, use a two-digit CH/CC number. When the COUNTRY setting is FRANCE, use a three-digit CH/CC number.

34

SET UP menu

 INSERT

1 Press the 6 buttons to choose a

programme number (PR) for which you will register a new TV channel

2 Press the green button and start

the INSERT function

> EDIT

PR ID AV 01 02 03 04 05 06 07 08 09

OK

D0034-EN

CH/CC

To cancel the INSERT function:

Press the b button.

3 Press the 6 buttons to choose

“CH” or “CC”, then enter the remaining CH or CC number

When the COUNTRY setting is FRANCE:

Choose “CH1”, “CH2”, “CC1” or “CC2”.

The TV shifts to registration mode. When the registration is completed, the picture of the TV channel appears on the screen.

• The CH/CC number is a number given to each broadcast frequency that carries a TV channel. If the TV cannot detect the TV channel corresponding to the broadcast frequency indicated by the CH/CC number, a “no-signal” picture appears.

BBC1

CH/CC

CH CH CH CH CH CH CC CCCC02

0 9

21 22 23 24 25 26

03

 MANUAL

1 Press the 6 buttons to choose a

programme number (PR) for a new TV channel

2 Press the blue button to activate

the MANUAL function

At the right side following the CH/CC number, the SYSTEM (broadcasting system) of the TV channel appears.

> MANUAL

BBC1

CH/CC

CH CH CH CH CH CH CC CC CC

SEARCH+

SEARCH-

21 22 23 24 25 26

(

)

01

B / G 02 03

FINE-

FINE+

PR ID AV 01 02 03 04 05 06 07 08 09

OK

SYSTEM

D0035-EN

To cancel the MANUAL function:

Press the b button.

3 Press the 3 button to choose the

SYSTEM (broadcasting system) for a TV channel you want to register

TV channel (SECAM-L system) from a French station:

Set the SYSTEM to “L”. If it is set to one other than “L”, you cannot receive the TV channel of the SECAM-L system.

Other TV channels:

If you do not know the correct broadcasting system, set the SYSTEM to “B/G”. If “B/G” is not correct, you will not hear the sound normally when the TV detects a TV channel. In this case, retry to set the SYSTEM correctly so that no problem arises.

35

SET UP menu

4 Press the green or red button to

search for a TV channel

Scanning stops when the TV finds a TV channel. Then the TV channel is displayed.

5 Press the green or red button

repeatedly until the TV channel you want appears

If the TV channel reception is poor:

Press the blue or yellow button to finetune the TV channel.

6 Press the a button and register

the TV channel to a Programme number (PR)

The normal EDIT menu is resumed.

LANGUAGE

The LANGUAGE setting which was performed in the “Initial settings” (page 7) can be changed.

1 Choose LANGUAGE, then press

the a or 3 button

A sub-menu of the LANGUAGE function appears.

> LANGUAGE

DECODER (EXT-2)

If you have a decoder connected to a T-V LINK compatible VCR, which in turn is connected to the EXT-2 terminal, use the DECODER (EXT-2) function to unscramble the scrambled TV channels.

1 Turn on the decoder power

2 Display the scrambled TV channel

on the TV

Even if the decoder is working, a scrambled picture appears.

3 Display the SET UP menu and

choose DECODER (EXT-2)

SET UP

AUTO PROGRAM EDIT/MANUAL LANGUAGE DECODER(EXT-2) EXT SETTING

OK

D0029

-EN

4 Press the 5 buttons to choose

ON

An unscrambled picture appears.

To cancel the DECODER (EXT-2) function:

Press the 5 buttons to choose OFF.

OFF

OK

D0002-EN

2 Press the 5 and 6 buttons to

choose a language. Then press the a button

36

5 Press the a button to complete

the setting

The T-V LINK menu appears.

T-V LINK

DOWNLOAD TV RECORDING DEVICE

EXIT

OK

D0005

-EN

You can send the programme numbers data to a VCR with the T-V LINK function.

SET UP menu

6 Turn on the VCR, and then press

the a button to transmit the data to VCR

The T-V LINK menu disappears once the data transmission ends.

If the DECODER (EXT-2) function has been set to “ON” but the TV channel cannot be unscrambled, check the following:

• Has the decoder been connected to the VCR properly according to the VCR and decoder instruction manuals?

• Has the decoder power been turned on?

• Can the TV channel be unscrambled with a decoder?

• Do you need to change the VCR settings in order to connect the decoder? Confirm that the VCR is set properly by rechecking the VCR instruction manual.

EXT SETTING

1 Choose EXT SETTING, then press

the a or 3 button

The EXT SETTING menu appears.

EXT SETTING

>

EXT-1

EXT-3

TV

OK

D0020-EN

2 Follow the instructions for the

function you want to use and operate the function

S-IN:

You can enjoy the high-quality picture of the S-VIDEO signal (Y/C signal).

ID LIST:

You can have a name for each of the devices connected for each EXT terminal.

DUBBING:

You can choose a signal source to be output from an EXT-2 terminal.

 S-IN (S-VIDEO input)

You can connect a device (such as an S-VHS VCR) to enjoy the high-quality picture of the S-VIDEO signal (Y/C signal).

Preparation:

• First read the device’s instruction manual and “Additional preparation” on page 41 to connect the device to the TV properly. Second, follow the device’s instruction manual to set the device so that it sends an S-VIDEO signal (Y/C signal) to the TV.

• Do not set S-IN (S-VIDEO input) to an EXT terminal connected to a device which cannot output an S-VIDEO (Y/C signal).

DUBBING EXT-2

S-IN

37

SET UP menu

1 Press the 5 or 6 buttons to

choose an EXT terminal

EXT SETTING

>

EXT-1

EXT-3

TV

OK

D0020-EN

DUBBING EXT-2

S-IN

2 Press the yellow button and set the

S-IN (S-VIDEO input). Then press the a button

An S-IN (S-VIDEO input) mark is displayed. You can view an S-VIDEO signal (Y/C signal) instead of the regular video signal (composite signal).

To cancel the S-IN (S-VIDEO input) setting:

Press the yellow button and turn off S-IN (SVIDEO input) mark. The regular video signal (composite signal) pictures are resumed.

• Setting S-IN (S-VIDEO input) changes the head character from “E” to “S”. When an EXT terminal receives a normal video signal, “E1”, “E2” or “E3” appears on the display. This changes to “S1”, “S2” or “S3” when it receives an S-VIDEO signal.

• Even a device which can output an S-VIDEO signal (Y/C signal) may output a regular video signal (composite signal) depending on the device setting. If a picture cannot appear because the S-IN (S-VIDEO input) setting has been made, read the device instruction manual carefully again to check for the device settings.

 DUBBING

You can choose a signal source to be output from the EXT-2 terminal.

You can do this with the output signals of the devices connected to other EXT terminals, or with the picture and sound from a TV channel you are currently viewing.

1 Press the 5 buttons to choose

the arrow from the menu

> EXT SETTING

EXT-1

EXT-3

TV

OK

D0022

-EN

2 Press the 6 buttons to choose an

EXT terminal or TV. Then press the a button

The arrow in the menu represents a signal flow. The left side of the arrow shows a signal source output from the EXT-2 terminal.

EXT-1/EXT-3:

The output signal of the device connected to an EXT terminal passes through the TV and is output from the EXT-2 terminal.

TV:

The picture and sound of the TV channel you are currently viewing are output from the EXT-2 terminal.

DUBBING EXT-2

38

• During dubbing, you cannot turn off the TV. Turning off the TV also turns off the output from the EXT-2 terminal.

• When you choose an EXT terminal as an output, you can view a TV programme or a picture from the other EXT terminal while dubbing the picture from a device connected to the EXT terminal onto a VCR connected to the EXT-2 terminal.

• The RGB signals from TV games cannot be output. Teletext programmes cannot be output.

SET UP menu

39

Displaying a computer screen

This TV can be used as a computer screen.

Connecting to the computer

Use a D-SUB cable to connect the TV’s PC IN terminal to the computer’s analogue RGB output terminal. If you want to listen to the sound from the computer, use an audio cable to connect the EXT-3 L/R terminal to the computer’s sound output terminal. When the sound from the computer is mono, connect to the EXT-3 L terminal.

• Refer to the computer manual for a detailed explanation of the connections at the computer side.

• Ensure that the connectors are facing the correct way when connecting.

• After connecting the D-SUB cable, tighten the two screws to fix the connector in place.

Watching images from a computer

After starting the computer, press the G or p p buttons to choose “PC”

“PC” is after EXT-4. You can listen to the sound when the sound from the computer is connected to the EXT-3 L/R terminal.

• When the sound from the computer is connected to EXT-3, by choosing external input EXT-3 the sound from the computer can be listened to, but the images from the computer cannot be seen.

Table of signals for each type of computer

Resolution Vertical

640 × 480 (VGA)

1024 × 768 (XGA)

* Only the above formats are supported. * Even with the above formats and at

60 Hz, some problems may be experienced depending on the quality of the synchronous signal. (Depending on the quality, some pictures may not be displayed properly.)

* Apple Macintosh

supported.

When a picture is not displayed

Check the computer’s refresh rate and set it to 60 Hz. Refer to the computer’s instruction manual. Computers which cannot have their refresh rate set to 60 Hz cannot be used with this unit.

frequency (Hz)

60.0 31.5

60.0 42.0

*

computers are not

Horizontal frequency (kHz)

40

* Apple Macintosh is a registered

trademark of Apple Computer, Inc.

Additional preparation

Connecting external equipment

Connect the equipment to the TV, making the correct rear panel and front panel connections.

Before connecting anything:

• Read the manuals that came with the equipment. Depending on the equipment, the connection method may be different from the diagram. Also, the equipment settings may need to change depending on the connection method.

• Turn off all the equipment including the TV.

• The “Specifications” on page 49 give the details of the EXT terminals. If you are connecting equipment not listed in the following connection diagram, see the table to choose the best EXT terminal.

• Connecting cables are not supplied.

 Connecting the PC

For details, see “Connecting to the computer” on page 40.

1 VCR (composite signal) 2 VCR (composite signal/S-VIDEO signal) 3 T-V LINK compatible VCR (composite

signal/S-VIDEO signal)

4 Decoder 5 DVD player (composite signal/S-VIDEO

signal)

6 DVD player (composite signal/RGB

signal)

7 DVD player (component video signals;

Y/Pb/Pr)

8 TV game (composite signal/RGB signal) 9 TV game (composite signal/S-VIDEO

signal)

0 Headphones

- Camcorder (composite signal/S-VIDEO

signal)

= SCART cable ~ Audio cable ! Video cable @ S-VIDEO cable # Component cable

41

Additional preparation

without terminal covers

42

Additional preparation

 Equipment which can output the

S-VIDEO signal (Y/C signal) such as an S-VHS VCR

Connect the equipment to an EXT terminal other than EXT-1/EXT-4. You can choose between an S-VIDEO signal (Y/C signal) and a regular video signal (composite signal). For details of how to operate the equipment, see “S-IN (S-VIDEO input)” on page 37.

 T-V LINK compatible VCR

Be sure to connect the T-V LINK compatible VCR to the EXT-2 terminal. If not, the T-V LINK function will not work properly.

• When connecting a T-V LINK compatible VCR to the EXT-2 terminal, be sure to connect the decoder to the VCR. If not, the T-V LINK function may not work properly.

• When you connect the decoder to the VCR, after you have stored TV channels in the programme numbers (PR) list, set the DECODER (EXT-2) function for the programme number (PR) to ON to unscramble a scrambled TV channel. For details, see “DECODER (EXT-2)” on page 36.

 Connecting headphones

Connect the headphones with a stereo minijack (3.5 mm diameter) to the headphone socket at the TV rear panel.

• No sound comes from the TV speakers when the headphones are connected.

 Video or sound signal output from

the EXT-2 terminal

You can change over the output of the video/ sound signal from the EXT-2 terminal. This is useful when you want to dub the video/ sound from another device onto the VCR connected to the EXT-2 terminal. For details on how to do this, see “DUBBING” on page 38.

• The signals from EXT-4 and PC IN terminal cannot be output from EXT-2.

 TV output from the EXT-1 terminal

The video/sound signal of a TV channel you are viewing is always output from the EXT-1 terminal.

• Changing over a programme number (PR) also changes over the TV output from the EXT-1 terminal.

• The video/sound signal from an EXT terminal cannot be output.

• Teletext programmes cannot be output.

43

CH/CC numbers

When you want to use the INSERT function on page 35, find the CH/CC number corresponding to the Channel number of the TV channel from this table.

CH Channel

CH 02 / CH 202 E2, R1

CH 03 / CH 203 E3, ITALY A

CH 04 / CH 204 E4, ITALY B, R2

CH 05 / CH 205 E5, ITALY D, R6

CH 06 / CH 206 E6, ITALY E, R7

CH 07 / CH 207 E7, ITALY F, R8

CH 08 / CH 208 E8, R9

CH 09 / CH 209 E9, ITALY G

CH 10 / CH 210 E10, ITALY H, R10

CH 11 / CH 211

CH 12 / CH 212

CH 21 / CH 221 E21, R21

CH 22 / CH 222 E22, R22

CH 23 / CH 223 E23, R23

CH 24 / CH 224 E24, R24

CH 25 / CH 225 E25, R25

CH 26 / CH 226 E26, R26

CH 27 / CH 227 E27, R27

CH 28 / CH 228 E28, R28

CH 29 / CH 229 E29, R29

CH 30 / CH 230 E30, R30

CH 31 / CH 231 E31, R31

CH 32 / CH 232 E32, R32

CH 33 / CH 233 E33, R33

CH 34 / CH 234 E34, R34

CH 35 / CH 235 E35, R35

CH 36 / CH 236 E36, R36

CH 37 / CH 237 E37, R37

CH 38 / CH 238 E38, R38

CH 39 / CH 239 E39, R39

E11, ITALY H+1, R11

E12, ITALY H+2, R12

CH Channel

CH 40 / CH 240 E40, R40

CH 41 / CH 241 E41, R41

CH 42 / CH 242 E42, R42

CH 43 / CH 243 E43, R43

CH 44 / CH 244 E44, R44

CH 45 / CH 245 E45, R45

CH 46 / CH 246 E46, R46

CH 47 / CH 247 E47, R47

CH 48 / CH 248 E48, R48

CH 49 / CH 249 E49, R49

CH 50 / CH 250 E50, R50

CH 51 / CH 251 E51, R51

CH 52 / CH 252 E52, R52

CH 53 / CH 253 E53, R53

CH 54 / CH 254 E54, R54

CH 55 / CH 255 E55, R55

CH 56 / CH 256 E56, R56

CH 57 / CH 257 E57, R57

CH 58 / CH 258 E58, R58

CH 59 / CH 259 E59, R59

CH 60 / CH 260 E60, R60

CH 61 / CH 261 E61, R61

CH 62 / CH 262 E62, R62

CH 63 / CH 263 E63, R63

CH 64 / CH 264 E64, R64

CH 65 / CH 265 E65, R65

CH 66 / CH 266 E66, R66

CH 67 / CH 267 E67, R67

CH 68 / CH 268 E68, R68

CH 69 / CH 269 E69, R69

CC Channel

CC 01 / CC 201 S1

CC 02 / CC 202 S2

CC 03 / CC 203 S3

CC 04 / CC 204 S4

CC 05 / CC 205 S5

CC 06 / CC 206 S6

CC 07 / CC 207 S7

CC 08 / CC 208 S8

CC 09 / CC 209 S9

CC 10 / CC 210 S10

CC 11 / CC 211 S11

CC 12 / CC 212 S12

CC 13 / CC 213 S13

CC 14 / CC 214 S14

CC 15 / CC 215 S15

CC 16 / CC 216 S16

CC 17 / CC 217 S17

CC 18 / CC 218 S18

CC 19 / CC 219 S19

CC 20 / CC 220 S20

CC 21 / CC 221 S21

CC 22 / CC 222 S22

CC 23 / CC 223 S23

CC 24 / CC 224 S24

CC 25 / CC 225 S25

CC 26 / CC 226 S26

CC 27 / CC 227 S27

CC 28 / CC 228 S28

CC 29 / CC 229 S29

CC 30 / CC 230 S30

CC Channel

CC 31 / CC 231 S31

CC 32 / CC 232 S32

CC 33 / CC 233 S33

CC 34 / CC 234 S34

CC 35 / CC 235 S35

CC 36 / CC 236 S36

CC 37 / CC 237 S37

CC 38 / CC 238 S38

CC 39 / CC 239 S39

CC 40 / CC 240 S40

CC 41 / CC 241 S41

CC 75 / CC 275 X

CC 76 / CC 276 Y, R3

CC 77 / CC 277 Z, ITALY C, R4

CC 78 / CC 278 Z+1, R5

CC 79 / CC 279 Z+2

CH Channel

CH 102 F2

CH 103 F3

CH 104 F4

CH 105 F5

CH 106 F6

CH 107 F7

CH 108 F8

CH 109 F9

CH 110 F10

CH 121 F21

CH 122 F22

CH 123 F23

CH 124 F24

CH 125 F25

CH 126 F26

CH 127 F27

CH 128 F28

CH 129 F29

CH 130 F30

CH 131 F31

CH 132 F32

CH 133 F33

CH 134 F34

CH 135 F35

CH 136 F36

CH 137 F37

CH 138 F38

CH 139 F39

CH 140 F40

44

CH Channel

CH 141 F41

CH 142 F42

CH 143 F43

CH 144 F44

CH 145 F45

CH 146 F46

CH 147 F47

CH 148 F48

CH 149 F49

CH 150 F50

CH 151 F51

CH 152 F52

CH 153 F53

CH 154 F54

CH 155 F55

CH 156 F56

CH 157 F57

CH 158 F58

CH 159 F59

CH 160 F60

CH 161 F61

CH 162 F62

CH 163 F63

CH 164 F64

CH 165 F65

CH 166 F66

CH 167 F67

CH 168 F68

CH 169 F69

CC Frequency (MHz)

CC 110 116 - 124

CC 111 124 - 132

CC 112 132 - 140

CC 113 140 - 148

CC 114 148 - 156

CC 115 156 - 164

CC 116 164 - 172

CC 123 220 - 228

CC 124 228 - 236

CC 125 236 - 244

CC 126 244 - 252

CC 127 252 - 260

CC 128 260 - 268

CC 129 268 - 276

CC 130 276 - 284

CC 131 284 - 292

CC 132 292 - 300

CC 133 300 - 306

CC 141 306 - 311

CC 142 311 - 319

CC 143 319 - 327

CC 144 327 - 335

CC 145 335 - 343

CC 146 343 - 351

CC 147 351 - 359

CC 148 359 - 367

CC 149 367 - 375

CC 150 375 - 383

CC 151 383 - 391

CC Frequency (MHz)

CC 152 391 - 399

CC 153 399 - 407

CC 154 407 - 415

CC 155 415 - 423

CC 156 423 - 431

CC 157 431 - 439

CC 158 439 - 447

CC 159 447 - 455

CC 160 455 - 463

CC 161 463 - 469

CH/CC numbers

• When two CH/CC numbers correspond to one Channel number, choose either one according to the current COUNTRY setting. When the COUNTRY setting is other than FRANCE, choose a two-digit CH/CC number. When the COUNTRY setting is FRANCE, choose a three-digit CH/ CC number.

• Find the CH/CC number (CC110 to CC161) corresponding to the TV channel (SECAM-L system) from a French cable TV station, based on the broadcast frequency of the TV channel. When you do not know the broadcast frequency, please contact the cable TV station.

• The CH/CC numbers of CH102-CH169 and CC110-CC161 correspond to the TV channels being broadcast by a SECAM-L system. The other CH/CC numbers correspond to the TV channels being broadcast by a method other than a SECAM-L system.

45

Troubleshooting

If a problem arises while you are using the TV, please read this troubleshooting guide carefully before you ask to have the TV repaired. You may be able to fix it easily by yourself. For example, if the mains plug is disconnected from the mains outlet, or the TV aerial has problems, you may think there is a problem with the TV itself.

Important:

• This troubleshooting guide only covers problems whose causes are not easy to decide. If you have a question when you are operating a function, read the page(s) for that function carefully, not this troubleshooting guide.

• If you follow the advice in this troubleshooting guide without any success, unplug the mains plug and ask for your TV to be repaired. Do not attempt to repair the TV by yourself or to remove the rear cover of the TV.

 If you cannot turn on the TV

• Is the mains plug connected to the mains outlet?

• Is the power lamp lit? If not, press the A button on the TV.

• Make sure you set the VCR/TV/DVD switch to the TV position. You cannot turn the TV on when the VCR/TV/DVD switch is set to the VCR or DVD position.

 If you cannot turn off the TV

• Make sure you set the VCR/TV/DVD switch to the TV position. You cannot turn the TV off when the VCR/TV/DVD switch is set to the VCR or DVD position.

 No picture or no sound

• Have you chosen a TV channel with very poor reception? If so, the BLUE BACK function will be activated: the entire screen becomes blue, and the sound is muted. If you still want to view the TV channel, follow the description “BLUE BACK” on page 30 to change the BLUE BACK function setting to OFF.

• If the SYSTEM setting for a TV channel is incorrect, it may prevent the sound from being issued. Follow the description “EDIT/MANUAL” on page 32 to use the MANUAL function to try to change the SYSTEM setting.

 Poor picture

• If noise (snow) totally blocks out the picture, there may be a problem with the aerial or aerial cable. Check the following to try to solve the problem:

– Have the TV and aerial been connected

properly? – Has the aerial cable been damaged? – Is the aerial pointing in the right

direction? – Is the aerial itself faulty?

• If the TV or aerial suffers interference from other equipment, stripes or noise may appear in the picture. Move any equipment such as an amplifier, personal computer, or a hair drier, that can cause interference away from your TV. Or try moving the TV. If the aerial suffers interference from a radio tower or highvoltage wire, please contact your local dealer.

• If the TV suffers interference from signals reflecting from mountains or buildings, double-pictures (ghosting) will occur. Try to change the aerial’s direction or replace it with one with better directionality.

• Are your COLOUR SYSTEM settings correct? Follow the description “COLOUR SYSTEM” on page 26 to try to solve the trouble.

• Have the COLOUR and BRIGHT settings been adjusted properly? Follow the description “BRIGHT-2” and “COLOUR” on page 25 to try to adjust them properly.

46

JVC LT-26A60BU, LT-26A60SU User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
