Car Docking Kit
KS-K6002/KS-K6001
INSTALLATIONS
LVT1195-001A
[J]
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
INFORMATION (Only for KS-K6002)
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.
Changes or modifications not expressly approved by the manufacturer for compliance could void the user’s
authority to operate the equipment.
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
2
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
Safety Precautions
WARNINGS:
Take the following precautions to prevent traffic
accidents and avoid personal injury:
• Installation must be performed according to this
installation manual. JVC is not responsible for
issues arising from installations not performed
according to the procedures in this manual.
• Do not install the unit where it may obstruct your
view through the windshield or of your vehicle’s
indicator displays.
• Do not install the unit where it may hinder the
CAUTIONS:
Take the following precautions to keep the unit in
proper working order:
• Be sure the unit is connected to a 12 V DC power
supply with a negative ground connection.
• Do not install the unit where it will be exposed to
high levels of humidity, moisture, or dust.
• When replacing a fuse in the cigarette lighter
adapter, use only a new one with the proper rating.
Using a fuse with the wrong rating may cause the
unit to malfunction.
function of safety devices such as an airbag.
Doing so may prevent the airbag from functioning
properly in the event of an accident.
• The installation and use suggestions contained in
Cigarette lighter
adapter
Fuse
this manual are subject to any restrictions or
limitations that may be imposed by applicable
law—the purchaser should check applicable law for
any restrictions or limitations before installing and/
or operating this unit.
• Failure to follow these safety instructions and
warnings may result in a serious accident.
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
• To prevent a short circuit when replacing a fuse,
first unplug the cigarette lighter adapter from the
cigarette lighter.
• When drilling holes to mount the unit, make sure
not to damage wiring or other systems.
3
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
Box Contents
After you unpack your Car Docking Kit, make sure everything here is included:
Car Docking Cradle
Cigarette Lighter
Adapter
Fuse
(250 V/3A)
Suction Cup Mount
Screws
(M4 x 8 mm)
Magnetic Roof-mount SIRIUS Antenna
Audio Cord
(only for KS-K6001)
Cassette Adapter
(only for KS-K6001)
For the latest information about this and other JVC PnP products, visit the JVC Web site at
<http://www.jvcmobile.com>. If anything is missing or damaged, or if your Car Docking Kit fails to operate,
notify your shipper immediately. It is recommended that you keep the original packaging in case you need to
ship your Car Docking Kit in the future.
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
4
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
Installation in Your Car
CAUTION:
Do not put JVC PnP in the car docking cradle until you have completed the installation.
2
1
Determine where you want to mount JVC PnP.
• Do not install JVC PnP where it may obstruct
your view through the windshield or your view
of your car’s indicator displays.
• Do not install JVC PnP where it will hinder your
access to the car’s controls.
• Do not install JVC PnP where it may hinder the
function of safety devices such as an airbag.
Doing so may prevent the airbag from
functioning properly in the event of an accident.
• Find a location that provides good visibility of
and access to JVC PnP’s front panel.
Assemble the supplied suction cup mount to
JVC PnP using the supplied screws.
• When using other screws, use the screws of less
than 8 mm long with a diameter of 4 mm.
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
To be continued...
5
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
Installation in Your Car (Continued)
CAUTION:
Do not plug the cigarette lighter adapter into he cigarette lighter until you have completed the installation.
3
Plug the cigarette lighter adapter into the back
of the cradle—DC 12V.
4
For KS-K6001:
A If your car stereo does not have a line input
(LINE IN or AUX)...
Plug the cassette adapter into the back of
the cradle—AUDIO OUT.
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
6
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
Only for KS-K6002: An optional hard-wired FM transmitter—FM Switching Box Assembly (Parts No.
112C3159) is available. By connecting this Assembly between the FM OUT terminal of the cradle and the
antenna input terminal of your car stereo, you can obtain stable and reliable transmission/reception.
4

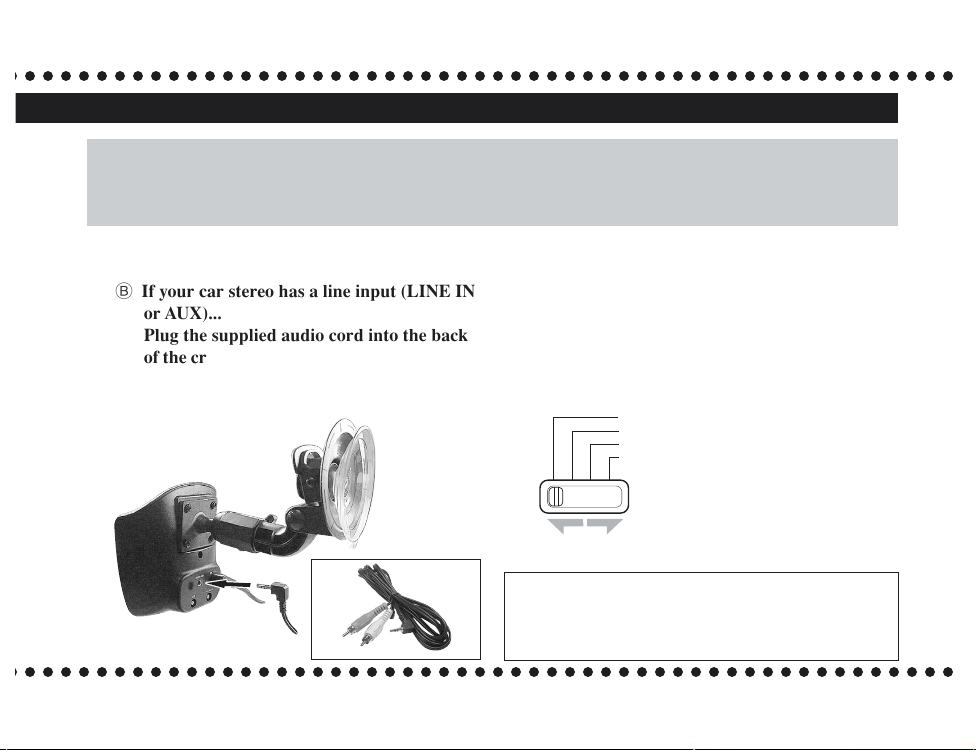

For KS-K6002:
B If your car stereo has a line input (LINE IN
or AUX)...
Plug the supplied audio cord into the back
of the cradle—AUDIO OUT.
• Plug the audio cable’s white (L ch) and red
(R ch) connectors into your car stereo.
Activate the FM signal transmitter (refer to
page 24 of KT-SR1000’ Instructions), and set
the FM frequency output selector to select one
of the following frequencies—88.1 MHz, 88.3
MHz, 88.5 MHz, and 88.7 MHz.
88.1
• It is recommended to preset
88.3
88.5
88.7
MHz
the frequency selected by the
FM frequency output
selector into your car stereo
so you can easily tune in to
the frequency.
Note: You can also connect a cassette adapter or
an audio cord (both not supplied) to the AUDIO
OUT jack to send the singals to your car stereo.
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
7
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
Finding the Best Antenna Mounting Location
1
Temporarily plug the antenna into the back of
the cradle—SAT (MAIN) until it is firmly
seated.
2
Find an antenna location on a metal surface of
your car—at least 30 cm × 30 cm (12 inches ×
12 inches), and at least 15 cm (6 inches) from a
window.
• The antenna’s powerful magnet will secure it to
the metal surface.
• Best reception is achieved with the antenna
mounted on the roof or trunk for convertibles.
• If your car has a roof rack or skid ribs, it may be
necessary to mount the antenna off-center.
3
Temporarily plug the cigarette lighter adapter
into the cigarette lighter.
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
8
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
5
4
Slide JVC PnP all the way into the cradle so
that the connector at the bottom of the unit
makes proper contact in the cradle.
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
Press the (POWER) button to turn on your
JVC PnP.
If your JVC PnP has been properly connected
•
and the antenna is receiving the SIRIUS signal,
you will hear audio.
If your JVC PnP has not been properly
•
connected, “Antenna Error” will appear on the
display of your JVC PnP.
Re-orient the antenna until you hear audio (refer
to “8 Antenna Aiming Options” on page 27 of
the KT-SR1000 Instructions).
– Make sure your car is not in garage, or
somewhere the satellite signal could be
blocked.
9
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
Running the Antenna Cable
Before routing the antenna cable, confirm that the
antenna is mounted in a good location.
1
Turn off your JVC PnP then remove it from the
cradle.
2
Unplug the cigarette lighter adapter from the
cigarette lighter and the antenna from the
cradle.
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
3
Route the cable from the antenna into the
trunk by tucking it underneath the rubber
molding around rear window.
10
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
5
• Route the cable from the lowest point of the rear
window. Take advantage of any existing cable
channels or wiring conduits.
• For SUVs, minivans & 5-door vehicles, bring
the cable into the car under the rubber molding
for the tailgate, and continue under the interior
trim.
4
From the trunk, route the cable around the
passenger compartment and to the back of the
cradle.
CAUTION:
• Do not pull the cable across sharp edges that
could damage it.
• Do not route the cable nearby areas where it
could become tangled in driver’s and
passenger’s feet.
Plug the antenna into the antenna into the back
of the cradle—SAT (MAIN) until it is firmly
seated.
6
Plug the cigarette lighter adapter into the
cigarette lighter.
7
Attach the SIRIUS antenna to the metal
surface of the car, such as roof of your car.
• You can use the supplied double-side adhesive
tape to attach the antenna cord firmly.
Note: It is strongly recommended to unplug the
cigarette lighter adapter after you turn off the car
ignition.
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
11
KS-K6002/KS-K6001
http://www.jvcmobile.c
Technical Support & Customer Satisfaction Survey.
Having TROUBLE with operation?
USA ONLY
Call 1-800-252-5722
http://www.jvc.com
We can help you!
EN
© 2003 VICTOR COMPANY OF JAPAN, LIMITED
om
Visit us on-line for
Car Docking Kit
US RESIDENTS ONLY
VICTOR COMPANY OF JAPAN, LIMITED
1203MNMMDWKRI
