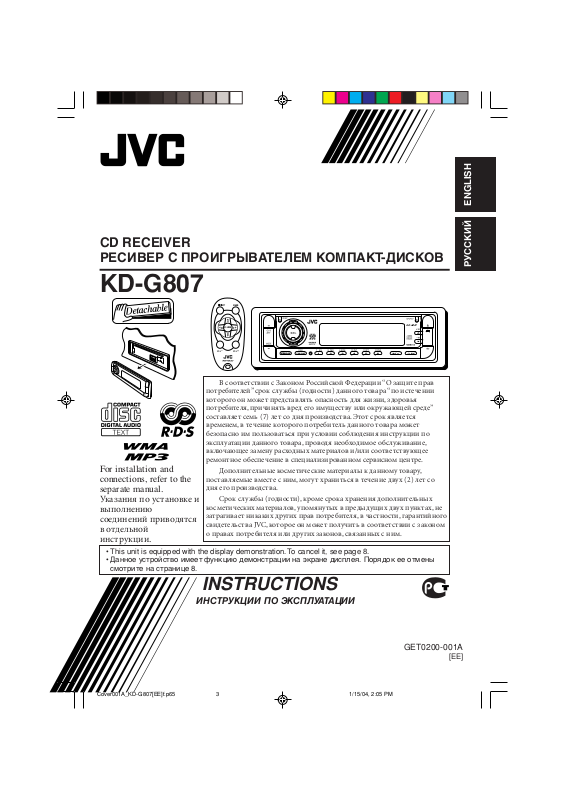

JVC KD-G807 User Manual

CD RECEIVER

РЕСИВЕР С ПРОИГРЫВАТЕЛЕМ КОМПАКТ-ДИСКОВ

KD-G807

SOUND

ATT

ENGLISH

РУCCKИЙ

SOURCE

VOL

В соответствии с Законом Российской Федерации “О защите прав потребителей” срок службы (годности) данного товара “по истечении которого он может представлять опасность для жизни, здоровья потребителя, причинять вред его имуществу или окружающей среде” составляет семь (7) лет со дня производства. Этот срок является временем, в течение которого потребитель данного товара может безопасно им пользоваться при условии соблюдения инструкции по эксплуатации данного товара, проводя необходимое обслуживание, включающее замену расходных материалов и/или соответствующее ремонтное обеспечение в специализированном сервисном центре.

For installation and connections, refer to the separate manual.

Указания по установке и выполнению соединений приводятся в отдельной инструкции.

• This unit is equipped with the display demonstration. To cancel it, see page 8.

• Данное устройство имеет функцию демонстрации на экране дисплея. Порядок ее отмены

смотрите на странице 8.

Дополнительные косметические материалы к данному товару, поставляемые вместе с ним, могут храниться в течение двух (2) лет со дня его производства.

Срок службы (годности), кроме срока хранения дополнительных косметических материалов, упомянутых в предыдущих двух пунктах, не затрагивает никаких других прав потребителя, в частности, гарантийного свидетельства JVC, которое он может получить в соответствии с законом о правах потребителя или других законов, связанных с ним.

KD-G807

INSTRUCTIONS

ИНСТРУКЦИИ ПО ЭКСПЛУАТАЦИИ

GET0200-001A

[EE]

IMPORTANT FOR LASER PRODUCTS

1. CLASS 1 LASER PRODUCT

2. CAUTION: Do not open the top cover. There are no user serviceable parts inside the unit; leave all servicing to qualified service personnel.

3. CAUTION: Visible and invisible laser radiation when open and interlock failed or defeated. Avoid

ENGLISH

direct exposure to beam.

4. REPRODUCTION OF LABEL: CAUTION LABEL, PLACED OUTSIDE THE UNIT.

How to reset your unit

Press the reset button on the control panel using a ball-point pen or similar tool. This will reset the built-in microcomputer.

Note:

Your preset adjustments—such as preset channels or sound adjustments—will also be erased.

CAUTION:

NEVER insert your finger in between the control panel and the unit, as it may get caught or hurt. (See page 40.)

How to use the MODE button

If you press MODE, the unit goes into functions mode, then the number buttons and 5/∞ buttons work as different function buttons.

Ex.: When number button 2 works as MO (monaural) button.

Time countdown indicator

To use these buttons for original functions again after pressing MODE, wait for 5 seconds without pressing any of these buttons until the functions mode is cleared.

• Pressing MODE again also clears the functions mode.

Thank you for purchasing a JVC product. Please read all instructions carefully before operation,

to ensure your complete understanding and to obtain the best possible performance from the unit.

CONTENTS

How to reset your unit ............................... 2

How to use the MODE button ................... 2

LOCATION OF THE BUTTONS ............ 4

Control panel ............................................. 4

Remote controller ...................................... 5

Preparing the remote controller ................ 6

BASIC OPERATIONS ....................... 7

Turning on the power ................................ 7

Canceling the display demonstration ........ 8

Setting the clock ........................................ 9

RADIO OPERATIONS ...................... 10

Listening to the radio ................................. 10

Storing stations in memory ....................... 11

Tuning in to a preset station ...................... 13

RDS OPERATIONS ......................... 14

What you can do with RDS ....................... 14

Other convenient RDS functions and

adjustments ............................................ 19

CD OPERATIONS ........................... 21

Playing a CD ............................................. 21

Locating a track or a particular portion

on a CD .................................................. 22

Selecting CD playback modes .................. 23

Playing a CD Text ...................................... 24

Prohibiting disc ejection ............................ 24

MP3/WMA INTRODUCTION .............. 25

What are MP3/WMA? ............................... 25

How are MP3/WMA files recorded and

played back? .......................................... 25

MP3/WMA OPERATIONS.................. 26

Playing a disc ............................................ 26

Locating a file or a particular portion

on a disc ................................................. 27

Selecting the playback modes .................. 29

SOUND ADJUSTMENTS ................... 31

ENGLISH

Adjusting the sound .................................. 31

Selecting preset sound modes

(iEQ: intelligent equalizer) ...................... 32

Storing your own sound adjustments ........ 33

OTHER MAIN FUNCTIONS ................ 34

Changing the general settings (PSM) ....... 34

Assigning names to CDs ........................... 39

Changing the control panel angle ............. 40

Detaching the control panel ...................... 41

CD CHANGER OPERATIONS .............. 42

Playing discs ............................................. 42

Selecting the playback modes .................. 45

EXTERNAL COMPONENT OPERATIONS ... 47

Playing an external component ................. 47

DAB TUNER OPERATIONS ................ 48

Tuning in to an ensemble and one of the

services .................................................. 48

Storing DAB services in memory .............. 49

Tuning in to a preset DAB service ............. 50

What you can do more with DAB .............. 51

ADDITIONAL INFORMATION ............. 52

TROUBLESHOOTING ...................... 53

MAINTENANCE ............................. 56

Handling discs ........................................... 56

SPECIFICATIONS........................... 57

BEFORE USE

*For safety....

• Do not raise the volume level too much, as this will block outside sounds, making driving dangerous.

• Stop the car before performing any complicated operations.

*Temperature inside the car....

If you have parked the car for a long time in hot or cold weather, wait until the temperature in the car becomes normal before operating the unit.

Control panel

Display window

ENGLISH

LOCATION OF THE BUTTONS

KD-G807

1 Remote sensor 2 (standby/on attenuator) button 3 DISP (display) button 4 SEL (select) button 5 Control dial 6 Display window 7 TP/PTY (traffic programme/programme type)

button

8 0 (eject) button

(angle) button

9 5 (up) button

+10 button

p MODE button q CD/CD-CH (CD changer) button w FM/AM DAB button e Reset button r EQ (equalizer) button t MO (monaural) button y SSM (Strong-station Sequential Memory)

button

u INT (intro) button i RPT (repeat) button o RND (random) button ; Number buttons a 4 / ¢ buttons s (control panel release) button

d ∞ (down) button

–10 button

Display window

f Disc information indicators— (track/file),

TAG (ID3 Tag), (folder)

g MP3 indicator h CH (CD changer) indicator j CD indicator k LINE indicator l WMA indicator / Main display z RDS indicators—TP, PTY, AF, REG x Equalizer pattern indicator

Audio level indicator

c EQ (equalizer) indicator v FM band indicators—FM1, FM2, FM3 b AM band indicator n Tuner reception indicators—ST (stereo), MO

(monaural)

m Play mode indicators— (folder), (disc),

RND (random), INT (intro), RPT (repeat)

, TRACK indicator . Source/clock display P LOUD (loudness) indicator Q Audio level indicator

Volume level indicator

Remote controller

SOUND

ATT

SOURCE

VOL

1 • Turns on the unit if pressed when the unit is

turned off.

• Turns off the unit if pressed and held until “SEE YOU” appears on the display.

• Drops the volume level in a moment if

pressed briefly. Press again to resume the volume.

2 • Selects the band while listening to the radio

(or the DAB tuner). Each time you press the button, the band changes.

• Skips to the first file of the next folder while listening to an MP3 or a WMA disc. Each time you press the button, you can move to the next folder and start playing the first file.

• While playing an MP3 disc on an MP3compatible CD changer;

– Skips to the next disc if pressed briefly. – Skips to the next folder if pressed and

held.

Note:

While playing a CD on a CD changer, this always skips to the next disc.

VOL

3 • Selects the preset stations (or services)

while listening to the radio (or the DAB tuner). Each time you press the button, the preset station (or service) number increases, and the selected station (or service) is tuned in.

• Skips to the first file of the previous folder while listening to an MP3 or a WMA disc. Each time you press the button, you can move to the previous folder and start playing the first file.

• While playing an MP3 disc on an MP3compatible CD changer; – Skips to the previous disc if pressed

briefly.

– Skips to the previous folder if pressed and

held.

Note:

While playing a CD on a CD changer, this always skips to the previous disc.

4 Functions the same as the control dial on the

main unit.

Note:

These buttons do not function for the preferred setting mode (PSM) adjustment.

5 Selects the sound mode (iEQ: intelligent

equalizer). Each time you press the button, the sound mode (iEQ) changes.

6 Selects the source.

Each time you press the button, the source changes.

7 • Searches for stations while listening to the

radio.

• Selects services while listening to the DAB tuner if pressed briefly.

• Searches for ensembles while listening to the DAB tuner if pressed and held.

• Fast-forwards or reverses the track/file if pressed and held while listening to a disc.

• Skips to the beginning of the next track/file or goes back to the beginning of the current (or previous) tracks/files if pressed briefly while listening to a disc.

ENGLISH

Preparing the remote controller

Before using the remote controller:

• Aim the remote controller directly at the remote sensor on the main unit. Make sure there is no

ENGLISH

obstacle in between.

Remote sensor

• Do not expose the remote sensor to strong light (direct sunlight or artificial lighting).

Installing the battery

When the controllable range or effectiveness of the remote controller decreases, replace the battery.

1. Remove the battery holder.

1) Push out the battery holder in the direction indicated by the arrow using a ball-point pen or a similar tool.

2) Remove the battery holder.

(back side)

3. Return the battery holder.

Insert again the battery holder by pushing it until you hear a clicking sound.

(back side)

WARNING:

• Store the battery in a place where children cannot reach. If a child accidentally swallows the battery, consult a doctor immediately.

• Do not recharge, short, disassemble, or heat the battery or dispose of it in a fire. Doing any of these things may cause the battery to give off heat, crack, or start a fire.

• Do not leave the battery with other metallic materials. Doing this may cause the battery to give off heat, crack, or start a fire.

• When throwing away or saving the battery, wrap it in tape and insulate; otherwise, the battery may start to give off heat, crack, or start a fire.

• Do not poke the battery with tweezers or similar tools. Doing this may cause the battery to give off heat, crack, or start a fire.

2. Place the battery.

Slide the battery into the holder with the + side facing upwards so that the battery is fixed in the holder.

Lithium coin battery (product number: CR2025)

CAUTION:

DO NOT leave the remote controller in a place (such as dashboards) exposed to direct sunlight for a long time. Otherwise, it may be damaged.

BASIC OPERATIONS

ENGLISH

Turning on the power

Turn on the power.

Note on One-Touch Operation:

When you select a source in step 2 below, the power automatically comes on. You do not have to press this button to turn on the power.

Select the source.

To operate the tuner (FM or AM),

see pages 10 – 20.

To play a CD,

see pages 21 – 24.

To play an MP3/WMA disc,

see pages 26 – 30.

To operate the CD changer,

see pages 42 – 46.

To operate the external component

(LINE IN), see page 47.

To operate the DAB tuner,

see pages 48 – 51.

Adjust the volume.

To increase the volume

To decrease the volume

Volume level appears.

Volume level indicator

Adjust the sound as you want. (See pages 31 – 33.)

To drop the volume in a moment

Press briefly while listening to any source. “ATT” starts flashing on the display, and the volume level will drop in a moment. To resume the previous volume level, press the button briefly again.

• If you turn the control dial, you can also restore the sound.

To turn off the power

Press and hold for more than one second.

“SEE YOU” appears, then the unit turns off.

• If you turn off the power while listening to a

disc, disc play will start from where playback has been stopped previously, next time you turn on the power.

CAUTION on Volume Setting:

Discs produce very little noise compared with other sources. If the volume level is adjusted for the tuner, for example, the speakers may be damaged by the sudden increase in the output level. Therefore, lower the volume before playing a disc and adjust it as required during playback.

ENGLISH

Canceling the display demonstration

When shipped from the factory, display demonstration has been activated, and starts automatically when no operations are done for about 20 seconds.

• It is recommended to cancel the display demonstration before you use the unit for the first time.

To cancel the display demonstration, follow the procedure below:

Press and hold SEL (select) for more than 2 seconds so that one of the PSM items appears on the display. (PSM: see pages 34 and 35.)

Select “DEMO MODE” if not shown on the display.

Select “DEMO OFF.”

DEMO OFF

Finish the setting.

To activate the display demonstration, repeat

the same procedure and select “DEMO ON” in step 3.

DEMO ON

ENGLISH

Setting the clock

You can also set the clock system to either 24 hours or 12 hours.

Press and hold SEL (select) for more than 2 seconds so that one of the PSM items appears on the display. (PSM: see pages 34 and 35.)

Set the hour.

1 Select “CLOCK HOUR” if not shown on

the display.

2 Adjust the hour.

Set the minute.

1 Select “CLOCK MINUTE.” 2 Adjust the minute.

Set the clock system.

1 Select “CLOCK24H/12H.” 2 Select “CLOCK 24HOUR” or “CLOCK

12HOUR.”

Finish the setting.

Note:

To show the clock time on the display, see page 36.

To check other information during play, press DISP (display).

Each time you press the button, the other information will be shown on the lower part of the display. (See page 36 for details.)

• Pressing DISP (display) with the unit turned off will show the clock time for about 5 seconds.

ENGLISH

RADIO OPERATIONS

Listening to the radio

You can use either automatic searching or manual searching to tune in to a particular station.

Searching for a station automatically: Auto search

Select the band (FM1 – 3, AM).

Each time you press the button, the band changes as follows:

FM 1

(F1)

Lights up when receiving an FM stereo broadcast with sufficient signal strength.

* When “CLOCK DISP” is set to “CLK DISP

ON” (see page 36), the current indication will soon change to the clock time.

Note:

This receiver has three FM bands (FM1, FM2, FM3). You can use any one of them to listen to an FM broadcast.

FM 2

(F2)

FM 3

(F3)

Selected band appears*.

A M (A1)

Start searching for a station.

To search for stations of higher frequencies

To search for stations of lower frequencies

When a station is received, searching stops.

To stop searching before a station is received, press the same button you have

pressed for searching.

Note:

FM1 and FM2: 87.5 MHz – 108.0 MHz

FM3: 65.00 MHz – 74.00 MHz

Searching for a station manually: Manual search

Select the band (FM1 – 3, AM).

Each time you press the button, the band changes as follows:

FM 1

(F1)

Note:

This receiver has three FM bands (FM1, FM2, FM3). You can use any one of them to listen to an FM broadcast.

FM 2

(F2)

FM 3

(F3)

A M

(A1)

Press and hold ¢ or 4 until “M” (manual) starts flashing on the display.

Tune in to a station you want while “M” (manual) is still flashing.

To tune in to stations of higher frequencies

To tune in to stations of lower frequencies

• If you release your finger from the button, the manual mode will automatically turns off after 5 seconds.

• If you hold down the button, the frequency

keeps changing—in 50 kHz intervals (87.5 MHz – 108.0 MHz for FM 1 and FM 2), in 30 kHz intervals (65.00 MHz –

74.00 MHz for FM 3) and 9 kHz for AM —MW/LW until you release the button.

When an FM stereo broadcast is hard to receive:

1 Press MODE to enter the

functions mode while listening to an FM stereo broadcast.

2 Press MO (monaural), while

“MODE” is still on the display, so that “MONO” appears on the display. Each time you press the button, the monaural mode turns on and off alternately.

MO (monaural) indicator

When the MO indicator is lit on the display, the sound you hear becomes monaural but the reception will be improved.

Storing stations in memory

You can use one of the following two methods to store broadcasting stations in memory.

• Automatic preset of FM stations: SSM (Strongstation Sequential Memory)

• Manual preset of both FM and AM stations

ENGLISH

FM station automatic preset: SSM

You can preset 6 local FM stations in each FM band (FM1, FM2, and FM3).

Select the FM band (FM1 – 3) you want to store FM stations into.

Each time you press the button, the band changes as follows:

FM 1

(F1)

FM 2

(F2)

CONTINUED ON THE NEXT PAGE

FM 3

(F3)

A M (A1)

Press MODE to enter the functions mode.

Manual preset

You can preset up to 6 stations in each band (FM1, FM2, FM3, and AM) manually.

ENGLISH

Press and hold SSM for about 2 seconds.

“SSM” appears, then disappears when automatic preset is over.

Local FM stations with the strongest signals are searched and stored automatically in the band number you have selected (FM1, FM2, or FM3). These stations are preset in the number buttons —No.1 (lowest frequency) to No.6 (highest frequency). When automatic preset is over, the station stored in number button 1 will be automatically tuned in.

Ex.: Storing FM station of 92.5 MHz into the

preset number 1 of the FM1 band.

Select the band (FM1 – 3, AM) you want to store stations into (in this example, FM1).

Each time you press the button, the band changes as follows:

FM 1

(F1)

Tune in to a station (in this example, of 92.5 MHz).

To tune in to stations of lower frequencies

FM 2

(F2)

FM 3

(F3)

To tune in to stations of higher frequencies

A M

(A1)

Press and hold the number button (in this example, 1) for more than 2 seconds.

Tuning in to a preset station

You can easily tune in to a preset station. Remember that you must store stations first. If you have not stored them yet, see “Storing stations in memory” on pages 11 – 13.

ENGLISH

Preset number flashes for a while.

Repeat the above procedure to store other stations into other preset numbers.

Notes:

• A previously preset station is erased when a new station is stored in the same preset number.

• Preset stations are erased when the power supply to the memory circuit is interrupted (for example, during battery replacement). If this occurs, preset the stations again.

Select the band (FM1 – 3, AM).

Each time you press the button, the band changes as follows:

FM 1

(F1)

Select the number (1 – 6) for the preset station you want.

FM 2

(F2)

FM 3

(F3)

A M (A1)

RDS OPERATIONS

What you can do with RDS

RDS (Radio Data System) allows FM stations to send an additional signal along with their regular programme signals. For example, the stations

ENGLISH

send their station names, as well as information about what type of programme they broadcast, such as sports or music, etc. Another advantage of RDS function is called “Enhanced Other Networks.” By using the Enhanced Other Networks data sent from a station, you can tune in to a different station of a different network broadcasting your favorite programme or traffic announcement while listening to another programme or to another source such as CD.

By receiving the RDS data, this unit can do the following:

• Tracing the same programme automatically (Network-Tracking Reception)

• Standby Reception of TA (Traffic Announcement) or your favorite programme

• PTY (Programme Type) search

• Programme search

• And some other functions

Tracing the same programme automatically (Network-Tracking Reception)

When driving in an area where FM reception is not good, the tuner built in this unit automatically tunes in to another RDS station, broadcasting the same programme with stronger signals. So, you can continue to listen to the same programme in its finest reception, no matter where you drive. (See the illustration on page 20.) Two types of the RDS data are used to make Network-Tracking Reception work correctly —PI (Programme Identification) and AF (Alternative Frequency). Without receiving these data correctly from the RDS station you are listening to, NetworkTracking Reception will not operate.

To use Network-Tracking Reception

You can select the different modes of networktracking reception to continue listening to the same programme in its finest reception. When shipped from the factory, “AF ON” is selected.

• AF ON: Network-Tracking Reception is activated with Regionalization set to “off.” With this setting, the unit switches to another station within the same network when the received signals from the current station become weak. (In this mode, the programme may differ from the one currently received.) The AF indicator lights up but the REG indicator does not.

• AF REG: Network-Tracking Reception is activated with Regionalization set to “on.” With this setting, the unit switches to another station, within the same network, broadcasting the same programme when the received signals from the current station become weak. Both the AF indicator and the REG indicator light up.

• AF OFF: Network-Tracking Reception is deactivated. Neither the AF indicator nor the REG indicator lights up.

AF and REG indicators

Note:

If a DAB tuner is connected and Alternative Reception (for DAB services) is activated, Network-Tracking Reception is also activated (“AF ON”) automatically. On the other hand, Network-Tracking Reception cannot be deactivated without deactivating Alternative Reception. (See page 51.)

Press and hold SEL (select) for more than 2 seconds so that one of the PSM items appears on the display. (PSM: see pages 34 and 35.)

Select “AF-REG” (alternative frequency/regionalization reception) if not shown on the display.

Select the desired mode—“AF ON,” “AF REG,” or “AF OFF.”

Finish the setting.

Using TA Standby Reception

TA Standby Reception allows the unit to switch temporarily to Traffic Announcement (TA) from the current source (another FM station, CD, or other connected components).

• TA Standby Reception will not work if you are listening to an AM station.

Press TP/PTY to activate TA Standby Reception.

7 When the current source is FM, the TP

indicator either lights up or flashes.

• If the TP indicator lights up, TA Standby

Reception is activated. If a station starts broadcasting a traffic announcement, “TRAFFIC” appears on the display, and this unit automatically tunes in to the station. The volume changes to the preset TA volume level (see page 19) and the traffic announcement can be heard.

• If the TP indicator flashes, TA Standby

Reception is not yet activated since the station being received does not provide the signals used for TA Standby Reception. To activate TA Standby Reception, you need to tune in to another station providing these signals. Press ¢ or 4 to search for such a station. When a station providing these signals is tuned in, the TP indicator stops flashing and remains lit. Now TA Standby Reception is activated.

7 When the current source is other than FM,

the TP indicator lights up. If a station starts broadcasting a traffic announcement, “TRAFFIC” appears on the display, and this unit automatically changes the source and tunes in to the station.

ENGLISH

To deactivate the TA Standby Reception,

press TP/PTY again. The TP indicator disappears.

Using PTY Standby Reception

PTY Standby Reception allows the unit to switch temporarily to your favorite programme (PTY: Programme Type) from the current source

ENGLISH

(another FM station, CD, or other connected components).

Finish the setting.

• PTY Standby Reception will not work if you are listening to an AM station.

You can select your favorite programme type for PTY Standby Reception. When shipped from the factory, PTY Standby Reception is turned off. (“OFF” is selected for PTY Standby Reception.)

Press and hold SEL (select) for more than 2 seconds so that one of the PSM items appears on the display. (PSM: see pages 34 and 35.)

Select “PTY STANDBY” if not shown on the display.

Select one of the twenty-nine PTY codes. (See page 20.)

Selected code name appears on the display and is stored into memory.

7 When the current source is FM, the PTY

indicator either lights up or flashes.

• If the PTY indicator lights up, PTY Standby Reception is activated. If a station starts broadcasting the selected PTY programme, this unit automatically tunes in to the station.

• If the PTY indicator flashes, PTY Standby Reception is not yet activated since the station being received does not provide the signals used for PTY Standby Reception. To activate PTY Standby Reception, you need to tune in to another station providing these signals. Press ¢ or 4 to search for such a station. When a station providing these signals is tuned in, the PTY indicator stops flashing and remains lit. Now PTY Standby Reception is activated.

7 When the current source is other than FM,

the PTY indicator lights up. If a station starts broadcasting the selected PTY programme, this unit automatically changes the source and tunes in to the station.

To deactivate the PTY Standby Reception,

select “OFF” in step 3 on the left column. The PTY indicator disappears.

Searching your favorite programme

You can search any one of the PTY codes. In addition, you can store your 6 favorite programme types in the number buttons. When shipped from the factory, the following 6 programme types have been stored in the number buttons (1 to 6).

To store your favorite programme types, see below.

To search for your favorite programme type,

see page 18.

POP M

CLASSICS

ROCK M EASY M

AFFAIRS

To store your favorite programme types

Press and hold TP/PTY for more than 2 seconds while listening to an FM station.

VARIED

Press and hold the number button for more than 2 seconds to store the PTY code selected into the preset number you want.

Ex.: When you select “FOLK M”

Press and hold TP/PTY for more than 2 seconds to exit from this mode.

ENGLISH

The last selected PTY code appears.

Select one of the twenty-nine PTY codes. (See page 20.)

Selected code name appears on the display.

To search for your favorite programme type

ENGLISH

Press and hold TP/PTY for more than 2 seconds while listening to an FM station.

The last selected PTY code appears.

To select one of your favorite programme type

To select any one of the twenty-nine PTY codes

Press ¢ or 4 to start PTY search for your favorite programme.

• If there is a station broadcasting a programme of the same PTY code as you selected, that station is tuned in.

• If there is no station broadcasting a programme of the same PTY code as you selected, the station will not change.

Note:

In some areas, the PTY search will not work correctly.

Preset number appears only if you select a PTY code using the number buttons.

Ex.: When “ROCK M” is selected

Other convenient RDS functions and adjustments

Automatic selection of the station when using the number buttons

Usually when you press the number button, the preset station is tuned in. However, when the preset station is an RDS station, something different will happen. If the signals from that preset station are not sufficient for good reception, this unit, using the AF data, tunes in to another frequency broadcasting the same programme as the original preset station is broadcasting. (Programme search)

• The unit takes some time to tune in to another station using programme search.

To activate programme search, follow the procedure below.

• See also “Changing the general settings (PSM)” on pages 34 and 35.

1 Press and hold SEL (select) for more than

2 seconds so that one of the PSM items appears on the display.

2 Press ¢ or 4 to select

“P(Programme)-SEARCH.”

3 Turn the control dial clockwise to select

“SEARCH ON.” Now programme search is activated.

4 Press SEL (select) to finish the setting.

To cancel programme search, repeat the same

procedure and select “SEARCH OFF” in step 3 by turning the control dial counterclockwise.

Setting the TA volume level

You can preset the volume level for TA Standby Reception. When a traffic programme is received, the volume level automatically changes to the preset level.

• See also “Changing the general settings (PSM)” on pages 34 and 35.

1 Press and hold SEL (select) for more than

2 seconds so that one of the PSM items appears on the display.

2 Press ¢ or 4 to select “TA

VOLUME”.

3 Turn the control dial to set to the desired

volume. You can set it from “VOL 00” to “VOL 30” or “VOL 50” (depending on the amplifier gain control setting: see page 38).

4 Press SEL (select) to finish the setting.

Automatic clock adjustment

When shipped from the factory, the clock built in this unit is set to be readjusted automatically using the CT (Clock Time) data in the RDS signal. If you do not want to use automatic clock adjustment, follow the procedure below.

• See also “Changing the general settings (PSM)” on pages 34 and 35.

1 Press and hold SEL (select) for more than

2 seconds so that one of the PSM items appears on the display.

2 Press ¢ or 4 to select “AUTO

ADJUST”.

3 Turn the control dial counterclockwise to select

“ADJUST OFF.” Now automatic clock adjustment is canceled.

4 Press SEL (select) to finish the setting.

ENGLISH

To reactivate clock adjustment, repeat the

same procedure and select “ADJUST ON” in step 3 by turning the control dial clockwise.

Note:

You must stay tuned to the same station for more than 2 minutes after setting “AUTO ADJUST” to “ADJUST ON.” Otherwise, the clock time will not be adjusted. (This is because the unit takes up to 2 minutes to capture the CT data in the RDS signal.)

PTY codes

NEWS: News AFFAIRS: Topical programmes expanding

ENGLISH

INFO: Programmes which impart

SPORT: Sport events EDUCATE: Educational programmes DRAMA: Radio plays CULTURE: Programmes on national or

SCIENCE: Programmes on natural science

VARIED: Other programmes like comedies

POP M: Pop music ROCK M: Rock music EASY M: Easy-listening music LIGHT M: Light music CLASSICS: Classical music OTHER M: Other music WEATHER: Weather information FINANCE: Reports on commerce, trading,

CHILDREN: Entertainment programmes for

on current news or affairs

advice on a wide variety of topics

regional culture

and technology

or ceremonies

the Stock Market, etc.

children

SOCIAL: Programmes on social

activities

RELIGION: Programmes dealing with any

aspect of belief or faith, or the nature of existence or ethics

PHONE IN: Programmes where people can

express their views either by phone or in a public forum

TRAVEL: Programmes about travel

destinations, package tours, and travel ideas and opportunities

LEISURE: Programmes concerned with

recreational activities such as gardening, cooking, fishing,

etc. JAZZ: Jazz music COUNTRY: Country music NATION M: Current popular music from

another nation or region, in that

country’s language OLDIES: Classic pop music FOLK M: Folk music DOCUMENT: Programmes dealing with

factual matters, presented in an

investigative style

The same programme can be received on different frequencies.

Programme 1 broadcasting on frequency A

Programme 1 broadcasting on frequency B

Programme 1 broadcasting on frequency C

Programme 1

broadcasting on

frequency E

Programme 1 broadcasting on frequency D

CD OPERATIONS

ENGLISH

Refer to “MP3/WMA OPERATIONS” on pages 26 to 30 for operating MP3/WMA discs.

Playing a CD

Open the control panel.

Note on One-Touch Operation:

When a CD is already in the loading slot, pressing CD/CD-CH turns on the unit and starts playback automatically.

Insert a CD into the loading slot.

The unit draws the CD, the control panel goes back to the previous position (see page 40), and playback starts automatically.

All tracks will be played repeatedly until you stop playback.

The display changes to show the following:

CD indicator

Total playing time of the inserted disc

Elapsed playing time

* When “CLOCK DISP” is set to “CLK DISP ON”

(see page 36), the current indication will soon change to the clock time.

Notes:

• When a CD is inserted upside down, the control panel moves down, the CD automatically ejects from the loading slot. The source changes to the previously selected source.

• If there is no CD in the loading slot, you cannot select CD as the source.

• If the current disc is a CD Text, disc title/performer and then track title will automatically appear.

Current source indication*

Total track number of the inserted disc

Current track number

To stop play and eject the CD

Press 0. CD play stops and the control panel moves down. The CD automatically ejects from the loading slot.

ENGLISH

• If you change the source or turn the power off, CD play also stops (without ejecting the CD). Next time you select “CD” as the source, CD play starts from where playback has been stopped previously.

To return the control panel to its previous position, press 0 again.

• If you keep the loading slot fully open for 1 minute, (beeps sound when the “BEEP SWITCH” is set to “BEEP ON”—see page 37) the control panel automatically returns to its previous position. Be careful not to get the disc or your finger caught in between the control panel and the unit.

Notes:

• If the ejected disc is not removed for about 15 seconds, the disc is automatically inserted again into the loading slot to protect it from dust. (Disc play will not start this time.)

• You can eject the disc even when the unit is turned off.

Locating a track or a particular portion on a CD

To go to the next or previous tracks

Press ¢ briefly, while playing a CD, to go ahead to the beginning of the next track. Each time you press the button consecutively, the beginning of the next tracks is located and played back.

Press 4 briefly, while playing a CD, to go back to the beginning of the current track. Each time you press the button consecutively, the beginning of the previous tracks is located and played back.

To go to a particular track directly

Press the number button corresponding to the track number to start its playback.

• To select a track number from 1 – 6: Press 1 (7) – 6 (12) briefly.

• To select a track number from 7 – 12: Press and hold 1 (7) – 6 (12) for more than one second.

To go to a track quickly (+10 and –10 buttons)

1 Press MODE to enter the functions mode

while playing a CD.

To fast-forward or reverse the track

Press and hold ¢, while playing a CD, to fastforward the track.

Press and hold 4 , while playing a CD, to reverse the track.

2 Press +10 or –10.

To skip 10 tracks* forwards to the last track

To skip 10 tracks* backwards to the first track

* First time you press +10 or –10 button, the

track skips to the nearest higher or lower track with a track number of multiple ten (ex.

10th, 20th, 30th). Then each time you press the button, you can skip 10 tracks (see “How to use the +10 and –10 buttons” on page 23).

• After the last track, the first track will be

selected, and vice versa.

How to use the +10 and –10 buttons

• Ex. 1: To select track number 32 while playing track number 6

To play back tracks repeatedly (Track Repeat Play)

You can play back the current track repeatedly.

1 Press MODE to enter the

functions mode while playing a CD.

ENGLISH

(Three times)

Track 6 \ 10 \ 20 \ 30 \ 31 \ 32

• Ex. 2: To select track number 8 while playing track number 36

(Three times) (Twice)

Track 36 \ 30 \ 20 \ 10 \ 9 \ 8

(Twice)

Selecting CD playback modes

To play back tracks at random (Disc Random Play)

You can play back all tracks on the CD at random.

1 Press MODE to enter the

functions mode while playing a CD.

2 Press RND (random), while

“MODE” is still on the display, so that “DISC RND” appears on the display. Each time you press the button, disc random play mode turns on and off alternately.

2 Press RPT (repeat), while

“MODE” is still on the display, so that “TRK RPT” appears on the display. Each time you press the button, track repeat play mode turns on and off alternately.

RPT indicator

When track repeat play is turned on, the RPT indicator lights up on the display. The current track starts playing repeatedly.

To play back only intros (Track Intro Scan)

You can play back the first 15 seconds of each track sequentially.

1 Press MODE to enter the

functions mode while playing a CD.

2 Press INT (intro), while “MODE”

is still on the display, so that “TRK INT” appears on the display. Each time you press the button, track intro scan mode turns on and off alternately.

(disc) and RND indicators

When disc random play is turned on, the and RND indicators light up on the display. A track randomly selected starts playing.

INT indicator

When track intro scan is turned on, the INT indicator lights up on the display. The first 15 seconds of each track is played sequentially.

Playing a CD Text

Prohibiting disc ejection

In a CD Text, some information about the disc (its disc title, performer, and track title) is recorded. This CD Text information will be shown

ENGLISH

automatically when you play a CD Text.

To change the CD Text information manually, select text display mode while playing a CD Text.

Press DISP (display) repeatedly. Each time you press the button, the display changes as follows:

Disc title / performer

Track title

( lights up on the display)

Elapsed playing time and

Current track number

Notes:

• The display shows up to 12 characters at one time and scrolls if there are more than 12 characters. See also “To select the scroll mode—SCROLL MODE” on page 37. Some characters or symbols will not be shown (will be blanked or substituted) on the display.

• If no name is assigned to the CD, “NO NAME” will appear. To assign a name to an audio CD, see page

39.

• If no disc title/performer or no track title is recorded for the CD Text, “NO NAME” will appear.

• When track title is shown, TRACK indicator and current track number also appear on the lower part of the display.

You can prohibit disc ejection and can lock a disc in the loading slot.

While pressing CD/CD-CH, press and hold for more than 2 seconds.

“NO EJECT” flashes on the display for about 5 seconds, and the disc is locked and cannot be ejected.

To cancel the prohibition and unlock the disc

While pressing CD/CD-CH, press and hold

again for more than 2 seconds. “EJECT OK” flashes on the display for about 5 seconds, and the disc is unlocked.

MP3/WMA INTRODUCTION

What are MP3/WMA?

MP3 is an abbreviation of Motion Picture Experts Group (or MPEG) Audio Layer 3. MP3 is simply a file format with a data compression ratio of 1:10 (128 Kbps*).

WMA (Windows Media® Audio) is the digital audio compression format developed by Microsoft Corporation.

* Bit rate is the average number of bits that one

second of audio data will consume. The unit used is Kbps. To get a better audio quality, choose a higher bit rate. The most popular bit rate for encoding is 128 Kbps.

• For details information about the MP3/WMA discs, refer to “A Guide to MP3/WMA” (separate volume).

Compatible with ID3 Tag

Extra information data such as album title, performer name, song title, recording year, music genre and a brief comment can be stored within an MP3/WMA file.

This unit can show both ID3v1 (Version 1) and ID3v2 (Version 2) tags on the display. (See page

27.)

• Some characters cannot be shown correctly.

• If both ID3v1 and ID3v2 are recorded on a disc, ID3v2 information will be shown.

How are MP3/WMA files recorded and played back?

MP3/WMA “files (tracks)” can be recorded in “folders”—in PC terminology. During recording, the files and folders can be arranged in a way similar to arranging files and folders of computer data. “Root” is similar to the root of a tree. Every file and folder can be linked to and be accessed from the root.

The illustration below shows an example of how MP3/WMA files are recorded on a CD-R or CD-RW, how they are played back, and how they are searched for on this unit.

Notes:

• This unit cannot read or play an MP3 file without the extension code <.mp3> and a WMA track without the extension code <.wma>.

• This unit is not compatible with MP3 files encoded with Layer 1 and Layer 2 formats.

• This unit is not compatible with WMA files which are not based upon Windows Media® Audio.

• This unit is not compatible with Playlist**.

**A playlist is a simple text file, used on a PC, which

enables users to make their own playback order without physically rearranging the files.

ENGLISH

Hierarchy

Level 1 Level 2 Level 3 Level 4 Level 5

ROOT

• Microsoft and Windows Media are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries.

02 03

: Folder and their playback

order

: MP3/WMA files and their

playback order

ENGLISH

MP3/WMA OPERATIONS

Refer also to “CD OPERATIONS” on pages 21 to 24.

Playing a disc

Open the control panel.

Note on One-Touch Operation:

When a disc is already in the loading slot, pressing CD/CD-CH turns on the unit and starts playback automatically.

Insert a disc into the loading slot.

The unit draws the disc, the control panel goes back to the previous position (see page 40), and playback starts automatically.

All files will be played repeatedly until you stop playback.

The display changes to show the following:

CD indicator

Total folder number

MP3 or WMA indicator*

Ex.: When the disc contains 19 folders

and 144 MP3/WMA files

*1When “CLOCK DISP” is set to “CLK DISP ON”

(see page 36), the current indication will soon change to the clock time.

*2WMA or MP3 indicator lights up depending on the

first detected file.

Current source indication*

Total file number

Notes:

• MP3/WMA discs require a longer readout time. (It differs due to the complexity of the folder/file configuration.)

• When playback starts, folder and file names (or ID3 tags) will automatically appear. (See also page 27.)

• If you change the source or turn the power off, disc playback stops (without ejecting the disc). Next time you select the CD player as the source or turn the power on, disc play starts from where playback has been stopped previously.

To stop play and eject the disc

Press 0. Playback stops and the control panel moves down. The disc automatically ejects from the loading slot.

To change the display information

While playing back an MP3/WMA file, you can change the disc information shown on the display.

Press DISP (display) repeatedly. Each time you press the button, the display changes to show the following:

• When “TAG DISPLAY” is set to “TAG DISP ON” (initial setting: see page 38)

Notes:

• The display shows up to 12 characters at a time and scrolls if there are more than 12 characters. See also “To select the scroll mode—SCROLL MODE” on page 37.

• When file name is shown, TRACK indicator and current file number also appear on the lower part of the display.

Locating a file or a particular portion on a disc

To fast-forward or reverse the file

Press and hold ¢ while playing a disc, to fastforward the file.

ENGLISH

Album name / performer

(folder name*)

( lights up on the display)

Track title (file name*)

( lights up on the display)

Elapsed playing time and

Current file number

* If ID3 tags are not recorded, folder name and file

name appear. In this case, the TAG indicator will not light up on the display.

• When “TAG DISPLAY” is set to “TAG DISP OFF”

Folder name

( lights up on the display)

File name

( lights up on the display)

Elapsed playing time and

Current file number

Press and hold 4 while playing a disc, to reverse the file.

Note:

During this operation, you can only hear intermittent sounds. (The elapsed playing time also changes intermittently on the display.)

To skip to the next or previous files

Press ¢ briefly while playing, to skip ahead to the beginning of the next file. Each time you press the button consecutively, the beginning of the next files is located and played back.

Press 4 briefly while playing, to skip back to the beginning of the current file. Each time you press the button consecutively, the beginning of the previous files is located and played back.

To go to a particular file quickly within the current folder (+10 and –10 buttons)

1 Press MODE to enter the functions mode

while playing a disc.

ENGLISH

2 Press +10 or –10.

To skip 10 files* forwards to the last file

To skip 10 files* backwards to the first file

* First time you press +10 or –10 button, the

file skips to the nearest higher or lower file with a file number of multiple ten (ex. 10th,

20th, 30th). Then each time you press the button, you can skip 10 files (see “How to use the +10 and

–10 buttons” below).

• After the last file, the first file will be

selected, and vice versa.

How to use the +10 and –10 buttons

• Ex. 1: To select file number 32 while playing file number 6

(Three times) (Twice)

File 6 \ 10 \ 20 \ 30 \ 31 \ 32

• Ex. 2 : To select file number 8 while playing file number 36

To go to a particular folder directly

IMPORTANT:

To directly select the folders using the number button(s), it is required that folders are assigned 2 digit numbers at the beginning of their folder names. (This can only be done during the recording of CD-Rs or CD-RWs.) Ex.: If folder name is “01 ABC”

= Press 1 to go to Folder 01 ABC.

If folder name is “1 ABC,” pressing 1 does not work.

If folder name is “12 ABC” = Press and hold 6 (12) to go to Folder

12 ABC.

Press the number button corresponding to the folder number to start playing the first file in the selected folder.

• To select a folder number from 01 – 06: Press 1 (7) – 6 (12) briefly.

• To select a folder number from 07 – 12: Press and hold 1 (7) – 6 (12) for more than one second.

Notes:

• If indicator flashes on the display after you have selected a folder, it means that the folder does not contain any MP3/WMA files.

• You cannot directly select a folder with a number greater than 12.

To select a particular file in a folder, press

¢ or 4 after selecting the folder.

(Three times)

File 36 \ 30 \ 20 \ 10 \ 9 \ 8

(Twice)

To skip to the next or previous folder

Selecting the playback modes

Press 5 (up) while playing a disc to skip to the next folder. Each time you press the button consecutively, the next folder is located (and the first file in the folder starts playing, if recorded).

Press ∞ (down) while playing a disc to skip back to the previous folder. Each time you press the button consecutively, the previous folder is located (and the first file in the folder starts playing, if recorded).

Note:

If the folder does not contain any MP3/WMA files, it is skipped.

To play back files at random (Folder Random/Disc Random Play)

You can play back all files of the current folder or all files on the disc at random.

1 Press MODE to enter the

functions mode while playing a disc.

2 Press RND (random), while

“MODE” is still on the display, so that “FLDR RND” or “DISC RND” appears on the display. Each time you press the button, the random play mode changes as follows:

DISC RNDFLDR RND

Canceled

(folder) and RND indicators

Ex.: When you select “FLDR RND”

while listening to an MP3 file

ENGLISH

Mode

FLDR RND and RND All files of the

DISC RND and RND All files on the disc.

Active

indicator

indicators current folder, then light up. files of the next

indicators light up.

Plays at random

folder and so on.

To play back files repeatedly (Track Repeat/Folder Repeat Play)

You can play back the current file or all the files in the current folder repeatedly.

ENGLISH

1 Press MODE to enter the

functions mode while playing a disc.

To play back only intros (Track Intro Scan/Folder Intro Scan)

You can play back the first 15 seconds of each file sequentially.

1 Press MODE to enter the

functions mode while playing a disc.

2 Press RPT (repeat), while

“MODE” is still on the display, so that “TRK RPT” or “FLDR RPT” appears on the display. Each time you press the button, the repeat play mode changes as follows:

TRK RPT FLDR RPT

Canceled

RPT indicator

Ex.: When you select “TRK RPT”

while listening to an MP3 file

Mode

TRK RPT RPT indicator The current (or

FLDR RPT and RPT All files of the

Active

indicator

lights up. specified) file.

indicators current (or light up. specified) folder.

Plays repeatedly

2 Press INT (intro), while

“MODE” is still on the display, so that “TRK INT” or “FLDR INT” appears on the display. Each time you press the button, the intro scan mode changes as follows:

FLDR INTTRK INT

Canceled

INT indicator

Ex.: When you select “TRK INT”

while listening to an MP3 file

Mode

TRK INT INT indicator All files on the current

FLDR INT and INT The first file of every

Active Plays the beginnings

indicator (15 seconds) of

lights up. disc.

indicators folder of the current lights up. disc.

+ 85 hidden pages
