KD-G722/KD-G721

ENGLISH

FRANÇAIS

For canceling the display demonstration, see page 7. Pour annuler la démonstration des affichages, référez-vous à la page 7.

For installation and connections, refer to the separate manual. Pour l’installation et les raccordements, se référer au manuel séparé.

INSTRUCTIONS

MANUEL D’INSTRUCTIONS

GET0357-003A

[EX/EU]

Thank you for purchasing a JVC product.

Please read all instructions carefully before operation, to ensure your complete understanding and to

obtain the best possible performance from the unit.

IMPORTANT FOR LASER PRODUCTS

1. CLASS 1 LASER PRODUCT

ENGLISH

2. CAUTION: Do not open the top cover. There are no user serviceable parts inside the unit; leave all servicing to qualified service personnel.

3. CAUTION: Visible and invisible laser radiation when open and interlock failed or defeated. Avoid direct exposure to beam.

4. REPRODUCTION OF LABEL: CAUTION LABEL, PLACED OUTSIDE THE UNIT.

How to reset your unit

• Your preset adjustments will also be erased.

How to forcibly eject a disc

“PLEASE” and “EJECT” appear alternately on the display.

• If this does not work, reset your unit.

• Be careful not to drop the disc when it ejects.

How to use the MODE button

If you press MODE, the unit goes into functions mode, then the number buttons and 5/∞ buttons work as different function buttons.

Ex.: When number button 2 works as

MO (monaural) button.

Time countdown indicator

To use these buttons for their original functions again after pressing MODE, wait for

5 seconds without pressing any of these buttons until the functions mode is cleared or press MODE again.

Note: Only for [EX] model users in UK and European countries For security reasons, a numbered ID card is provided with this unit, and the same ID number is imprinted on the unit’s chassis. Keep the card in a safe place, as it will help the authorities to identify your unit if stolen.

How to read this manual

• Button operations are mainly explained with the illustrations in the table below.

• Some related tips and notes are explained in “More about this unit” (see pages 22 – 25).

Press briefly.

Press repeatedly.

Press either

one.

Press and hold until your desired response begins.

Press and hold both buttons at the same time.

The following marks are used to indicate...

: Built-in CD player operations.

: External CD changer operations.

: External USB memory operations.

: Indicator displayed for the

corresponding operation.

Warning:

If you need to operate the unit while driving, be sure to look ahead carefully or you may be involved in a traffic accident.

Caution on volume setting:

Discs produce very little noise compared with other sources. Lower the volume before playing a disc to avoid damaging the speakers by the sudden increase of the output level.

CONTENTS

Control panel

Remote controller —

Getting started ................................. 7

Basic operations .................................................... 7

Radio operations .............................. 8

FM RDS operations ............................ 9

Searching for your favorite FM RDS programme ... 9

Disc/USB memory operations ............. 11

Playing a disc in the unit ....................................... 11

Playing discs in the CD changer ............................. 11

Playing from a USB memory ................................. 12

Sound adjustments ........................... 15

General settings — PSM ................... 16

Title assignment ............................... 18

iPod®/D. player operations ................ 19

Other external component operations

DAB tuner operations ........................ 21

More about this unit ......................... 22

Maintenance .................................... 25

Troubleshooting ............................... 26

Specifications ................................... 29

For safety...

• Do not raise the volume level too much, as this will block outside sounds, making driving dangerous.

• Stop the car before performing any complicated operations.

Temperature inside the car...

If you have parked the car for a long time in hot or cold weather, wait until the temperature in the car becomes normal before operating the unit.

—

KD-G722 and KD-G721

RM-RK50

......... 4

............... 5

..... 20

ENGLISH

Control panel — KD-G722 and KD-G721

Parts identification

ENGLISH

1 BAND button 2 • Control dial

•

3 DISP (display) button 4 Remote sensor

• DO NOT expose the remote sensor to strong light (direct sunlight or artificial lighting).

5 Display window 6 5 (up) / ∞ (down) buttons 7 T/P (traffic programme/programme type)

button

8 0 (eject) button

(standby/on attenuator) button

How to detach/attach the control panel

Detaching... Attaching...

Lever

CAUTION:

The lever comes out if you pressed the 0 button while the panel is detached. If this happens, push the lever back into lock position before attaching the panel.

9 USB (Universal Serial Bus) input terminal p SRC (source) button

(control panel release) button

q w SEL (select) button e MODE button r EQ (equalizer) button t MO (monaural) button y SSM (Strong-station Sequential Memory)

button

u Number buttons i RPT (repeat) button o RND (random) button

4/¢ buttons

;

Display window

ENGLISH

a Track information indicators—TAG (ID3

Tag),

s Tuner reception indicators—ST (stereo),

MO (monaural)

d RDS indicators—TP, PTY, AF, REG f Main display g Tr (track) indicator h LOUD (loudness) indicator j Source display / Volume level indicator k Playback mode / item indicators—

RND (random), RPT (repeat)

(track/file), (folder)

(disc), (folder),

Remote controller — RM-RK50

Installing the lithium coin battery

(CR2025)

l Tracks type indicators*—WMA, MP3 / Playback source indicators*—CH (CD

changer), DISC (built-in CD player)

z EQ (equalizer) indicator x Sound mode (C-EQ: custom equalizer)

indicators—USER, ROCK, CLASSIC, POPS, HIP HOP, JAZZ

•

also works as the time countdown indicator and level meter during play (see page 17).

lights up for the selected item.

Caution:

Aim the remote controller directly at the remote sensor on the unit. Make sure there is no obstacle in between.

The unit is equipped with the steering wheel remote control function.

• See the Installation/Connection Manual (separate volume) for connection.

Continued on the next page

Warning:

• Do not install any battery other than CR2025 or its equivalent; otherwise, it may explode.

• Store the battery in a place where children cannot reach to avoid risk of accident.

ENGLISH

• To prevent the battery from over-heating, cracking, or starting a fire:

– Do not recharge, short, disassemble,

heat the battery, or dispose of it in a fire.

– Do not leave the battery with other

metallic materials.

– Do not poke the battery with tweezers or

similar tools.

– Wrap the battery with tape and insulate

when throwing away or saving it.

Main elements and features

• Changes the folder of the MP3/WMA/ USB.

• While playing an MP3 disc on an MP3-compatible CD changer:

– Changes the disc if pressed briefly. – Changes the folder if pressed and held.

• While listening to an Apple iPod JVC D. player:

– Pauses/stops or resumes playback with

D ∞. – Enter the main menu with 5 U. (Now 5 U/D ∞/2 R/F 3 work as the

menu selecting buttons.)*

3 VOL – / VOL + buttons

• Adjusts the volume level.

4 SOUND button

• Selects the sound mode (C-EQ: custom

equalizer).

5 SOURCE button

• Selects the source.

6 2 R (reverse) / F (forward) 3 buttons

• Searches for stations (or services) if

pressed briefly.

• Searches for ensembles if pressed and held.

• Fast-forwards or reverses the track if pressed and held.

• Changes the tracks if pressed briefly.

• While listening to an iPod or a D. player (in menu selecting mode):

– Selects an item if pressed briefly. (Then,

press D ∞ to confirm the selection.)

– Skips 10 items at a time if pressed and

held.

or a

1 (standby/on/attenuator) button

• Turns the power on if pressed briefly or attenuates the sound when the power is on.

• Turns the power off if pressed and held.

2 5 U (up) / D (down) ∞ buttons

• Changes the FM/AM/DAB bands with 5 U.

• Changes the preset stations (or services) with D ∞.

5 U : Returns to the previous menu.

D ∞ : Confirms the selection.

Getting started

Basic operations

~ Turn on the power.

To drop the volume in a moment (ATT)

To restore the sound, press it again.

To turn off the power

ENGLISH

* You cannot select these sources if they

are not ready or not connected.

For FM/AM tuner

For DAB tuner

⁄ Adjust the volume.

Basic settings

• See also “General settings — PSM” on pages 16 – 18.

1 Canceling the display

demonstrations

Select “DEMO,” then “DEMO OFF.”

2 Setting the clock

Select “CLOCK H” (hour), then adjust the hour. Select “CLOCK M” (minute), then adjust the minute. Select “24H/12H,” then “24H” (hour) or “12H” (hour).

3 Finish the procedure.

Volume level appears.

Volume level indicator

@ Adjust the sound as you want. (See

page 15.)

To check the current clock time while the power is turned off

Radio operations

When an FM stereo broadcast is hard to receive

ENGLISH

Lights up when receiving an FM stereo broadcast with sufficient signal strength.

Start searching for a station.

When a station is received, searching stops. To stop searching, press the same button again.

To tune in to a station manually

In step ! above... 1

Lights up when monaural mode is activated.

Reception improves, but stereo effect will be lost.

To restore the stereo effect, repeat the same procedure. “MONO OFF” appears and the MO indicator goes off.

Selected band appears.

Storing stations in memory

You can preset six stations for each band.

FM station automatic presetting —

SSM (Strong-station Sequential Memory)

1 Select the FM band (FM1 – FM3) you

want to store into.

2 Select a desired station frequency.

“SSM” appears, then disappears when automatic presetting is over.

Local FM stations with the strongest signals are searched and stored automatically in the FM band.

Manual presetting

Ex.: Storing FM station of 92.5 MHz into preset

number 4 of the FM1 band.

Listening to a preset station

Preset number flashes for a while.

FM RDS operations

What you can do with RDS

RDS (Radio Data System) allows FM stations to send an additional signal along with their regular programme signals. By receiving the RDS data, this unit can do the

following:

• Programme Type (PTY) Search (see the following)

• TA (Traffic Announcement) and PTY Standby Receptions (see pages 10 and 16)

• Tracing the same programme automatically —Network-Tracking Reception (see page 11)

• Programme Search (see page 17)

Searching for your favorite FM RDS programme

You can tune in to a station broadcasting your favorite programme by searching for a PTY code.

• To store your favorite programme types, see page 10.

ENGLISH

2 Select the preset station (1 – 6) you

want.

To check the current clock time while listening to an FM (non-RDS) or AM station

• For FM RDS stations, see page 11.

Frequency Ô Clock

~ The last selected PTY

code appears.

Ÿ Select one of your favorite

programme types.

Select one of the PTY codes (see page 10).

Continued on the next page

! Start searching for your favorite

programme.

ENGLISH

If there is a station broadcasting a programme of the same PTY code as you have selected, that station is tuned in.

PTY codes

NEWS, AFFAIRS, INFO, SPORT, EDUCATE, DRAMA, CULTURE, SCIENCE, VARIED, POP M (music), ROCK M (music), EASY M (music), LIGHT M (music), CLASSICS, OTHER M (music), WEATHER, FINANCE, CHILDREN, SOCIAL, RELIGION, PHONE IN, TRAVEL, LEISURE, JAZZ, COUNTRY, NATION M (music), OLDIES, FOLK M (music), DOCUMENT

Storing your favorite programme

types

You can store six favorite programme types.

Preset programme types in the number buttons (1 to 6):

1 Select a PTY code (see page 9).

2 Select the preset number (1 – 6) you

want to store into.

4 Finish the procedure.

Using the standby receptions

TA Standby Reception

TA Standby Reception allows the unit to switch temporarily to Traffic Announcement (TA) from any source other than AM. The volume changes to the preset TA volume level if the current level is lower than the preset level (see page 17).

To activate TA Standby Reception

The TP (Traffic Programme) indicator either lights up or flashes.

• If the TP indicator lights up, TA Standby Reception is activated.

• If the TP indicator flashes, TA Standby Reception is not yet activated. (This occurs when you are listening to an FM station without the RDS signals required for TA Standby Reception.)

To activate TA Standby Reception, tune in to

another station providing these signals. The TP indicator will stop flashing and remain lit.

To deactivate the TA Standby Reception

The TP indicator goes off.

Ex.: When “ROCK M” is selected

3 Repeat steps 1 and 2 to store other

PTY codes into other preset numbers.

PTY Standby Reception

PTY Standby Reception allows the unit to switch temporarily to your favorite PTY programme from any source other than AM.

To activate and select your favorite PTY code for PTY Standby Reception, see page 16.

The PTY indicator either lights up or flashes.

• If the PTY indicator lights up, PTY Standby Reception is activated.

• If the PTY indicator flashes, PTY Standby Reception is not yet activated.

To activate PTY Standby Reception, tune in

to another station providing these signals. The PTY indicator will stop flashing and remain lit.

To deactivate the PTY Standby Reception, select “OFF” for the PTY code (see page 16). The PTY indicator goes off.

Tracing the same programme—

Network-Tracking Reception

When driving in an area where FM reception is not sufficient enough, this unit automatically tunes in to another FM RDS station of the same network, possibly broadcasting the same programme with stronger signals (see the illustration below).

When shipped from the factory, NetworkTracking Reception is activated.

To change the Network-Tracking Reception setting, see “AF-REG” on page 16.

Programme A broadcasting on different frequency areas (01 – 05)

Disc/USB memory operations

Playing a disc in the unit

All tracks will be played repeatedly until you change the source or eject the disc.

To stop play and eject the disc

Playing discs in the CD changer

All discs in the magazine will be played repeatedly until you change the source.

• Ejecting the magazine will also stop playback.

ENGLISH

To check the current clock time while listening to an FM RDS station

Station name (PS) = Station Frequency = Programme type (PTY) = Clock = (back to the

beginning)

* If you have changed the external input

setting to “EXT IN” (see page 17), you cannot select the CD changer.

Ÿ Select a disc.

For disc number from 01 – 06:

For disc number from 07 – 12:

Continued on the next page

Playing from a USB memory

This unit can play MP3/WMA tracks stored in a USB memory. All tracks in the USB memory will be played repeatedly until you change the source.

• Removing the USB memory will also stop

ENGLISH

playback.

USB input terminal

About MP3 and WMA tracks

MP3 and WMA “tracks” (words “file” and “track” are used interchangeably) are recorded in “folders.”

About the CD changer

It is recommended to use a JVC MP3-compatible CD changer with your unit.

• You can also connect MP3-incompatible CD changers. However, these units are not compatible with MP3 discs.

• You cannot use the CH-X99, CH-X100, and KD-MK series CD changers with this unit.

• You cannot play any WMA disc in the CD changer.

• Disc text information recorded in the CD Text can be displayed when a JVC CD Text compatible CD changer is connected.

• For connection, see Installation/Connection Manual (separate volume).

To fast-forward or reverse the track

USB memory

If a USB memory has been attached...

Playback starts from where it has been stopped previously.

• If a different USB memory is currently attached, playback starts from the beginning.

To eject the USB memory, straightly pull it out from the unit.

Cautions:

• Avoid using the USB memory if it might hinder your safety driving.

• Make sure all important data has been backed up to avoid losing the data.

To go to the next or previous tracks

To go to the next or previous folders (only for MP3/WMA/USB)

For MP3 tracks:

For WMA tracks:

To locate a particular track (for CD) or folder (for MP3/ WMA/USB) directly

To select a number from 01 – 06:

To select a number from 07 – 12:

• To use direct folder access on MP3/WMA/ USB, it is required that folders are assigned with 2-digit numbers at the beginning of their folder names—01, 02, 03, and so on.

To select a particular track in a folder (for

MP3/WMA/USB):

Other main functions

Skipping tracks quickly during play

Each time you press the button, you can skip 10 tracks.

• After the last track, the first track will be selected and vice versa.

Prohibiting disc ejection

You can lock a disc in the loading slot.

To cancel the prohibition, repeat the same procedure.

ENGLISH

Only possible on JVC

MP3-compatible CD changer

• For MP3/WMA/USB, you can skip tracks within the same folder.

Ex.: To select track 32 while playing a track

whose number is a single digit (1 to 9)

Changing the display information

While playing an audio CD or a CD Text

ENGLISH

Selecting the playback modes

You can use only one of the following playback modes at a time.

2 Select your desired playback mode.

While playing an MP3/WMA

disc or a

USB memory

• When “TAG DISP” is set to “TAG ON” (see page 18)

• When “TAG DISP” is set to “TAG OFF”

: Elapsed playing time with the current

track number

: Clock with the current track number

If the current disc is an audio CD,

“NO NAME” appears.

Only for the built-in CD player and external USB memory.

If an MP3/WMA file does not have Tag information, folder name and file name appear. In this case, the TAG indicator will not light up.

7 Repeat play

Mode Plays repeatedly

TRK RPT : The current track. FLDR RPT*4 : All tracks of the current

folder.

DISC RPT*5 : All tracks of the current disc.

RPT OFF : Cancels.

7 Random play

Mode Plays at random

FLDR RND*4 : All tracks of the current

folder, then tracks of the next folder and so on.

DISC RND : All tracks of the current disc

or USB memory.

MAG RND*5 : All tracks of the inserted

discs.

RND OFF : Cancels.

*4 Only while playing a media (MP3/WMA/

USB).

Only while playing discs in the CD changer.

Sound adjustments

You can select a preset sound mode suitable to the music genre (C-EQ: custom equalizer).

Preset values

Indication (For)

USER (Flat sound)

ROCK

(Rock or disco music)

CLASSIC

(Classical music)

POPS (Light music)

HIP HOP

(Funk or rap music)

JAZZ (Jazz music)

Adjusting the sound

BAS TRE LOUD

(bass) (treble) (loudness)

00 00 OFF

+03 +01 ON

+01 –02 OFF

+04 +01 OFF

+02 00 ON

+02 +03 OFF

Indication, [Range]

BAS*1 (bass), [–06 to +06]

Adjust the bass.

TRE*

(treble), [–06 to +06]

Adjust the treble.

FAD*

(fader), [R06 to F06]

Adjust the front and rear speaker balance.

BAL (balance), [L06 to R06] Adjust the left and right speaker balance.

LOUD*

(loudness), [LOUD ON or LOUD OFF] Boost low and high frequencies to produce a well-balanced sound at low volume level.

SUB.W*

Adjust the subwoofer output level.

VOL (volume), [00 to 30 or 50*4] Adjust the volume.

*1 When you adjust the bass, treble, or loudness,

(subwoofer), [00 to 08]

the adjustment you have made is stored for the currently selected sound mode (C-EQ) including “USER.”

If you are using a two-speaker system, set the fader level to “00.”

This takes effect only when a subwoofer is connected.

Depending on the amplifier gain control setting. (See page 18 for details.)

ENGLISH

You can adjust the sound characteristics to your preference.

Indication pattern changes as you adjust the level.

Ex.: When “TRE” is selected

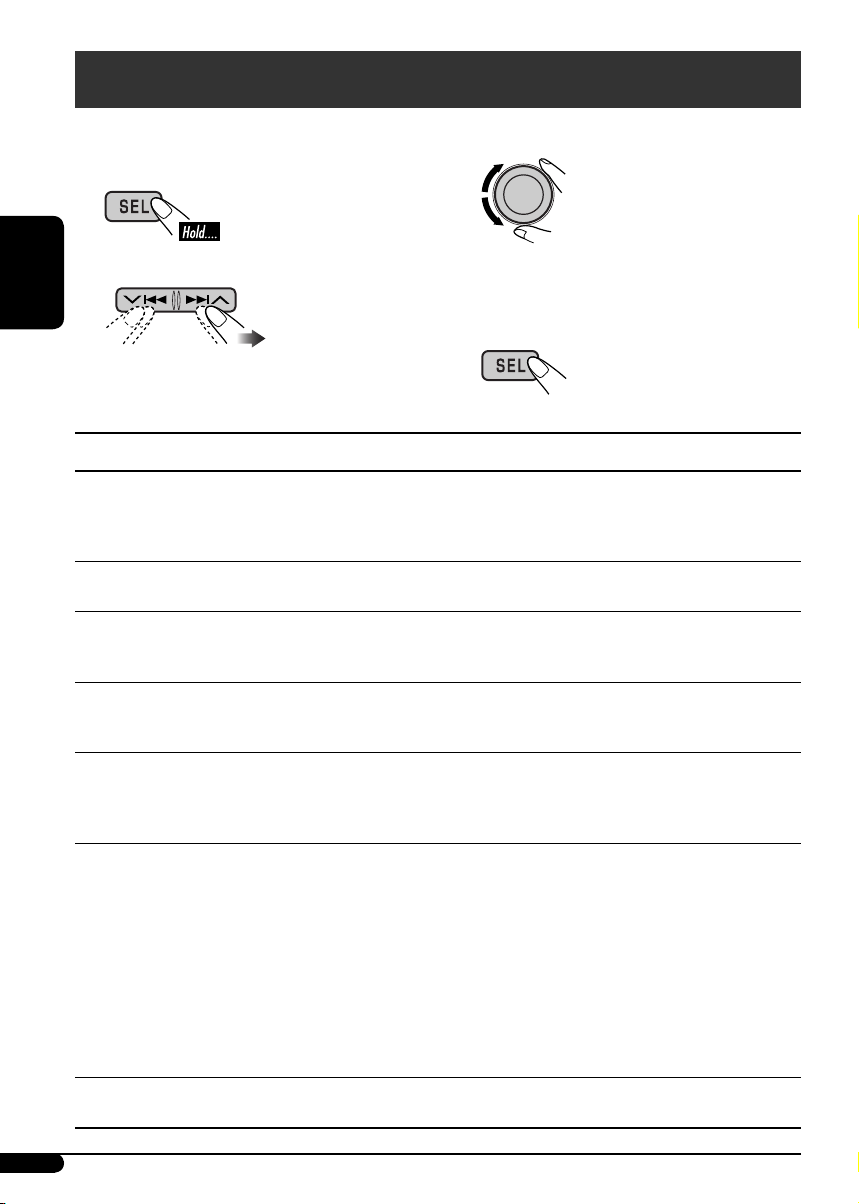

General settings — PSM

You can change PSM (Preferred Setting Mode) items listed in the table that follows.

ENGLISH

2 Select a PSM item.

3 Adjust the PSM item selected.

4 Repeat steps 2 and 3 to adjust the

5 Finish the procedure.

Indications Selectable settings, [reference page]

DEMO

Display demonstration

CLOCK H

Hour adjustment

CLOCK M

Minute adjustment

DEMO ON : [Initial]; Display demonstration will be activated

automatically if no operation is done for about 20 seconds, [7].

DEMO OFF : Cancels.

0 – 23 (1 – 12), [7]

[Initial: 0 (0:00)]

00 – 59, [7]

[Initial: 00 (0:00)]

other PSM items if necessary.

24H/12H

Time display mode

CLK ADJ

Clock adjustment

AF-REG

Alternative frequency/

regionalization reception

PTY-STBY

PTY standby

12H O 24H, [7]

[Initial: 24H]

AUTO : [Initial]; The built-in clock is automatically adjusted

using the CT (clock time) data in the RDS signal.

OFF : Cancels.

When the received signals from the current FM RDS station become weak... AF : [Initial]; Switches to another station (the programme

may differ from the one currently received), [11].

• The AF indicator lights up. AF REG : Switches to another station broadcasting the same

programme.

• The AF and REG indicators light up. OFF : Cancels (not selectable when “DAB AF” is set to “AF ON”).

Activates PTY Standby Reception with one of the PTY codes, [10]. OFF [Initial] = PTY codes, [10] = (back to the beginning)

Indications Selectable settings, [reference page]

TA VOL

Traffic announcement

volume

P-SEARCH

Programme search

DAB AF*

Alternative frequency

reception

DAB VOL*

DAB volume

adjustment

LEVEL

Audio level meter

DIMMER

Dimmer

TEL

Telephone muting

SCROLL*

Scroll

WOOFER

Subwoofer cutoff

frequency

EXT IN*

External input

Depends on the amplifier gain control (see page 18).

Displayed only when DAB tuner is connected.

Some characters or symbols will not be shown correctly (or will be blanked) on the display.

*4 Displayed only when one of the following sources is selected—FM, AM, CD, or USB.

[Initial: VOL 15]; VOL 00 — VOL 30 or 50*1, [10]

ON : Using the AF data, the unit tunes in to another frequency

broadcasting the same programme as the original preset RDS station is if the preset station signals are not sufficient.

OFF : [Initial]; Cancels.

AF ON : [Initial]; Traces the programme among DAB services

and FM RDS stations, [11, 22].

AF OFF : Cancels.

You can adjust the volume level (VOL –12 — VOL +12) of DAB tuner to match the FM sound level and store it in memory.

[Initial: VOL 00]

ON : [Initial]; Activates the audio level indicator. OFF : Cancels; sound mode indicator is shown.

AUTO : [Initial]; Dims the display when you turn on the

headlights.

ON : Activates dimmer. OFF : Cancels.

MUTING 1/MUTING 2 : Select either one which mutes the sounds

while using a cellular phone.

OFF : [Initial]; Cancels.

ONCE : [Initial]; Scrolls the track information once. AUTO : Repeats scrolling (5-second intervals in between). OFF : Cancels.

• Pressing DISP for more than one second can scroll the display regardless of the setting.

LOW : Frequencies lower than 90 Hz are sent to the subwoofer. MID : [Initial]; Frequencies lower than 135 Hz are sent to the

subwoofer.

HIGH : Frequencies lower than 180 Hz are sent to the subwoofer.

CHANGER : [Initial]; To use a JVC CD changer, [11], an Apple iPod

or a JVC D. player, [19].

EXT IN : To use any other external component than the above,

[20].

ENGLISH

Continued on the next page

Indications Selectable settings, [reference page]

TAG DISP

Tag display

AMP GAIN

ENGLISH

Amplifier gain control

IF BAND

Intermediate frequency

filter

TAG ON : [Initial]; Shows the Tag information while playing MP3/

TAG OFF : Cancels.

You can change the maximum volume level of this unit.

LOW PWR : VOL 00 – VOL 30 (Select this if the maximum power of

HIGH PWR : [Initial]; VOL 00 – VOL 50

AUTO : [Initial]; Increases the tuner selectivity to reduce

WIDE : Subject to interference noises from adjacent stations, but

Title assignment

You can assign titles to CDs (both in the unit and the CD changer). You can assign up to 30 discs and each title up to 32 characters.

• You cannot assign a title to a CD Text, an MP3/WMA disc, or a USB memory.

1 Select the sources.

• For CDs in this unit: Insert a CD.

• For CDs in the CD changer: Select

“CD-CH,” then select a disc number.

2 Enter the title assignment mode.

WMA tracks, [14].

the speaker is less than 50 W to prevent them from being damaged.)

interference noises between close stations. (Stereo effect may be lost.)

sound quality will not be degraded and the stereo effect will remain.

2 Move to the next (or previous)

character position.

3 Repeat steps 1 and 2 until you

finish entering the title.

4 Finish the procedure.

Ex.: When “CD“ is selected as the source

3 Assign a title. 1 Select a character.

To erase the entire title

In step 2 on the left...

Available characters

+ 40 hidden pages
