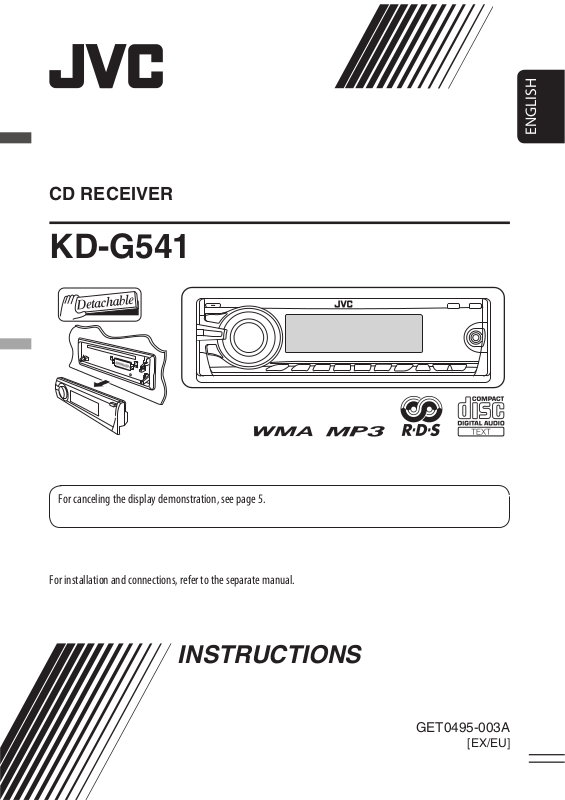

CD RECEIVER

KD-G541

For canceling the display demonstration, see page 5.

ENGLISH

For installation and connections, refer to the separate manual.

INSTRUCTIONS

GET0495-003A

[EX/EU]

Thank you for purchasing a JVC product.

Please read all instructions carefully before operation, to ensure your complete understanding and to obtain the best

possible performance from the unit.

IMPORTANT FOR LASER PRODUCTS

ENGLISH

1. CLASS 1 LASER PRODUCT

2. CAUTION: Do not open the top cover. There are no user serviceable parts inside the unit; leave all servicing to qualified service personnel.

3. CAUTION: Visible and/or invisible class 1M laser radiation when open. Do not view directly with optical instruments.

4. REPRODUCTION OF LABEL: CAUTION LABEL, PLACED OUTSIDE THE UNIT.

Warning:

If you need to operate the unit while driving, be sure to look around carefully or you may be involved in a traffic accident.

This symbol is only valid in the European Union.

Information for Users on Disposal of Old Equipment

This symbol indicates that the product with this symbol should not be disposed as general household waste at its end-of-life. If you wish to dispose of this product, please do so in accordance with applicable national legislation or other rules in your country and municipality. By disposing of this product correctly, you will help to conserve natural resources and will help prevent potential negative effects on the environment and human health.

Caution on volume setting:

Discs produce very little noise compared with other sources. Lower the volume before playing a disc to avoid damaging the speakers by the sudden increase of the output level.

Note: Only for [EX] model users in UK and European countries

For security reasons, a numbered ID card is provided with this unit, and the same ID number is imprinted on the unit’s chassis. Keep the card in a safe place, as it will help the authorities to identify your unit if stolen.

For safety...

• Do not raise the volume level too much, as this will block outside sounds, making driving dangerous.

• Stop the car before performing any complicated operations.

Temperature inside the car...

If you have parked the car for a long time in hot or cold weather, wait until the temperature in the car becomes normal before operating the unit.

How to reset your unit

• Your preset adjustments will also be erased (except the registered Bluetooth device, see page 16).

How to forcibly eject a disc

“PLEASE” and “EJECT” appear alternately on the display.

• Be careful not to drop the disc when it ejects.

• If this does not work, reset your unit.

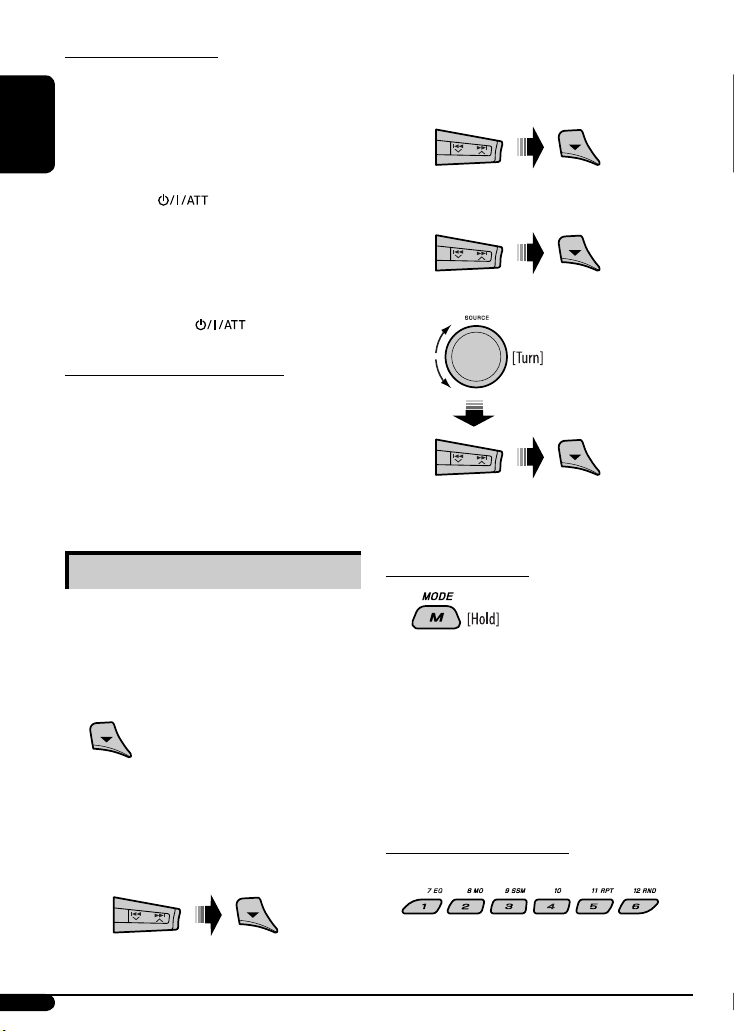

How to use the M MODE button

If you press M MODE, the unit goes into functions mode, then the number buttons and 5/∞ buttons will work as different function buttons.

Ex.: When number button 2 works as MO (monaural)

button.

CONTENTS

Control panel .................................. 4

Getting started ................................ 5

Basic operations ................................................... 5

Radio operations ............................. 6

FM RDS operations ........................... 7

Searching for your favorite FM RDS

programme .................................................. 7

Disc operations ................................ 9

Playing a disc in the unit ..................................... 9

Playing discs in the CD changer ............................ 10

Sound adjustments .......................... 12

General settings — PSM .................. 13

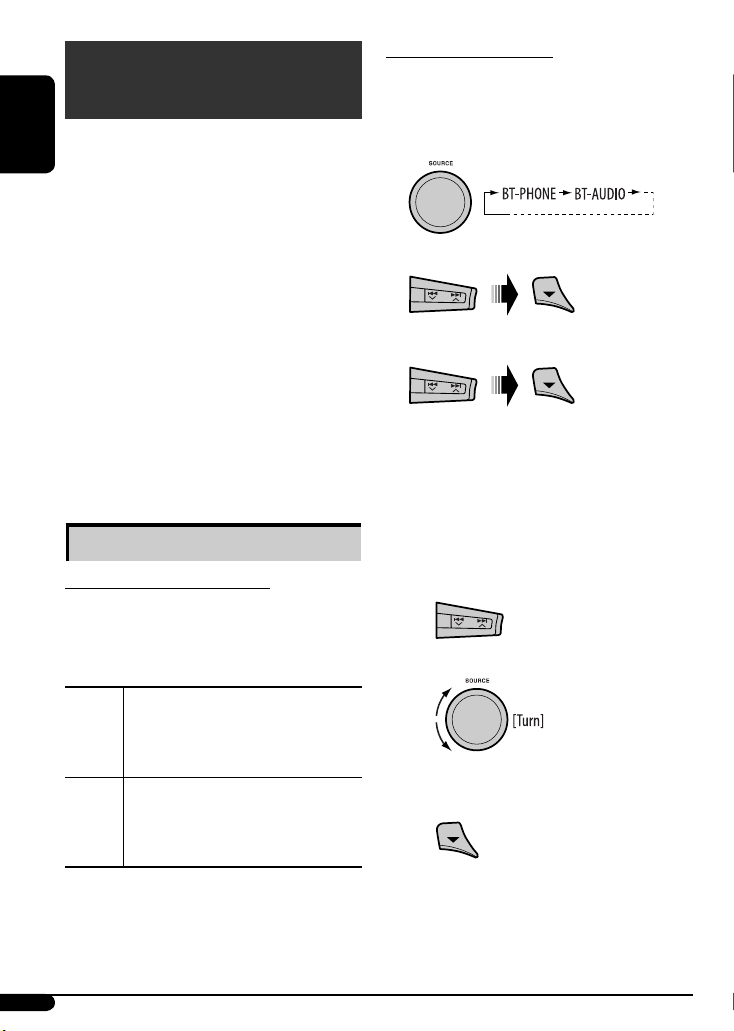

Using the Bluetooth ® devices ........... 16

Using the Bluetooth cellular phone ..................... 17

Using the Bluetooth audio player ......................... 19

Bluetooth settings ............................................... 19

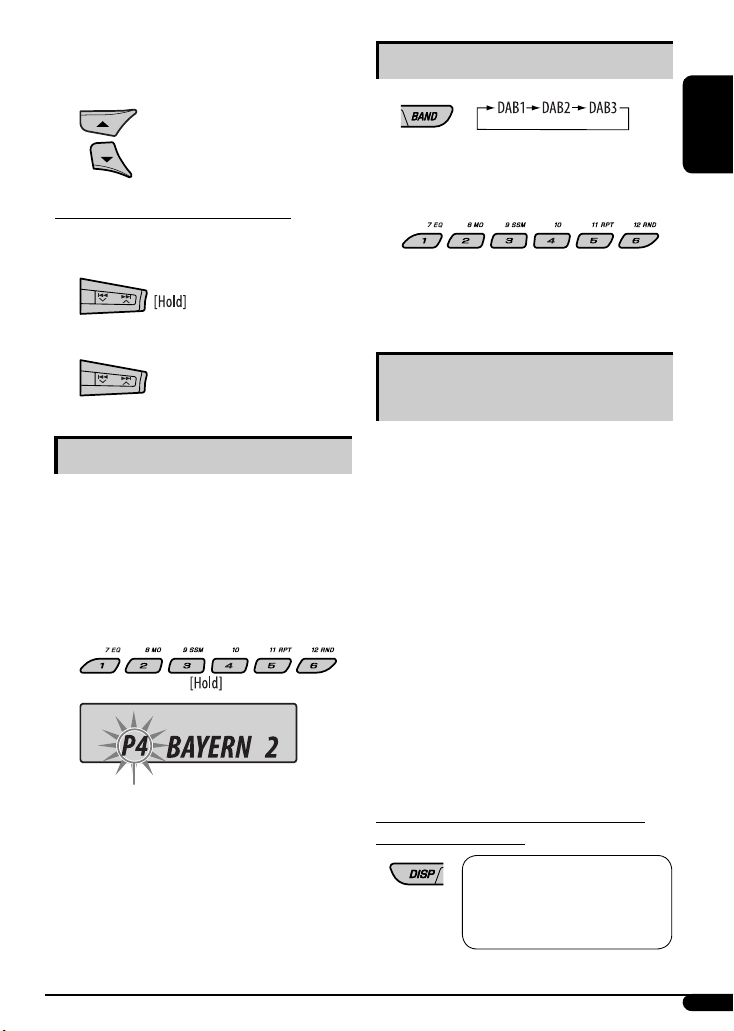

DAB tuner operations ....................... 20

iPod operations ............................... 22

Other external component

operations ................................... 23

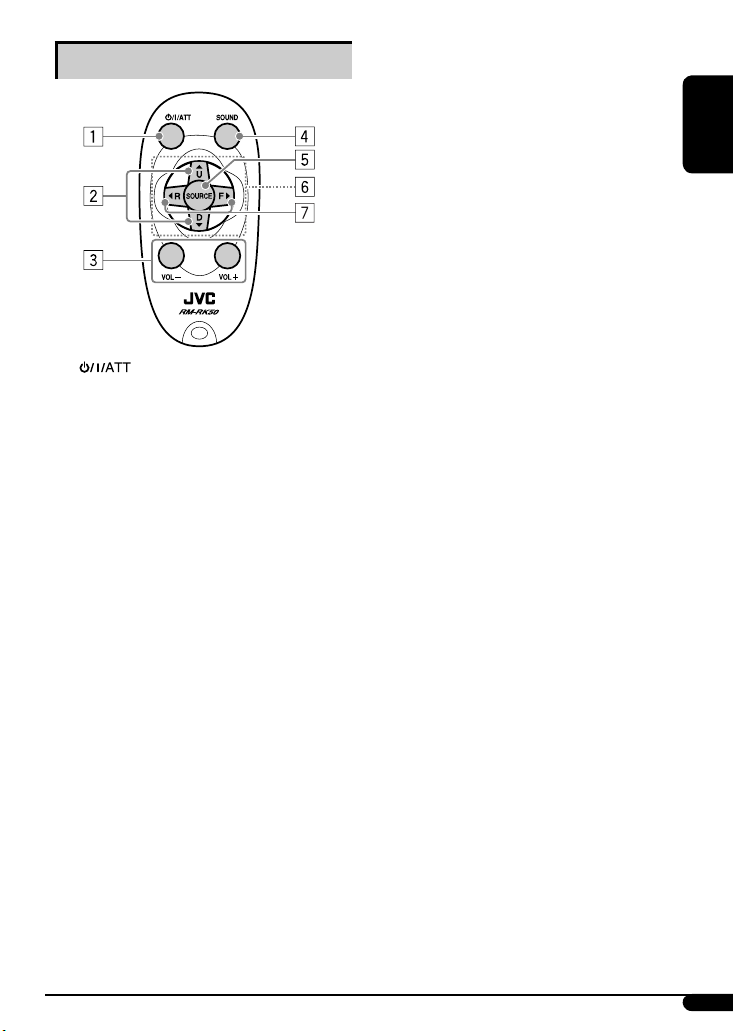

Remote controller —

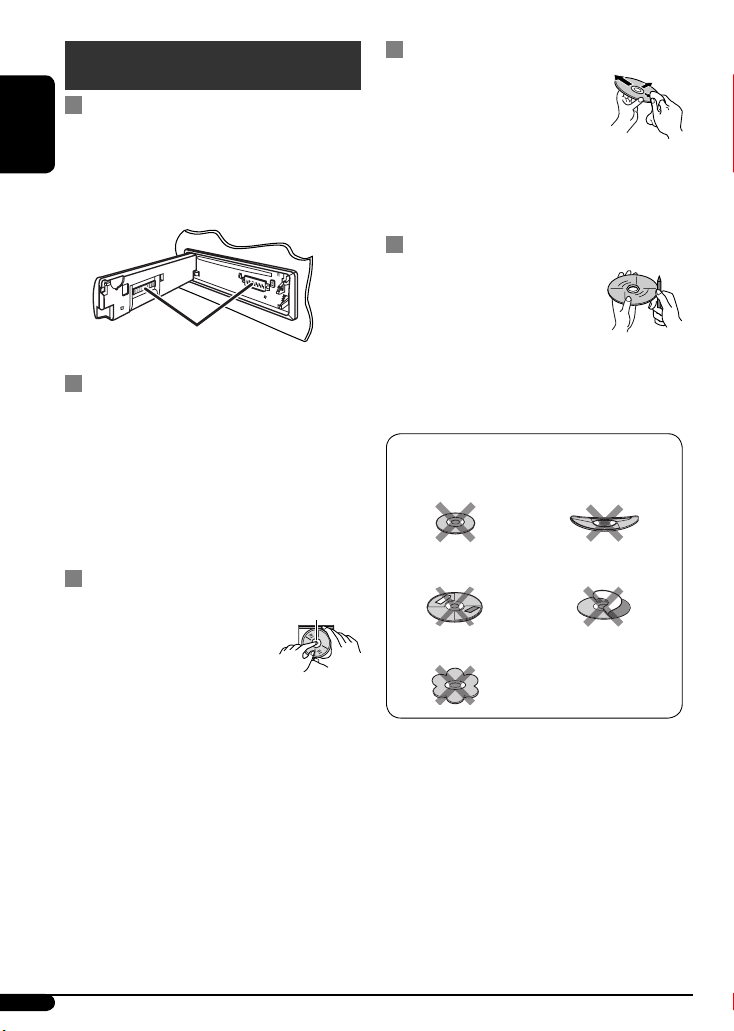

Maintenance ................................... 26

More about this unit ........................ 27

Troubleshooting .............................. 31

Specifications .................................. 34

RM-RK50 ........... 24

ENGLISH

To use these buttons for their original functions, press M MODE again.

• Waiting for about 5 seconds without pressing any of these buttons will automatically exit from the functions mode.

For detaching/attaching the control panel see page 30.

This unit is equipped with the steering wheel remote control function.

• See the Installation/Connection Manual (separate volume) for connection.

Control panel

Parts identification

ENGLISH

1 4 / ¢ buttons 2 (standby/on/attenuator) button 3 5(up)/∞(down) buttons 4 Source button / Control dial 5 Display window 6 T/P (traffic programme/programme type) button 7 OPEN button

Display window

• To flip-open the control panel.

• To eject the disc, flip-open the control panel then press 0 on the unit.

8 SEL (select) button 9 EQ (equalizer) button p MO (monaural) button q SSM (Strong-station Sequential Memory) button w Number buttons e RPT (repeat) button r RND (random) button t M MODE button y DISP (display) button

u BAND button i Remote sensor

• You can control this unit with an optionally purchased remote controller. For details, see pages 24 and 25.

• DO NOT expose the remote sensor to strong light (direct sunlight or artificial lighting).

o AUX (auxiliary) input jack ; Status of Bluetooth device

(Device number, [1 – 5]; signal strength, [0 – 3]*;

battery reminder, [0 – 3]*)

* As the number increases, the signal/battery

strength becomes stronger.

a Tr (track) indicator s Source display / Track number / Folder number /

Time countdown indicator

d Auxiliary indicator f iPod indicator g LOUD (loudness) indicator

h Sound mode (iEQ: intelligent equalizer)

indicators—CLASSIC, HIP HOP, JAZZ, ROCK, POPS, USER

j EQ (equalizer) indicator k Bluetooth indicator l Disc information indicators—

TAG (Tag information),

/ Playback source indicators—

DISC: Lights up for the built-in CD player. CH: Lights up only when CD-CH is selected as the

playback source.

z RDS indicators—AF, REG, TP, PTY x Main display c Playback mode / item indicators—RND (random),

(disc), (folder), RPT (repeat)

v Tuner reception indicators—ST (stereo),

MO (monaural)

(folder), (track/file)

Getting started

Basic operations

~ Turn on the power.

• For DAB tuner

⁄ Adjust the volume.

ENGLISH

Volume level appears.

@ Adjust the sound as you want. (See

pages 12 and 13.)

To drop the volume in a moment (ATT)

To restore the sound, press the button again.

To turn off the power

Basic settings

• See also “General settings — PSM” on pages 13 – 15.

FM1/FM2/FM3/AM = DAB1/DAB2/DAB3 *

= CD * = CD-CH */IPOD * (or EXT IN) =

BT-PHONE * (Bluetooth Phone) = BT-AUDIO *

(Bluetooth Audio) = AUX IN = (back to the beginning)

* You cannot select these sources if they are not

ready or not connected.

• For FM/AM tuner

1 Canceling the display demonstrations Select “DEMO,” then “DEMO OFF.” 2 Setting the clock Select “CLOCK HOUR”, then adjust the hour. Select “CLOCK MIN” (minute), then adjust the

minute.

Select “24H/12H,” then “24 HOUR” or

“12 HOUR.”

Continued on the next page

3 Finish the procedure.

ENGLISH

To check the current clock time while the power is turned off

Clock time is shown on the display for about 5 seconds. See also page 14.

To tune in to a station manually

In step ! on the left column...

Select a desired station frequency.

Radio operations

Lights up when receiving an FM stereo broadcast with sufficient signal strength.

! Start searching for a station.

When a station is received, searching stops. To stop searching, press the same button again.

When an FM stereo broadcast is hard to receive

Lights up when monaural mode is activated.

Reception improves, but the stereo effect will be lost.

To restore the stereo effect, repeat the same procedure. “MONO OFF” appears and the MO indicator goes off.

Storing stations in memory

You can preset six stations for each band.

FM station automatic presetting —

SSM (Strong-station Sequential Memory)

1 Select the FM band (FM1 – FM3) you want to

store into.

“SSM” flashes, then disappears when automatic presetting is over.

Local FM stations with the strongest signals are searched and stored automatically in the FM band.

Manual presetting

Ex.: Storing the FM station of 92.50MHz into preset

number 4 of the FM1 band.

FM RDS operations

What you can do with RDS

RDS (Radio Data System) allows FM stations to send an additional signal along with their regular programme signals.

By receiving the RDS data, this unit can do the following:

• Programme Type (PTY) Search (see the following)

• TA (Traffic Announcement) and PTY Standby Receptions (see pages 8, 9, and 14)

• Tracing the same programme automatically —Network-Tracking Reception (see page 9)

• Programme Search (see pages 9 and 14)

ENGLISH

Preset number flashes for a while.

Listening to a preset station

2 Select the preset station (1 – 6) you want.

To check the current clock time while listening to an FM (non-RDS) or AM station

• For FM RDS stations, see page 9.

Frequency Ô Clock

Searching for your favorite FM RDS programme

You can tune in to a station broadcasting your favorite programme by searching for a PTY code.

• To store your favorite programme types, see page 8.

The last selected PTY code appears.

Ÿ Select one of your favorite programme

types.

Select one of the PTY codes (see page 9).

Continued on the next page

! Start searching for your favorite

programme.

ENGLISH

If there is a station broadcasting a programme of the same PTY code as you have selected, that station is tuned in.

Using the standby receptions

TA Standby Reception

TA Standby Reception allows the unit to switch temporarily to Traffic Announcement (TA) from any source other than AM. The volume changes to the preset TA volume level if the current level is lower than the preset level (see page 14).

Storing your favorite programme

types

You can store six favorite programme types.

Preset programme types in the number buttons (1 to 6):

1 Select a PTY code (see steps ~ to ! on

pages 7 and 8).

2 Select the preset number (1 – 6) you want to

store into.

ROCK M MEMORY

Ex.: When “ROCK M” is selected

3 Repeat steps 1 and 2 to store other PTY codes

into other preset numbers.

4 Finish the procedure.

To activate TA Standby Reception

The TP (Traffic Programme) indicator either lights up or flashes.

• If the TP indicator lights up, TA Standby Reception is activated.

• If the TP indicator flashes, TA Standby Reception is not yet activated. (This occurs when you are listening to an FM station without the RDS signals required for TA Standby Reception.)

To activate TA Standby Reception, tune in to another

station providing these signals. The TP indicator will stop flashing and remain lit.

To deactivate the TA Standby Reception

The TP indicator goes off.

PTY Standby Reception

PTY Standby Reception allows the unit to switch temporarily to your favorite PTY programme from any source other than AM.

To activate and select your favorite PTY code for PTY Standby Reception, see page 14.

The PTY indicator either lights up or flashes.

• If the PTY indicator lights up, PTY Standby Reception is activated.

• If the PTY indicator flashes, PTY Standby Reception is not yet activated.

To activate PTY Standby Reception, tune in to another

station providing these signals. The PTY indicator will stop flashing and remain lit.

To deactivate the PTY Standby Reception, select “OFF” for the PTY code (see page 14). The PTY indicator goes off.

Tracing the same programme—

Network-Tracking Reception

When driving in an area where FM reception is not sufficient enough, this unit automatically tunes in to another FM RDS station of the same network, possibly broadcasting the same programme with stronger signals (see the illustration below).

When shipped from the factory, Network-Tracking Reception is activated.

To change the Network-Tracking Reception setting, see “AF-REG” on page 14.

To check the current clock time while listening to an FM RDS station

Station name (PS) = Station Frequency = Programme type (PTY) = Clock = (back to the

beginning)

PTY codes

NEWS, AFFAIRS, INFO, SPORT, EDUCATE, DRAMA, CULTURE, SCIENCE, VARIED, POP M (music), ROCK M (music), EASY M (music), LIGHT M (music), CLASSICS, OTHER M (music), WEATHER, FINANCE, CHILDREN, SOCIAL, RELIGION, PHONE IN, TRAVEL, LEISURE, JAZZ, COUNTRY, NATION M (music), OLDIES, FOLK M (music), DOCUMENT

ENGLISH

Programme A broadcasting on different frequency areas (01 – 05)

Automatic station selection—

Programme Search

Usually when you press the number buttons, the preset station is tuned in. If the signals from the FM RDS preset station are not sufficient for good reception, this unit, using the AF data, tunes in to another frequency broadcasting the same programme as the original preset station is broadcasting.

• The unit takes some time to tune in to another station using programme search.

• See also page 14.

Disc operations

Playing a disc in the unit

The following marks are used to indicate...

: Built-in CD player operations.

: External CD changer operations.

All tracks will be played repeatedly until you change the source or eject the disc.

To stop play and eject the disc

• Press SOURCE to listen to another playback source.

Playing discs in the CD changer

All discs in the magazine will be played repeatedly until you change the source.

• Ejecting the magazine will also stop playback.

ENGLISH

To fast-forward or reverse the track

To go to the next or previous tracks

* If you have changed the external input setting

to “EXT INPUT” (see page 15), you cannot select the CD changer.

Ÿ Select a disc.

For disc number from 01 – 06:

For disc number from 07 – 12:

About the CD changer

It is recommended to use a JVC MP3-compatible CD changer with your unit.

• You can also connect MP3-incompatible CD changers.

However, these units are not compatible with MP3 discs.

• You cannot use the CH-X99, CH-X100, and KD-MK

series CD changers with this unit.

• You cannot play any WMA disc in the CD changer.

• Disc text information recorded in the CD Text can be

displayed when a JVC CD Text compatible CD changer is connected.

• For connection, see Installation/Connection Manual

(separate volume).

To go to the next or previous folders (only for MP3 or WMA discs)

For MP3 discs:

For WMA discs:

To locate a particular track (for CD) or folder (for MP3 or WMA discs) directly

To select a number from 01 – 06:

To select a number from 07 – 12:

• To use direct folder access on MP3/WMA discs, it is required that folders are assigned with 2-digit numbers at the beginning of their folder names— 01, 02, 03, and so on.

To select a particular track in a folder (for MP3 or WMA disc):

Other main functions

Skipping tracks quickly during play

Changing the display information

Only possible on JVC MP3-compatible CD changer

• For MP3 or WMA discs, you can skip tracks within the same folder.

Ex.: To select track 32 while playing a track whose

number is a single digit (1 to 9)

Each time you press the button, you can skip 10 tracks.

• After the last track, the first track will be selected

and vice versa.

Prohibiting disc ejection

You can lock a disc in the loading slot.

While playing an audio CD or CD Text

A = B = Disc title/performer *1 = Track title *1 [ ] = (back to the beginning)

While playing an MP3 or a WMA track

• When “TAG DISPLAY” is set to “TAG ON” (see page 15)

A = B = Album name/performer (folder name *2) [ ] = Track title (file name *2) [ ] = (back to the

beginning)

• When “TAG DISPLAY” is set to “TAG OFF”

A = B = Folder name [ ] = File name [ ] = (back to the beginning)

A : The elapsed playing time with the current track

number

B : Clock with the current track number [ ] : Corresponding indicator lights up on the display.

*1 If the current disc is an audio CD, “NO NAME” appears. *2 If an MP3/WMA file does not have Tag information,

folder name and file name appear. In this case, the TAG indicator will not light up.

ENGLISH

To cancel the prohibition, repeat the same procedure.

Selecting the playback modes

You can use only one of the following playback modes at a time.

ENGLISH

Sound adjustments

You can select a preset sound mode suitable to the music genre (iEQ: intelligent equalizer).

2 Select your desired playback mode.

7 Repeat play

Mode Plays repeatedly

TRACK RPT : The current track. [ FOLDER RPT *1 : All tracks of the current folder.

[ ]

DISC RPT *2 : All tracks of the current disc.

[ ]

RPT OFF : Cancels.

7 Random play

Mode Plays at random

FOLDER RND *

DISC RND*2 : All tracks of the current disc.

ALL RND : CD : All tracks of the inserted

RND OFF : Cancels.

Only while playing an MP3 or a WMA disc.

*2 Only while playing discs in the CD changer.

: All tracks of the current folder,

then the tracks of the next folder and so on. [ ]

[ ]

disc. [ ] CD-CH : All tracks of the discs in the magazine. [ ]

Preset values

BASS

]

Indication (For)

USER

(Flat sound)

ROCK

(Rock or disco music)

CLASSIC

(Classical music)

POPS

(Light music)

HIP HOP

(Funk or rap music)

JAZZ

(Jazz music)

MIDDLE

00 00 00 OFF

+03 00 +02 OFF

+01 00 +03 OFF

+02 +01 +02 OFF

+04 –02 +01 OFF

+03 00 +03 OFF

TREBLE

LOUD

Adjusting the sound

You can adjust the sound characteristics to your preference.

[ ] : Corresponding indicator lights up on the

display.

Indication, [Range]

BASS *

, [–06 to +06]

Adjust the bass.

(mid-range), [–06 to +06]

MIDDLE *

Adjust the mid-range frequencies sound level.

TREBLE *

, [–06 to +06]

Adjust the treble.

FADER *

, [R06 to F06]

Adjust the front and rear speaker output balance.

BALANCE *

, [L06 to R06]

Adjust the left and right speaker output balance.

LOUD *

(loudness), [LOUD ON or LOUD OFF] Boost low and high frequencies to produce a well-balanced sound at a low volume level.

SUB.W (subwoofer), [00 to 08, initial: 04] Adjust the subwoofer output level.

VOL ADJ (volume adjust), [–05 to +05, initial: 00] Adjust the volume level of each source (except FM), in relation to the FM volume level. The volume level will automatically increase or decrease when you change the source.

• Before making an adjustment, select the source you

want to adjust.

VOLUME, [00 to 50 or 00 to 30] *

Adjust the volume.

When you adjust the bass, mid-range, or treble, the

adjustment you have made is stored for the currently selected sound mode (iEQ) including “USER.”

*2 If you are using a two-speaker system, set the fader

level to “00.” *3 This adjustment will not affect the subwoofer output. *4 The adjustment made (LOUD ON/LOUD OFF) will be

applied to all sound modes. *5 Depending on the amplifier gain control setting. (See

page 15 for details.)

General settings — PSM

You can change PSM (Preferred Setting Mode) items listed in the table on pages 14 and 15.

ENGLISH

2 Select a PSM item.

3 Adjust the PSM item selected.

4 Repeat steps 2 and 3 to adjust other PSM

items if necessary.

5 Finish the procedure.

Continued on the next page

Indications Item

Selectable settings, [reference page]

( : Initial)

DEMO

Display demonstration

ENGLISH

CLOCK DISP * Clock display

• DEMO ON

• DEMO OFF

• CLOCK ON

• CLOCK OFF

: The display demonstration will be activated automatically if no

operation is done for about 20 seconds, [5].

: Cancels.

: The clock time is shown on the display at all times when the

power is turned off.

: Cancels; pressing DISP will show the clock time for about

5 seconds when the power is turned off, [6].

CLOCK HOUR

0 – 23 (1 – 12) [Initial: 0 (0:00)], [5].

Hour adjustment

CLOCK MIN

00 – 59 [Initial: 00 (0:00)], [5].

Minute adjustment

24H/12H

Time display mode

CLOCK ADJ *

Clock adjustment

AF-REG * Alternative frequency/ regionalization reception

• 24 HOUR

• 12 HOUR

• AUTO

• OFF

• AF

• AF-REG

: See also page 5 for setting.

: The built-in clock is automatically adjusted using the CT (clock

time) data in the RDS signal.

: Cancels.

: When the currently received signals become weak, the unit

switches to another station (the programme may differ from the one currently received), [9, 21].

• The AF indicator lights up. : When the currently received signals become weak, the unit

switches to another station broadcasting the same programme.

• The AF and REG indicators light up.

PTY-STANDBY *

• AF OFF

OFF, PTY codes Activates PTY Standby Reception with one of the PTY codes, [8, 9].

: Cancels (not selectable when “DAB AF“ is set to “AF ON“).

PTY standby

TA VOLUME * Traffic announcement volume

P-SEARCH * Programme search

If the power supply is not interrupted by turning off the ignition key of your car, it is recommended that you select

VOLUME 00

[Initial: VOLUME 15] – VOLUME 50 (or VOLUME 00

– VOLUME 30) *

• ON

• OFF

: Activates Programme Search, [9].

: Cancels.

“CLOCK OFF” to save the car’s battery. *2 Only for FM RDS stations. *3 Depends on the amplifier gain control.

Indications Item

Selectable settings, [reference page]

( : Initial)

DAB AF *

Alternative frequency reception

DIMMER

Dimmer

KEY ILLUM

Illumination switch

TEL MUTING

Telephone muting

SCROLL *

Scroll

• AF ON

• AF OFF

• ON

• OFF

• RED

• GREEN

• MUTING 1/

MUTING 2

• MUTING OFF

• ONCE

• AUTO

• OFF

: Traces the programme among DAB services and FM RDS stations,

[9, 21].

: Cancels.

: Dims the display and button illumination. : Cancels.

: You can select the button illumination according to your

preference.

: Select either one which mutes the sounds while using a cellular

phone.

: Cancels.

: Scrolls the displayed information once. : Repeats scrolling (at 5-second intervals). : Cancels.

• Pressing DISP for more than one second can scroll the display regardless of the setting.

SUB.W FREQ Subwoofer cutoff frequency

EXT INPUT *

External input

TAG DISPLAY

Tag display

AMP GAIN

Amplifier gain control

IF BAND

Intermediate frequency band

• LOW

• MID

• HIGH

• CHANGER

• EXT INPUT

• TAG ON

• TAG OFF

• LOW POWER

• HIGH POWER

• AUTO

• WIDE

: Frequencies lower than 90 Hz are sent to the subwoofer. : Frequencies lower than 135 Hz are sent to the subwoofer. : Frequencies lower than 180 Hz are sent to the subwoofer.

: To use a JVC CD changer, [10], an Apple iPod, [22]. : To use any other external component, [23, 24].

: Shows the Tag information while playing MP3/WMA tracks,

[11].

: Cancels.

: VOLUME 00 – VOLUME 30 (Select this if the maximum power of

the speaker is less than 50 W to prevent damaging the speaker.)

: VOLUME 00 – VOLUME 50

: Increases the tuner selectivity to reduce interference noise

between close stations. (The stereo effect may be lost.)

: Subject to the interference noise from adjacent stations, but the

sound quality will not be degraded and the stereo effect will remain.

Displayed only when DAB tuner is connected. *5 Some characters or symbols will not be shown correctly (or will be blanked) on the display. *6 Displayed only when one of the following sources is selected—FM, AM, DAB, CD, Bluetooth, or AUX IN.

ENGLISH

Using the Bluetooth ® devices

Registering using “OPEN”

Preparation:

Operate the device to turn on its Bluetooth function.

For Bluetooth operations, it is required to connect the

ENGLISH

Bluetooth Adapter (KS-BTA200) to the CD changer

jack on the rear of this unit.

• Refer also to the instructions supplied with the Bluetooth adapter and the Bluetooth device.

• Refer to the list (included in the box) to check the countries where you may use the Bluetooth ® function.

To use a Bluetooth device through the unit (“BT-PHONE” and “BT-AUDIO”) for the first time, you need to establish Bluetooth wireless connection between the unit and the device.

• Once the connection is established, it is registered in the unit even if you reset your unit. Up to five devices can be registered in total.

• Only one device can be connected at a time for each source (“BT-PHONE” and “BT-AUDIO”).

Registering a Bluetooth device

Registration (Pairing) methods

Use either of the following items in the Bluetooth menu to register and establish the connection with a device.

• Select “BT-PHONE” or “BT-AUDIO” as the source to operate the Bluetooth menu.

OPEN Make the unit ready to establish a new

Bluetooth connection. Connection is established by operating the Bluetooth device.

SEARCH Make the unit ready to establish a new

Bluetooth connection. Connection is established by operating the unit.

1 Select “BT-PHONE” or “BT-AUDIO.”

2 Select “NEW DEVICE.”

3 Select “OPEN.”

4 Enter a PIN (Personal Identification Number)

code to the unit.

• You can enter any number you like (1-digit to 16-digit number). [Initial: 0000]

* Some devices have their own PIN code. Enter the

specified PIN code to the unit.

1 Move to the next (or previous) number

position.

2 Select a number or blank space.

3 Repeat steps 1 and 2 until you finish

entering a PIN code.

4 Confirm the entry.

“OPEN..” flashes on the display.

5 Use the Bluetooth device to search and

connect.

On the device to be connected, enter the same PIN code you have just entered for this unit. “CONNECTED” appears on the display. Now connection is established and you can use the device through the unit.

Connecting/disconnecting/deleting a registered device

1 Select “BT-PHONE” or “BT-AUDIO.”

ENGLISH

The device remains registered even after you disconnect the device. Use “CONNECT“ (or activate “AUTO CNNCT”) to connect the same device from next time on. (See the following and pages 19 and 20.)

Connecting a device

Perform steps 1 and 2 on page 16, then...

1 • Select “SEARCH” to search for available

devices.

The unit searches and displays the list of the

available devices.

If no available device is detected, “UNFOUND”

appears.

• Select “SPECIAL” to connect a special

device.

The unit displays the list of the preset devices.

2 Select a device you want to connect.

3 • For available devices...

Enter the specific PIN code of the device to the

unit.

Refer to the instructions supplied with the device

to check the PIN code. Use the Bluetooth device to connect. Now connection is established and you can use

the device through the unit.

• For special device... Use “OPEN” or “SEARCH” to connect.

2 Select a registered device you want to

connect/disconnect/delete.

3 • Select “CONNECT” or “DISCONNECT” to

connect/disconnect the selected device.

• Select “DELETE,” then “YES” to delete the selected device.

You can set the unit to connect the Bluetooth device automatically when the unit is turned on. (See “AUTO CNNCT” on pages 19 and 20.)

Using the Bluetooth cellular phone

Ÿ Enter the Bluetooth menu.

! Make a call or change the settings

using the Bluetooth setting menu. (See pages 18, 19, and 20.)

Continued on the next page

When a call comes in....

The source is automatically changed to “BT-PHONE.”

When “AUTO ANSWER” is activated....

The unit answers the incoming calls automatically, see

ENGLISH

pages 19 and 20.

• When “AUTO ANSWER” is deactivated, press any button (except call.

• You can adjust the microphone volume level (see pages 19 and 20).

) to answer the incoming

Phone book:

1 Select “PHONE BOOK *”. The list of phone

number appears.

2 Select a name from the list.

Direct dialing:

1 Select “NUMBER.”

To end the call

Hold any button (except ).

When a text message comes in....

If the cellular phone is compatible with text message (notified through JVC Bluetooth adapter) and “MSG INFO” (message info) is set to “AUTOMATIC” (see pages 19 and 20), the unit rings to inform you of the message arrival.

• “RCV MESSAGE” (receiving message) appears on the display.

Making a call

You can make a call using the following methods.

Select “BT-PHONE,” then follow the following steps to make a call:

1 Display the Dial Menu.

2 Call history:

1 Select a call history (REDIAL *, RECEIVED *,

MISSED *).

2 Then select a name (if it is acquired) or phone

number.

2 Enter the phone number.

* Displays only when your cellular phone is equipped

with these functions and is compatible with this unit.

Using voice command

“SAY NAME” appears on the display.

2 Speak the name you want to call.

• You can also use voice command from the Dial Menu. Select “VOICE DIAL” from the Dial Menu.

• If your cellular phone does not support the voice recognition system, “ERROR” appears on the display.

Using preset phone number

• See page 19 for presetting.

Presetting the phone number

You can preset up to six phone numbers.

1 Display the Dial Menu.

2 Select “PHONE BOOK *,” “MISSED *,”

“REDIAL *,” or “RECEIVED *” whichever you want to use. Then select a phone number.

* Displays only when your cellular phone is

equipped with these functions and is compatible with this unit.

Using the Bluetooth audio player

If playback does not start automatically, operate the Bluetooth audio player to start playback.

• If playback does not pause when you change the source, operate the Bluetooth audio player to pause playback.

Reverse skip/forward skip

Bluetooth settings

You can change the settings listed on page 20 according to your preference.

1 Select “BT-PHONE” or “BT-AUDIO.”

2 Enter the Bluetooth menu.

3 Select “SETTINGS.”

4 Select a setting item.

Appears only when a Bluetooth phone is

connected.

*2 Appears only when a Bluetooth phone is

connected and it is compatible with text message (notified through JVC Bluetooth adapter).

*3 Bluetooth Audio: Shows only “VERSION.”

5 Change the setting accordingly.

ENGLISH

Pause/start playback *

* Operation may be different according

to the connected phone.

Enter setting menu (Device list)

• Refer also to page 17 for connecting/disconnecting/ deleting a registered device.

Continued on the next page

Setting menu ( : Initial)

AUTO CNNCT (connect) When the unit is turned on, the connection is established automatically with...

OFF : No Bluetooth device. LAST : The last connected Bluetooth device.

ENGLISH

ORDER : The available registered Bluetooth device

found at first.

AUTO ANSWER Only for the device being connected for “BT-PHONE.” ON : The unit answers the incoming calls

automatically.

OFF : The unit does not answer the calls

automatically. Answer the calls manually.

REJECT : The unit rejects all incoming calls.

MSG INFO (message info) Only for the device being connected for “BT-PHONE.” AUTOMATIC : The unit informs you of the arrival of

a message by ringing and displaying “RCV MESSAGE” (receiving message).

MANUAL : The unit does not inform you of the

arrival of a message.

MIC SETTING (microphone setting) Only for the device being connected for “BT-PHONE.” Adjust microphone volume connected to the Bluetooth adapter, [LEVEL 01/02/03].

DAB tuner operations

What is DAB system?

Digital Audio Broadcasting (DAB) can deliver digital quality sound without any annoying interference and signal distortion. Furthermore, it can carry text, pictures, and data. When transmitting, DAB combines several programmes (called “services”) to form one “ensemble.” In addition, each “service”—called “primary service”—can also be divided into its components (called “secondary service”). A typical ensemble has six or more programmes (services) broadcast at the same time.

For tracing the same programme automatically (Alternative Frequency Reception), it is required to connect the DAB tuner (KT-DB1000) to the CD changer jack on the rear of this unit.

• See also “DAB AF” on page 15.

It is recommended to use DAB tuner KT-DB1000 with your unit. If you have another DAB tuner, consult your JVC IN-CAR ENTERTAINMENT dealer.

• Refer also to the Instructions supplied for your DAB tuner.

VERSION The Bluetooth software and hardware versions are shown.

Bluetooth Information:

If you wish to receive more information about Bluetooth, visit the following JVC web site: <http://www.jvc-victor.co.jp/english/car/>.

! Start searching for an ensemble.

When an ensemble is received, searching stops. To stop searching, press the same button again.

⁄ Select a service (either primary or

secondary) to listen to.

Tuning in to a preset DAB service

To tune in to an ensemble manually

Start searching for an ensemble, as in step ! on page 20...

2 Select a desired ensemble frequency.

Storing DAB services in memory

You can preset six DAB services (primary) for each band.

1 Select a service you want (see steps ~ to ⁄

on pages 20 and 21).

2 Select the preset number (1 – 6) you want to

store into.

Preset number flashes for a while.

2 Select the preset DAB service (primary)

ENGLISH

number (1 – 6) you want.

If the selected primary service has some secondary services, pressing the same button again will tune in to the secondary services.

Tracing the same programme — Alternative Frequency Reception

You can keep listening to the same programme by activating the Alternative Frequency Reception.

• While receiving a DAB service: When driving in an area where a service cannot be

received, this unit automatically tunes in to another ensemble or FM RDS station, broadcasting the same programme.

• While receiving an FM RDS station: When driving in an area where a DAB service is

broadcasting the same programme as the FM RDS station is broadcasting, this unit automatically tunes in to the DAB service.

When shipped from the factory, Alternative Frequency Reception is activated.

To deactivate the Alternative Frequency Reception, see page 15.

To change the display information while tuning to an ensemble

Service name = Ensemble name = Channel number = Frequency = Clock = (back to

the beginning)

iPod operations

Selecting a track from the menu

This unit is ready for operating an Apple iPod.

Before operating, connect the Interface adapter

ENGLISH

for iPod, KS-PD100 (separately purchased) to the CD changer jack on the rear of the unit.

• For connection, see Installation/Connection Manual

(separate volume).

• For details, refer also to the manual supplied with the

interface adapter.

Preparations:

Make sure “CHANGER” is selected for the external input setting, see page 15.

Playback starts automatically from where it has been paused previously.

Ÿ Adjust the volume.

! Adjust the sound as you want. (See

pages 12 and 13.)

• Make sure the equalizer on the iPod is

deactivated.

1 Enter the main menu.

Now the

5/∞/4 /¢ buttons work

as the menu selecting buttons*.

* The menu selecting mode will be canceled:

– If no operations are done for about 5 seconds. – When you confirm the selection of a track.

2 Select the desired menu.

PLAYLIST Ô ARTISTS Ô ALBUMS Ô SONGS Ô GENRES Ô COMPOSER Ô

(back to the beginning)

3 Confirm the selection.

• To move back to the previous menu, press 5.

• If a track is selected, playback starts automatically.

• If the selected item has another layer, you will enter the layer. Repeat steps 2 and 3 until the desired track is played.

• Holding 4 /¢ can skip 10 items at a time.

Pause playback

• To resume playback, press the button again.

Fast-forward or reverse the track

Forward skip/reverse skip

Selecting the playback modes

2 Select your desired playback mode.

7 Repeat play

ONE RPT [

Functions the same as “Repeat One” of the iPod.

ALL RPT [ ] Functions the same as “Repeat All” of the iPod.

RPT OFF

Cancels.

7 Random play

ALBUM RND * [ ]

Functions the same as “Shuffle Albums” of the iPod.

SONG RND [ ] Functions the same as “Shuffle Songs” of the iPod.

RND OFF

Cancels.

* Functions only if you select “ALL” in “ALBUMS” of

the main “MENU.”

]

Other external component operations

You can connect an external component to...

• CD changer jack on the rear using the Line Input

Adapter—KS-U57 (not supplied) or AUX Input Adapter—KS-U58 (not supplied)

• AUX (auxiliary) input jack on the control panel.

Connecting an external component to the AUX input jack

Portable audio player, etc.

3.5 mm stereo mini plug (not supplied)

~ For selecting the external component

connected to...

• AUX input jack

ENGLISH

[ ] : Corresponding indicator lights up on the

display.

To check other information while listening to an iPod

Folder name = Track name = Elapsed playing time with the current track number = Clock time with the current track number = (back to the beginning)

• CD changer jack on the rear using KS-U57 or KS-U58

If “EXT IN” does not appear, see page 15 and

select the external input (“EXT INPUT”).

Continued on the next page

Ÿ Turn on the connected component and

start playing the source.

! Adjust the volume.

ENGLISH

⁄ Adjust the sound as you want. (See

page 12 and 13.)

To check the clock time while listening to an external component

AUX IN or EXT IN Ô Clock

Remote controller — RM-RK50

This unit can be remotely controlled as instructed here (with an optionally purchased remote controller). We recommend that you use remote controller RM-RK50 with your unit.

Installing the lithium coin battery

(CR2025)

Aim the remote controller directly at the remote sensor on the unit. Make sure there is no obstacle in between.

Warning:

• Do not install any battery other than CR2025 or its equivalent; otherwise, it may explode.

• Do not leave the remote controller in a place (such as dashboards) exposed to direct sunlight for a long time; otherwise, it may explode.

• Store the battery in a place where children cannot reach to avoid risk of accident.

• To prevent the battery from over-heating, cracking, or starting a fire:

– Do not recharge, short, disassemble, heat the

battery, or dispose of it in a fire.

– Do not leave the battery with other metallic

materials.

– Do not poke the battery with tweezers or

similar tools.

– Wrap the battery with tape and insulate when

throwing away or saving it.

Main elements and features

1 (standby/on/attenuator) button

• Turns the power on if pressed briefly or attenuates the sound when the power is on.

• Turns the power off if pressed and held.

2 5 U (up) / D (down) ∞ buttons

• Changes the FM/AM/DAB bands with 5 U.

• Changes the preset stations (or DAB services) with D ∞.

• Changes the folder of the MP3/WMA discs.

• While playing an MP3 disc on an MP3-compatible CD changer:

– Changes the disc if pressed briefly. – Changes the folder if pressed and held.

• While listening to an Apple iPod.

– Pauses or resumes playback with D ∞. – Enters the main menu with 5 U. (Now 5 U/D ∞/2 R/F 3 work as the menu

selecting buttons.)*

* 5 U : Returns to the previous menu. D ∞ : Confirms the selection.

3 VOL – / VOL + buttons

• Adjusts the volume level.

4 SOUND button

• Selects the sound mode (iEQ: intelligent equalizer).

5 SOURCE button

• Selects the source.

6 5 U/D ∞/2 R/F 3/ SOURCE buttons

• For Bluetooth cellular phone: – Answers calls if pressed briefly. – Rejects calls if pressed and held.

7 2 R/F 3 buttons

• Searches for stations (or DAB services) if pressed briefly.

• Searches for DAB ensembles if pressed and held.

• Fast-forwards or reverses the track if pressed and held.

• Changes the tracks if pressed briefly.

• While listening to an iPod (in menu selecting mode):

– Selects an item if pressed briefly. (Then,

∞ to confirm the selection.)

press D

– Skips 10 items at a time if pressed and held.

• Reverse skip/forward skip for Bluetooth audio.

ENGLISH

Maintenance

How to clean the connectors

Frequent detachment will deteriorate the connectors. To minimize this possibility, periodically wipe the

ENGLISH

connectors with a cotton swab or cloth moistened with alcohol, being careful not to damage the connectors.

Connectors

Moisture condensation

Moisture may condense on the lens inside the unit in the following cases:

• After starting the heater in the car.

• If it becomes very humid inside the car. Should this occur, the unit may malfunction. In this case, eject the disc and leave the unit turned on for a few hours until the moisture has evaporated.

How to handle discs

When removing a disc from its case, press down the center holder of

the case and lift the disc out, holding it by the edges.

• Always hold the disc by the edges. Do not touch its recording surface.

When storing a disc in its case, gently insert the disc around the center holder (with the printed surface facing up).

• Make sure to store discs in cases after use.

Center holder

To keep discs clean

A dirty disc may not play correctly. If a disc does become dirty, wipe it with a soft cloth in a straight line from center to edge.

• Do not use any solvents (for example, conventional record cleaner, spray, thinner, benzine, etc.) to clean discs.

To play new discs

New discs may have some rough spots around the inner and outer edges. If such a disc is used, this unit may reject the disc. To remove these rough spots, rub the edges with a pencil or ball-point pen, etc.

Do not use the following discs:

Single CD (8 cm disc)

Sticker and sticker residue

Unusual shape

Warped disc

Stick-on label

More about this unit

• If you want to know more about RDS, visit <http://www.rds.org.uk>.

Basic operations

Turning on the power

• By pressing SOURCE on the unit, you can also turn on the power. If the source is ready, playback also starts.

Turning off the power

• If you turn off the power while listening to a disc, disc play will start from where it had been stopped previously next time you turn on the power.

Tuner operations

Storing stations in memory

• During SSM search...

– All previously stored stations are erased and the

stations are stored anew.

– Received stations are preset in No. 1 (lowest

frequency) to No. 6 (highest frequency).

– When SSM is over, the station stored in No. 1 will

be automatically tuned in.

• When storing a station manually, the previously preset station is erased when a new station is stored in the same preset number.

FM RDS operations

• Network-Tracking Reception requires two types of RDS signals—PI (Programme Identification) and AF (Alternative Frequency) to work correctly. Without receiving these data correctly, Network-Tracking Reception will not operate correctly.

• If a Traffic Announcement is received by TA Standby Reception, the volume level automatically changes to the preset level (TA VOL) if the current level is lower than the preset level.

• When Alternative Frequency Reception is activated (with AF selected), Network-Tracking Reception is also activated automatically. On the other hand, Network-Tracking Reception cannot be deactivated without deactivating Alternative Frequency Reception. (See pages 14 and 15.)

Disc operations

Caution for DualDisc playback

• The Non-DVD side of a “DualDisc” does not comply with the “Compact Disc Digital Audio” standard. Therefore, the use of Non-DVD side of a DualDisc on this product may not be recommended.

General

• This unit has been designed to reproduce CDs/ CD Texts, and CD-Rs (Recordable)/CD-RWs (Rewritable) in audio CD (CD-DA), MP3 and WMA formats.

• MP3 and WMA “tracks” (words “file” and “track” are used interchangeably) are recorded in “folders.”

• While fast-forwarding or reversing on an MP3 or WMA disc, you can only hear intermittent sounds.

• When a disc is inserted upside down, “PLEASE” and “EJECT” appear alternately on the display. Press OPEN, then 0 to eject the disc.

Playing a CD-R or CD-RW

• Use only “finalized” CD-Rs or CD-RWs.

• This unit can only play back files of the same type as those which are detected first if a disc includes both audio CD (CD-DA) files and MP3/WMA files.

• This unit can play back multi-session discs; however, unclosed sessions will be skipped while playing.

• Some CD-Rs or CD-RWs may not be played back on this unit because of their disc characteristics, or for the following reasons:

– Discs are dirty or scratched. – Moisture condensation has occurred on the lens

inside the unit. – The pickup lens inside the unit is dirty. – The files on the CD-R/CD-RW are written using the

“Packet Write” method. – There are improper recording conditions (missing

data, etc.) or media conditions (stained, scratched,

warped, etc.).

Continued on the next page

ENGLISH

• CD-RWs may require a longer readout time since the reflectance of CD-RWs is lower than that of regular CDs.

• Do not use the following CD-Rs or CD-RWs:

– Discs with stickers, labels, or protective seal stuck

to the surface.

ENGLISH

– Discs on which labels can be directly printed by an

ink jet printer.

Using these discs under high temperature or high

humidity may cause malfunctions or damage to the unit.

Playing an MP3/WMA disc

• This unit can play back MP3/WMA files with the extension code <.mp3> or <.wma> (regardless of the letter case—upper/lower).

• This unit can show the names of albums, artists (performer), and Tag (Version 1.0, 1.1, 2.2, 2.3, or

2.4) for MP3 files and for WMA files.

• This unit can display only one-byte characters. No other characters can be correctly displayed.

• This unit can play back MP3/WMA files meeting the conditions below:

– Bit rate: 8 kbps — 320 kbps – Sampling frequency: 48 kHz, 44.1 kHz, 32 kHz (for MPEG-1) 24 kHz, 22.05 kHz, 16 kHz (for MPEG-2) – Disc format: ISO 9660 Level 1/ Level 2, Romeo,

Joliet, Windows long file name

• The maximum number of characters for file/folder names vary depending on the disc format used (includes 4 extension characters—<.mp3> or <.wma>).

– ISO 9660 Level 1: up to 12 characters – ISO 9660 Level 2: up to 31 characters – Romeo: up to 128 characters – Joliet: up to 64 characters – Windows long file name: up to 128 characters

• This unit can recognize a total of 512 files, 255 folders, and 8 hierarchical levels.

• This unit can play back files recorded in VBR (variable bit rate).

Files recorded in VBR have a discrepancy in the

elapsed time display, and do not show the actual elapsed time. In particular, this difference becomes noticeable after performing the search function.

• This unit cannot play back the following files:

– MP3 files encoded in MP3i and MP3 PRO format. – MP3 files encoded in an inappropriate format. – MP3 files encoded with Layer 1/2. – WMA files encoded in lossless, professional, and

voice format.

– WMA files which are not based upon Windows

Media® Audio. – WMA files copy-protected with DRM. – Files which have data such as WAVE, ATRAC3, etc.

• The search function works but search speed is not

constant.

Changing the source

• If you change the source, playback also stops

(without ejecting the disc).

Next time you select “CD” for the playback source,

disc play starts from where it has been stopped previously.

Ejecting a disc

• If the ejected disc is not removed within 15 seconds,

it is automatically inserted into the loading slot again to protect it from dust. Playback starts automatically.

• After ejecting a disc, “NO DISC” appears and you

cannot operate some of the buttons. Insert another disc or press SOURCE to select another playback source.

Bluetooth operations

General

• While driving, do not perform complicated operation such as dialing the numbers, using phone book, etc.

Stop your car in a safe place before you perform these

operations.

• Some Bluetooth devices may not be connected to this unit depending on the Bluetooth version of the device.

• This unit may not work for some Bluetooth devices.

• Connecting condition may vary depending on the circumstances around you.

• When the unit is turned off, the device is disconnected.

Warning messages for Bluetooth operations

ERROR CNNCT

(Error Connection)

ERROR Try the operation again. If “ERROR”

UNFOUND No available Bluetooth device is

LOADING The unit is updating the phone book *.

PLEASE WAIT

RESET 8 Check the connection between the

The device is registered but the connection has failed. Use “CONNECT” to connect the device again. (See page 17.)

appears again, check if the device supports the function you have tried.

detected by “SEARCH.”

* Displays only when your cellular phone

is equipped with these functions and is compatible with this unit.

The unit is preparing to use the Bluetooth function. If the message does not disappear, turn off and turn on the unit, then connect the device again (or reset the unit).

adapter and this unit.

iPod operations

• You can control the following types of iPods through the interface adapter.

– iPod with dock connector (3rd Generation) – iPod with Click Wheel (4th Generation) – iPod mini – iPod photo – iPod nano * – iPod video (5th Generation) *

*1 When you connect the iPod nano to the interface

*2 It is not possible to browse video files on the

• If the iPod does not play correctly, please update your iPod software to the latest version. For details about updating your iPod, visit <http://www.apple.com>.

• When you turn on this unit, the iPod is charged through this unit.

• While the iPod is connected, all operations are disabled. Perform all operations from this unit.

• The text information may not be displayed correctly.

– Some characters such as accented letters cannot be

shown correctly on the display.

– Depends on the condition of communication

between the iPod and the unit.

• If the text information includes more than 11 characters, it scrolls on the display. This unit can display up to 40 characters.

Notice:

When connecting an iPod, some operations may not be performed correctly or as intended. In this case, visit the following JVC web site:<http://www.jvc. co.jp/english/car/support/ks-pd100/index.html>

adapter, be sure to disconnect the headphones; otherwise, no sound is heard.

“Videos” menu while the iPod is connected to the interface adapter.

ENGLISH

DAB tuner operations

• Only primary DAB services can be presetted even when you store a secondary service.

• A previously preset DAB service is erased when a new DAB service is stored in the same preset number.

Continued on the next page

General settings—PSM

• If you change the “AMP GAIN” setting from

“HIGH POWER” to “LOW POWER” while the volume level is set higher than “VOLUME 30,” the unit automatically changes the volume level to

ENGLISH

“VOLUME 30.”

Detaching the control panel

Avoid touching the connectors.

• Microsoft and Windows Media are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries.

• iPod is a trademark of Apple Inc., registered in the U.S. and other countries.

• The Bluetooth word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by Victor Company of Japan, Limited (JVC) is under license. Other trademarks and trade names are those of their respective owners.

Attaching the control panel

Troubleshooting

What appears to be trouble is not always serious. Check the following points before calling a service center.

Symptoms Remedies/Causes

• Sound cannot be heard from the speakers. • Adjust the volume to the optimum level.

• Check the cords and connections.

General

• The unit does not work at all. Reset the unit (see page 3).

• SSM automatic presetting does not work. Store stations manually.

FM/AM

• Static noise while listening to the radio. Connect the aerial firmly.

• Disc cannot be played back. Insert the disc correctly.

• CD-R/CD-RW cannot be played back.

• Tracks on the CD-R/CD-RW cannot be skipped.

• Disc can be neither played back nor ejected. • Unlock the disc (see page 11).

• Disc sound is sometimes interrupted. • Stop playback while driving on rough roads.

Disc playback

• “NO DISC” appears on the display.

• “PLEASE” and “EJECT” appear alternately on the display.

• Disc cannot be played back. • Use a disc with MP3/WMA tracks recorded in a format

• Noise is generated. Skip to another track or change the disc. (Do not add the

MP3/WMA playback

• A longer readout time is required (“READING” keeps flashing on the display).

• Insert a finalized CD-R/CD-RW.

• Finalize the CD-R/CD-RW with the component which you used for recording.

• Eject the disc forcibly (see page 3).

• Change the disc.

• Check the cords and connections.

Insert a playable disc into the loading slot.

compliant with ISO 9660 Level 1, Level 2, Romeo, or Joliet.

• Add the extension code <.mp3> or <.wma> to the file names.

extension code <.mp3> or <.wma> to non-MP3 or WMA tracks.)

Do not use too many hierarchical levels and folders.

ENGLISH

Continued on the next page

Symptoms Remedies/Causes

• Tracks are not played back in the order you have intended.

• The elapsed playing time is not correct. This sometimes occurs during playback. This is caused by

ENGLISH

• The correct characters are not displayed (e.g.

MP3/WMA playback

album name).

• Bluetooth device does not detect the unit The unit can be connected with one Bluetooth cellular

• The unit does not detect the Bluetooth device. • Check the Bluetooth setting of the device.

• The unit does not make pairing with the Bluetooth device.

• Echo or noise occurs. Adjust the microphone unit position.

Bluetooth *

• Phone sound quality is poor. • Reduce the distance between the unit and the

• The sound is interrupted or skipped during playback of a Bluetooth audio player.

• The connected audio player cannot be controlled.

* For Bluetooth operations, refer also to the instructions supplied with the Bluetooth Adapter.

The playback order is determined when the files are recorded.

how the tracks are recorded on the disc.

This unit can only display alphabets (upper case), numbers, and a limited number of symbols.

phone and one Bluetooth audio device at a time. While connecting a device, this unit cannot be detected from another device. Disconnect currently connected device and search again.

• Search from the Bluetooth device. After the device detects the unit, select “OPEN” on the unit to connect the device. (See page 16.)

• Enter the same PIN code for both the unit and target device.

• Select the device name from “SPECIAL,” then try to connect again. (See page 17.)

• Try to pair/connect from the Bluetooth device.

Bluetooth cellular phone.

• Move the car to a place where you can get a better signal reception.

• Reduce the distance between the unit and the Bluetooth audio player.

• Disconnect the device connected for “BT-PHONE.”

• Turn off, then turn on the unit.

• (When the sound is not yet restored,) connect the player again.

Check whether the connected audio player supports AVRCP (Audio Video Remote Control Profile).

Symptoms Remedies/Causes

• “NO DISC” appears on the display. Insert a disc into the magazine.

• “NO MAGAZINE” appears on the display. Insert the magazine.

• “RESET 8” appears on the display. Connect this unit and the CD changer correctly and press

CD changer

• “RESET 1” – “RESET 7” appears on the display. Press the reset button of the CD changer.

• The CD changer does not work at all. Reset the unit (see page 3).

• “noSIGNAL” appears on the display. Move to an area with stronger signals.

• “RESET 8” appears on the display. Connect this unit and the DAB tuner correctly and reset

DAB

• “ANTENNA NG” appears on the display. Check the cords and connections.

• The DAB tuner does not work at all. Reconnect this unit and the DAB tuner correctly and reset

• The iPod does not turn on or does not work. • Check the connecting cable and its connection.

• The sound is distorted. Deactivate the equalizer either on the unit or the iPod.

• “NO IPOD” appears on the display. • Check the connecting cable and its connection.

• Playback stops. The headphones are disconnected during playback.

• No sound can be heard when connecting an

iPod playback

iPod nano.

• “NO FILE” appears on the display. No tracks are stored. Import tracks to the iPod.

• “RESET 1” – “RESET 7” appears on the display. Disconnect the adapter from both the unit and iPod. Then,

• “RESET 8” appears on the display. Check the connection between the adapter and this unit.

• The iPod’s controls do not work after disconnecting from this unit.

the reset button of the CD changer.

the unit (see page 3).

• Update the firmware version.

• Charge the battery.

Restart the playback operation using the control panel (see page 22).

• Disconnect the headphones from the iPod nano.

• Update the firmware version of the iPod nano.

connect it again.

Reset the iPod.

ENGLISH

Specifications

AUDIO AMPLIFIER SECTION

Maximum Power Output: Front and Rear: 50 W per channel

ENGLISH

Continuous Power Output (RMS): Front and Rear: 19 W per channel into 4 Ω, 40 Hz to 20 000 Hz at no more

than 0.8% total harmonic distortion.

Load Impedance: 4 Ω (4 Ω to 8 Ω allowance)

Tone Control Range: Bass: ±12 dB at 60 Hz

Middle: ±12 dB at 1 kHz

Treble: ±12 dB at 7.5 kHz

Frequency Response: 40 Hz to 20 000 Hz

Signal-to-Noise Ratio: 70 dB

Line-Out Level/Impedance: 2.5 V/20 kΩ load (full scale)

Output Impedance: 1 kΩ

Subwoofer-Out Level/Impedance: 2.5 V/20 kΩ load (full scale)

Other Terminal: CD changer jack, AUX (auxiliary) input jack, Steering

wheel remote input

TUNER SECTION

Frequency Range: FM: 87.5 MHz to 108.0 MHz

AM: (MW) 522 kHz to 1 620 kHz

(LW) 144 kHz to 279 kHz

FM Tuner: Usable Sensitivity: 11.3 dBf (1.0 μV/75 Ω)

50 dB Quieting Sensitivity:

Alternate Channel Selectivity (400 kHz):

Frequency Response: 40 Hz to 15 000 Hz

Stereo Separation: 30 dB

MW Tuner: Sensitivity/

Selectivity:

LW Tuner: Sensitivity: 50 μV

16.3 dBf (1.8 μV/75 Ω)

65 dB

20 μV/35 dB

CD PLAYER SECTION

Type: Compact disc player

Signal Detection System: Non-contact optical pickup (semiconductor laser)

Number of Channels: 2 channels (stereo)

Frequency Response: 5 Hz to 20 000 Hz

Dynamic Range: 96 dB

Signal-to-Noise Ratio 98 dB

Wow and Flutter: Less than measurable limit

MP3 Decoding Format: (MPEG1/2 Audio Layer 3) Max. Bit Rate: 320 kbps

WMA (Windows Media® Audio) Decoding Format: Max. Bit Rate: 320 kbps

GENERAL

Power Requirement: Operating Voltage: DC 14.4 V (11 V to 16 V allowance)

Grounding System: Negative ground

Allowable Operating Temperature: 0°C to +40°C

Dimensions (W × H × D): (approx.)

Mass:

Design and specifications are subject to change without notice.

Installation Size: 182 mm × 52 mm × 160 mm

Panel Size: 188 mm × 58 mm × 13 mm

1.4 kg (excluding accessories)

ENGLISH

Having TROUBLE with operation?

Please reset your unit

Refer to page of How to reset your unit

Dear Customer, This apparatus is in conformance with the valid European directives and standards regarding electromagnetic compatibility and electrical safety. European representative of Victor Company of Japan, Limited is: JVC Technology Centre Europe GmbH Postfach 10 05 52 61145 Friedberg Germany

1107DTSMDTJEIN

Jvc KD-G541 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
