JVC KD-G537 User manual

ENGLISHРУCCKИЙУКРАЇНА

CD RECEIVER

РЕСИВЕР С ПРОИГРЫВАТЕЛЕМ КОМПАКТ-ДИСКОВ ПРИЙМАЧ З ПРОГРАВАЧЕМ КОМПАКТ-ДИСКІВ

KD-G537

For installation and connections, refer to the separate manual. Указания по установке и выполнению соединений приводятся в отдельной инструкции. Вказівки по встановленню та виконанню підключень наведені у окремій інструкції.

INSTRUCTIONS

ИНСТРУКЦИИ ПО ЭКСПЛУАТАЦИИ

ІНСТРУКЦІЇ

GET0420-001A

[EE]

For canceling the display demonstration, see page 6. Информацию об отмене демонстрации функций дисплея см. на стр. 6. Інформацію щодо відміни демонстрації функцій дисплею див. на стор. 6.

В соответствии с Законом Российской Федерации “О защите прав потре бителей” срок службы (годности) данного товара “по истечении которого он может представлять опасность для жизни, здоровья потребителя, причинять вред его имуществу или окружающей среде” составляет семь (7) лет со дня производства. Этот срок является временем, в течение которого потребитель данного товара может безопасно им пользоваться при условии соблюдения ин струк ции по эксплуатации данного товара, проводя необходимое обслуживание, включающее замену расходных материалов и/или соответствующее ремонтное обеспечение в специализированном сервисном центре. Дополнительные косметические материалы к данному товару, поставляе мые вместе с ним, могут храниться в течение двух (2) лет со дня его производства. Срок службы (годности), кроме срока хранения дополнительных космети ческих материалов, упомянутых в предыдущих двух пунктах, не затрагивает никаких других прав потребителя, в частности, гарантийного свидетельства JVC, которое он может получить в соответствии с законом о правах потребителя или других законов, связанных с ним.

ENGLISH

How to reset your unit

• Your preset adjustments will also be erased.

How to forcibly eject a disc

“PLEASE” and “EJECT” appear alternately on the display.

• Be careful not to drop the disc when it ejects.

• If this does not work, reset your unit.

Thank you for purchasing a JVC product.

Please read all instructions carefully before operation, to ensure your complete understanding and to obtain the best

possible performance from the unit.

IMPORTANT FOR LASER PRODUCTS

1. CLASS 1 LASER PRODUCT

2. CAUTION: Do not open the top cover. There are no user serviceable parts inside the unit; leave all servicing to qualified service personnel.

3. CAUTION: Visible and/or invisible class 1M laser radiation when open. Do not view directly with optical instruments.

4. REPRODUCTION OF LABEL: CAUTION LABEL, PLACED OUTSIDE THE UNIT.

[European Union only]

Warning:

If you need to operate the unit while driving, be sure to look ahead carefully or you may be involved in a traffic accident.

Caution on volume setting:

Discs produce very little noise compared with other sources. Lower the volume before playing a disc to avoid damaging the speakers by the sudden increase of the output level.

ENGLISH

The following marks are used to indicate...

: Built-in CD player operations.

: External CD changer operations.

: Indicator displayed for the

corresponding operation.

Detaching the control panel

Attaching the control panel

How to use the M MODE button

If you press M MODE, the unit goes into functions mode, then the number buttons and 5/∞ buttons work as different function buttons.

To use these buttons for their original functions again after pressing M MODE, wait for 5 seconds

without pressing any of these buttons until the functions mode is cleared or press M MODE again.

CONTENTS

Control panel .................................. 4

Remote controller — RM-RK50 ............. 5

Getting started ................................ 6

Basic operations ................................................... 6

Radio operations ............................. 7

FM RDS operations ........................... 8

Searching for your favorite FM RDS programme

... 8

Disc operations ................................ 10

Playing a disc in the unit ...................................... 10

Playing discs in the CD changer ............................ 11

Sound adjustments .......................... 13

General settings — PSM .................. 14

DAB tuner operations ....................... 17

iPod/D. player operations ................. 19

Other external component

operations ................................... 21

Maintenance ................................... 22

More about this unit ........................ 23

Troubleshooting .............................. 26

Specifications .................................. 29

For safety...

• Do not raise the volume level too much, as this will block outside sounds, making driving dangerous.

• Stop the car before performing any complicated operations.

Temperature inside the car...

If you have parked the car for a long time in hot or cold weather, wait until the temperature in the car becomes normal before operating the unit.

Ex.: When number button 2 works as MO (monaural)

button.

ENGLISH

1 SRC (source) button 2 B BAND button 3

(standby/on attenuator) button /

Control dial

4 SEL (select) button 5 Display window 6 5 (up) / ∞ (down) buttons 7 T/P (traffic programme/programme type) button 8 Remote sensor

DO NOT expose the remote sensor to strong light (direct sunlight or artificial lighting).

9 0 (eject) button p

(control panel release) button

q D DISP (display) button w M MODE button e EQ (equalizer) button r MO (monaural) button t SSM (Strong-station Sequential Memory) button y Number buttons u RPT (repeat) button i RND (random) button

o 4 /¢ buttons ; AUX (auxiliary) input jack a S.BASS (super bass) indicator s Playback source indicators—

CH: Lights up only when CD-CH is selected as the

playback source.

DISC: Lights up for the built-in CD player.

d Disc information indicators—

TAG (Tag information), (folder), (track/file)

f RDS indicators—AF, REG, TP, PTY g Sound mode (iEQ: intelligent equalizer) indicators

—USER, ROCK, CLASSIC, POPS, HIP HOP, JAZZ

•

lights up for the selected item.

h Tuner reception indicators—MO (monaural),

ST (stereo)

j Playback mode / item indicators—RND (random),

(disc), (folder), RPT (repeat)

k EQ (equalizer) indicator l Main display / Tr (track) indicator z Source display / Time countdown indicator

Parts identification

Control panel

Display window

ENGLISH

Remote controller — RM-RK50

Installing the lithium coin battery

(CR2025)

Aim the remote controller directly at the remote sensor on the unit. Make sure there is no obstacle in between.

Warning:

• Do not install any battery other than CR2025 or its equivalent; otherwise, it may explode.

• Do not leave the remote controller in a place (such as dashboards) exposed to direct sunlight for a long time; otherwise, it may explode.

• Store the battery in a place where children cannot reach to avoid risk of accident.

• To prevent the battery from over-heating, cracking, or starting a fire:

– Do not recharge, short, disassemble, heat the

battery, or dispose of it in a fire.

– Do not leave the battery with other metallic

materials.

– Do not poke the battery with tweezers or similar

tools.

– Wrap the battery with tape and insulate when

throwing away or saving it.

Main elements and features

1 (standby/on/attenuator) button

• Turns the power on if pressed briefly or attenuates the sound when the power is on.

• Turns the power off if pressed and held.

2 5 U (up) / D (down) ∞ buttons

• Changes the FM/AM/DAB bands with 5 U.

• Changes the preset stations (or DAB services) with D ∞.

• Changes the folder of the MP3/WMA discs.

• While playing an MP3 disc on an MP3-compatible CD changer:

– Changes the disc if pressed briefly. – Changes the folder if pressed and held.

• While listening to an Apple iPod or a JVC D. player:

– Pauses/stops or resumes playback with D ∞. – Enters the main menu with 5 U. (Now 5 U/D ∞/2 R/F 3 work as the menu

selecting buttons.)*

3 VOL – / VOL + buttons

• Adjusts the volume level.

4 SOUND button

• Selects the sound mode (iEQ: intelligent equalizer).

5 SOURCE button

• Selects the source.

* 5 U : Returns to the previous menu. D ∞ : Confirms the selection.

Continued on the next page

ENGLISH

6 2 R (reverse) / F (forward) 3 buttons

• Searches for stations (or DAB services) if pressed briefly.

• Searches for DAB ensembles if pressed and held.

• Fast-forwards or reverses the track if pressed and held.

• Changes the tracks if pressed briefly.

• While listening to an iPod or a D. player (in menu selecting mode):

– Selects an item if pressed briefly. (Then, press

D ∞ to confirm the selection.)

– Skips 10 items at a time if pressed and held.

Getting started

Basic operations

~ Turn on the power.

* You cannot select these sources if they are not

ready or not connected.

• For FM/AM tuner

• For DAB tuner

⁄ Adjust the volume.

@ Adjust the sound as you want. (See

pages 13 and 14.)

To drop the volume in a moment (ATT)

To restore the sound, press the button again.

To turn off the power

Basic settings

• See also “General settings — PSM” on pages 14 – 17.

1 Canceling the display demonstrations Select “DEMO,” then “DEMO OFF.” 2 Setting the clock Select “CLOCK H” (hour), then adjust the hour. Select “CLOCK M” (minute), then adjust the

minute.

Select “24H/12H,” then “24H” (hour) or “12H”

(hour).

Volume level appears.

ENGLISH

3 Finish the procedure.

To check the current clock time while the power is turned off

Clock time is shown on the display for about 5 seconds. See also page 15.

Radio operations

! Start searching for a station.

When a station is received, searching stops. To stop searching, press the same button again.

Note:

FM1 and FM2: 87.5 MHz – 108.0 MHz FM3: 65.00 MHz – 74.00 MHz

To tune in to a station manually

In step ! above...

Lights up when receiving an FM stereo broadcast with sufficient signal strength.

2 Select a desired station frequency.

When an FM stereo broadcast is hard to receive

Reception improves, but stereo effect will be lost.

To restore the stereo effect, repeat the same procedure. “MONO OFF” appears and the MO indicator goes off.

Storing stations in memory

You can preset six stations for each band.

FM station automatic presetting —

SSM (Strong-station Sequential Memory)

1 Select the FM band (FM1 – FM3) you want to

store into.

“SSM” flashes, then disappears when automatic presetting is over.

Local FM stations with the strongest signals are searched and stored automatically in the FM band.

Lights up when monaural mode is activated.

ENGLISH

Manual presetting

Ex.: Storing FM station of 92.5 MHz into preset number

4 of the FM1 band.

Listening to a preset station

2 Select the preset station (1 – 6) you want.

To check the current clock time while listening to an FM (non-RDS) or AM station

• For FM RDS stations, see page 10.

Frequency Ô Clock

Preset number flashes for a while.

FM RDS operations

What you can do with RDS

RDS (Radio Data System) allows FM stations to send an additional signal along with their regular programme signals.

By receiving the RDS data, this unit can do the following:

• Programme Type (PTY) Search (see the following)

• TA (Traffic Announcement) and PTY Standby Receptions (see pages 9 and 15)

• Tracing the same programme automatically —Network-Tracking Reception (see page 10)

• Programme Search (see pages 10 and 15)

Searching for your favorite FM RDS programme

You can tune in to a station broadcasting your favorite programme by searching for a PTY code.

• To store your favorite programme types, see pae 9.

~ The last selected PTY code

appears.

Ÿ Select one of your favorite programme

types.

Select one of the PTY codes (see page 10).

ENGLISH

! Start searching for your favorite

programme.

If there is a station broadcasting a programme of the same PTY code as you have selected, that station is tuned in.

Storing your favorite programme

types

You can store six favorite programme types.

Preset programme types in the number buttons (1 to 6):

1 Select a PTY code (see steps ~ to ! on

pages 8 and 9).

2 Select the preset number (1 – 6) you want to

store into.

3 Repeat steps 1 and 2 to store other PTY

codes into other preset numbers.

4 Finish the procedure.

Ex.: When “ROCK M” is selected

Using the standby receptions

TA Standby Reception

TA Standby Reception allows the unit to switch temporarily to Traffic Announcement (TA) from any source other than AM. The volume changes to the preset TA volume level if

the

current level is lower than the preset level (see page 15).

To activate TA Standby Reception

The TP (Traffic Programme) indicator

either lights up or flashes.

• If the TP indicator lights up, TA Standby Reception is activated.

• If the TP indicator flashes, TA Standby Reception is not yet activated. (This occurs when you are listening to an FM station without the RDS signals required for TA Standby Reception.)

To activate TA Standby Reception, tune in to another

station providing these signals. The TP indicator will stop flashing and remain lit.

To deactivate the TA Standby Reception

The TP indicator goes off.

PTY Standby Reception

PTY Standby Reception allows the unit to switch temporarily to your favorite PTY programme from any source other than AM.

To activate and select your favorite PTY code for PTY Standby Reception, see page 15.

The PTY indicator either lights up or flashes.

• If the PTY indicator lights up, PTY Standby Reception is activated.

• If the PTY indicator flashes, PTY Standby Reception is not yet activated. To activate PTY Standby Reception, tune in to another station providing these signals. The PTY indicator will stop flashing and remain lit.

Continued on the next page

ENGLISH

To deactivate the PTY Standby Reception, select “OFF” for the PTY code (see page 15). The PTY indicator goes off.

Tracing the same programme—

Network-Tracking Reception

When driving in an area where FM reception is not sufficient enough, this unit automatically tunes in to another FM RDS station of the same network, possibly broadcasting the same programme with stronger signals (see the illustration below).

When shipped from the factory, Network-Tracking Reception is activated.

To change the Network-Tracking Reception setting, see “AF-REG” on page 15.

Programme A broadcasting on different frequency areas (01 – 05)

Automatic station selection—

Programme Search

Usually when you press the number buttons, the preset station is tuned in. If the signals from the FM RDS preset station are not sufficient for good reception, this unit, using the AF data, tunes in to another frequency broadcasting the same programme as the original preset station is broadcasting.

• The unit takes some time to tune in to another station using programme search.

• See also page 15.

To check the current clock time while listening to an FM RDS station

PTY codes

NEWS, AFFAIRS, INFO, SPORT, EDUCATE, DRAMA, CULTURE, SCIENCE, VARIED, POP M (music), ROCK M (music), EASY M (music), LIGHT M (music), CLASSICS, OTHER M (music), WEATHER, FINANCE, CHILDREN, SOCIAL, RELIGION, PHONE IN, TRAVEL, LEISURE, JAZZ, COUNTRY, NATION M (music), OLDIES, FOLK M (music), DOCUMENT

Disc operations

Playing a disc in the unit

All tracks will be played repeatedly until you change the source or eject the disc.

To stop play and eject the disc

• Press SRC to listen to another playback source.

Station name (PS) = Station Frequency = Programme type (PTY) = Clock = (back to

the beginning)

ENGLISH

Playing discs in the CD changer

All discs in the magazine will be played repeatedly until you change the source.

• Ejecting the magazine will also stop playback.

* If you have changed the external input setting

to “EXT IN” (see page 16), you cannot select the CD changer.

Ÿ Select a disc.

For disc number from 01 – 06:

For disc number from 07 – 12:

About MP3 and WMA discs

MP3 and WMA “tracks” (words “file” and “track” are used interchangeably) are recorded in “folders.”

About the CD changer

It is recommended to use a JVC MP3-compatible CD changer with your unit.

• You can also connect MP3-incompatible CD changers. However, these units are not compatible with MP3 discs.

• You cannot use the CH-X99, CH-X100, and KD-MK series CD changers with this unit.

• You cannot play any WMA disc in the CD changer.

• Disc text information recorded in the CD Text can be displayed when a JVC CD Text compatible CD changer is connected.

• For connection, see Installation/Connection Manual (separate volume).

To fast-forward or reverse the track

To go to the next or previous tracks

To go to the next or previous folders (only for MP3 or WMA discs)

For MP3 discs:

For WMA discs:

To locate a particular track (for CD) or folder (for MP3 or WMA discs) directly

To select a number from 01 – 06:

To select a number from 07 – 12:

• To use direct folder access on MP3/WMA discs, it is required that folders are assigned with 2-digit numbers at the beginning of their folder names— 01, 02, 03, and so on.

To select a particular track in a folder (for MP3 or

WMA discs):

ENGLISH

Changing the display information

While playing an audio CD or a CD Text

While playing an MP3 or a WMA

disc

• When “TAG DISP” is set to “TAG ON” (see page 16)

• When “TAG DISP” is set to “TAG OFF”

: Elapsed playing time with the current

track number

: Clock with the current track number

*1 If the current disc is an audio CD, “NO NAME” appears. *2 Only for the built-in CD player. *3 If an MP3/WMA file does not have Tag information,

folder name and file name appear. In this case, the TAG indicator will not light up.

Other main functions

Skipping tracks quickly during play

Only possible on JVC MP3-compatible CD changer

• For MP3 or WMA discs, you can skip tracks within the same folder.

Ex.: To select track 32 while playing a track whose

number is a single digit (1 to 9)

Each time you press the button, you can skip 10 tracks.

• After the last track, the first track will be selected and vice versa.

Prohibiting disc ejection

You can lock a disc in the loading slot.

To cancel the prohibition, repeat the same procedure.

ENGLISH

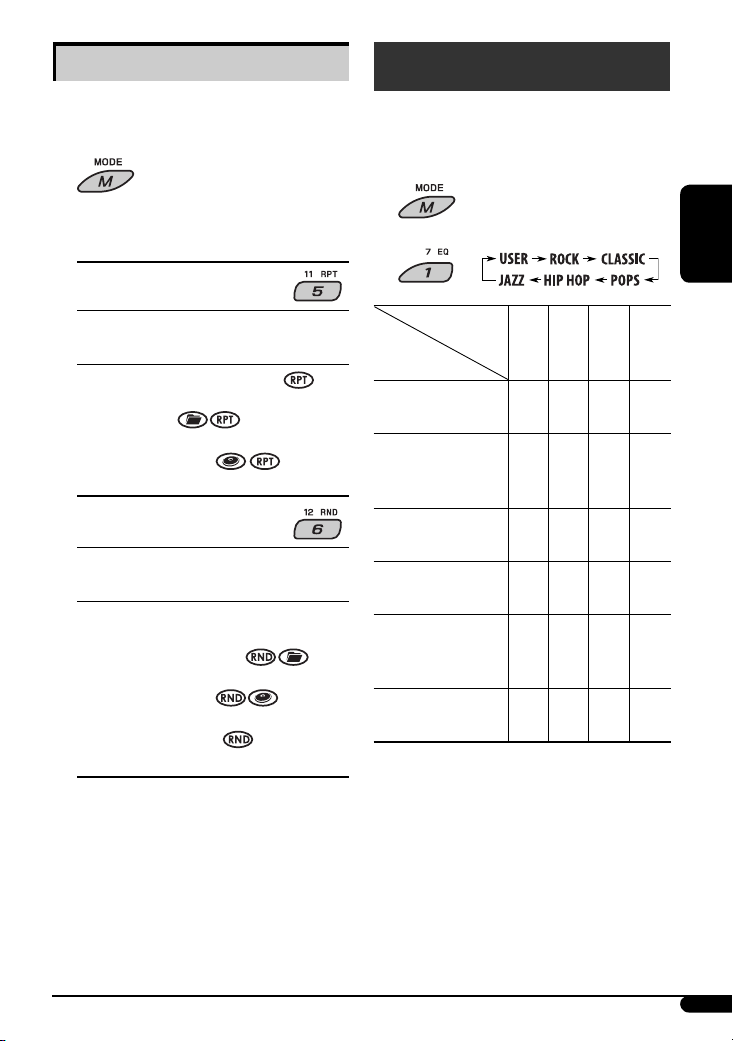

Sound adjustments

You can select a preset sound mode suitable to the music genre (iEQ: intelligent equalizer).

Indication (For)

BAS*1MID*2TRE*3S.BS*

USER

(Flat sound)

00 00 00 OFF

ROCK

(Rock or disco music)

+03 00 +02 ON

CLASSIC

(Classical music)

+01 00 +03 OFF

POPS

(Light music)

+02 +01 +02 OFF

HIP HOP

(Funk or rap music)

+04 –02 +01 ON

JAZZ

(Jazz music)

+03 00 +03 OFF

: Bass

*2 : Mid-range *3 : Treble *4 : Super bass

Selecting the playback modes

You can use only one of the following playback modes at a time.

2 Select your desired playback mode.

7 Repeat play

Mode Plays repeatedly

TRK RPT : The current track. FLDR RPT*1 : All tracks of the current folder.

DISC RPT*2 : All tracks of the current disc.

RPT OFF : Cancels.

7 Random play

Mode Plays at random

FLDR RND*1 : All tracks of the current folder,

then tracks of the next folder and so on.

DISC RND : All tracks of the current disc.

MAG RND*2 : All tracks of the inserted discs.

RND OFF : Cancels.

*1 Only while playing an MP3 or a WMA disc. *2 Only while playing discs in the CD changer.

Preset values

ENGLISH

General settings — PSM

You can change PSM (Preferred Setting Mode) items listed in the table that follows.

2 Select a PSM item.

3 Adjust the PSM item selected.

4 Repeat steps 2 and 3 to adjust other PSM

items if necessary.

5 Finish the procedure.

Adjusting the sound

You can adjust the sound characteristics to your preference.

Indication, [Range]

BAS*1 (bass), [–06 to +06]

Adjust the bass.

MID*1 (mid-range), [–06 to +06]

Adjust the mid-range frequencies sound level.

TRE*1 (treble), [–06 to +06]

Adjust the treble.

FAD*2 (fader), [R06 to F06]

Adjust the front and rear speaker balance.

BAL (balance), [L06 to R06] Adjust the left and right speaker balance.

S.BS*1 (super bass), [S.BS ON or S.BS OFF],

[01 to 05, initial: 03]*

Maintain the richness and fullness of the bass sound regardless of how low you set the volume.

VOL (volume), [00 to 30 or 50*4] Adjust the volume.

*1 When you adjust the bass, mid-range, treble, or super

bass, the adjustment you have made is stored for the currently selected sound mode (iEQ) including “USER.”

*2 If you are using a two-speaker system, set the fader

level to “00.”

*3 Range adjustment for super bass is adjustable only

when it is set to “S.BS ON.“

*4 Depending on the amplifier gain control setting. (See

page 16 for details.)

ENGLISH

Indications Item

( : Initial)

Setting, [reference page]

DEMO

Display demonstration

• DEMO ON

• DEMO OFF

: Display demonstration will be activated automatically if no

operation is done for about 20 seconds, [6].

: Cancels.

CLK DISP*

Clock display

• ON

• OFF

: Clock display is shown on the display even when the power is

turned off.

: Cancels; pressing D DISP will show the clock time for about

5 seconds when the power is turned off, [7].

CLOCK H

Hour adjustment

0 – 23 (1 – 12) [Initial: 0 (0:00)], [6].

CLOCK M

Minute adjustment

00 – 59 [Initial: 00 (0:00)], [6].

24H/12H

Time display mode

• 24H

• 12H

: See also page 6 for setting.

CLK ADJ*

Clock adjustment

• AUTO

• OFF

: The built-in clock is automatically adjusted using the CT (clock

time) data in the RDS signal.

: Cancels.

AF-REG*

Alternative frequency/ regionalization reception

• AF

• AF REG

• OFF

: When the currently received signals become weak, the unit

switches to another station (the programme may differ from the one currently received), [10, 18].

• The AF indicator lights up. : When the currently received signals become weak, the unit

switches to another station broadcasting the same programme.

• The AF and REG indicators light up. : Cancels (not selectable when “DAB AF“ is set to “AF ON“).

PTY-STBY*

PTY standby

OFF, PTY codes : Activates PTY Standby Reception with one of the PTY codes, [9].

TA VOL*

Traffic announcement volume

VOL 00 – VOL 30 or 50*

[Initial: VOL 15]

P-SEARCH*

Programme search

• ON

• OFF

: Activates Programme Search, [10]. : Cancels.

*1 If the power supply is not interrupted by turning off the ignition key of your car, it is recommended to select “OFF” to

save the car’s battery.

*2 Only for FM RDS stations. *3 Depends on the amplifier gain control.

Continued on the next page

ENGLISH

Indications Item

( : Initial)

Setting, [reference page]

DAB AF*

Alternative frequency reception

• AF ON

• AF OFF

: Traces the programme among DAB services and FM RDS

stations, [10, 18].

: Cancels.

DAB VOL*

DAB volume adjustment

VOL –12 — VOL +12 : [Initial: VOL 00]; You can adjust the volume level of DAB tuner

to match the FM sound level and store it in memory.

DIMMER

Dimmer

• AUTO

• ON

• OFF

: Dims the display when you turn on the headlights. : Activates dimmer. : Cancels.

TEL

Telephone Muting

• MUTING 1/ MUTING 2

• OFF

: Selects either one which mutes the sound while using a cellular

phone.

: Cancels.

SCROLL*

Scroll

• ONCE

• AUTO

• OFF

: Scrolls the track information once. : Repeats scrolling (at 5-second intervals). : Cancels.

• Pressing D DISP for more than one second can scroll the display regardless of the setting.

EXT IN*

External input

• CHANGER

• EXT IN

: To use a JVC CD changer, [11], an Apple iPod or a JVC D. player,

[19].

: To use any other external component, [21].

AUX ADJ

Auxiliary input level adjustment

A.ADJ 00 — A.ADJ 05 : Adjust the auxiliary input level to avoid the sudden increase

of the output level when changing the source from external component connected to the AUX input jack on the control panel.

TAG DISP

Tag display

• TAG ON

• TAG OFF

: Shows the Tag information while playing MP3/WMA tracks,

[12].

: Cancels.

AMP GAIN

Amplifier gain control

• LOW PWR

• HIGH PWR

: VOL 00 – VOL 30 (Select this if the maximum power of the

speaker is less than 50 W to prevent damaging the speaker.)

: VOL 00 – VOL 50

*4 Displayed only when DAB tuner is connected. *5 Some characters or symbols will not be shown correctly (or will be blanked) on the display. *6 Not required for JVC DAB tuner. Displayed only when one of the following sources is selected—FM, AM, DAB, CD, or

AUX IN.

ENGLISH

Indications Item

( : Initial)

Setting, [reference page]

IF BAND

Intermediate frequency band

• AUTO

• WIDE

: Increases the tuner selectivity to reduce interference noises

between close stations. (Stereo effect may be lost.)

: Subject to interference noises from adjacent stations, but

sound quality will not be degraded and the stereo effect will remain.

DAB tuner operations

What is DAB system?

Digital Audio Broadcasting (DAB) can deliver digital quality sound without any annoying interference and signal distortion. Furthermore, it can carry text, pictures, and data. When transmitting, DAB combines several programmes (called “services”) to form one “ensemble.” In addition, each “service”—called “primary service”—can also be divided into its components (called “secondary service”). A typical ensemble has six or more programmes (services) broadcast at the same time. By connecting the DAB tuner, this unit can do the following:

• Tracing the same programme automatically —Alternative Frequency Reception (see “DAB AF” on page 16).

It is recommended to use DAB tuner KT-DB1000 with your unit. If you have another DAB tuner, consult your JVC IN-CAR ENTERTAINMENT dealer.

• Refer also to the Instructions supplied for your DAB tuner.

! Start searching for an ensemble.

When an ensemble is received, searching stops. To stop searching, press the same button again.

⁄ Select a service (either primary or

secondary) to listen to.

Continued on the next page

ENGLISH

To tune in to an ensemble manually

Start searching for an ensemble, as in step ! on page 17...

2 Select a desired ensemble frequency.

Storing DAB services in memory

You can preset six DAB services (primary) for each band.

1 Select a service you want (see steps ~ to ⁄

on page 17).

2 Select the preset number (1 – 6) you want to

store into.

Tuning in to a preset DAB service

2 Select the preset DAB service (primary)

number (1 – 6) you want.

If the selected primary service has some secondary services, pressing the same button again will tune in to the secondary services.

Tracing the same programme — Alternative Frequency Reception

You can keep listening to the same programme by activating the Alternative Frequency Reception.

• While receiving a DAB service:

When driving in an area where a service cannot be

received, this unit automatically tunes in to another ensemble or FM RDS station, broadcasting the same programme.

• While receiving an FM RDS station:

When driving in an area where a DAB service is

broadcasting the same programme as the FM RDS station is broadcasting, this unit automatically tunes in to the DAB service.

When shipped from the factory, Alternative Frequency Reception is activated.

To deactivate the Alternative Frequency Reception, see page 16.

To change the display information while tuning to an ensemble

Service name = Ensemble name = Channel number = Frequency = Clock = (back to

the beginning)

Preset number flashes for a while.

ENGLISH

iPod / D. player operations

This unit is ready for operating an Apple iPod or a JVC D. player from the control panel.

Before operating your iPod or D. player: Connect either one of the following (separately purchased) to the CD changer jack on the rear of this unit.

• Interface adapter for iPod—KS-PD100 for controlling an iPod.

• D. player interface adapter—KS-PD500 for controlling a D. player.

• For connection, see Installation/Connection Manual (separate volume).

• For details, refer also to the manual supplied with the interface adapter.

Preparations:

Make sure “CHANGER” is selected for the external input setting, see page 16.

Playback starts automatically from where it has been paused*1 or stopped*2 previously.

! Adjust the volume.

⁄ Adjust the sound as you want. (See

pages 13 and 14.)

• Make sure the equalizer on the iPod or D. player is deactivated.

To pause*1 or stop*2 playback

To resume playback, press the button again.

To fast-forward or reverse the track

To go to the next or previous tracks

*1 For iPod *2 For D. player

ENGLISH

Selecting the playback modes

2 Select your desired playback mode.

7 Repeat play

ONE RPT Functions the same as “Repeat One” of the iPod or “Repeat Mode = One” for the D. player.

ALL RPT Functions the same as “Repeat All” of the iPod or “Repeat Mode = All” for the D. player.

RPT OFF

Cancels.

7 Random play

ALBM RND* Functions the same as “Shuffle Albums” of the iPod.

SONG RND/RND ON Functions the same as “Shuffle Songs” of the iPod or “Random Play = On” of the D. player.

RND OFF

Cancels.

* For iPod: Functions only if you select “ALL” in

“ALBUMS” of the main “MENU.”

To check other information while listening to an iPod or a D. player

Selecting a track from the menu

1 Enter the main menu.

Now the 5/∞/

4 /¢ buttons work

as the menu selecting buttons*.

* The menu selecting mode will be canceled: – If no operations are done for about 5 seconds. – When you confirm the selection of a track.

2 Select the desired menu.

3 Confirm the selection.

• To move back to the previous menu, press 5.

• If a track is selected, playback starts automatically.

• If the selected item has another layer, you will enter the layer. Repeat steps 2 and 3 until the desired track is played.

• Holding 4 /¢ can skip 10 items at a time.

For iPod: PLAYLIST Ô ARTISTS Ô ALBUMS Ô SONGS Ô GENRES Ô COMPOSER Ô (back

to the beginning)

For D. player: PLAYLIST Ô ARTIST Ô ALBUM Ô GENRE

Ô TRACK Ô (back to the beginning)

ENGLISH

Other external component operations

You can connect an external component to...

• CD changer jack on the rear using the Line Input

Adapter—KS-U57 (not supplied) or AUX Input Adapter—KS-U58 (not supplied) for any other

components (except iPod and D. player).

• AUX (auxiliary) input jack on the control panel.

For connection, see Installation/Connection Manual (separate volume). For listening to the JVC DAB tuner, iPod, or D. player, see pages 17 – 20.

Connecting an external component to the AUX input jack

~ For selecting the external component

connected to...

• AUX input jack

• CD changer jack on the rear using KS-U57 or KS-U58

If “EXT IN” does not appear, see page 16 and

select the external input (“EXT IN”).

Ÿ Turn on the connected component and

start playing the source.

! Adjust the volume.

⁄ Adjust the sound as you want. (See

pages 13 and 14.)

To check other information while listening to an external component

AUX IN or EXT IN Ô Clock

ENGLISH

To keep discs clean

A dirty disc may not play correctly. If a disc does become dirty, wipe it with a soft cloth in a straight line from center to edge.

• Do not use any solvent (for example, conventional record cleaner, spray, thinner, benzine, etc.) to clean discs.

To play new discs

New discs may have some rough spots around the inner and outer edges. If such a disc is used, this unit may reject the disc. To remove these rough spots, rub the edges with a pencil or ball-point pen, etc.

Maintenance

How to clean the connectors

Frequent detachment will deteriorate the connectors. To minimize this possibility, periodically wipe the connectors with a cotton swab or cloth moistened with alcohol, being careful not to damage the connectors.

Moisture condensation

Moisture may condense on the lens inside the unit in the following cases:

• After starting the heater in the car.

• If it becomes very humid inside the car. Should this occur, the unit may malfunction. In this case, eject the disc and leave the unit turned on for a few hours until the moisture evaporates.

How to handle discs

When removing a disc from its case, press down the center holder

of the case and lift the disc out, holding it by the edges.

• Always hold the disc by the edges. Do not touch its recording surface.

When storing a disc into its case, gently insert the disc around the center holder (with the printed surface facing up).

• Make sure to store discs into the cases after use.

Connector

Warped disc

Sticker

Sticker residue

Stick-on label

Do not use the following discs:

Unusual shape

Single CD (8 cm disc)

Center holder

ENGLISH

• When Alternative Frequency Reception is activated (with AF selected), Network-Tracking Reception is also activated automatically. On the other hand, Network-Tracking Reception cannot be deactivated without deactivating Alternative Frequency Reception. (See pages 15 and 16.)

• If you want to know more about RDS, visit <http://www.rds.org.uk>.

Disc operations

Caution for DualDisc playback

• The Non-DVD side of a “DualDisc” does not comply with the “Compact Disc Digital Audio” standard. Therefore, the use of Non-DVD side of a DualDisc on this product may not be recommended.

General

• This unit has been designed to reproduce CDs/CD Texts, and CD-Rs (Recordable)/CD-RWs (Rewritable) in audio CD (CD-DA), MP3 and WMA formats.

• When a disc is inserted upside down, “PLEASE” and “EJECT” appear alternately on the display. Press 0 to eject the disc.

• While fast-forwarding or reversing on an MP3 or WMA disc, you can only hear intermittent sounds.

Playing a CD-R or CD-RW

• Use only “finalized” CD-Rs or CD-RWs.

• This unit can play back only files of the same type which are first detected if a disc includes both audio CD (CD-DA) files and MP3/WMA files.

• This unit can play back multi-session discs; however, unclosed sessions will be skipped while playing.

• Some CD-Rs or CD-RWs may not play back on this unit because of their disc characteristics, or for the following reasons: – Discs are dirty or scratched. – Moisture condensation occurs on the lens inside

the unit.

– The pickup lens inside the unit is dirty.

More about this unit

Basic operations

Turning on the power

• By pressing SRC on the unit, you can also turn on the power. If the source is ready, playback also starts.

Turning off the power

• If you turn off the power while listening to a track, playback will start from where playback has been stopped previously, next time you turn on the power.

Tuner operations

Storing stations in memory

• During SSM search... – All previously stored stations are erased and

stations are stored newly.

– Received stations are preset in No. 1 (lowest

frequency) to No. 6 (highest frequency).

– When SSM is over, the station stored in No. 1 will

be automatically tuned in.

• When storing a station manually, the previously preset station is erased when a new station is stored in the same preset number.

FM RDS operations

• Network-Tracking Reception requires two types of RDS signals—PI (Programme Identification) and AF (Alternative Frequency) to work correctly. Without receiving these data correctly, Network-Tracking Reception will not operate correctly.

• If a Traffic Announcement is received by TA Standby Reception, the volume level automatically changes to the preset level (TA VOL) if the current level is lower than the preset level.

Continued on the next page

ENGLISH

– CD-R/CD-RW on which the files are written with

“Packet Write” method.

– There are improper recording conditions (missing

data, etc.) or media conditions (stained, scratched, warped, etc.).

• CD-RWs may require a longer readout time since the reflectance of CD-RWs is lower than that of regular CDs.

• Do not use the following CD-Rs or CD-RWs: – Discs with stickers, labels, or a protective seal stuck

to the surface.

– Discs on which labels can be directly printed by an

ink jet printer.

Using these discs under high temperatures or high

humidities may cause malfunctions or damage to the unit.

Playing an MP3/WMA disc

• This unit can play back MP3/WMA files with the extension code <.mp3> or <.wma> (regardless of the letter case—upper/lower).

• This unit can show the names of albums, artists (performer), and Tag (Version 1.0, 1.1, 2.2, 2.3, or

2.4) for MP3 files and for WMA files.

• This unit can display only one-byte characters. No other characters can be correctly displayed.

• This unit can play back MP3/WMA files meeting the conditions below: – Bit rate: 8 kbps — 320 kbps – Sampling frequency: 48 kHz, 44.1 kHz, 32 kHz (for MPEG-1) 24 kHz, 22.05 kHz, 16 kHz (for MPEG-2) – Disc format: ISO 9660 Level 1/Level 2, Romeo,

Joliet, Windows long file name

• The maximum number of characters for file/folder names vary among the disc format used (includes 4 extension characters—<.mp3> or <.wma>). – ISO 9660 Level 1: up to 12 characters – ISO 9660 Level 2: up to 31 characters – Romeo: up to 128 characters – Joliet: up to 64 characters – Windows long file name: up to 128 characters

• This unit can play back files recorded in VBR (variable bit rate).

Files recorded in VBR have a discrepancy in elapsed

time display, and do not show the actual elapsed time. Especially, after performing the search function, this difference becomes noticeable.

• This unit can recognize a total of 512 files, of 200 folders, and of 8 hierarchies.

• This unit cannot play back the following files: – MP3 files encoded with MP3i and MP3 PRO format. – MP3 files encoded in an inappropriate format. – MP3 files encoded with Layer 1/2. – WMA files encoded with lossless, professional, and

voice format.

– WMA files which are not based upon Windows

Media® Audio. – WMA files copy-protected with DRM. – Files which have the data such as AIFF, ATRAC3,

etc.

• The search function works but search speed is not constant.

Changing the source

• If you change the source, playback also stops.

Next time you select “CD” for the playback source,

disc play starts from where it has been stopped previously.

Ejecting a disc

• If the ejected disc is not removed within 15 seconds, the disc is automatically inserted again into the loading slot to protect it from dust. Playback starts automatically.

• After ejecting a disc, “NO DISC” appears and you cannot operate some of the buttons. Insert another disc or press SRC to select another playback source.

ENGLISH

Notice:

When connecting an iPod or a D. player, some operations may not be performed correctly or as intended. In this case, visit the following JVC web site: For iPod users: <http://www.jvc.co.jp/english/

car/support/ks-pd100/index.html>

For D. player users: <http://www.jvc.co.jp/

english/car/support/ks-pd500/index.html>

Available characters on the display

Available characters

Display indications

General settings—PSM

• “AUTO” setting for “DIMMER” may not work correctly on some vehicles, particularly on those having a control dial for dimming.

In this case, change “DIMMER” setting to any other

than “AUTO.”

• If you change the “AMP GAIN” setting from “HIGH PWR” to “LOW PWR” while the volume level is set higher than “VOL 30,” the unit automatically changes the volume level to “VOL 30.”

DAB tuner operations

• Only primary DAB services can be presetted even when you store a secondary service.

• A previously preset DAB service is erased when a new DAB service is stored in the same preset number.

iPod or D. player operations

• When you turn on this unit, the iPod or D. player is charged through this unit.

• While the iPod or D. player is connected, all operations from the iPod or D. player are disabled. Perform all operations from this unit.

• The text information may not be displayed correctly. – Some characters such as accented letters cannot be

shown correctly on the display.

– Depends on the condition of communication

between the iPod or D. player and the unit.

• If the text information includes more than 8 characters, it scrolls on the display. This unit can display up to 40 characters.

ENGLISH

Troubleshooting

What appears to be trouble is not always serious. Check the following points before calling a service center.

Symptoms Remedies/Causes

General

• Sound cannot be heard from the speakers. • Adjust the volume to the optimum level.

• Check the cords and connections.

• The unit does not work at all. Reset the unit (see page 2).

FM/AM

• SSM automatic presetting does not work. Store stations manually.

• Static noise while listening to the radio. Connect the aerial firmly.

Disc playback

• Disc cannot be played back. Insert the disc correctly.

• CD-R/CD-RW cannot be played back.

• Tracks on the CD-R/CD-RW cannot be skipped.

• Insert a finalized CD-R/CD-RW.

• Finalize the CD-R/CD-RW with the component which you used for recording.

• Disc can neither be played back nor ejected. • Unlock the disc (see page 12).

• Eject the disc forcibly (see page 2).

• Disc sound is sometimes interrupted. • Stop playback while driving on rough roads.

• Change the disc.

• Check the cords and connections.

• “NO DISC” appears on the display. Insert a playable disc into the loading slot.

MP3/WMA playback

• Disc cannot be played back. • Use a disc with MP3/WMA tracks recorded in the format compliant with ISO 9660 Level 1, Level 2, Romeo, or Joliet.

• Add the extension code <.mp3> or <.wma> to the file names.

• Noise is generated. Skip to another track or change the disc. (Do not add the extension code <.mp3> or <.wma> to non-MP3 or WMA tracks.)

• A longer readout time is required (“CHECK”

keeps flashing on the display).

Do not use too many hierarchies and folders.

+ 60 hidden pages
