JVC KD-DV6201, KD-DV6202 User Manual

DVD/CD RECEIVER

RECEPTEUR DVD/CD

KD-DV6202/KD-DV6201

For canceling the display demonstration, see page 5. Pour annuler la démonstration des affichages, référez-vous à la page 5.

ENGLISH

FRANÇAIS

For installation and connections, refer to the separate manual. Pour l’installation et les raccordements, se référer au manuel séparé.

INSTRUCTIONS

MANUEL D’INSTRUCTIONS

GET0378-003A

[EU]

Thank you for purchasing a JVC product.

Please read all instructions carefully before operation, to ensure your complete understanding and to

obtain the best possible performance from the unit.

IMPORTANT FOR LASER PRODUCTS

1. CLASS 1 LASER PRODUCT

ENGLISH

2. CAUTION: Do not open the top cover. There are no user serviceable parts inside the unit; leave all servicing to qualified service personnel.

3. CAUTION: Visible and invisible laser radiation when open and interlock failed or defeated. Avoid direct exposure to beam.

4. REPRODUCTION OF LABEL: CAUTION LABEL, PLACED OUTSIDE THE UNIT.

This product incorporates copyright protection technology that is protected by U.S. patents and other intellectual property rights. Use of this copyright protection technology must be authorized by Macrovision, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision. Reverse engineering or disassembly is prohibited.

How to use functions mode

If you press MODE, the unit goes into functions mode, then the number buttons and 5/∞ buttons work as different function buttons.

[Within 5 seconds...]

How to reset your unit

• Your preset adjustments will also be erased.

How to forcibly eject a disc

“PLEASE” and “EJECT” appear alternately on the display.

• If this does not work, reset your unit.

• Be careful not to drop the disc when it

ejects.

WARNINGS: To prevent accidents and damage

• DO NOT install any unit in locations where; – it may obstruct the steering wheel and

gearshift lever operations.

– it may obstruct the operation of safety devices

such as air bags.

– it may obstruct visibility.

• DO NOT operate the unit while driving.

• If you need to operate the unit while driving, be sure to look ahead carefully.

• The driver must not watch the monitor while driving.

If the parking brake is not engaged, “DRIVER

MUST NOT WATCH THE MONITOR WHILE DRIVING.” appears on the monitor, and no playback picture will be shown. – This warning appears only when the parking

brake wire is connected to the parking brake system built in the car (refer to the Installation/ Connection Manual).

For safety...

• Do not raise the volume level too much, as this will block outside sounds, making driving dangerous.

• Stop the car before performing any complicated operations.

Temperature inside the car...

If you have parked the car for a long time in hot or cold weather, wait until the temperature in the car becomes normal before operating the unit.

CONTENTS

Introduction ............................................. 4

OPERATIONS

Basic operations

• Control panel .......................................... 6

• Remote controller (RM-RK230) ................ 7

Listening to the radio ................................ 10

Searching for FM RDS programmes

— PTY Search ....................................... 11

Disc operations ......................................... 13

EXTERNAL DEVICES

Listening to the USB memory ..................... 21

Listening to the CD changer ....................... 22

Listening to the DAB tuner ......................... 23

Listening to the iPod®/D. player ................. 24

Listening to the other external

components .......................................... 25

Dual Zone operations ................................ 26

SETTINGS

Selecting a preset sound mode ................... 27

General settings — PSM ........................... 28

Disc setup menu ........................................ 31

Assigning names to the sources .................. 33

Maintenance ............................................ 34

More about this unit ................................. 35

Troubleshooting ....................................... 40

Specifications ........................................... 44

ENGLISH

Introduction

Disc type Recording format, file type, etc Playable

DVD DVD-Video

ENGLISH

DVD Recordable/Rewritable (DVD-R*1/-RW, +R/+RW*2)

DVD-RAM All

Dual Disc DVD side

CD/VCD Audio CD (CD-DA), DTS-CD

CD Recordable/Rewritable (CD-R/-RW)

• Compliant to ISO 9660 level 1, level 2, Romeo, Joliet

*1 DVD-R recorded in multi-border format is also playable (except for dual layer discs).

It is possible to play back finalized +R/+RW (Video mode only) discs. However, the use of +R double layer disc on this unit is not

recommended.

Caution for DualDisc playback

The Non-DVD side of a “DualDisc” does not comply with the “Compact Disc Digital Audio” standard. Therefore, the use of Non-DVD side of a DualDisc on this product may not be recommended.

Caution on volume setting

Discs produce very little noise compared with other sources. Lower the volume before playing a disc to avoid damaging the speakers by the sudden increase of the output level.

DVD-Audio

DVD-ROM

DVD-Video

DivX Video

MPEG-1/MPEG-2 Video

MP3/WMA/WAV

JPEG

DVD-VR, +VR

Non-DVD side

VCD (Video CD)

CD-Text

CD-ROM

CD-I (CD-I Ready)

CD-DA, DTS-CD

DivX Video, VCD (Video CD)

MPEG-1/MPEG-2 Video

MP3/WMA/WAV

JPEG

Note on Region Code:

DVD players and DVD-Video discs have their own Region Code numbers. This unit can only play back DVD discs whose Region Code numbers include “2.”

If you insert a DVD-Video disc of an incorrect Region Code

“REGION CODE ERROR!” appears on the monitor.

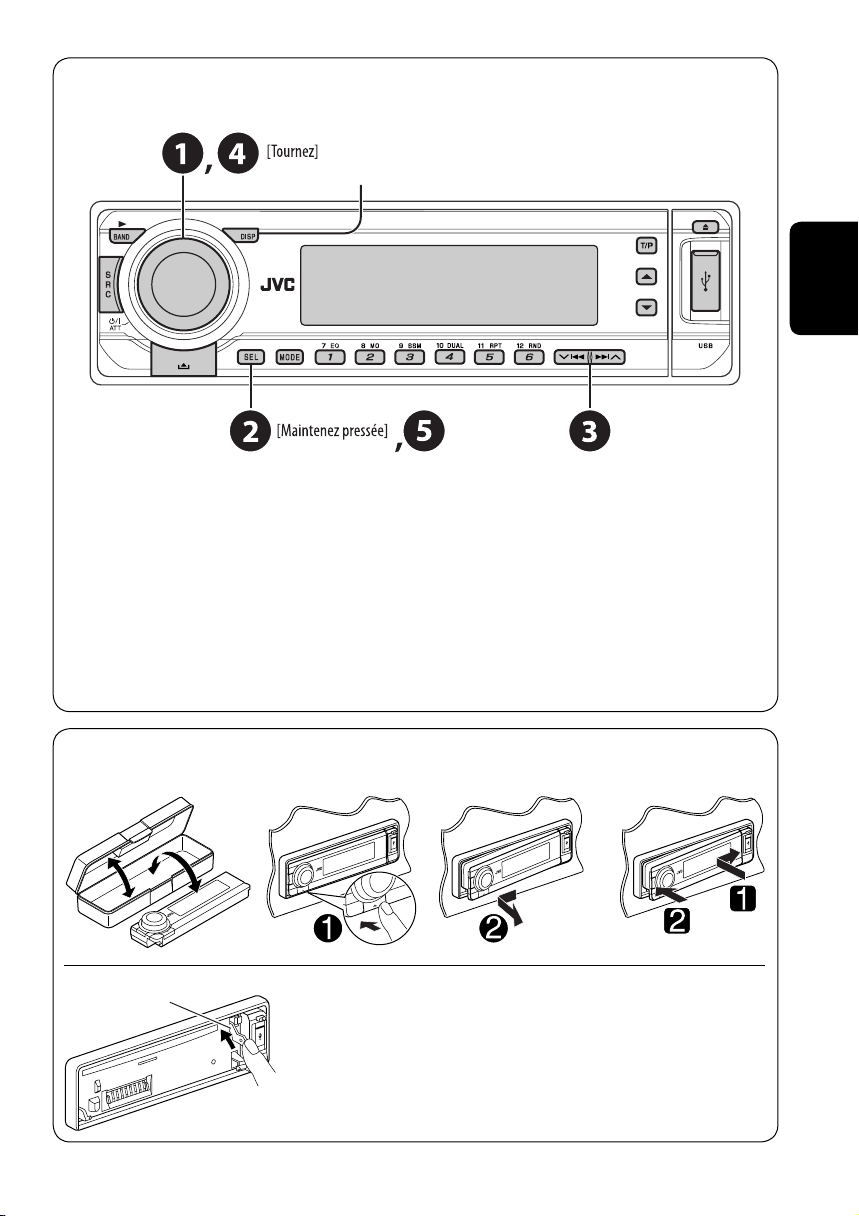

Before operating the unit — Cancel the display demonstration and set the clock

• See also page 29.

When the power is turned off: Check the current clock time When the power is turned on: Change the display information

~ Turn on the power. Ÿ Enter the PSM settings. ! ] ⁄ Cancel the display demonstrations

Select “DEMO,” then “DEMO OFF.”

Select “CLOCK H” (hour), then adjust the hour. Select “CLOCK M” (minute), then adjust the minute.

Select “24H/12H,” then “24H” (hour) or “12H” (hour).

Set the clock

ENGLISH

@ Finish the procedure.

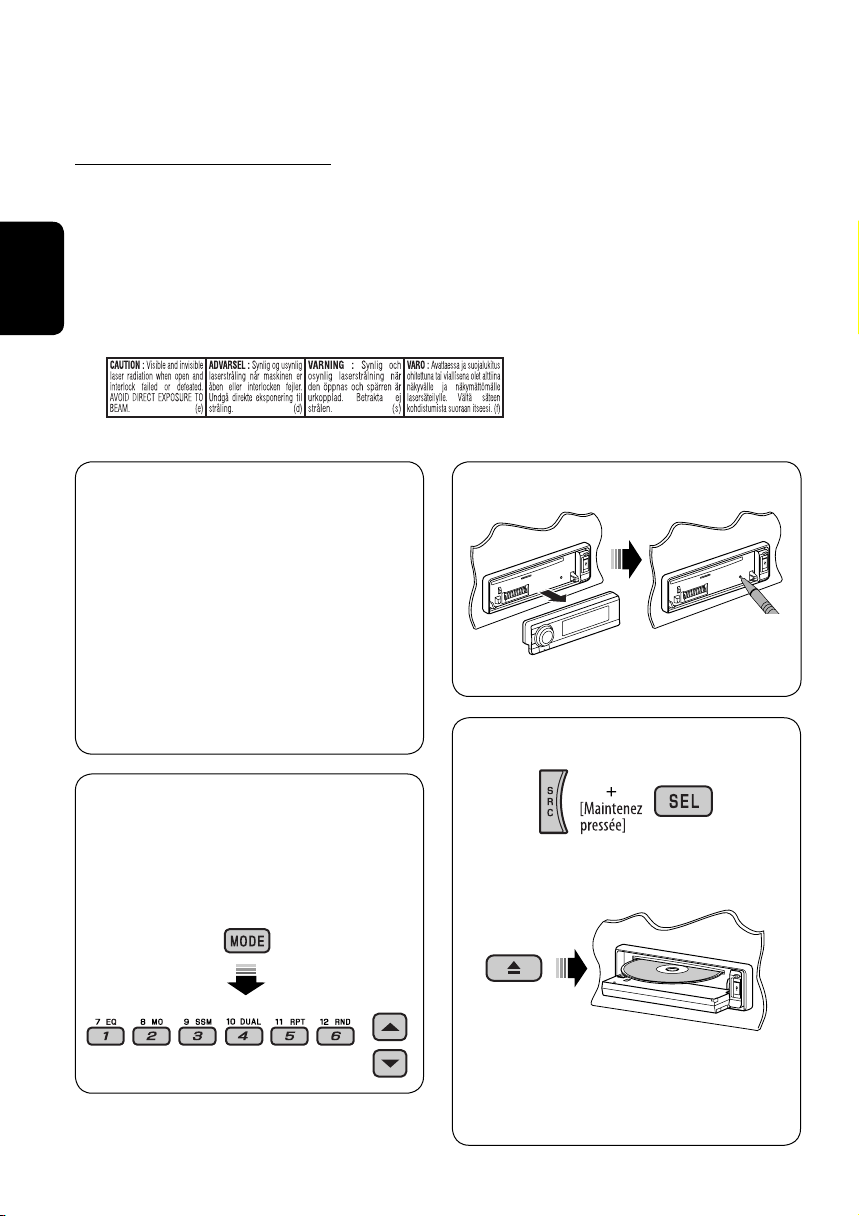

How to detach/attach the control panel

Detaching... Attaching...

Lever

CAUTION:

The lever comes out if you pressed the 0 button while the panel is detached. If this happens, push the lever back into lock position before attaching the panel.

Basic operations — Control panel

Select the source.

FM/AM = DAB* =DISC* = USB* = CD-CH*/IPOD*/D.PLAYER* (or EXT IN) = LINE IN =

ENGLISH

(back to the beginning)

* You cannot select these sources if they are not ready.

• FM/AM/DAB: Select the bands.

• DISC: Start playback.

Change the display information

Detach the panel.

• FM/AM/DAB: Select preset station/

• DISC: Select chapter/title/folder/

• Turn on the power.

• Turn off the power [Hold].

• Attenuate the sound (if the power is on).

• Volume control [Turn]

Display window

service.

track/disc (for CD changer).

USB input terminal

Activate/deactivate TA Standby Reception.

Hold to enter RDS programme search.

Eject disc.

Adjust the sound mode.

Hold to enter the PSM settings.

Enter functions mode.

Press MODE, then one of the following buttons (within 5 seconds)...

EQ: Select the sound mode. MO: Turn on/off monaural reception. SSM: Automatic station presetting. DUAL: Activate/deactivate Dual Zone. RPT: Select repeat play. RND: Select random play.

5/∞: Skip 10 chapters/tracks.

• FM/AM/DAB: Search for station/service.

• DISC: Select chapter/track.

• IPOD/D.PLAYER: Select track.

• DISC: Select title/folder.

• IPOD/D.PLAYER: Enter the main menu/Pause or stop playback/Confirm selection.

• DAB: Select service.

Display window

Track information indicators

Main display

(Time, menu, playback information)

Source display/Preset No./ Track No./Folder No./Disc No./ Chapter No./Channel No.

RDS indicators

Disc type indicators

Playback source indicators

Tuner reception indicators

Equalizer indicator

Dual Zone indicator

Sound mode indicators

• also functions as level meter (see also page 29).

Basic operations — Remote controller (RM-RK230)

Installing the lithium coin battery (CR2025)

Before using the remote controller:

• Aim the remote controller directly at the remote sensor on the unit.

• DO NOT expose the remote sensor to bright light (direct sunlight or artificial lighting).

Warning: To prevent accidents and damage

• Do not install any battery other than CR2025 or its equivalent.

• Store the battery in a place where children cannot reach.

• Do not recharge, short, disassemble, heat the battery, or dispose of it in a fire.

• Do not leave the battery with other metallic materials.

• Do not poke the battery with tweezers or similar tools.

• Wrap the battery with tape and insulate when throwing away or saving it.

Loudness indicator

ENGLISH

Track indicator

Playback mode/item indicators (Random/Repeat)

Remote sensor

The unit is equipped with the steering wheel remote control function.

• See the Installation/Connection Manual (separate volume) for connection.

Continued on the next page

OPERATIONS

IMPORTANT:

If Dual Zone is activated (see page 26), the remote controller only functions for operating the DVD/CD player.

ENGLISH

MONITOR CONTROL

1 Monitor control buttons

• Used for a JVC monitor—KV-MR9010, KV-MH6510, KV-M706, or KV-M705.

DVD/RECEIVER CONTROL

2 Turns on/off the power.

• Attenuates the sound if the power is on.

3 Selects the source. 4 Selects the FM/AM/DAB bands.

• DVD-Video/DivX: Shows disc menu.

• VCD: Starts PBC playback.

6 Activates or deactivates Dual Zone.

7 Adjusts the volume level.

• Also function as 2nd VOL when pressed with SHIFT button (see page 26)

8*1 Enters disc setup menu. 9 SHIFT button p 7 (stop), 3 (play), 8 (pause)

• 3 (play) also function as ZOOM button when pressed with SHIFT button (see page 16).

•

Not applicable for CD changer/iPod/ D. player operations.

q*2 For advanced disc operations:

•

/TITLE 5 / ∞

DVD-Video: Selects the titles.

DivX/MPEG Video/MP3/WMA/WAV: Selects the folders if included.

• 4 / ¢: Reverse skip/forward skip.

• 1 / ¡: Reverse search/forward search.

For FM/AM tuner operations:

• PRESET 5 / ∞

Changes the preset stations.

• 4 / ¢

Searches for the stations.

For DAB tuner operations:

• PRESET 5 / ∞

Changes the preset services.

• 4 / ¢

Changes the service if pressed briefly. Searches ensembles if pressed and held.

For Apple iPod

operations:

• 5 / ∞

∞: Pauses/stops or resumes playback. 5: Enters the main menu. (Now 5/∞/4 / ¢ work as the

menu selecting buttons.)*

• 4 / ¢ (in menu selecting mode)

– Selects an item if pressed briefly.

(Then, press ∞ to confirm the selection.)

– Skips 10 items at a time if pressed and

held.

• 4 / ¢

Press: Reverse skip/forward skip. Hold: Reverse search/forward search.

/JVC D. player

w • Shows the on-screen bar.

• Also function as the

/TITLE button when pressed with SHIFT button (see pages 15 and 16).

• DVD-Video/DivX: Shows disc menu.

• VCD: Starts PBC playback.

• Makes selection/settings.

• @ / #: DivX: Searches for index during play.

• DISC +/– buttons: Changes discs when the source is “CD-CH.”

RETURN button

y • DVD-Video: Selects audio language

(

), subtitles ( ), angle ( ).

• DivX: Selects audio language ( subtitles (

• VCD: Selects audio channel (

Functions as number buttons when pressed

with SHIFT button.

–

FM/AM/DAB: Selects preset stations/

services.

–

DISC: Selects chapter/title/folder/track.

Functions as +10/–10/+100/–100 buttons

when pressed with SHIFT button.

5 : Returns to the previous menu.

∞ : Confirms the selection.

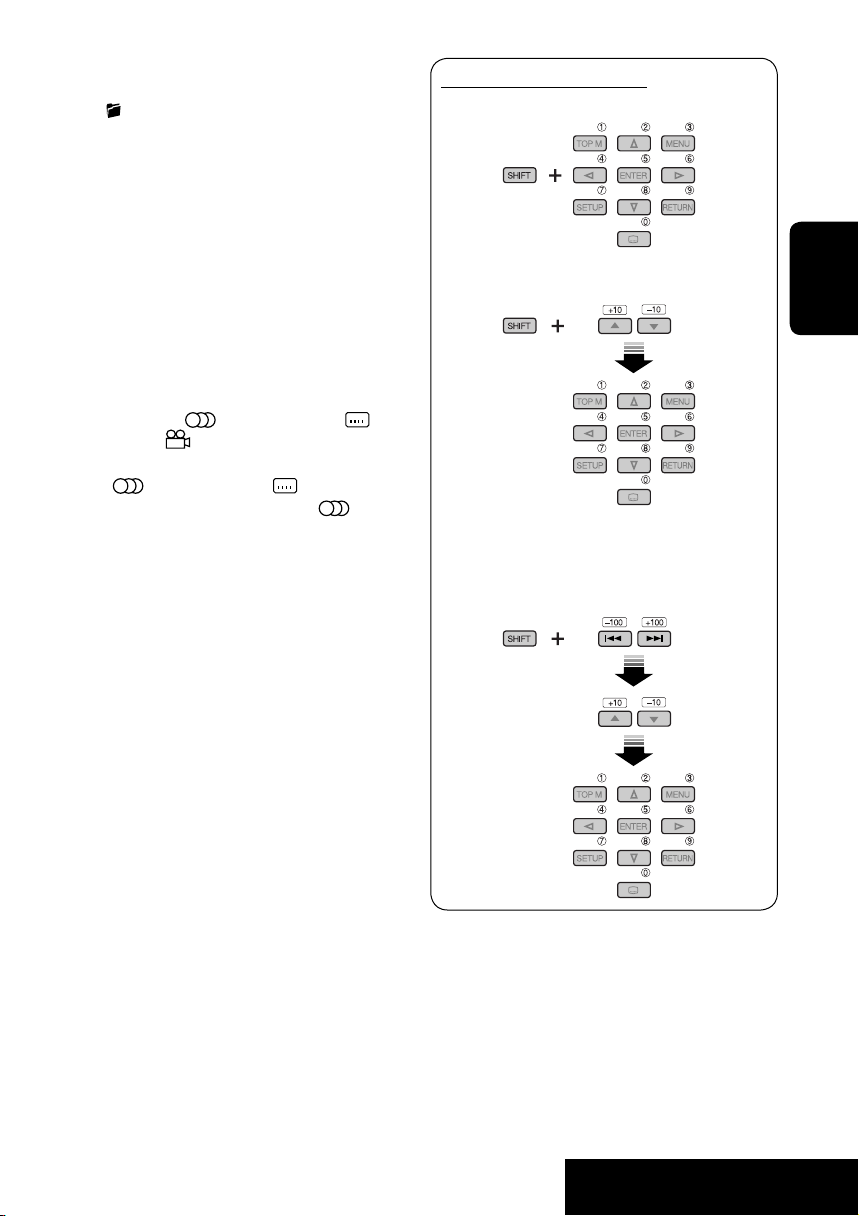

How to select a number

To select a number from 0 – 9:

ENGLISH

To select a number greater than 9:

To select a number greater than 99 (for searching DivX/MPEG Video/MP3/WMA/ WAV tracks):

OPERATIONS

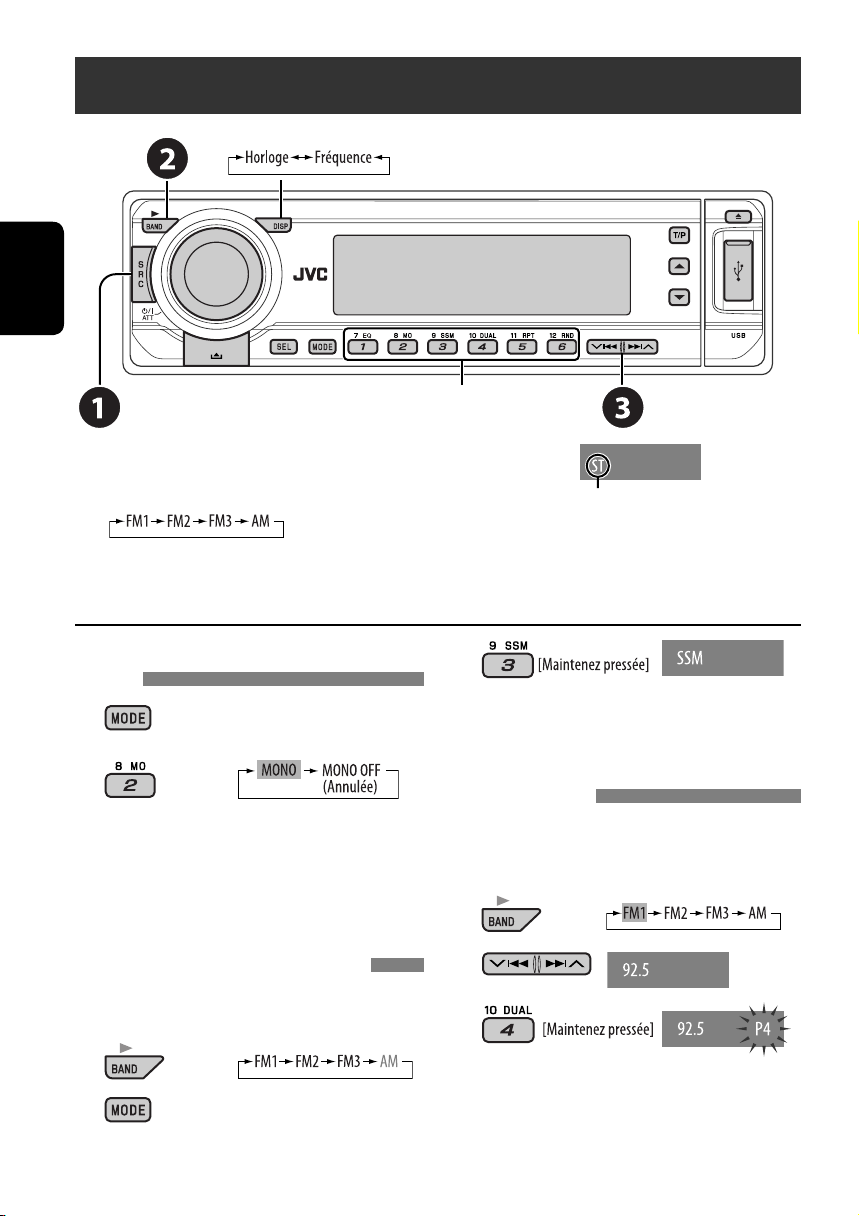

Listening to the radio

Change the display information (for non-RDS station)

ENGLISH

~ Select “FM/AM.”

Select preset station.

Ÿ Select the bands.

Lights up when receiving an FM stereo broadcast with sufficient signal strength.

! Search for a station to listen—Auto Search.

• Manual Search: Hold either one of the buttons until “M” flashes on the display, then press it repeatedly.

When an FM stereo broadcast is hard to

receive

Reception improves, but stereo effect will be

lost.

• MO indicator lights up.

FM station automatic presetting —SSM

Local FM stations with the strongest signals

are searched and stored automatically in the FM band.

Manual presetting

Ex.: Storing FM station of 92.5 MHz into preset

number 4 of the FM1 band.

(Strong-station Sequential Memory)

You can preset six stations for each band.

Searching for FM RDS programme — PTY search

Change the display information

ENGLISH

~ Activate PTY Search. Ÿ Select one of the PTY codes (programme

types).

See the following for details.

! Start searching.

If there is a station broadcasting a

programme of the same PTY code as you have selected, that station is tuned in.

Preset PTY codes in the number buttons (1 to 6):

PTY codes (available with the control dial):

NEWS, AFFAIRS, INFO, SPORT, EDUCATE, DRAMA, CULTURE, SCIENCE, VARIED, POP M (music), ROCK M (music), EASY M (music), LIGHT M (music), CLASSICS, OTHER M (music), WEATHER, FINANCE, CHILDREN, SOCIAL, RELIGION, PHONE IN, TRAVEL, LEISURE, JAZZ, COUNTRY, NATION M (music), OLDIES, FOLK M (music), DOCUMENT

Storing your favorite programme types

You can store your favorite PTY codes into the number buttons.

1 Select a PTY code (see left column). 2 Select a preset number.

3 Repeat steps 1 and 2 for storing other

PTY codes.

OPERATIONS

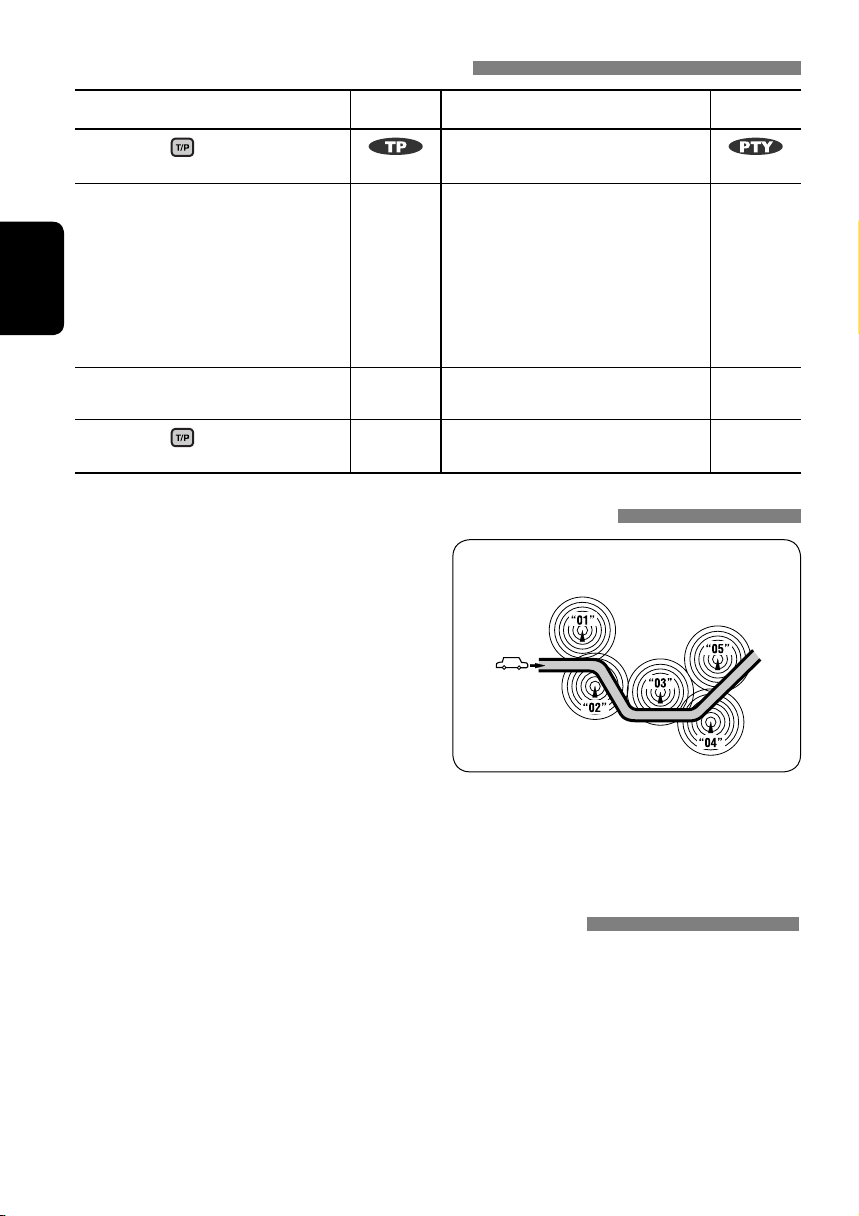

Activating/deactivating TA/PTY Standby Reception

TA Standby Reception Indicator PTY Standby Reception Indicator

Press to activate. See page 29.

The unit temporarily will switch

ENGLISH

to Traffic Announcement (TA), if available, from any source other than AM. The volume changes to the preset TA volume level if the current level is lower than the preset level (see page 29).

Not yet activated. Tune in to another station providing the RDS signals.

Press

to deactivate.

Lights up The unit temporarily will switch to

your favorite PTY programme from any source other than AM.

Flashes Not yet activated. Tune in to

another station providing the RDS signals.

Goes off Select “OFF” for the PTY code (see

page 29).

Tracing the same programme—Network-Tracking Reception

When driving in an area where FM reception is not sufficient enough, this unit automatically tunes in to another FM RDS station of the same network, possibly broadcasting the same programme with stronger signals (see the illustration on the right).

When shipped from the factory, NetworkTracking Reception is activated.

To change the Network-Tracking Reception setting, see “AF-REG” on page 29.

• When the DAB tuner is connected, refer to “Tracing the same programme—Alternative Frequency Reception” on page 23.

Programme A broadcasting on different frequency areas (01 – 05)

Lights up

Flashes

Goes off

Automatic station selection—Programme Search

Usually when you press the number buttons, the preset station is tuned in. If the signals from the FM RDS preset station are not sufficient for good reception, this unit, using the AF data, tunes in to another frequency broadcasting the same programme as the original preset station is broadcasting.

• The unit takes some time to tune in to another station using programme search.

• See also page 29.

Disc operations

Before performing any operations...

Turn on the monitor to watch the playback picture. If you turn on the monitor, you can also control playback of other discs by referring to the monitor screen. (See pages 17 – 20.) The disc type is automatically detected, and playback starts automatically (for DVD: automatic start depends on its internal program). If the current disc does not have any disc menu, all tracks will be played repeatedly until you change the source or eject the disc.

If “

” appears on the monitor when pressing a button, the unit cannot accept the operation you

have tried to do.

• In some cases, without showing “

Start playback if necessary.

,” operations will not be accepted.

Open the control panel and insert the disc.

Playback starts automatically.

ENGLISH

Change the display information

Prohibiting disc ejection

To cancel the prohibition, repeat the same procedure.

*1 If the file does not have Tag information or

“TAG DISP” is set to “TAG OFF” (see page

30), folder name and file name appear. TAG indicator will not light up.

“NO NAME” appears for an audio CD.

OPERATIONS

Operations using the control panel

Pressing (or holding) the following buttons allows you to...

Disc type

ENGLISH

Press: Select chapter Hold: Reverse/fast-forward

chapter*

Press: Select track Hold: Reverse/fast-forward track*

Select title During stop: Locate title

—

Select folder Locate particular folder directly

(Number buttons)

During play/pause: Locate chapter

Locate particular track directly (PBC not in use)

Press: Select track Hold: Reverse/fast-forward track*

*1 Search speed changes to on the monitor.

Search speed changes on the monitor.

After pressing

, press the following buttons to...

Select folder Locate particular folder directly

—

Disc type

Skip 10 chapters (during play or pause)

Skip 10 tracks (PBC not in use) TRK RPT: Repeat current track

Skip 10 tracks (within the same folder)

Skip 10 tracks TRK RPT: Repeat current track DISC RND: Randomly play all

• To cancel repeat play or random play, select “RPT OFF” or “RND OFF.”

CHP RPT: Repeat current

chapter

TIT RPT: Repeat current title

(PBC not in use)

TRK RPT: Repeat current track FLDR RPT: Repeat current folder

Locate particular track directly

—

DISC RND: Randomly play all

tracks (PBC not in use)

—

FLDR RND: Randomly play all

tracks of current folder, then tracks of next folders

DISC RND: Randomly play all

tracks

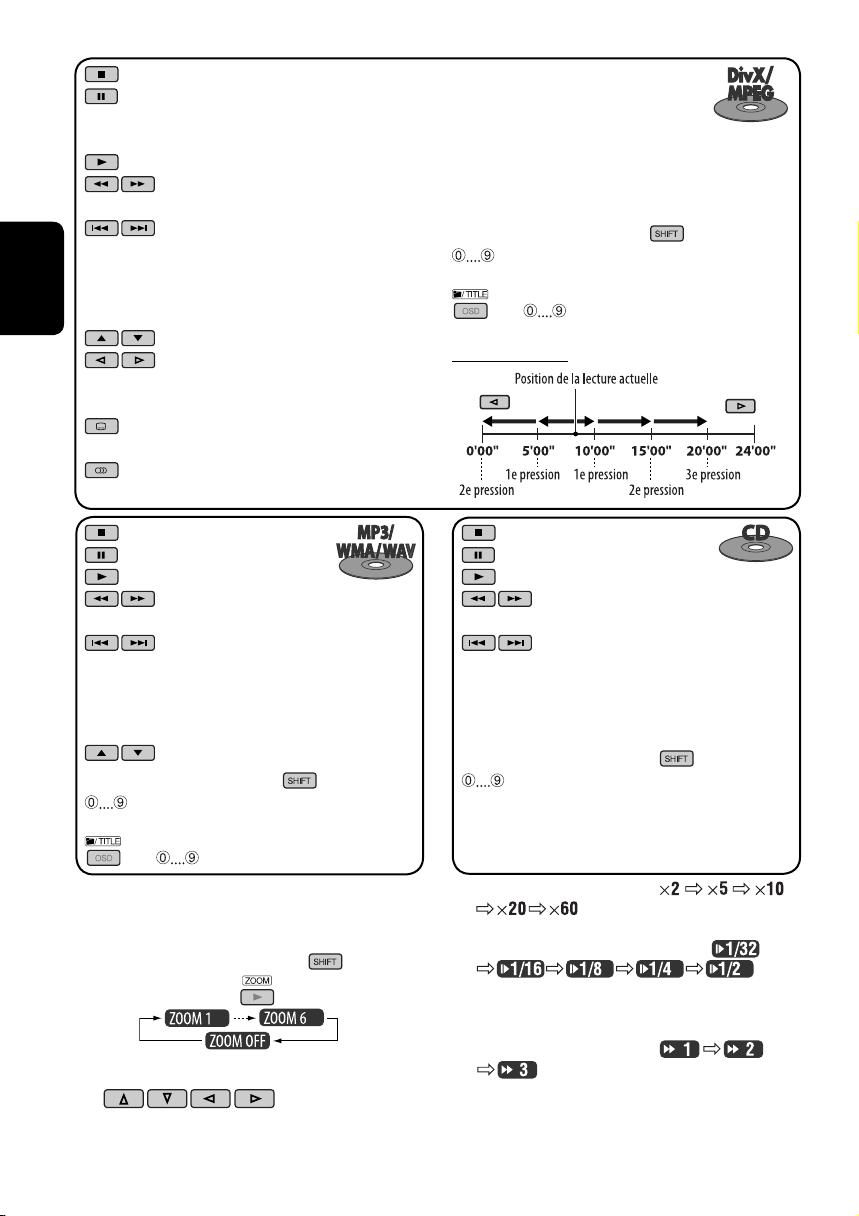

Operations using the remote controller—RM-RK230

: Stop play : Pause (Frame by frame playback if pressed during

pause.)

: Start play (10-second review if pressed during play.)

: Reverse/forward chapter search*1

• Slow motion during pause. No sound can be

: Press: Select chapter (during play or pause)

Hold: Reverse/fast-forward chapter search

: Select title : Select audio language : Select subtitle language : Select view angle

While holding ...*

: Select chapter (during play or pause)

Select title (when stop)

, then : Select title directly

Using menu driven features...

1 / 2 Select an item you want to start play.

heard.*

ENGLISH

: Stop play : Pause (Frame by frame playback if

pressed during pause.)

: Start play

: Reverse/forward track search*1

• Slow motion during pause. No sound can be heard.*

• Reverse slow motion does not work.

: Press: Select track

Hold: Reverse/fast-forward track search

: Select audio channel (ST: stereo, L: left,

R: Right)

While holding

...*

: Select track (For VCD with PBC, a list of items

is shown on the disc menu.)

• To return to the previous menus, press .

Canceling the PBC playback...

1 2 While holding , press *

to start the

desired track.

• To resume PBC, press / .

Continued on the next page

OPERATIONS

: Stop play : Pause (Frame by frame playback if

pressed during pause.)

: Start play

: Reverse/forward track search*

ENGLISH

: Press: Select track

Hold: Reverse/fast-forward track search

: Select folder

: • Return/advance the scenes by about

5 minutes (Index search).

• Select chapter : DivX: Select subtitles language : DivX: Select audio language

While holding ...*

: Select track (within the same folder)

, then : Select folder directly*

Index search:

: Stop play : Pause : Start play

: Reverse/forward track search*

: Press: Select tracks

Hold: Reverse/fast-forward track

: Select folder

While holding ...*

: Select track (within the same folder)

, then : Select folder directly*

Enlarging the view—Zoom in (DVD/VCD/DivX/ MPEG Video)

During moving picture playback...

1 While holding

2 Move the enlarged portion.

• To cancel zoom, select “ZOOM OFF.”

, press repeatedly.

: Stop play : Pause : Start play

: Reverse/forward track search*

: Press: Select tracks

Hold: Reverse/fast-forward track

While holding ...*

: Select track directly

*1 Search speed changes to

Slow motion speed changes to

For selecting numbers greater than 9, see page 9.

Search speed changes

To use direct folder access on DivX/MP3/WMA/WAV discs, it

on the monitor if pressed repeatedly.

on the monitor if

pressed repeatedly.

on the monitor if pressed repeatedly.

is required that folders are assigned with 2-digit numbers at the beginning of their folder names—01, 02, 03, and so on.

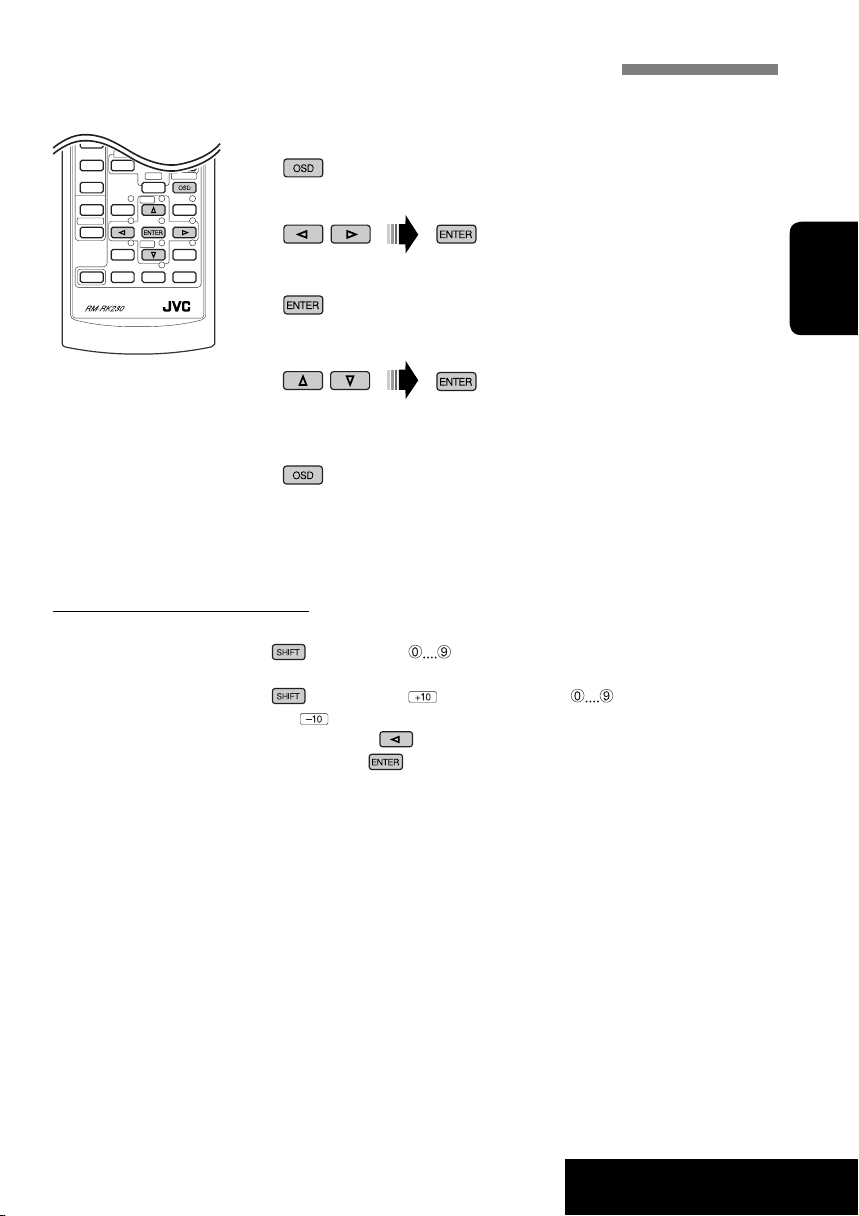

Operations using the on-screen bar (DVD/VCD/DivX/MPEG Video)

These operations are possible on the monitor using the remote controller.

~ Show the on-screen bar (see page 18).

(twice)

Ÿ Select an item.

! Make a selection.

If pop-up menu appears...

• For entering time/numbers, see the following.

⁄ Remove the on-screen bar.

Entering time/numbers

• To select numbers 0 – 9: While holding

• To select numbers greater than 9: While holding To reduce numbers, use To correct a misentry, use

• After entering the numbers, press

, press .

, press . Then, press .

ENGLISH

Ex.: Time search DVD: _:_ _:_ _ To enter 1 (hours): 02 (minutes): 00 (seconds), press 1, 0, 2, 0, then 0.

VCD (PBC not in use): _ _:_ _ To enter 64 (minutes): 00 (seconds), press 6, 4, 0, then 0.

Continued on the next page

OPERATIONS

On-screen bar

Ex.: DVD-Video

ENGLISH

Information

Operation

Disc type

1 2 • DVD-Video/DTS-CD: Audio signal format type

and channel

• VCD: PBC

3 Playback mode

DVD-Video: T. RPT: Title repeat C. RPT: Chapter repeat VCD*1: T. RPT: Track repeat D. RND: Disc random T. INT: Track intro* DivX/MPEG Video: T. RPT: Track repeat F. RPT: Folder repeat

4 Playback information

Current title/chapter Current track Current folder/track

5 Time indication

Elapsed playing time of the disc (For

DVD-Video, elapsed playing time of

the current title.) DVD-Video: Remaining title time VCD: Remaining disc time Elapsed playing time of the current

chapter/track Remaining time of the current

chapter/track

6 Playback status

Play Forward/reverse search

Forward/reverse slow-motion Pause Stop

7 Operation icons

Change time indication (see 5) Time Search (Enter the elapsed playing

time of the current title or of the disc.) Title Search (by its number) Chapter Search (by its number) Track Search (by its number) Change the audio language or audio

channel Change the subtitle language Change the view angle Repeat play* Intro play* Random play*

*1 While PBC is not in use.

For repeat play/random play, see also page 14.

Plays the beginning 15 seconds of...

TRACK INTRO: All tracks of the current disc. FOLDER INTRO: First tracks of all folders of the current

disc.

Operations using the control screen (DivX/MPEG Video/MP3/WMA/WAV/CD)

These operations are possible on the monitor using the remote controller.

~ Show the control screen.

DivX/MPEG Video: Press during play. MP3/WMA/WAV/CD: Automatically appear when you insert a disc.

Ÿ Select “Folder” column or “Track” column (except for CD).

! Select a folder or track.

⁄ Start playback.

DivX/MPEG Video: Press . MP3/WMA/WAV/CD: Playback starts automatically.

ENGLISH

Control screen

Ex.: MP3/WMA/WAV disc

1 Current folder number/total folder number 2 Folder list with the current folder selected 3 Selected playback mode 4 Elapsed playing time of the current track 5 Operation mode icon ( ‰, 7, 8, ¡, 1 ) 6 Current track number/total number of

tracks in the current folder (total number of tracks on the disc)

7 Track information 8 Track list with the current track selected

To select a playback mode

1 While control screen is displayed...

Playback mode selection screen appears on the folder list section of the control screen.

2 Select a playback mode.

3 Select an item.

REPEAT/INTRO:

RANDOM:

Not selectable for DivX/MPEG Video

Not selectable for CD

Playback mode

F. RPT (folder repeat): Repeat current folder

T. RPT (track repeat): Repeat current track

F. INT (folder intro): Plays the beginning

15 seconds of first tracks of all folders of the current disc

T. INT (track intro): Plays the beginning

15 seconds of all tracks of the current disc

D. RND (disc random): Randomly play all tracks

F. RND (folder random): Randomly play all tracks of

current folder, then tracks of next folders

OPERATIONS

Operations using the list screen (DivX/MPEG Video/MP3/WMA/WAV)

These operations are possible on the monitor using the remote controller. Before playing, you can display the folder list/track list to confirm the contents and start playing a track.

ENGLISH

List screen

~ Display the folder list while stop.

Ÿ Select an item from the folder list.

• Track list of the selected folder appears.

• To go back to the folder list, press

! Select a track to start playing.

• MP3/WMA/WAV: Control screen appears (see page 19).

Ex.: Folder list

1 Current folder number/total folder number 2 Current track number/total number of

tracks in the current folder

3 Current page/total number of the pages

included in the list

4 Current folder/track (highlighted bar)

OPERATIONS

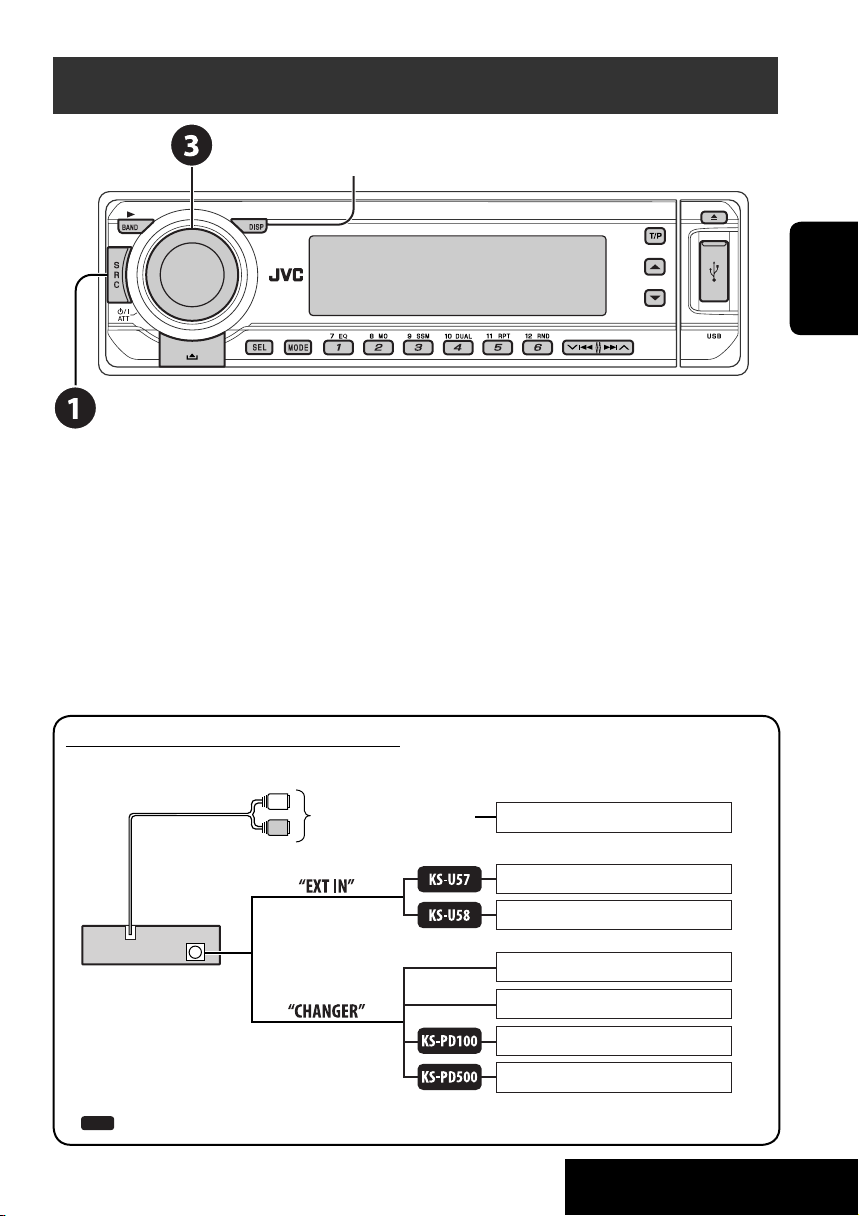

Listening to the USB memory

While the power is on...

USB input terminal

ENGLISH

USB memory

This unit can play MP3/WMA tracks stored in a USB memory. All tracks in the USB memory will be played repeatedly until you change the source.

• Removing the USB memory will also stop playback.

To detach the USB memory, straightly pull it out from the unit.

Cautions:

• Avoid using the USB memory if it might hinder your safety driving.

• Make sure all important data have been backed up to avoid losing the data.

Press: Select track Hold: Reverse/fast-forward

track

Select folders

Select particular folder directly

After pressing , press the following buttons to...

Skip 10 tracks (within the same folder)

TRK RPT: Repeat current track FLDR RPT: Repeat all tracks of current

folder

FLDR RND: Randomly play all tracks

of the current folder, then tracks of the next folder

DISC RND: Randomly play all tracks of

the USB memory

• To cancel repeat play or random play, select “RPT OFF” or “RND OFF.”

Change the display information

(Number buttons)

* If the file does not have Tag information or “TAG DISP” is set to

“TAG OFF” (see page 30), folder name and file name appear. TAG indicator will not light up.

EXTERNAL DEVICES

Listening to the CD changer

Change the display information

(see page 13)

ENGLISH

It is recommended to use a JVC MP3-compatible CD changer with your unit.

• You can only play conventional CDs (including CD Text) and MP3 discs.

~ Select “CD-CH.” Ÿ Select a disc to start playing.

Press: For selecting disc number 1 – 6. Hold: For selecting disc number 7 – 12.

Press: Select track Hold: Reverse/fast-forward track

MP3: Select folders

After pressing , press the following buttons to...

Skip 10 tracks (MP3: within the same folder)

TRK RPT: Repeat current track FLDR RPT: MP3: Repeat all tracks of

current folder

DISC RPT: Repeat all tracks of the

current disc

FLDR RND: MP3: Randomly play all

tracks of the current folder, then tracks of the next folder

DISC RND: Randomly play all tracks of

current disc

MAG RND: Randomly play all tracks of

the inserted discs

• To cancel repeat play or random play, select “RPT OFF” or “RND OFF.”

Listening to the DAB tuner

Change the display information

Select preset service.

~ Select “DAB.” Ÿ Select the bands.

! Searching for an ensemble.

• Manual Search: Hold either one of the buttons until “M” flashes on the display, then press it repeatedly.

⁄ Select a service (either primary or secondary) to listen to.

ENGLISH

Storing DAB services in memory

While listening to a DAB service...

Activating/deactivating TA/PTY Standby Reception

• Operations are exactly the same as explained on page 12 for FM RDS stations.

• You cannot store PTY codes separately for the DAB tuner and for the FM tuner.

Tracing the same programme—Alternative Frequency Reception

• While receiving a DAB service: When driving in an area where a service

cannot be received, this unit automatically tunes in to another ensemble or FM RDS station, broadcasting the same programme.

• While receiving an FM RDS station: When driving in an area where a DAB service

is broadcasting the same programme as the FM RDS station is broadcasting, this unit automatically tunes in to the DAB service.

When shipped from the factory, Alternative Frequency Reception is activated.

To deactivate the Alternative Frequency Reception, see page 29.

EXTERNAL DEVICES

Listening to the iPod®/D. player

Change the display information

ENGLISH

Before operating, connect the interface adapter (KS-PD100 or KS-PD500) to the CD changer jack of this unit.

Preparations:

Make sure “CHANGER” is selected for the external input setting, see page 30.

~ Select “IPOD” or “D. PLAYER.” Ÿ Select a song to start playing.

Selecting a track from the menu

1 Enter the main menu.

• This mode will be canceled if no operations are done for about 5 seconds.

2 Select the desired menu.

For iPod:

PLAYLIST Ô ARTISTS Ô ALBUMS Ô SONGS Ô GENRES Ô COMPOSER Ô (back to the

beginning)

For D. player:

PLAYLIST Ô ARTIST Ô ALBUM Ô GENRE Ô TRACK Ô (back to the beginning)

3 Confirm the selection.

• To move back to the previous menu, press 5.

• If a track is selected, playback starts automatically.

• Holding items at a time.

After pressing , press the following buttons to...

• To cancel repeat play or random play, select “RPT OFF” or “RND OFF.”

* iPod: Only if you select “ALL” in “ALBUMS” of the main

“MENU.”

4/¢ can skip 10

Pause/stop playback

• To resume playback, press it again.

Press: Select tracks Hold: Reverse/fast-forward track

ONE RPT: Functions the same as “Repeat One” or “Repeat Mode = One.” ALL RPT: Functions the same as “Repeat All” or “Repeat Mode = All.”

ALBM RND* : Functions the same as “Shuffle Albums” of the iPod. SONG RND/RND ON: Functions the same as “Shuffle Songs” or “Random Play = On.”

Listening to the other external components

Change the display information

You can connect an external component to:

• LINE IN plugs on the rear.

• CD changer jack on the rear using the Line Input Adapter—KS-U57 (not supplied) or AUX Input Adapter—KS-U58 (not supplied). Make sure “EXT IN” is selected for the external input setting, see page 30.

~ Select “EXT IN” or “LINE IN.” Ÿ Turn on the connected component and start playing the source. ! Adjust the volume.

ENGLISH

⁄ Adjust the sound as you want (see pages 27 and 28).

Concept diagram of the external device connection

• For connection, see Installation/Connection manual (separate volume).

MD player, etc.

JVC CD changer, [22]

JVC DAB tuner, [23]

Apple iPod, [24]

JVC D. player, [24]

Unit

CD changer jack

: Adapter (separately purchased)

LINE IN plugs on the rear

(see page 30 of the ”EXT IN” setting)

EXTERNAL DEVICES

Dual Zone operations

You can connect an external audio equipment to the 2nd AUDIO OUT plug on the rear, and play back a disc separately from the source selected on the unit. You can activate Dual Zone while listening to any source.

• When Dual Zone is in use, you can only operate the DVD/CD player using the remote controller.

ENGLISH

On the remote controller:

These operations are possible on the monitor using the remote controller.

~ Activate Dual Zone.

The source automatically changes to “DISC.” To select a different source to listen through the speakers, press SRC

on the control panel.

• By using the buttons on the control panel, you can operate the newly selected source without affecting Dual Zone operations.

Ÿ Adjust the volume through the 2nd AUDIO OUT plug.

! Operate the DVD/CD player using the remote controller by

referring to the monitor screen.

• To cancel Dual Zone operations, select “DUAL OFF” in step ~.

On the control panel:

You can also activate and deactivate Dual Zone.

The source automatically changes to “DISC” when Dual Zone is activated.

EXTERNAL DEVICES

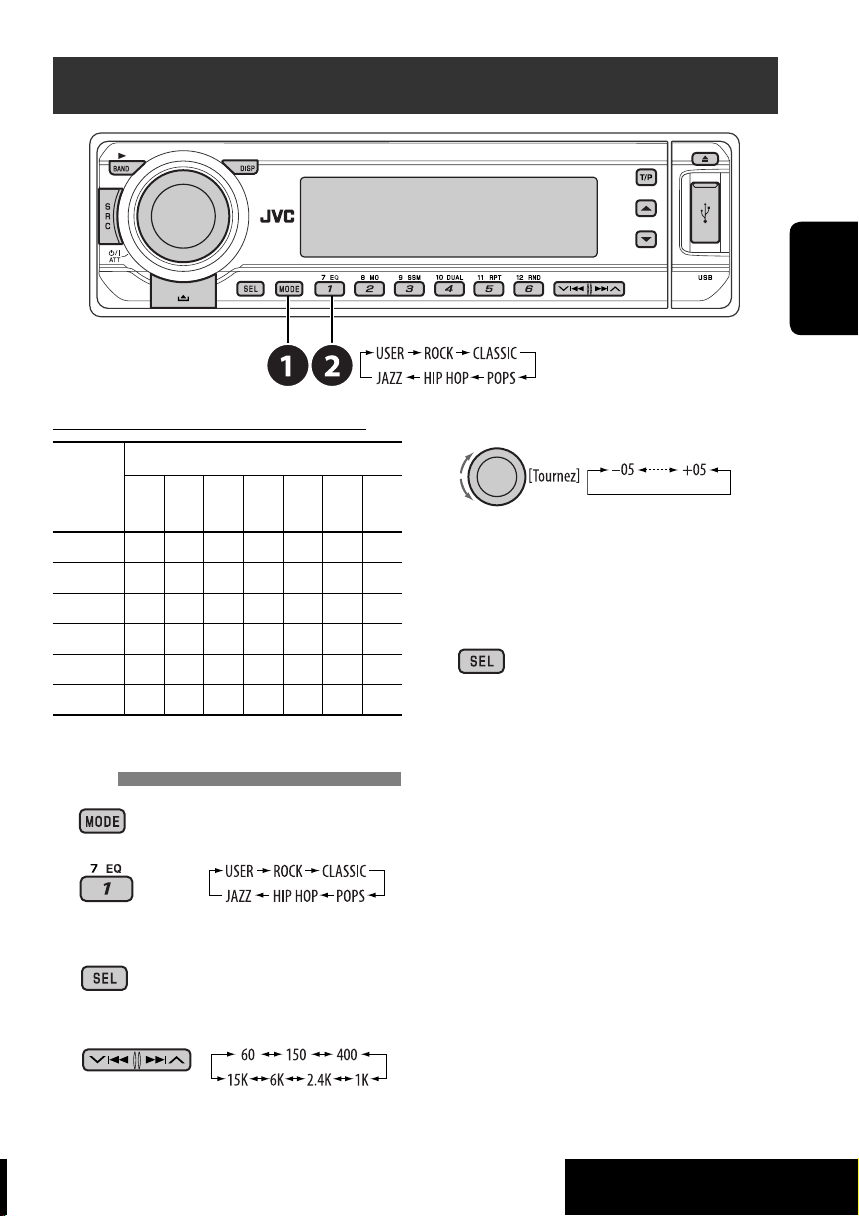

Selecting a preset sound mode

ENGLISH

Preset frequency level settings:

Sound mode

USER 00 00 00 00 00 00 00

ROCK +03 +02 00 00 +01 +02 +01

CLASSIC +01 +03 +01 00 00 +02 00

POPS 00 +02 00 00 00 +01 +02

HIP HOP +04 +01 –01 –02 00 +01 00

JAZZ +03 +02 +01 +01 +01 +03 +01

Preset equalizing values

60 Hz

150 Hz

400 Hz

1 kHz

2.4 kHz

6 kHz

Storing your own sound adjustments

Enter the sound adjustment mode.

4 Select a frequency to adjust.

5 Adjust the level.

15 kHz

6 Repeat steps 4 and 5 to adjust the

other frequency bands.

7 Store the adjustments in the

respective mode.

SETTINGS

+ 63 hidden pages
