JVC KD-DV4407 User manual

ENGLISHРУCCKИЙУКРАЇНА

DVD/CD RECEIVER

ПРИЕМНИК ДЛЯ ВОСПРОИЗВЕДЕНИЯ ДИСКОВ DVD И КОМПАКТ-ДИСКОВ ПРИЙМАЧ З ПРОГРАВАЧЕМ DVD/CD-ДИСКІВ

KD-DV4408/KD-DV4407

For canceling the display demonstration, see page 5. Информацию об отмене демонстрации функций дисплея см. на стр. 5. Інформацію щодо відміни демонстрації функцій дисплею див. на стор. 5.

For installation and connections, refer to the separate manual. Указания по установке и выполнению соединений приводятся в отдельной инструкции. Вказівки по встановленню та виконанню підключень наведені у окремій інструкції.

INSTRUCTIONS

ИНСТРУКЦИИ ПО ЭКСПЛУАТАЦИИ

ІНСТРУКЦІЇ

GET0515-001A

[EE]

Thank you for purchasing a JVC product.

Please read all instructions carefully before operation, to ensure your complete understanding and to obtain the best

possible performance from the unit.

IMPORTANT FOR LASER PRODUCTS

ENGLISH

1. CLASS 1 LASER PRODUCT

2. CAUTION: Do not open the top cover. There are no user serviceable parts inside the unit; leave all servicing to qualified service personnel.

3. CAUTION: Visible and/or invisible class 1M laser radiation when open. Do not view directly with optical instruments.

4. REPRODUCTION OF LABEL: CAUTION LABEL, PLACED OUTSIDE THE UNIT.

WARNINGS:

[European Union only]

This product incorporates copyright protection technology that is protected by U.S. patents and other intellectual property rights. Use of this copyright protection technology must be authorized by Macrovision, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision. Reverse engineering or disassembly is prohibited.

For safety...

• Do not raise the volume level too much, as this will

block outside sounds, making driving dangerous.

• Stop the car before performing any complicated

operations.

Temperature inside the car...

If you have parked the car for a long time in hot or cold weather, wait until the temperature in the car becomes normal before operating the unit.

(To prevent accidents and damage)

• DO NOT install any unit or wire any cable in a location where;

– it may obstruct the steering wheel and

gearshift lever operations.

– it may obstruct the operation of safety

devices such as air bags.

– it may obstruct visibility.

• DO NOT operate the unit while driving.

• If you need to operate the unit while driving, be sure to look around carefully.

• The driver must not watch the monitor while driving.

If the parking brake is not engaged,

“DRIVER MUST NOT WATCH THE MONITOR WHILE DRIVING.” appears on the monitor, and no playback picture will be shown.

– This warning appears only when the

parking brake lead is connected to the parking brake system built in the car (refer to the Installation/Connection Manual).

How to reset your unit

• Your preset adjustments will also be erased.

How to forcibly eject a disc

• Be careful not to drop the disc when it ejects.

• If this does not work, reset your unit.

How to use functions mode

If you press M MODE, the unit goes into functions mode, then the number buttons and 5/∞ buttons work as different function buttons.

[Within 5 seconds...]

CONTENTS

INTRODUCTIONS

Playable disc type ........................................ 4

Preparation .................................................. 5

OPERATIONS

Basic operations

• Using the control panel ............................... 6

• Using the remote controller (RM-RK252) .... 7

Listening to the radio ................................... 10

Searching for FM RDS programme

—PTY Search ........................................... 11

Disc operations ............................................. 13

• Operations using the control panel ............. 14

• Operations using the remote controller

(RM-RK252) ................................................ 16

EXTERNAL DEVICES

Listening to the other external

components .............................................. 22

SETTINGS

Selecting a preset sound mode .................... 22

General settings — PSM ............................. 24

Disc setup menu ........................................... 26

ENGLISH

Caution on volume setting

Discs produce very little noise compared with other sources. Lower the volume before playing a disc to avoid damaging the speakers by the sudden increase of the output level.

Caution for DualDisc playback

The Non-DVD side of a “DualDisc” does not comply with the “Compact Disc Digital Audio” standard. Therefore, the use of Non-DVD side of a DualDisc on this product may not be recommended.

REFERENCES

More about this unit .................................... 28

Maintenance ................................................ 33

Troubleshooting ........................................... 34

Specifications ............................................... 36

Playable disc type

Disc type Recording format, file type, etc Playable

DVD DVD-Video (Region Code: 5) *

ENGLISH

DVD-Audio

DVD-ROM

DVD Recordable/Rewritable (DVD-R/-RW *2, +R/+RW *3)

• DVD Video: UDF bridge

• DVD-VR

• DivX/MPEG-1/MPEG-2/MP3/ WMA/WAV: ISO 9660 level 1, level 2, Romeo, Joliet

Dual Disc DVD side

CD/VCD Audio CD/CD Text (CD-DA)/DTS-CD *

CD Recordable/Rewritable (CD-R/-RW)

• ISO 9660 level 1, level 2, Romeo, Joliet

If you insert a DVD Video disc of an incorrect Region Code, “REGION CODE ERROR” appears on the monitor.

* *2 DVD-R recorded in multi-border format is also playable (except for dual layer discs). DVD-RW dual layer discs are not

playable.

*3 It is possible to play back finalized +R/+RW (Video format only) discs. +RW double layer discs are not playable. *4 To reproduce DTS sound, use the DIGITAL OUT terminal (see also pages 27 and 31).

DVD-Video

DVD-VR

DivX/MPEG1/MPEG2

MP3/WMA/WAV

AAC

JPEG/MPEG4

DVD+VR

DVD-RAM

Non-DVD side

VCD (Video CD)

SVCD (Super Video CD)

CD-ROM

CD-I (CD-I Ready)

CD-DA

VCD (Video CD)

DivX/MPEG1/MPEG2

MP3/WMA/WAV

AAC

JPEG/MPEG4

Preparation

Cancel the display demonstration and set the clock

• See also page 24.

Turn on the power.

ENGLISH

When the power is turned off: Check the current clock time When the power is turned on: Change the display information

Indication language:

In this manual, English indications are used for purposes of explanation. You can select the indication language on the monitor on the “LANGUAGE” setting (see page 26).

Detaching the control panel Attaching the control panel

Enter the PSM settings.

Cancel the display demonstrations

Select “DEMO,” then “DEMO OFF.”

Set the clock

Select “CLOCK HOUR,” then adjust the hour. Select “CLOCK MIN” (minute), then adjust the minute. Select “24H/12H,” then “24 HOUR” or “12 HOUR.”

Finish the procedure.

5INTRODUCTIONS

Basic operations

Using the control panel

ENGLISH

1 DISC: Select title/program/playlist/folder. 2 Eject disc. 3 • Turn on the power.

• Turn off the power [Hold].

• Attenuate the sound (if the power is on).

4 Volume control [Turn]. 5 Remote sensor 6 • FM/AM: Select the band.

• DISC: Start/pause playback.

7 Loading slot 8 Display window 9 • Activate/deactivate TA Standby Reception.

• Enter RDS programme search [HOLD].

p Change the display information. q Detach the panel. w Select the source.

FM/AM = DISC * = AUX IN = (back to the

beginning)

e • FM/AM: Search for station.

• DISC: Select chapter/track.

r • Adjust the sound mode.

• Enter the PSM settings [Hold].

t Enter functions mode.

• Press M MODE, then one of the following buttons (within 5 seconds)...

EQ : Select the sound mode. MO : Turn on/off monaural reception. SSM : Automatic station presetting [Hold]. RPT : Select repeat play. RND : Select random play. 5/∞ : Skip 10 chapters/tracks.

y • FM/AM: Select preset station.

• DISC: Select chapter/title/program/folder/track.

u AUX (auxiliary) input jack

* You cannot select “DISC” as the playback source if there

is no disc in the unit.

Display window

ENGLISH

1 Tr (track) indicator 2 Source display / Track number / Folder number /

Disc number / Title number / PBC indicator / Time countdown indicator

3 DISC indicator 4 RDS indicators—AF, REG, TP, PTY 5 Playback mode / item indicators— RND (random),

(disc), (folder), RPT (repeat)

6 Tuner reception indicators—ST (stereo),

MO (monaural)

7 Sound mode (c-EQ: custom equalizer) indicators

—CLASSIC, HIP HOP, JAZZ, ROCK, POPS, USER

8 LOUD (loudness) indicator 9 EQ (equalizer) indicator p Disc information indicators—

TAG (Tag information),

q Main display (Time, menu, playback information)

Using the remote controller (RM-RK252)

Installing the battery

R03/LR03/AAA

Insert the batteries into the remote controller by matching the polarity (+ and –) correctly.

• If the effectiveness of the remote controller decreases, replace both batteries.

Before using the remote controller:

• Aim the remote controller directly at the remote sensor on the unit.

• DO NOT expose the remote sensor to bright light (direct sunlight or artificial lighting).

(folder), (track/file)

Caution:

Battery shall not be exposed to excessive heat such as sunshine, fire, or the like.

Continued on the next page

7OPERATIONS

ENGLISH

1 button

• Turns the power on if pressed briefly or attenuates the sound when the power is on.

• Turns the power off if pressed and held.

2 5/∞ buttons

• FM/AM: Selects the preset stations.

• DISC:

– DVD-Video: Selects the title. – DVD-VR: Selects the program/playlist. – DivX/MPEG Video/MP3/WMA/WAV: Selects

the folders if included.

/ ¢ buttons

• FM/AM:

– Searches for stations automatically if pressed

briefly.

– Searches for stations manually if pressed and

held.

• DISC:

– Reverse skip/forward skip if pressed briefly. – Reverse search/forward search if pressed and

held.

3 VOL (volume) + / – buttons

• Adjusts the volume level.

2nd VOL (volume) buttons

• Not applicable for this unit.

4 * ASPECT button

• Not applicable for this unit.

5 PHONE button

• Not applicable for this unit.

6 * SETUP button

• Enters disc setup menu (during stop).

7 * TOP M (menu) button

• DVD-Video/DivX: Shows the disc menu.

• DVD-VR: Shows the Original Program screen.

• VCD: Resumes PBC playback.

8 * OSD (on-screen display) button

• Shows the on-screen bar.

9 SHIFT button

• Functions with other buttons.

p DISP (display) button

• Changes the display information.

q 1 / ¡ buttons

• DVD-Video/VCD: Slow motion playback (during pause).

• DivX/MPEG Video/MP3/WMA/WAV: Reverse search/forward search.

w SOURCE button

• Selects the source.

e 3 (play) / 8 (pause) button

• DISC: Starts/pauses playback.

(end call) button

• Not applicable for this unit.

BAND / 7 (stop) buttons

• FM/AM: Selects the bands.

• DISC: Stops playback.

t * RETURN button

• VCD: Returns to the PBC menu.

y * MENU button

• DVD-Video/DivX: Shows the disc menu.

• DVD-VR: Shows the Playlist screen.

• VCD: Resumes PBC playback.

u * % / ﬁ buttons

• DVD-Video: Makes selection/settings.

@ / # buttons

• DVD-Video: Makes selection/settings.

• DivX/MPEG Video: Skips back or forward by about five minutes.

i * DUAL button

• Not applicable for this unit.

o SURROUND button

• Not applicable for this unit.

DIRECT button

• DISC: Enters direct search mode for chapter/ title/program/playlist/folder/track when pressed with SHIFT button (see page 16 for details).

CLR (clear) button

• DISC: Erases the misentry when pressed with SHIFT button.

* Functions as number buttons/* (asterisk)/# (hatch)

when pressed with SHIFT button.

– FM/AM: Selects the preset stations (1 – 6). – DISC: Enters chapter/title/program/playlist/

folder/track number after entering search mode by pressing SHIFT and DIRECT (see page 16 for details).

ENGLISH

ENT (enter) button

• Confirms selection.

9OPERATIONS

Listening to the radio

ENGLISH

Select “FM/AM.”

Select the bands.

Search for a station to listen—Auto Search.

Manual Search: Hold either one of the buttons until “M” flashes on the display, then press it repeatedly.

• When receiving an FM stereo broadcast with sufficient signal strength, “ST” lights up on the display.

When an FM stereo broadcast is

hard to receive

Reception improves, but stereo effect will be lost.

• “MO” lights up on the display.

To restore the stereo effect, repeat the same procedure. “MONO OFF” appears and the MO indicator goes off.

FM station automatic presetting

— SSM (Strong-station Sequential Memory)

You can preset up to six stations for each band.

1 While listening to an FM station...

Manual presetting

Ex.: Storing FM station of 92.50MHz into preset number

4 of the FM1 band.

Preset number flashes for a while.

To listen to a preset station

Local FM stations with the strongest signals are

searched and stored automatically in the selected FM band.

Note:

FM1 and FM2: 87.5 MHz – 108.0 MHz FM3: 65.00 MHz – 74.00 MHz

Searching for FM RDS programme — PTY Search

Storing your favorite programme

types

You can store your favorite PTY codes into the number buttons.

1 Select a PTY code (see right column). 2 Select a preset number.

3 Repeat steps 1 and 2 for storing other PTY

codes.

Activate PTY Search.

ENGLISH

Select one of the PTY codes (programme types).

See the following for details.

Start searching.

If there is a station broadcasting a programme of the same PTY code as you have selected, that station is tuned in.

Preset PTY codes in the number buttons (1 to 6):

PTY codes (available with the control dial):

NEWS, AFFAIRS, INFO, SPORT, EDUCATE, DRAMA, CULTURE, SCIENCE, VARIED, POP M (music), ROCK M (music), EASY M (music), LIGHT M (music), CLASSICS, OTHER M (music), WEATHER, FINANCE, CHILDREN, SOCIAL, RELIGION, PHONE IN, TRAVEL, LEISURE, JAZZ, COUNTRY, NATION M (music), OLDIES, FOLK M (music), DOCUMENT

Continued on the next page

11OPERATIONS

Activating/deactivating TA/PTY Standby Reception

TA Standby Reception Indicator PTY Standby Reception Indicator

Press

to activate.

ENGLISH

The unit temporarily will switch to Traffic Announcement (TA), if available, from any source other than AM. The volume changes to the preset TA volume level if the current level is lower than the preset level (see page 25).

Not yet activated. Tune in to another station providing the RDS signals.

to deactivate.

Press

Lights up The unit temporarily will switch to your

Flashes Not yet activated. Tune in to another

Goes off Select “OFF” for the PTY code (see page 25)

See page 25.

favorite PTY programme from any source other than AM.

station providing the RDS signals.

to deactivate.

Tracing the same programme—Network-Tracking Reception

When driving in an area where FM reception is not sufficient enough, this unit automatically tunes in to another FM RDS station of the same network, possibly broadcasting the same programme with stronger signals (see the illustration on the right).

When shipped from the factory, Network-Tracking Reception is activated.

To change the Network-Tracking Reception setting, see “AF-REG” on page 25.

Programme A broadcasting on different frequency areas (01 – 05)

Lights up

Flashes

Goes off

Automatic station selection—Programme Search

Usually when you press the number buttons, the preset station is tuned in. If the signals from the FM RDS preset station are not sufficient for good reception, this unit, using the AF data, tunes in to another frequency broadcasting the same programme as the original preset station is broadcasting.

• The unit takes some time to tune in to another station using programme search.

• See also page 25.

Disc operations

Before performing any operations...

Turn on the monitor to watch the playback picture. If you turn on the monitor, you can also control playback of other discs by referring to the monitor screen. (See pages 18 – 21.) The disc type is automatically detected, and playback starts automatically (for DVD: automatic start depends on its internal program). If the current disc does not have any disc menu, all tracks will be played repeatedly until you change the source or eject the disc.

” appears on the monitor when pressing a button, the unit cannot accept the operation you have tried to

If “ do.

• In some cases, without showing “

,” operations will not be accepted.

ENGLISH

Prohibiting disc ejection

To cancel the prohibition, repeat the same

procedure.

Insert the disc.

Playback starts automatically.

Start playback if necessary.

To stop play and eject the disc

• Press SRC to listen to another playback source.

Continued on the next page

13OPERATIONS

Change the display information.

Current chapter number and Elapsed playing time = Current chapter number and Clock = Current title and chapter number = (back to the beginning)

ENGLISH

Current chapter number and Elapsed playing time = Current chapter number and Clock = Current program (or playlist) number and chapter number = (back to the beginning)

Elapsed playing time = Folder number and Clock = Folder name = Track title = (back to the beginning)

Current track number and Elapsed playing time = Current track number and Clock = (back to the beginning)

Current track number and Elapsed playing time = Current track number and Clock = Album name/ performer (folder name *1) = Track title (file name *1) = (back to the beginning)

Current track number and Elapsed playing time = Current track number and Clock = Disc title/ performer *2 = Track title *2 = (back to the beginning)

Operations using the control panel

Pressing (or holding) the following buttons allows you to...

Disc type

[Press] Select chapter [Hold] Reverse/fast-forward

chapter *

[Press] Select chapter [Hold] Reverse/fast-forward

chapter *

[Press] Select track [Hold] Reverse/fast-forward track *

(Number buttons) *

Select title During stop: Locate title

During play/pause: Locate chapter

Select program number/ playlist number

During stop: Locate program During play/pause: Locate chapter

Select folder Locate particular folder directly

—

Locate particular track directly (PBC not in use)

Select folder Locate particular folder directly

—

Locate particular track directly

After pressing M MODE, press the following buttons to...

Disc type

Skip 10 chapters (during play or pause)

Skip 10 tracks (within the same folder)

Skip 10 tracks (PBC not in use)

Skip 10 tracks (within the same folder)

Skip 10 tracks TRACK RPT:

• To cancel repeat play or random play, select “RPT OFF” or “RND OFF.”

CHAPTER RPT: Repeat current chapter TITLE RPT: Repeat current title

CHAPTER RPT: Repeat current chapter PROGRAM RPT: Repeat current program (not

available for Playlist Playback)

TRACK RPT: Repeat current track FOLDER RPT: Repeat current folder

TRACK RPT: Repeat current track (PBC not in

use)

TRACK RPT: Repeat current track FOLDER RPT: Repeat current folder

Repeat current track

ENGLISH

—

FOLDER RND: Randomly play all tracks of

current folder, then tracks of

next folders ALL RND: Randomly play all tracks

ALL RND: Randomly play all tracks (PBC

not in use)

FOLDER RND: Randomly play all tracks of

current folder, then tracks of

next folders ALL RND: Randomly play all tracks

ALL RND: Randomly play all tracks

*1 If the file does not have Tag information or “TAG DISPLAY” is set to “TAG OFF” (see page 25), folder name and file

name appear. TAG indicator will not light up.

*2 “NO NAME” appears for an audio CD. *3 Search speed: *4 Search speed: *5 Press to select number 1 to 6; hold to select number 7 to 12.

15OPERATIONS

Operations using the remote controller (RM-RK252)

Disc

pause)

—

Reverse/forward track search *4 (No sound can be heard.)

[Press] Select track

[Hold] Reverse/fast-forward track search *

(No sound can be heard.)

Select folder

• Skip back or forward the scenes by about five minutes

• Select chapter

Button

ENGLISH

Stop play Stop play

Start play/Pause (if pressed during play) Start play/Pause (if pressed during play)

• Reverse/forward chapter search *1 (No sound can be heard.)

• Slow motion *2 during pause (No sound can be heard.)

* DVD-VR: Reverse slow motion does not work.

[Press] Select chapter (during play or pause) [Hold] Reverse/fast-forward chapter search *

• DVD-Video: Select title (during play or

• DVD-VR: Select program

Select playlist (during play or

To search for chapter/title/program/playlist/folder/track directly (DVD/DivX/MPEG Video/MP3/ WMA/WAV/CD)

1 While holding SHIFT, press DIRECT repeatedly to select the desired search mode.

DVD-Video :

DVD-VR :

DivX/MPEG Video :

MP3/WMA/WAV :

2 While holding SHIFT, press the number buttons (0 – 9) to enter the desired number. 3 Press ENT (enter) to confirm.

Stop play Stop play Stop play

ENGLISH

Start play/Pause (if pressed during play)

Reverse/forward track search *

Start play/Pause (if pressed during play)

Reverse/forward track search *

Start play/Pause (if pressed during play)

Reverse/forward track search *

• Forward slow motion *2 during pause. (No sound can be heard.)

* Reverse slow motion does not work.

[Press] Select track [Hold] Reverse/fast-forward track

search *3 (No sound can be

[Press] Select track [Hold] Reverse/fast-forward track

search *

[Press] Select track [Hold] Reverse/fast-forward track

search *

heard.)

Select folder

—

———

• For DivX/MPEG Video/MP3/WMA/WAV, track is searched within the same folder.

• For DVD-VR, program/playlist search is possible during Original program playback (PG)/Playlist playback (PL).

• To erase a misentry, press CLR (clear) while holding SHIFT.

• To return to the previous screen, press RETURN.

*1 Search speed: *2 Slow motion speed: *3 Search speed: *4 Search speed: *5 Search speed:

Continued on the next page

17OPERATIONS

Using menu driven features... (DVD-Video/ DVD-VR)

1 Press TOP M/MENU to enter the menu screen. 2 Press % / ﬁ / @ / # to select an item you want to

start play.

ENGLISH

3 Press ENT (enter) to confirm.

Canceling the PBC playback... (VCD)

1 During stop, press DIRECT while holding SHIFT. 2 Hold SHIFT, then press the number buttons (0 – 9)

to enter the desired number.

3 Press ENT (enter) to confirm.

• To resume PBC, press TOP M/MENU.

Operations using the

on-screen bar

(DVD/DVD-VR/DivX/MPEG Video/VCD)

These operations are possible on the monitor using the remote controller.

1 Show the on-screen bar (see page 19).

(twice)

2 Select an item.

3 Make a selection.

If pop-up menu appears...

• To cancel pop-up menu, press RETURN.

• For entering time/numbers, see the following.

Entering time/numbers

Press % / ﬁ to change the number, then press @ / # to move to the next entry.

• Each time you press % / ﬁ, the number increases/ decreases by one value.

• After entering the numbers, press ENT (enter).

• It is not required to enter the zero and tailing zeros (the last two digits in the example below).

Ex.: Time search DVD: _:_ _:_ _ (Ex.: 1:02:00) Press % once, then # twice to go to the third entry, % twice, then press ENT (enter).

To remove the on-screen bar

On-screen bar

Ex.: DVD-Video

Information

Operation

1 Disc type 2 • DVD-Video/DTS-CD: Audio signal format type

and channel

• VCD: PBC

3 Playback mode *

DVD-Video: T. RPT: Title repeat C. RPT: Chapter repeat DVD-VR: C. RPT: Chapter repeat PG. RPT: Program repeat DivX/MPEG Video: T. RPT: Track repeat F. RPT: Folder repeat A. RND: All random F. RND: Folder random VCD *2: T. RPT: Track repeat A. RND: All random

4 Playback information

Current title/chapter

Current program/chapter

Current playlist/chapter

Current track

5 Time indication

Current folder/track

Elapsed playing time of the disc

(For DVD-Video, elapsed playing time of the current title/program/ playlist.)

DVD-Video/DVD/VR: Remaining

title/program/playlist time

VCD: Remaining disc time

Elapsed playing time of the current

chapter/track *

Remaining time of the current

chapter/track *

6 Playback status

Play

7 Operation icons

Forward/reverse search

Forward/reverse slow-motion Pause Stop

Change time indication (see 5)

Time Search (Enter the elapsed playing

time of the current title/program/

playlist or of the disc.) Title Search (by its number) Chapter Search (by its number)

Track Search (by its number)

Change the audio language or audio

channel

Change or turn off the subtitle

language

Change the view angle Repeat play * Random play *

*1 For repeat play/random play, see also page 15. *2 While PBC is not in use. *3 Not applicable for DVD-VR.

ENGLISH

19OPERATIONS

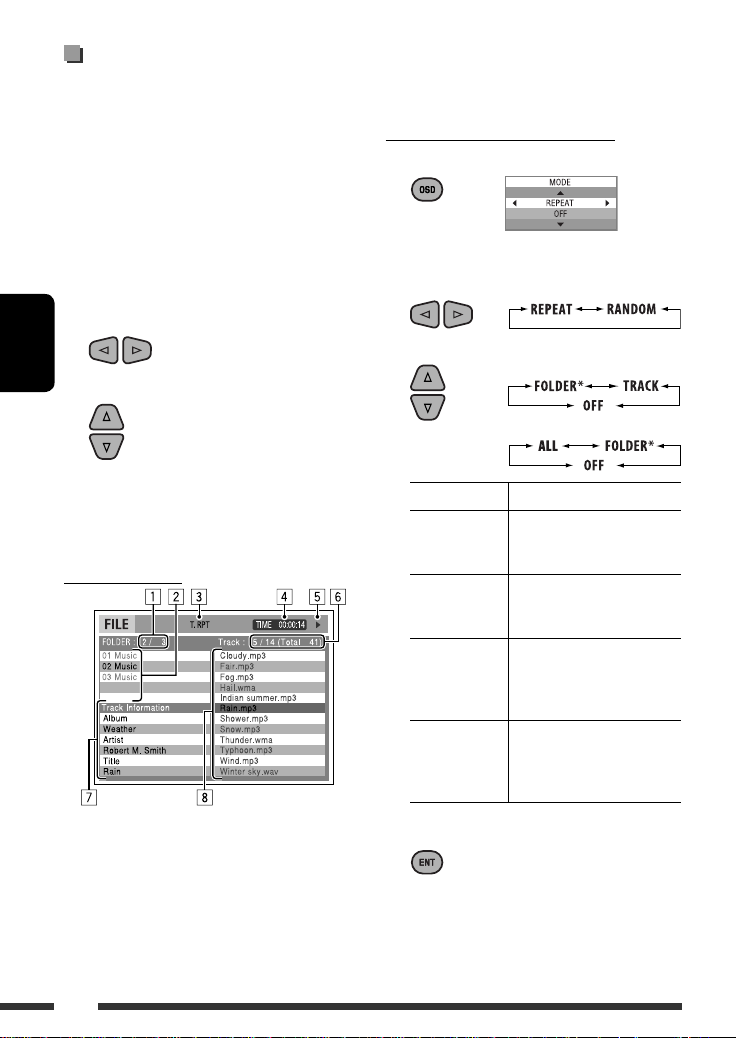

Operations using the control

screen

(DivX/MPEG Video/MP3/WMA/WAV/CD)

These operations are possible on the monitor using the remote controller.

ENGLISH

1 Show the control screen.

DivX/MPEG Video: Press 7 during play. MP3/WMA/WAV/CD: Automatically appear during

play.

2 Select “Folder” column or “Track” column

(except for CD).

3 Select a folder or track.

7 Track information 8 Track list with the current track selected

To select a playback mode

1 While control screen is displayed...

Playback mode selection screen appears on the

folder list section of the control screen.

2 Select a playback mode.

3 Select an item.

REPEAT:

RANDOM:

4 Start playback.

DivX/MPEG Video: Press ENT (enter) or 3/8. MP3/WMA/WAV/CD: Playback starts automatically.

Control screen

Ex.: MP3/WMA/WAV disc

1 Current folder number/total folder number 2 Folder list with the current folder selected 3 Selected playback mode 4 Elapsed playing time of the current track 5 Operation mode icon ( 3, 7, 8, ¡, 1 ) 6 Current track number/total number of tracks in the

current folder (total number of tracks on the disc)

Mode Playback functions

F. RPT

(folder repeat):

T. RPT

(track repeat):

A. RND

(all random):

F. RND

(folder random):

4 Confirm the selection.

* Not selectable for CD.

Repeat current folder

Repeat current track

Randomly play all tracks

Randomly play all tracks of current folder, then tracks of next folders

Operations using the list

screen

(DVD-VR/DivX/MPEG Video/MP3/WMA/WAV)

These operations are possible on the monitor using the remote controller. Before playing, you can display the folder list/track list to confirm the contents and start playing a track.

1 Display the folder list while stop.

2 Select an item from the folder list.

• Track list of the selected folder appears.

• To go back to the folder list, press RETURN.

3 Select a track to start playing.

• MP3/WMA/WAV: Control screen appears (see page 20).

List screen (DivX/MPEG Video/MP3/WMA/ WAV)

Ex.: Folder list

1 Current folder number/total folder number 2 Current track number/total number of tracks in the

current folder

3 Current page/total number of the pages included

in the list

4 Current folder/track (highlighted bar)

List screen (DVD-VR)

You can use ORIGINAL PROGRAM or PLAY LIST screen anytime while playing DVD-VR with its data recorded.

1 Select a list screen.

1 Program/playlist number 2 Recording date 3 Recording source (TV station, the input

terminal of the recording equipment, etc.)

4 Start time of recording 5 Title of the program/playlist * 6 Current selection (highlighted bar) 7 Creating date of playlist 8 Number of chapters 9 Playback time

* The title of the original program or playlist may

not be displayed depending on the recording equipment.

2 Select an item from the list.

ENGLISH

21OPERATIONS

Listening to the other external components

You can connect an external component to the AUX (auxiliary) input jack on the control panel.

ENGLISH

—

Connecting an external component to the AUX input jack

—

Select “AUX IN.”

Turn on the connected component and start playing the source.

Adjust the volume.

Adjust the sound as you want (see below and page 23).

3.5 mm stereo mini plug (not supplied)

Selecting a preset sound mode

You can select a preset sound mode suitable to the music genre (c-EQ: custom equalizer).

Portable audio player, etc.

—

22 EXTERNAL DEVICES & SETTINGS

Select a preset sound mode suitable to the music genre (c-EQ: custom equalizer).

Preset value setting for each sound mode

Sound mode

USER 00 00 OFF

ROCK +03 +01 ON

CLASSIC +01 –02 OFF

POP +04 +01 OFF

HIP HOP +02 00 ON

JAZZ +02 +03 OFF

BAS (bass) TRE (treble) LOUD (loudness)

Preset value

ENGLISH

Adjusting the sound

You can adjust the sound characteristics to your preference.

BASS * Adjust the bass.

TREBLE * Adjust the treble.

FADER * Adjust the front and rear speaker output balance.

BALANCE

Adjust the left and right speaker output balance.

–06 to +06

R06 to F06

L06 to R06

LOUD *1 (loudness) Boost low and high frequencies to produce a well-balanced sound at low volume level.

VOL ADJ *3 (volume adjust) Adjust and store auto-adjustment volume level for each source, comparing to the FM volume level.

VOLUME

Adjust the volume.

*1 When you adjust the bass, treble, or loudness, the

adjustment you have made is stored for the currently selected sound mode (c-EQ) including “USER.”

*2 If you are using a two-speaker system, set the fader

level to “00.”

*3 You cannot make an adjustment for FM. “FIX”

appears.

*4 Depending on the amplifier gain control setting. (See

page 25 for details.)

LOUD ON or LOUD OFF

–05 to +05; initial: 00

00 to 50 or

00 to 30 *

23SETTINGS

General settings — PSM

You can change PSM (Preferred Setting Mode) items listed in the table below and on page 25.

1 Enter the PSM settings.

ENGLISH

2 Select a PSM item.

Indications Item

( : Initial)

DEMO

Display demonstration

CLOCK DISP *

Clock display

CLOCK HOUR

Hour adjustment

CLOCK MIN

Minute adjustment

24H/12H

Time display mode

CLOCK ADJ * Clock adjustment

• DEMO ON

• DEMO OFF

• CLOCK ON

• CLOCK OFF

0 – 23 (1-12) [Initial: 0 (0:00)], [5].

00 – 59 [Initial: 00 (0:00)], [5].

• 24 HOUR

• 12 HOUR

• AUTO

• OFF

3 Select or adjust the selected PSM item.

4 Repeat steps 2 and 3 to adjust other PSM

items if necessary.

5 Finish the procedure.

Setting, [reference page]

: The display demonstration will be activated automatically if no

operation is done for about 20 seconds, [5].

: Cancels.

: The clock time is shown on the display at all times when the power is

turned off.

: Cancels; pressing DISP will show the clock time for about 5 seconds

when the power is turned off, [5].

: See also page 5 for setting.

: The built-in clock is automatically adjusted using the CT (clock time)

data in the RDS signal.

: Cancels.

Indications Item

Setting, [reference page]

( : Initial)

AF-REG *

Alternative frequency/ regionalization reception

PTY-STANDBY

PTY standby

TA VOLUME

Traffic announcement volume

P-SEARCH *

Programme search

DIMMER

Dimmer

TEL MUTING

Telephone muting

SCROLL *

Scroll

• AF

• AF REG

• OFF

OFF, PTY codes (see page 11)

VOLUME 00 – VOLUME 50 (or VOLUME 00 – VOLUME 30) *

• ON

• OFF

• ON

• OFF

• MUTING 1/

MUTING 2

• MUTING OFF

• ONCE

• AUTO

• OFF

: When the currently received signals become weak, the unit switches

to another station or service (the programme may differ from the one currently received), [12].

: When the currently received signals become weak, the unit switches

to another station broadcasting the same programme.

: Cancels.

: Activates PTY Standby Reception with one of the PTY codes, [11, 12].

[Initial: VOLUME 15], [12].

: Activates Programme Search, [12]. : Cancels.

: Dims the display and button illumination. : Cancels.

: Select either one which mutes the sounds while using a cellular

phone.

: Cancels.

: Scrolls the displayed information once. : Repeats scrolling (at 5-second intervals). : Cancels.

• Pressing DISP for more than one second can scroll the display regardless of the setting.

TAG DISPLAY

Tag display

AMP GAIN

Amplifier gain control

IF BAND

Intermediate frequency band

• TAG ON

• TAG OFF

• LOW POWER

• HIGH POWER

• AUTO

• WIDE

: Shows the Tag information while playing MP3/WMA/WAV tracks. : Cancels.

: VOLUME 00 – VOLUME 30. (Select this if the maximum power of the

speaker is less than 50 W to avoid damaging the speaker.)

: VOLUME 00 – VOLUME 50.

: Increases the tuner selectivity to reduce interference noises between

adjacent stations. (Stereo effect may be lost.)

: Subject to interference noises from adjacent stations, but sound

quality will not be degraded and the stereo effect will remain.

*1 If the power supply is not interrupted by turning off the ignition key of your car, it is recommended to select

“CLOCK OFF” to save the car’s battery.

*2 Only for RDS FM stations. *3 Depending on the “AMP GAIN” setting. *4 Some characters or symbols will not be shown correctly (or will be blanked) on the display.

ENGLISH

25SETTINGS

Disc setup menu

These operations are possible on the monitor using the remote controller.

1 Enter the disc setup menu while stop.

ENGLISH

2 Select a menu.

3 Select an item you want to set up.

• To cancel pop-up menu, press RETURN.

4 Select an option.

To return to normal screen

Menu Item Setting

MENU LANGUAGE

AUDIO LANGUAGE

SUBTITLE Select the initial subtitle language or remove the subtitle (OFF). Refer also to

LANGUAGE

ON SCREEN LANGUAGE

Select the initial disc menu language. Refer also to “Language codes” on page 32.

Select the initial audio language. Refer also to “Language codes” on page 32.

“Language codes” on page 32.

Select the language for the on screen display.

Menu Item Setting

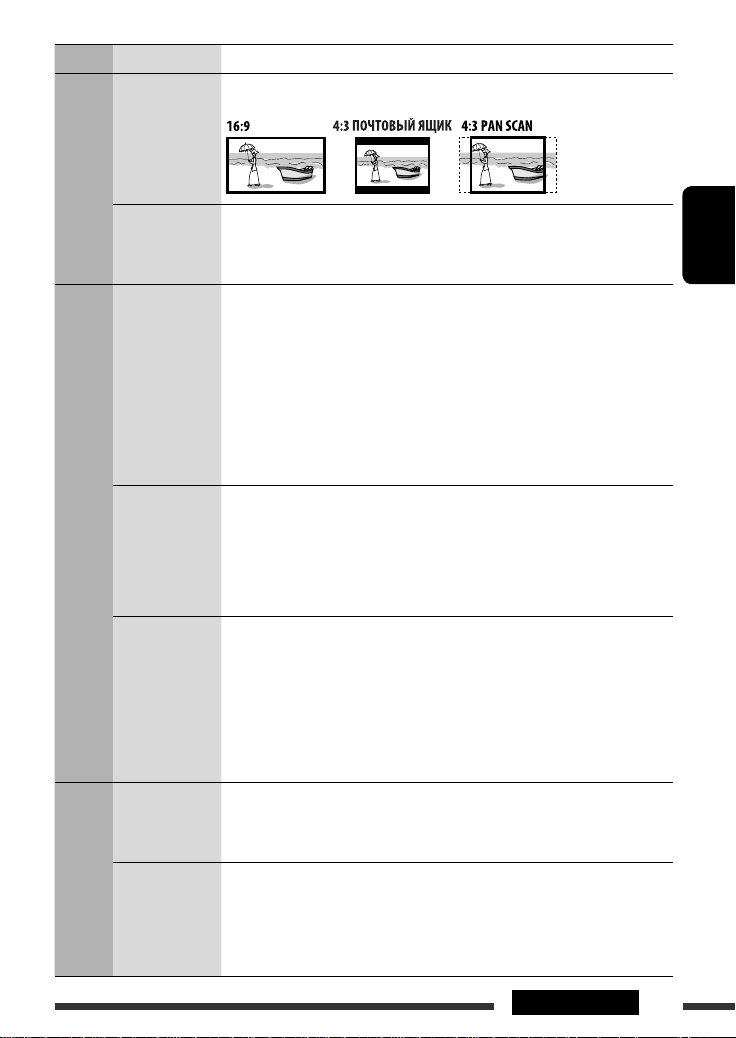

MONITOR TYPE Select the monitor type to watch a wide screen picture on your monitor.


OSD POSITION Select the on-screen bar position on the monitor.

• 1 : Higher position

• 2 : Lower position (Guidance below the disc setup menu will disappear.)

DIGITAL AUDIO OUTPUT

DOWN MIX When playing back a multi-channel disc, this setting affects the signals reproduced

AUDIO

D. RANGE COMPRESSION

DivX REGISTRATION

FILE TYPE (DISC) Select playback file type when a disc contains different types of files.

OTHER

Select the signal format to be emitted through the DIGITAL OUT (Optical) terminal.

• OFF : Cancels.

• PCM ONLY : Select for an amplifier or a decoder incompatible with Dolby Digital, DTS, MPEG Audio, or when connecting to a recording device.

• DOLBY DIGITAL/PCM : Select for an amplifier or a decoder compatible with Dolby Digital.

• STREAM/PCM : Select for an amplifier or a decoder compatible with Dolby Digital, DTS, and MPEG Audio.

through the LINE OUT jacks (and through the DIGITAL OUT terminal when “PCM ONLY” is selected for “DIGITAL AUDIO OUTPUT”).

• SURROUND COMPATIBLE : Select to enjoy multi-channel surround audio by connecting an amplifier compatible with Dolby Surround.

• STEREO : Normally select this.

You can enjoy a powerful sound at low or middle volume levels while playing a Dolby Digital software.

• AUTO : Select to apply the effect to multi-channel encoded software (excluding 1-channel and 2-channel software).

• ON : Select to always use this function.

This unit has its own Registration Code. Once you have played back a disc in which the Registration Code recorded, this unit’s Registration Code is overwritten for copyright protection.

• AUDIO : Play MP3/WMA/WAV files.

• VIDEO : Play DivX/MPEG Video files.

• AUDIO + VIDEO : Play MP3/WMA/WAV/DivX/MPEG Video files.

ENGLISH

27SETTINGS

More about this unit

General

Turning on the power

ENGLISH

• By pressing SRC on the unit, you can also turn on the power. If the source is ready, playback starts.

Turning off the power

• If you turn off the power while listening to a disc, disc play will start automatically, next time you turn on the power.

FM/AM

Storing stations in memory

• During SSM search...

– Received stations are preset in No. 1 (lowest

frequency) to No. 6 (highest frequency).

– When SSM is over, the station stored in No. 1 will

be automatically tuned in.

• When storing stations, the previously preset stations are erased and stations are stored newly.

Disc

General

• In this manual, words “track” and “file” are interchangeably used.

• This unit can only play back audio CD (CD-DA) files if different type of files are recorded in the same disc.

Inserting a disc

• When a disc is inserted upside down, “PLEASE” and “EJECT” appear alternately on the display. Press 0 to eject the disc.

Ejecting a disc

• If the ejected disc is not removed within 15 seconds, the disc is automatically inserted again into the loading slot to protect it from dust. Playback starts automatically.

• After ejecting a disc, “NO DISC” appears and you cannot operate some of the buttons. Insert another disc or press SRC to select another playback source.

Playing Recordable/Rewritable discs

• This unit can recognize a total of 5 000 files and 250 folders (a maximum of 999 files per folder).

• This unit can recognize a total 25 characters for file/ folder names.

• Use only “finalized” discs.

• This unit can play back multi-session discs; however, unclosed sessions will be skipped while playing.

• This unit may be unable to play back some discs or files due to their characteristics or recording conditions.

• Rewritable discs may require a longer readout time.

Playing DVD-VR files

• For details about DVD-VR format and playlist, refer to the instructions supplied with the recording equipment.

Playing MP3/WMA/WAV files

• The maximum number of characters for folder and file names is 25 characters; 128 characters for MP3/ WAV and 64 characters for WMA tag information.

• This unit can play back files with the extension code <.mp3>, <.wma>, or <.wav> (regardless of the letter case—upper/lower).

• This unit can show the names of albums, artists (performer), and Tag (Version 1.0, 1.1, 2.2, 2.3, or

2.4) for the MP3/WMA/WAV files.

• This unit can display only one-byte characters. No other characters can be correctly displayed.

• This unit can play back files recorded in VBR (variable bit rate).

Files recorded in VBR have a discrepancy in elapsed

time indication.

• This unit cannot play back the following files:

– MP3 files encoded with MP3i and MP3 PRO format. – MP3 files encoded with Layer 1/2. – WMA files encoded with lossless, professional, and

voice format.

– WMA files which are not based upon Windows

Media® Audio. – WMA files copy-protected with DRM. – Files which have the data such as ATRAC3, etc. – AAC files and OGG files.

Playing DivX files

• This unit can play back DivX files with the extension

code <.divx>, <.div>, <.avi> (regardless of the letter case—upper/lower).

• This unit supports DivX Media Format files, <.divx>

or <.avi>.

• This unit can display a unique registration code—

DivX Video-on-Demand (VOD—a kind of Digital Rights Management). For activation and more details, visit <www.divx.com/vod>.

• Audio stream should conform to MP3 or Dolby Digital.

• This unit does not support GMC (Global Motion

Compression).

• The file encoded in the interlaced scanning mode

may not be played back correctly.

• This unit cannot play back the following files: – Files encoded in Codec (Compressor-decompressor)

other than DivX Codec.

• If you want to know more about DivX, visit

<http://www.divx.com>.

Playing MPEG Video files

• This unit can play back MPEG Video files with the extension code <.mpg>, <.mpeg>, or <.mod>*.

* <.mod> is an extension code used for the MPEG-2 files

recorded by JVC Everio camcorders.

• Audio stream should conform to MPEG1 Audio Layer 2.

• This unit cannot playback the following files:

– WMV (Windows Media Video) files – RM (Real Media) format files

Changing the source

• If you change the source, playback also stops (without ejecting the disc).

Next time you select “DISC” for the playback source,

disc play starts from where it has been stopped previously.

General settings—PSM

• If you change the “AMP GAIN” setting from “HIGH POWER” to “LOW POWER” while the volume level is set higher than “VOLUME 30,” the unit automatically changes the volume level to “VOLUME 30.”

Disc setup menu

• When the language you have selected is not recorded on a disc, the original language is automatically used as the initial language. In addition, for some discs, the initial languages settings will not work as you set due to their internal disc programming.

• When you select “16:9” for a picture whose aspect ratio is 4:3, the picture slightly changes due to the process for converting the picture width.

• Even if “4:3 PAN SCAN” is selected, the screen size may become “4:3 LETTERBOX” for some discs.

ENGLISH

Continued on the next page

29REFERENCES

About sounds reproduced through the rear terminals

• Through the analog terminals (Speaker out/LINE OUT): 2-channel signal is emitted. When playing a multi-channel encoded disc, multi-channel signals are

downmixed. DTS sound cannot be reproduced. (AUDIO—DOWN MIX: see page 27.)

• Through DIGITAL OUT (optical):

ENGLISH

Digital signals (Linear PCM, Dolby Digital, DTS, MPEG Audio) are emitted through this terminal. (For more

details, see table on page 31.)

To reproduce multi-channel sounds such as Dolby Digital, DTS, and MPEG Audio, connect an amplifier or a

decoder compatible with these multi-channel sources to this terminal, and set “DIGITAL AUDIO OUTPUT” correctly. (See page 27.)

On-screen guide icons

During playback, the following guide icons may appear for a while on the monitor.

: Playback : Pause

: DVD-Video/VCD: Forward slow motion

: DVD-Video: Reverse slow motion

: Reverse search

: Multi-subtitle languages : Multi-audio languages

: Forward search

DVD: The following icons appear at the beginning of a scene containing:

: Multi-angle views

Available characters on the display

Available characters

Display indications

+ 81 hidden pages
