JVC KD-ADV8490 User Manual
DVD/CD RECEIVER KD-ADV8490
RECEPTOR CON DVD/CD KD-ADV8490
RÉCEPTEUR DVD/CD KD-ADV8490
For canceling the display demonstration, see page 7.
Para cancelar la demostración en pantalla, consulte la página 7.
Pour annuler la démonstration des affichages, référez-vous à la page 7.
ENGLISHESPAÑOLFRANÇAIS
For installation and connections, refer to the separate manual.
Para la instalación y las conexiones, refiérase al manual separado.
Pour l’installation et les raccordements, se référer au manuel séparé.
INSTRUCTIONS
MANUAL DE INSTRUCCIONES
MANUEL D’INSTRUCTIONS
For customer Use:
Enter below the Model
No. and Serial No. which
are located on the top or
bottom of the cabinet. Retain
this information for future
reference.
Model No.
Serial No.
GET0536-001A
[J]
Thank you for purchasing a JVC product.
Please read all instructions carefully before operation, to ensure your complete understanding and to obtain the best
possible performance from the unit.
INFORMATION (For U.S.A.)
ENGLISH
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part
15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in
a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning the equipment
off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
– Reorient or relocate the receiving antenna.
– Increase the separation between the equipment and receiver.
– Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
– Consult the dealer or an experienced radio/TV technician for help.
Caution:
Changes or modifications not approved by JVC could void the user’s authority to operate the equipment.

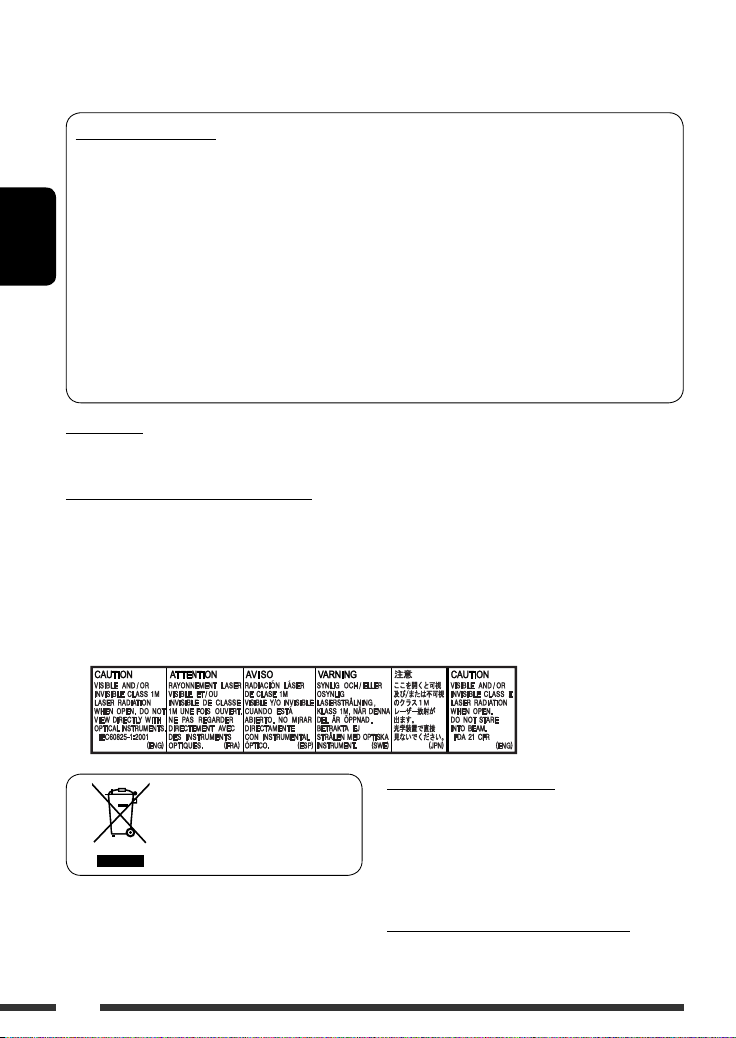

IMPORTANT FOR LASER PRODUCTS
1. CLASS 1 LASER PRODUCT
2. CAUTION: Do not open the top cover. There are no user serviceable parts inside the unit; leave all servicing to
qualified service personnel.
3. CAUTION: (For U.S.A.) Visible and/or invisible class II laser radiation when open. Do not stare into beam.
(For Canada) Visible and/or invisible class 1M laser radiation when open. Do not view directly with
optical instruments.
4. REPRODUCTION OF LABEL: CAUTION LABEL, PLACED OUTSIDE THE UNIT.
For safety...
[European Union only]
• Do not raise the volume level too much, as this will
block outside sounds, making driving dangerous.
• Stop the car before performing any complicated
operations.
Temperature inside the car...
If you have parked the car for a long time in hot or cold
weather, wait until the temperature in the car becomes
normal before operating the unit.
2
How to reset your unit
• Your preset adjustments will also be erased (except the
registered Bluetooth device, see pages 26 and 27).
How to forcibly eject a disc
“Please Eject” appears on the display.
• Be careful not to drop the disc when it ejects.
• If this does not work, reset your unit.
WARNINGS:
(To prevent accidents and damage)
• DO NOT install any unit or wire any cable in
a location where;
– it may obstruct the steering wheel and
gearshift lever operations.
– it may obstruct the operation of safety
devices such as air bags.
– it may obstruct visibility.
• DO NOT operate the unit while driving.
• If you need to operate the unit while
driving, be sure to look around carefully.
• The driver must not watch the monitor
while driving.
If the parking brake is not engaged,
“DRIVER MUST NOT WATCH THE MONITOR
WHILE DRIVING.” appears on the monitor,
and no playback picture will be shown.
– This warning appears only when the
parking brake lead is connected to the
parking brake system built in the car
(refer to the Installation/Connection
Manual).
Indication language:
In this manual, English indications are used
for purposes of explanation. You can select
the indication language on the monitor on the
“LANGUAGE” setting (see page 47).
ENGLISH
Caution on volume setting:
Digital devices (CD/USB) produce very little noise
compared with other sources. Lower the volume before
playing these digital sources to avoid damaging the
speakers by sudden increase of the output level.
Caution for DualDisc playback
The Non-DVD side of a “DualDisc” does not comply with
the “Compact Disc Digital Audio” standard. Therefore,
the use of Non-DVD side of a DualDisc on this product
may not be recommended.
3

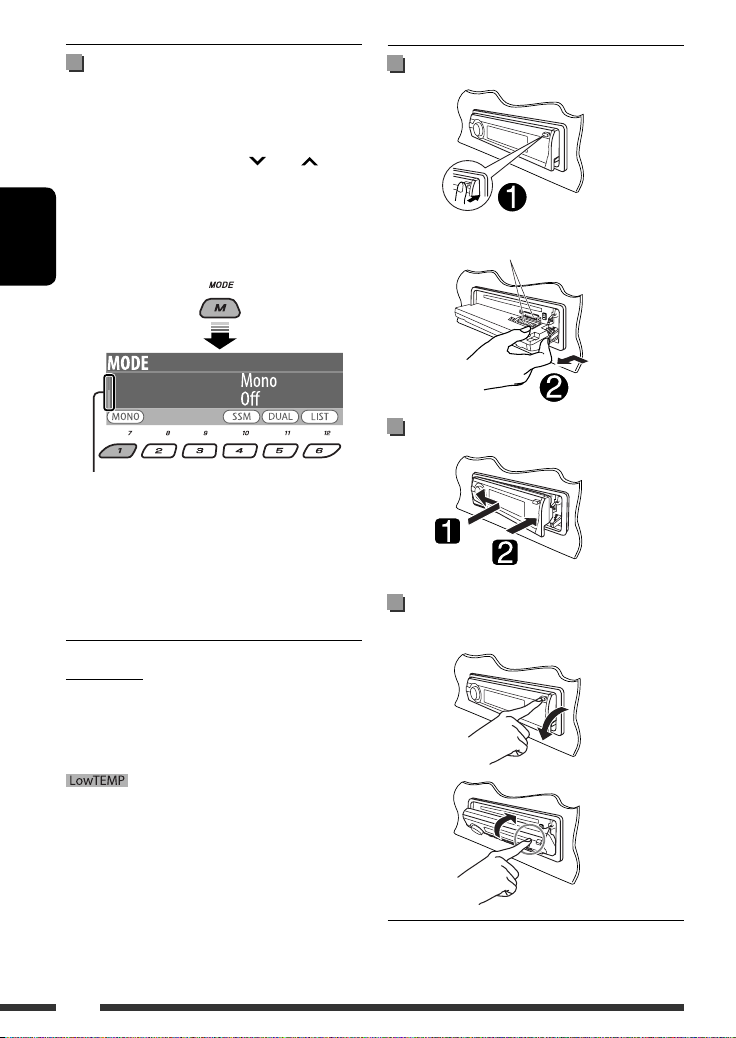

How to use the M MODE and SEL
buttons
If you use M MODE or SEL (select), the display and some
controls (such as the number buttons,
4 /¢ buttons, 5/∞ buttons, and the
ENGLISH
control dial) enter the corresponding control mode.
Ex.: When you press number button 1 after pressing
M MODE, to operate the FM tuner.
Works as time countdown indicator.
To use these controls for original functions, press
M MODE again.
• However, pressing SEL makes the unit enters a
different mode.
• Waiting for about 15 seconds without pressing any of
these buttons will automatically cancels the control.
Caution:
If the temperature inside the car is below 32°F (0°C),
the movement of animation and text scroll will be
halted on the display to prevent the display from being
blurred. appears on the display.
When the temperature increases, and the operating
temperature is resumed, these functions will start
working again.

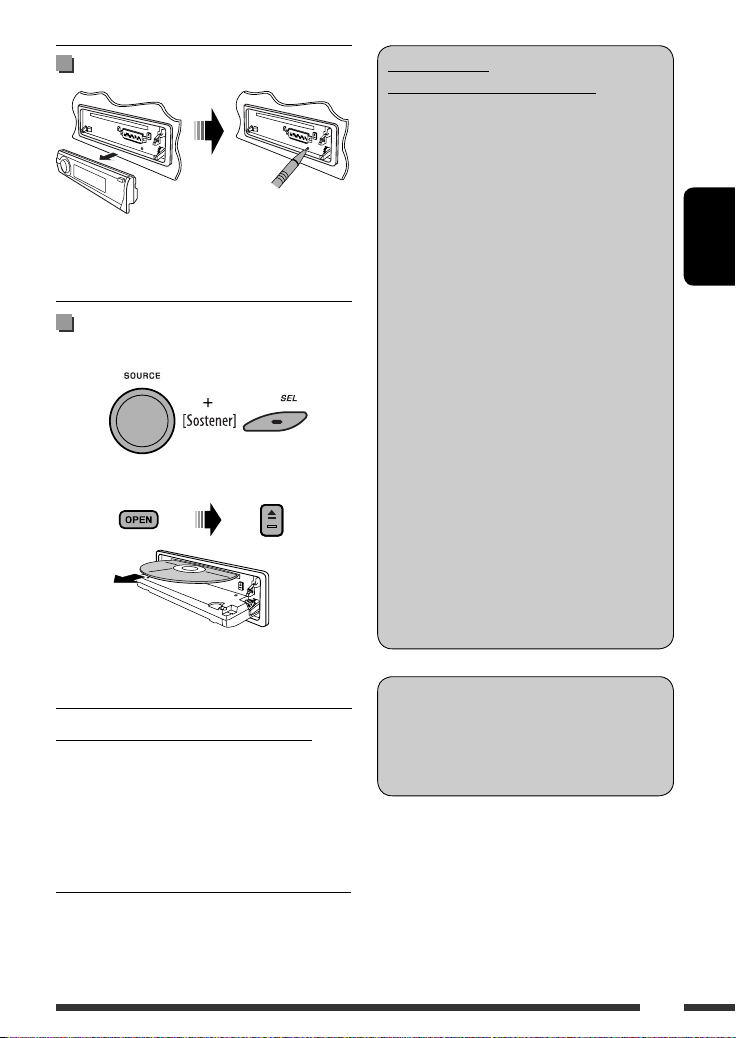

Detaching the control panel
Avoid touching the connectors.
Attaching the control panel
Opening and closing the control
panel
Open...
Close...
4
CONTENTS
INTRODUCTIONS
Playable disc type ........................................................................................................................... 6
Preparation ..................................................................................................................................... 7
OPERATIONS
Basic operations .............................................................................................................................. 8
• Using the control panel ............................................................................................................................ 8
• Using the remote controller (RM-RK252) ................................................................................................. 9
Listening to the radio ...................................................................................................................... 12
Disc operations ................................................................................................................................ 14
• Operations using the control panel .......................................................................................................... 15
• Operations using the remote controller (RM-RK252) ............................................................................... 18
Listening to the USB device ............................................................................................................. 24
Dual Zone operations ...................................................................................................................... 25
Listening to the Bluetooth® devices ................................................................................................ 26
• Using the Bluetooth cellular phone ......................................................................................................... 28
• Using the Bluetooth audio player ............................................................................................................ 31
EXTERNAL DEVICES
Listening to the CD changer ............................................................................................................ 32
Listening to the satellite radio ........................................................................................................ 33
Listening to the iPod ....................................................................................................................... 36

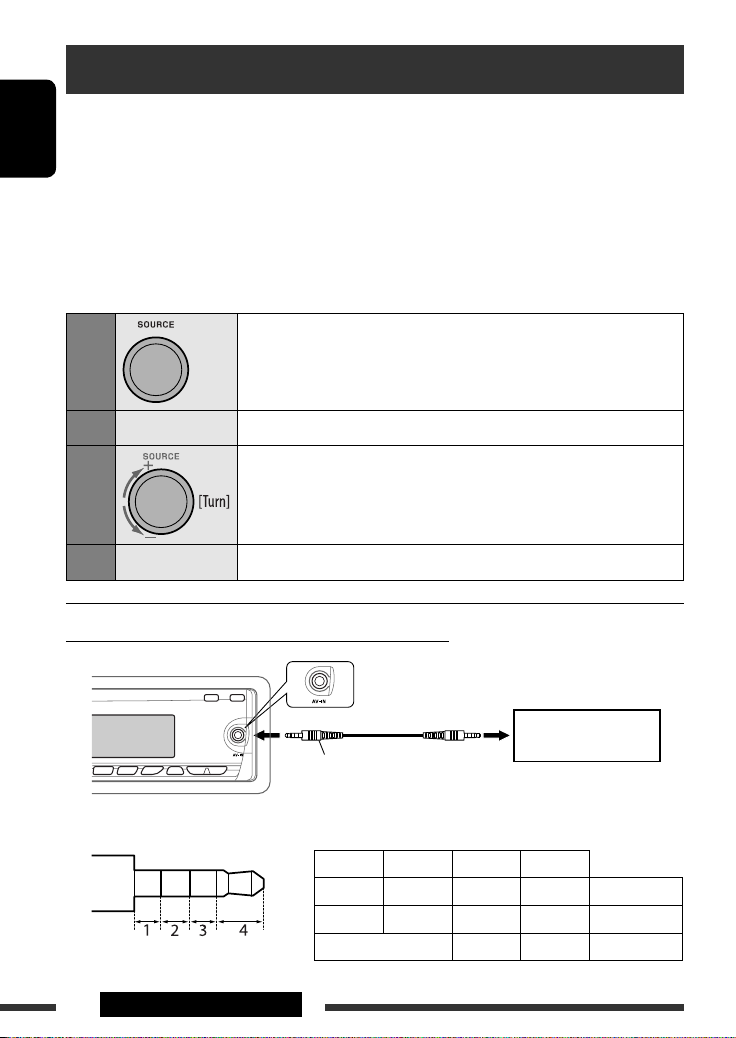

Listening to the other external components ................................................................................... 38
SETTINGS
Selecting a preset sound mode ....................................................................................................... 39
General settings — PSM ................................................................................................................ 42
Disc setup menu .............................................................................................................................. 47
Bluetooth settings .......................................................................................................................... 49
Title assignment ............................................................................................................................. 50
ENGLISH
REFERENCES

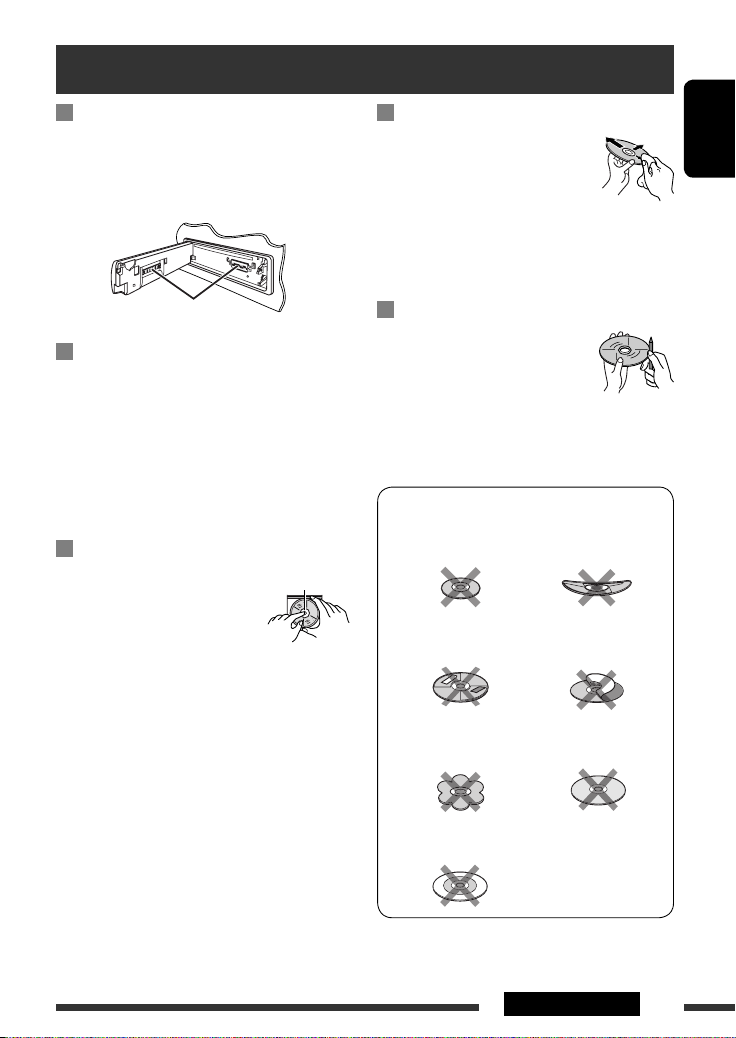

Maintenance ................................................................................................................................... 51
More about this unit ....................................................................................................................... 52
Troubleshooting .............................................................................................................................. 60
Specifications .................................................................................................................................. 66
5

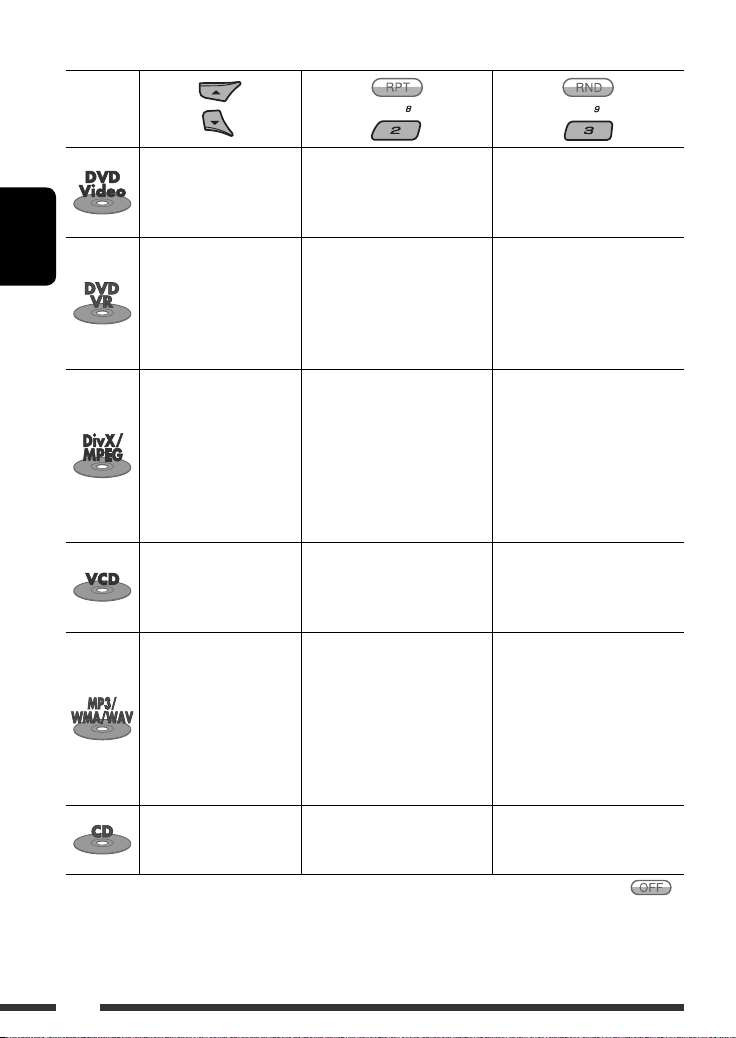

Playable disc type
Disc type Recording format, file type, etc Playable
DVD DVD Video (Region Code: 1) *
ENGLISH
DVD Audio
DVD-ROM
DVD Recordable/Rewritable
(DVD-R/-RW *
2
, +R/+RW *3)
• DVD Video: UDF bridge
• DVD-VR
• DivX/MPEG-1/MPEG-2/MP3/
WMA/WAV: ISO 9660 level 1,
level 2, Joliet
DVD Video
DVD-VR
DivX/MPEG1/MPEG2
MP3/WMA/WAV
AAC
JPEG/MPEG4
DVD+VR
DVD-RAM
Dual Disc DVD side
Non-DVD side
CD/VCD Audio CD/CD Text (CD-DA)/DTS-CD *
VCD (Video CD)
SVCD (Super Video CD)
CD-ROM
CD-I (CD-I Ready)
CD Recordable/Rewritable
(CD-R/-RW)
• ISO 9660 level 1, level 2, Joliet
CD-DA
DivX/MPEG1/MPEG2
MP3/WMA/WAV
AAC
JPEG/MPEG4
1
If you insert a DVD Video disc of an incorrect Region Code, “REGION CODE ERROR” appears on the monitor.
*
*2 DVD-R recorded in multi-border format is also playable (except for dual layer discs). DVD-RW dual layer discs are not
playable.
*3 It is possible to play back finalized +R/+RW (Video format only) discs. +RW double layer discs are not playable.
*4 To reproduce DTS sound, use the DIGITAL OUT terminal (see also pages 48 and 58).
1
4
6
Preparation
Cancel the display demonstration and set the clock
• See also pages 42 and 43.
1
2
Turn on the power.
Enter the PSM settings.
ENGLISH
3
4
Changing the display information and pattern
• When the power is turned off: Check the current clock time
Ex.: When tuner is selected as the source
Source operation display

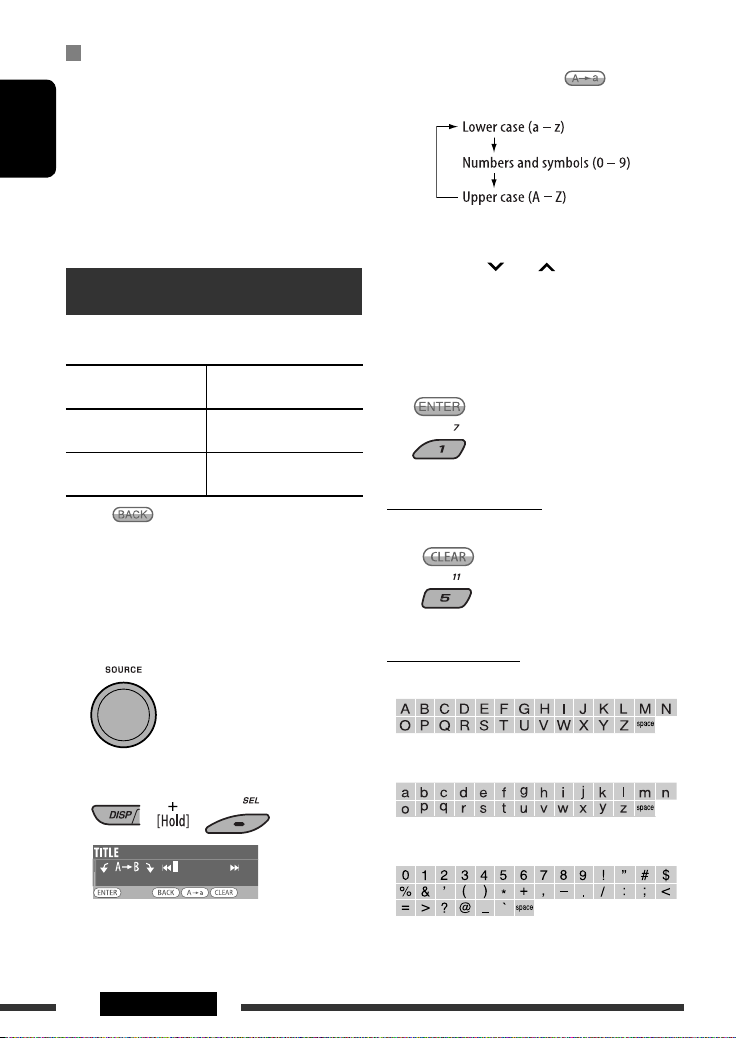

• To assign a title to a station, see page 50.
Cancel the display demonstrations
Select “Demo,” then “Off.”
Set the clock
Select “Clock Hr” (hour), then adjust the hour.
Select “Clock Min” (minute), then adjust the minute.
Select “24H/12H,” then “24Hours” or “12Hours.”
Finish the procedure.
Audio level meter display
(see “LevelMeter” on page 42)
7INTRODUCTIONS
Basic operations
Using the control panel
ENGLISH
1 • TUNER: Select preset station.
• SIRIUS/XM: Select category.
• DISC/USB/CD-CH: Select title/program/
playlist/folder.
• iPod: Enter the main menu/Pause playback/
Confirm selection.
2 • Turn on the power.
• Turn off the power [Hold].
• Attenuate the sound (if the power is on).
• Bluetooth: Switch the conversation media
during a phone call conversation.
3 Display window
4 • Enter/exit Bluetooth menu.
• Display the dialed list [Hold].
5 Flip down the control panel.
• To eject the disc, flip down the control panel
then press 0 on the unit.
6 AV-IN (video) input jack
7 • TUNER/SIRIUS/XM: Search for station/
channel.
• DISC/USB/CD-CH/iPod: Select chapter/track.
• BT Audio: Reverse skip/forward skip.
8 • Volume control [Turn].
• Select the source [Press].
TUNER = SIRIUS *1/XM *1 = DISC *1 =
USB *1 = CD-CH *1/iPod *1 (or EXT IN) =
BT Audio = LINE IN = AV IN = (back to the
beginning)
9 • Select/adjust the sound mode.
• Enter the PSM settings [Hold].
p • TUNER/SIRIUS/XM: Select preset station/
channel.
• DISC/USB/CD-CH: Select chapter/title/
program/folder/track/disc (for CD changer).
• Bluetooth: Dial preset phone number *2.
q • Enter functions mode.
• Bluetooth: Activate Voice Dialing [Hold].
w Change the display information and pattern.
e • TUNER/SIRIUS/XM: Select the bands.
• DISC/USB: Start/pause playback.
• BT Audio: Start/pause playback.
*1 You cannot select these sources if they are not ready
or not connected.
*2 For storing preset phone number, see page 30.
8
Using the remote controller (RM-RK252)
Installing the batteries
R03/LR03/AAA
Insert the batteries into the remote controller by
matching the polarity (+ and –) correctly.
Caution:
Battery shall not be exposed to excessive heat such as
sunshine, fire, or the like.
If the effectiveness of the remote controller
decreases, replace both batteries.
Before using the remote controller:
• Aim the remote controller directly at the remote
sensor on the unit.
• DO NOT expose the remote sensor to bright light
(direct sunlight or artificial lighting).
ENGLISH
Remote sensor
This unit is equipped with the steering wheel
remote control function.
• See the Installation/Connection Manual (separate
volume) for connection.
IMPORTANT:
If Dual Zone is activated (see page 25), the remote
controller only functions for operating the DVD/CD
player.
1
1*
button
• Turns the power on if pressed briefly or
attenuates the sound when the power is on.
• Turns the power off if pressed and held.
• Switches the conversation media during a
phone call conversation.
Continued on the next page
9OPERATIONS
2 5/∞ buttons
• TUNER: Selects the preset stations.
• SIRIUS/XM: Selects the categories.
• DISC:
– DVD-Video: Selects the title.
– DVD-VR: Selects the program/playlist.
ENGLISH
– DivX/MPEG Video/MP3/WMA/WAV: Selects
the folders if included.
• USB:
– DivX/MPEG Video/MP3/WMA/WAV: Selects
the folders if included.
• CD-CH: Selects the folders if included.
• BT Audio: Selects the folder if included.
• iPOD:
5 : Enters the main menu (then 5 / ∞ /
–
4 / ¢ work as menu
selecting buttons.)
5 : Returns to the previous menu.
∞ : Confirms the selection.
– ∞ : Pauses or resumes playback.
4 / ¢ buttons
• TUNER:
– Searches for stations automatically if pressed
briefly.
– Searches for stations manually if pressed and
held.
• SIRIUS/XM:
– Changes the channels if pressed briefly.
– Changes the channels rapidly if pressed and
held.
• DISC/USB/CD-CH:
– Reverse skip/forward skip if pressed briefly.
– Reverse search/forward search if pressed and
held.
• BT Audio:
– Reverse skip/forward skip if pressed briefly.
– Reverse search/forward search if pressed and
held.
• iPOD:
– Reverse skip/forward skip if pressed briefly.
– Reverse search/forward search if pressed and
held.
In menu selecting mode:
– Selects an item if pressed briefly. (Then, press
∞ to confirm the selection.)
– Skips 10 items at a time if pressed and held.
3 VOL (volume) + / – buttons
• Adjusts the volume level.
2nd VOL (volume) buttons
• Adjust the volume level through the 2nd AUDIO
OUT plug while holding SHIFT button (see
page 25).
2
4 *
ASPECT button
• Not applicable for this unit.
1
5 *
PHONE button
• Answer incoming calls.
• Enters “Redial” menu when a Bluetooth phone
is connected [Hold].
2
6 *
SETUP button
• Enters disc setup menu (during stop).
2
7 *
TOP M (menu) button
• DVD-Video/DivX: Shows the disc menu.
• DVD-VR: Shows the Original Program screen.
• VCD: Resumes PBC playback.
2
8 *

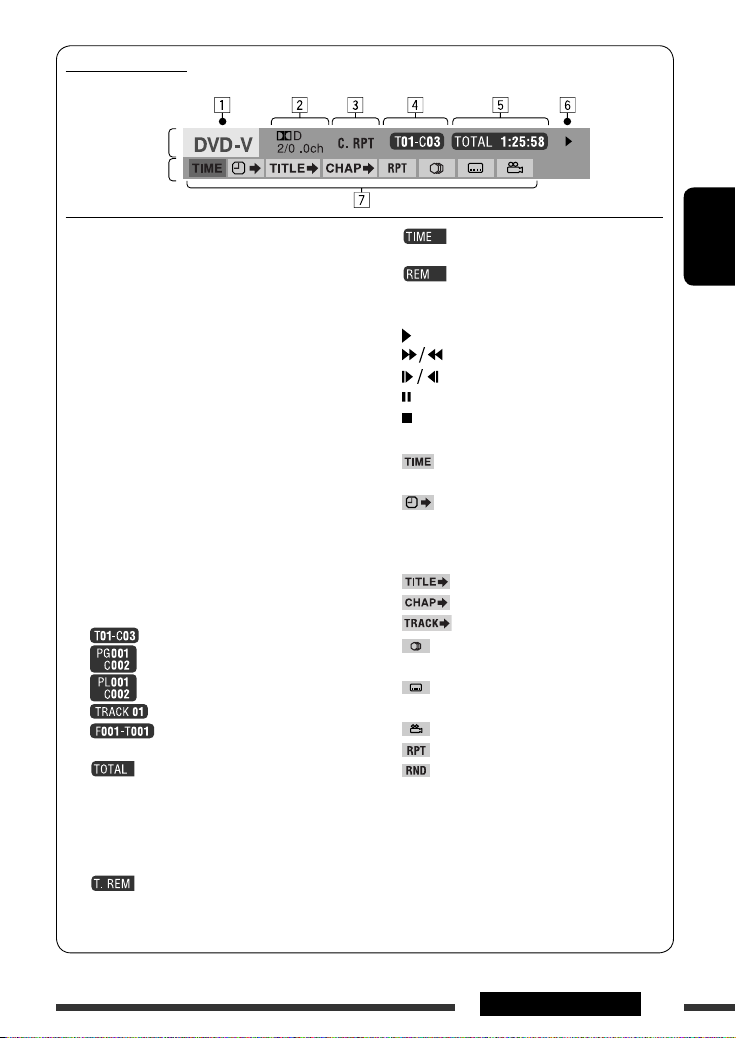

OSD (on-screen display) button
• Shows the on-screen bar.
9 SHIFT button
• Functions with other buttons.
1
p *
DISP (display) button
• Changes the display information.
10
q 1 / ¡ buttons
• DVD-Video: Slow motion playback (during
pause).
• DVD-VR/VCD: Forward slow motion playback
(during pause).
• DISC/USB: Reverse search/forward search.
1
w*
SOURCE button
• Selects the source.
e 3 (play) / 8 (pause) button
• DISC/USB/BT Audio: Starts/pauses playback.
r (end call) button
• Ends the call.
BAND /
7 (stop) buttons
• TUNER/SIRIUS/XM: Selects the bands.
• DISC/USB/BT Audio: Stops playback.
2
t *
RETURN button
• VCD: Returns to the PBC menu.
2
y *
MENU button
• DVD-Video/DivX: Shows the disc menu.
• DVD-VR: Shows the Playlist screen.
• VCD: Resumes PBC playback.
2
u *
% / fi buttons
• DVD-Video: Makes selection/settings.
• CD-CH: Changes discs in the magazine.
@ / # buttons
• DVD-Video: Makes selection/settings.
• DivX/MPEG Video: Skips back or forward by
about five minutes.
2
i *
DUAL button
• Activates or deactivates Dual Zone.
o SURROUND button
• Not applicable for this unit.
DIRECT button
• DISC/USB: Enters direct search mode for
chapter/title/program/playlist/folder/track
while holding SHIFT button (see page 18 for
details).
CLR (clear) button
• DISC/USB/Bluetooth: Erases the misentry
while holding SHIFT button.
1
When Dual Zone is activated, these buttons cannot be
*
used.
*2 Functions as number buttons/* (asterisk)/# (hash)
while holding SHIFT button.
– TUNER/SIRIUS/XM: Selects the preset stations/
channels (1 – 6).
– DISC: Enters chapter/title/program/playlist/folder/
track number after entering search mode by
pressing SHIFT and DIRECT (see page 18 for details).
ENGLISH
ENT (enter) button
• Confirms selection.
11OPERATIONS

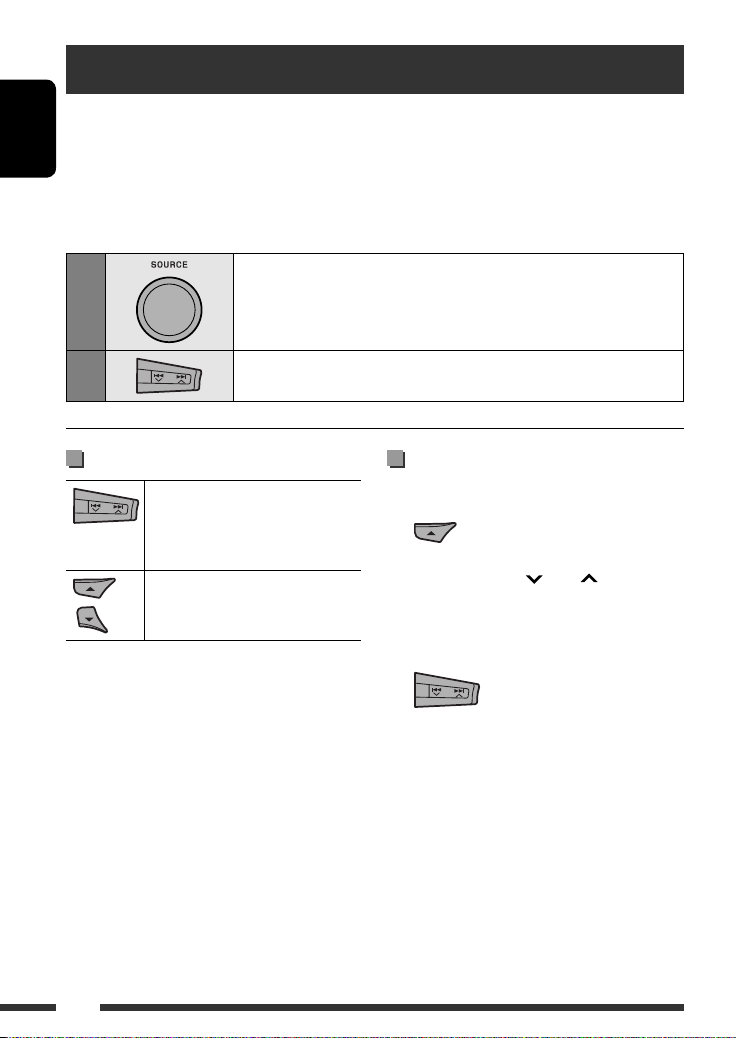

Listening to the radio
1
ENGLISH
2
3
Select “TUNER.”
Select the bands.
Search for a station to listen—Auto Search.
Manual Search: Hold either one of the buttons until “Manual Search” lights up on the
display, then press it repeatedly.
• When receiving an FM stereo broadcast with sufficient signal strength, lights up
on the display.
When an FM stereo broadcast is
hard to receive
1
2
Reception improves, but stereo effect will be lost.
• lights up on the display.
3 Exit from the setting.
FM station automatic presetting
— SSM (Strong-station Sequential
Memory)
You can preset up to six stations for each band.
1 While listening to a station...
2
3
12
Local FM stations with the strongest signals are
searched and stored automatically in the selected
FM band.
Manual presetting
Ex.: Storing FM station of 92.5 MHz into preset number
4 of the FM1 band.
Using the number buttons
1
2
4 Select the preset number you want to store
into.
• You can move to the lists of the other FM bands
by pressing number button 5 (
6 ( ) repeatedly.
) or
ENGLISH
3
Preset number flashes for a while.
Using the Preset Station list
• When is shown on the display, you can move
back to the previous screen by pressing number
button 3.
1 Follow steps 1 and 2 of “Using the number
buttons” above.
• By holding 5 / ∞, the Preset Station List will
also appear (go to step 4).
2
3
Display the Preset Station List.
5 Store the station.
Listening to the preset station on
the Preset Station List
1 Display the Preset Station List, then select
the preset station you want to listen to.
2 Change to the selected station.
13OPERATIONS

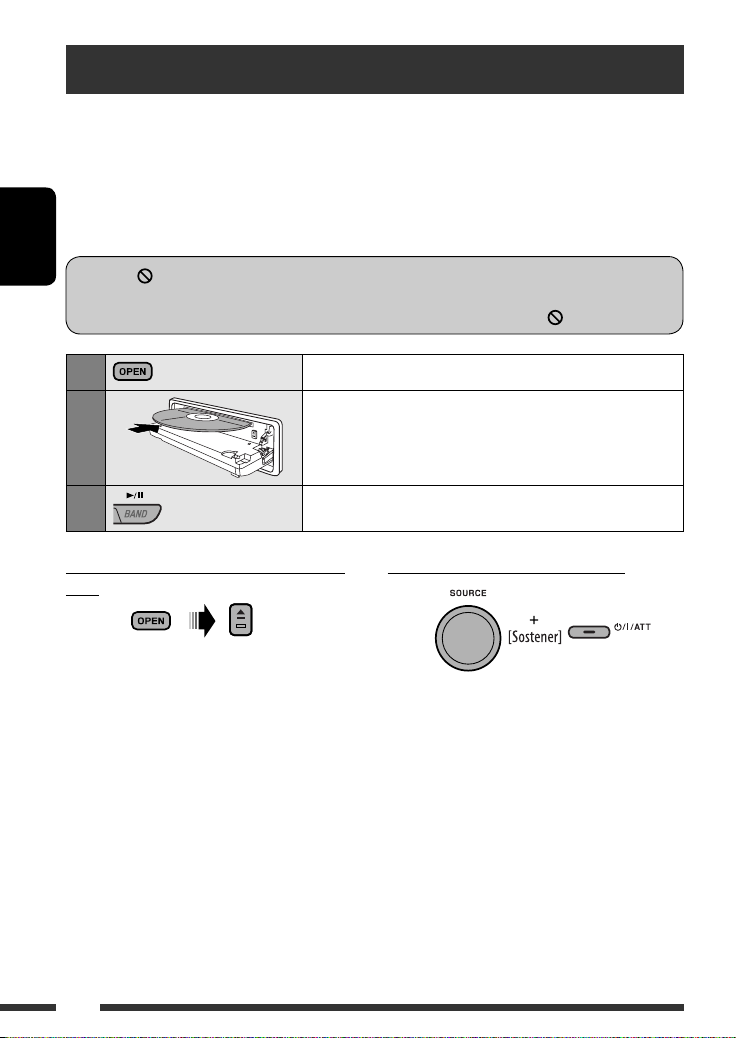

Disc operations
Before performing any operations...
Turn on the monitor to watch the playback picture. If you turn on the monitor, you can also control playback of other
discs by referring to the monitor screen. (See pages 20 – 23.)
ENGLISH
The disc type is automatically detected, and playback starts automatically (for DVD: automatic start depends on its
internal program).
If the current disc does not have any disc menu, all tracks will be played repeatedly until you change the source or
eject the disc.
” appears on the monitor when pressing a button, the unit cannot accept the operation you have tried to
If “
do.
• In some cases, without showing “ ,” operations will not be accepted.
1
2
3
To stop play and eject the disc
• Press SOURCE to listen to another playback source.
Open the control panel.
Insert the disc.
Playback starts automatically.
Start playback if necessary.
Prohibiting disc ejection
To cancel the prohibition, repeat the same
procedure.
14
Operations using the control panel
Pressing (or holding) the following buttons allows you to...
Disc type
[Press] Select chapter
[Hold] Reverse/fast-forward
1
chapter *
[Press] Select chapter
[Hold] Reverse/fast-forward
1
chapter *
[Press] Select track
[Hold] Reverse/fast-forward track *
[Press] Select track
[Hold] Reverse/fast-forward track *
[Press] Select track
[Hold] Reverse/fast-forward track *
[Press] Select track
[Hold] Reverse/fast-forward track *
1
*
Search speed:
*2 Search speed:
*3 Press to select number 1 to 6; hold to select number 7 to 12.
Select title During stop: Locate title
Select program number/
playlist number
Select folder Locate particular folder directly
2
1
Select folder Locate particular folder directly
1
1
—
—
(Number buttons) *
3
During play/pause: Locate
chapter
During stop: Locate program
During play/pause: Locate
chapter
Locate particular track directly
(PBC not in use)
Locate particular track directly
ENGLISH
Continued on the next page
15OPERATIONS

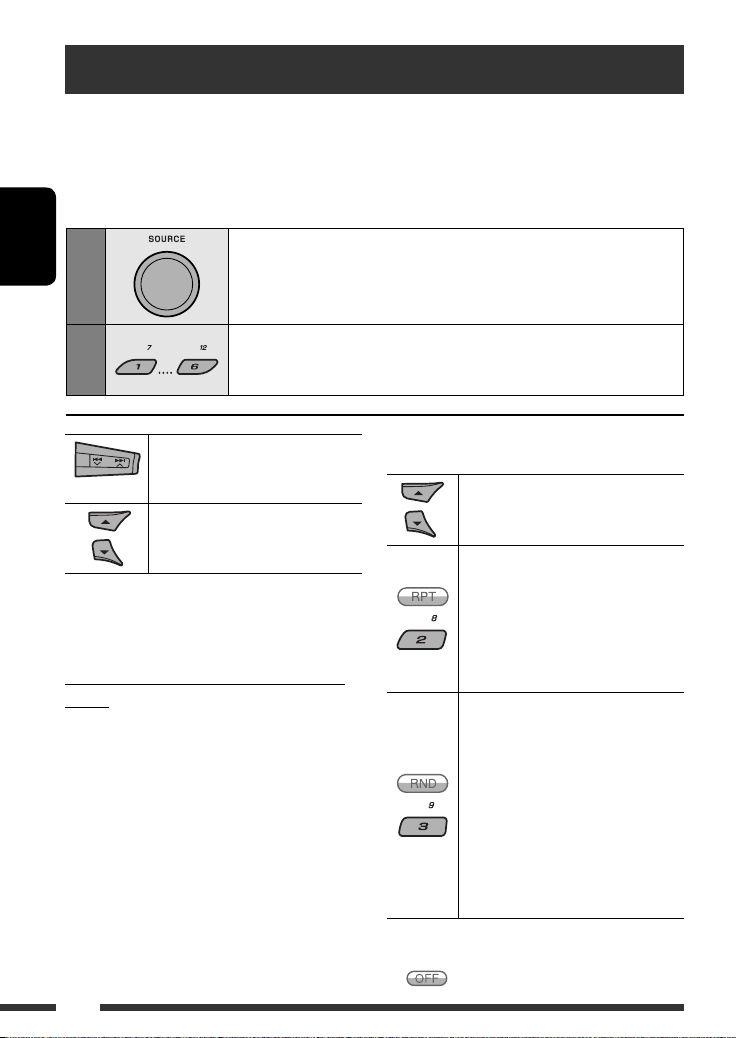

After pressing M MODE, press the following buttons to...
Disc type
ENGLISH
• You can also cancel the playback mode by selecting “Off” or press number button 4 (
Skip 10 chapters (during
play or pause)
Skip 10 chapters (during
play or pause)
Skip 10 tracks (within the
same folder)
Skip 10 tracks (PBC not in
use)
Skip 10 tracks (within the
same folder)
Skip 10 tracks Repeat Track:
Repeat Chapter:
Repeat current chapter
Repeat Title:
Repeat current title
Repeat Chapter:
Repeat current chapter
Repeat Program:
Repeat current program (not
available for Playlist Playback)
Repeat Track:
Repeat current track
Repeat Folder:
Repeat current folder
Repeat Track:
Repeat current track (PBC not in
use)
Repeat Track:
Repeat current track
Repeat Folder:
Repeat current folder
Repeat current track
—
—
Random Folder:
Randomly play all tracks of
current folder, then tracks of
next folders
Random All:
Randomly play all tracks
Random Disc:
Randomly play all tracks (PBC
not in use)
Random Folder:
Randomly play all tracks of
current folder, then tracks of
next folders
Random All:
Randomly play all tracks
Random All:
Randomly play all tracks
).
16

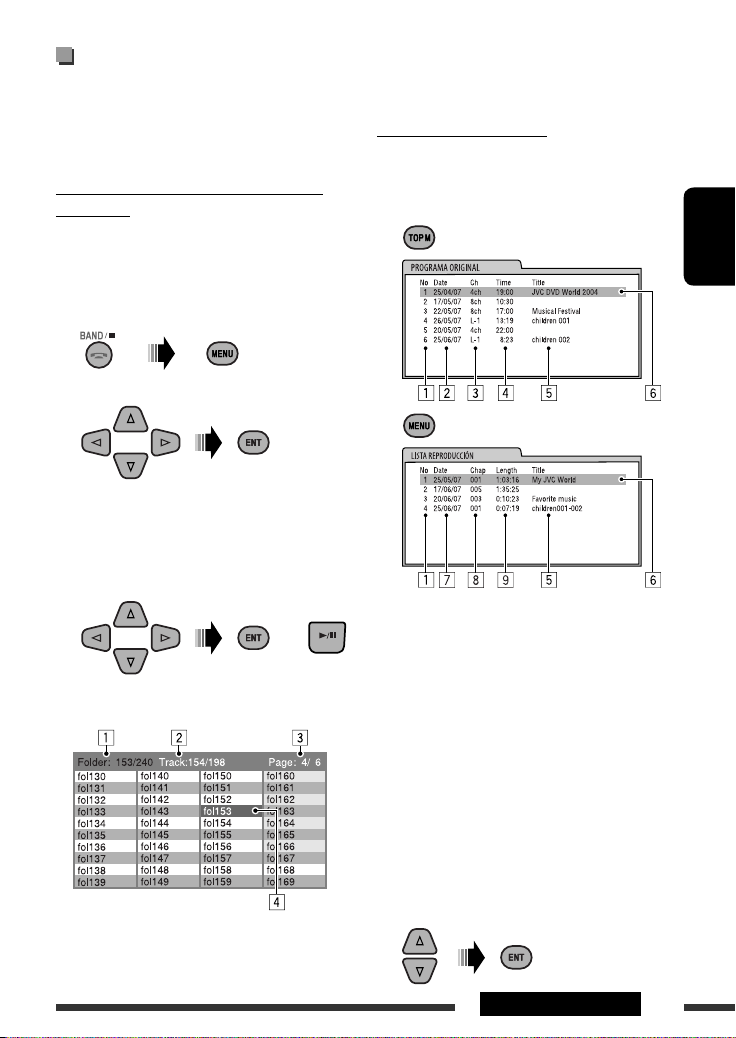

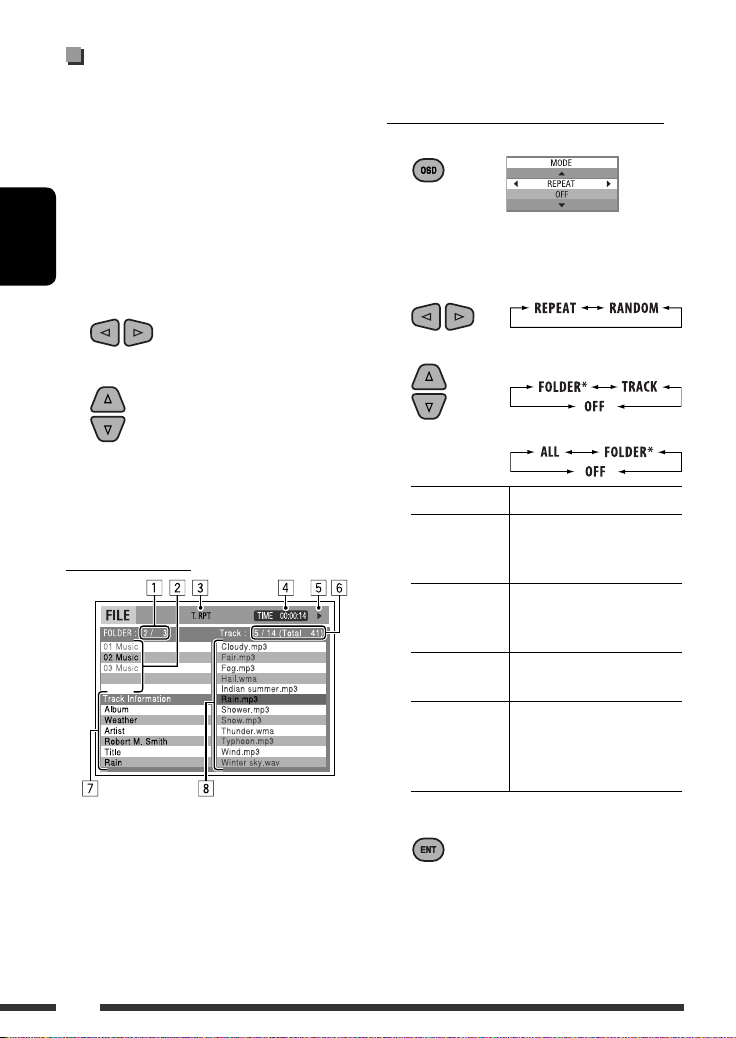

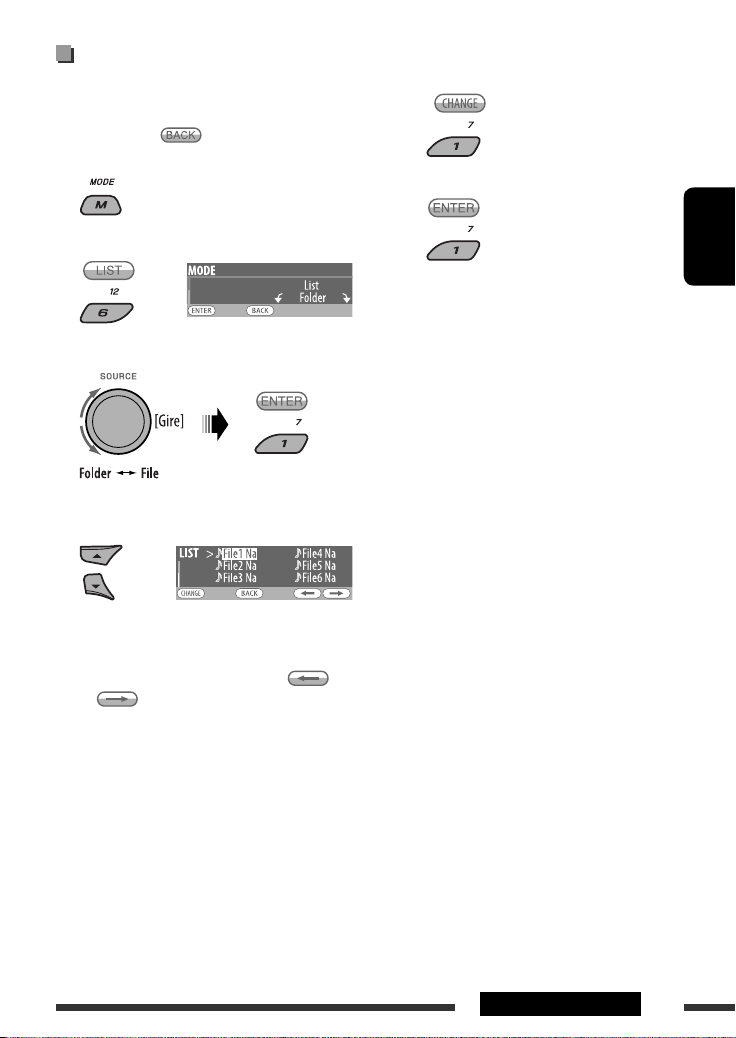

Selecting a folder/track on the list
(only for MP3/WMA/WAV file)
• When is shown on the display, you can move
back to the previous screen by pressing number
button 3.
1
Select “LIST.”
2
3 Select the list type.
4 Select an item.
Ex.: When “File” is selected in step 3
5 Change to the selected item.
A If File List is selected
The list disappears and playback
starts.
B If Folder List is selected
• If the current folder is selected, File List
appears, then repeat steps 4 and 5 A to
start playback.
• If another folder is selected, playback starts
from the 1st file of the selected folder.
ENGLISH
• You can move to the other lists by pressing
number button 5 ( ) or 6 ( )
repeatedly.
17OPERATIONS

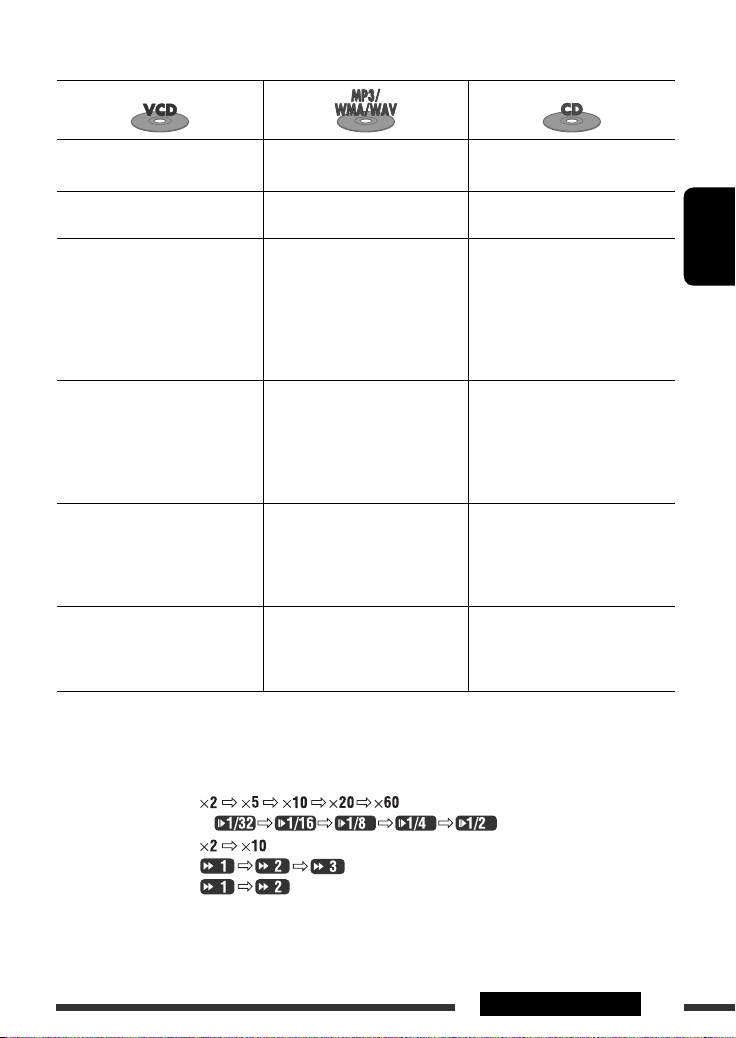

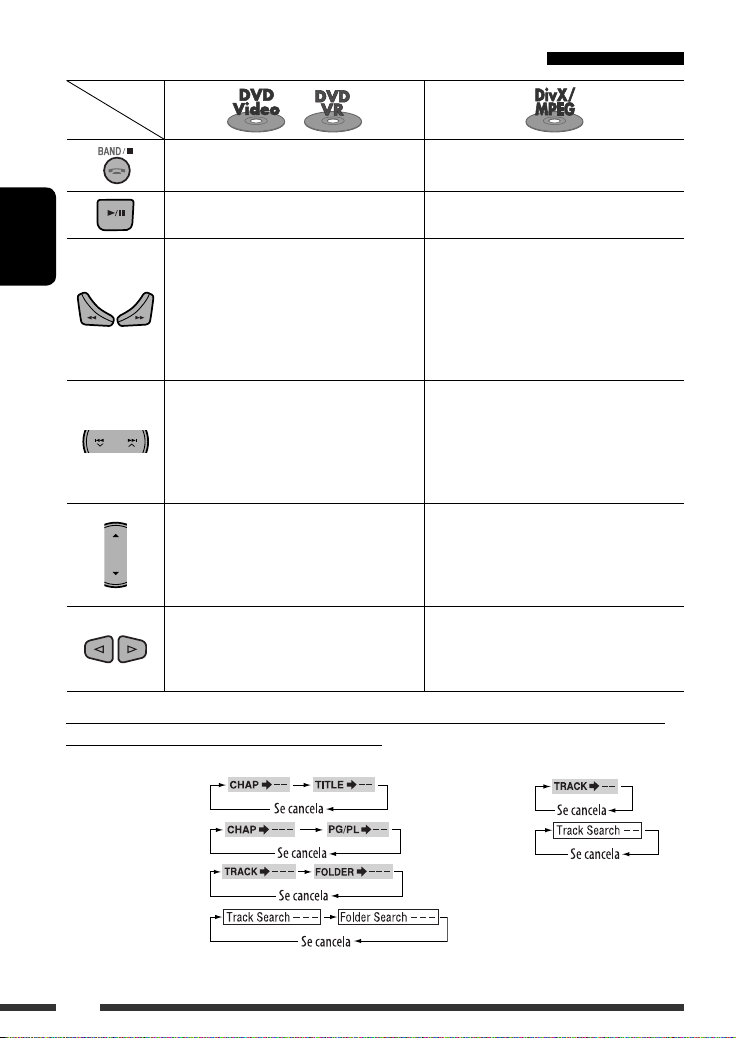

Operations using the remote controller (RM-RK252)
Disc
Button
ENGLISH
Stop play Stop play
Start play/Pause (if pressed during play) Start play/Pause (if pressed during play)
• Reverse/forward chapter search *1 (No
sound can be heard.)
• Slow motion *2 during pause (No sound can
be heard.)
* DVD-VR: Reverse slow motion does not work.
[Press] Select chapter (during play or pause)
[Hold] Reverse/fast-forward chapter search *
• DVD-Video: Select title (during play or
• DVD-VR: Select program/playlist (during
/
pause)
play or pause)
—
Reverse/forward track search *4 (No sound can
be heard.)
[Press] Select track (during play or pause)
3
[Hold] Reverse/fast-forward track search *
(No sound can be heard.)
Select folder
• Skip back or forward the scenes by about
five minutes
• Select chapter
To search for chapter/title/program/playlist/folder/track directly (DVD/DivX/MPEG Video/VCD/
MP3/WMA/WAV/CD)
1 While holding SHIFT, press DIRECT repeatedly to select the desired search mode.
5
DVD-Video :
DVD-VR : CD :
DivX/MPEG Video :
MP3/WMA/WAV :
2 While holding SHIFT, press the number buttons (0 – 9) to enter the desired number.
3 Press ENT (enter) to confirm.
VCD :
18
Stop play Stop play Stop play
ENGLISH
Start play/Pause (if pressed during
play)
Reverse/forward track search *
Start play/Pause (if pressed during
play)
1
Reverse/forward track search *
Start play/Pause (if pressed during
play)
1
Reverse/forward track search *
• Forward slow motion *2 during
pause. (No sound can be heard.)
* Reverse slow motion does not work.
[Press] Select track (during play or
pause)
[Hold] Reverse/fast-forward track
search *3 (No sound can be
[Press] Select track (during play or
pause)
[Hold] Reverse/fast-forward track
3
search *
[Press] Select track (during play or
[Hold] Reverse/fast-forward track
heard.)
Select folder
—
———
• For DivX/MPEG Video/MP3/WMA/WAV, track is searched within the same folder.
• To erase a misentry, press CLR (clear) while holding SHIFT.
• To return to the previous screen, press RETURN.
*1 Search speed:
*2 Slow motion speed:
*3 Search speed:
*4 Search speed:
*5 Search speed:
pause)
search *
1
3
—
Continued on the next page
19OPERATIONS
Using menu driven features... (DVD-Video/
DVD-VR)
1 Press TOP M/MENU to enter the menu screen.
2 Press % / fi / @ * / # * to select an item you want
to start play.
ENGLISH
3 Press ENT (enter) to confirm.
* Not applicable for DVD-VR.
Canceling the PBC playback... (VCD)
1 During stop, press DIRECT while holding SHIFT.
2 Hold SHIFT, then press the number buttons (0 – 9)
to enter the desired number.
3 Press ENT (enter) to confirm.
• To resume PBC, press TOP M/MENU.
Operations using the
on-screen bar
(DVD/DVD-VR/DivX/MPEG Video/VCD)
These operations are possible on the monitor using the
remote controller.
1 Show the on-screen bar (see page 21).
(twice)
2 Select an item.
3 Make a selection.
If pop-up menu appears...
• To cancel pop-up menu, press RETURN.
• For entering time/numbers, see the following.
Entering time/numbers
Press % / fi to change the number, then press @ / # to
move to the next entry.
• Each time you press % / fi, the number increases/
decreases by one value.
• After entering the numbers, press ENT (enter).
• It is not required to enter the zero and tailing zeros
(the last two digits in the example below).
20
Ex.: Time search
DVD: _:_ _:_ _ (Ex.: 1:02:00)
Press % once, then # twice to go to the third entry, %
twice, then press ENT (enter).
To remove the on-screen bar
On-screen bar
Ex.: DVD-Video
Information
Operation
1 Disc type
2 • DVD-Video/DTS-CD: Audio signal format type
and channel
• VCD: PBC
3 Playback mode *
1
DVD-Video: T. RPT: Title repeat
C. RPT: Chapter repeat
DVD-VR: C. RPT: Chapter repeat
PG. RPT: Program repeat
DivX/MPEG Video: T. RPT: Track repeat
F. RPT: Folder repeat
F. RND: Folder random
A. RND: All random
VCD *2: T. RPT: Track repeat
A. RND: All random
4 Playback information
Current title/chapter
Current program/chapter
Current playlist/chapter
Current track
Current folder/track
5 Time indication
Elapsed playing time of the disc
(For DVD-Video/DVD-VR, elapsed
playing time of the current title/
program/playlist.)
DVD-Video/DVD-VR: Remaining
title/program/playlist time
VCD: Remaining disc time
Elapsed playing time of the current
chapter/track *
3
Remaining time of the current
chapter/track *
3
6 Playback status
Play
Forward/reverse search
Forward/reverse slow-motion
Pause
Stop
7 Operation icons
Change time indication (see 5)
Time Search (Enter the elapsed playing
time of the current title/program/
playlist or of the disc.)
Title Search (by its number)
Chapter Search (by its number)
Track Search (by its number)
Change the audio language or audio
channel
Change or turn off the subtitle
language
Change the view angle
Repeat play *
Random play *
1
1
*1 For repeat play/random play, see also page 16.
*2 While PBC is not in use.
*3 Not applicable for DVD-VR.
ENGLISH
21OPERATIONS
Operations using the control
screen
(DivX/MPEG Video/MP3/WMA/WAV/CD)
These operations are possible on the monitor using the
remote controller.
ENGLISH
1 Show the control screen.
DivX/MPEG Video: Press
MP3/WMA/WAV/CD: Automatically appear during
play.
2 Select “Folder” column or “Track” column
(except for CD).
3 Select a folder or track.
7 during play.
7 Track information
8 Track list with the current track selected
To select a playback mode
1 While control screen is displayed...
Playback mode selection screen appears on the
folder list section of the control screen.
2 Select a playback mode.
3 Select an item.
REPEAT:
RANDOM:
4 Start playback.
DivX/MPEG Video: Press ENT (enter) or 3/8.
MP3/WMA/WAV/CD: Playback starts automatically.
Control screen
Ex.: MP3/WMA/WAV disc
1 Current folder number/total folder number
2 Folder list with the current folder selected
3 Selected playback mode
4 Elapsed playing time of the current track
5 Operation mode icon ( 3, 7, 8, ¡, 1 )
6 Current track number/total number of tracks in the
current folder (total number of tracks on the disc)
22
Mode Playback functions
F. RPT
(folder repeat):
T. RPT
(track repeat):
A. RND
(all random):
F. RND
(folder random):
4 Confirm the selection.
* Not selectable for CD.
Repeat current folder
Repeat current track
Randomly play all tracks
Randomly play all tracks of
current folder, then tracks of
next folders
Operations using the list
screen
(DVD-VR/DivX/MPEG Video/MP3/WMA/WAV)
These operations are possible on the monitor using the
remote controller.
List screen (DivX/MPEG Video/MP3/WMA/
WAV)
Before playing, you can display the folder list/track list
to confirm the contents and start playing a track.
1 Display the folder list while stop.
2 Select an item from the folder list.
• Track list of the selected folder appears.
• To go back to the folder list, press RETURN.
3 Select a track to start playing.
or
• MP3/WMA/WAV: Control screen appears (see
page 22).
3 Current page/total number of the pages included
in the list
4 Current folder/track (highlighted bar)
List screen (DVD-VR)
You can use ORIGINAL PROGRAM or PLAY LIST screen
anytime while playing DVD-VR with its data recorded.
1 Select a list screen.
1 Program/playlist number
2 Recording date
3 Recording source (TV station, the input
terminal of the recording equipment, etc.)
4 Start time of recording
5 Title of the program/playlist *
6 Current selection (highlighted bar)
7 Creating date of playlist
8 Number of chapters
9 Playback time
* The title of the original program or playlist may
not be displayed depending on the recording
equipment.
ENGLISH
Ex.: Folder list
1 Current folder number/total folder number
2 Current track number/total number of tracks in the
current folder
2 Select an item from the list.
23OPERATIONS
Listening to the USB device
You can connect a USB mass storage class device such as a USB memory, Digital Audio Player, portable HDD, etc. to
the unit.
This unit can play DivX/MPEG Video/MP3/WMA/WAV tracks stored in a USB device.
ENGLISH
All tracks will be played repeatedly until you change the source or detach the USB device.
USB cable from the rear of the unit.
USB memory
Turn on the monitor to watch the playback picture if
you play back a DivX/MPEG file. You can also control
playback by referring to the monitor screen. (See also
pages 20 – 23.)
• See pages 18 – 23 for operation using the remote
controller.
• See pages 47 and 48 for more settings.
If “ ” appears on the monitor when pressing a
button, the unit cannot accept the operation you
have tried to do.
• In some cases, without showing “ ,” operations
will not be accepted.
If a USB device has been attached...
Playback starts from where it has
been stopped previously.
• If a different USB device is
currently attached, playback starts
from the beginning.
To stop play and detach the USB device
Straightly pull it out from the unit.
• Press SOURCE to listen to another playback source.
24
You can operate the USB device in the same way you
operate the files on a disc. (See pages 15 – 23.)
• You cannot select “USB” when Dual Zone is in use
(see page 25).
Cautions:
• Avoid using the USB device if it might hinder your
safety driving.
• Do not pull out and attach the USB device repeatedly
while “Reading” is shown on the display.
• Do not start the car engine if a USB device is
connected.
• This unit may not be able to play the files depending
on the type of USB device.
• Operation and power supply may not work as
intended for some USB devices.
• You cannot connect a computer to the USB input
terminal of the unit.
• Make sure all important data has been backed up to
avoid losing the data.
• Do not leave a USB device in the car, expose to direct
sunlight, or high temperature to avoid deformation
or cause damages to the device.
• Some USB devices may not work immediately after
you turn on the power.
• For more details about USB operations, see page 54.
Dual Zone operations
You can enjoy disc playback on the external monitor connected to the VIDEO output terminal and 2nd AUDIO OUT
plugs while listening to any source (other than “AM” and “USB”) through the speakers.
• You cannot select “AM” or “USB” as the source when Dual Zone is activated.
• When Dual Zone is in use, you can only operate the DVD/CD player using the remote controller. For operations, see
pages 18 – 23.
These operations are possible on the monitor using the remote controller.
1
2
Activate Dual Zone.
• DUAL indicator lights up on the display.
The main source automatically changes to “DISC.”
To select a different source (main source) to listen through the speakers,
press SOURCE on the control panel.
• By using the buttons on the control panel, you can operate the newly
selected source without affecting Dual Zone operations.
Adjust the volume through the 2nd AUDIO OUT plug.
ENGLISH
3
To cancel Dual Zone operations
• DUAL indicator goes off.
—
Operate the DVD/CD player using the remote controller by
referring to the monitor screen.
On the control panel:
1
Enter Dual Zone settings.
2
Activate or deactivate Dual Zone.
• The source automatically changes to “DISC”
when Dual Zone is activated.
25OPERATIONS
Listening to the Bluetooth ® devices
Connecting a Bluetooth device for
ENGLISH
Bluetooth is a short-range wireless radio
communication technology for the mobile device such
as mobile phones, portable PCs, and other devices. The
Bluetooth devices can be connected without cables and
communicate with each other.
• Refer to the list (included in the box) to see the
countries where you may use the Bluetooth®
function.
Bluetooth profile
This unit supports the following Bluetooth profiles;
HFP (Hands-Free Profile) 1.5
OPP (Object Push Profile) 1.1
A2DP (Advanced Audio Distribution Profile) 1.2
AVRCP (Audio/Video Remote Control Profile) 1.3
Pairing and PIN code
When you connect a Bluetooth device to the unit
for the first time, make pairing between the unit
and the device. Pairing allows Bluetooth devices to
communicate with each other.
To make pairing, you may need to enter the PIN
(Personal Identification Number) code of your Bluetooth
device you want to connect.
• Once the connection is established, it is registered in
the unit even if you reset the unit. Up to five devices
can be registered in total.
• Only one device for Bluetooth phone and one for
Bluetooth audio can be connected at a time.
• To use the Bluetooth function, you need to turn on
Bluetooth function of the device.
the first time
Features
You can operate Bluetooth devices through the unit as
follows:
• Receiving a call
• Making a call—from phone book, from call history
(dialed number/received call), by dialing number, by
preset numbers, by voice command
• Informing you of the arrival of a text message
• Play back a Bluetooth audio player
Refer also to the instructions supplied with the
Bluetooth device.
26
Preparation: Operate the device to turn on its
Bluetooth function.
• When
back to the previous screen by pressing number
button 3.
is shown on the display, you can move
1 While listening to a source...
2 Select “Device.”
3 Select “New Pairing.”
4 Enter a PIN (Personal Identification Number)
code to the unit.
• You can enter any number you like (1-digit to
16-digit number). [Initial: 0000]
• To enter a PIN code less than 4-digit, firstly
delete the initial PIN code (0000) by pressing
number button 5 (
* Some devices have their own PIN code. Enter the
specified PIN code to the unit.
1 Move to the next (or previous) number
position.
) .
The device remains registered even after you
disconnect the device. Use “Cnnct Phone“ or
“Cnnct Audio” (or activate “Auto Cnnct”) to
connect the same device from next time on. (See the
following and page 49.)
Deleting a registered device
Perform steps 1 and 2 on page 26, then...
1 Select “Del Pairing.”
ENGLISH
2 Select a number.
3 Repeat steps 1 and 2 until you finish
entering a PIN code.
4 Confirm the entry.
5 Operate the target Bluetooth device, (while
“Open...” is flashing on the display).
On the device to be connected, enter the same PIN
code you have just entered for this unit.
“Connecting...” flashes, then “Pairing Ok” or
“Connected [Device Name]” appears on the display
when the connection is established. Now you can
use the device through the unit.
appears when the connection is established.
2 Select a device you want to delete.
3 Delete the selection.
• Press number button 3 to select “No” or return to
step 1.
Connecting a registered device
Perform steps 1 and 2 on page 26, then...
1 Select “Cnnct Phone” or “Cnnct Audio.”
2 Select a device you want.
“Connecting...” flashes, then “Connected (and
device name)” appears on the display when the
device is connected.
Continued on the next page
27OPERATIONS
You can set the unit to connect the Bluetooth device
automatically when the unit is turned on. (See
“Auto Cnnct” on page 49.)
Disconnecting a device
ENGLISH
Perform steps 1 and 2 on page 26, then...
Select “Discn Phone” or “Discn Audio.”
“Disconnecting...” flashes, then “Disconnected (and
device name)” appears on the display when the device
is disconnected.
Using the Bluetooth cellular
phone
Making a call
You can make hands-free calls using the unit.
The built-in microphone is
behind this corner of the unit.
3 Select the method to make a call.
• Dialed *: Shows the list of the phone numbers
you have dialed. Go to the following step.
• Received *: Shows the list of the received calls.
Go to the following step.
• Phonebook: Shows the name/phone number of
the phone book of the unit. Go to the following
step. To copy the phone book memory, see
page 30.
• Preset: Shows the list of preset numbers. Go
to the following step. To preset numbers, see
page 30.
• Dial Number: Shows the phone number entry
screen. See “How to enter phone number” on
page 29.
• Voice Dial (Only accessible when the connected
cellular phone has the voice recognition system):
Speak the name (registered words) you want to
call.
* Displays only when the dialed or received number
is made through the unit.
4 Select the name/phone number/preset
number you want to call.
The sounds comes out from the connected speakers.
• When appears on the display, you can move
back to the previous display by pressing number
button 3.
1
2 Select “Call.”
28
• When the sound is stopped or interrupted during the
use of a Bluetooth device, turn off, then turn on the
unit.
– If the sound is not yet restored, connect the device
again. (See “Connecting a registered device” on
page 27.)
When a call comes in....
The source is automatically changed to “Bluetooth.”
• Phone number appears (if acquired).
When “Auto Answer” is activated....
The unit answers the incoming calls automatically, see
page 49.
• When “Auto Answer” is deactivated, press any
button (except
incoming call.
• You can adjust the microphone volume level (see
page 49).
To end the call or reject an incoming call
Hold any button (except /control dial).
• When “Auto Answer” is set to “Reject,” the unit
rejects any incoming calls.
Answering a waiting call
If your cellular phone is equipped with the call waiting
function, you can put the current call on hold and
answer the waiting call.
Press any button (except /control dial).
• To restore the on-hold call, press any button (except
/control dial) again.
• When you end one call, you can connect to the other.
/control dial) to answer the
When a text message comes in....
If the cellular phone is compatible with Text Message
and “MSG Notice” is set to “On” (see page 49), the unit
rings and “Received Message” appears on the display to
inform you of the message arrival.
• You cannot edit or send a message through the unit.
How to enter phone number
Select a number.
ENGLISH
Move the entry position.
Confirm the entry.
How to delete phone number
1
2 Select “Call.”
3 Display the list of phone numbers using one
of the dialing method (see step 3 of “Making
a call” on page 28).
4 Select the name/phone number you want to
delete.
5 Delete the selection.
• Press number button 6 ( ) to delete all
the listed numbers in step 3.
Continued on the next page
29OPERATIONS

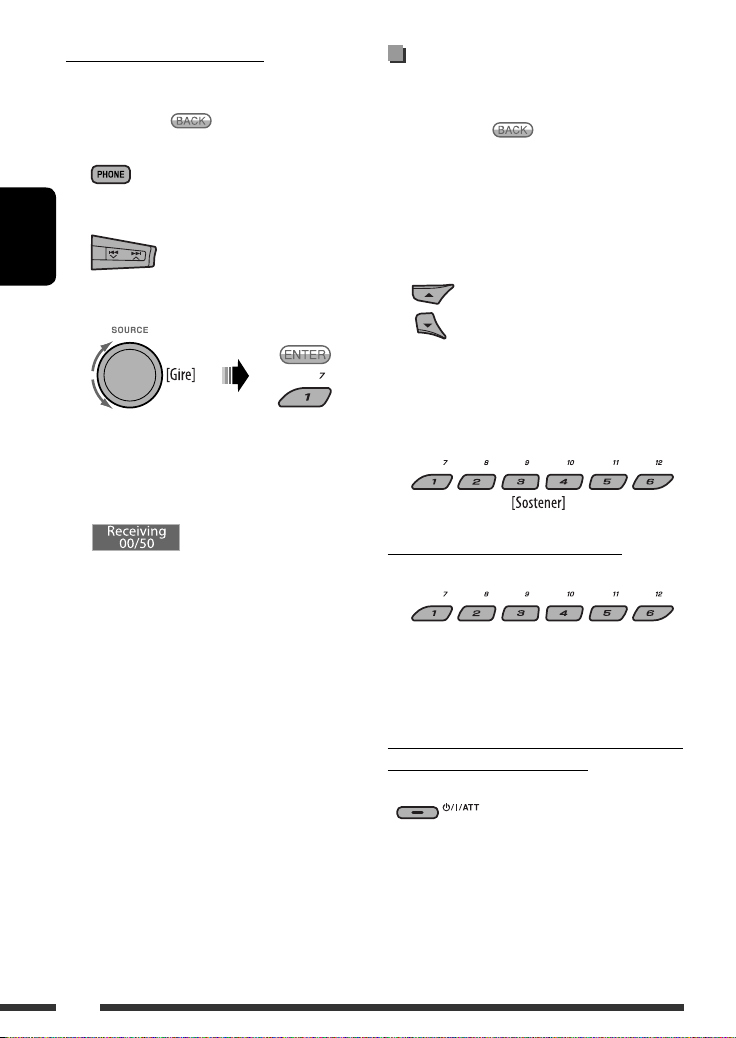

How to copy phone book
You can copy the phone book memory of a cellular
phone into the unit.
• When is shown on the display, you can move
back to the previous screen by pressing number
ENGLISH
button 3.
1
Presetting the phone number
You can preset up to six phone numbers.
• When is shown on the display, you can move
back to the previous screen by pressing number
button 3.
1 Display the phone number you want to
preset by using one of the “Call” items.
2 Select “Settings.”
3 Select “PhoneBook.”
4 Enter the PIN code both for this unit and
Bluetooth phone.
• See step 4 of page 27.
5
Operate the target cellular phone. (While
“Receiving 00/50” appears on the display.) Enter
the same PIN code (as entered in step 4) on the
cellular phone, then transfer the phone book
memory to the unit. (Refer to the Instructions
manual supplied with your cellular phone.)
2 Select a phone number.
You can also enter a new phone
number (see also “How to enter
phone number” on page 29) to store.
3 Select a preset number to store.
To call a preset number
While in Bluetooth audio....
• You can also call a preset number using “Preset” of
the “Call” items (see page 28).
Switching conversation media (the unit/
cellular phone)
During a phone call conversation....
Then, continue your conversation
using the other media.
• Operations may be different according to the
connected Bluetooth device.
30
Loading...
