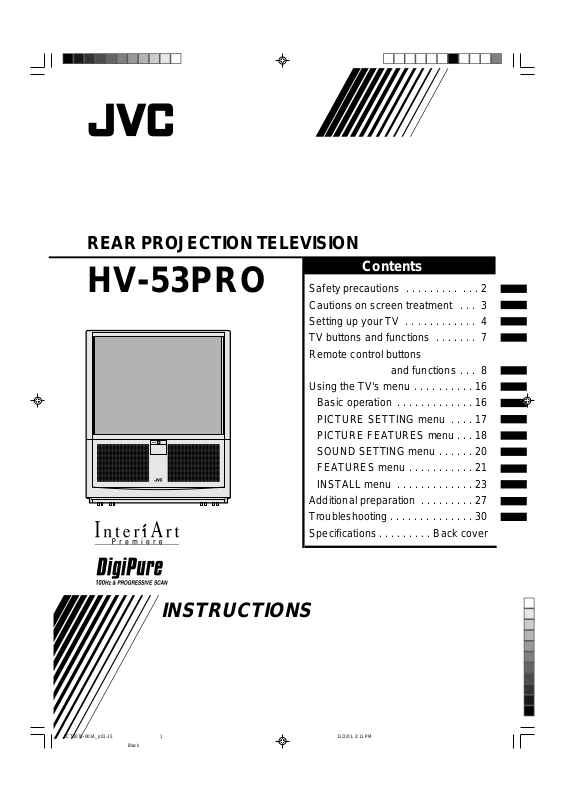

JVC HV-53PRO User Manual
REAR PROJECTION TELEVISION
Contents
HV-53PRO
Safety precautions
Cautions on screen treatment
Setting up your TV
TV buttons and functions
Remote control buttons
and functions
Using the TV's menu
Basic operation
PICTURE SETTING menu
PICTURE FEATURES menu
SOUND SETTING menu
FEATURES menu
INSTALL menu
Additional preparation
. . . . . . . . . . . . 2
. . . . . . . . . . . . 4
. . . . . . . 7
. . . . . . . . . . . 16
. . . . . . . . . . . . . 16
. . . . 17
. . . . . . 20
. . . . . . . . . . . 21
. . . . . . . . . . . . . 23
. . . . . . . . . 27
. . . 3
. . . 8
. . . 18
INSTRUCTIONS
Troubleshooting
Specifications
. . . . . . . . . Back cover
. . . . . . . . . . . . . . 30
Thank you for buying this JVC colour television.
15mm
15mm10mm
10mm
To make sure you understand how to use your new TV, please read this manual thoroughly
before you begin.
Safety precautions
WARNING:
TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR
MOISTURE.
CAUTION:
TO ENSURE PERSONAL SAFETY, OBSERVE THE FOLLOWING RULES REGARDING THE
USE OF THIS TV.
1 Operate only from the power source indicated on the
rear of the TV.
2 Avoid damaging the power cord and mains plug. When
unpluging the TV, grasp the mains plug. Do not pull on
the power cord.
3 Never block or cover the ventilation openings.
Never install the TV where good ventilation is
unattainnable.
When installing this TV, leave spaces for ventilation around the TV of more than the minimum dis-
tances as shown.
4 Do not allow objects or liquid into the cabinet openings.
5 In the event of a fault, unplug the unit and call a service technician.
Do not attempt to repair it yourself or remove the rear cover.
6 If you are not going to use this TV for a long preriod of time, be sure to disconnect the AC plug from
the AC soket.
7 This TV set is mounted on casters which make it easier to move. However, when positioning or
moving the TV, observe the following cautions:
--- Do not position the TV on a slanting or unstable place.
--- Do not use excessive force, which could damage the TV, or even overterm the TV, breaking it and
possibly injuring someone.
--- To avoid overturning the TV, which could injure someone, secure it in place using the method
described next page.
--- Before moving the TV, unplug the plug from the AC socket, and be sure to disconnect ALL of the
cables connecting the TV to external device.
--- There must be at least 8 mm between the bottom of the TV and the floor.
When moving the TV, make sure that the bottom of the TV does not scrape along the floor.
In addition, be careful when moving the TV across thick carpets, bumps in the floor, or other
changes in floor level (such as at the edges of carpets). Be especially careful that the TV or the
caster wheels do not eatch on anything. If the TV falls over, the TV will break and could injure
someone.
2
To prevent the TV from falling over:
Plastic loop
Wire or
strong
cord
Use the two small plastic loops on the back of the TV
set, and connect them to a wall or column using two
secure wires or strong cords.
•The wire or strong cord, and wall ring (or similar
attachment), are not supplied with this TV set. Use
commonly available items, but make sure that they are
strong.
•The thread or wire should be straight.
•Make sure that the wire or strong cords is taut and
securety attached to a wall ring (or similar attachment).
Cautions on screen treatment
Screen Burn:
Screen burn will only happen if you misuse the TV, and therefore damage from screen burn is not
covered by the warranty. Screen burn happens when images remain on the screen without moving for
an extended period of time. Screen burn can occur in any projection television made by any
manufacturer.
You may have seen screen burn on ATM bank machines. People who use “screen savers” on their
computer monitors are saving their monitors from screen burn. Especially for projection TV’s screen burn
is caused by programmes or images displayed when the TV has a high CONTRAST or BRIGHTNESS
setting.
•Do not play video games, computer programme, or similar programmes that have fixed or repetitive
images.
•Keep contrast and brightness low --- especially on teletext programmes, news programmes, business
reports, and home-shopping (or similar) programmes. To adjust contrast and brightness, see page 17.
•Do not leave fixed images on the screen for long time.
Screen Cleaning:
Your projection television screen is fragile and should be handled with exterme care, especially if you
are forced to touch the screen directly --- i.e. when cleaning it. Be careful not to scratch the screen with
jewellery or fingernails.
The following products will DAMAGE THE SCREEN. Do not use then under any circumstances.
•AMMONIA. NEVER use deterrgents that contain ammonia !
•AEROSOLS AND CHEMICALS. NEVER use aerosol or chemical cleaners !
•GLASS AND WINDOWS CLEANERS. NEVER use glass or windows cleaners !
To clean the screen:
Clean the screen
1. Add two to three drops of detergent to one quart of water.
2. Take a soft cloth (such as a cotton tee-shirt), dampen the cloth with the soapy solution, and
wipe the screen from top to bottom.
3. Gently wipe off any soap left on the screen.
only
with a solution consisting of water and mild dish detergent.
gently
3
Setting up your TV
R
RL
L/MONO
AUDIO
AUDIO
L/MONO
R
AUDIO
C
R
C Y/VIDEO
B
VIDEO
VIDEO-2
VIDEO
OVER
S
VIDEO-3/
COMPONENT
VIDEO-1
OUTPUT
AV COMPU LINK
Back of the TV
Back of the TV
R
RL
L/MONO
AUDIO
AUDIO
L/MONO
R
AUDIO
C
R
C Y/VIDEO
B
VIDEO
VIDEO-2
VIDEO
OVER
S
VIDEO-3/
COMPONENT
VIDEO-1
OUTPUT
AV COMPU LINK
A
CAUTION
•Turn off all the epuipment including the TV before
connecting anything.
1
Connecting the aerial and VCR
•Aerial cable is not supplied. Use a good quality
75-ohm coaxial cable.
•Read the manual that came with the VCR before
connecting.
If not connecting a VCR (see fig.A) :
Connect an aerial cable to the aerial socket
on this TV .
If connecting a VCR (see fig.B) :
1 Connect the aerial cable to the aerial input
socket on the VCR, and connect the VCR
and TV with another aerial cable.
2 Connect the VCR's VIDEO OUT (video
output) jack and the TV's VIDEO jack with
a video cable.
To connect a VCR to the TV with an S-VIDEO cable:
Connect the VCR's S-VIDEO OUT (S-VIDEO output)
connector and TV's S connector with an S-VIDEO
cable A , instead of connecting with a video cable.
Fig.A
Fig.B
3 Connect the VCR's VIDEO OUT (audio L/R
output) jacks and the TV's AUDIO jacks (L/
MONO and R) with an audio cable.
•If the VCR's audio output is in mono, connect the
VCR's AUDIO OUT (audio output) jack and the
TV's AUDIO L/MONO jack with an audio cable.
•You can use the AV COMPU LINK function if your
VCR has an AV COMPU LINK terminal. For details,
see “Connecting AV COMPU LINK Supported
Devices” on page 29.
2 Connecting the power cord
Connect the mains plug to the AC outlet.
3 Putting the batteries into the
Remote control
Use two AA/R6 batteries.
Insert the batteries from the end, making sure the
and polaritiles are correct.
•Follow the warnings printed on the batteries.
•If the remote control does not work properly,
replace the batteries.
•The batteries we supply are only for setting up and
testing your TV. Please replace them as soon as
necessary.
4
4 Making the initial settings
/
CH/CC
PR ID
AV
01
02
03
04
05
06
07
08
09
CH
CH
CH
CH
CH
CH
CC
CC
CC
21
22
23
24
25
26
01
02
03
ID
INSERT
DELETE
MANUAL
MOVE
EDIT
:EXIT
:OK
OK
TV
:BACK
DISP
:BACK
:OK
OK
DISP
CH 10
AUTO PROGRAM
20%
:EXIT
:OK
OK
TV
:BACK
DISP
C
H
A
N
N
E
L
V
O
L
U
M
E
12
ZOOM
MULTI
MUTING
NEXTPIP
POSITION
FREEZE
MENU/
OK
SWAP
SUB-P
PIP
TEXT
STROBE
DISPLAY
RETURN
TV/VIDEO
BASS
MODE
POWER
SPATIALIZER
3
456
789
0
COLOUR
SYSTEM
SOUND TV/TEXT
HOLD MODE REVEAL SIZE
SUBPAGE STORE CANCEL INDEX
When the TV is first turned on, it enters the initial setting mode,
and the JVC logo is displayed.
1 Press the main power button on the TV
The TV is turned on, and the JVC logo appears.
•If the power lamp on the TV lights red and does not change
to green, your TV is in the standby mode. Press the POWER
button on the remote control to turn the TV on.
•If the JVC logo does not appear, your TV has already been
turned before. In this case,use the "LANGUAGE" and
"AUTO PROGRAM" functions to make the initial settings.
For details, see "INSTALL menu" on page 23.
2 Press the MENU/OK button
The LANGUAGE menu appears. You can choose a
language for the on-screen language.
Setting up your TV
POWER lamp
3 Press the
Then press the MENU/OK button.
The AUTO PROGRAM function starts. The TV channels you
receive are automatically stored in the programme numbers
list.
•To cancel the AUTO PROGRAM function, press the
DISPLAY button.
4 After the TV channels have been stored in the
programme number (PR) list, the EDIT menu
appears.
Main power button
buttons to choose ENGLISH.
•You can proceed to edit the programme numbers
list using the EDIT/MANUAL function. For details, see
"EDIT/MANUAL" on page 23.
•If a TV cannel you want to view is not stored in the
programme numbers list, you can register it using the
MANUAL function. For details, see "EDIT/MANUAL" on
page 23.
5
Setting up your TV
PICTURE SETTING
PICTURE FEATURES
SOUND SETTING
FEATURES
INSTALL
MENU
:EXIT
:OK
OK
TV
:BACK
DISP
/
DIGITAL VNR
DigiPure
PULL DOWN
COLOUR SYSTEM
ZOOM
DIGITAL CONVERGENCE
AUTO
AUTO
AUTO
PICTURE FEATURES
:EXIT
:OK
OK
TV
:BACK
DISP
/
1 2
4 5 6
7 8 9
3
/
/
•The AUTO PROGRAM function does not store a TV
channel to the programme number 0 (AV).
5 If you do not need to use the EDIT/
MANUAL function, press the MENU/OK
button to close the EDIT menu.
5 Adjusting CRT colour convergence
This TV has three color projection tubes : one for
red, one for green and one for blue. When mixed
together in the proper proportion, the output of
these three colour tubes can produce any colour.
To produce these colour, however, the beams must
be precisely aligned over each other so that the
colours can be mixed. The produce of aligning
these picture beams is called “convergence”.
•Colours may become saparated after the TV has
been moved, or over a long period of time if
regularly subjected to low level vibrations.If the
colours become saparated, please perform the
ajustment below again.
Locations where the crosses appear in 3 colours:
Convergence adjustment is required. Perform
steps 4 and 5.
Locations where the crosses are white:
The convergence is adjusted correctly.
•If all the crosses are white, no convergence
adjustment is needed.
4 Use the number buttons on the remote
control to select the location to be
adjusted.
The locations of the crosses correspond to the
positions of the number buttons on the remote
control. A box appears around the selected cross.
Before the convergence
is adjusted
1 Press the MENU/OK button.
The main menu appears.
2 Press the
FEATURES menu. Then press the MENU/
OK button.
3 Press the
CONVERGENCE. Then press the MENU/
OK button.
6
The convergence adjustment screen
appears with crosses (+) displayed in 9 locations.
After the convergence
is adjusted
buttons to choose PICTURE
buttons to choose DIGITAL
5 Adjust the three coloured crosses until
they overlap and appears as a single
(white) cross.
1. Press the NEXT button to change the colour of the
box to the colour of the cross you want to adjust
(red or blue).
•You cannot adjust the green cross.
2. Use the
and
buttons to adjust the
position of the cross.
To cancel the adjustments before completing the
procedure:
Press the DISPLAY button.
6 Press the MENU/OK button to end the
convergence adjustment procedure.
• If you do not use the TV controls for roughly one
minute, the convergence adjustment screen
automatically disappears.
Now, the setting up is complete.
Please enjoy your new JVC TV!
TV buttons and functions
MENU CHANNEL
S-VIDEO
V L/MONO R
VOLUME YV/VIDEO
OK
EXIT
IN(VIDEO4
)
(Behind the cover)
R
RL
L/MONO
AUDIO
AUDIO
L/MONO
R
AUDIO
C
R
C Y/VIDEO
B
VIDEO
VIDEO-2
VIDEO
OVER
S
VIDEO-3/
COMPONENT
VIDEO-1
OUTPUT
AV COMPU LINK
Turn the main power on
Press the main power button 1 .
The POWER lamp 2 lights red and your TV is in the
standby mode.
To turn the main power off :
press the main power button again.
The POWER lamp 2 goes off.
Turn the TV on from standby mode
Press the CHANNEL-/+ buttons 7 .
The POWER lamp 2 lights red to green and your TV
will be turned on.
•You can also turn on the TV by pressing the
TV/VIDEO button 5 while it is in standby mode.
Choose a TV channel
Press the CHANNEL-/+ buttons 7 .
Choose a VIDEO terminal
Press the TV/VIDEO button 5 or CHANNEL
-/+ buttons 7 .
Adjust the volume
Press the VOLUME-/+ buttons 4 .
The volume level indicater appears.
MENU button 8
Press to open the menu.
For details, see "Operation with the buttons on the
TV" on page 16.
SPATIALIZER lamp 3
If you set the SPATIALIZER function to MONO or
LIVE,the SPATIALIZER lamp lights.
Headphone jack 9
Connect the headphones with a stereo mini-jack
(3.5mm in diameter).
When using the headphones, follow the operation
procedure "HEADPHONE" on page 20.
VIDEO-1 terminal 0
•See page 4 and 27.
VIDEO-2 terminal -
•See page 27.
VIDEO-3/COMPONENT terminal =
•See page 22 and 27.
VIDEO-4 terminal 6
•See page 27.
OUTPUT terminal ~
•See page 27.
AV COMPU LINK terminal !
•See page 27 and 29.
Aerial socket @
Connect the aerial cable.
•See page 4.
7
C
H
A
N
N
E
L
V
O
L
U
M
E
12
ZOOM
MULTI
MUTING
NEXTPIP
POSITION
FREEZE
MENU/
OK
SWAP
SUB-P
PIP
TEXT
STROBE
DISPLAY
RETURN
TV/VIDEO
BASS
MODE
POWER
SPATIALIZER
3
456
789
0
COLOUR
SYSTEM
SOUND TV/TEXT
HOLD MODE REVEAL SIZE
SUBPAGE STORE CANCEL INDEX
Remote control buttons and functions
Turn the TV on from standby mode
Press the POWER button.
The POWER lamp lights red to green and your TV will
be turned on.
•You can turn on the TV from the standby mode by
pressing the TV/VIDEO button, the CHANNEL -/+
buttons or the number buttons.
To turn the TV off:
Press the POWER button again.
The POWER lamp changes from green to red and the
TV enters standby mode.
Choose a TV channel
Choose a programme number in which a TV channel
has been set.
Press the CHANNEL-/+ buttons or enter the
programme number (PR) with the number
buttons.
•If you want to put a two-digit channel into the TV,
press the -/--button to change to the two-digit
entry system.
•You can select a channel from the PR LIST. For
details, see "DISPLAY button" on page 10.
•If you do not have a clear picture or no colour
appears, follow the operation procedure "COLOUR
SYSTEM button" on page 11.
•If you cannot hear sound normally even when the
picture appears normally, follow the operation
procedure “SOUND SYSTEM button” on page 11.
Adjust the volume
Press the VOLUME-/+ buttons.
•You cannot adjust the volume of your headphones.
Follow the operation procedure "HEADPHONE" on
page 20.
Watch images from external devices
Choose a VIDEO terminal to which the external
device has been connected.
Press the TV/VIDEO button.
•You can choose a VIDEO terminal with the
CHANNEL -/+ buttons or from the PR LIST.
To return to a TV channel:
Press the TV/VIDEO button, the CHANNEL-/+ buttons
or the number buttons.
8
Remote control buttons and functions
MUTING button
Press the MUTING button to turn off the
volume. Pressing the MUTING button again
resumes the previous volume level.
•When the TV’s MUTING function is on, is
displayed on the screen. However, to prevent
screen burn-in, the mark automatically dims if no
TV operation has been performed for a period of
about one minute.
ZOOM button
You can change the screen size according to the
picture aspect ratio. Choose the optimum one from
the following ZOOM modes.
Press the ZOOM button to choose a mode.
•If you press the ZOOM button when receiving the
Progressive Video Signal (525P signal), “525P”
appears on the screen and the ZOOM function
does not operate.
REGULAR :
Use to view a normal picture (4:3 aspect ratio) as its
original size is.
•The LIVE mode works properly only with stereo
sound.
•The LIVE mode does not work correctly with
headphones.
•The MONO mode works properly only with
monaural sound.
The SPATIALIZER is manufactured under lisense from
Desper Products,Inc.
BASS button
You can enjoy a powerful bass sound by using the
SUPER BASS (Super Bass Reflex) function.
Press the BASS button to turn the SUPER
BASS function on or off.
ON :
This function is turned on.
OFF :
This function is turned off.
PICTURE MODE button
You can choose one of three PICTURE MODEs (three
kinds of picture setting) to adjust the picture settings
automatically.
ZOOM :
You can zoom up the Wide picture (16:9 aspect ratio)
to fill the TV screen.
•The left side and right side of the Wide picture
(16:9 aspect ratio) will be cut off.
SPATIALIZER button
You can enjoy Surround sound with a "live" effect by
using the SPATIALIZER function.
Press the SPATIALIZER button to choose a
mode.
LIVE :
Live allows you to enjoy normal stereo sound
converting it into surround sound with added depth
and ambience.
MONO :
Mono allows you to enjoy normal monaural sound by
converting it into a stereo-like sound.
OFF :
This function is turned off.
Press the PICTURE MODE button choose a
mode.
BRIGHT :
Heightens contrast and sharpness.
STANDARD :
Standardizes picture adjustment.
SOFT :
Softens contrast and sharpness.
RETURN+ button
The RETURN+ button has two functions;
the RETURN+ function and the RETURN function. If a
channel has been registerd as the "Return Channel",
the RETURN+ function operates. If there is no setting
for the "Return Channel", the RETURN function
operates.
RETURN+ function :
By registering a channel you frequently view as the
"Return Channel", you can select that channel at any
time simply by pressing the RETURN+ button.
To register a TV channel as the "Return Channel" :
Choose the Programme number to which the channel
you want to register has been set, and press the
RETURN+ button and hold for more than 3 seconds
continuously. "RETURN PLUS PROGRAMMED!" is
displayed and the registration is completed.
9
Remote control buttons and functions
PR ID
AV
01
02
03
04
05
06
07
08
09
+10-10
1
PR LIST
No indication
:EXIT
:OK
OK
TV
/
/
To cancel register a TV channel as the
"Return Channel" :
while viewing any TV channel, press the RETURN+
button and hold for more than 3 seconds
continuously. "RETURN PLUS CANCELED!" is
displayed and the registration is cancelled.
•When you turn off the TV, the registration for the
"Return Channel" is cancelled.
•If you want to view the "Return Channel" and
another TV channel alternately, first choose a
channel other than the "Return Channel". and then
press the RETURN+ button to change the channel
to the "Return Channel" In this way, you can view
two channels alternately by pressing the
RETURN+ button.
RETURN function :
The TV temporarily memorises the TV channel that
was choosen right before the current TV channel as
the "Last Channel". By pressing the RETUTN+ button,
you can alternately view the current TV channel and
the "Last Channel".
•If you want to view two channels alternately by
using the RETURN function, first choose one TV
channel and then choose the other TV channel
with the Number buttons. If you choose the TV
channel without using the Number buttons, there
are cases where a channel other than the one you
first chose is registered as the "Last Channel".
/ button
When you are viewing a bilingual broadcast
programme, you can choose the sound from Bilingual
I (Sub I) or Bilingual II (Sub II). When the stereo
broadcasting is received poorly, you can change from
stereo to mono sound so that you can hear the
broadcast more clearly and easily.
Press the / button to choose a sound
mode.
DISPLAY button
You can display the PR LIST, programme number or
VIDEO terminal number on the screen.
Press the DISPLAY button.
Press the DISPLAY button changes the display as
follows:
•To prevent screen burn-in, the PR LIST menu
automatically disappears from the screen if no TV
operation has been performed for a period of
about one minute.
Also, the programme number and VIDEO terminal
number automatically dim.
Choose a TV channel or a VIDEO terminal
1 Press the DISPLAY button to display the
PR LIST.
2 Press the
a programme number or VIDEO terminal.
Then press the MENU/OK button.
•For programme numbers with the CHANNEL
GUARD function set, the (CHANNEL GUARD)
mark is displayed next to the programme number
in the PR LIST.
•The VIDEO terminals are registered after the
programme number PR99.
and
buttons to choose
10
: Stereo sound
: mono sound
: Bilingual I (sub I)
: Bilingual II (sub II)
MONO : Cancels the Multi Sound function, and the
sound becomes monaural.
•The sound mode you can choose differs
depending on the TV programme.
•This function does not work in the VIDEO
modes.
Loading...
