JVC HRXVC-25-U Service manual

Download
Page 1

SECTION 3

PARTS LIST

3.1 EXPLODED VIEW SAFETY PRECAUTION

Parts identified by the symbol are critical for safety. Replace only with specified part numbers. BEWARE OF BOGUS PARTS
Parts that do not meet specifications may cause trouble in regard to safety and performance. We recommend that genuine JVC parts be used.

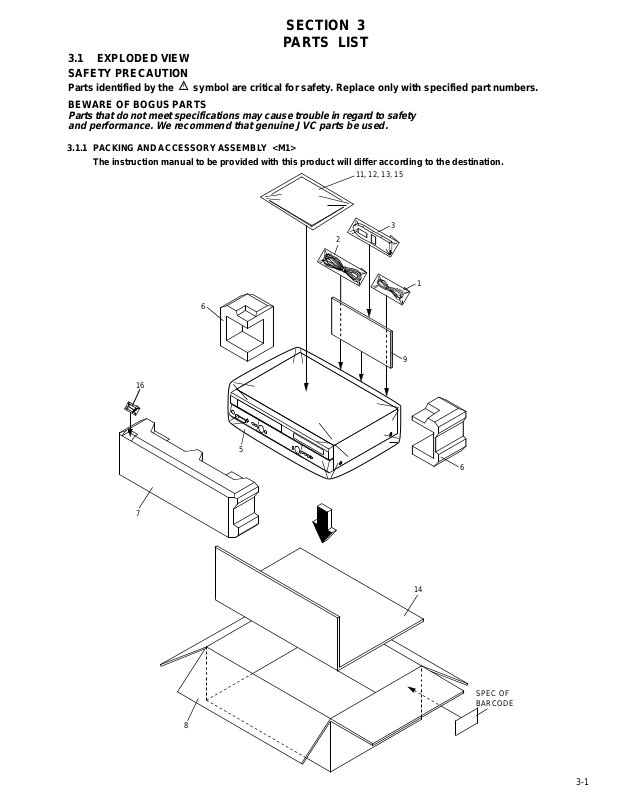

3.1.1 PACKING AND ACCESSORY ASSEMBLY <M1> The instruction manual to be provided with this product will differ according to the destination.

11, 12, 13, 15
3
2
1
6
16
7
9
5
6
14
SPEC OF BARCODE
8
3-1
Page 2

3.1.2 FINAL ASSEMBLY <M2>

202
202
112
PCB010 (VCR PCB ASS'Y)
118
120
209
206
201
206
206
206
117
206
203
101F
123
101N
101K
115
101L
101D
121
203
101C
101G
101K
101H
105
104
103
106
101M
101L
102
101J
101I
101E
114
103
106
204
113
203
203
208
208
203
PCB270 (OPERATION PCB ASS'Y)
107
122
203
209
124
110
207
116
113
PCB130 (DVD PCB ASS'Y)
203
RATING LABEL
205
111
203
109
205
205
119
203
3-2
101B
101A
101N
101
Page 3

3.1.3 MECHANISM ASSEMBLY(DVD) <MN>

606
AC
615
600
AA
AC
604
AA
613
618
610
CD2302
AA
AC
609
701
705
AC
612
619
603
602
AA
SW1
606
614
AA
616
AC
617
PCB640 (SW PCB ASS'Y)
CLASS
PART NO.
GREASE G-555G
G-337F SF-112
605
SW2
605
703
601
608
607
702
MARK
AA AB
AC
AA
704
AA
621
M2002
CP1
PCB68A (RELAY PCB ASS'Y)
CD2301
NOTE:
Do not replace the parts. Because, minute adjustments are needed if
CD2001
this condition is disassembled further more. If the repair is needed, replace the DVD MECHA ASS'Y.
625
AB
AB
622
623
AB
624
620
611
AA
Applying positions AA, AB and AC for the grease are displayed for this section. Check if the correct grease is applied for each position.
3-3
Page 4

3.1.4 MECHANISM ASSEMBLY(VCR) <M4>

[ TOP VIEW ]
341
331
302
334
314
323
508
333
315
AB
M2003
501
H5002
322
336
508
505
324
AB
335
342
503
332
CD1501
UN4001
312
504
305
300
H5001
306
AA
347
301
AA
313
AA
AA
AE
CLASS
GREASE
318
AE
325
309
317
321
PART NO.
G-555G
MG-33 AB
FG-84M
FL-721
G-313Y AE
AA
AD
AB
319
AC
AE
AB
AE
320
316
MARK
AA
AC AD
307
AC
348
AB
CD1502
M101
304
AB
506
346
507
510
NOTE:
Applying positions AA, AB, AC, AD and AE for the grease are displayed for this section. Check if the correct grease is applied for each position.
AB
345
AB
3-4
Page 5
[ BOTTOM VIEW ]
328
308
327
326
509
344
343
AA
338
AA
337
502
M2001
AA
AB
AB
502
AA
CD1502
340
CD1501
AA
AA
AA
502
AD
329
303
AA
311
339
310
AB
300
AA
AA
CLASS
GREASE
PART NO.
G-555G
MG-33 AB
FG-84M
FL-721
G-313Y AE
MARK
AA
AC AD
505
330
NOTE:
Applying positions AA, AB, AC, AD and AE for the grease are displayed for this section. Check if the correct grease is applied for each position.
3-5
Page 6

3.2 PARTS LIST

# REF No. PART No. PART NAME, DESCRIPTION # REF No. PART No. PART NAME, DESCRIPTION
--------------- ----------------------- ----------------------------------------------------- ---------------- ----------------------- ------------------------------------------------------
201 X-8154730414 SCREW,T AP TITE(B) M3x41R
******************************

PACKING AND ACCESSORY PARTS LIST<M1>

1 PEAC0294-03 RF CABLE 2 QAM0174-001 CABLE ASSY(AUDIO/VIDEO) 3 X-076D0GA030 TRANSMITTER LP21036-024 5 X-791WHA0100 GIFT SHEET 6 X-792WHA0475 PACKAGE,BACK 7 X-792WHA0479 PACKAGE,FRONT 8 X-793WCD1498 GIFT BOX 9 X-795WCA0662 PAD,DVD/VR 155x250 1 1 X-JB5UD200 12 X-J2B00317 REGISTRATION CARD (FOR USA ONLY) 13 X-J2C51201A INSTRUCTION BOOK (E) 13 X-J2C51301A 14 X-795WCA0671 PAD,L 15 X-J2B00402C 16 ——— BATTERY,MANGAN R6P(AR)XICI
POLYBAG,INSTRUCTION(RED CAUTION)
INSTRUCTION BOOK (F) (FOR CANADA ONLY)
GUARANTEE CARD (FOR CANADA ONLY)
******************************

FINAL PARTS LIST<M2>

101 X-A2C512H720 CABINET ,FRONT ASSY 101A X-701WPJ1219 CABINET ,FRONT 101B X-71 1WPD0635 PLATE,DISPLA Y 101C X-712WPJ0802 FLAP 101D X-713WPA0268 GLASS,LED-VCR 101E X-713WP A0269 GLASS,LED-DVD 101F X-7235380009 BADGE,BRAND 101G X-735WPD0766 BUTTON,VCR/DVD 101H X-735WPD0767 BUTTON,STOP 101I X-735WPD0768 BUTTON,PLA Y 101J X-735WPJ0231 BUTTON,FRAME-DVD 101K X-735WPJ0233 BUTTON,FRAME-VCR 101L X-738WPA0069 STOPPER,BUTTON 101M X-743WKA0042 SPRING,FLAP 101N X-800WFA0051 CUSHION,LEG 102 X-701WPA0686 HOLDER,DECK 103 X-701WPA0751 HOLDER,DECK 104 X-752WSA0230 SHIELD,CASE HEAD AMP 105 X-753WUAA006 SPRING,EARTH HEAD AMP 106 X-85OP700038 HOLDER,END SENSOR 107 X-702WSA0183 PLATE,BOTTOM 109 X-7230007673 SHEET,JACK 110 X-7232020748 SHEET,IC 111 X-7260000342 SHEET,CAUTION 112 X-752WSA0275 COVER,AC HEAD 113 X-752WSA0290 SHIELD,COMPO 114 X-800WFA0046 CUSHION 115 X-752WUAA001 SHIELD,3PIN . 116 X-761WSA0101 ANGLE,FRONT 117 X-702WSB0081 CABINET,TOP 118 X-712WPJ0806 PLATE,TRAY-FRONT 119 X-761WSA0125 ANGLE,DVD 120 X-7235630001 SHEET,DVD(NEW) 121 X-761WPA0262 HOLDER,DECK TOP 122 X-8965TS1010 CUSHION 65TS10-10H L10 123 X-8965TS1017 CUSHION 65TS10-10H L17.5 124 X-761WPA0282 HOLDER,DVD
202 X-8109130B94 SCREW,TAP TITE(B) R PAN 3x29 203 X-8109230704 SCREW,TAP TITE(B) R BIND 3x7 204 X-8109I30A04 SCREW,TAP TITE(B) WH7 3x10 205 X-8109230804 SCREW,T AP TITE(B) BIND 3x8 206 X-8109K30601 SCREW,TAP TITE(B) BIND(3D) 3x6 207 X-8107130404 SCREW,T AP TITE(S) PAN 3x4 208 X-8110226804 SCREW,T AP TITE(P) BIND 2.6x8 209 X-8102230804 SCREW,BIND M3x8
CD102 X-122H061504 CD8002 X-122F080601
CORD,MAIN CP102 - A/C HEAD 2H061504 CORD,MAIN CP8002 - DVD CP8102 2F080601
******************************

MECHANISM PARTS LIST (VCR) <M4>

300 X-A2C301N420K DECK ASSY A2C301N420K 301 X-85OA400234 PINCH ROLLER BLOCK 302 X-85OP900746 BRACKET,TOP 3V 303 X-85OP200290 BELT,CAPSTAN (S) 304 X-85OP600581 WORM 305 X-85OP500083 BASE,AC HEAD 306 X-85OP800324 SPRING,AC HEAD 307 X-85OA000459 MAIN CHASSIS ASS’Y 308 X-85OA200089 CLUTCH ASS’Y 309 X-85OA200090 ARM IDLER ASS’Y 310 X-85OA300065 LOADING ARM S UNIT 311 X-85OA300066 LOADING ARM T UNIT 312 X-85OA400223 INCLINED BASE T UINT 3S 313 X-85OA400232 P5 ARM ASS’Y 2 314 X-85OA400235 TENSION ARM ASS’Y 2 315 X-85OA400231 INCLINED BASE S UNIT 316 X-85OP800367 SPRING,LOCKER 317 X-85OP900736 CASS,HOLDER 318 X-85OP900748 CASS,SIDE L 319 X-85OP900749 CASS,SIDE R 320 X-85OP900739 LOCKER,R 321 X-85OA900228 LINK UNIT 322 X-85OP000496 POST,CASS GUIDE 323 X-85OP200316 REEL,S (S) 324 X-85OP200317 REEL,T (S) 325 X-85OP200308 GEAR,IDLER 326 X-85OP200311 GEAR,CLUTCH 327 X-85OP200312 GEAR,COUPLING 328 X-85OP200313 LEVER,CLUTCH 329 X-85OP300194 GEAR,MAIN LOADING 330 X-85OP400490 LEVER,TENSION 331 X-85OP400492 HOLDER,TENSION 332 X-85OP400520 CAP.P4 333 X-85OP400542 BAND,TENSION 334 X-85OP400533 CONNECT,TENSION 335 X-85OP600573 ARM,BRAKE T 336 X-85OP600584 BAND,BRAKE T 337 X-85OP600577 CAM,PINCH ROLLER 338 X-85OP600578 CAM,MAIN 339 X-85OP600579 ROD,MAIN 340 X-85OP600582 GEAR,JOINT 341 X-85OP800322 SPRING,TENSION 342 X-85OP800360 SPRING,BRAKE T 343 X-85OP800355 SPRING,COUPLING
3-6
Page 7
# REF No. PART No. PART NAME, DESCRIPTION # REF No. PART No. PART NAME, DESCRIPTION
--------------- ----------------------- ----------------------------------------------------- ---------------- ----------------------- ------------------------------------------------------
344 X-85OP800356 SPRING,RING 345 X-85OP900750 LEVER,LINK 2 346 X-85OP900744 LEVER,FLAP 347 X-85OP900745 CASS,OPENER 348 X-85OP700035 REFLECTOR,LED 501 X-8107226804 SCREW,T AP TITE(S) BIND 2.6x8 502 X-83ETW30000 E-RING 3.0 503 X-8107226404 SCREW,T AP TITE(S) BIND 2.6x4 504 X-8102120604 SCREW,P AN M2x6 505 X-8109126604 SCREW,T AP TITE(B) P AN 2.6x6 506 X-810A130404 SCREW/W ASHER(A) M3x4 507 X-810A126504 SCREW/W ASHER(A) M2.6x5 508 X-82Q264713N POLYSLIDER WASHER 2.6x4.7xT0.13 509 X-82P184505N 510 X-8107226604 SCREW,T AP TITE(S) BIND 2.6x6 CD1501 X-122H071704 CORD JUMPER 2H071704 CD1502 X-122Y021902 CORD JUMPER 2Y021902 H5001 X-1523Q91003 H5002 X-1543Q02014 HEAD (FULL ERASE)VTR-1X2ERS11-154
! M101 X-1596P98001 MOTOR (LOADING) MXN13FB12K3 ! M2001 X-1510S98038 CAPSTAN DD UNIT F2QVB33
M2003 X-1589S11017 MICRO MOTOR I2OAL05
! UN4001 X-A2C301N500 CYLINDER UNIT ASS’Y A2C301N500
POLYSLIDER WASHER(CUT) 1.8x4.5xT0.5
HEAD (AUDIO CONTROL) VTR-1X2RPE22-756
******************************

MECHANISM PARTS LIST (DVD) <MN>

600 X-A5E601V650 DVD MECHA ASSY A5E601V650 601 X-92P100022A TRAVERSE HOLDER 602 X-92P100032A RACK,FEED 1 603 X-92P100033A RACK,FEED 2 604 X-92P100035A LEVER,RACK FEED 605 X-92P200006A INSULATOR(F) 606 X-92P200007A INSULATOR(R) 607 X-92P300008A SPRING,CHASSIS 608 X-92P300005A SPRING,ARM IDLER 609 X-92P300006A SPRING,RACK FEED 2 610 X-92P300007A SPRING,RACK FEED 1 611 X-92P100031A ARM,IDLER 612 X-92P000001A CLAMPER PLATE 613 X-92P100019A RACK,LOADING 614 X-92P100020A MAIN FRAME M 615 X-92P100021A TRAY 616 X-92P100023A GEAR,MAIN 617 X-92P100024A CLAMPER 618 X-92P300002A SPRING,RACK LOADING 619 X-92P400002A MAGNET,CLAMPER 620 X-92P100030A GEAR,IDLER 621 X-92P100025A GEAR,MOTOR 622 X-92P100026A GEAR,MIDDLE 1 623 X-92P100027A GEAR,MIDDLE 2 624 X-92P100028A GEAR,MIDDLE 3 625 X-92P100029A GEAR,FEED 701 X-8110226804 SCREW,T AP TITE(P) BIND 2.6x8 702 X-8110120604 SCREW,T AP TITE(P) P AN 2x6 703 X-8107220504 SCREW,T AP TITE(S) BIND 2x5 704 X-8140117254 SCREW,PAN M1.7x2.5 P3 705 X-8110220804 SCREW,T AP TITE(P) BIND 2x8 CD2001 X-122H0O1901 CD2301 X-122H080701
CORD,DVD CP2601 - DVD DECK 2H0O1901 CORD,DVD CP2602 - DVD DECK 2H080701
CD2302 X-06CH232101 CP1 X-069JV80180
! M2002 X-1515S98001 FEED MOTOR BCD3B81
PCB640 X-A5E601V640 SW PCB ASS’Y VEBA17A PCB68A SW1 X-0515S32001 SWITCH SSS-23-6 SW2 X-0500S01032 PUSH LEVER SWITCH SW1AB-271-10A
X-A5E601V680 RELAY PCB ASS’Y VEBA12A
CORD,DVD CP2602 - DVD DECK CONNECTOR PCB SIDE IMSA-9615S-08C-P
CH232101
******************************

VCR BOARD ASSEMBLY <03>

PCB010 X-A2C512H010 VCR MT PCB ASS'Y
R101 NRSA63J-561X MG RESISTOR 560Ø,1/16W R102 NRSA63J-103X MG RESISTOR 10KØ,1/16W R103 NRSA63J-103X MG RESISTOR 10KØ,1/16W R105 NRSA63J-102X MG RESISTOR 1KØ,1/16W R106 NRSA63J-681X MG RESISTOR 680Ø,1/16W R107 NRSA63J-332X MG RESISTOR 3.3KØ,1/16W R108 NRSA63J-223X MG RESISTOR 22KØ,1/16W R109 QRE141J-102Y RESISTOR 1KØ,1/4W R110 NRSA63J-822X MG RESISTOR 8.2KØ,1/16W R111 NRSA63J-822X MG RESISTOR 8.2KØ,1/16W R112 NRSA63J-334X MG RESISTOR 330KØ,1/16W R113 NRSA63J-221X MG RESISTOR 220Ø,1/16W R114 NRSA02J-203X MG RESISTOR 20KØ,1/16W R115 NRSA63J-821X MG RESISTOR 820Ø,1/16W R116 NRSA63J-153X MG RESISTOR 15KØ,1/16W R117 NRSA63J-682X MG RESISTOR 6.8KØ,1/16W R119 NRSA63J-182X MG RESISTOR 1.8KØ,1/16W R120 NRSA63J-221X MG RESISTOR 220Ø,1/16W R121 NRSA63J-102X MG RESISTOR 1KØ,1/16W R122 NRSA63J-104X MG RESISTOR 100KØ,1/16W R123 QRE141J-222Y RESISTOR 2.2KØ,1/4W R124 NRSA63J-823X MG RESISTOR 82KØ,1/16W R126 NRSA63J-182X MG RESISTOR 1.8KØ,1/16W R127 NRSA02J-684X MG RESISTOR 680KØ,1/16W R129 NRSA63J-182X MG RESISTOR 1.8KØ,1/16W R131 NRSA63J-152X MG RESISTOR 1.5KØ,1/16W R132 NRSA63J-332X MG RESISTOR 3.3KØ,1/16W R133 NRSA63J-822X MG RESISTOR 8.2KØ,1/16W R136 NRSA63J-223X MG RESISTOR 22KØ,1/16W R137 QRE141J-123Y RESISTOR 12KØ,1/4W R138 NRSA63J-223X MG RESISTOR 22KØ,1/16W R139 NRSA63J-123X MG RESISTOR 12KØ,1/16W R140 QRE141J-222Y RESISTOR 2.2KØ,1/4W R141 NRSA63J-102X MG RESISTOR 1KØ,1/16W R142 NRSA63J-102X MG RESISTOR 1KØ,1/16W R143 NRSA63J-102X MG RESISTOR 1KØ,1/16W R301 NRSA63J-333X MG RESISTOR 33KØ,1/16W R302 NRSA63J-102X MG RESISTOR 1KØ,1/16W R304 NRSA63J-103X MG RESISTOR 10KØ,1/16W R305 NRSA63J-102X MG RESISTOR 1KØ,1/16W
! R501 X-R0G3K2335K RESISTOR 3.3MØ,1/2W ! R502 X-R3X181R82J OMF RESISTOR 0.82Ø,1W ! R504 QRE121J-561Y RESISTOR 560Ø,1/2W
R506 QRE121J-105Y RESISTOR 1MØ,1/2W R507 NRSA63J-103X MG RESISTOR 10KØ,1/16W
3-7
Page 8
# REF No. PART No. PART NAME, DESCRIPTION # REF No. PART No. PART NAME, DESCRIPTION
--------------- ----------------------- ----------------------------------------------------- ---------------- ----------------------- ------------------------------------------------------
R508 NRSA02J-101X MG RESISTOR 100Ø,1/4W R509 NRSA63J-101X MG RESISTOR 100Ø,1/16W R510 NRSA63J-104X MG RESISTOR 100KØ,1/16W R511 NRSA63J-564X MG RESISTOR 560KØ,1/16W
! R512 X-R3X181683J OMF RESISTOR 68KØ,1W
R513 QRE121J-391Y RESISTOR 390Ø,1/2W R514 QRE121J-221Y RESISTOR 220Ø,1/2W R515 NRSA63J-272X MG RESISTOR 2.7KØ,1/16W
! R516 X-R63581R22J FUSI RESISTOR 0.22Ø,1W ! R517 X-R002T2821J RESISTOR 820Ø,1/2W
R518 NRSA63J-151X MG RESISTOR 150Ø,1/16W R519 NRSA63J-102X MG RESISTOR 1KØ,1/16W R520 NRSA02F-332X MG RESISTOR 3.3KØ,1/16W R521 NRSA63J-471X MG RESISTOR 470Ø,1/16W R522 NRSA02F-332X MG RESISTOR 3.3KØ,1/16W R523 NRSA63J-682X MG RESISTOR 6.8KØ,1/16W R524 NRSA02J-101X MG RESISTOR 100Ø,1/4W R525 NRSA63J-103X MG RESISTOR 10KØ,1/16W R526 X-R803R9122F MG RESISTOR 1.2KØ,1/16W R527 NRSA02J-101X MG RESISTOR 100Ø,1/4W R528 QRE141J-392Y RESISTOR 3.9KØ,1/4W R529 NRSA63J-222X MG RESISTOR 2.2KØ,1/16W R530 NRSA63J-470X MG RESISTOR 47Ø,1/16W R531 NRSA63F-821X MG RESISTOR 820Ø,1/16W R532 NRSA63J-103X MG RESISTOR 10KØ,1/16W R533 QRE141J-221Y RESISTOR 220Ø,1/4W R534 NRSA02J-223X MG RESISTOR 22KØ,1/10W R535 NRSA02J-223X MG RESISTOR 22KØ,1/10W R536 NRSA63J-561X MG RESISTOR 560Ø,1/16W R537 NRSA63J-221X MG RESISTOR 220Ø,1/16W R538 NRSA63J-221X MG RESISTOR 220Ø,1/16W R540 NRSA63J-471X MG RESISTOR 470Ø,1/16W R541 QRE141J-223Y RESISTOR 22KØ,1/4W R542 NRSA63J-151X MG RESISTOR 150Ø,1/16W R543 NRSA63J-104X MG RESISTOR 100KØ,1/16W R544 QRE141J-223Y RESISTOR 22KØ,1/4W
! R545 X-R65584150J R,FUSE 15Ø,1/4W
R552 NRSA63J-101X MG RESISTOR 100Ø,1/16W R553 QRE141J-473Y RESISTOR 47KØ,1/4W R554 QRE141J-103Y RESISTOR 10KØ,1/4W R651 NRSA02J-101X MG RESISTOR 100Ø,1/4W R653 NRSA63J-331X MG RESISTOR 330Ø,1/16W R657 NRSA63J-272X MG RESISTOR 2.7KØ,1/16W R658 NRSA63J-182X MG RESISTOR 1.8KØ,1/16W R659 NRSA63J-152X MG RESISTOR 1.5KØ,1/16W R661 NRSA63J-821X MG RESISTOR 820Ø,1/16W R662 NRSA63J-181X MG RESISTOR 180Ø,1/16W R663 NRSA63J-181X MG RESISTOR 180Ø,1/16W R664 NRSA63J-821X MG RESISTOR 820Ø,1/16W R665 NRSA63J-181X MG RESISTOR 180Ø,1/16W R666 NRSA63J-181X MG RESISTOR 180Ø,1/16W R667 NRSA63J-181X MG RESISTOR 180Ø,1/16W R668 NRSA63J-181X MG RESISTOR 180Ø,1/16W R669 NRSA63J-821X MG RESISTOR 820Ø,1/16W R670 NRSA63J-181X MG RESISTOR 180Ø,1/16W R671 NRSA63J-821X MG RESISTOR 820Ø,1/16W R672 NRSA63J-181X MG RESISTOR 180Ø,1/16W R673 NRSA63J-181X MG RESISTOR 180Ø,1/16W R674 NRSA63J-181X MG RESISTOR 180Ø,1/16W R675 NRSA63J-821X MG RESISTOR 820Ø,1/16W R683 NRSA63J-561X MG RESISTOR 560Ø,1/16W
R701 NRSA63J-152X MG RESISTOR 1.5KØ,1/16W R702 NRSA63J-152X MG RESISTOR 1.5KØ,1/16W R703 NRSA63J-103X MG RESISTOR 10KØ,1/16W R704 NRSA63J-103X MG RESISTOR 10KØ,1/16W R707 NRSA63J-473X MG RESISTOR 47KØ,1/16W R708 NRSA63J-682X MG RESISTOR 6.8KØ,1/16W R711 NRSA63J-473X MG RESISTOR 47KØ,1/16W R712 NRSA63J-682X MG RESISTOR 6.8KØ,1/16W R714 NRSA63J-273X MG RESISTOR 27KØ,1/16W R716 NRSA63J-332X MG RESISTOR 3.3KØ,1/16W R717 NRSA63J-225X MG RESISTOR 2.2MØ,1/16W R718 NRSA63J-102X MG RESISTOR 1KØ,1/16W R719 NRSA63J-331X MG RESISTOR 330Ø,1/16W R720 NRSA63J-332X MG RESISTOR 3.3KØ,1/16W R721 NRSA63J-153X MG RESISTOR 15KØ,1/16W R722 NRSA63J-153X MG RESISTOR 15KØ,1/16W R723 QRE141J-471Y RESISTOR 470Ø,1/4W R3001 NRSA63J-562X MG RESISTOR 5.6KØ,1/16W R3002 QRE141J-121Y RESISTOR 120Ø,1/4W R3003 NRSA63J-332X MG RESISTOR 3.3KØ,1/16W R3004 NRSA02J-274X MG RESISTOR 270KØ,1/16W R3006 NRSA63J-473X MG RESISTOR 47KØ,1/16W R3007 NRSA63J-682X MG RESISTOR 6.8KØ,1/16W R3008 NRSA63J-102X MG RESISTOR 1KØ,1/16W R3009 NRSA63J-472X MG RESISTOR 4.7KØ,1/16W R3010 NRSA63J-103X MG RESISTOR 10KØ,1/16W R3011 QRE141J-473Y RESISTOR 47KØ,1/4W R3012 NRSA63J-563X MG RESISTOR 56KØ,1/16W R3014 NRSA63J-563X MG RESISTOR 56KØ,1/16W R3015 QRE141J-473Y RESISTOR 47KØ,1/4W R3016 NRSA02J-271X MG RESISTOR 270Ø,1/10W R3017 NRSA63J-561X MG RESISTOR 560Ø,1/16W R3019 QRE141J-473Y RESISTOR 47KØ,1/4W R3020 NRSA63J-561X MG RESISTOR 560Ø,1/16W R3022 NRSA02J-154X MG RESISTOR 150KØ,1/16W R3025 NRSA63J-471X MG RESISTOR 470Ø,1/16W R3026 NRSA02J-274X MG RESISTOR 270KØ,1/16W R3027 NRSA63J-153X MG RESISTOR 15KØ,1/16W R3028 QRE141J-473Y RESISTOR 47KØ,1/4W R3029 NRSA63J-472X MG RESISTOR 4.7KØ,1/16W R3030 NRSA63J-562X MG RESISTOR 5.6KØ,1/16W R3031 NRSA63J-105X MG RESISTOR 1MØ, 1/16W R3032 NRSA63J-103X MG RESISTOR 10KØ,1/16W R3033 NRSA63J-103X MG RESISTOR 10KØ,1/16W R3034 NRSA63J-105X MG RESISTOR 1MØ, 1/16W R3035 NRSA02J-103X MG RESISTOR 10KØ,1/10W R3037 NRSA63J-473X MG RESISTOR 47KØ,1/16W R3038 QRE141J-472Y RESISTOR 4.7KØ,1/4W R3043 NRSA63J-474X MG RESISTOR 470KØ,1/16W R3044 NRSA63J-332X MG RESISTOR 3.3KØ,1/16W R3045 NRSA63J-332X MG RESISTOR 3.3KØ,1/16W R3046 NRSA63J-103X MG RESISTOR 10KØ,1/16W R3047 NRSA63J-103X MG RESISTOR 10KØ,1/16W R3049 NRSA63J-473X MG RESISTOR 47KØ,1/16W R3050 NRSA02J-101X MG RESISTOR 100Ø,1/4W R3051 NRSA63J-562X MG RESISTOR 18KØ,1/16W R3053 NRSA63J-474X MG RESISTOR 470KØ,1/16W R3055 NRSA63J-223X MG RESISTOR 22KØ,1/16W R3056 NRSA63J-102X MG RESISTOR 1KØ,1/16W R3057 NRSA63J-223X MG RESISTOR 22KØ,1/16W R3062 NRSA63J-102X MG RESISTOR 1KØ,1/16W
3-8
Page 9
# REF No. PART No. PART NAME, DESCRIPTION # REF No. PART No. PART NAME, DESCRIPTION
--------------- ----------------------- ----------------------------------------------------- ---------------- ----------------------- ------------------------------------------------------
R3063 NRSA63J-102X MG RESISTOR 1KØ,1/16W R3083 NRSA63J-333X MG RESISTOR 33KØ,1/16W R3087 NRSA63J-333X MG RESISTOR 33KØ,1/16W R8009 QRE121J-471Y RESISTOR 470Ø,1/2W R8010 NRSA02J-750X MG RESISTOR 75Ø,1/16W R8011 NRSA63J-101X MG RESISTOR 100Ø,1/16W R8014 NRSA02J-391X MG RESISTOR 390Ø,1/16W R8015 NRSA02J-391X MG RESISTOR 390Ø,1/16W R8016 NRSA63J-222X MG RESISTOR 2.2KØ,1/16W R8017 NRSA63J-222X MG RESISTOR 2.2KØ,1/16W R8019 NRSA02J-750X MG RESISTOR 75Ø,1/16W R8032 NRSA63J-471X MG RESISTOR 470Ø,1/16W R8056 NRSA63J-471X MG RESISTOR 470Ø,1/16W R8059 QRE141J-472Y RESISTOR 4.7KØ,1/4W C101 X-P232W1223J CAPACITOR 0.022µF,100V C103 X-E524U0220D E CAPACITOR 22µF,6.3V C104 QEKJ0JM-227Z E CAPACITOR 220µF,6.3V C105 X-E524U0220D E CAPACITOR 22µF,6.3V C106 NCB31HK-103X CAPACITOR 0.01µF,50V C107 NCB31HK-153X CAPACITOR 0.015µF,50V C108 NCB31HK-103X CAPACITOR 0.01µF,50V C109 NCB31CK-104X CAPACITOR 0.1µF,16V C110 X-E5EZU2470M E CAPACITOR 47µF,16V C112 QEKJ0JM-227Z E CAPACITOR 220µF,6.3V C114 NCB31CK-104X CAPACITOR 0.1µF,16V C115 X-E524U1330D E CAPACITOR 33µF,10V C116 NCB31EZ-104X CAPACITOR 0.1µF,25V C117 NCB31HK-103X CAPACITOR 0.01µF,50V C118 NCB31HK-103X CAPACITOR 0.01µF,50V C119 X-E524U2100D E CAPACITOR 10µF,16V C120 X-E524U5010D E CAPACITOR 1µF,50V C121 NCB31HK-272X CAPACITOR 0.0027µF,50V C122 NCB31HK-122X CAPACITOR 0.0012µF,50V C123 X-E02LU54R7M E CAPACITOR 4.7µF,50V C124 X-E524U5010D E CAPACITOR 1µF,50V C125 X-CS0PCH4N2J CAPACITOR 390pF,50V C126 NCB31CK-104X CAPACITOR 0.1µF,16V C127 X-CS0PCH4G2J CAPACITOR 180pF,50V C129 X-CS0RB0216K CAPACITOR 1µF,16V C131 X-E524U0101D E CAPACITOR 100µF,6.3V C132 QEKJ1HM-105Z E CAPACITOR 1µF,50V C133 NCF31AZ-105X CAPACITOR 1µF,10V C134 QEKJ1HM-105Z E CAPACITOR 1µF,50V C135 X-E02LU5R22M E CAPACITOR 0.22µF,50V C136 QETN1VM-226Z E CAPACITOR 22µF,35V C137 X-E524U5010D E CAPACITOR 1µF,50V C138 QETN1HM-105Z E CAPACITOR 1µF,50V C139 NCB31EZ-104X CAPACITOR 0.1µF,25V C140 X-E00NU54R7M E CAPACITOR 4.7µF,50V C141 NCB31HK-103X CAPACITOR 0.01µF,50V C142 X-E524U2470D E CAPACITOR 47µF,16V C143 NCF31AZ-105X CAPACITOR 1µF,10V C144 NCB31HK-103X CAPACITOR 0.01µF,50V C145 X-CS0PB04H4K CAPACITOR 0.022µF,50V C146 X-E524U5010D E CAPACITOR 1µF,50V C147 X-CS0PB04H4K CAPACITOR 0.022µF,50V C148 X-E524U5010D E CAPACITOR 1µF,50V C151 QEKJ1HM-105Z E CAPACITOR 1µF,50V C152 QETN1CM-476Z E CAPACITOR 47µF,16V C154 NCB31CK-104X CAPACITOR 0.1µF,16V C155 X-CS0RB0216K CAPACITOR 1µF,16V
C156 NCF21HZ-104X CAPACITOR 0.1µF,50V C158 NCB31CK-104X CAPACITOR 0.1µF,16V C159 X-CS0PCH4H1J CAPACITOR 22pF,50V C162 NCB31CK-104X CAPACITOR 0.1µF,16V C163 X-E524U0470D E CAPACITOR 47µF,6.3V C165 NCB31HK-473X CAPACITOR 0.047µF,50V C166 NCB21HK-683X CAPACITOR 0.068µF,50V C169 NCB31HK-473X CAPACITOR 0.047µF,50V C172 X-CS0PCH4H1J CAPACITOR 22pF,50V C174 QEKJ0JM-476Z E CAPACITOR 47µF,6.3V C301 NCF31HZ-103X CAPACITOR 0.01µF,50V C303 NCZ31HZ-104X CAPACITOR 0.1µF,50V C309 QETN0JM-227Z E CAPACITOR 220µF,6.3V C313 QEKJ1CM-106Z E CAPACITOR 10µF,16V C315 QEKJ1CM-106Z E CAPACITOR 10µF,16V C318 QEKJ1CM-106Z E CAPACITOR 10µF,16V
! C501 X-E5EZF2222M E CAPACITOR 2200µF,16V ! C502 X-P2122B104M CMP 0.1µF,275V
C504 QETN0JM-227Z E CAPACITOR 220µF,6.3V
! C505 X-E5EZU2101M E CAPACITOR 100µF,16V
C506 X-E5EZU0471M E CAPACITOR 470µF,6.3V C507 NCF21CZ-2R2X CAPACITOR 2.2µF,16V C508 X-CS0PB04W3K CAPACITOR 0.0082µF,50V C509 QFN31HJ-183Z F CAPACITOR 0.018µF,50V C510 X-E5EZU5220M E CAPACITOR 22µF,50V
! C511 X-E62QFC470M E CAPACITOR 47µF,200V
C512 NCF31AZ-105X CAPACITOR 1µF,10V C513 X-C0PLRR7H2K CAPACITOR 220pF,2KV
! C514 X-E5EZU2101M E CAPACITOR 100µF,16V ! C515 QCB12HK-103 CAPACITOR 0.01µF,500V ! C516 X-CD39E0MQ3M CAPACITOR 0.0047µF,250V
C517 NCF31AZ-105X CAPACITOR 1µF,10V
! C518 QECP0JM-228 E CAPACITOR 2200µF,6.3V ! C519 X-E5EZ01222M E CAPACITOR 2200µF,10V ! C521 X-E5EZU2101M E CAPACITOR 100µF,16V ! C522 X-E5EZU5220M E CAPACITOR 22µF,50V
C524 X-CS0PB04H4K CAPACITOR 0.022µF,50V C525 X-C0PLRR7U2K CAPACITOR 680pF,2KV C527 X-CS0PB04W3K CAPACITOR 0.0082µF,50V C528 X-E5EZU2101M E CAPACITOR 100µF,16V C530 X-E5EZU2101M E CAPACITOR 100µF,16V C531 QCB32HK-561Z CAPACITOR 560pF,500V C534 NCF31AZ-105X CAPACITOR 1µF,10V
! C540 X-E62QFC470M E CAPACITOR 47µF,200V
C541 NCF21CZ-2R2X CAPACITOR 2.2µF,16V C652 QETN0JM-107Z E CAPACITOR 100µF,6.3V C653 QETL1AM-477 E CAPACITOR 470µF,10V C701 X-CS0PB04H4K CAPACITOR 0.022µF,50V C702 X-E524U53R3D E CAPACITOR 3.3µF,50V C703 X-E02LU54R7M E CAPACITOR 4.7µF,50V C704 X-E524U5010D E CAPACITOR 1µF,50V C705 QEKJ1HM-475Z E CAPACITOR 4.7µF,50V C706 X-E524U5010D E CAPACITOR 1µF,50V C707 NCB31CK-104X CAPACITOR 0.1µF,16V C708 QEKJ1CM-106Z E CAPACITOR 10µF,16V C709 X-E50HU5100M E CAPACITOR 10µF,50V C711 X-E50HU5100M E CAPACITOR 10µF,50V C713 NCF31AZ-105X CAPACITOR 1µF,10V C714 X-E524U2100D E CAPACITOR 10µF,16V C715 NCB31HK-122X CAPACITOR 0.0012µF,50V C716 NCF31AZ-105X CAPACITOR 1µF,10V
3-9
Page 10
# REF No. PART No. PART NAME, DESCRIPTION # REF No. PART No. PART NAME, DESCRIPTION
--------------- ----------------------- ----------------------------------------------------- ---------------- ----------------------- ------------------------------------------------------
C719 NCF31AZ-105X CAPACITOR 1µF,10V C720 QETN1HM-336Z E CAPACITOR 33µF,50V C721 NCB31HK-122X CAPACITOR 0.0012µF,50V C722 NCB31CK-104X CAPACITOR 0.1µF,16V C723 NCF31HZ-103X CAPACITOR 0.01µF,50V C724 NCF31HZ-103X CAPACITOR 0.01µF,50V C725 NCB31CK-104X CAPACITOR 0.1µF,16V C726 NCB31HK-153X CAPACITOR 0.015µF,50V C727 X-E524U2100D E CAPACITOR 10µF,16V C728 X-E50HU5100M E CAPACITOR 10µF,50V C729 NCB31HK-103X CAPACITOR 0.01µF,50V C730 NCB31HK-153X CAPACITOR 0.015µF,50V C731 X-E50HU5R22M E CAPACITOR 0.22µF,50V C732 NCF31HZ-103X CAPACITOR 0.01µF,50V C734 NCB31CK-104X CAPACITOR 0.1µF,16V C735 X-E02LU54R7M E CAPACITOR 4.7µF,50V C736 NCB31HK-102X CAPACITOR 0.001µF,50V C737 QEKJ1HM-475Z E CAPACITOR 4.7µF,50V C738 NCF31HZ-103X CAPACITOR 0.01µF,50V C739 QEKJ1CM-476Z E CAPACITOR 47µF,16V C740 X-E50HU3330M E CAPACITOR 33µF,25V C741 X-E524U2100D E CAPACITOR 10µF,16V C742 X-E524U2100D E CAPACITOR 10µF,16V C743 X-E524U5R22D E CAPACITOR 0.22µF,50V C744 NCB31EZ-104X CAPACITOR 0.1µF,25V C746 NCB31EZ-104X CAPACITOR 0.1µF,25V C747 QETN1HM-106Z E CAPACITOR 10µF,50V C748 NCB31EZ-104X CAPACITOR 0.1µF,25V C749 NCB31EZ-104X CAPACITOR 0.1µF,25V C750 X-E524U52R2D E CAPACITOR 2.2µF,50V C751 NCB31EZ-104X CAPACITOR 0.1µF,25V C752 X-E524U2220D E CAPACITOR 22µF,16V C754 QEKJ1CM-476Z E CAPACITOR 47µF,16V C755 X-CS0PB04H4K CAPACITOR 0.022µF,50V C756 X-E524U2100D E CAPACITOR 10µF,16V C757 NCF31AZ-105X CAPACITOR 1µF,10V C758 X-E524U2220D E CAPACITOR 22µF,16V C759 X-E50HU4220M E CAPACITOR 22µF,35V C760 NCF31AZ-105X CAPACITOR 1µF,10V C761 QEKJ0JM-476Z E CAPACITOR 47µF,6.3V C762 X-CS0PCH4U2J CAPACITOR 680pF,50V C763 X-CS0PCH4U2J CAPACITOR 680pF,50V C3001 X-CS0RB0216K CAPACITOR 1µF,16V C3002 NCB31HK-103X CAPACITOR 0.01µF,50V C3004 X-CS0PB04H4K CAPACITOR 0.022µF,50V C3005 NCB31HK-102X CAPACITOR 0.001µF,50V C3006 NCB31HK-102X CAPACITOR 0.001µF,50V C3007 NCB31CK-104X CAPACITOR 0.1µF,16V C3008 NCB31HK-472X CAPACITOR 0.0047µF,50V C3009 NCB31CK-104X CAPACITOR 0.1µF,16V C3010 NCB31HK-102X CAPACITOR 0.001µF,50V C3013 QEKJ0JM-226Z E CAPACITOR 22µF,6.3V C3014 NCB31EZ-104X CAPACITOR 0.1µF,25V C3015 X-CS0PCH4W2J CAPACITOR 820pF,50V C3016 QEKJ0JM-476Z E CAPACITOR 47µF,6.3V C3017 NCB31HK-102X CAPACITOR 0.001µF,50V C3018 NDC31HJ-151X CAPACITOR 150pF,50V C3019 NCB31CK-104X CAPACITOR 0.1µF,16V C3020 X-CS0PB04H4K CAPACITOR 0.022µF,50V C3021 QEKJ1CM-106Z E CAPACITOR 10µF,16V C3022 NDC31HJ-471X CAPACITOR 470pF,50V
C3023 QETN0JM-477Z E CAPACITOR 470µF,6.3V C3024 X-CS0PCH4B1J CAPACITOR 12pF,50V C3025 X-CS0PCH4B1J CAPACITOR 12pF,50V C3027 NCB31EZ-104X CAPACITOR 0.1µF,25V C3029 QEKJ0JM-476Z E CAPACITOR 47µF,6.3V C3030 NCF31AZ-105X CAPACITOR 1µF,10V C3031 NCB31HK-152X CAPACITOR 0.0015µF,50V C3032 QEKJ1HM-225Z E CAPACITOR 2.2µF,50V C3033 QETN1VM-337Z E CAPACITOR 330µF,35V C3034 NCF31AZ-105X CAPACITOR 1µF,10V C3036 NCB31EZ-104X CAPACITOR 0.1µF,25V C3038 NCF31AZ-105X CAPACITOR 1µF,10V C3040 NCF31AZ-105X CAPACITOR 1µF,10V C3041 NCB31HK-152X CAPACITOR 0.0015µF,50V C3044 X-CS0PCH4B1J CAPACITOR 12pF,50V C3045 QEKJ1HM-474Z E CAPACITOR 0.47µF,50V C3049 NDC31HJ-101X CAPACITOR 100pF,50V C3050 NCB31HK-103X CAPACITOR 0.01µF,50V C3052 QEKJ0JM-226Z E CAPACITOR 22µF,6.3V C3053 NCB31CK-104X CAPACITOR 0.1µF,16V C3061 NCB31EZ-104X CAPACITOR 0.1µF,25V C3065 NCB31EZ-104X CAPACITOR 0.1µF,25V C8004 NDC31HJ-471X CAPACITOR 470pF,50V C8013 QETN1HM-106Z E CAPACITOR 10µF,50V C8014 NCB31EZ-104X CAPACITOR 0.1µF,25V C8015 QETN0JM-477Z E CAPACITOR 470µF,6.3V C8019 QEKJ1CM-106Z E CAPACITOR 10µF,16V C8031 QEKJ1HM-475Z E CAPACITOR 4.7µF,50V C8032 X-E00NU24R7M E CAPACITOR 4.7µF,16V C8053 QEKJ1CM-106Z E CAPACITOR 10µF,16V C8057 NCB31EZ-104X CAPACITOR 0.1µF,25V C8075 QEKJ1HM-475Z E CAPACITOR 4.7µF,50V C8099 NDC31HJ-471X CAPACITOR 470pF,50V
! D502 X-D2WXN40050 DIODE 1N4005-EIC ! D503 X-D2WXN40050 DIODE 1N4005-EIC
D504 1SS133-T2 DIODE
! D505 X-D2WXN40050 DIODE 1N4005-EIC ! D506 X-D2WXN40050 DIODE 1N4005-EIC ! D507 X-D23TGP15J0 DIODE RGP15J-G23
D509 X-D2WXGP10J0 FR DIODE RGP10J-EIC
! D510 MTZJ27B-T2 ZENER ! D511 X-D28T21DQN4 DIODE,SCHOTTKY 21DQ04N-TA2B1 ! D512 X-D28T21DQN4 DIODE,SCHOTTKY 21DQ04N-TA2B1
D513 X-D2WXN40050 DIODE 1N4005-EIC D514 MTZJ12C-T2 ZENER
! D515 X-D28T21DQN4 DIODE,SCHOTTKY 21DQ04N-TA2B1
D518 1SS133-T2 DIODE
! D522 X-D28TELS6N6 RECTIFIER 10ELS6N-TA1B2 ! D523 MTZJ33B-T2 ZENER
D524 1SS133-T2 DIODE D526 MTZJ3.3B ZENER D528 1SS133-T2 DIODE D530 X-D28TELS6N6 RECTIFIER 10ELS6N-TA1B2 D531 MTZJ9.1B DIODE,ZENER D532 MTZJ3.3B ZENER D534 1SS133-T2 DIODE D535 1SS133-T2 DIODE D536 1SS133-T2 DIODE D537 1SS133-T2 DIODE D538 1SS133-T2 DIODE D539 1SS133-T2 DIODE
3-10
Page 11
# REF No. PART No. PART NAME, DESCRIPTION # REF No. PART No. PART NAME, DESCRIPTION
--------------- ----------------------- ----------------------------------------------------- ---------------- ----------------------- ------------------------------------------------------
D651 X-0021E5Q212 LED LTL-1CHGT-002A D656 X-D2WXN40050 DIODE 1N4005-EIC D701 1SS133-T2 DIODE D702 MTZJ5.1B DIODE,ZENER D3001 X-0010E00330 INFRARED LED LTE-3271T-012A-O D3007 1SS133-T2 DIODE D3009 1SS133-T2 DIODE D8002 MTZJ6.8B-T2 ZENER D8003 MTZJ6.8B-T2 ZENER D8008 1SS133-T2 DIODE V651 X-0040F34001 LED DISPLAY ELF-4M6SDRSOWB/S423 IC101 X-I03F3206M0 IC LA71206M-MPB
! IC501 X-I1KJ9A4310 IC KIA431 ! IC502 X-I1KA98R09A IC KIA78R09API ! IC503 X-000220001W PHOTO COUPLER PS2561L1-1-V(W)
IC701 AN3663FBP IC IC3001 X-I54F50138A IC OEC0138A IC3003 X-I9UF032310 IC PST3231NR IC3099 X-A2C512K015 IC S-24C04BFJ-TB IC8005 MM1501XN-X IC Q101 X-TCAA3875SY TRANSISTOR KTC3875S_Y_RTK Q102 X-TCAA3875SY TRANSISTOR KTC3875S_Y_RTK Q103 X-TPAAC05002 TRANSISTOR KRA103SRTK Q104 X-TCAT032034 TRANSISTOR KTC3203_Y-AT Q105 X-TAATA12660 TRANSISTOR KTA1266-AT(Y,GR) Q106 X-TAAA1504SY TRANSISTOR KTA1504S_Y_RTK Q107 X-TAAA1504SY TRANSISTOR KTA1504S_Y_RTK Q109 X-TCAA3875SY TRANSISTOR KTC3875S_Y_RTK Q301 X-TCAA3875SY TRANSISTOR KTC3875S_Y_RTK
! Q501 X-TJXG5NC500 FET STP5NC50FP ! Q502 X-TCAT032034 TRANSISTOR KTC3203_Y-AT ! Q503 X-TCAT03209Y TRANSISTOR KTC3209_Y-AT ! Q504 X-TAAT012714 TRANSISTOR KTA1271_Y-AT ! Q505 X-TCAT03209Y TRANSISTOR KTC3209_Y-AT
Q506 KRC103S-X TRANSISTOR Q507 X-TCAA3875SY TRANSISTOR KTC3875S_Y_RTK Q508 X-TCAA3875SY TRANSISTOR KTC3875S_Y_RTK Q509 KRC103S-X TRANSISTOR
! Q510 X-TCAT032034 TRANSISTOR KTC3203_Y-AT ! Q511 X-TAAT01241Y TRANSISTOR KTA1241_Y-AT
Q513 2SC2412K/RS/-X TRANSISTOR Q514 2SC2412K/RS/-X TRANSISTOR Q530 X-TCAA3875SY TRANSISTOR KTC3875S_Y_RTK Q531 2SA1037AK/RS/-X TRANSISTOR Q651 X-TAAA1504SY TRANSISTOR KTA1504S_Y_RTK Q652 KRC103S-X TRANSISTOR Q653 KRC103S-X TRANSISTOR Q654 X-TAAA1504SY TRANSISTOR KTA1504S_Y_RTK Q655 KRC103S-X TRANSISTOR Q656 KRC103S-X TRANSISTOR Q657 KRC103S-X TRANSISTOR Q658 KRC103S-X TRANSISTOR Q659 X-TAAA1504SY TRANSISTOR KTA1504S_Y_RTK Q660 KRC103S-X TRANSISTOR Q661 X-TAAA1504SY TRANSISTOR KTA1504S_Y_RTK Q662 KRC103S-X TRANSISTOR Q663 KRC103S-X TRANSISTOR Q664 KRC103S-X TRANSISTOR
Q3002 X-0002700690 PHOTO COUPLER RPI-303 Q3003 X-TPAAC05002 TRANSISTOR KRA103SRTK Q3004 X-0002700680 PHOTO TRANSISTOR RPI-352C40N Q3005 X-0002700680 PHOTO TRANSISTOR RPI-352C40N Q3006 X-0000M00390 PHOTO TRANSISTOR ST-304L Q3008 X-0000M00390 PHOTO TRANSISTOR ST-304L Q3007 KRC103S-X TRANSISTOR Q8003 KRC103S-X TRANSISTOR Q8004 X-TAA TA12660 TRANSISTOR KTA1266-AT(Y,GR) Q8005 X-TCAA3875SY TRANSISTOR KTC3875S_Y_RTK Q8006 X-TCAA3875SY TRANSISTOR KTC3875S_Y_RTK Q8007 X-TPAAC05002 TRANSISTOR KRA103SRTK B501 X-024HT03563 CORE,BEADS B502 X-024HT03553 CORE,BEADS W5RH3.5X5X1.0 L101 X-031626009R COIL,BIAS OSC L102 QQL29BJ-101Z COIL 100µH L103 QQL071J-5R6Y COIL 5.6µH L105 QQL29BJ-101Z COIL 100µH L106 QQL29BJ-220Z COIL 22µH L107 QQL29BJ-220Z COIL 22µH L301 QQL29BJ-220Z COIL 22µH
! L501 X-029T000107 COIL,LINE FILTER 0R4A223F20
L502 X-02AHB0A0A4 CORE,FERRITE W5T_20*10*10A L505 QQL29BJ-220Z COIL 22µH
! L506 X-021W7A220K COIL 22µH
L701 QQL29BJ-220Z COIL 22µH L702 QQL29BJ-220Z COIL 22µH L703 QQL29BJ-101Z COIL 100µH L704 X-0216A6100K COIL 10µH L3002 X-021W7A220K COIL 22µH L3003 QQL071J-120Y COIL 12µH L8004 QQL071J-470Y COIL 47µH
! T501 X-0481260074 TRANSFORMER,SWITCHING 81260074
J8001 X-060J411018 RCA JACK J8003 X-060J401087 RCA JACK J8004 X-060J401087 RCA JACK J8005 X-060J421025 RCA JACK SW651 QSW0456-001Z TACT SWITCH,VCR EJECT SW652 QSW0456-001Z TACT SWITCH,POWER SW653 QSW0456-001Z TACT SWITCH,VCR/DVD SW654 QSW0456-001Z TACT SWITCH,CH UP SW655 QSW0456-001Z TACT SWITCH,CH DOWN SW3001
X-0508S11001 LEAF SWITCH CP101 X-0697290620 CONNECTOR PCB SIDE CP102 QFG1208C1-06 CONNECTOR,PCB SIDEIMSA-9604S-06C CP651 X-069J750019 CONNECTOR PCB SIDE CP3001 X-06972C0010 CONNECTOR PCB SIDE CP8002 QFG1208C1-08 CONNECTOR,PCB SIDEIMSA-9604S-08C X101 X-100DT3R528 CRYSTAL HC-49/U X3001 X-100BT01004 CRYSTAL HC-49U/S
! TU301 X-0162300033 RF UNIT 115-V-H015AR
CP103 X-067U002019 WIRE HOLDER B2013H02-2P
! F501 QMF51U1-2R5-J8 FUSE
FH501 X-06710T0006 FUSE HOLDER FH502 X-06710T0006 FUSE HOLDER
! CD501 X-1209419910 CORD,AC BUSH 9419910
CP501 X-06CH2C0302 CORD,JUMPER CH2C0302 OS651 X-077Q037001 REMOTE RECEIVER
Q665 X-TAAA1504SY TRANSISTOR KTA1504S_Y_RTK Q666 X-TPAAC05002 TRANSISTOR KRA103SRTK Q3001 X-0002700690 PHOTO COUPLER RPI-303
3-11
Page 12
# REF No. PART No. PART NAME, DESCRIPTION # REF No. PART No. PART NAME, DESCRIPTION
--------------- ----------------------- ----------------------------------------------------- ---------------- ----------------------- ------------------------------------------------------
******************************

OPERATION BOARD ASSEMBLY <28>

PCB270 X-A2C512X270 OPERATION PCB ASSY
R685 QRE141J-133Y RESISTOR 13KØ,1/4W R686 QRE141J-682Y RESISTOR 6.8KØ,1/4W R687 QRE141J-392Y RESISTOR 3.9KØ,1/4W R688 QRE141J-272Y RESISTOR 2.7KØ,1/4W R689 QRE141J-332Y RESISTOR 3.3KØ,1/4W R690 QRE141J-223Y RESISTOR 22KØ,1/4W D685 X-0021E5Q212 LED LTL-1CHGT-002A SW685 QSW0707-001Z TACT SWITCH,REV/REW SW686 QSW0707-001Z TACT SWITCH,PLAY SW687 QSW0707-001Z TACT SWITCH,FF/CUE SW688 QSW0707-001Z TACT SWITCH,REC/OTR SW689 QSW0707-001Z TACT SWITCH,STOP SW690 QSW0707-001Z TACT SWITCH,OPEN/CLOSE CD681 X-122H051202 CP681 X-069J750019 CONNECTOR PCB SIDE
CORD,OPE CP681 - MAIN CP651 2H051202
******************************

DVD BOARD ASSEMBLY <50>

PCB130 X-A2C512H130 DVD PCB ASS'Y
R2301 NRSA63J-102X MG RESISTOR 1KØ,1/16W R2303 NRSA63J-2R2X MG RESISTOR 2.2Ø,1/16W R2304 NRSA63J-2R2X MG RESISTOR 2.2Ø,1/16W R2305 NRSA63J-513X MG RESISTOR 51KØ,1/16W R2306 NRSA63J-562X MG RESISTOR 5.6KØ,1/16W R2307 NRSA63J-273X MG RESISTOR 27KØ,1/16W R2308 NRSA02J-203X MG RESISTOR 20KØ,1/16W R2309 NRSA63J-471X MG RESISTOR 470Ø,1/16W R2310 NRSA63J-562X MG RESISTOR 5.6KØ,1/16W R2312 NRSA63J-562X MG RESISTOR 5.6KØ,1/16W R2313 NRSA63J-562X MG RESISTOR 5.6KØ,1/16W R2314 NRSA63J-562X MG RESISTOR 5.6KØ,1/16W R2316 NRSA02J-203X MG RESISTOR 20KØ,1/16W R2318 NRSA63J-562X MG RESISTOR 5.6KØ,1/16W R2319 NRSA63J-273X MG RESISTOR 27KØ,1/16W R2321 NRSA63J-513X MG RESISTOR 51KØ,1/16W R2322 NRSA63J-472X MG RESISTOR 4.7KØ,1/16W R2323 NRSA63J-332X MG RESISTOR 3.3KØ,1/16W R2324 NRSA63J-102X MG RESISTOR 1KØ,1/16W R2325 NRSA63J-682X MG RESISTOR 6.8KØ,1/16W R2326 NRSA63J-822X MG RESISTOR 8.2KØ,1/16W R2327 NRSA63J-472X MG RESISTOR 4.7KØ,1/16W R2328 NRSA63J-472X MG RESISTOR 4.7KØ,1/16W R2329 NRSA63J-102X MG RESISTOR 1KØ,1/16W R2330 NRSA63J-102X MG RESISTOR 1KØ,1/16W R2331 NRSA63J-471X MG RESISTOR 470Ø,1/16W R2334 NRSA63J-103X MG RESISTOR 10KØ,1/16W R2337 NRSA63J-103X MG RESISTOR 10KØ,1/16W R2601 NRSA63J-472X MG RESISTOR 4.7KØ,1/16W R2602 NRSA63J-185X MG RESISTOR 1.8MØ,1/16W R2603 NRSA63F-133X MG RESISTOR 13KØ,1/16W R2604 NRSA63F-273X MG RESISTOR 27KØ,1/16W R2605 NRSA63F-103X MG RESISTOR 10KØ,1/16W
R2607 NRSA63J-122X MG RESISTOR 1.2KØ,1/16W R2608 NRSA63J-122X MG RESISTOR 1.2KØ,1/16W R2609 NRSA63J-122X MG RESISTOR 1.2KØ,1/16W R2610 NRSA63F-512X MG RESISTOR 5.1KØ,1/16W R2611 NRSA63J-472X MG RESISTOR 4.7KØ,1/16W R2612 NRSA63J-472X MG RESISTOR 4.7KØ,1/16W R2613 NRSA63J-472X MG RESISTOR 4.7KØ,1/16W R2614 NRSA63F-123X MG RESISTOR 12KØ,1/16W R2615 NRSA63J-100X MG RESISTOR 10Ø,1/16W R2616 NRSA63J-102X MG RESISTOR 1KØ,1/16W R2617 NRSA63J-102X MG RESISTOR 1KØ,1/16W R2618 NRSA63J-100X MG RESISTOR 10Ø,1/16W R2619 NRSA63J-101X MG RESISTOR 100Ø,1/16W R2620 NRSA63J-472X MG RESISTOR 4.7KØ,1/16W R2621 NRSA63J-101X MG RESISTOR 100Ø,1/16W R2622 NRSA63J-472X MG RESISTOR 4.7KØ,1/16W R2623 NRSA63J-472X MG RESISTOR 4.7KØ,1/16W R2624 NRSA63J-472X MG RESISTOR 4.7KØ,1/16W R2625 NRSA63J-472X MG RESISTOR 4.7KØ,1/16W R2626 NRSA63J-472X MG RESISTOR 4.7KØ,1/16W R2627 NRSA63J-152X MG RESISTOR 1.5KØ,1/16W R2628 NRSA63J-223X MG RESISTOR 22KØ,1/16W R2629 NRSA63J-152X MG RESISTOR 1.5KØ,1/16W R2630 NRSA63J-223X MG RESISTOR 22KØ,1/16W R2631 NRSA63J-105X MG RESISTOR 1MØ, 1/16W R2632 NRSA63J-472X MG RESISTOR 4.7KØ,1/16W R2635 NRSA63J-472X MG RESISTOR 4.7KØ,1/16W R2643 NRSA63J-102X MG RESISTOR 1KØ,1/16W R2644 NRSA63J-222X MG RESISTOR 2.2KØ,1/16W R2645 NRSA63J-102X MG RESISTOR 1KØ,1/16W R2646 NRSA63J-222X MG RESISTOR 2.2KØ,1/16W R2647 NRSA63J-472X MG RESISTOR 4.7KØ,1/16W R2648 NRSA02J-133X MG RESISTOR 13KØ,1/16W R2649 NRSA63J-101X MG RESISTOR 100Ø,1/16W R2650 NRSA63J-472X MG RESISTOR 4.7KØ,1/16W R2651 NRSA63J-472X MG RESISTOR 4.7KØ,1/16W R2652 NRSA63J-101X MG RESISTOR 100Ø,1/16W R2653 NRSA63J-101X MG RESISTOR 100Ø,1/16W R4001 NRSA02F-391X MG RESISTOR 390Ø,1/16W R4002 NRSA63F-750X MG RESISTOR 75Ø,1/16W R4003 NRSA63F-750X MG RESISTOR 75Ø,1/16W R4004 NRSA02F-820X MG RESISTOR 82Ø,1/16W R4005 NRSA63F-750X MG RESISTOR 75Ø,1/16W R4008 NRSA63J-101X MG RESISTOR 100Ø,1/16W R4012 NRSA63J-105X MG RESISTOR 1MØ, 1/16W R4014 NRSA63J-472X MG RESISTOR 4.7KØ,1/16W R4016 NRSA63J-101X MG RESISTOR 100Ø,1/16W R4018 NRSA63J-472X MG RESISTOR 4.7KØ,1/16W R4019 NRSA63J-330X MG RESISTOR 33Ø,1/16W R4020 NRSA63J-330X MG RESISTOR 33Ø,1/16W R4021 NRSA63J-330X MG RESISTOR 33Ø,1/16W R4022 NRSA63J-103X MG RESISTOR 10KØ,1/16W R4023 NRSA63J-472X MG RESISTOR 4.7KØ,1/16W R4024 NRSA63J-472X MG RESISTOR 4.7KØ,1/16W R4025 NRSA63J-221X MG RESISTOR 220Ø,1/16W R4026 NRSA63J-101X MG RESISTOR 100Ø,1/16W R4027 NRSA63J-101X MG RESISTOR 100Ø,1/16W R4031 NRSA63J-472X MG RESISTOR 4.7KØ,1/16W R4032 NRSA63F-511X MG RESISTOR 510Ø,1/16W R4033 NRSA63J-100X MG RESISTOR 10Ø,1/16W R4034 NRSA63F-102X MG RESISTOR 1KØ,1/16W
3-12
Page 13
# REF No. PART No. PART NAME, DESCRIPTION # REF No. PART No. PART NAME, DESCRIPTION
--------------- ----------------------- ----------------------------------------------------- ---------------- ----------------------- ------------------------------------------------------
R4035 NRSA63J-472X MG RESISTOR 4.7KØ,1/16W R4036 NRSA63J-472X MG RESISTOR 4.7KØ,1/16W R4037 NRSA63J-472X MG RESISTOR 4.7KØ,1/16W R4038 NRSA63J-472X MG RESISTOR 4.7KØ,1/16W R4039 NRSA63J-472X MG RESISTOR 4.7KØ,1/16W R4040 NRSA63J-472X MG RESISTOR 4.7KØ,1/16W R4041 NRSA63J-472X MG RESISTOR 4.7KØ,1/16W R4042 NRSA02J-680X MG RESISTOR 68Ø,1/16W R4043 NRSA63J-103X MG RESISTOR 10KØ,1/16W R4044 NRSA63J-103X MG RESISTOR 10KØ,1/16W R4045 NRSA63J-472X MG RESISTOR 4.7KØ,1/16W R4046 NRSA63J-472X MG RESISTOR 4.7KØ,1/16W R4047 NRSA63J-330X MG RESISTOR 33Ø,1/16W R4048 NRSA63J-473X MG RESISTOR 47KØ,1/16W R4049 NRSA63J-472X MG RESISTOR 4.7KØ,1/16W R4050 NRSA63J-472X MG RESISTOR 4.7KØ,1/16W R4051 NRSA63J-472X MG RESISTOR 4.7KØ,1/16W R4052 NRSA63J-472X MG RESISTOR 4.7KØ,1/16W R4053 NRSA63J-102X MG RESISTOR 1KØ,1/16W R4054 NRSA63J-102X MG RESISTOR 1KØ,1/16W R7306 NRSA63J-103X MG RESISTOR 10KØ,1/16W R7307 NRSA63J-103X MG RESISTOR 10KØ,1/16W R8101 NRSA63J-103X MG RESISTOR 10KØ,1/16W R8102 NRSA63J-104X MG RESISTOR 100KØ,1/16W R8103 NRSA63J-104X MG RESISTOR 100KØ,1/16W R8104 NRSA63J-103X MG RESISTOR 10KØ,1/16W R8105 NRSA63J-473X MG RESISTOR 47KØ,1/16W R8106 NRSA63J-473X MG RESISTOR 47KØ,1/16W R8107 NRSA63J-103X MG RESISTOR 10KØ,1/16W R8108 NRSA63J-103X MG RESISTOR 10KØ,1/16W R8109 NRSA63J-123X MG RESISTOR 12KØ,1/16W R8110 NRSA63J-123X MG RESISTOR 12KØ,1/16W R8111 NRSA63J-103X MG RESISTOR 10KØ,1/16W R8112 NRSA63J-471X MG RESISTOR 470Ø,1/16W R8113 NRSA02J-560X MG RESISTOR 56Ø,1/16W R8114 NRSA63J-102X MG RESISTOR 1KØ,1/16W R8115 NRSA63J-471X MG RESISTOR 470Ø,1/16W R8116 NRSA63J-103X MG RESISTOR 10KØ,1/16W R8117 NRSA63J-103X MG RESISTOR 10KØ,1/16W R8118 NRSA63J-102X MG RESISTOR 1KØ,1/16W R8119 NRSA63J-474X MG RESISTOR 470KØ,1/16W R8120 NRSA63J-472X MG RESISTOR 4.7KØ,1/16W R8121 NRSA63J-332X MG RESISTOR 3.3KØ,1/16W R8122 NRSA63J-102X MG RESISTOR 1KØ,1/16W R8123 NRSA63J-472X MG RESISTOR 4.7KØ,1/16W R8124 NRSA63J-102X MG RESISTOR 1KØ,1/16W R8128 NRSA63J-102X MG RESISTOR 1KØ,1/16W R8129 NRSA63J-103X MG RESISTOR 10KØ,1/16W R8130 NRSA63J-222X MG RESISTOR 2.2KØ,1/16W R8131 NRSA63J-152X MG RESISTOR 1.5KØ,1/16W R8132 NRSA63J-332X MG RESISTOR 3.3KØ,1/16W R8133 NRSA02J-221X MG RESISTOR 220Ø,1/10W R8134 NRSA63J-471X MG RESISTOR 470Ø,1/16W R8135 NRSA63J-471X MG RESISTOR 470Ø,1/16W R8136 NRSA02J-680X MG RESISTOR 68Ø,1/16W R8137 NRSA63J-104X MG RESISTOR 100KØ,1/16W R8151 NRSA63J-103X MG RESISTOR 10KØ,1/16W C2301 NCB31EZ-104X CAPACITOR 0.1µF,25V C2302 NCB31CK-104X CAPACITOR 0.1µF,16V C2303 NCB31CK-104X CAPACITOR 0.1µF,16V C2304 NDC31HJ-221X CAPACITOR 220pF,50V
C2305 NDC31HJ-221X CAPACITOR 220pF,50V C2306 NCB31EZ-104X CAPACITOR 0.1µF,25V C2307 NCB31CK-104X CAPACITOR 0.1µF,16V C2308 NCB31CK-104X CAPACITOR 0.1µF,16V C2309 NCB31HK-102X CAPACITOR 0.001µF,50V C2310 QETN1CM-476Z E CAPACITOR 47µF,16V C2311 NCB31CK-104X CAPACITOR 0.1µF,16V C2312 NCB31HK-102X CAPACITOR 0.001µF,50V C2603 NCB31HK-222X CAPACITOR 0.0022µF,50V C2604 NCB31HK-222X CAPACITOR 0.0022µF,50V C2605 NCB31HK-222X CAPACITOR 0.0022µF,50V C2606 NCB31HK-222X CAPACITOR 0.0022µF,50V C2607 NDC31HJ-330X CAPACITOR 33pF,50V C2608 QETN1CM-476Z E CAPACITOR 47µF,16V C2609 NCB31EZ-104X CAPACITOR 0.1µF,25V C2610 NCB31HK-682X CAPACITOR 0.0068µF,50V C2611 NCB31EZ-104X CAPACITOR 0.1µF,25V C2612 NCB31HK-333X CAPACITOR 0.033µF,25V C2613 NDC31HJ-221X CAPACITOR 220pF,50V C2614 NCB31CK-104X CAPACITOR 0.1µF,16V C2615 NCB31EZ-104X CAPACITOR 0.1µF,25V C2616 NDC31HJ-471X CAPACITOR 470pF,50V C2617 NCB31CK-104X CAPACITOR 0.1µF,16V C2618 NCB31CK-104X CAPACITOR 0.1µF,16V C2619 NDC31HJ-561X CAPACITOR 560pF,50V C2620 NCB31HK-562X CAPACITOR 0.0056µF,50V C2621 NCB31HK-562X CAPACITOR 0.0056µF,50V C2622 NCB31HK-562X CAPACITOR 0.0056µF,50V C2623 NCB31EZ-104X CAPACITOR 0.1µF,25V C2624 NCB31HK-102X CAPACITOR 0.001µF,50V C2625 NCB31HK-102X CAPACITOR 0.001µF,50V C2626 NCB31EZ-104X CAPACITOR 0.1µF,25V C2627 NCB31HK-333X CAPACITOR 0.033µF,25V C2628 NCB31HK-102X CAPACITOR 0.001µF,50V C2629 NCB31HK-102X CAPACITOR 0.001µF,50V C2632 NCB31EZ-104X CAPACITOR 0.1µF,25V C2633 NCB31HK-102X CAPACITOR 0.001µF,50V C2634 NCB31EZ-104X CAPACITOR 0.1µF,25V C2635 NCB31HK-102X CAPACITOR 0.001µF,50V C2636 NCB31EZ-104X CAPACITOR 0.1µF,25V C2637 NCB31EZ-104X CAPACITOR 0.1µF,25V C2638 NCB31EZ-104X CAPACITOR 0.1µF,25V C2639 NCB31EZ-104X CAPACITOR 0.1µF,25V C2640 QETN0JM-107Z E CAPACITOR 100µF,6.3V C2641 QETN0JM-107Z E CAPACITOR 100µF,6.3V C2642 NCB31EZ-104X CAPACITOR 0.1µF,25V C2643 QETN1CM-476Z E CAPACITOR 47µF,16V C2644 QETN1CM-476Z E CAPACITOR 47µF,16V C2645 NCB31EZ-104X CAPACITOR 0.1µF,25V C2646 QETN1CM-476Z E CAPACITOR 47µF,16V C2647 NCB31EZ-104X CAPACITOR 0.1µF,25V C2648 NCB31EZ-104X CAPACITOR 0.1µF,25V C2649 NCB31CK-104X CAPACITOR 0.1µF,16V C2654 NCB31HK-103X CAPACITOR 0.01µF,50V C2655 NCB31HK-103X CAPACITOR 0.01µF,50V C2657 NDC31HJ-101X CAPACITOR 100pF,50V C2658 NDC31HJ-101X CAPACITOR 100pF,50V C2659 NDC31HJ-101X CAPACITOR 100pF,50V C2660 NDC31HJ-101X CAPACITOR 100pF,50V C4001 NCB31EZ-104X CAPACITOR 0.1µF,25V C4002 NCB31EZ-104X CAPACITOR 0.1µF,25V
3-13
Page 14
# REF No. PART No. PART NAME, DESCRIPTION # REF No. PART No. PART NAME, DESCRIPTION
--------------- ----------------------- ----------------------------------------------------- ---------------- ----------------------- ------------------------------------------------------
C4003 NCB31EZ-104X CAPACITOR 0.1µF,25V C4004 NCB31EZ-104X CAPACITOR 0.1µF,25V C4005 NCB31EZ-104X CAPACITOR 0.1µF,25V C4006 NCB31EZ-104X CAPACITOR 0.1µF,25V C4007 NCB31EZ-104X CAPACITOR 0.1µF,25V C4008 NCB31EZ-104X CAPACITOR 0.1µF,25V C4009 QETN0JM-107Z E CAPACITOR 100µF,6.3V C4010 NCB31EZ-104X CAPACITOR 0.1µF,25V C4011 QETN0JM-107Z E CAPACITOR 100µF,6.3V C4012 NCB31EZ-104X CAPACITOR 0.1µF,25V C4013 NCB31EZ-104X CAPACITOR 0.1µF,25V C4014 NCB31EZ-104X CAPACITOR 0.1µF,25V C4015 NCB31EZ-104X CAPACITOR 0.1µF,25V C4016 NCB31EZ-104X CAPACITOR 0.1µF,25V C4017 NCB31EZ-104X CAPACITOR 0.1µF,25V C4018 NCB31EZ-104X CAPACITOR 0.1µF,25V C4019 NCB31EZ-104X CAPACITOR 0.1µF,25V C4020 NCB31EZ-104X CAPACITOR 0.1µF,25V C4021 NCB31EZ-104X CAPACITOR 0.1µF,25V C4022 X-CS0PCH4H1J CAPACITOR 22pF,50V C4023 NCB31EZ-104X CAPACITOR 0.1µF,25V C4024 NCB31EZ-104X CAPACITOR 0.1µF,25V C4025 NCB31EZ-104X CAPACITOR 0.1µF,25V C4026 NCB31EZ-104X CAPACITOR 0.1µF,25V C4027 NCB31EZ-104X CAPACITOR 0.1µF,25V C4028 NCB31EZ-104X CAPACITOR 0.1µF,25V C4029 NCB31EZ-104X CAPACITOR 0.1µF,25V C4030 NCB31EZ-104X CAPACITOR 0.1µF,25V C4031 NCB31HK-103X CAPACITOR 0.01µF,50V C4032 NCB31HK-102X CAPACITOR 0.001µF,50V C4033 NCB31EZ-104X CAPACITOR 0.1µF,25V C4035 X-CS0PCH4H1J CAPACITOR 22pF,50V C4036 NCB31CK-104X CAPACITOR 0.1µF,16V C4037 NCB31EZ-104X CAPACITOR 0.1µF,25V C4038 NCB31HK-103X CAPACITOR 0.01µF,50V C4039 NCB31EZ-104X CAPACITOR 0.1µF,25V C4040 NCB31EZ-104X CAPACITOR 0.1µF,25V C4041 NCB31EZ-104X CAPACITOR 0.1µF,25V C4044 NCB31EZ-104X CAPACITOR 0.1µF,25V C4045 NCB31EZ-104X CAPACITOR 0.1µF,25V C4046 NCB31EZ-104X CAPACITOR 0.1µF,25V C4047 NCB31EZ-104X CAPACITOR 0.1µF,25V C4050 NCB31EZ-104X CAPACITOR 0.1µF,25V C4051 QETN0JM-477Z E CAPACITOR 470µF,6.3V C4062 NCB31EZ-104X CAPACITOR 0.1µF,25V C4063 QETN0JM-107Z E CAPACITOR 100µF,6.3V C4064 NCB31EZ-104X CAPACITOR 0.1µF,25V C4065 NCB31HK-103X CAPACITOR 0.01µF,50V C4066 NCB31AK-105X CAPACITOR 1µF,10V C4067 QETN1CM-476Z E CAPACITOR 47µF,16V C4068 QETN1CM-476Z E CAPACITOR 47µF,16V C4069 QETN1CM-476Z E CAPACITOR 47µF,16V C4070 QETN1CM-476Z E CAPACITOR 47µF,16V C4071 QETN1CM-476Z E CAPACITOR 47µF,16V C4072 NCB31EZ-104X CAPACITOR 0.1µF,25V C4073 NCB31EZ-104X CAPACITOR 0.1µF,25V C4074 NCB31EZ-104X CAPACITOR 0.1µF,25V C4075 NCB31EZ-104X CAPACITOR 0.1µF,25V C4076 NCB31EZ-104X CAPACITOR 0.1µF,25V C4077 NCB31EZ-104X CAPACITOR 0.1µF,25V C4078 QETN1CM-476Z E CAPACITOR 47µF,16V
C4079 NDC31HJ-101X CAPACITOR 100pF,50V C4080 NCB31HK-103X CAPACITOR 0.01µF,50V C4081 NCB31EZ-104X CAPACITOR 0.1µF,25V C4082 NCB31EZ-104X CAPACITOR 0.1µF,25V C4083 QETN1CM-476Z E CAPACITOR 47µF,16V C4084 QETN1CM-476Z E CAPACITOR 47µF,16V C4085 NCB31HK-102X CAPACITOR 0.001µF,50V C4086 NCB31HK-102X CAPACITOR 0.001µF,50V C4087 NCB31HK-103X CAPACITOR 0.01µF,50V C4088 NCB31HK-103X CAPACITOR 0.01µF,50V C4089 NCB31HK-103X CAPACITOR 0.01µF,50V C4090 NCB31HK-103X CAPACITOR 0.01µF,50V C4091 NDC31HJ-101X CAPACITOR 100pF,50V C4092 NDC31HJ-101X CAPACITOR 100pF,50V C4093 NDC31HJ-101X CAPACITOR 100pF,50V C4094 NDC31HJ-101X CAPACITOR 100pF,50V C4095 NCB31HK-103X CAPACITOR 0.01µF,50V C4096 NCB31HK-102X CAPACITOR 0.001µF,50V C4097 NCB31HK-103X CAPACITOR 0.01µF,50V C4098 NDC31HJ-100X CAPACITOR 10pF,50V C7301 NCB31EZ-104X CAPACITOR 0.1µF,25V C7302 X-E02LU2101M E CAPACITOR 100µF,16V C7303 QETL1HM-226 E CAPACITOR 22µF,50V C7304 NCB31EZ-104X CAPACITOR 0.1µF,25V C7305 X-CS0PCH4W2J CAPACITOR 820pF,50V C7306 X-CS0PCH4W2J CAPACITOR 820pF,50V C7308 X-E02LU52R2M E CAPACITOR 2.2µF,50V C7310 X-E02LU52R2M E CAPACITOR 2.2µF,50V C7311 QETN1HM-106Z E CAPACITOR 10µF,50V C8101 QETN1HM-336Z E CAPACITOR 33µF,50V C8102 NDC31HJ-101X CAPACITOR 100pF,50V C8105 NCB31HK-152X CAPACITOR 0.0015µF,50V C8106 NCB31HK-152X CAPACITOR 0.0015µF,50V C8107 NDC31HJ-101X CAPACITOR 100pF,50V C8110 NCB31EZ-104X CAPACITOR 0.1µF,25V C8111 X-E02LU2101M E CAPACITOR 100µF,16V C8112 QETL1HM-226 E CAPACITOR 22µF,50V C8113 QETL1HM-226 E CAPACITOR 22µF,50V C8114 X-E02LU52R2M E CAPACITOR 2.2µF,50V C8115 X-E02LU54R7M E CAPACITOR 4.7µF,50V C8118 X-E02LU52R2M E CAPACITOR 2.2µF,50V C8119 QETN0JM-227Z E CAPACITOR 220µF,6.3V C8120 NDC31HJ-221X CAPACITOR 220pF,50V C8121 NCB31HK-103X CAPACITOR 0.01µF,50V C8122 QETN1CM-476Z E CAPACITOR 47µF,16V C8123 X-CS0PB04H4K CAPACITOR 0.022µF,50V C8124 QETN1CM-476Z E CAPACITOR 47µF,16V C8125 NCB31EZ-104X CAPACITOR 0.1µF,25V C8126 NCB31CK-104X CAPACITOR 0.1µF,16V C8129 NDC21HJ-101X CAPACITOR 100pF,50V C8130 NDC31HJ-151X CAPACITOR 150pF,50V C8131 NDC31HJ-151X CAPACITOR 150pF,50V C8132 NDC31HJ-151X CAPACITOR 150pF,50V C8133 NDC31HJ-151X CAPACITOR 150pF,50V C8134 X-CS0PCH4B1J CAPACITOR 12pF,50V C8135 X-CS0PCH4B1J CAPACITOR 12pF,50V C8136 X-CS0PCH4B1J CAPACITOR 12pF,50V C8137 X-CS0PCH4B1J CAPACITOR 12pF,50V C8138 NDC31HJ-151X CAPACITOR 150pF,50V C8139 NDC31HJ-151X CAPACITOR 150pF,50V C8140 NDC31HJ-151X CAPACITOR 150pF,50V
3-14
Page 15
# REF No. PART No. PART NAME, DESCRIPTION # REF No. PART No. PART NAME, DESCRIPTION
--------------- ----------------------- ----------------------------------------------------- ---------------- ----------------------- ------------------------------------------------------
C8141 NDC31HJ-151X CAPACITOR 150pF,50V C8142 NDC21HJ-100X CAPACITOR 10pF,50V C8143 NDC21HJ-100X CAPACITOR 10pF,50V C8144 QETN0JM-477Z E CAPACITOR 470µF,6.3V C8145 QETN0JM-477Z E CAPACITOR 470µF,6.3V C8146 QETN0JM-477Z E CAPACITOR 470µF,6.3V C8147 X-CS0RCH4L1J CAPACITOR 33pF,50V C8148 X-CS0RCH4L1J CAPACITOR 33pF,50V C8149 X-CS0RCH4L1J CAPACITOR 33pF,50V D2601 X-DDARDS1200 DIODE KDS120RTK D8101 X-DDDRL41480 DIODE MCL4148 D8102 X-DDDRL41480 DIODE MCL4148 D8103 X-DDDRL41480 DIODE MCL4148 D8106 X-DDDRL41480 DIODE MCL4148 D8107 X-DDDRL41480 DIODE MCL4148 D8108 X-DDDRL41480 DIODE MCL4148 D8109 X-DDDRL41480 DIODE MCL4148 D8110 X-DDDRL41480 DIODE MCL4148 D8111 X-DDDRL41480 DIODE MCL4148
L4001 QQL29BJ-2R2Z COIL 2.2µH L8101 QQL29BK-1R0Z COIL 1µH L8102 QQL29BK-1R0Z COIL 1µH L8103 QQL29BK-1R0Z COIL 1µH L8104 QQL29BK-1R0Z COIL 1µH L8105 QQL29BK-R33Z COIL 0.33µH L8106 QQL29BK-R33Z COIL 0.33µH J8101 X-060J411029 RCA JACK MSP-213V1-732_PBSN J8102 X-063D700005 JACK J8103 X-060J411024 RCA JACK SW8101 CP2601 X-069GYOT079 CP2602 X-069EV83010
X-0510Y24001 SWITCH SLIDE SK42H0IG9A
CONNECTOR,PCB SIDE 09-5000-024-
001-006
CONNECTOR,PCB SIDE 00_6232_008_006_800 CP2603 X-069S230629 CONNECTOR,PCB SIDE A2001WV2-3P CP4002 X-069S2C0629 CONNECTOR,PCB SIDE A2001WV2-12P CP4003 X-069S290629 CONNECTOR,PCB SIDE A2001WV2-9P CP8102 QFG1208C1-08 CONNECTOR,PCB SIDEIMSA-9604S-08C X4001 X-100BT02701 CRYSTAL 27MHz OS8101 X-07A9000006 OPTICAL DEVICE GP1FA553TZ
D8112 X-DDDRL41480 DIODE MCL4148 D8113 X-DDDRL41480 DIODE MCL4148 IC2301 X-I03F065600 IC LA6560 IC2601 X-ICQK067070 IC ZR36707TQC IC2602 BA10358F-XE IC IC4001 X-ICQK067620 IC ZR36762 IC4002 S-24C02BFJ-X IC IC4003 X-I0GF9XZ010 IC PQ070XZ01ZP IC4005 X-IF9J0164A7 IC M12L64164A-7T IC4007 X-ICMJ0800A7 IC SST39VF800A-70-4C-EK IC7301 X-I17F0742K0 IC PCM1742KE/2K IC8101 NJM4580M IC Q2601 2SA1036K/QR/-X TRANSISTOR 2SA1036KT146 Q2602 2SA1036K/QR/-X TRANSISTOR 2SA1036KT146 Q2603 X-T27T030180 FET 2SK3018 Q2604 X-T27T030180 FET 2SK3018 Q2605 X-T27T030180 FET 2SK3018 Q8101 X-TCAA3875SY TRANSISTOR KTC3875S_Y_RTK Q8102 X-TNAAC05002 COMPOUND TRANSISTOR Q8103 X-TPAAA05001 TRANSISTOR KRA101SRTK Q8104 X-TCAA3875SY TRANSISTOR KTC3875S_Y_RTK Q8105 X-TCAA3875SY TRANSISTOR KTC3875S_Y_RTK Q8106 X-TNAAD05001 TRANSISTOR KRC104SRTK Q8107 X-TCAA3875SY TRANSISTOR KTC3875S_Y_RTK B2601 X-024HC31022 CORE,BEADS B2602 X-024HC31022 CORE,BEADS B2603 X-024HC31022 CORE,BEADS B2604 X-024HC31022 CORE,BEADS B2605 X-024HC31022 CORE,BEADS B4001 X-024HC31022 CORE,BEADS B4002 X-024HC31022 CORE,BEADS B4003 X-024HC31022 CORE,BEADS B4004 X-024HC31022 CORE,BEADS B4005 X-024HC31022 CORE,BEADS B4006 X-024HC31022 CORE,BEADS B4007 X-024HC31022 CORE,BEADS B4008 X-024HC31022 CORE,BEADS B7301 X-024HC31022 CORE,BEADS B7302 X-024HC31022 CORE,BEADS B8101 X-024HC31022 CORE,BEADS B8102 X-024HC31022 CORE,BEADS B8103 X-024HC31022 CORE,BEADS
HR-XVC25US, HR-XVC25UC
(VP)-D2SP11
3-15
Loading...
