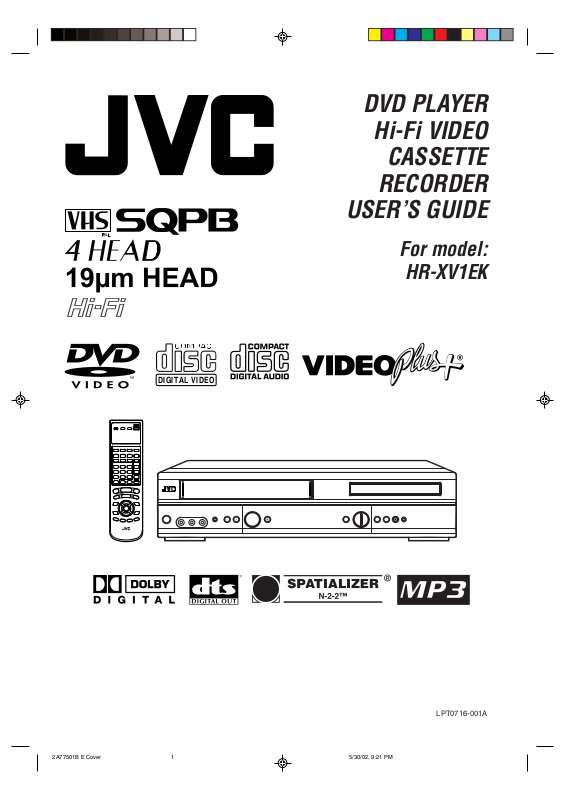

Page 1

DIGITAL VIDEO

DVD PLAYER

Hi-Fi VIDEO

CASSETTE

RECORDER

USER’S GUIDE

For model:

HR-XV1EK

LPT0716-001A

Page 2

Safety Precautions

SAFETY FIRST

The rating plate and the safety caution are on the rear of the unit.

WARNING: DANGEROUS VOLTAGE INSIDE WARNING: TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS UNIT

TO RAIN OR MOISTURE.

IMPORTANT

Please read the various precautions on page 2 and 3 before installing or operating the recorder. It should be noted that it may be unlawful to re-record pre-recorded tapes, records, or discs without the

consent of the owner of copyright in the sound or video recording, broadcast or cable programme and in any literary, dramatic, musical, or artistic work embodied therein.

CAUTION

When you are not using the recorder for a long period of time, it is recommended that you disconnect the

power cord from the mains outlet.

Dangerous voltage inside. Refer internal servicing to qualified service personnel. To prevent electric shock

or fire hazard, remove the power cord from the mains outlet prior to connecting or disconnecting any signal lead or aerial.

IMPORTANT

Connection to the mains supply in the United Kingdom. DO NOT cut off the mains plug from this equipment. If the plug fitted is not suitable for the power points in your home or the cable is too short to

reach a power point, then obtain a proper safety approved extension lead/adapter or consult your dealer.

In the unlikely event of the plug fuse failing be sure to replace the fuse only with an identical approved type, as originally fitted, and to replace the fuse cover. If the fuse fails again consult your nearest JVC dealer.

If nonetheless the mains plug is cut off remove the fuse and dispose of the plug immediately, to avoid a possible shock hazard by inadvertent connection to the mains supply. If this product is not supplied fitted with a mains plug then follow the instructions given below: DO NOT make any connection to the Larger Terminal coded E or Green. The wires in the mains lead are coloured in accordance with the following code:

Blue to N (Neutral) or Black Brown to L (Live) or Red

If these colours do not correspond with the terminal identifications of your plug, connect as follows: Blue wire to terminal coded N (Neutral) or coloured Black. Brown wire to terminal coded L (Live) or coloured Red.

If in doubt – consult a competent electrician.

The STANDBY/ON button does not completely shut off mains power from the unit, but switches operating current on and off. “

Video tapes recorded with this video recorder in the LP (Long Play) mode cannot be played back on a singlespeed video recorder.

MOISTURE CONDENSATION

Moisture in the air will condense on the recorder when you move it from a cold place to a warm place, or under extremely humid conditions-just as water droplets form in the surface of a glass filled with cold liquid. Moisture condensation on the head drum will cause damage to the tape. In conditions where condensation may occur, keep the recorder turned on for a few hours to let the moisture dry.

” shows electrical power standby and “ I ” shows ON.

Page 3

Safety Precautions

When the equipment is installed in a cabinet or a shelf, make sure that it has sufficient space on all sides to allow for ventilation (10 cm or more on both sides, on top and at the rear.)

When discarding batteries, environmental problems must be considered and the local rules or laws governing the disposal of these batteries must be followed strictly.

Failure to heed the following precautions may result in damage to the recorder, remote control or video cassette.

DO NOT place the recorder ...

... in an environment prone to extreme temperatures or humidity. ... in direct sunlight. ... in a dusty environment. ... in an environment where strong magnetic fields are generated. ... on a surface that is unstable or subject to vibration.

DO NOT block the recorder’s ventilation openings or holes.

(If the ventilation openings or holes are blocked by a newspaper or cloth, etc., the heat may not be able to get out.)

DO NOT place heavy objects on the recorder or remote control.

3. DO NOT place anything which might spill on top of the recorder or remote control.

(If water or liquid is allowed to enter this equipment, fire or electric shock may be caused.)

DO NOT expose the apparatus to dripping or splashing.

DO NOT use this equipment in a bathroom or places with water. Also DO NOT place any containers filled

with water or liquids (such as cosmetics or medicines, flower vases, potted plants, cups, etc.) on top of this unit.

DO NOT place any naked flame sources, such as lighted candles, on the apparatus.

AVOID violent shocks to the recorder during transport.

Some Do's And Don'ts On The Safe Use Of Equipment

This equipment has been designed and manufactured to meet international safety standards but, like any electrical equipment, care must be taken if you are to obtain the best results and safety is to be assured.

DO read the operating instructions before you attempt to use the equipment. DO ensure that all electrical connections (including the mains plug, extension leads and interconnec-

tions between pieces of equipment) are properly made and in accordance with the manufacturer's instructions. Switch off and withdraw the mains plug when making or changing connections.

DO consult your dealer if you are ever in doubt about the installation, operation or safety of your

equipment.

DO be careful with glass panels or doors on equipment. DON'T continue to operate the equipment if you are in any doubt about it working normally, or if it is

damaged in any way – switch off, withdraw the mains plug and consult your dealer.

DON'T remove any fixed cover as this may expose dangerous voltages. DON'T leave equipment switched on when it is unattended unless it is specifically stated that it is

designed for unattended operation or has a standby mode. Switch off using the switch on the equipment and make sure that your family knows how to do this. Special arrangements may need to be made for infirm or handicapped people.

DON'T use equipment such as personal stereos or radios so that you are distracted from the require-

ments of road safety. It is illegal to watch television whilst driving.

DON'T listen to headphones at high volume, as such use can permanently damage your hearing. DON'T obstruct the ventilation of the equipment, for example with curtains or soft furnishings.

Overheating will cause damage and shorten the life of the equipment.

DON'T use makeshift stands and NEVER fix legs with wood screws – to ensure complete safety

always fit the manufacturer's approved stand or legs with the fixings provided according to the instructions.

DON'T allow electrical equipment to be exposed to rain or moisture.

ABOVE ALL...

– NEVER let anyone especially children push anything into holes, slots or any other opening in

the case – this could result in a fatal electrical shock;

– NEVER guess or take chances with electrical equipment of any kind – it is better to be safe than sorry!

Page 4

Features

Video Cassette Recorder

• High Quality (HQ) Images

• On-Screen Displays (OSD)

• Nicam Hi-Fi Stereo Audio

Recording and Playback

• Auto TV Station Tuning and Auto Clock Set

• 80 Memory for presets

• Auto Time Setting

• 30 Minute Back-Up in case of

Power failure

• 6 rotary Head (4 Video Head and 2 Hi-Fi Audio Head)

• Long play

• Programme Delivery Control

System

• Timer Recording of up to 8 Programme per Month

• VIDEO Plus+

rapid timer

programming

• Instant Timer Recording (ITR)

• Video index Search System

• Slow Motion

• NTSC Video Cassette Tape

Playback on PAL TV

• Real-Time Tape Counter with ZERO RETURN-Function

• Digital AUTO Tracking (ATR Function)

• Repeat/Playback

• On-Screen Display in 3

Language

• AV-Front input jack

• Audio Mixing

DVD Player

• Digital Audio Jack (Coaxial)

• Multi-Language

• Multi-Angle

• Surround audio

• Repeat Playback

• Memory/Random Playback

• Zoom

• Video Aspect Ratio

• Parental Control

• 3 Scene memory

• Digital (Optical or Coaxial) output

for Dolby Digital (AC-3) and DTS

• Playback of DVD, Video-CD and Audio-CD

• PAL & NTSC DVDs playback

• A-B Repeat playback

• MP3 CD playback

PAL

• Cassettes marked “VHS” (or “S-VHS”) can be used with this video cassette recorder. However, S-VHS recording is not possible with this model.

• This model is equipped with SQPB (S-VHS QUASI PLAYBACK) that makes it possible to play back S-VHS recordings with regular VHS resolution.

• HQ VHS is compatible with existing VHS equipment.

• VIDEO Plus+ and PlusCode are registered trademarks of Gemstar Development Corporation. The VIDEO

Plus+ system is manufactured under license from Gemstar Development Corporation.

Page 5

Contents

Before using your unit

Safety Precautions ...........................................2

Features ...........................................................4

Contents ...........................................................5

Parts and functions .......................................... 6

Display ............................................................. 7

Remote control .................................................8

Connections and Installation ..........................10

Playback connection ...................................... 11

Setting up the VCR section

Tuning the TV Stations and Setting the Time

and Date Automatically .................................. 13

On-screen Language Selection...................... 14

Setting the Time and Date Manually ..............15

Tuning the TV Stations Manually ................... 16

Setting the VIDEO Plus+ Channel Number

(Guide CH) .....................................................17

Tape playback operation

Loading and Unloading a Cassette Tape ....... 18

Cassette tape playback ..................................19

Special playback/Playback sharpness/Skip Search ........

Repeat Playback ............................................21

Counter Display.............................................. 22

Video Index Search System ...........................23

Recording

Recording a TV Programme .......................... 24

Instant Timer Recording (ITR) ........................ 26

VIDEO Plus+® Recording ............................... 27

Timer Recording Manually ............................. 29

Advanced function of VCR section

NICAM Stereo Recording

and Playback.................................................. 32

Audio Mixing................................................... 34

Duplicating a Video Tape ............................... 35

Disc playback operation

DISC............................................................... 36

Setting setup language .................................. 37

Playback procedure ....................................... 38

Special playback ............................................ 39

DVD Picture Signal Selection/Zooming.......... 40

Repeat playback ............................................ 41

Memory playback/Random playback ............. 42

MP3 Playback ................................................ 43

Changing soundtrack language /

Changing Subtitles language ......................... 44

Changing angles / Title selection /

DVD menu...................................................... 45

Advanced function of DVD section

Parental control ..............................................46

Setting menu language .................................. 48

Setting audio soundtrack language ................49

Setting subtitle language ................................50

Setting the aspect ratio of TV screen /

Setting on Screen display .............................. 51

Setting Audio .................................................. 52

Setting Operation ........................................... 53

Selecting the sound enhancement (E.A.M.)/

Setting Background/Setting Screen Saver .....54

Setting initial setup/output sound

conversion table .............................................55

Status display of Disc .....................................56

Table of languages .........................................57

Additional information

Problems and troubleshooting ....................... 58

Video head cleaning....................................... 59

Specifications ................................................. 60

* This product incorporates copyright protection technology that is protected by method claims of certain U.S. patents

and other intellectual property rights owned by Macrovision Corporation and other rights owners. Use of this copyright protection technology must be authorized by Macrovision Corporation or other rights owners and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision Corporation or other rights owners. Reverse engineering or disassembly is prohibited.

* Manufactured under license from Dolby Laboratories. “Dolby” and the double-D symbol are trademarks of Dolby

* “DTS” and “DTS Digital Out” are trademarks of Digital Theater Systems, Inc.

* Certain audio features of this product manufactured under license from Desper Products,Inc. Spatializer and the

circle - in - square device are trademarks owned by Desper Products,Inc.

* Unauthorized recording of copyrighted television programs, films, video cassettes and other materials may infringe

the rights of copyright owners and be contrary to copyright laws.

Page 6

Parts and functions

Front

VCR/DVD mode selector button

Cassette Loading Slot

Standby/On

button

AUDIO (L/R)/

VIDEO IN jacks

VCR indicator

EJECT button

PR +/– buttons

OPEN/CLOSE button

Display window

Remote sensor

PLAY button

STOP button

REW (Rewind) button

Disc tray

DVD indicator

REC button

FF (Fast Forward) button

Rear

AC power cord

DVD OPTICAL

DIGITAL AUDIO

OUT jack

DVD COAXIAL DIGITAL

AUDIO OUT jack

DVD AUDIO (L/R) OUT jacks

DVD S-VIDEO OUT jack

SCART PRISE PERITEL

RF IN jack

RF OUT jack

SCART-socket (for VCR/DECODER)

SCART-socket (for TV-RGB/Composite)

Page 7

Display window

Display

1 2

No. Display Description

VCR

DVD

10 : 00

01 : 00

CH 2

VCR mode of TV/VCR switch

Playback (lights) / Auto resume (flashes)

Still picture

DVD disc is inserted.

CD is inserted.

Clock display (colon[ : ] flashes)

Counter display by hour/minute at VCR/DVD / by minute/second at CD

Track number display for CD

TV channel position display

A1/A2/A3

TRK

REC

Note:

Some discs may be displayed wrong or e.g. chapter number, playback time, etc. may not be displayed.

External input display

Timer recording display

Video tape is in the unit

Track display for CD

Normal recording display (flashes during Instant Timer Recording - ITR)

Page 8

Remote control

JVC TV Remote Control

This Remote can control some functions (

, NUMBER (0-9), TV ∏ , TV @ +/–,

TV PR +/– and OK) of a remote controllable JVC TV by slide TV/VCR/DVD switch to TV.

NOTE:

• It’s not possible to operate a unit not equipped with a remote sensor.

• This Remote can control a JVC TV only.

• When you operate the VCR or DVD, the

TV/VCR/DVD switch must be slided to VCR/DVD again. Otherwise the DVD/ VCR may not operate properly.

• Since this unit is combined type of DVD and VCR, the remote code of DVD is individual. So please note that the DVDkeys on the RCU of the other JVC RECEIVER/TV is not effective for this unit.

Page

TV/VCR/DVD switch

DVD MENU Display menu of DVD software 45 MEMORY Index for DVD 42 RETURN Remove DVD set up menu 46 OPEN/CLOSE Open or Close the tray 38 DISPLAY Change the front Display mode 22 A.TRK Digital AUTO TRACKING 20 SUB TITLE Set Subtitle of a DVD disc 44 C. RESET Reset the counter to 00:00 22 ANGLE Change playback angle of a DVD disc 45 ZERO RETURN

(SP/LP) Sets the tape speed for recording 24,26,35 PLAY MODE Select playback mode 41,42 ZOOM Zoom (for DVD playback) 40 TITLE Select title of a DVD disc 45 REPEAT A-B Repeat playback between A and B (DVD/CD) 41 0-9 Direct channel selection of TV 24,26

AUX Scart input or AV-Front input 35 PROG. VIDEO Plus Recording 27

•

TV ∏ (INPUT) Switch the connected TV to external mode 8 TV/VCR Switches between TV and VCR 25 TV @ +/– Adjust the connected TV’s volume 8

8 Rewind/Review playback 19,20,39 1 Playback 19,38,43 9 Fast Forward/Forward search playback 19,20,39 2 Recording 24,26,35 3 Stop 19,38,43 4 Still picture/Recording pause on/off 20,24,35,39

SKIP 6/7 Skip chapter to forward or reverse direction 39 INDEX 6/7 Search for the INDEX mark of a tape 23 TV/VCR PR +/– Select channel of the connected TV or VCR

C/D Cursor buttons SET –/+ Setting buttons 28~30

B/A Cursor buttons - To move Up in the VCR menu

OK SET UP MENU Display menu of setup 14~21,37,46~55 CANCEL Delete Timer program 31

OSD Display VCR or DVD operation status 24~25,56 A.MONITOR Switches sound 33

SLOW Slowmotion playback 20,39 SKIP SEARCH Skip the unwanted short material of a tape 20

Switch to operate TV or VCR or DVD 14,37 Standby/On 14 Turn the connected TV on or off 8

Stop the tape when the counter reaches 00:00

Input setting 16~17,24,26,42,43 Enter a password 46

Confirmation of Timer Recording 31 Set the unit to start recording at a preset time.

8,24,26,35

Manual tracking buttons in playback mode 20

you press the A. To move Down in the VCR menu you press the B. Enter information in the menu/Select option in the menu

Cancel input data in the setting mode

Change sound track language of DVD 44

27,31,42~46

28,30

Page 9

How to install the batteries

Use micro batteries type AA.

Remote control

Open the battery compart-

12 3

ment cover in the direction of the arrow.

Install two "AA" batteries (not supplied), polarity diagram in the battery compartment.

paying attention to the

Replace the compartment cover.

Battery precautions

The precautions below should be followed when using batteries in this device:

1.Use only the size and type of batteries specified.

2.Be sure to follow the correct polarity when installing the batteries as indicated in the battery compartment. Reversed batteries may cause damage to the device. To avoid a potential short circuit, insert the “–” end first.

3. Do not mix different types of batteries together (e.g. Alkaline and Carbon-zinc) or old batteries with fresh ones.

4.If the device is not to be used for a long period of time, remove the batteries to prevent damage or injury from possible battery leakage.

5.Do not try to recharge batteries not intended to be recharged; they can overheat and rupture.

Distance of Remote Control Operation

Effective angle:

approx.

approx. 60°

Point the remote control directly at the remote sensor.

Change the custom code for remote control

If you operate this DVD/VCR with another JVC’s VCR simultaneously arranging them side by side, the both recorders will react to this remote control. In this case, you can change the remote control and DVD/VCR to other frequency (“ ”). Then you can operate only this DVD/VCR with this changed remote control. When you purchased, the DVD/VCR and remote control have been set to the frequency-“ ”.

Example: Change frequency to

Remote control:

While holding VCR, press 2 (code: b) of Number keys. (in case of code: A, press 1). Then press OK.

NOTE:

• If the remote control has been set to b, the DVD/VCR also must be set to b. Otherwise, the DVD/VCR can not

be operated with this remote control.

• To reset to “A”, repeat above procedure. However press 1 instead of 2.

DVD/VCR:

In the POWER off mode, press and hold PLAY for more than 5 seconds. The current code (“A” or “b”) will appear on the display. Then press 3 on the remote control. The current code of the remote control will be transmitted to the unit and the unit will be adjusted to the transmitted code. Then the code will disappear after approx. 4 seconds.

Page 10

Connections and Installation

Connect your DVD/VCR to your home's aerial and to your TV-set as shown in the illustration. When you have finished these connections you connect your DVD/VCR to the 230-240 V / 50 Hz mains.

Aerial-Input

DVD/VCR

AC power cord 230V/50 Hz

To Scart socket

Scart cable (not supplied)

Supplied Coaxial cable

Aerial

TV Scart Socket (A1)

VCR/DECODER Scart Socket (A2)

RF-Input (from house antenna)

RF-Output (to TV)

Connect a TV with the Scart socket

In addition to the coaxial cable connection, connect also with scart cable. The picture and sound will be transmitted best through the scart cable. In this case, the TV need not be tuned to the video recorder. The Video channel also need not be tuned. The video recorder switch the television to video operation through the scart cable automatically. The stereo-playback is possible in only case through a scart cable!

If your TV-set does not switch to video-playback operation automatically, please turn your TV's video switch to VIDEO position manually.

Page 11

Playback connection

The exact arrangement you use to interconnect various video and audio components to the DVD/VCR is dependent on the model and features of each component. Check the Owner's Manual provided with each component for the location of SCART socket.

Connection to a Satellite Receiver

If a Satellite Receiver is used, we recommend the following configuration:

SCART-cable (not supplied)

Satellite

Aerial

DVD/VCR

Satellite Receiver

SCART-cable (not supplied)

To record from Satellite Receiver press "AUX" on the remote control of DVD/VCR twice. "A2" will appear on the front display. Select the desired TV-program at Satellite Receiver.

Connect to a TV with S-Video Output

S-Video Cord (not supplied)

DVD/VCR

Audio (L) Output

Audio (R) Output

Note:

• The S-VIDEO jack is useful only for DVD section.

• If you use the connection with S-Video Cord, set the “Video Out Select” (P.40) to “Video”.

S-Video Output

To S-Video Input

AUDIO Cord (not supplied)

To Audio (R) Input

To Audio (L) Input

Page 12

Playback connection

Connect to a Stereo Amplifier with Audio Output

If your DVD/VCR is connected to a stereo amplifier, the video soundtrack can output through the loudspeakers of the stereo system.

SCART-cable (not supplied)

To SCART input

DVD/VCR

SCART-Socket (for TV-RGB/Composite)

Stereo Amplifier

Audio (L) Output Audio (R) Output

AUDIO Cord (not supplied)

To Audio (L) Input To Audio (R) Input

Connect to an AV Amplifier with built-in digital surround

If you are using an Amplifier with a built-in digital surround as follows, you can enjoy the various audio systems such as Dolby Digital and DTS by using the Coaxial Digital Output.

Use this connection to connect an:

• AV amplifier with built-in *Dolby Digital decoder

• AV amplifier with built-in *DTS decoder

DVD/VCR

Coaxial digital

Audio Output

SCART-Socket (for TV-RGB/Composite)

Coaxial digital cable (not supplied)

SCART-cable (not supplied)

AV Amplifier with built-in various decoder as above

To SCART input

Connecting the optical digital cable

You may connect to an AV Amplifier with an Optical digital cable (not supplied) instead of a Coaxial digital cable.

When you connect the optical digital cable (not supplied), remove the dust protection cap from the rear panel. When not using the optical digital cable, attach the dust protection cap to protect against dust.

NOTES:

• The OPTICAL, COAXIAL jacks are useful only for DVD section. VHS signal is output only from the SCART-sockets, AUDIO L/R jacks and RF OUT jack.

• When you make the connections above, do not set DOLBY DIGITAL to DOLBY DIGITAL or DTS to ON on the AV Amplifier. If you do, a loud noise will suddenly come out from the speakers, affecting your ears or causing the speakers to be damaged.

• DTS audio will be output only from the COAXIAL output. To hear DTS audio, DTS-Decoder is necessary. When playing DTS-encoded CDs, only noise will be heard from the speakers or analogue stereo outputs.

• Some DTS decoders which do not support DVD-DTS interface may not work properly with the unit.

Page 13

Tuning the TV Stations and Setting the Time and

Date Automatically

Plug your DVD/VCR into the mains supply and it will start to automatically tune itself in and set the correct date and time. After setting itself up, you must set the TV to the video channel.

Notes:

• The DVD/VCR automatically corrects the clock setting every hour and automatically adjusts the clock setting for Daylight Saving Time.

• Your DVD/VCR will tune the TV stations as follows.

CH 1 BBC 1 CH 2 BBC 2 CH 3 ITV CH 4 Channel 4 CH 5 Channel 5 CH 6 Satellite

CH 7 etc. For VIDEO Plus+ recording to work correctly, this order should not be changed.

• If you want to change the RF output channel or switch to "OFF", press and

hold the DVD/VCR your DVD/VCR in the Standby mode until the current RF output channel appears. Press PR on your DVD/VCR to select the RF channel you desire.

• Skipped channels still may be selected

directly through the 1 to 0 keys.

• To cancel skipping select the skipped channel using the 1 to 0 keys, then press CANCEL. The channel No. does not blink any longer, and the channel No. now may be selected again using

PR.

on the front of

Preparation

•

Make sure that your DVD/VCR is connected properly to the TV.

•

If a satellite receiver is connected with the coaxial lead, make sure it’s switched ON and set to SKY ONE.

•

Turn on the TV and select the channel you wish to allocate for video use.

Plug your DVD/VCR's plug into the mains supply. "Auto"

will start to flash in the display. Your DVD/VCR will automatically tune itself in and set the correct time and date (This may take approx. 4 minutes).

Press and hold the button on the front of your DVD/

VCR in the Standby mode until "rF" and RF output channel "52" will appear in the display.

If you have used a 21PIN scart lead you now, simply se-

lect the AV channel on your TV and go to step 5. Tune the TV in the same way as tuning in a TV broadcast station until the word "TEST" flashes on the TV screen. Refer to the TV operating instructions for tuning.

Now the output from the DVD/VCR is tuned to this channel. Whenever you want to play back a tape, select this channel.

If there is interference in the picture (wavy lines, picture

roll, etc.), press PR on your DVD/VCR to select any RF channel between 23 and 69, retuning your TV until the word "TEST" flashes on the TV screen.

If you connected a satellite receiver as explained on page 11, you must switch off the DVD/VCR’s transmitter. Press the VCR’s PR repeatedly until OFF appears in the display window (OFF will appear after 69 or before 23).

Press the button to turn OFF the DVD/VCR.

Now the TV is tuned to your DVD/VCR.

To skip a channel position

Unwanted channels can be skipped so that they cannot be called up by pressing PR. Select the channel to be skipped,

...e.g. channel 29. Select channel 29, then press CANCEL. This channel’s number will be flashing. That way you can cancel further channels one after the other.

CH 29

Page 14

On-screen Language Selection

Turn on your TV and select the VCR channel which you have already tuned on your TV. The TV will switch to AV (VCR mode) automatically by the Scart lead connection. The on-screen menu can display any of three languages; English, German and French.

Preparation

• Press the button to turn on the DVD/VCR.

• Make sure TV/VCR/DVD switch has been slided to VCR/DVD.

Then press VCR to select the VCR mode. (The VCR indicator will light)

Press SET UP MENU. Press ▲ or ▼ to select the

SYSTEM SETUP. Then press OK.

Press ▲ or ▼ to select

the LANGUAGE. Then press OK.

TIMER REC SET AUTO REPEAT OFF VCR SETUP CHANNEL SETUP SYSTEM SETUP

SELECT : ENTER

: OK

EXIT

: MENU

SYSTEM SETUP

CLOCK SET LANGUAGE/SPRACHE/LANGUE

SELECT : ENTER

: OK

EXIT

: MENU

Notes:

• If the unit does not operate properly,

or No key operation (by the unit and / or the remote control): Static electric-

ity, etc., may affect the player’s operation. Disconnect the AC power cord once, then connect it again.

• If you use the unit for the first time and press SET UP MENU, instead of the MENU screen in steps 1 and 2, the one in step 3 may appear. This is normal for this DVD/VCR and is no indication of a malfunction. Please first select the language to operate this unit.

Press ▲ or ▼ to select

the desired language. Then press OK.

Press SET UP MENU repeatedly until the TV picture

appears on the screen.

LANGUAGE/SPRACHE/LANGUE

ENGLISH DEUTSCH FRANCAIS

SELECT : OK : OK

Page 15

Setting the Time and Date Manually

You must set the date and time manually for timer recordings if Automatic tuning process did not set them correctly.

Preparation

• Turn on the TV, and select the VCR channel on TV.

• Make sure TV/VCR/DVD switch has been slided to VCR/

DVD. Then press VCR to select the VCR mode. (The VCR indicator will light)

Example: Setting the clock to 11:30, 26 Oct. 2002.

Press SET UP MENU. Press ▲ or ▼ to select

the

SYSTEM SETUP. Then press OK. The step-2 will appear when clock is not set.

Press ▲ or ▼ to select

the CLOCK SET. Then press OK.

TIMER REC SET AUTO REPEAT OFF VCR SETUP CHANNEL SETUP SYSTEM SETUP

SELECT :

ENTER

: OK

EXIT

: MENU

SYSTEM SETUP

CLOCK SET LANGUAGE/SPRACHE/LANGUE

SELECT : ENTER

: OK

EXIT

: MENU

Notes:

• The AUTO TIME function adjusts the clock only if the error is within 5 minutes.

• The VCR automatically adjusts the clock setting for Daylight Saving Time once you set AUTO TIME to ON.

Press or repeatedly

until 26 appears. Then press ▼ to continue.

Set the month, year, hour and minute in the same

way as in step 3. Then press OK.

• In case of an error,

press ▲ to go back to one step and enter again.

Press

The VCR automatically corrects the clock setting every

or to select AUTO TIME ON or OFF.

CLOCK SET

DAY MONTH YEAR TIME AUTO TIME ON

SELECT : SET

OK : OK EXIT : MENU

CLOCK SET

DAY MONTH YEAR TIME AUTO TIME ON

SELECT : SET

OK : OK EXIT : MENU

hour once you set AUTO TIME to ON.

Press SET UP MENU repeatedly until the TV picture

appears on the screen.

26 WED

2000

0: 00

26 SAT 10 2002 11: 30

The clock will begin operation.

Page 16

Tuning the TV Stations Manually

This VCR has one built-in tuner to receive broadcasts. Before you record a TV broadcast, you must set and preset all channels. This VCR can preset up to 80 channels.

CH 01

CH 02

CH 03

CH 04

CH 05

CH 06

Note:

Occasionally, the auto search might catch a weak signal and stop. If the TV station signal is weak, you shouldn't store this station.

In that case restart the auto search using

or .

BBC 1

BBC 2

ITV

CH4

CH5

SATELLITE

Preparation

• Turn on the TV, and select the VCR channel on TV.

• Make sure TV/VCR/DVD switch has been slided to VCR/

DVD. Then press VCR to select the VCR mode. (The VCR indicator will light)

Example: Preset the BBC 2 on programme position 2.

Press SET UP MENU.

Press

▲ or ▼ to select

the CHANNEL SETUP. Then press OK.

Press ▲ or ▼ to select

the CH TUNING. Press OK to select CH TUNING screen.

Press (falling frequency) or (rising frequency)

once to start the search. It stops at each broadcast automatically (" " changes to " "). Press

or repeatedly until BBC 2 appears. Only in case of receiving a weak broadcast (drifting picture), does search fail to stop. If you want to stop, press Press OK to preset. The search menu screen will disappear if the next mode is not activated in less than 50 seconds.

Press ▲ or ▼ repeatedly

until 2 is displayed. (Or enter 0 2 with the 1 to 0 numbered keys). Then press OK.

Repeat the steps 3 and 4 to preset other TV stations.

Press SET UP MENU repeatedly until the TV picture ap-

pears on the screen.

or .

TIMER REC SET AUTO REPEAT OFF VCR SETUP CHANNEL SETUP SYSTEM SETUP

SELECT : ENTER

: OK

EXIT

: MENU

CHANNEL SETUP

CH TUNING GUIDE CH SET

SELECT :

ENTER

: OK

EXIT

: MENU

SEARCH :

: MENU

EXIT

CH : / 0-9 OK : OK

SEARCH : OK : OK

EXIT : MENU

CH 1

CH 2

Page 17

Setting the VIDEO Plus +® Channel Number (Guide CH)

The TV stations must be stored according to the tuning guide given on page 13, otherwise the VIDEO Plus+ feature will not work. If for any reason you did not select channels BBC1, BBC2, ITV, CH4, CH5 and Satellite in channel positions 1 through to 6 respectively, you must set each VIDEO Plus+ channel number (GUIDE CH) manually.

Preparation

• Turn on the TV, and select the VCR channel on TV.

• Press the button to turn on the VCR.

Example: Satellite channel has been incorrectly stored on channel 8 of your VCR.

Press SET UP MENU.

Press

▲ or ▼ to select

the CHANNEL SETUP. Then press OK.

Press ▲ or ▼ to select

the

GUIDE CH SET.

Then press OK.

Enter "SAT" with ▲ or ▼ or

number keys. Then press OK.

TIMER REC SET AUTO REPEAT OFF VCR SETUP CHANNEL SETUP SYSTEM SETUP

SELECT : ENTER

: OK

EXIT

: MENU

CHANNEL SETUP

CH TUNING GUIDE CH SET

SELECT : ENTER

: OK

EXIT

: MENU

GUIDE CH SET

GUIDE

CH CH

SET : / 0-9 OK

: OK

EXIT

: MENU

VCR

GUIDE CHANNEL TABLE

STATION

BBC1

BBC2

ITV

CH4

CH5

Satellite

GUIDE CH

Enter "6" with

number keys. Then press OK.

If you have connected your satellite using the scart socket, you must select "AV" for the VCR

▲ or ▼ or

GUIDE CH SET

GUIDE

CH CH

SET : / 0-9

: OK CLEAROK: CANCEL EXIT : MENU

CH number.

For other Codes, repeat steps 3 and 4.

Press SET UP MENU repeatedly until the TV picture

appears.

VCR

Page 18

Loading and Unloading a Cassette Tape

VCR

Use only video cassette tapes marked and .

• Cassettes marked “VHS” (or “S-VHS”) can be used with this video cassette recorder. However, S-VHS recording is not possible with this model.

• This model is equipped with SQPB (S-VHS QUASI PLAYBACK) that makes it possible to play back S-VHS recordings with regular VHS resolution.

• HQ VHS is compatible with existing VHS equipment.

• SQPB playback can be seen only at PAL SP mode.

Push the centre of the tape until it is automatically inserted.

VCR

Automatic power ON

When you insert a cassette tape the DVD/VCR power will turn ON automatically.

Automatic playback

When loading a cassette tape without an erase prevention tab, playback will start automatically.

Insert the cassette tape with its labeled side facing up and the erase prevention tab positioned at your left. An inverted cassette tape cannot be inserted.

Erase prevention tab

Unloading

Press EJECT on the unit. Even if a tape is being

played, press this button only once.

Remove the cassette tape.

VCR

Automatic tape eject

This VCR will automatically rewind the tape when the tape has ended. And when the tape is rewinded to its beginning, the cassette tape will be ejected automatically.

To prevent accidental erasure

Remove the erase prevention tab with a screwdriver.

Screwdriver

Erase prevention tab

To record again

Cover the hole with a piece of adhesive tape.

Adhesive tape

Page 19

Cassette tape playback

Preparation:

Turn ON the TV and select the VCR channel on TV.

•

Make sure TV/VCR/DVD switch has been slided to VCR/DVD. Then press VCR to select the VCR mode. (The VCR indicator will light)

Load a prerecorded tape

(When loading a cassette tape without the erase prevention tab, playback will start automatically).

To start playback

Press . Playback will start. If the cassette has not loaded yet,

To stop playback

Press 3.

will blink for 4 seconds.

VCR

NOTES:

• This VCR selects the playback tape speed SP or LP automatically.

• The Cassette tape and DVD disc can be played back simultaneously. If you press VCR or DVD, the tape playback and DVD playback alternate with each other on the screen.

VCR

To rewind the tape or forward it rapidly

Stop the playback or recording with 3.

To rewind the tape:

Press

To stop the tape-winding, press 3. To switch to playback directly (without 3), press

To forward the tape:

Press

Forward/Reverse picture search mode

When the tape is being winded, you can switch to picture search mode (see next page). To do this, press or and hold it down. The unit will resume the tape winding as soon as the button is released.

NTSC video cassette playback

When using a pre-recorded NTSC video cassette tape, the connected TV set must operate with a 60 Hz vertical frequency. Otherwise the on-screen picture will be affected by vertical rolling. Even if your VCR set is capable of processing NTSC video signals, the picture may be shortened vertically (appearance of black bars at the top and at the bottom of the TV screen). The dubbing of a NTSC video cassette tape to a standard PAL VCR is not possible.

Page 20

Special playback/Playback sharpness/Skip Search

Special playback

Picture Search

Reverse picture search function

Press x 1 or x 2 during the playback.

Forward picture search function

Press To return to playback: Press .

Still Picture

Press 4 during playback. To resume normal playback: Press .

Slow Motion

During playback press SLOW. You can change the slow speed by the additional pressing of SLOW. To return to playback: Press .

Slow tracking and vertical lock adjustment

If noise bars appear in the picture during slow motion, press the SET + or – to reduce the noise bars. If the still picture jitters excessively, press SET + or – to stabilize the still picture.

Frame by Frame picture

During playback, press 4 one by one: The picture advances frame by frame. To return to playback: Press

Adjusting tracking condition

Automatic tracking adjustment

Whenever you insert a tape and start playback, automatic tracking starts working and continuously analyzes the signal to enable optimum picture quality during playback.

Manual tracking adjustment

If automatic tracking cannot eliminate noises well during playback, press SET + or SET – to eliminate the noises. “MANUAL TR.” will appear. Press it briefly for a fine adjustment, or press and hold for a coarse adjustment.

To return to automatic tracking, press A. TRK.

Notes:

•

• During picture search mode there will be noise bars

• The Special Playback will automatically change to

x 1 or x 2 during the playback.

VCR

The audio output is muted during SPEED SEARCH, STILL, FRAME ADVANCE and SLOW MOTION.

which are caused by the system.

playback after approx. 5 minutes to protect the video tape against excessive wear.

Playback sharpness

Adjust the sharpness of playback picture during playback. During slow motion, still picture and picture search, sharpness-adjusting is impossible.

Start the playback of video tape.

Press SET UP MENU.

Press

or to select VCR SETUP. Then press OK.

Press or to select

PLAYBACK SHARPNESS. Then press OK.

Press or to adjust

the playback sharpness to the level you reguire.

Press SET UP MENU repeatedly until the TV picture

appears on the screen.

Note:

To return to the initial sharpness setting, press CANCEL while the sharpness setting screen is appearing.

Skip Search

Each time you press SKIP SEARCH while a tape is playing, the unit will fast-forward ahead 30 seconds on the tape. You may press the button up to six times in a row to move 180 seconds (three minutes) ahead.

For example: 1 press: Approx. 30 seconds of tape

2 presses: Approx. 60 seconds of tape 3 presses: Approx. 90 seconds of tape

TIMER REC SET AUTO REPEAT VCR SETUP CHANNEL SETUP SYSTEM SETUP

SELECT : ENTER : OK

EXIT

VCR SETUP

NICAM AUDIO MIX PLAYBACK SHARPNESS

SELECT

ENTER

:OK

EXIT

PLAYBACK SHARPNESS

+ÐÐ+ÐÐ+ÐÐ+ÐÐ

SET : CENTRE :

CANCEL

softer sharper

EXIT :

[OFF]

[AUTO] [OFF]

Page 21

Repeat Playback

If the Repeat function is switched on, the playback will continue until it reaches the tape-end and then rewind to the beginning of the tape. This process will repeat until the unit is turned off.

To set the Repeat function

Preparation

• Turn on the TV and select the VCR channel on TV.

• Press VCR to select the VCR mode.

Press SET UP MENU.

Press

▲ or ▼

to select the AUTO REPEAT.

Press or to select

[ON] or [OFF].

Press SET UP MENU repeatedly until the TV picture

appears. If "ON" has been selected, the tape will be repeatedly played.

TIMER REC SET AUTO REPEAT OFF

VCR SETUP

CHANNEL SETUP SYSTEM SETUP

SELECT : / ENTER

: OK

EXIT

: MENU

TIMER REC SET AUTO REPEAT ON

VCR SETUP

CHANNEL SETUP SYSTEM SETUP

SELECT : / ENTER

: OK

EXIT

: MENU

Note:

To cancel the auto repeat mode, follow the above steps 1 and 2, then select "OFF" and confirm by pressing SET UP MENU.

Page 22

Counter Display

ZERO RETURN function

This function makes tape-rewinding stop at the counter 00:00:00 position automatically.

Preparation:

• Turn ON the TV and select the VCR channel on TV.

• Make sure TV/VCR/DVD switch has been slided to VCR/DVD. Then

press VCR to select the VCR mode. (The VCR indicator will light)

Press OSD.

The counter display shows the tape running time during playback or recording. The Recorder will indicate REC during recording for itself.

VCR

Press C.RESET at the desired

tape position. The counter display will be reset to the "00:00:00" position (e.g. the beginning of recording).

VCR

Press 3 when playback or recording is finished.

Press ZERO RETURN. The tape will be rewinded or fast forwarded and automatically stop at the ”00:00:00” position.

12:00 SUN

STEREO

12:00 SUN

STEREO

CH 2

00:04:38 SP

CH 2

00:00:00 SP

Note:

• When you load a video cassette, the display indication changes to "00:00".

• The counter display does not function on non-recorded (blank) sections of the tape. When you rewind, fast forward or play tapes through blank sections, the counter display stops.

Press OSD once again to make the all indicator disappear.

The DISPLAY-button

Press DISPLAY during the playback. The clock and tape counter alternate with each other in the display.

VCR

Note:

You can set the tape counter to 00:00:00 with C.RESET anytime. Therefore, the counter display can also indicate 00:00:00, even when the tape counter does not reach its beginning yet. Even if the tape counter indicates 00:00:00, it can be rewinded moreover. If the tape was rewinded over the point of 00:00:00, the minus mark (–) appears in the counter display. Although the tape counter seems to forward when you press , in fact the tape is being rewinded. When the tape reaches the beginning, the tape-rewinding stops automatically.

Page 23

Video Index Search System

REC

VCR REC

VCR

Whenever a recording is begun an invisible index mark is recorded on the tape. These index marks are all identical, and each mark means: "Here starts a new recording". Every DVD/VCR equipped with the Video Index Search System (VISS) can locate these marks at the beginning of any recording.

Example: Indexing of TV commercials.

Start playback and wait until the

end of the TV commercial is reached, then press 3.

While holding 2, press

indication goes off, 3 may be pressed. This short recording process will be sufficient to set an index mark. This will result in about 10 seconds of the TV commercials to be overwritten by another recording. Due to the system the end of this recording will be followed by a recording gap (noise signal) of approx. 5 seconds.

Recording several Index Marks

Due to the system only one index mark will be recorded at the beginning of a recording. If you intend to set several index marks during a single recording, follow the procedure below:

At the point of the recording where

an index mark is to be set press 4. The unit will switch to the recording pause mode.

once. When the "INDEX" on-screen

Notes:

•

When you record an INDEX mark at the very beginning of the tape, the mark may not be found.

•

During INDEX search, the tape may stop and begin to play at a slightly different location.

•

INDEX may not function properly with old or worn out video tapes.

•

INDEX marks may not be found if it is extremely close to the point where the search began.

•

In recording, if you stop recording temporarily, the INDEX mark is not recorded on the tape.

Press PR repeatedly

to the original TV program. Press 4 to resume recording.

to switch back

Index Search

Press INDEX + or – during stop or play mode. For Succeeding programs: Press INDEX +. For Preceding programs: Press INDEX –. (Additional press increases the INDEX NO. up to 9.) When the INDEX + or – is pressed, the unit starts searching the INDEX NO. selected and finds the portion, then playback starts automatically. To stop the Index Search, press 3.

CH 2

INDEX

7 or 6 is displayed

INDEX NO. (up to 9)

Page 24

VCR

Recording a TV Programme

Preparation:

• Turn ON the TV and select the VCR channel on TV.

• Make sure TV/VCR/DVD switch has been slided to VCR/DVD. Then

press VCR to select the VCR mode. (The VCR indicator will light)

Load a blank cassette tape with the

erase prevention tab intact. (The DVD/VCR will automatically turn on.)

Select the program(e.g.29) you want to record with PR +/– or

number keys.

1~9 : e.g. 5 = press “5” 10~80 : e.g. 29 = press “2” and “9”.

If a recording in Long Play mode is intended, press (TAPE

SPEED) to display "LP". (see Note below)

On the VCR, press 2.

Or on the Remote, while holding 2, press . " " will appear on the screen for about 4 seconds and “REC” will appear on the display.

VCR REC

VCR

CH 29

INDEX

Notes:

• Since the DVD/VCR has a built-in TV tuner the TV set may be turned off when recording. The TV set may only be used to check for accurate program adjustments or to monitor recordings.

• You can confirm on the TV-screen whether you selected SP or LP. Press OSD to see the status display. (see page 25)

• If you wish to watch the DVD playback during the normal recording on VCR, press DVD to change to DVD mode and perform the DVD playback (see page

38).

If the erase prevention tab is removed, the tape will eject when both the 2 and

are pressed for recording. (see p.18)

To Stop Recording

Press 3.

VCR

To Stop Recording Temporarily

To stop a recording for a short period of time press 4. Press this button again if you want to resume the recording.

VCR REC

Attention:

A safety circuit turns the pause mode off automatically after 5 minutes, and the DVD/VCR will stop the recording mode.

Page 25

Recording a TV Programme

Recording with a SCART Lead:

You can record a programme using the TV receiver of the DVD/VCR and at the same time watch another programme on the TV set using its receiver. As the DVD/VCR automatically switches the TV set the following points should be observed:

Press TV/VCR until "VCR" appears on the display. Select

the program on the DVD/VCR you program DVD/VCR.

While the VCR is recording press TV/VCR until the "VCR"

indicator on the display goes off. The TV set now displays the program of its built-in receiving module. Select the TV channel you want to watch on the TV set. Although the TV set now shows another program the DVD/VCR will continue recording the previously selected programme.

Using TV/VCR you can switch the TV screen between the

DVD/VCR picture and the TV picture. If the "VCR" indicator is lit on the display, you will watch has no

can be watched on the screen and recorded by the

trouble on the recording.

want to record. This

VCR

“VCR” indicator goes on.

REC

“VCR” indicator goes off.

the DVD/VCR picture. This

VCR REC

“VCR” indicator goes on.

To Display VCR operation Status

Auto Rewind Feature

The DVD/VCR will automatically rewind when the tape has ended (except during ITR and TIMER REC). It will also eject the cassette tape.

Press OSD. The clock, day of the week and more informa- tions will be indicated. To cancel the indicating: Press OSD until all indicator disappear.

Day of the week

Indication for Hi-Fi-playback or stereoreception

Audio Select

Time

23:59 MON HI-FI

STEREO

Deck-status here: Playback

CH 80

01:36:58 SP

Tape speed

Stand of Tape counter

Programme number or Scart input (AV1,AV2 or AV3)

Cassette in Unit

Page 26

Instant Timer Recording (ITR)

VCR

The instant timer recording feature provides a simple and convenient way to make a timed recording.

Preparation:

• Turn ON the TV and select the VCR channel on TV.

• Make sure TV/VCR/DVD switch has been slided to VCR/DVD. Then

press VCR to select the VCR mode. (The VCR indicator will light)

Load a blank cassette tape with the

erase prevention tab intact. (The DVD/VCR will automatically turn on.)

Select the program (e.g.29) you want to record with PR +/– or

number keys.

1~9 : e.g. 5 = press “5” 10~80 : e.g. 29 = press “2” and “9”.

If a recording in Long Play mode is intended, press (TAPE

SPEED) to display "LP". (see note on page 28)

Press 2 on the VCR or while holding 2, press on

the Remote to begin recording. Press 2 on the VCR again to stop recording after 30 minutes. Each additional press of 2 will increase recording time as shown in the chart below, up to a maximum of 5 hours. The ITR and recording time will appear on the screen for about 4 seconds. And, REC will keep blinking in the display.

VCR

VCR REC

“REC” will keep blinking

in the display.

Tape speed: SP

Recording 0:30

STEREO

INDEX

1:00

1:30

ITR 0:30

CH 29

Note:

• If you wish to watch the DVD playback during the ITR, press DVD to change to DVD mode and perform the DVD playback (see page 38).

• If the tape supply has not sufficed for ITR recording, the clock symbol ( ) will blink at the tape-end and then VCR mode will change to DVD mode. In this case, press • to cancel the blink or press EJECT to remove the cassette tape.

5:00

Tape speed: LP

Recording 0:30

10:00

4:00 3:00

.......

To Extend the Recording Time

While holding 2, press . repeatedly until the desired time appears on the display.

To stop the ITR

Press 3.

1:00

5:00

2:00

1:30

4:00

2:00

3:00

ITR 1 : 30

CH 29

Page 27

Look up the PlusCode Number in an appropriate TV programme magazine. Select the desired TV programme for recording and refer to the PlusCode Number next to it.

VIDEO Plus+® Recording

VIDEO Plus+ and PlusCode are

registered trademarks of Gemstar Development Corporation. The VIDEO Plus+ system is manufactured under license from Gemstar Development Corporation.

Preparation

• Turn on the TV and select the VCR channel on TV.

• Make sure TV/VCR/DVD switch has been slided to VCR/

DVD. Then press VCR to select the VCR mode. (The VCR indicator will light)

Press PROG..

Note: If any button is not pressed within 60 seconds, the Recorder switches back to TV operation.

Enter the PlusCode

Number using number keys.

• In case of an error, press CANCEL and enter the desired number again.

PLUSCODE NO.

PLUSCODE SELECT CLEAR OK EXIT

PLUSCODE NO.

PLUSCODE SELECT CLEAR OK EXIT

ONCE DAILY WEEKLY

NO.

ONCE DAILY WEEKLY

NO.

: 0–9 : : CANCEL : OK : PROG.

57378

: 0–9 : : CANCEL : OK : PROG.

Note:

• The built-in timer stores 8 memories. If the "PROGRAM FULL" indication appears, you must delete one memory (see page 31).

• When the power supply is interrupted for more than 30 minutes, the preset programme is cleared. In this case, you have to set the timer again.

Press ▲ or ▼ to select ONCE, DAILY or WEEKLY.

ONCE = To record a programme only once

DAILY = To record TV programmes transmitted daily

WEEKLY = To record TV

PLUSCODE NO.

PLUSCODE SELECT CLEAR OK EXIT

ONCE DAILY WEEKLY

NO.

57378

: 0–9 : : CANCEL : OK : PROG.

programmes transmitted once a week.

Press OK. By the PlusCode Number, the entered data

appears on the screen. Select your tape speed.

• If the entered Number is not correct, the indicator ERROR

"PLUS CODE

" will appear.

Enter the correct number.

PLUSCODE NO.

SELECT SET EXIT

DATE START END CH SPEED PDC

15 FRI 17:30 18:00 3 SP OFF

: : : MENU

57378

OK : OK

Page 28

VIDEO Plus+ Recording

If you have selected Daily or Weekly in step 3, then you can select a recording date again. The date must blink. If it does not blink, then press the DATE blinks. Then press

▲ or ▼ repeatedly until

or repeatedly until the desired date appears. The following date options are available: SUN-SAT: all dates from Sunday to Saturday, or MON-SAT: only from Monday to Saturday, or MON-FRI: only from Monday to Friday. WKL-MON: each Monday, WKL-TUE: each Tuesday WKL-SUN: each Sunday, etc.

Recording period extension

The recording end-time will be set by VIDEO Plus+ automatically. However you can extend the recording end-time manually. The time END must blink. If it does not blink, then press the time end blinks. Then press to extend.

▲ or ▼ repeatedly until

Note:

• As long as the timer is activated (clock symbol indicated on the display), you cannot use the VCR. If you want to use the VCR, first press • to deactivate the timer.

• Not all TV Stations transmit PDC signal all of the time, therefore it is advisable to check before setting PDC to ON, if you do set PDC to ON and no signal is received your recording might not take place at all. To check PDC status, change to the channel on your DVD/VCR you wish to record from, if the word "PDC" appears on the screen for a few seconds then that channel is broadcasting PDC and you can set the feature to ON.

Press OK after the confir-

mation. Then press SET UP MENU repeatedly until the TV picture appears. To enter another programme, repeat steps 1 - 5.

Although the data is stored in the timer memory, the timer

function is not yet ready for recording. To accomplish this,

15 FRI 17:30 18:00 3

SELECT : / OK EXIT

: : : :

: : :

activate it by pressing •. If no cassette tape is loaded, the clock symbol does not appear.

To record with the PDC (Programme Delivery Control) system

The PDC system starts recording when it picks up a special signal transmitted by the broadcaster with the TV programme – even if the TV programme starts early, late or runs on longer than scheduled. In step 4, press ▼ repeatedly until PDC OFF flashes, then press

to display "ON" for recording with PDC.

TIMER REC SET

SELECT SET EXIT

DATE START END CH SPEED PDC

15 FRI 17:30 18:00 3 LP ON

: : : MENU

: : : :

: : :

OK : OK

Page 29

Timer Recording Manually

The built-in timer allows unattended recording of up to 8 programmes within 1 month.

Preparation

• Turn on the TV and select the VCR channel on TV.

• Make sure TV/VCR/DVD switch has been slided to VCR/

DVD. Then press VCR to select the VCR mode. (The VCR indicator will light)

• Load a video cassette with the erase prevention tab intact. Make sure that the time and date are correct.

Example: Timer recording for the 23rd, Friday, on channel 3, 19:30 to 21:30 and LP mode.

Press SET UP MENU.

Press ▲ or ▼ to select the TIMER REC SET. Then press OK.

Each line stands for one

programme of the 8 memories. Select one line with Then press OK.

▲ or ▼ .

TIMER REC SET AUTO REPEAT OFF VCR SETUP CHANNEL SETUP SYSTEM SETUP

SELECT : ENTER

: OK

EXIT

: MENU

: :

SELECT : /

EXIT

Note:

• When the power supply is interrupted for more than 30 minutes, the preset programme is cleared. In this case, you have to set the timer again.

• If you want to set the timer with the PDC function, see "To record with the PDC system" on page 28.

Set the desired dates with

or . Then press ▼

to accept them.

• Daily/weekly settings can be found by pressing or repeatedly (see page

30).

Set the Starting time (19:30), ending time (21:30)

channel (3) and tape speed (LP) in the same way as in

TIMER REC SET

DATE 23 FRI START END CH

SPEED PDC

SELECT : SET : EXIT : MENU

11:30

1 SP OFF

step 3.

TIMER REC SET

• In case of an error, press

▲ to go back to

the previous step and repeat.

DATE 23 FRI START END CH SPEED PDC

SELECT : SET EXIT:: MENU

19:30 21:30

3 LP OFF

OK : OK

Page 30

Timer Recording Manually

Note:

•

In case of a timer recording from the Scart socket, proceed as follows: When "CH" is blinking in picture/step 4, press repeatedly until "AV" appears. If the clock symbol blinks when the timer

•

recording is completed, the TV programme has not been completely recorded because of an insufficient tape supply. As long as the timer is activated (clock

•

symbol indicated on the display), you cannot use the DVD/VCR. If you want to use the DVD/VCR, press • to deactivate the timer.

Press OK to accept them.

To enter other programmes, repeat steps 2 to 4, or press SET UP MENU repeatedly until the TV picture appears.

Although the data is stored in the timer, it is not ready for

recording. To start timer recording, press

23 FRI 19:30 21:30 3 LP

SELECT : /

EXIT

: : : :

: : :

•

: : : :

: : :

to turn it on. When no video cassette is loaded, the clock symbol does not appear.

When you turn the unit off, the timer will be switched on automatically. The clock symbol will appear on the display. If you still want to use the recorder, press • first. Then the clock symbol will disappear from the display.

Weekly (e.g. WKL-TUE: each Tuesday) or daily (e.g. MON-SAT Monday to Saturday) Timer recording

Note:

•

The daily/weekly recording can be made continuously until the recording is cancelled or the tape reaches the end.

•

During timer recording, the automatic rewinding mechanism does not function.

Follow the procedure for timer recording on the previous page. In picture/step 3 (when date and day is blinking), press repeatedly until the desired setting appears (weekly or daily).

DATE-DAY WKL-FRI WKL-SAT WKL-SUN WKL-MON

SUN-SAT MON-SAT MON-FRI WKL-THU WKL-WED WKL-TUE

▼

Set other START, END, CH, SPEED as previous pages.

In case of overlapping Timer programmes

• Do not overlap timer programmes as portions of the conflicting programmes will be lost. The first recording time has priority over the next recording time as shown in the diagram below.

Program 1

8 : 00

Program 2

Program 3

Recording Control Settings

Prog.1

9 : 00

Deleted Parts

Non Recorded Portion Parts

Prog.2 Prog.3

10 : 00

11 : 00

Page 31

Timer Recording Manually

Confirmation/Cancellation of the Timer Recording

If the Timer has been activated, now press • to deacti-

vate the timer. The clock symbol will disappear. Then press

VCR to change to VCR mode.

To confirm a Timer programme.

Press PROG. twice. All the timer programmes will appear.

To cancel a Timer programme.

Press ▲ or ▼ to select the timer programme you wish to cancel. Then press CANCEL. This line is now cancelled.

28 FRI 30 30

SELECT : /

CLEAR

28 FRI 30

SELECT : / EXIT

SUN SUN

SUN

19:30 12:15 19:00

CANCEL

19:30 12:15

21:00 13:00 22:00

: :

: : :

21:00 13:0031LPSP

:: : :

: : :

: :

: : :

EXIT : MENU

: :

: : :

Press SET UP MENU (or PROG.) button repeatedly until

the TV picture appears.

Page 32

TIMER REC SET AUTO REPEAT

CHANNEL SETUP SYSTEM SETUP

SELECT : ENTER : OK

EXIT

VCR SETUP

[OFF]

NICAM Stereo Recording and Playback

AUDIO MIX

NICAM

VCR SETUP

SELECT

ENTER

:OK

EXIT

PLAYBACK SHARPNESS

[OFF]

[AUTO]

This DVD/VCR is capable of recording sound in Hi-Fi system. The recording will be performed automatically. NICAM STEREO broadcasts are recorded in its original sound system regardless of the setting. If you wish to record NICAM programmes, select NICAM "AUTO" as follows.

Preparation:

• Turn ON the TV and select the VCR channel on TV.

• Make sure TV/VCR/DVD switch has been slided to VCR/DVD. Then

press VCR to select the VCR mode. (The VCR indicator will light)

NICAM stereo sound reception:

Press SET UP MENU. Press

▲ or ▼ to select VCR SETUP. Then press OK.

Press ▲ or ▼ to select NICAM.

Then press

/ or OK to

select [AUTO].

Press the SET UP MENU repeatedly until the TV picture

appears.

NICAM programmes are divided into 4 types as shown below.

NICAM STEREO broadcast

"NICAM ST" illuminates when a NICAM STEREO broadcast signal is received.

NICAM ST

Note:

When listening to a stereo broadcast or playing back a tape Hi-Fi recorded in stereo, you have to connect the DVD/ VCR with the stereo audio system or the stereo TV. The sound which is output from the RF OUT jack is monaural.

NICAM MONO A broadcast

"NICAM M1" illuminates when a NICAM MONO A broadcast signal is received.

NICAM MONO A B broadcast

"NICAM M1/2" illuminates when a NICAM MONO A and MONO B broadcast signal is received.

NICAM OFF

It will be displayed for the NICAM signal when the "NICAM [OFF]" is selected in menu screen.

NICAM M1

NICAM M1/2

NICAM OFF

Page 33

NICAM Stereo Recording and Playback

Playback

Use A.MONITOR to select under stereo/mono or bilingual playback. See the table below for more information.

On-screen indications (for 4 sec.)

STEREO

Stereo playback performed in:

Stereo

Bilingual playback performed as follows:

Simultaneously both languages from HiFi track (Mixed sounds)

Left channel signal output from both

L CH

loudspeakers

Right channel signal output from

R CH

both loudspeakers

Mono

MONO

HiFi signal indication

It will be displayed for approx. 4 seconds when playing HiFi video cassette tapes.

One's mother tongue dubbing (Main sound)

Original sound track (Sub sound)

One's mother tongue dubbing (Main sound)

HI-FI

Note:

When playing HiFi cassette tapes recorded on another VCR, the sound output may be distorted. This is normal and no indication of a unit malfunction. Try to minimize sound distortions by using SET +/– or change to MONO by pressing of A.MONITOR.

Page 34

TIMER REC SET AUTO REPEAT

CHANNEL SETUP SYSTEM SETUP

SELECT : ENTER : OK

EXIT

VCR SETUP

[OFF]

Audio Mixing

AUDIO MIX

NICAM

VCR SETUP

SELECT

ENTER

:OK

EXIT

PLAYBACK SHARPNESS

[OFF]

[AUTO]

AUDIO MIX

NICAM

VCR SETUP

SELECT

ENTER

:OK

EXIT

PLAYBACK SHARPNESS

[ON]

[AUTO]

You can listen to both sound tracks (HiFi and MONO), by setting AUDIO MIXING mode.

Preparation:

• Turn ON the TV and select the VCR channel on TV.

• Make sure TV/VCR/DVD switch has been slided to VCR/DVD.

Then press VCR to select the VCR mode. (The VCR indicator will light)

Press SET UP MENU.

Press VCR SETUP

or to select

. Then press

OK.

Press or to select

AUDIO MIX.

Press / or OK to select

[ON]. If you select [ON], the unit will play both sound tracks (Hi-Fi and MONO) until the AUDIO MIXING mode is cancelled.

Note:

To deactivate the AUDIO MIX function follow the above procedure from step 1 to 3, select [OFF], and confirm the setting by pressing SET UP MENU.

Press SET UP MENU repeatedly until the TV picture

appears.

Page 35

Duplicating a Video Tape

When you try to connect with a cable, make sure the power of both units have been turned off. Connect the recording unit with the TV. Therefore you can just watch what the recording unit is recording.

Load a blank cassette tape with the erase prevention tab

intact into the recording DVD/VCR. Load the previously recorded cassette tape into the playback VCR or a video camera.

VCR

Use AUX or PR of the recording DVD/VCR to select the

"A1", "A2" or "A3" instead of the preset channel.

A1 = TV-RGB/Composite Scart Socket

A2 = VCR/DECODER Scart Socket

A3 = Front AV jacks

Connection with second Video recorder or Video camera

Playback unit

While holding 2, press and then 4 of Recording unit.

Press PLAY-button and then PAUSE/STILL-button of

Playback unit. Now you can see the still picture of the scene that you wish to duplicate.

Press 4 of both units simultaneously to start the Duplicat-

ing.

Note:

Before starting the duplicating process, select the proper tape speed using . For a pre-recorded tape the correct tape speed will be set automatically during playback.

Playback on camera

Recording unit

(not

supplied)

(not supplied)

Press AUX on the recording unit repeatedly until A3 appears.

Duplicating a disc material onto a video tape

You can record disc material in DVD, Video CD, Audio CD, etc. onto a video tape with this DVD/VCR only. If the DVD disc has a Copy-guard feature, the duplicating is not possible. A symbol mark “ on the screen for approx. 4 seconds. See page 38 for more information about the DVD playback.

Preparation:

Load a cassette tape with the erase prevention tab

•

intact. Select the tape speed in the VCR mode. (see P.24)

•

Load a disc you wish to duplicate.

•

Press DVD to select the DVD mode. (The DVD indi-

cator will light)

Press to start the disc playback.

During disc playback, while holding 2, press .

Note:

You can set the duplicating time using the ITR-function. At step 3 above press 2 repeatedly until the desired duplicating time appears on the screen.(P.26)

” will appear

Page 36

Disc

This unit applies to DVD discs from Region 2 only. The loaded Disc (DVD, Video-CD, Audio-CD and MP3-CD) will be recognized automatically. The suitable Disc-formats are: DVD, CD-R and CD-RW. Some CD-R/RW discs may be incompatible. This DVD/VCR uses the PAL color system. The NTSC-DVDs can be playback on PAL 60Hz.

Do not play DVD-ROM, DVD-Audio, CDV, CD-G or Photo CD to prevent accidental erasure of prerecorded material.

Some DVDs is played back with a Copy guard system. In case of a dubbing on video tape, strong disturbance may occur. This is not a defect of this DVD/VCR.

Title

When two or more movies are recorded on a disc, the disc is divided into two or more sections. Each section is called a “TITLE”.

CHAPTER 1

Chapter

The titles can be subdivided into many sections. Each section is called a “CHAPTER”.

Track

An Audio CD can contain several items. These are assigned to the tracks.

TRACK 1 TRACK 2 TRACK 3 TRACK 4 TRACK 5

Removing Disc from Case

Be sure to hold the edge of disc. Do not touch the surface of the disc. Pick up the disc gently from the case.

• Do not scratch the disc.

• Do not get dirt on the surface of the disc.

• Do not stick a label or adhesive tape on the disc.

• Do not drop or bend the disc.

DVD DISC

TITLE1 TITLE2

CHAPTER 2 CHAPTER 2 CHAPTER 3CHAPTER 1

Audio-CD

Storing Disc

• Store the disc in the case to avoid risk of scratches, dirt or damage.

• Do not leave disc exposed to direct sunlight or in hot or humid places.

Cleaning Disc

Wipe the disc with a clean, dry cloth from centre to edge.

• Do not wipe the disc round.

• Do not use liquid or aerosol cleaners.

Page 37

Setting setup language

The setup language can be selected.

Preparation:

• Turn ON the TV and set to the video input mode.

• Make sure TV/VCR/DVD switch has been slided to VCR/DVD.

• When using an amplifier, switch on the amplifier.

Press DVD to select the DVD

mode. (The DVD indicator will light.) “No Disc” will appear on the screen. (If a DVD disc has already loaded, the playback will start automatically.)

Press SET UP MENU in the stop

mode. The SETUP MENU of DVD will appear on the screen.

Then press

or to select

No Disc


TV Shape 4:3LB

Video Out Select Video

“Language”.

: Select : Enter

Press / to select On-Screen

Language, then press OK (En- ter).

On-Screen Language ENG

Disc Menu Language ENG Audio Language ENG Subtitle Language ENG

Language

If the DVD/VCR does not operate properly: Static electricity, etc., may

affect the player's operation. Disconnect the AC power cord once, then connect it again.

: Select : Enter

Press / to select desired

language: English (English), German (Deutsch) or French (Français).

To make the SETUP screen disappear, press SET UP MENU

(or RETURN).

On-Screen Language ENG

Disc Menu Language ENG Audio Language ENG Subtitle Language ENG

Language

: Select : Enter

English

Fran ais Espa ol

Page 38

Playback procedure

Preparation:

• Turn ON the TV and set to the video input mode.

• Make sure TV/VCR/DVD switch has been slided to VCR/DVD. Then

press DVD to select the DVD mode. (The DVD indicator will light)

Press OPEN/CLOSE.

The disc tray will open.

Place a disc onto the tray.

Hold the disc, position it with the printed label side up, align it with the guides, and place it in its proper position.

Press or OPEN/CLOSE.

The disc tray closes automati-

cally.

On the screen, changes to

“ ” and then playback will

commence.

• A menu screen may appear on the TV screen, if the disc has a menu feature. In this case, press operate a menu feature.

, , , or OK to

Press 3 to end playback.

• The DVD/VCR memorizes the stopped point, depending on the disc. “To Return To The Last Scene Viewed, Press Play. To Disable This Operation, Press STOP Again.” appears on the screen for approx. 4 seconds. “ ” will continue blinking in the display until the playback is stopped completely. Press to resume playback (from the scene point).

• If you press 3 again (“ 3 ” appears on the screen) or unload the disc, the DVD/VCR will clear the stopped point.

Then press OPEN/CLOSE.

The disc tray opens. Remove the disc and press , (POWER).

NOTES:

• If a non-compatible disc is loaded, "Please Check Disc", "Disc playback unauthorized Consult owners manual for further information" or "Parental Lock" will appear on the TV screen according to the type of loaded disc. In this case, check your disc again (See pages 36 and 46, 47).

• Some discs may take a minute or so to start playback.

• A “Prohibition” symbol

tried is not available on the disc, or the DVD/VCR can not access the feature at this time. This does not indicate a problem with the DVD/VCR.

When you set a single-faced disc label downwards (ie. the wrong way up) and press or OPEN/CLOSE, " "

•

will appear and remain on the screen for approx. 30 seconds and then it will change to "Please Check Disc".

• Some playback operations of DVDs may be intentionally fixed by software producers. Since this DVD/VCR plays DVDs according to the disc contents the software producers designed, some playback features may not be available. Also refer to the instructions supplied with the DVDs.

• When playing DTS-encoded Audio CDs, excessive noise will be heard from the analog stereo outputs. To avoid possible damage to the audio system, the consumer should take proper precautions when the analog stereo outputs of the DVD/VCR are connected to an amplification system.

may appear at the upper right of the screen. This symbol means either the feature you

The disc tray closes automatically and DVD/VCR turns off.

Page 39

Special playback

Note: There may be a slight delay between pressing the button and the function activation.

Fast Forward Playback

Press during normal playback. Each press of will increase the speed of the search x2 ( ), x8

), x30 ( ), x100 ( ). (in case of Audio-CD: x4 ( ) and x8

( (

) are available)

• To resume normal playback, press

Review Playback

Press during normal playback. Each press of will increase the speed of the search x2 ( ), x8 ( ), x30 ( ), x100 ( ). (in case of Audio-CD: x4 ( ) and x8 ( ) are available)

• To resume normal playback, press .

Still Playback

Press 4 during normal playback.

To resume normal playback, press

Frame Advance

Press 4 during still playback. One frame is advanced each time you press 4.

NOTES:

• The unit is capable of holding a still video image or On screen display image on your television screen indefinitely. If you leave the still video image or On screen display image displayed on your TV for an extended period of time, you risk permanent damage to your television screen. Projection televisions are very susceptible.

• Some titles may not display chapter numbers.

• When you set “Title Stop” to “Off” (See page 53), you can access chapter in another title. If you go back to the preceding title by pressing the SKIP, the DVD/VCR locates the first chapter of the title. When “Title Stop” is set to “On”. you can access chapters only within the current title.

To resume normal playback, press

Slow-motion Playback

Press SLOW during Each press of SLOW will change the speed of the slow x1/2, x1/4, x1/8.

• To resume normal playback, press .

• To resume the still playback, press 4.

normal playback or still playback.

Locating a chapter or track

T C

Press SKIP ( ( ) Reverse during playback to

locate a chapter or track that you want to watch. Each time you press the button, a “C (chapter)” number or “T (track)” number is skipped.

When you press SKIP ( ), playback starts from the beginning of the current chapter or track.

When you press SKIP ( ) twice, playback starts from the beginning of the preceding chapter or track.

) Forward or SKIP

Page 40

DVD Picture Signal Selection/Zooming

You can select the output signal of DVD playback picture to the TV screen as an VIDEO signal or a RGB signal.

Preparation:

• Turn ON the TV and set to the video input mode.

• Make sure TV/VCR/DVD switch has been slided to VCR/DVD.

Then press DVD to select the DVD mode. (The DVD indicator will light)

Press SET UP MENU in the

stop mode.

Press

or to select “Pic-

TV Shape 4:3LB

Video Out Select Video


ture”, then press or to select “Video Out Select”.

: Select : Enter

Press OK (Enter).

Press or to select the desired picture signal, “Video” or “RGB”.

To make SETUP screen disappear, press SET UP MENU.

TV Shape 4:3LB

Video Out Select Video


Video

RGB

: Select : Enter

Notes:

• If you use the connection with S-Video cord, be sure to set the “Video Out Select” at step 2 above to “Video”. If you select “RGB”,

the TV screen will be disturbed.

• If you selected “RGB” at step 2 above, press TV/VCR to select VCR. (VCR indicator will appear on the display) Otherwise, the TV screen will be disturbed when you select the channel with TV’s CHANNEL UP/DOWN buttons.

Note:

• Picture Signal Selection is only available for connecting with a 21 pin Scart Cable.

• Depending on your TV, NTSC disc may not playback correctly in colour. In this case, it is recommended to select the Picture Signal RGB on step 2.

• Only use RGB setting if your TV is RGB compatible.

Zooming

This unit will allow you to zoom in on the frame image. You can then make selections by switching the position of the frame.

Press ZOOM during playback.

The centre part of the image will be zoomed in. As you repeatedly press the OK or ZOOM while “ZOOM” is selected, the magnification level changes. Variation of the levels includes image reduction.

Press / or / to view a different part of the frame.

You may move the frame from the centre position to UP, DOWN, LEFT or RIGHT direction.

• If you select “EXIT” and press the OK, you can turn off the symbol mark, keeping the current magnification level.

• Press CANCEL to restore the zoom point to the centre of the picture.

While “ZOOM” is selected, press ZOOM repeatedly to re-

turn to a 1:1 view.

ZOOM

EXIT

Zoom Off

: Select : Change

Page 41

Repeat playback

Preparation:

• Turn ON the TV and set to the video input mode.

• Make sure TV/VCR/DVD switch has been slided to VCR/DVD.

Then press DVD to select the DVD mode. (The DVD indicator will light)

REPEAT PLAYBACK

Press PLAY MODE repeatedly to select “Chapter Repeat”,

“Title Repeat” or “All Repeat”. (In case of CD, select “Track Repeat” or “ All Repeat” )

NOTES:

•

Some discs may not work with the repeat operation.

•

In A-B repeat mode, subtitles near point A or B may not appear.

•

During the A-B Repeat Playback the ANGLE feature will not operate.

•

You may not be able to set A-B Repeat, depending on the scenes of the DVD.

•

A-B repeat does not work with an interactive DVD and MP3-CD.

•

Random playback can not be combined with Repeat playback.

DVD

Chapter Repeat

During playback repeat playback will start automatically.

To start repeat playback during stop mode, press within about 5 seconds after you press PLAY MODE.

• To resume normal playback, press PLAY MODE repeatedly

until “Off” appears on the TV-screen.

Track Repeat

A-B Repeat Playback

A-B repeat playback allows you to repeat material between two selected points.

Press REPEAT A-B during

playback. The start point is selected.

Press REPEAT A-B again.

The end point is selected. Playback starts at the point that you selected. Playback stops at the end point, returns to Point A automatically, then starts again.

To resume normal playback, press REPEAT A-B again. “Repeat Off” appears on the screen.

A-B

Page 42

1 T:- -CT:- -

2 T:- -CT:- -

3 T:- -CT:- -

4 T:- -CT:- -

5 T:- -CT:- -

6 T:- -CT:- -

7 T:- -CT:- -

: Select 0-9 : Input : Play

Memory

Memory playback/Random playback

: Select 0-9 : Input : Play

Memory

1 T:01 CT:002 2 T:

- -

CT:- -

3 T:- -CT:- -

4 T:- -CT:- -

5 T:- -CT:- -

6 T:- -CT:- -

7 T:- -CT:- -

Preparation:

• Turn ON the TV and set to the video input mode.

• Make sure TV/VCR/DVD switch has been slided to VCR/DVD. Then

press DVD to select the DVD mode. (The DVD indicator will light)

Memory playback

You can arrange the order of titles, chapter or tracks on the disc.

Press MEMORY.

Press / to

select “T” Title

In stop mode

In playback

1 T:- -CT:- -

Memory

: Select 0-9 : Input : Play

In playback

number or “CT” Chapter or Track number. Use numbe keys to

1 T:01 CT:002

Memory

: Select 0-9 : Input : Play

Input the favorite number.

• If you input a large number than the number that is recorded on the disc, the bar will be skipped.

• The input number into "T" for CD or MP3 is not effective.

Press or OK.

In stop mode

In playback Set the “T” and “CT” in the next bar as In step 2.

1 T:01 CT:002 2 T:02 CT:004 3 T:

- -

CT:- -

4 T:- -CT:- -

5 T:- -CT:- -

6 T:- -CT:- -

7 T:- -CT:- -

Memory

: Select 0-9 : Input : Play

2 T:02 CT:004

Memory

: Select 0-9 : Input : Play

• When you select another chapter In the same title, you do

not need to select the title number.

• To cancel the programmed selection, press CANCEL.

NOTES:

•

The memory when press

playback

during memory

is cancelled

playback.

• Random playback can not be combined with Repeat playback.

• You can program up to 30 selections into the memory.

• Depending on the DVD, Chapter Random operation may not work during playback.

• You cannot use the random playback with memory playback.

Press to start MEMORY playback.

• To resume normal playback, press CANCEL.

Random playback

Press PLAY MODE repeatedly to select “ Chapter Random”

or “Title Random”.(In case of CD, select Track Random)

DVD

Chapter Random

During playback random playback will start automatically.

Track Random

To start random playback during stop mode, press within about 5 seconds after you press the PLAY MODE.

• To resume normal playback, press PLAY MODE repeatedly until “Off” appears on the TV-screen.

Page 43

MP3 Playback

This player can play back the MP3-data which has been recorded on CD-R or CDRW. To produce the MP3-data, you need a Windows-PC with CD-ROM drive and a MP3encoding Software (not supplied). The Apple-HFS-System can not be played.

MP3 CD Information

Limitations on MP3 CD playback

• MP3 CD is the disc that is standardized by ISO9660, its file name must include 3-digits extension letters, “mp3”.

• The directory and file names of the MP3 CD must correspond to the ISO standardized files.

• This unit can read 200 files per disc. If one directory has more than 200 files, it reads up to 200 files, the remaining files will be omitted.

• As for multi-session disc, only the first session can be played.

• If the CD has both audio tracks and MP3 files, only audio tracks are played.

• It may take more than one minute for this unit to read MP3 files depending on its structure.

• Music recorded by “ Joliet Recording Specification” can be played back, the file name is displayed (within 8 letters) on the screen. Long file names will be condensed.

• The music files recorded by “Hierarchical File System” (HFS) cannot be played.

Limitations on display

The maximum number for display is 8 letters. Available letters for display are the following: capital or small alphabets of A through Z, numbers of 0 through 9, and _ (under score).

Notes on MP3 files

To play back MP3 CD in the recorded order,

1. Use MP3 software that records data

alphabetically or numerically.

2. Name each file including a two-digit or three-

digit number (e.g. “01” “02” or “001” “002”).

3. Refrain from making too many sub-folders.

CAUTION:

• Some MP3 CDs can not be played back depending on the recording conditions.

• The CD-R/RW that has no music data or non-MP3 files can not be played back.

Preparation:

• Turn ON the TV and set to the video input mode.

• Make sure TV/VCR/DVD switch has been slided to VCR/DVD.

Then press DVD to select the DVD mode. (The DVD indicator will light)

Press OPEN/CLOSE.

The disc tray will open. Place a disc onto the tray.

Press or OPEN/CLOSE. The

disc tray closes automatically. On the TV-screen, “

” and then

reading file number will appear. Then playback will commence.

• Reading will take as much time as the number of file.

• Press 3 to end playback.

Press OSD.

Then press

MP3

and press OK (Enter).

Press / or

OK (Enter). Track is selected and play commences.

•

In case the folder includes more than 9 tracks, press

/ to select

to select the desired track, then press

1 000:23

: Select : Enter

MP3

to display next track list.

• To remove track list, press CANCEL.

• Press

to select “T” and press number keys to

input your desired track.

1 000:23

: Select : Search

MP3

Press 3 to end playback.

1. \ CRYINI~1

2. \ DANGER~1

3. \ GITARREN

4. \ LILYWA~1

5. \ MERCYS~1

6. \ OBSESS~1

7. \ PINKPA~1

8. \ RUNNIN~1

• The unit records the stopped track.

Press to resume playback (from the beginning of track).

• If you press 3 again or unload the disc, the unit will clear

the stopped track.

Press OPEN/CLOSE.

The disc tray opens. Remove the disc and press . The disc tray closes automatically and DVD/VCR turns off.

EAM

PCM

EAM

PCM

NOTES:

•

During MP3-Playback, you can not use SEARCH, A-B Repeat functions.

•

You can use Repeat(Track or All) and Random functions for MP3 CD Playback.(See page 41 and 42)

Page 44

Changing soundtrack language / Changing Subtitles language

L.R

Preparation:

• Turn ON the TV and set to the video input mode.

• Make sure TV/VCR/DVD switch has been slided to VCR/DVD. Then

press DVD to select the DVD mode. (The DVD indicator will light)

Changing soundtrack language

You can select the language when you play a multilingual disc.

Press A.MONITOR during play-

back. The current soundtrack language is displayed.

ENG1 2CH ENG2 5.1CH FRE1 2CH

NOTES:

• If the desired language is not heard after pressing A.MONITOR several times, the language is not recorded on the disc.

• Changing soundtrack or subtitle language is cancelled when you open the disc tray or turn the power off. The initial default language or available language will be heard and seen if the disc is played back again. Depending on the DVD you may be

•

unable to turn on, turn off, or change the subtitles, even if they are recorded on the disc. While playing the DVD, the subtitle may change while opening or closing the disc tray, or while changing the title.

•

During some scenes, the subtitles may not appear immediately after you select “On”.

• The abbreviation of the language appears instead of the language name. Refer to the list of languages and their abbreviations. (See on page 57.)

Press A.MONITOR repeatedly

until the desired language is selected. The on-screen display will disap-

Audio:FRE1 2CH

: Select : Return

ENG1 2CH ENG2 5.1CH FRE1 2CH

2CH

pear after a few seconds.

• To turn off the soundtrack setting display, press the

Audio:ENG1 2CH

: Select : Return

2CH

CANCEL or OK button.

In case of VIDEO CD playback

Audio type changes as follows each time you press A.MONITOR.

L.R

Changing Subtitles language

You can select the language when playing back a disc recorded with multi-lingual subtitles.

Press SUB TITLE during

playback. Then press / to select the

desired language.

• To turn off the subtitle setting display, press the CANCEL or OK button.

• To turn the subtitles off, select “Off”.

Press SUB TITLE repeatedly to

turn Subtitles on or off.

Off GER 1 DUT 1 SV 1 NO 1

- - -

Off

Subtitle:

: Select : Return

Off ENG 1 SPA 1 FRE 1

Subtitle:ENG1 On

: Select : Return

: On/Off

Page 45

Changing angles / Title selection / DVD menu

Preparation:

• Turn ON the TV and set to the video input mode.

• Make sure TV/VCR/DVD switch has been slided to VCR/DVD. Then

press DVD to select the DVD mode. (The DVD indicator will light)

Changing Angles

When playing back a disc recorded with multi-angle facility, can change the angle that you are viewing the scene from.

Press ANGLE during playback.

The current angle will appear.

Press ANGLE or / repeatedly until the desired angle is

selected.

• To turn off the angle number display, press the CANCEL.

• You can change the camera angle directly by pressing the

number keys corresponding to its angle number instead of using the

/ buttons.

2 3

Angle :1

: Select : Return

you

NOTE:

Depending on the DVD, you may not be able to change the angles even if multi-angles are recorded on the disc, or you may be unable to select the title, and a “title menu” may simply be called a “menu” or “title” in the instructions supplied with the disc.

Title Selection

Two or more titles are recorded on some discs. If the title menu is recorded on the disc, you can select the desired title.

Press TITLE during playback.

Title menu appears on the screen.

• Press TITLE again to resume playback at the scene when you pressed TITLE.

Press / or / to select the desired title.

Press OK or

The playback of the selected title will start.

DVD Menu

Some DVDs allow you to select the disc contents using the menu. When you play back these DVDs, you can select the subtitle language and sound-track language,etc. using the DVD menu.

Press DVD MENU during playback.

The DVD menu appears on the screen.

• Press DVD MENU again to resume playback at

the scene when you pressed DVD MENU.

Press / or / to select the desired item.

Press OK.

The menu continues to another screen. Repeat steps 2 and 3 to set the item completely.

Page 46

Parental control

Some discs are specified not suitable for children. Such discs can be prevented from play back with the unit.

Preparation:

• Turn ON the TV and set to the video input mode.

• Make sure TV/VCR/DVD switch has been slided to VCR/DVD. Then

press DVD to select the DVD mode. (The DVD indicator will light)

Parental control setting

Press SET UP MENU in the stop

mode. Press or to select “Operation”.

Press or to select

“Parental Lock”, then press OK.

Press or to select Off or On.

Off: The parental lock feature

does not function. After pressing OK (Enter), follow step 4 and 6 below.

On: To activate the parental lock

feature or change the setting, press

OK (Enter)

and follow steps 4-6 below.

TV Shape 4:3LB

Video Out Select

Pause/Still AutoOnOff

Parental Lock Off

Title Stop Off PBC On

Pause/Still AutoOnOff

Parental Lock Off

Title Stop Off PBC On


: Select : Enter

Operation

: Select : Enter

Operation

: Select : Enter

NOTES:

If each setup (page 46~55) has been

•

completed, the unit can always be worked under the same conditions (especially with DVD discs). Each setup will be retained in the memory if you turn the power off.

Depending on the discs, the unit can-

•

not limit playback. Some discs may not be encoded with

•

specific rating level information though its disc jacket says "adult". For those discs, the age restriction will not work. Do not forget the security code. If you

•

forget the security code, delete it. (See step 7 on next page)

Press number keys to input a

4-digits security code then press OK.

• If you input a wrong number, press CANCEL.

• To return to the before step, press RETURN.

Enter the code of a country/area

whose standards were used to rate the DVD disc. (See the list on the page 47)

Example: Set to GB (UNITED KINGDOM). Press or to select “G” then

press

to move to the right character. Then select “B” same as above. Then press OK (En- ter).

Operation Pause/Still Auto

Parental Lock Off

Title Stop Off PBC On

: Select : Enter

Operation Pause/Still AutoOnOff

Parental Lock Off

Title Stop Off PBC On

: Select : Enter

Off

Security Code

----

Area Code D E

Page 47

Parental control

Country/Area Code AUSTRALIA AU BELGIUM BE CANADA CA CHINA CN CHINA HONG KONG HK DENMARK DK FINLAND FI FRANCE FR GERMANY DE INDONESIA ID ITALY IT JAPAN JP

Country/Area Code NETHERLANDS NL NORWAY NO PHILIPPINES PH RUSSIAN FEDERATION RU SINGAPORE SG SPAIN ES SWEDEN SE SWITZERLAND CH TAIWAN TW THAILAND TH UNITED KINGDOM GB UNITED STATES US

MALAYSIA MY

Press / to select the paren-

tal lock level, then press OK (En- ter).

Pause/Still Auto

Parental Lock Off

Title Stop Off PBC On

Operation

: Select : Enter

Off

Area Code D E Level 7

You cannot play DVD discs rated higher than the level you selected unless you cancel the parental lock function. For example, when you select level 7, discs rated higher than level 7 are locked out and cannot be played.

• Level 1: DVD software for adults cannot be played back.

• Level 8: All DVD software can be played back.

• Select from the level 1 to level 8. The limitation will be more severe

as the level number is lower.

To make the SETUP screen disappear, press SET UP MENU.

To change the parental lock level Follow steps 1- 6.

To change your 4-digit security code

1) After selecting “On” or “Off” at step 3 press 3 four times, then

press OK (Enter). The 4-digit security code is deleted.

Press number keys to create a new 4-digit security code at step 4.

Page 48

Setting menu language

You can select the language of the disc menu messages of DVDs.

Preparation:

• Turn ON the TV and set to the video input mode.

• Make sure TV/VCR/DVD switch has been slided to VCR/DVD. Then

press DVD to select the DVD mode. (The DVD indicator will light)

Press SET UP MENU in the stop

mode. Press

or to select “Lan-

guage”.

Press

Menu Language”.

Press OK (ENTER).

Press

or to select “Disc

or to select your desired language, then press OK (ENTER).

TV Shape 4:3LB

Video Out Select Video

On-Screen Language ENG

Disc Menu Language ENG

Audio Language ENG Subtitle Language ENG

On-Screen Language ENG

Disc Menu Language EN

Audio Language ENG Subtitle Language ENG


: Select : Enter

Language

: Select : Enter

Language

: Select : Enter

English French German

Others

Code E N

English, French, German

The selected language is the first-priority Menu language.

Others: Other languages can be selected (See the Table of

languages on page 57).

Example:

Set to EN (ENGLISH). Press

or to select “E” then press to move to the right character. Then select “N” same as above. Then press OK (ENTER).

To make the SETUP screen disappear, press SET UP MENU.

Page 49

Setting audio soundtrack language

The same audio soundtrack language can always be selected by your unit even if you replace the disc or turn the power off.

Preparation:

• Turn ON the TV and set to the video input mode.

• Make sure TV/VCR/DVD switch has been slided to VCR/DVD. Then

press DVD to select the DVD mode. (The DVD indicator will light)

Press SET UP MENU in the stop

mode. Press or to select “Language”.

Press or to select “Audio

Language”.

Press OK (Enter).

Press

or to select your desired Audio Language, then press OK (Enter).

TV Shape 4:3LB

Video Out Select Video

Language On-Screen Language ENG Disc Menu Language ENG

Audio Language ENG

Subtitle Language ENG

Language

On-Screen Language ENG Disc Menu Language ENG

Audio Language EN

Subtitle Language ENG


: Select : Enter

English French German

Others

Code E N

: Select : Enter

NOTES:

• If the selected language is not recorded on the disc, the original language will be heard.

• Some DVD discs may be played in a different language than you selected. A prior language may be programmed on the disc.

English, French, German

The language you have selected will play if it is recorded on the disc.

Others: If you want to select another language, enter the lan-

guage code (See the Table of languages on page 57).

Example:

Set to EN (ENGLISH). Press

or to select “E” then press to move to the right character. Then select “N” same as above. Then press OK (Enter).

To make the SETUP screen disappear, press SET UP MENU.

Page 50

Setting subtitle language

The same subtitle language can always be selected even if you replace the disc or turn the power off.

Preparation:

• Turn ON the TV and set to the video input mode.

• Make sure TV/VCR/DVD switch has been slided to VCR/DVD. Then

press DVD to select the DVD mode. (The DVD indicator will light)

Press SET UP MENU in the stop

mode. Press

or to select

“Language”.

Press

or to select “Subtitle

Language”.

Press OK (Enter).

Press or to select your desired language, then press OK (Enter).

TV Shape 4:3LB

Video Out Select Video

On-Screen Language ENG Disc Menu Language ENG Audio Language ENG

Subtitle Language ENG

On-Screen Language ENG Disc Menu Language ENG Audio Language ENG

Subtitle Language EN


: Select : Enter

Language

: Select : Enter

Language

: Select : Enter

English French German No Subtitle

Others

Code E N

NOTES:

• If the selected language is not recorded on the disc, the first-priority language is selected.

• Some DVD discs may be set to display subtitles in a different language than you selected. A prior subtitle language may be programmed on the disc.

English, French, German

The subtitle is displayed with the selected language if it is recorded on the disc.

No Subtitle:

Subtitles do not appear.

Others: If you want to select another language, enter the

language code (See the Table of languages on page 57).

Example: Set to EN (ENGLISH).

Press or to select “E” then press to move to the right character. Then select “N” same as above. Then press OK (Enter).

To make the SETUP screen disappear, press SET UP MENU.

Page 51

Setting the aspect ratio of TV screen / Setting on Screen display

You can select the aspect ratio for your TV.

Preparation:

• Turn ON the TV and set to the video input mode.

• Make sure TV/VCR/DVD switch has been slided to VCR/DVD. Then

press DVD to select the DVD mode. (The DVD indicator will light)

Setting the aspect ratio of TV screen

Press SET UP MENU in the stop

mode. Press “Picture”, then press or

or to select

TV Shape 4:3LB

Video Out Select Video

to select “TV shape”.

Press OK (Enter).

Press desired screen type.

or to select your

TV Shape 4:3LB

Video Out Select Video

You have the following screen sizes to choose from:

4:3 Letterbox:

Select when a standard 4:3 TV is connected. Displays theatrical images with masking bars above and below the picture.

4:3 Normal:

Select when a standard 4:3 TV is connected. Displays pictures cropped to fill your TV screen. Either or both sides of the picture are cut off.

16:9 Widescreen:

Select this mode when connecting to a wide-screen TV. A wide screen picture is displayed full size.


: Select : Enter


: Select : Enter

4:3 Letterbox

4:3 Normal 16:9 Widescreen

NOTES:

• The displayable picture size is preset on the DVD video disc. Therefore, the playback picture of some DVD video discs may not conform to the picture size you select.

• When you play DVD video discs recorded in the 4:3 picture size only, the playback picture always appears in the 4:3 picture size regardless of the TV shape setting.

• If you select “16:9 widescreen” and you own a 4:3 TV set, the DVD playback picture will be horizontally distorted during playback. Images will appear to be horizontally compressed. Always be sure that your TV shape conforms to the actual TV in use.

To make the SETUP screen disappear, press SET UP MENU.

Setting on Screen display

Press SET UP MENU in the stop

mode. Press or to select “Display”

Press

Screen Displays”.

Press OK (Enter).

Press

or to select “On-

or to select “On” or

“Off”.

On: Operational modes (e.g.

On-Screen Displays On

Background Picture Screen Saver On

On-Screen Displays Off

Background Picture Screen Saver On

“ ”, “ ”) appear when you press the buttons (factory setting).

Off: Operational modes (e.g. “ ”, “ ”) do not appear when

you press any buttons.

To make the SETUP screen disappear, press SET UP MENU.

Display

: Select : Enter

Display

: Select : Enter

Off

Page 52

Audio

Karaoke Vocal On

Dynamic Range Control

Audio Out Select Bitstream

Analog 2ch PCM

Bitstream

: Select : Enter

Setting Audio

Audio

Karaoke Vocal Off

Dynamic Range Control

Audio Out Select Bitstream

: Select : Enter

Off

Preparation:

• Turn ON the TV and set to the video input mode.

• Make sure TV/VCR/DVD switch has been slided to VCR/DVD. Then

press DVD to select the DVD mode. (The DVD indicator will light)

Audio Out Select

Select the output sound format corresponding to your system connection. For details of sound recording systems, see on page 55.

Press SET UP MENU in the stop mode.

Press

Press or to select “Audio Out

Select”, then press OK (Enter). Press

or to select “Audio”.

or to select your desired output

sound.

Bitstream: Select when connected to an amplifier equipped with a Dolby

Digital, DTS, MPEG1 or MPEG2 decoder. The DVD/VCR outputs digital audio information in the bitstream format when you play a DVD video disc recorded on the Dolby Digital, DTS, MPEG1 or MPEG2 recording system.

Analog 2ch: Select when connected to a TV, Dolby Pro Logic or stereo

system

via the analog audio jacks.

PCM: Select when connected to a 2 channel digital stereo amplifier.

The DVD/VCR outputs sounds in the PCM 2ch format when you play a DVD video disc recorded on the Dolby Digital.

MPEG1 or

MPEG2 recording system.

To make the SETUP screen disappear, press SET UP MENU.

NOTES:

• The Dynamic Range Control function works only during playback of Dolby Digital recorded discs.

• The level of Dynamic Range Control may differ depending on the DVD video disc.

• The vocal output feature is used during playback of Dolby Digital (multi-channel) recorded DVD KARAOKE discs. This feature allows you to turn off vocal audio tracks, or restore them for background accompaniment.

• When playing KARAOKE, connect the appropriate audio equipment such as an amplifier to the DVD player.

Dynamic Range Control

Turn on or off a function that makes faint sounds easier to hear even if you lower the volume during late hours playback.

Press SET UP MENU in the stop

mode. Press

Press or to select “Dynamic

Range Control”, then press OK (Enter). Press

or to select “Audio”.

or to select “On” or “Off”.

Off: Full dynamic range is maintained. On: Dynamic range is reduced.

To make the SETUP screen disappear,

press SET UP MENU.

Karaoke Vocal

Turn on or off the vocal output during DVD KARAOKE disc playback.

Press SET UP MENU in the stop mode.

Press

Press or to select “Karaoke

Vocal”, then press OK (Enter). Press

or to select “Audio”.

or to select “On” or “Off”.

Audio Out Select BitstreamOnOff Dynamic Range Control

Karaoke Vocal Off

Audio

: Select : Enter

Off: The primary vocal is not output. On: The primary vocal is output when

it is recorded on the disc.

To make the SETUP screen disappear, press SET UP MENU.

Page 53

Setting Operation

Preparation:

• Turn ON the TV and set to the video input mode.

• Make sure TV/VCR/DVD switch has been slided to

VCR/DVD. Then press DVD to select the DVD mode. (The DVD indicator will light)

Pause/Still

Select the resolution of still pictures.

Press SET UP MENU

in the stop mode. Press

or to

select “Operation”.

Press or to

select “Pause/Still”, then press OK (Enter). Press

to select “Auto” or “Frame”, then press OK (Enter).

TV Shape 4:3LB

Video Out Select Video

Operation

Pause/Still Auto

Parental Lock Off Title Stop Off PBC On


: Select : Enter

Auto

Frame

: Select : Enter

Auto: For normal use. Still and fast motion images

can be paused.

Frame: The resolution of still pictures is improved,

so that you can make a motionless picture clearer when you pause it.

To make the SETUP screen disappear, press SET UP

MENU.

PBC

Press SET UP

MENU in the stop mode.

Press

or to

TV Shape 4:3LB

Video Out Select Video

select “Operation”.

Press or to select “PBC”, then press OK

(Enter). Press

or to select “On” or “Off”, then press

OK (Enter).

Operation Pause/Still Auto Parental Lock Off Title Stop Off

PBC On

Off: When playing a VIDEO CD without using

the menu.

On: To use the menu when playing a PBC-
