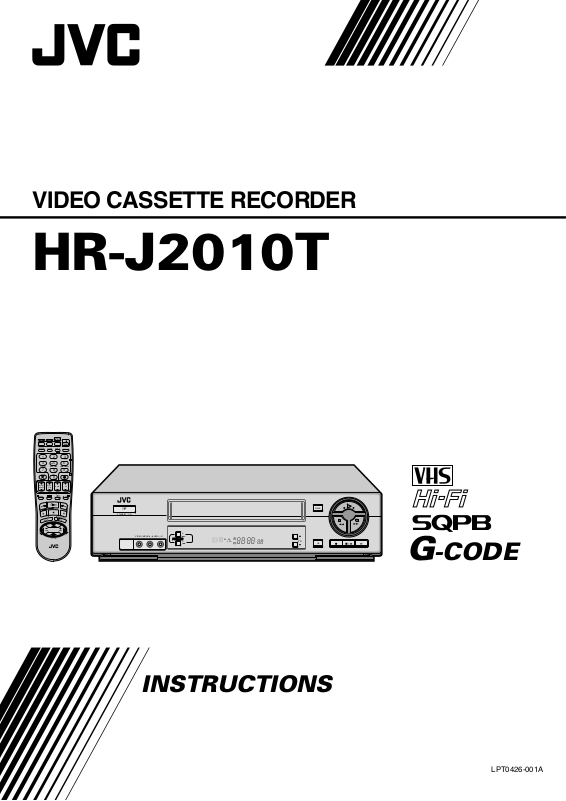

VIDEO CASSETTE RECORDER

HR-J2010T

CABLE/ SAT/DVD

VCR

AUDIO

TV/VCR

123

456

DAILY/QTDN.

WEEKLY/HEBDO

VPS/PDC

0000

AUX

STOP

START

DATE

FIN

DEBUT

EXPRESS

PROG

30 SEC

TV PR +

T V

–

TV PR –

STANDBY / ON

VIDEO (MONO)L—AUDIO—R

PUSH JOGPUSH JOG

–

SP EP

VCR

-CODE

INSTRUCTIONS

LPT0426-001A

2 EN

Dear Customer,

Thank you for purchasing the JVC VHS video cassette recorder. Before use, please read the safety information and precautions contained in the following pages to ensure safe use of your new VCR.

Failure to heed the following precautions may result in

WARNING:

TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS UNIT TO RAIN OR MOISTURE.

CAUTION:

This video cassette recorder should be used with AC 110V`, 60Hz only. To prevent electric shocks and fire hazards, DO NOT use any other power source.

CAUTION

 When you are not using the recorder for a long period of

time, it is recommended that you disconnect the power cord from the mains outlet.

 Dangerous voltage inside. Refer internal servicing to

qualified service personnel. To prevent electric shock or fire hazard, remove the power cord from the mains outlet prior to connecting or disconnecting any signal lead or aerial.

The STANDBY/ON button does not completely shut off mains power from the unit, but switches operating current

on and off. “ ” shows electrical power standby and “ ” shows ON.

damage to the VCR, remote control or video cassette.

1. DO NOT place the VCR ...

...in an environment prone to extreme temperatures or

humidity. ...in direct sunlight. ...in a dusty environment. ...in an environment where strong magnetic fields are

generated. ...on a surface that is unstable or subject to vibration.

2. DO NOT block the VCR’s ventilation openings.

3. DO NOT place heavy objects on the VCR or remote control.

4. DO NOT place anything which might spill on top of the VCR or remote control.

5. AVOID violent shocks to the VCR during transport.

**MOISTURE CONDENSATION

Moisture in the air will condense on the VCR when you move it from a cold place to a warm place, or under extremely humid conditions—just as water droplets form on the surface of a glass filled with cold liquid. Moisture condensation on the head drum will cause damage to the tape. In conditions where condensation may occur, keep the VCR’s power turned on for a few hours to let the moisture dry before inserting a tape.

**ABOUT HEAD CLEANING

Accumulation of dirt and other particles on the video heads may cause the playback picture to become blurred or interrupted. Be sure to contact your nearest JVC dealer if such troubles occur.

IMPORTANT

 Please read the various precautions on this page before

installing or operating the recorder.

 It should be noted that it may be unlawful to re-record

pre-recorded tapes, records, or discs without the consent of the owner of copyright in the sound or video recording, broadcast or cable programme and in any literary, dramatic, musical, or artistic work embodied therein.

G-CODE

is a registered trademark of Gemstar Development Corporation. The

G-CODE

Development Corporation.

DSS™ is an official trademark of DIRECTV, Inc., a unit of GM Hughes Electronics. PRIMESTAR is a registered service mark of Primestar Partners, L.P.DISH Network™ is a trademark of Echostar Communications Corporation.

 Cassettes marked "VHS" (or "S-VHS") can be used with this

video cassette recorder. However, S-VHS recording is not possible with this model.

 This model is equipped with SQPB (S-VHS QUASI PLAY-

BACK) that makes it possible to play back S-VHS recordings with regular VHS resolution.

 HQ VHS is compatible with existing VHS equipment.

system is manufactured under license from Gemstar

CONTENTS

EN 3

NSTALLING YOUR NEW VCR 4

Basic Connections .................................. 4

NITIAL SETTINGS 6

Plug & Play Setting ....................................... 6

Clock Setting................................................. 8

Tuner Setting .............................................. 10

Setting channels automatically

— Auto Channel Set .............................................10

Setting channels manually

— Manual Channel Set ........................................ 11

ASIC PLAYBACK AND

RECORDING 12

Basic Playback ........................................... 12

Basic Playback Features ............................. 13

Changing display information ..................................13

Checking tape position ............................................13

Playing back tape repeatedly

— Repeat Play......................................................13

Adjusting tracking condition

— Tracking Adjustments .......................................14

Selecting monitor sound

— Audio Monitor ................................................. 14

Automatic operations after rewinding

— Next Function Memory ....................................14

Locating beginning of recordings

— Index Search ....................................................15

Locating beginning of timer recordings

— Instant ReView.................................................15

Basic Recording .......................................... 16

Basic Recording Features ............................ 17

Changing display information ..................................17

Specifying recording length

— Instant Timer Recording (ITR)...........................17

Watching one program while recording another ......17

Showing on-screen display ......................................18

PECIAL EFFECT PLAYBACK 19

Special Effect Playback ............................... 19

Locating particular scene rapidly

— Picture Search .................................................. 19

7 High-Speed Picture Search ...............................19

7 Variable-Speed Picture Search .......................... 19

Viewing still picture

— Still Picture Playback .......................................20

Skipping unwanted portions

— Skip Search ......................................................20

Viewing still picture frame by frame

— Frame-by-Frame Playback ............................... 20

Viewing slow motion picture

— Slow Motion Playback .....................................20

IMER RECORDING 21

G-CODER Timer Programing ......................... 21

G-

Express Timer Programing .......................... 25

Useful Function Settings .............................. 29

Edit To Or From Another VCR ...................... 33

Edit From Camcorder .................................. 34

TV Brand Setting ......................................... 36

Multi-Brand Setting ..................................... 37

Changing Remote Control Code ................... 39

T I

CODE

System Setup ................................ 23

Checking program settings .......................................27

Canceling or changing program settings .................. 27

When programs overlap each other .........................28

THER USEFUL FUNCTIONS 29

7 B.E.S.T. ................................................................30

7 PICTURE CONTROL............................................30

7 AUTO TIMER .......................................................30

7 SUPERIMPOSE.....................................................30

7 AUTO SP=EP TIMER ..........................................31

7 VIDEO STABILIZER ..............................................31

7 BLUE BACK .........................................................31

7 2ND AUDIO RECORD ........................................32

7 AUDIO MONITOR ..............................................32

DITING 33

ULTI-BRAND REMOTE CONTROL 36

ROUBLESHOOTING 40

Questions and answers ............................................42

NDEX 43

List of terms .............................................................43

Front panel ..............................................................44

Front display panel ..................................................44

Rear panel ...............................................................45

On-screen display....................................................45

Remote ....................................................................46

PECIFICATIONS 47

4 EN

Basic Connections

INSTALLING YOUR NEW VCR

AC Power Cord

Back of VCR

VIDEO OUT

Antenna or Cable

AUDIO OUT

Coaxial Cable

Flat Feeder

Matching Transformer (not supplied)



ANT. IN (Antenna or Cable input)

PAU SE

OUT

ANT.IN

AUDIO

VIDEO

RF OUT

AC Outlet

RF OUT

Audio/Video Cable (not supplied)

To Audio/video input connectors

RF Cable (supplied)

To 75 Ω terminal

EN 5

Check contents

Make sure the package contains all of the accessories listed in “SPECIFICATIONS” ( pg. 47).

Situate VCR

Place the VCR on a stable, horizontal surface.

Connect VCR to TV

The following connections are required.

RF Connection

Disconnect the TV antenna from the TV.

Connect the TV antenna cable to the ANT. IN terminal on the rear of the VCR.

Connect the supplied RF cable between the RF OUT terminal on the rear of the VCR and the TV’s antenna input terminal.

AV Connection (improves picture quality during tape playback.)

If your TV is equipped with audio/video input connectors

Connect the antenna, VCR and TV as shown in the illustration.

Connect an audio/video cable between the AUDIO/VIDEO OUT connectors on the rear of the VCR and the audio/video input connectors on the TV.

Final preparation for use

You can now perform basic playback ( pg. 12) or basic recording ( pg. 16).

NOTES:

●

The VCR channel is the channel on which you can watch the picture from the VCR on the TV when only using the RF connection.

●

Even if you are using audio/video cables to connect your VCR to your TV, you must also connect it using the RF cable. This will ensure that you can record one show while watching another ( pg. 17).

●

For full identification of the VCR’s rear panel, refer to the Index (  pg. 45).

Connect VCR to power source

Connect the AC power plug to an AC outlet.

6 EN

– 4

Plug & Play Setting

INITIAL SETTINGS

The Plug & Play function simplifies installation by guiding you through the procedures of setting the clock and tuner channels–simply follow the on-screen menus that appear when the on the VCR after you connect the power plug to an AC outlet.

button is first pressed to power

Before starting...

● Connect the TV antenna cable to the ANT. IN jack on the

VCR and plug the power cord into the AC outlet.

● Turn on the TV and select the VCR channel 13 (or AV

mode).

5 61

STANDBY ON

VIDEO (MONO)L—AUDIO—R

PUSH JOG

–

SP EP

VCR

2 3 2

123

456

IMPORTANT

● Do not press any buttons on the VCR or Remote that are not directly related to the step you are performing while Plug & Play is in progress.

● If you perform Plug & Play successfully during installation, there's no need to separately perform the Clock Set or Channel Set procedures, but if adjustments become necessary they can be performed as follows:

– To reset or adjust the time ( pg. 8) – To add/delete channels manually ( pg. 11) – To reset the tuner after moving to a different location

( pg. 10, 11)

Perform Plug & Play setup

Press .

● The Clock Set screen appears.

Set time

On the front panel:

Press PR 5∞ to set the hour, then press OK.

On the Remote:

Press %ﬁ to set the hour, then press OK or

● Press and hold either button to delay or advance the time by 30 minutes.

CLOCK SET

TIME DATE YEAR

– –:– –AM 1/ 1 00

PRESS (5,∞), THEN (OK) PRESS (MENU) TO END

2 3

2 –

Set date

On the front panel: Press PR 5∞ to set the date, then press OK.

On the Remote: Press %ﬁ to set the date, then press OK or

● Press and hold either button to change the date by 15 days.

Set year

On the front panel: Press PR 5∞ to set the year.

On the Remote:

press %ﬁ to set the year.

Start auto channel set

Press MENU.

● Receivable channels in your area are automatically assigned to the PR 5∞ buttons, and non-receivable channels are skipped.

● If the tuner channels have been set properly "SCAN COMPLETED" will be displayed on the screen. If "NO SIGNAL" is displayed on the screen, make sure that the antenna cable is connected to the VCR properly and press OK on the front panel or will try Auto Channel Set again.

PRESS (MENU) TO END

on the Remote. The VCR

AUTO CHANNEL SET

SCANNING...

EN 7

Return to normal screen

Press MENU.

8 EN

– 4

Clock Setting

INITIAL SETTINGS (cont.)

Perform clock setting only if the clock has not been set correctly by the Plug & Play setting or if you use a cable box.

Turn on the VCR and the TV, and select the VCR channel 13 (or AV mode) on the TV.

STANDBY ON

VIDEO (MONO)L—AUDIO—R

PUSH JOG

–

SP EP

VCR

2 – 4 2

Access Main Menu screen

Press MENU.

Access Initial Set screen

On the front panel:

Press PR 5∞ to move the highlight bar (arrow) to “INITIAL SET”, then press OK.

On the Remote:

Press %ﬁ to move the highlight bar (arrow) to “INITIAL SET”, then press OK or

Select clock set

On the front panel:

Press PR 5∞ to move the highlight bar (arrow) to “CLOCK SET”, then press OK.

On the Remote:

Press %ﬁ to move the highlight bar (arrow) to “CLOCK SET”, then press OK or

MAIN MENU

FUNCTION SET TUNER SET

INITIAL SET

PRESS (5,∞), THEN (OK) PRESS (MENU) TO END

INITIAL SET

CLOCK SET

GUIDE CHANNEL SET

SELECT WITH (5,∞) AND (OK) PRESS (MENU) TO END

123

456

2 –

Set time

On the front panel:

Press PR 5∞ until the desired time appears, then press OK.

On the Remote:

Press %ﬁ until the desired time appears, then press OK or

● Holding PR 5∞ or %ﬁ changes the time in 30-

minute intervals.

TIME DATE YEAR

– –:– –AM 1/ 1 00

PRESS (5,∞), THEN (OK) PRESS (MENU) TO END

CLOCK SET

Set date

On the front panel:

Press PR 5∞ until the desired date appears, then press OK.

On the Remote:

Press %ﬁ until the desired date appears, then press OK or

● Holding PR 5∞ or %ﬁ to changes the date in

15-day intervals.

EN 9

STANDBY ON

VIDEO (MONO)L—AUDIO—R

PUSH JOG

–

SP EP

VCR

123

456

Set year

On the front panel: Press PR 5∞ until the desired year appears.

On the Remote:

Press %ﬁ until the desired year appears.

Start clock

Press MENU and normal screen appears.

5 5

To make corrections any time during the process

Press OK or # repeatedly until the item you want to change blinks, then press PR 5∞ or %ﬁ.

5 6

10 EN

Tuner Setting

Turn on the VCR and the TV, and select the VCR channel 13 (or AV mode) on the TV.

1 4

2 3 2

STANDBY ON

VIDEO (MONO)L—AUDIO—R

PUSH JOG

–

SP EP

VCR

123

456

INITIAL SETTINGS (cont.)

Setting channels automatically

— Auto Channel Set

Use Auto Channel Set only if channels have not been set correctly by the Plug & Play setting or if you use a cable box. If you want to add or delete channels, use Manual Channel Set ( pg. 11).

Access Main Menu screen

Press MENU.

Access Tuner Set screen

On the front panel:

Press PR 5∞ to move the highlight bar (arrow) to “TUNER SET”, then press OK.

On the Remote:

Press %ﬁ to move the highlight bar (arrow) to “TUNER SET”, then press OK or

Perform Auto Channel Set

You can automatically set the receivable channels in your area in the order of their frequencies.

On the front panel:

Press PR 5∞ to move the highlight bar (arrow) to “AUTO CHANNEL SET”, then press OK.

On the Remote:

Press %ﬁ to move the highlight bar (arrow) to “AUTO CHANNEL SET”, then press OK or

NOTES:

●

When Auto Channel Set is complete, “SCAN COMPLETED” appears on screen.

●

If the scan was unsuccessful, “SCAN COMPLETED– NO SIGNAL” appears on screen. Check the connections and start again.

Return to normal screen

Press MENU.

MAIN MENU

FUNCTION SET

TUNER SET

INITIAL SET

PRESS (5,∞), THEN (OK) PRESS (MENU) TO END

TUNER SET

BAND CATV

AUTO CHANNEL SET

MANUAL CHANNEL SET

SELECT WITH (5,∞) AND (OK) PRESS (MENU) TO END

AUTO CHANNEL SET

SCANNING...

PRESS (MENU) TO END

INFORMATION

The VCR selects the correct band (TV or CATV) automatically during Auto Channel Set. The selected band will be displayed on the right side of “BAND” on the Tuner Set screen.

EN 11

–

Setting channels manually

— Manual Channel Set

You can add the channels you want or delete the channels you do not want manually.

Access Main Menu screen

Press MENU.

STANDBY ON

VIDEO (MONO)L—AUDIO—R

PUSH JOG

–

SP EP

VCR

123

456

2 – 4 2

1 5

Access Tuner Set screen

On the front panel: Press PR 5∞ to move the highlight bar (arrow) to “TUNER SET”, then press OK.

On the Remote:

Press %ﬁ to move the highlight bar (arrow) to “TUNER SET”, then press OK or

Access Manual Channel Set screen

On the front panel:

Press PR 5∞ to move the highlight bar (arrow) to “MANUAL CHANNEL SET”, then press OK.

On the Remote:

Press %ﬁ to move the highlight bar (arrow) to “MANUAL CHANNEL SET”, then press OK or

BAND CATV AUTO CHANNEL SET

MANUAL CHANNEL SET

SELECT WITH (5,∞) AND (OK) PRESS (MENU) TO END

Add or skip desired channels

To add channels

On the Remote ONLY:

Press the Number keys to input a channel number you want to add.

Press OK or to “ADD”.

Repeat 1 and 2 to add other channels.

To skip channels

to set

MANUAL CHANNEL SET

PRESS NUMBER KEY (0–9)

OR (5,∞), THEN (OK)

PRESS (MENU) TO END

TUNER SET

(CATV)

CH 45 ADD

On the front panel:

2 –

Press PR 5∞ to select a channel number you want to skip.

Press OK to set to “SKIP”.

Repeat 1 and 2 to skip other channels.

On the Remote:

Press the Number keys or %ﬁ to input a channel number you want to skip.

Press OK or

Repeat 1 and 2 to skip other channels.

to set to “SKIP”.

Return to normal screen

Press MENU.

12 EN

Basic Playback

Turn on the VCR and the TV, and select the VCR channel 13 (or AV mode) on the TV.

STANDBY ON

VIDEO (MONO)L—AUDIO—R

PUSH JOG

–

SP EP

VCR

123

456

7 / 08

BASIC PLAYBACK AND RECORDING

Load a cassette

Make sure the window side is up, the rear label side is facing you and the arrow on the front of the cassette is pointing towards the VCR. Do not apply too much pressure when inserting.

● The VCR turns on automatically.

● The counter is automatically reset to “0:00:00”.

● If the cassette’s record safety tab has been

removed, playback begins automatically.

Start playback

Press 3.

● Tape speed (SP or EP) is automatically detected.

● If “B.E.S.T.” is set to “ON” (default setting: 

pg. 30), “B.E.S.T. PICTURE SYSTEM” appears on the screen, and this VCR checks the tape condition during automatic tracking.

To stop playback

Press 7 on the Remote or 7 / 0 on the front panel.

To pause playback

Press 8. To resume playback, press 3.

To rewind the tape

Press 1 – when the tape is not running.

To fast-forward the tape

Press ¡ – when the tape is not running.

To eject the tape

Press 7 / 0 on the front panel when the tape is not running.

● You can also eject the cassette with the VCR turned off.

To turn off the VCR

Press .

INFORMATION

This VCR is equipped with SQPB (S-VHS QUASI PLAYBACK) that lets you watch tapes recorded in the SVHS format with regular VHS resolution.

● SQPB does not deliver Super VHS resolution.

● S-VHS recording is not possible with this VCR.

Clean the video heads using a dry cleaning cassette — TCL-2UX — when:

• Rough, poor picture appears while a tape is played back.

• The picture is unclear or no picture appears.

• “USE CLEANING CASSETTE” appears on the screen (only with “SUPERIMPOSE” set to “ON”:  pg. 30.)

Usable cassettes

Full-Size VHS T-30 (ST-30**) T-60 (ST-60**) T-90 T-120 (ST-120**) T-160 (ST-160**) ST-210**

Compact VHS* TC-20 (ST-C20**) TC-30 (ST-C30**) TC-40 (ST-C40**)

* Compact VHS camcorder recordings can be

played on this VCR. Simply place the recorded cassette into a VHS Cassette Adapter and it can be used just like any full-sized VHS cassette.

** This VCR can record on regular VHS and Super

VHS cassettes. However, it will record regular VHS signals only.

Basic Playback

EN 13

Changing display information

Press – –:– – during playback.

Each time you press the button, the front display panel shows the time counter and the clock time alternately.

Features

STANDBY ON

VIDEO (MONO)L—AUDIO—R

0000

PUSH JOG

–

SP EP

VCR

123

456

–1, 2, 3

Time Counter

● To display the VCR status including the time counter

7 / 0

–b

and the clock time on the TV screen, see “Showing onscreen display” ( pg. 18).

To reset the time counter, press 0000 on the Remote. The counter reading becomes “0:00:00”. It is also reset when a tape is inserted.

Checking tape position

The tape position indicator appears on screen in the following cases:

● When you change the VCR operation mode from the stop mode to fast forward or rewind mode.

● When you perform an Index Search ( pg. 15) or Instant ReView ( pg. 15).

The position of “ (End) shows you where you are on the tape.

” in relation to “B” (Beginning) or “E”

Clock Time

+++

COUNT 0:33:27

NOTES:

●

"SUPERIMPOSE" must be set to “ON”, or the indicator will

–c

–2

not appear ( pg. 30).

●

It may take a few seconds for the tape position indicator to be displayed.

–a, b, c

–a

Playing back tape repeatedly

You can play back a tape repeatedly (100 times).

While playing back a tape, press and hold 3 for more than 5 seconds.

The play indicator ( flashing slowly, and a tape will be played back 100 times. To stop playback, press 7 on the Remote or 7 / 0 on the front panel.

Repeat Play

—

) on the front display panel starts

14 EN

BASIC PLAYBACK AND RECORDING (cont.)

Adjusting tracking condition

Tracking Adjustments

—

Automatic tracking adjustment

This VCR automatically adjusts the tracking condition. Whenever you insert a tape and start playback, automatic tracking starts working and continuously analyzes the signal to enable optimum picture quality during playback.

Manual tracking adjustment

If automatic tracking cannot eliminate noises well during playback, use the manual tracking following the procedures below.

● You can also use the manual tracking during slow motion playback ( pg. 20).

1 Activate manual tracking

Press PR 5 and ∞ on the front panel at the same time during playback.

2 Eliminate the noises on the TV screen

Press PR 5 and ∞ on the front panel (or PR + and – on the Remote).

● Press it briefly for a fine adjustment, or press and hold for coarse adjustment. Watch the screen and continue adjustment until optimum picture and sound quality are achieved.

3 Reactivate automatic tracking

Press PR 5 and ∞ on the front panel at the same time. The automatic tracking becomes active again.

Selecting monitor sound

Audio Monitor

—

You can select the desired monitor sound.

While playing back a tape on which stereo sound or bilingual sound is recorded, press AUDIO on the Remote.

Each time you press the button, sound changes as follows:

HI-FI

HI-FI: Normally select this.

Hi-Fi sound is played back. HI-FI L: Sound on the left Hi-Fi channel is played back. HI-FI R: Sound on the right Hi-Fi channel is played back. NORM:Sound on the normal track is played back. NORM

HI-FI: Both sounds on the Hi-Fi track and normal

track are mixed and played back.

NOTES:

●

The above indication appears when “SUPERIMPOSE” is set to “ON” ( pg. 30), though the monitor sound changes in

sequence.

●

If the tape being playback has no Hi-Fi sound track, the normal sound track will be played back regardless of this setting.

●

If RF connection ( pg. 5) is used for viewing pictures on the TV, sound will be monaural even though you select “HI-FI” .

●

You can also use the menu to select your desired monitor sound. ( pg. 32)

HI-FI L HI-FI R

NORM HI-FI

NORM

Automatic operations after

rewinding —

The Next Function Memory “tells” the VCR what to do after rewinding is complete.

● Ensure that the VCR is in stop mode.

a– For Automatic Playback Start

Press 1, then press 3 within 2 seconds.

b– For Automatic Power Off

Press 1, then press

c– For Automatic Timer Standby

Press 1, then press

Next Function Memory

within 2 seconds.

‰‰

‰ within 2 seconds.

‰‰

NOTE:

It is not possible to select the Automatic Timer Standby function if the cassette’s record safety tab is removed.

123

456

EN 15

Locating beginning of

recordings

Index codes are placed on the tape at the beginning of each recording when recording on this VCR. You can find and automatically play back from the beginning of any recording using the Index Search function.

1 Start search

While the tape is not running, press @ or # (4 or ¢) on the Remote.

2 Access distant code

To access a recording of 2 to 9 index codes away, press

or # (4 or ¢) repeatedly until the correct number is displayed on screen (only if “SUPERIMPOSE” is set to “ON”) (  pg. 30). Playback begins automatically when the desired

¡1

recording is located.

Beginning of the current program recorded

Previous program recorded

–1

— Index Search

Current position on the tape

Next program recorded

Beginning of the 2nd next program recorded

2nd next

2–23

The

4 ¢

same as the @ # buttons on the Remote.

Other Useful functions for playback

You can also use the following functions for recording.

● B.E.S.T. ( pg. 30)

When this function is set to “ON”, this VCR checks the condition of the tape in use during playback and recording, and compensates to provide the highest-possible playback pictures.

● Picture Control ( pg. 30)

This function helps you to adjust the playback picture quality according to your preference.

● Video Stabilizer ( pg. 31)

You can automatically correct vertical vibrations in the picture when playing back unstable recordings made on another VCR.

● Blue Back ( pg. 31)

When this function is set to “ON”, the TV screen becomes all blue in the following cases:

– When receiving a channel not in use. – When stopping playback.

buttons on the VCR’s front panel function the

● If you want to find the very beginning of the

desired program, press 1 or ¡ after playback starts.

NOTE:

An index code is not placed on the tape when recording is resumed from recording pause.

Locating beginning of timer

recordings

At the press of a button, you can turn on the VCR, rewind the tape and begin to view the most recent timerrecorded program.

Press VCR is in the timer recording standby mode.

● The VCR turns on, and rewinds to the index code indicating the beginning of the last timer-recorded program, then begins playback automatically.

● You can access a program of 2 to 9 index codes away from the current position on the tape. If, for example, you have 5 programs recorded and you want to watch the third one, press

● If you want to find the very beginning of the desired program, press 1 or ¡ after playback starts.

● If the tape is already rewound when pressed, it will play the tape from the beginning. It will not fast-forward to an index code.

● The Instant ReView function will also operate if the VCR is turned on.

on the Remote after ensuring that the

— Instant ReView

three times.

16 EN

Basic Recording

Turn on the VCR and the TV, and select the VCR channel 13 (or AV mode) on the TV.

1¡3

STANDBY / ON

VIDEO (MONO)L—AUDIO—R

TV/VCR

PUSH JOG

–

SP EP

VCR

123

456

8 7

7 / 08

–b

–a

BASIC PLAYBACK AND RECORDING (cont.)

Load a cassette

Make sure the record safety tab is intact. If not, cover the hole with adhesive tape before

inserting the cassette.

Select recording channel

On the front panel: Press PR 5∞.

On the Remote: a– Press PR + or –.

b– Press the Number keys.

● If you connect the TV and the VCR only using

the RF connection, press TV/VCR on the Remote so that the VCR mode indicator lights on the front

display panel to view the program to be recorded.

Set tape speed

On the Remote ONLY:

Press

Start recording

On the front panel:

Press ¶.

On the Remote:

While holding ¶, press 3.

● If “B.E.S.T.” is set to “ON” (default setting:  pg. 30), this VCR checks the tape condition for about seven seconds, then starts recording. (This means that the first seven seconds of the program will not be recorded.) If this is inconvenient for you, follow the steps below:

1 2

To pause recording

Press 8. To resume recording, press 3.

To stop recording

Press 7 on the Remote or 7 / 0 on the front panel.

To rewind the tape

Press 1 – when the tape is not running.

To fast-forward the tape

Press ¡ – when the tape is not running.

To eject the tape

Press 7 / 0 on the front panel when the tape is not running.

● You can also eject the cassette with the VCR turned off.

To turn off the VCR

Press .

(SP/EP) to set the recording speed.

Press ¶ and 8 to start B.E.S.T. Then press 3 to start recording after B.E.S.T. is complete.

It may be unlawful to record or play back copyrighted material without the consent of the copyright owner.

Accidental erasure prevention

To prevent accidental recording on a recorded cassette, remove its record safety tab. To record on it later, cover the hole with adhesive tape.

Record safety tab

Basic Recording Features

EN 17

Changing display information

Press – –:– – on the Remote during recording or recording pause.

Each time you press the button, the front display panel shows the time counter, channel number and the clock time in sequence.

Time Counter

Clock Time

Channel No.

STANDBY ON

VIDEO (MONO)L—AUDIO—R

–1

0000

PUSH JOG

–

SP EP

VCR

123

456

7 / 0

● To display the VCR status including the time counter, channel number, and the clock time on the TV screen, see “Showing on-screen display” ( pg. 18).

To reset the time counter, press 0000 on the Remote. The counter reading becomes “0:00:00”. It is also reset when a tape is inserted.

Specifying recording length

Instant Timer Recording (ITR)

—

You can easily specify the recording length from 30 minutes to 6 hours and the VCR shuts off after recording is finished.

During recording, press ¶ on the front panel repeatedly until the recording length you want appears on the front display panel.

The

(record) indicator starts flashing. Each time you press the button, recording length increases in 30-minute intervals (up to 6 hours).

To cancel an ITR, press 7 on the Remote or 7 / 0 on the front panel.

Watching one program while

recording another

1 Engage TV mode

During recording...

● If you connect the TV and the VCR only using the RF connection ( pg. 5) to view pictures from the VCR, press TV/VCR on the Remote so

that VCR mode indicator goes off from the front display panel. The TV broadcast being recorded disappears.

● If you are using the AV connection ( pg. 5) to view pictures from the VCR, change the TV’s

input mode from AV to TV.

2 Select channel for viewing

Select the channel, you want to watch on the TV.

18 EN

Showing on-screen display

When “SUPERIMPOSE” is set to “ON” ( pg. 30), you can see the current VCR status on the TV screen.

● For more detailed information about the on-screen display, see page 45.

1 Display VCR status on

TV screen

During recording or recording pause, press – –:– – on the Remote. All indications corresponding to the current VCR status are displayed for 5 seconds. The time counter remains on the screen indicating the elapsed time.

● The indications are not recorded.

2 Erase on-screen display

Press – –:– – on the Remote again.

NOTES:

●

If the VCR is in recording pause mode, “RECORD/PAUSE” is always displayed.

●

The VCR status can be also displayed during playback.

CH 125 RECORD THU 12:00 AM PAUSE STEREO ] SP SAP

+++

NORM HI–FI COUNT –1:23:45

INDEX-1

BASIC PLAYBACK AND RECORDING (cont.)

Other useful function for recording

You can also use the following function for recording.

● Recording Resume Function

If there is a power outage during recording (or Instant Timer Recording, or timer recording), the recording will resume automatically when the power is restored to the VCR. (No setting is required for this function.)

● B.E.S.T. ( pg. 30)

When this function is set to “ON”, this VCR checks the condition of the tape in use during playback and recording, and compensates to provide the highestpossible pictures.

● Second Audio Recording ( pg. 32)

This VCR’s built-in MTS decoder enables reception of Multichannel TV Sound broadcast.

To record a SAP program received, set “2ND AUDIO RECORD” to “ON” using the menu screen.

NOTES:

When the channel is changed on the VCR;

●

The “STEREO” indication appears on the screen for about 5 seconds if the program is a stereo broadcast.

●

The “SAP” indication appears on the screen for about 5 seconds if the program is a SAP broadcast.

●

Both indication appear when a stereo program is accompanied by SAP sound.

SPECIAL EFFECT PLAYBACK

Special Effect Playback

A A

STANDBY ON

VIDEO (MONO)L—AUDIO—R

PUSH JOG

–

SP EP

VCR

EN 19

Locating particular scene

rapidly

7 High-Speed Picture Search:

Possible during normal playback or still picture playback. You can rapidly locate a particular scene on the tape.

To do forward picture search, press . To do reverse picture search, press

● If you press and hold the button for more than 2 seconds, simply releasing it cancels the picture search, and normal playback resumes.

To resume normal playback, press 3.

7 Variable-Speed Picture Search:

You can change the speed of picture search.

— Picture Search

4¢ PR 5∞

123

456

PR +/–

A A

How to use the PUSH JOG buttons: To do forward picture search, press

Each time you press the button, the search speed increases.

● To decrease the speed while forward picture search (toward normal playback, then reverse picture search), press

repeatedly.

To do reverse picture search, press Each time you press the button, the search speed increase while reverse picture search.

● To decrease the speed while reverse picture search (toward normal playback, then forward picture search), press

repeatedly.

To resume normal playback, press 3.

repeatedly.

(

The

4 ¢

buttons on the VCR’s front panel function the

same as the @ # buttons on the Remote.)

–2

20 EN

SPECIAL EFFECT PLAYBACK (cont.)

Viewing still picture

—

Still Picture Playback

Press 8 during normal playback.

Playback is frozen and a still picture appears.

To resume normal playback, press 3.

NOTE:

To obtain a noiseless still picture, it may be necessary to adjust tracking in slow motion playback before starting still picture playback.

Skipping unwanted portions

—Skip Search

You can skip over (view at high speed) unwanted portions of the tape.

Press 30 SEC playback.

Each press initiates a 30-second period of high speed playback (up to 2 minutes). When the specified portion of the tape is skipped, normal playback resumes automatically.

To return to normal playback during Skip Search, press 3.

on the Remote once to 4 times during

Viewing slow motion picture

— Slow Motion Playback

During normal playback:

● Press

to decrease the playback speed. Each time you press the button, the speed decreases (toward reverse slow motion playback, then reverse picture search).

● Holding 8 for more than 2 seconds also starts forward

slow motion playback.

To resume normal playback, press 3.

During still picture playback:

● Press and hold slow motion playback. When you release the button, slow motion playback stops and a still picture appears.

● Holding 8 for more than 2 seconds also starts forward slow motion playback.

To resume normal playback, press 3.

NOTE:

Manual tracking is possible during slow motion playback. During slow motion playback, simply press PR 5 and ∞ on the front panel or

to start forward (or @ to start reverse)

PR +

or – on the Remote to adjust tracking.

Viewing still picture frame by

—

frame

Frame-by-Frame Playback

1 Pause during playback

Press 8. Playback is frozen and a still picture appears.

2 Advance or reverse still picture

To advance a still picture, press # on the Remote (or 8) repeatedly. To reverse a still picture, press repeatedly.

To resume normal playback, press 3.

on the Remote

TIMER RECORDING

G-CODER Timer Programing

Turn on the VCR and the TV, and select the VCR channel 13 (or AV mode) on the TV.

STANDBY / ON

VIDEO (MONO)L—AUDIO—R

PUSH JOG

–

SP EP

VCR

EN 21

Timer recording allows you to program the VCR to automatically record a broadcast at some future time. Up to 8 timer recording programs can be made using G-

CODE timer programing or Express timer programing

method (墌 pg. 25) as far as a year in advance. The G-

CODE timer programing system eliminates the need

to input channel, date, start and stop time data when programing timer recording settings. Simply key in the G-

CODE number for the TV broadcast you wish to record

and the VCR’s timer will be automatically programed. (The G-

CODE programing numbers are the numbers next

to the program in most TV listing.)

Load a cassette

Make sure the record safety tab is intact. If not, cover the hole with adhesive tape, then load it into the VCR.

● The VCR turns on, and the counter is reset, automatically.

Access G-CODE program screen

Press PROG on the Remote.

● The clock must be set to access the Gprogram screen. If you have not set the clock, the Main Menu screen appears after an error message is displayed. Refer to page 6 for the Plug & Play setting or page 8 for the clock setting procedure.

CODE

G-CODE

PRESS NUMBER KEY (0–9) PRESS (+/–) TO SET

EXPRESS PROGRAMMING

PRESS (PROG.) TO END

DAILY

STOP +/–

123

456

3 4

WEEKLY

8 4

3 4

Enter G-CODE number

Press the appropriate Number keys to input the G-

CODE number

printed in the TV listings for the TV broadcast you wish to record, then press OK.

Then; If the Guide Channel Set screen appears

— go to step 4.

If the G-

● To make corrections, press and input the

CODE Program screen appears

— go to step 5.

correct G-

CODE number.

G-CODE

123

PRESS NUMBER KEY (0–9)

PRESS (PROG.) TO END

THEN (OK)

22 EN

TIMER RECORDING (cont.)

Input receiving channel number

The guide channel number, which is assigned to the TV or cable station for the G-

CODE number that

you entered in step 3, will appear automatically on the Guide Channel Set screen. Press the Number keys (or PR +/– or %ﬁ) to input the number of the channel on which the broadcast for the Gthen press OK the VCR or cable box.

● The Guide Channel Set screen appears only when you input the Gfor which the guide channel number has not been set previously.

CODE number is received on,

GUIDE CHANNEL SET

GUIDE CH: 12

VCR CH : –––

PRESS NUMBER KEY (0–9)

OR (5,∞), THEN (OK)

PRESS (PROG.) TO END

CODE number of a station

Check program data

The G-CODE number you entered and the corresponding timer recording program is displayed on the Program screen. Check to make sure it is accurate.

● To change the stop time, press STOP +/–.

● To timer-record daily

(Monday–Friday) or weekly serials, press DAILY (number “8”) or WEEKLY (number

“9”). “DAILY” or “WEEKLY” appears on

the Program screen. Pressing the button again makes each corresponding display disappear.

● If you made a mistake, press to access the G-

CODE program screen again and input the

correct G-

● If an incorrect Gbroadcast already finished has been inputted, “ERROR” is displayed for about 5 seconds, then the G-

CODE number.

CODE number or the one for a

CODE program screen reappears.

(G-CODE 12345678)

START STOP 8:00PM = 10:00PM DATE CH

12/24/00 12 SP

SAT PRESS (8=DAILY, 9=WEEKLY STOP+/– = STOP TIME, SP/EP) PRESS (PROG.) TO END

PROGRAM 1

Return to normal screen

Press PROG or OK. “PROGRAM COMPLETED” appears on the screen for about 5 seconds, then normal screen appears.

• If “PROGRAM NOT COMPLETED PROGRAM OVERLAP” appears, you have another program overlapping the program you have just made. The Program Check screen appears and conflicting programs will start blinking. You can now correct the conflicting programs. See “When programs overlap each other” on page 28.

Engage timer recording standby mode

To use the VCR while it is in timer recording standby mode

Press then press DO NOT forget to put the VCR into timer recording standby mode again by pressing you cannot record the broadcasts you want.

● When “AUTO TIMER” (墌 pg. 30) is set to “ON”, the timer recording standby mode is automatically engaged when the VCR is turned off. It is temporarily canceled when the VCR is turned on. You do not have to press to engage or disengage the timer recording standby mode.

IMPORTANT

If you have moved to a different area or if a broadcasting station’s channel number has been changed, the wrong VCR CH or CABLE CH number will be displayed on the Program screen in step 5. When this happens, set the correct guide channel number for that station. (墌 pg. 23, “G-CODE System Setup”)

‰‰

Press

‰.

‰‰

The VCR turns off automatically and “‰” is displayed on the front display panel.

‰‰

‰ to cancel the timer recording standby mode,

‰‰

to turn on the VCR.

‰‰

‰ after you use the VCR; otherwise,

‰‰

‰

‰‰

Set tape speed

Press (SP/EP).

NOTES:

●

Even if a power failure occurs, the VCR keeps your timer programs. In case of a power failure after programing, the VCR's memory backup keeps your selections for approx. 3 minutes.

●

To timer-record cable channels received through a cable box, be sure to keep the cable box turned on.

EN 23

–

G-CODE System Setup

Turn on the VCR and the TV, and select the VCR channel 13 (or AV mode) on the TV.

1 6

4 5

STANDBY ON

VIDEO (MONO)L—AUDIO—R

PUSH JOG

–

SP EP

VCR

2 – 5

123

456

IMPORTANT

If you have moved to a different area or if a broadcasting station’s channel number has been changed, the wrong VCR CH or CABLE CH number will be displayed on the G-CODE Program screen (墌 step 5 on page 22). When this happens, perform the following steps to set the correct guide channel number for that station.

To ensure that G-CODE timer recording operates correctly, it is necessary to set the Geach station. Read the following information carefully.

CODE guide channel matching

G-

The G-

CODE programing system assigns a G-CODE guide

channel to the TV channels and the cable channels. These guide channel numbers are also called the Gchannel codes. Most TV listings have a section, usually a chart, indicating the guide channel numbers assigned to each station. For accurate G-

CODE guide channel number for each station should

match the channel number on which it is received in your area.

CODE “Guide Channel Set” for

CODE

CODE programing, the G-

NOTES:

●

In many instances, the G-CODE guide channel numbers for cable and broadcast TV stations DO NOT match the channel number on which it is received by your VCR or cable box. Check your TV listing, or contact your cable supplier for details.

●

Many TV stations can be viewed on cable. Check your TV listing, or contact your cable supplier for details.

2 –

24 EN

TIMER RECORDING (cont.)

Access Main Menu screen

Press MENU.

Access Initial Set screen

On the front panel:

Press PR 5∞ to move the highlight bar (arrow) to “INITIAL SET”, then press OK.

On the Remote:

Press %ﬁ to move the highlight bar (arrow) to “INITIAL SET”, then press OK or

FUNCTION SET TUNER SET

INITIAL SET

PRESS (5,∞), THEN (OK) PRESS (MENU) TO END

Access Guide Channel Set screen

On the front panel:

Press PR 5∞ to move the highlight bar (arrow) to “GUIDE CHANNEL SET”, then press OK.

On the Remote:

Press %ﬁ to move the highlight bar (arrow) to “GUIDE CHANNEL SET”, then press OK or

CLOCK SET

GUIDE CHANNEL SET

SELECT WITH (5,∞) AND (OK) PRESS (MENU) TO END

MAIN MENU

INITIAL SET

Input receiving channel number

On the front panel:

Press PR 5∞ to select the number of the channel on which the guide channel’s broadcast are received, then press OK.

On the Remote:

Press the Number keys or %ﬁ to input the number of the channel on which the guide channel’s broadcasts are recerved, then press OK or

● Repeat steps 4 and 5 for each instance.

(EX.) If WNJU (Ind.) is received on channel 47

GUIDE CHANNEL SET

GUIDE CH : 6

VCR CH : 47

PRESS NUMBER KEY (0-9) OR (5,∞), THEN (OK) PRESS (MENU) TO END

Return to normal screen

Press MENU.

Input guide channel number

On the front panel:

Press PR 5∞ to select the G-

CODE guide

channel number as shown in the TV listing, then press OK.

On the Remote:

Press the Number keys or %ﬁ to input the G-

CODE guide channel

number as shown in the TV listing, then press OK or

(EX.) When inputting the guide channel number 6 for WNJU (Ind.)

GUIDE CHANNEL SET

GUIDE CH : 6

VCR CH : – – –

PRESS NUMBER KEY (0-9) OR (5,∞), THEN (OK) PRESS (MENU) TO END

Express Timer Programing

Turn on the VCR and the TV, and select the VCR channel 13 (or AV mode) on the TV.

STANDBY / ON

VIDEO (MONO)L—AUDIO—R

PUSH JOG

–

SP EP

VCR

EN 25

You can directly program the VCR’s timer to record up to 8 broadcasts, as far as a year in advance. Remember, the clock must be set before you program the timer (墌 pg. 6 or 8).

Load a cassette

Make sure the record safety tab is intact. If not, cover the hole with adhesive tape, then load the it into the VCR.

● The VCR turns on, and the counter is reset, automatically.

Access G-CODE program screen

Press PROG.

Access Program screen

Press START +/–. (If no program is stored, “PROGRAM 1” appears.)

PROGRAM 1

START STOP

– –:– –AM = – –:– –AM

DATE CH

– –/– –/– –– – – SP

PRESS (+/–, SP/EP, 8=DAILY,

9=WEEKLY), THEN (0K)

PRESS (PROG.) TO END

DAILY

123

456

Set program start time

Press START +/– repeatedly to enter the time you want recording to start.

● Press and hold START +/– to increase the

time in 30-minute intervals.

Set program stop

WEEKLY

time

Press STOP +/– repeatedly to enter the time you want recording to stop.

● Press and hold STOP +/– to increase the time in 30-minute intervals.

PROGRAM 1

START STOP

8:00 AM = – –:– –AM

DATE CH

– –/– –/– –– – – SP

PRESS (+/–, SP/EP, 8=DAILY,

9=WEEKLY), THEN (0K)

PRESS (PROG.) TO END

Set program date

Press DATE +/–. (The current date is displayed on the screen. The date you enter appears in its place.)

Set channel number

Press PR +/–.

● Holding down PR +/– rapidly changes the channel numbers.

● If you receive your programs through a cable box, select the cable box output channel — the channel on which you view the cable box programs on the TV.

Set tape speed

Press (SP/EP) to set the tape speed.

26 EN

TIMER RECORDING (cont.)

Return to normal screen

Press PROG or OK. “PROGRAM COMPLETED” appears on the screen for about 5 seconds, then normal screen appears.

Engage timer recording standby mode

To timer-record daily (Monday–Friday) or weekly serials

Press DAILY (number “8”) or WEEKLY (number “9”) anytime during steps 3 through 8. “DAILY” or “WEEKLY” appears on the Program screen.

● Pressing the button again makes the corresponding indication disappear.

‰‰

Press

‰.

‰‰

The VCR turns off automatically and “‰” is displayed on the front panel display.

NOTES:

●

Even if a power failure occurs, the VCR keeps your timer programs. In case of a power failure after programing, the VCR's memory backup keeps your selections for approx. 3 minutes.

●

Programs that start after midnight must have the next day’s date.

●

After timer recording is completed, the VCR turns off automatically.

●

You can program the timer recording while a regular recording is in progress; the menu screens will not be recorded.

●

If the tape reaches its end during timer recording, the cassette is automatically ejected.

●

To timer-record cable channels, be sure to keep the cable box turned on with the correct channel selected.

To use the VCR while it is in timer recording standby mode

‰‰

Press

‰ to cancel the timer recording standby mode,

‰‰

then press DO NOT forget to put the VCR into timer recording standby mode again by pressing VCR; otherwise, you cannot record the broadcast you want.

to turn on the VCR.

‰‰

‰ after you use the

‰‰

‰ to engage or disengage the timer recording

‰‰

EN 27

Turn on the VCR and the TV, and select the VCR channel 13 (or AV mode) on the TV.

B C

–2

–3

123

456

A–1B B–2C

A B

–2, 3

–3

–1

–2

–3

Checking program settings

1 Disengage timer

‰‰

Press

‰, then press .

‰‰

● When “AUTO TIMER” (墌 pg. 30) is set to “ON”, you do not have to press

2 Access Program Check screen

Press .

–4

3 Access Program screen

–3

Press again to check more detailed information. Each time you press program’s Program screen appears. When all Program screens are shown, normal screen resumes.

Canceling or changing program

settings

‰‰

‰.

‰‰

PR START STOP CH DATE 1 8:00P 10:00 12 12/24 2 10:00A 10:45 40 12/25 3 11:30P 1:00 125 12/25 4 5 6 7 8

PRESS (CHECK) TO NEXT

, the next

–2

Other useful functions for timer recording

You can also use the following functions for timer recording.

● Auto Timer (墌 pg. 30)

When “AUTO TIMER” is set to “ON”, the timer recording standby mode is automatically engaged when the VCR is turned off. It is temporarily canceled when the VCR is

turned on. You do not have to press disengage the timer recording standby mode.

● Auto SP = EP Timer (墌 pg. 31)

If there is not enough tape to record the entire broadcast for recording in SP mode, the VCR automatically switches to EP mode to allow complete recording. This feature is especially handy when recording a broadcast of more than 2 hours in length.

‰‰

‰ to engage or

‰‰

1 Access Program screen

Repeat steps 1 to 3 in A above.

2 Cancel or change program setting

To cancel a program, press when the Program screen you do not want is shown.

To change a program, press the appropriate button: START +/–, STOP +/–, DATE +/–, PR +/–, and/or

(SP/EP) when the Program screen on which

you want to make changes is shown.

3 Return to normal screen

Press as many times as necessary until no Program screen is shown.

4 Reengage timer recording standby mode

‰‰

Press

‰.

‰‰

● When “AUTO TIMER” (墌 pg. 30) is set to “ON”, the timer recording standby mode automatically resumes when you turn off the VCR.

28 EN

10:00

11:00

12:00

TIMER RECORDING (cont.)

When programs overlap each

other

If “PROGRAM NOT COMPLETED PROGRAM OVERLAP” appears, you have another program overlapping the program you have just made. The Program Check screen appears and conflicting programs will start blinking.

PR START STOP CH DATE

1 8:00P 11:00 12 12/24

PROGRAM NOT COMPLETED

PROGRAM OVERLAP

2 10:00A 10:45 40 12/25 3 11:30P 1:00 125 12/25 4 9:00P 10:00 10 12/24 5 6 7 8 (5,∞), THEN (3) (PROG.) : END

EX. Program 1 (you have just made) and Program 4 overlap each other

1 Confirm overlapping programs

Overlapping programs blink on the screen.

2 Select program to modify

Press %ﬁ, then press #.

• You can only select one of the overlapping programs.

ATTENTION

If there is a conflict in the timer schedule and one program overlaps with another, only the parts shown below in gray will be recorded.

Pattern 1: The program with the lower program

number will be recorded.

Program 1 Program 2

Pattern 2: The program starting earlier will be

Pattern 3: The program starting earlier will be

Program 1

10:00

recorded.

10:00

Program 1

Program 2

recorded, followed by the remaining portion of the other program.

11:00

CH10

CH40 Not recorded

11:00

CH10

CH40

CH10

Program 2

Not recorded

12:00

Not recorded

CH40

NOTE:

If you do not mind this overlap, press timer program setting. See “ATTENTION” to the right. Without doing anything for about 1 minutes, the VCR will finish the timer programing.

PROG

to finish the

3 Cancel or change program setting

To cancel a program,

press

when the Program screen you do not want is shown. “PROGRAM COMPLETED” appears on the screen for about 5 seconds, then normal screen appears.

To change a program, press the appropriate button: START +/–, STOP +/–, DATE +/–, PR +/–, and/or (SP/EP) when the Program screen on which you want to make changes is shown, then press OK.

“PROGRAM COMPLETED” appears on the screen for about 5 seconds, then normal screen appears.

NOTE:

If the overlap is not yet solved or another overlap occurs with the timer program setting made last after making correction on a program, the conflicting programs will be shown on the Program Check screen again. Repeat the above steps again until the overlap is solved.

PROGRAM 4

START STOP 9:00 PM = 10:00PM DATE CH

12/24/00 10 SP

SUN

PRESS (CANCEL) TO CANCEL

PRESS (OK) TO CONFIRM

PRESS (PROG.) TO END

OTHER USEFUL FUNCTIONS

–

Useful Function Settings

Turn on the VCR and the TV, and select the VCR channel 13 (or AV mode) on the TV.

1 5

STANDBY ON

VIDEO (MONO)L—AUDIO—R

PUSH JOG

–

SP EP

VCR

2 3

123

456

EN 29

You can use the other useful function settings on the Function Set screen by following the procedure described below.

● For the functions you can set on the Function Set screen, see pages 30 to 32.

Access Main Menu screen

Press MENU.

Access Function Set screen

On the front panel:

Press PR 5∞ to move the highlight bar (arrow) to “FUNCTION SET”, then press OK.

On the Remote:

Press %ﬁ to move the highlight bar (arrow) to “FUNCTION SET”, then press OK or

Select Function

On the front panel:

Press PR 5∞ to move the highlight bar (arrow) to the function you want to set.

On the Remote:

Press %ﬁ to move the highlight bar (arrow) to the function you want to set.

FUNCTION

B.E.S.T. ON

PICTURE CONTROL AUTO AUTO TIMER OFF SUPERIMPOSE ON AUTO SP

=EP TIMER OFF

VIDEO STABILIZER OFF

NEXT PAGE SELECT WITH (5,∞) AND (OK) PRESS (MENU) TO END

Change setting

On the front panel: Press OK.

On the Remote: Press OK or #.

Return to normal screen

Press MENU.

MAIN MENU

FUNCTION SET

TUNER SET INITIAL SET

PRESS (5,∞), THEN (OK) PRESS (MENU) TO END

BLUE BACK ON

2ND AUDIO RECORD OFF AUDIO MONITOR HI-FI

SELECT WITH (5,∞) AND (OK) PRESS (MENU) TO END

30 EN

OTHER USEFUL FUNCTIONS (cont.)

*The default setting is bold in the table below.

䡵 B.E.S.T. (Biconditional Equalized

Signal Tracking)

OFF

䡵 PICTURE CONTROL

AUTO (NORM):

EDIT: Minimizes picture

SOFT: Reduces image

SHARP: Clearer, sharper-edged

Normally select this. Picture quality is adjusted automatically. When “B.E.S.T.” is “OFF”, “NORM” will appear instead of “AUTO”.

degradation during editing (recording and playback).

coarseness when viewing overplayed tapes containing much noise.

picture when viewing images with much flat, same-colored surfaces such as cartoons.

When this function is set to “ON”, this VCR checks the condition of the tape in use during playback and recording, and compensates to provide the highest-possible playback pictures. This takes place whenever you play back a tape or start recording after inserting a tape.

NOTES:

●

During playback, this function is always working even though “B.E.S.T. PICTURE SYSTEM” appears just at the beginning of automatic tracking.

●

During recording, this function works only for the first EP recording and the first SP recording on an inserted tape. For timer recording, this function checks the tape condition both for the SP recording and the EP recording before the first timer recording starts.

●

When you play back rental tapes or tapes recorded on other VCRs, set this function either “ON” or “OFF” whichever gives you the best picture.

This function helps you to adjust the playback picture quality according to your preference.

NOTES:

●

When you select “EDIT”, “SOFT” or “SHARP”, the selected mode will not change until you select again.

●

Select "EDIT" when you are dubbing tapes (墌 pg. 33). After you finish dubbing the tapes, select “AUTO” (“NORM” when “B.E.S.T.” is “OFF”).

䡵 AUTO TIMER

OFF

䡵 SUPERIMPOSE

OFF

● When this function is set to “ON”:

The timer recording standby mode is automatically engaged when the VCR is turned off. It is temporarily canceled when the VCR is turned on. You do not have to press recording standby mode.

● When this function is set to “OFF”:

For safety, all buttons except timer recording standby mode. To use the VCR as usual, press

When this function is set to “ON”, various VCR status information (onscreen display) appears on the screen.

‰‰

‰ to engage or disengage the timer

‰‰

‰ are disabled while the VCR is in the

‰‰

‰.

‰‰

NOTES:

●

When you use this VCR as the playback VCR for editing a tape, be sure to set this function to “OFF”; otherwise, the VCR status information (on-screen display) will be recorded on the edited tape.

●

If you select a channel on which no signal is received, the channel number is displayed regardless of this function setting.

EN 31

*The default setting is bold in the table below.

䡵 AUTO SP = EP TIMER

OFF

䡵 VIDEO STABILIZER

OFF

When this function is set to “ON”, the VCR automatically switches to EP mode to allow complete recording if there is not enough tape to record the entire program while timer-recording in SP mode.

For Example . . .

Recording a program of 140 minutes in length onto a 120-minute tape

Approximately 110 minutes

SP mode

Approximately 30 minutes

EP mode

Make sure you set this function to “ON” before the timer-recording starts.

NOTES:

●

If you have programed the VCR to timer-record 2 or more programs, the second program and those thereafter may not fit on the tape with this function set to “ON”. In this case, do not use this function, but change the tape speed manually during timer programing.

●

In order to ensure that the recording fits on the tape, this function may leave a slight non-recorded portion at the end of the tape.

●

There may be some noise and sound disturbance where the tape speed switches from SP to EP mode on the tape.

●

This function is not available during ITR (Instant Timer Recording), and will not work properly on the following tapes: T(ST)-30, T(ST)-60, T(ST)-90, and T(ST)-

120.

When this function is set to “ON”, you can automatically correct vertical vibrations in the picture when playing back unstable recordings made on another VCR.

䡵 BLUE BACK

OFF

NOTES:

●

When you finish viewing a tape, be sure to set this function to “OFF”.

●

Regardless of the setting, this function has no effect during recording and during special effects playback.

●

The on-screen display may jitter vertically when this function is set to “ON”.

●

To watch recordings with close-caption, set this function to “OFF”.

When this function is set to “ON”, the TV screen becomes all blue in the following cases:

● When receiving a channel not in use.

● When stopping playback.

NOTE:

When you want to receive an unstable channel with poor signals, set this function to “OFF”.

32 EN

䡵 2ND AUDIO RECORD

OFF

OTHER USEFUL FUNCTIONS (cont.)

*The default setting is bold in the table below.

When this function is set to “ON”:

● If a SAP program is received, the SAP audio is recorded on both the normal and Hi-Fi tracks. The main audio is not recorded.

● If a non-SAP program is received, the main audio is recorded on both the Hi-Fi and normal tracks.

When this function is set to “OFF”, the SAP audio cannot be recorded.

䡵 AUDIO MONITOR

HI-FI: Normally select this.

Hi-Fi sound is played back.

HI-FI L: Sound on the left Hi-Fi

channel is played back.

HI-FI R: Sound on the right Hi-Fi

channel is played back.

NORM: Sound on the normal track

is played back.

MIX: Both sounds on the Hi-Fi

track and normal track are mixed and played back.

This VCR can record two sound tracks simultaneously (normal and HiFi) on a Hi-Fi stereo tape. You can select the sound track(s) to listen to while playing back a Hi-Fi stereo tape. In addition, when playing back a prerecorded tape containing two separate audio programs on the Hi-Fi tracks, you can choose either one by selecting either “HI-FI L” or “HI-FI R”.

NOTES:

●

While playing back a monaural tape, sounds on the normal track will be heard regardless of this setting.

●

If RF connection (墌 pg. 5) is used for viewing pictures on the TV, sound will be monaural even though you select “HI-FI”.

●

You can also use sound. (墌 pg. 14)

AUDIO

button on the Remote to select the desired monitor

EDITING

Edit To Or From Another VCR

Connection

Ex. When using this VCR as the playback VCR

This VCR (for playback)

Load cassettes

Insert the playback cassette into the playback VCR and the cassette to be recorded on into the recording VCR.

Select input mode on recording VCR

Select the correct external input on the other VCR.

● On this VCR (when using this VCR as the recording VCR);

Select “L-1” — when connecting the other VCR

to the audio/video input connectors on the rear panel.

Select “F-1” — when connecting the other VCR

to the audio/video input connectors on the front panel.

On the front panel: Press PR 5∞.

On the Remote:

Press the Number key “0 (AUX)” or PR +/–.

EN 33

To AUDIO/ VIDEO OUT

Audio/video cable (not supplied)

Another VCR (for recording)

You can use your VCR as the playback or recording VCR.

● Refer also to the other VCR’s instruction manual for connection and its operations.

Make connections

Connect an audio/video cable between the playback VCR’s audio/video output connectors and the recording VCR’s audio/video input connectors.

● If the playback VCR is monaural, connect the audio output connector on the playback VCR to the left audio input connector on this VCR.

● When using this VCR as the recording VCR, connect this VCR’s audio/video input connectors to the audio/video output connectors on the other VCR.

To Audio/ video Input

Select EDIT function

Set the EDIT function to “ON” for the VCRs if such a mode is equipped.

● On this VCR, set “PICTURE CONTROL” to “EDIT” by following the procedure described

on page 30.

Start playback

Press 3 on the playback VCR.

NOTE:

If the playback VCR is equipped with a superimpose disable feature then set it to “OFF” before starting playback (墌 pg. 30).

Start recording

Press ¶ on the recording VCR.

NOTE:

Be sure to select “AUTO” for “PICTURE CONTROL” (or “NORM” when “B.E.S.T.” is set to “OFF”) after you finish dubbing the tapes (墌 pg. 30).

34 EN

Edit From

EDITING (cont.)

Camcorder

Connection

This VCR (for recording )

STANDBY ON

VIDEO (MONO)L—AUDIO—R

PUSH JOG

To AUDIO/ VIDEO Input

Audio/video cable (not supplied)

–

SP EP

VCR

To rear panel PAUSE terminal

Mini-plug cable (not supplied) (JVC camcorder only)

4 7

STANDBY / ON

VIDEO (MONO)L—AUDIO—R

PUSH JOG

–

SP EP

VCR

3 5

123

456

To audio/video output

To EDIT

Camcorder (for playback)

EN 35

You can use a camcorder as the playback VCR and your VCR as the recording VCR.

Make connections

Connect an audio/video cable between the camcorder’s audio/video output connectors and your VCR’s video audio/video input connectors.

● When the JVC camcorder is equipped with the Master Edit Control, you can control the VCR from the camcorder. Connect the mini-plug cable (not supplied with this VCR) as illustrated to the left.

● When using a camcorder with a monaural output, connect the audio output connector on the camcorder to the left audio input connector on this VCR.

Load a cassette

Insert the cassette to be recorded on into this VCR (for recording).

Select input mode on this VCR

Select “L-1” — when connecting the camcorder

to the audio/video input connectors on the rear panel.

Select “F-1” — when connecting the camcorder

to the audio/video input connectors on the front panel.

On the front panel: Press PR 5∞.

On the Remote: Press the Number key “0 (AUX)” or PR +/–.

Return to normal screen

Press MENU.

Start playback

Press 3 on the camcorder.

NOTE:

If the camcorder is equipped with a superimpose/OSD disable feature then set it to “OFF” before starting playback.

Start recording

On the front panel: Press ¶.

On the Remote:

Press ¶ and 3 at the same time.

● If you are using a Master Edit Control-equipped JVC camcorder, recording starts automatically on this VCR. (Refer to camcorder’s instruction manual.)

NOTE:

Be sure to select “AUTO” for “PICTURE CONTROL” (or “NORM” when “B.E.S.T.” is set to “OFF”) after you finish dubbing the tapes (墌 pg. 30).

Access Main Menu screen on this VCR

Press MENU.

Access Function Set screen

On the front panel: Press PR 5∞ to move the highlight bar (arrow) to “FUNCTION SET”, then press OK.

On the Remote:

Press %ﬁ to move the highlight bar (arrow) to “FUNCTION SET”, then press OK or

Select “EDIT” for Picture Control

Follow the procedure described on pages 29 and

30.

36 EN

TV Brand

MULTI-BRAND REMOTE CONTROL

This Remote can control some functions of remote controllable TVs listed below. This Remote is factory preset to control JVC TVs.

Setting

–

1 3

TV/VCR

123

456

–

Number

–

ENTER

+/–

TV PR +/–

Turn on the TV

Turn on the TV using the Power button on the TV or its Remote.

Set TV brand code

Follow the example shown below.

Press and hold TV.

Press the Number keys to enter your TV’s brand code by referring to the table below.

Press OK, and release TV. The TV should turn off. If it does, try other operations below (墌 step 3).

● Once you have set the Remote to operate the TV, you do not have to set it again until you replace the batteries from the Remote.

● Some brands have several codes. If the TV does not function with one code, try entering the others.

Operate TV

First, press TV to set the Remote to TV mode, then press one of the following buttons:

TV/VCR, TV PR +/–, TV

(TV Volume) +/–, and Number keys.

(TV Muting),

● For some brands, you must press ENTER after having pressed the Number keys to enter a channel number.

NOTES:

●

Depending on the type of TV, some or all of the functions cannot be operated using this Remote.

●

This remote cannot operate a TV not equipped with a remote sensor.

TV BRAND NAME CODE

JVC 01, 23, 24, 25 AIWA 36 BEIJING 22 CCE 02 CHANGHONG 34 DAEWOO 17, 37 FERGUSON 27 FINLUX 30 FUNAI 32 GRADIENTE 15 GRUNDIG 19 HITACHI 10 ITT 28 JINXING 38 KONKA 40 LG/GOLDSTAR 18 MITSUBISHI 03 MIVER 29 NEC 20 NOBLEX 22 NOKIA 31 PANASONIC 04, 11 PEONY 34, 38, 39 PHILICO 10, 17, 21 PHILIPS 02, 42 SAMSUNG 12, 33, 34, 35 SANYO 13, 16 SHARP 06 SONY 07 TCL 41 THOMSON 26 TOSHIBA 08, 14

(Ex.) To set Remote to JVC 01:

Hold down

Press in succession

Release

ATTENTION

The Remote can operate not only this VCR but also some of your TV, cable box, satellite receiver and DVD.

● To operate your VCR, first press the VCR button to set the

Remote to the Video mode.

● To operate your TV, first press the TV button to set the

Remote to the TV mode (墌 above).

● To operate your cable box, satellite receiver or DVD, first

press the CABLE/SAT/DVD button to set the Remote to the cable box, satellite receiver or DVD mode.

Multi-Brand

Setting

–

1 3

CABLE/ SAT/DVD

123

456

EN 37

Enter unit brand code

Follow the example shown below.

Press and hold CABLE/SAT/DVD.

Press the Number keys to enter your unit’s brand code by referring to the table on the next page.

Press OK, and release CABLE/SAT/DVD. The unit should turn off. If it does, try other operations below (墌 step 3).

● Once you have set the Remote to operate the unit, you do not have to set it again until you replace the batteries from the Remote.

–

Number

–

ENTER

TV PR +/–

Operate unit

First, press CABLE/SAT/DVD to set the Remote to unit mode, then press corresponding button:

For cable box and satellite receiver;

, TV PR +/–, and Number keys.

For DVD;

, 3, 7, 8, ¡ , 1 , and @# (4¢)

keys.

● For some brands, you must press ENTER after having pressed the Number keys to enter a channel number.

● To change the cable box’s or satellite receiver’s channels, press TV PR +/– or the Number keys.

NOTES:

●

Depending on the type of unit, some or all of the functions cannot be operated using this Remote.

●

This Remote cannot operate a unit not equipped with a remote sensor.

●

It is not possible to set two units at the same time. You can only set the Remote to operate one of these units at a time.

●

You have to subscribe to a cable or satellite receiver service to receive cable or satellite receiver channels.

This Remote can control some functions of the cable boxes, satellite receiver or DVD listed on the next page. Some brands have more than one code. If your unit does not function with a specified code, try other codes.

Turn on the unit

Turn on the unit using the Power button on the unit or its Remote.

(Ex.) To set the Remote to JVC 72:

CABLE/

SAT/DVD

Hold down

Press in succession

Release

ATTENTION

The Remote can operate not only this VCR but also some of your TVs, cable box, satellite receiver and DVD.

● To operate your VCR, first press the VCR button to set the

Remote to the Video mode.

● To operate your TV, first press the TV button to set the Remote

to the TV mode.

● To operate your cable box, satellite receiver or DVD, first

press the CABLE/SAT/DVD button to set the Remote to the cable box, satellite receiver or DVD mode.

38 EN

MULTI-BRAND REMOTE CONTROL (cont.)

Cable Box or Satellite Receiver Multi-brand Code

CABLE BOX BRAND NAME CODE

JVC 72, 73 AMSTRAD 60, 61, 62, 63, 92 BT 72 CALAXIS 69, 88 CANAL+ 81 CANAL SATELLITE 81 D-box 85 ECHOSTAR 51, 78, 79, 80, 82 FINLUX 68 GRUNDIG 64, 65 HIRSCHMANN 64 ITT 68 JERROLD 01, 04, 06, 11, 12, 15,

28, 75 KATHREIN 70, 71 LUXOR 68 MASPRO 70 NOKIA 68, 87 PACE 67, 86, 92 PANASONIC 13, 14, 74 PFT 69 PHILIPS 66, 84 PHONOTREND 69 SALORA 68 SKYMASTER 69 TPS 83 VIDEOWAY 03, 09, 22, 76, 77 WISI 64

DVD Multi-brand Code

DVD BRAND NAME CODE

JVC 55 MATSUSHITA 58 PHILIPS 56 TOSHIBA 57

Changing

VCR

Remote Control Code

–

1 3

123

456

–

Number

EN 39

This Remote is capable of transmitting two control codes; one set to respond to A code control signals and another set to respond to B code control signals. This Remote control is preset to send A code signals because your VCR is initially set to respond to A code signals. You can easily modify your VCR and the Remote to respond to B code signals. When using two JVC VCRs, you can set the two VCRs and their Remotes to different codes, so that you can operate these VCRs separately.

Unplug VCR

Unplug the AC power cord from the AC outlet.

Set remote control code for Remote

Press and hold VCR.

Press the Number key “2”.

Press OK, and release VCR.

● The Remote now can transmit B code control signals.

Plug in VCR

Plug the AC power cord back into an AC outlet.

Turn on VCR

Press on the Remote.

● The VCR now responds to B code control signals.

● To set the Remote and the VCR back to A code control signals, repeat the same procedure as shown above but press the Number key “1” in step 2.

To control two VCRs with the same Remote

You can control two JVC VCRs by switching the remote control code for the Remote between A and B (墌 step

–

), keeping two VCRs to different control codes.

● Press the Number key “1” for A code control signals and the Number key “2” for B code control signals. (To change only the remote control code for the Remote, DO NOT perform steps 1, 3, and 4 .)

(Ex.) To set Remote to B code:

Release

Hold down

Press in succession

40 EN

TROUBLESHOOTING

Before requesting service, use this chart and see if you can repair the trouble yourself. Small problems are often easily corrected, and this can save you the trouble of sending your VCR off for repair.

POWER

SYMPTOM

1. The power will not come on.

2. The clock works, but the VCR’s power will not come on.

3. The Remote will not function.

TAPE TRANSPORT

SYMPTOM

1. The cassette gets stuck partway during loading, and is ejected.

PLAYBACK

SYMPTOM

1. The tape is running but the picture will not appear.

2. Breaks are noticeable in Hi-Fi sound track.

3. The playback picture is blurred or interrupted, even though TV broadcasts are clear.

4. The Hi-Fi sound cannot be heard.

POSSIBLE CAUSE

● The AC power cord is disconnected.

● The VCR is in the timer recording

standby mode with “AUTO TIMER” set to “OFF” (墌 pg. 30).

● The batteries are discharged.

POSSIBLE CAUSE

● The cassette was inserted incorrectly.

POSSIBLE CAUSE

● If the RF connection (墌 pg. 5) is used to view the picture, the channel on the TV is set incorrectly.

● If the AV connection (墌 pg. 5) is used to view the picture, the TV receiver is set to the wrong mode.

● Automatic tracking is engaged.

● The video heads may be dirty.

● Audio Monitor setting is incorrect.

CORRECTIVE ACTION

Connect the AC power cord.

‰‰

Press

‰ to disengage.

‰‰

Replace the dead batteries with new ones.

CORRECTIVE ACTION

Make sure the cassette’s window is facing up, the rear label side is facing you and the arrow on the front of the cassette is pointing towards the VCR. Then insert the cassette.

CORRECTIVE ACTION

Select channel 13 on the TV.

Select the AV mode on the TV.

Disengage auto tracking and adjust the tracking manually (墌 pg. 14).

The heads must be cleaned. Use a dry cleaning cassette TCL-2UX or consult your JVC dealer.

Set Audio Monitor to “HI-FI” (墌 pg. 14, 32).

RECORDING

SYMPTOM

1. Recording will not start.

2. TV broadcasts will not be recorded properly.

3. Tape-to-tape editing will not work.

POSSIBLE CAUSE

● There is no cassette loaded.

● The loaded cassette has had its

record safety tab removed.

● The VCR has been set to “L-1” or “F1” input mode by mistake.

● The VCRs or the camcorder and the VCR have been incorrectly connected.

● The power to one or more of the units has not been turned on.

● The recording VCR’s input mode has been set incorrectly.

CORRECTIVE ACTION

Insert a cassette. Remove the cassette and cover the hole with adhesive tape, or load a cassette on which the record safety tab is intact.

Select the appropriate channel on the VCR.

Refer to the directions and the illustration under “Editing To Or From Another VCR” (墌 pg. 33) or “Editing From Camcorder” (墌 pg. 34) and properly connect the units.

Make sure the power to all units is on.

Select the appropriate input mode on the recording VCR.

TIMER RECORDING

EN 41

SYMPTOM

1. Timer recording will not work.

2. Timer programing will not work.

3. ‰ and ] flash on the front

display panel.

4. The cassette is automatically

ejected, and ‰ and ] flash on the front display panel.

5. ‰ flashes for 10 seconds and the

timer mode is disengaged.

6. The cassette is automatically

ejected, the power shuts off, and ‰ and ] flash on the front display panel.

7. You moved, and now G-CODE system does not work properly.

8. “PROGRAM FULL” is displayed on the screen.

POSSIBLE CAUSE

● The clock and/or the timer have been set incorrectly.

● The timer is not engaged.

● The VCR has not been set up properly.

● Timer recording is in progress.

● The timer is engaged but there is no

cassette loaded.

● The loaded cassette has had its record safety tab removed.

‰‰

●

‰ has been pressed when there are

‰‰

no programs in memory, or the timer recording program has not been set correctly.

● The tape reaches its end during timer recording.

● The receivable stations in the new area are received on different channels than those in previous area.

● All 8 programs of the VCR’s timer memory are used.

CORRECTIVE ACTION

Set the clock and/or timer correctly.

‰‰

Press

‰ and check to make sure that

‰‰

‰ appears on the front display panel.

Re-perform the set-up procedures.

Make sure you have compensated for cable box channel number mismatches (墌 pg. 37).

Timer programing cannot be performed when timer recording is in progress. Wait until it finishes.

Load a cassette with the record safety tab intact, or with the hole covered with adhesive tape.

Remove the cassette and cover its hole with adhesive tape, or replace it with a cassette on which the safety tab is intact.

Check the programed data and set again if necessary, then press again.

The program may not have been recorded in its entirety. Next time be sure you have enough time on the tape to record the entire broadcast.

Re-perform the G-CODE system setup procedure (墌 pg. 23).

Wait until a space in memory clears, or cancel unnecessary program information (墌 pg. 28).

‰‰

‰

‰‰

INDEX

List of terms

This guide serves as a quick way to locate frequently used terms and on-screen display names.

EN 43

Accidental erasure prevention 16 Audio Monitor 14, 32 Auto Channel Set 10 Auto SP→EP Timer 31 Auto Timer 30 Automatic tracking 14 AV connection 5

B.E.S.T. 30 Blue Back 31

Channel No. indication 17 Clock setting 8 Clock time 13, 17 Connection to TV 5 Contents 3 Counter reset 13, 17

Editing

From another VCR 33 From camcorder 34 To another VCR 33

Express Timer Programing 25

Frame-by-Frame Playback 20 Function Set screen 29

Index Search 15 Instant ReView 15 Instant Timer Recording (ITR) 17

Manual tracking 14 Multi-Brand Remote

Controlling two JVC VCRs 39 Setting Cable Box brand 37 Setting Satellite receiver brand 37 Setting DVD brand 37 Setting TV brand 36

Next Function Memory 14

On-screen display 18, 30

Picture Control 30 Picture Search 19 Playback 12 Plug & Play 6

Recording 16 Recording Resume function 18 Repeat play 13 RF connection 5

Tape position indicator 13 Tape speed 16 Time counter 13, 17 Timer recording

Canceling 27 Changing 27 Checking 27 Express 25

G-

CODE

G-

CODE

System Setup 23

Overlap 28 Tracking 14 Troubleshooting 40 Tuner setting 10

Adding channels 11

Auto Channel Set 10

Manual Channel Set 11

Skipping channels 11

Variable-Speed Picture Search 19 Video Stabilizer 31

G-CODER System Setup 23

G-

CODE

Timer Programing 21

High-Speed Picture Search 19

Second Audio Record 18, 32 Slow Motion Playback 20 Special effect playback

Frame-by-Frame Playback 20 High-Speed Picture Search 19 How to use the

PUSH JOG buttons 19 Picture Search 19 Skip Search 20 Slow Motion Playback 20 Still Picture Playback 20 Variable-Speed Picture Search 19

Specifications 47 Still Picture Playback 20 Superimpose 30

44 EN

PUSH JOG

Front panel

INDEX (cont.)

STANDBY / ON

PUSH JOG

–

VIDEO (MONO)L—AUDIO—R

STANDBY/ON button : 墌 pg. 12, 16

Cassette loading slot

MENU button

1 button : 墌 pg. 12, 16

5‹ button : 墌 pg. 12, 16 6

¡ button : 墌 pg. 12, 16

AUDIO/VIDEO input connectors : 墌 pg. 34

PUSH JOG +/¢ button

* This button functions the same as the # button

on the Remote.

SP EP

VCR

PUSH JOG –/4 button *This button functions the same as the @ button

Front display panel : 墌 below

Remote sensor

PR 5∞ buttons : 墌 pg. 6

OK button

¶ button : 墌 pg. 16, 17

7 / 0 button : 墌 pg. 12, 16

8 button : 墌 pg. 16, 20

on the Remote.

^%$

Front display panel

Symbolic Mode Indicators

PLAY: FF/REW VARIABLE

SEARCH:

2 3

VCR

STILL: SLOW:

RECORD:

RECORD PAUSE:

Tape speed indicators

Timer mode indicator : 墌 pg. 22, 26

VCR mode indicator : 墌 pg. 16, 17

Cassette mark

Channel and auxiliary input (“L-1” and “F-1”) Counter reading : 墌 pg. 13, 17 Clock time : 墌 pg. 13, 17

1 2

8 9 0

Rear panel

EN 45

AC power cord : 墌 pg. 4, 5

PAUSE terminal : 墌 pg. 34

ANT. (Antenna) IN terminal : 墌 pg. 4, 5

On-screen display

2

PAUSE

AUDIO

VIDEO

AUDIO/VIDEO IN connectors : 墌 pg. 33

AUDIO/VIDEO OUT connectors : 墌 pg. 4, 5, 33

RF OUT terminal : 墌 pg. 4, 5

OUT

ANT.IN

RF OUT

CH 125 RECORD THU 12:00 AM PAUSE STEREO SP SAP

B - - - - - + - - - - - + - - - - - + - - - - - E

NORM HI–FI COUNT

Channel and auxiliary input (“L-1 and F-1”)

Date and clock time : 墌 pg. 13, 17

STEREO program indication

SAP (Second Audio Program) indication : 墌 pg. 18, 32

Audio monitor indication : 墌 pg. 14, 32

VCR operation mode indication

INDEX-1

–1:23:45

Tape speed indication

Cassette indication

Tape position indication : 墌 pg. 13

Index no. indication : 墌 pg. 15

Time counter : 墌 pg. 13, 17

)

t y

# $

(

46 EN

INDEX (cont.)

Remote

TV Button : 墌 pg. 36

VCR Button : 墌 pg. 39

TV/VCR Button : 墌 pg. 16, 17, 36

4 5

CABLE/

TV/VCR

DAILY/QTDN.

AUX

STOP FIN

EXPRESS

TV PR +

TV PR –

SAT/DVD

AUDIO

DATE

WEEKLY/HEBDO

30 SEC

VCR

123

456

VPS/PDC

0000

START DEBUT

PROG

–

You can to operate your TV

Buttons (3, 5, ^, *, (, E) with a small dot on the left side of the name can also be used to operate your TV. Before use, set the TV brand code of your TV.

(墌 pg. 36)

*If you use JVC’s TV, this setting is not necessary.

NUMBER Keys : 墌 pg. 11, 16, 22, 24, 36, 37, 39

VPS/PDC Button :

0000 Button : 墌 pg. 13, 17

STOP +/– Button : 墌 pg. 22, 25

START +/– Button : 墌 pg. 25

PROG (Program) Button : 墌 pg. 21,25

! @ #

¶ Button : 墌 pg. 16, 35

7 Button : 墌 pg. 12, 13, 16, 17

MENU Button : 墌 pg. 7

%ﬁ Button : 墌 pg. 6, 35 TV PR +/– Button: 墌 pg. 36, 37

CABLE/SAT/DVD Button : 墌 pg. 37

Button : 墌 pg. 6

(

AUDIO Button

)

– – :– – Button : 墌 pg. 13, 17, 18

DAILY Button : 墌 pg. 22, 26

WEEKLY Button : 墌 pg. 22, 26

AUX Button : 墌 pg. 33

‰ Button : 墌 pg. 22, 26, 27

DATE +/– Button : 墌 pg. 25

PR +/– Button : 墌 pg. 14, 16, 22, 25, 35

30 SEC Button : 墌 pg. 20

i o

3 Button : 墌 pg. 12

p Q

8 Button : 墌 pg. 12, 16, 20

OK Button : 墌 pg. 6 ENTER Button : 墌 pg. 36, 37, 39

TV +/– Button : 墌 pg. 36

How to use the Remote

Before use, insert two AA size batteries into the Remote with the polarity (ª and ·) matched correctly as indicated on the battery compartment or on the lid.

The Remote can operate most of your VCR’s functions, as well as basic functions of TV sets, cable boxes, Satellite receivers and DVDs.

● Point the Remote toward the remote sensor on the target component.

● The maximum operating distance of the remote control is about 8 m.

NOTE:

If the Remote does not work properly, remove its batteries, wait for a few seconds, replace the batteries and then try again.

Button : 墌 pg. 15

(No Function)

Button : 墌 pg. 21, 22, 27, 28

Button : 墌 pg. 27

1 Button : 墌 pg. 12, 14, 15, 16

: 墌 pg. 14, 32

(TV Muting) Button : 墌 pg. 36

(SP/EP) Button : 墌 pg. 16, 22, 25, 27

¡ Button : 墌 pg. 12, 15, 16, 19

( ™ £ ) Button : 墌 pg. 15, 19

SPECIFICATIONS

EN 47

GENERAL

Power requirement : AC 110 V`, 60 Hz Power consumption

Power on : 19 W Power off : 2.5 W

Temperature

Operating : 5°C to 40°C (41°F to 104°F)

Storage : –20°C to 60°C (–4°F to 140°F) Operating position : Horizontal only Dimensions (W x H x D): 400 mm x 94 mm x 278 mm Weight : 3.3 kg (7.3 lbs) Format : VHS NTSC standard Maximum recording time

SP : 210 min. with ST-210 video

EP : 630 min. with ST-210 video

VIDEO/AUDIO

Signal system : NTSC-type color signal and

Recording Playback system : DA-4 (Double Azimuth) head

Signal-to-noise ratio : 45 dB Horizontal resolution : 240 lines Frequency range

Input

Normal audio : 70 Hz to 10,000 Hz Hi-Fi audio : 20 Hz to 20,000 Hz

/Output : RCA connectors

cassette

EIA monochrome signal, 525 lines/60 fields

helical scan system

(IN x 2, OUT x 1)

TUNER

Tuning system : Frequency-synthesized tuner Channel coverage

VHF : Channels 2 – 13 UHF : Channels 14 – 69 CATV : 113 Channels

RF output : Channel 13

75 Ω, unbalanced

TIMER

Clock reference : Quartz Program capacity : 1-year programmable timer/

8 programs

Memory backup time : Approx. 3 min.

ACCESSORIES

Supplied accessories : RF cable (F-type)

Infrared remote control unit “AA” battery x 2

Specifications shown are for SP mode unless otherwise specified. E. & O.E. Design and specifications subject to change without notice.

VICTOR COMPANY OF JAPAN, LIMITED

HR-J2010T

Printed in Malaysia 0600 IYV*GK*PJ

JVC HR-J2010T, HR-J770KR User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Basic Connections

INSTALLING YOUR NEW VCR

Plug & Play Setting

INITIAL SETTINGS

Clock Setting

Tuner Setting

Basic Playback

BASIC PLAYBACK AND RECORDING

Basic Recording

Basic Recording Features

SPECIAL EFFECT PLAYBACK

Special Effect Playback

TIMER RECORDING

G-CODER Timer Programing

Express Timer Programing

OTHER USEFUL FUNCTIONS

Useful Function Settings

EDITING

Edit To Or From Another VCR

MULTI-BRAND REMOTE CONTROL

TROUBLESHOOTING

INDEX

SPECIFICATIONS
