JVC GR-FX10EA, GR-FX10EE Service Manual

Cassette Adapter C-P7U

Dimensions : 188 (W) x 25 (H) x 104 (D) mm Weight : Approx. 240 g Accessory : “R6 (AA)”-size battery x 1

Provided Accessories ..........................Z pg. 3

Optional Accessories

• Battery Packs BN-V12U, BN-V20U, BN-V856U

• Car Battery Charger BH-V3E

• Compact VHS (

) Cassettes EC-60/45/30

• Active Carrying Bag CB-V7U

• Remote Control Unit RM-V700U

Some accessories are not available in some areas. Please consult your nearest JVC dealer for details on accessories and their availability.

Specifications shown are for SP mode unless otherwise indicated.

E & O.E. Design and specifications subject to change without notice.

Camcorder

General

Format : VHS PAL standard Power source : DC 6.0 V Power consumption : 5.2 W Signal system : PAL-type Video recording system

Luminance : FM recording Colour : Converted sub-carrier

direct recording Conforms to VHS standard

Cassette :

cassette

Tape speed

SP : 23.39 mm/sec. LP : 11.70 mm/sec.

Recording time (max.)

SP : 60 minutes LP : 120 minutes (with EC-60 cassette)

Operating temperature

:0°C to 40°C

Operating humidity : 35% to 80% Storage temperature : –20°C to 50°C Weight : Approx. 740 g Dimensions : 91 (W) x 119 (H) x 198 (D) mm (with

the viewfinder fully tilted downward)

Pickup : 1/4” format CCD Lens : F1.6, f = 3.9 to 62.4 mm, 16:1 power

zoom lens with auto iris and macro control, filter diameter 40.5 mm

Viewfinder : Electronic viewfinder with

0.5” black/white CRT

White balance

adjustment : Auto/Manual adjustment

Connectors

JLIP : ø3.5 mm, 4-pole,

mini-head jack (compatible with RC-5325 plug)

Video : 1 Vp-p, 75 Ω unbalanced, analogue

output (via Video output connector)

Audio : –8 dBs, 1 kΩ analogue output

(via Audio output connector)

AC Power Adapter/Charger AA-V15EG

Power requirement : AC 110 V to 240 V`,

50/60 Hz

Power consumption : 23 W Output

Charge : DC 8.5 V

, 1.3 A

VTR : DC 6.3 V

, 1.8 A

Charging system : Constant current, peak detection,

timer controlled

Dimensions : 140 (W) x 42 (H) x 68 (D) mm Weight : Approx. 300 g

COMPACT VHS CAMCORDER

GR-FX10EA/EE

Compa ct VHS

PAL

Regarding service information other than these sections, refer to the GR-FX10EK service manual (No. 86457). Also, be sure to note important safety precautions provided in the service manual.

SPECIFICATIONS

(The specifications shown pertain specifically to the model GR-FX10EE)

No. 86483

April 1999

TABLE OF CONTENTS

4. CHARTS AND DIAGRAMS

4.1 BOARD INTERCONNECTIONS .................................................................................................................................4-3

4.2 CPU SCHEMATIC DIAGRAM .....................................................................................................................................4-5

4.4 CTL AMP SCHEMATIC DIAGRAM .............................................................................................................................4-8

4.5 MECHA MDA SCHEMATIC DIAGRAM .......................................................................................................................4-9

4.6 Y/C & AUDIO SCHEMATIC DIAGRAM..................................................................................................................... 4-11

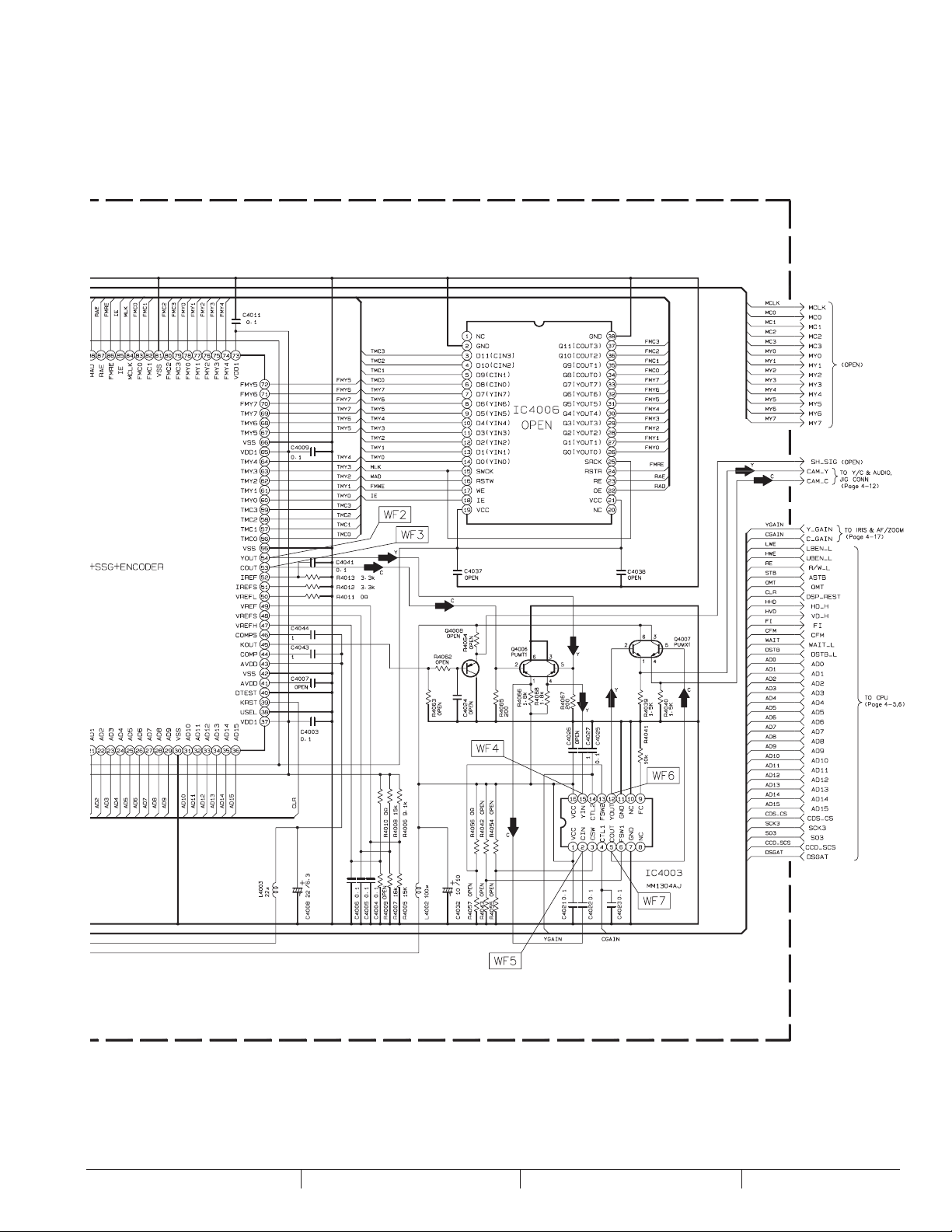

4.8 DSP SCHEMATIC DIAGRAM ................................................................................................................................... 4-15

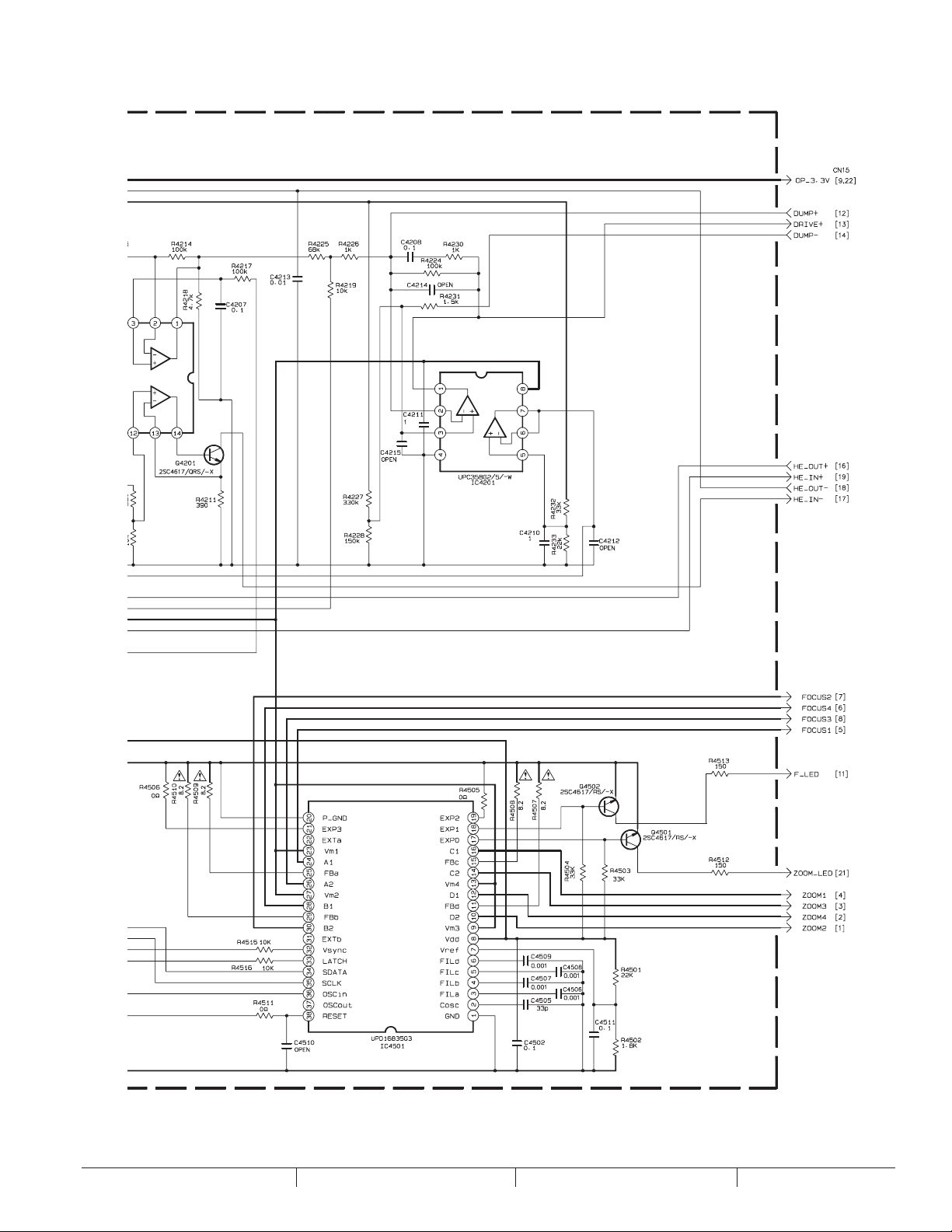

4.9 IRIS & AF/ZOOM SCHEMATIC DIAGRAM............................................................................................................... 4-17

4.10 REGULATOR SCHEMATIC DIAGRAM ....................................................................................................................4-19

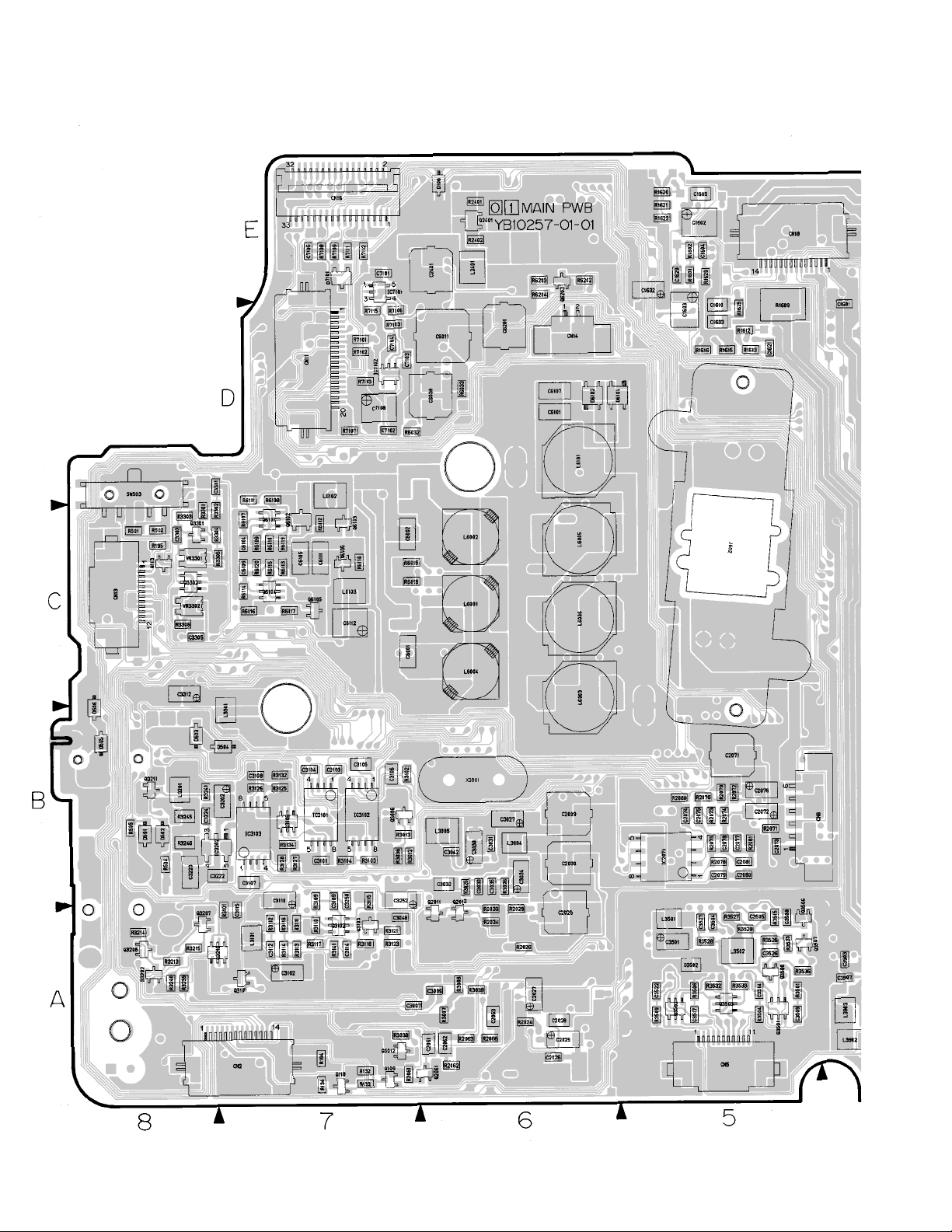

4.12 MAIN CIRCUIT BOARD............................................................................................................................................4-23

4.17 POWER SYSTEM BLOCK DIAGRAM......................................................................................................................4-37

5. PARTS LIST

5.1 P ACKING ASSEMBL Y<M1> ....................................................................................................................................... 5-1

The following table indicate main different points between models GR-FX10EK, FX10EE and GR-FX10EA.

MODEL

ITEM

AC POWER ADAPTER AA-V15EK C AA-V15EG C AA-V15EA C CABLE ASSY (AUDIO/VIDEO) –

CONNECTOR, CABLE ADAPTER – BATTERY PACK (PROVIDED) BN-V12U

Note: Mark – is not used. Mark is used. Mark

The following table indicate different parts number between models GR-FX10EK, FX10EE and GR-FX10EA. PACKING ASSEMBLY <M1>

REF No.

2 PACKING CASE LY30905-031A LY30905-061A LY30905-058A

4 POLY BAG YQM30061-3 QPA02003006 5 INST. BOOK (EN) LYT0283-001A LYT0350-001A LYT0349-001A INST. BOOK (RU) – LYT0350-002A – INST. BOOK (CZ) – LYT0350-003A – INST. BOOK (PO) – LYT0350-004A – INST. BOOK (HU) – LYT0350-005A –

7 GUARANTEE CARD BT-54008-2 – –

9 CONNECTOR, CABLE ADAPTER PEMC1174 –

12 CABLE ASSY(AUDIO/VIDEO) – PEAC0362-150 20 WARRANTY CARD – BT-54012-1 BT-56001-2 21 SER. NET CARD – – BT-56002-2 22 SHEET (ATT.) – LYT0290-001A –

ITEM

MODEL

GR-FX10EK GR-FX10EE GR-FX10EA

BN-V20U

is same as left.

GR-FX10EK GR-FX10EE GR-FX10EA

Note: Mark – is not used. Mark

is same as left.

MAIN BOARD ASSEMBLY <01>

REF No.

PW MAIN BOARD ASSY YB10244PJ-02 YB10244PJ-03 YB10257PJ-01 IC4005 IC MM1385EN – IC5203 IC MM1385HN – Q111 TRANSISTOR DTC144EE – Q112 TRANSISTOR DTA124EE – Q4008 TRANSISTOR 2SA1774/RS/-X – Q4009 TRANSISTOR 2SA1774/RS/-X – Q4010 TRANSISTOR 2SA1774/RS/-X – Q6005 TRANSISTOR 2SB1121/ST/-X – Q6006 TRANSISTOR 2SC4617/QR/-X – Q6007 TRANSISTOR 2SA1774/QR/-X – Q6009 TRANSISTOR 2SC4617/QR/-X – Q6103 TRANSISTOR – – 2SC4617/QR/-X Q6104 PAIR TRANSISTOR – – HN1A01FU/G/-X Q6105 TRANSISTOR – – 2SC4617/QR/-X D6001 DIODE 1SS355 – D6002 DIODE 1SS355 – D6003 DIODE 1SS355 – D6004 ZENER DIODE MA8091/L/-X – D6101 SB DIODE – – 1SS383 D6102 SB DIODE – – 1SS383 R196 MG RESISTOR – NRSA63J-0R0X R1631 MG RESISTOR NRSA63J-0R0X – R2005 MG RESISTOR NRSA63J-473X – R2006 MG RESISTOR NRSA63J-473X – R2013 MG RESISTOR NRSA63J-820X – R2014 MG RESISTOR NRSA63J-820X – R2015 MG RESISTOR NRSA63J-820X – R2027 MG RESISTOR NRSA63J-101X – R2036 CMF RESISTOR NRVA63D-332X – R2063 MG RESISTOR – – NRSA63J-104X R2065 MG RESISTOR NRSA63J-0R0X – R2077 MG RESISTOR NRSA63J-105X – R2080 MG RESISTOR NRSA63J-0R0X – NRSA63J-0R0X R2081 MG RESISTOR NRSA63J-563X – R4001 MG RESISTOR NRSA63J-0R0X – R4004 MG RESISTOR NRSA63J-0R0X – R4043 MG RESISTOR NRSA63J-0R0X – R4055 MG RESISTOR NRSA63J-0R0X – R4062 MG RESISTOR NRSA63J-333X – R4063 MG RESISTOR NRSA63J-123X – R4064 MG RESISTOR NRSA63J-182X – R4234 MG RESISTOR – NRSA63J-0R0X – R6029 MG RESISTOR NRSA63J-474X – R6030 MG RESISTOR NRSA63J-103X

ITEM

MODEL

GR-FX10EK GR-FX10EE GR-FX10EA

–

Note: Mark – is not used. Mark

is same as left.

REF No.

R6031 MG RESISTOR NRSA63J-152X – R6032 MG RESISTOR NRSA63J-473X – R6043 MG RESISTOR NRSA63J-0R0X – R6047 MG REISSTOR NRSA63J-682X – R6048 CMF RESISTOR NRVA63D-393X – R6049 CMF RESISTOR NRVA63D-332X – R6050 MG RESISTOR NRSA63J-222X – R6054 MG RESISTOR NRSA02J-153X – R6055 MG RESISTOR NRSA63J-124X – R6056 MG RESISTOR NRSA63J-103X – R6101 CMF RESISTOR – – NRVA63D-124X R6102 CMF RESISTOR – – NRVA63D-103X R6103 MG RESISTOR – – NRSA63J-474X R6104 CMF RESISTOR – – NRVA63D-682X R6105 CMF RESISTOR – – NRVA63D-393X R6106 CMF RESISTOR – – NRVA63D-332X R6112 MG RESISTOR – – NRSA63J-222X R6113 CMF RESISTOR – – NRVA63D-823X R6114 CMF RESISTOR – – NRVA63D-393X R6115 MG RESISTOR – – NRSA63J-333X R6116 MG RESISTOR – – NRSA63J-333X R6117 MG RESISTOR – – NRSA63J-102X R6120 CMF RESISTOR – – NRVA63D-823X C1207 CAPACITOR – NCB21EK-103X C2008 E CAPACITOR NEZ0012-476X – C2031 CAPACITOR NCB31HK-102X – C2077 CAPACITOR NDC31HJ-121X – C2081 CAPACITOR NDC31HJ-121X – C3018 T CAPACITOR NBE20JM-106X – C4007 CAPACITOR NCF31EZ-104X – C4024 CAPACITOR NCB31HK-102X – C4026 CAPACITOR NCF31EZ-104X – C4033 CAPACITOR NCB21AK-105X – C4034 CAPACITOR NCF31EZ-104X – C5203 CAPACITOR NCF31EZ-104X – C5205 CAPACITOR NCF31EZ-104X – C5218 CAPACITOR NCB21AK-105X – C5221 CAPACITOR NCF31EZ-104X – C5222 CAPACITOR NCF31EZ-104X – C5227 CAPACITOR NCB31CK-104X – C5231 CAPACITOR NCF31EZ-104X – C5235 CAPACITOR NCF31EZ-104X – C6030 E CAPACITOR NEA71CM-106X – C6040 CAPACITOR NCB11CK-105X – C6041 CAPACITOR NCB11CK-105X

Note: Mark – is not used. Mark

ITEM

MODEL

is same as left.

GR-FX10EK GR-FX10EE GR-FX10EA

–

REF No.

C6042 CAPACITOR NCB11CK-105X – C6043 CAPACITOR NCB11CK-105X – C6044 CAPACITOR NCB11CK-105X – C6047 CAPACITOR NCB31HK-102X – C6048 CAPACITOR NCB11CK-105X – C6049 CAPACITOR NCB11CK-105X – C6050 CAPACITOR NCB11CK-105X – C6101 CAPACITOR – – NCB11CK-105X C6102 CAPACITOR – – NCB11CK-105X C6103 CAPACITOR – – NCB31HK-152X C6105 CAPACITOR – – NCB11CK-105X C6107 CAPACITOR – – NCB11CK-105X C6108 CAPACITOR – – NCB11CK-105X C6109 CAPACITOR – – NCB31EK-103X C6110 CAPACITOR – – NBE41AM-226X

L3003 COIL NQL315K-220X –

L4003 COIL – – NQL164K-220X L5202 COIL – – NQL164K-220X L6010 COIL – – NQL164K-220X L6101 COIL – – NQL17CM-221X T6001 SW TRANSF NQS0029-001X – CN8 CONNECTOR QGA1201C2-02X QGA1201C2-06X CN26 CONNECTOR QGA1201C2-02X

ITEM

MODEL

GR-FX10EK GR-FX10EE GR-FX10EA

–

SECTION 6 AC POWER ADAPTER

CABINET ASSEMBL Y <M2>

REF No.

1 UPPER CASE ASSY PTY10067-003 PTY10067-004 2 LOWER CASE ASSY PTY10067-013 PTY10067-015

Note: Mark – is not used. Mark

3 POWER CORD YQ10531-010 YQ10531-006 YQ21032-009

ITEM

is same as left.
