JVC GR-D250US User Manual
DIGITAL VIDEO CAMERA
Dear Customer,
Thank you for purchasing this digital
video camera. Before use, please
read the safety information and
precautions contained in the pages
3 – 4 and 9 to ensure safe use of this
product.
ENGLISH
GR-D250
Please visit our Homepage on the World Wide Web for
Digital Video Camera:
http://www.jvc.co.jp/english/cyber/
For Accessories:
http://www.jvc.co.jp/english/accessory/
GETTING STARTED
VIDEO RECORDING &
PLAYBACK
ADVANCED FEATURES
REFERENCES
TERMS
For Customer Use:
Enter below the Model No. and
Serial No. which is located on the
bottom of the camcorder. Retain this
information for future reference.
Model No.
Serial No.
6
17
22
38
47
INSTRUCTIONS
To deactivate the demonstration,
set “DEMO MODE” to “OFF”.
(墌 pg. 22, 25)
LYT1353-001A
EN
2 EN
Major Features of this Camcorder

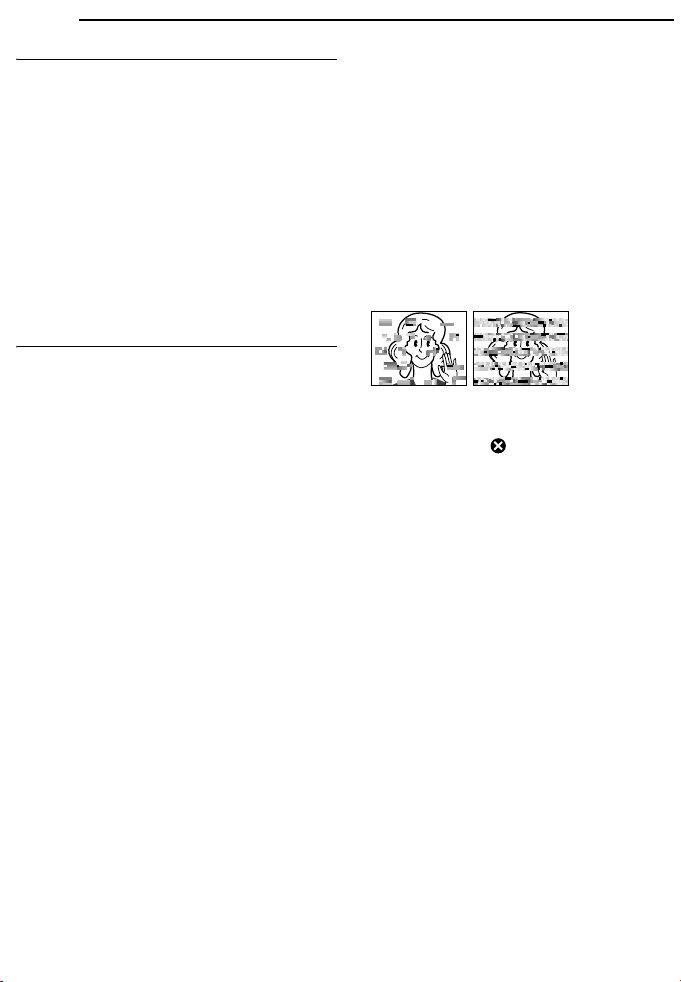

Wipe/Fader Effects
You can use the Wipe/Fader Effects to make
pro-style scene transitions. (墌 pg. 33)
Fade in
Fade out
Program AE with Special Effects
For example, “SPORTS” mode allows fastmoving images to be captured one frame at a
time, for vivid, stable slow-motion. (墌 pg. 34)
Backlight Compensation
Simply pressing the BACK LIGHT button
brightens the image darkened by backlight.
(墌 pg. 31)
● You can also select a spot metering area so
that more precise exposure compensation
is available. (墌 pg. 31, Spot Exposure
Control)
Data Battery
You can check the battery status by simply
pressing the DATA button. (墌 pg. 12)
BATTERY CONDITION
MAX TIMELEVEL
100
%
50
0
LCD
60
FINDER
80
min
min
SAFETY PRECAUTIONS
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK,
DO NOT REMOVE COVER (OR BACK).
NO USER-SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
The lightning flash with arrowhead symbol, within an
equilateral triangle, is intended to alert the user to the
presence of uninsulated "dangerous voltage" within the
product's enclosure that may be of sufficient magnitude
to constitute a risk of electric shock to persons.
The exclamation point within an equilateral triangle is
intended to alert the user to the presence of important
operating and maintenance (servicing) instructions in
the literature accompanying the appliance.
WARNING: TO PREVENT FIRE OR SHOCK
HAZARD, DO NOT EXPOSE THIS UNIT TO
RAIN OR MOISTURE.
CAUTIONS:
● This camcorder is designed to be used with
NTSC-type color television signals. It cannot be
used for playback with a television of a different
standard. However, live recording and LCD
monitor/viewfinder playback are possible
anywhere.
● This product includes patented and other
proprietary technology and will operate only
with JVC Data Battery. Use the JVC
BN-VF707U/VF714U/VF733U battery packs
and, to recharge them or to supply power to the
camcorder from an AC outlet, use the provided
multi-voltage AC Adapter. (An appropriate
conversion adapter may be necessary to
accommodate different designs of AC outlets in
different countries.)
Caution on Replaceable lithium battery
The battery used in this device may present a fire
or chemical burn hazard if mistreated.
Do not recharge, disassemble, heat above 100°C
(212°F) or incinerate.
Replace battery with Panasonic (Matsushita
Electric), Sanyo, Sony or Maxell CR2025.
Danger of explosion or Risk of fire if the battery is
incorrectly replaced.
● Dispose of used battery promptly.
● Keep away from children.
● Do not disassemble and do not dispose of in
fire.
EN 3
NOTES:
● The rating plate (serial number plate) and
safety caution are on the bottom and/or the
back of the main unit.
● The rating information and safety caution of the
AC Adapter are on its upper and lower sides.
This product has a fluorescent lamp that contains
a small amount of mercury. Disposal of these
materials may be regulated in your community
due to environmental considerations.
For disposal or recycling information please
contact your local authorities, or the Electronics
Industries Alliance:
<http://www.eiae.org>
4 EN
When the equipment is installed in a cabinet or on
a shelf, make sure that it has sufficient space on
all sides to allow for ventilation (10 cm (3–15/16")
or more on both sides, on top and at the rear).
Do not block the ventilation holes.
(If the ventilation holes are blocked by a
newspaper, or cloth etc. the heat may not be able
to get out.)
No naked flame sources, such as lighted candles,
should be placed on the apparatus.
When discarding batteries, environmental
problems must be considered and the local rules
or laws governing the disposal of these batteries
must be followed strictly.
The apparatus shall not be exposed to dripping or
splashing.
Do not use this equipment in a bathroom or
places with water.
Also do not place any containers filled with water
or liquids (such as cosmetics or medicines, flower
vases, potted plants, cups etc.) on top of this unit.
(If water or liquid is allowed to enter this
equipment, fire or electric shock may be caused.)
Do not point the lens or the viewfinder directly into
the sun. This can cause eye injuries, as well as
lead to the malfunctioning of internal circuitry.
There is also a risk of fire or electric shock.
CAUTION!
The following notes concern possible physical
damage to the camcorder and to the user.
When carrying, be sure to always securely attach
and use the provided strap. Carrying or holding
the camcorder by the viewfinder and/or the LCD
monitor can result in dropping the unit, or in a
malfunction.
Take care not to get your finger caught in the
cassette holder cover. Do not let children operate
the camcorder, as they are particularly
susceptible to this type of injury.
Do not use a tripod on unsteady or unlevel
surfaces. It could tip over, causing serious
damage to the camcorder.
CAUTION!
Connecting cables (Audio/Video, S-Video, etc.) to
the camcorder and leaving it on top of the TV is
not recommended, as tripping on the cables will
cause the camcorder to fall, resulting in damage.
IMPORTANT SAFETY INSTRUCTIONS
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with dry cloth.
7. Do not block any ventilation openings. Install in
accordance with the manufacturer’s instructions.
8. Do not install near any heat sources such as
radiators, heat registers, stoves, or other
apparatus (including amplifiers) that produce
heat.
9. Only use attachments/accessories specified by
the manufacturer.
10. Use only with the
cart, stand, tripod,
bracket, or table
specified by the
manufacturer, or
sold with the
apparatus. When a
cart is used, use
caution when
moving the cart/
apparatus combination to avoid injury from tipover.
11. Unplug this apparatus during lightning storms or
when unused for long periods of time.
12. Refer all servicing to qualified service
personnel. Servicing is required when the
apparatus has been damaged in any way, such
as power-supply cord or plug is damaged, liquid
has been spilled or objects have fallen into the
apparatus, the apparatus has been exposed to
rain or moisture, does not operate normally, or
has been dropped.
GETTING STARTED 6
Index................................................................. 6
Provided Accessories ..................................... 10
Power.............................................................. 11
Operation Mode.............................................. 13
Language Settings..........................................14
Date/Time Settings ......................................... 14
Grip Adjustment.............................................. 14
Viewfinder Adjustment.................................... 15
Brightness Adjustment Of The Display........... 15
Tripod Mounting.............................................. 15
Loading/Unloading A Cassette....................... 16
VIDEO RECORDING & PLAYBACK 17
VIDEO RECORDING ........................................... 17
Basic Recording.............................................. 17
Tape Remaining Time ................................ 17
LCD Monitor And Viewfinder ...................... 18
Zooming...................................................... 18
Journalistic Shooting .................................. 19
Time Code .................................................. 19
Quick Review.............................................. 19
Recording From The Middle Of A Tape...... 19
VIDEO PLAYBACK ............................................. 20
Normal Playback............................................. 20
Still Playback .............................................. 20
Shuttle Search............................................ 20
Blank Search .............................................. 20
Connections To A TV Or VCR........................ 21
CONTENTS
EN
ADVANCED FEATURES 22
MENUS FOR DETAILED ADJUSTMENT.................. 22
Changing The Menu Settings......................... 22
Recording Menus............................................ 23
Playback Menus ............................................. 26
FEATURES FOR RECORDING............................... 28
5-Second Recording....................................... 28
Night-Alive ...................................................... 28
Snapshot (For Video Recording).................... 29
Manual Focus ................................................. 29
Exposure Control............................................ 30
Iris Lock .......................................................... 30
Backlight Compensation................................. 31
Spot Exposure Control.................................... 31
White Balance Adjustment.............................. 32
Manual White Balance Adjustment................. 32
Wipe Or Fader Effects .................................... 33
Program AE With Special Effects ................... 34
EDITING............................................................ 35
Dubbing To A VCR ......................................... 35
Dubbing To Or From A Video Unit Equipped With
A DV Connector (Digital Dubbing).............. 36
Connection To A Personal Computer............. 37
REFERENCES 38
TROUBLESHOOTING.......................................... 38
USER MAINTENANCE......................................... 42
CAUTIONS ........................................................43
SPECIFICATIONS................................................ 46
TERMS 47
5
6 EN
Index
GETTING STARTED
R S
1
B C DE
T
Y
Z
a
bc
d
M
6
N
IK LQ
J
O
P
78
VUWX
Controls
A Stop Button [8] (墌 pg. 20)
Backlight Compensation Button [BACK
LIGHT] (墌 pg. 31)
B Play/Pause Button [4/9] (墌 pg. 20)
Manual Focus Button [FOCUS] (墌 pg. 29)
C Rewind Button [3] (墌 pg. 20)
Menu select Button [–] (墌 pg. 14)
Quick Review Button [ ] (墌 pg. 19)
D Fast-Forward Button [5] (墌 pg. 20)
Menu select Button [+] (墌 pg. 14)
Night Button [NIGHT] (墌 pg. 28)
E Menu Button [MENU] (墌 pg. 22)
Data Battery Button [DATA] (墌 pg. 12)
F Dioptre Adjustment Control (墌 pg. 15)
G Snapshot Button [SNAPSHOT] (墌 pg. 29)
H Power Zoom Lever [T/W] (墌 pg. 18)
Speaker Volume Control [VOL. +, –]
(墌 pg. 20)
I Battery Release Button [PUSH BATT.]
(墌 pg. 11)
J Recording Start/Stop Button (墌 pg. 17)
K Power Switch [A, M, PLAY, OFF] (墌 pg. 13)
L Lock Button (墌 pg. 13)
M Cassette Open/Eject Switch [OPEN/EJECT]
(墌 pg. 16)
Connectors
The connectors are located beneath the covers.
N Audio/Video Output Connector [AV]
(墌 pg. 21, 35)
O DC Input Connector [DC] (墌 pg. 11)
P Digital Video Connector [DV IN/OUT] (i.Link*)
(墌 pg. 36, 37)
* i.Link refers to the IEEE1394-1995 industry
specification and extensions thereof. The logo
is used for products compliant with the i.Link
standard.
Indicators
Q POWER/CHARGE Lamp (墌 pg. 11, 17)
GETTING STARTED
Other Parts
R Monitor Latch (墌 pg. 18)
S LCD Monitor (墌 pg. 18, 19)
T Viewfinder (墌 pg. 15)
U Battery Pack Mount (墌 pg. 12)
V Shoulder Strap Eyelet (墌 pg. 11)
W Speaker (墌 pg. 20)
X Grip Strap (墌 pg. 14)
Y Lens
Z Camera Sensor
(Be careful not to cover this area, a sensor
necessary for shooting is built-in here.)
a Stereo Microphone
b Stud Hole (墌 pg. 15)
c Tripod Mounting Socket (墌 pg. 15)
d Cassette Holder Cover (墌 pg. 16)
EN 7
8 EN
GETTING STARTED
LCD Monitor/Viewfinder Indications
During Video Recording
90
1
2
25
x
qwe t
3
4
5
6
7
8
BRIGHT
SOUND12BIT
W
15:55
d
a Operation Mode (墌 pg. 13)
B : Night-Alive Indicator (墌 pg. 28)
: Gain Up Mode (墌 pg. 23)
C White Balance Indicator (墌 pg. 32)
D : Spot Exposure Control Indicator
(墌 pg. 31)
: Backlight Compensation Indicator
(墌 pg. 31)
±: Exposure Adjustment Indicator (墌 pg. 30)
E Selected Program AE With Special Effects
Indicator (墌 pg. 34)
F Iris Lock Indicator (墌 pg. 30)
G SOUND 12BIT/16BIT: Sound Mode Indicator
(墌 pg. 23) (Appears for approx. 5 seconds
after turning on the camcorder.)
H Digital Image Stabilizer (“DIS”) (墌 pg. 24)
I Approximate Zoom Ratio (墌 pg. 18)
J Zoom Indicator (墌 pg. 18)
K Selected Wipe/Fader Effect Indicator
(墌 pg. 33)
L Tape Running Indicator (墌 pg. 17)
(Rotates while tape is running.)
M Selected Wide Mode Indicator (墌 pg. 24)
N Recording Speed Mode (SP/LP) (墌 pg. 23)
O Tape Remaining Time (墌 pg. 17)
P REC: (Appears during recording.) (墌 pg. 17)
PAUSE: (Appears during Record-Standby
mode.) (墌 pg. 17)
O: (Appears when taking Snapshot.)
(墌 pg. 29)
Q 5S/Anim.: Displays the 5-Second Recording
mode or Animation recording mode.
(墌 pg. 24)
R Wind Cut Indicator (墌 pg. 24)
S Battery Remaining Power Indicator
(墌 pg. 40)
T Date/Time (墌 pg. 14)
r
1h40m
REC
50m
y
u
i
T
o
N
as
O V01000 '0
1
5
M
A
:
p
U Brightness Control Indicator (LCD monitor/
Viewfinder) (墌 pg. 15)
V Manual Focus Adjustment Indicator
(墌 pg. 29)
W Time Code (墌 pg. 26, 27)
During Video Playback
1L2
1
BIT
2 0 :/2M
2
I
X
BLANK SEARCH
PUSH "STOP" BUTTON
TO CANCEL
U
M
E
V
O
L
1
:
2
5
78
a Sound Mode Indicator (墌 pg. 26)
B Blank Search Indicator (墌 pg. 20)
C Tape Speed (墌 pg. 23)
D 4: Playback
5: Fast-Forward/Shuttle Search
3: Rewind/Shuttle Search
9: Pause
9 U: Forward Frame-By-Frame Playback/
Slow-Motion
Y 9: Reverse Frame-By-Frame Playback/
Slow-Motion
E Battery Remaining Power Indicator
(墌 pg. 40)
F Date/Time (墌 pg. 26, 27)
G VOLUME: Volume Level Indicator (墌 pg. 20)
BRIGHT: Brightness Control Indicator (LCD
monitor/Viewfinder) (墌 pg. 15)
H Time Code (墌 pg. 26, 27)
N
O1V01
:
00
43
50m
0 ' 0
6
5
5
M
A
GETTING STARTED
EN 9
Before Using This Camcorder
Make sure you only use cassettes with the Mini
DV mark .
This camcorder is designed exclusively for the
digital video cassette. Only cassettes marked
“ ” can be used with this unit.
Remember that this camcorder is not
compatible with other digital video formats.
Remember that this camcorder is intended for
private consumer use only.
Any commercial use without proper permission is
prohibited. (Even if you record an event such as a
show, performance or exhibition for personal
enjoyment, it is strongly recommended that you
obtain permission beforehand.)
Before recording important video, be sure to
make a trial recording.
Play back your trial recording to make sure the
video and audio have been recorded properly.
We recommend cleaning your video heads
before use.
If you haven’t used your camcorder for a while, the
heads may be dirty. We recommend periodically
cleaning the video heads with a cleaning cassette
(optional).
Be sure to store your cassette tapes and
camcorder in the proper environment.
Video heads can become dirty more easily if your
cassette tapes and camcorder are stored in a dusty
area. Cassette tapes should be removed from the
camcorder and stored in cassette cases. Store the
camcorder in a bag or other container.
Use SP (Standard) mode for important video
recordings.
LP (Long Play) mode lets you record 50% more
video than SP (Standard) mode, but you may
experience mosaic-like noise during playback
depending on the tape characteristics and the
usage environment.
So, for important recordings, we recommend using
SP mode.
It is recommended that you use JVC brand
cassette tapes.
Your camcorder is compatible with all brands of
commercially available cassette tapes complying
with the MiniDV standard, but JVC brand cassette
tapes are designed and optimized to maximize the
performance of your camcorder.
Also read “CAUTIONS” on pages 43 – 45.
10 EN
GETTING STARTED
Provided Accessories
OR
a AC Adapter AP-V16U or AP-V14U
b Battery Pack BN-VF707U
c Audio/Video Cable (ø3.5 mini-plug to RCA
plug)
d Shoulder Strap (墌 pg. 11 for attachment)
e Lens Cap (see the right column for
attachment)
NOTES:
● In order to maintain optimum performance of the
camcorder, provided cables may be equipped with
one or more core filter. If a cable has only one core
filter, the end that is closest to the filter should be
connected to the camcorder.
● Make sure to use the provided cables for
connections. Do not use any other cables.
How To Attach The Lens Cap
To protect the lens, attach
the provided lens cap to the
camcorder as shown in the
illustration.
NOTE:
To confirm the lens cap is on
correctly make sure the cap is
flush to the camcorder.
Place here during
shooting.
How To Attach The Shoulder Strap
Follow the illustration.
1 Thread the strap through the eyelet.
2 Fold it back and thread it through the strap
guide and the buckle.
● To adjust the length of the strap, loosen and then
tighten the strap in the buckle.
3 Slide the strap guide fully towards the eyelet.
Buckle
Strap guide
1
Eyelet
2
2
3
GETTING STARTED
EN 11
Power
This camcorder’s 2-way power supply system
lets you choose the most appropriate source of
power. Do not use provided power supply units
with other equipment.
Charging The Battery Pack
Power switch
M A
OFF
PLAY
POWER/
CHARGE
Open the cover.
POWER/CHARGE lamp
Battery pack mount
PUSH BATT.
Battery pack
Arrow
mark
To DC connector
AC Adapter
To AC outlet
1 Set the Power Switch to “OFF”.
2 With the arrow on the battery pack pointing
downward, push the battery pack slightly against
the battery pack mount a.
3 Slide down the battery pack until it locks in
place b.
4 Connect the AC Adapter to the camcorder.
5 Plug the AC Adapter into an AC outlet. The
POWER/CHARGE lamp on the camcorder
blinks to indicate charging has started.
6 When the POWER/CHARGE lamp goes out,
charging is finished. Unplug the AC Adapter
from the AC outlet. Disconnect the AC Adapter
from the camcorder.
12 EN
A
GETTING STARTED
To detach the battery pack
Slide the battery pack upward while pressing
PUSH BATT. to detach it.
Battery pack Charging time
BN-VF707U* Approx. 1 hr. 30 min.
BN-VF714U Approx. 2 hr. 40 min.
BN-VF733U Approx. 5 hr. 40 min.
* Provided
NOTES:
● It is recommended that only genuine JVC
batteries are used in this camcorder. Using
generic non-JVC batteries can cause damage to
the internal charging circuitry.
● If the protective cap is attached to the battery
pack, remove it first.
● During charging, the camcorder cannot be
operated.
● Charging is not possible if the wrong type of
battery is used.
● When charging the battery pack for the first time
or after a long storage period, the POWER/
CHARGE lamp may not light. In this case, remove
the battery pack from the camcorder, then try
charging again.
● If the battery operation time remains extremely
short even after having been fully charged, the
battery is worn out and needs to be replaced.
Please purchase a new one.
● Since the AC Adapter processes electricity
internally, it becomes warm during use. Be sure to
use it only in well-ventilated areas.
● Using the optional AA-VF7 Battery Charger, you
can charge the BN-VF707U/VF714U/VF733U
battery pack without the camcorder.
● After 5 minutes has elapsed in Record-Standby
mode with the cassette inserted, the camcorder
will automatically turn off its power supplied from
the AC adapter. In this case, the battery charge
starts if the battery is attached to the camcorder.
Using The Battery Pack
Perform steps 2 – 3 in “Charging The Battery
Pack”.
Maximum continuous recording time
Battery pack
BN-VF707U* 1 hr. 5 min. 1 hr. 25 min.
BN-VF714U 2 hr. 20 min. 3 hr.
BN-VF733U 5 hr. 25 min. 7 hr. 5 min.
* Provided
LCD monitor
on
Viewfinder on
NOTES:
● Recording time is reduced significantly under the
following conditions:
• Zoom or Record-Standby mode is engaged
repeatedly.
• The LCD monitor is used repeatedly.
• The playback mode is engaged repeatedly.
● Before extended use, it is recommended that you
prepare enough battery packs to cover 3 times the
planned shooting time.
TTENTION:
Before detaching the power source, make sure that
the camcorder’s power is turned off. Failure to do so
can result in a camcorder malfunction.
Data Battery System
You can check the remaining battery power and
the recordable time.
1) Make sure the battery is attached and the
Power Switch is set to “OFF”.
2) Open the LCD monitor fully.
3) Press DATA, and the battery status screen
appears.
● It can be displayed on the viewfinder when the
LCD monitor is closed.
● It is displayed for approx. 5 seconds if the
button is pressed and released quickly, and for
approx. 15 seconds if the button is pressed
and hold for several seconds.
● If “COMMUNICATION ERROR” appears
instead of the battery status even though you
tried to press DATA several times, there may
be a problem with your battery. In such a case,
consult your nearest JVC dealer.
Using AC Power
Perform step 4 in “Charging The Battery Pack”.
NOTE:
The provided AC Adapter features automatic
voltage selection in the AC range from 110 V to
240 V.
About Batteries
DANGER! Do not attempt to take the batteries
apart, or expose them to flame or excessive
heat, as it may cause a fire or explosion.
WARNING! Do not allow the battery or its
terminals to come in contact with metals, as this
can result in a short circuit and possibly start a
fire.
To resume the original function of the
accurate battery power indication
If the battery power indication differs from the
actual operating time, fully charge the battery,
and then run it down. However this function may
not turn back if the battery was used for a long
period of time under extremely high/low
temperature condition or charged too many
times.
GETTING STARTED
EN 13
Operation Mode
To turn on the camcorder, set the Power Switch
to any operation mode except “OFF” while
pressing down the Lock Button located on the
switch.
MENU/DATA
Choose the appropriate operation mode
according to your preference using the Power
Switch.
Power Switch Position
A (Full Auto Recording):
Allows you to record using NO special effects
or manual adjustments. Suitable for standard
recording.
The “A” indicator appears on the display.
M (Manual Recording):
Allows you to set various recording functions
using the Menus. (墌 pg. 22)
If you want more creative capabilities than Full
Auto Recording, try this mode.
OFF:
Allows you to switch off the camcorder.
PLAY:
● Allows you to play back a recording on the
tape.
● Allows you to set various playback functions
using the Menus. (墌 pg. 22)
Power Switch
Lock Button
M
A
POWER/
CHARGE
POWER/
CHARGE lamp
14 EN
GETTING STARTED
Power-Linked Operation
When the Power Switch is set to “A” or “M”, you
can also turn on/off the camcorder by opening/
closing the LCD monitor or pulling out/pushing in
the viewfinder.
INFORMATION:
The following explanations in this manual
supposes the use of LCD monitor in your
operation. If you want to use the viewfinder,
close the LCD monitor and pull out the
viewfinder fully.
Language Settings
The language on the display can be changed.
(墌 pg. 22, 26, 27)
1 Set the Power Switch to “M” while pressing
down the Lock Button located on the switch.
2 Open the LCD monitor fully. (墌 pg. 18)
3 Press MENU. The Menu Screen appears.
4 Press + or – to select
“n”, and press MENU.
The CAMERA DISPLAY
Menu appears.
5 Press + or – to select
“LANGUAGE”, and press
MENU.
6 Press + or – to select
the desired language, and
press MENU.
7 Press + or – to select
“BRETURN”, and press
MENU twice. The Menu
Screen closes.
LANGUAGE
J
BRIGHT
NCREON S E
–/TI DA E
MET
OT
– CO TI E
DEM
F
LANGUAGE ENGLISH
–
OK CL C
AD .
NRETUR
–
ENGLISH
ESPAÑOL
LA DASERA CM I YP
LA DASERA CM I YP
LC – T/D
AU
OF
DEC 02
V
: 0 0
5
Date/Time Settings
The date/time is recorded onto the tape at all
times, but its display can be turned on or off
during playback. (墌 pg. 22, 27)
1 Perform steps 1 – 4 in “Language Settings”
on the left column.
2 Press + or – to select “CLOCK ADJ.”, and
press MENU. The parameter for “Month” is
highlighted.
3 Press + or – to input
the month, and press
MENU. Repeat to input
the day, year, hour and
minute.
4 Press + or – to select
“BRETURN”, and press
MENU twice. The Menu Screen closes.
ASERA CM
J
Grip Adjustment
1 Adjust the velcro strip.
2 Pass your right hand
through the loop and grasp
' 0 5
the grip.
PM
3 Adjust your thumb and
fingers through the grip to
easily operate the
Recording Start/Stop
Button, Power Switch and
Power Zoom Lever. Be
sure to fasten the velcro strip to your preference.
I Y
D
P
LA
OK CL C
AD .
DEC 02
' 0 5
PM
: 0 0
5
GETTING STARTED
PAUSE
EN 15
Viewfinder Adjustment
1 Set the Power Switch to “A” or “M” while
pressing down the Lock Button located on the
switch.
2 Make sure the LCD monitor is closed and
locked. Pull out the viewfinder fully and adjust it
manually for best viewability.
3 Turn the Dioptre Adjustment Control until the
indications in the viewfinder are clearly focused.
Example:
Dioptre Adjustment Control
CAUTION:
When retracting the viewfinder, take care not to
pinch your fingers.
Brightness Adjustment Of The Display
1 Set the Power Switch
to “M” or “PLAY” while
pressing down the Lock
Button located on the
switch.
–
2 Open the LCD monitor
fully. (墌 pg. 18)
● To adjust the brightness of
the viewfinder, pull out the
viewfinder fully and set
“PRIORITY” to “FINDER”
(墌 pg. 22, 25).
3 Press MENU. The
Menu Screen appears.
MENU
BRIGHT
4 Press + or – to select “n”, and press MENU.
The CAMERA DISPLAY Menu appears.
5 Press + or – to select “BRIGHT”, and press
MENU. The Menu Screen closes and the
brightness control indicator appears.
6 Press + or – until the appropriate brightness
is reached.
7 Press MENU to clear the brightness control
indicator from the display.
+
Tripod Mounting
To attach the camcorder
to a tripod, align the
direction stud and screw
to the mounting socket
and stud hole on the
camcorder. Then tighten
the screw clockwise.
● Some tripods are not
equipped with studs.
